Introduction

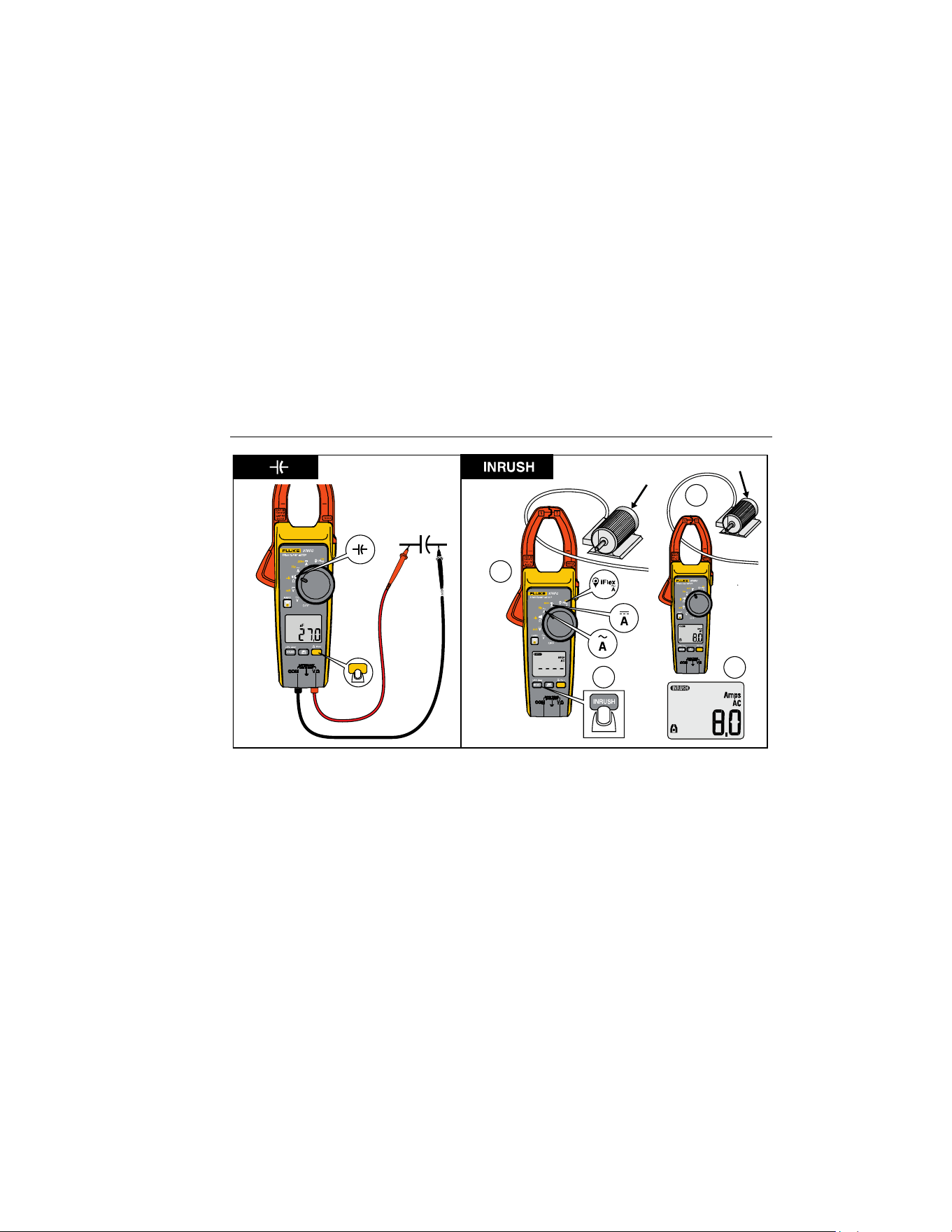

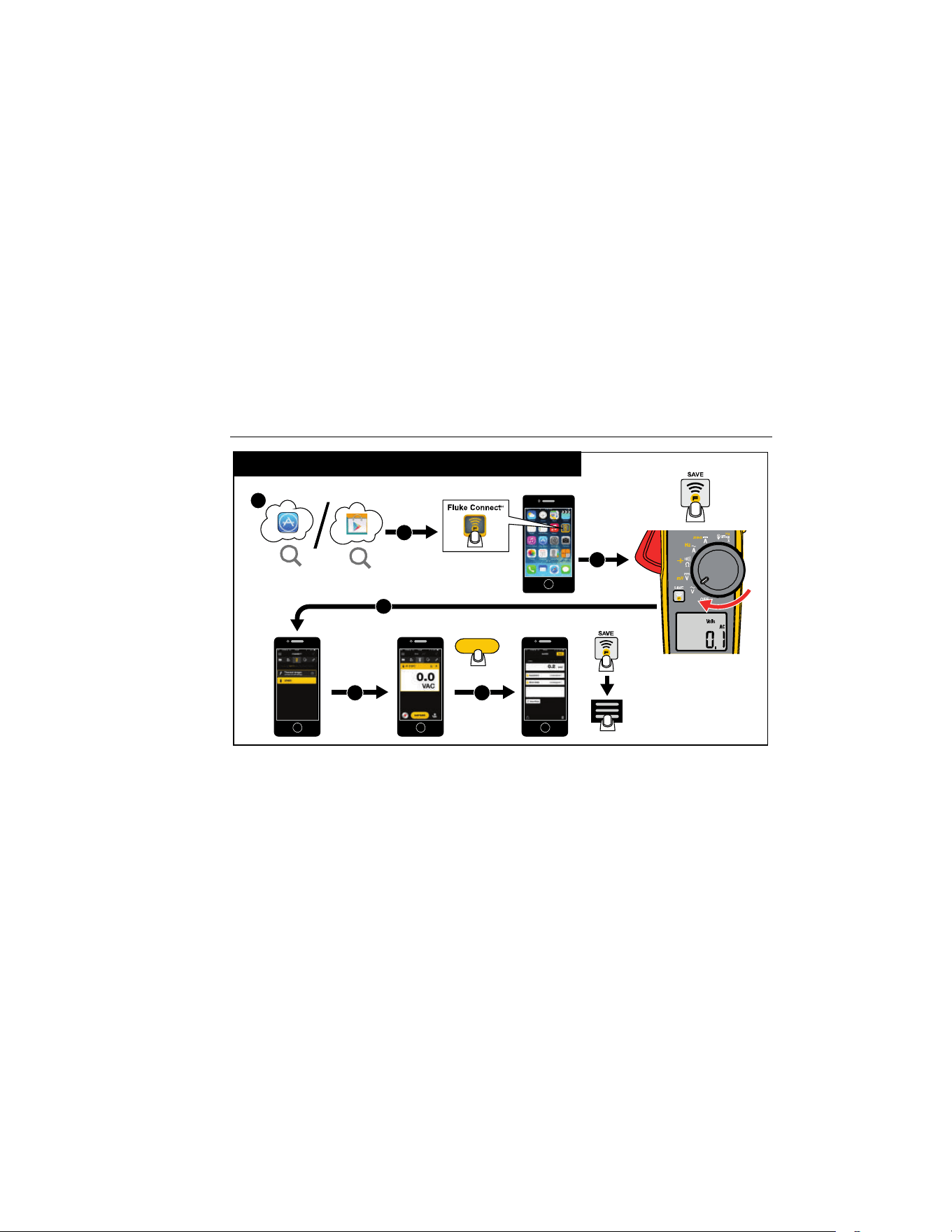

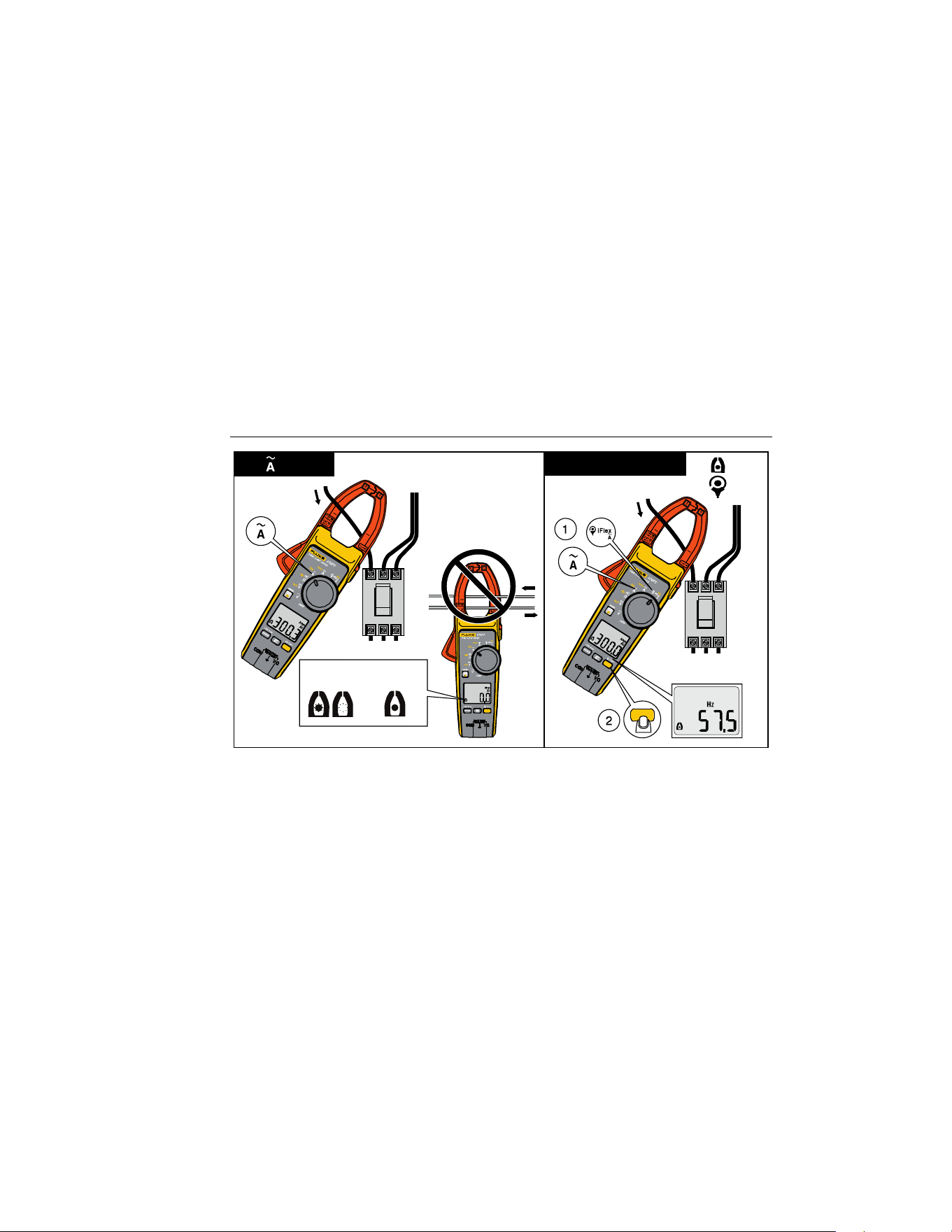

The Fluke 374 FC/375 FC/376 FC (the Product) measures true-rms ac current and voltage, dc
current and voltage, inrush current, resistance, and capacitance. The 375 FC and 376 FC also
measure frequency and dc millivolts. The detachable iFlex (Flexible Current Probe) that is
included with the 376 FC (optional with the 374 FC and 375 FC) expands the measurement range
to 2500 A ac. The Flexible Current Probe provides increased display flexibility and allows
measurements of awkward sized conductors and improved wire access. The illustrations in this
manual show the 376 FC.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Safety Information
3
Safety Information
A Warning identifies conditions and procedures that are dangerous to the user. A Caution
identifies conditions and procedures that can cause damage to the Product or the equipment
under test.
Symbols used on the Product and in this manual are explained in Table 1.
Warning
To prevent possible electrical shock, fire, or personal injury:
• Carefully read all instructions.
• Read all safety information before you use the Product.
• Use the Product only as specified, or the protection supplied by the Product can
be compromised.
• Do not use the Product around explosive gas, vapor, or in damp or wet
environments.
• Do not use and disable the Product if it is damaged.
• Do not use the Product if it operates incorrectly.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
4
• Prior to use, ensure the Product is clean, dry, and in good repair. Do not use the
product if has been exposed to water, cleaning solutions, battery electrolyte
leakage, or other contaminants that may have entered the enclosure. These
contaminants can reduce or eliminate the protection provided by the Product
against electric shock or arc explosion. Have the product dried, cleaned, or
repaired as necessary to ensure continued safe operation
• Use only correct measurement category (CAT), voltage, and amperage rated
probes, test leads, and adapters for the measurement.
• Do not exceed the Measurement Category (CAT) rating of the lowest rated
individual component of a Product, probe, or accessory.
• Comply with local and national safety codes. Use personal protective equipment
(approved rubber gloves, face protection, and flame-resistant clothes) to prevent
shock and arc blast injury where hazardous live conductors are exposed.
• Before each use, examine the Product. Look for cracks or missing pieces of the
clamp housing or output cable insulation. Also look for loose or weakened
components. Carefully examine the insulation around the jaws.
• Do not use test leads if they are damaged. Examine the test leads for damaged
insulation and measure a known voltage.
• Do not touch voltages >30 V ac rms, 42 V ac peak, or 60 V dc.
• Do not measure current while the test leads are in the input jacks.
• Do not apply more than the rated voltage, between the terminals or between each
terminal and earth ground.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Safety Information
5
• De-energize the circuit or wear personal protective equipment in compliance with
local requirements before you apply or remove the Flexible Current Probe.
• Measure a known voltage first to make sure that the Product operates correctly.
• Limit operation to the specified measurement category, voltage, or amperage
ratings.
• The battery door must be closed and locked before you operate the Product.
• Remove all probes, test leads, and accessories before the battery door is
opened.
• Keep fingers behind the finger guards on the probes.
• Hold the Product behind the tactile barrier.
• Replace the batteries when the low battery indicator shows to prevent incorrect
measurements.
• Do not use the HOLD function to measure unknown potentials. When HOLD is
turned on, the display does not change when a different potential is measured.
• Disconnect power and discharge all high-voltage capacitors before you measure
resistance, continuity, capacitance, or a diode junction.
• Remove the input signals before you clean the Product.
• Use only specified replacement parts.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
6
• When batteries are changed, ensure that the calibration seal in the battery
compartment is not damaged. If damaged, the Product may not be safe to use.
Return the Product to Fluke for replacement of the seal.
• Do not use in CAT III or CAT IV environments without the protective cap of test
probe. The protective cap decreases the exposed probe metal <4mm. This
decreases the possibility of arc flash from short circuits.
• Do not place magnet inside Category IV panel. Place it outside the panel instead.
For safe operation and maintenance of the Product:
• Repair the Product before use if the battery leaks.
• Have an approved technician repair the Product.
Caution
To avoid possible damage to the Product or to equipment under test:
• Use the proper jacks, function, and range for the measurement application.
• Clean the case and accessories with a damp cloth and mild detergent only. Do
not use abrasives or solvents.
Note
The Measurement Category (CAT) and voltage rating of any combination of test
probe, test probe accessory, current clamp accessory, and the Product is the
LOWEST rating of any individual component.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Safety Information
7
Table 1. Symbols
Symbol Description Symbol Description
AC (Alternating Current) Earth
DC (Direct Current)
WARNING. HAZARDOUS VOLTAGE.
Risk of electric shock.
Conforms to European Union
directives.
WARNING. RISK OF DANGER.
Consult user documentation.
Battery. Low battery when shown on
display.
Double Insulated
Application around and removal from
uninsulated hazardous live conductors is
permitted.
Conforms to relevant Australian
EMC standards.
Certified by CSA Group to North
American safety standards.
Do not apply to or remove from HAZARDOUS LIVE conductors. Do not apply around
or remove from uninsulated hazardous live conductors without taking additional
protective measures.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
8
Table 2. Symbols (Cont.)
Symbol Meaning
Measurement Category II is applicable to test and measuring circuits connected
directly to utilization points (socket outlets and similar points) of the low-voltage
MAINS installation.
Measurement Category III is applicable to test and measuring circuits connected to
the distribution part of the building’s low-voltage MAINS installation.
Measurement Category IV is applicable to test and measuring circuits connected at
the source of the building’s low-voltage MAINS installation.
This product complies with the WEEE Directive marking requirements. The affixed
label indicates that you must not discard this electrical/electronic product in domestic
household waste. Product Category: With reference to the equipment types in the
WEEE Directive Annex I, this product is classed as category 9 "Monitoring and
Control Instrumentation" product. Do not dispose of this product as unsorted
municipal waste.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Replacement Part List
9
Replacement Part List
Table 3 lists the available replacement parts.
Table 3. Replacement Parts
Item Qty. Fluke Part or Model Number

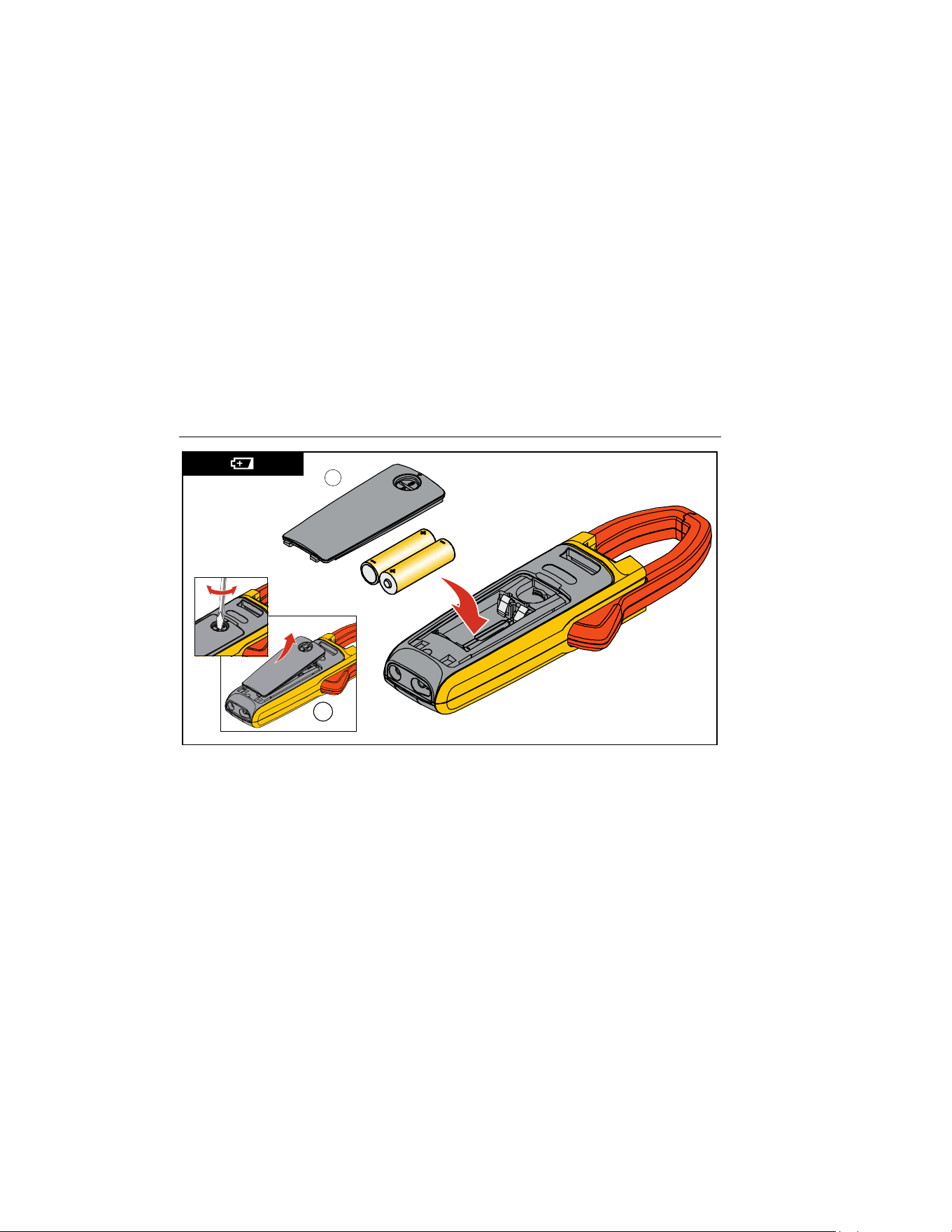

Battery, AA 1.5 V 2 376756
Battery Door Assembly 1 4696918
Test lead set 1 TL75
Flexible current probe i2500-10 1 3676410
Flexible current probe i2500-18 1 3798105
Magnet strap 1 669952
STRAP 9 INCHES 1 669960
Soft Case 1 3752958
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
10

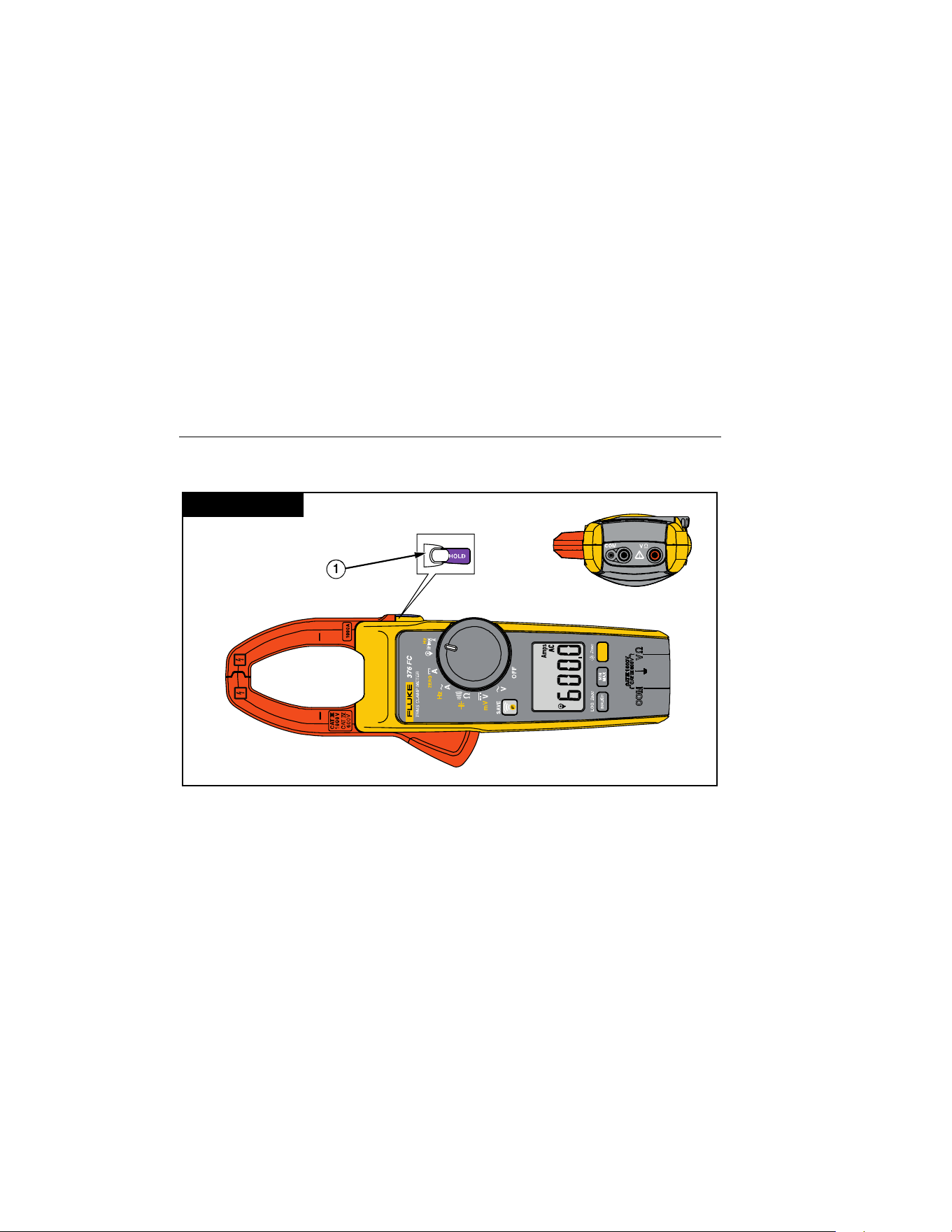

The Product
1
Clamp Meter
fig01.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
The Product
11
20
ON
ON
Auto Power Off
Backlight
fig02_3.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
12

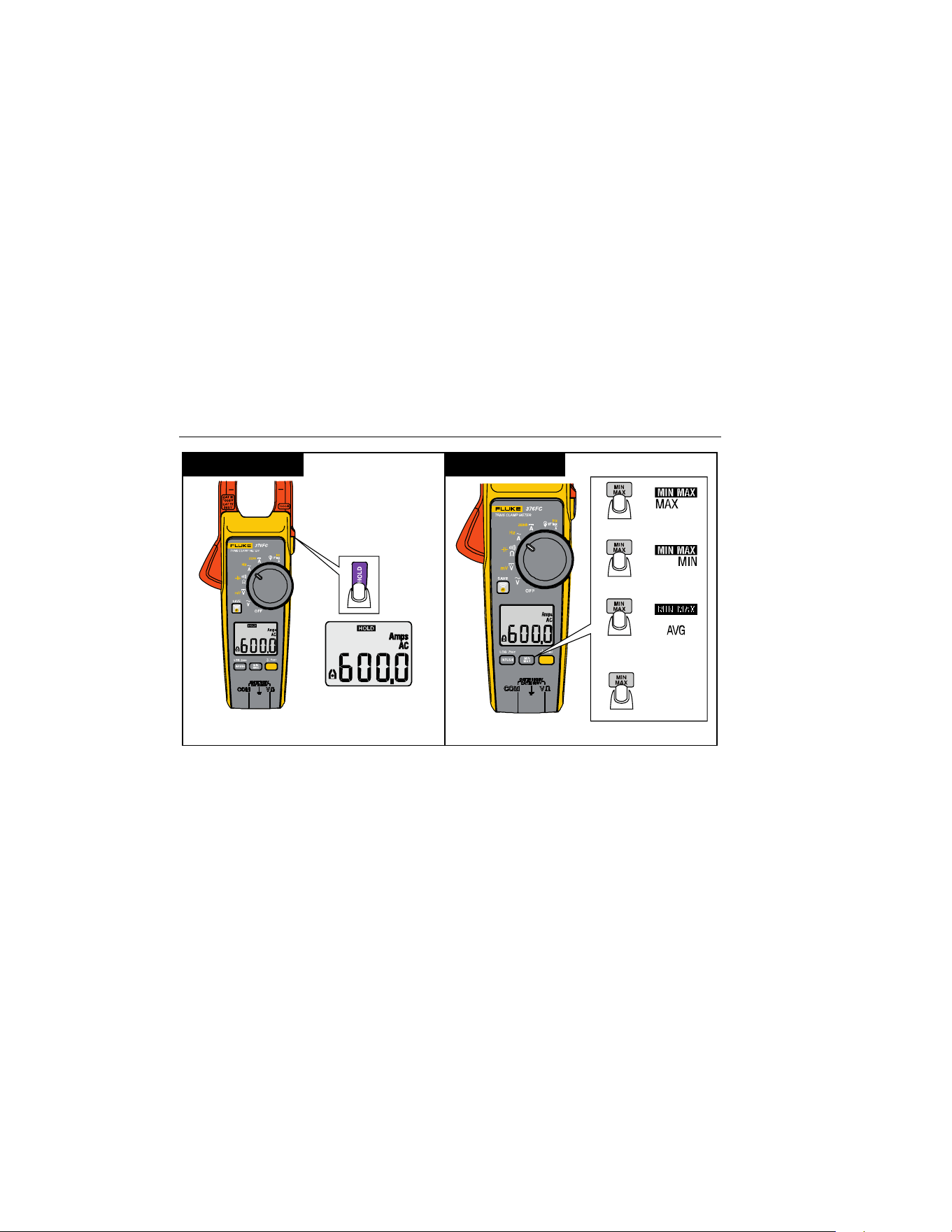

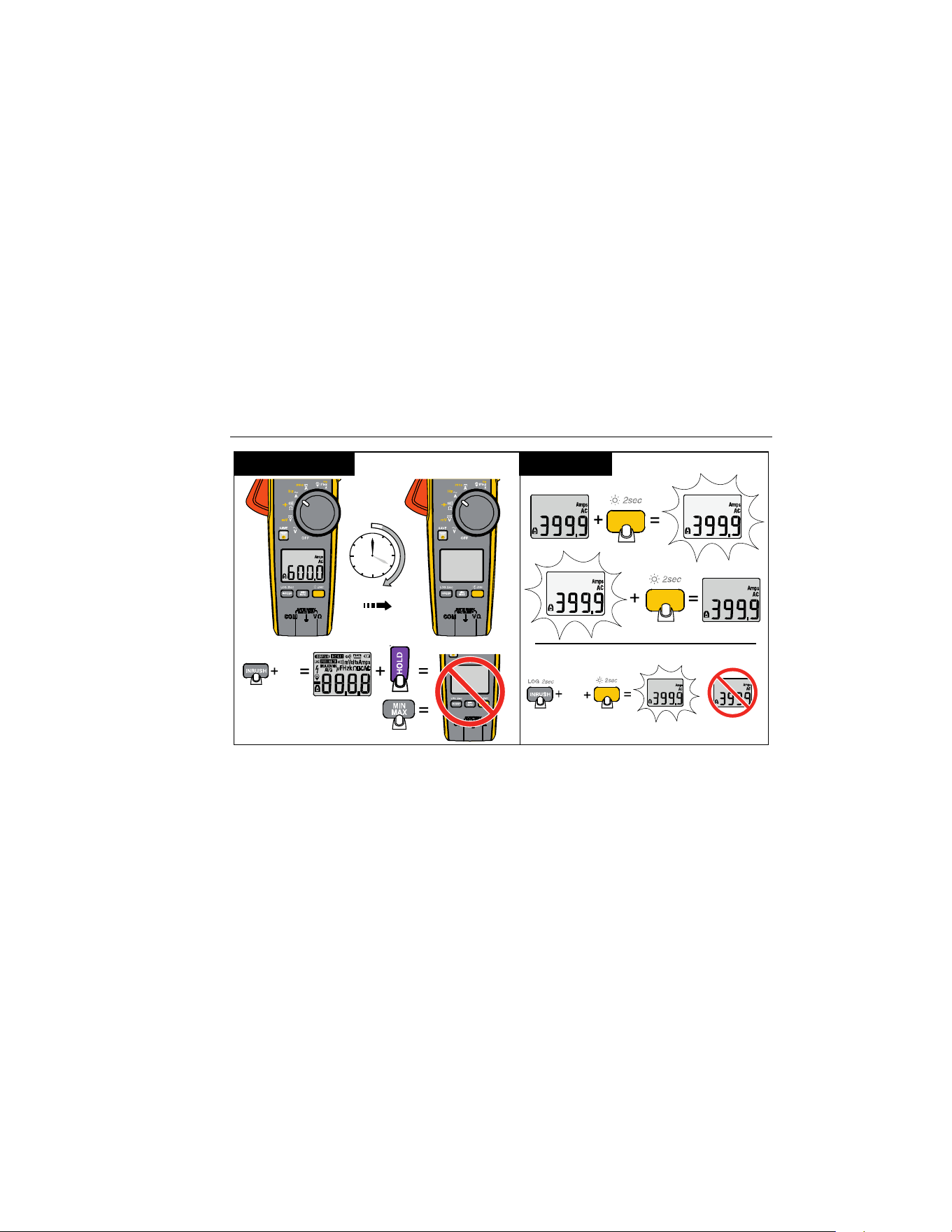

Display Hold MIN MAX AVG
1x
=
2x
=
3x
=
2 sec = Exit
fig04_5.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
The Product
13

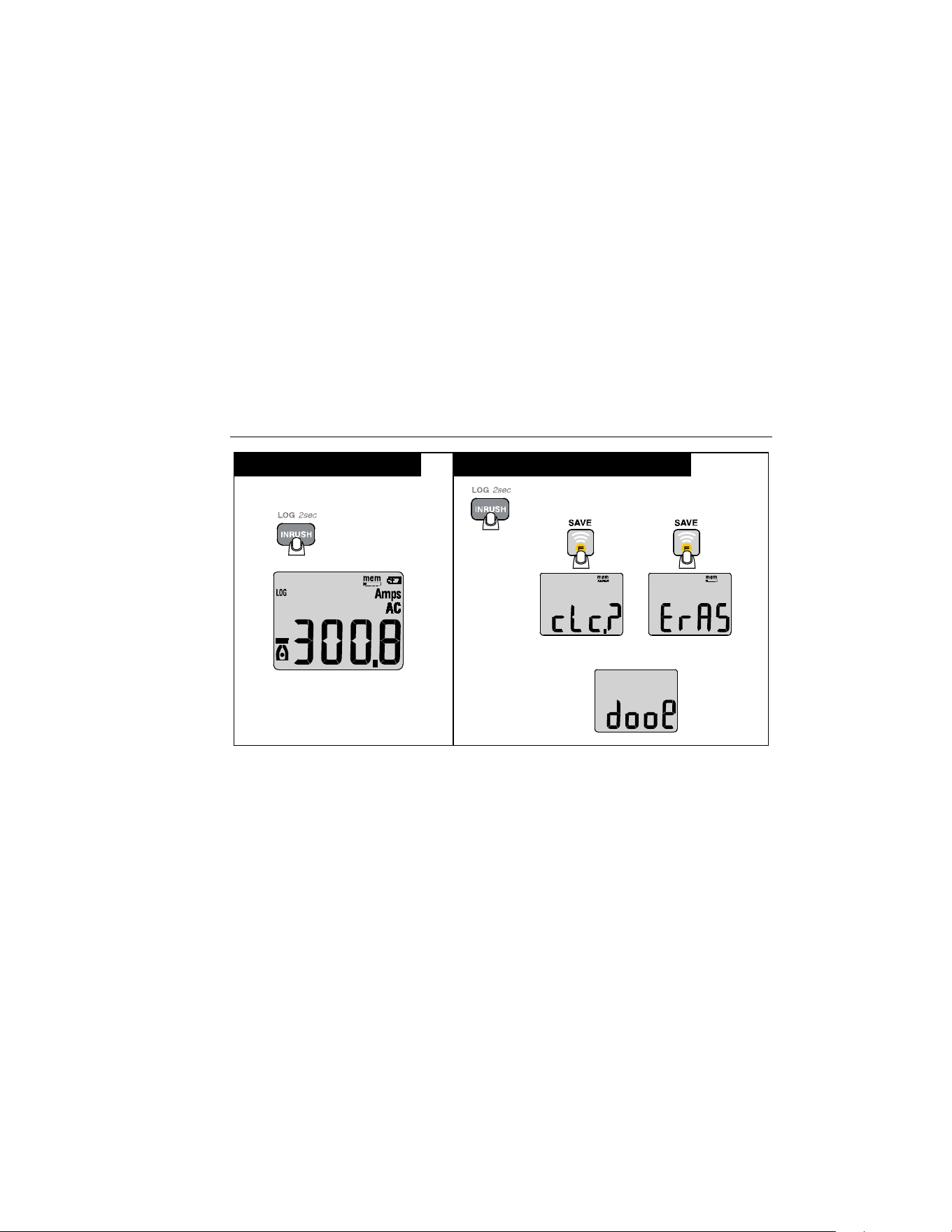

2 sec = LOG
5 sec
+ ON +
x1 x2
LOG
(375 FC and 376 FC)
Clear Memory
(375 FC and 376 FC)
fig_16.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
14
6

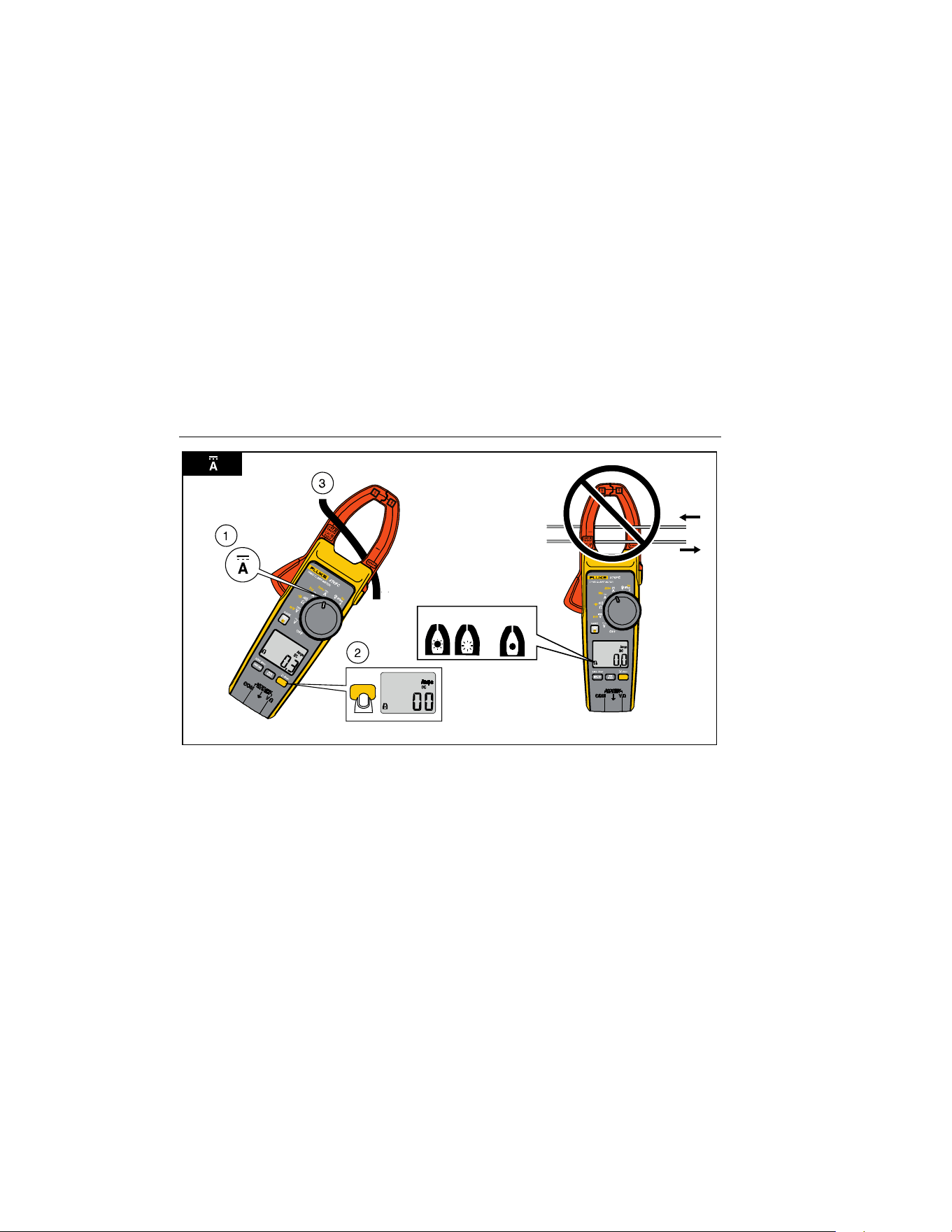

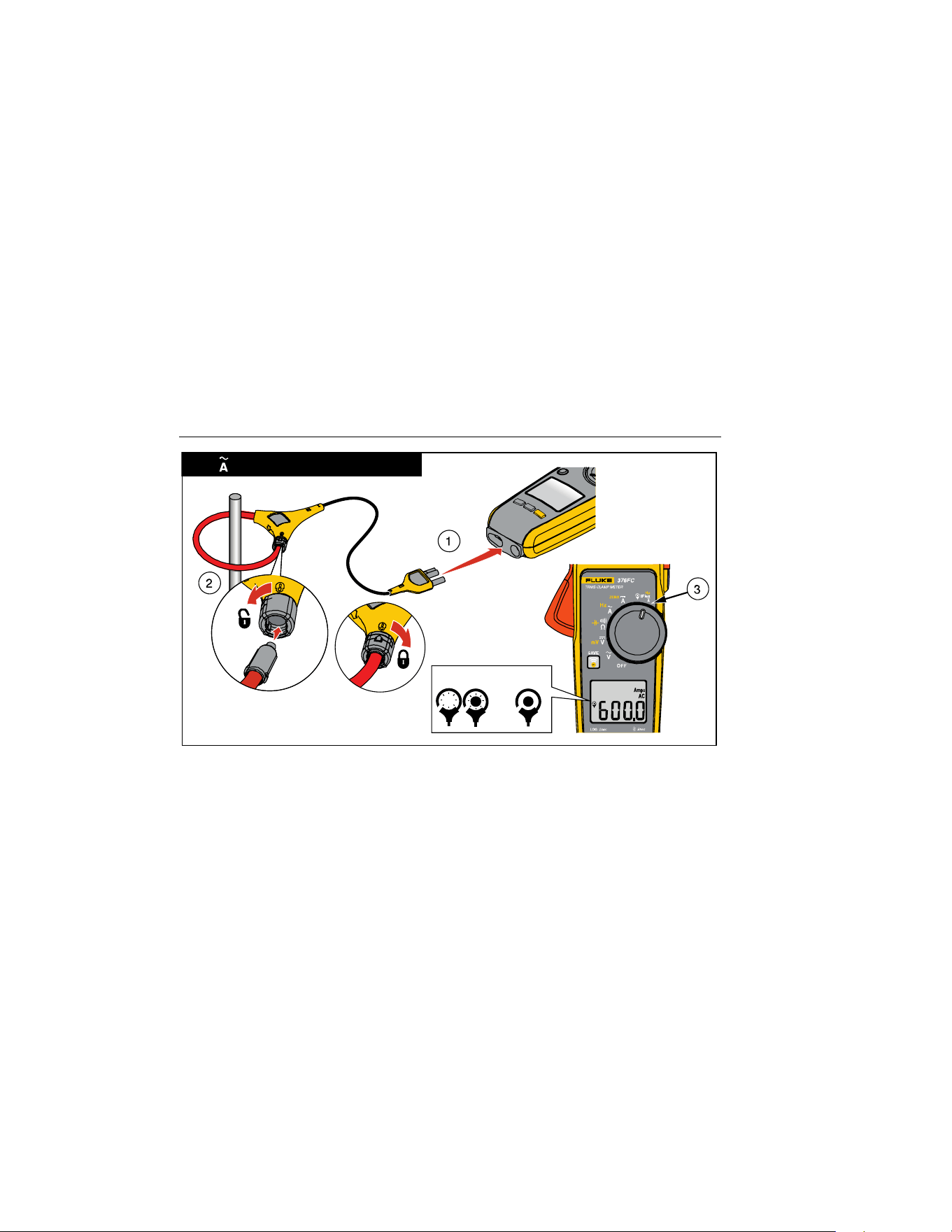

Flexible Current Probe

<0.5 A
>0.5 A
fig06.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
The Product
15
7
Jaw
Hz (375 FC & 376 FC)
> 5 A
> 20 A
<0.5 A >0.5 A
fig07.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
16
<0.5 A
>0.5 A
Fig08.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
The Product
17
mV dc (375 FC & 376 FC)
fig09_10.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
18
<30
ON
Fig15.emf
e
R
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
The Product
19
On
100 ms
14
Of
f
1
4
2
3
fig13_14.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
20
1
2
3
fig11_12.emf
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
The Product
21
2
3
5
6
CAPTURE
Connect
4
1
Fluke Connect
TM
Bluetooth
®
Connection to FCTools
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
22
Specifications
Maximum voltage between
any Terminal and Earth Ground ............. 1000 V
Batteries .................................................. 2 AA, NEDA 15A, IEC LR6
Operating Temperature ........................... -10 °C to +50 °C
Storage Temperature .............................. -40 °C to +60 °C
Operating Humidity ................................. Non condensing (< 10°C)
≤90 % RH (at 10 °C to 30 °C)
≤75 % RH (at 30 °C to 40 °C)
≤45 % RH (at 40 °C to 50 °C)
Operating Altitude ................................... 2000 m
Storage Altitude ...................................... 12 000 m
Size (L x W x H) ..................................... 249 mm x 85 mm x 45 mm
Weight ..................................................... 410 g
Jaw Opening ........................................... 34 mm
Flexible Current Probe Diameter ............ 7.5 mm
Flexible Current Probe Cable Length
(head to electronics connector) .............. 1.8 m
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Specifications
23
Safety ...................................................... IEC 61010-1, Pollution Degree 2
IEC 61010-2-032: CAT III 1000V / CAT IV 600V
IEC 61010-2-033: CAT III 1000V / CAT IV 600V
Ingress Protection (IP) Rating ................. IEC 60529: IP30
Radio Frequency Certification ................. FCC ID:T68-FBLE IC:6627A-FBLE
Wireless Radio Frequency Range .......... 2412 MHz to 2462 MHz
Output Power .......................................... <100 mW
Electromagnetic Compatibility (EMC)
International IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses
conductively-coupled radio frequency energy that is necessary for the
internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other
than domestic and those directly connected to a low-voltage power
supply network that supplies buildings used for domestic purposes.
There may be potential difficulties in ensuring electromagnetic
compatibility in other environments due to conducted and radiated
disturbances. Emissions that exceed the levels required by CISPR 11
can occur when the equipment is connected to a test object.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
24
Temperature Coefficients........................ Add 0.1 x specified accuracy for each degree C above
28 °C or below 18 °C
AC Current via Jaw
Range
374 FC and 375 FC ........................... 600.0 A
376 FC ............................................... 999.9 A
Resolution ............................................... 0.1 A
Accuracy ................................................. 2 % ±5 digits (10 Hz to 100 Hz)
2.5 % ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)
376 FC .............................................. 3 @ 500 A
2.5 @ 600 A
1.42 @ 1000 A
374 FC and 375 FC .......................... 2.5 @ 350 A
1.42 @ 600 A
Note: Add 2 % for C.F. >2
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Specifications
25
AC Current via Flexible Current Probe
Range .................................................... 2500 A
Resolution ............................................... 0.1 A (≤999.9 A)
1 A (≤2500 A)
Accuracy ................................................. 3 % ±5 digits (5 Hz – 500 Hz)
Crest Factor (50 Hz/60 Hz) ..................... 3.0 @ 1100 A
2.5 @ 1400 A
1.42 @ 2500 A
Add 2 % for C.F. >2
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
26
Position Sensitivity
Figure 1. Position Sensitivity
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Specifications
27
Distance from
Optimum
i2500-10 Flex i2500-18 Flex Error
A 0.5 in (12.7 mm) 1.4 in (35.6 mm) ±0.5 %
B 0.8 in (20.3 mm) 2.0 in (50.8 mm) ±1.0 %
C 1.4 in (35.6 mm) 2.5 in (63.5 mm) ±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no
external electrical or magnetic field, and within operating temperature range.
DC Current
Range
374 FC and 375 FC ........................... 600.0 A
376 FC ............................................... 999.9 A
Resolution ............................................... 0.1 A
Accuracy ................................................. 2 % ±5 digits
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
28
AC Voltage
Range ..................................................... 1000 V
Resolution ............................................... 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy ................................................. 1 % ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range ..................................................... 1000 V
Resolution ............................................... 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy ................................................. 1 % ±5 digits
mV dc (375 FC and 376 FC)
Range ..................................................... 500.0 mV
Resolution ............................................... 0.1 mV
Accuracy ................................................. 1 % ±5 digits
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Clamp Meters
Specifications
29
Frequency via Jaw
Range
375 FC and 376 FC ........................... 5.0 Hz to 500.0 Hz
Resolution ............................................... 0.1 Hz
Accuracy ................................................. 0.5 % ±5 digits
Trigger Level ........................................... 5 Hz to 10 Hz, ≥10 A
10 Hz to 100 Hz, ≥5 A
100 Hz to 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range
375 FC and 376 FC ............................. 5.0 Hz to 500.0 Hz
Resolution ............................................... 0.1 Hz
Accuracy ................................................. 0.5 % ±5 digits
Trigger Level ........................................... 5 Hz to 20 Hz, ≥25 A
20 Hz to 100 Hz, ≥20 A
100 Hz to 500 Hz, ≥25 A
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
374 FC/375 FC/376 FC
Users Manual
30
Resistance
Range
374 FC ............................................... 6000 Ω
375 FC and 376 FC ........................... 60 kΩ
Resolution
374 FC ............................................... 0.1 Ω (≤600 Ω)
1 Ω (≤6000 Ω)
375 FC and 376 FC ........................... 0.1 Ω (≤600 Ω)
1 Ω (≤6000 Ω)
10 Ω (≤60 kΩ)
Accuracy ................................................. 1 % ±5 digits
Capacitance
Range ..................................................... 1000 µF
Resolution ............................................... 0.1 µF (≤100 µF)
1 µF (≤1000 µF)
Accuracy ................................................. 1 % ±4 digits
