II. Specifications
SENSOR PC1058
Effective Pixel 976×592
Video output 1.0 vp, 75 Ohm-p
Vertical Sync Frequency
Scanning System 2 : 1 Interlace
Sync System Internal
AGC Auto
BLC Auto
Resolution 700 TV Lines
S/N Ratio More Than 48dB
Current Consumption No More 150mA
DC12V ± 10%
-22° ~ 176° F
-40°
~ 176° F
Power Supply
Operating Temperature
Storage Temperature
Viewing Angle
170°
Water-Proof
Minimum Illumination
IP68
0.5Lux/F1.2(0Lux with LED)
III. Installation
1) Find a suitable location to surface mount install the camera. Make sure the
camera’s view is unobstructed and be careful not to drill into any wires that might
damage the vehicle. When all connections have been made and before
mounting the camera, verify the camera is working and has good view of the
area. Then mount the camera down with the supplied two screws.
2) Connect the RED wire to the +12 volt reverse wire
5) Run video cable though vehicle, up to video monitor. (Avoid placing
video cable where it can
get pinched or damaged).
6) Attach the YELLOW video rca to the reverse camera input of the radio or
video monitor; connect the RED wire coming from the YELLOW video rca
to the reverse trigger wire on the radio or video monitor.
NOTE:The camera comes with parking lines and a mirror image view active.
If you want to remove the parking lines or change the image to reverse image,
follow the steps below:
A) Disconnect power to the camera.
B)
C)
Cut the BLUE loop to remove the parking lines , isolate and tape the wires.
Cut the WHITE loop to get normal image, isolate and tape the wires.
.
D) Reconnect power to the camera.
If the parking lines are needed or the image needs to go back to
reverse, just follow the steps above and reconnect the wires.
For any technical support, contact 888-941-3060 or email [email protected]
WWW.VISIONTECHAMERICA.COM

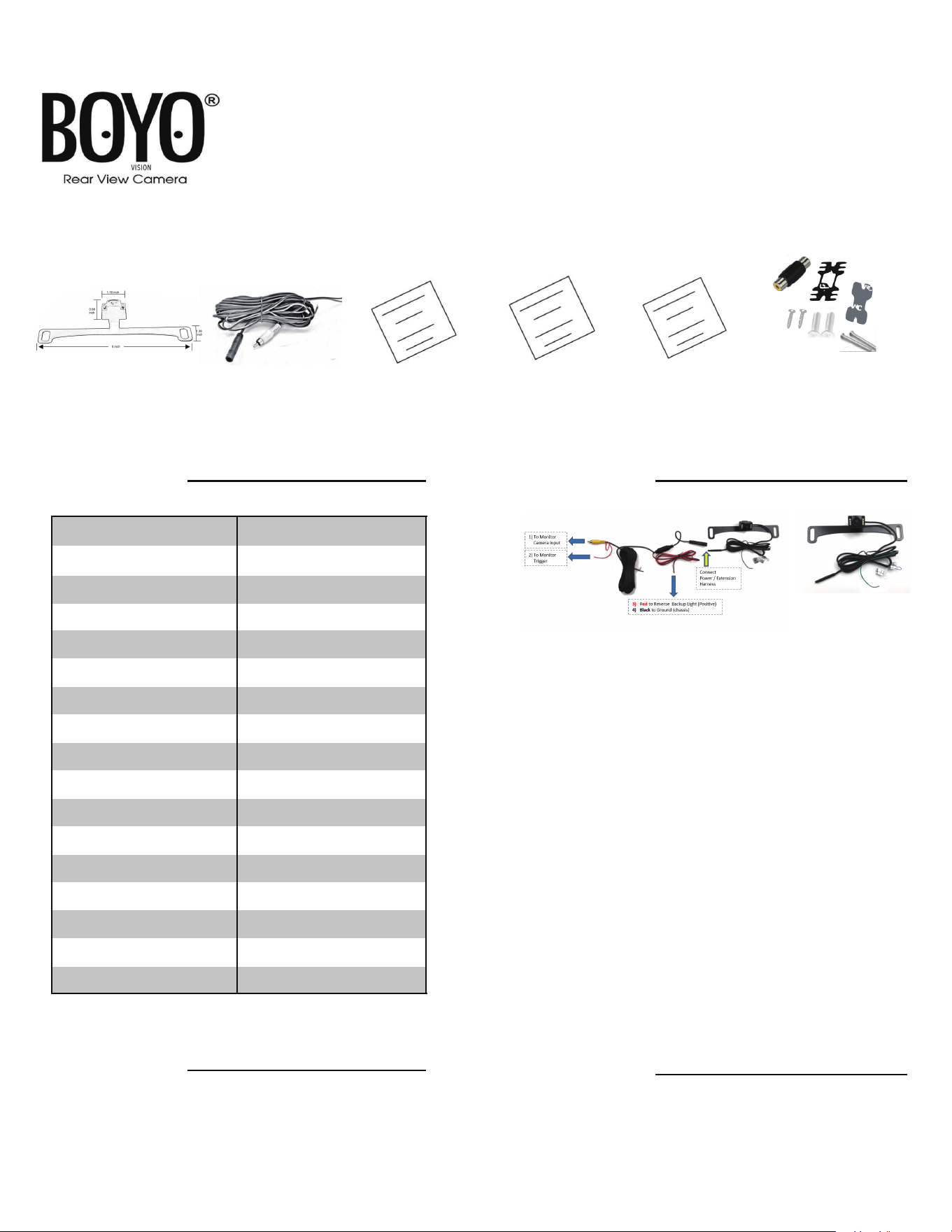

VTL17L
Concealed Mount License Plate Camera with LED Lights
I.Bill of Materials
Camera
24ft mini 4-pin wire harness(1pcs)
User manual(1pcs)
Warranty Card(1pcs)
Registration Card(1pcs)
Screw x2(KM6X24)
Screw x2(Pm3x10X7)
Screw x2(Pm2.5x8)
Conversionconnectorx1
Bracketx1
3M double stickerx1
NTSC 60HZ
3) Connect the BLACK wire to Chassis ground (a metal , non-painted surface).
4) Connect the GREEN wire to the + 12V volt reverse wire.
Please bench test before installation
Control Wires
Blue Loop: cut = turns off trajectory lines
White Loop: cut = display non-mirror images
Green wire: connect to reverse backup light
positive = LED will turn on whenever backup
light is on.
** Monitor trigger ** when reverse backup light comes
on it will trigger the monitor to switch to backup camera.
