NOTE:
Please read all
instructions carefully
before using this product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
JX-7301
Retail This Manual
for Reference
210324
ASSEMBLY &
OWNER’S
MANUAL
DUAL ACTION RECUMBENT
BIKE
JX-7301
IMPEX
®
INC.
2801 S. Towne Ave. Pomona, Ca 91766
Tel: (800)999-8899 Fax: (626)961-9966
www.marcypro.com
support@impex-fitness.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN
1
IMPORANT SAFETY NOTICES
2
WARNING LABEL PLACEMENT
3
HARDWARE PACK
4
COMPONENT FOR ASSEMBLY
5
CARE AND MAINTENANCE AND STORAGE
6
EXPLODED DIAGRAM
7
PARTS LIST
8
ASSEMBLY STEPS
10
OPERATING NOTES
19
COMPUTER FUNCTIONS AND OPERATION
20
EXERCISE GUIDELINES
23
WARRANTY
25
ORDERING PARTS
25
BEFORE YOU BEGIN
Thank you for selecting the MARCY Dual Action Recumbent Bike by
IMPEX
®
INC. For your safety and benefit, read this manual carefully before
using the bike. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please
call our TOLL-FREE customer service number. Our Customer Service
Agents will provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.marcypro.com
support@impex-fitness.com
2
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise bike is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire
manual before you assemble or operate your bike. In particular, note the following
safety precautions:
1. Keep children and pets away from the exercise bike at all times. DO NOT
leave children unattended in the same room with the bike.
2. Only one person at a time should use the bike.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the bike on a clear, leveled surface. DO NOT use the bike near water or
outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the bike. Running or aerobic shoes are
also required when using the bike.
7. Use the bike only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the bike.
9. Disabled person should not use the bike without a qualified person or physician in
attendance.
10. Before using the bike to exercise, always do stretching exercises to properly warm
up.
11. Never operate the bike if it is not functioning properly.
12. Read all warnings posted on the exercise bike.
13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace
any loose or wore components prior to use.
14. Care should be taken in mounting or dismounting the exercise bike.
15. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
3

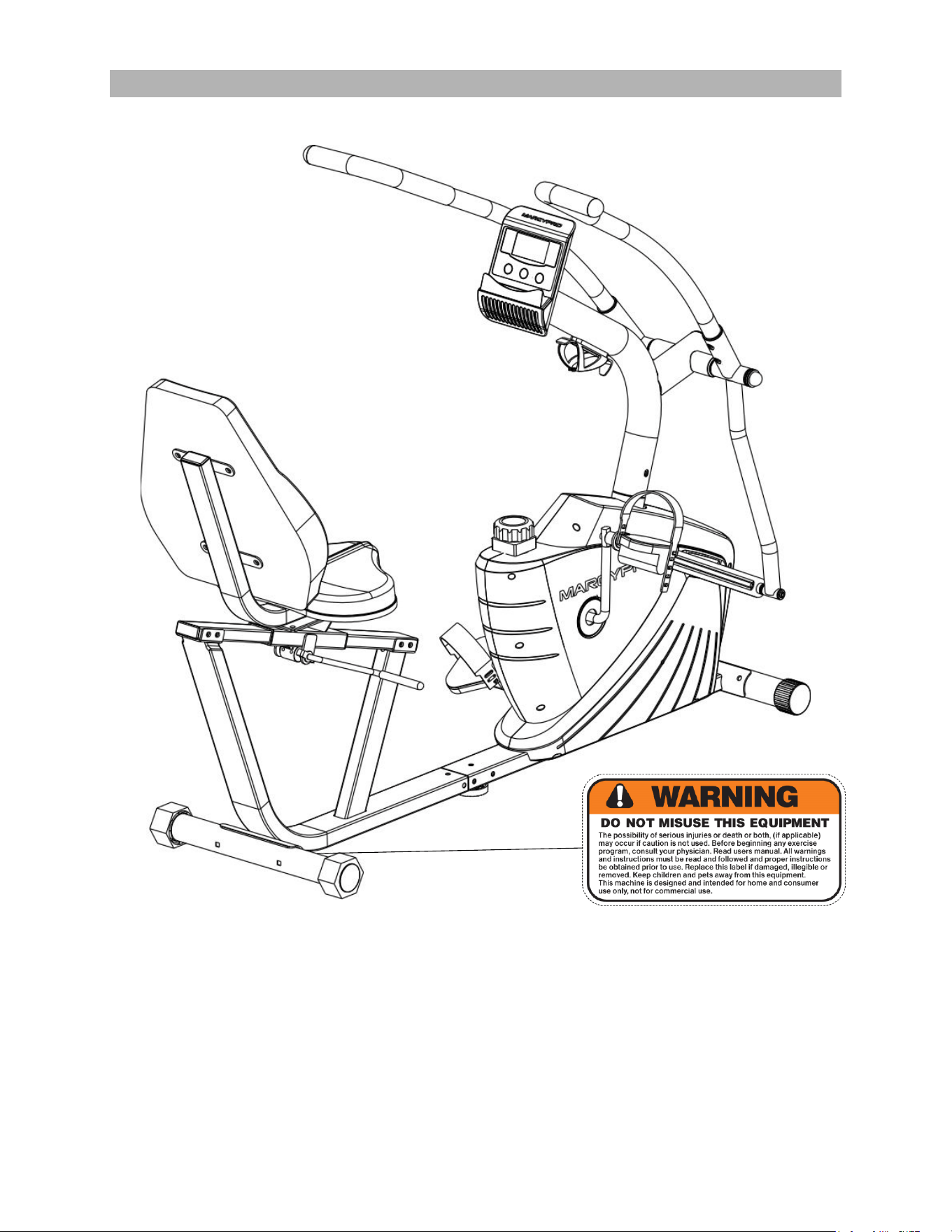

WARNING LABEL PLACEMENT
The Warning Labels and Caution Label shown here have been placed on the Rear
Stabilizer and Main Frame.
If the labels are missing or illegible, please call customer service at 1-800-999-
8899 for replacement. Apply the labels in location shown.
4

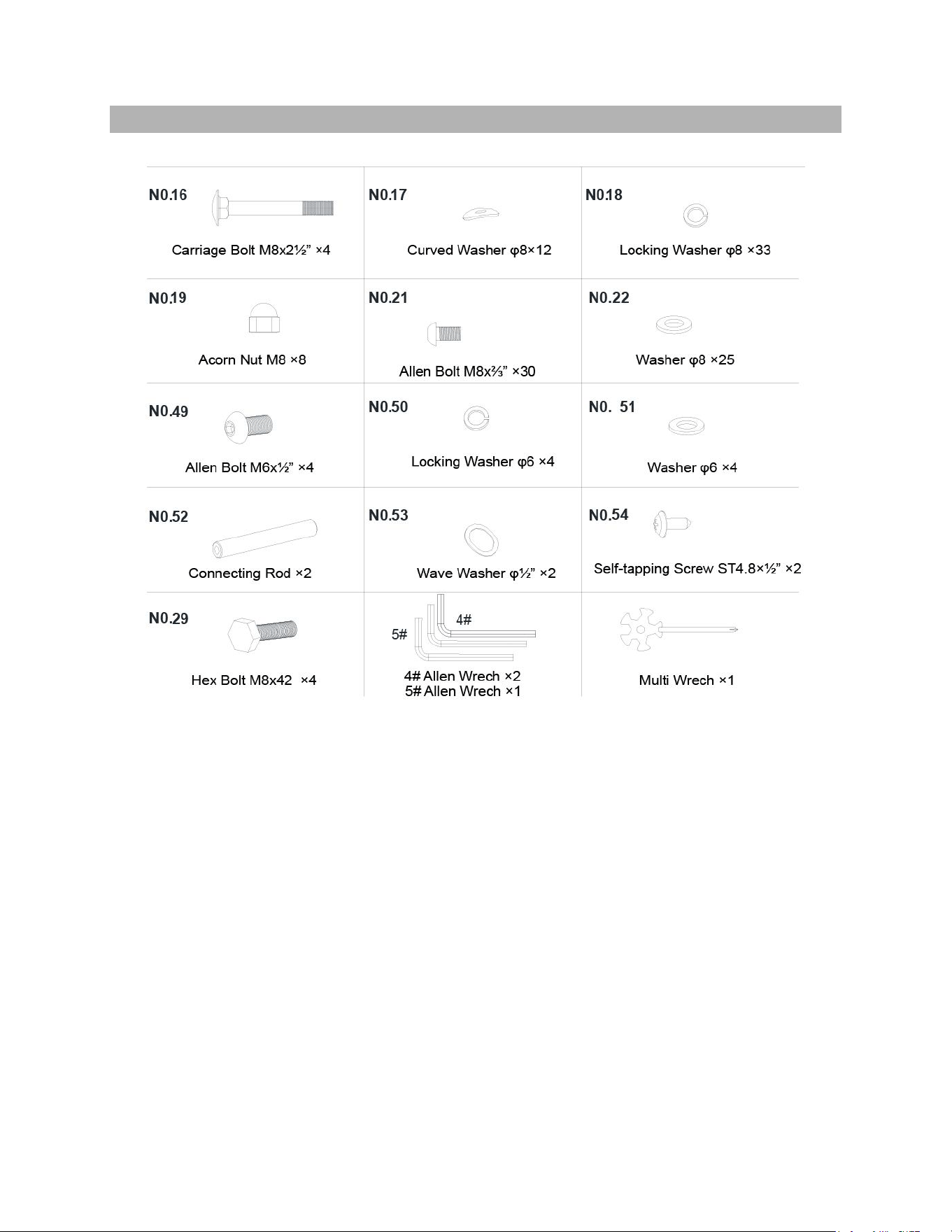

HARDWARE PACK
5

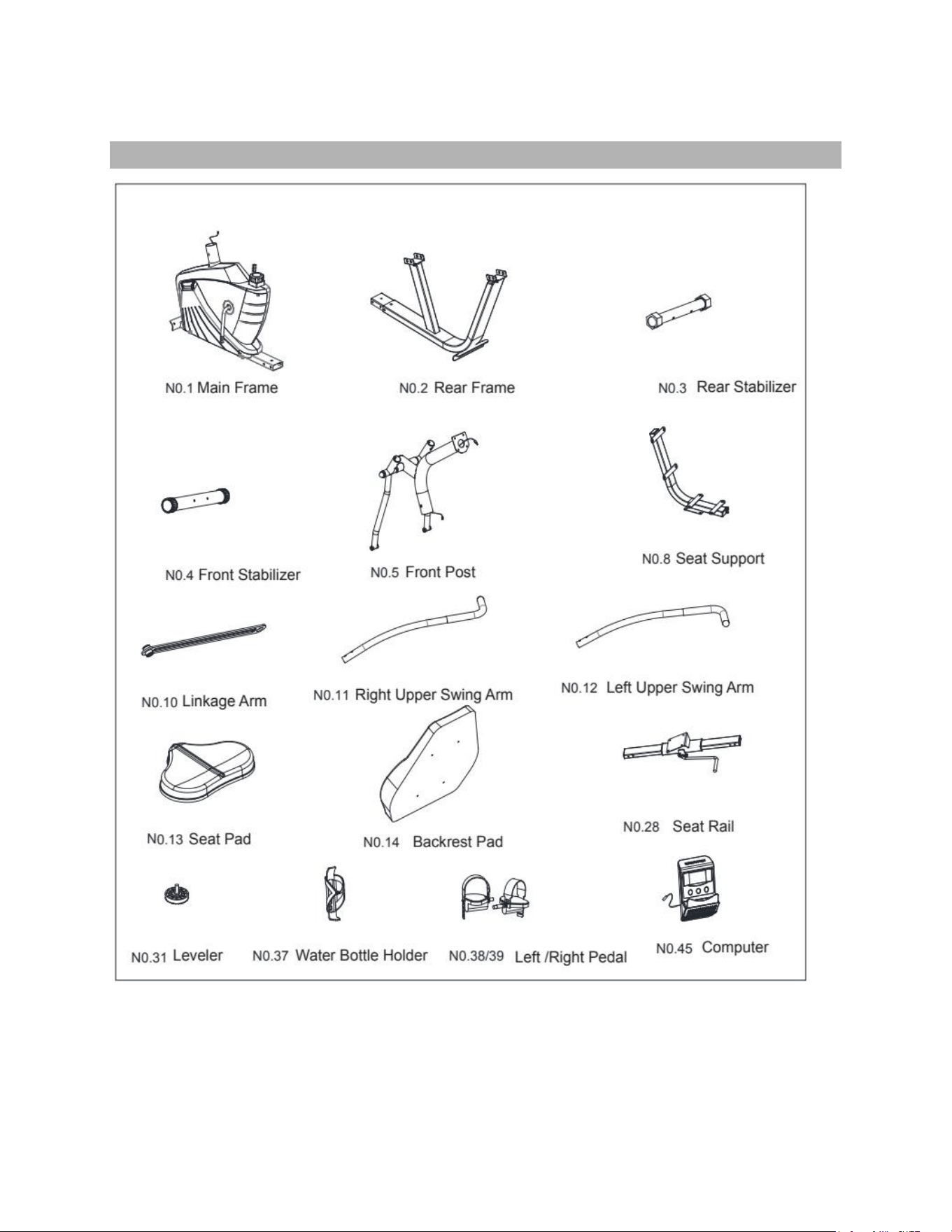

COMPONENTS FOR ASSEMBLY
6
CARE, MAINTENANCE AND STORAGE
1. Inspect and tighten all parts each time you use the bike. Replace any worn parts
immediately.
2. The bike can be cleaned using a damp cloth and mild non-abrasive detergent. Do
not use solvents.
3. Store the bike IN-DOOR. Excess moisture and water would cause rust on the
frame.
4. The Bike shall be placed at least 24 inches away from the wall or/and any other
object such as furniture to provide safe access to and passage around the bike.
5. To avoid possible injury, the help of two or more people is needed when moving the
bike around.
6. Disposal Instructions – The equipment can be safely disassembled and disposed
without unreasonable hazards. Call your local recycle agency regarding details of
recycling.
7. The maximum user weight is 300 lbs.
8. Assembled Dimension: 61”x26.75”x47.25
7

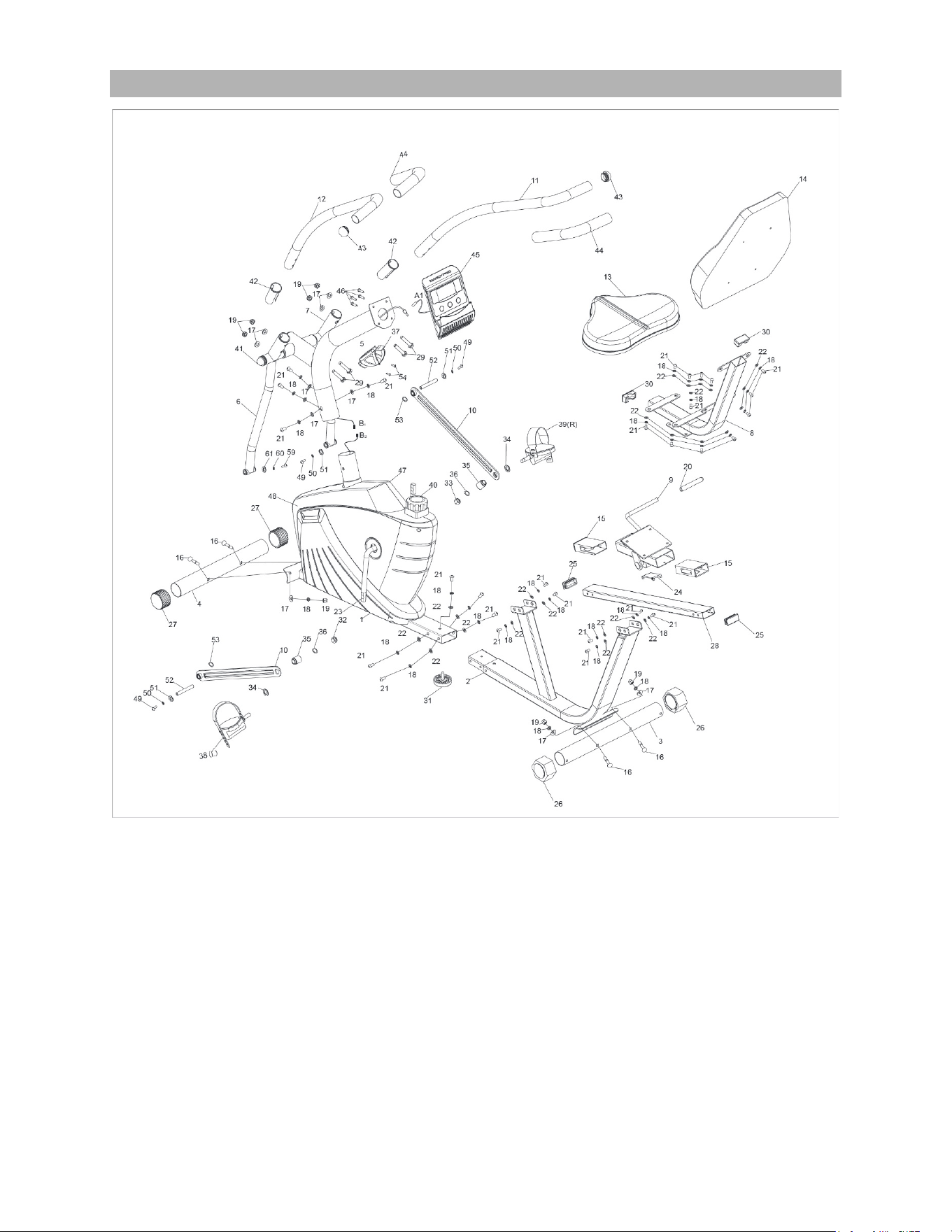

EXPLODED DIAGRAM
8
JX-7301 PARTS LIST
Part #
Description
Size
Qty
1
Main Frame
1
2
Rear Frame
1
3
Rear Stabilizer
1
4
Front Stabilizer
1
5
Front Post
1
6
Left Lower Swing Arm
1
7
Right Lower Swing Arm
1
8
Seat Support
1
9
Seat Adjustment Assembly
1
10
Linkage Arm
2
11
Right Upper Swing Arm
1
12
Left Upper Swing Arm
1
13
Seat Pad
1
14
Backrest Pad
1
15
Plastic Sleeve
2
16
Carriage Bolt
M8x2½”
4
17
Curved Washer
Φ8
12
18
Locking Washer
33
19
Acorn Nut
M8
8
20
Lever Sleeve
1
21
Allen Bolt
M8x⅔”
30
22
Washer
Φ8
30
23
Crank
1
24
Spacer
1
25
End Cap
2
26
Leveler End Cap
2
27
Roller End Cap
2
28
Seat Rail
1
29
Hex Bolt
4
30
Seat Support End Cap
2
31
Leveler
1
32
Left Crank Hex Nut
1
33
Right Crank Hex Nut
1
34
Large Washer
Φ ⅔”
2
35
Pedal Spacer
2
36
Wave Washer
Φ ⅔”
2
37
Water Bottle Holder
1
38
Left Pedal
1
9
39
Right Pedal
1
40
Tension Knob
1
41
Threaded End Cap
2
42
Swing Arm Sleeve
2
43
Swing Arm End Cap
2
44
Handlebar Grip
2
45
Computer
1
46
Phillips Screw
M5×½”
4
47
Right Shroud
1
48
Left Shroud
1
49
Allen Bolt
M6x½”
4
50
Locking Washer
Φ ¼”
7
51
Washer
Φ ¼”
2
52
Connecting Rod
2
53
Wave Washer
Φ ½”
2
54
Self-tapping Screw
ST4.8×½”
2
A2/B1
Computer Wire
1
B2
Sensor Wire
1
10

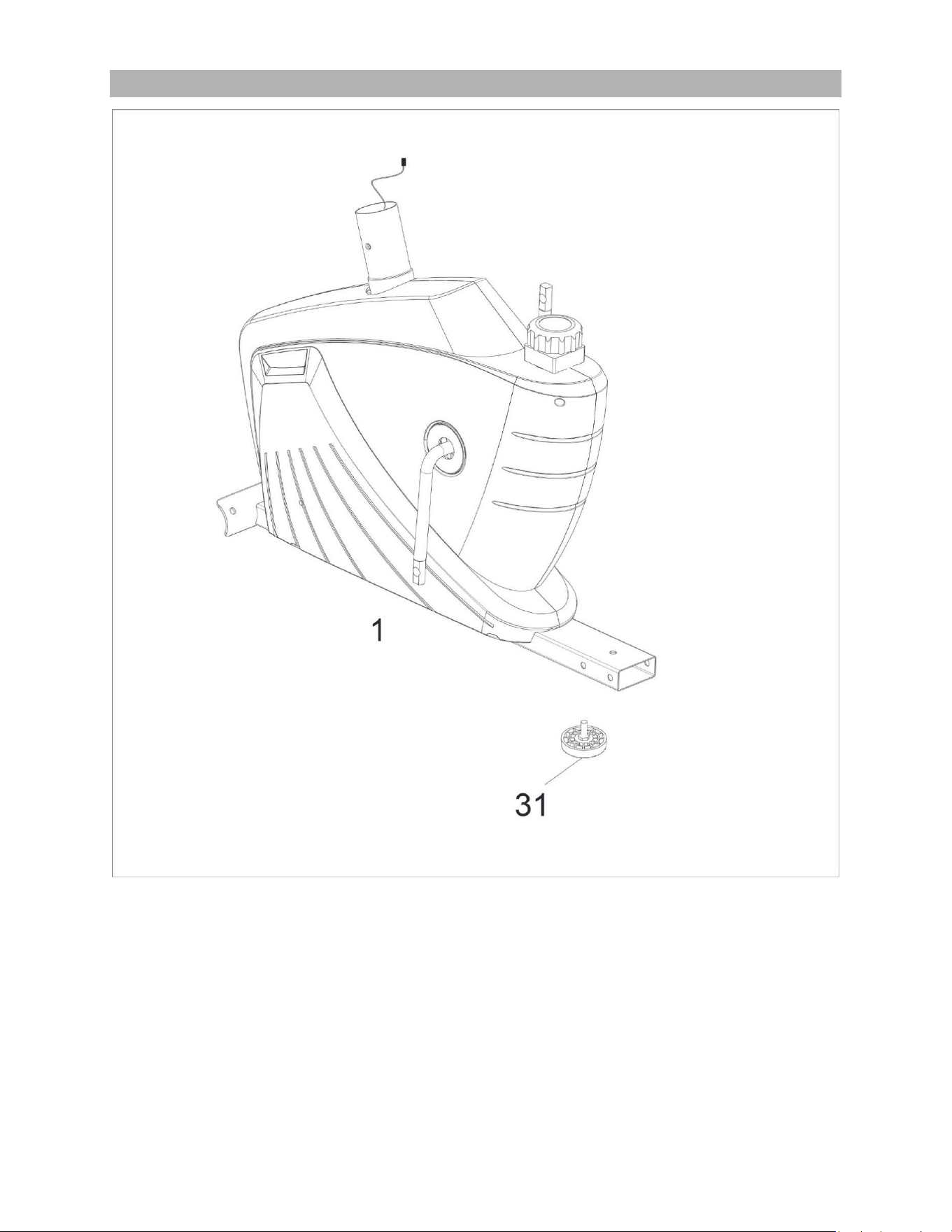

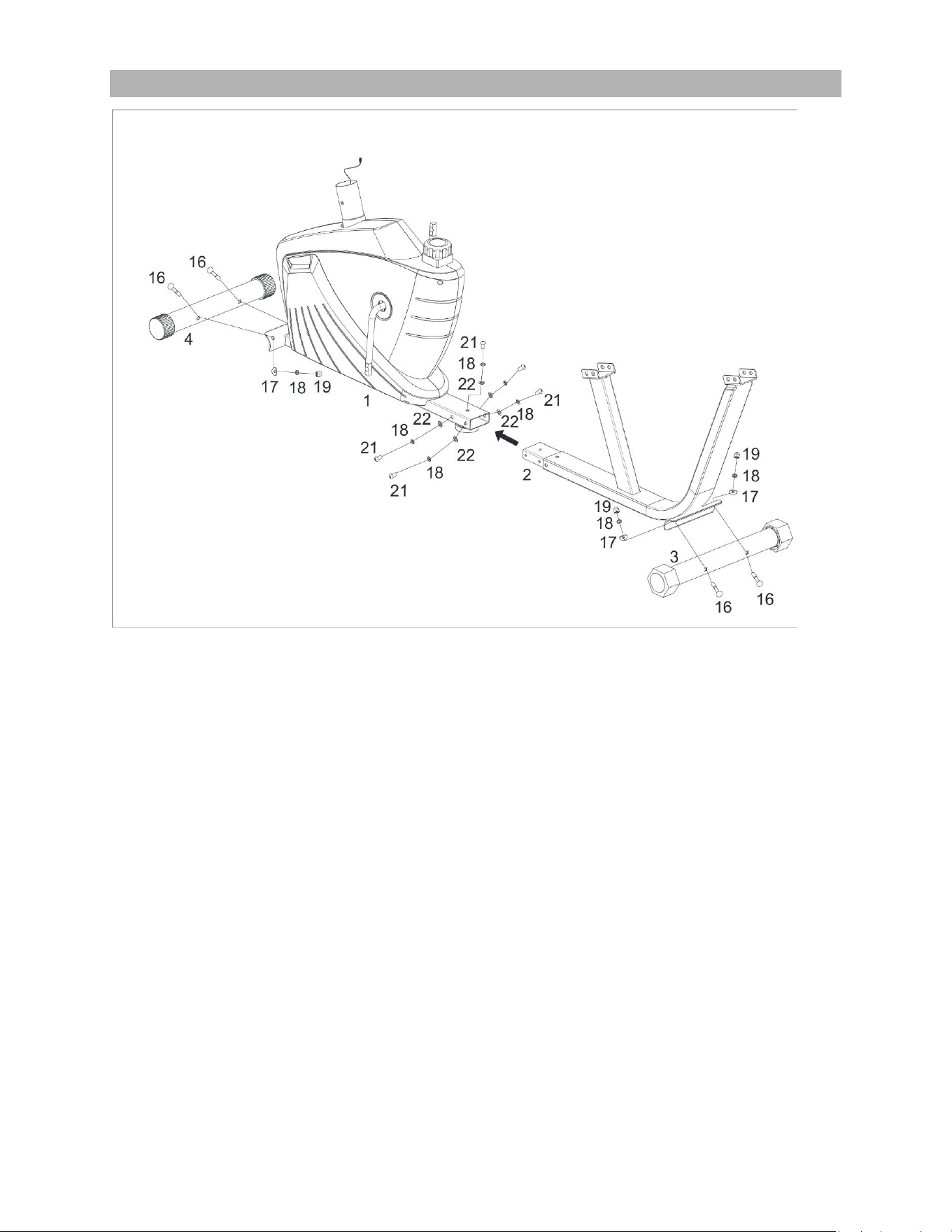

ASSEMBLY STEP 1
11

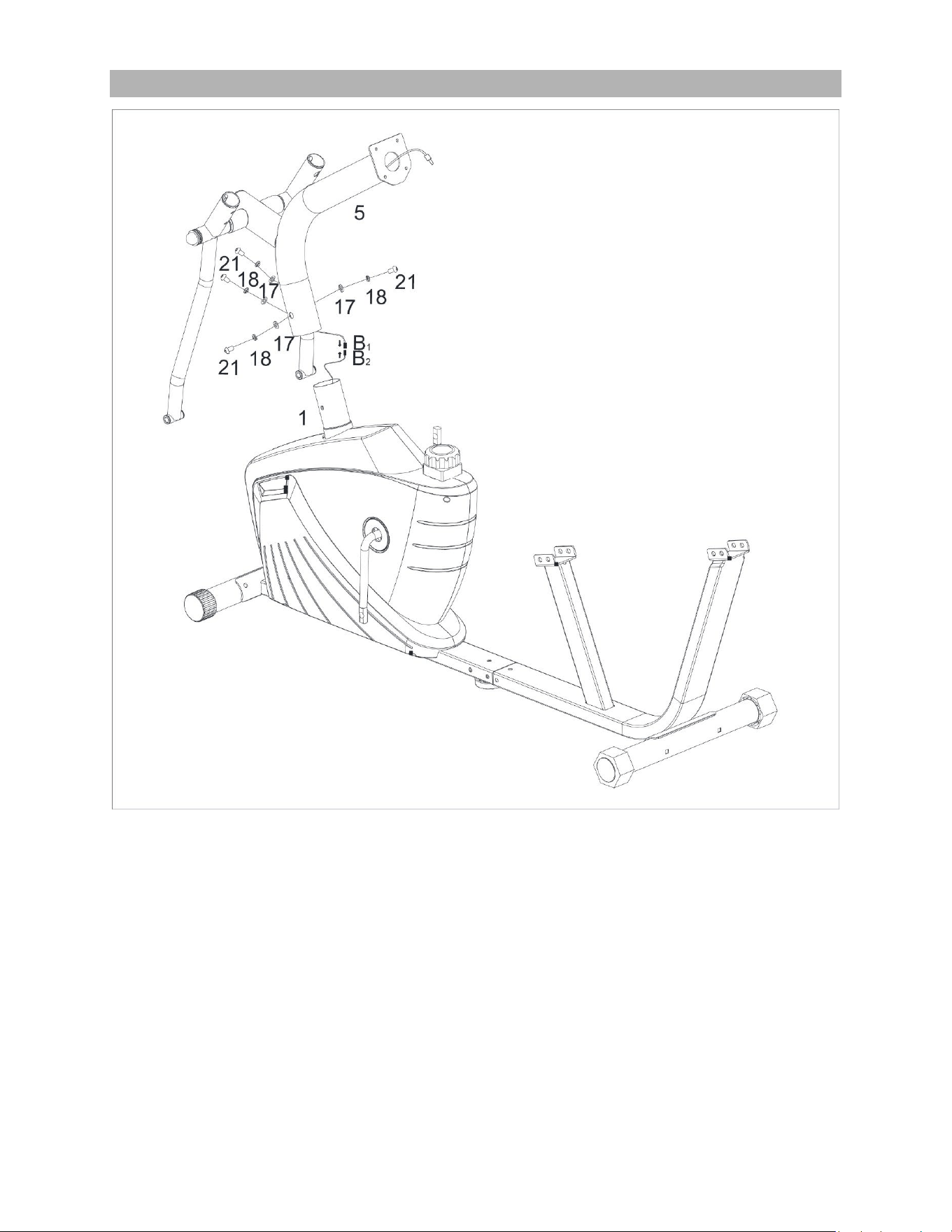

ASSEMBLY STEP 2
12

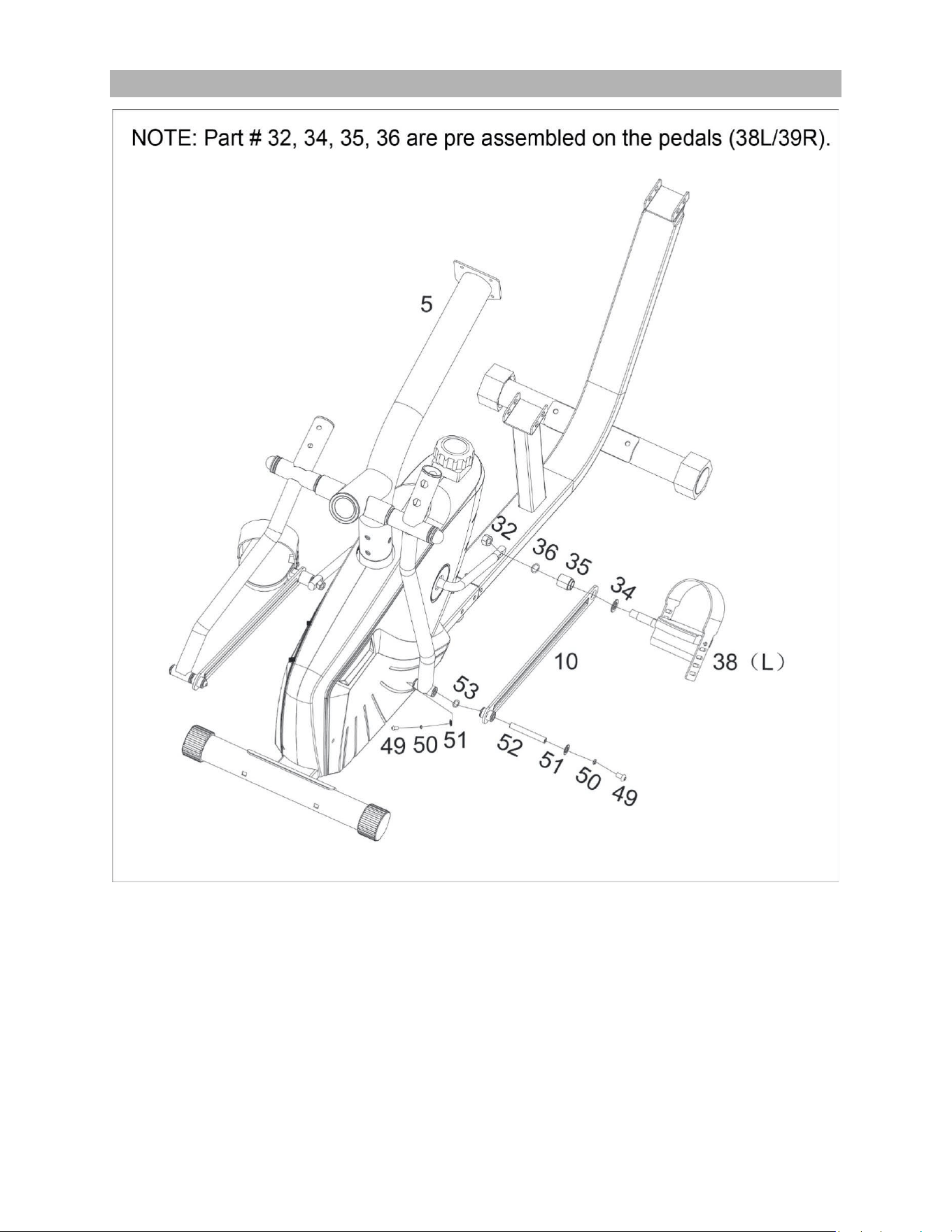

ASSEMBLY STEP 3
13

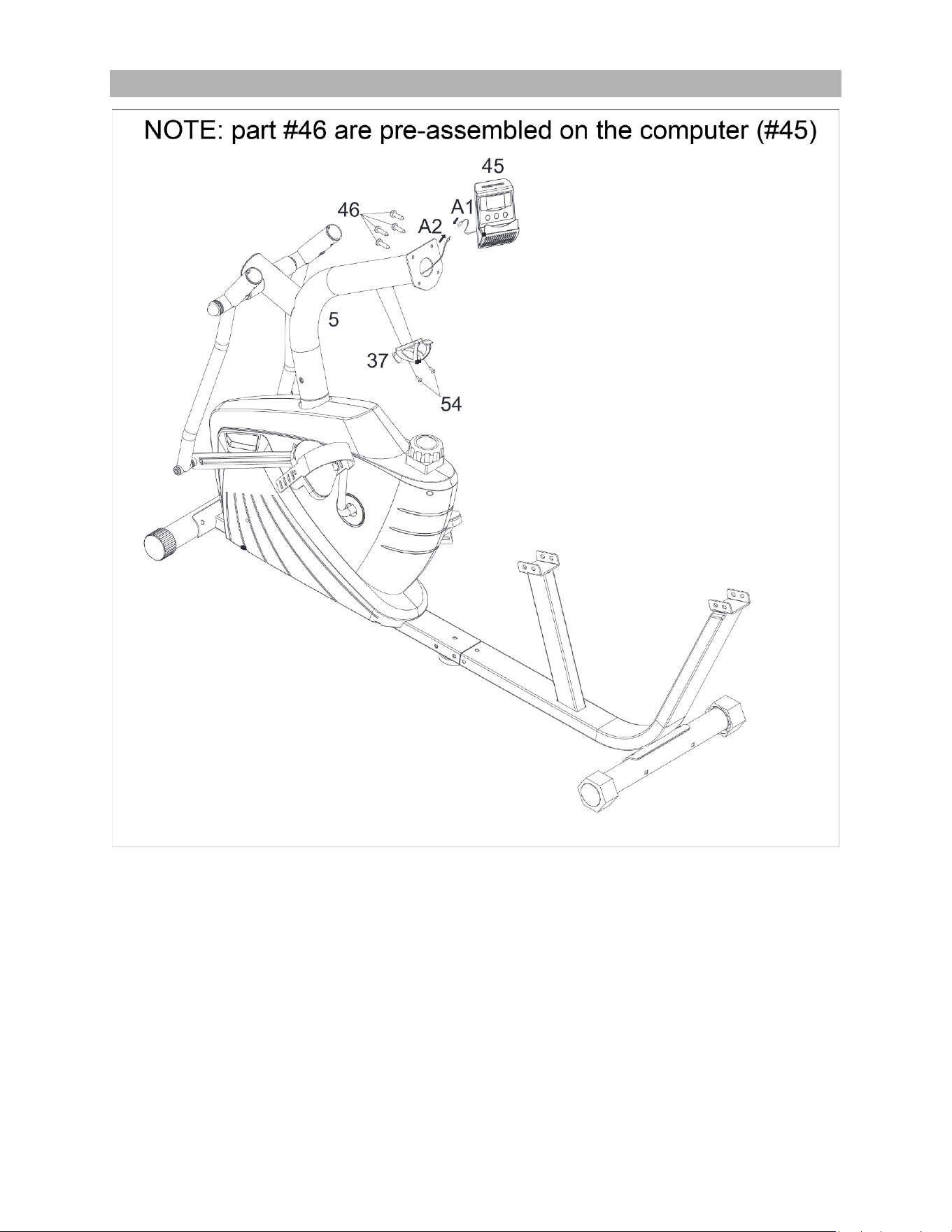

ASSEMBLY STEP 4
14

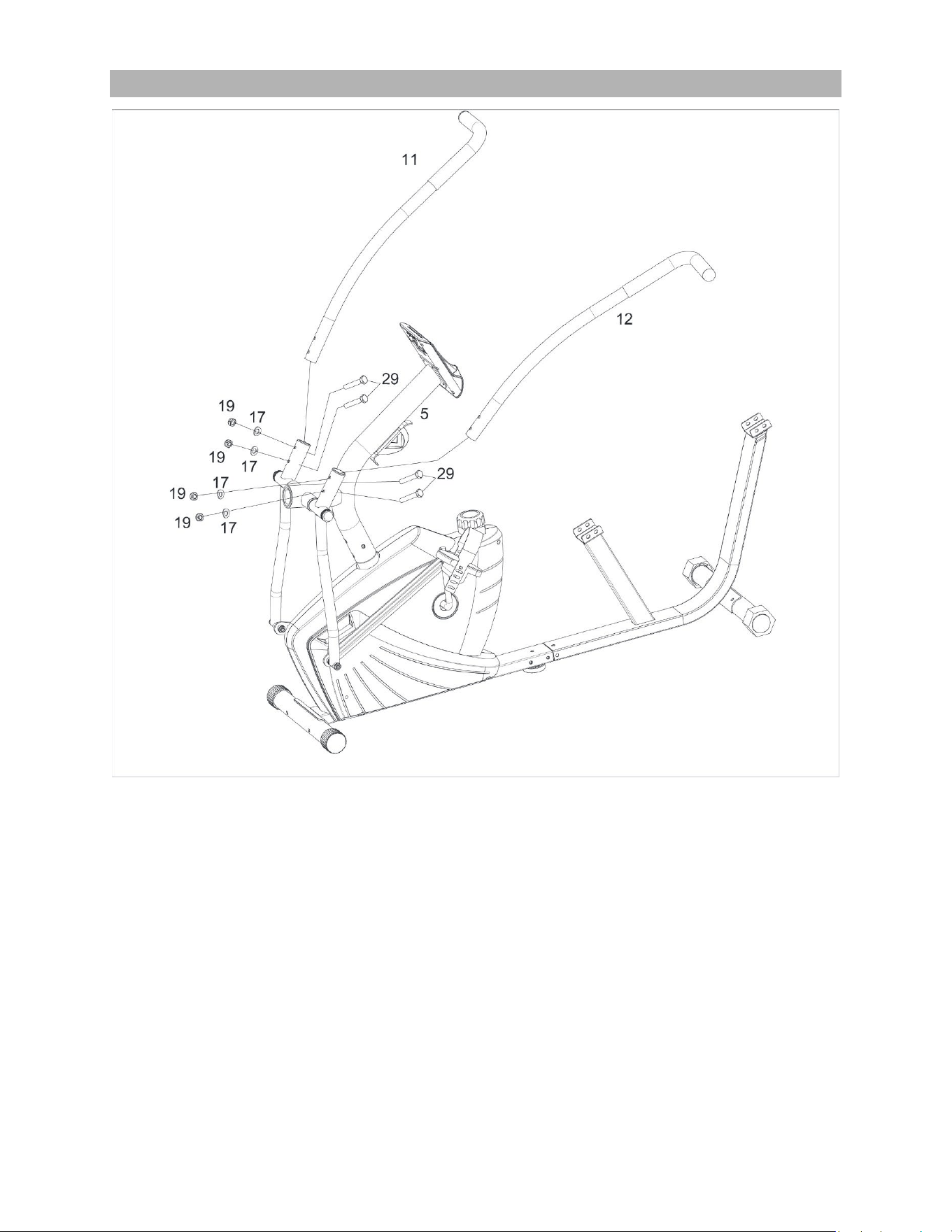

ASSEMBLY STEP 5
15

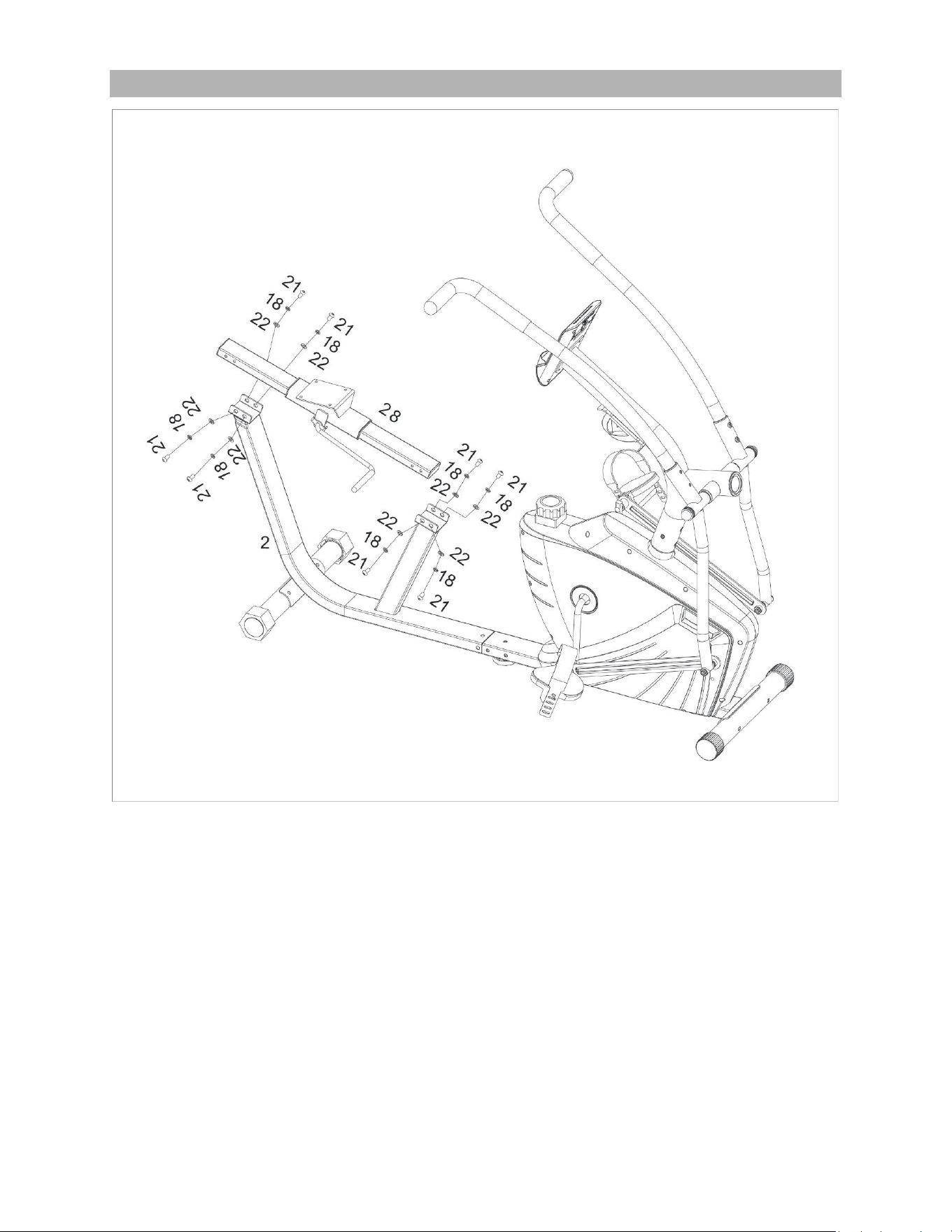

ASSEMBLY STEP 6
16

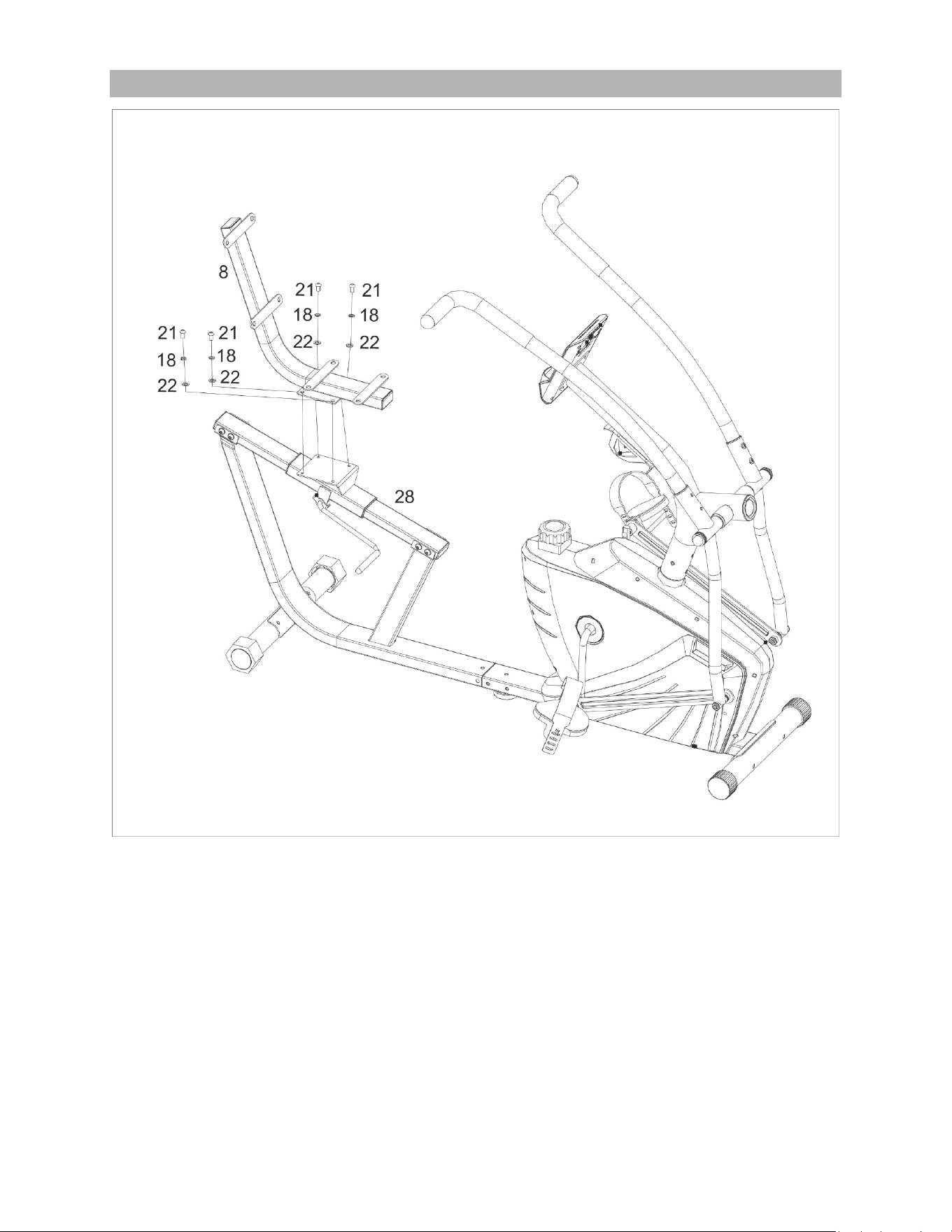

ASSEMBLY STEP 7
17

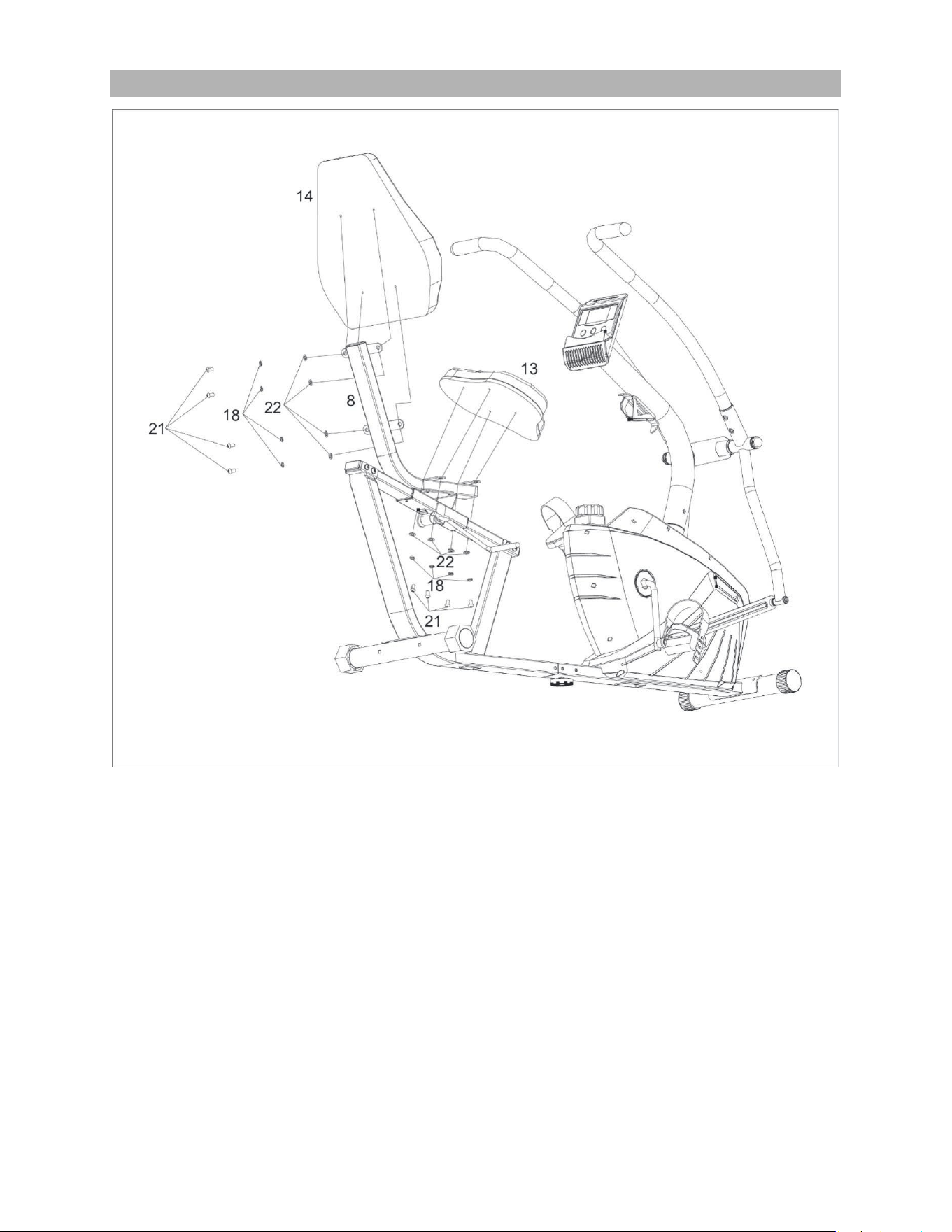

ASSEMBLY STEP 8
18
ASSEMBLY STEP 9
19

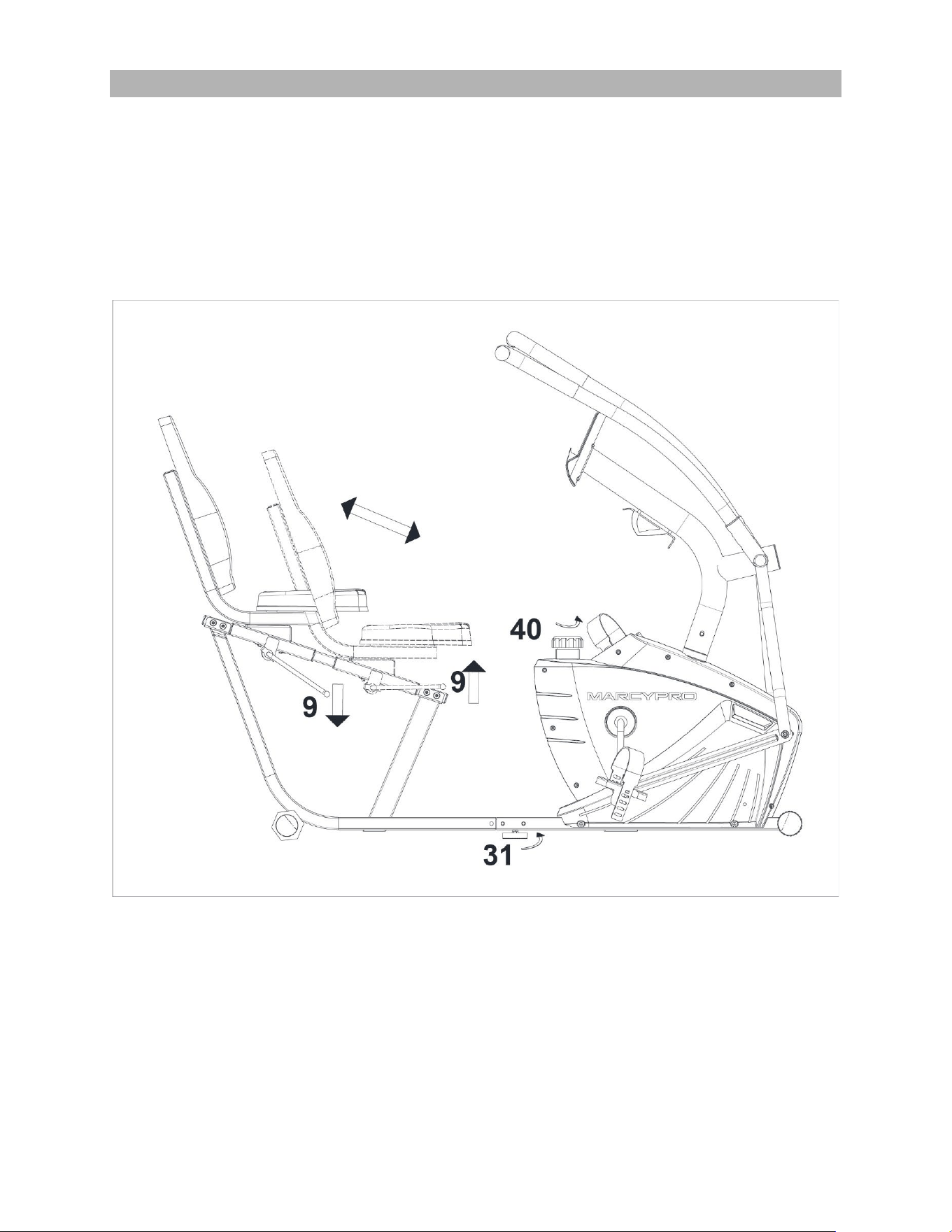

Operating Notes
• To adjust seat position, pull up on lever (#9) to disengage lock, move to desired
position, push down on lever to lock.
• To adjust resistance, turn resistance knob (#40) clockwise to increase resistance,
counter-clockwise to reduce resistance.
• To adjust the leveler (#31), turn/twist the leveler knob to increase and decrease
height to ensure the bike is level.
20
MODE: Pressing Mode allows you to change the
display function on the console.
Computer Functions And Operation
SET: Press to confirm your target time, distance, calories.
RESET: The key to reset the value to zero by pressing the
key.
OPERATION PROCEDURES:
1. AUTO ON/OFF
The system turns on when any key is pressed or
when it sensor an input from the speed sensor.
The system turns off automatically when the bike has
detected no activity for 4 minutes.
2. RESET
The unit can be reset by either changing the batteries or
pressing the MODE key for 3 seconds.
3. MODE
To choose the SCAN or LOCK if you do not want the
scan mode, press the MODE key when the pointer on
the function you want which begins blinking.
FUNCTIONS:
5. TIME: Press the MODE key until pointer lock on to
TIME. The total working time will be shown when
starting exercise.
6. SPEED: Press MODE until speed is displayed. The
current speed will now be displayed during your
workout.
1. DISTANCE: Press MODE until distance
is displayed. The distance will now be
displayed during your workout.
2. CALORIE: Press MODE until Calorie
is displayed. The number of calories
burnt will now be displayed during your
workout.
3. ODOMETER:Press the MODE key until
the pointer advance to
ODOMETER.The total accumulated
distance will be shown.
4. SCAN: The display will change every 4
seconds, scrolling through time, speed,
distance, calories.
BATTERY:
If the display starts to fade, the batteries
need replacing.
21
Function
Auto Scan
Every 4 Seconds
Speed
0.0 – 99.9 Km/h
Distance
0.0 – 999.9 Km
Time
0:00 – 99:59 (Minute: Second )
Calories
0.0 – 999.9 Cal
Odometer
0.0 – 999.9 Km
Battery type
2 x SIZE – AAA

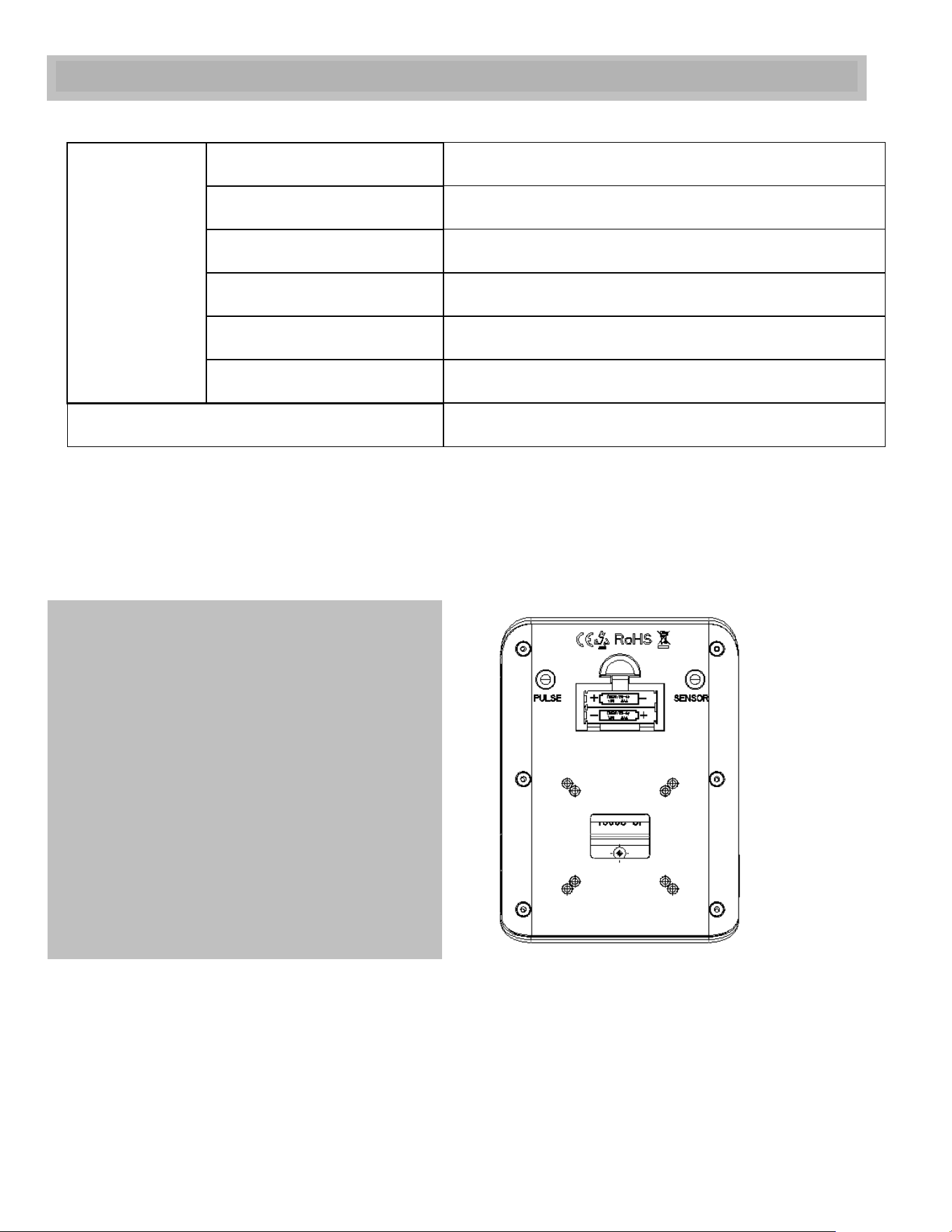

Computer Functions And Operation
v
1. Remove the battery cover on the back of
the computer.
2. Replace 2x1.5V (AAA) batteries.
3. Make sure the batteries are installed
correctly and the polarities are correct.
4. The battery life is approx. 10 months under
normal usage.
22
Operating Notes
• To adjust seat position, pull up on lever (#9) to disengage lock, move to desired
position, push down on lever to lock.
• To adjust resistance, turn resistance knob (#40) clockwise to increase resistance,
counter-clockwise to reduce resistance.
• To adjust the leveler (#31), turn/twist the leveler knob to increase and decrease
height to ensure the bike is level.
23
EXERCISE GUIDELINES
Using your Bike
will provide you with several benefits, it will improve your physical
fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight.

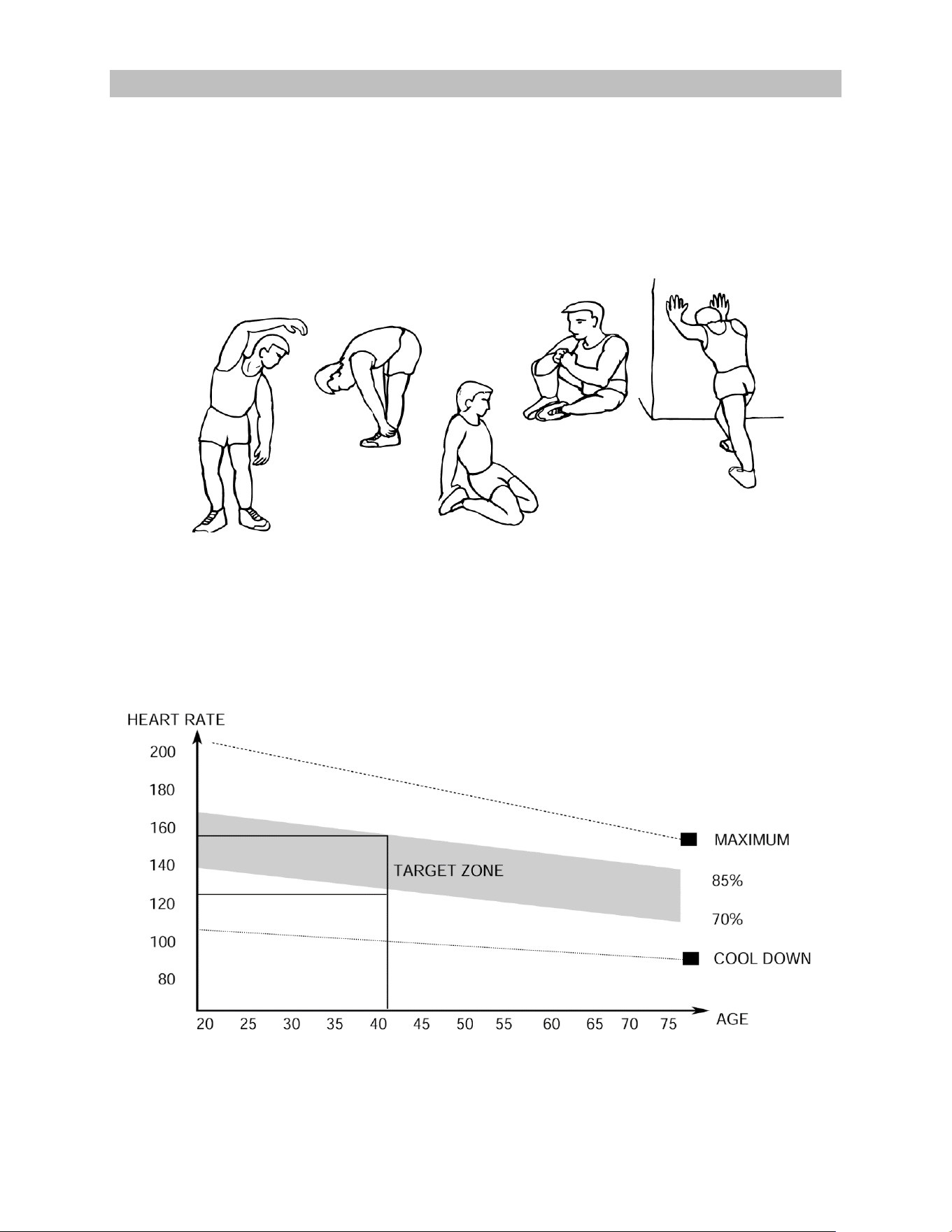

1. The Warmup Phase
This stage helps get the blood flowing around the body and the muscles working
properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a
few stretching exercises as shown below. Each stretch should be held for approximately
30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP.
2. The Exercise Phase
This is the stage where you put the effort in. After regular use, the muscles in your legs
will become more flexible. Work to your but it is very important to maintain a steady
tempo throughout. The rate of work should be sufficient to raise your heartbeat into the
target zone shown on the graph below.
This stage should last for a minimum of 12 minutes though most people start at
about 15-20 minutes.
SIDE BENDS OUTER THIGH
INNER THIGH
FORWARD
BENDS
CALF / ACHILLES
24
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a
repeat of the warmup exercise e.g. reduce your tempo, continue for approximately 5
minutes. The stretching exercises should now be repeated, again remembering not to
force or jerk your muscles into the stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least
three times a week, and if possible, space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your BIKE you will need to have the resistance set quite high.
This will put more strain on our leg muscles and may mean you cannot train for as long
as you would like. If you are also trying to improve your fitness you need to alter your
training program. You should train as normal during the warmup and cool down phases,
but towards the end of the exercise phase you should increase resistance making your
legs work harder. You will have to reduce your speed to keep your heart rate in the
target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and
longer you work the more calories you will burn. Effectively this is the same as if
you were training to improve your fitness, the difference is the goal.
25
IMPEX
®
INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX
®
") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to
replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All freights for products return to IMPEX must be prepaid
by the customer. This warranty does not extend to any product or damage to a product caused by or
attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an
IMPEX authorized service center or for products used for commercial or rental purposes. No other warranty
beyond that specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line www.marcypro.com
IMPEX
®
INC.
2801 South Towne Avenue,
Pomona, California 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-
8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
www.marcypro.com
support@impex-fitness.com
When ordering replacement part, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
