DIGITAL OIL FILLED HEATER
READ AND SAVE THESE INSTRUCTIONS
USER MANUAL
IMPORTANT INSTRUCTIONS
PLEASE READ AND SAVE THESE
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
If provided, use handles when moving this heater. Keep combustible materials, such
as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from
the front of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids
and whenever the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater or return heater to
authorized service facility for examination, electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never locate heater where it may fall into bathtub or other water container.
8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
9. To disconnect heater, first turn controls to off, then remove plug from outlet.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not
use on soft surfaces, like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. Do not use it in the areas where
gasoline, paint, or flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
14.
Always plug heaters directly into a wall outlet/receptacle. Never use
with an extension cord or relocatable power tap (outlet/power strip).
15. This heater draws 12.5 amps during operation. To prevent overloading a circuit, do
not plug the heater into a circuit that already has other appliances working.
16. It is normal for the plug to feel warm to the touch; however, a loose fit between the AC
outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact
a qualified electrician to replace loose or worn outlet.
1
CAUTION:
PART FIGURE
Display window
Caster assembly
Air Outlet
Control button
Fin
Cord wrap
Control box
Use of oil filled radiator
Fig.1
[Installation of the wheel carrier plate assembly]
1.Place the heater body inversely with the bottom
upward.
2.Connect and tighten two wheel carrier plates to
the body with butterfly nuts as shown in the figure.
3.Place the heater upward after it is installed
securely with the wheels touching the ground.
2
17. The output of this heater may vary and its temperature may become intense enough to
burn exposed skin. Use of this heater is not recommended for persons with reduced
sensitivity to heat or an inability to react to avoid burns.
18. Don't leave the heater on unattended.
To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use
on soft surfaces, like a bed, where openings may become blocked.
19. To prevent electric shock, match wide blade of plug to wide slot and fully insert.
CAUTION:

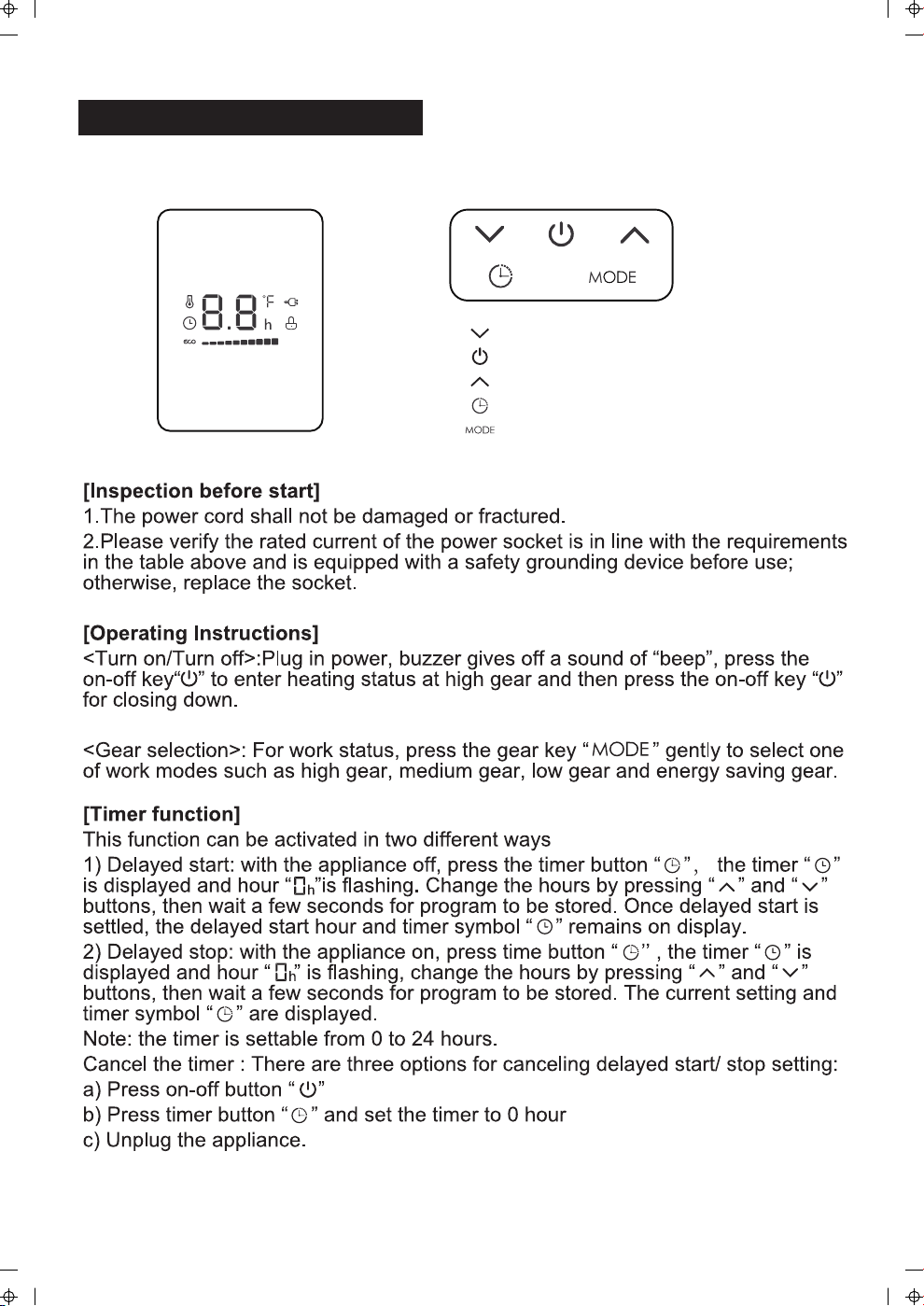

OPERATING INSTRUCTION
3
: Temperature / Timer decrease
: ON/OFF button
: Temperature / Timer increase
: Timer button
: Mode button
4
USING THE REMOTE CONTROL
SAFETY FEATURE
Instructions for remote-control unit Button function are basically consistent
with the operation panel of the body, and the remote-control unit cannot control
the combination key.
5
Timer button
Mode button
ON/OFF button
Temperature / Timer increase
Temperature / Timer decrease
BATTERIES INSTRUCTIONS (included)
1. Please push locking latch in the direction of Arrow A, and pull out the pull notch in the
direction of Arrow B at the same time.
2. Use 1 "CR2032" lithium battery (included)
3. Insert the batteries, making sure that the positive terminals are facing the proper way.
4. Replace the cover.
Battery installation
Locking
latch
Pull Notch
Battery installation
Locking
latch
Pull Notch
B
B
A
Thermal cut-off：This heater includes a thermal cut-off that shuts the heater off if it
overheats due to abnormal conditions. If this occurs, turn the heater off, unplug it,
inspect and remove any objects on or adjacent to the heater.Allow it to cool for a few
minutes,and then plug it back in and resume normal operation.
6
CARE AND CLEANING
SPECIFICATION
1. Always remove the plug from the power socket and allow heater to cool. Wipe
heater with a soft, damp cloth. Do not use detergents and abrasives.
2. If the heater is not in use over a certain length of time, wind the cable around the
holder and store it in a dry place.
3. In case of malfunction, do not try to repair the heater by yourself. It may result in
fire hazard or electric shock.
Model No.: NY1507-17QR
Voltage: 120V, 60Hz
Current: Maximum 12.5 Amps.
Power: 1500 Watts
Tolerances on all specifications: not exceeded than 105%
1. Do not dispose of batteries in fire, batteries may
explode or leak.
2. Do not mix old and new batteries.
3. Do not mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.
4. Non-rechargeable batteries are not to be recharged.
5. Batteries are to be inserted with the correct polarity.
6. Exhausted batteries are to be removed from the product.
7. The batteries must be removed from the remote controller before it is scrapped
and that they are disposed of safely.
BATTERY WARNING
