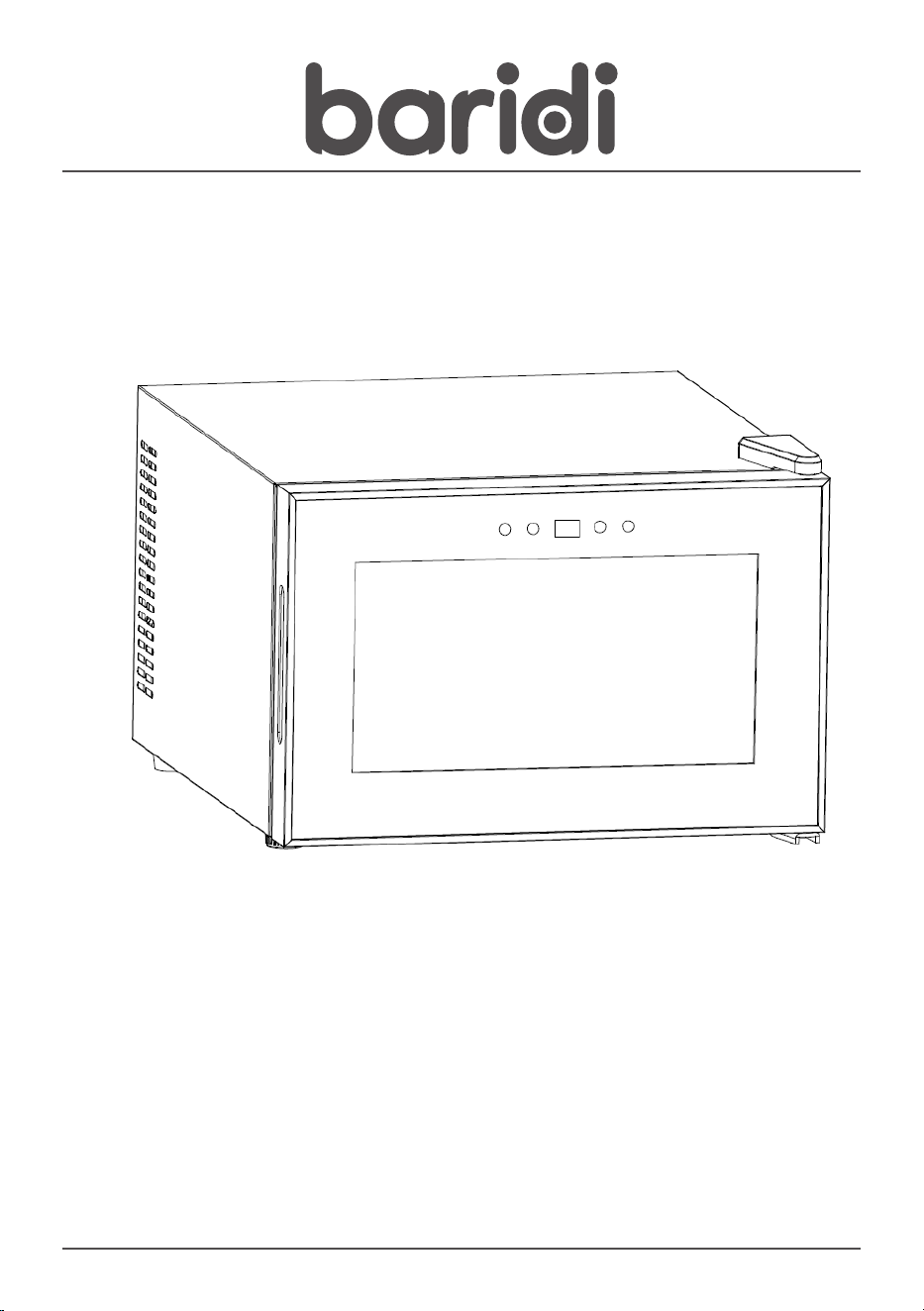

8 Bottle Wine Cooler, Thermoelectric,
5-18°C, Touch Control
Model No. DH218
Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard, this
product will, if used according to these instructions, and properly maintained, give you years of trouble
free performance.
DH218 Issue 1 14/08/2023
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to
check the following:
• Check all electrical equipment and appliances
to ensure that they are safe before using.
Inspect power supply leads, plugs and all
electrical connections for wear and damage.
Dellonda recommend that an RCD (Residual
Current Device) is used with all electrical
products. You may obtain an RCD by
contacting your local domestic stockist.
If the product is used in the course of
business duties, it must be maintained in a
safe condition and routinely PAT (Portable
Appliance Test) tested.
• Electrical safety information: It is important
that the following information is read and
understood.
• Ensure that the insulation on all cables and on
the appliance is safe before connecting it
to the power supply.
• Regularly inspect power supply cables and
plugs for wear or damage and check all
connections to ensure that they are secure.
• Important: Ensure that the voltage rating on
the appliance suits the power supply to be
used and that the plug is tted with the correct
fuse - see fuse rating in these instructions.
• DO NOT pull or carry the appliance by the
power cable.
• DO NOT pull the plug from the socket by the
cable.
• DO NOT use worn or damaged cables, plugs or
connectors.
• Ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
• This product is tted with a BS1363 3 pin Plug
•
• If the cable or plug is damaged
during use, switch off the electricity supply
and remove from use. Ensure that repairs are
carried out by a qualied electrician.
• Replace a damaged plug with a BS1363/A
3 pin plug. If in doubt contact a qualied
electrician.
A) Connect the GREEN/YELLOW
earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the
live terminal ‘L’.
C) Connect the BLUE neutral wire to
the neutral terminal ‘N’.
• Ensure that the cable outer sheath extends
inside the cable restraint and that the restraint
is tight.
• Dellonda recommend that repairs are carried
out by a qualied electrician.
• GENERAL SAFETY
• DO NOT store explosive substances such as
aerosol cans with a ammable propellant in
this appliance.
• WARNING: Ensure the supply cord is not
trapped or damaged.
• WARNING: DO NOT locate multiple portable
Replacement fuse rating:
13A
Refer to
instructions
Indoor use
only
3
socket-outlets or portable power supplies at
the rear of the appliance.
• This appliance is intended to be used in
household and similar applications such as
staff kitchen areas in shops, oces and other
working environments; holiday homes, hotels
and other residential settings; and catering
and similar non-retail applications.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of knowledge and
experience if they have been given supervision
or instruction concerning the use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
• SPECIFICATION
• Model no: .....................................DH218
• Capacity: ........................................8 bottles
• Energy Eciency Class:..............................E
• Internal Dimensions:.....333 x 330 x 183mm
• Product Dimensions:....430 x 495 x 305mm
• Max. Bottle Height: ......................... 330mm
• Temperature range: ......................... 5-18°C
• Volume: ................................................. 21L
• PARTS DESCRIPTION
• CONTROLS
• It is recommended you install the Chiller in
a place where the ambient temperature is
between16°-32°C/61°-90°F.
• If the ambient temperature is above or below
recommended temperatures,the performance
of the unit may be affected. For example,
placing your unit in extreme cold or hot
conditions may cause interior temperatures
to uctuate and the range of (5-18°C/41-
64°F) may not be reached.
• Temperature display can be changed from
o
C
to
o
F by pressing for 2 seconds.
• To turn the interior light on or off press
once.
• The light will be turned off automatically if it
remains ON for 10 minutes. You have to push
the button again and the light will turn back on.
• Your Cooler has been equipped with an
“automatic’ control panel lock, that will
activate 20 seconds after the last time a
button has been touched.
• Push the button for 2 seconds to
unlock the control panel. You will hear a
“BEEP” sound to alert you that the control
is now active.
•
•
1
Cabinet
2
Shelf
3
Cold sink fan
4
Cold sink Fan Cover
5
Ventilation Holes
6
Leveling legs
7
Upper Door Hinge / Cover
8
Door
9
Gasket
10
Bottom hinge
4
• You can set the temperature as you desire by
pushing the up or down button on the control
panel. The temperature that you desire to set
will increase / decrease 1°C if you push the
button once.
• INSTALLATION
• Unit is designed to be a table top model.
Ventilation Space - a minimum ventilation
volume of 200cm
3
is required.
• A minimum distance of 20mm is required
for the cooler sides and any adjacent wall /
obstruction.
• A minimum gap of at least 50mm is required
between the rear of the unit and any adjacent
wall / obstruction.
• Air passing around and through the unit must
not be preheated.
• The entire cooling system must be considered
in the issue of ventilation.
• DO NOT locate the unit in a damp location.
• Ensure that the work / oor surface is strong
and stable enough to support the unit when it
is fully loaded.
• Level the unit when in location by using the
adjustable levelling feet in each corner.
• Once in position allow the unit to rest for an
hour before turning it on.
• OPERATION
• When you use the cooler for the rst time or
restart the cooler after having been shut off
for a long time, there could be a few degrees
variance between the temperature you
select and the one indicated on the LED
readout. This is normal and it is due to
the length of the activation time. Once the
cooler is running for a few hours everything
will be back to normal.
• The refrigerator applies automatic defrosting
system, so there is no need to defrost it
manually.
• STORAGE CAPACITY
• Many bottles may differ in size and
dimensions. As such the actual number of
bottles you may be able to store may vary.
Bottle capacities are approximate maximums
when storing traditional Bordeaux 750ml
bottles and include bulk storage.
• MAINTENANCE
• Remove the power plug from the supply when
performing cleaning or maintenance.
• DO NOT use abrasive or chemical cleaning
materials on any surface of the unit.
• Wipe interior and exterior surfaces with a
damp cloth and dry thoroughly with a clean
dry cloth.
• For more soiled surfaces use a neutral
detergent, wipe down with a clean damp cloth
and dry thoroughly with a clean dry cloth.
• It is recommended that the appliance be
turned off if not being used.
UP DOWN
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
5
Environment Protection, Waste Electrical and Waste
Electronic Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of its useful life, please dispose of in an environmentally friendly way.
Drain any uids (if applicable) into approved containers, in accordance with local waste
regulations. It is our policy to continually improve products and we reserve the right to alter
data, specications and parts without prior notice. No liability is accepted for incorrect use
of this product. Guarantee is 12 months from purchase date, proof of which is required for
any claim.
• Symptom • Possible Reason • Action
• No Cooling • No power • Check the electricity supply, or
change a new plug
• PCB broken • Replace a new PCB
• Fan broken • Replace a new fan
• Leakage • Replace a new heat pump
• Cooling module bro • Replace a new cooling module
with silicone
• Poor Cooling • High ambient temperature • The room temperature is hotter
than normal
• Poor instruction • The door is opened too often
• Poor ventilation • Install cooler according to our
ventilation instruction
• Poor gasket • Replace a new door gasket
• Poor silicone • Change the silicone on the
surface of the cooling module
• Noisy Operation • Dust • Clean the dust from the fan
• Fan broken • Change to a new fan
• Poor heat pump • Replace a new heat pump
• Frosting / Icing • Poor heat pump • Stop working for at least one hour,
then restart it
• Low ambient temperature • Adjust the air-conditioner to be
around 25 degree
• TROUBLESHOOTING
Product Information Sheet. Refrigerating Appliances
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd. DELEGATED_ACT EU/2019/2016
MODEL_IDENTIFIER DH218
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS [email protected]
Parameter Verification tolerances
Low-noise appliance No Design type Freestanding
Wine storage appliance No Other refrigerating appliance No
General product parameters
Height mm 305
Width mm 430 21
Depth mm 495
EEI 99 E
Airborne acoustical noise emissions (dB(a)
re 1 pW
33 B
Annual energy consumption kWh/a 75.00
SN = extended temperate(10-32°C)
N = temperate 16-32°C
ST = subtropical 16-38°C
T = tropical 16-43°C]
Minimum ambient temperature (°C) for
which the refrigerating appliance is
suitable.
16 32
Winter setting No
8 Bottle Wine Cooler, Thermoelectric, 8-18°C, Touch Control, Table Top
Total volume. Litres.
Airborne acoustical noise emission class
Maximum ambient temperature (°C) for
which the refrigerating appliance is suitable.
Climate class
N
Energy efficiency class
Compartment type
Volume.
Litres.
Recommended temperature setting for optimised food storage
Freezing capacity (kg/24 h)
Defrosting type
(auto = A Manual = D)
Pantry Yes 21.0 NA
_
NA
Wine storage appliance No FALSE FALSE
_
FALSE
Beverage / Beer cooler No FALSE FALSE
_
FALSE
Cellar No FALSE FALSE
_
FALSE
Fresh food No FALSE FALSE
_
FALSE
Chill No FALSE FALSE
_
FALSE
0-star or ice-making No FALSE FALSE
_
FALSE
1-star No FALSE FALSE
_
FALSE
2-star No FALSE FALSE
_
FALSE
3-star No FALSE FALSE
_
FALSE
4-star No FALSE FALSE FALSE FALSE
2-star section No FALSE FALSE
_
FALSE
Variable temperature compartment
Compartment
types
FALSE FALSE
_
FALSE
4-star compartments Light source parameters
Fast freeze facility No Type of light source LED
Energy efficiency class exempt
Minimum duration of guarantee (years) 1
Suppliers website https://www.dellonda.co.uk/
