UGP-2
PORTABLE CAMPING FREEZER
The installation of the appliance must conform with local codes ANSI
Z21.74 1992, in the absence of local national Fuel Gas Code, ANSI Z233.1,
and in Canada B149.2 Propane Storage and Handling Code.
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or property
damage. Refer to this manual. For
assistance or additional information
consult a qualified installer, service
agency or the gas supplier.
!SAVE THESE INSTRUCTIONS!
FOR YOUR SAFETY IF YOU SMELL GAS
Open windows.
Do not touch electrical switches.
Extinguish any open flame.
Immediately turn off gas supply and call
your gas supplier.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity
of this or any other appliance.
FOR YOUR SAFETY
If you smell gas:
1. Evacuate enclosure
2. Call professional for
help
V3-2023
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING
FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Open windows.
2. Do not attempt to light appliance.
3. Do not touch electrical switches
4. Extinguish any open flame.
5. Shut off fuel supply cylinder valve or if
equipped with a disposable fuel supply,
disconnect the fuel cylinder from the
refrigerator.
6. Evacuate the area immediately and wait for
gas to dissipate such that you can no longer
smell the
gas.
If necessary, have the appliance serviced.
Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death.
MANUFAC TURED AN D C ERTIFIED B Y
Unique Appliances Ltd
2245 Wyecroft Road #5
Oakville, Ontario Canada L6L 5L7
Ph: 905-827-6154 Toll Free: 1-877-427-2266 Fax:
905-827-2027 www.UniqueAppliances.com
E-mail: info@UniqueAppliances.com
“
“
“
P
P
P
e
e
e
r
r
r
s
s
s
o
o
o
n
n
n
a
a
a
l
l
l
S
S
S
e
e
e
r
r
r
v
v
v
i
i
i
c
c
c
e
e
e
&
&
&
K
K
K
n
n
n
o
o
o
w
w
w
l
l
l
e
e
e
d
d
d
g
g
g
e
e
e
m
m
m
a
a
a
k
k
k
e
e
e
s
s
s
u
u
u
s
s
s
U
U
U
n
n
n
i
i
i
q
q
q
u
u
u
e
e
e
”
”
”
Table of Contents
Chapters
Welcome 1
Safety and Warnings 2
Appliances Installation/ Operating Instructions 3
Maintenance & Service
1
1
Troubleshooting & Suggested Spares 15
Temperature Controls, Food Storage and
Cleaning 17
Wiring Diagram
19
Parts & Warranty
2
1
UNIQUE UGP 2
1
Welcome &
Congratulations
ongratulations on your purchase of a UNIQUE freezer! We are very proud of
our product and we are completely committed to providing you with the best
service possible. Your satisfaction is our #1 priority. Please read this manual very
carefully. It contains valuable information on how to properly maintain your new gas
freezer.
We know you will enjoy your new freezer and thank you for choosing one of our Unique
Gas Products. We hope you will consider us for future purchases.
PLEASE READ AND SAVE THESE INSTRUCTIONS
This manual provides specific operation instructions for your model. Use your freezer
only as instructed in this manual. These instructions are not meant to cover every possible
condition and situation that may occur. Common sense and caution must be practiced
when installing, operating and maintaining the appliance.
Please record your model and serial # shown below for future reference. This
information is found on your CSA rating/serial plate at the side of your freezer.
Chapter
1
C
Please mail in the Warranty Registration Card
included with your freezer.
UNIQUE UGP 2
2
Safety and Warnings
If you smell gas
Open windows.
Don’t touch electrical switches.
Extinguish any open flame.
Immediately call your gas supplier.
For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this unit or any other appliance
Warning
Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this manual. For assistance or additional
information consult a qualified installer, service agency or the gas supplier.
This product can produce Carbon Monoxide. Carbon Monoxide has no odour
and can kill you. The burner and flue system must be kept clean. See owner’s
manual for cleaning instructions.
Electrical Grounding Instructions: This appliance is equipped with a three-prong
(grounding) plug for your protection against shock hazards and should be
plugged directly into a properly grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
Provide ample ventilation, especially when sleeping. This freezer consumes air
(oxygen). Do not use this freezer in unventilated structures to avoid endangering
your life. Provide additional ventilation for any additional fuel-burning appliances
and additional “occupants.”
CAUTION: NEVER bring a refillable LP-Gas Cylinder Exceeding 1lb
indoors. A fire or explosion can occur causing property damage,
serious injury or death.
Installation Instructions
The installation of the appliance must conform to ANSI Z21.74 1992 in the
absence of local national Fuel Gas Code, ANSI Z233.1, and in Canada B149.2
Propane Storage and Handling Code.
UNIQUE UGP 2
3
Installation and Operating Instructions
Installation
For best performance at high ambient temperatures, there must be free air
circulation over the cooling unit at the rear of the freezer.
Ensure that there is a free air space above the freezer and that the flue (chimney) on
top of the cabinet is not covered in any way. Do not place the freezer in a space
where air circulation is restricted. Follow “clearance” instructions.

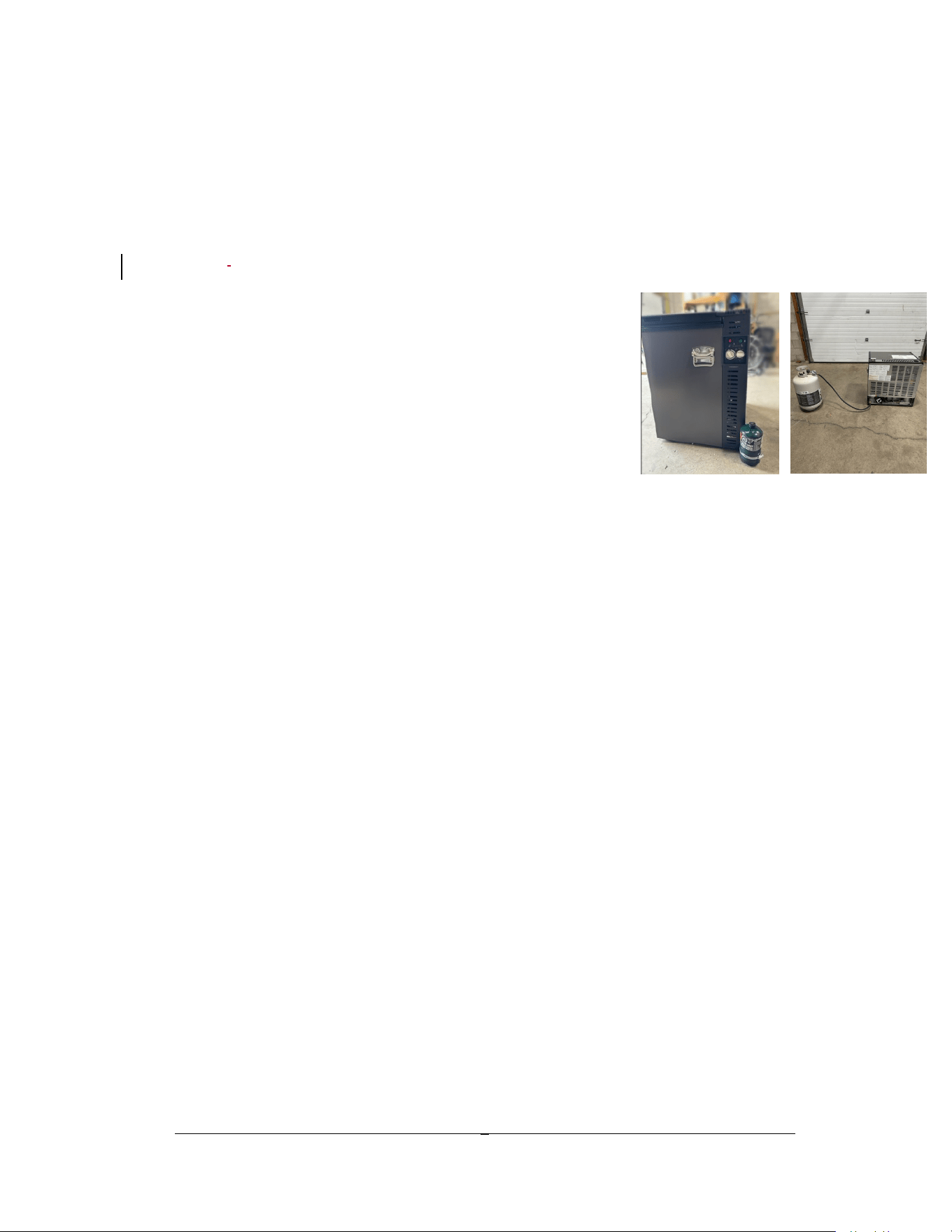

This UNIQUE 2 appliance has been certified as a portable camping appliance in North
America it must be used as a portable camping appliance for use outdoors in sheltered
area. While using on electrical operation this unit can be used in an enclosed area but
must still be protected from moisture as comply with all clearances.
For installation, for maintaining proper clearances from combustible material to the
freezer, the following minimum clearance must be observed:
Clearances

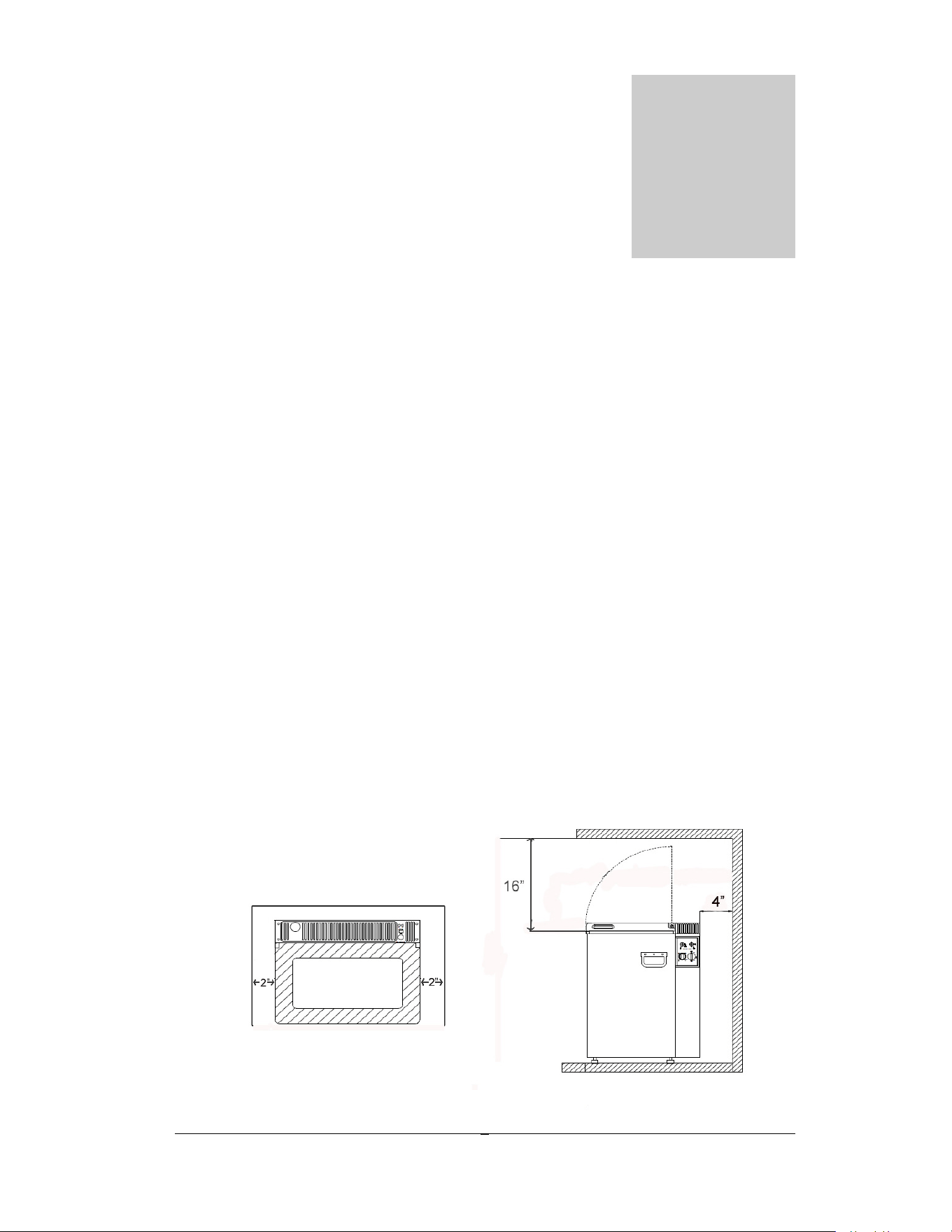

Minimum clearances to combustible materials are: Top 16”, Sides 2”, Rear 4”
Chapter
2
1

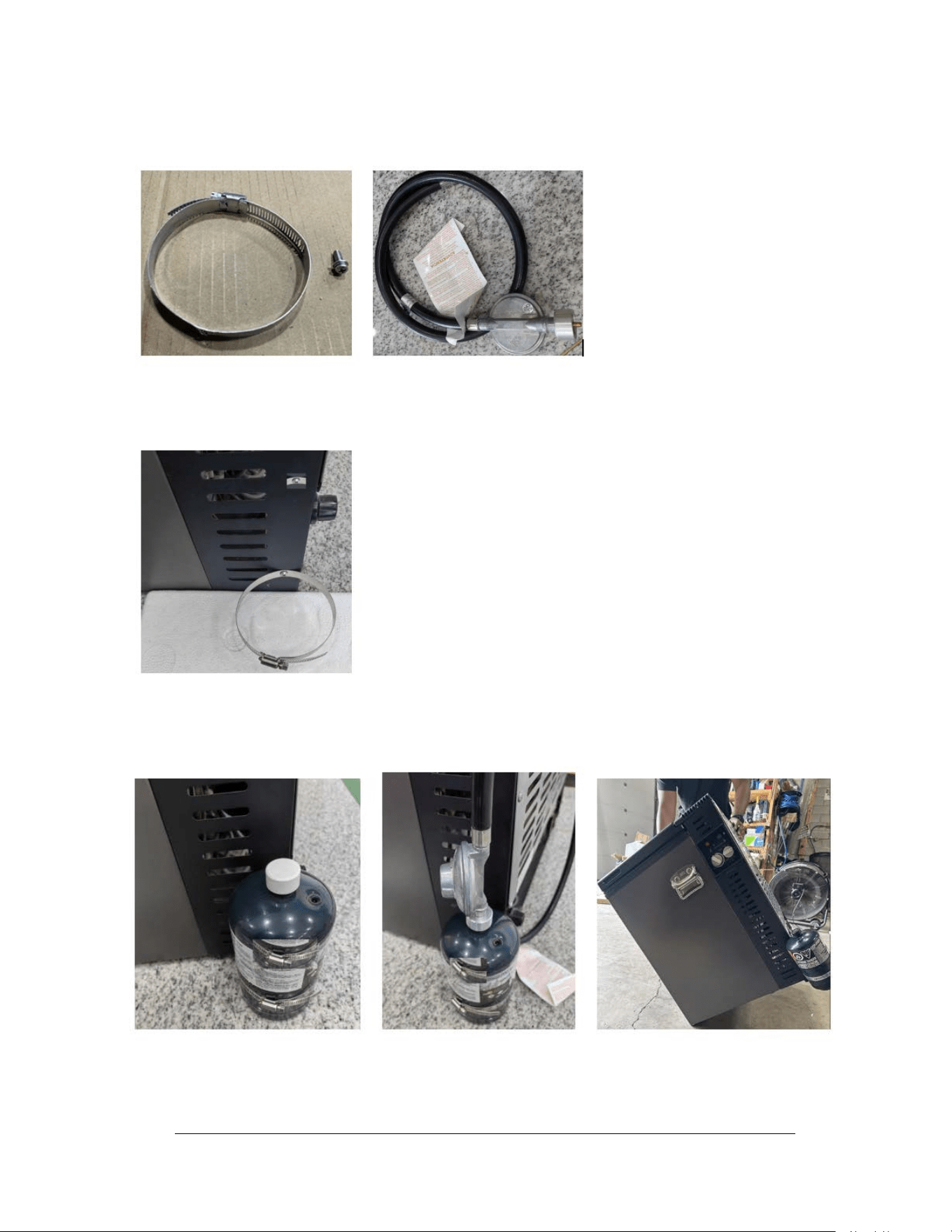

. Take out 2 pcs hose clamps, 2 pcs bolts, the regulator and instruction manual.
2
. Install these 2 pcs hose clamps on the cabinet side.
3
. Inse
rt tank into hose clamps and tighten until snug. Tank should not fall out of holder
when fridge is tipped forward.
4
. Use so
ap water to check whether there are bubbles on gas inlet connector, if not, then start
to use the refrigerator.
4
Tank Holder Installation Instruction for UGP-2
UNIQUE UGP 2
5
Note: DO NOT install the appliance directly on carpeting. Carpeting must be
removed or protected by a metal or wood panel beneath the appliance, which
extends at least the full width and depth of the appliance.
Keep appliance area clear and free from combustible materials, gasoline and other
liquids with flammable vapors.
WARNING – DO NOT USE FLAME TO CHECK FOR GAS LEAKS
Levelling
Ensure the freezer is leveled by using a 2ft level; the operation of this unit uses an
absorption system which requires the appliance to be level in order to operate
effectively.
Connecting to Gas Cylinder
The freezer is designed for a 20# steel propane self-contained fuel cylinder of not
more 4.6 gal (20lbs) capacity. The cylinder(s) must be constructed and marked in
accordance with the specifications for LP-gas cylinders of the U.S. Department of
Transportation, DOT SPEC. 39 (49CFR 178.65).
Connecting of Gas Supply
1. Use supplied regulator and hose to connect your appliance to the gas supply.
2. Hook up the 5/8”-18UNF connection to the back of your appliance using a
backup wrench.
3. Attach the regulator cap to the tank inlet connection and ensure it is tight.
UNIQUE UGP 2
6
4. After connecting, all
gas connections must be checked for leaks
. For this, put
a soapy solution on all gas connections, turn on the gas cylinder manual valve and
watch for bubbles. Never use an open flame to check for leaks.
Note: The gas supply system must incorporate a pressure regulator to maintain a
supply pressure of not
more than 12” water column and no less than 11” water
column. (Max setting).
General Operating Instructions
Importance of Leveling a Freezer
The freezer must be adjusted to a vertical position in both directions. In an absorption
refrigeration system, ammonia is liquefied in the finned condenser coil at the top rear of
the freezer. The liquid ammonia then flows into the evaporator (inside the freezer) and is
exposed to circulating flow of hydrogen gas, which causes the ammonia to evaporate,
creating a cold condition in the freezer.
When starting this freezer, the cooling cycle may require 6 to 8 hours of running time to
begin cooling before the cooling unit is fully operational, you can then begin slowly
loading the compartment.
The tubing in the evaporator section is specifically sloped to provide a continuous
movement of liquid ammonia, flowing downward by gravity through this section. If the
freezer is operated when not level, liquid ammonia will accumulate in sections of the
evaporator tubing. This will slow the circulation of hydrogen and ammonia gas, or in
severe cases, completely block it, resulting in a loss of cooling. Warranty will not cover
recharge/rebuild if caused by not running the freezer level.
This freezer operates LP Gas (Propane), 110V (Electricity) and 12V DC
Gas Operation
“Start Up” Procedure
After initial installat
ion, servicing, or changing gas cylinders etc., the gas pipes may
contain some air which should be allowed to escape by briefly turning on the freezer.
This will ensure that the flame lights immediately.
· The cylinder be disconnected when the appliance is not in use
· The gas must be turned off at the supply cylinder. Storage of an appliance
indoors is permissible only if the cylinder is disconnected and removed
from the appliance. Cylinders must be stored outdoors out
· The cylinder supply system must be arranged for vapor withdrawal
· If in excess of 1 lb (0.45 kg) of liquid fuel capacity, must include a collar
to protect the cylinder valve
· Do not store a spare LP gas cylinder under or near this appliance
· Never fill the cylinder beyond 80 percent full
· If the instructions in l(i) and l(ii) are not followed exactly, a fire causing
death or serious injury may occur;
UNIQUE UGP 2
7

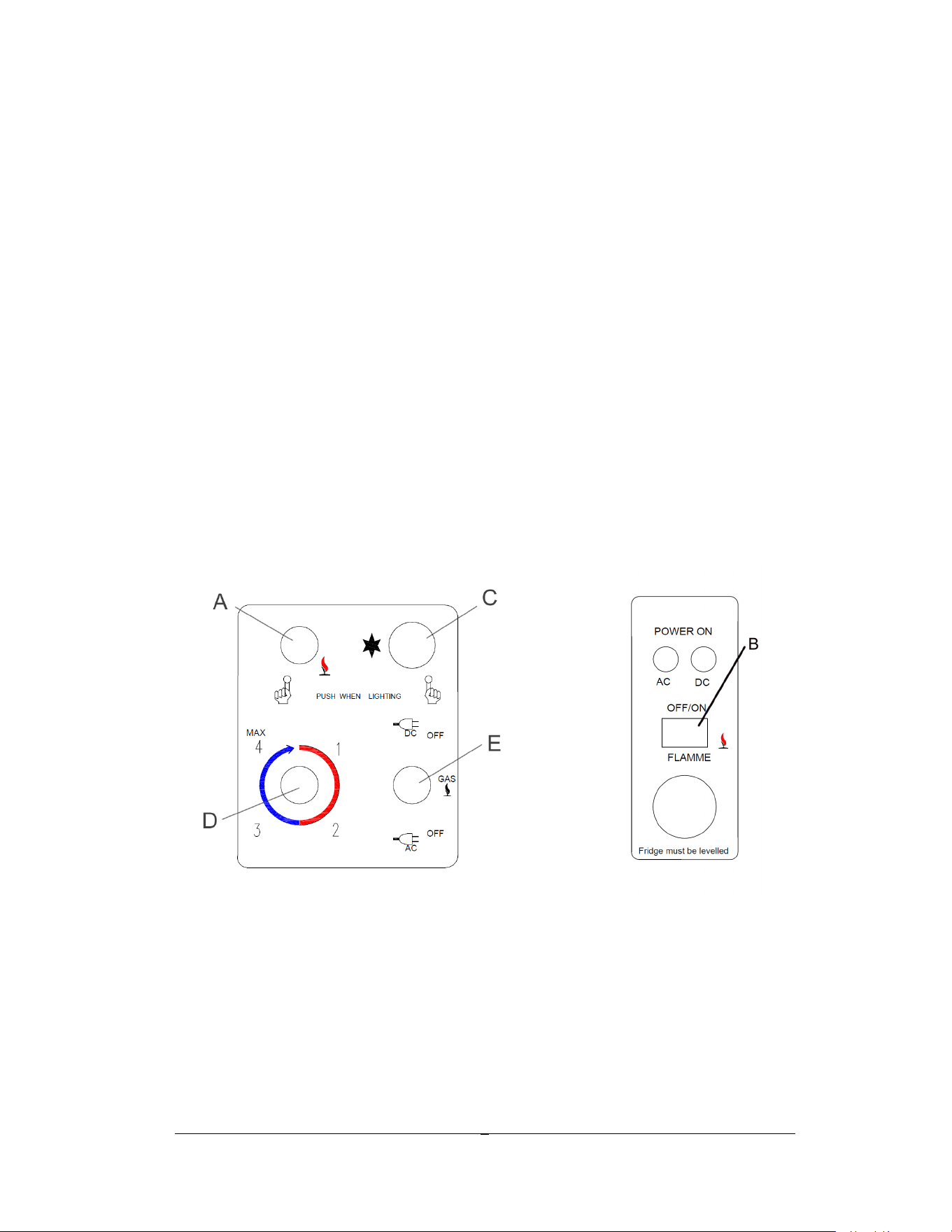

6. Release the safety device control (A) and again check to see that the flame is
alight.
7. Adjust the thermostat knob (D) to desired temperature setting after 6 to 8
hours of operation.
8. To terminate gas operation, turn selector switch (E) to OFF position.
Electronic Ignition Module Location

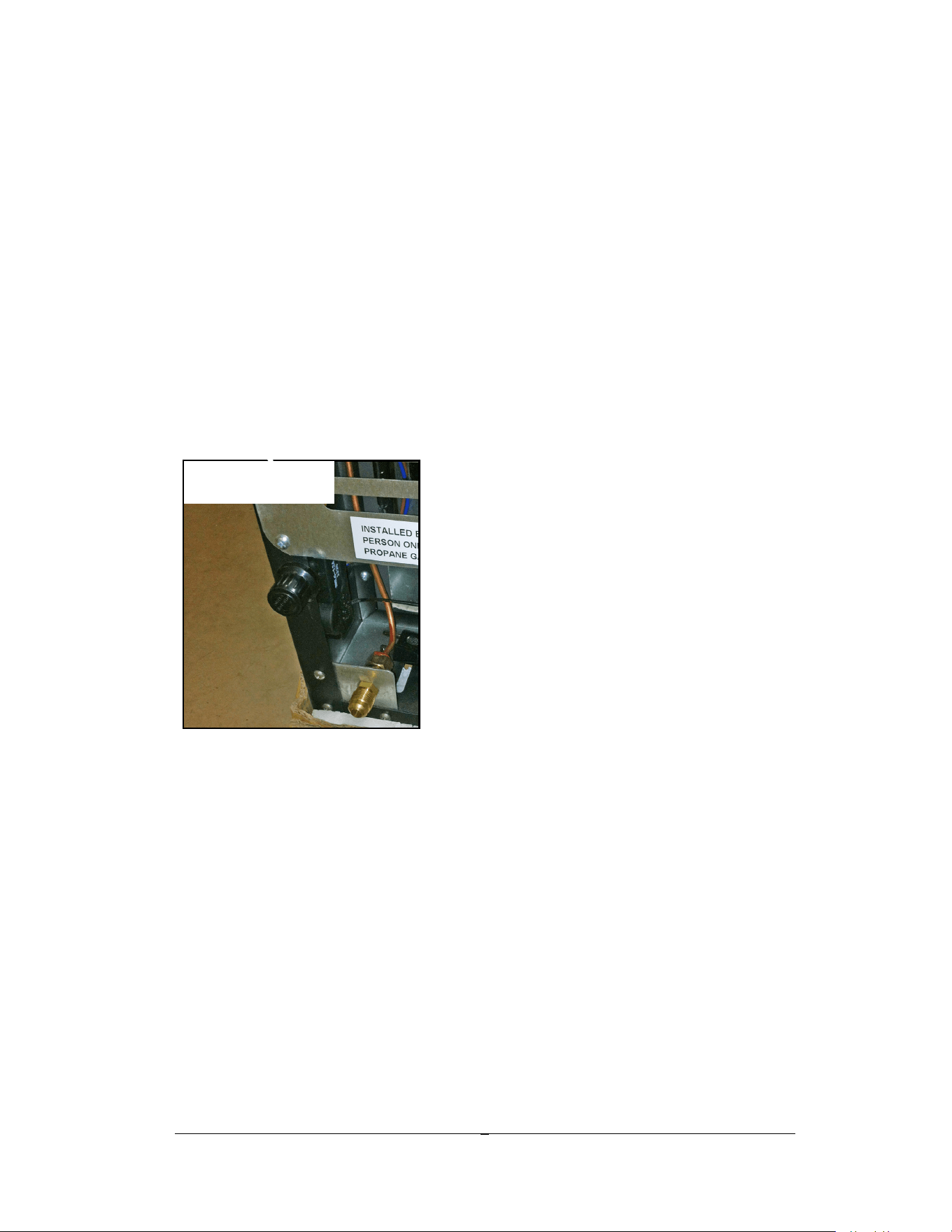

The electronic ignition battery module is located
at the back of the appliance at the bottom left
side while facing the back of the appliance.
If the battery requires changing, turn knob to the
left to expose the battery, remove AAA battery
and replace with new one (positive facing
outwards), replace the knob and turn to the right
to close.
Shut Down Procedure – LP Gas
A. Turn selector knob “E” to “OFF” position.
B. Shut the gas off at the LP-gas supply cylinder when the appliance is not in use.
C. If the freezer will not be in operation for a period of weeks, it should be emptied,
defrosted, cleaned and the lid left open.
110V Operation
1. Make sure that the gas valve is turned off at the tank.
2. Ensure the electrical cord is plugged into a grounded outlet.
3. Turn the selector switch (E) to “AC” position. AC indicator light will illuminate.
4. Adjust the thermostat knob (D) to desired temperature setting after 6 to 8 hours
of operation.
Turn knob to left to
expose AAA battery
1. Make sure that all valves between the gas container and the freezer are open.
2. Turn selector switch (E) to gas.
3. Depress the safety device control (A) and hold it down while immediately
depressing the electronic igniter button (C).
4. Check the flame indicator (B) to see whether the flame is alight.
5. Keep the safety device control (A) depressed for a further 10-15 seconds.
UNIQUE UGP 2
8
12V DC Operation
1. If 110 Volts or LP gas is not available, the freezer can work with DC12V (3-
Way models only).
2. Make sure that you turn the main power switch (E) to “DC” position. Then
you can connect the 12VDC power to the terminal block which is available
in the rear bottom part of the freezer.
3. DC operation is not as efficient as LP Gas or AC operation. DC electric
should not be used to initially cool the freezer. Only use DC when the other
modes are unavailable (for example; while in transit). When you start to use
AC or gas supply, make sure that you disconnect the DC power input.
CONTROLS – See Fig. #1 for description of controls
Figure #1
Thermostat
The freezer cooling temperature is controlled by a combination thermostat that can be
adjusted by turning knob “D” to different settings to maintain the desired freezer
temperature when operating on either gas or 110V. Knob “A” also incorporates a safety
device which automatically shuts off the supply of gas if the flame goes out. The
UNIQUE UGP 2
9
electronic ignition C discharges sparks onto the burner when the button is pushed. See
Figure #1
1. “MAX” Setting of the Thermostat: In gas operation, the thermostat allows the
burner to remain on high flame continuously. (turn clockwise), and in 110V
operation the element will stay on until the desired temperature is reached inside
the freezer.
2. The thermostat can be adjusted between “4” and “1” to obtain the desired
freezer temperature. When the thermostat reaches the set temperature, it will
reduce the burner back to bypass operation or shut the element off in 110V
operation.
3. In DC operation the freezer will only maintain the temperature that’s already
been achieved. There is no thermostatic function.
How to Use the Freezer
This compartment is not designed for deep or quick freezing of food. To prevent food
from drying out, keep it in covered dishes, containers, plastic bags or wrapped in
aluminum foil.
Defrosting
Frost will gradually accumulate inside the freezer surfaces. It must not be allowed to grow
too thick as it acts as an insulator. Check the formation and when it exceeds ½” thick,
defrost the freezer.
Shut off and empty the freezer, leaving the freezer lid open.
DO NOT USE A HOT AIR BLOWER, PERMANENT DAMAGE
COULD RESULT
. DO NOT USE A KNIFE, ICE PICK, OR ANY
OTHER SHARP TOOLS TO REMOVE FROST FROM THE FREEZER
COMPARTMENT
.
When all frost is melted in the freezer it should be wiped up with a clean cloth. Replace
all frozen food and set the thermostat to its Max position.
Cleaning
Cleaning the freezer is usually done after it is defrosted or put into storage. To clean the
interior liner of the freezer, use a lukewarm water and weak soda solution.
UNIQUE UGP 2
10
Never use strong chemicals or abrasives to clean these parts as the
protective surfaces will be damaged. It is important to always keep the
freezer clean. Dishwasher detergent is recommended.
UNIQUE UGP 2
11
Maintenance & Service
The user should be aware of service that must be done on a regular schedule to keep the
freezer operating properly. Installation must be by a licensed gas fitter in accordance with
local codes or must comply with Propane Installation Code CAN/CGA-B149.2 (latest
edition)
Keep appliance area clear and free from combustible materials, gasoline and other
liquids with flammable vapors.
Do not obstruct the flow of combustion and ventilation air, ensure clearances are
followed.
FREEZER REMOVAL
Before working on the freezer, shut off the gas supply. Disconnect the gas supply line at
the rear of the freezer. Always use a backup wrench when loosening and tightening this
connection. Disconnect freezer from 110V source.
Warning: To avoid electrical shock always unplug your freezer before cleaning.
Ignoring this may result in injury.
PERIODIC MAINTENANCE
Before working on freezer, shut off the gas supply. Disconnect the gas line at the rear of
the freezer. Always use a backup wrench when loosening and tightening this connection.
To keep your freezer operating effectively and safely, periodic inspection and cleaning of
several components is recommended once or twice a year, sometimes more often
depending on environment.
It's important to keep the area at the back of the freezer clean. Clean the coils on the
back of the freezer. Use a soft bristled brush to dust off the coils.
Note:
The following maintenance is required at least once or twice a year at least,
more often based upon usage/environment.
Chapter
3
UNIQUE UGP 2
12
Check all connectors in the complete freezer LP gas system for gas leaks. The LP
gas supply must be turned on. Apply a non-corrosive bubble solution to all LP
connections. The appearance of bubbles indicates a leak and should be repaired
immediately by a qualified serviceman.
WARNING – DO NOT USE FLAME TO CHECK FOR GAS LEAKS
PROCEDURE FOR CLEANING THE COOLING SYSTEM FLUE
WARNING: Carbon Monoxide can be hazardous to your health. Gas appliances
may emit excessive Carbon Monoxide if the freezer’s burner, burner orifice, and the
flue tube are not regularly cleaned. To prevent Carbon Monoxide, the burner, burner
orifice, and the cooling system’s flue tube must be cleaned at least once a year and
after all prolonged (seasonal) shut-down periods. Refer to the following cleaning
procedures, or contact a qualified installer, your dealer.
1. Before cleaning, cover the burner to protect it from dirt;
2. Remove the spiral flue baffle from the flue tube.
3. Using a stiff brush or fine emery cloth, clean the spiral flue baffle of debris.
4. Clean the inside of the flue tube with a flue brush. Inspect burner after cleaning.
5. Re-install the spiral flue baffle. Insure the spiral flue baffle is securely in place. The
spiral flue baffle is required for efficient cooling while operating in the gas mode.
CLEANING THE BURNER
Take off the protection hood and do the following:
1. Clean the openings and the burner screen with a wire brush
2. Clean and inspect the electrode and thermocouple. If either is corroded, have
it changed. Check that they are well attached and if necessary tighten the
screws
3. Check that the spark is being created by pressing the electronic ignition
button on the control panel.
4. Before removing burner orifice, clean burner area of any soot, scale or dirt
Remove the orifice and soak it in alcohol (isopropyl alcohol or thinners) and
UNIQUE UGP 2
13
blow it out with compressed air. Do not use thin objects to either clean or
unblock the injector. Re-install and tighten burner orifice.
5. Replace burner
Warning - DO NOT use a pin or wire when cleaning the
burner orifice as damage can occur to the precision opening.
This can cause damage to
the freezer or create a fire hazard. It
will also create extremely dangerous levels of carbon
monoxide.

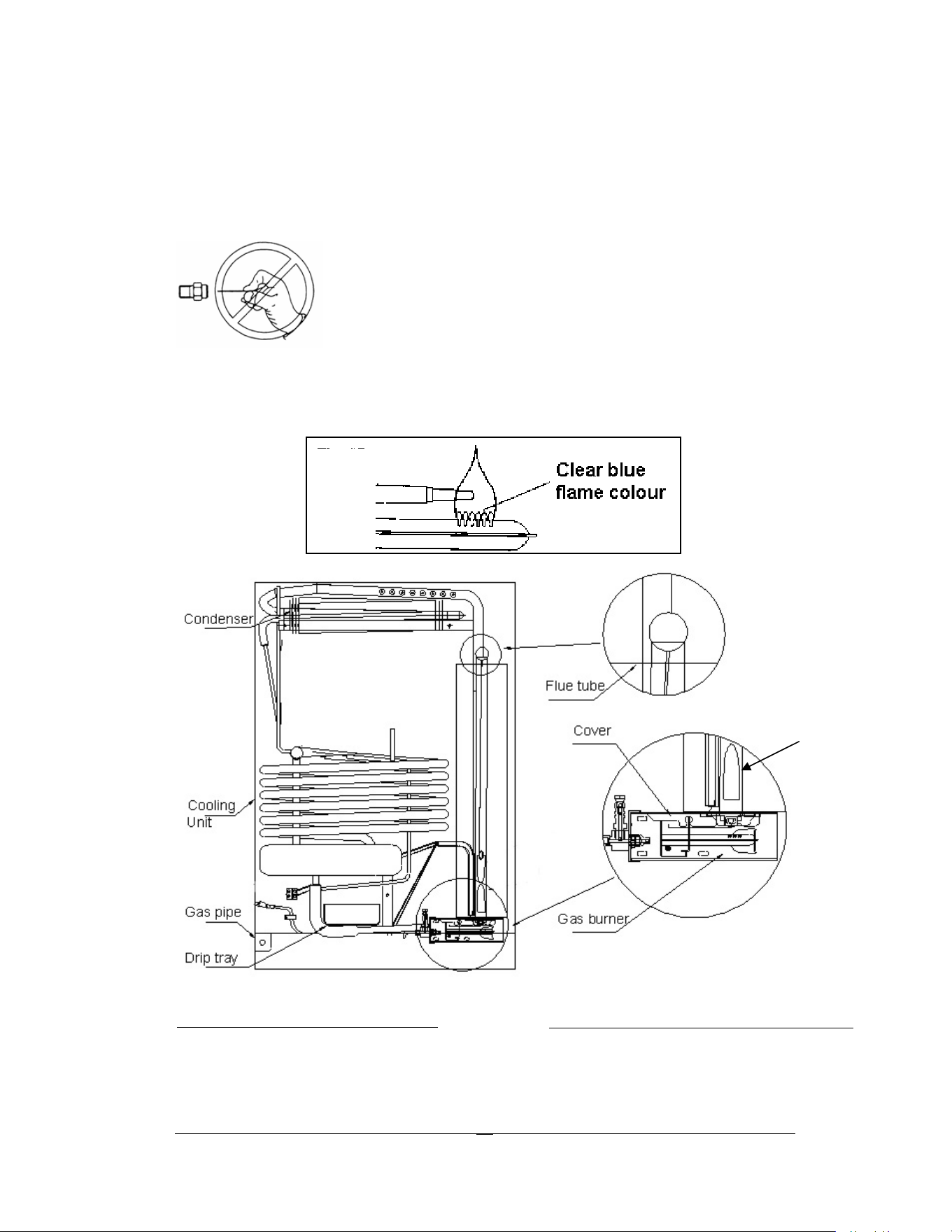

VIEW OF BACK OF THE APPLIANCE
EXPLODED VIEW OF BURNER ASSEMBLY
Visually check burner flame to ensure you have a clean burning flame, this
is represented by a blue looking flame, a yellow/orange flame represents a
dirty burner or orifice and needs to be cleaned.
Baffle
UNIQUE UGP 2
14
WARNING – Button (A) Fig#1, page 7, must be manually depressed to allow gas
pressure to flow to the burner orifice. Be sure to apply the leak check solution before
depressing this button. DO NOT allow any open flame, sparks, smoking, etc. in the
area of the test. DO NOT depress (A) for over 30 seconds. If leak occurs, correct
problem, recheck with leak test solution then light the burner according to the
instructions under Operation Instructions, Chapter 2
UNIQUE UGP 2
15
TROUBLESHOOTING INSTRUCTIONS &
SUGGESTED SPARE PARTS TO KEEP ON HAND
FREEZER DOES NOT COOL, CHECK LIKELY CAUSES:
1.
Burner orifice clogged. Clean. See section MAINTENANCE & SERVICE, CHAPTER 3
2.
Check to ensure freezer is level – (left to right and front to back).
3.
Restriction on air flow across cooling unit.
4.
Heavy frost build up on inside of freezer. Defrost.
5.
Flue baffle not inserted properly in flue tube.
6.
Improperly set thermostat. See paragraph on thermostat. In hot weather or heavy use
the setting should be closer to “Max” than usual.
7.
Burner dirty. Clean. See Section MAINTENANCE & SERVICE, CHAPTER 3,
8.
LP gas pressure low at burner. Regulator pressure must not drop below 11 inches
W.C (water column) on high fire.
9.
110V supply disconnected or heating element not functioning.
10. Burner damaged. Replace.
11.
Odours and fumes
Dislocated burner
Damaged burner
Dirty orifice
Dirty flue tube – CHAPTER 4.
Chapter
4
UNIQUE UGP 2
16
Suggested Spare Parts
The following is a list of commonly used parts which are available:
Burner orifice
Burner
Electrode
Thermocouple
Baffle
Contact your dealer or an authorized service center for parts and repairs as needed. Quote
Model & Serial # - See CSA rating/serial plate at the side of your freezer.
UNIQUE UGP 2
17
Food Storage Ideas
FROZEN FOOD STORAGE
The freezer compartment should be kept at 8.6°F (-13°C) at a 77°F (25°C) room
ambient
A freezer operates most efficiently when it is slowly loaded to 2/3 full.
PACKAGING FOODS FOR FREEZING
To minimize dehydration and quality deterioration, use aluminium foil, freezer
wrap, freezer bags or airtight containers.
Force as much air out of the packages as possible and seal them tightly. Trapped
air can cause food to dry out, change color, and develop an off-flavor (freezer
burn).
Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
Do not refreeze meat that has thawed.
L
OADING THE FREEZER
Avoid adding too much warm food into the freezer at one time. This overloads the
freezer, slows the rate of freezing, and will raise the temperature of frozen foods.
Leave a space between the packages, so cold air can circulate freely, allowing food to
freeze as quickly as possible.
Chapter
5
UNIQUE UGP 2
18
Care and Cleaning
Keep your freezer clean to prevent odor build-up. Wipe up any spills immediately and
clean both sections at least twice a year. Never use metallic scouring pads, brushes,
abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable
parts in a dishwasher.
NOTES:
Do not use razor blades or other sharp instruments, which can scratch the appliance
surface when removing adhesive labels. Any glue left from tape or labels can be removed
with a mixture of warm water and mild detergent, or, touch the glue residue with the
sticky side of tape you have already removed. Do not remove the certification/serial
plate.
UNIQUE UGP 2
19

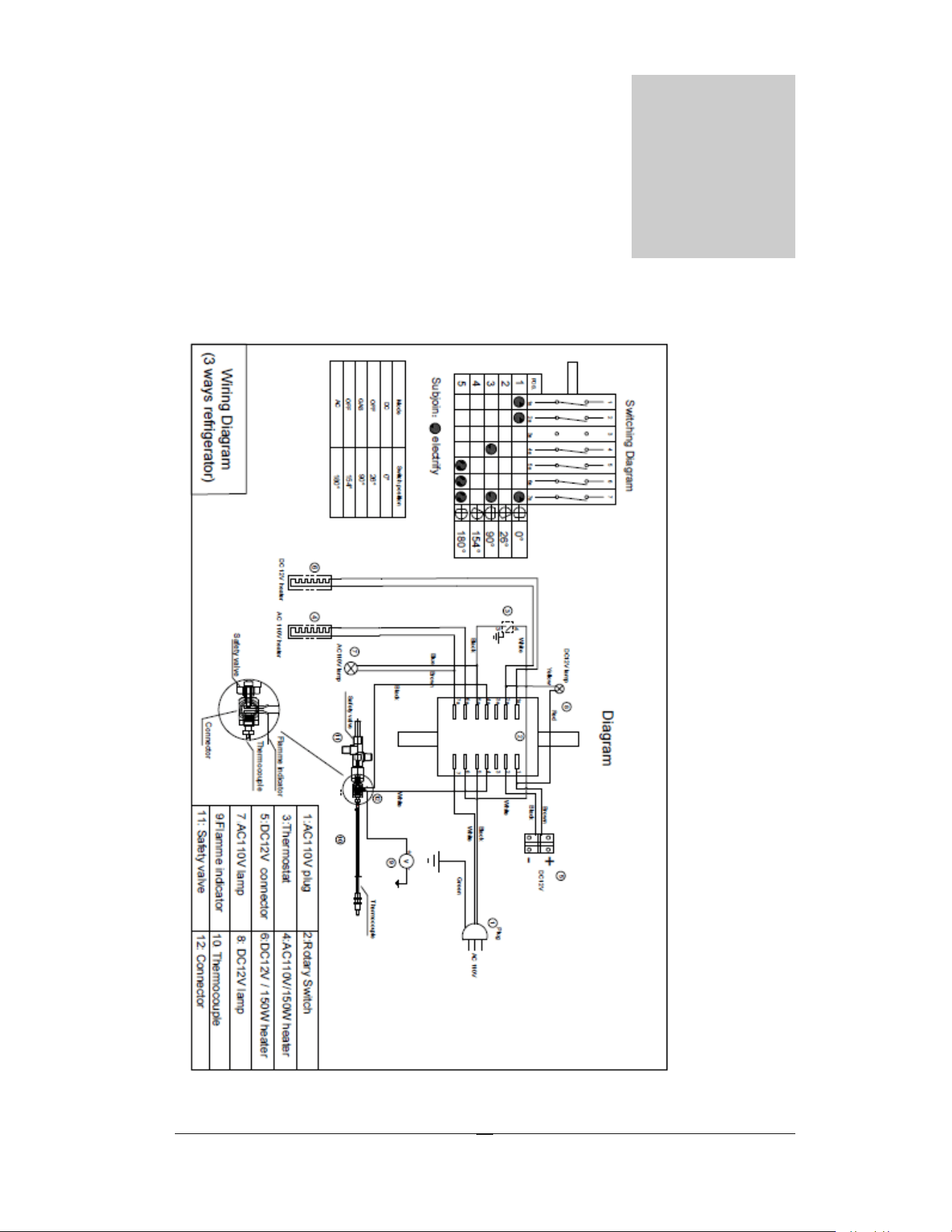

Wiring Diagram
Chapter
6
UNIQUE UGP 2
20
Parts Diagram and List

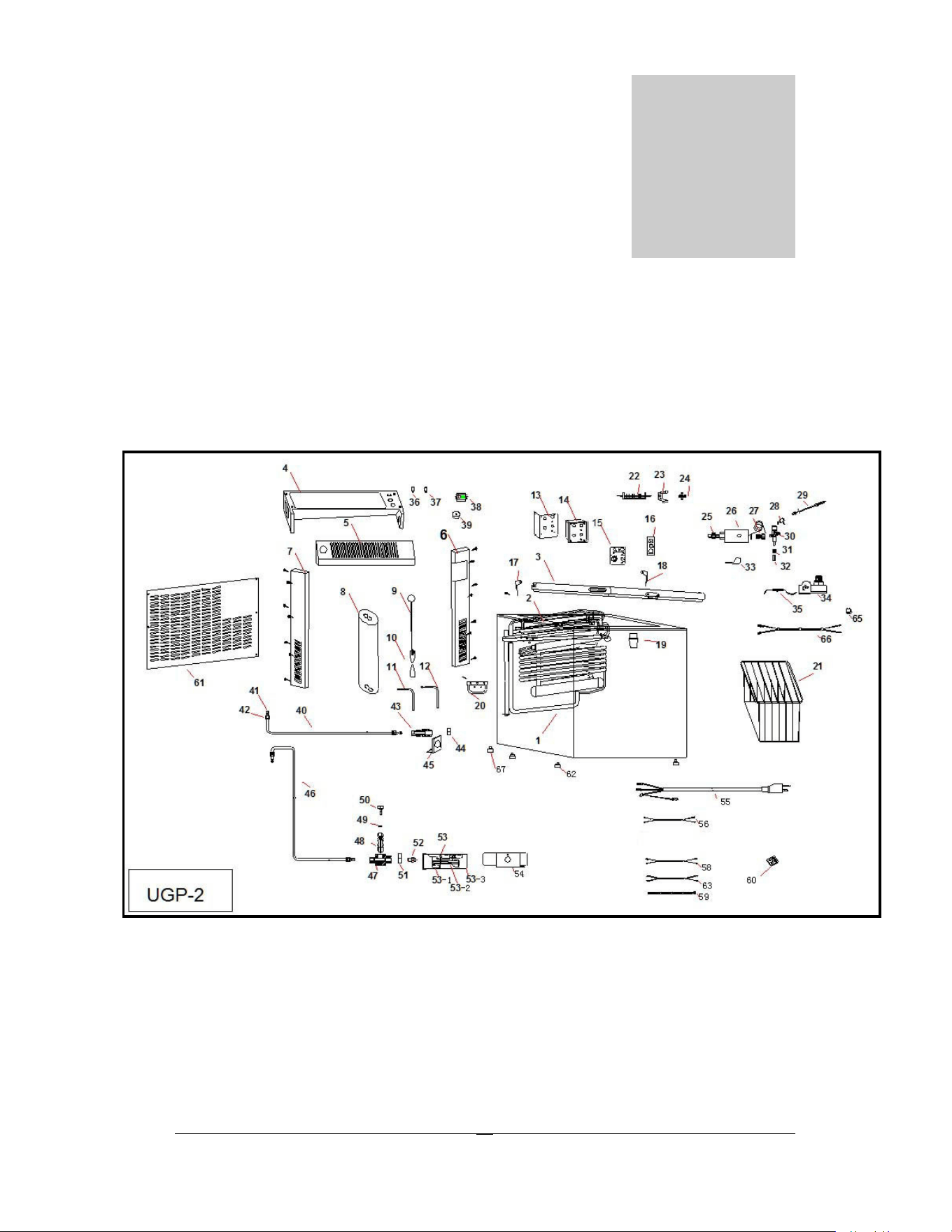

UNIQUE UGP 2 - EXPLODED DIAGRAM
Chapter
7
UNIQUE UGP 2
21
UNIQUE UGP 2 – Parts List
UNIQUE
–
UGP2
No. Item Code
1 UGP 2 Cabinet N/A
2 Cooling unit N/A
3 Lid UGP-DL90000015
4 Heat-sink holder UGP-DL07001057
5 Heat-sink cover UGP-DL07001123
6 Left heat-Sink UGP-DL07001143
7 Right heat-Sink UGP-DL07001156
8 Insulation cover UGP-DL10001273
9
Baffle holder
UGP-DL10001173
10 Baffle
UGP-DL10001139
11 Heater – 110V UGP-DL10001454
12 Heater – 12V UGP-DL00013536
13 Control panel UGP-DL07001056
14 Control panel holder UGP-DL07001142
15 Control panel label UGP-DL07001058
16 Control panel label UGP-DL07001059
17 Left top hinge UGP-DL07001044
18 Right top hinge UGP-DL07001045
19 lock UGP-DL07001033
20 Handle UGP-DL07001034
21 Shelf UGP-DL07001064
22 Rotary switch UGP-DL10001213
23 Rotary switch holder UGP-DL10001271
24 Thermostat knob UGP-DL18301033
25 Thermostat gas inlet connector UGP-DL10001406
26 Thermostat UGP-DL10001430
27 Safety valve gas inlet connector UGP-DL10001115
28 Thermocouple connector UGP-DL22001180
29 Thermocouple UGP-DL18301009
30 Safety valve UGP-DL18301005
31 Spring UGP-DL18301112
32 Push button UGP-DL18301034
33 Clip UGP-DL00009059
34 Battery igniter UGP-DL18301371
35 Electrode UGP-DL27501257
36 Indicator lamp UGP-DL00013598
UNIQUE UGP 2
22
No. Item Code
37 Indicator lamp UGP-DL10001299
38 Flame indicator UGP-DL18301013
39 Level UGP-DL00009368
40 Gas pipe UGP-DL07001038
41 Sealing ring UGP-DL10001136
42 Nut UGP-DL10001407
43 Inlet nipple UGP-DL10001506
44 Nut for gas inlet nipple UGP-DL00003077
45 Inlet nipple holder UGP-DL07001080
46 Burner gas pipe UGP-DL07001037
47 Check point body UGP-DL10001498
48 Check point connector UGP-DL10001501
49 Washer UGP-DL00009306
50 Check point plug UGP-DL22501206
51 Nut for jet UGP-DL10001474
52 Jet UGP-DL10001471
53 Burner assembly UGP-DL10001496
53-1 Burner holder UGP-DL10001476
53-2 Burner box UGP-DL22502507
53-3 Burner UGP-DL10001142
54 Draught shield UGP-DL22502508
55 Power cord UGP-DL10001252
56 Connection wire UGP-DL27501292
58 Connection wire UGP-DL10001329
59 Connection wire UGP-DL07001127
60 12V terminal block UGP-DL00013792
61 Back gridiron board UGP-DL07001060
62 Foot UGP-DL00010053
63 Connection wire UGP-DL10001350
64 Reducing valve UGP-DL00010096
65 Push button switch UGP-DL07001155
66 Connection wire UGP-DL07001145
67 Foot UGP-DL00010053
68 Battery UGP-DL00013681
UNIQUE UGP 2
23
Warranty
UNIQUE UGP-2
PROPANE FREEZER - 3 YEAR LIMITED WARRANTY
Unique Appliances Ltd. warrants that this UNIQUE UGP 2 freezer is free from defects in material and
workmanship under normal usage and service under the following terms:
1. This Warranty is made only to the first purchaser (”original purchaser”) who acquires this freezer for his/her
own use and
will be honored by Unique Appliances Ltd. and by the Seller.
2. Any part of this freezer returned to the Seller or Unique Appliances Ltd., which upon examination is
determined by them to have been defective in material or workmanship, will at their option be either
repaired or replaced under this warranty, without charge for materials/parts. (customer is responsible for
labour)
3. The obligation to repair or replace defective parts will apply only to parts returned within one year of the
date of purchase and will constitute the Sellers sole obligation under this Warranty.
The Seller will have no obligation under this warranty with respect to conditions unrelated to the material or
workmanship of this freezer. Such unrelated conditions include without limitation:
a) faulty installation (or venting) and damage resulting therefrom; not installed by Seller
b) the need for normal maintenance of this freezer (including the cleaning of the
Burner, Venturi, Orifice, Flue tubes and assurance of proper propane gas pressure);
c) any accidents to or misuse of any part of this freezer and any alteration thereof by anyone other than the
Seller or its authorized representative.
This UNIQUE UGP 2 freezer must be serviced regularly as outlined in the Owner’s Manual. Unique Appliances
Ltd. and the seller will not be liable for direct or indirect loss of foods caused by failure in operation. In case of
failure, the owner must provide proof of purchase, Model, and Serial Number to the Seller or Unique Appliances
Ltd.
*Due to remote locations, it is the customer's responsibility to bring items to dealer for review.
Pleasefilloutwarrantycardwithin30daysandmail
backforwarrantycoverage
Ph: 905-827-6154
2245 Wyecroft Road #5
Oakville, Ontario, Canada, L6L 5L7
Toll Free: 1-877-427-2266
www.UniqueAppliances.com
Fax: 905-827-2027
