Smart Hybrid Light Audio Fixed
Bullet Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Model
DS-2CE18D0T-LFS
DS-2CE18K0T-LFS
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or update
the products or procedures described in the manual.
01000020231226
About this Document
This Document includes instructions for using and
managing the Product. Pictures, charts, images and all
other information hereinafter are for description and
explanation only.
The information contained in the Document is subject
to change, without notice, due to firmware updates or
other reasons. Please find the latest version of the
Document at the Hikvision website
(https://www.hikvision.com). Unless otherwise agreed,
Hangzhou Hikvision Digital Technology Co., Ltd. or its
affiliates (hereinafter referred to as "Hikvision") makes
no warranties, express or implied.
Please use the Document with the guidance and
assistance of professionals trained in supporting the
Product.
About this Product
This product can only enjoy the after-sales service
support in the country or region where the purchase is
made.
Acknowledgment of Intellectual Property Rights
Hikvision owns the copyrights and/or patents related to
the technology embodied in the Products described in
this Document, which may include licenses obtained
from third parties.
Any part of the Document, including text, pictures,
graphics, etc., belongs to Hikvision. No part of this
Document may be excerpted, copied, translated, or
modified in whole or in part by any means without
written permission.
and other Hikvision’s trademarks and
logos are the properties of Hikvision in various
jurisdictions.
Other trademarks and logos mentioned are the
properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, THIS DOCUMENT AND THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE
PROVIDED "AS IS" AND "WITH ALL FAULTS AND
ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS
FOR A PARTICULAR PURPOSE. THE USE OF THE
PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS
OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF
DOCUMENTATION, WHETHER BASED ON BREACH OF
CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE
USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE
INTERNET PROVIDES FOR INHERENT SECURITY RISKS,
AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES
FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR
OTHER DAMAGES RESULTING FROM CYBER-ATTACK,
HACKER ATTACK, VIRUS INFECTION, OR OTHER
INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE
WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY
RESPONSIBLE FOR ENSURING THAT YOUR USE
CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU
ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A
MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF
THIRD PARTIES, INCLUDING WITHOUT LIMITATION,
RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY
RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY
PROHIBITED END-USES, INCLUDING THE DEVELOPMENT
OR PRODUCTION OF WEAPONS OF MASS
DESTRUCTION, THE DEVELOPMENT OR PRODUCTION
OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY
ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR
EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN
SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS
DOCUMENT AND THE APPLICABLE LAW, THE LATTER
PREVAILS.
© Hangzhou Hikvision Digital Technology Co., Ltd.
All rights reserved.
Regulatory Information
EU Compliance Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European standards
listed under the Directive 2014/30/EU (EMCD) and
Directive 2011/65/EU (RoHS).
Note: The products with the input voltage of within 50 to
1000 VAC or 75 to 1500 VDC comply with Directive
2014/35/EU (LVD), and the rest products comply with
Directive 2001/95/EC (GPSD). Please check the specific
power supply information for reference.
Directive 2012/19/EU (WEEE Directive):
Products marked with this symbol cannot
be disposed of as unsorted municipal waste
in the European Union. For proper
recycling, return this product to your local
supplier upon the purchase of equivalent
new equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
Directive 2006/66/EC and its amendment
2013/56/EU (Battery Directive): This
product contains a battery that cannot be
disposed of as unsorted municipal waste in
the European Union. See the product
documentation for specific battery information. The
battery is marked with this symbol, which may include
lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more
information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
KC
A 급 기기: 이 기기는 업무용(A 급) 전자파적합기기로써
판매자 또는 사용자는 이 점을 주의하시기바라며, 가정
외의 지역에서 사용하는 것을 목적으로 합니다.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of the
warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the product, you must be in strict
compliance with the electrical safety regulations of the
nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 and IEC62368-1
standard. Refer to technical specifications for detailed
information.
The socket-outlet shall be installed near the equipment
and shall be easily accessible.
An all-pole mains switch shall be incorporated in the
electrical installation of the building.
Do not connect multiple devices to one power adapter
to avoid over-heating or a fire hazard caused by
overload.
Make sure that the plug is firmly connected to the
power socket.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
No naked flame sources, such as lighted candles, should
be placed on the equipment.
Install the equipment according to the instructions in
this manual.
To prevent injury, this equipment must be securely
attached to the floor/wall in accordance with the
installation instructions.
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty or
damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright places.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Keep the camera away from liquid while in use for non-
water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
The beam of the light at the distance of 200 mm is
classified as Risk Group 1 (RG1). Possible hazardous
optical radiation emitted from this product.
DO NOT stare at operating light source. May be harmful
to the eyes.
Wear appropriate eye protection or turn on the
supplement light only at a safe distance (0.6 m) or in
the area that is not directly exposed to the light when
installing or maintaining the device.
1 Introduction
1.1 Product Features
The main features are as follows:
High performance CMOS sensor
OSD menu with configurable parameters
Smart light
3-axis adjustment
Hybrid supplement light with IR and white light
1.2 Overview
Switch Button
Power Cord
Video Cable
Bracket
body
Lens
Microphone
Figure 1-1 Overview of Camera
Note:
Press and hold the switch button for 5 seconds to switch
the video output. Four kinds of video outputs are
available: TVI, AHD, CVI, and CVBS.
2 Installation
Before you start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with your
power output to avoid damage.
Make sure the wall is strong enough to withstand three
times the weight of the camera and the mount.
If the product does not function properly, contact your
dealer or the nearest service center. DO NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of Camera
2.1.1 Ceiling/Wall Mounting
Steps:
1. Paste the drill template (supplied) to the installation
location.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall plugs.
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Secure the camera to ceiling with three PA4 × 25
screws (supplied).
Figure 2-1 Secure the Camera to the Ceiling
5. Connect the cables.

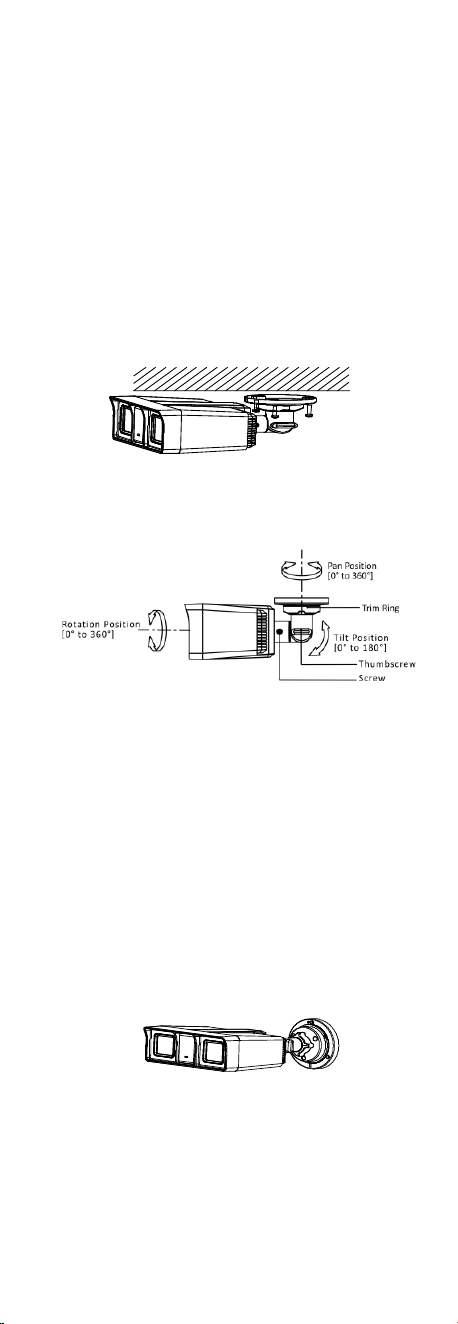

6. Power on the camera to adjust the view angle
according to the figure below.
Figure 2-2 3-Axis Adjustment
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Ceiling mounting and wall mounting are similar.
Following steps take wall mounting as an example.
Steps:
1. Paste the drill template for junction box to the
installation location.
2. (Optional) For cement wall, drill the screw holes with
a 5.5 mm drill and insert the supplied wall plugs.
3. (Optional) Drill the cable hole, when the cables are
routed through the wall.
4. Take apart the junction box.
5. Fix the camera to the junction box cover with three
PM4 × 10 screws.

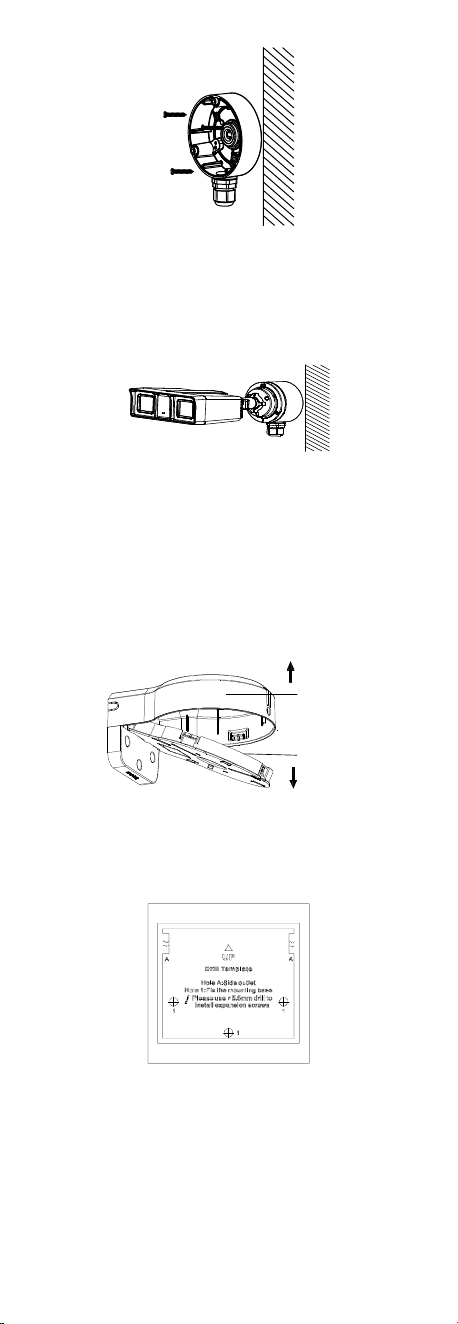

Figure 2-3 Fix the Camera to the Junction Box Cover
6. Secure the junction box body on the wall with three
PA4 × 25 screws (supplied).
Figure 2-4 Secure the Junction Box on the Wall
7. Route the cables through the bottom cable hole or
side cable hole of the junction box and connect the
cables.
8. Fix the junction box cover on its body with three PM3
× 16 L6 screws.
Figure 2-5 Fix the Cover to Its Body
9. Refer to Step 6 of 2.1.1 Ceiling/Wall Mounting to
finish installation.
2.1.3 Wall Mounting with Wall Mount
Before you start:
You need to purchase a wall mount in advance.
Steps:
1. Take apart the wall mount.
Main Body
Cover

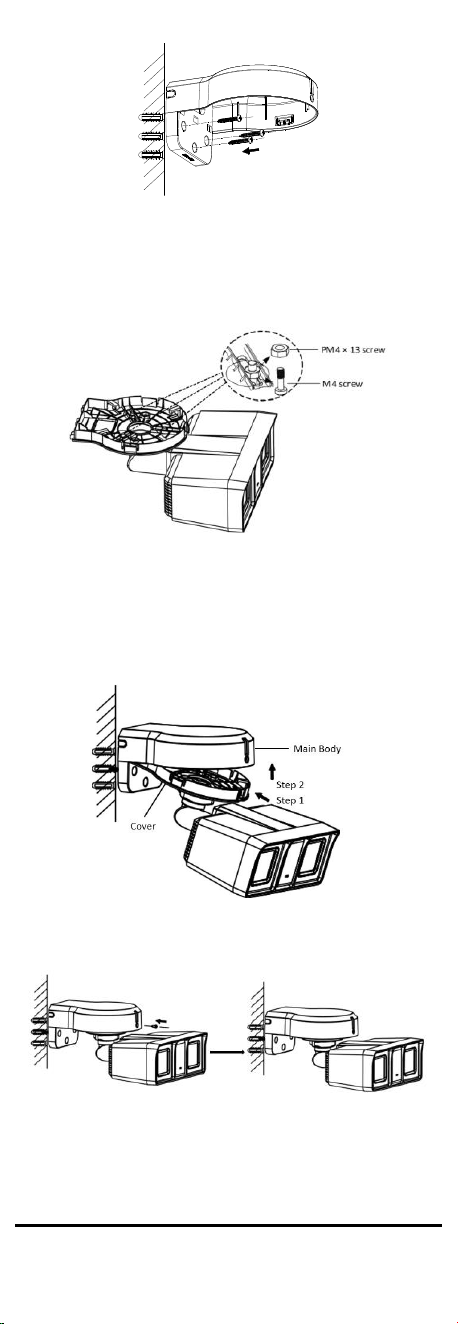

Figure 2-6 Take Apart Wall Mount
2. Paste the drill template (supplied) to the place where
you want to install the camera.
3. Drill the screw holes with a 5.5 mm drill and insert the
supplied wall plugs.
Figure 2-7 Drill Template for Wall Mount
4. Attach the main body of the wall mount to the wall
and secure it with three PA4 × 25 screws (supplied).
Figure 2-8 Secure Main Body to Wall
5. (Optional) Drill the cable hole, when the cables are
routed through the wall.
6. Secure the camera to the cover of the wall mount with
three PM4 × 13 screws and three M4 screws.
Figure 2-9 Secure Camera to Wall Mount Cover
7. Route the cables through the cable hole of the wall
mount and connect the cables.
8. Insert one end of the wall mount cover diagonally into
the wall mount body, and then snap the other end of
the cover upward on the body.
Figure 2-10 Secure Cover to Body
9. Lock the cover to the body with one PA3 × 8 screw.
Figure 2-11 Lock Cover to Body
10. Repeat steps 4 to 6 of 2.1.1 Ceiling/Wall Mounting to
adjust the angle and finish the installation.
3 Menu Description
Please follow the steps below to call the menu.
Note:
The actual display may vary with your camera model.
Steps:

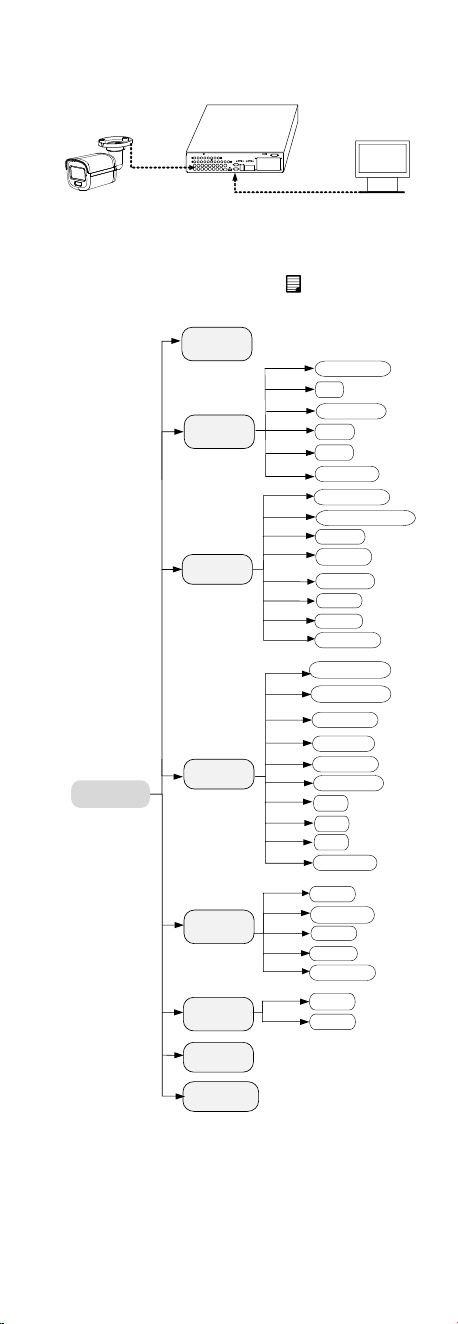

1. Connect the camera with the TVI DVR and the
monitor, as shown in figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the camera, TVI DVR, and monitor to view
the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button or calling
preset No. 95.
EXPOSURE MODE
MAIN MENU
VIDEO
SETTINGS
EXIT
SAVE
&
EXIT
AGC
BACK
EXIT
CONTRAST
SHARPNESS
SATURATION
DNR
BACK
VIDEO
FORMAT
FACTORY
DEFAULT
SAVE & EXIT
WHITE BALANCE
BRIGHTNESS
EXIT
SAVE & EXIT
IMAGE MODE
AUDIO
SETTINGS
AUDIO
BACK
EXIT
SAVE & EXIT
VOLUME
LIGHTING
SETTINGS
LIGHTING MODE
BACK
EXIT
SAVE & EXIT
THRESHOLD
LEVEL
EXPOSURE
SMART IR
ANTI-BANDING
SMART/IR/WHITE LIGHT
CONFIRM
CANCEL
*
Figure 3-2 Main Menu Overview
5. Click the direction buttons to control the camera.
1). Click up/down direction buttons to select menu
options.
2). Click Iris + to confirm the selection.
3). Click left/right direction buttons to adjust the
value of the selected option.
3.1 VIDEO FORMAT
Model
Video Output
Video Format
DS-2CE18D0T-
LFS
TVI, AHD, CVI,
CVBS
2 MP@25 fps
2 MP@30 fps
PAL
NTSC
DS-2CE18K0T-
LFS
TVI
3K@20 fps
4 MP@25 fps
4 MP@30 fps
2 MP@25 fps
2 MP@30 fps
AHD
5 MP@20 fps
4 MP@25 fps
4 MP@30 fps
CVI
4 MP@25 fps
4 MP@30 fps
CVBS
PAL
NTSC
3.2 EXPOSURE
EXPOSURE MODE
You can set the EXPOSURE MODE to GLOBAL, BLC, HLC,
or DWDR.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and non-standard
processing.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause
over-exposure of the background where the light is
strong.
HLC (Highlight Compensation)
HLC stands for highlight compensation. The camera
detects strong spots (over-exposure portion of image)
and reduces the brightness of strong spots to improve the
overall images.
DWDR (Digital Wide Dynamic Range)
Digital wide dynamic range gives the camera the ability to
view dark areas of the given image as well as extremely
lighted portions of the image, or areas of high contrast.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set to HIGH, MEDIUM,
or LOW.
Note:
The noise will be amplified when setting the AGC level.
ANTI-BANDING
ANTI-BANDING is a camera setting that prevents the
appearance of horizontal lines (banding) when
photographing images in low frequency light and high
brightness environments.
3.3 LIGHTING SETTINGS
LIGHTING MODE
WHITE LIGHT, IR and SMART are available.
Note:
The alarm function is only supported in SMART mode.
WHITE LIGHT
Under the WHITE LIGHT sub-menu, you can set the mode
to OFF or AUTO.
OFF
Set it to OFF to give up this function.
AUTO
You can set THRESHOLD and LEVEL in this section.
THRESHOLD
The higher the threshold is, the more sensitive the device
is to dark environment.
LEVEL
You can adjust the maximum brightness of supplement
light.
SMART/IR
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from over
exposure.
D N Threshold (Day to Night Threshold)
Day to Night Threshold is used to control the sensitivity
of switching the day mode to the night mode. You can set
the value from 1 to 9. The larger the value is, the more
sensitive the camera is.
N D Threshold (Night to Day Threshold)
Night to Day Threshold is used to control the sensitivity
of switching the night mode to the day mode. You can set
the value from 1 to 9. The larger the value is, the more
sensitive the camera is.
3.4 VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. IMAGE MODE, WHITE BALANCE,
BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, and
DNR are adjustable.
VIDEO SETTINGS
IMAGE MODE STD
WHITE BALANC E
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
DNR
BACK
EXIT
SAVE & EXIT
5
5
5
5
5
Figure 3-3 VIDEO SETTINGS
IMAGE MODE
IMAGE MODE is used to adjust the image saturation, and
you can set it to STD (Standard), HIGH-SAT (High
Saturation), or HIGHLIGHT (better indoor facial details).
WHITE BALANCE
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set WHITE BALANCE mode to AUTO or
MANUAL.
MANUAL
You can set the R-GAIN/B-GAIN value to adjust the
shades of red/blue color of the image.
WHITE BALANCE
MODE
R-GAIN
B-GAIN
BACK
EXIT
SAVE&EXIT
MANUAL
5
5
Figure 3-4 WHITE BALANCE
BRIGHTNESS
Brightness refers to the brightness of the image. You can
set the brightness value from 1 to 9 to darken or brighten
the image. The greater the value is, the brighter the
image is.
CONTRAST
This feature enhances the difference in color and light
between parts of an image.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce.
SATURATION
Saturation is the proportion of pure chromatic color in the
total color sensation. Adjust this feature to change the
saturation of the color.
DNR
DNR refers to digital noise reduction. This function
reduces noise in video stream.
3.5 AUDIO SETTINGS
Under the AUTO SETTINGS sub-menu, you can set the
mode to ON or OFF. Adjust the VOLUME to a higher value
to raise the volume.
3.6 FACTORY DEFAULT
Reset all the settings except video format and signal to
factory defaults.
3.7 EXIT
Move the cursor to EXIT and click Iris+ to exit the menu.
3.8 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save the
settings and exit the menu.
UD32470B-A
