Induction Cooktop
Instruction Manual / Installation Manual
MODEL
HCI302TB3
HCI604TB3
HCI604TG3
HCI604TPB3
HCI604FTB3
HCI905FTB3
NZ AU
Safety and Warnings
Your safety is important to us. Please read this
information before using your cooktop.
INSTALLATION
WARNING: Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out
any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified
electrician.
• Failure to follow this advice may result in electrical shock or death.
WARNING:Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any
time.
• Please make this information available to the person responsible for installing
the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified
person.
• This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability
claims.
OPERATION AND MAINTENANCE
WARNING:Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface should break
or crack, switch the appliance off immediately at the mains power supply (wall
switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
WARNING:Health Hazard
• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as
insulin pumps) must consult with their doctor or implant manufacturer before
using this appliance to make sure that their implants will not be affected by the
electromagnetic field.
• Failure to follow this advice may result in death.
WARNING:Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to cause
burns.
• Do not let your body, clothing or any item other than suitable cookware contact
the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on
the hob surface since they can get hot
• Keep children away.
• Handles of saucepans may be hot to touch.Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
• Failure to follow this advice could result in burns and scalds.
WARNING:Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is
retracted. Use with extreme care and always store safely and out of reach of
children.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Never leave the appliance unattended when in use. Boilover causes smoking and
greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this
manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in
use.
• Children or persons with a disability or lack of experience and knowledge,which
limits their ability to use the appliance should have a responsible and competent
person to instruct them in its use. The instructor should be satisfied that they
can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a qualified
technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Ceramic glass
surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the Ceramic glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without
supervision.
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
CAUTION: The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
Product Dimensions

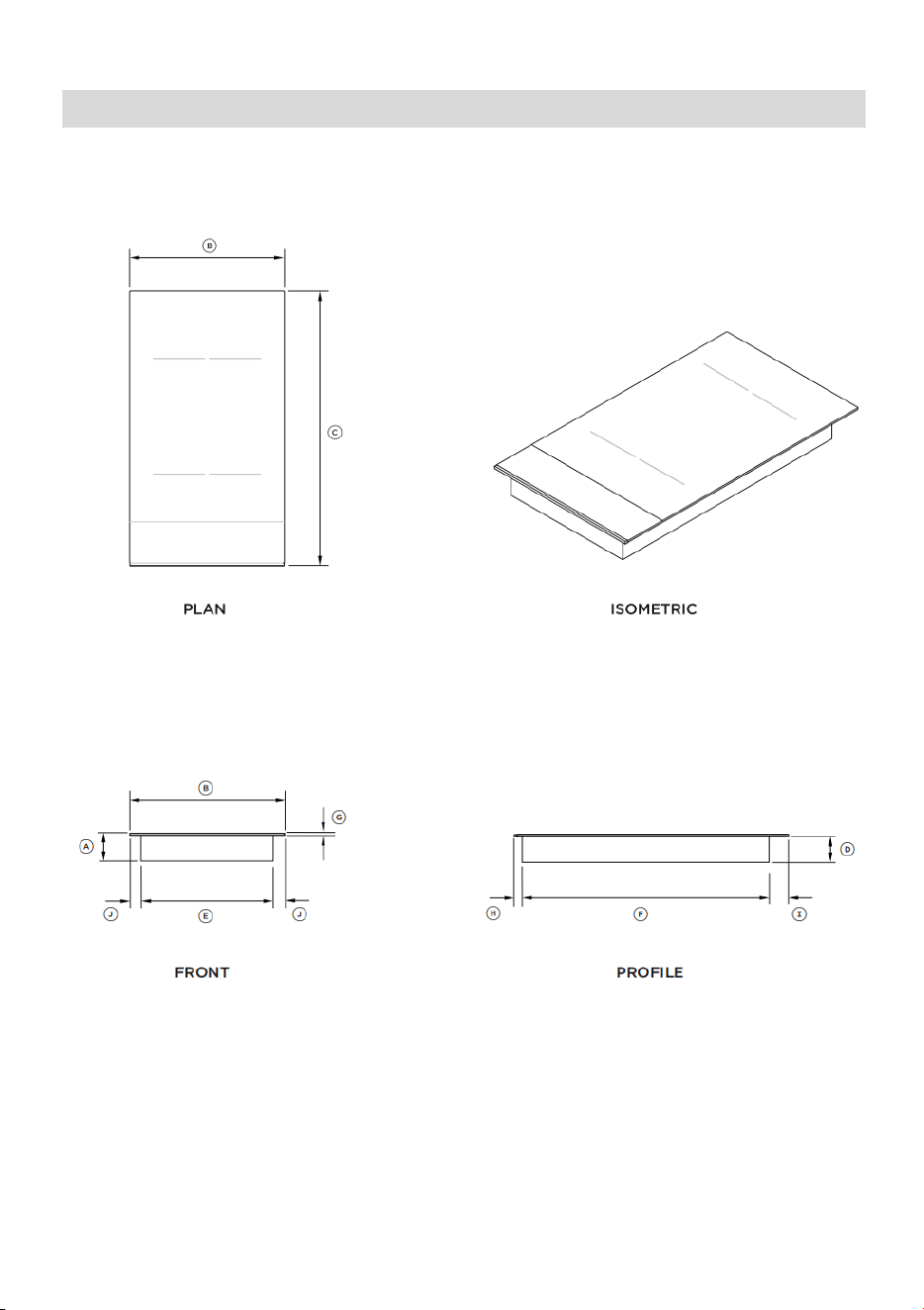

HCI302TB3
HCI302TB3
PRODUCT DIMENSIONS
HCI302TB3
mm
A
Overall height of cooktop
60
B
Overall width of cooktop
288
C
Overall depth of cooktop
520
D
Height of chassis
56
E
Width of chassis
261
F
Depth of chassis
493
G
Height of cooktop glass
4
H
Depth of front overhang of cooktop glass
13.5
I
Depth of rear overhang of cooktop glass
13.5
J
Depth of side overhang of cooktop glass
13.5

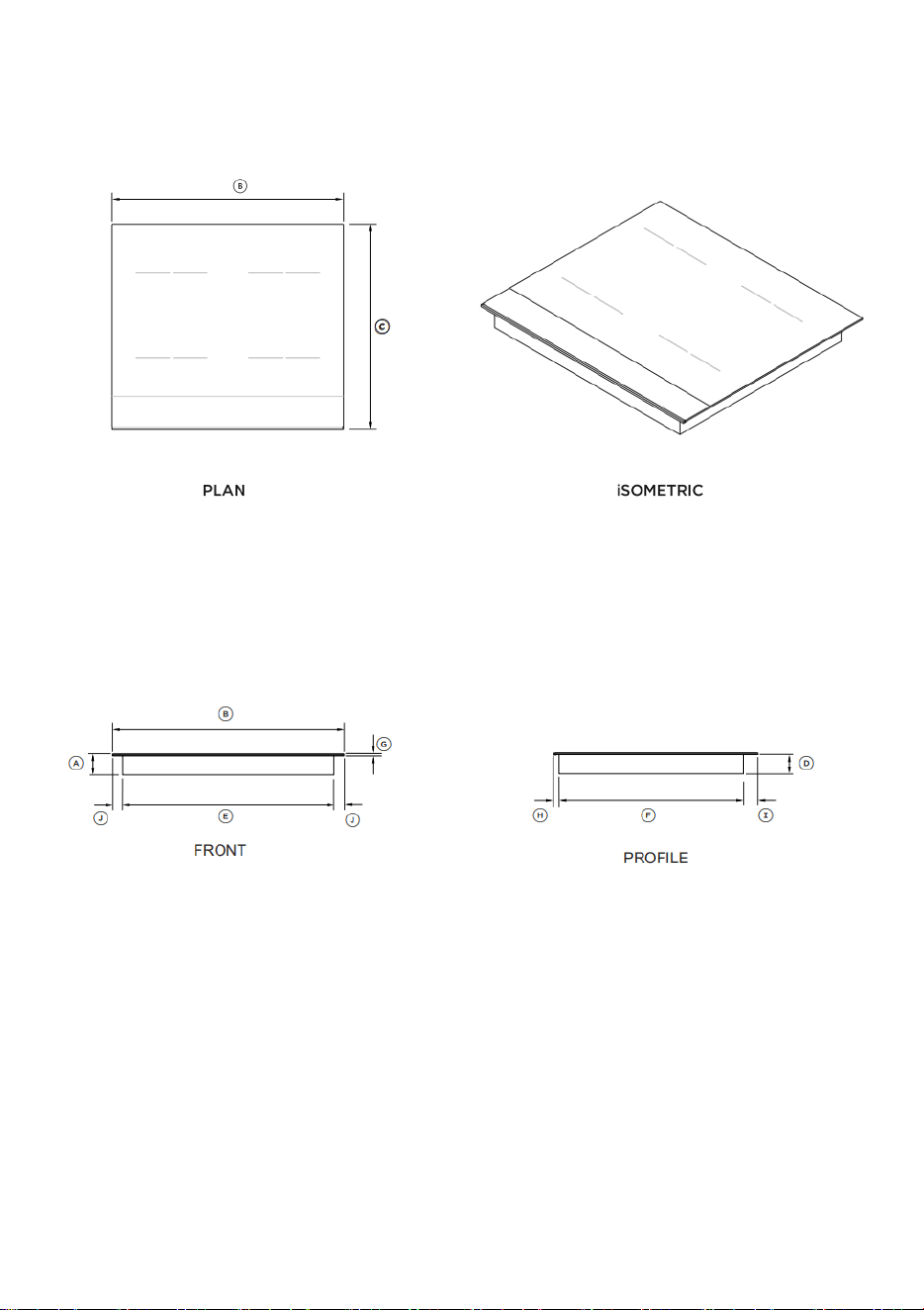

HCI604TB3/HCI604TG3/HCI604TPB3
HCI604TB3/HCI604TG3/HCI604TPB3
PRODUCT DIMENSIONS
HCI604TB3/HCI604TG3/HCI604TPB3
mm
A
Overall height of cooktop
60
B
Overall width of cooktop
590
C
Overall depth of cooktop
520
D
Height of chassis
56
E
Width of chassis
557
F
Depth of chassis
487
G
Height of cooktop glass
4
H
Depth of front overhang of cooktop glass
16.5
I
Depth of rear overhang of cooktop glass
16.5
J
Depth of side overhang of cooktop glass
16.5

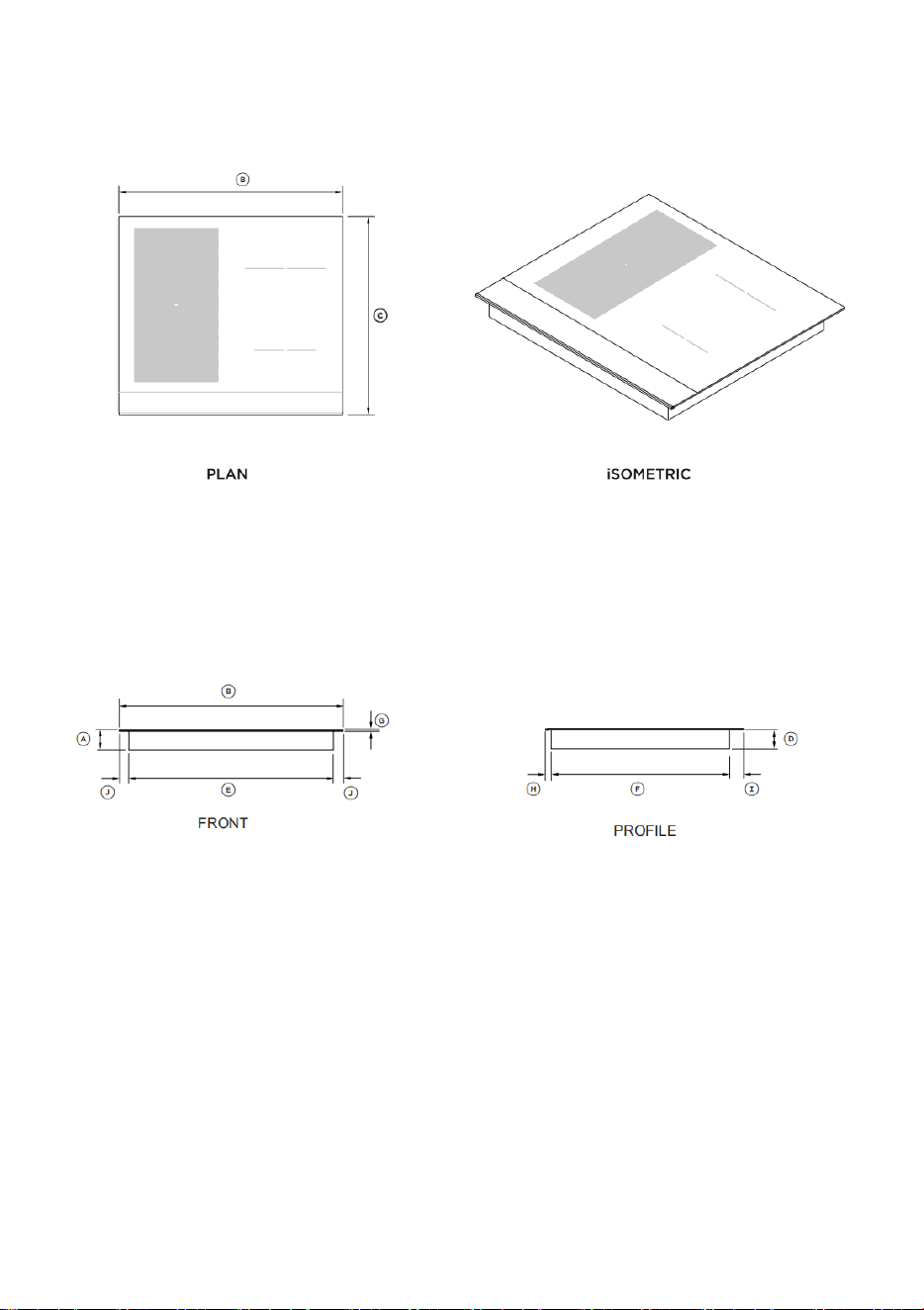

HCI604FTB3
HCI604FTB3
PRODUCT DIMENSIONS
HCI604FTB3
mm
A
Overall height of cooktop
60
B
Overall width of cooktop
590
C
Overall depth of cooktop
520
D
Height of chassis
56
E
Width of chassis
557
F
Depth of chassis
487
G
Height of cooktop glass
4
H
Depth of front overhang of cooktop glass
16.5
I
Depth of rear overhang of cooktop glass
16.5
J
Depth of side overhang of cooktop glass
16.5

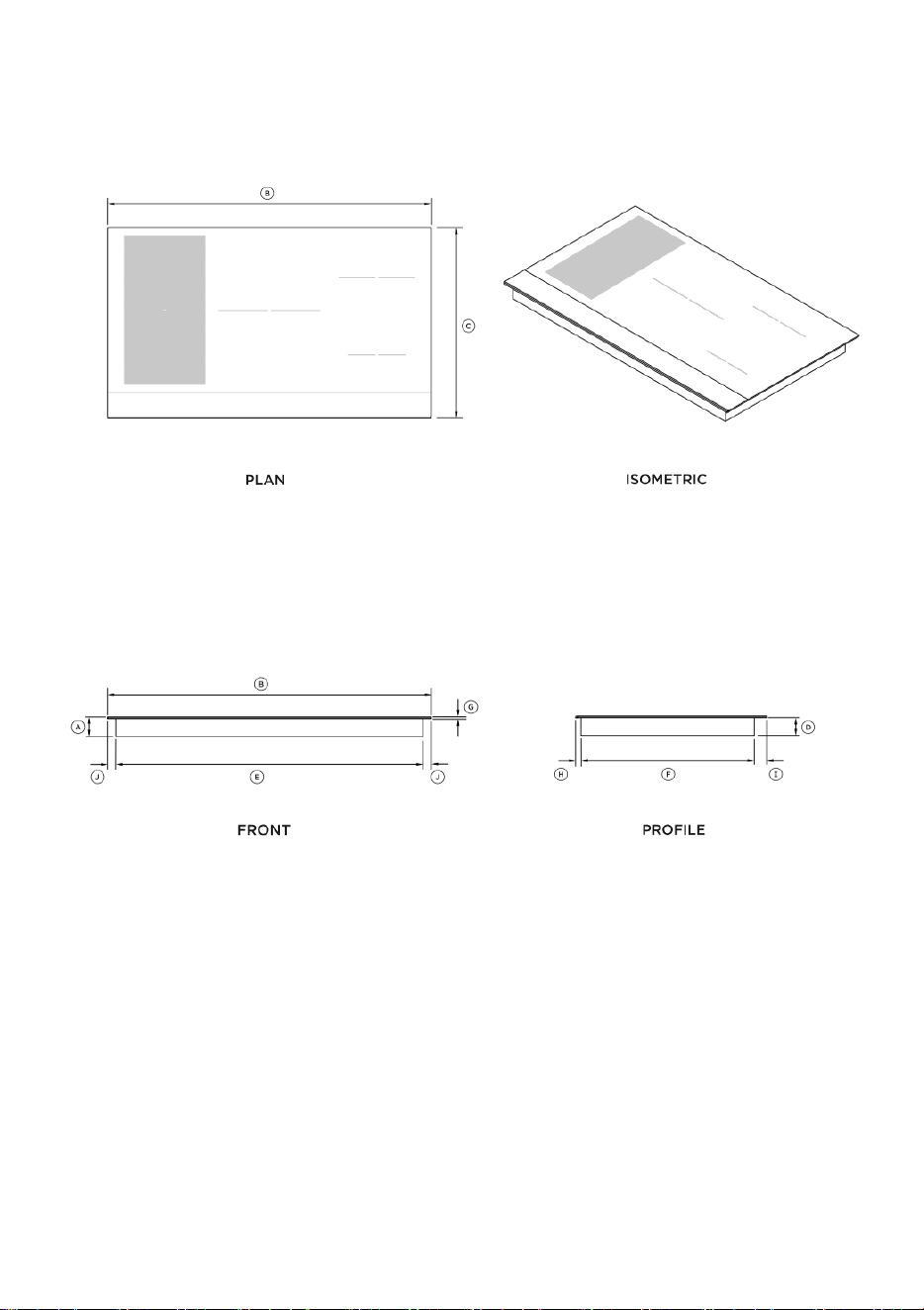

HCI905FTB3
HCI905FTB3
PRODUCT DIMENSIONS
HCI905FTB3
mm
A
Overall height of cooktop
60
B
Overall width of cooktop
900
C
Overall depth of cooktop
520
D
Height of chassis
56
E
Width of chassis
861
F
Depth of chassis
481
G
Height of cooktop glass
4
H
Depth of front overhang of cooktop glass
19.5
I
Depth of rear overhang of cooktop glass
19.5
J
Depth of side overhang of cooktop glass
19.5
Installation

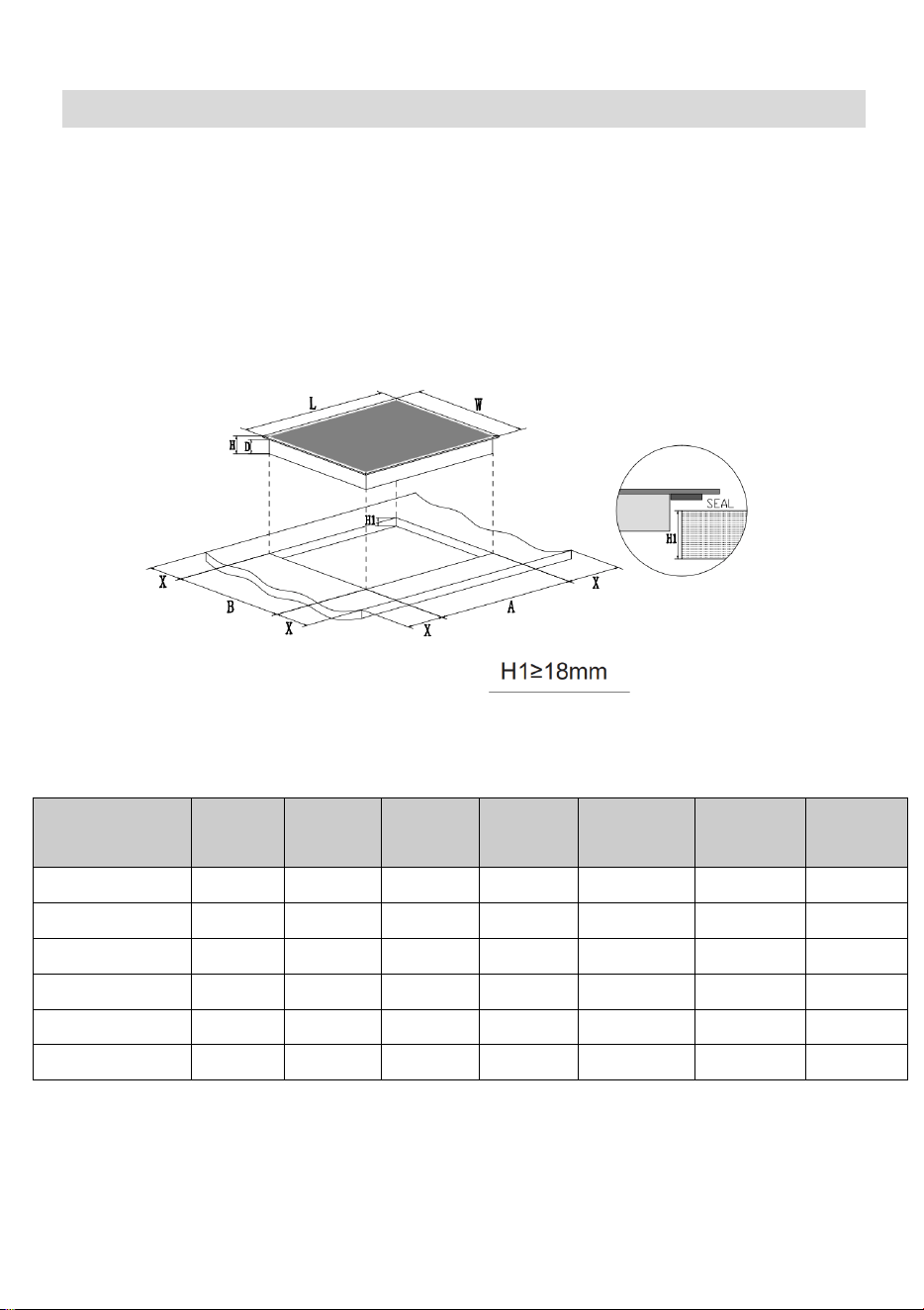

Cutout Dimensions
Cut out the benchtop according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm clearance shall be
maintained around the hole.
Be sure the thickness of the work surface is at least 18mm. As shown below:
Note: 60cm models will fit into existing benchtop cut outs which may be A =
560mm & B = 490mm per tolerance above.
Model
L
(mm)
W
(mm)
H
(mm)
D
(mm)
A
(mm)
B
(mm)
X
(mm)
HCI302TB3
288
520
60
56
268
+5
500
+5
47min
HCI604TB3
590
520
60
56
562
(-2 +3)
492
(-2 +3)
50 min
HCI604TG3
590
520
60
56
562
(-2 +3)
492
(-2 +3)
50 min
HCI604TPB3
590
520
60
56
562
(-2 +3)
492
(-2 +3)
50 min
HCI604FTB3
590
520
60
56
562
(-2 +3)
492
(-2 +3)
50 min
HCI905FTB3
900
520
60
56
870
+5
490
+5
50 min

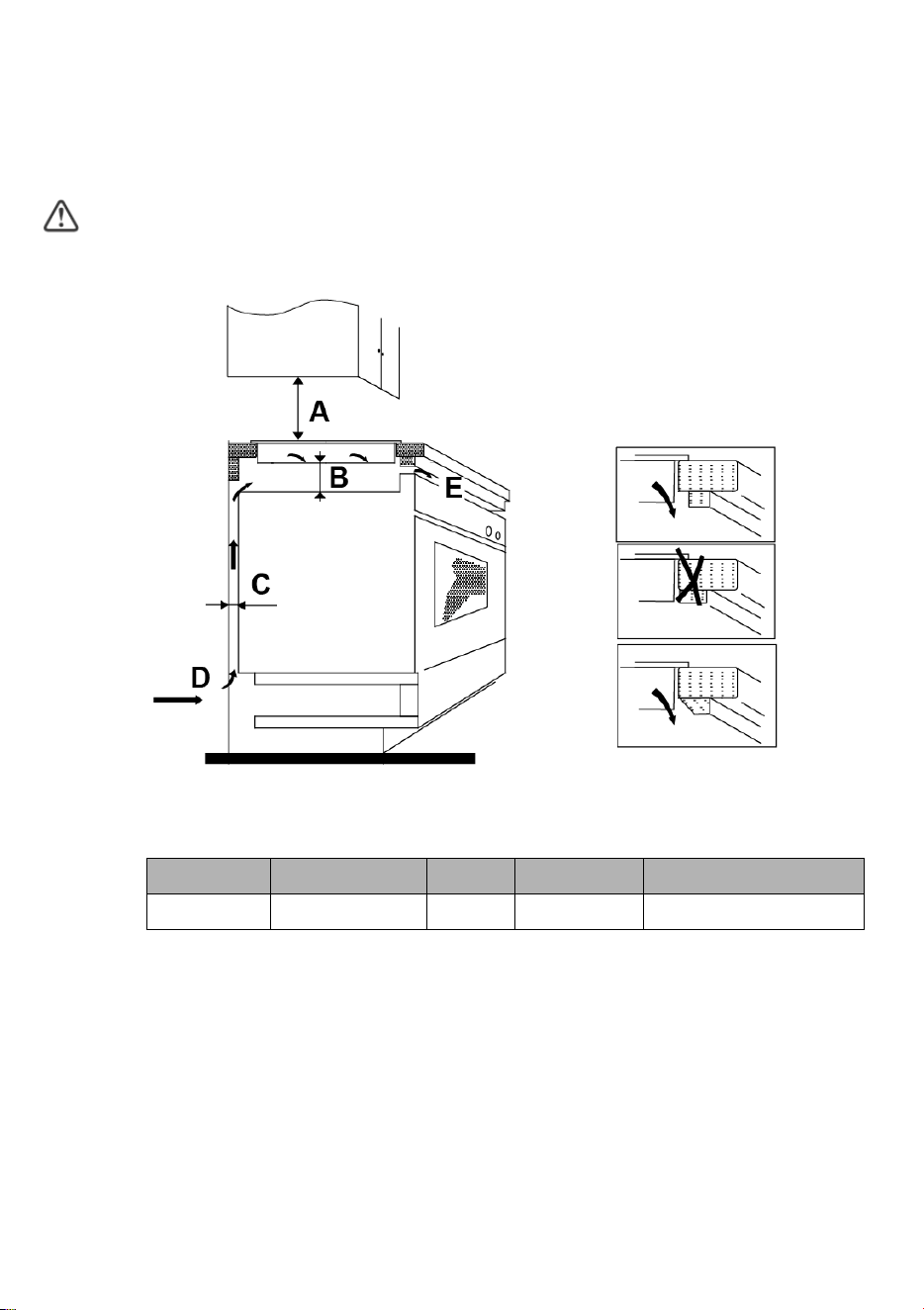

Clearance Dimensions
Under all circumstances, make sure the cooktop is well ventilated and the air inlet
and outlet are not blocked. Ensure the cooktop is in a good work state. As shown
below
Note: The distance between the hotplate and the range hood above the cooking
surface should be at least 600mm(A).
A(mm)
B(mm)
C(mm)
D
E(mm)
600 min
50 min
20 min
Air intake
Air exit 5 min
Before you install the cooktop
• The cooktop must be installed by qualified personnel or technicians.
• The benchtop is square and level, and no structural members interfere with
space requirements
• The work surface is made of a heat-resistant material
• The cooktop will not be installed directly above a dishwasher, fridge, freezer,
washing machine or clothes dryer, as the humidity may damage the cooktop.
• If the cooktop is installed above an oven, the oven has a built-in cooling fan
• The installation will comply with all clearance requirements and applicable
standards and regulations
• A suitable isolating switch providing full disconnection from the mains power
supply is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap
contact separation in all poles (or in all active [phase] conductors if the local
wiring rules allow for this variation of the requirements)
• You consult local building authorities and by-laws if in doubt regarding
installation
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the
wall surfaces surrounding the hob.
•To avoid any damage, the foam seal and adhesive must be resistant to
heat.

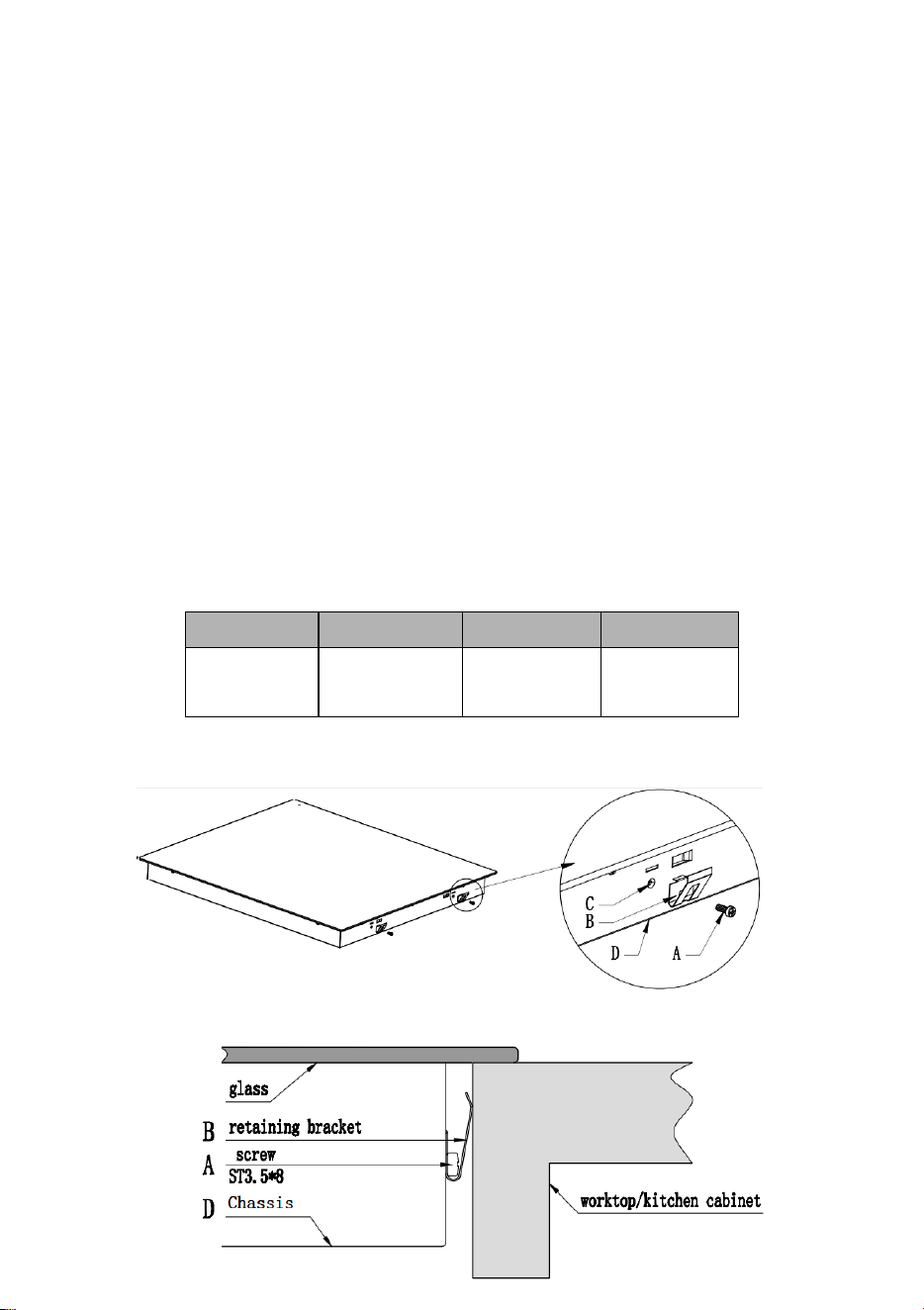

Fastening the cooktop to the bench
1. Place the cooktop on a soft and stable surface, you can use the packaging.
2. Mount the supplied brackets (B) and tighten the screws (A) onto the cooktop, as
shown in below image.
3. Before installing the cooktop into the cutout, follow the steps on the next page
to connect the cooktop to the mains power supply.
4. After connecting the cooktop to mains power, flip the cooktop and place it into
the cutout.
CAUTION: While pressing the unit into the cutout, please pay attention to use the
top surface of glass rather than the edges to avoid your fingers getting trapped
in between the glass and the benchtop.
Notes:
1. Foam seal is already applied on the perimeter of glass bottom surface, it's not
part of the packaging, please do not remove.
2. Minimum benchtop thickness required is 18 mm for the retaining bracket to
function properly.
A
B
C
D
Screw
Retaining
bracket
Screw hole
Chassis

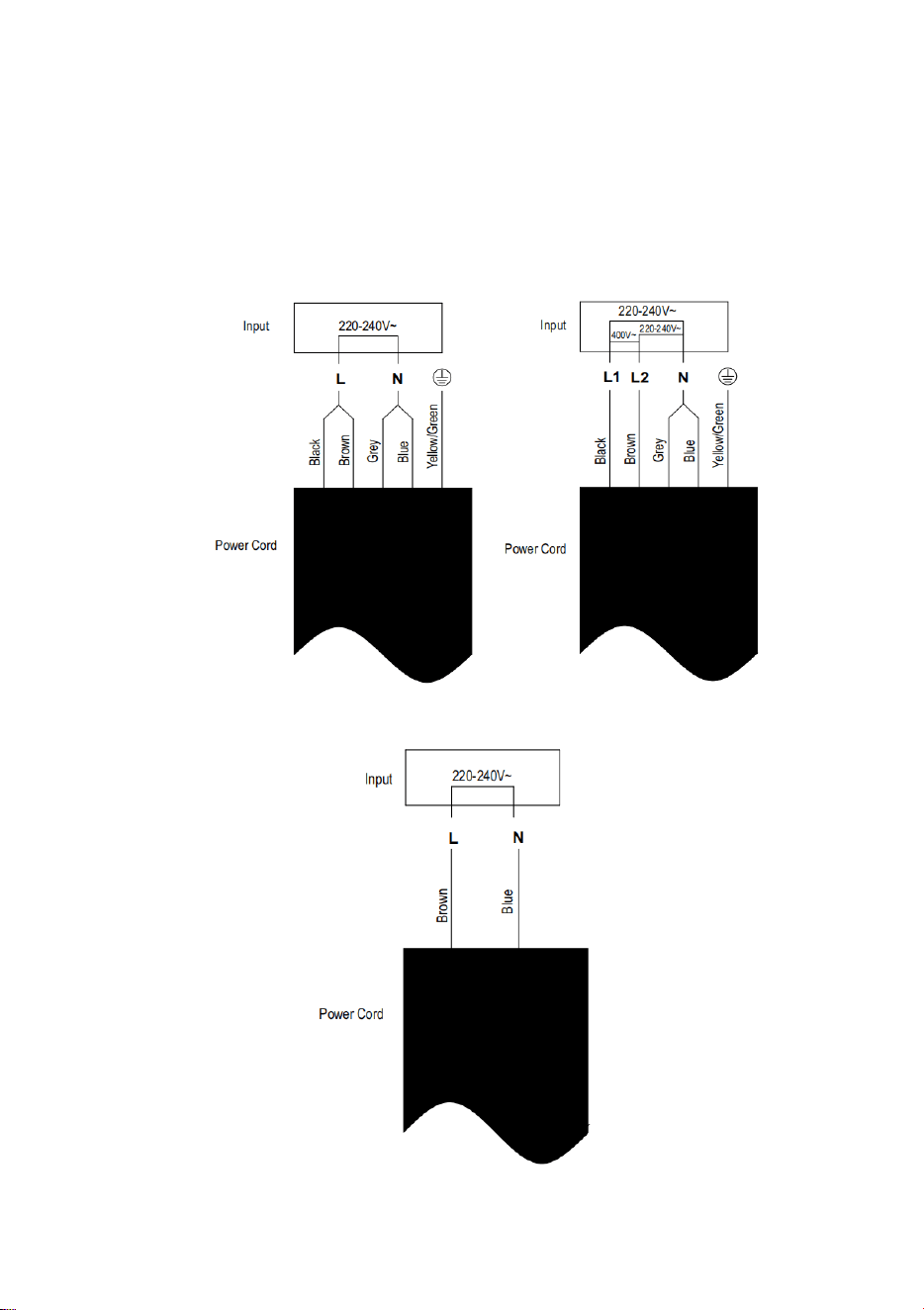

Connecting the cooktop to the mains power supply
IMPORTANT!
● This cooktop must be connected to the mains power supply only by a
suitably qualified person.
● This cooktop must be earthed.
● Before connecting the cooktop to the mains power supply, check that:
● The domestic wiring system is suitable for the power drawn by the
cooktop
● The voltage corresponds to the value given on the rating plate
● The power supply cable sections can withstand the load specified on the
rating plate.
● To connect the cooktop to the mains power supply, do not use adapters,
reducers, or branching devices, as they can cause overheating and fire.
● The power supply cable must not be kinked and should not be touching
the underside of the cooktop which could get hot during operation.
● If the cable is damaged or needs replacing, this should be done by an
after-sales technician using the proper tools, so as to avoid any
accidents.
● If the appliance is being connected directly to the mains supply, an
omnipolar circuit breaker must be installed with a minimum gap of
3mm between the contacts.
● The installer must ensure that the correct electrical connection has been
made and that it complies with safety regulations.
●The cable must be checked regularly and only replaced by a properly
qualified person.
● The power supply should be connected in compliance with the relevant
standard, or a single-pole circuit breaker. The method of connection is
shown below.
IMPORTANT!
Check with an electrician whether the domestic wiring system is
suitable without alterations. Any alterations must only be made by a
qualified electrician.
Single phase connection Two phase connection
Model: HCI604TB3/HCI604TG3/HCI604TPB3/HCI604FTB3/HCI905FTB3
Model: HCI302TB3
When you have installed the cooktop
• The power supply cable is not accessible through cupboard doors or drawers
• There is adequate flow of fresh air from outside the cabinetry to the base of the
cooktop
• If the hob is installed above a drawer or cupboard space, a thermal protection
barrier is installed below the base of the hob
• The isolating switch is easily accessible by the customer
Product Overview

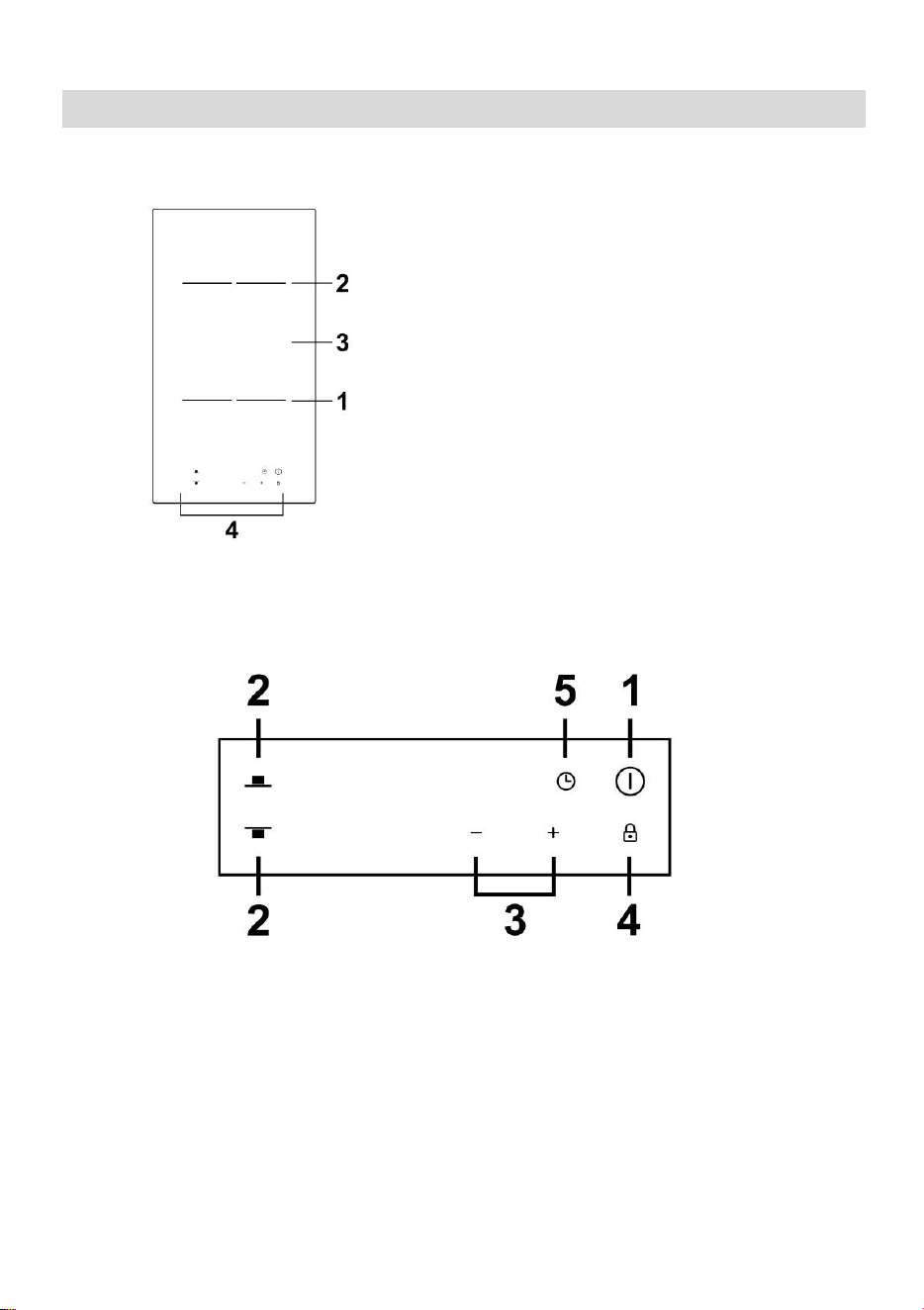

Top View HCI302TB3
Control Panel
1.2000 W zone
2.1500 W zone
3.Glass plate
4.Control panel / Displays
1. ON/OFF control
2. Heating zone selection controls
3. Power/Timer setting controls
4. Keylock control
5. Timer control

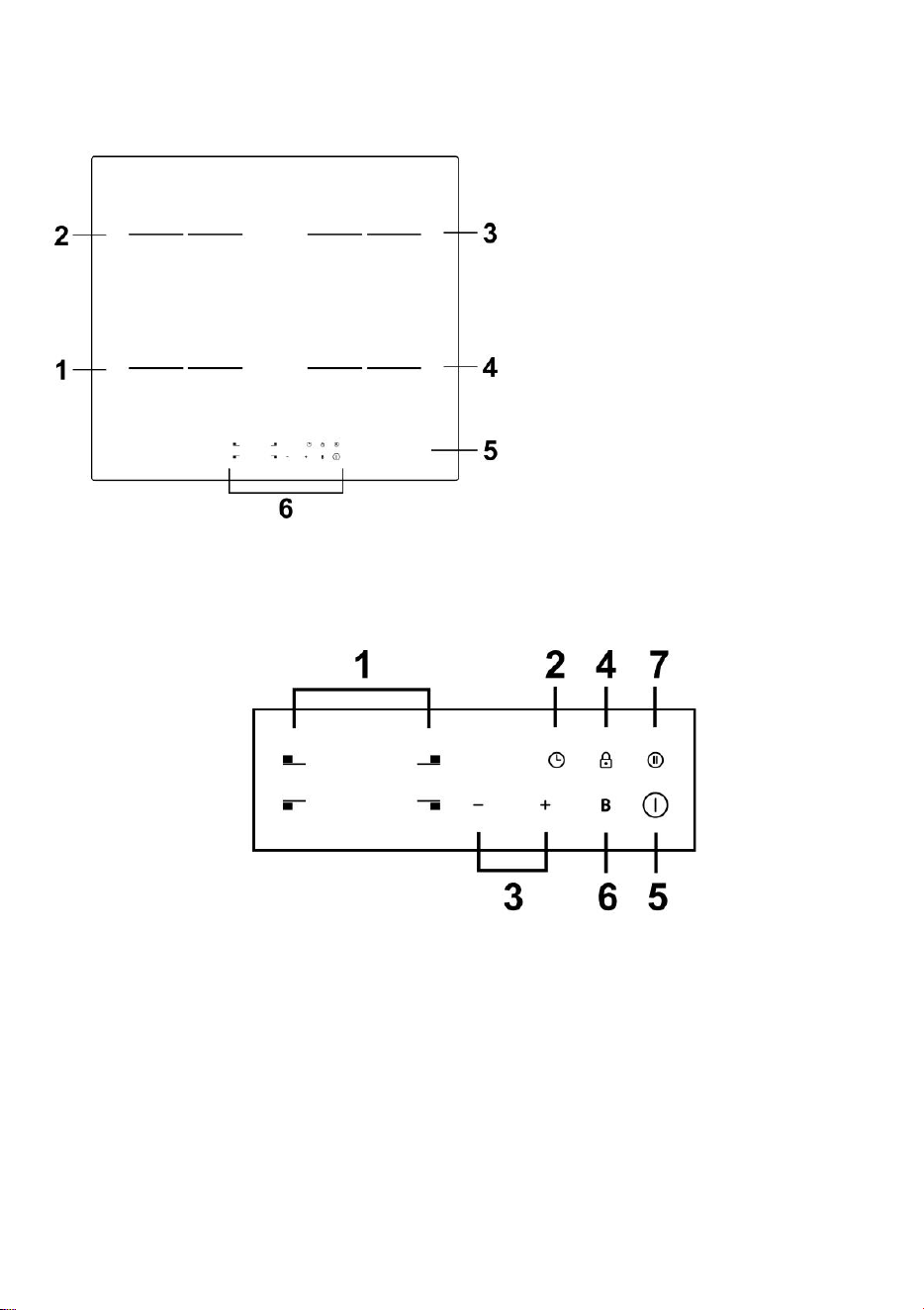

Top View HCI604TB3/HCI604TG3/HCI604TPB3
Control Panel
1. Heating zone selection controls
2. Timer control
3. Power/Timer setting controls
4. Keylock control
5. ON/OFF control
6. Boost function control
7. Pause function control
1.2000 W boost to 2600W zone
2.1500 W boost to 2000W zone
3.2000 W boost to 2600W zone
4.1500 W boost to 2000W zone
5.Glass plate
6.Control panel / Displays

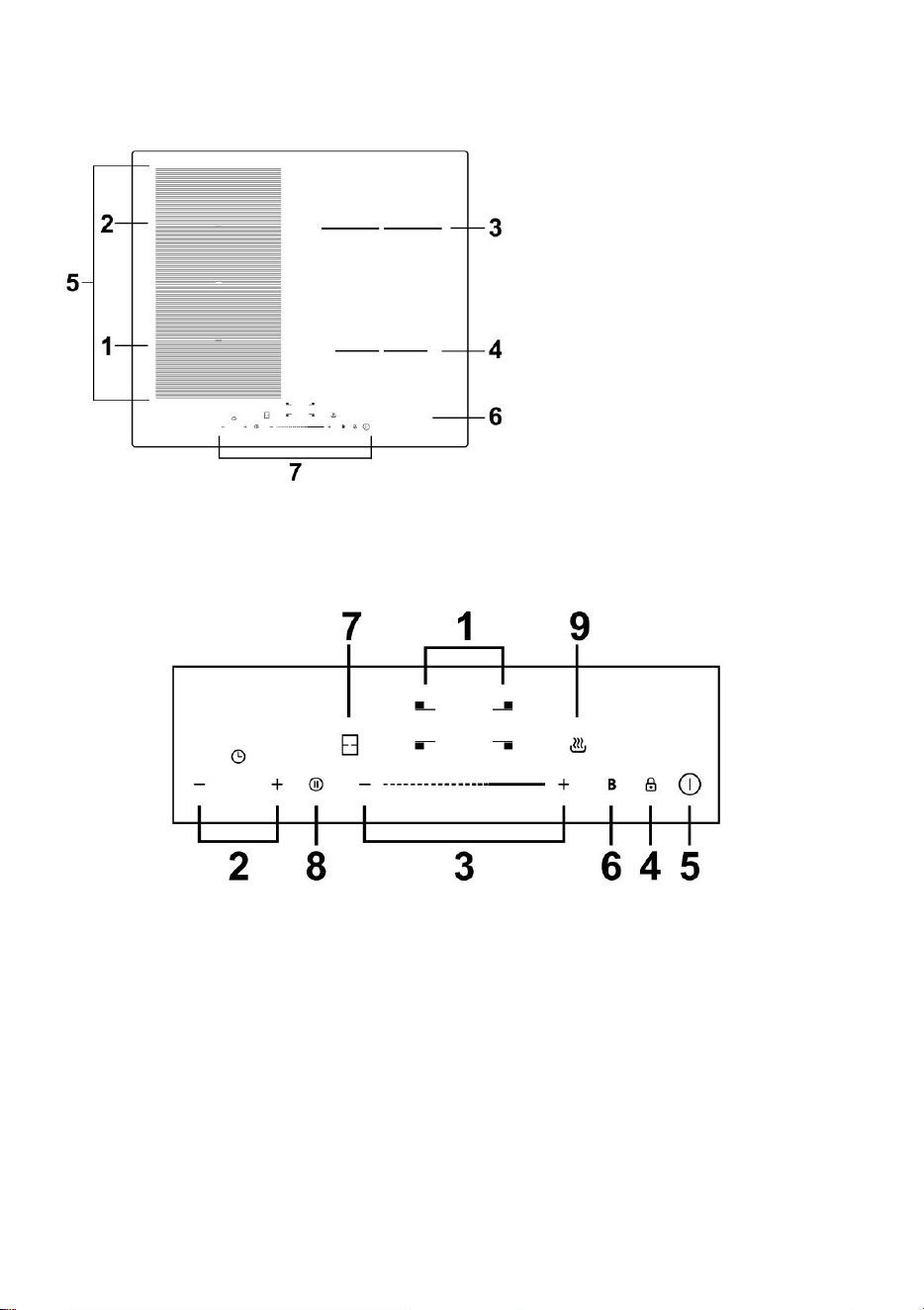

Top View HCI604FTB3
Control Panel
1.2000 W boost to 2600W zone
2.1500 W boost to 2000W zone
3.2000 W boost to 2600W zone
4.1500 W boost to 1800W zone
5.Flex zone
6.Glass plate
7.Control panel / Displays
1. Heating zone selection controls
2. Timer control
3. Power setting controls
4. Keylock control
5. ON/OFF control
6. Boost function control
7. Flex zone and grill function control
8. Pause function control
9. Auto warm function

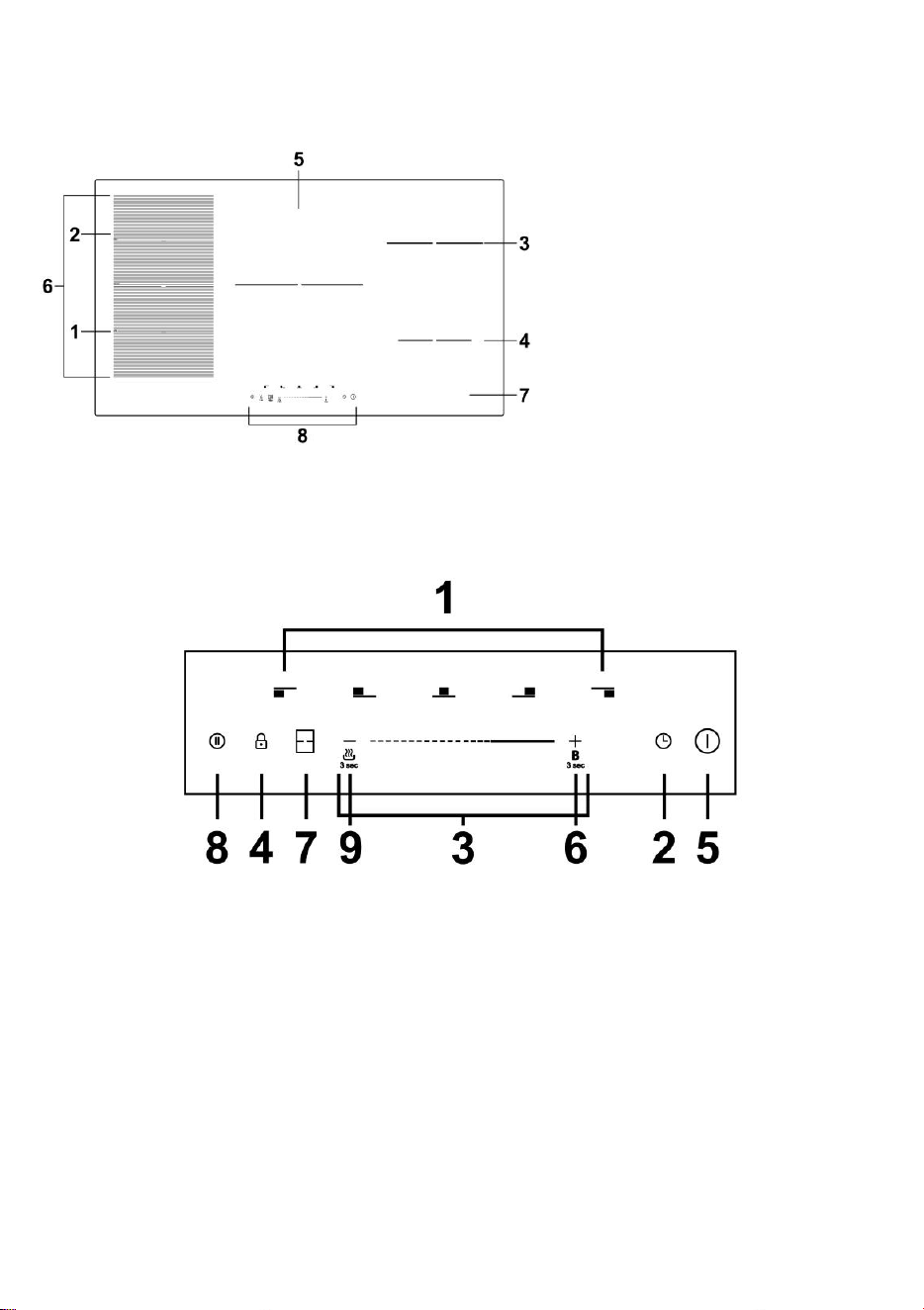

Top View HCI905FTB3
Control Panel
1.2000 W boost to 2600W zone
2.1500 W boost to 2000W zone
3.2000 W boost to 2600W zone
4.1500 W boost to 1800W zone
5.2300W boost to 3000W zone
6.Flex zone
7.Glass plate
8.Control panel / Displays
1. Heating zone selection controls
2. Timer control
3. Power setting controls
4. Keylock control
5. ON/OFF control
6. Boost function control
7. Flex zone and grill function control
8. Pause function control
9. Auto warm
function

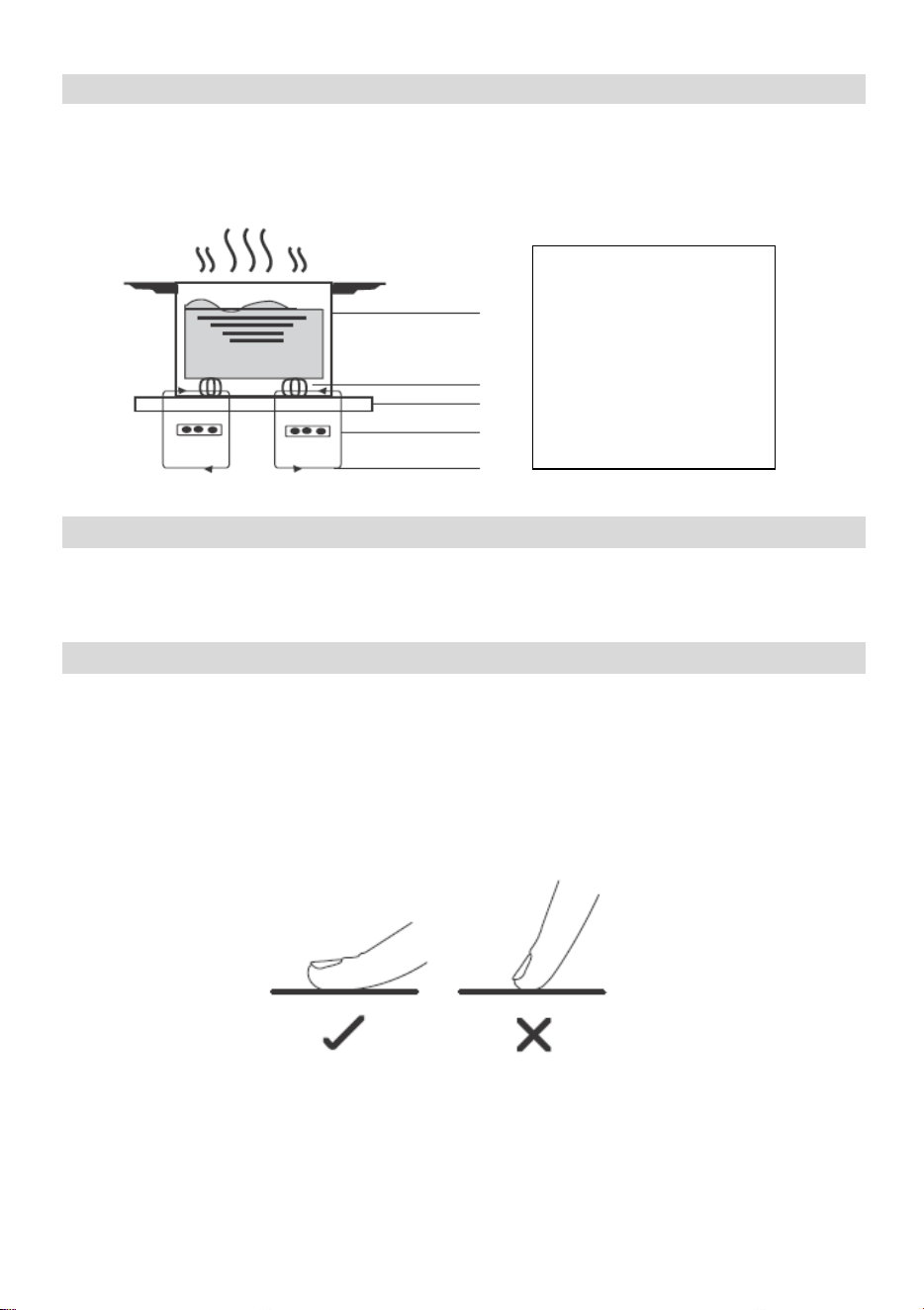

A Word on Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly in the
pan, rather than indirectly through heating the glass surface. The glass becomes
hot only because the pan eventually warms it up.
Before Using Your New Induction Cooktop
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your cooktop.
Using the Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents

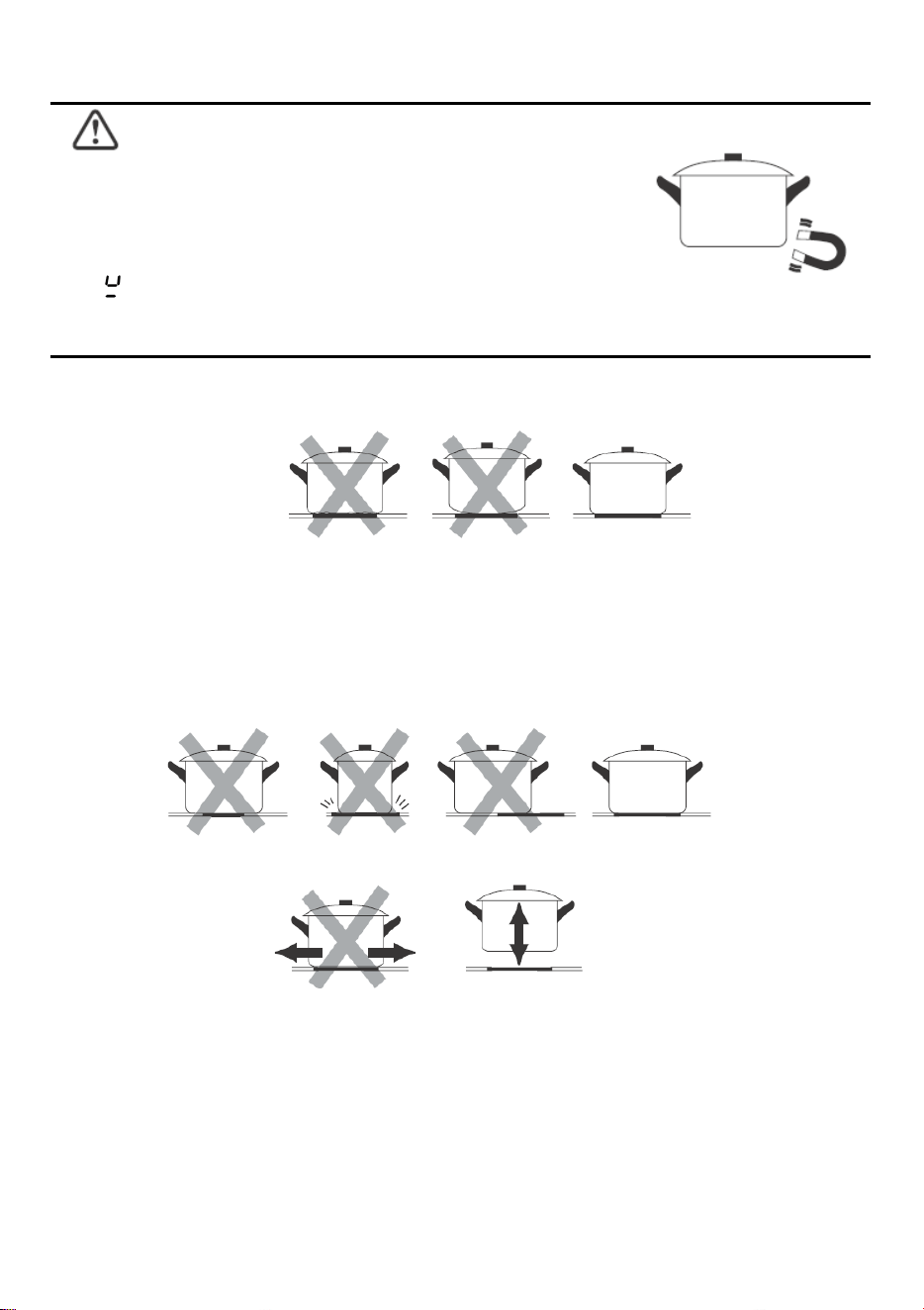

Choosing the Right Cookware
• Only use cookware with a base suitable for induction
cooking. Look for the induction symbol on the
packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out
a magnet test. Move a magnet towards the base of the pan. If it
is attracted, the pan is suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or
copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Use pans whose diameter is as large as the
graphic of the zone selected. When using a pot with a slightly wider base, energy
will be used at its maximum efficiency. If you use a smaller pot efficiency could be
less than expected. Always centre your pan on the cooking zone.
Always lift pans off the Induction hob – do not slide, or they may scratch the glass.
Pan dimensions
The cooking zones, automatically adapt to the diameter of the pan up to limit.
However the bottom of the pan must have a minimum diameter according to the
corespond cooking zone. To obtain the best efficiency of your hob, please place
the pan in the centre of the cooking zone.
The base diameter of induction cookware.
HCI302TB3
Cooking zone
Minimum (mm)
1
120
2
120
The above may vary according to the quality of the pan used.
HCI604TB3, HCI604TG3,
HCI604TPB3
Cooking zone
Minimum (mm)
1
120
2
120
3
120
4
120
HCI905FTB3
Cooking zone
Minimum (mm)
1
120
2
120
3
140
4
100
5
180
Flex zone
240
HCI604FTB3
Cooking zone
Minimum (mm)
1
120
2
120
3
140
4
100
Flex zone
240

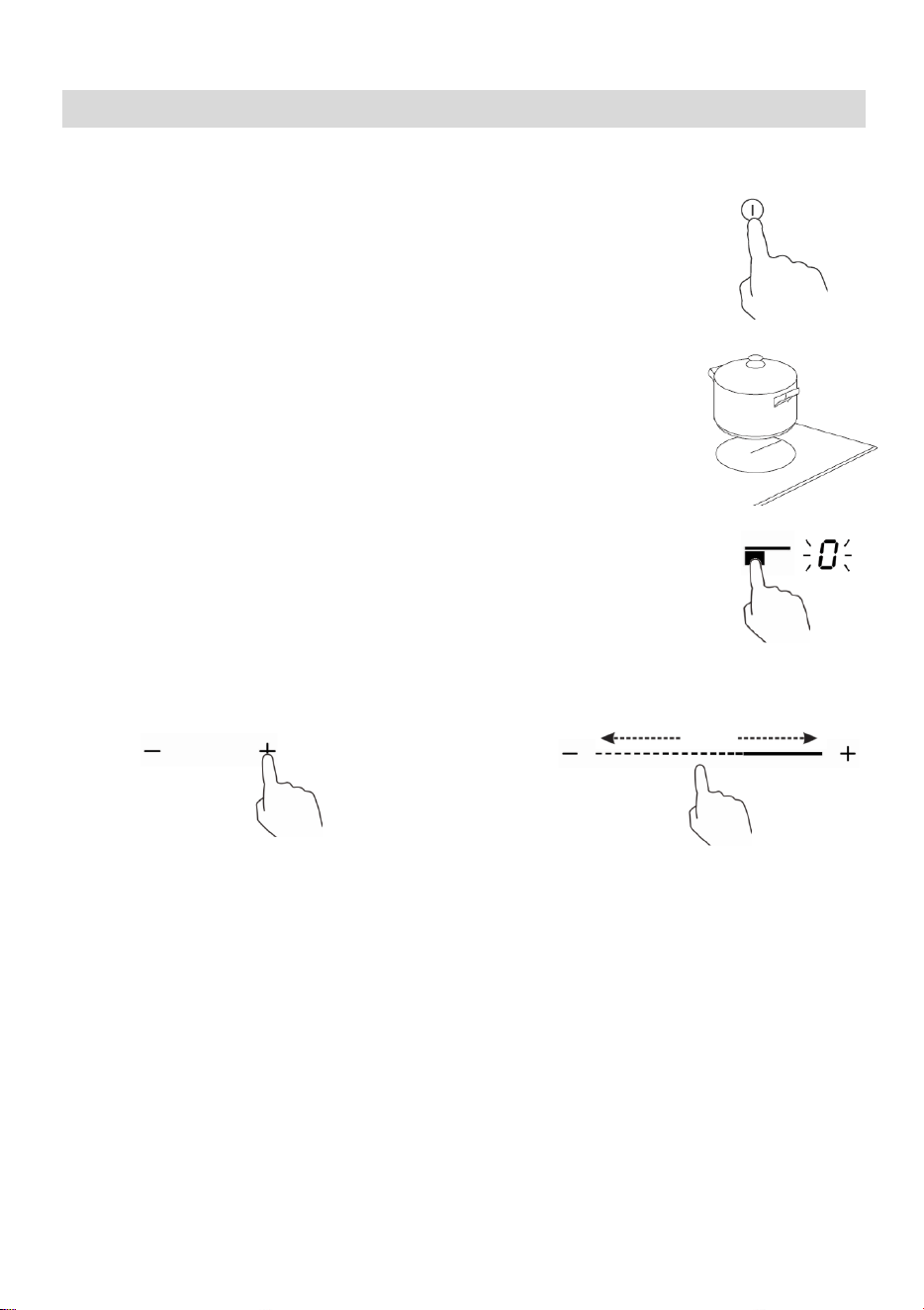

Using your Induction Cooktop
To start cooking
1. Touch the ON/OFF control.
After power on, the buzzer beeps once, all displays show
“ – “ or “ – – “, indicating that the cooktop has entered
into standby mode.
2. Place a suitable pan on the cooking zone that
you wish to use.
• Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
3. Touch the heating zone selection control, and
the indicator next to the key will flash.
4. Set a power level by touching the “-” or “+” control or slide along the slider.
a. If you don’t select a heat zone within 1 minute, the cooktop will
automatically switch off. You will need to start again at step 1.
b. You can modify the heat setting at any time during cooking.
Note:
HCI604TPB3 is limited to 4.5kW and using two or more cooking zones at once can
limit the maximum heat setting for each zone.
When you reach the maximum available heat setting for a selected zone, the
setting will flash, and you will not be able to increase any more.
Or
To increase the heat setting for a selected zone, reduce the heat setting of another
cooking zone within the same Group. You will then be able to reselect the desired
cooking zone and increase its heat setting.
If the display flashes alternately with the heat
setting
This means that:
• you have not placed a pan on the correct cooking zone or,
• the pan you’re using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minute if no suitable pan is placed on
a cooking zone.
When you have finished cooking
1. Touch the heating zone selection control that you wish to
switch off.
2. Turn the cooking zone off by touching the “-” and scrolling down to “0”,Make
sure the power display shows “0”, then shows “H”.
and then
3. For model HCI604TB3/HCI604TG3, you can also turn off the heating zone
instantly by selecting the cooking zone which you want to turn off then
touching “-” and “+” at the same time.
4.Turn the whole cooktop off by touching the
ON/OFF control.
5. Beware of hot surfaces
‘H’ will show which cooking zone is hot to touch. It will disappear when the
surface has cooled down to a safe temperature. It can also be used as an
energy saving function. If you want to heat further pans, use the cooking zone
that is still hot.
Using the Boost
Boost is the function where one zone is set to the highest power possible. It lasts
for a maximum of 5 minutes.
This function allows you to heat up more quickly and to a higher temperature.

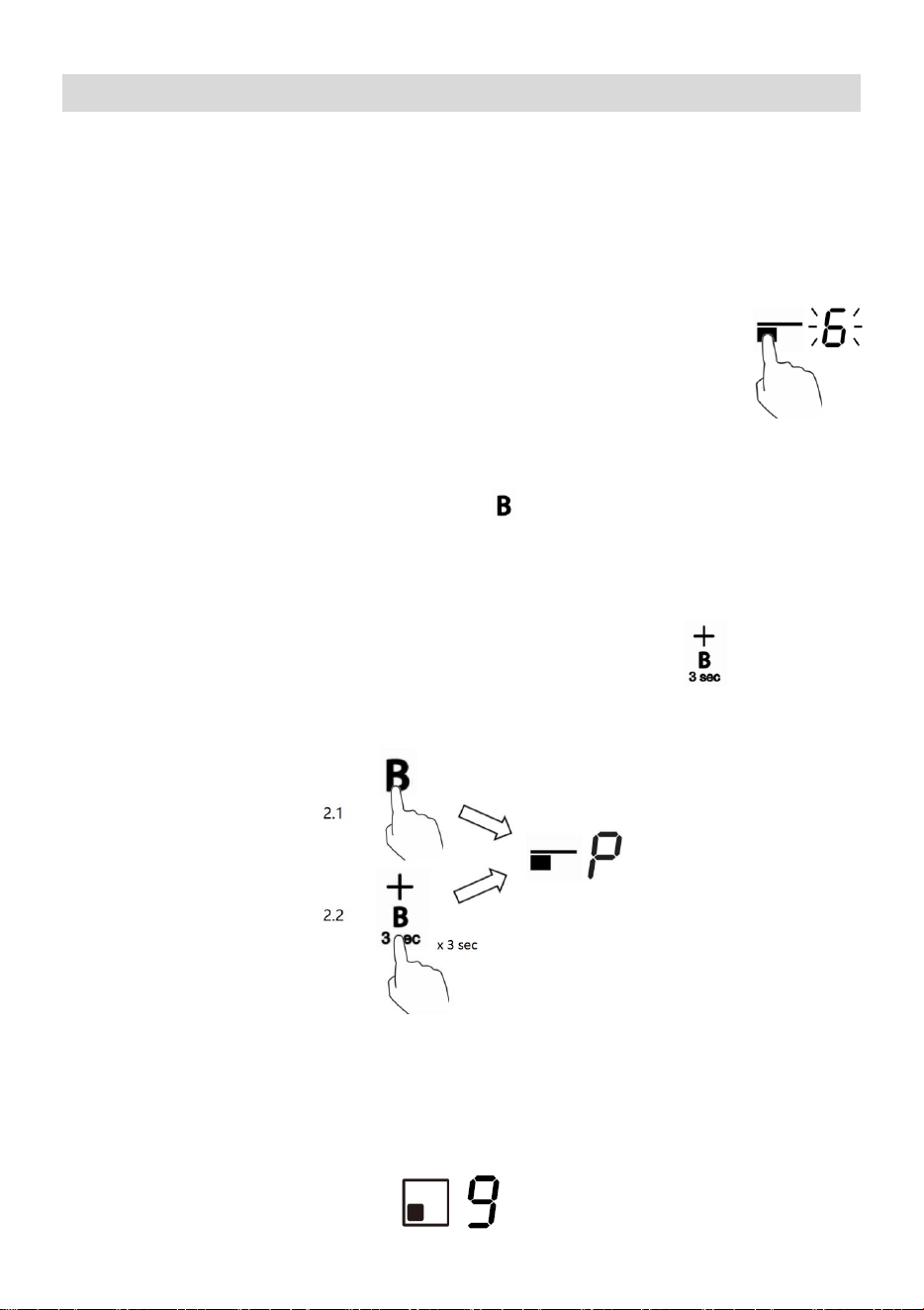

Using the Boost to get larger power
1. Touch the heating zone selection icon that you wish to
boost, the indicator next to the key will flash.
2.1 For model HCI604TB3/HCI604TG3/HCI604TPB3/HCI604FTB3, press the
zone selection icon and then press to activate the boost function.The
power display will show “P” to indicate that the zone is set to Boost
mode.
2.2 For model HCI905FTB3, touch zone selection icon and hold for 3 seconds
to activate boost function. The power display will show “P” to indicate that
the zone is set to Boost mode.
3.1For HCI604TB3/HCI604TG3, the Boost power level will last for 5 minutes and
then the zone will go back to the power level 9.
For the other models, the Boost power level will last for 5 minutes and then the
zone will go back to the power level that was set prior boost.

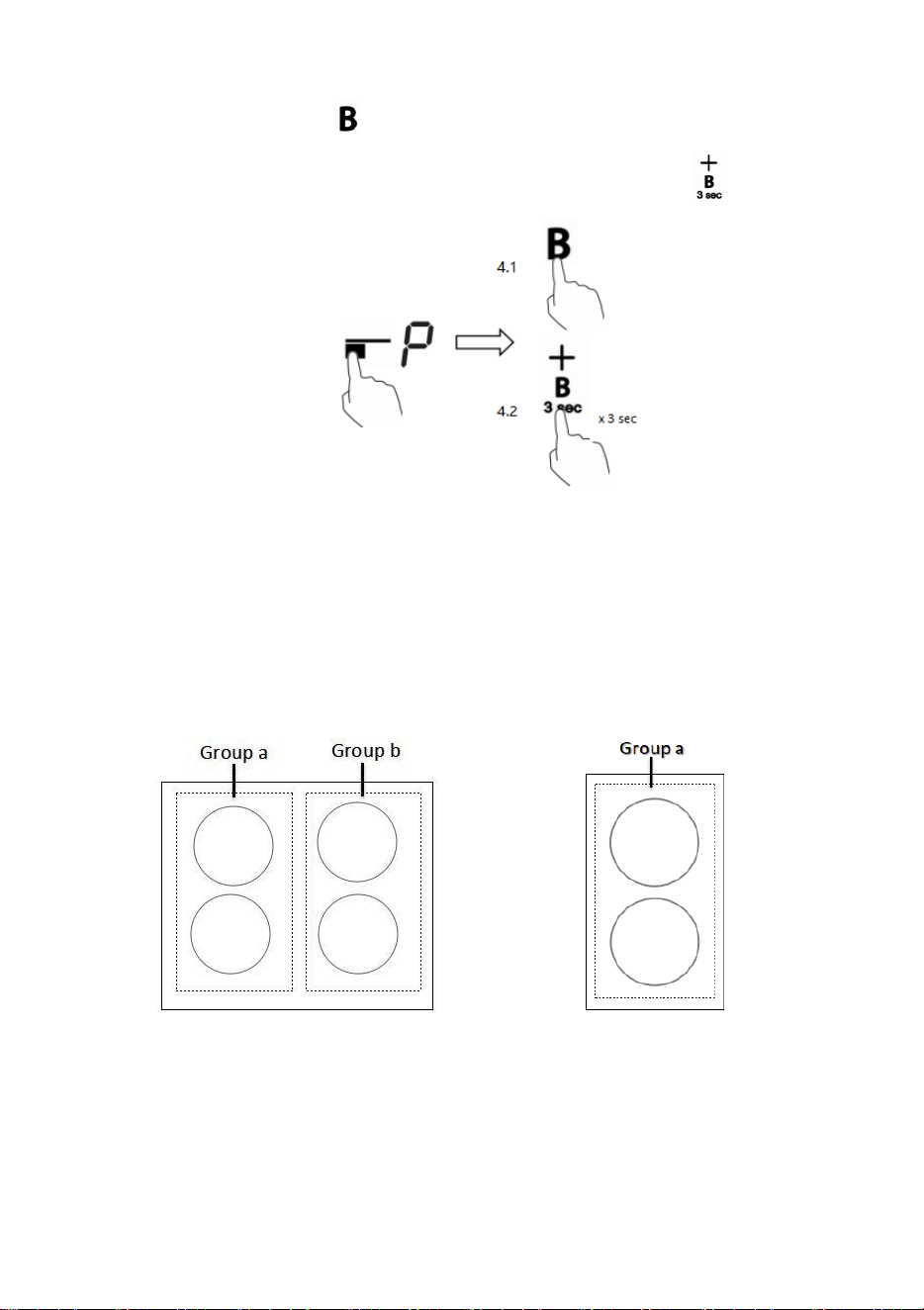

4.1 For model HCI604TB3/HCI604TG3/HCI604TPB3/HCI604FTB3, touch zone
selection icon and touch for 1 second to quit boost function.
4.2 For model HCI905FTB3, touch zone selection icon and hold for 3 second
to quit boost function.
Restrictions when using

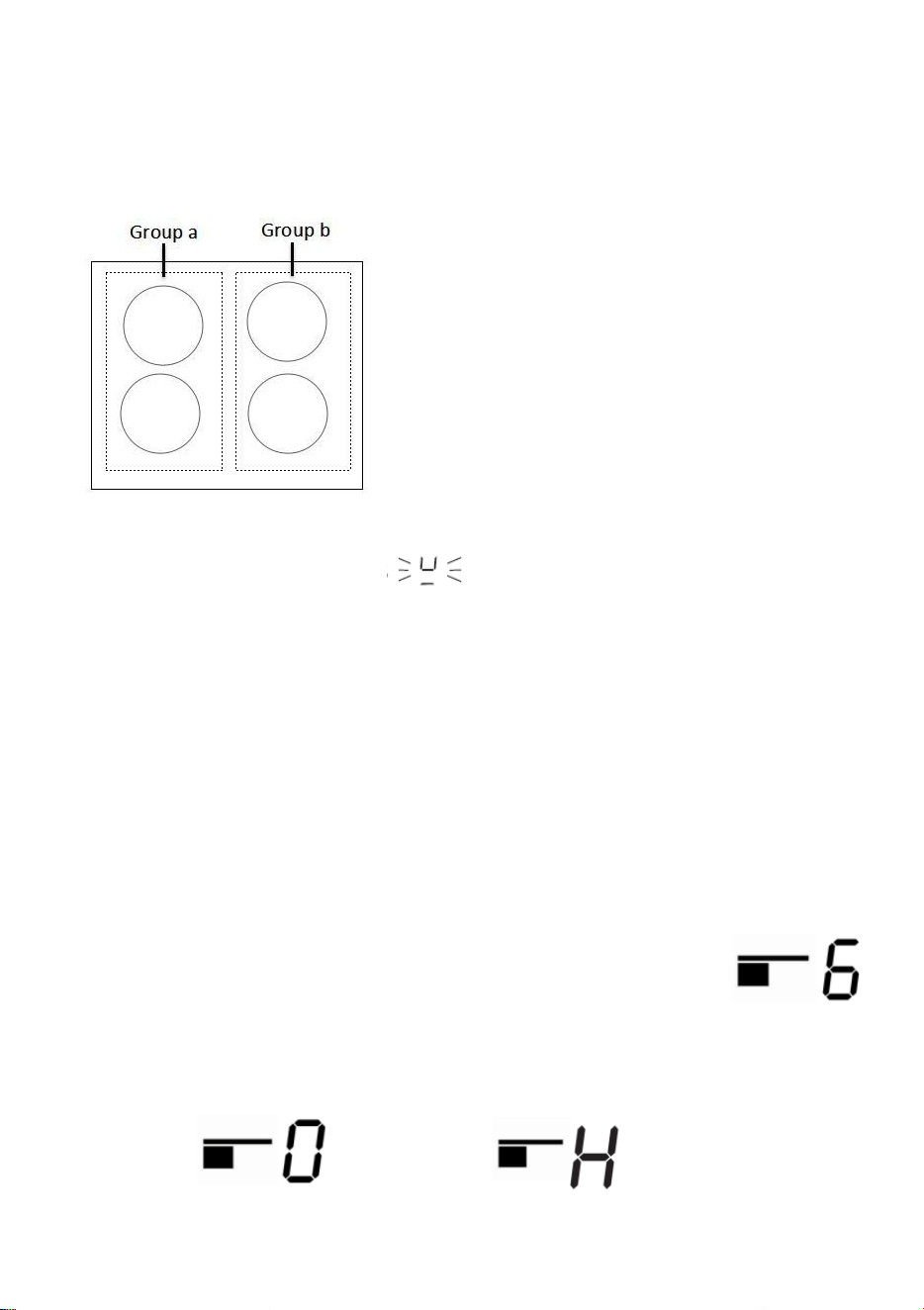

The cooktop models with four cooking zones has these zones divided into two
groups. In one group, if using boost on one zone, first make sure that the other
zone is set to power level 5 or below. Otherwise the boost function will be unable
to activate. When the group is in flex mode, both zones can be set to boost.
Specially for HCI604TB3/HCI604TG3, the boost function will have a different
limitation in each group according to the Power Management of 2.5kW/ 3.0kW/
4.5kW/ 6.5kW and 7.4kW that you choose.

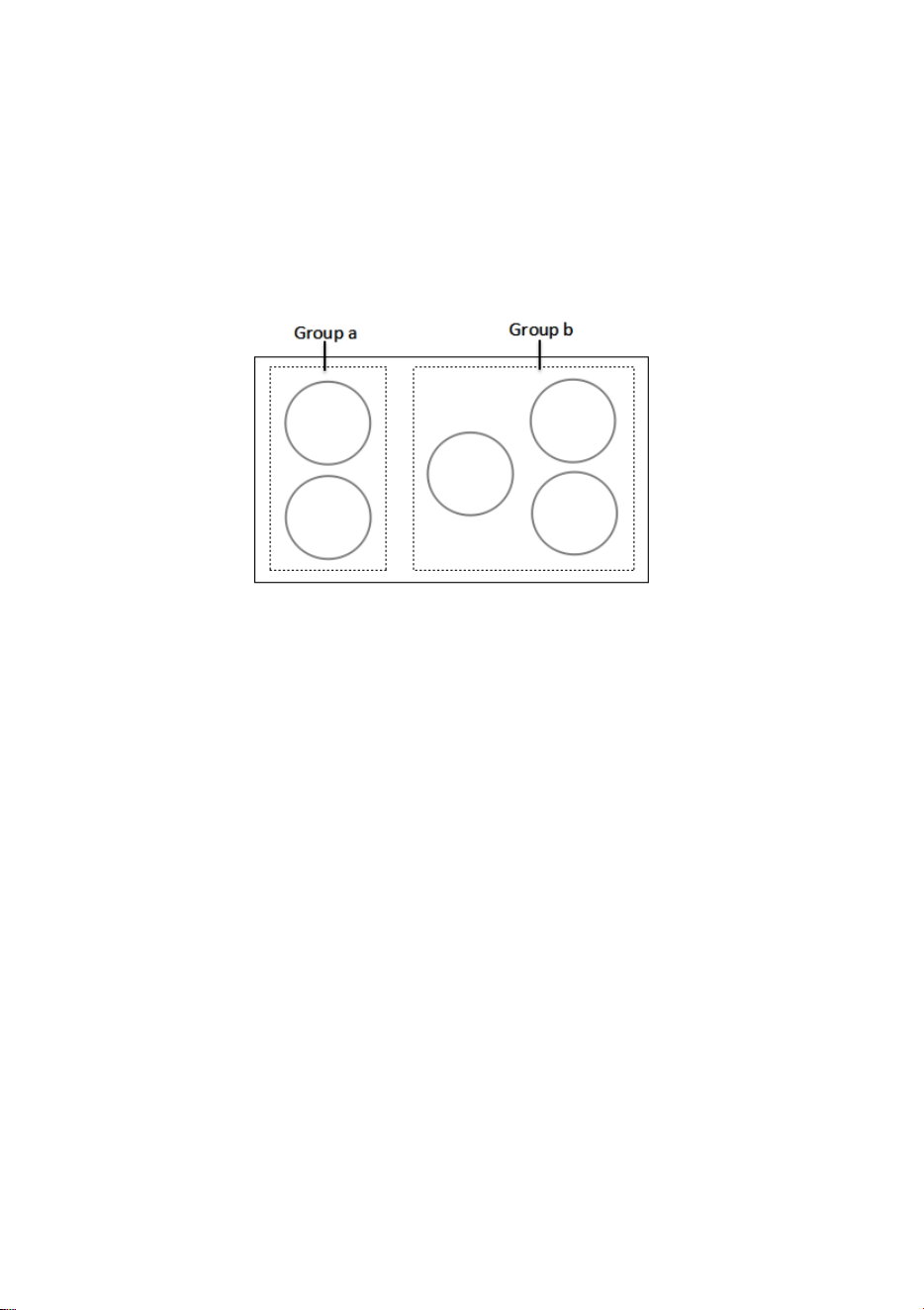

The five zone model is also divided into two groups. In group a, if using boost on
one zone, first make sure that the other zone is set to power level 5 or below.
When group a is in flex mode, both zones can be set to Boost function. In group b,
you can only use Boost function for one zone at a time. If you try to use the Boost
for two zones at the same time, the first zone which is using Boost function will
drop out of boost function and switch to power level 5.
Using the Power Management
For model HCI604TB3/HCI604TG3
Using power management you can set the total power to 2.5kW/ 3.0kW/ 4.5kW/
6.5kW and 7.4kW. The default total power setting is the maximum power level.
Setting the total power level to fit your requirement
1. Make sure the cooktop is turned off.
Note: you can only set power management when the cooktop is turned off.
2. Press and hold the “Pause” icon for 5 seconds. You can hear the buzzer beeps
one time.
3.After you hear the beep, touch “+” and “-” icons at the same time and hold for
3 second, the timer indicator will flash with the previous total power level, e.g.
‘2.5’. Touch and hold ” +” and ”-” for 1 second again to switch to another
power level, for example 3.0. When the power that you want is flashing, press
and hold the “Pause” icon for 5 seconds. The buzzer will beep 10 times. It means
you have changed the setting.
Note:
1. After step 2, you must touch the “+” and “-” within 3 seconds after you hear
the beep. Otherwise, you will need to start again from step 2.
2. Once finish setting, wait till the end of 10 beeps. Do not touch any icon during
this period. Otherwise, the setting will be invalid.
Power management Rules
If total power exceeds the limitation of 2.5kw, 3.0kw, 4.5kw, 6.5kw (depending
on which level you’ve set), you are not able to increase power stage of any zone.
If you increase it by touching ‘+’, the cooktop will beep 3 times and indicator will
show a flashing ‘Pn’. Thus you need to decrease the power setting of other zones
before increasing the power of the target zone.
For model HCI905FTB3
• Cooking zones are grouped according to the two phases in the cooktop (see
group a & b illustration). Each phase has a maximum power loading of 3500 W.
The function divides the power between cooking zones connected to the same
phase.
• Group b has a function that decreases the power to the other cooking zones
when the total power to group b exceeds 3500W
• Group b hasWhen using 3 cooking zones at the same time in group b, all 3
cooking zones can used up to power level 7
• When using 2 cooking zones in group b, the cooking zones can use up to power
level 8 at the same time
• When only using 1 cooking zone in group b, the highest power level of the zone
is Boost
Flex Zone
• This area can be used as a single zone or as two different zones, according to
cooking needs.
• The flex zone is made of two independent inductors that can be controlled
separately. When working as a single zone, as cookware is moved from one
zone to another within the flexible area the cooktop will keep the power level for
the cookware constant. The part that is no longer covered by cookware will not
heat.
• Important: Make sure to place the cookwares centered on the single cooking
zone. In case of big pot, oval, rectangular and elongated pans make sure to
place the pans centered on the cooking zone covering both crosses.

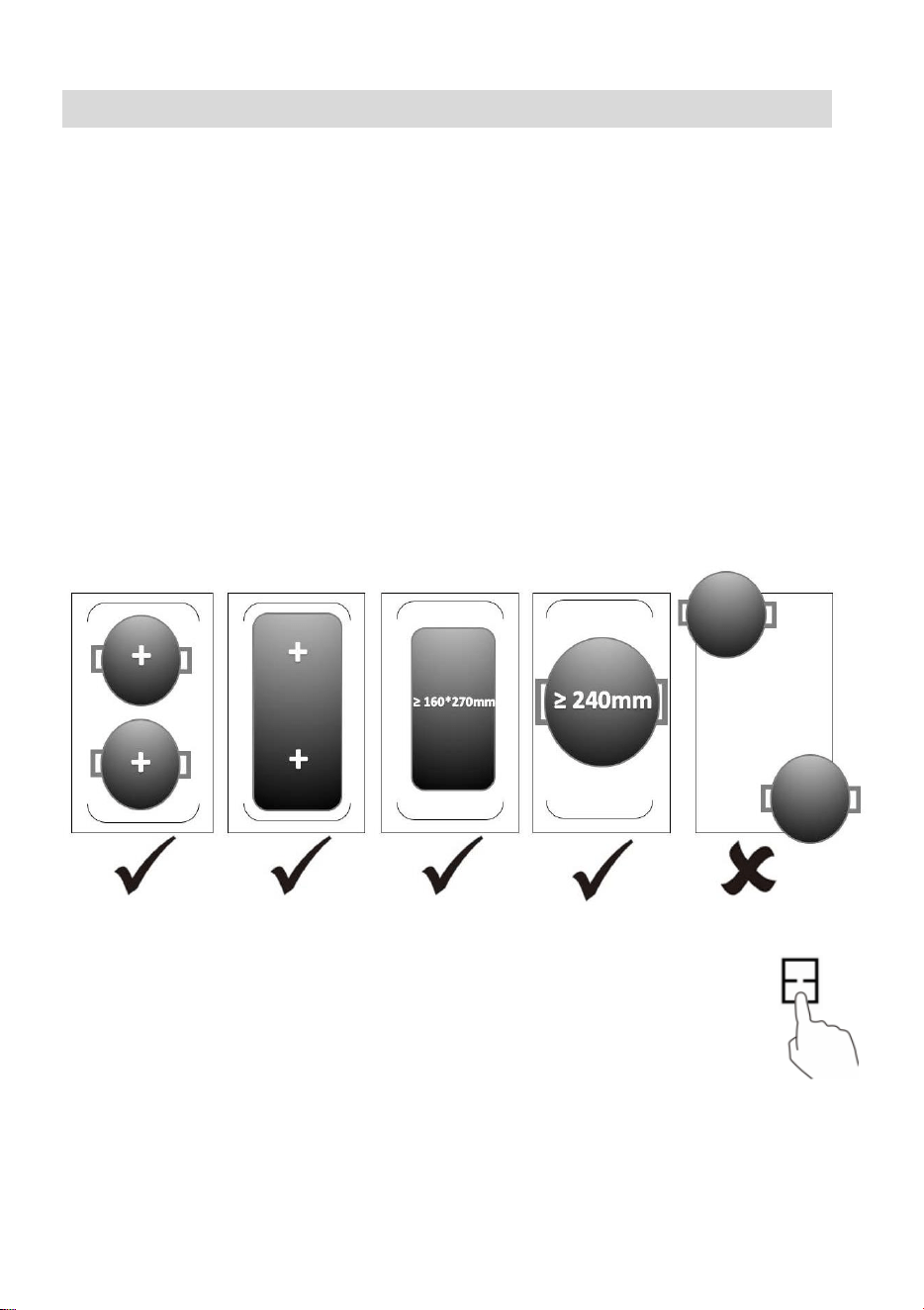

Examples for good and bad pot placements:
As single zone
1. To activate the flexible area as a single big zone, choose the zone
which has flex function and press the flex zone icon as shown on the
right image.
2. The power setting works the same as any other normal area.
As two independent zones
To use the flexible area as two different zones with different power settings, press
the flex zone icon again and the zones will return into their previous settings.
啊 Using the Flex Zone

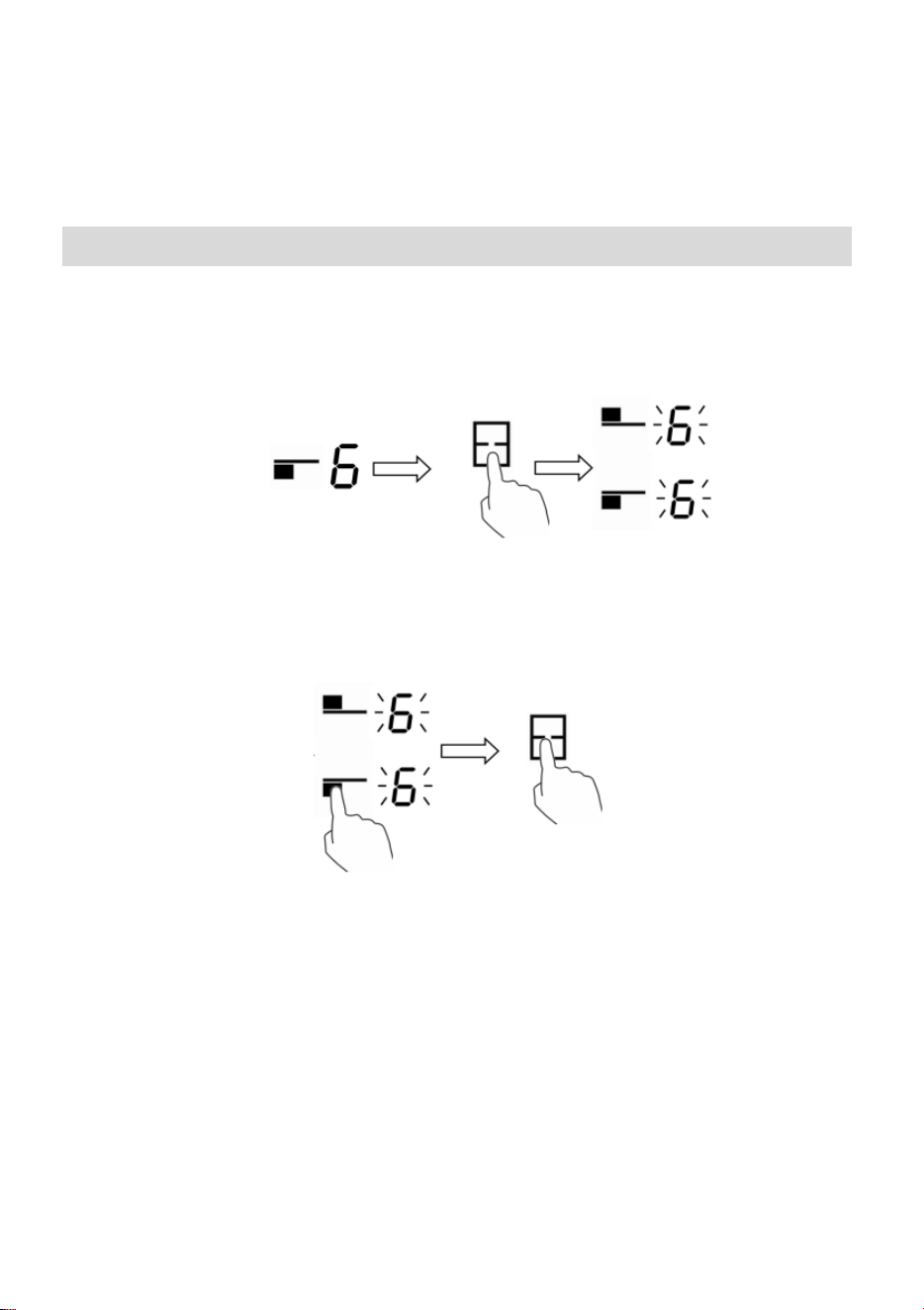

1.Choose one zone that you want to use the flex zone function, then touch the flex
zone icon. Then the zones in the flex group will show the same power level, the
flex zone function is now active.
2.To turn off the flex zone, choose one of the zones in the flex group and touch the
flex zone icon.
Using the Grill Function
The grill function sets the cooktop flex zone to a preset 2 hour power profile
suitable for grilling.

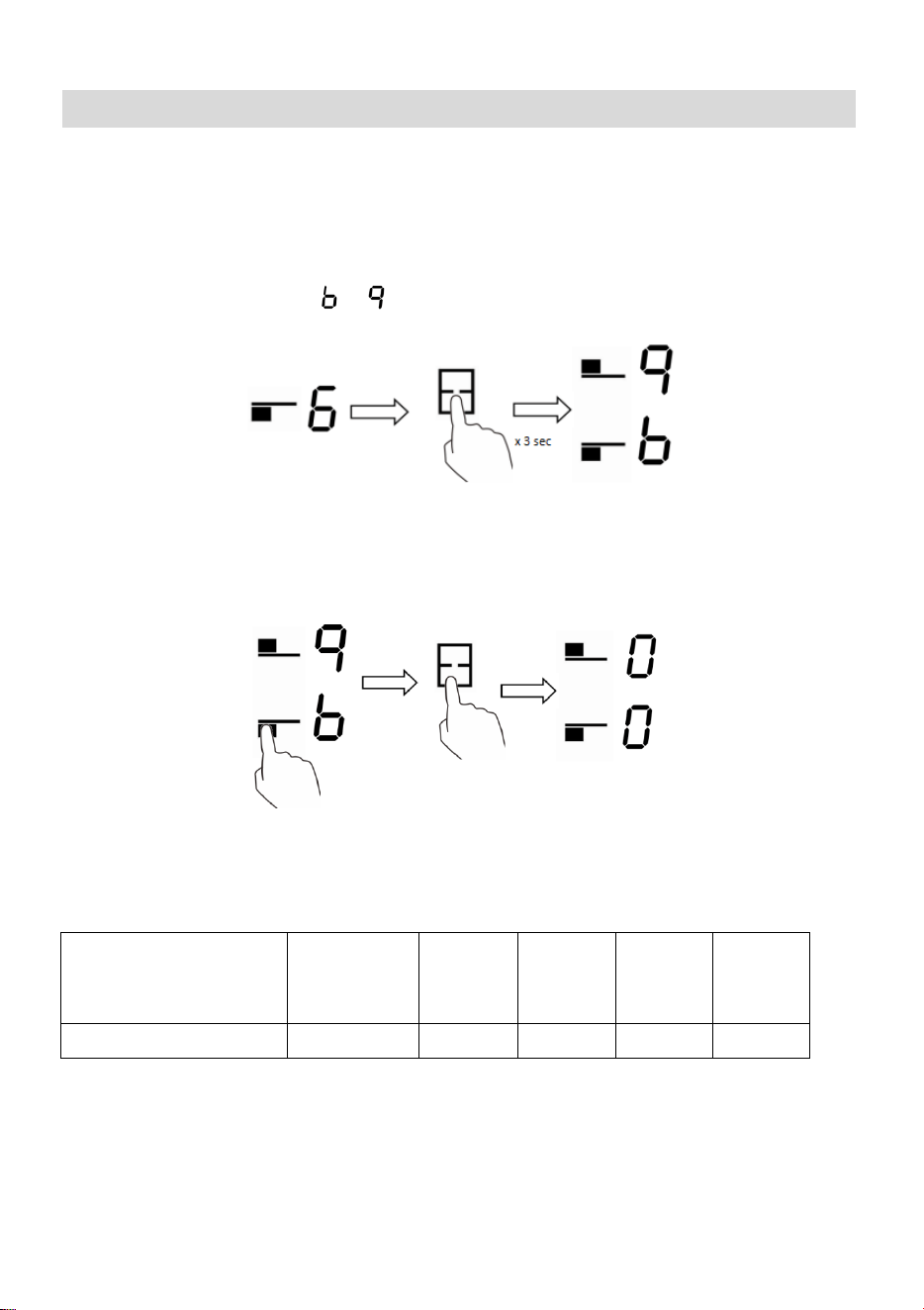

Choose the heating zone that you wish to use Grill, hold the flex zone icon for 3
sec.The display shows “ ” “ ” to indicate the Grill mode is on.
To exit the Grill function, touch one of the zone icons in the Grill group, and then
hold the flex zone icon .The Grill function will be turned off.
The grill function will last for 2 hours and the zones will turn off automatically.
The grill function power setting with time is as shown below:
Grill Function Work
Time
1 min
15 sec
45 sec
3 mins
5 mins
1h
50mins
Power Setting
8
7
6
5
4
Using the Pause Function
Pause function can be used at any time during cooking. It allows the cooking to
stop instantly and then resume at the previous power settings.
1. Make sure the cook zone is powered on.

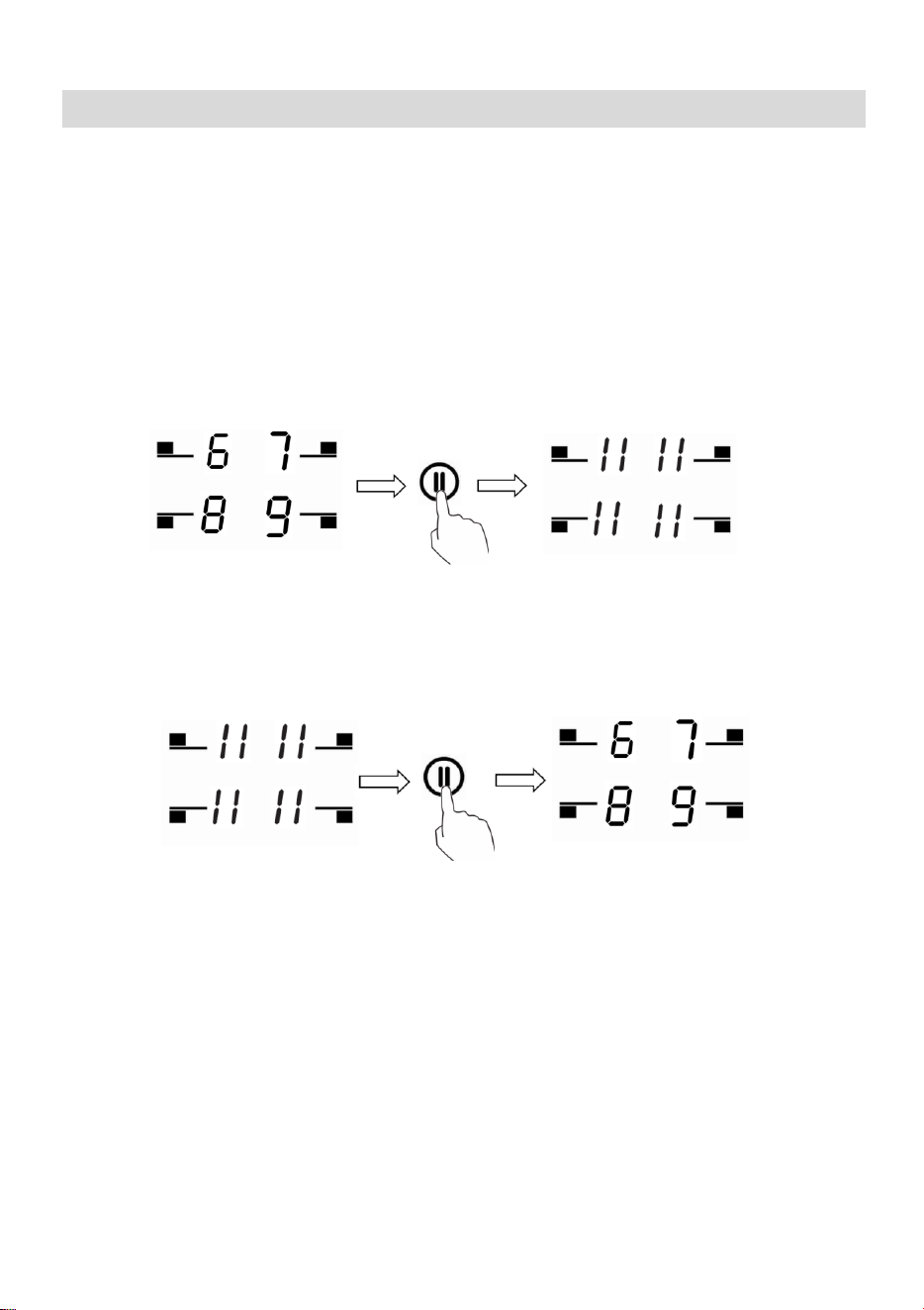

Touch the PAUSE icon, the cooking zone indicator will show “ll”.And then the
operation of the induction cooktop will be disabled for all cooking zones, except
the PAUSE, on/off and lock keys.
3.To cancel the pause status, touch the PAUSE icon, then the cooking zone will go
back to the power level which had been set previously.
Use the Keep Warm Function

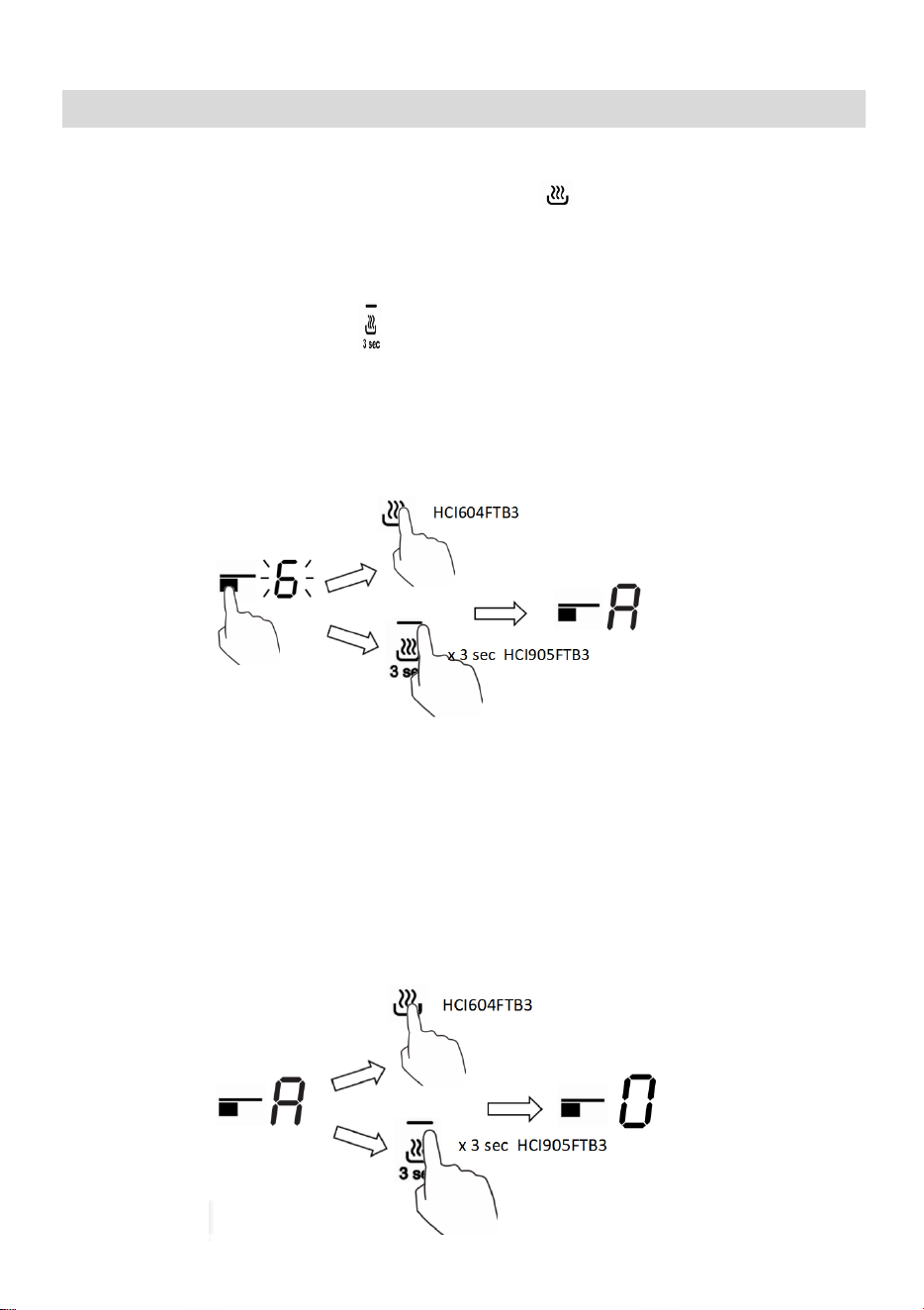

1.1 For model HCI604FTB3/HCI604FTG3/HCI604TPB3: Touch the desired zone
select icon, then touch the keep warm icon . The zone will start keep
warm mode and "A"will show on the display.
1.2 For model HCI905FTB3/HCI905FTG3: Touch the desired zone select icon, then
hold the keep warm icon for 3 sec. The zone will start keep warm mode
and "A" will show on the display.
1.3 The Keep Warm function is used to maintain the temperature of the food at a
lower power level. It is approximately equivalent to power level 3
2.1 For model HCI604FTB3/HCI604FTG3/HCI604TPB3 to switch off the keep
warm function, choose the zone that is on keep warm function, touch the keep
warm icon for 1 sec the keep warm function will stop and “A” will disappear.
2.2 For HCI905FTB3 to switch off the keep warm function, choose the zone that is
on keep warm function, touch the keep warm icon for 3 sec, the keep warm
function will stop and “A” will disappear.
Locking the Controls
• You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
For model HCI302TB3, HCI604TB3, HCI604TG3, HCI604FTB3,
HCI604TPB3
Touch the keylock control , The timer indicator will show “ Lo “
For model HCI905FTB3
Hold the keylock control for 3 sec. The timer indicator will show “ Lo “
To unlock the controls
1. Make sure the Induction hob is turned on.
2. Press and hold the keylock control for a 3 seconds
3. You can now start using your Induction hob.
When the hob is in the lock mode, all the controls are disable except the ON/OFF,
you can always turn the induction hob off with the ON/OFF control , but you have to
unlock the hob before use when next turned on.
Over-Temperature Protection
A temperature sensor inside the cooktop can monitor the internal temperature.
When an excessive temperature is observed, the Induction cooktop will stop
operation automatically.
Over-Spillage Protection
Over-spillage protection is a function, which will switch off the cooktop
automatically within 10s if water is detected on top of the control panel, The
buzzer will beep once.
Detection of Small Articles
When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other
small item (e.g. knife, fork, key) has been left on the hob, the hob will
automatically go into standby mode in 1 minute. The fan will keep running and
cooling down the induction hob for a further 1 minute, and then will be off.
Auto Shutdown Protection
Auto shut down is a protection function for your induction cooktop. It will shut
down automatically if you forget to turn off your cooktop. The default working
times for various power levels are shown in the below table:
Power level
1
2
3
4
5
6
7
8
9
Default working timer
(hour)
8
8
8
4
4
4
2
2
2
When the pot is removed, the induction cooktop will stop heating
immediately and will switch off after 2 minutes.
Using the Timer
You can use the timer in two different ways:
1. You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
2. You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.
Using the Timer as a Minute Minder
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: you can use the minute minder even if no cook zone is powered on.

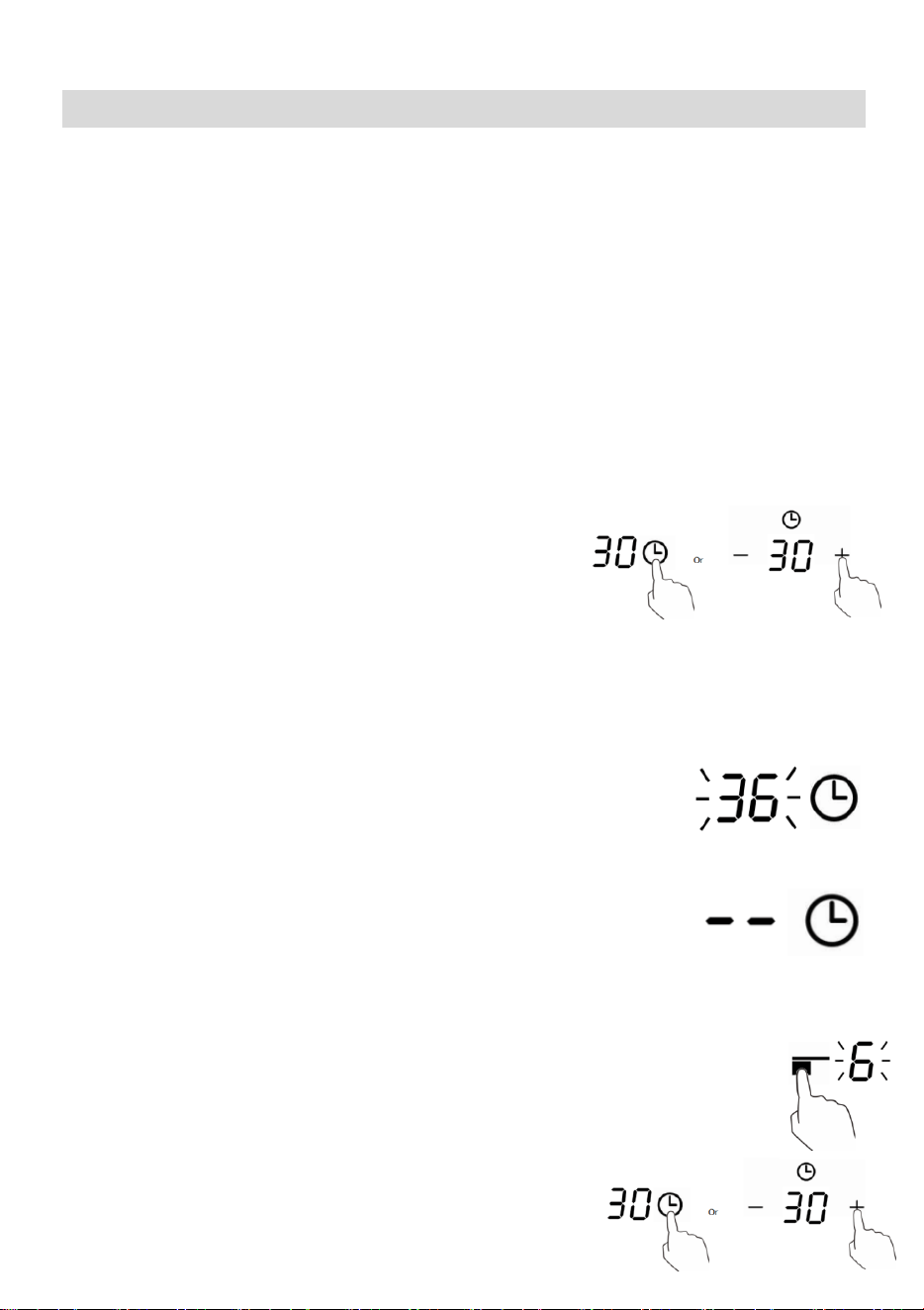

2. Touch timer control , The minder indicator
will start flashing and “30” will show in the
timer display.
3. Set the time by touching the “-” or “+” control
Hint: Touch the “-” or “+”control once to decrease or increase by 1 minute.
Hold the “-” or “+” control to decrease or increase by 10 minutes.
4. When the time is set, it will begin to count down
immediately. The display will show the remaining
time and the timer indicator will flash for 5 seconds.
5. Buzzer will beep for 30 seconds and the timer indicator will
show “- - “ when the set time has expired.
Setting the timer to turn one cooking zone off
Cooking zones set for this feature will:
1. Touch the heating zone selection control that you want to set the
timer for. (e.g. zone 1#)
2. Touch timer control , The minder indicator will
start flashing and “30” will show in the timer display.
3. Set the time by touching the “-” or “+” control.
Hint: Touch the “-” or “+” control once to decrease or increase by 1 minute.
Touch and hold the “-” or “+” control, the timer will decrease or increase by 10
minutes.
If the set time exceeds 99 minutes, the timer will automatically return to 0
minute.
4. When the time is set, it will begin to count down
immediately. The display will show the remaining
time and the timer indicator will flash for 5 seconds.
NOTE: The red dot next to power level indicator
will illuminate indicating that zone is selected.
5. To cancel the timer, touch the heating zone selection control, and then touch
the timer control, “00” will show in the minute display, and then “--”.
6. When the cooking timer expires, the corresponding
cooking zone will be automatically switch off and will
show “H”.
Other cooking zone will keep operating if they are turned on previously.
Setting the timer to turn more than one cooking zone
off
1. If you use this function to control more than one heating zone, the timer
indicator will show the shortest time.
(e.g. zone 1# set time of 3 minutes, zone 2# set time of 6 minutes, the timer
indicator shows “3”.)
NOTE: The flashing red dot next to power level indicator means the timer
indicator is showing the time for that heating zone.
If you want to check the set time of another heating zone, touch its heating
zone selection control. The timer will indicate its set time.
(set to 6 minutes)
(set to 3 minutes)
2. When cooking timer expires, the corresponding heating zone
will automatically switch off and show “H”.
NOTE: If you want to change the time after the timer is set, you have to start
from step 1
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly, particularly
if you’re using PowerBoost. At extremely high termperatures oil and fat
will ignite spontaneously and this presents a serious fire risk.
Cooking Tips
• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated
through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C, when bubbles are just
rising occasionally to the surface of the cooking liquid. It is the key to delicious
soups and tender stews because the flavours develop without overcooking the
food. You should also cook egg-based and flour thickened sauces below boiling
point.
• Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly in
the time recommended.
Searing steak
To cook juicy flavoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot
pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend
on the thickness of the steak and how cooked you want it. Times may vary
from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is
– the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax
and become tender before serving.
For stir-frying
1. Choose an induction compatible wok or a large frying pan with a flat base.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If
cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
Heat Settings
The settings below are guidelines only. The exact setting will depend on several
factors, including your cookware and the amount you are cooking. Experiment
with the induction hob to find the settings that best suit you.
Heat setting
Suitability
1 - 2
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
3 - 4
• reheating
• rapid simmering
• cooking rice
5 - 6
• pancakes
7 - 8
• sautéing
• cooking pasta
9
• stir-frying
• searing
• bringing soup to the boil
• boiling water
Care and Cleaning
What?
How?
Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the
glass)
1. Switch the power to the
cooktop off.
2. Apply a cooktop cleaner
while the glass is still warm
(but not hot!)
3. Rinse and wipe dry with a
clean cloth or paper towel.
4. Switch the power to the
cooktop back on.
• When the power to the cooktop is
switched off, there will be no ‘hot
surface’ indication but the cooking
zone may still be hot! Take extreme
care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
glass. Always read the label to
check if your cleaner or scourer is
suitable.
• Never leave cleaning residue on the
cooktop: the glass may become
stained.
Boilovers, melts,
and hot sugary spills
on the glass
Remove these immediately
with a fish slice, palette knife or
razor blade scraper suitable for
Induction glass cooktops, but
beware of hot cooking zone
surfaces:
1. Switch the power to the
cooktop off at the wall.
2. Hold the blade or utensil at a
30° angle and scrape the
soiling or spill to a cool area
of the cooktop.
3. Clean the soiling or spill up
with a dish cloth or paper
towel.
4. Follow steps 2 to 4 for
‘Everyday soiling on glass’
above.
• Remove stains left by melts and
sugary food or spillovers as soon
as possible. If left to cool on the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
• Cut hazard: when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
care and always store safely and
out of reach of children.
Spillovers on the
touch controls
1. Switch the power to the
cooktop off.
2. Soak up the spill
3. Wipe the touch control area
with a clean damp sponge or
cloth.
4. Wipe the area completely
dry with a paper towel.
5. Switch the power to the
cooktop back on.
• The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them. Make sure you wipe
the touch control area dry before
turning the cooktop back on.
Trouble Shooting
Problem
Possible causes
What to do
The induction hob
cannot be turned on.
No power.
Make sure the induction hob is
connected to the power supply
and that it is switched on.
Check whether there is a power
outage in your home or area. If
you’ve checked everything and the
problem persists, call a qualified
technician.
The touch controls are
unresponsive.
The controls are locked.
Unlock the controls. See section
‘Using your induction cooktop’ for
instructions.
The touch controls are
difficult to operate.
There may be a slight film of
water over the controls or you
may be using the tip of your
finger when touching the
controls.
Make sure the touch control area is
dry and use the ball of your finger
when touching the controls.
The glass is being
scratched.
Rough-edged cookware.
Unsuitable, abrasive scourer or
cleaning products being used.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans make
crackling or clicking
noises.
This may be caused by the
construction of your cookware
(layers of different metals
vibrating differently).
This is normal for cookware and
does not indicate a fault.
The induction hob
makes a low humming
noise when used on
a high heat setting.
This is caused by the technology
of induction cooking.
This is normal, but the noise should
quieten down or disappear
completely when you decrease the
heat setting.
Fan noise coming from
the induction hob.
A cooling fan built into your
induction hob has come on to
prevent the electronics from
overheating. It may continue to
run even after you’ve turned the
induction hob off.
This is normal and needs no action.
Do not switch the power to the
induction hob off at the wall while the
fan is running.
Pans do not become
hot and appears in
the display.
The induction hob cannot
detect the pan because it is not
suitable for induction cooking.
The induction hob cannot detect
the pan because it is too small
for the cooking zone or not
properly centred on it.
Use cookware suitable for induction
cooking. See section ‘Choosing the
right cookware’.
Centre the pan and make sure that its
base matches the size of the cooking
zone.
The induction hob or a
cooking zone has
turned itself off
unexpectedly, a tone
sounds and an error
code is displayed
(typically alternating
with one or two digits
in the cooking timer
display).
Technical fault.
Please note down the error
letters and numbers, switch
the power to the induction hob
off at the wall, and contact a
qualified technician.
Fault Codes and Troubleshooting
If an abnormality comes up, the induction cooktop will enter a protective state
automatically and display corresponding fault codes:
Problem
Possible causes
What to do
F3/F4
Temperature sensor of the
induction coil failure
Please contact the supplier.
F9/FA
Temperature sensor of the IGBT
failure.
Please contact the supplier.
E1/E2
Abnormal supply voltage
Please check whether power
supply is normal.
Power on after the power
supply is normal.
E3
High temperature of the induction
coil temperature sensor
Please contact the supplier.
E5
High temperature of the IGBT
temperature sensor
Please restart after the hob
cools down.
The above covers common faults.
Please do not disassemble the unit by yourself to avoid any danger and damage to
the induction hob.
Technical Specification
Cooking Hob
HCI302TB3
Cooking Zones
2 Zones
Supply Voltage
220-240V~, 50-60Hz
Installed Electric Power
3000-3800W
Product Size L×W×H(mm)
288X520X60
Cut out Dimensions AxB(mm)
268
+5
X500
+5
Cooking Hob
HCI604TB3,HCI604TG3,
Cooking Zones
4 Zones
Supply Voltage
220-240V~, 50-60Hz
Installed Electric Power
1.6kw：1440-1760W or
2.0kw：1800-2200W or
2.5kw:2250-2750W or
3.0 kw:2700-3300W or
4.5kw:4050-4950W or
6.5kw:5850-7150W or
7.4kw:6600-7400W
Product Size L×W×H(mm)
590X520X60
Cut out Dimensions AxB(mm)
562(
-2 +3
)X492(
-2 +3
)
Cooking Hob
HCI604TPB3
Cooking Zones
4 Zones
Supply Voltage
220-240V~, 50-60Hz
Installed Electric Power
4050W-4725W
Product Size L×W×H(mm)
590X520X60
Cut out Dimensions AxB(mm)
562(
-2 +3
)X492(
-2 +3
)
Cooking Hob
HCI604FTB3
Cooking Zones
4 Zones
Supply Voltage
220-240V~, 50-60Hz
Installed Electric Power
6600-7400W
Product Size L×W×H(mm)
590X520X60
Cut out Dimensions AxB(mm)
562(
-2 +3
)X492(
-2 +3
)
Cooking Hob
HCI905FTB3
Cooking Zones
5 Zones
Supply Voltage
220-240V~, 50-60Hz
Installed Electric Power
6800-7400W
Product Size L×W×H(mm)
900X520X60
Cut out Dimensions AxB(mm)
870
+5
X490
+5
Weight and Dimensions are approximate, as shown above.
Manufacturer’s Warranty
Please read this warranty card carefully. Attach your purchase receipt to this
warranty card and keep in a safe place. You must produce both warranty card and
proof of purchase in the event of a warranty repair being required.
When you purchase any new Haier Product you automatically receive a two year
Manufacturer's Warranty covering parts and labour for servicing.
The Manufacturer undertakes to:
Repair or, at its option, replace without cost to the owner either for material or
labour any part of the Product, the serial number of which appears on the Product,
which is found to be defective within TWO YEARS from the date of purchase.
This warranty DOES NOT cover:
A Service calls which are not related to any defect in the Product. The cost of a
service call will be
charged if the problem is not found to be a Product related fault. For example:
1. Correct the installation of the product.
2. Provide Instruction on use of the product or change the setup of the
product.
3. Replace house fuses or correct house wiring.
4. Correcting fault(s) caused by the user.
5. Noise or vibration that is considered normal.
6. Water on the floor due to incorrect loading or excessive suds.
7. Blocked pumps, removal of foreign objects/substances from the machine,
including the pump and inlet house filters.
8. Correcting damage caused by pests, eg. rats, cockroaches etc.
9. Correct corrosion or discolouration due to chemical attack.
10. Power outages or surges.
B Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product’s User Guide.
C Defects to the Product caused by accident, neglect, misuse or ‘Act of God’.
D The cost of repairs carried out by non-authorised repairers or the cost of
correcting such unauthorised repairs.
E Normal recommended maintenance as set out in the Product’s User Guide.
F Repairs when the appliance has been dismantled, repaired or serviced by
other than an AUTHORISED CUSTOMER SERVICE CENTRE or the selling
dealer.
G Pick up and delivery.
H Transportation or travelling costs involved in the repair when the product is
installed outside the AUTHORISED CUSTOMER SERVICE CENTRE’S normal
service area.
This product has been designed for use in a normal domestic environment. It is
not intended for commercial use. Doing so may affect product warranty.
Service under this warranty must be provided by an Authorised Service Repairer
(refer to the Customer Care section for contact details). Such service shall be
provided during normal business hours. This warranty certificate should be shown
when making any claim.
Note:
This Warranty is an extra benefit and does not affect your legal rights and applies
only to product purchased in New Zealand and Australia. Please keep this
Warranty Card in a safe place.
For Australian customers:
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Customer Care
Check the things you can do yourself.
Refer to your User Guide and check:
1 Your appliance is correctly installed.
2 You are familiar with its normal operation.
3 You have read the problem solving section in your User Guide.
If after checking these points you still need assistance, please refer to your
nearest Haier Authorised Repairer.
In New Zealand, if you need assistance...*
Call your retailer who is trained to provide information on your appliance, or if we
can be of any further help, please contact our Customer Care Centre:
Toll Free: 0800 372 273 Fax: (09) 273 0656
Email: [email protected]
Postal address: P.O. Box 58732, Botany, Manukau 2163
If you need service...*
We have a network of independent Fisher & Paykel Authorised Repairers whose
fully trained technicians can carry out any service necessary on your appliance.
Your dealer or our Customer Care Centre can recommend a Fisher & Paykel
Authorised Repairer in your area.
In Australia, if you need assistance...*
Call the Customer Care Centre and talk to one of our Customer Care Consultants.
Toll Free: 1300 729 948 Fax: (07) 3826 9298
Email: [email protected]
Postal Address: PO Box 798, Cleveland QLD 4163
If you need service...*
We have a network of qualified Authorised Repairers whose fully trained
technicians can carry out any service necessary on your appliance. Our Customer
Care Centre can recommend an Authorised Repairer in your area.
*If you call or write, please provide: name, address, model number, serial number,
date of purchase and a description of the problem. This information is needed in
order to better respond to your request for assistance.
Product Details
Model ---------------------------------------Serial No. -----------------------------
Date of Purchase----------------------------Purchaser-----------------------------
Dealer---------------------------------------Suburb---------------------------------
Town----------------------------------------Country--------------------------------
Thank you for choosing Haier. We are confident that you will enjoy many years of
good service from your appliance.
Code：Z308720995
Edition：V20
Publication Date September 1, 2023
