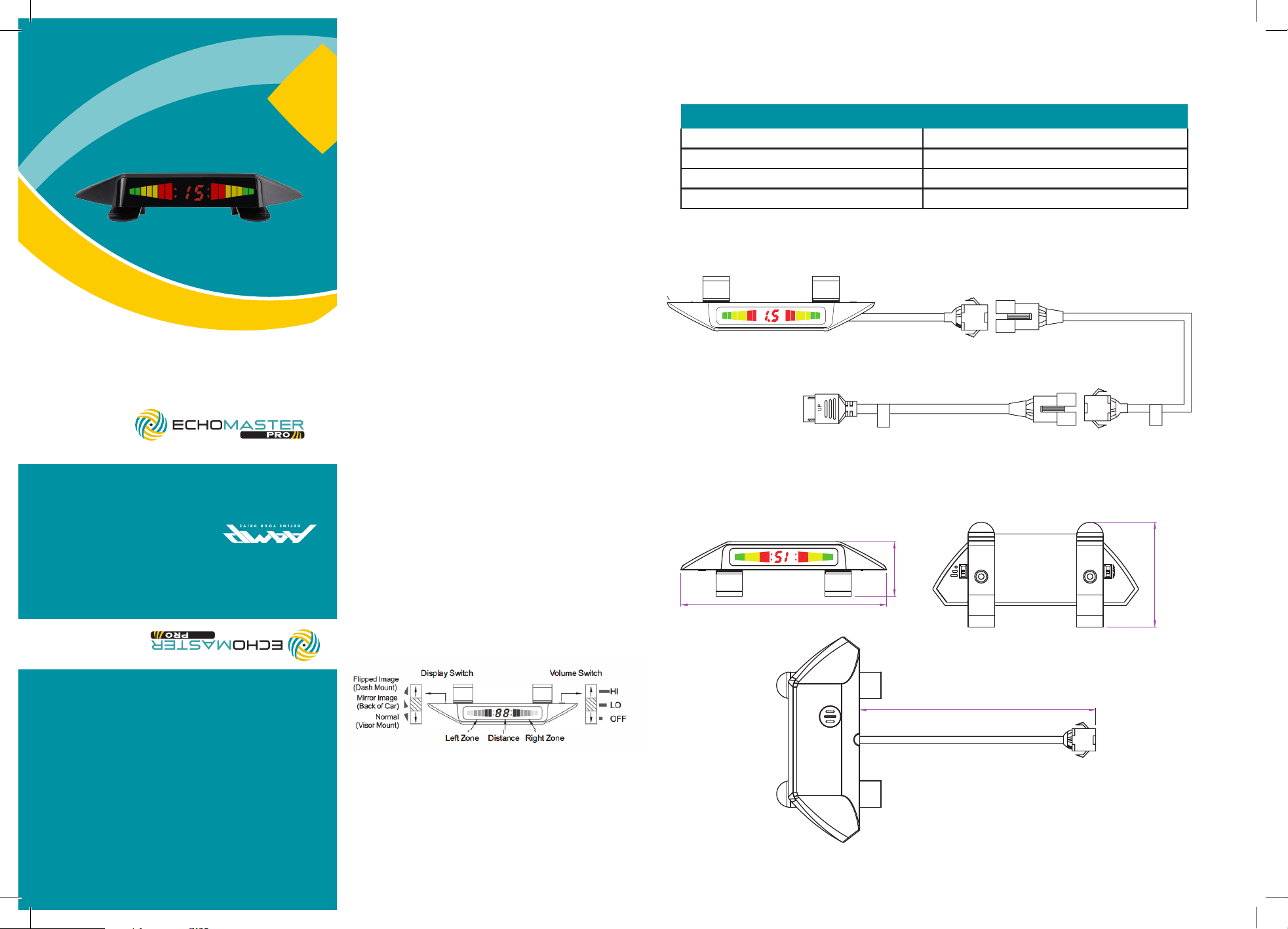

PA-DISPLAY
Introduction
Box Contents
u Display
u Harness for Rear Sensor System
u Harness for Front Sensor System
u Warranty Card
u Installation Guide
Dimensions (mm/inches)
Specications
Key Features
User Manual
ParkAlert Display
Congratulations on purchasing your EchoMaster Pro
Display for your ParkAlert Sensor System.
This display can be used with the following kits:
u PS-RBP-B/M/S/W
u PS-FBP-B/M/S/W
u PS-TRUCK-M/S
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - [email protected] (US)
email - [email protected] (Europe)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
u Color bar indicators u Distance display
u Volume control u OE sounding tone
u Settings for multi-mounting options
124.5mm / 5”
33mm / 1.3”
63.5mm / 2.5”
450mm / 17.7”
PA-DISPLAY
Operating Voltage Range 9 – 16 VDC
Rated Voltage 12 VDC
Rated Current 110mA max
Operating Temperature -30C - +70C
Wiring Diagram
use with Rear Sensor Kit
(connects to main harness)
use with Front Sensor Kit
(connects to control module)
Operation
Set display switch to proper setting based on mounting
position. Set volume switch to desired level. If a sensor is
found defective during diagnostics, the display will indicate
which sensor has an error by displaying E1, E2, E3, E4, or EE
(all sensors)
