the AdjustaGrill
™
& Sear
Instruction Book - LGR350
2
BREVILLE
RECOMMENDS
SAFETY FIRST
At Breville, we are very
safety conscious. We design
and manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition, we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
IMPORTANT
SAFEGUARDS
READ ALL
INSTRUCTIONS BEFORE
USE AND SAVE FOR
FUTURE REFERENCE
• Carefully read all
instructions before
operating the grill for the
first time and save for
future reference.
• Remove and safely discard
any packaging material
and promotional stickers
before using the grill for
the first time.
Contents
2 Breville Recommends Safety First
2 Limited Product Warranty
8 Components
9 Functions
11 Care, Cleaning & Storage
Breville's warranty for this product
covers the repair or replacement if
it’s found to be defective due to faulty
materials, workmanship, or function
within the warranty period. All legal
warranty rights under applicable
national legislation will be respected
and will not be impaired by our
warranty. For details on length of
warranty, to obtain a printed copy or to
read full terms and conditions please
scan the QR code or
visit www.breville.com
Alternatively, call the
Breville Service Centre
(see back cover for
contact details).
QR149
Limited Product
Warranty
3
• The grill and its cord
should be kept out of
reach of children aged 8
years or younger.
• Do not place the grill near
the edge of a bench or
table during operation.
• Ensure that the surface
is level, clean and free of
water, etc.
• Keep the grill clear of
walls, curtains and other
heat or steam sensitive
materials.
• The grill must be used
on a properly grounded
outlet. If you are not sure
if the power outlets are
properly grounded, please
consult your electrician.
• Do not, under any
circumstances, modify
the power plug or use an
adapter.
• Do not place the grill
on or near a hot gas or
electric burner, or where
it could touch a heated
oven. Use the grill well
away from walls.
• Provide adequate space
above and on all sides
around the grill for air
circulation.
• Do not place the grill on
any surface that may be
aected by heat. The use of
a heat resistant mat under
the grill is recommended
on these surfaces.
• Always operate the grill on
a stable and heat resistant
surface. Do not use on a
cloth-covered surface, near
curtains or other flammable
materials.
• Do not use on a sink drain
board.
• Do not touch hot surfaces.
Use the handle to lift and
open the top plate. Take
care when using the height-
adjustable control clip.
• Do not leave the grill
unattended when in use.
• Do not allow the power
cord to come in contact
with the hot cooking plates.
Ensure the power cord
does not become trapped
4
between the cooking
plates during use and
storage.
• Always keep the power
cord away from any heat
source including the
accessible surfaces of the
grill, and those of other
appliances nearby.
• The grill is not suitable
to be used in a small
enclosure. Ensure to leave
adequate space all around
the grill. Minimum space
of 20cm is recommended.
• Do not place anything
on top of the grill when
the lid is closed, during
operation and when
storing.
• Always switch the grill
o at the power outlet,
then unplug the power
cord and allow to cool.
Ensure the unit has cooled
down before cleaning,
attempting to move the
appliance, disassembling,
assembling and when
storing the appliance.
• Cleaning and user
maintenance of the grill
should not be carried out
by children.
• Do not use chemicals,
steel wool, metal scouring
pad, harsh abrasives,
caustic cleaners or oven
cleaners to clean the grill
as these can damage the
housing or the coating of
the cooking plates.
• Always remove the food
from the grill with a
heatproof utensil e.g.,
silicone spatula or tongs.
Never use your hands.
• Do not use sharp objects
or utensils inside the grill
as they may scratch or
damage the surface of the
cooking plates.
• The grill is not intended
to be operated by means
of an external timer or
separate remote control
system.
• Do not place the grill in
direct sunlight. Colour
fading and discolouration
5
may occur when the grill
is consistently exposed to
UV light.
• Keep the exterior housing
and the non-stick cooking
plates clean. Follow the
cleaning instructions
provided in this book.
Refer to Care, Cleaning
and Storage (Page 11).
CAUTION
Do not touch hot surfaces.
The accessible surfaces
will be hot when the grill
is operating and for some
time after use.
CAUTION: Hot Surfaces.
Do Not Touch.
This appliance is marked
with a hot surface symbol.
WARNING
Fully unwind the power
cord from the cord wrap on
base before use.
IMPORTANT
SAFEGUARDS FOR
ALL ELECTRICAL
APPLIANCES
• Fully unwind the power
cord before use.
• Connect only to a 230V or
240V power outlet.
• Do not let the power cord
hang over the edge of
a bench or table, touch
hot surfaces or become
knotted.
• To protect against electric
shock, do not immerse
the power cord, power
plug or appliance in water
or any other liquid or
allow moisture to come
in contact with the part,
unless it is recommended
in the cleaning
instructions.
• Children should be
supervised to ensure that
they do not play with the
appliance.
• It is recommended to
regularly inspect the
6
appliance. To avoid a
hazard do not use the
appliance if power cord,
power plug or appliance
becomes damaged in
any way. Return the
entire appliance to
the nearest authorised
Breville Service Centre
for examination and
/or repair.
• The appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
and knowledge,
unless they have been
given supervision or
instruction concerning
use of the appliance by
a person responsible for
their safety.
• Any maintenance other
than cleaning should
be performed at an
authorised Breville
Service Centre.
• This appliance is for
household use only. Do
not use this appliance
for anything other than
its intended use. Do not
use in moving vehicles or
boats. Do not use outdoors.
Misuse may cause injury.
• The installation of a
residual current device
(safety switch) is
recommended to provide
additional safety protection
when using electrical
appliances. It is advisable
that a safety switch with a
rated residual operating
current not exceeding
30mA be installed in the
electrical circuit supplying
the appliance. See your
electrician for professional
advice.
• During electrical storms,
the appliance should be
disconnected from the
power source at the wall
socket to prevent any
electrical surges that may
arise during the storm and
7
which may inadvertently
cause damage to the
appliance and its
electronic componentry.
• Always turn the appliance
to the o position by
switching o at the power
outlet and unplugging
from the power outlet
• Before cleaning, always
turn the appliance to the
o position, switch o at
the power outlet, unplug
at the power outlet and
remove the power cord,
if detachable, from the
appliance and allow all
parts to cool.
• Do not place this
appliance on or near a
heat source, such as hot
plate, oven or heaters.
• Position the appliance at
a minimum distance of
20cm away from walls,
curtains and other heat or
steam sensitive materials
and provide adequate
space above and on all
sides for air circulation.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
8

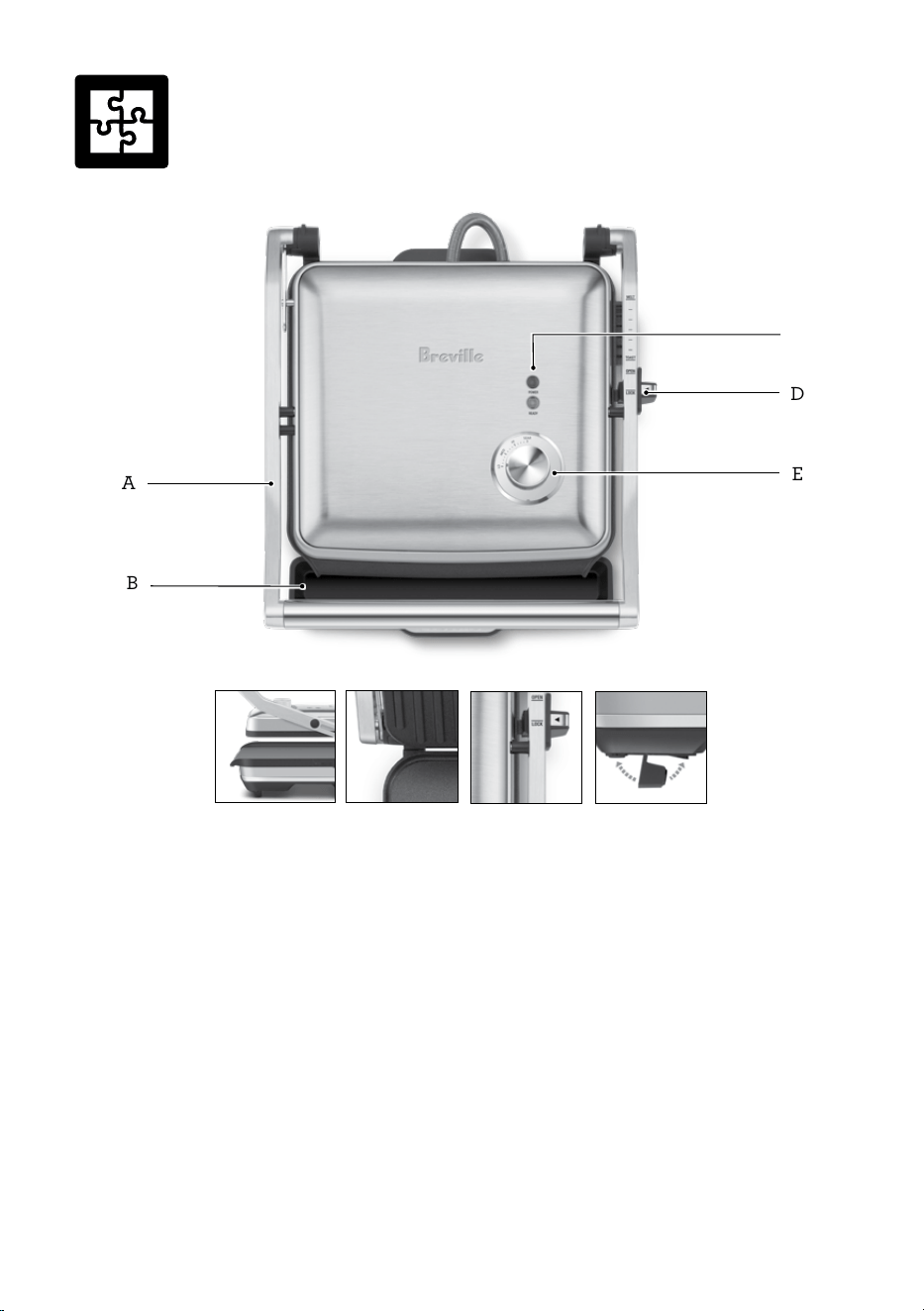

Components
A. Heavy-duty stainless-steel arms handle
B. Drip tray (dishwasher safe)
C. ‘Power’ and ‘Ready’ lights
D. Height-adjustable control clip
E. Variable temperature control dial
with 7 settings
D
A
F. Floating hinge top plate
G. Non-stick cooking plates
H. Safety storage lock
I. Swing feet
E
B
G
H
F
I
C
Not shown
• Non-slip feet
• Cord wrap on base
9
Functions
BEFORE FIRST USE
Remove any promotional materials and
packaging materials before use.
Check that the cooking plates are clean and
free of dust. If necessary, wipe over the plates
with a damp cloth.
NOTE
When using the grill for the first time you may
notice a fine smoke haze. This is caused by the
heating of some of the components. There is
no need for concern.
WARNING
Before use, fully unwind the power cord from
the cord storage facility.
HOW TO USE GRILL
1. Insert the power plug into a 230/240V
power outlet and turn the power on. The red
POWER light will illuminate.
2. Turn the temperature dial to LO, MED, HI,
or SEAR. Allow the grill to preheat with the
grill fully closed until the green READY
light illuminates.
3. While the grill is preheating, prepare and
assemble ingredients to be cooked. Once
the grill has preheated, open grill using the
handle and place food towards the back of
the bottom cooking plate.
NOTE
The grill can be used to cook foods, in the open
or closed position.
NOTE
The storage clip should not be used to clamp
down the top plate when food is in the grill.

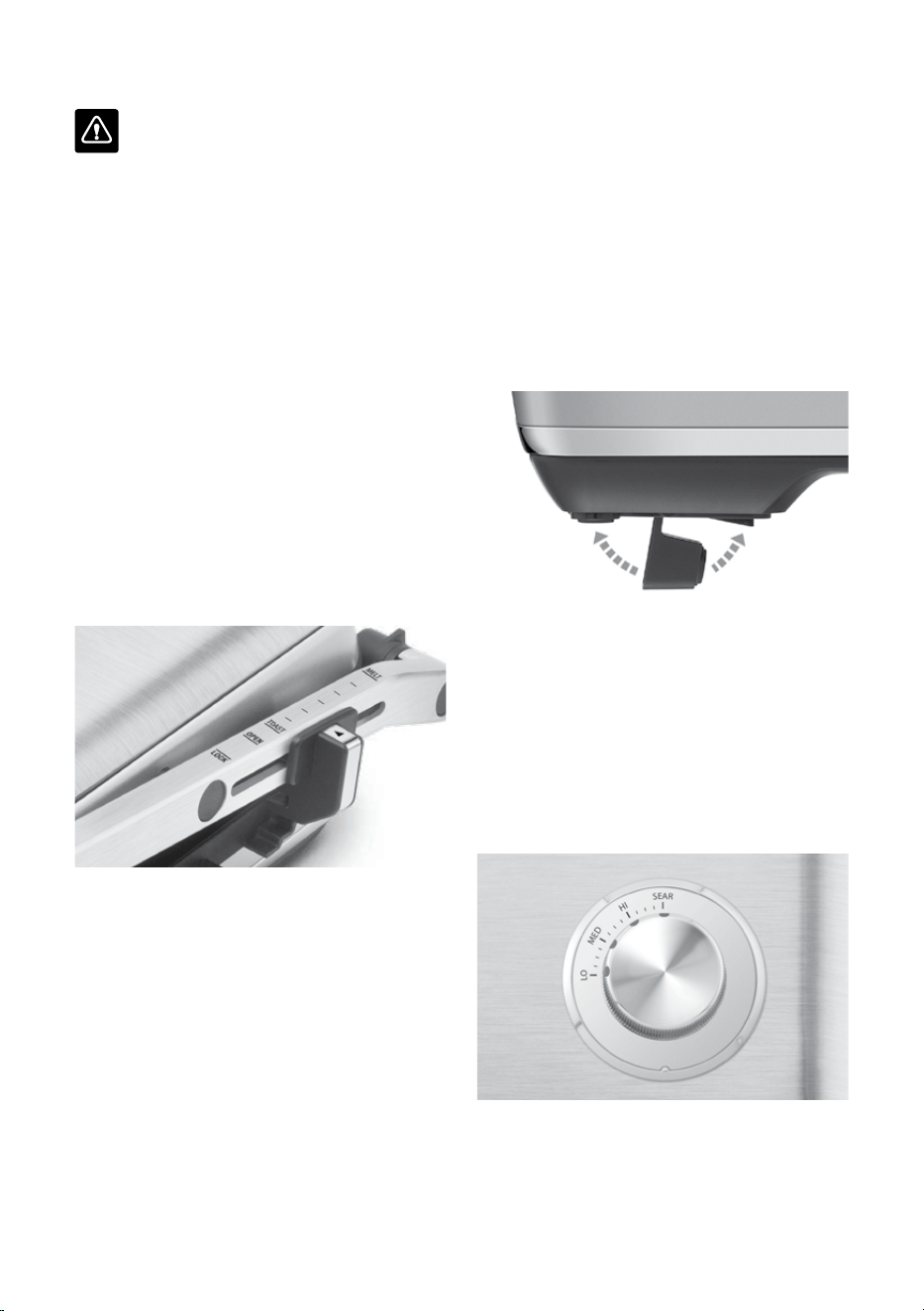

4. Use the height-adjustable control clip
located on the right-hand side of the grill,
to adjust the desired height of the top plate
according to your cooking needs. To create
grill marks, lower the top plate so that it
makes direct contact with the food.
5. When the food is cooked through, use the
handle to open the grill. Remove food using
a silicone, plastic, or wooden utensil. Never
use metal tongs or a knife, as these can
cause damage to the non-stick coating.
NOTE
Always allow the grill to preheat until the green
READY light illuminates before cooking.
10
WARNING
Fully unwind the power cord from the cord
storage facility before use.
USING THE HEIGHT-ADJUSTABLE
CONTROL CLIP
The height-adjustable control clip enhances
the versatility of your grill, enabling it to
accommodate various cooking needs. Whether
you are searing meats and vegetables, grilling
delicate ingredients like fish or toasting open
sandwich melts, this feature comes in handy.
Located on the right-side of the grill, the
height-adjustable control clip allows you to
position the top plate at one of seven dierent
height settings above the bottom plate.
This flexibility allows you to toast a variety
of bread sizes and thicknesses while also
accommodating open sandwich melts.
ADJUSTABLE COOKING
PLATE ANGLE
The AdjustaGrill™ & Sear, features unique
swing feet which are designed to enable the
bottom plate to switch between angled and flat
surface when cooking dierent types of food.
For example, when cooking steaks, extending
the swing feet creates a flat cooking surface
that prevents the steaks from sliding o the
cooking area while still maximizing the fat
drained into the drip tray while cooking.
VARIABLE TEMPERATURE
CONTROL DIAL
The grill includes a temperature control dial
for versatile cooking. Use the LO setting for
toasting sandwiches, and the SEAR setting for
foods that require high heat for cooking
e.g., steaks.
11
NOTE
The cooking plates are coated with a non-stick
surface, do not use abrasives.
NOTE
Do not use oil cooking spray on non-stick
coating as this may aect the performance of
the non-stick cooking plates.
STORAGE
To store your grill:
1. Switch o the grill and unplug power cord
from the power outlet and allow to cool.
2. Clean as per instructions given.
3. Close the grill and slide the height-
adjustable control clip towards the front
handle to the LOCK position so that the
top and bottom cooking plates are locked
together.
4. Click the removable drip tray into place.
5. Wrap the power cord in the cord storage
area below the grill.
6. Store on a flat, dry level surface.
NOTE
The storage clip should not be used to clamp
down the top plate when food is in the grill.
Care & Cleaning
Before cleaning, switch the power o at the
power outlet, and then remove the power plug.
Allow your grill to cool before cleaning. The
grill is easier to clean when slightly warm.
Always clean your grill after each use to
prevent a build up of baked-on foods. Wipe
cooking plates with a soft cloth to remove
food residue. For baked-on food, squeeze some
warm water mixed with detergent over the
residue, then, clean with a non-abrasive plastic
scouring pad.
CLEANING THE DRIP TRAY
Remove and empty the drip tray after each use
and wash in warm, soapy water. Rinse and dry
thoroughly with a clean, soft cloth.
Alternatively, you can clean the drip tray by
placing it on the top shelf of the dishwasher.
WARNING
Do not immerse any other part of the grill or
the power cord in the dishwasher, water or any
other liquid.
DURABLE NON-STICK COATING
Cooking on a non-stick surface minimises
the need for oil, reduces the likelihood of food
sticking to the surface and makes cleaning
easier. Any discolouration that may occur will
only detract from the appearance of the grill
and will not aect the cooking performance.
Do not use metal or other abrasive scourers
when cleaning the non-stick coating. Wipe
with a warm, soapy damp soft cloth. Remove
stubborn residue with a non-abrasive plastic
scouring pad or nylon washing brush.
Breville and the Breville Logo are trademarks of Breville Pty Ltd (“Breville”) and
Breville's products are distributed in Australia and New Zealand under license.
Copyright Breville Pty. Ltd. 2023.
Due to continued product improvement, the products illustrated/photographed
in this booklet may vary slightly from the actual product.
LGR350 ANZ - A23
Web: www.breville.comWeb: www.breville.com
Australian Customers
Phone:
1300 139 798
New Zealand Customers
Phone:
0800 273 845
Breville Customer Service Centre
