Drying cabinet
DC7784HP.W.AU
USER MANUAL
Please read the user manual before using the appliance.
859149au_en.indd 1859149au_en.indd 1 17. 02. 2022 08:50:2517. 02. 2022 08:50:25
Dear ASKO customer,
Congratulations on making an excellent choice, and welcome to the ASKO
family, a global family with its roots in Scandinavia.
We at ASKO thank you for your trust and hope that you will enjoy using
your new drying cabinet.
A good drying cabinet should be well designed, dry clothes well, have a low
environmental impact, be user-friendly, save time and energy, have a long service life and
be reliable. ASKO o ers you all these features.
When you buy an ASKO product you can be sure that the inside is just as
good as the outside and that the ethics and morality that go into building this
product are just as high as the quality and function you are getting. at’s what
Scandinavian quality is all about.
Before using the product for the rst time, please read the user instructions and the advice
on caring for the product. is will help you get the best possible results from your product
and all its functions.
If you have any questions, do not hesitate to call us or to contact us through
our website.
Best wishes from the ASKO team.
859149au_en.indd 2859149au_en.indd 2 17. 02. 2022 08:50:4417. 02. 2022 08:50:44
3
CONTENTS
THIS USER MANUAL 4
IMPORTANT SAFETY
INFORMATION 5
FOR A GOOD ENVIRONMENT 7
Packaging materials 7
Management of end-of-life drying
cabinet 7
DESCRIPTION OF THE DRYING
CABINET 8
Air fl ow in the cabinet 9
CONTROL PANEL 10
Button function 10
Display 10
Language setting 11
PLACEMENT 12
UNPACKING 13
Assembly kit 13
CONDENSATION WATER 14
Detachable water tank 14
Connection to fl oor drain 15
Reconnection to water tank 16
INSTALLATION 17
Positioning and Securing to the wall 17
Electrical connection 18
START-UP 19
OPERATION 20
User tips 21
Drying programs 22
Selection of drying program 22
Child lock 22
Starting drying program 23
Ending drying program 24
Door opened 24
OPTIMISING THE DRYING
PROGRAM 25
Introduction 25
Procedure 26
Return to operating mode 26
Parameter list 27
Restoring to factory setting 27
CARE 28
Cleaning 28
Replacement part 28
Service 29
TROUBLESHOOTING 30
LIST OF ERROR CODES 32
TECHNICAL DATA 33
859149au_en.indd 3859149au_en.indd 3 17. 02. 2022 08:50:4417. 02. 2022 08:50:44
4
THIS USER MANUAL
The contents of this user manual describe function, operation and optimisation
of drying programs, as well as instructions for installation and maintenance.
Alongside the ‘User Manual’ there is a ‘Service Manual’.
859149au_en.indd 4859149au_en.indd 4 17. 02. 2022 08:50:4417. 02. 2022 08:50:44
5
IMPORTANT SAFETY INFORMATION
This drying cabinet meets applicable safety requirements. Incorrect
use may, however, lead to injuries and damage to objects.
The advice and caution notices in this manual have been written
to enable you to avoid incorrect use and unnecessary risks of
accidents, and should be read before installing and using the drying
cabinet.
CAUTION: This appliance is intended only to be used to dry textiles
washed in water.
Applicable to installation in the EU
The drying cabinet can be used by children over the
age of 8 and persons (including children) with various
disabilities or inadequate experience and knowledge,
provided they are kept under supervision or are given
instructions on how to use the appliance in a safe way
and understand the risks that use entails.
Children must not play with the appliance.
Applicable to installation in countries outside the EU
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children must be supervised to ensure that they do not
play with the appliance.
859149au_en.indd 5859149au_en.indd 5 17. 02. 2022 08:50:4417. 02. 2022 08:50:44
6
Applicable to all installation
The drying cabinet must be installed and kept indoors.
If the power cord is damaged, it must be immediately re-
placed, and this must be done only by the manufacturer,
the manufacturer’s service agent or similarly qualifi ed
persons in order to prevent danger.
Follow ASKO instructions in repair and replacement of
parts.
859149au_en.indd 6859149au_en.indd 6 17. 02. 2022 08:50:4417. 02. 2022 08:50:44
7
FOR A GOOD ENVIRONMENT
PACKAGING MATERIALS
The packaging that protects the drying
cabinet against damage in transit has
been chosen with concern for the
environment in mind and is therefore
recyclable.
Packaging that is returned to the
material cycle means reduced
consumption of raw materials and a
smaller volume of waste.
MANAGEMENT OF END-OF-
LIFE DRYING CABINET
When the drying cabinet has reached
the end of its useful life, it must be
taken to a recycling centre for disposal.
Many parts of the drying cabinet
can be re-used, but it also contains
other materials that must be handled
correctly. You should therefore never
leave the drying cabinet or parts of the
cabinet for collection with household
waste, as this may lead to risks to health
and cause damage to the environment.
The end-of-life drying cabinet should
instead be taken to a recycling centre.
Check with your dealer if necessary.
All the plastic parts of the drying
cabinet are marked with internationally
standardised symbols. The parts of
the drying cabinet can therefore be
recycled in an environmentally sound
manner by waste separation.
859149au_en.indd 7859149au_en.indd 7 17. 02. 2022 08:50:4417. 02. 2022 08:50:44
8

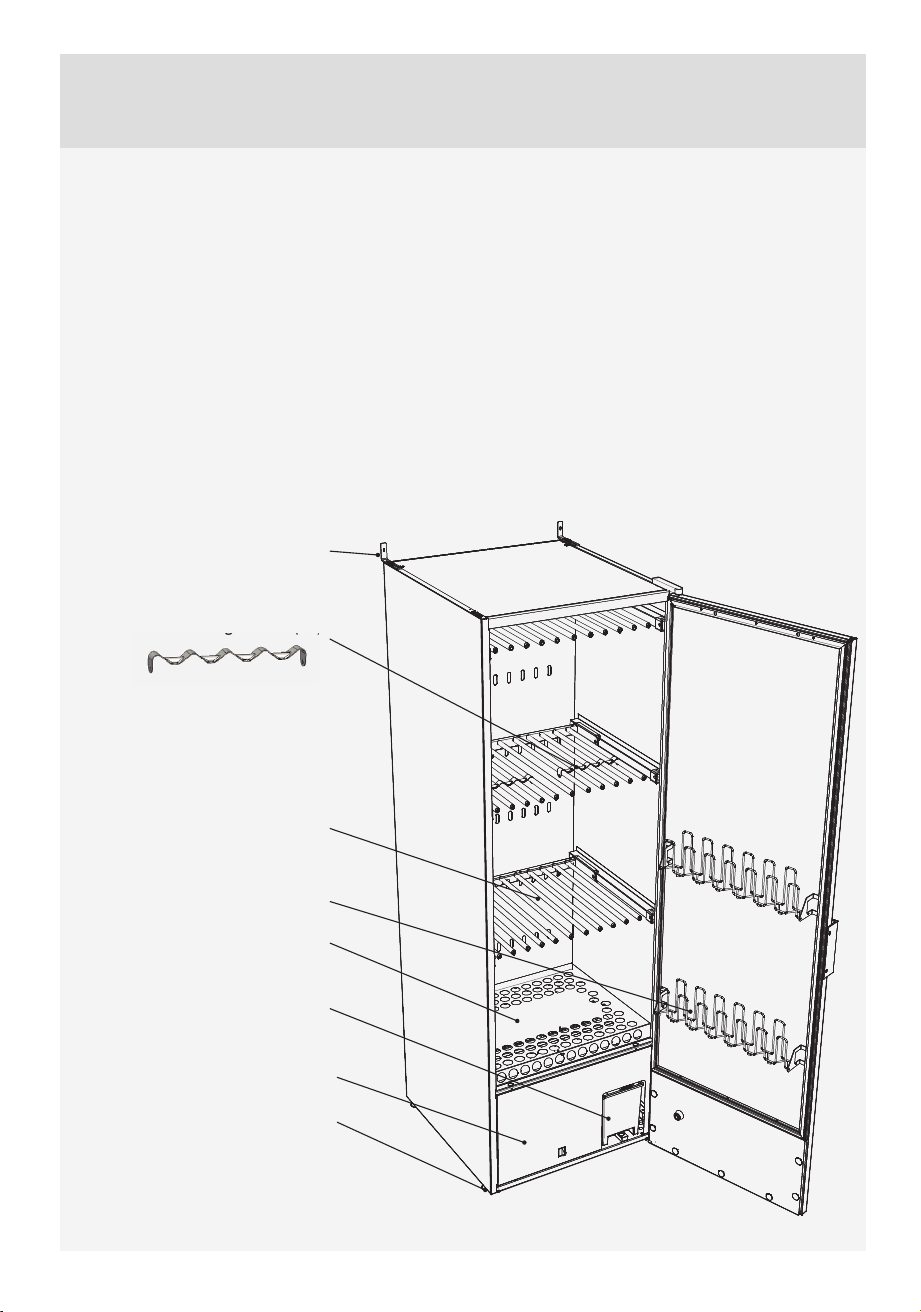

DESCRIPTION OF THE DRYING CABINET
The ASKO DC7784HP drying cabinet
operates according to the heat pump
principle with a dehumidifi er instead of
a conventional hot-air unit. As a result,
the washing is dried at lower heat
and with substantially lower energy
consumption.
The cabinet is a completely enclosed
system. No exhaust-air connection is
required. The moisture is condensed
during the drying cycle. It is stored in
the detachable water tank. There is an
option to route the water externally to a
drain (See Page 15)
In addition, the fan is so powerful that
it causes the items of clothing to fl utter,
making the drying process even more
effi cient.
Wall mount
Clothes hanger rack (2x)
Extendible hanger
sections (3x)
Door hangers
Detachable shoe rack
Tank for condensation
water
Dehumidifier
Adjustable feet (4x)
g()
859149au_en.indd 8859149au_en.indd 8 17. 02. 2022 08:50:4417. 02. 2022 08:50:44
9
PLEASE NOTE
Make sure that shoes and similar
items do not block the airfl ow.

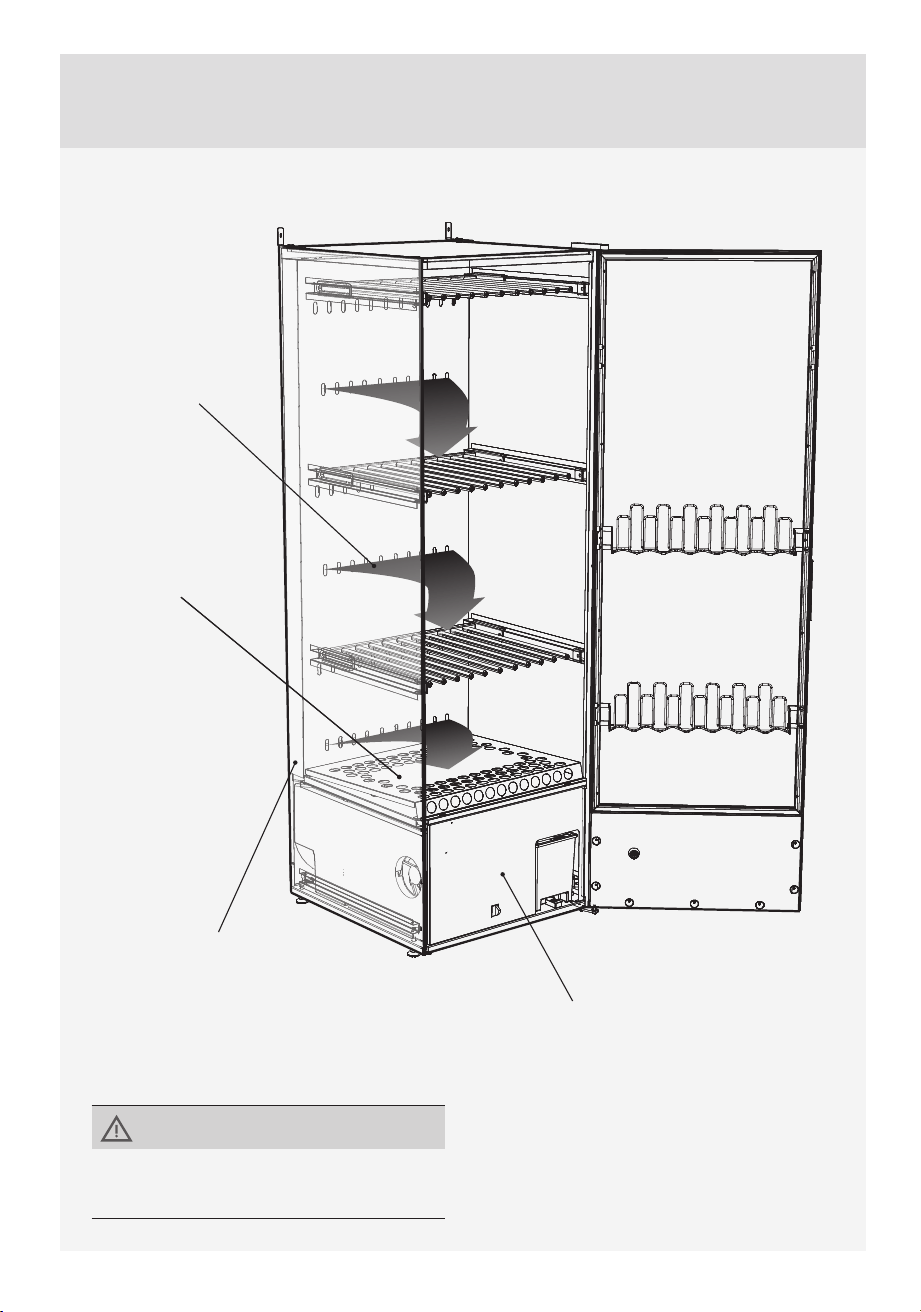

AIR FLOW IN THE CABINET
Air return after dehumidifi cation
Enters a duct in the back of the
drying cabinet
Air intake in 6
rows of holes
Cleaning fi lter
below the shoe
rack
Dehumidifier
859149au_en.indd 9859149au_en.indd 9 17. 02. 2022 08:50:5317. 02. 2022 08:50:53
10
CONTROL PANEL
DISPLAY
The display has two rows with 6
characters on each row. During the drying
process the selected drying program and
a rolling bar indicating that the process is
in progress are shown.
ON / OFF
OK/START/STOP
UP ARROW
DOWN ARROW
BUTTON FUNCTION
ON-OFF
The display is lit and shows the last program used.
OK/START/STOP
Confi rms selection of program, functions and settings.
If the setting fl ashes, it must be confi rmed or changed using the ARROW keys
and/or OK. The drying process starts.
UP ARROW / DOWN ARROW
These are navigation keys to step through lists and information texts.
If UP and DOWN are pressed simultaneously when ON-OFF is turned off ,
PROGRAMMING MODE opens when ON-OFF is pressed.
To return to operating mode, press DOWN ARROW and then OK.
859149au_en.indd 10859149au_en.indd 10 17. 02. 2022 08:51:1317. 02. 2022 08:51:13
11
LANGUAGE SETTING
The following languages can be handled: English, Swedish, Norwegian, Danish,
Finnish, Italian, French, German, Spanish, Portuguese and Dutch.
1
Make sure that the main ON/OFF
switch on the drying cabinet is off .
The display is unlit.
2
Hold down the UP arrow and down
ARROW buttons and press the ON/
OFF switch to the ”ON” position.
The display lights up and on the top
row shows
“P105” fl ashing, which is
the parameter for language setting.
If a diff erent value is shown, use the
arrow up or down buttons to step
through to the parameter P105.
3
Press START/STOP to confi rm.
The row for current language now
fl ashes. The languages have a
numerical symbol as shown in the
list below
4
Step through to the desired
language with the UP ARROW or
DOWN ARROW buttons.
5
To save the set value, press
START/STOP.
6
To return to operating mode, press
DOWN ARROW and START/
STOP.
Language symbol Display language
0English
1Swedish
2Norwegian
3Danish
4Finnish
5Italian
6French
7German
8Spanish
9Portuguese
10 Dutch
859149au_en.indd 11859149au_en.indd 11 17. 02. 2022 08:51:1417. 02. 2022 08:51:14
12
PLACEMENT
■ There must be an earthed socket
within 2m from the lower part of the
drying cabinet. The drying cabinet
has a 2m long earthed lead with a
plug connected at the bottom. The
power socket should be located
such that there is no need for an
extension cable.
■ When building the drying cabinet in
please ensure that the power socket
can be to disconnect the appliance
from power.
■ The fl oor where the cabinet is
located must withstand a weight of
95kg.
■ The fl oor must be level with a max
drop of 2.5cm under the cabinet.
■ The drying cabinet is intended
only for installation indoors with a
temperature above 15°C.
■ The drying cabinet must not be
placed in an environment in which
high-pressure water is used for
cleaning.
A
595
665
Cabinet
designation
A mm
DC7784 1840
Dimensions in mm
859149au_en.indd 12859149au_en.indd 12 17. 02. 2022 08:51:1417. 02. 2022 08:51:14
13
UNPACKING
NOTE: The drying cabinet must be
handled carefully if it is only standing on
its pallet. RISK OF TIPPING OVER.
Check to make sure that the product
has not been damaged in transit. Any
damage incurred in transit must be
reported to the ASKO within 7 days.
After unpacking, check that the product
is intact. Damage, defects and any
missing parts must be reported to the
dealer.
Complete delivery must include:
Cabinet with pre-installed fan unit
Installation kit
User manual
Check that all transport securing
devices have been removed before
connecting the drying cabinet.
Packaging materials such as plastic
and Styrofoam must be kept out of
the reach of children.

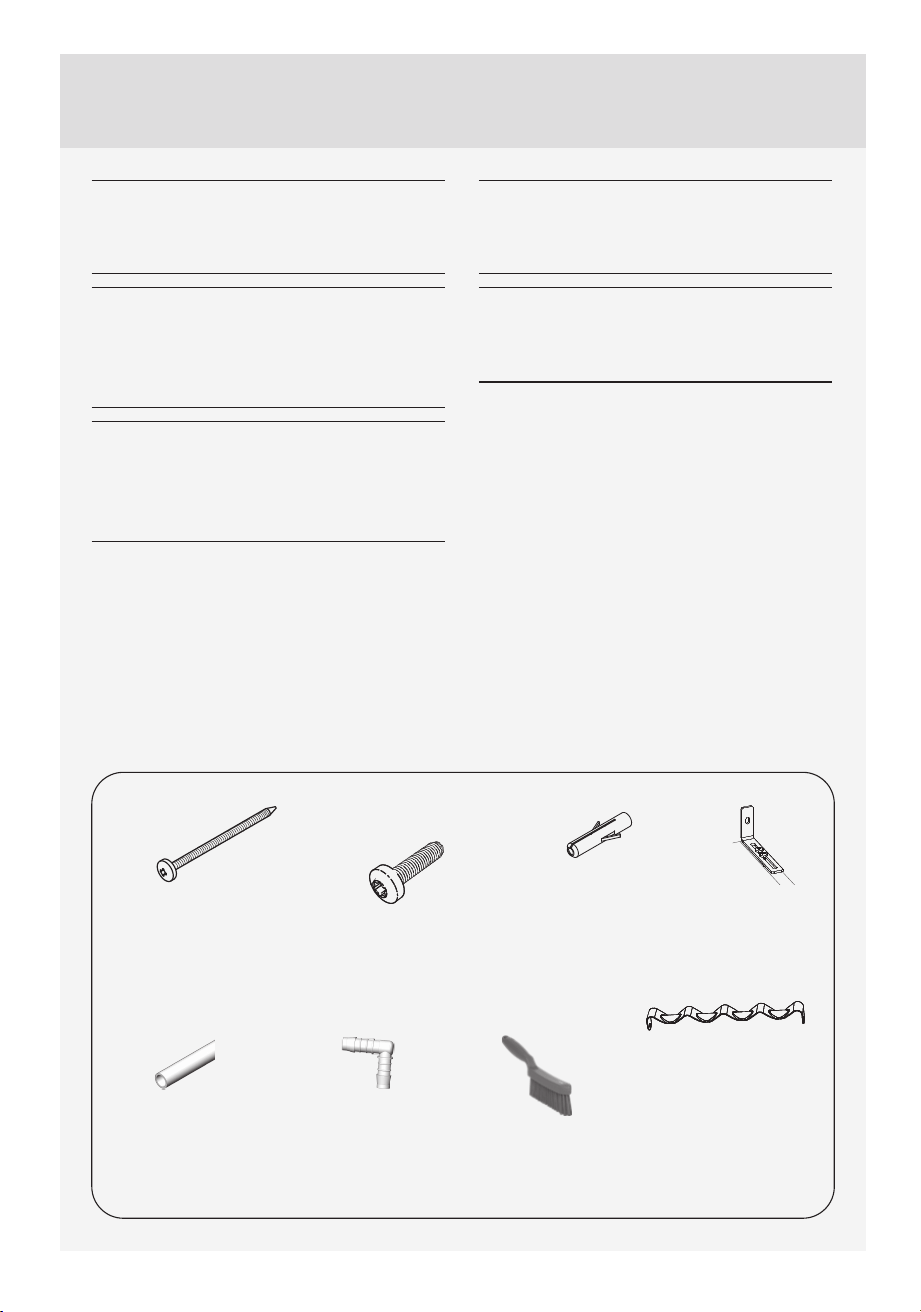

2x Screw TRX 5x45
for wall mounting
4x Screw MRT 5x20
for the fi xing brackets
2x Plastic
plugs
2x Brackets
for wall
attachment
1.5 m Plastic
hose 10 x 13
1x Nipple for
water hose
Hand brush for
fi lter
2x Clothes
hanger racks
ASSEMBLY KIT
859149au_en.indd 13859149au_en.indd 13 17. 02. 2022 08:51:1517. 02. 2022 08:51:15
14
CONDENSATION WATER
Condensation water may be removed in two ways:
■ Collected in a detachable water tank or,
■ Via a hose to the floor drain.

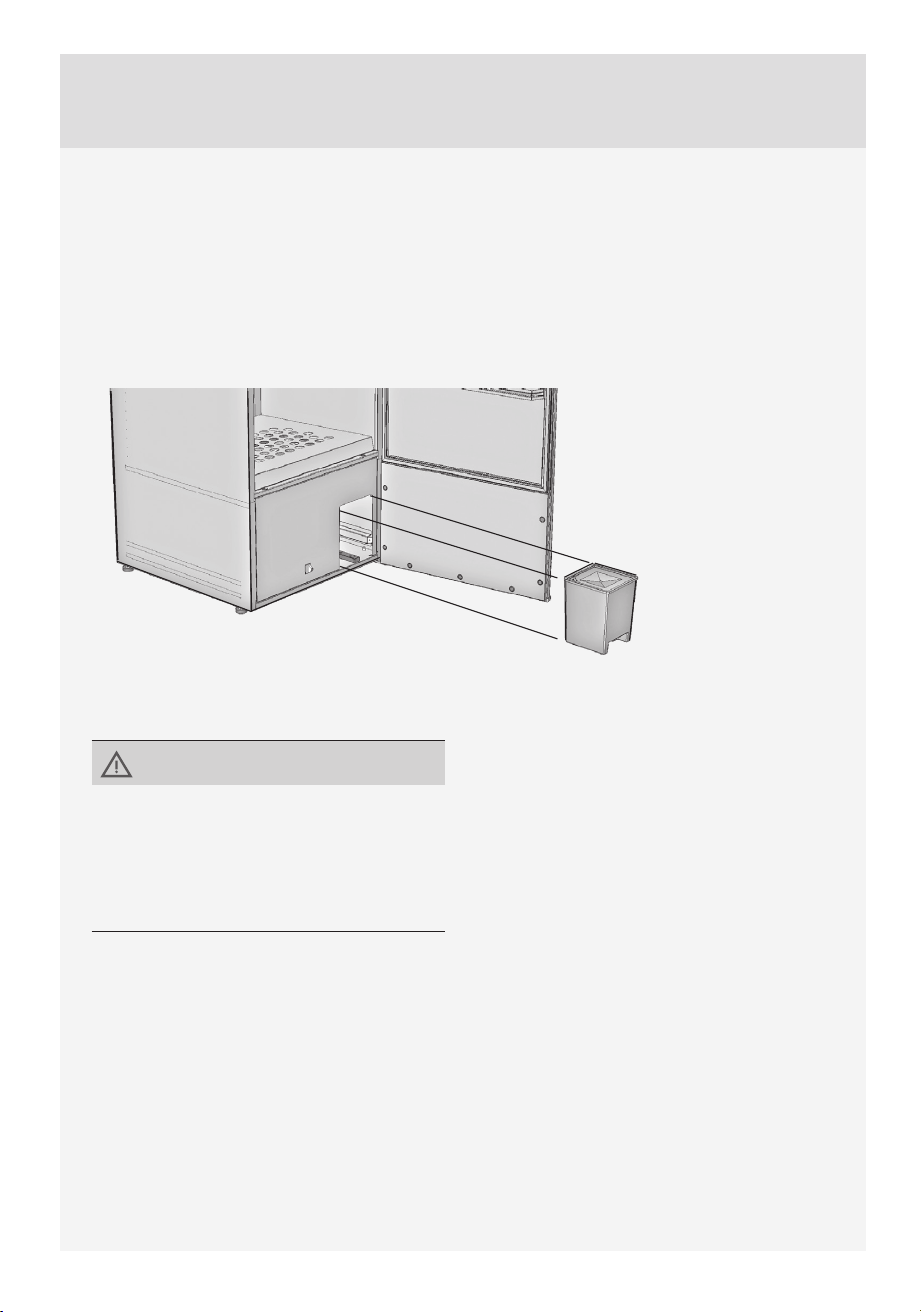

DETACHABLE WATER TANK
PLEASE NOTE
The water tank is designed to be
suffi ciently large for a complete wash
by a comfortable margin. But make
a habit of always emptying the water
tank before each drying operation.
859149au_en.indd 14859149au_en.indd 14 17. 02. 2022 08:51:1817. 02. 2022 08:51:18
15

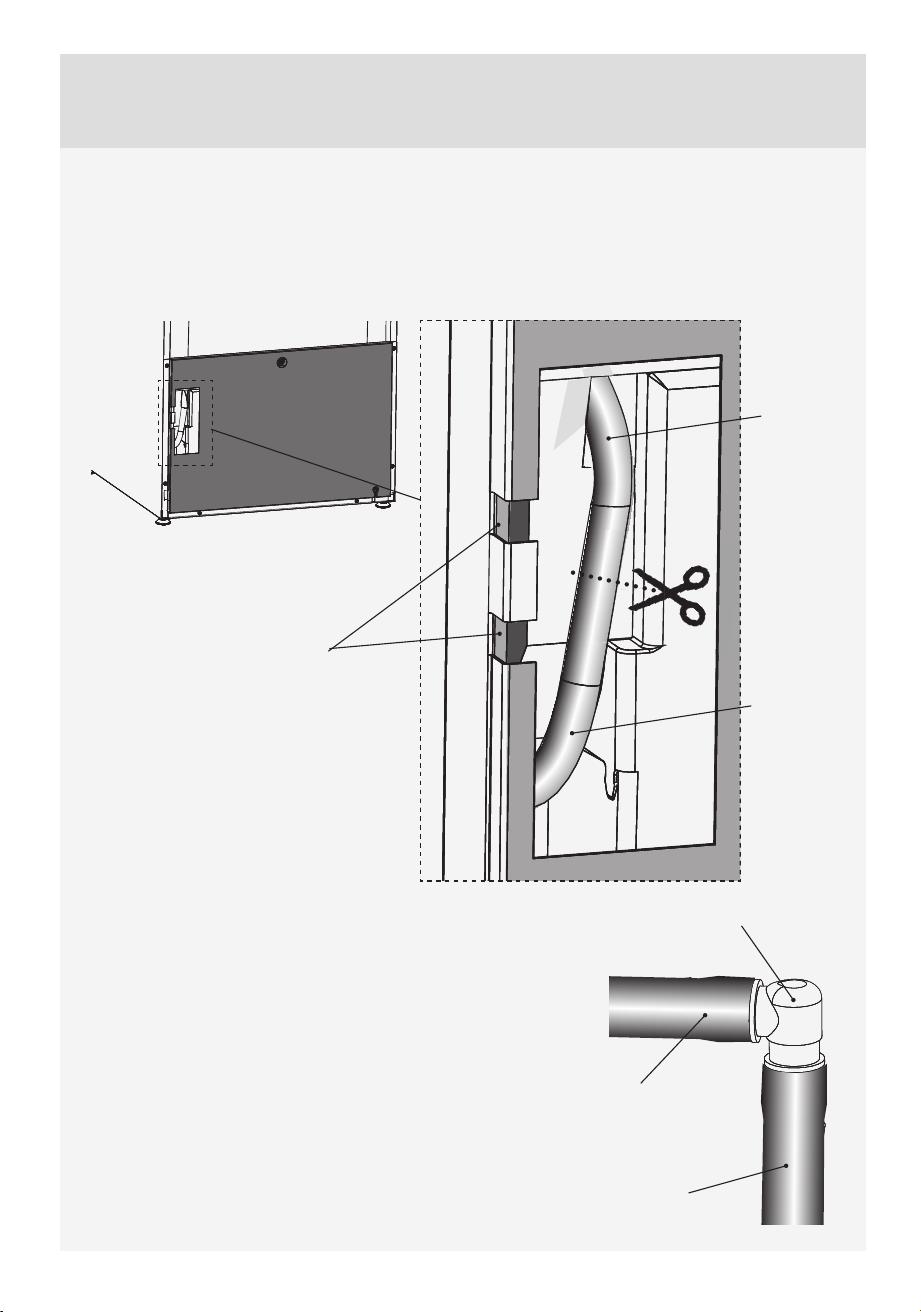

CONNECTION TO FLOOR DRAIN
The drying cabinet is supplied from the factory with a hose to the detachable water
tank.
To change to removal of condensation water to the fl oor drain, proceed as follows:
1
Carefully pull the upper part of the hose
out around 2-3cm.
2
Trim the hose in the middle of the
opening.
3
Install the new drain hose with the nipple
supplied in the assembly kit as illustrated.
Push the hose on without hose clips.
4
Position the drain hose in one of the
recesses in the sheet metal so that there
is no risk of the hose being crushed.
Cabinet viewed from rear
Position the drain
hose in one of the
recesses in the
sheet metal
Hose to the
detachable
water tank
Hose from
condensa-
tion water
pump
New hose to
drain
Nipple
Trimmed
hose from
condensation
water pump
859149au_en.indd 15859149au_en.indd 15 17. 02. 2022 08:51:1917. 02. 2022 08:51:19
16
5
Route the drain hose to the drain.
6
If the drain is higher than the outlet on the cabinet, make sure that the hose
runs to the fl oor in an arc and forms a trap. There is otherwise a risk of the
condensation water fl owing back to the tray when the pump is not working. This
may cause the tray to be fi lled with water and the cabinet to stop working.
RECONNECTION TO WATER TANK
If you wish to reconnect the condensation water to the water tank, all you need to do
is to connect the two hoses together again with the nipple.
PLEASE NOTE
Do not under any circumstances
bend the hose so that water fl ow is
prevented.
859149au_en.indd 16859149au_en.indd 16 17. 02. 2022 08:51:2317. 02. 2022 08:51:23
17
INSTALLATION
POSITIONING AND
SECURING TO THE WALL
The drying cabinet is intended only
for location indoors in a dry place.
The drying cabinet must not be
placed in an environment in which
high-pressure water is used for
cleaning.
LEVELLING
The drying cabinet must be level on a
fl at surface, resting on all four feet.
Adjust the adjustable feet from the
outside.
SECURING THE APPLIANCE TO THE
WALL
The cabinet must be secured to a wall
to prevent tipping over.
The assembly kit includes two angle
brackets that are fi tted on the top of
the drying cabinet, as illustrated. Use
the screws supplied. The brackets have
slots for fi tting to the wall.
Screws, washers and plastic plugs for
securing the appliance are included in
the assembly kit.
CAUTION!
Unless the drying cabinet is secured
to the wall the appliance should not
be used. As there is a risk that it may
tip forward.
Fixing bracket
Top of drying
cabinet
859149au_en.indd 17859149au_en.indd 17 17. 02. 2022 08:51:2317. 02. 2022 08:51:23
18
ELECTRICAL CONNECTION
The drying cabinet must be connected
to a 230V single-phase 50Hz and
protectively earthed wall socket.
The drying cabinet is supplied ready for
connection with a cable and an earthed
plug.
The drying cabinet should be
connected to an earthed wall socket
using the connecting cable supplied
and must not be permanently wired.
The socket should be located so that
the plug can be easily pulled out if
necessary.
Check that the connection current
agrees with the data on the
identifi cation plate and that the
power cord is earthed correctly in
accordance with applicable standard.
We recommend that the power
cord be fi tted with a residual current
device (RCD).
The drying cabinet should be
connected to a dedicated circuit.
Electrical connection of the appliance
should comply with applicable
electrical safety regulations.
The manufacturer cannot be held
liable if the electrical connections are
not carried out as prescribed in this
manual.
If the power cord for any reason is
damaged, it must be replaced. A
genuine part can obtained from the
cabinet dealer. A replacement cord
may only be installed by a qualifi ed
electrician.
859149au_en.indd 18859149au_en.indd 18 17. 02. 2022 08:51:2317. 02. 2022 08:51:23
19
START-UP
Read this User Manual
before using the drying
cabinet for the fi rst time.
1
Make sure that the cabinet is fi rmly
attached to the wall. See page 18.
2
Ensure that all packaging material
has been removed from the inside
and outside of the drying cabinet.
3
Use a mild detergent with hot water
and wash the inside and outside of
the drying cabinet. Dry carefully.
See also the ‘Care’ section later in
the manual.
CAUTION!
Read the safety instructions on page
5 before using the cabinet.
859149au_en.indd 19859149au_en.indd 19 17. 02. 2022 08:51:2317. 02. 2022 08:51:23
20
OPERATION
There are three sections with hangers in the cabinet. Each section has a number of
rails for hanging items to dry.
■ Hang the items in the drying cabinet according to how much space they require
- not according to their weight.
■ Fold up the two bottom hanger sections if long items are to be dried.
■ Hang gloves, caps, scarves and similar items on the hanger strips on the inside
of the door.
■ Pull the hanger hooks in the upper hanger section forward so that the washing
can be hung more easily. Push them back when not in use.
■ Do not overload the drying cabinet. If you do, the washing will become creased
and dry unevenly. Instead, leave a space between the items of clothing if
possible.
■ If there is a risk of particular items shedding colour, free space should be left
around them.
■ Do not place shoes or similar items on the shoe rack in such a way that they
obstruct air fl ow.
■ Avoid drying heavy items of clothing together with lighter items as they have
very diff erent drying times.
■ Do not hang knitted items. These will stretch unnecessarily as they are heavy
when wet.
■ Avoid hanging fabrics that are dripping wet in the drying cabinet as the drying
cabinet is not intended to collect large quantities of water.
■ This also leads to abnormally long drying times.
859149au_en.indd 20859149au_en.indd 20 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
21
CAUTION!
Do not dry clothing or similar items
that have been treated with petrol or
other highly volatile and infl ammable
substance. This may lead to the
formation of an explosive gas
mixture.
PLEASE NOTE
If the sealing strip does not close
completely tightly or if the door has
a tendency to open, this may be due
to the cleaning fi lter not having been
installed correctly. Make sure that
the cleaning fi lter and the fi lter holder
are pressed down fully so that no air
leakage occurs.
PLEASE NOTE
When the cabinet is cold the door
sealing strip may not seal completely.
As the appliance heats up the seal
will expand and seal completely.
USER TIPS
■ Always following the washing instructions on the item of clothing if present.
■ If a fabric conditioner or anti-static agent is used, follow the manufacturer’s
instructions for use of this product.
■ Remove washing that it is already dry. This will reduce drying time for remaining
washing.
859149au_en.indd 21859149au_en.indd 21 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
22
DRYING PROGRAMS
The drying cabinet is equipped with two automatic programs for the drying process:
■ NORMAL DRY
■ EXTRA DRY
The programs automatically close the drying process when the fabrics are
dry.
SELECTION OF DRYING PROGRAM
NORMAL DRY – Used for drying of items of normal thickness.
EXTRA DRY – Used for drying of thicker items, deep drying.
CHILD LOCK
A child lock function can be activated to make sure that the drying process is not
stopped or started by mistake
FUNCTION OF THE CHILD LOCK
Activation buttons must be held down for a least 3 seconds (delay time).
ACTIVATION / DEACTIVATION OF CHILD LOCK
The child lock is activated and deactivated via a setting parameter described on
page 27. When this function is activated, a clock symbol appears on the display.
859149au_en.indd 22859149au_en.indd 22 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
23
STARTING DRYING PROGRAM
■ LAST USED DRYING PROGRAM
Press the on/off switch to the “ON” position - Indicated by the display lighting up
and showing the last run program.
If you want this, press START/STOP.
Or select another drying program by stepping through with the buttons ARROW UP
or ARROW DOWN.
Then start the drying program with the START/STOP button.
■ DOOR OPEN
If the door is open when a drying program is started and the START/STOP button is
activated, the display will show
“close door”.
Close the door, and the selected drying program will start.
■ IN OPERATION
The animated symbol (bar) on the left side of the display indicates that the drying
process is in progress.
■ CONDENSATION WATER TANK
If the condensation water tank becomes full, the drying process will be interrupted
immediately and the display will show
”check water tank”. Empty the water tank and
re-start the drying process.
■ COOLING
During the cool-down period the display shows the text
”cool” and a count-down of
the remaining time (5 minutes).
859149au_en.indd 23859149au_en.indd 23 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
24
■
END OF PROGRAM
When the cool-down period has ended, the drying process is fi nished, and the
display shows the text
“end” (fl ashing).
When the START/STOP button is then pressed, the current program ends and the
display shows the last used program.
PLEASE NOTE
In standby mode the display goes off
after 10 minutes and lights up when
any of the buttons on the control panel
is activated or the door is opened.
PLEASE NOTE
Empty the condensation water tank
after each drying process.
ENDING DRYING PROGRAM
To interrupt a drying process in progress, press START/STOP.
DOOR OPENED
If the door is opened while the drying process is in progress, the drying process will
continue for another 5 minutes. The display shows
“close door” and counts down
the 5 minute program pause period.
If the door is closed within this 5 minute period, the drying process will continue.
If the door is left open, the drying process will stop after 5 minutes and must be
restarted manually.
If you wish to stop the drying process immediately, without a 5 minute period, press
START/STOP.
859149au_en.indd 24859149au_en.indd 24 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
25
You can optimise the two automatic programs for the best possible result.
The setting is adjusted on the control panel for the program concerned.
Adjustments must be made if it is found that the:
■ Washing does not dry suffi ciently.
■ Washing is over-dried – long drying time.
INTRODUCTION
The drying cabinet’s two automatic program stop automatically when the laundry
is dry.
To decide when the washing is dry, a measured value is compared against a
factory-set parameter.
■ Parameter P 2072 for NORMAL DRY drying program and
■ Parameter P 2071 for EXTRA DRY drying program.
It is primarily these two parameters that are adjusted to optimise the drying process.
■ The NORMAL DRY program is controlled by a moisture sensor.
■ EXTRA DRY program is controlled by a moisture sensor and a time factor.
■ If it is found that the washing does not dry suffi ciently in the:
NORMAL DRY
drying program, the parameter value for P 2072 is reduced.
EXTRA DRY drying program, the parameter value for P 2071 is increased.
■ If it is found that the washing is over-dried, long drying time in the:
NORMAL DRY
drying program, the parameter value for P 2072 is increased.
EXTRA DRY drying program, the parameter value for P 2071 is reduced.
Drying processes must always be optimised in small steps; start by adjusting the
parameter concerned 1-2 units up or down, then check the result after the next
drying process and make a further adjustment if necessary.
OPTIMISING THE DRYING PROGRAM
859149au_en.indd 25859149au_en.indd 25 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
26
+
p105
ZK VK
+
Setting to optimise the drying cabinet’s automatic program is done using the
buttons on the control panel when the drying cabinet is in programming mode.
RETURN TO OPERATING MODE
To return to operating mode, press DOWN ARROW and then OK.
PROCEDURE
1 Step through to the relevant parameter by pressing the UP ARROW or DOWN
ARROW key repeatedly. If you go too far, simply continue stepping through until
the display shows the correct parameter.
2 When the display shows the correct parameter, for example “P 2072”, press OK to
confi rm parameter selection. The row now fl ashes with the set value of the parameter.
3 Increase or reduce the parameter value using the UP ARROW or DOWN ARROW
key.
4 To save the set value, press OK.
PROGRAMMING MODE
■ Make sure that the main ON/OFF switch on the drying cabinet is turned off .
The display is unlit.
■ Hold down the UP ARROW and DOWN ARROW buttons simultaneously
and press the ON/OFF switch. The display lights up and shows the fi rst setting
parameter according to the list below.
859149au_en.indd 26859149au_en.indd 26 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
27
+
OFF
+
Parameter Name
Factory
pre-set
Min
value
Max
value
Designates
P105 Language 1 0 7 1=Swedish
Setting see page 10
P115 Child lock
On/Off
0 0 1 0 = Child lock OFF
1 = Child lock ON
P2071 Extra dry 30 0 60 Control EXTRA DRY
drying program
P2072 Normal
dry
27 20 70 Control NORMAL DRY
drying program
P2073 Max
operating
time
240 (min) 60 360 Control max permitted
operating time
PARAMETER LIST
RESTORING TO FACTORY SETTING
1 Make sure that the main ON/OFF switch on the drying cabinet is turned off .
The display is unlit.
2 Hold down the UP ARROW and DOWN ARROW buttons simultaneously and
press the ON/OFF switch.
Last run program is
shown
3 Hold down the UP ARROW and DOWN ARROW keys simultaneously and
press OK.
The factory settings are saved and the display shows the last run program.
859149au_en.indd 27859149au_en.indd 27 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
28
CLEANING
PLEASE NOTE
Do not use high-pressure cleaning.
PLEASE NOTE
Cleaning and maintenance must not
be performed by children without
supervision.

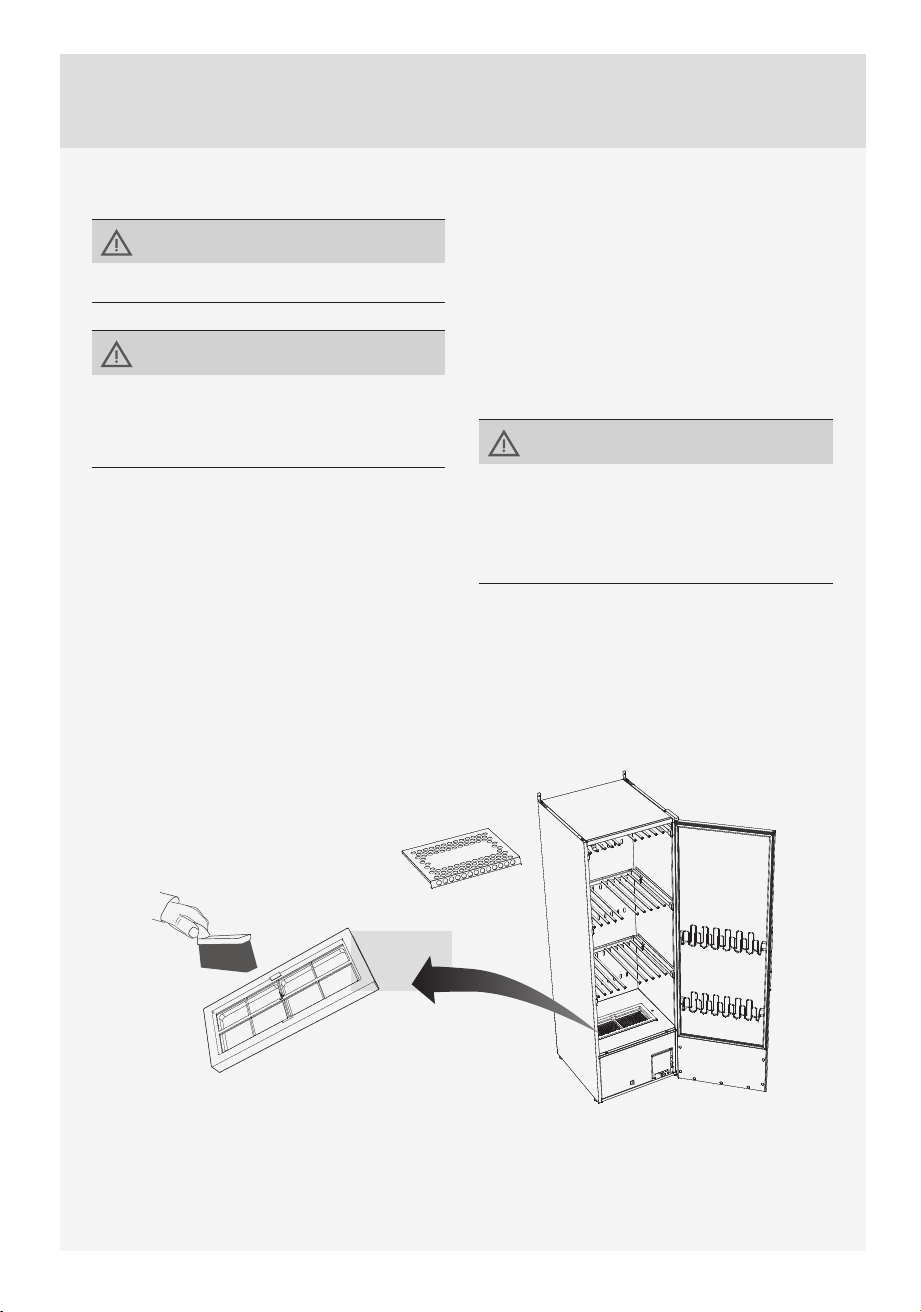

Clean the walls of the cabinet with a
mild soap solution on a damp cloth.
Before each drying process the shoe
rack must be removed and the cleaning
fi lter, located below the rack, must be
cleaned. See illustration.
Brush the cleaning fi lter clean with the
brush supplied.
REPLACEMENT PART
If the mains lead for any reason is
damaged, it must be replaced. A
genuine spare part can be obtained
from the dealer who supplied the
cabinet.
PLEASE NOTE
A replacement lead may be installed
only by the manufacturer, the
manufacturer’s service agent or other
qualifi ed electrician.
Cleaning fi lter
CARE
Shoe rack
859149au_en.indd 28859149au_en.indd 28 17. 02. 2022 08:51:2517. 02. 2022 08:51:25
29
SERVICE
Before contacting Service, you
should fi nd out the name, article
number and serial number of the drying
cabinet.
This information can be found on
the drying cabinet located inside the
cabinet.
Name of the drying cabinet
Article number
Serial number (12 digits)
ASKO DC7784HP
The illustration shows the
identifi cation plate for the
DC7784HP drying cabinet
Identifi cation plate (inside)
859149au_en.indd 29859149au_en.indd 29 17. 02. 2022 08:51:2817. 02. 2022 08:51:28
30
TROUBLESHOOTING
Questions Action
The drying cabinet
is not working.
1. Check that the mains lead is connected to a power
socket.
2. Check that no fuse has tripped.
3. Have you pressed the start button?
4. Is the door closed?
5. Is the water tank in place and emptied?
The display shows
Check water tank
1. Empty the water tank
2. Check that the lid is fi tted so that the fl oat arm protrudes
out of the opening in the lid and that the arm runs freely.
3. Check that the water tank is turned so that the fl oat arm is
inside the tray.
4. If none of the above work, the defective pump safety
switch may have been activated. Contact Service.

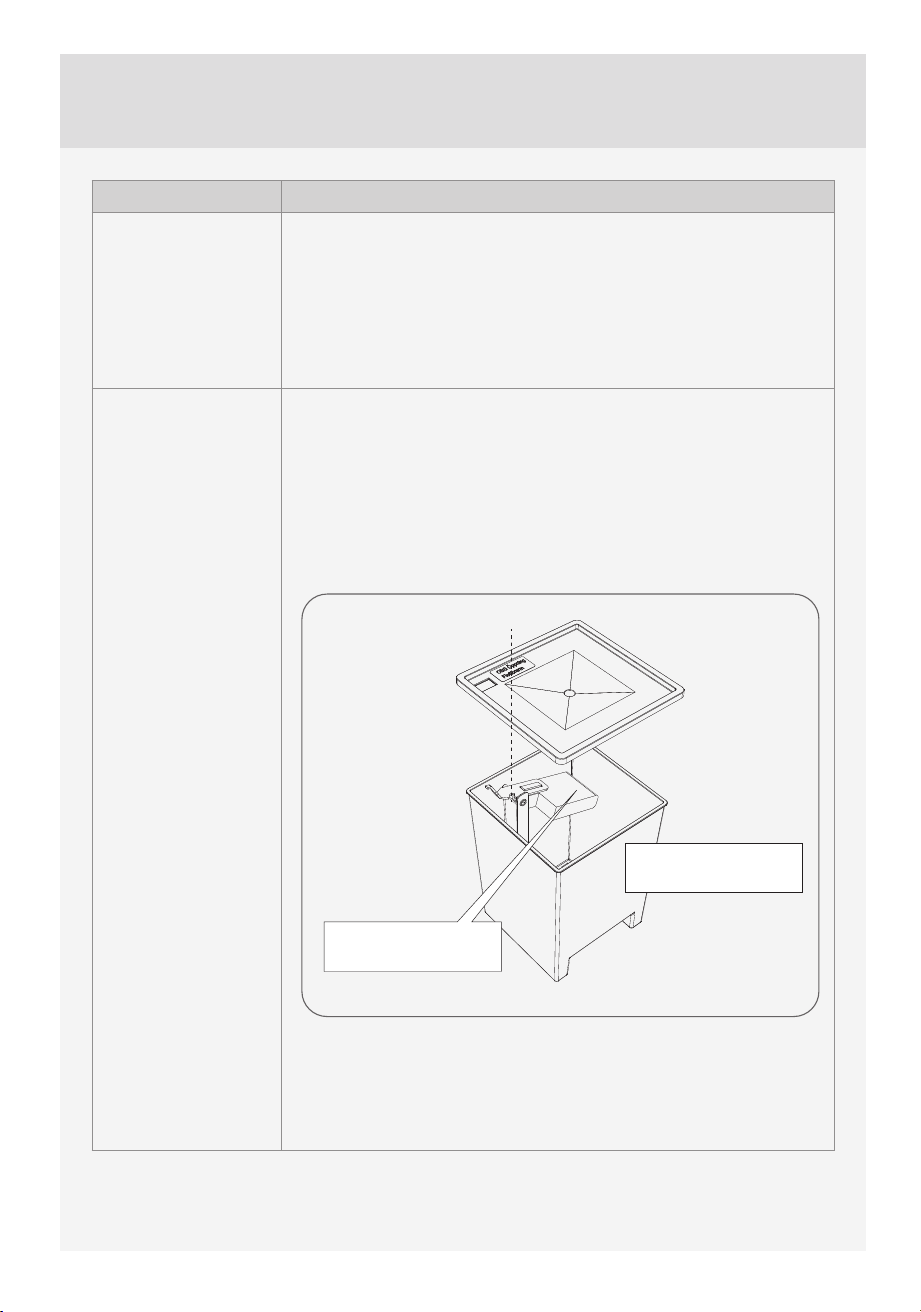

Water tank with lid removed
Float in water tank
This side forwards
859149au_en.indd 30859149au_en.indd 30 17. 02. 2022 08:51:3017. 02. 2022 08:51:30
31
Questions Action
The display shows
CLOSE DOOR
1. Check that the door closes tightly so that the door switch
is activated. (Located at the bottom of the cabinet on the
cover plate in front of the heat pump unit).
2. If necessary, try to tape the switch in position and check
whether the warning on the display disappears.
3. If none of the above work contact Service.
The display shows
an alarm/error
code
This should normally not happen, but if an alarm or error
code appears, fi rst try to reset the alarm by holding the
Start/Stop button down for 5 sec.
If the problem persists, consult the error code list on page
33 to try to locate the fault. Try to rectify the indicated fault,
but if the fault persists the unit (the heat pump box) must be
replaced. Contact Service.
Drying takes a long
time.
1. Clean the fi lter (this should preferably be done after each
drying operation).
2. Check that the water tank is empty.
3. Make sure that the correct program has been selected
for the type of washing.
4. Make sure that the washing is not soaking wet (poorly
spun).
5. Make sure that too much washing has not been hung up.
6. Adjust parameters P2072 and P2071 as described in the
chapter on OPTIMISING THE DRYING PROGRAM.
The washing does
not become dry.
1. Make sure that the correct program has been selected
for the type of washing.
2. Make sure that too much washing has not been hung up.
3. Adjust parameters 2072 and 2071 as described in the
chapter OPTIMISING THE DRYING PROGRAM.
The sealing strip
does not seal
tightly, the door is
ajar.
1. Check that the cabinet is level. Check with a spirit level,
adjust if necessary with the adjusting feet.
2. Check that the cleaning fi lter and its holder are correctly
fi tted. The holder must be pressed down against the
underlying heat pump unit and locked with the revolving
mounting brackets to seal properly.
3. Check that no litter, gravel or similar has ended up
beneath the holder of the cleaning fi lter, as the fi lter will
not seal satisfactorily if this is the case.
859149au_en.indd 31859149au_en.indd 31 17. 02. 2022 08:51:3117. 02. 2022 08:51:31
32
LIST OF ERROR CODES
Describes relevant error codes for this product.
No. Name Description
ERROR 03 Fault on moisture
sensor
Sensor is outside its measurement
range.
Contact Service.
ERROR 04 Max time process Max time for drying process exceeded
(pre-set value 240min can be changed
with parameter P 2073).
ERROR 06 Check water pump Water level in tray too high, has activated
switch at fl oat.
Contact Service.
ERROR 12 Timeout
communication
The communication between user
interface and electronics has been
temporarily interrupted.
Contact Service.
To reset the alarm, hold down the START/STOP button for 5 sec.
859149au_en.indd 32859149au_en.indd 32 17. 02. 2022 08:51:3117. 02. 2022 08:51:31
33
TECHNICAL DATA
This product contains fuorinated greenhouse gases.
Type of refrigerant: R407C
Quantity of refrigerant: 0.30kg
Total global warming
potential factor:
1774
CO
2
equivalents:
0.532t
Hermetically sealed.
Capacity: 5.0kg laundry (cotton)
Dewatering capacity: 22g/min
Electrical supply: Single-phase 220-240V, 50Hz, 10A
Power: 900W
Capacity of main fan: 945m³/h (free blow)
Capacity of sub-fan: 160m³/h (free blow)
Hanging length: 16 metres
Dimensions: DC7784HP: Height
1840mm
1855mm incl. hinge
Width
595mm
Depth
665mm
691mm, incl. door handle
Weight of DC7784HP: 93kg
Sound level: A-weighted emission sound pressure level is
less than 70dB(A)
Leaktightness test: 28bar
859149au_en.indd 33859149au_en.indd 33 17. 02. 2022 08:51:3117. 02. 2022 08:51:31
34
ENERGY CONSUMPTION AND DRYING TIMES IN DRYING OF SPUN
LAUNDRY *)
Program Energy consumption
kWh/kg laundry
Drying time Temp. max
NORMAL DRY 0,3 90min 55°C
EXTRA DRY 0,4 120min 55°C
*) Values may vary depending on:
- spin speed
- temperature, air humidity in the room
- air circulation in the room (supply air, exhaust air)
MANUFACTURING STANDARDS
See cabinet identifi cation plate.
859149au_en.indd 34859149au_en.indd 34 17. 02. 2022 08:51:3117. 02. 2022 08:51:31
859149au_en.indd 35859149au_en.indd 35 17. 02. 2022 08:51:3117. 02. 2022 08:51:31
ASKO DC7784HP.W.AU
en (02-22)
www.asko.com
We reserve the right to make changes.
859149au_en.indd 36859149au_en.indd 36 17. 02. 2022 08:51:3117. 02. 2022 08:51:31
