Room Air Conditioner
Introduction...................................................... 2
Important Safety Instructions.................... 3
12
12
Operating Instructions............................... 15
Care and Cleaning........................................ 21
Energy Saving Ideas.................................... 22
Before You Call............................................. 23
Major Appliance Limited Warranty....... 25
FCC Statement............................................... 13
Packaging.........................................................
Normal Sounds...............................................
Air Conditioner Features............................14
2 INTRODUCTION
Welcome to our
family
Model Number
Serial Number
Purchase Date
Thank you for bringing Frigidaire® into your
home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use and
care of your product. Please read it before
using your appliance. Keep it handy for quick
reference. If something doesn’t seem right,
the troubleshooting section will help you
with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at www.frigidaire.com.
We are here for you! Visit our website, chat
with an agent, or call us if you need help. We
may be able to help you avoid a service visit.
If you do need service, we can get that
started for you.
Let’s make it ocial! Be sure to register your
product.
Keep your product info here so it’s easy to
find.
3

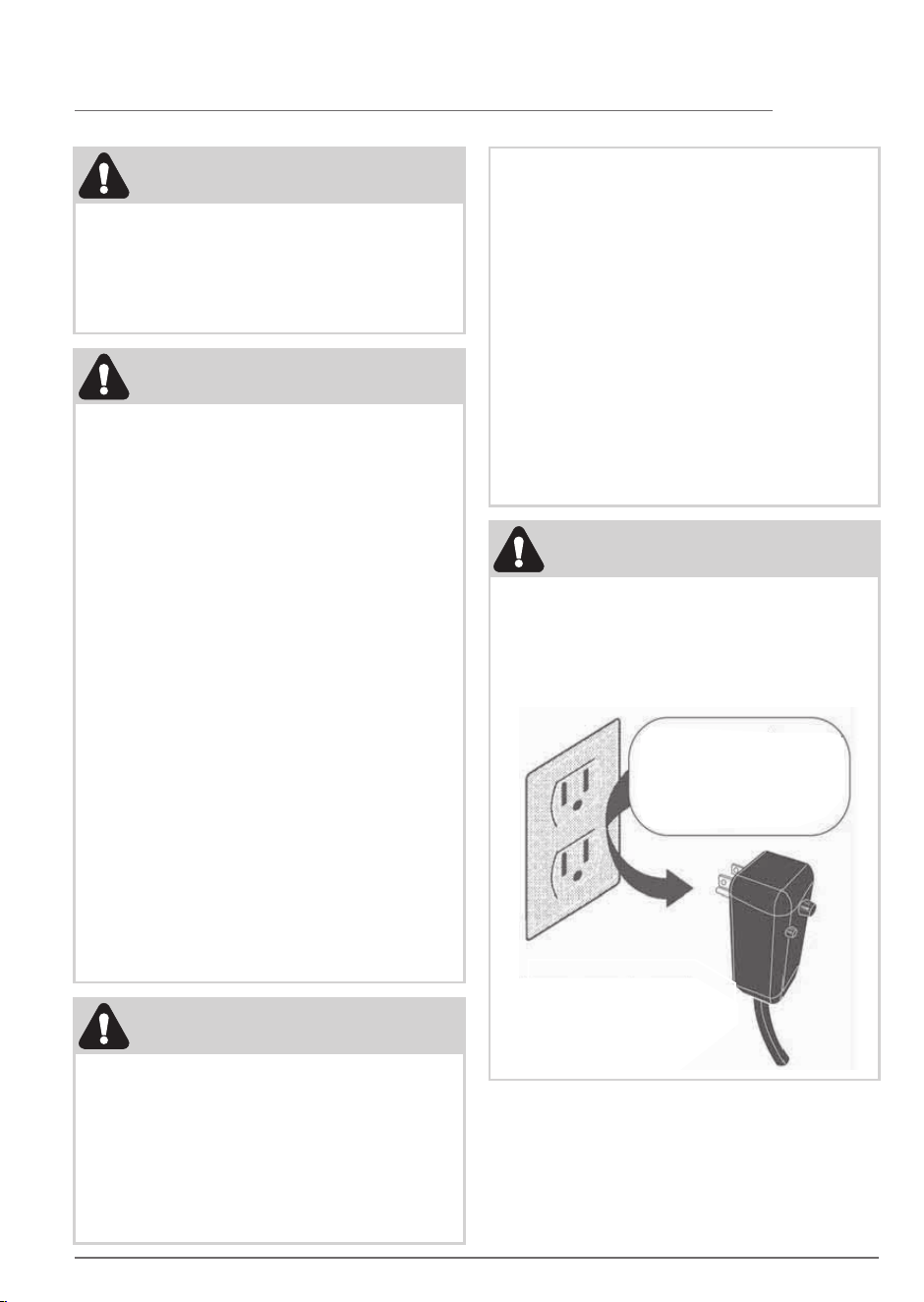

For Your Safety
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance. Read product
labels for flammability and other warnings.
Prevent Accidents
WARNING
To reduce the risk of fire, electrical shock, or
injury to persons when using your air
conditioner, follow basic precautions,
including the following:
• Be sure the electrical service is adequate
for the model you have chosen. This
information can be found on the serial
plate, which is located on the side of the
cabinet and behind the grille.
• If the air conditioner is to be installed in a
window, you will probably want to clean
both sides of the glass first. If the window
is a triple-track type with a screen panel
included, remove the screen completely
before installation.
• Be sure the air conditioner has been
securely and correctly installed according
to the separate installation instructions
provided with this manual. Save this
manual and the installation instructions for
possible future use in removing or
reinstalling this unit.
• When handling the air conditioner, be
careful to avoid cuts from sharp metal fins
on front and rear coils.
WARNING
Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Electrical Information
WARNING
The complete electrical rating of your new
room air conditioner is stated on the serial
plate. Refer to the rating when checking the
electrical requirements.
• Be sure the air conditioner is properly
grounded. To minimize shock and fire
hazards, proper grounding is important.
The power cord is equipped with a
three-prong grounding plug for protection
against shock hazards.
• Your air conditioner must be used in a
properly grounded wall receptacle. If the
wall receptacle you intend to use is not
adequately grounded or protected by a
time delay fuse or circuit breaker, have a
qualified electrician install the proper
receptacle.
• Do not run air conditioner without outside
protective cover in place. This could result
in mechanical damage within the air
conditioner.
• Do not use an extension cord or an adapter
plug.
Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong.
Power supply cord
with 3-prong grounding
plug and current
detection device
4 IMPORTANT SAFETY INSTRUCTIONS
NOTE
The power supply cord with this air
conditioner contains a current detection
device designed to reduce the risk of fire.
Please refer to the section ‘Operation of
Current Device’ for details.
In the event that the power supply cord is
damaged, it cannot be repaired. It must be
replaced with a cord from the product
manufacturer.
SAFETY PRECAUTIONS
DANGER! Avoid Serious Injury or Death
• This air conditioner contains no
user-serviceable parts. Always call an
authorized Electrolux servicer for repairs.
• Do not insert or place fingers or objects
into the air discharge area in the front of
the unit.
• Do not start or stop the air conditioner by
unplugging the power cord or turning o
the power at the electrical box.
• Do not cut or damage the power cord.
• If the power cord is damaged, it should
only be replaced by an authorized
Electrolux servicer.
• In the event of a malfunction (sparks,
burning smell, etc.), immediately stop the
operation, disconnect the power cord, and
call an authorized Electrolux servicer.
• Do not operate the air conditioner with wet
hands.
• Do not pull on the power cord.
• Do not drink any water that is drained from
the air conditioner.
SAFETY PRECAUTIONS
CAUTION! Avoid Injury or damage to the
unit or other property
• Provide ventilation per installation
instructions.
• Do not direct airflow at fireplaces or other
heat related sources as this could cause
flare ups or make units run excessively.
• Do not climb on or place objects on
outdoor part of the unit.
• Do not hang objects off the unit.
• Do not place containers with liquids on the
unit.
• Turn off the air conditioner at the power
source when it will not be used for an
extended period of time.
• Periodically check the condition of the
unit’s installation accessories for any
damage.
• Do not apply heavy pressure to the
radiator fins of the unit.
• Operate the unit with air filter in place.
• Do not block or cover the intake grille,
discharge area and outlet ports.
• Ensure that any electrical/electronic
equipment is one yard away from the unit.
• Do not use or store flammable gases near
the unit.
• Do not touch the metal parts of the unit
when removing the filter. Injuries can occur
when handling sharp metal edges.
• Do not use water to clean inside the air
conditioner. Exposure to water can
destroy the insulation, leading to possible
electric shock.
• When cleaning the unit, first make sure
that the power and circuit breaker are
turned off.
CAUTION
• This appliance is not intended for use by
persons (including children) with reduced
physical ,sensory or mental capabilities or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure
that they do not play with the appliance.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
• The appliance shall be installed in
accordance with national wiring
regulations.
NOTE
• Do not use this device to turn the unit on or
off.
• Always make sure the RESET button is
pushed in for correct operation.
• The power supply cord must be replaced if
it fails to reset when either the TEST
button is pushed, or it cannot be reset. A
new one can be obtained from the product
manufacturer.
• If power supply cord is damaged, it
CANNOT be repaired. It MUST be replaced
by one obtained from the product
manufacturer.
READ THIS SECTION BEFORE ATTEMPTING
TO OPERATE AIR CONDITIONER.
Unit must be upright for one hour prior to
operating.
The power supply cord contains a current
device that senses damage to the power
cord. To test your power supply cord do the
following:
Operation of Current Device
Plug in & press RESET
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO
buttons on the plug head. Press the TEST
button. You will notice a click as the
RESET button pops out.
3. Press the RESET button. Again you will
notice a click as the button engages.
4. The power supply cord is now supplying
electricity to the unit. (This is also
indicated by a light on the plug head).
WARNING
FOR FLAMMABLE REFRIGERANT
5IMPORTANT SAFETY INSTRUCTIONS
• Servicing shall only be performed as
recommended by the equipment
manufacturer. Maintenance and repair
requiring the assistance of other skilled
personnel shall be carried out under the
supervision of the person competent in
the use of flammable refrigerants.
• DO NOT modify the length of the power
cord or use an extension cord to power
the unit.
• DO NOT share a single outlet with other
electrical appliances. Improper power
supply can cause fire or electrical shock.
• Please follow the instruction carefully to
handle, install, clear, service the air
conditioner to avoid any damage or
hazard.
• Flammable Refrigerant R32 is used within
air conditioner. When maintaining or
disposing the air conditioner, the
refrigerant (R32) shall be recovered
properly, shall not discharge to air
directly.
• Compliance with national gas regulations
shall be observed.
• Keep ventilation openings clear of
obstruction.
• The appliance shall be stored so as to
prevent mechanical damage from
occurring.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
a) During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon
prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an
electrical supply to equipment during
servicing, then a permanently operating
form of leak detection shall be located at
the most critical point to warn of a
potentially hazardous situation.
b) Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is affected. This shall include
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs - or for any other purpose
- conventional procedures shall be used.
However, for flammable refrigerants it is
important that best practice be followed,
since flammability is a consideration. The
following procedure shall be adhered to:
- safely remove refrigerant following local
and national regulations;
- evacuate;
- purge the circuit with inert gas (optional
for A2L);
- evacuate (optional for A2L);
- continuously flush or purge with inert gas
when using flame to open circuit; and
- open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
damage to cables, excessive number of
connections, terminals not made to
original specification, damage to seals,
incorrect fitting of glands, etc. Ensure
that apparatus is mounted securely.
Ensure that seals or sealing materials
have not degraded such that they no
longer serve the purpose of preventing
the ingress of flammable atmospheres.
Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit
the effectiveness of some types of leak
detection equipment. Intrinsically safe
components do not have to be isolated
prior to working on them.
8. Intrinsically safe components must be
replaced.
Do not apply any permanent inductive or
capacitance loads to the circuit without
ensuring that this will not exceed the
permissible voltage and current
permitted for the equipment in use.
Intrinsically safe components are the only
types that can be worked on while live in
the presence of a flammable atmosphere.
The test apparatus shall be at the correct
rating. Replace components only with
parts specified by the manufacturer.
Other parts may result in the ignition of
refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged. Do
not mix refrigerants in recovery units and
especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely.
When transferring refrigerant into
cylinders, ensure that only appropriate
refrigerant recovery cylinders are
employed. Ensure that the correct
number of cylinders for holding the total
system charge is available. All cylinders to
be used are designated for the recovered
refrigerant and labelled for that
refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall
be complete with pressure-relief valve
and associated shut-off valves in good
working order. Empty recovery cylinders
are evacuated and, if possible, cooled
before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
• A warning that the appliance shall be
stored in a well-ventilated area where the
room size corresponds to the room area
as specified for operation.
• Any person who is involved with working
on or breaking into a refrigerant circuit
should hold a current valid certificate from
an industry-accredited assessment
authority, which authorises their
competence to handle refrigerants safely
in accordance with an industry recognised
assessment specification.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
• No any open fire or device like switch
which may generate spark/arcing shall be
around air conditioner to avoid causing
ignition of the flammable refrigerant used.
Please follow the instruction carefully to
store or maintain the air conditioner to
prevent mechanical damage from
occurring.
• Do not use means to accelerate the
defrosting process or to clean, other than
those recommended by the manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of equipment should be in
accordance with the manufacturer's
instructions.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
6 IMPORTANT SAFETY INSTRUCTIONS
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
a) During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon
prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an
electrical supply to equipment during
servicing, then a permanently operating
form of leak detection shall be located at
the most critical point to warn of a
potentially hazardous situation.
b) Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is affected. This shall include
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs - or for any other purpose
- conventional procedures shall be used.
However, for flammable refrigerants it is
important that best practice be followed,
since flammability is a consideration. The
following procedure shall be adhered to:
- safely remove refrigerant following local
and national regulations;
- evacuate;
- purge the circuit with inert gas (optional
for A2L);
- evacuate (optional for A2L);
- continuously flush or purge with inert gas
when using flame to open circuit; and
- open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
damage to cables, excessive number of
connections, terminals not made to
original specification, damage to seals,
incorrect fitting of glands, etc. Ensure
that apparatus is mounted securely.
Ensure that seals or sealing materials
have not degraded such that they no
longer serve the purpose of preventing
the ingress of flammable atmospheres.
Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit
the effectiveness of some types of leak
detection equipment. Intrinsically safe
components do not have to be isolated
prior to working on them.
8. Intrinsically safe components must be
replaced.
Do not apply any permanent inductive or
capacitance loads to the circuit without
ensuring that this will not exceed the
permissible voltage and current
permitted for the equipment in use.
Intrinsically safe components are the only
types that can be worked on while live in
the presence of a flammable atmosphere.
The test apparatus shall be at the correct
rating. Replace components only with
parts specified by the manufacturer.
Other parts may result in the ignition of
refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged. Do
not mix refrigerants in recovery units and
especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely.
When transferring refrigerant into
cylinders, ensure that only appropriate
refrigerant recovery cylinders are
employed. Ensure that the correct
number of cylinders for holding the total
system charge is available. All cylinders to
be used are designated for the recovered
refrigerant and labelled for that
refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall
be complete with pressure-relief valve
and associated shut-off valves in good
working order. Empty recovery cylinders
are evacuated and, if possible, cooled
before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
7IMPORTANT SAFETY INSTRUCTIONS
available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the
charging area.
f) No ignition sources
No person carrying out work in relation to
a refrigerating system which involves
exposing any pipe work that contains or
has contained flammable refrigerant shall
use any sources of ignition in such a
manner that it may lead to the risk of fire
or explosion. All possible ignition sources,
including cigarette smoking, should be
kept sufficiently far away from the site of
installation, repairing, removing and
disposal, during which flammable
refrigerant can possibly be released to
the surrounding space. Prior to work
taking place, the area around the
equipment is to be surveyed to make sure
that there are no flammable hazards or
ignition risks. No Smoking signs shall be
displayed.
g) Ventilated area
Ensure that the area is in the open or that
it is adequately ventilated before
breaking into the system or conducting
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
a) During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon
prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an
electrical supply to equipment during
servicing, then a permanently operating
form of leak detection shall be located at
the most critical point to warn of a
potentially hazardous situation.
b) Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is affected. This shall include
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs - or for any other purpose
- conventional procedures shall be used.
However, for flammable refrigerants it is
important that best practice be followed,
since flammability is a consideration. The
following procedure shall be adhered to:
- safely remove refrigerant following local
and national regulations;
- evacuate;
- purge the circuit with inert gas (optional
for A2L);
- evacuate (optional for A2L);
- continuously flush or purge with inert gas
when using flame to open circuit; and
- open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
damage to cables, excessive number of
connections, terminals not made to
original specification, damage to seals,
incorrect fitting of glands, etc. Ensure
that apparatus is mounted securely.
Ensure that seals or sealing materials
have not degraded such that they no
longer serve the purpose of preventing
the ingress of flammable atmospheres.
Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit
the effectiveness of some types of leak
detection equipment. Intrinsically safe
components do not have to be isolated
prior to working on them.
8. Intrinsically safe components must be
replaced.
Do not apply any permanent inductive or
capacitance loads to the circuit without
ensuring that this will not exceed the
permissible voltage and current
permitted for the equipment in use.
Intrinsically safe components are the only
types that can be worked on while live in
the presence of a flammable atmosphere.
The test apparatus shall be at the correct
rating. Replace components only with
parts specified by the manufacturer.
Other parts may result in the ignition of
refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged. Do
not mix refrigerants in recovery units and
especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely.
When transferring refrigerant into
cylinders, ensure that only appropriate
refrigerant recovery cylinders are
employed. Ensure that the correct
number of cylinders for holding the total
system charge is available. All cylinders to
be used are designated for the recovered
refrigerant and labelled for that
refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall
be complete with pressure-relief valve
and associated shut-off valves in good
working order. Empty recovery cylinders
are evacuated and, if possible, cooled
before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
a) During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon
prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an
electrical supply to equipment during
servicing, then a permanently operating
form of leak detection shall be located at
the most critical point to warn of a
potentially hazardous situation.
b) Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is affected. This shall include
8 IMPORTANT SAFETY INSTRUCTIONS
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs - or for any other purpose
- conventional procedures shall be used.
However, for flammable refrigerants it is
important that best practice be followed,
since flammability is a consideration. The
following procedure shall be adhered to:
- safely remove refrigerant following local
and national regulations;
- evacuate;
- purge the circuit with inert gas (optional
for A2L);
- evacuate (optional for A2L);
- continuously flush or purge with inert gas
when using flame to open circuit; and
- open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
damage to cables, excessive number of
connections, terminals not made to
original specification, damage to seals,
incorrect fitting of glands, etc. Ensure
that apparatus is mounted securely.
Ensure that seals or sealing materials
have not degraded such that they no
longer serve the purpose of preventing
the ingress of flammable atmospheres.
Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit
the effectiveness of some types of leak
detection equipment. Intrinsically safe
components do not have to be isolated
prior to working on them.
8. Intrinsically safe components must be
replaced.
Do not apply any permanent inductive or
capacitance loads to the circuit without
ensuring that this will not exceed the
permissible voltage and current
permitted for the equipment in use.
Intrinsically safe components are the only
types that can be worked on while live in
the presence of a flammable atmosphere.
The test apparatus shall be at the correct
rating. Replace components only with
parts specified by the manufacturer.
Other parts may result in the ignition of
refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged. Do
not mix refrigerants in recovery units and
especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely.
When transferring refrigerant into
cylinders, ensure that only appropriate
refrigerant recovery cylinders are
employed. Ensure that the correct
number of cylinders for holding the total
system charge is available. All cylinders to
be used are designated for the recovered
refrigerant and labelled for that
refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall
be complete with pressure-relief valve
and associated shut-off valves in good
working order. Empty recovery cylinders
are evacuated and, if possible, cooled
before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
a) During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon
prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an
electrical supply to equipment during
servicing, then a permanently operating
form of leak detection shall be located at
the most critical point to warn of a
potentially hazardous situation.
b) Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is affected. This shall include
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs - or for any other purpose
- conventional procedures shall be used.
However, for flammable refrigerants it is
important that best practice be followed,
since flammability is a consideration. The
following procedure shall be adhered to:
- safely remove refrigerant following local
and national regulations;
- evacuate;
- purge the circuit with inert gas (optional
for A2L);
- evacuate (optional for A2L);
- continuously flush or purge with inert gas
when using flame to open circuit; and
- open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
damage to cables, excessive number of
connections, terminals not made to
original specification, damage to seals,
incorrect fitting of glands, etc. Ensure
that apparatus is mounted securely.
Ensure that seals or sealing materials
have not degraded such that they no
longer serve the purpose of preventing
the ingress of flammable atmospheres.
Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit
the effectiveness of some types of leak
detection equipment. Intrinsically safe
components do not have to be isolated
prior to working on them.
8. Intrinsically safe components must be
replaced.
Do not apply any permanent inductive or
capacitance loads to the circuit without
ensuring that this will not exceed the
permissible voltage and current
permitted for the equipment in use.
Intrinsically safe components are the only
types that can be worked on while live in
the presence of a flammable atmosphere.
The test apparatus shall be at the correct
rating. Replace components only with
parts specified by the manufacturer.
Other parts may result in the ignition of
refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
9IMPORTANT SAFETY INSTRUCTIONS
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged. Do
not mix refrigerants in recovery units and
especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely.
When transferring refrigerant into
cylinders, ensure that only appropriate
refrigerant recovery cylinders are
employed. Ensure that the correct
number of cylinders for holding the total
system charge is available. All cylinders to
be used are designated for the recovered
refrigerant and labelled for that
refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall
be complete with pressure-relief valve
and associated shut-off valves in good
working order. Empty recovery cylinders
are evacuated and, if possible, cooled
before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
a) During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon
prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an
electrical supply to equipment during
servicing, then a permanently operating
form of leak detection shall be located at
the most critical point to warn of a
potentially hazardous situation.
b) Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is affected. This shall include
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs - or for any other purpose
- conventional procedures shall be used.
However, for flammable refrigerants it is
important that best practice be followed,
since flammability is a consideration. The
following procedure shall be adhered to:
- safely remove refrigerant following local
and national regulations;
- evacuate;
- purge the circuit with inert gas (optional
for A2L);
- evacuate (optional for A2L);
- continuously flush or purge with inert gas
when using flame to open circuit; and
- open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
damage to cables, excessive number of
connections, terminals not made to
original specification, damage to seals,
incorrect fitting of glands, etc. Ensure
that apparatus is mounted securely.
Ensure that seals or sealing materials
have not degraded such that they no
longer serve the purpose of preventing
the ingress of flammable atmospheres.
Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit
the effectiveness of some types of leak
detection equipment. Intrinsically safe
components do not have to be isolated
prior to working on them.
8. Intrinsically safe components must be
replaced.
Do not apply any permanent inductive or
capacitance loads to the circuit without
ensuring that this will not exceed the
permissible voltage and current
permitted for the equipment in use.
Intrinsically safe components are the only
types that can be worked on while live in
the presence of a flammable atmosphere.
The test apparatus shall be at the correct
rating. Replace components only with
parts specified by the manufacturer.
Other parts may result in the ignition of
refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged. Do
not mix refrigerants in recovery units and
especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
10 IMPORTANT SAFETY INSTRUCTIONS
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely.
When transferring refrigerant into
cylinders, ensure that only appropriate
refrigerant recovery cylinders are
employed. Ensure that the correct
number of cylinders for holding the total
system charge is available. All cylinders to
be used are designated for the recovered
refrigerant and labelled for that
refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall
be complete with pressure-relief valve
and associated shut-off valves in good
working order. Empty recovery cylinders
are evacuated and, if possible, cooled
before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand

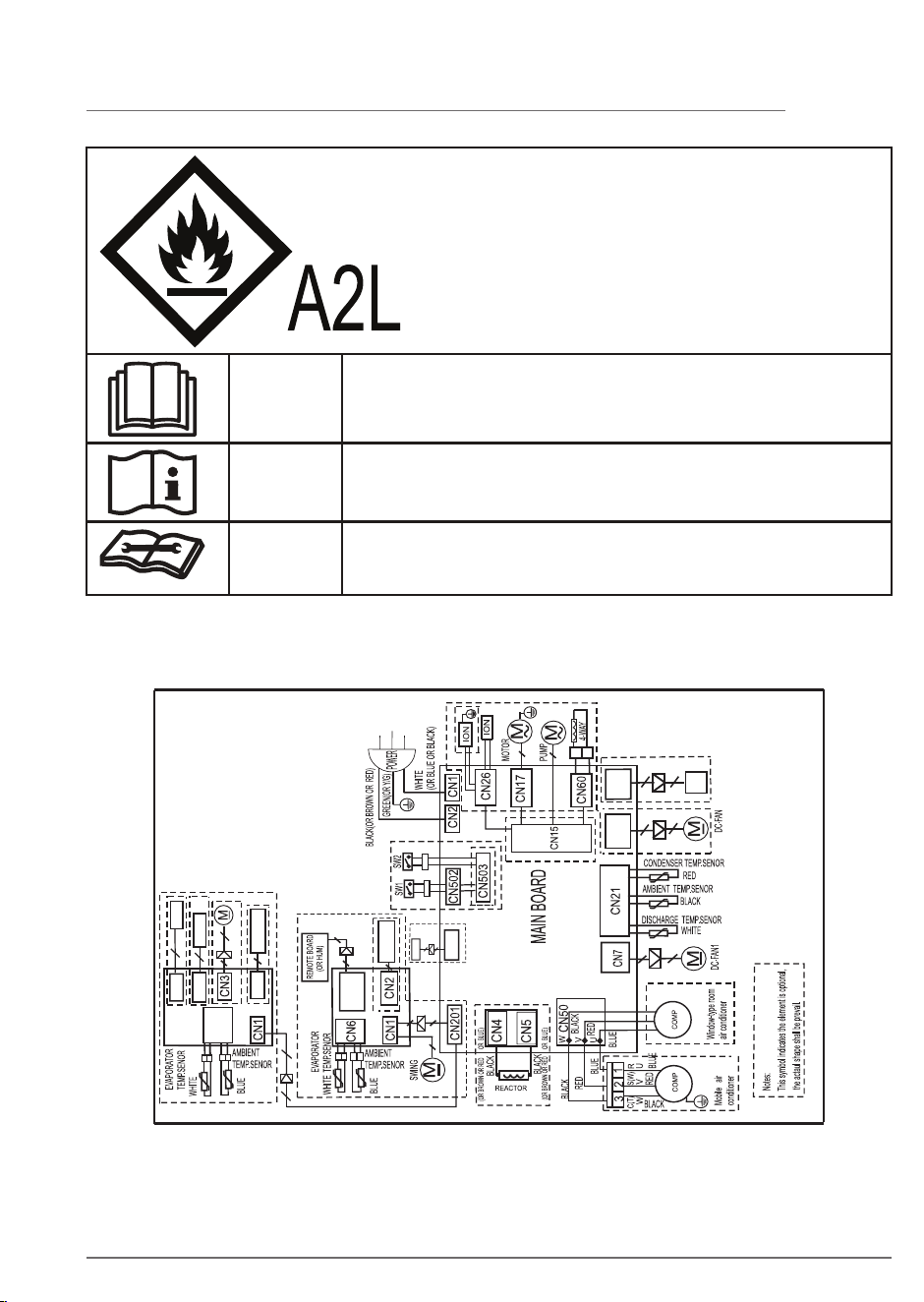

Wiring Diagram
11IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT NOTE: Read this manual carefully
before installing or operating your new air
conditioning unit. Make sure to save this manual
for future reference.
CAUTION:
Risk of fire flammable materials
CAUTION
CAUTION
CAUTION
This symbol shows that the operation manual should be read
carefully.
This symbol shows that information is available such as the
operating manual or installation manual.
This symbol shows that a service personnel should be
handling this equipment with reference to the installation
manual.
wireless
wireless
UV
CN13
16020300004342
HUM
CN6
(CN4)
CN5
(CN8)
MSW
PM2.5
CN14
CN15
CN308
CN2
DISPLAY
BOARD
SWING
CN508

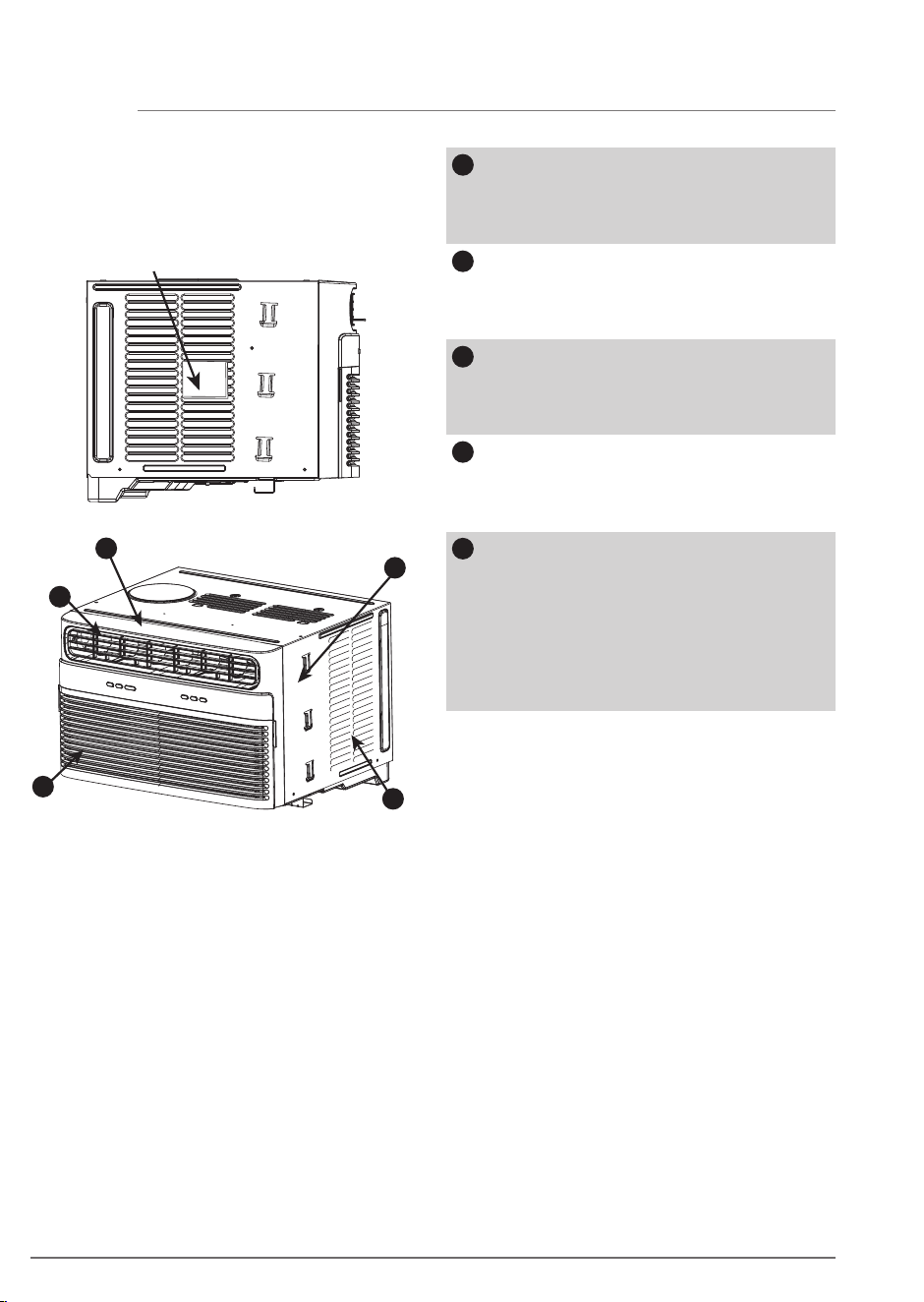

Packaging
Vibration
If excessive vibration occurs, please
check to see that unit is correctly
installed.
4
Pinging or Swishing
Droplets of water hitting condenser
during normal operation may cause
“pinging or swishing” sounds.
Note: Do not drill into, or physically
modify any part of the unit to eliminate
the above stated 'Normal Sounds',
because it will void the warranty.
5
Gurgle/Hiss
“Gurgling or hissing” noise may be heard
due to refrigerant passing through
evaporator during normal operation.
1
Sound of Rushing Air
At the front of the unit, you may hear
the sound of rushing air being moved by
the fan.
2
High pitched Chatter
Today’s high eciency compressors
may have a high pitched chatter during
the cooling cycle.
3
Normal Sounds
Remove all packaging from inside the
carton, along with any inserts placed into
the side louvers.
PACKAGING INSERTS
1
2
3
4
5
12 PACKAGING & NORMAL SOUNDS
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by tuning the device o and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
FCC CAUTION: Any changes or
modifications not expressly approved by the
party responsible for compliance could void
the user’s authority to operate the
equipment.
Host device Labeling
This device includes the following module.
Contains FCC ID: 2ATEV-BL5026-P
INDUSTRY CANADA (IC) STATEMENT
This Class B digital apparatus complies with
Canadian ICES-003.
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en
compromettre le fonctionnement.
RF Exposure
The antenna (or antennas) must be installed
so as to maintain at all times a distance
minimum of at least 20 cm between the
radiation source (antenna) and any
individual. This device may not be installed or
used in conjunction with any other antenna
or transmitter.
l'exposition aux RF
L’antenne (ou les antennes) doit être installé
e de façon à maintenir à tout instant une
distance minimum de au moins 20 cm entre
la source de radiation (l’antenne) et toute
personne physique.
Host device Labeling
This device includes the following module.
Contains IC: 25062-BL5026P
Host dispositif d'étiquetage
Ce dispositif inclut le module suivant.
Contient module émetteur IC: 25062-BL5026P
FCC Interference Statement
• Reorient or relocate the receiving antenna.
• Increase the separation between the device
and receiver.
• Connect the equipment into an outlet other
than the one used for the receiver.
• Consult the dealer or an experienced
radio/TV technician for assistance.
RF exposure statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with minimum 20 cm
between the radiator and your body. This
transmitter must not be collocated or
operating in conjunction with any other
antenna or transmitter unless authorized to
do so by the FCC.
FCC module location
13OPERATING INSTRUCTIONS

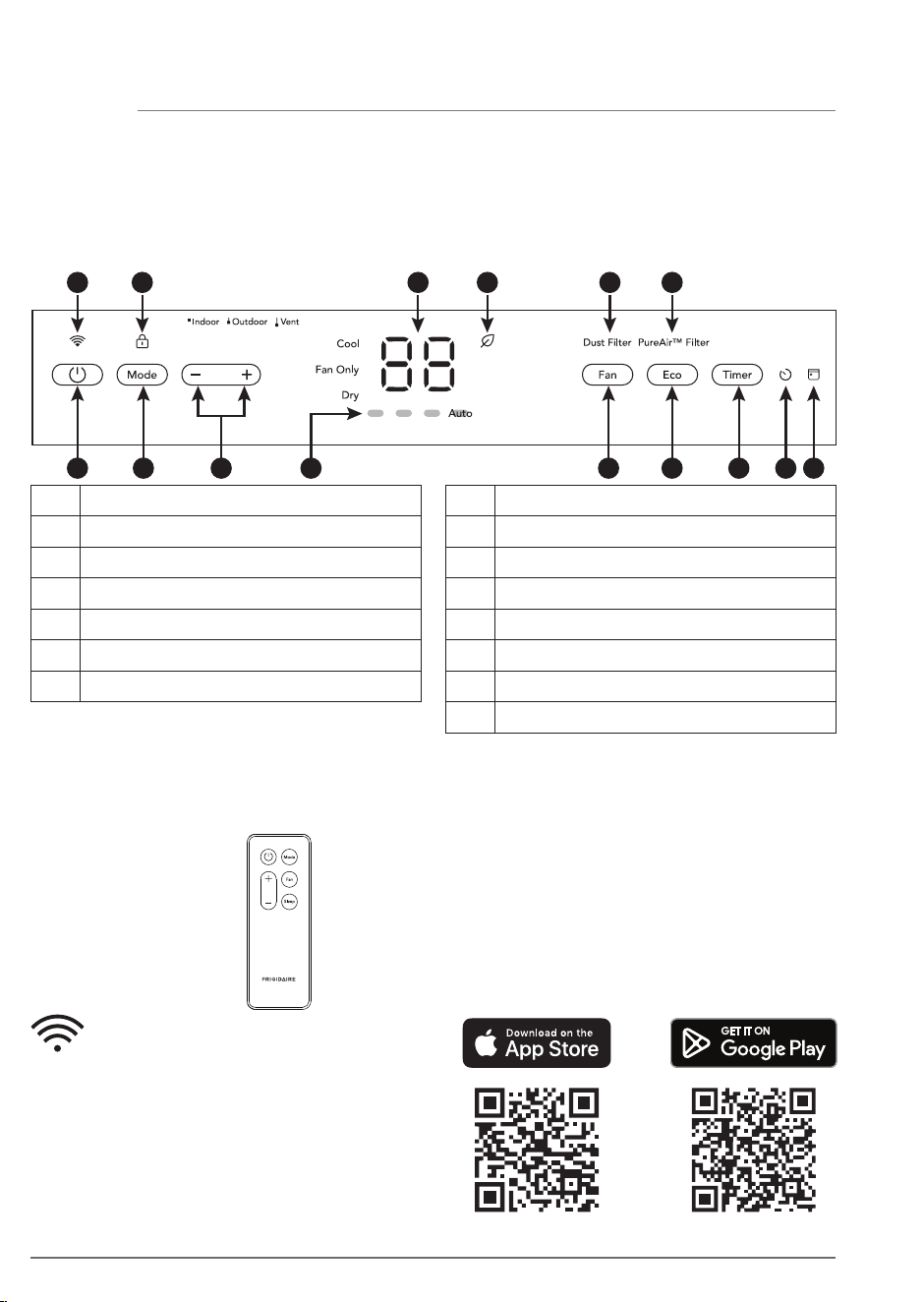

ELECTRONIC CONTROL
Before you begin, thoroughly familiarize yourself with the control panel, remote control and
all its functions (as shown below). The unit can be controlled through the control panel, with
the remote control, or with our app*.
Air Conditioner Features
A Turns Unit On Or O
B Sets Mode
C Adjusts Temperature
D Fan speed display
E
F
H Timer icon
Timer button
I
PureAir
TM
Filter iconJ
Dust Filter iconK
Temperature displayL
Child lock iconM
WIFI Indicator*
Schedule Indicator
G N
Eco IndicatorO
Battery Size: AAA
Warning: Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc),
or rechargeable (nickel-cadmium) batteries.
Do not ingest. Keep out of the reach of
children.
Note: Some feature can only be controlled through the control panel.
*Refer to the Quick Start Guide for detailed instructions on setting up your air conditioner for
connected operation from your smart phone or tablet.
REMOTE CONTROL
Fan speed button
Eco button
14 AIR CONDITIONER FEATURES
JKL OMN
A B E F G H IDC
The unit is equipped with a Wi-Fi module,
which enables remote control, monitor and
set your schedules from anywhere with your
mobile phone.
Download our app and follow the step-step
onboarding instructions to bring the product
online.
(Android)(iOS)

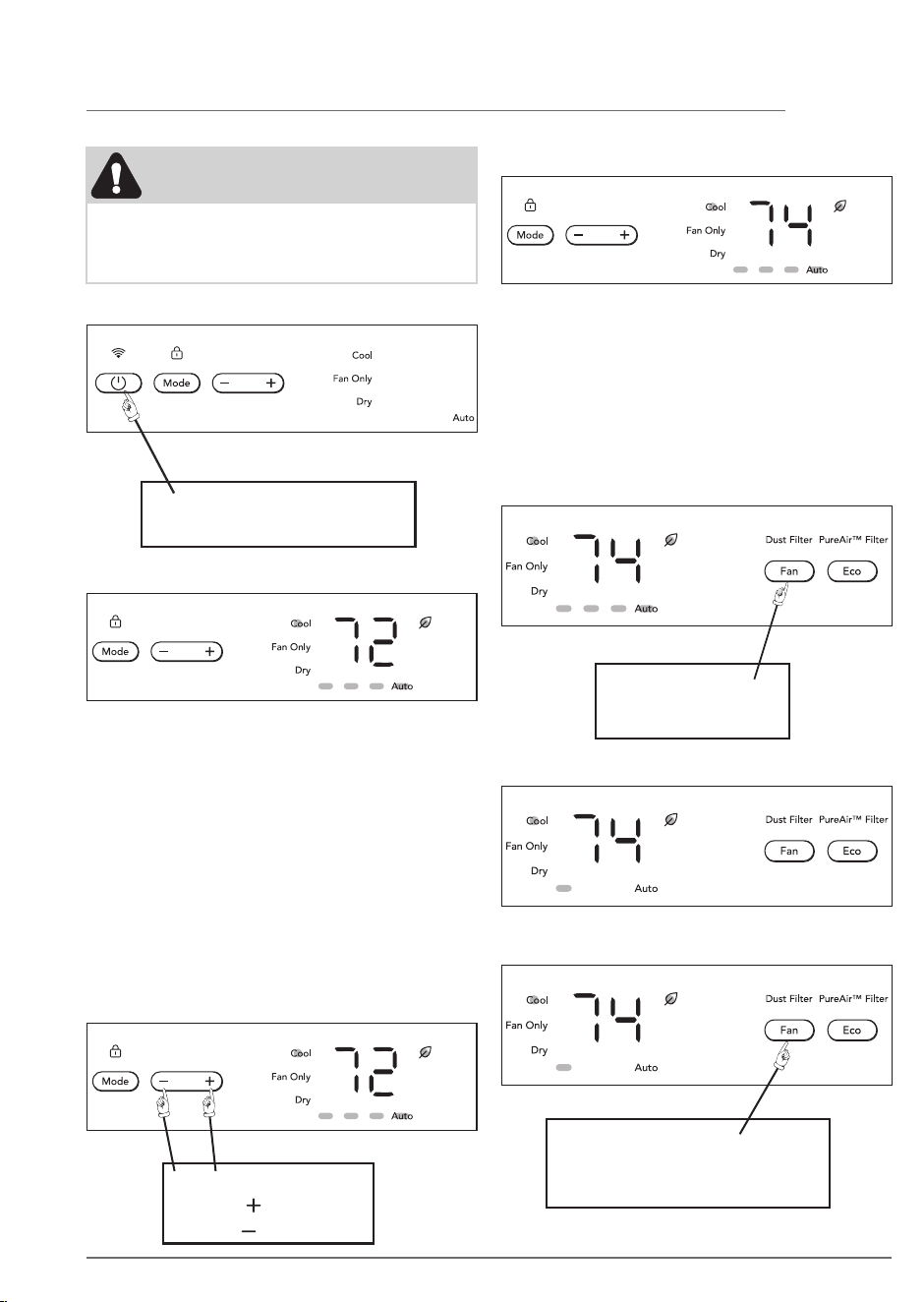

NOTE
The following instructions are for the control
panel. The same instructions can be used for
the remote control.
TO TURN UNIT ON:
PRESS ON/OFF BUTTON
DO THIS:
YOU WILL SEE:
NOTE: The unit will run in Cool mode with
Eco feature and Auto fan speed setting
when used for the first time. With the Eco
feature, when the room temperature is below
the set temperature, the fan will continue to
run for 3 minutes after the compressor shuts
o. The fan then cycles on for 2 minutes at 10
minute intervals until the room temperature
is above the set temperature, at which time
the compressor turns back on. Eco feature
can be activated or deactivated by pressing
the Eco button, and cannot be activated in
'fan only' mode.
TO CHANGE TEMPERATURE SETTING:
PRESS TO RAISE
PRESS TO LOWER
DO THIS:
YOU WILL SEE:
The display will show the set temperature
during normal operation, press either up ( + )
or down ( – ) buttons to adjust the
temperature to desired setting. If the up ( + )
or down ( – ) button is pressed continuously,
the unit will beep twice when the
temperature setting reaches the upper/lower
limits 90°F or 60°F.
YOU WILL SEE:
TO SET TO AUTO FAN:
DO THIS:
PRESS FAN BUTTON,
UNTIL AUTO IS HIGHLIGHTED
TO ADJUST FAN SPEEDS:
DO THIS:
PRESS TO SELECT
15OPERATING INSTRUCTIONS

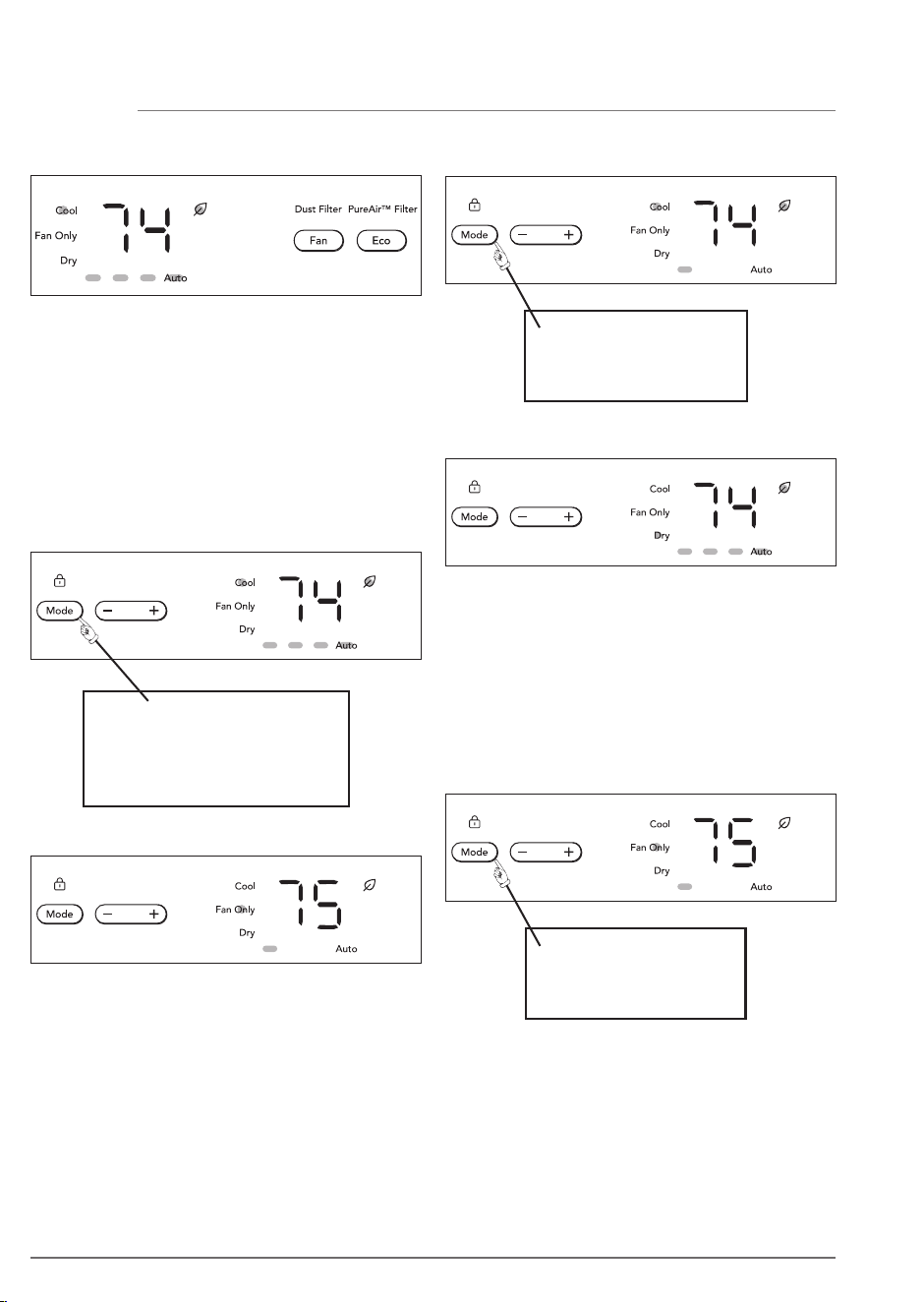

Initially, fan starts on High Speed and adjusts
to a slower speed dictated by room
temperature. For example, if room
temperature rises quickly, such as when a
door is opened, the fan will automatically
switch to the highest speed. The fan speed
will re-adjust to a slower speed as the room
cools. Press the fan button to adjust the fan
speed manually.
YOU WILL SEE:
COOL FEATURE:
DO THIS:
PRESS MODE BUTTON
TO CHOOSE COOL
TO OPERATE IN FAN ONLY MODE:
DO THIS:
PRESS MODE
BUTTON TO
CHOOSE FAN ONLY MODE
Use this function when cooling is not desired,
such as for room air circulation or to exhaust
stale air. You can choose any fan speed you
prefer. (Except “Auto Fan”). When operating
in this mode, the display will show the actual
room temperature and the set temperature
cannot be changed.
YOU WILL SEE:
DRY FEATURE:
DO THIS:
PRESS MODE BUTTON
TO CHOOSE DRY
16 OPERATING INSTRUCTIONS

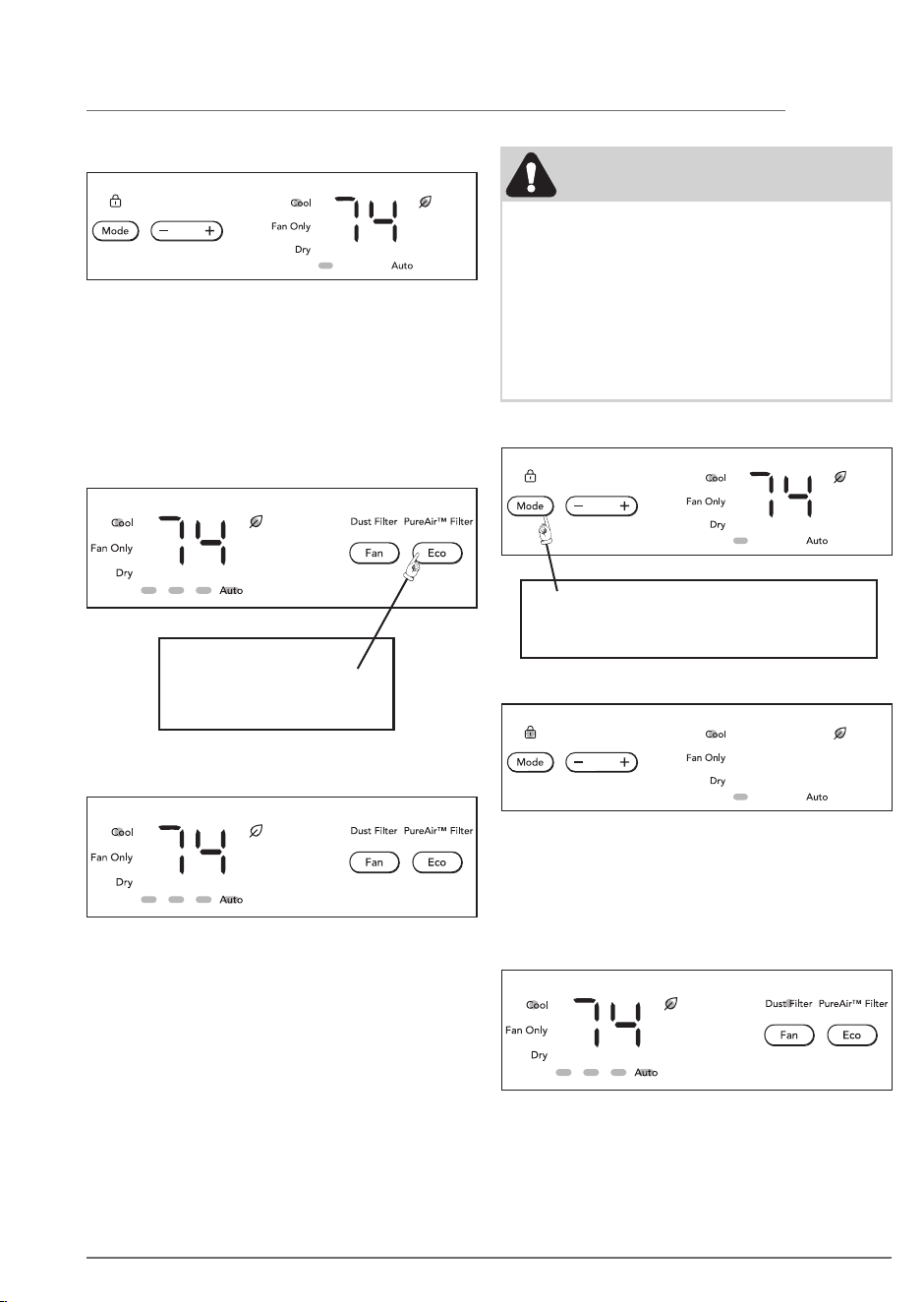

In this mode, the air conditioner will work like
a dehumidifier, but will still cool the room.
The temperature can be adjusted between
60 °F (16 °C) and 90 °F (32 °C) and the fan
speed will be held at Auto speed. Each time
Dry mode is selected Eco feature will be
activated as default. Press Eco button to
deactivate.
YOU WILL SEE:
Eco (ENERGY SAVER) FEATURE:
Each time Cool or Dry mode is selected Eco
feature will be activated as default. We
recommend leaving the Eco feature on to
help save energy and money. To switch out
of Eco mode, press the Eco button during
Cool or Dry mode.
In Eco mode, the fan will continue to run for 3
minutes after the compressor shuts o. The
fan then cycles on for 120 seconds at 10
minutes intervals until the room temperature
is above the set temperature, at which time
the compressor turns back on.
YOU WILL SEE:
DO THIS:
PRESS Eco BUTTON TO
ACTIVATE/DEACTIVATE
NOTE:
If the unit is shut o during Cool or Dry
mode, unit will start with the same mode and
target temperature as prior to standby. If
the mode was Cool or Dry, ECO will be
activated automatically when the appliance
turns on. If the unit is running in cool or dry
mode without Eco feature and a power
failure occurs, once the power is restored,
Eco feature will remain o.
TO ACTIVATE THE CHILD LOCK FEATURE:
DO THIS:
PRESS AND HOLD THE
MODE BUTTON FOR 3 SECONDS
Pressing and holding the Mode button for 3
seconds will activate or deactivate the Lock
function. The control panel will be locked and
settings cannot be changed.
YOU WILL SEE:
CHECK DUST FILTER FEATURE:
This feature is a reminder to clean the Dust Filter
(See Care and Cleaning). The Dust Filter light will
illuminate after 250 hours of operation. To reset
after cleaning the filter, hold the "Fan" button for
5 seconds.
17OPERATING INSTRUCTIONS

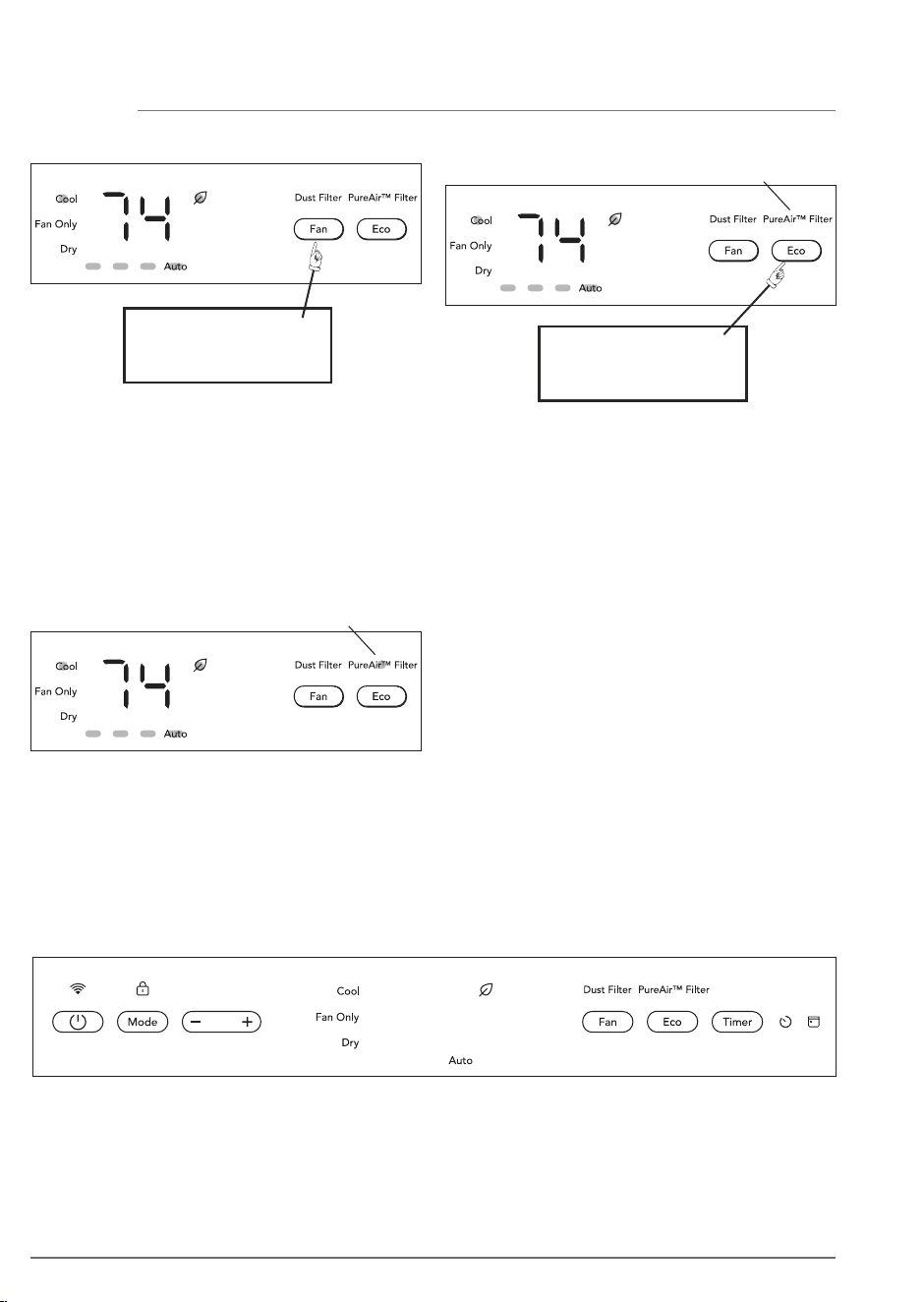

Each time Cool mode is selected, the ECO
feature will be activated by default. Press
ECO button to deactivate. When ECO feature
is deactivated, the fan remains On all of the
time with the compressor cycling on and o
when the desired room temperature is
reached.
YOU WILL SEE:
DIMMING DISPLAY:
After 60 seconds of control inactivity the display and indicator lights will turn o. Press any
button on the control panel or remote control and the display will resume. Please note that if
the unit is in Eco feature and the set temperature has been reached the unit may appear o.
However, the unit is on and will continue to sample the air every 10 minutes. To confirm, press
any button on the control panel or remote control to illuminate the display to show unit in Eco
feature.
SLEEP FEATURE:
Sleep mode can only be activated by Remote
control or APP.
The display will show SL for 3 seconds. Then,
t
he display, indicator lights, and the air
quality light will turn o.
In this mode, the selected temperature will
increase by 2°F(1°C) 30 minutes after sleep
mode is selected. The temperature will then
increase by another 2°F(1°C) after an additional
30 minutes. This new temperature will be
maintained for 7 hours before it returns to the
originally selected temperature. This ends the
"Sleep" mode and the unit will continue to
operate as originally programmed. The "Sleep"
mode program can be cancelled at any time
during operation by pressing the "Sleep" button
or “Mode” button.
PUREAIR
TM
FILTER (sold separately):
RESET DUST FILTER LIGHT:
DO THIS:
HOLD FAN BUTTON
5 SECONDS
PUREAIR
TM
FILTER INDICATOR:
This unit can be used with PureAir
TM
Filters,
which can be purchased by scanning the QR
code behind the air inlet grille, by visiting
Frigidaire.com, or by calling Frigidaire Customer
Service Center 1-800-944-9044(US) /
1-800-265-8352 (Canada).
Note: The PureAir
TM
Filter indicator will glow
white, if a PureAir
TM
filter is installed.
RESET PUREAIR
TM
FILTER LIGHT:
After 1440 hours of operation the PureAir
TM
Filter indicator will turn red. To reset, replace
with new PureAir
TM
Filter, then hold the "Sleep"
button 5 for seconds.
Red light
DO THIS:
HOLD SLEEP BUTTON
5 SECONDS
White light
18 OPERATING INSTRUCTIONS

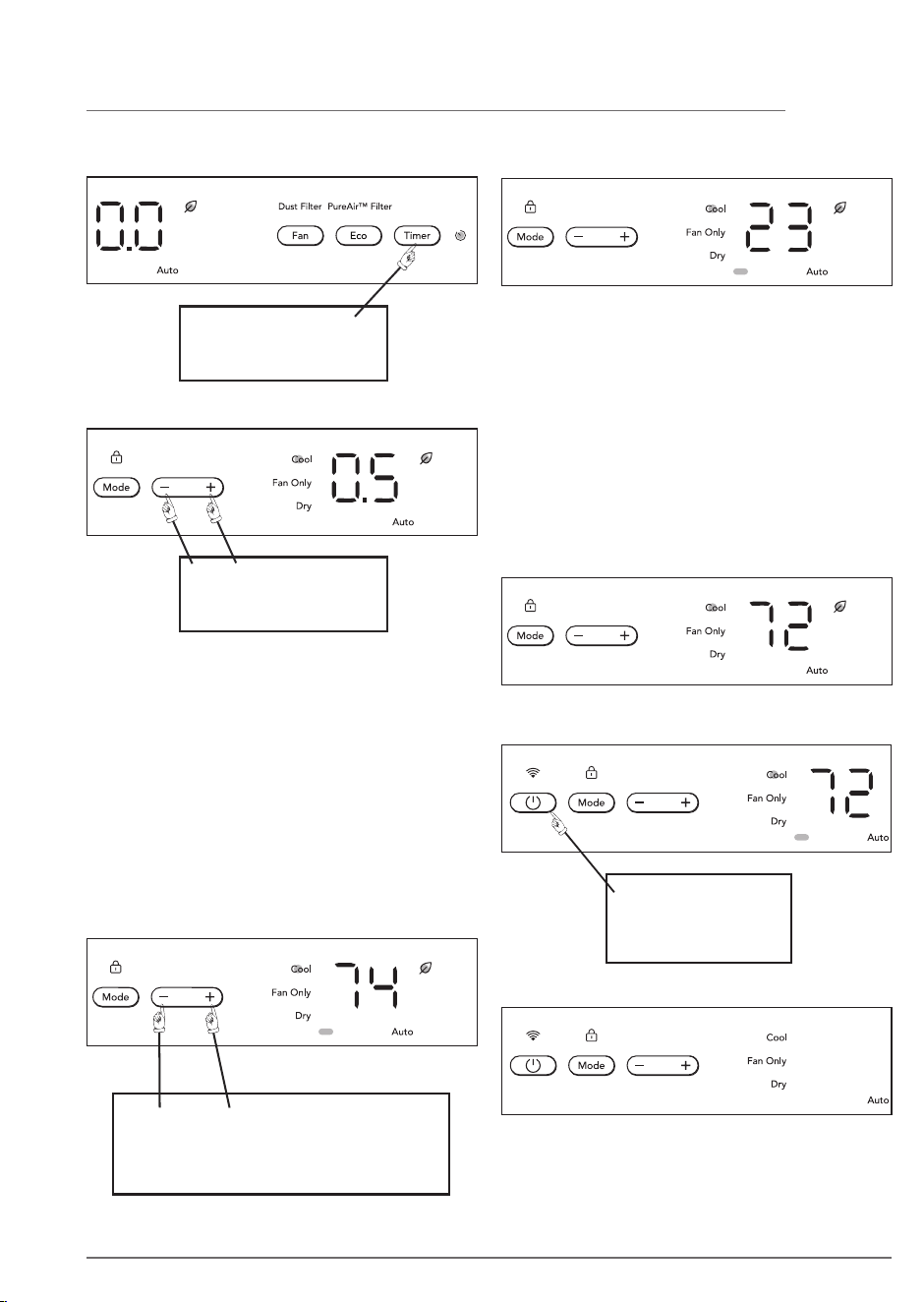

TO CHANGE THE TEMPERATURE SCALE
(°F OR °C):
DO THIS:
PRESS AND HOLD THE UP/DOWN
BUTTONS SIMULTANEOUSLY
FOR 3 SECONDS
TO ACTIVATE TIMER FEATURE:
Note: For Delay Stop or Start, press the Timer
button when the unit is in the On or O position.
Then tap or hold the “ − ” or “ + ” button to
change delay timer at 0.5 hour increments, up to
10 hours, then at 1 hour increments up to 24
hours. After 5 seconds, the control will count
down the time remaining until Stop or Start (8h,
7.5h, 7h, etc.).
Pressing the unit On/O button at any time will
cancel the Delay Start/Stop function. Or press
the timer button for 2 seconds
TO SET TIMER
DO THIS:
PRESS TIMER
BUTTON
DO THIS:
PRESS UP/DOWN
BUTTONS
YOU WILL SEE:
Note: The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius.
QUIET FEATURE:
Quiet mode can only be activated by APP. In
this mode, due to low frequency operation of
compressor, it may result in insucient
cooling and heating capacity. Press ON/OFF
or Mode button while operating will cancel
quiet feature.
In Quiet mode all Fan speed LED will be o, as
shown below.
TO TURN UNIT OFF:
DO THIS:
PRESS
ON/OFF BUTTON
YOU WILL SEE:
19OPERATING INSTRUCTIONS
FAULT CODES:
Error Code Description
EH00
Internal memory chip failure
If any of the below error codes show on the display, please contact your Frigidaire Customer
Service Center 1-800-944-9044(US) / 1-800-265-8352 (Canada).
EH60
Indoor ambient temperature sensor is open/short circuited
EH0b
Communication malfunction of main control board.
Note: The error codes will be separated into 2 parts. The display will alternate in 1 second
intervals. For example, if the fault code "EH00" occurs, the panel will first display "EH" for 1
second, then display "00" for another second. The error code will continue to loop until the
issue is resolved.
Note: There are more than 3 error codes. If an error code appears on the display, turn o the
unit and restart it. If the error code persist, please contact your Frigidaire Customer Service
Center 1-800-944-9044(US) / 1-800-265-8352 (Canada).
SHOWS “EH” FOR ONE SECOND: THEN SHOWS “00” FOR ANOTHER SECOND:
• There is a 2-Second delay for the
compressor shutting down when selecting
FAN ONLY. This is to cover the possibility
of having to roll through to select another
mode.
• The control will maintain the set
temperature within 2 degrees Fahrenheit,
between 60°F and 90°F degrees.
Now that you have mastered the operating
procedure, here are more features in your
control that you should become familiar with.
ADDITIONAL THINGS YOU SHOULD KNOW
NOTE
The "Cool" circuit has an automatic 3 minute
time delayed start if the unit is turned o
and on quickly. This prevents overheating of
the compressor and possible circuit breaker
tripping. The fan will continue to run during
this time.
• After a power outage, the unit will
memorize the last setting and return the
unit to the same setting once power is
restored.
• The unit should be operated in an indoor
temperature range of 60°F - 90°F (16°C -
32°C), and an outdoor temperature range
of 64°F - 109°F (18°C - 43°C). Performance
may be reduced outside of these operating
temperatures.
Fresh Air Vent Control (on some models)
The Fresh Air Vent allows the air conditioner
to:
1. Recirculate inside air - Vent Closed (see
Fig. 1)
2. Draw fresh air into the room - Fresh Air
(see Fig. 2)
3. Exchange air from the room - Vent Open
(see Fig. 3)
20OPERATING INSTRUCTIONS

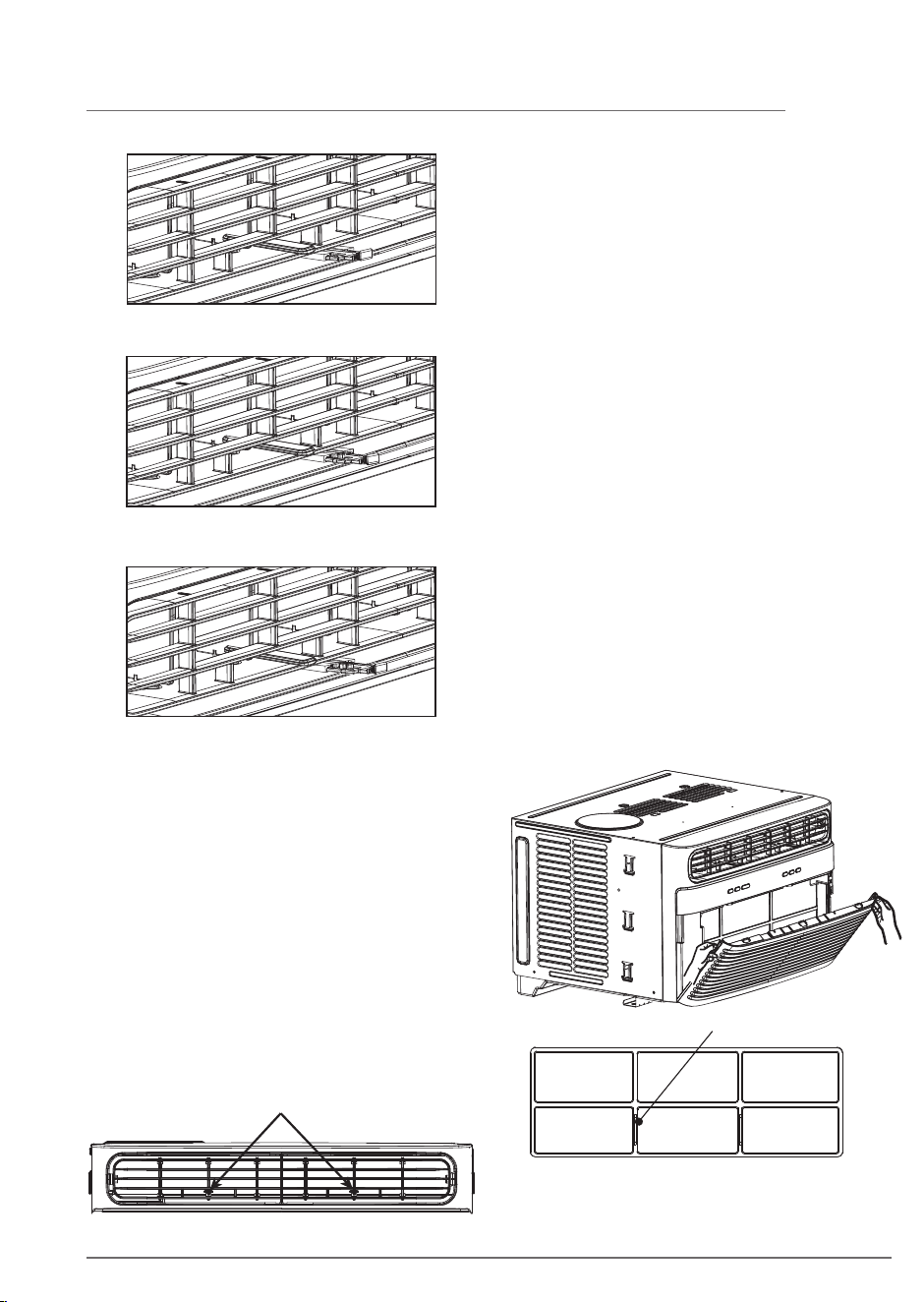

Figure 1 (VENT CLOSED)
Air Directional Louvers
Slider Type
Air directional louvers control air flow
direction. Your air conditioner has the louver
type described below.
The louvers will allow you to direct the air
flow Up or Down and Left or Right
throughout the room as needed. Drag the
adjuster lever until the desired
Left/Right direction is obtained. Pivot
horizontal louvers until the desired
Up/Down direction is obtained.
Figure 3 (VENT OPEN)
(6-WAY)
ADJUSTER LEVER
Figure 2 (FRESH AIR)
Clean your air conditioner occasionally to
keep it looking new. Be sure to unplug the
unit before cleaning to prevent shock or
fire hazards.
The Dust filter should be checked at least
once a month to see if cleaning is necessary.
Trapped particles in the Dust filter can build
up and cause an accumulation of frost on
the cooling coils.
NOTE: When replacing the Dust filter after
cleaning, make sure the tabs on the air filter
are on the upper part of filter, and placed
outward as shown in the drawing on the left
side.
Dust Filter Cleaning
• Push the vent handle to the Vent Closed
position(where applicable).
• Open the front panel.
• Grasp the Dust filter by the center and pull
up and out.
• Wash the Dust filter using liquid
dishwashing detergent and warm water.
Rinse Dust filter thoroughly. Gently shake
excess water from the Dust filter. Be sure
Dust filter is thoroughly dry before
replacing.
• Or instead of washing, you may vacuum
the Dust filter clean.
Dust Filter
Tab
21
OPERATING INSTRUCTIONS & CARE AND CLEANING
• Do not block air flow inside with blinds,
curtains or furniture; or outside with shrubs,
enclosures, or other buildings.
• The capacity of the room air conditioner
must fit the room size for efficient and
satisfactory operation.
• Install the room air conditioner on the
shady side of your home. A window that
faces north is best because it is shaded
most of the day.
• Close the fireplace damper, floor and wall
registers so cool air does not escape up the
chimney and into the duct work.
• Keep blinds and drapes in other windows
closed during the sunniest part of the day.
• Clean the air filter as recommended in the
section “Care and Cleaning”.
• Proper insulation and weather stripping in
your home will help keep warm air out and
cool air in.
• External house shading with trees, plants or
awnings will help reduce the air
conditioner’s work load.
• Operate heat producing appliances such as
ranges, washers, dryers and dishwashers
during the coolest part of the day.
Energy Saving Ideas
Winter Storage
If you plan to store your air conditioner
during the cooler months, remove it carefully
from the window according to the
installation instructions, cover with plastic, or
return to its the original carton.
Cabinet Cleaning
• Be sure to unplug the air conditioner to
prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free
cloth or washed with a cloth dampened in a
solution of warm water and mild liquid
dishwashing detergent. Rinse thoroughly
and wipe dry.
• Never use harsh cleaners, wax or polish on
the cabinet front.
• Be sure to wring excess water from the
cloth before wiping around the controls.
Excess water in or around the controls may
cause damage to the air conditioner.
PUREAIR
TM
FILTER(sold separately):
This unit has available space for use of
PureAir
TM
Filters(sold separately). There are
dierent types of PureAir
TM
Filters, which are
sold separately. You can purchase PureAir
TM
Filters by scanning QR code behind the air
inlet grille or by visiting Frigidaire.com or by
calling the Frigidaire Customer Service
Center 1-800-944-9044(US) /
1-800-265-8352 (Canada).

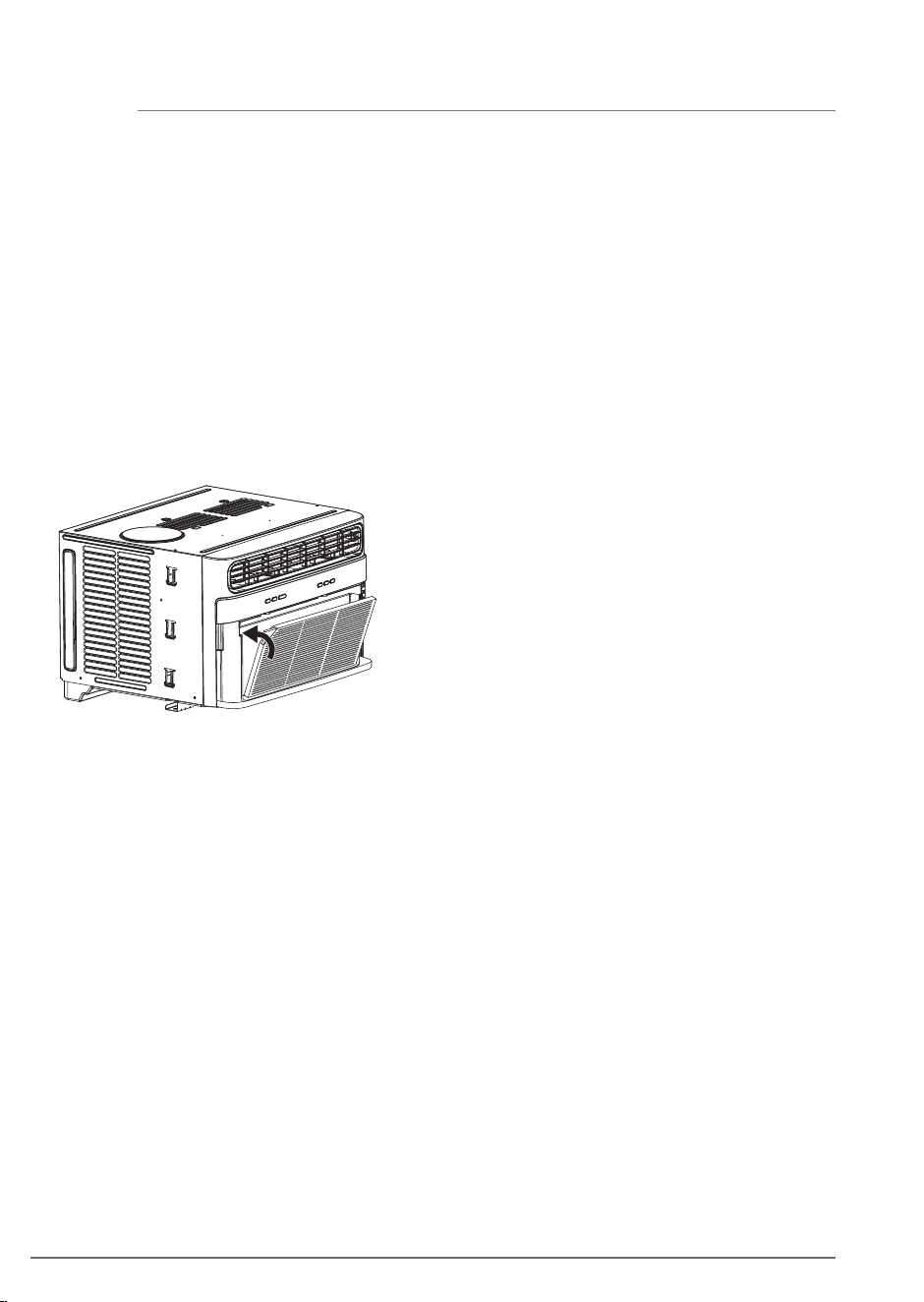

To install the PureAir
TM
Filter:
1. Remove the Dust filter as instructed in the
Dust filter cleaning section.
2. Insert the PureAir
TM
filter in the reserved
space behind the Dust filter as shown below.
The PureAir
TM
filter should be replace with a
new one after its service life is reached.
To remove the filter grape the tab on the left
upper corner and pull out.
Note: If the PureAir
TM
filter is installed
properly the PureAir
TM
Filter indicator will
glow white. Otherwise reinstall the filter.
3. Reinstall the Dust filter and air inlet grille.
22CARE AND CLEANING & ENERGY SAVING IDEAS
Air conditioner turns
on and o rapidly.
• Dirty Dust filter - air restricted. Clean filters. Refer to Care and Cleaning
section.
• PureAir
TM
filter(sold separately) may be dirty. Replace with new filter. Refer
to Care and Cleaning section. To defrost, set to FAN ONLY mode.
• Outside temperature extremely hot. Set FAN speed to a faster setting to
bring air through cooling coils more frequently.
Air conditioner
cooling, but room is
too warm - NO ice
forming on cooling
coil behind
decorative front.
• Dirty Dust filter - air restricted. Clean filters. Refer to Care and Cleaning
section.
• PureAir
TM
filter(sold separately) may be dirty. Replace with new filter. Refer
to Care and Cleaning section. To defrost, set to FAN ONLY mode.
• Temperature is set too high. Set temperature to a lower setting.
• Air directional louvers positioned improperly. Position louvers for better air
distribution.
• Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air
distribution. Clear blockage in front of unit.
• Doors, windows, registers, etc. open - cool air escapes. Close doors,
windows, registers, etc.
• Unit recently turned on in hot room. Allow additional time to remove “stored
heat” from walls, ceiling, floor and furniture.
Air from unit does not
feel cold enough.
• Room temperature below 60°F (16°C). Cooling may not occur until room
temperature rises above 60°F (16°C).
• Temperature sensing element touching cold coil, located behind air filter.
Straighten away from coil.
• Reset to a lower temperature.
• Compressor shut-off by changing modes. Wait approximately 3 minutes
and listen for compressor to restart when set in the COOL mode.
Before calling for service, review this list. It may save you time and expense. This list includes
common occurrences that are not the result of defective workmanship or materials in this
appliance.
SOLUTIONOCCURRENCE
Air conditioner will
not operate.
• Wall plug disconnected. Push plug firmly into wall outlet.
• Plug Current Device Tripped. Press the RESET button.
• House fuse blown or circuit breaker tripped. Replace fuse with time delay
type or reset circuit breaker.
• Control is OFF. Turn Control ON and set to desired setting.
Air conditioner
cooling, but room is
too warm - ice
forming on cooling
coil behind
decorative front
• Outdoor temperature below 60 F° (16°C). To defrost the coil, set FAN ONLY
mode.
• Dust filter may be dirty. Clean filter. Refer to Care and Cleaning section. To
defrost, set to FAN ONLY mode.
• PureAir
TM
filter(sold separately) may be dirty. Replace with new filter. Refer
to Care and Cleaning section. To defrost, set to FAN ONLY mode.
• Temperature is set too low for night-time cooling. To defrost the coil, set to
FAN ONLY mode. Then, set temperature to a higher setting.
23BEFORE YOU CALL
Room too cold.
• Set temperature too low. Increase set temperature.
• Remote Sensing activated (on some models) and remote control located in
Hot Spot - Relocate remote control or deactivate remote sensing.
Remote Sensing
Deactivating
Prematurely (some
models).
• Remote control not located within range. Place remote control within 20
feet & 120° radius of the front of the unit.
• Remote control signal obstructed. Remove obstruction.
SOLUTIONOCCURRENCE
Water dripping
INSIDE when unit is
cooling.
• Improper installation. Tilt air conditioner slightly to the outside to allow
water drainage. Refer to installation instructions or check with installer.
Noise when unit is
cooling.
• Air movement sound. This is normal. If too loud, set to lower FAN setting.
• Window vibration - poor installation. Refer to installation instructions or
check with installer.
Water dripping
OUTSIDE when unit is
cooling.
• Unit removing large quantity of moisture from humid room. This is normal
during excessively humid days.
If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada)
For Frigidaire Service.
Trouble connecting
the smart appliance
to your wifi network
or experiencing an
issue with the app.
• Please visit Frigidaire.com and select the Owner Support section to view
Frequently Asked Questions.
24BEFORE YOU CALL
Exclusions
This warranty does not cover the following:
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
If You Need
Service
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
USA
1.800.944.9044
Electrolux Major Appliances
10200 David Taylor Drive
Charlotte, NC 28262
Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your
original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions. After one year from your original date of purchase, the consumer
will be responsible for diagnostic, labor and parts costs as well as any removal, transportation and
reinstallation expenses which are incurred during service on components.
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX
SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR
ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest to
obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This limited warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your
appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any
obligations under this warranty. Obligations for service and parts under this warranty must be performed by
Electrolux or an authorized service company. Product features or specifications as described or illustrated are
subject to change without notice.
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
25MAJOR APPLIANCE LIMITED WARRANTY
welcome
home
Frigidaire.com
1-800-944-9044
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
16120300A31352 (July 2019)
