Car Fridge/Freezer
User Manual
Model：EP23827
Read user manual before operating your fridge/freezer
1. Safety Instructions
Warning: Do not use your unit if any cabling is damaged, frayed or there
is exposed wiring.
Warning: Do not attempt or continue to operate your unit if it is wet.
When using the refrigerator in the vehicle, please make sure the circuit
being used is fused.
When installing the direct electricity supply, please make sure to have
professional electrician to do it.
When charging the unit with the battery, please make sure the unit is not
connected with the electricity supply.
Make sure the voltage is within the correct range for socket and cable
being used. The technical data label on the side of the unit shows the
voltage ranges.
Do not place any electrical devices inside the refrigerator as they may
be damaged.
2. Notes On Using The Product
Your unit requires good ventilation; allow a gap of 200mm around the
back of the refrigerator, and at least 100mm around all other sides.
Avoid moisture: Car fridge should avoid moisture, reduce the chance of
corrosion on metal parts. If drenched with water, it can cause poor
insulation, resulting in power leakage and failure.
Avoid heat sources: The refrigerator should be placed in a well
-ventilated area. Keep away from heat and avoid direct sunlight.
Place in a level surface: The floor of the car must be flat and sturdy.
When the refrigerator is placed on the car, it would be better put in a
fixed position to avoid sharp shake.
3. Data Sheet
Model:BCD15
External dimension
23''×12.5''×10''
Net weight
24 LBS
Rated power
45W
DC voltage
12v/24v
DC cable
5FT
Average consumption
0.15kwh/24h
Temperature range
-18℃ to +10℃
Cooling system
compressor
Shell material
ABS+PP
1
产品型号：BCD15
3
1
2
4
5
6
7
8
9

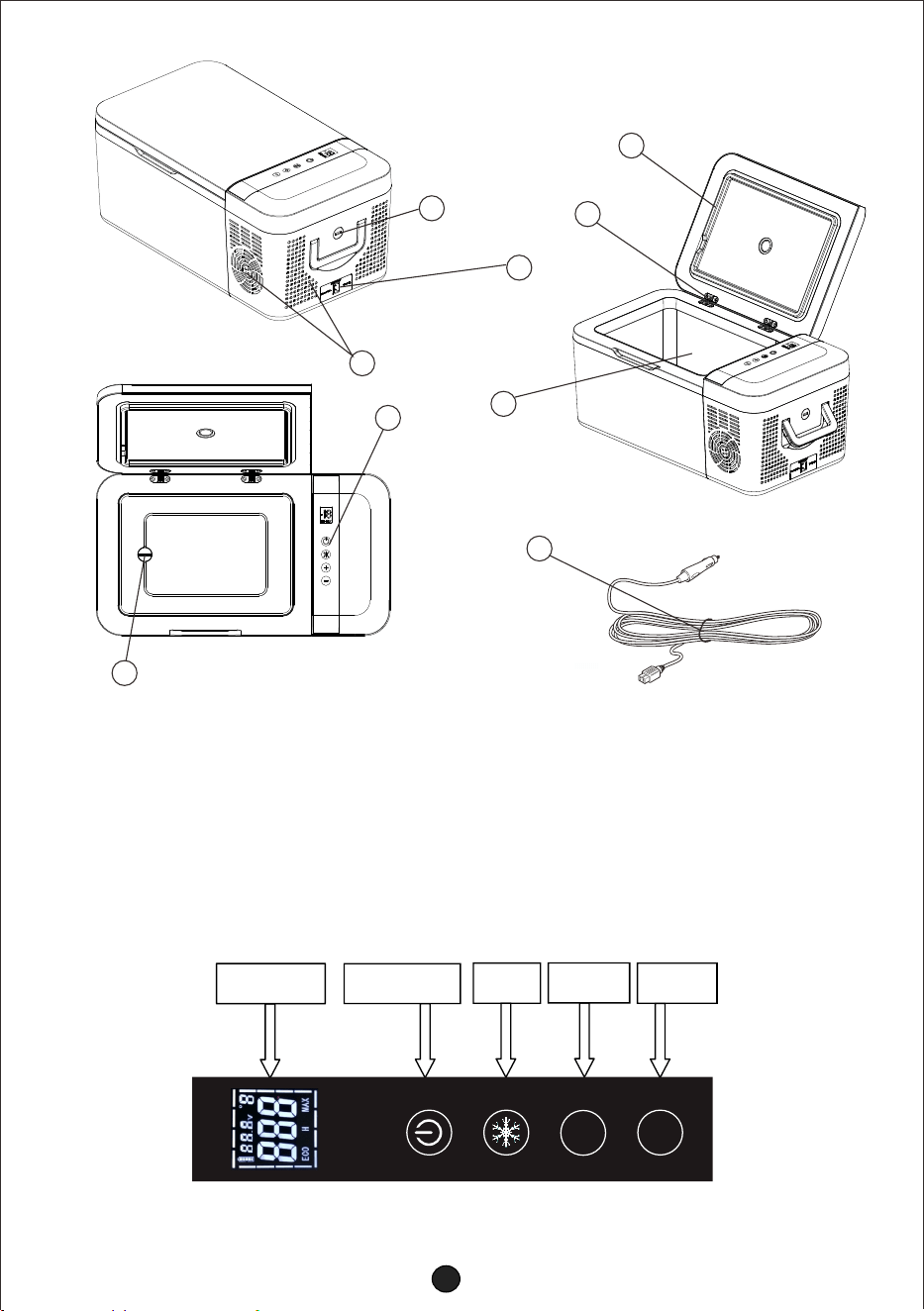

1.USB charge port
2.Power Input Panel
3.Louver
4.Sealing Strip
5.Hidden Door Hinge
6.Freezer
7.Control Panel
8.Drain Switch
9.DCPowerCable
Decrease
Display Panel
Mode
Power ON/OFF
Increase
2
+
--
4. How To Operate
3
Temperature range
-18℃ ~+10℃
Panel display temperature
Screen back light keep 10 seconds
then automatically shut down ; you
can press any button to start.
Temperature control
Button unlock operation: Press and +
-
simultaneously for 3 seconds.
Automatically lock the button after
waiting for 30 seconds without any
operation.
Press + or - to set temperature.
And when you stop operation, the
setting temperature will be
memorized and the car fridge will
freeze to your setting temperature; if
not doing any operation, it will show
the inner temperature after a few
seconds(after the light blinks 3 times).
Fahrenheit/Celsius Switching: Press once,
the set temperature unit symbol now starts
to flash, press + or - at this time to change.
After pressing the button, it stops for 5
seconds and the setting is successful.
The display interface will display the current
temperature inside the box.
ON/OFF
Keep Press for 3 seconds, the car
fridge enter into the on/ stand by mode.
ECO/MAX switching: short press button
for 2 times, the current working mode
flashes, press + or - to change(Energy
saving mode ECO and fast cooling mode
MAX); Stop pressing the button, the setting
value flashes for 5 seconds, save and
display the mode you set.
Note: When you restart the fridge, the
compressor will start work 3 minutes
later, it’s one way to protect compressor,
not sudden start-up.
4
Cooling operation
When display panel shows ”ECO”, it
means the compressor is working under
energy saving mode;
When display panel display ”MAX”,it
means the compressor is working under
fast cooling mode.
Note: The refrigeration efficiency may be stronger or weaker, according to
changes in ambient temperature.

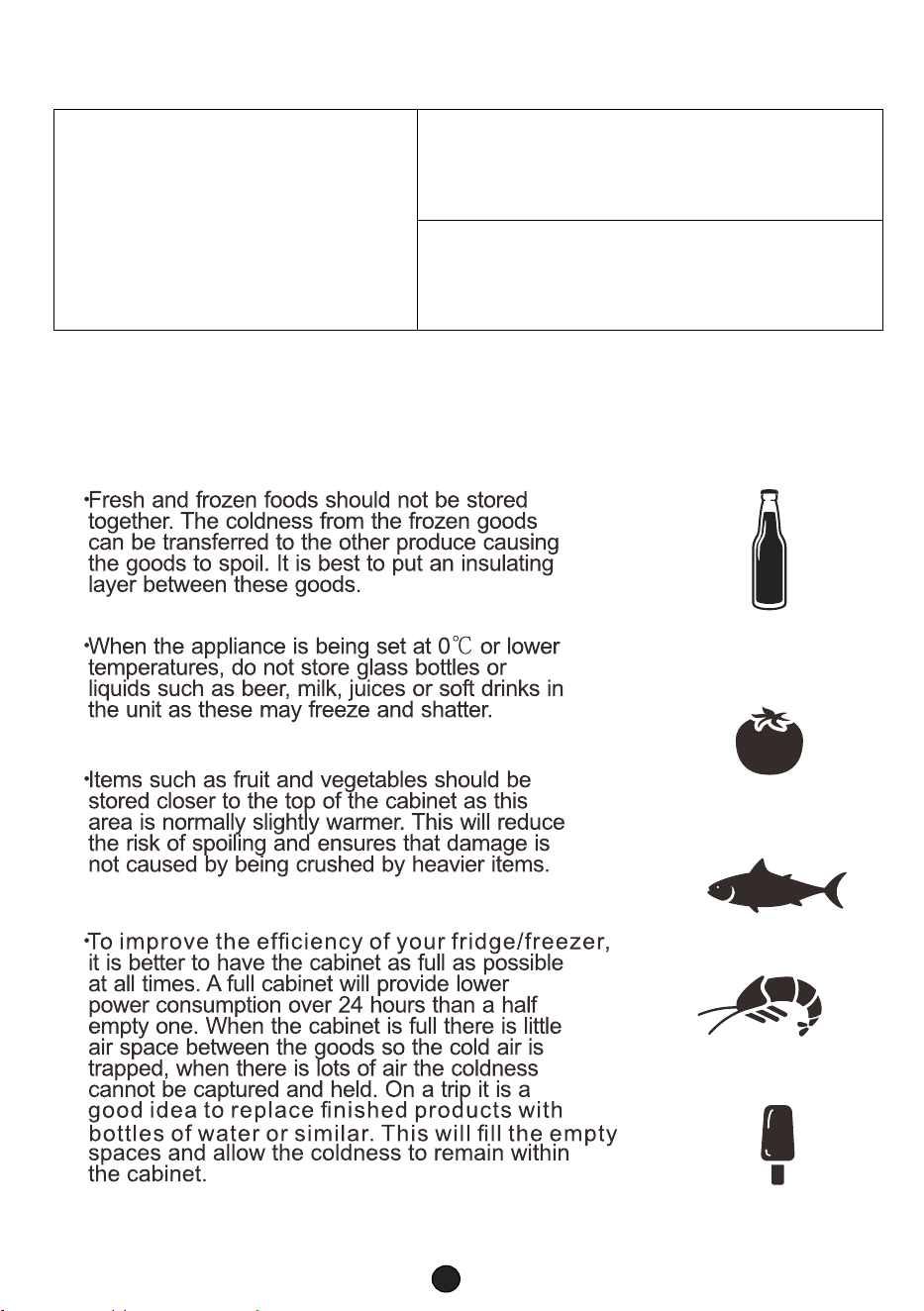

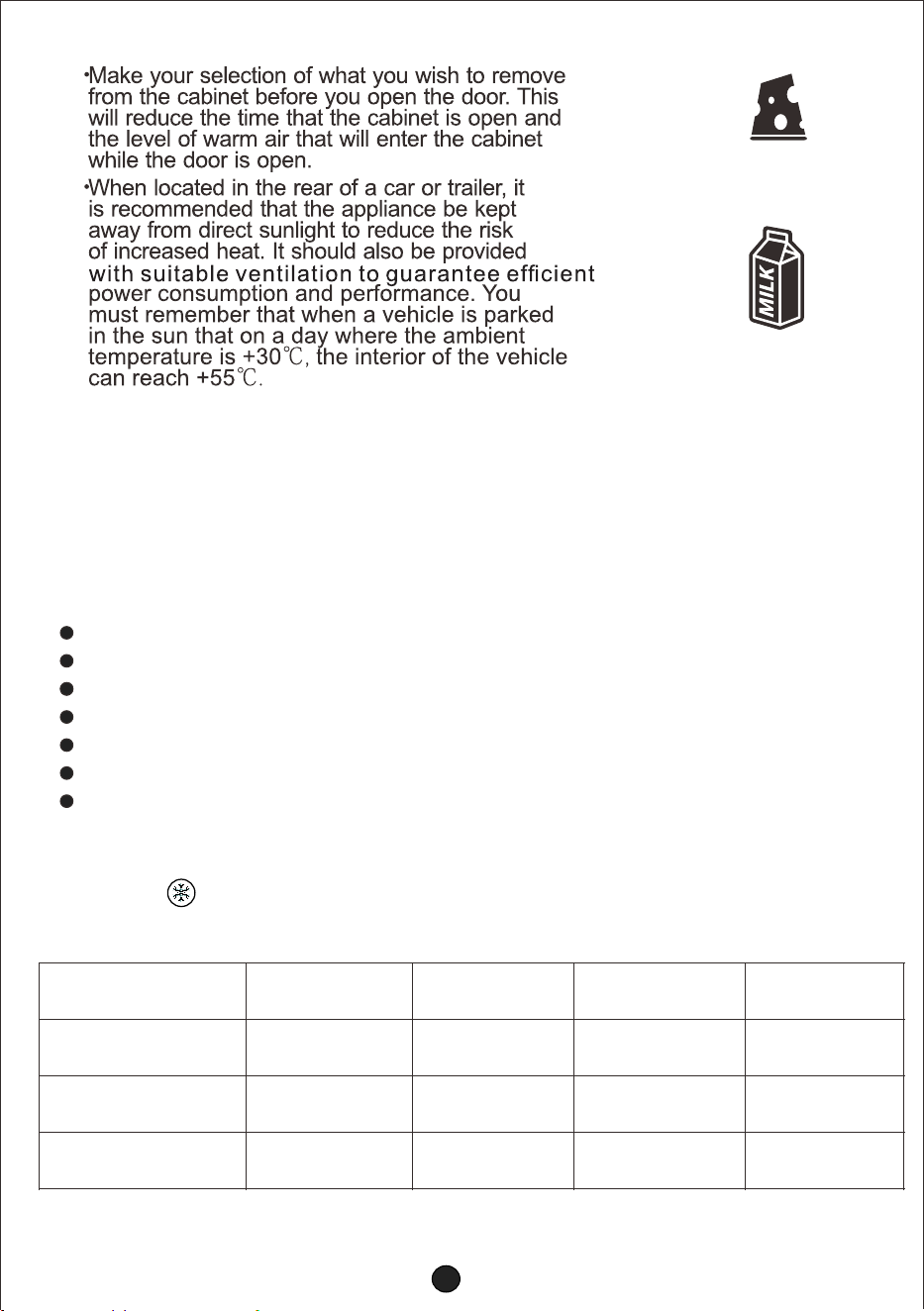

5. Tips And Suggestions
5
6. Malfunction And Error Code
When power switch on, compressor will start work 3 minutes later. When
inside temperature is higher than setting temperature, compressor keeps
work; When inside temperature reach the setting temperature, compress
or suspend work automatically. This process keep repeated. When
malfunctions happens, LED display will show E0 to E9. After remove the
fault please wait 3 minutes before the compressor starts operation. The
description of error code as below.
E0 Temperature sensor short circuit
E1 Battery protection problem
E2 DC Fan problem
E3 Compressor problem
E4 Rotational Speed of compressor is abnormal
E5 Overheat warning
E9 Temperature sensor open circuit
7. Battery Protection
Press the button for3times and the display P1/P2/P3 will flash. Press + or - to
adjust the battery protection level.Protection level: P1 (low), P2 (middle), P3 (high),
factory default is P2.
P3
11.1V
12.4V
24.3V
25.7V
P2
10.1V
11.4V
22.3V
23.7V
P1
9.6V
10.9V
21.3V
22.7V
Battery protection
12V CUT-OUT 12V CUT-IN 24V CUT-OUT 24V CUT-IN
The voltage at above form refers input voltage of the compressor, not battery
output voltage.
8. Cleaning And Maintenance
Cleaning method:
Clean the appliance inside and out with a clean damp cloth every two weeks.
If it is dirty, wipe it with a neutral detergent and then wipe it dry with a damp
cloth. If there is too much water, you can use the drainage pipe at the bottom
of the tank to drain.
6
Maintenance of plastic parts:
To properly protect the seals, clean the plastic parts frequently and try to
avoid heavy impact during use. If oil(Animal or vegetable oil)is attached to
plastic parts for a long time, the plastic will easily deteriorate and crack, and
smells bad odor.

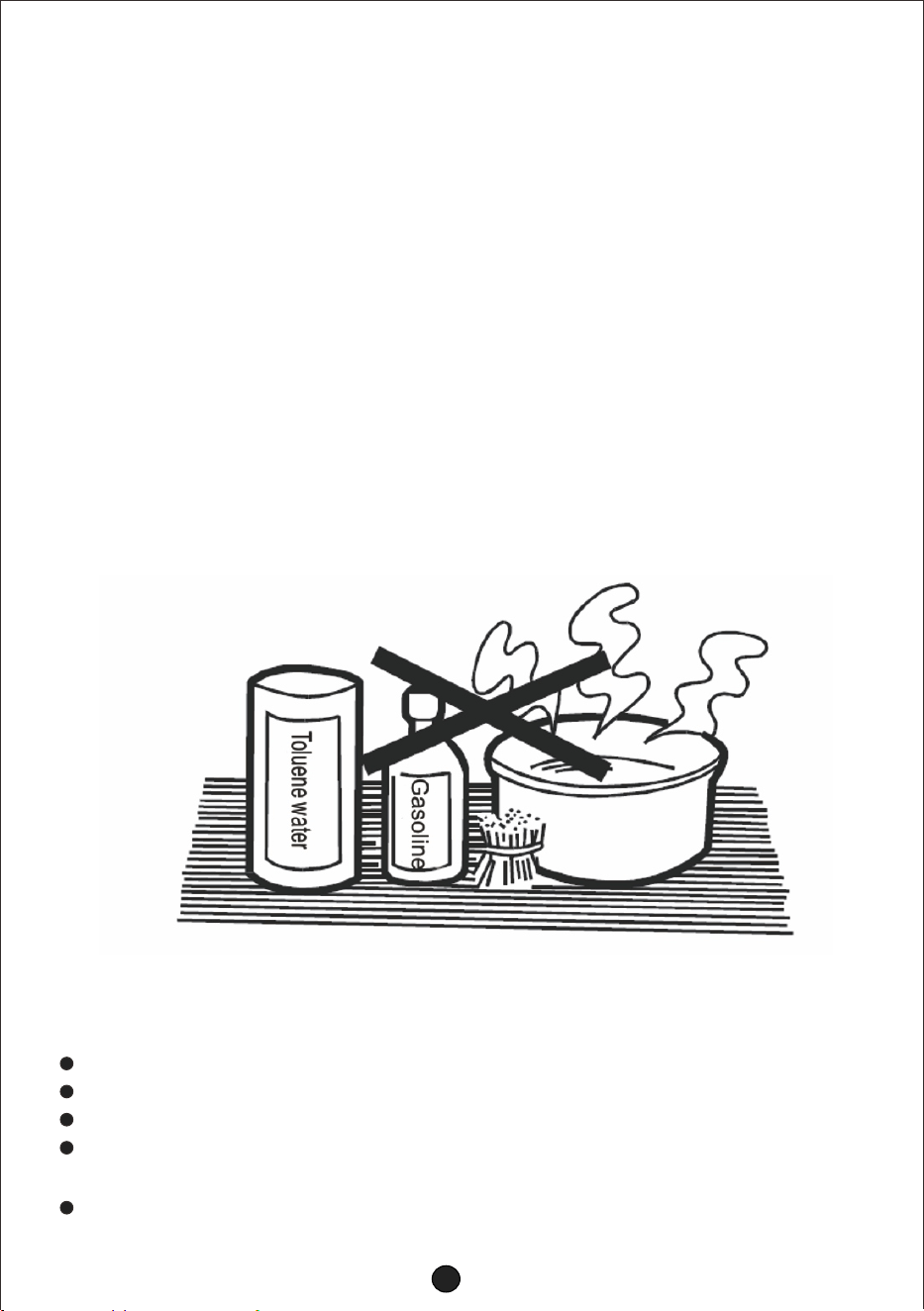

Precautions:
It is forbidden to wash the refrigerator directly with water in order to avoid
the decrease of electrical insulation and the rust of sheet metal. The
following things will damage the coated surface, plastic parts, can not be
used for cleaning. alkaline detergent, soap, grinding powder, hot water,
brushes, Toluene water, gasoline, alcohol.
9. Simple Fault Diagnosis
Fridge do not work
Check if power failure happens.
Check if the power plug is in good contact.
Is the fuse blown?
Check if the power switch on operation panel is turned on.
Food freeze in the fridge
Temperature setting is too low.
Improper temperature setting
Seem to hear sound of running water inside the box
This is the sound of refrigerant flow and it is normal
Abnormal noise
The fridge is not placed on a level surface.
The fridge is too close with a wall or other item.
The parts inside the fridge are loose or fall off.
7
Bad cooling
Food storage is too much, too crowded inside, the air is not flowing smoothly.
Fridge door is not fully closed.
The door seal is damaged or deformed and the seal is not tight.
Bad ventilation outside the refrigerator.
Put too much hot food.
No space around the fridge.
Sunlight is too strong or there is a heat source nearby.
