FLOOR STAND FOR SM27
MODEL NO: SM27ST.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
1. SAFETY
WARNING! The lathe (not included) is heavy - it is recommended that two persons lift and lower the lathe onto the assembled stand.
9 Avoid trapping hands/ngers beneath the lathe, when lowering onto the stand.
9 Ensure the stand is positioned on rm, level ground (we recommend concrete or a similar hard surface).
9 Ensure the surrounding environment is not conducive to rust. Rust will damage the stand, rendering it structurally unsafe.
2. INTRODUCTION
Suitable for Model No. SM27 metal turning lathe and other similar lathes. Includes suds tray and two latched door storage cabinets with
shelves. Made from welded steel and heavy duty feet making it incredibly sturdy. Part of a vast range of lathe accessories and tools
available from Sealey. (Lathe not included)
3. SPECIFICATION
Dimensions (HxWxD): 765mm x 1040mm x 420mm
Nett Weight: 39kg
4. ASSEMBLY
NOTE: assemble using the xings provided.
8 DO NOT tighten fully until all parts are aligned.

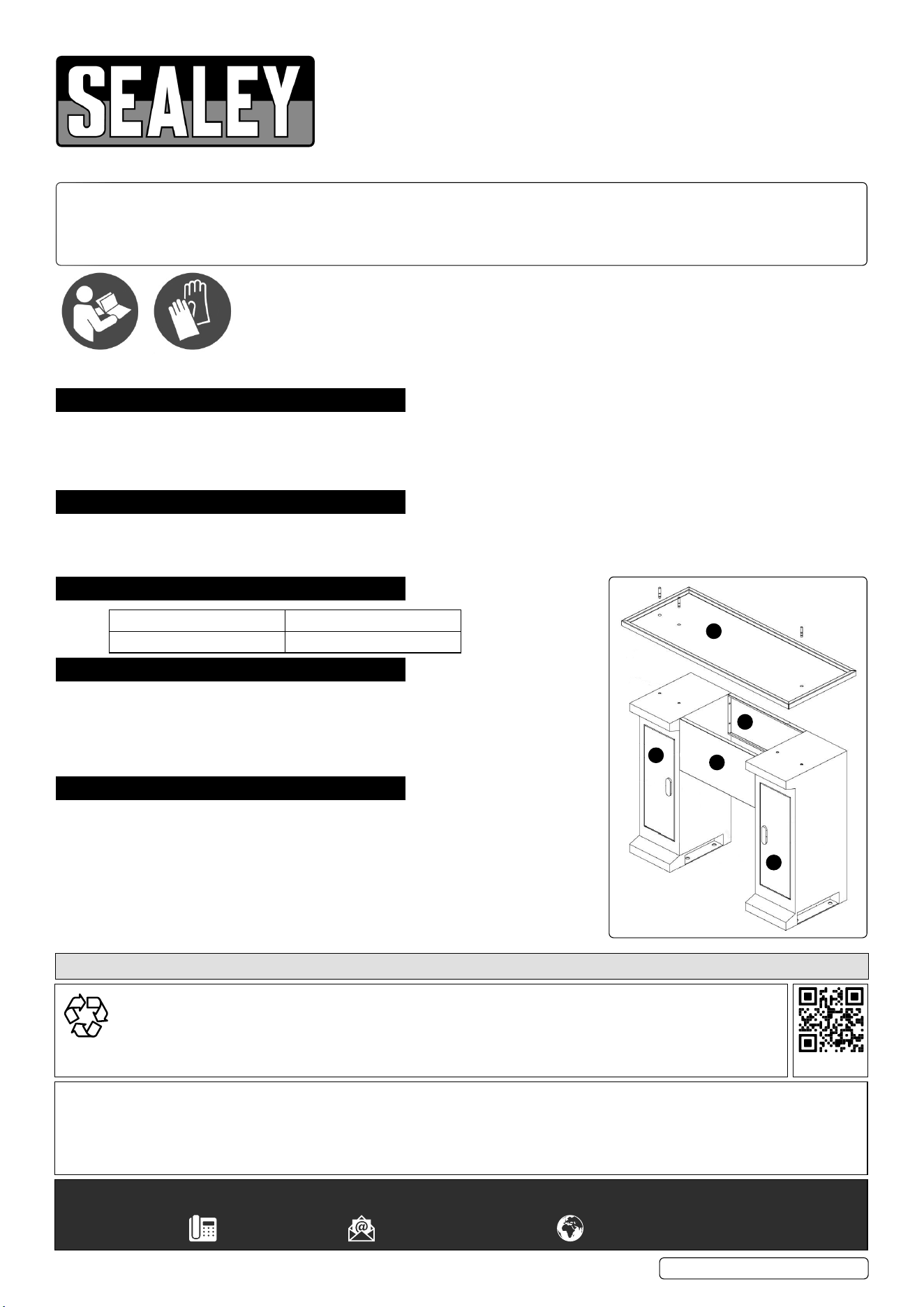

4.1. Attach the left cabinet (1) to the right cabinet (2) using the back connector plate (3)
and the front connector plate (4). Use the smaller xings provided.
4.2. Align the holes and attach the tray (5) to the cabinets using the larger xings.
5. MAINTENANCE
NOTE: the lathe is heavy and should the stand sustain structural damage, it could
collapse/overbalance if not properly repaired/replaced.
5.1. Check the stand regularly to ensure structural integrity.
5.2. Periodically check the stand for rust.
5.3. Occasionally remove the lathe and check the nuts & screws within the stand. Ensure
they are all present, intact and tightened.
5.4. Regularly check the stand for dents, distortion and signs of misuse.
5.5. For information regarding repairs/replacement contact your authorised Sealey stockist.
Refer to
instructions
SM27ST.V3 Issue 1 16/12/2024
Original Language Version
© Jack Sealey Limited
Wear protective
gloves
1
2
3
4
5
Parts support is available for this product. Please email sales@sealey.co.uk or telephone 01284 757500
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
REGISTER YOUR
PURCHASE HERE
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please
email or call our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
