Model: ACOC157, ACOC2411
CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they are supervised or have been given instruction
concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING: You must not cover this appliance. Covering this appliance
presents fire risk and will activate the safety fuse; permanently disabling the
unit.
WARNING: Do not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on their own, unless
constant supervision is provided.
WARNING: To reduce the risk of fire, keep textiles, curtains, or any
flammable material a minimum distance of 1 metre from the air outlet.
General Care and Safety Guide

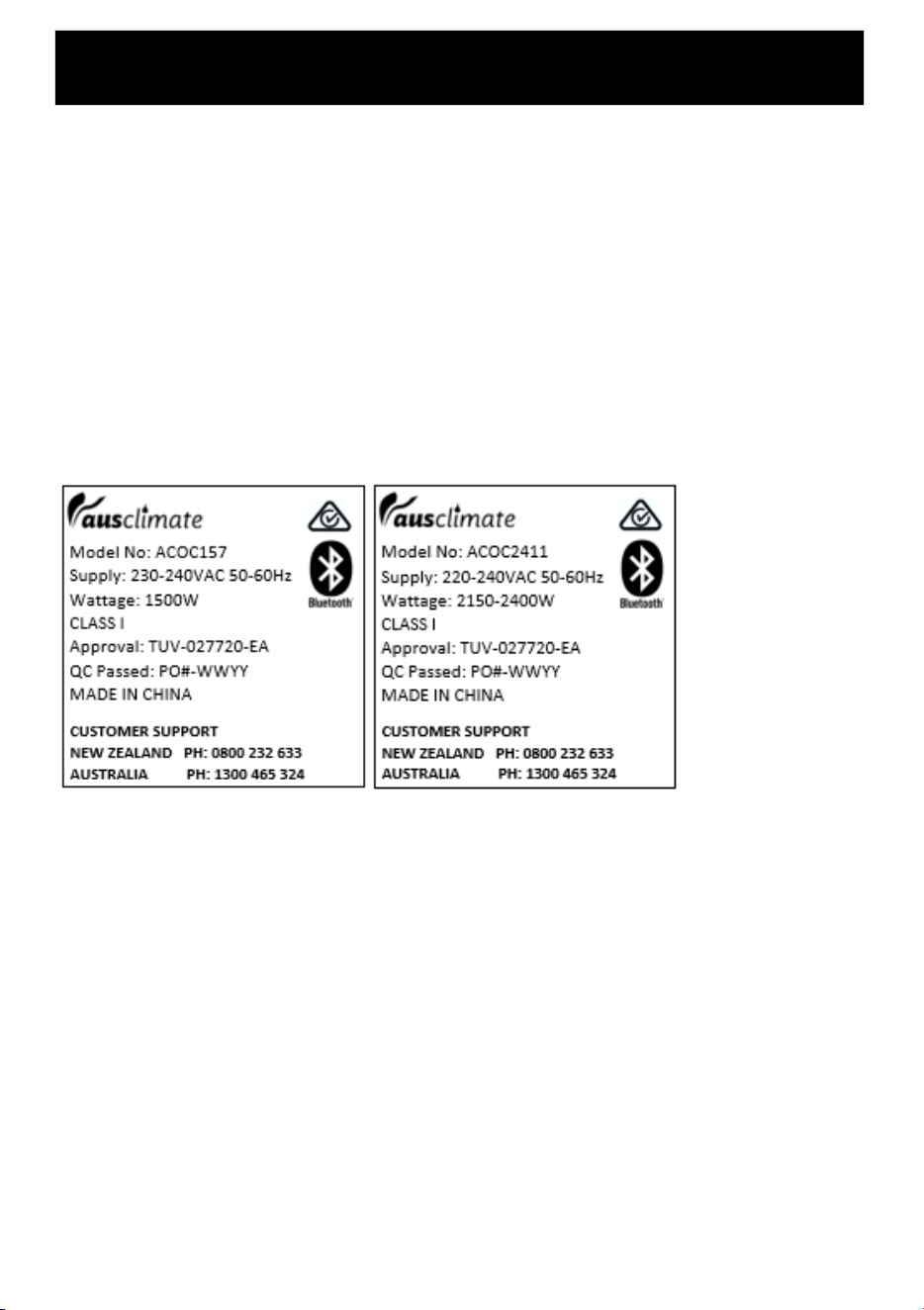

• Use only the voltage specified on the rating label of the appliance.
• Keep all objects at least 1 metre from the front, sides and rear of the
appliance.
• The heater must not be located immediately below a socket outlet.
• This appliance is intended for household use only and not for commercial or
industrial use.
• Indoor use only.
• Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or
injury.
• Do not use the appliance if it has been dropped or damaged.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE
INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
• Never use the appliance to dry clothes.
• Always unplug appliance when not in use.
• When the appliance has been unpacked, check it for transport damage and
ensure all parts have been delivered. If parts are missing or the appliance has
been damaged, contact the Customer Services Team.
• Do not use if there are visible signs of damage to the appliance.
• Do not connect the appliance to mains supply until completely assembled and
adjusted.
• Ensure hands are dry before handling the plug or main unit.
• Ensure appliance is on a flat, stable, heat-resistant surface.
• Do not operate with cord set coiled up as a heat build up is likely, which could
be sufficient to become a hazard.
• Carry out regular checks of the supply cord to ensure no damage is evident
• Do not operate this appliance with a damaged cord, plug or after the appliance
malfunctions or has been dropped or damaged in any manner. Take to a
qualified electrical person for examination, electrical service or repair.
• Do not twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed
from any cord storage area and is unrolled before use.
• It is recommended that this appliance is plugged directly into the wall socket.
Power boards are not rated to supply power to high wattage appliances.
• A correctly specified, undamaged extension cord may be used with this
appliance provided it is used in a safe manner.
• Do not remove plug from power socket until the appliance has been switched
off.
• Do not remove plug from power socket by pulling cord; always grip plug.
• Do not place cord under carpet or cover with rugs or furniture. Arrange the cord
so it cannot be tripped over.
• Don’t place appliance on bedding or on thick & long carpet where the openings
may get blocked.
• Switch off and use handle provided when moving
• Do not place appliance close to radiant heat source.
• Do not insert or allow foreign objects to enter any ventilation or exhaust
opening, as this may cause an electric shock, fire or damage to the appliance.
• Do not sit on the appliance.
• Do not use abrasive cleaning products on this appliance. Clean with a damp
cloth (not wet) rinsed in hot soapy water only. Always remove plug from the
mains supply before cleaning.
• Do not operate in areas where petrol, paint or other flammable liquids are used
or stored.
• Do not use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids.
General Care and Safety Guide
• The appliance must not be immersed in any liquids.
• There are no user serviceable parts installed in the unit.
• Do not place the unit in wardrobes or other enclosed spaces as this may cause
fire hazards.
• This unit is not supposed to be used in or around locations where foodstuffs,
works of art or delicate articles of science, etc. are stored.
• If your appliance does not work, or is not working properly, contact the place of
purchase or the Customer Services Team.
• This heater is filled with a precise quantity of special oil. Repairs requiring
opening of the oil container are only to be made by the manufacturer or his
service agent who should be contacted if there is an oil leak
General Care and Safety Guide
Assembly
Assembly Instruction

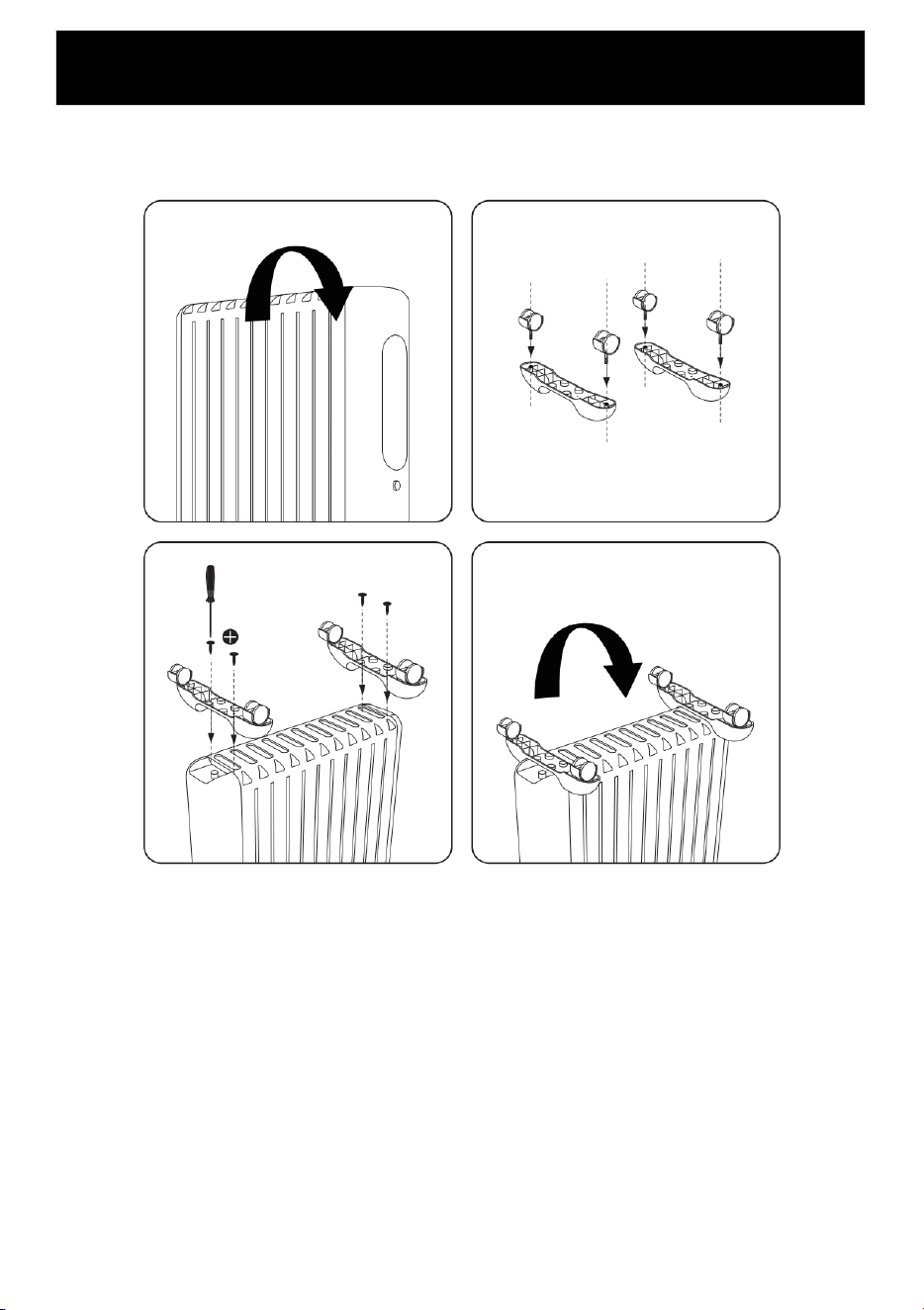

1. Turn the heater upside-down on a scratch-free and stable surface to
prevent damage to the paint finish or your floor surfacing (see Fig 1).
2. Fit the castor wheels into the corresponding position of the foot plate.
3. Fit the wheel assemblies into the bottom of the heater using the 4 screws
provided, as per Fig 2.
4. Carefully turn the heater back to the upright position and place it on a
stable, level surface.
WARNING: Only operate the heater in normal upright position with wheels
attached. If you are in any doubt about installing this product, consult a
qualified electrician.
WARNING: Heater must not be used without the castor plates and castors
fitted.
Always choose a safe location for the heater, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use.
Please follow the below instructions.
WARNING: In order to avoid overheating or fire, do not cover the heater.
WARNING: Keep all objects at least 1 metre from the front, sides and rear
of the appliance.
WARNING: Do not use this heater with a programmer, separate timer,
remote-control system or any other device that switches the heater on
automatically, since a fire risk exists if the heater is covered or positioned
incorrectly.
WARNING: Never leave this heater unattended when in use.
Ensure heater is on a flat, stable, heat-resistant surface.
Once the heater is in a safe operating position and all switches are in the off
position, insert the power plug into the mains outlet and switch on.
CAUTION: Ensure the power cord is not tight because if pulled it may
partially pull the plug from the socket. A partially inserted plug will overheat
the plug and socket and could result in fire.
Operating Your Oil Column Heater
SETTING THE TEMPERATURE
Use the '+' and '-' buttons to set your desired temperature from 5-35 degrees Celsius.
After the desired temperature is set, the temperature digits will stop blinking and the
set temperature will be displayed. The heating indicator icon will light up on the screen
when the heater is heating. When the heater reaches the set temperature it will
switch on and off automatically to maintain the set temperature.
Operating Your Oil Column Heater
Check that the heat control switch is set to Off position before plugging the heater into
the mains supply.
ON/OFF BUTTON
Press the ON/OFF button located below the control panel to turn the power on and
put into standby mode. The stand-by button icon will light up on the screen. Press this
button again to turn the power off.
HEATING SELECTION BUTTON
Press the heating selection button to change the heat mode. There are 3 heat settings
– Low, Middle & High.
ON/OFF
Standby
button
Heating
selection Button
Increase
Button
Decrease
Button
Timer
Button
Brightness/Wi
-Fi Button
Display
Timer
indicator
Heating
indicator
Wi
-Fi indicator
Child
lock
Operating Your Oil Column Heater
TIMER
This heater is equipped with a 24-hour countdown timer. This enables you to preset
the appliance to switch off automatically from between 1 to 24 hours in 1h
increments. Press the timer button once and the screen will display 0H. Press the ‘+’ or
‘-’ buttons to set the timer. Once selected, the display will flash for 3 seconds. The
timer indicator will light up on the screen.
BRIGHTNESS
Press the Brightness/WiFi button to adjust the display brightness. There are 4 different
levels of brightness (100%-50%-25%-0%) and each press of the button will adjust
accordingly.
CHILD LOCK
Press the ‘+’ and ‘-’ buttons together for 3 seconds to activate the child lock. The Child
lock indicator will light up on the screen. The unlock, press the ‘+’ and ‘-’ buttons
together for 3 seconds. The child lock indicator will disappear from the screen.
STANDBY
Press the standby button to turn the heater off and put into standby mode.
WiFi – Downloading and Setting up APP
This APP is supported only on 2.4GHz Wi-Fi channels. Please ensure your phone is
2.4GHz capable
Note this device will only work within your home WIFI system.
This does not operate on 3G or 4G internet connections.
You will need a connection to your home Wi-Fi.

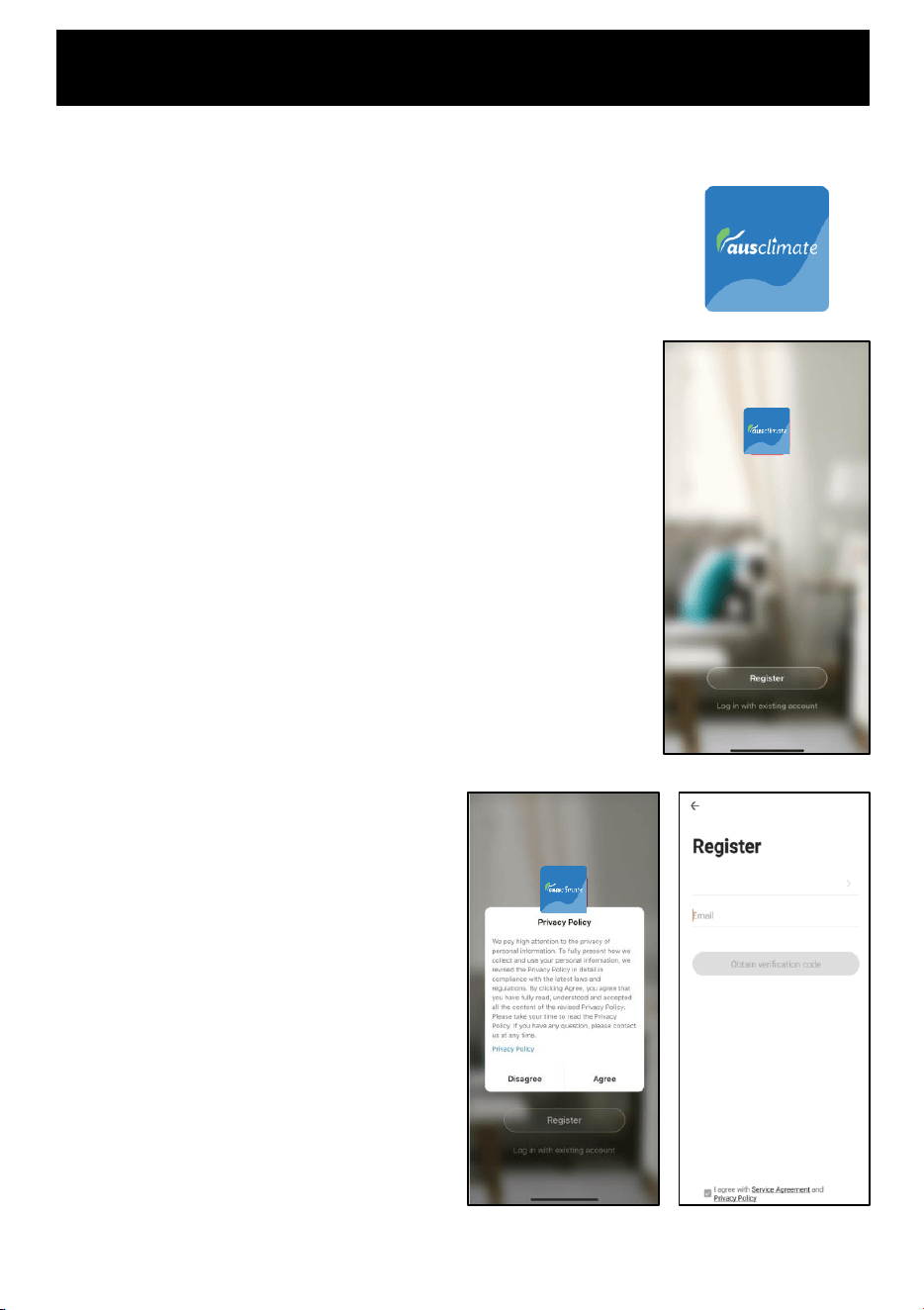

• Tap REGISTER near the bottom of the screen.
• Read and agree to the Privacy Policy.
• Add your email address.
• Tap 'Obtain verification code'
You will then receive an email with a verification
code.
Download Ausclimate mobile APP
• Open the APP Store or Google Play on your mobile phone.
• Open 'Search' and enter ‘Ausclimate’
• Click 'GET' and begin to download and install.
Once downloaded to your phone open the APP
• Enter the verification code from your email.
• Create a password.
• Then tap confirm.
If you haven't received a verification code via
email, tap the resend button and when the
verification code is received follow above steps.
Your APP is now registered and ready for pairing
to your device.
Australia
Pairing APP to Device
Details for pairing this heater to the Ausclimate App can be found at the below website
link.
Either scan the QR code below or enter the website into your browser.
Pairing Mode
To connect to the Ausclimate app you must ensure that your device is
in pairing mode which is where the Wifi Icon is flashing.
If you want to enable WIFI mode then:
- Turn the heater on at the ON/OFF button on the front of the heater.
- Press and hold the Brightness/WiFi Button for 3 seconds. The WiFi
indicator icon will light up on the control panel, and will flash
rapidly.
Quick Connection
- Turn your phone’s Bluetooth ON
- Ensure your device is in Pairing Mode (see instructions above)
- Tap the + on the top right corner to navigate to the main device
screen. Tap ‘Auto Scan’ – your device will appear. Tap the device
and follow the instructions.
- If Quick Connection does not work, follow the manual via the QR
Code above
Operating Your Heater
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).
Ausclimate – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Ausclimate – Australia
Monday – Friday 8am-5pm
Phone 1800 122 100
SUPPORT AND TECHNICAL ADVICE
SAFETY DEVICES
This appliance has three protection devices:
• Tilt Switch - this will automatically turn the appliance off if the appliance is not in
the correct operating position.
• Resettable Thermal Link - this will automatically disconnect the power to the
appliance at a pre-set overheat temperature. After cooling down it will reset and
power on again. If this occurs, investigate what is causing the appliance to overheat.
CAUTION: The appliance generates heat during use. Precautions must be
taken to prevent the risk of burns, scalds, fires or other damage to persons.
CARE AND CLEANING
The heater requires regular cleaning to ensure trouble free operation:
• Unplug the heater from the mains supply before cleaning.
• Ensure that the heater has been allowed to cool down completely before cleaning.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
• Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and
dirt.
• Never use solutions such as petrol, thinners or polishing agents.
• Ensure the heater is dry before plugging back into the mains supply.
This appliance cannot be serviced. Do not attempt to dismantle.
There are no user serviceable parts. For service or repair, contact an authorised
electrical service technician.
When disposing of the appliance, follow the local council regulations concerning
disposal of oil.
SCAN HERE
FOR HELP
www.ausclimate.com.au
www.ausclimate.co.nz
Troubleshooting
Two Year Warranty
Thank you for purchasing this Ausclimate product. Your product is warranted against faults and manufacture when used in normal
domestic use for a period of two years. In non-domestic use Ausclimate limits the voluntary warranty to three months.
Ausclimate present consumers with the option of extending their warranty by a further two years to a total warranty period of four
years, if the unit is registered on the Ausclimate website.
Ausclimate undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the
goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Ausclimate Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Ausclimate – New Zealand
CDB Media Ltd.
PO Box 100-707
N.S.M.C
Auckland
Phone 0800 232 633
www.ausclimate.co.nz
Ausclimate – Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone 1800 122 100
www.ausclimate.com.au
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.ausclimate.com.au
New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.ausclimate.co.nz
