4 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Download this owner's manual at http://www.lg.com
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
Anti-tip Device
To reduce the risk of tipping, the appliance must be secured by a properly installed anti-tip device. To
check if the device is installed properly, verify that the anti-tip device is engaged, or grasp the top rear
edge of the range back guard and carefully attempt to tilt it forward. Refer to the installation section for
instructions.
WARNING
• A child or adult can tip the range and be killed.
• Install the anti-tip device to the structure and/or the range. Verify the anti-tip device has been properly
installed and engaged by following the guide on the anti-tip bracket template.
• Engage the range to the anti-tip device by following the guide on the anti-tip bracket template. Ensure
the anti-tip device is re-engaged when the range is moved by following the guide on the anti-tip bracket
template.
• Re-engage the anti-tip device if the range is moved. Do not operate the range without the anti-tip device
in place and engaged.
• See installation instructions for details.
• Failure to do so can result in death or serious burns to children or adults.
• Do not rest large, heavy items such as whole turkeys on the open oven door. The range could tip forward
and cause injury.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Do not step or sit on the oven door. The range could be tipped and injury might result from spilled hot
liquid, food, or the range itself.
• Never remove the oven legs. The range will not be secured to the anti-tip bracket if the legs are
removed.
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this
product, follow basic precautions, including the following:
Installation
• Do not line the oven walls, racks, bottom, or any other part of the oven with aluminum foil or any other
material. Doing so will disrupt heat distribution, produce poor baking results and cause permanent
damage to the oven interior. (Aluminum foil will melt to the interior surface of the oven.)
• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space
located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be
reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom
of the cabinets.
• Do not use aluminum foil or any other material to line the oven bottom. Improper installation of these
liners may result in a risk of electric shock or fire.
• Make sure your range is properly installed and grounded by a qualified installer, according to the
installation instructions. Any adjustment and service should be performed only by qualified range
installers or service technicians.
Operation
• Do not leave children alone or unsupervised near the appliance when it is in use or is still hot. Children
should never be allowed to sit or stand on any part of the appliance as they could be injured or burned.
• Children should not be allowed to play with controls or other parts of the appliance.
• DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN. Heating elements may be hot
even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns.
During and after use, do not touch or let clothing or other flammable materials contact heating elements
or interior surfaces of the oven until they have had sufficient time to cool. Other surfaces, such as oven
vent openings and surfaces near these openings, oven doors, and windows of oven doors, also get hot
and may cause burns if not cooled.
• Surface units may be hot even though they are dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS or
let clothing or other flammable materials contact surface units or areas near units until they have had
sufficient time to cool. This includes the cooktop and the area above the oven door.
• Use care when opening the oven door. The hot air and steam that escape can cause burns to hands, face
and eyes. Let hot air or steam escape from the oven before removing or replacing food in the oven.
• Do not use plastic to cover food. Use foil or oven-safe lids only.
aAnti-tip bracket
bLeveling leg
6 IMPORTANT SAFETY INSTRUCTIONS
• Never attempt to dry a pet in the oven.
• Never use your appliance for warming or heating the room.
• Always use pot holders or oven mitts when removing food from the oven or the surface element.
Cookware will be hot. Use only dry pot holders. Moist or damp pot holders on hot surfaces may result in
burns from steam. Do not let the pot holder touch hot heating elements. Do not use a towel or other
bulky cloth to remove food.
• Do not heat unopened food containers. Pressure in the containers may cause them to burst which may
result in injury.
• Be certain that all packing materials are removed from the appliance before operating. Keep plastic,
clothes, paper, and other flammable materials away from parts of the appliance that may become hot.
• Do not allow aluminum foil to contact heating elements.
• Do not touch the hot surface between the bottom of the oven door and the top of the drawer on the
front of the oven while the oven is in operation. The surface becomes hot and can cause burns and other
injury.
• Do not touch the oven racks while they are hot.
• If a rack must be moved while the oven is hot, do not let the pot holder contact the hot heating element
in the oven.
• Pull the oven rack to the stop-lock position when loading and unloading food from the oven. This helps
prevent burns caused by touching hot surfaces of the door and oven walls.
• Do not use the oven if a heating element develops a glowing spot during use or shows other signs of
damage. A glowing spot indicates the heating element may fail and present a potential burn, fire, or
shock hazard. Turn the oven off immediately and have the heating element replaced by a qualified
service technician.
• During oven operation, the upper surface of the drawer cavity becomes hot and may cause burns. Never
allow children to remain unsupervised near the oven or cooktop.
• Do not put your hand inside the drawer while the oven is operating.
• Keep Oven Vent Duct Unobstructed. Areas near the vent may become hot during operation and may
cause burns. Do not block the vent opening. Avoid placing plastics near the vent as heat may distort or
melt the plastic.
Maintenance
• Do not allow children to crawl into the oven.
• Let hot cookware and utensils cool in a safe place, out of reach of small children.
• If the door glass, cooktop glass, surface, or oven heating unit of the range are damaged, discontinue use
of the range and call for service.
• Do not allow anyone to climb, stand or hang on the door, storage drawer or cooktop. They could
damage the range and even tip it over, causing severe personal injury.
• Always disconnect power from the appliance before servicing.
• Before replacing the oven light, switch off the electrical power to the oven at the main fuse or circuit
breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.
• Never pour cold water over a hot oven for cleaning. Doing so may cause the oven to malfunction.
Risk of Fire and Flammable Materials
• Do not store or use flammable material in the oven or near or on the cooktop. Flammable materials
include paper, plastic, pot holders, linens, wall coverings, curtains, and gasoline or other flammable
vapors and liquids such as grease or cooking oil. These materials can be ignited when the oven and
cooktop are in use.
• Use extreme caution when moving or disposing of hot grease.
7IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
SAVE THESE INSTRUCTIONS
• Wear proper apparel. Do not wear loose-fitting or hanging garments, which may ignite if they contact
hot surfaces, and cause severe burns.
• Do not use the oven for drying clothes. Only use the oven for its intended purpose.
• If cabinet storage is provided directly above the cooking surface, only use it to store items that are not
frequently used and can be safely stored in an area subjected to heat. Temperatures may be unsafe for
volatile items such as flammable liquids, cleaners or aerosol sprays.
• Do not use water on grease fires. Should an oven fire occur, leave the oven door closed and turn the
oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher. Do not put water
or flour on the fire. Flour may be explosive and water can spread a grease fire and cause personal injury.
CAUTION
CAUTION
• To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when
using this product, follow basic precautions, including the following:
Operation
• Always heat fat slowly, and watch as it heats.
• If frying combinations of oils and fats, stir them together before heating.
• Use a deep fat thermometer, if possible, to prevent overheating fat beyond the smoking point.
• Use the least possible amount of fat for effective shallow or deep-fat frying. Filling the pan with too much
fat can cause spillovers when food is added.
• Accessible parts may become hot when the broiler is in use.
• Do not place food or cookware on the bottom of the oven cavity. Doing so will cause permanent damage
to the oven bottom finish.
• When using cooking or roasting bags in the oven, follow the manufacturer’s directions.
Maintenance
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All
other servicing should be performed by a qualified technician.
• Do not use harsh etching, abrasive cleaners or sharp metal scrapers to clean the oven door glass
because they can scratch the surface. Scratches may cause the glass to shatter.
• Make sure oven lights are cool before cleaning.
• Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to
rub, damage, or move the gasket.
• Clean in the self-clean cycle only parts listed in this manual. Before self-cleaning the oven, remove the
broiler pan, all oven racks and any cookware, utensils or food from the oven.
• Do not store items of interest to children in cabinets above a range or on the back guard of a range.
Children climbing on the range to reach items could be seriously injured.
8 PRODUCT OVERVIEW
PRODUCT OVERVIEW
Product Features

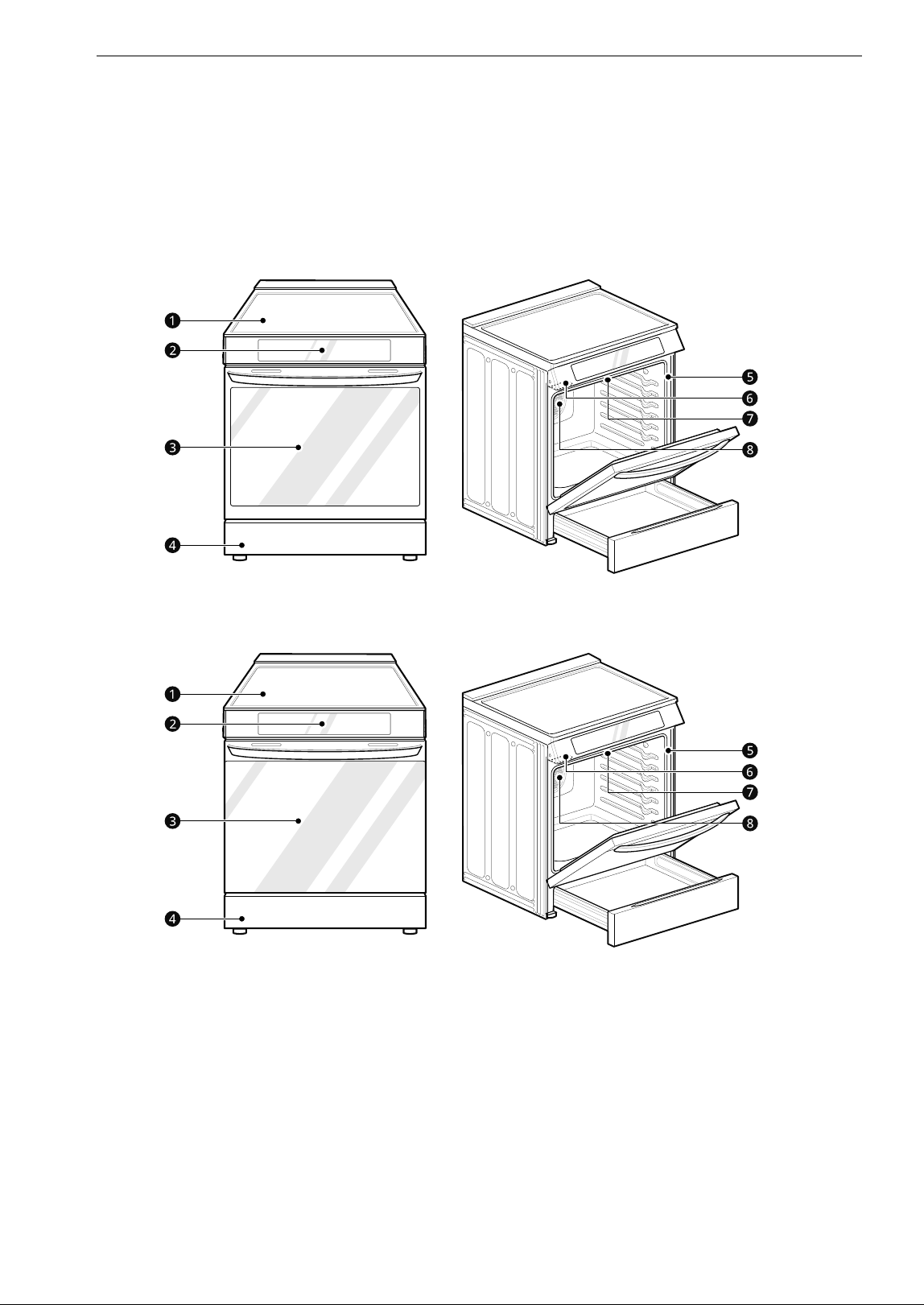

Exterior & Interior
Model: LSIL633T*E
Model: LSIL6332*E
a Cooktop
b Cooktop Controller
c Oven Door
d Storage Drawer
e Gasket
f Model & Serial Number Plate
g Broil Heater
h Convection Heater
9PRODUCT OVERVIEW
ENGLISH
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Accessories

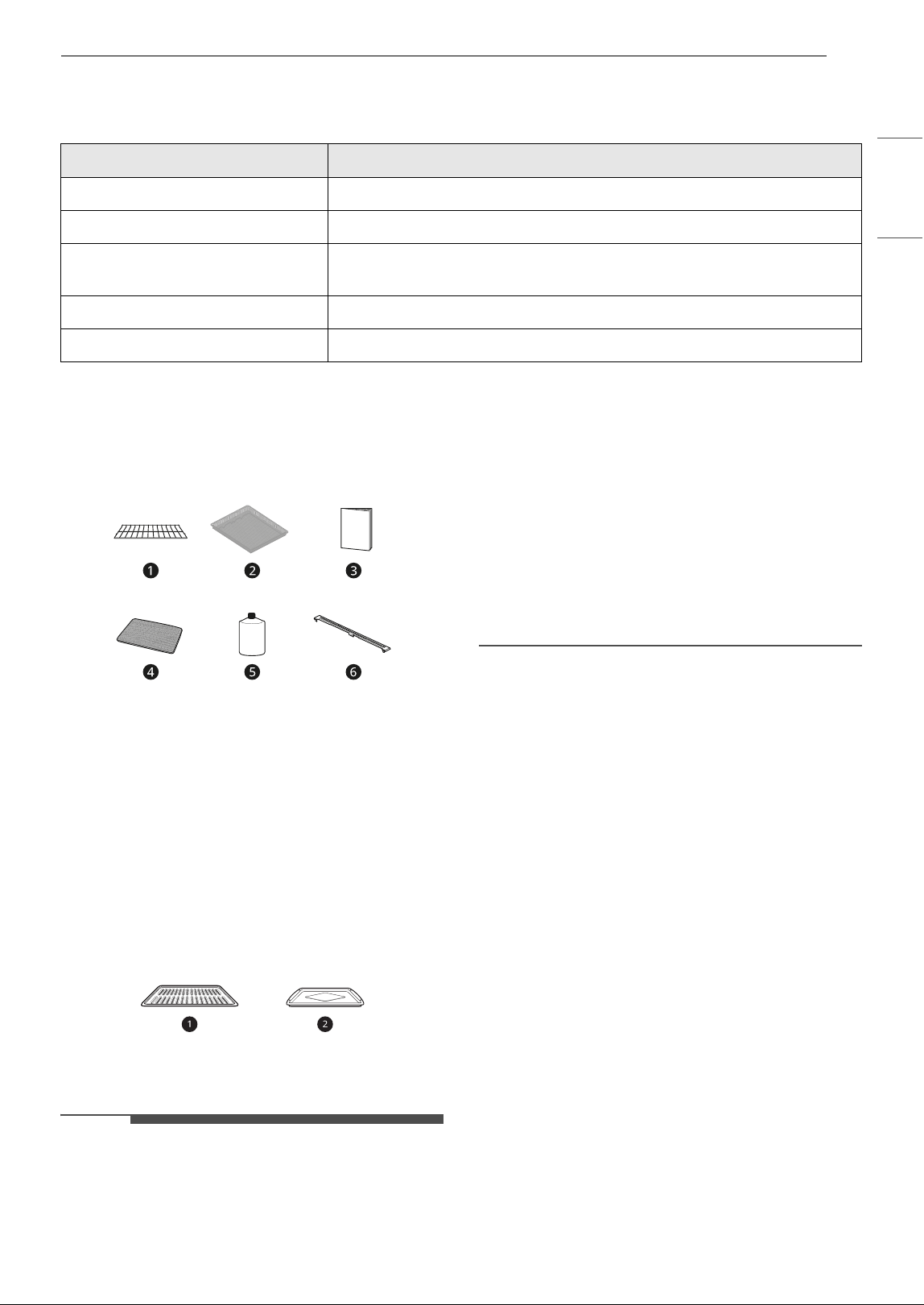

Included Accessories
a Standard Rack (2 ea)
b Air Fry Tray (1 ea)
• LSIL633T*E model only
c Owner’s Manual (1 ea)
d Non-scratch Scouring Pad (1 ea)
e Cooktop Cleaner (1 ea)
f Rear Filler (1 ea)
Optional Accessories (sold separately)
a Grid
b Broiler Pan
NOTE
• Contact LG Customer Service at 1-800-243-0000
(1-888-542-2623 in Canada) if any accessories
are missing.
• For your safety and for extended product life,
only use authorized components.
• The manufacturer is not responsible for product
malfunction or accidents caused by the use of
separately purchased, unauthorized
components or parts.
• The images in this guide may be different from
the actual components and accessories, which
are subject to change by the manufacturer
without prior notice for product improvement
purposes.
Oven Range Models LSIL633T*E, LSIL6332*E
Description Electric Slide In Oven Range
Electrical requirements 11.4 kW 120/240 VAC or 9.45 kW 120/208 VAC
Exterior Dimensions 29 7/8" (W) x 36 1/2" (H) x 26 7/8" (D) (D with door closed)
75.8 cm (W) x 92.7 cm (H) x 68.3 cm (D) (D with door closed)
Height to cooking surface 36" (91.3 cm)
Total capacity 6.3 cu. ft.
Cleaner
10 INSTALLATION
INSTALLATION
Before Installing
Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to
another location.
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.
Tools Needed
a Phillips Screwdriver
b Flat-blade Screwdriver
c 1/4" Nut Driver
d Pliers
e Tape Measure
f Level
g Adjustable Wrench
h Drill
i Safety Glasses
j Gloves

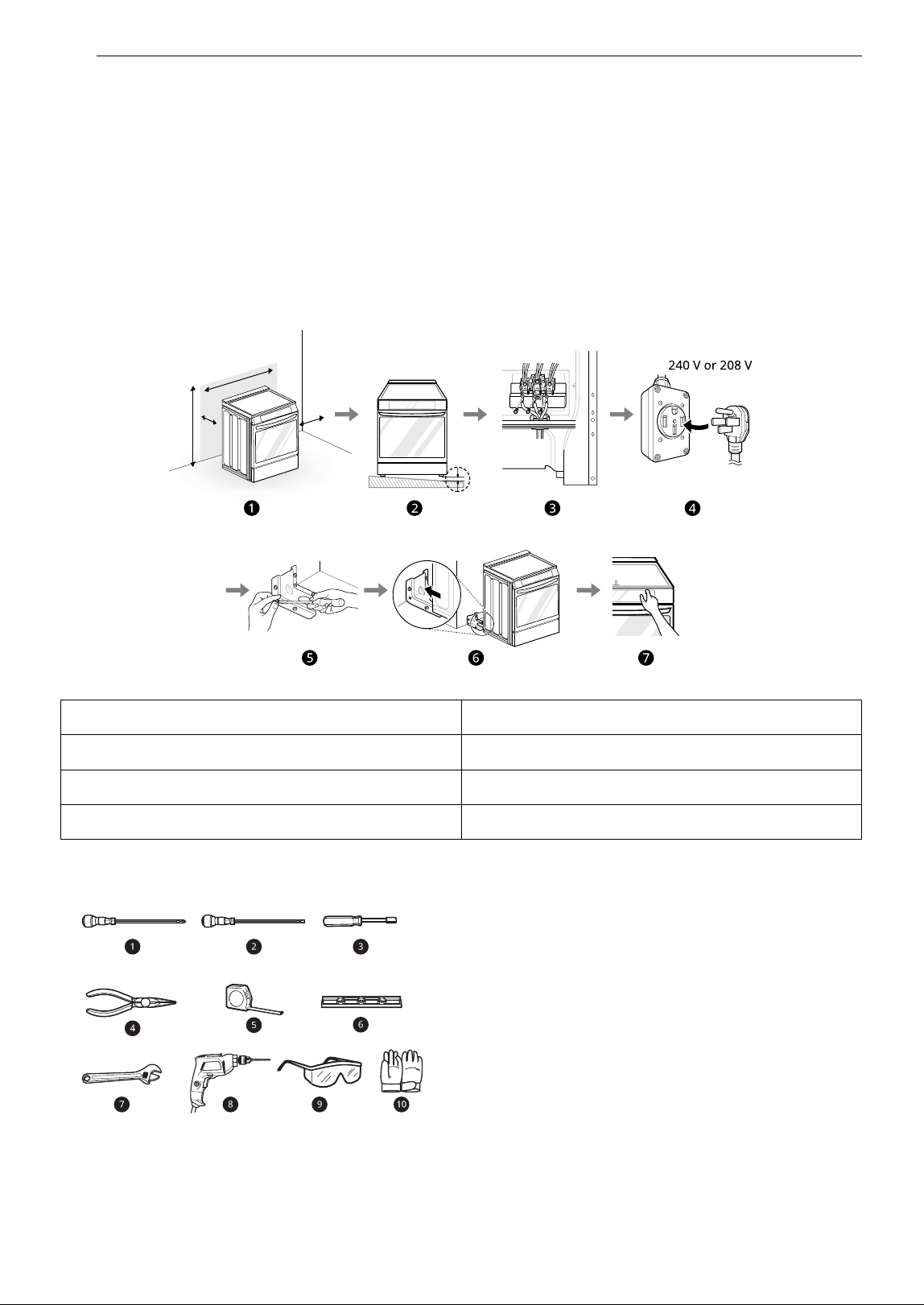

a Check and choose the proper location e Install anti-tip device
b Level the range f Engage the anti-tip device
c Connect electric range g Test run
d Plug in the power cord
11INSTALLATION
ENGLISH

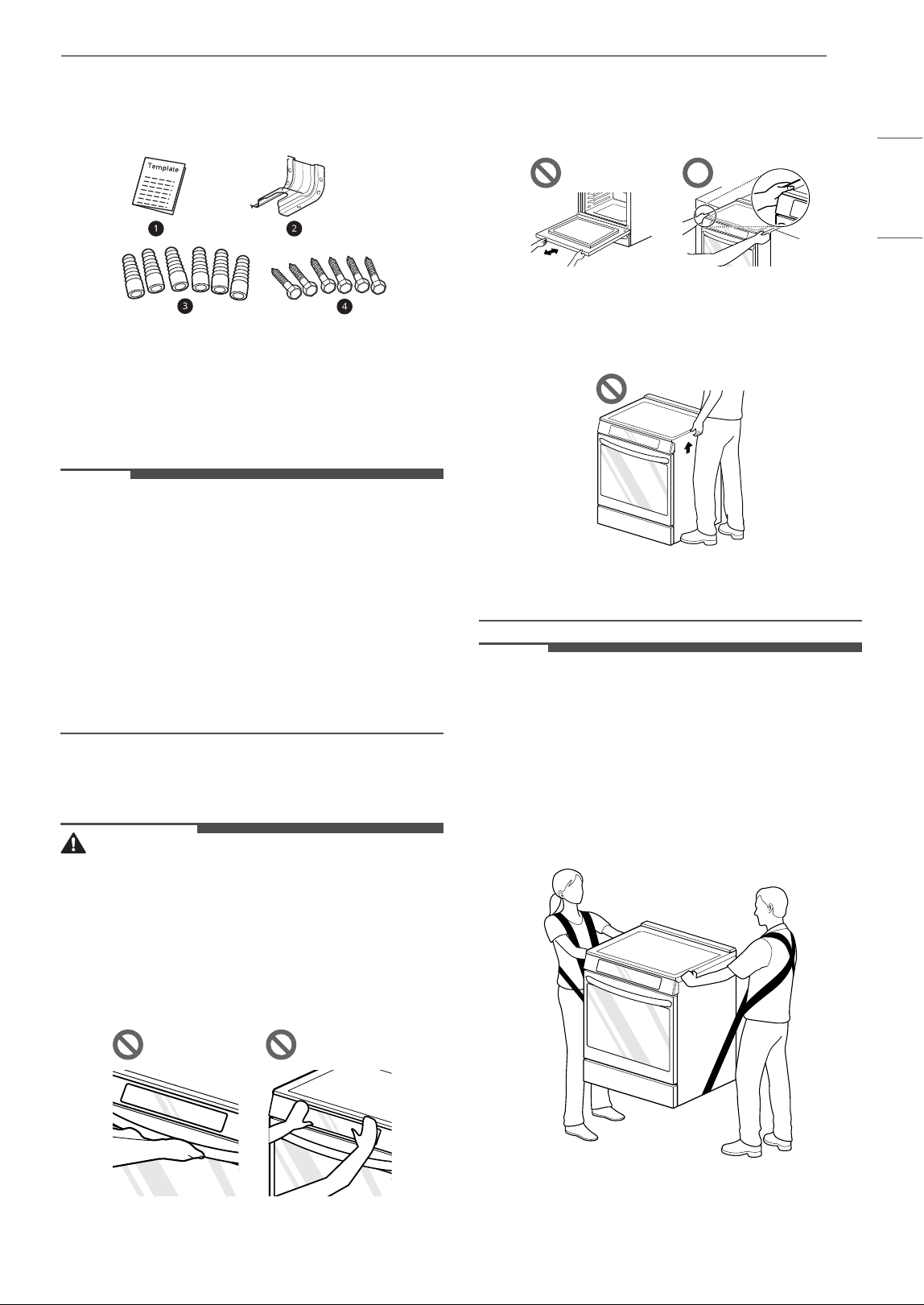

Parts
Parts Provided
a Template (1 ea)
b Anti-tip Bracket Kit (1 ea)
c Anchor Sleeves (6 ea)
d Lag Bolts (6 ea)
NOTE
• Observe all governing codes and ordinances.
• Have the installer show you the location of the
circuit breaker or fuse. Mark it for easy
reference.
• As when using any appliance generating heat,
there are certain safety precautions you should
follow.
• Be sure your range is installed and grounded
properly by a qualified installer or service
technician.
Unpacking and Moving the Range
WARNING
• You should use two or more people to move and
install the range. (Excessive Weight Hazard)
Failure to do so can result in back or other injury.
• Do not use the door handles to push or pull the
range during installation or when moving the
range out for cleaning or service. Doing so can
result in serious damage to the range.
• Do not push or pull the range by grabbing the
open oven door or cooktop only. Doing so can
result in serious damage to the range.
• Do not lift the range using the cooktop or door
handle. Doing so can cause damage and
improper operation of the range.
• To reduce the risk of burns, do not move this
appliance while it is hot.
NOTE
• The image may differ from the actual model.
• Your range is heavy and can be installed on soft
floor coverings such as cushioned vinyl or
carpeting. Use care when moving the range on
this type of flooring. Use a belt when moving the
range to prevent damaging the floor. Or slide
the range onto cardboard or plywood to avoid
damaging the floor covering.
12 INSTALLATION
NOTE
• Remove packing material, tape and any
temporary labels from your range before using.
Do not remove any warning-type labels, the
model and serial number label, or the Tech
Sheet that is located on the back of the range.
• To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue
residue can also be easily removed by rubbing a
small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm
water and dry.
• Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your range.
13INSTALLATION
ENGLISH

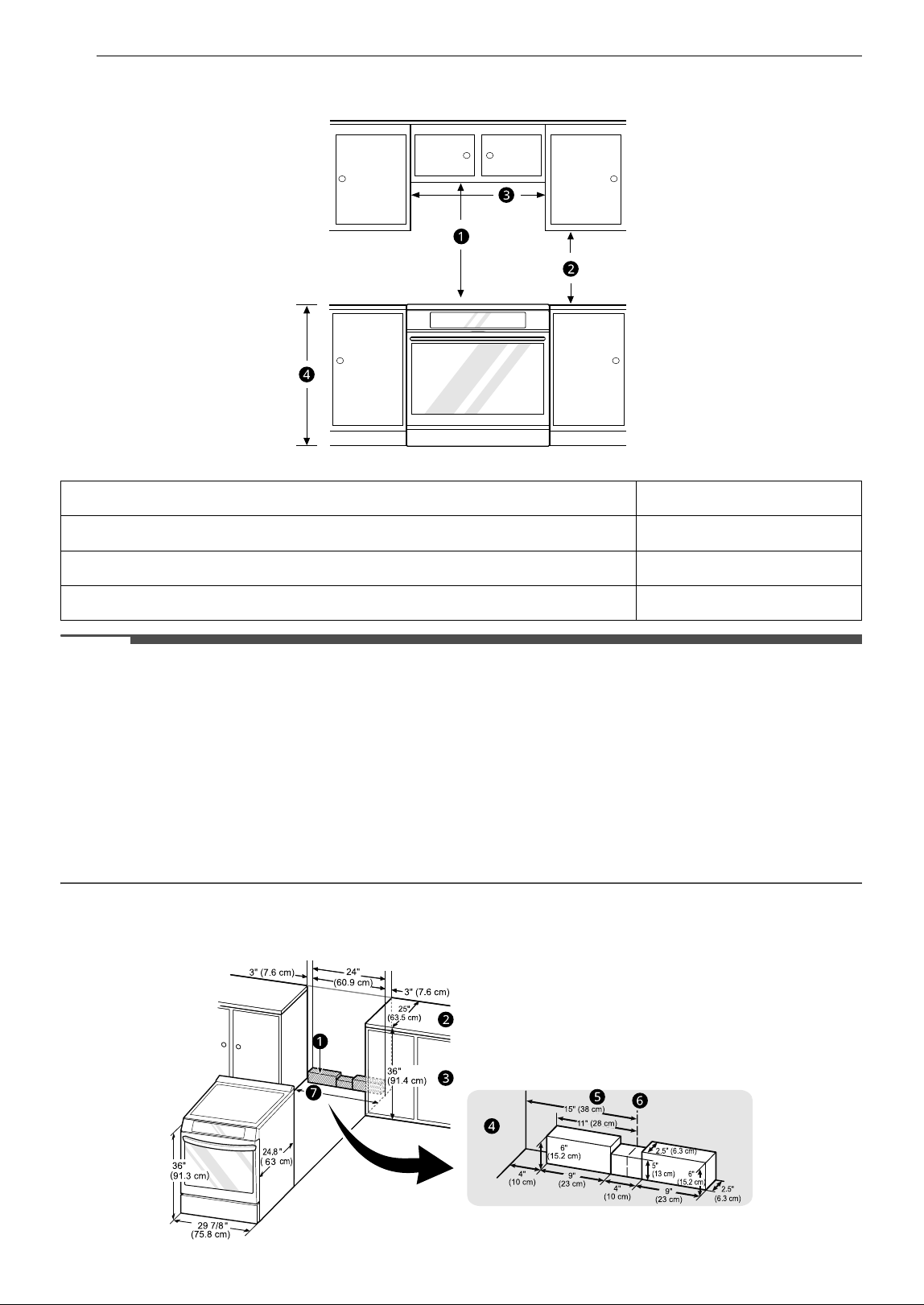

Choosing the Proper Location

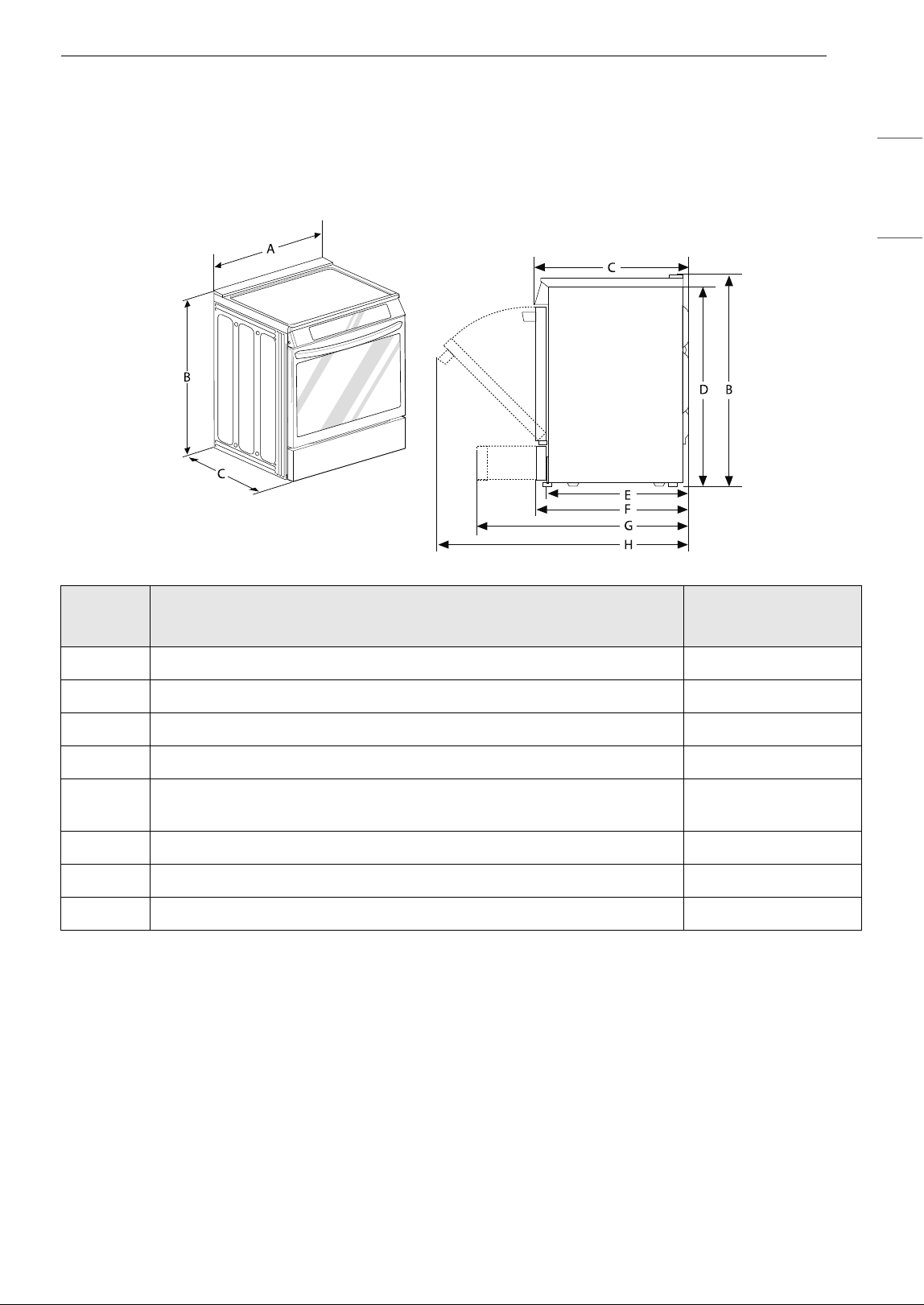

Dimensions and Clearances
Dimensions
- Dimensions
LSIL633T*E
LSIL6332*E
AWidth 29 7/8" (758.8 mm)
BHeight 36 1/2" (927.9 mm)
C Depth (Includes Door Handle) 29 5/16" (743.9 mm)
D Height (Excludes Vent Trim) 36" (913.0 mm)
E
Depth (Includes only the product body that is loaded into the cabinet.
Excludes door, drawer, and handles)
24 3/4" (629.4 mm)
F Depth (Excludes Door Handle) 26 7/8" (683.0 mm)
G Depth when drawer is fully opened 36 1/16" (916.2 mm)
H Depth when door is fully opened 48 5/8" (1235.9 mm)
14 INSTALLATION
Minimum Dimensions
NOTE
• a 30" (76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an
unprotected wood or metal cabinet; or 24" (60.9 cm) minimum when bottom of wood or metal cabinet is
protected by not less than 1/4" (0.64 cm) flame retardant millboard covered with not less than no. 28
MSG sheet steel, 0.015" (0.381 mm) stainless steel, 0.024" (0.610 mm) aluminum or 0.020" (0.508 mm)
copper.
• b 15" (38.1 cm) minimum between countertop and adjacent cabinet bottom.
• Important – Save for the use of the local electrical inspector.
• For installation in Canada, a free-standing range is not to be installed closer than 15/32" (12 mm) from
any adjacent surface.
Clearances
a Minimum distance from top of range to combustible surface overhead
30" (76.2 cm)
b Minimum distance from countertop to overhead cabinets at side
15" (38.1 cm)
c Minimum opening in overhead cabinets
30" (76.2 cm)
d Height of countertop
36" (91.3 cm)
15INSTALLATION
ENGLISH
Electricity
The range should always be plugged into its own individual properly grounded electrical outlet.
• This prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
• It is recommended that a separate circuit serving only this appliance be provided.
Flooring
CAUTION
• Use an insulated pad or 1/4 in. (0.64 cm) plywood under the range if installing the range over carpeting.
Ambient Temperature
CAUTION
• Make sure wall coverings, countertops and cabinets around the range can withstand the heat (up to 194
°F) generated by the range. Discoloration, delamination or melting may occur. This range has been
designed to comply with the maximum allowable wood cabinet temperature of 194 °F.
• Before installing the range in an area covered with linoleum or other synthetic floor covering, make sure
the floor covering can withstand temperatures of at least 200 °F (93 °C).

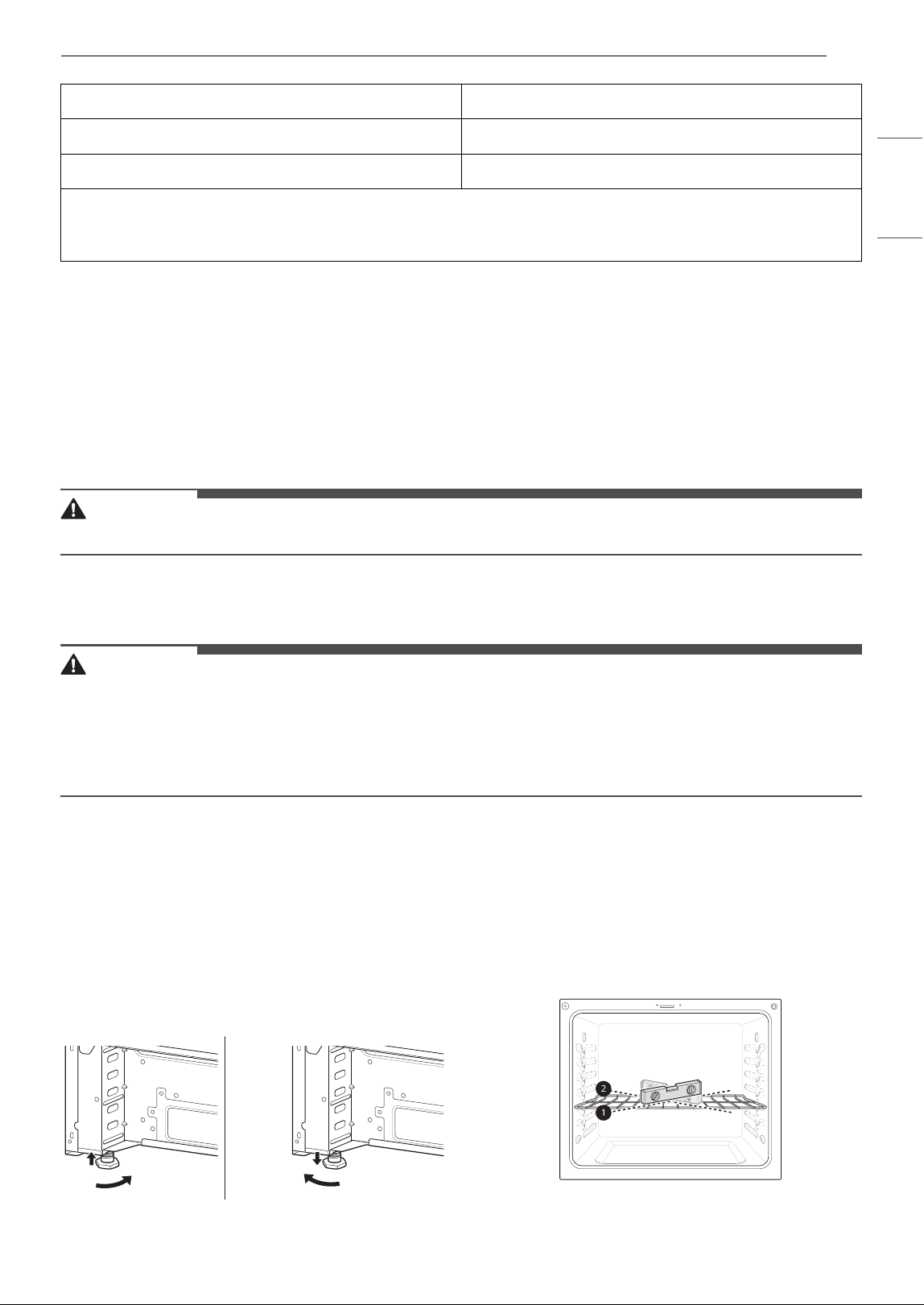

Leveling
Leveling the Range
Level the range by adjusting the leveling legs with
a wrench. Extending the legs slightly may also
make it easier to insert the rear leg into the anti-tip
bracket.
Checking Adjustments
1 Place the level diagonally on the oven rack,
and check each direction for level.
• First check direction a. Then check
direction b.
a Acceptable Electrical Outlet Area b Normal Countertop Depth
c Counter Top Height d Cabinet
e Wall f Center
g Cabinet Opening
= 30" (76.2 cm) For U.S.A
= 30" (76.2 cm) ~ 31" (78.7 cm) For CANADA
16 INSTALLATION
2 If the level doesn’t show that the rack is level,
adjust the leveling legs with a wrench.
Connecting Electricity
Electrical Requirements
This appliance must be installed and grounded on
a branch circuit by a qualified technician in
accordance with the National Electrical code ANSI/
NFPA NO. 70 - latest edition.
All wiring should conform to local and NEC codes.
This range requires a single-phase, 3 wire, AC 120/
208 V or 120/240 V 60 Hz electrical system. Use
only a 3-conductor or a 4-conductor UL - listed
range cord with closed-loop terminals, open-end
spade lugs with upturned ends or similar
termination. Do not install the power cord without
a strain relief.
A range cord rated at 40 amps with 120/240 V
minimum range is required. If a 50 amp range
cord is used, it should be marked for use with 1 3/
8" diameter connection openings. This appliance
may be connected by means of a conduit or power
cord. If a conduit is being used, refer to "3-Wire
Connection: Conduit" or "4-Wire Connection:
Conduit" sections.
WARNING
• Allow 2 to 3 ft (61.0 cm to 91.4 cm) of slack in the
line so that the range can be moved if servicing
is ever necessary.
• The power supply cord and plug should not be
modified. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
• Using an extension cord to connect the power is
prohibited. Connect the power cord and plug
directly.
• Electrical ground is required on this appliance.
• Make sure that the power cord is not pinched by
the range or heavy objects. Failure to do so can
result in serious burns or electrical shock.
Specified Power Cord Kit Rating
Case 1
• Voltage: 120/240 volts (3-wire)
• Range rating: 8,750 W - 16,500 W
• Specified rating of power supply-cord kit,
amperes: 40 A or 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/8"
- Conduit: 1 1/8"
Case 2
• Voltage: 120/240 volts (3-wire)
• Range rating: 16,501 W - 22,500 W
• Specified rating of power supply-cord kit,
amperes: 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/4"
- Conduit: 1 3/8"
Case 3
• Voltage: 120/208 volts (3-wire)
• Range rating: 7,801 W- 12,500 W
• Specified rating of power supply-cord kit,
amperes: 40 A or 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/8"
- Conduit: 1 1/8"
Case 4
• Voltage: 120/208 volts (3-wire)
• Range rating: 12,501 W - 18,500 W
• Specified rating of power supply-cord kit,
amperes: 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/4"
- Conduit: 1 3/8"
3, 4 - Wire Electrical Wall Receptacle
4 Wire receptacle (14-50R)
3 Wire receptacle (10-50R)
17INSTALLATION
ENGLISH

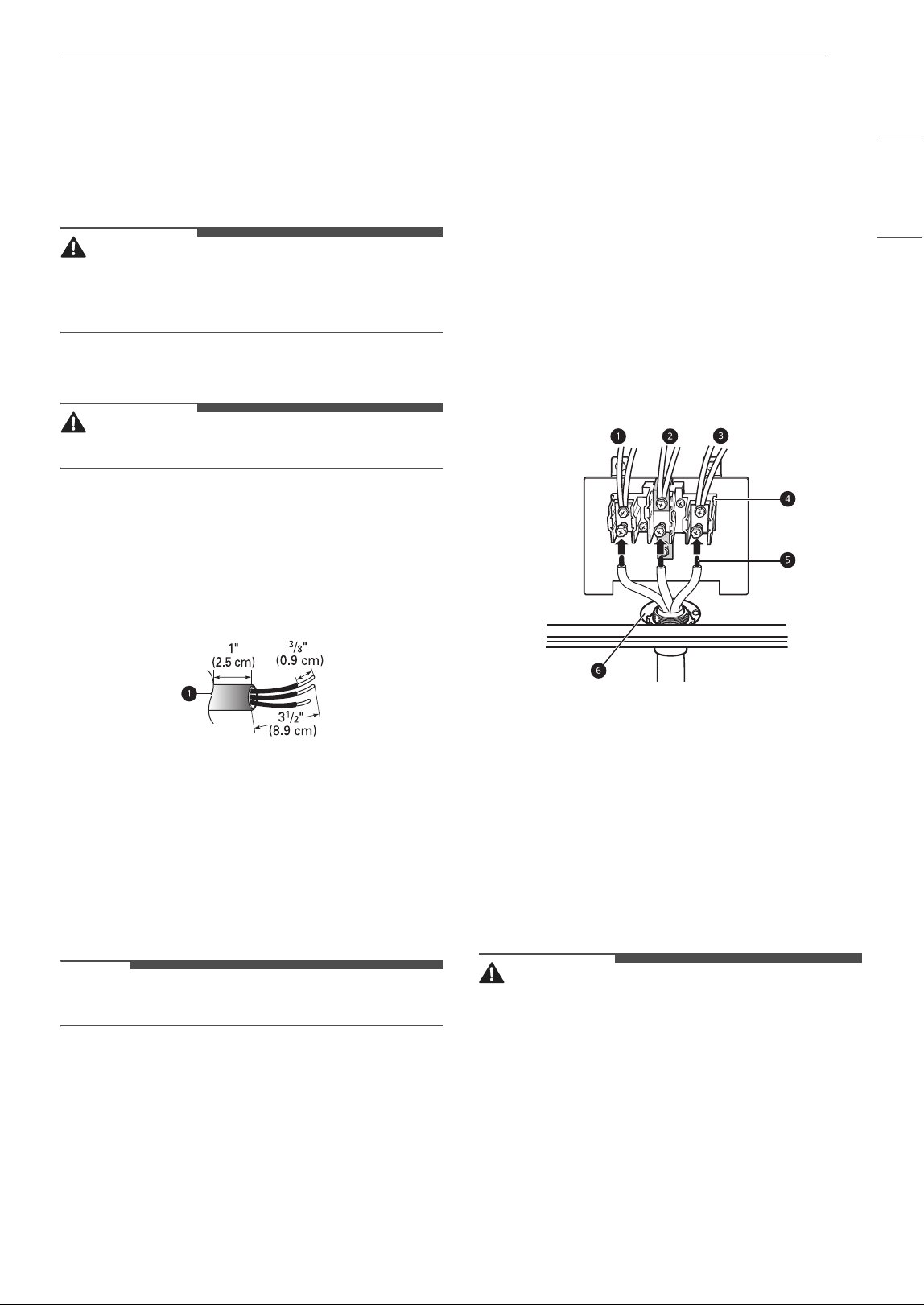

Connecting the Power Cord /
Conduit

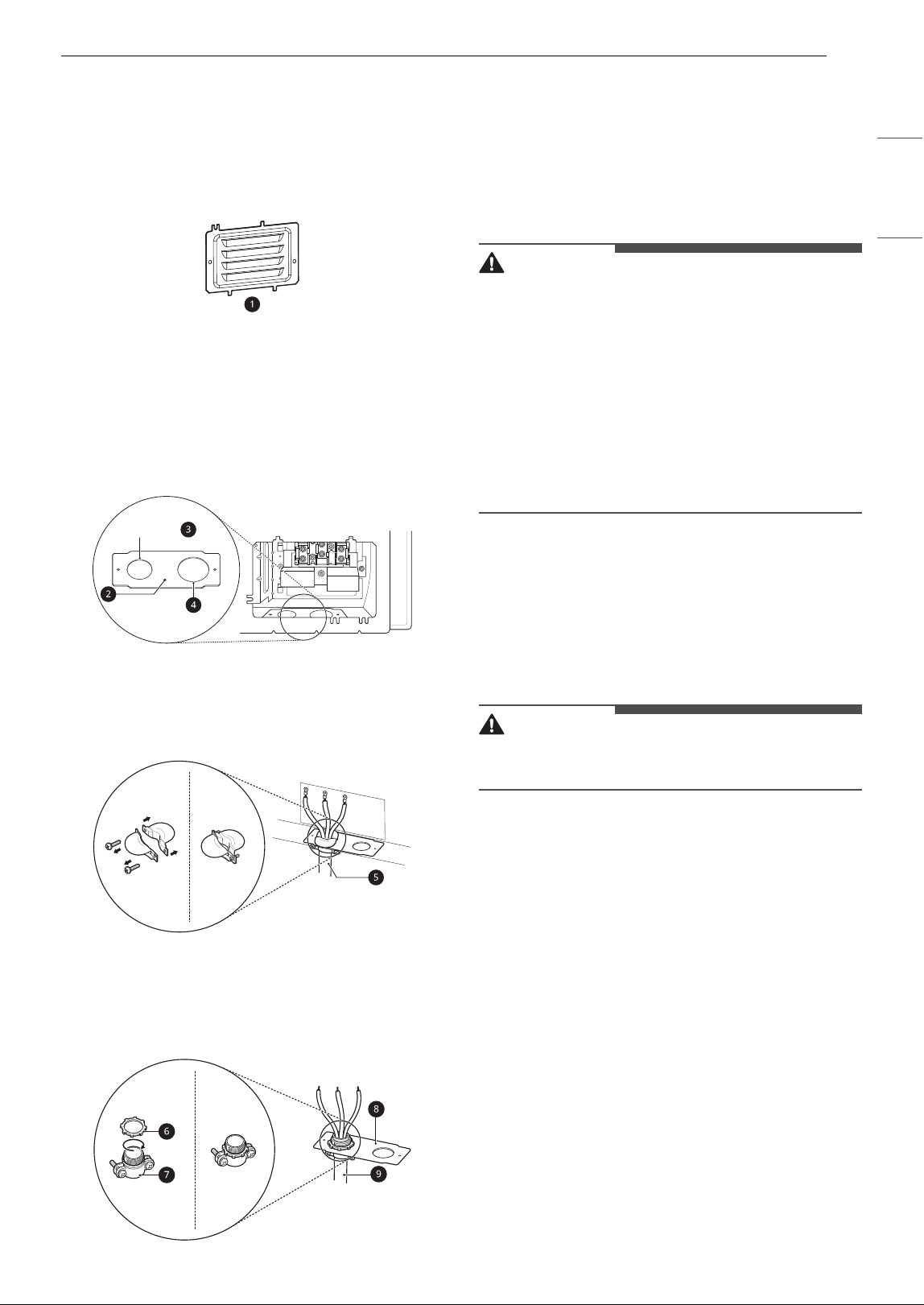

The rear access cover a must be removed. Loosen
the two screws with a screwdriver. The terminal
block will then be accessible.
Use the cord/conduit connection plate b to install
the power cord or conduit. Leave the connection
plate as installed for power cord installations.
Remove the connection plate for conduit
installations and rotate it to use the smaller 1 1/8
in. (2.8 cm) conduit hole c instead of the 1 3/8 in.
(3.5 cm) power cord hole d.
For power cord e installations, hook the strain
relief over the 1 3/8 in. (3.5 cm) power cord hole
located below the rear of the oven. Insert the
power cord through the strain relief and tighten it.
For conduit installations, insert the conduit strain
relief in the 1 1/8 in. (2.8 cm) conduit hole. Then
install the conduit through the body of the strain
relief and fasten the strain relief with its ring.
f Ring
g Body
h Cord/Conduit Connection Plate
i Conduit
3-Wire Connection: Power Cord
WARNING
• The white middle (neutral or ground) wire of a 3-
wire power cord or a 3-wire conduit has to be
connected to the middle post of the main
terminal block. The remaining two wires of the
power cord or conduit have to be connected to
the outside posts of the main terminal
connection block. Failure to do so can result in
electrical shock, severe personal injury or death.
• If screws are not tightened securely, it can result
in electrical spark and severe personal injury or
death.
1 For power cord installations, hook the strain
relief over the power cord hole (1 3/8") located
below the rear of the oven.
2 Insert the power cord through the strain relief
and tighten it.
CAUTION
• Do not install the power cord without a strain
relief.
3 Remove the lower 3 screws from the terminal
block and retain them.
4 Insert the 3 screws through each power cord
terminal ring and into the lower terminals of
the terminal block.
• Make sure that the white center wire is
connected to the center lower position of
the terminal block.
1
1
/
8
"
(2.8 cm)
1
3
/
8
"
(3.5 cm)

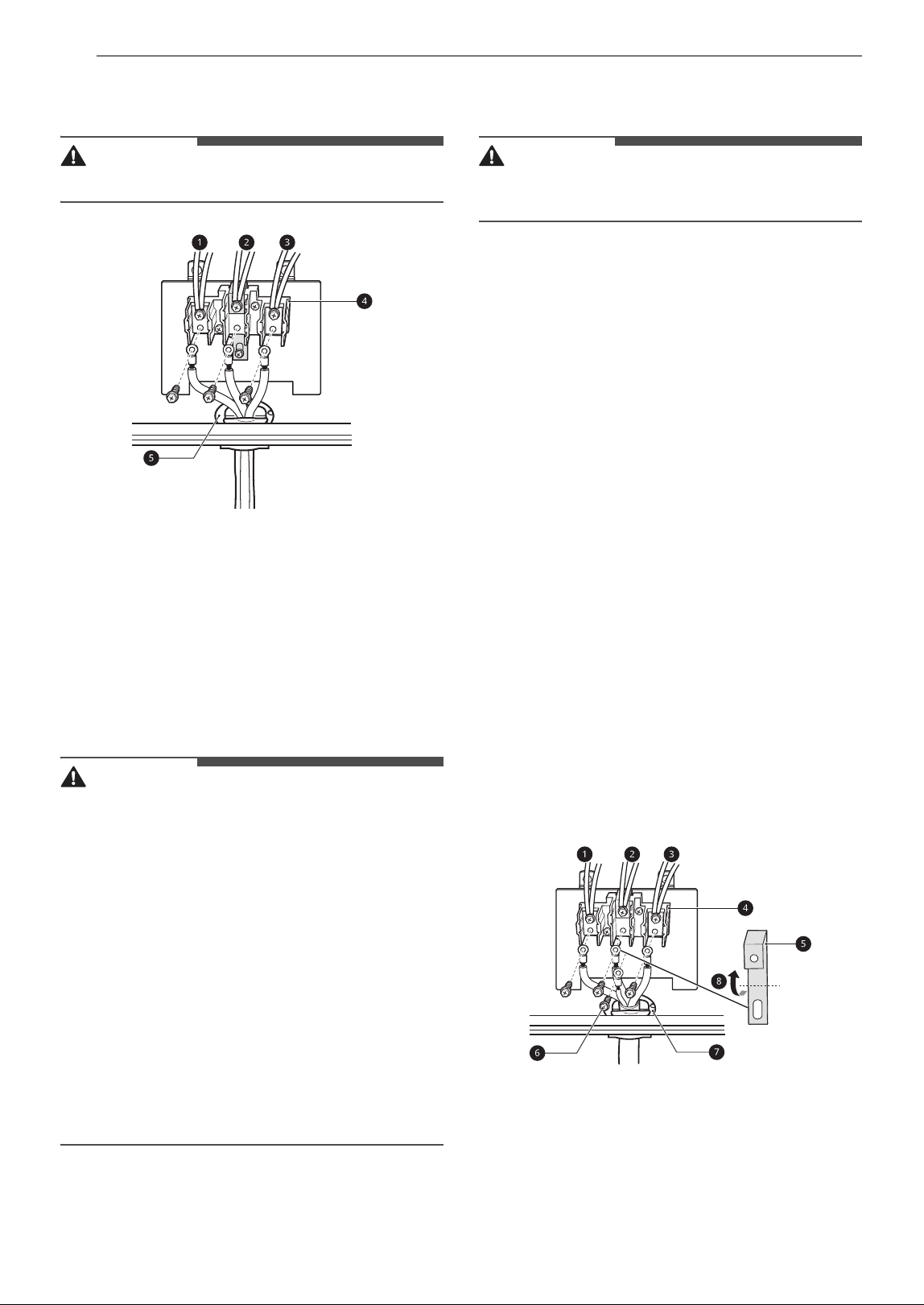

18 INSTALLATION
5 Tighten the 3 screws securely into the
terminal block.
CAUTION
• Do not remove the ground strap connections.
a Black
b White
c Red
d Terminal Block
e Cord/Conduit Connection Plate
4-Wire Connection: Power Cord
WARNING
• Only a 4-conductor power-supply cord kit rated
120/240 volts, 50 amperes and marked for use
with ranges with closed-loop connectors or
opened spade lugs with upturned ends must be
used. The white middle (neutral) wire of the
power cord or 4-wire conduit has to be
connected to the middle post of the main
terminal block. The other two wires of the power
cord or conduit have to be connected to the
outside posts of the main terminal connection
block. The 4th ground wire (green) must be
connected to the frame of the range with the
ground screw. Failure to do so can result in
electrical shock, severe personal injury or death.
• If screws are not tightened securely, it can result
in electrical spark and severe personal injury or
death.
1 For power cord installations, hook the strain
relief over the power cord hole (1 3/8") located
below the rear of the oven.
2 Insert the power cord through the strain relief
and tighten it.
CAUTION
• Do not install the power cord without a strain
relief.
3 Remove the lower 3 screws from the terminal
block and retain them.
4 Remove the ground screw and bend the end
of the ground strap up so the slot is over the
hole of the center screw removed in step 3.
5 Insert the ground screw into the power cord
ground wire (green) terminal ring and secure
it to the range frame.
6 Insert the 3 screws through each power cord
terminal ring and into the lower terminals of
the terminal block.
• Make sure that the white center (neutral)
wire is connected to the center lower
position of the terminal block.
7 Tighten the 3 screws securely into the
terminal block.
• The center screw now attaches the bent up
ground strap to the block.
a Black
b White
c Red
d Terminal Block
e Ground Strap
19INSTALLATION
ENGLISH
f Ground Screw
g Cord/Conduit Connection Plate
h Bend strap up and attach.
3-Wire Connection: Conduit
WARNING
• If screws are not tightened securely, it can result
in electrical spark and severe personal injury or
death.
Conduit Installations
CAUTION
• Do not install the conduit without a strain relief.
1 Remove the cord/conduit connection plate
from the rear of the oven and rotate it.
• The conduit hole (1 1/8") must be used.
2 Prepare the conduit wires as shown below.
a Cord/Conduit connection plate
3 Install the conduit strain relief.
1) Insert the strain relief in the 1 1/8 in. (2.8
cm) conduit hole.
2) Install the conduit through the body of
the strain relief and fasten the strain relief
with its ring.
NOTE
• For conduit installations, purchase a strain relief.
4 Reinstall the cord/conduit connection plate.
Conduit Connections
If the wire in the conduit is copper it must be 8 or
10 AWG wiring.
If the wire in the conduit is aluminum it must be 6
or 8 AWG wiring.
1 Loosen the lower 3 screws from the terminal
block.
2 Insert the bare wire (white/neutral) end
through the center terminal block opening.
Do not remove the ground strap connections.
3 Insert the two side bare wire ends into the
lower left and the lower right terminal block
openings.
4 Tighten the 3 screws securely into the
terminal block. (approximately 35 - 50 IN-LB)
a Black
b White
c Red
d Terminal Block
e Wire Ends
f Conduit Connection Plate
4-Wire Connection: Conduit
WARNING
• The white middle (neutral) wire of the power
cord or 4-wire conduit has to be connected to
the middle post of the main terminal block. The
other two wires of the power cord or conduit
have to be connected to the outside posts of the
main terminal connection block. The 4th ground
wire (green) must be connected to the frame of
the range with the ground screw. Failure to do
so can result in electrical shock, severe personal
injury or death.

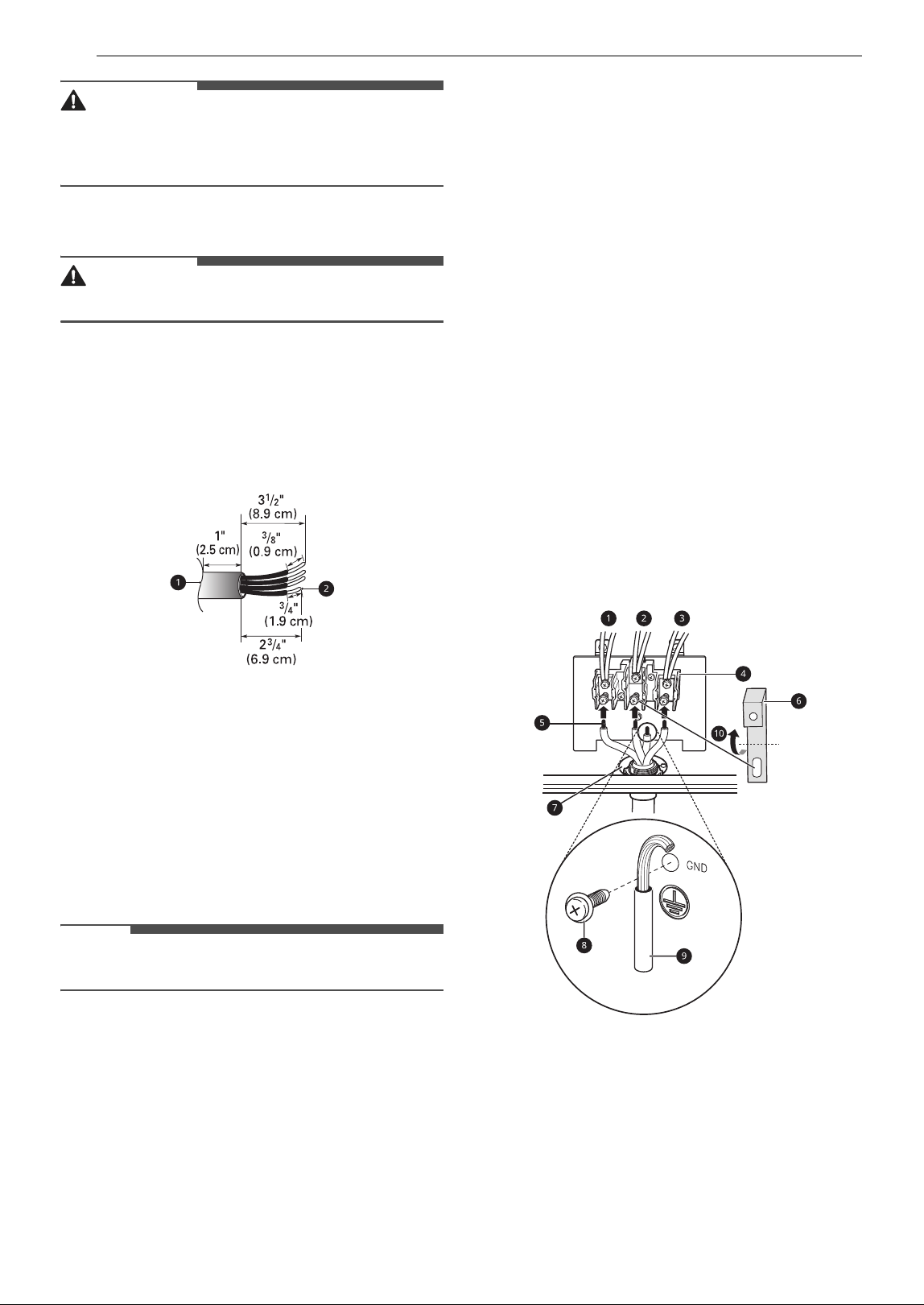

20 INSTALLATION
WARNING
• If screws are not tightened securely, it can result
in electrical spark and severe personal injury or
death.
Conduit Installations
CAUTION
• Do not install the conduit without a strain relief.
1 Remove the cord/conduit connection plate
from the rear of the oven and rotate it.
• The conduit hole (1 1/8") must be used.
2 Prepare the conduit wires as shown below.
a Cord/Conduit Connection Plate
b Ground Wire
3 Install the conduit strain relief.
1) Insert the strain relief in the 1 1/8 in. (2.8
cm) conduit hole.
2) Install the conduit through the body of
the strain relief and fasten the strain relief
with its ring.
NOTE
• For conduit installations, purchase a strain relief.
4 Reinstall the cord/conduit connection plate.
Conduit Connections
If the wire in the conduit is copper it must be 8 or
10 AWG wiring.
If the wire in the conduit is aluminum it must be 6
or 8 AWG wiring.
1 Loosen the 2 lower left and right screws from
the terminal block. Remove the lower 2 center
screws. Do not discard any screws.
2 Remove the ground screw and bend the end
of the ground strap up so the slot is over the
hole of the center screw removed in step 1.
3 Attach the ground (green) bare wire end to
the range frame and secure it in place with
the ground screw.
4 Insert the bare wire (white/neutral) end
through the center terminal block opening.
The center screw now attaches the bent up
ground strap to the block.
5 Insert the two side bare wire ends into the left
and the right terminal block openings.
Tighten the 3 screws securely into the
terminal block. (approximately 35 - 50 IN-LB)
a Black
b White
c Red
d Terminal Block
e Wire Ends
f Ground Strap
21INSTALLATION
ENGLISH
g Conduit Connection Plate
h Ground Screw
i Ground Wire
j Bend strap up and attach.

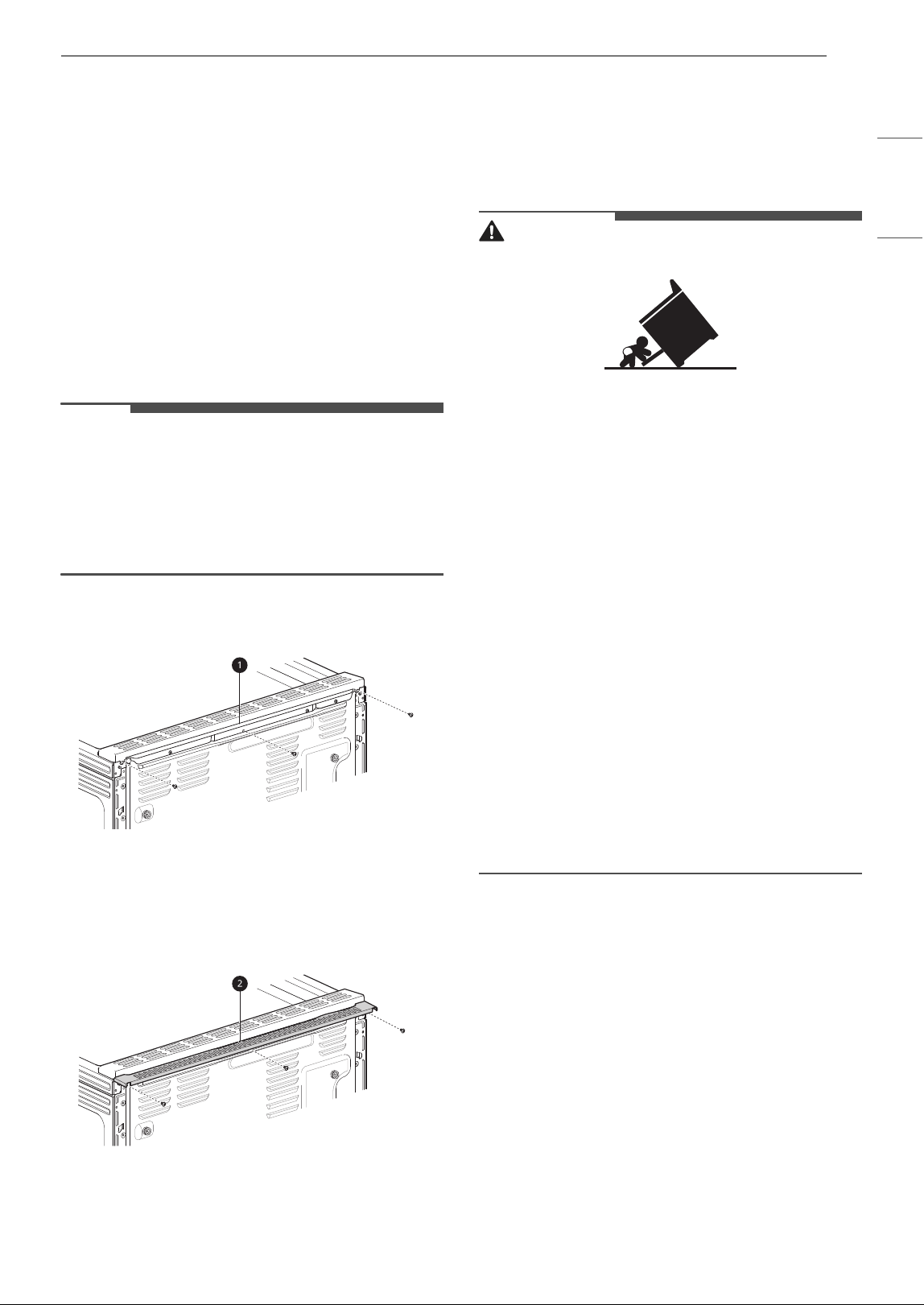

Optional Rear Filler
Installing the Rear Filler
If the counter does not bridge the opening at the
rear wall, the rear filler kit that is provided with the
slide in range will be needed.
NOTE
• If the countertop depth is greater than 25 3/8"
there will be a gap between the filler kit and the
back wall.
• If the countertop depth is less than 24 3/4", the
control panel will not sit flush with the
countertop.
1 Using a screwdriver, remove the three screws
holding the rear top plate in place.
a Rear Top Plate
2 Attach the rear top plate and filler assembly
as shown, using three screws removed in step
1.
b Rear filler
Anti-tip Device
Installing the Anti-tip Device
Tip Hazard
WARNING
• A child or adult can tip the range and be killed.
• Install the anti-tip device to the structure and/or
the range. Verify the anti-tip device has been
properly installed and engaged by following the
guide on the anti-tip bracket template.
• Engage the range to the anti-tip device by
following the guide on the anti-tip bracket
template. Ensure the anti-tip device is re-
engaged when the range is moved by following
the guide on the anti-tip bracket template.
• Re-engage the anti-tip device if the range is
moved. Do not operate the range without the
anti-tip device in place and engaged.
• See installation instructions for details.
• Failure to follow these instructions can result in
death or serious burns to children or adults.
• Range must be secured with an approved anti-
tip device.
• The range could be tipped by standing, sitting or
leaning on an open door if the range or anti-tip
device is not properly installed.
• The use of this device does not preclude tipping
of the range when not properly installed.
• After installing the anti-tip device, verify that it is
in place by carefully attempting to tilt the range
forward.
• This range has been designed to meet all
recognized industry tip standards for all normal
conditions.
• The installation of the anti-tip device must meet
all local codes for securing the appliance.
Using the Anti-tip Bracket Template
• The anti-tip bracket is packaged with an
installation template. The instructions include
necessary information to complete the
installation. Read and follow the range
installation instruction sheet.
22 INSTALLATION
•Screws c must enter wood or concrete.
a Anti-tip Bracket
b Wall Plate
Engaging the Anti-tip Device
a Anti-tip Bracket
b Leveling Leg
1 Slide the range against the wall, making sure
the back leg slides into and engages the anti-
tip bracket.
2 Check for proper installation by grasping the
front edge of the cooktop and carefully
attempting to tilt the range forward.
Test Run
Test the Range Before Use
Check if the range is properly installed and run a
test cycle.
1 Before using the cooktop for the first time,
clean it with a ceramic cooktop cleaner. This
helps protect the top and makes cleanup
easier.
2 Fill an induction-capable pot with water and
place it on a surface element. Turn on the
surface element. The water should heat.
Repeat for all surface elements.
3 After checking all the surface heating
elements, check the locking system by
pressing Control Lock for three seconds. The
oven controller should lock and the cooktop
should not operate while the Control Lock
function is turned on. Press Control Lock for
three seconds to disable Control Lock.
4 Now check the oven's operation. Press Bake.
350 °F appears in the display. Press START.
5 The oven should finish preheating in 15
minutes, and the convection fan should
operate while the oven is preheating.
6 After checking the oven's operation, turn the
temperature up to 450 °F and leave the oven
on for at least an hour to help remove any oil
which might cause smoke and odors when
first using the oven.
NOTE
• Smoke may come out of the range when it is first
used.
23OPERATION
ENGLISH
OPERATION
Control Panel
Control Panel Features
Model: LSIL633T*E, LSIL6332*E
a Oven Controls
Press a button to select the oven operating
mode.
b Display
Press any button on the control panel to
activate the display.
c Clock
Press the button to set the time of day.
d EasyClean
Press the button to set the EasyClean.
e START
Press the button to start all oven features.
f Cook Time
Press the button to set the desired amount of
time for food to cook. The oven shuts off when
the set cooking time runs out.
g Timer On/Off
Press the button to set or cancel the timer.
h Settings
Press the button to select and adjust oven
settings.
i +/- Buttons
•Press the plus (+) button to increase cooking
time or oven temperature.
•Press the minus (-) button to decrease
cooking time or oven temperature.
j Light
Press the button to turn the oven light on or
off.
k Control Lock
Press and hold the button for 3 seconds to lock
the control panel.
l Remote Start / Wi-Fi
• Press the button to set Remote Start.
• Press and hold the button for 3 seconds to
connect the appliance to a Wi-Fi network.
m Self Clean
Press the button to set the Self Clean.
n CLEAR/OFF
Press the button to end all oven features.
o Cooktop Controls
Press a button to use the cooktop elements.
NOTE
• Flashing Clock
If the colon in the clock display flashes, press
Clock and reset the time, or press any button to
stop the flashing.
24 OPERATION
Cooktop Control Panel Features
a Burner On Indicator
b Hot Surface Indicator
c Power Level Indicator
d ON/OFF Button
Press the button to turn on the cooktop element. The icon indicates the position of the element on the
cooktop.
e +/- Buttons
•Press the plus (+) button to increase the element's power.
•Press the minus (-) button to decrease the element's power.
25OPERATION
ENGLISH
Changing Oven Settings
Clock
The clock must be set to the correct time of day in
order for the automatic oven timing functions to
work properly.
1 Press Clock.
2 Press plus (+) or minus (-) to select the
desired time.
3 Press START.
NOTE
• The time of day cannot be changed during a
timed baking or self-clean cycle.
• To check the time of day when the display is
showing other information, press Clock.
• If no other buttons are pressed within 25
seconds of pressing Clock, the display reverts to
the original setting.
• If the display time is blinking, there may have
been a power failure. Reset the time.
• The control is set to use a 12-hour clock. To set
the clock to 24-hour mode, see the "Settings"
section.
Oven Light
The interior oven light automatically turns on
when the door is opened.
• Press Light to manually turn the oven light on.
NOTE
• The oven light cannot be turned on if the Self
Clean function is active.
Timer On/Off
The Timer serves as an extra timer in the kitchen
that beeps when the set time has run out. It does
not start or stop cooking.
The Timer feature can be used during any of the
other oven control functions.
1 Press Timer On/Off once.
0:00 appears and Timer flashes in the display.
NOTE
•Press Timer On/Off twice to set the time in
minutes and seconds.
•Press Timer On/Off once to set the time in
hours and minutes.
2 Press plus (+) or minus (-) to select the
desired time.
3 Press Timer On/Off to start the Timer. The
remaining time countdown appears in the
display.
NOTE
•If Timer On/Off is not pressed, the display
returns to the time of day.
• If the remaining time is not in the display, recall
the remaining time by pressing Timer On/Off.
4 When the set time runs out, ENd shows in the
display. The indicator tones sound every 15
seconds until Timer On/Off is pressed.
Canceling the Timer
1 Press Timer On/Off once.
The display returns to the time of day.
Wi-Fi
The Wi-Fi button is used to connect the appliance
to a home Wi-Fi network.
1 Press and hold Remote Start for 3 seconds.
2 The power on chime sounds, SEt appears in
the display, and the Wi-Fi icon (f) blinks.
3 Connect the appliance to the Wi-Fi network
using the LG ThinQ smartphone app.
4 To disconnect the appliance from the
network, delete it from the connected
appliances in the app.
26 OPERATION
NOTE
• See the Smart Functions section in the owner’s
manual for more details.
Settings (Hour Mode, Convection
Auto Conversion, Calibrating the
Oven Temperature, Preheat Alarm
Light, Beeper Volume, Fahrenheit
or Celsius, Wi-Fi On/Off)
Press the Settings key repeatedly to toggle
through and change oven settings.
The Settings button allows you to:
• set the hour mode on the clock (12 or 24
hours)
• enable/disable convection auto conversion
• calibrate the oven temperature
• activate/deactivate the preheating alarm
light
• set the beeper volume
• switch the temperature scale between
Fahrenheit and Celsius
• activate/deactivate the Wi-Fi
Setting the Hour Mode
The control is set to use a 12-hour clock. To set the
clock to 24-hour mode, follow the steps below.
1 Press Settings.
2 Press plus (+) or minus (-) to toggle between
a 12-hour and 24-hour clock.
3 Press START to accept the change.
Setting Convection Auto Conversion
When Conv. Bake is selected, Convection Auto
Conversion automatically converts the standard
recipe temperature entered to a convection
temperature by subtracting 25 ℉ / 14 ℃. This auto
converted temperature shows on the display. For
example, select Conv. Bake, enter 350 ℉, and 325
℉ shows on the display after preheat.
1 Press Settings key repeatedly until Avto
appears in the display.
2 Press plus (+) or minus (-) to enable or
disable the feature.
3 Press START to accept the change.
NOTE
• The convection cooking mode uses air
circulation to cook faster and more evenly than
the normal cooking mode, so you can get better
cooking results than normal baking even when
the temperature is reduced by 25°F / 14℃.
Calibrating the Oven Temperature
When you start using the oven, pay careful
attention to the recommended temperatures,
times, and rack positions in the manual. This oven
may differ from your previous oven, and it may
take some time to become accustomed to it. If you
have followed the recommended guides for this
oven and still believe that the temperature is
hotter or colder than expected, you can manually
calibrate the displayed oven temperature.
There are 2 methods for adjusting the
temperature display.
• Method 1: Try to gauge how much to increase or
decrease the displayed temperature by testing
familiar recipes at higher or lower temperatures
than recommended. This may help you decide
the amount of temperature adjustment you
want.
• Method 2: Adjust the temperature to 15 °F (8 °C)
hotter or cooler at first. Try the oven with this
setting. If you still need to adjust the oven
temperature, use the results of the first
adjustment as a reference and vary the
temperature adjustment amount until the oven
temperature display is calibrated to your
satisfaction.
1 Press Settings a repeatedly until AdJU b
appears in the display.
27OPERATION
ENGLISH
2 Set the number of degrees to adjust :
• Press or press and hold plus (+) or minus (-)
c until the desired number of degrees
appears in the display.
• Press Settings to indicate whether the
temperature should be increased (+) or
decreased (-).
• The temperature adjustment is shown next
to
AdJU d.
• You can adjust the temperature up or down
by 35 °F or 19 °C.
3 Press START e to accept the change.
NOTE
• This adjustment does not affect the broiling or
Self Clean temperatures. The adjustment is
retained in memory after a power failure. The
oven temperature can be adjusted by ±35 °F (±19
°C).
• Once the temperature is adjusted, press
Settings repeatedly until
AdJU is displayed to
see the amount you adjusted and change it if
needed.
• The temperatures displayed by an oven
thermometer placed in the oven cavity may
differ from the actual set oven temperature in all
modes.
Turning the Preheat Alarm Light On/
Off
When the oven reaches its set-temperature, the
preheating alarm light flashes 5 times or until the
oven door is opened.
You can activate or deactivate the preheating
alarm light.
1 Press Settings repeatedly until PrE appears in
the display.
2 Press plus (+) or minus (-) to turn the light on/
off.
3 Press START to accept the change.
Adjusting the Beeper Volume
1 Press Settings repeatedly until 8EEP appears
in the display.
2 Press plus (+) or minus (-) to select the
desired volume.
3 Press START to accept the change.
NOTE
• Adjusting the beeper volume does not affect the
preheat alarm volume.
Selecting Fahrenheit or Celsius
Set the oven temperature display to show either
Fahrenheit (℉) or Celsius (℃) units. The oven
defaults to Fahrenheit unless changed by the user.
1 Press Settings repeatedly until UNit appears
in the display.
2 Press plus (+) or minus (-) to select F
(Fahrenheit) or C (Celsius).
3 Press START to accept the change.
Turning the Wi-Fi On/Off
You can turn the Wi-Fi transmitter on the PCB on
or off.
1 Press Settings repeatedly until Wi-Fi appears
in the display.
2 Press plus (+) or minus (-) to turn the Wi-Fi
transmitter on/off.
3 Press START to accept the change.
Control Lock
The Control Lock feature locks the control panel,
but does not lock the oven door.
• When the Control Lock feature is activated, the
cooktop does not operate.
1 Press and hold Control Lock for three
seconds.
28 OPERATION
2 The lock melody sounds. Loc and the lock icon
k appear in the display.
3 To deactivate the Control Lock feature, press
and hold Control Lock for three seconds. The
unlock melody sounds and the controls
unlock.
Cook Time (Timed Cook)
Set the oven to cook for a specific length of time
using the Timed Cook feature. This feature can
only be used with the Bake, Conv. Bake, Air Fry
and Broil modes.
Setting a Timed Cook
For example, to bake at 300 °F for 30 minutes, first
set the clock to the correct time of day.
1 Press Bake. 350 °F appears in the display.
2 Set the temperature. For this example, press
minus (-) until 300 °F appears in the display.
3 Press Cook Time. Timed flashes in the
display. Bake, 0:00 and 300 °F appear in the
display.
4 Set the baking time: Press plus (+) until 30:00
appears in the display.
• The baking time can be set for any amount
of time between 1 minute and 11 hours and
59 minutes
5 Press START.
The oven will continue to cook for the set amount
of time and then turn off automatically. When the
cooking time has elapsed:
• End and the time of day show in the display.
Changing the Cook Time during Cooking
For example, to change the cook time to 1 hour
and 30 minutes during cooking:
1 Press Cook Time.
2 Change the baking time: Press plus (+) until 1
hour and 30 minutes appears in the display.
3 Press START to accept the change.
29OPERATION
ENGLISH
Minimum & Maximum Default Settings
All of the features listed have a minimum and a maximum time or temperature setting that may be
entered into the control. An entry acceptance beep sounds each time a control button is pressed.
An entry error tone (two short tones) sounds if the entry of the temperature or time is below the minimum
or above the maximum setting for the feature.
NOTE
• * Using auto conversion
• Default cook mode times are without setting a cook time.
Cooktop
Precautions When Using the
Cooktop
WARNING
Before Cooking
• Do not cook on a broken cooktop. If the cooktop
is broken, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk
of electric shock. Contact a qualified technician
immediately.
During Cooking
• Turn cookware handles inward so they don't
extend over adjacent surface units. This reduces
the risk of burns, ignition of flammable
materials, and spillage due to unintentional
contact with the cookware.
Feature Min. Temp. / Time Max. Temp. / Time Default
Clock
12 hr.
1:00
hr. / min.
12:59
hr. / min.
-
24 hr.
0:00
hr. / min.
23:59
hr. / min.
-
Timer
12 hr.
0:10
min. / sec.
11:59
hr. / min.
-
24 hr.
0:10
min. / sec.
11:59
hr. / min.
-
Cook Time
12 hr.
0:01
hr. / min.
11:59
hr. / min.
-
24 hr.
0:01
hr. / min.
11:59
hr. / min.
-
Conv. Bake
300 °F (*275 °F) /
150 ℃ (*136 ℃)
550 °F / 285 °C
350 °F (*325 °F) /
175 ℃ (*161 ℃)
11:59 hr. / min.
Broil
Lo
0:01
hr. / min.
Hi
3:00
hr. / min.
Hi / 3 hr.
Bake 170 °F / 80 °C 550 °F / 285 °C
350 °F / 175 ℃
11:59 hr. / min.
Self Clean 3 hr. 5 hr. 4 hr.
EasyClean - - 10 min.
Air Fry 300 °F / 150 ℃ 550 °F / 285 ℃
400 °F / 205 ℃
11:59 hr. / min.
30 OPERATION
WARNING
• Always place the pan in the center of the surface
unit you are cooking on. Never leave surface
units unattended at high heat settings. Proper
contact of cookware to burner also will improve
efficiency. Boilovers cause smoking and greasy
spills that may catch on fire.
After Cooking
• Clean cooktop with caution. Do not use sponges
or cloth to wipe spills on a hot cooking area. Use
a proper metal scraper. If a wet sponge or cloth
is used to wipe spills on a hot cooking area, it can
cause steam burns. Some cleaners can produce
noxious fumes if applied to a hot surface.
CAUTION
Before Cooking
• Do not use the glass cooktop surface as a cutting
board.
• Do not turn surface units on before placing
cookware.
• Do not store heavy items above the cooktop
surface that could fall and damage it.
• Do not place or store flammable or heat
sensitive items on the induction cooktop, even
when the cooktop is not in use.
• Place cookware on the cooking elements before
turning on the induction cooktop.
• Do not place sealed containers on the cooktop.
During Cooking
• Never cook directly on the glass. Always use
cookware.
• Do not place metallic objects such as knives,
forks, spoons, and lids on the induction cooktop
surface; they can get hot.
• Use this appliance only for normal household
use. It is not designed for commercial or
industrial use.
• Never use the appliance to heat the room.
• Use caution when plugging electrical appliances
into power outlets near the cooktop. Keep power
cords from any contact with the cooktop or
cookware.
• Overheated fat and oil can catch fire quickly.
Never leave surface elements unattended when
frying foods.
• Do not use the induction cooktop to heat
aluminum foil, products wrapped in aluminum
foil, or frozen foods packaged in aluminum
cookware.
• Use caution when plugging electrical appliances
into outlets near the cooktop to keep power
cords away from the hot cooktop or cookware.
• Users with pacemakers and active heart
implants must keep their upper body at a
minimum distance of 1 ft (30 cm) from active
induction cooking elements. If in doubt, consult
the implant manufacturer or your doctor.
After Cooking
• Immediately clean spills on the cooking area to
prevent a tough cleaning chore later.
• Do not use a steel-wool pad or scrub pad or
abrasive cleaning pads. They can scratch the
surface.
• After use, switch off the induction cooking
element using its control. Do not rely on the pan
sensor.
Pan Preheat Recommendations
Induction cooking may decrease the amount of
time required to preheat cookware compared to
cooking on a radiant element cooktop or gas
surface burner.
Pay close attention to all food items while cooking
on the cooktop or in the oven, and until all cooking
processes are complete.
CAUTION
• Remember that induction surface cooking
initially heats the cookware very quickly if the
cookware does not contain food.
Noises during Cooktop Operation
• Induction Sound: The electronic processes
involved with induction cooking create some
unfamiliar background noises such as a slight
buzzing sound. These noises are a normal part
of the induction cooking process.
• Cookware Vibration Sound: Some cookware
will buzz, depending on its construction or base
material. The buzz may be more noticeable if the
pan or its contents are cold or if the bottom of
the pan is not flat. As the pan heats up, the noise
will decrease. The noise will also decrease if the
power level setting is reduced.
• Cooling Fan Sound: The fan may operate while
the induction cooktop is in use to reduce the
temperature of the product. The cooling fan may
also operate after the cooktop is turned off.
31OPERATION
ENGLISH
NOTE
• When using the induction cooktop, operational
noises are more noticeable while cooking in
Boost mode. But very loud noises are not
normal when induction cooking.
Hot Cookware and Residual Heat
CAUTION
• Unlike radiant surface elements, induction
cooking elements do not glow red when hot. You
can be burned if the glass surface is hot from the
residual heat transferred from the cookware. Do
not touch hot cookware or pans. Use oven mitts
or potholders to protect hands from burns.
Cooking Areas
The cooktop is equipped with four induction
cooking elements of different sizes. The wattage
ratings below are maximum outputs. The second
rating is the maximum output for Boost mode.
a Induction Left Front Cooking Element:
8", 2100 W / 3200 W (240 V)
b Induction Right Front Cooking Element:
11", 2400 W / 3900 W (240 V)
c Induction Left Rear Cooking Element:
6", 1300 W / 1800 W (240 V)
d Induction Center Rear Cooking Element:
6", 1300 W / 1800 W (240 V)
Benefits of Induction Surface
Cooking
Speed and Efficiency
Induction cooking elements heat faster and use
less energy. Induction power levels quickly boil
liquids and are efficient when simmering.
A Cooler Cooktop
Whether induction cooking elements are turned
on or off, they remain cooler than radiant
elements. Virtually no heat is wasted because the
heat begins with the presence of cookware.
Easy Cleanups
Cooler cooking elements make for easier cleaning.
Spills resist sticking or burning so they wipe up
easily.
Pan Size Detection
A sensor automatically detects and adapts the
induction cooking element to the pan size in use
for more consistent, even cooking.
Greater Responsiveness
Induction cooking elements are more responsive
than their electric or gas counterparts because
only the pan heats. Induction elements heat more
easily and are just as responsive when reducing
temperatures to a simmer.
Induction Cookware
NOTE
• Before using the induction cooking elements,
carefully read and follow these cookware
recommendations and the instructions in the
pan sensing sections.
When purchasing pans for use on the induction
cooktop, look for cookware identified by the
manufacturer as "induction ready" or "induction
capable", or that is marked by the manufacturer as
specifically designed for induction cooking.
The base material of the cookware must be
magnetic for the cooking elements to activate. Use
a magnet to check if the cookware base material is
suitable. If the magnet sticks to the bottom of the
cookware, the cookware can be used for induction
cooking.
Symbols of Induction Compatible Cookware
32 OPERATION
For the best possible surface cooking results, use
only high-quality, heavy gauge steel cookware on
the induction cooking elements. Follow
manufacturer's recommendations when using
induction cookware.
Induction Cookware Types
The three most common induction cookware types
available are stainless steel, cast iron, and
porcelain-enamel-coated metals.
• Stainless Steel is generally excellent for
induction cooking. It is durable, easy to clean,
and resists staining.
NOTE
• Not all stainless steel cookware is magnetic;
stainless steel is not always suitable for
induction cooking.
• Cast Iron cooks evenly and is also good for
induction cooking. Do not slide cast iron
cookware on the cooktop; cast iron cookware
with a rough surface will scratch the ceramic
cooktop.
• Porcelain-enamel-coated metals have variable
heating characteristics depending on the quality
of the base metal. Make sure the porcelain-
enamel coating is smooth to avoid scratching
the ceramic cooktop.

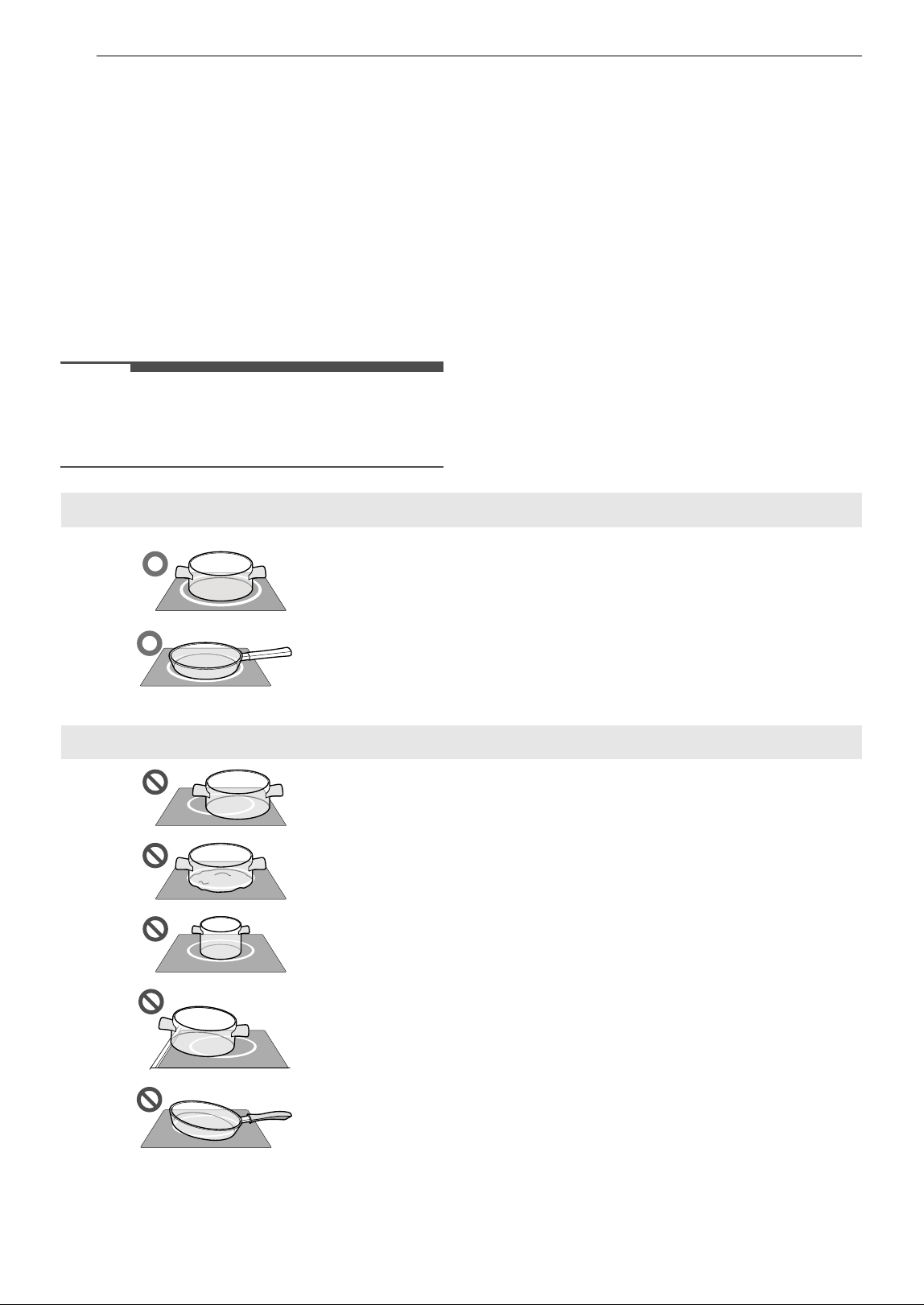

Cookware Placement
Use the proper cookware and place it correctly on
the cooktop. One or more of the cooking elements
will not heat if any of the incorrect conditions
shown is detected by the sensors located below
the ceramic cooktop surface. Correct the problem
before attempting to use the cooktop.
Correct Use
• Cookware is centered correctly on surface of cooking
element.
• Pan has flat bottom and straight sides.
• Pan size meets or exceeds the recommended minimum size
for the cooking element.
• Pan rests completely on the cooktop surface.
• Pan is properly balanced.
Incorrect Use
• Cookware is not centered on surface of cooking element.
• Pan has curved or warped bottom or sides.
• Pan does not meet the minimum size required for the
cooking element used.
• Pan bottom rests on cooktop trim or does not rest
completely on the cooktop surface.
• Pan is unbalanced by heavy handle.
33OPERATION
ENGLISH
Pan Sensing
The cooking-element sensors located below the
cooktop surface require certain cookware
conditions to be met before the induction cooking
elements can operate.
If a cooking element is activated and no cookware
is detected, or the cookware does not meet the
correct conditions, the cooking zone may not heat.
If the problem is not corrected, v appears on the
Power Level Indicator and the affected cooking
element will beep six times and automatically
deactivate after twenty seconds.

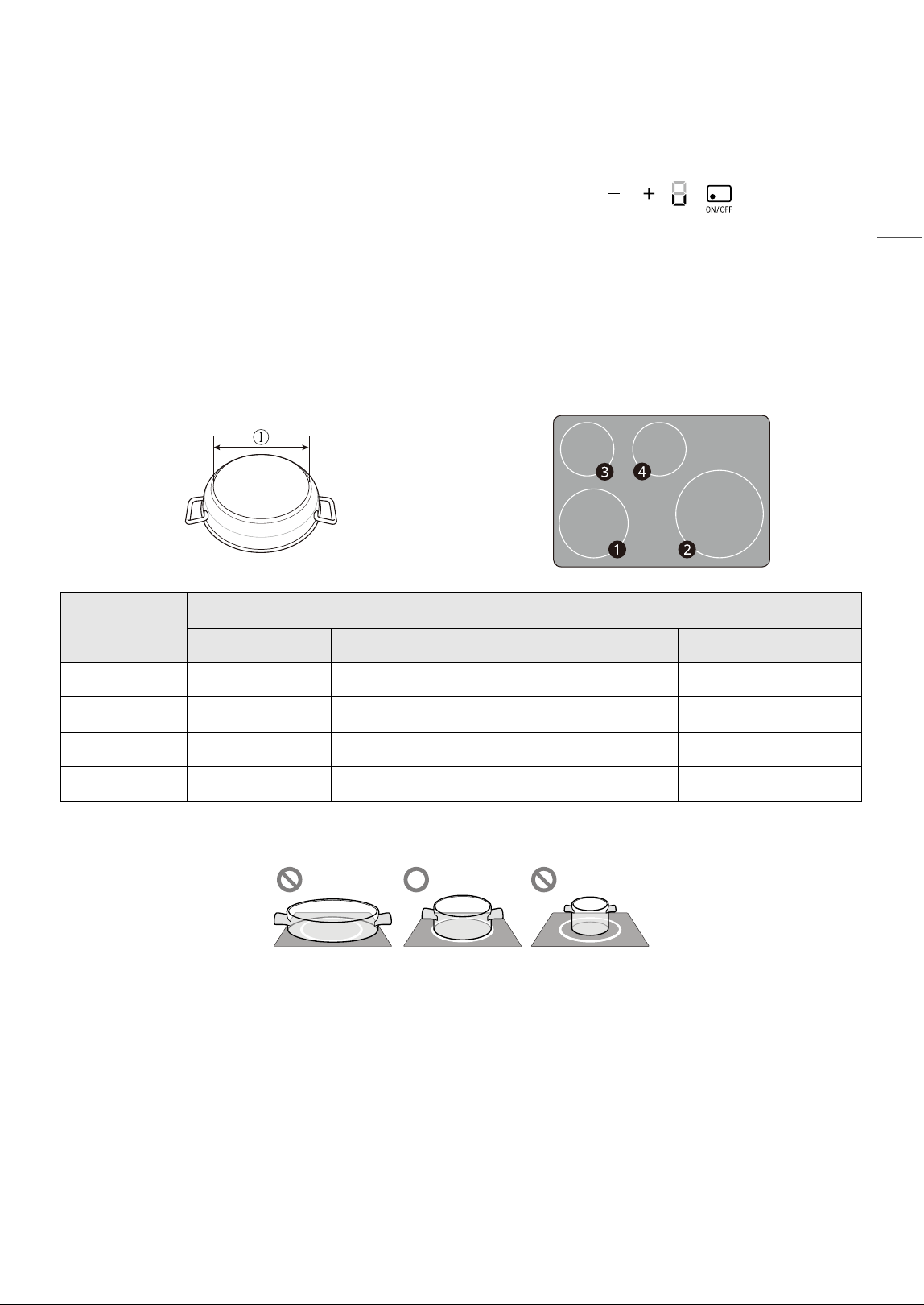

Minimum and Maximum Pan Size
There are four cooking elements on the induction cooktop. Each element requires a appropriate pan size
to be used effectively. The bottom size of the pan must be between the maximum and minimum diameter
A for proper cooking to occur.
The pan must make full contact with the glass surface without the bottom of the pan touching the metal
cooktop trim.
If the correct induction cookware—centered on any of the active cooking elements—is too small, the pan
does not heat.
Cookware Compatibility Indicator
The cookware compatibility indicator shows how
efficiently the cookware will heat on the induction
cooktop elements.
1 Turn off all cooktop elements in use.
2 Put enough water in the cookware to cover
the bottom. Place the cookware on the center
of the desired cooktop element.
• Select an element that is appropriate for the
size of the cookware.
3 Set the power level on the selected element to
9.
Cooking Area
Heater
Diameter of Pan Bottom A
Type Size (inch) Min. Max.
a
Induction 8 7.5 inch (190 mm) 9.2 inch (224 mm)
b
Induction 11 9.5 inch (241 mm) 11.8 inch (300 mm)
c
Induction 6 5.5 inch (140 mm) 7.0 inch (178 mm)
d
Induction 6 5.5 inch (140 mm) 7.0 inch (178 mm)
34 OPERATION
4 Press Control Lock a and START b at the
same time for at least 3 seconds. The
indicator is shown on the display for 5
seconds.
CAUTION
• Turn off the oven and all cooktop elements
before starting to avoid getting a false result.
• The indicator is not available if the oven or more
than two cooktop elements are in use.
NOTE
• The cookware compatibility indicator is based on
the manufacturer's internal standards and is for
reference only.
• The indicator may vary depending on the usage
environment, power voltage and cookware
temperature.
• The indicator may vary from element to element
even for the same type of cookware.
• For efficient cooking, use cookware with an
indicator of 9 or above.
• If the indicator is low, check the base material,
size and shape of the cookware. Cookware with a
low indicator, even if it has an IH mark, may heat
less efficiently or make noise when heated. This
is normal, and the cookware can still be used
safely.
Home Canning
CAUTION
• Canning can generate large amounts of steam.
Use extreme caution to prevent burns. Raise the
lid so that steam is vented away from you. Safe
canning requires that harmful micro-organisms
are destroyed and jars are sealed completely.
When using a water bath canner, maintain a
gentle but steady boil for the required time.
Read and observe the following precautions when
home canning. Read the information on the USDA
(United States Department of Agriculture) website
and follow the recommendations there for home
canning procedures.
• Use only quality, flat-bottomed canners when
home canning. Use a ruler to check the bottom
of the canner for flatness.
• Canners with ridges that radiate from the
bottom center are not suitable for use on a
ceramic glass cooktop.
• The diameter of the canner should not exceed
the maximum cooking element markings by
more than one inch. Use smaller diameter
canners on ranges with ceramic-glass or open-
coil-electric cooktops.
• Start with hot tap water to boil water more
quickly. Bring water to an initial boil using the
highest heat setting. Once the water is boiling,
reduce the heat as much as possible while
maintaining the boil.
• It is best to can small amounts and keep the
canner light enough to lift.
• Do not leave the water bath or pressure canners
on high heat for extended periods.
• Alternate surface elements between each batch
to allow the elements and surrounding surfaces
to cool down. Do not can using the same
element all day.
Using the Cooking Elements
Turning On Cooking Elements
1 Press the ON/OFF button.
Indicator Compatibility
0 - 3 Low
4 - 8 Medium
9 - 10 High
35OPERATION
ENGLISH
2 Press the plus(+) or minus(-) button to select
the desired setting. A short beep sounds.
a ON/OFF Button
b +/- Buttons
NOTE
• When you press the (+) button for the first time,
you start at the level 9 setting, and when you
press the (-) button for the first time, you start at
the level 1 setting.
Boost Power Level
Boost mode is only available immediately after
activating a cooking element and b appears on the
Power Level Indicator. When the cooking element
is set to the Boost mode, the mode operates for
up to 10 minutes. After 10 minutes, the cooking
element automatically returns to the level 9
setting.
Hot Surface Indicator
The hot surface indicator light glows as long as any
surface cooking area is too hot to touch and H
appears on the Power Level Indicator.
It remains on after the element is turned off and
until the surface has cooled to approximately 130
°F.
It is normal for the surface elements to cycle on
and off when cooking at lower temperature
settings.
The Recommended Surface Cooking
Setting
Start most surface cooking on a higher setting and
then adjust to a lower setting to finish cooking.
The suggested settings may need adjustments,
depending on cookware design and quality and on
the amount of food being prepared.
Use quality cookware that is constructed with a
magnetic base material and that meets the
minimum and maximum pan size requirements.
NOTE
• Suggested cook settings are only a guide.
Results may vary depending on the type of
cookware being used on the induction surface or
the quantity of food being cooked. Adjust the
settings as needed to achieve the desired
results.
Power Management
The cooking zones, which consist of paired
cooking elements, are restricted to drawing a
certain maximum amount of power.
If you turn on the Boost function for one element
while its paired element is in use, the Power
Management function may automatically reduce
the power of both elements. For consistent
Setting Recommended Use
Boost
• Use to heat a large amount of
food or to bring large pans of
water to a boil
9-Boost
• Bring liquid to a boil
• Start most cooking
6-9
• Hold a rapid boil, fry, deep fat fry
• Quickly brown or sear food
• Steaks, cutlets, grilled meat
3-6
• Maintain a slow boil
• Fry or sauté foods
• Cook soups, sauces and gravies
•Eggs, pancakes
2-3
• Stew or steam food
• Simmer
1-2
• Keep food warm
• Melt chocolate or butter
• Simmer
36 OPERATION
performance when using multiple elements, use
elements in separate cooking zones.
NOTE
• If the combined heat of the oven and the surface
burners is sufficiently high, the output of the
surface burners is reduced to avoid damage to
the product.
• Both elements in a set of paired elements cannot
use the Boost mode at the same time. To use the
Boost mode on two elements simultaneously,
use non-paired elements.
Oven
Before Using the Oven
NOTE
• Because the oven temperature cycles, an oven
thermometer placed in the oven cavity may not
show the same temperature that is set on the
oven.
• It is normal for the convection fan to run while
preheating during a regular bake cycle.
• The convection fan motor may run periodically
during a regular bake cycle.
• The fan turns off if the door is left open during
baking. The fan turns back on automatically once
the door is closed.
• Avoid opening the oven door more than
necessary during use. This helps the oven
maintain temperature, prevents unnecessary
heat loss, and saves on energy use.
Oven Vent
Areas near the vent may become hot during
operation and may cause burns. Do not block the
vent opening. Avoid placing plastics near the vent
as heat may distort or melt the plastic.
It is normal for steam to be visible when cooking
foods with high moisture content.
a Oven Vent
b Vent trim
CAUTION
• The edges of the range vent are sharp. Wear
gloves when cleaning the range to avoid injury.
• Do not block, touch or place items around the
oven vent during cooking.
- Do not block the oven vent when cooking to
allow for proper air flow. Do not touch vent
openings or nearby surfaces during any
cooking operation.
Using Oven Racks
The racks have a turned-up back edge that
prevents them from being pulled out of the oven
cavity.
CAUTION
• Replace oven racks before turning the oven on
to prevent burns.
• Do not cover the racks with aluminum foil, or
any other material, or place anything on the
bottom of the oven. Doing so will result in poor
baking and may damage the oven bottom.
• Only arrange oven racks when the oven is cool.
• Do not place objects heavier than 33 lb (15 kg)
on the racks. Do not place heavy objects on the
corners of the racks. Doing so can damage the
racks.
Removing Racks
1 Pull the rack straight out until it stops.
2 Lift up the front of the rack and pull it out.
37OPERATION
ENGLISH
Replacing Racks
1 Place the end of the rack on the support.
2 Tilt the front end up and push the rack in.
Bake
Bake is used to prepare foods such as pastries,
breads and casseroles.
The oven can be programmed to bake at any
temperature from 170 ℉ (80 ℃) to 550 ℉ (285 ℃).
The default temperature is 350 ℉ (175 ℃).
Setting the Bake Function
(For example, to bake at 375 ℉)
1 Press Bake. 350 8 appears in the display.
2 Set the oven temperature: Press plus (+) until
375 8 appears in the display.
3 Press START. The oven starts to preheat.
NOTE
• As the oven preheats, the temperature is
displayed and rises in 5-degree increments.
Once the oven reaches the set temperature, a
tone sounds and the oven light blinks on and off.
4 When cooking is complete, press CLEAR/OFF.
5 Remove the food from the oven.
NOTE
• It is normal for the convection fan to operate
periodically throughout a normal bake cycle in
the oven. This is to ensure even baking results.
Baking Tips
• Baking time and temperature will vary
depending on the characteristics, size, and
shape of the baking pan used.
• Check for food doneness at the minimum recipe
time.
• Use metal bakeware (with or without a nonstick
finish), heatproof glass-ceramic, ceramic or
other bakeware recommended for oven use.
• Dark metal pans or nonstick coatings will cook
food faster with more browning. Insulated
bakeware will slightly lengthen the cooking time
for most foods.
• The oven bottom has a porcelain-enamel finish.
To make cleaning easier, protect the oven
bottom from excessive spillovers by placing a
cookie sheet on the rack below the rack you are
cooking on. This is particularly important when
baking a fruit pie or other foods with a high acid
content. Hot fruit fillings or other foods that are
highly acidic may cause pitting and damage to
the porcelain-enamel surface and should be
wiped up immediately.
Convection Mode
The convection system uses a fan to circulate the
heat evenly within the oven. Improved heat
distribution allows for even cooking and excellent
results while cooking with single or multiple racks.
Setting the Convection Function
(For example, cooking at 375 °F)
1 Press Conv.Bake. 350 8 appears in the
display.
2 Set the oven temperature: Press plus (+) until
375 8 appears in the display.
3 Press START. The display shows Conv. Bake
and the starting temperature of the oven
depends on the oven cavity temperature.
• As the oven preheats, the display shows
increasing temperatures in 5-degree
increments. Once the oven reaches the set
adjusted temperature, a tone sounds and
the oven light flashes on and off. The
display shows the auto-converted oven
temperature, 350 °F, and the fan icon.
4 Press CLEAR/OFF to cancel at any time or
when cooking is complete.
38 OPERATION
NOTE
• The oven fan runs while convection baking. The
fan stops when the door is open. In some cases,
the fan may shut off during a convection bake
cycle.
Tips for Convection Baking
• Use Convection Bake for faster and more even
multiple-rack cooking of pastries, cookies,
muffins, biscuits, and breads of all kinds.
• Bake cookies and biscuits on pans with no sides
or very low sides to allow heated air to circulate
around the food. Food baked on pans with a
dark finish will cook faster.
• When using Convection Bake, place the oven
racks in the positions suggested in the charts in
this manual.
• Multiple oven rack cooking may slightly increase
cook times for some foods.
• Cakes, cookies and muffins have better results
when using multiple racks.
Recommended Baking Guide
Baking results will be better if baking pans are
centered in the oven as much as possible. If
cooking on multiple racks, place the oven racks in
the positions shown.
Multiple-rack cooking saves time and energy.
Whenever possible, cook foods requiring the same
cooking temperature together in one oven.

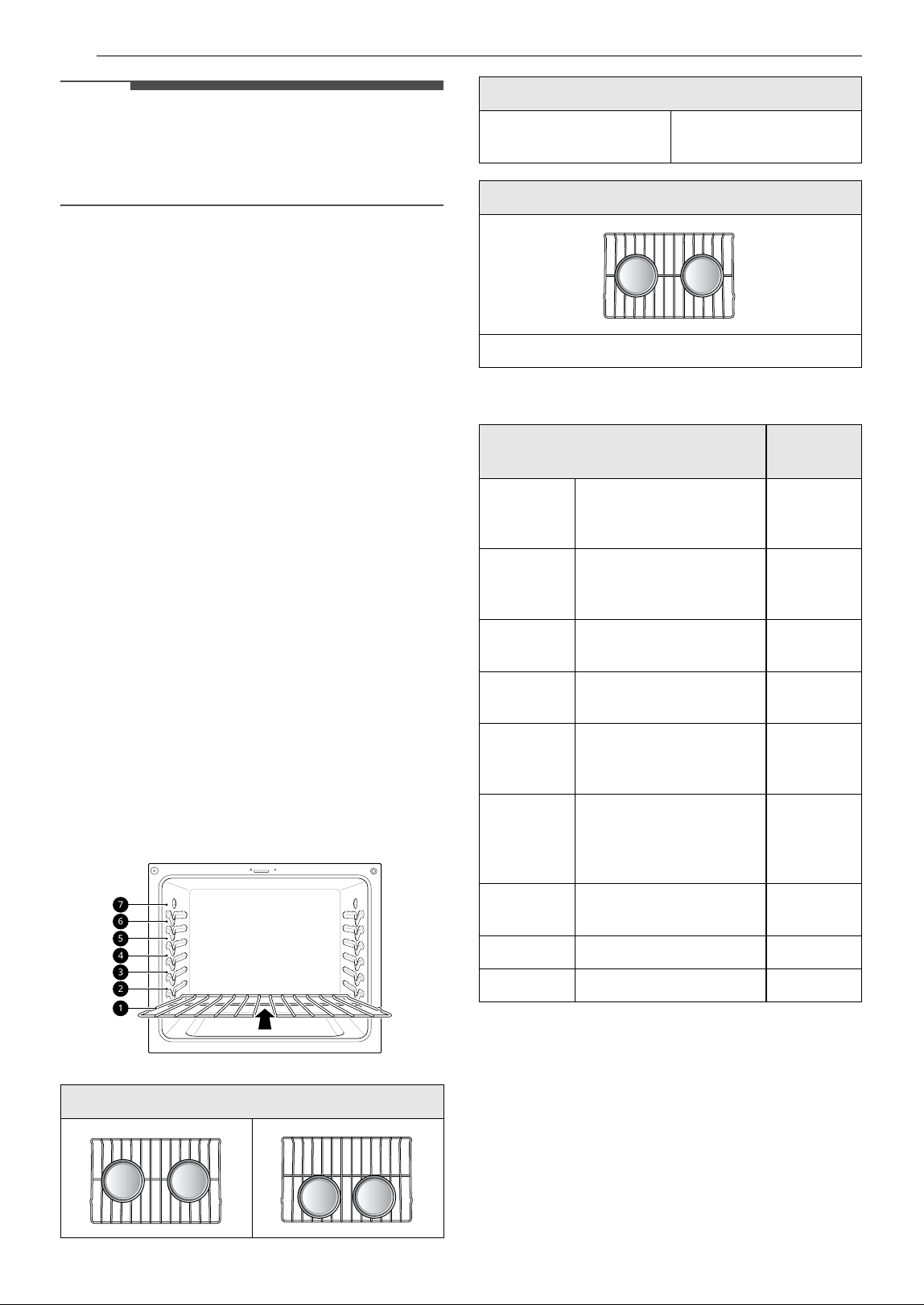

Rack and Pan Placement
Baking Rack Guide
Broil
The Broil function uses intense heat from the
upper heating element to cook food. Broiling
works best for tender cuts of meat, fish, and thinly
cut vegetables.
Some models may feature a hybrid broiler
consisting of an inner broiler that utilizes a carbon
heating element which provides instantaneous
heat, and a traditional outer broiling element.
Multiple rack baking
Standard rack
(Position 2)
Standard rack
(Position 5)
Single rack baking
Standard rack
Food
Rack
position
Cakes
Layer cakes
Bundt cakes
Angel food cake
2
3
3
Cookies
Sugar cookies
Chocolate chips
Brownies
4
4
4
Pizza
Fresh
Frozen
3
3
Pastry
Crust
From scratch
Refrigerated
4
4
Breads
Biscuit, canned
Biscuit, from scratch
Muffins
5
5
4
Desserts
Fruit crisps and
cobblers, from scratch
Pies, from scratch, 2-
crust fruit
4
4
Custards
Cheesecake, crème
brulée
2
Soufflés Sweet or savory 2
Casserole Frozen lasagna 4
Multiple rack baking
39OPERATION
ENGLISH
During normal broiler operation, it is normal for
either element to cycle off intermittently.
CAUTION
• Do not use a broiler pan without a grid. Oil can
cause a grease fire.
• Do not cover the grid and broiler pan with
aluminum foil. Doing so will cause a fire.
• Always use a broiler pan and grid for excess fat
and grease drainage. This will help to reduce
splatter, smoke, and flare-ups.
• When using your broiler, the temperature inside
the oven will be extremely high. Take care to
avoid possible burns by:
- Keeping the door closed when broiling
- Always wearing oven mitts when inserting or
removing food items
NOTE
• This range is designed for closed-door broiling.
Close the door to set the Broil function. If the
door is open, the Broil function cannot be set
and "door" appears on the display. Close the
door and reset the Broil function. If the door is
opened during broiling, the broil burner turns
off after five seconds. The broiler turns back on
automatically once the door is closed.
Setting the Oven to Broil
1 Press Broil. Press Broil repeatedly to switch
between Hi and Lo.
2 Press START. The oven begins to heat.
3 Let the oven preheat for approximately five
minutes before cooking the food if using
Broil.
4 Place food in the oven.
5 Close the oven door. The oven door must be
closed during broiling.
6 Press CLEAR/OFF to cancel at any time or
when cooking is complete.
Tips for Reducing Smoke
Due to the intense heat associated with broiling, it
is normal to experience smoke during the cooking
process. This smoke is a natural byproduct of
searing and should not cause you to worry. If you
are experiencing more smoke than you are
comfortable with, use the following tips to reduce
the amount of smoke in your oven.
• Always use a broiler pan. Do not use saute pans
or regular baking sheets for safety reasons.
• The broiler pan should always be thoroughly
cleaned and at room temperature at the
beginning of cooking.
• Always run your cooktop ventilation system or
vent hood during broiling.
• Keep the interior of your oven as clean as
possible. Leftover debris from prior meals can
burn or catch fire.
• Avoid fatty marinades and sugary glazes. Both of
these will increase the amount of smoke you
experience. If you would like to use a glaze,
apply it at the very end of cooking.
• If you are experiencing significant smoke with
any food item, consider:
- Lowering the broiler to the Lo setting.
- Lowering the rack position to cook the food
farther away from the broiler.
- Using the Hi broil setting to achieve the level
of searing you desire, and then either
switching to the Lo broil setting, or switching
to the Bake function.
• As a rule, fattier cuts of meat and fish will
produce more smoke than leaner items.
• Adhere to the guidelines in the Recommended
Broiling Guide section whenever possible.
Recommended Broiling Guide
The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling
times.
40 OPERATION

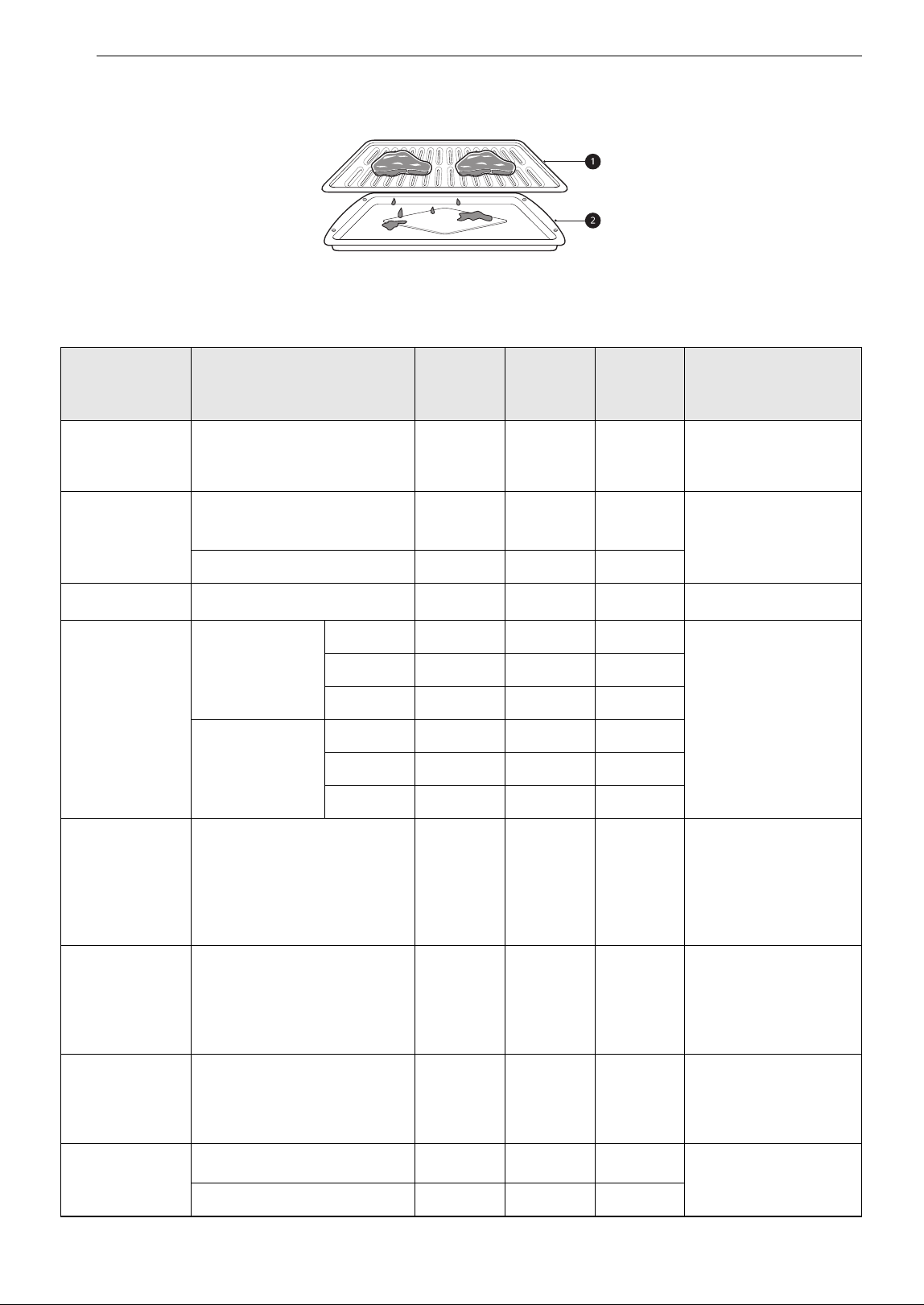

This guide is based on meats at refrigerator temperature. For best results when broiling, use a pan
designed for broiling.
a Grid (sold separately)
b Broiler Pan (sold separately)
Food
Quantity and/or
Thickness
Rack
Position
First
Side
(min.)
Second
Side
(min.)
Comments
Hamburgers
9 patties
1
/
2
to
3
/
4
" thick
73-62-4
Space evenly. Up to 9
patties may be broiled
at once.
Chicken
1 whole, 2 to 2
1
/
2
lbs., split
lengthwise
5 8-10 4-6
Broil skin-side-down
first.
2 Breasts 5 8-10 5-7
Toast 1 to 9 pieces 7 0.5-1 0.5
Beef Steaks
1" thick
1 to 1
1
/
2
lbs.
Rare 7 3-5 2-4
Steaks less than 1"
thick cook through
before browning. Pan
frying is
recommended. Slash
fat.
Medium 7 4-6 2-4
Well done 7 5-7 3-5
1
1
/
2
" thick
2 to 2
1
/
2
lbs.
Rare 5 7-9 4-6
Medium 5 9-11 6-8
Well done 5 11-13 8-10
Lobster Tails
2–4
10 to 12 oz. each
59-12
Do not
turn over
Cut through back of
shell. Spread open.
Brush with melted
butter before broiling
and after half of
broiling time.
Fish Fillets
1
/
4
to
1
/
2
" thick
62-42-4
Handle and turn very
carefully. Brush with
lemon butter before
and during cooking, if
desired.
Ham Slices
(precooked)
1
/
2
" thick
52-42-4
Increase time 5 to 10
minutes per side for 1
1/2" thick or home-
cured ham.
Pork Chops
Well done
2 (
1
/
2
" thick)
63-64-7
2 (1" thick) about 1 lb. 5 5-8 5-8
41OPERATION
ENGLISH
• This guide is only for reference. Adjust cook time according to your preference.
NOTE
• The USDA advises that consuming raw or undercooked fish, meat, or poultry can increase your risk of
food-borne illness.
• The USDA has indicated the following as safe minimum internal temperatures for consumption:
- Ground beef: 160 °F (71.1 °C)
- Poultry: 165 °F (73.9 °C)
- Beef, veal, pork, or lamb: 145 °F (62.8 °C)
- Fish / Seafood: 145 °F (62.8 °C)
Tips for Broiling
• Beef
- Steaks and chops should always be allowed to rest for five minutes before being cut into and eaten.
This allows the heat to distribute evenly through the food and creates a more tender and juicy result.
- Pieces of meat that are thicker than two inches should be removed from the refrigerator 30 minutes
prior to cooking. This will help them cook more quickly and evenly, and will produce less smoke when
broiling. Cooking times will likely be shorter than the times indicated in the Broiling Chart.
- For bone-in steaks or chops that have been frenched (all meat removed from around the bone), wrap
the exposed sections of bone in foil to reduce burning.
• Seafood
- When broiling skin-on fish, always use the Lo broil setting and always broil the skin side last.
- Seafood is best consumed immediately after cooking. Allowing seafood to rest after cooking can cause
the food to dry out.
- It is a good idea to rub a thin coating of oil on the surface of the broiling pan before cooking to reduce
sticking, especially with fish and seafood. You can also use a light coating of non-stick pan spray.
• Vegetables
- Toss your vegetables lightly in oil before cooking to improve browning.
Air Fry
This feature automatically increases the entered
temperature by 50 °F for optimal performance
when using Air Fry.
The Air Fry function is specially designed for oil-
free frying.
Setting the Air Fry Function
1 Press Air Fry.
Lamb Chops
2 (1" thick)
about 10 to 12
oz.
Medium 6 3-5 2-5
Well done
65-74-7
2 (1
1
/
2
" thick)
about 1 lb.
Medium 6 7-9 7-9
Well done 6 9-11 7-9
Salmon Steaks
2 (1" thick) 5 8-10 3-5 Grease pan. Brush
steaks with melted
butter.
4 (1" thick) about 1 lb.
5 9-11 4-6
Food
Quantity and/or
Thickness
Rack
Position
First
Side
(min.)
Second
Side
(min.)
Comments
42 OPERATION
2 Set the oven temperature. (Range: 300 °F ~
550 °F)
3 Press START.
4 When cooking is complete, press CLEAR/OFF.
NOTE
• No preheating is required when using the Air Fry
mode.
• If cooking multiple batches, the later batches
may take less time to cook.
• Wet batters and coatings will not crisp or set
when using the Air Fry mode.
Tips for Air Fry
• For best results, use the provided air fry tray.
- The mesh section of the air fry tray can be
cleaned in a dishwasher.

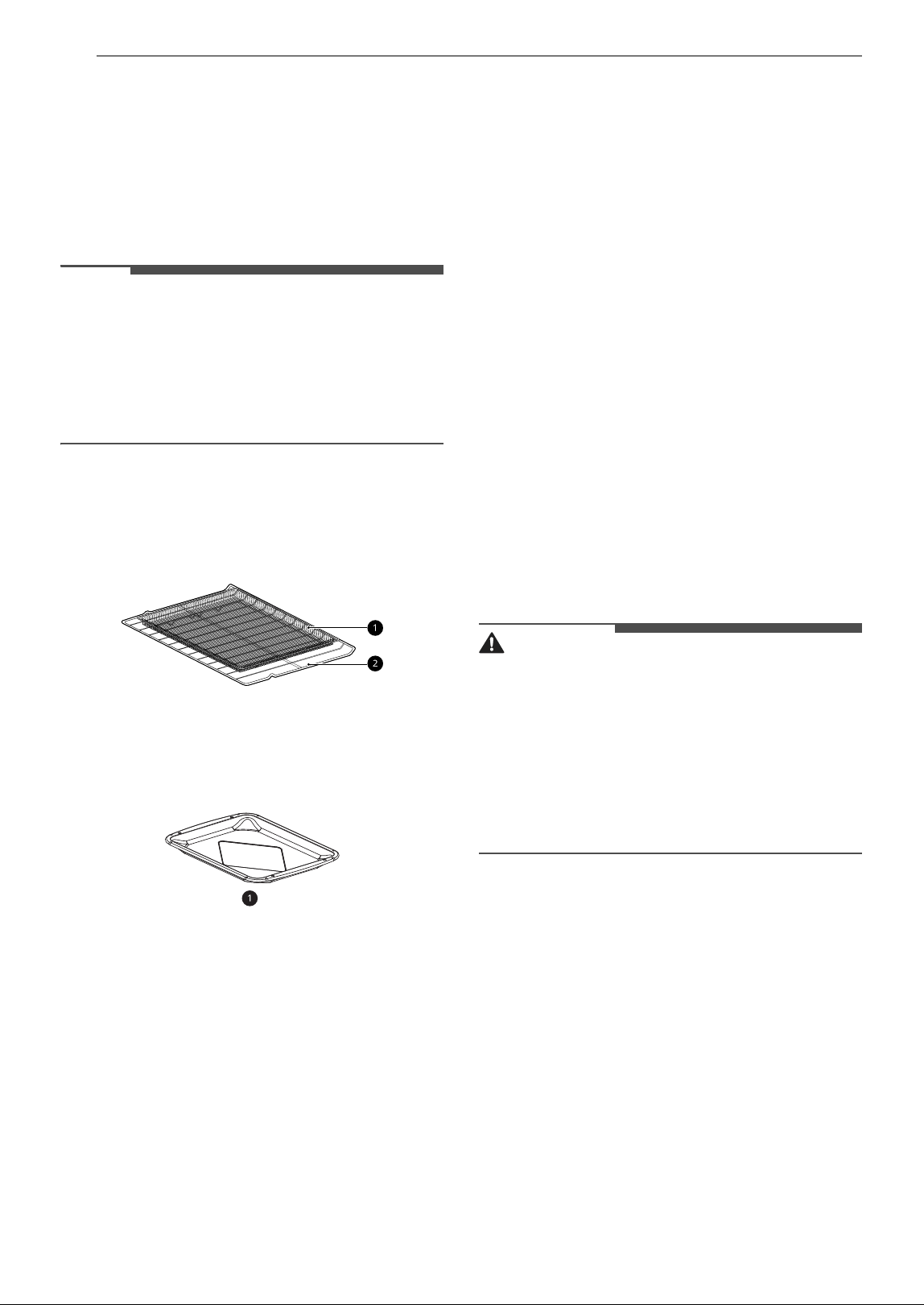

a Air Fry Tray
b Standard Rack
• If you don't have the air fry tray, place food on a
wire rack inside a foil-lined broiler pan.
a Broiler Pan (sold separately)
• For best results, cook food on a single rack
placed in positions suggested in the chart in this
manual.
• Spread the food out evenly in a single layer.
• Use either the provided air fry tray or a dark
baking tray with no sides or short sides that does
not cover the entire rack. This allows for better
air circulation.
• If desired, spray the baking tray or air fry tray
with a pan spray. Use an oil that can be heated to
a high temperature before smoking, such as
avocado, grapeseed, peanut or sunflower oil.
• Place a foil-lined baking tray on a rack in position
1 to catch the oil falling from the food. For high-
fat foods like chicken wings, add a few sheets of
parchment paper to absorb the fat.
• Check food often and shake it or turn it over for
crisper results.
• Prepared frozen foods may cook faster with the
Air Fry mode than stated on the package.
Reduce the cooking time by about 20 percent,
check food early, and adjust cooking time as
needed.
• Use a food thermometer to make sure food has
reached a safe temperature for consumption.
Eating undercooked meats can increase your
risk of food-borne illness.
• For the crispiest results, dredge fresh chicken
wings or tenders in seasoned flour. Use 1/3 cup
flour for 2 pounds of chicken.
Recommendations When Air Frying
High-Fat Foods
Foods high in fat will smoke when using the Air Fry
mode. For best results, follow these
recommendations when air frying foods that are
high in fat, such as chicken wings, bacon, sausage,
hot dogs, turkey legs, lamb chops, ribs, pork loin,
duck breasts, or some plant-based proteins.
CAUTION
• Never cover slots, holes, or passages in the oven
bottom or cover entire racks with materials such
as aluminum foil. Doing so blocks airflow
through the oven and can result in carbon
monoxide poisoning. Aluminum foil can also
trap heat, causing a fire hazard or poor oven
performance.
• Clean the grease filters on your exhaust hood
regularly.
• Turn on your exhaust hood at a high fan setting
before you start Air Fry and leave it on for 15
minutes after you're done.
• Open a window or sliding glass door, if possible,
to make sure the kitchen is well-ventilated.
• Keep the oven free from grease buildup. Wipe
down the interior of the oven before and after
air frying (once the oven has cooled).
• Run oven cleaning cycles (Easy Clean or
SelfClean) regularly, depending on how often
and what types of food you Air Fry.
• Avoid opening the oven door more than
necessary to help maintain the oven
temperature, prevent heat loss, and save
energy.
43OPERATION
ENGLISH
• Air-frying fresh chicken pieces such as wings or
drumsticks with the skin left on can produce
smoke as the fat renders at high temperatures.
Recommended Air Frying Guide
• Arrange food evenly in a single layer.
• Put a foil-lined baking pan on a rack in position 1
to catch drips. If needed, add parchment paper
to absorb oil and reduce smoking.
• Flip food over during cooking to avoid burning it.
† High-fat items may produce more smoke when
cooked using Air Fry.
Recommended Items
Quantity
(oz)
Temp. (°F)
Rack
Position
Time Guide
POTATOES-Frozen
Frozen French Fries
(Shoestring)
20 425 4 20-30
Frozen French Fries
(Crinkle cut, 3/8" or 10
mm)
35 425 4 25-35
Frozen Sweet Potato
Fries
25 425 4 20-35
Frozen Tater Tots 50 450 4 22-32
Frozen Hash Browns 40 450 4 25-35
POTATOES-Fresh/Homemade
Homemade French Fries
(3/8" x 3/8" or 10 x 10
mm)
25 450 4 27-37 Cut the potatoes and soak
for 30 minutes in hot tap
water. Drain and pat dry.
Brush or lightly spray with
3 tbsp. of oil. Add salt and
pepper to taste.
Homemade Potato
Wedges
60 450 4 30-40
CHICKEN-Frozen
Frozen Chicken Nuggets,
Crispy
30 425 4 15-25
Frozen Chicken Strips 35 425 4 30-40
Frozen Hot Wings, Bone-
in
50 425 4 30-40
CHICKEN-Fresh, Skin on
Fresh Chicken Wings
†
40 450 4 30-35 Brush or lightly spray with
1 tbsp. of oil. Add salt and
pepper to taste.
Fresh Chicken
Drumsticks
†
70 450 4 35-45
Thighs 40 450 4 30-35
Breasts 40 450 4 30-35
OTHER
Frozen Onion Rings,
Breaded
20 425 4 20-30
Frozen Spring Rolls (0.7
oz each)
45 425 4 25-35
44 OPERATION
Remote Start
This feature starts preheating and maintains the
temperature for up to 12 hours (including
preheating time). The appliance must be
connected to a home Wi-Fi network to use Remote
Start. Once Remote Start is selected on the
appliance, you can start or stop it remotely using
the LG ThinQ smartphone app. Follow the
instructions in the Smart Functions section to
connect the appliance to the network.
Setting Remote Start
1 Open the oven door to make sure the oven is
ready for pre-heating. Close the oven door.
2 Press Remote Start.
3 Follow the instructions in the smartphone app
to set the cook mode, temperature, and run
time (preheating time plus holding time).
NOTE
• Remote Start may not start if
- The appliance is not connected to the Wi-Fi
network and/or OFF appears in the display.
- Remote Start is not set up in the smartphone
app.
- The oven door is open. If the oven door is
open, a short beep sounds.
Using the Sabbath Mode
Sabbath mode is typically used on the Jewish
Sabbath and Holidays. When the Sabbath mode is
activated, the oven does not turn off until the
Sabbath mode is deactivated. In Sabbath mode, all
oven and cooktop function buttons are inactive. sb
will appear in the display.
1 Press Bake.
2 Set the desired temperature using the plus (+)
or minus (-) keys.
3 Press START.
4 Press and hold Settings for 3 seconds. sb
appears in the display when the Sabbath
mode is activated.
5 To stop the Sabbath mode, press and hold
Settings for 3 seconds. To cancel the Bake
function, press CLEAR/OFF at any time.
Thin Sausage
†
(2.5 oz
each, diameter 0.8")
90 425 4 25-35
Frozen Coconut Shrimp 25 425 4 30-40 Brush or lightly spray the
surface of food with oil.
Fresh Scallops on the half
shell (35.3 oz)
35 425 4 20-30 Melt 4 tbsp. of butter and
brush on scallops. Mix 1/2
cup bread crumbs, 1 tbsp.
minced garlic, 1/4 cup
grated parmesan cheese
and season to taste.
Sprinkle mixture over
scallops.
Fresh Shrimp 50 425 4 25-35
Mixed Vegetables 35 450 4 17-28 Brush or lightly spray with
4 tbsp. of olive oil. Add salt
and pepper to taste.
Recommended Items
Quantity
(oz)
Temp. (°F)
Rack
Position
Time Guide
45OPERATION
ENGLISH
NOTE
• Sabbath mode is only available when the oven is
in the Bake mode.
• If a cook time is set, the oven turns off
automatically at the end of the cook time,
without chiming. The oven remains in Sabbath
mode, but is turned off.
• If no cook time is set, the oven will not
automatically turn off.
• After a power failure, the display will turn back
on in Sabbath mode, but the oven will be off.
• Always close the oven door before engaging
Sabbath mode.
• When Sabbath mode is activated, the cooktop
elements does not turn on until the Sabbath
mode is deactivated.
46 SMART FUNCTIONS
SMART FUNCTIONS
LG ThinQ Application
This feature is only available on models with Wi-Fi.
The LG ThinQ application allows you to
communicate with the appliance using a
smartphone.
LG ThinQ Application Features
• Smart Diagnosis
TM
- This function provides useful information for
diagnosing and solving issues with the
appliance based on the pattern of use.
• Settings
- Allows you to set various options on the oven
and in the application.
• Scan to Cook
- Scan the barcode on a ready-made meal using
the LG ThinQ application and send the
recommended or customized cooking
instructions straight to your oven. Remote
Start must be activated on the oven to use
Scan to Cook.
• Monitoring
- This function helps you check the current
status, remaining time, cook settings and end
time in one place.
• Product Notifications
- Turn on the Push Alerts to receive appliance
status notifications. The notifications are
triggered even if the LG ThinQ application is
not open.
• Timer
- You can set the timer from the application.
• Firmware Update
- Keep the appliance updated.
NOTE
• If you change your wireless router, Internet
service provider, or password, delete the
connected appliance from the LG ThinQ
application and connect it again.
• This information is current at the time of
publication. The application is subject to change
for product improvement purposes without
notice to users.
• Scan to Cook cannot be used while the timer is
running. Cancel the timer operation to use Scan
to Cook.
Installing LG ThinQ Application and
Connecting an LG Appliance
Models with QR Code
Scan the QR code attached to the product using
the camera or a QR code reader application on
your smartphone.
Models without QR Code
1 Search for and install the LG ThinQ
application from the Google Play Store or
Apple App Store on a smartphone.
2 Run the LG ThinQ application and sign in with
your existing account or create an LG account
to sign in.
3 Touch the add (~) button on the LG ThinQ
application to connect your LG appliance.
Follow the instructions in the application to
complete the process.
NOTE
• To verify the Wi-Fi connection, check that the f
icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks
only. To check your network frequency, contact
your Internet service provider or refer to your
wireless router manual.
• LG ThinQ is not responsible for any network
connection problems or any faults, malfunctions,
or errors caused by network connection.
• The surrounding wireless environment can
make the wireless network service run slowly.
• If the distance between the appliance and the
wireless router is too far, the signal becomes
weak. It may take a long time to connect or fail
to install the application.
• If the appliance is having trouble connecting to
the Wi-Fi network, it may be too far from the
47SMART FUNCTIONS
ENGLISH
router. Purchase a Wi-Fi repeater (range
extender) to improve the Wi-Fi signal strength.
• The network connection may not work properly
depending on the Internet service provider.
• The Wi-Fi may not connect or the connection
may be interrupted because of the home
network environment.
• If the appliance cannot be connected due to
problems with the wireless signal transmission,
unplug the appliance and wait about a minute
before trying again.
• If the firewall on your wireless router is enabled,
disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a
combination of English letters and numbers. (Do
not use special characters.)
• Smartphone user interface (UI) may vary
depending on the mobile operating system (OS)
and the manufacturer.
• If the security protocol of the router is set to
WEP, network setup may fail. Change the
security protocol (WPA2 is recommended), and
connect the product again.
• To disable the Wi-Fi function, press and hold the
Wi-Fi button for 3 seconds. The Wi-Fi indicator
will be turned off.
• To reconnect the appliance or add another user,
press and hold the Wi-Fi button for 3 seconds.
Run the LG ThinQ application and follow the
instructions in the application to connect the
appliance.
Installing the LG ThinQ Application
Search for the LG ThinQ application from the
Google Play Store or Apple App Store on a
smartphone. Follow instructions to download and
install the application.
Connecting to Wi-Fi
The Wi-Fi button, when used with the LG ThinQ
application, allows the appliance to connect to a
home Wi-Fi network. The f icon shows the status
of the appliance’s network connection. The icon
illuminates when the appliance is connected to the
Wi-Fi network.
• Initial Appliance Connection
Run the LG ThinQ application and follow the
instructions in the application to connect the
appliance.
• Reconnecting the Appliance or Connecting
Another User
Press and hold the Wi-Fi button for 3 seconds.
Run the LG ThinQ application and follow the
instructions in the application to connect the
appliance.
LG UP Feature
Experience new features by upgrading the product
through the LG ThinQ app.
If an upgradable feature is available, an upgrade
notification appears on the display and a melody
sounds after cooking has finished or is canceled.
For example, the lights on the display may light in
sequence until φπ appears.
1 Upgrade notifications are sent to your
smartphone when upgradable features are
available.
2 Press the upgrade notification on your
smartphone to enter the LG UPgrade Center
in the LG ThinQ app.
3 In the LG UPgrade Center, select a new
function and press the Upgrade button.
• Do not unplug the product during the
upgrade, as doing so may interrupt the
upgrade process.
4 After the upgrade is complete, check the
guide in the LG ThinQ app for detailed
feature settings.
NOTE
• This feature is only available on some models.
• After the upgrade is complete, the actual
product features may differ from those
described in the owner's manual.
48 SMART FUNCTIONS
RF Module Specifications
FCC Statement
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules for
transmitter module and part 18 of the FCC Rules
for this equipment. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device (transmitter module contained in this
product) complies with part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user’s authority to operate the equipment.
FCC RF Radiation Exposure
Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-
located or operating in conjunction with any other
antenna or transmitter.
This equipment should be installed and operated
with a minimum distance of 20 cm (7.8 inches)
between the antenna and your body. Users must
follow the specific operating instructions for
satisfying RF exposure compliance.
Open Source Software Notice
Information
To obtain the source code that is contained in this
product, under GPL, LGPL, MPL, and other open
source licenses that have the obligation to disclose
source code, and to access all referred license
terms, copyright notices and other relevant
documents, please visit https://
opensource.lge.com.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email
request to opensource@lge.com.
This offer is valid to anyone in receipt of this
information for a period of three years after our
last shipment of this product.
Smart Diagnosis
TM
Feature
Use this feature to help you diagnose and solve
problems with your appliance.
NOTE
• For reasons not attributable to LGE’s negligence,
the service may not operate due to external
factors such as, but not limited to, Wi-Fi
unavailability, Wi-Fi disconnection, local app
store policy, or app unavailability.
• The feature may be subject to change without
prior notice and may have a different form
depending on where you are located.
Using LG ThinQ to Diagnose Issues
If you experience a problem with your Wi-Fi
equipped appliance, it can transmit
troubleshooting data to a smartphone using the
LG ThinQ application.
Type
Frequency
Range
Output
Power (Max.)
Wi-Fi
2412 - 2462
MHz
< 30 dBm
Bluetooth
2402 - 2480
MHz
< 30 dBm
49SMART FUNCTIONS
ENGLISH
• Launch the LG ThinQ application and select the
Smart Diagnosis feature in the menu. Follow
the instructions provided in the LG ThinQ
application.
Using Audible Diagnosis to
Diagnose Issues
Follow the instructions below to use the audible
diagnosis method.
• Launch the LG ThinQ application and select the
Smart Diagnosis feature in the menu. Follow
the instructions for audible diagnosis provided
in the LG ThinQ application.
1 Press the START button for 3 seconds.
• If the display has been locked, you must
deactivate the lock and then reactivate it.
2 Hold the mouthpiece of your phone in front of
the control panel, as shown below.
a Max: 3/8" (10 mm)
3 Keep the phone in place until the tone
transmission has finished. The display will
count down the time. Once the countdown is
over and the tones have stopped, the
diagnosis will be displayed in the application.
NOTE
• For best results, do not move the phone while
the tones are being transmitted.
50 MAINTENANCE
MAINTENANCE
Cleaning
CAUTION
• Do not clean this appliance with bleach.
• To prevent burns, wait until the cooktop has
cooled down before touching any of its parts.
• Always wear gloves when cleaning the cooktop.
Interior
Do not use oven cleaners to clean the oven cavity.
Use the product's EasyClean function regularly to
clean light soil. For stubborn soil, use the Self
Clean function (on some models) or clean
manually using the following tips.
• A plastic spatula can be used as a scraper to
scrape off any chunks or debris before and
during oven cleaning.
• Using the rough side of a non-scratch scouring
pad may help to take off burnt-on stains better
than a soft sponge or towel.
• Certain non-scratch scrubbing sponges, such as
those made of melamine foam, available at local
stores, can also help improve cleaning.
CAUTION
• Do not use oven cleaners, harsh chemical
cleaners, bleach, vinegar, steel scouring pads, or
abrasive pads or cleansers to clean the oven, as
they can permanently damage the oven surface.
• Do not clean the gasket.
Exterior
Control Panel
To prevent activating the control panel during
cleaning, disconnect power to the appliance. Clean
up splatters with a damp cloth using a glass
cleaner. Remove heavier soil with warm, soapy
water. Do not use abrasives of any kind.
Front Manifold Panel
It is best to clean the manifold panel after each use
of the range. For cleaning, use a damp cloth and
mild soapy water or a 50/50 solution of vinegar
and water. Rinse with clean water and polish dry
with a soft cloth.
CAUTION
• Do not use abrasive cleansers, strong liquid
cleaners, plastic scouring pads or oven cleaners
on the manifold panel. Doing so will damage the
finish.
NOTE
• To prevent scratching, do not use abrasive
cleaners on any of these materials.
Painted and Decorative Trim
For general cleaning, use a cloth with hot soapy
water. For more difficult soil and built-up grease,
apply a liquid detergent directly onto the soil.
Leave it on for 30 to 60 minutes. Rinse with a damp
cloth and dry. Do not use abrasive cleaners.
Stainless Steel Surfaces
To avoid scratches, do not use steel wool pads.
1 Place a small amount of stainless steel
appliance cleaner or polish on a damp cloth or
paper towel.
2 Clean a small area, rubbing with the grain of
the stainless steel if applicable.
3 Dry and buff with a clean, dry paper towel or
soft cloth.
4 Repeat as necessary.
NOTE
• To clean the stainless steel surface, use warm
sudsy water or a stainless steel cleaner or polish.
• Always wipe in the direction of the metal surface
finish.
• Stainless steel appliance cleaner or polish can be
purchased online or from most retailers of
appliances or home goods.
51MAINTENANCE
ENGLISH

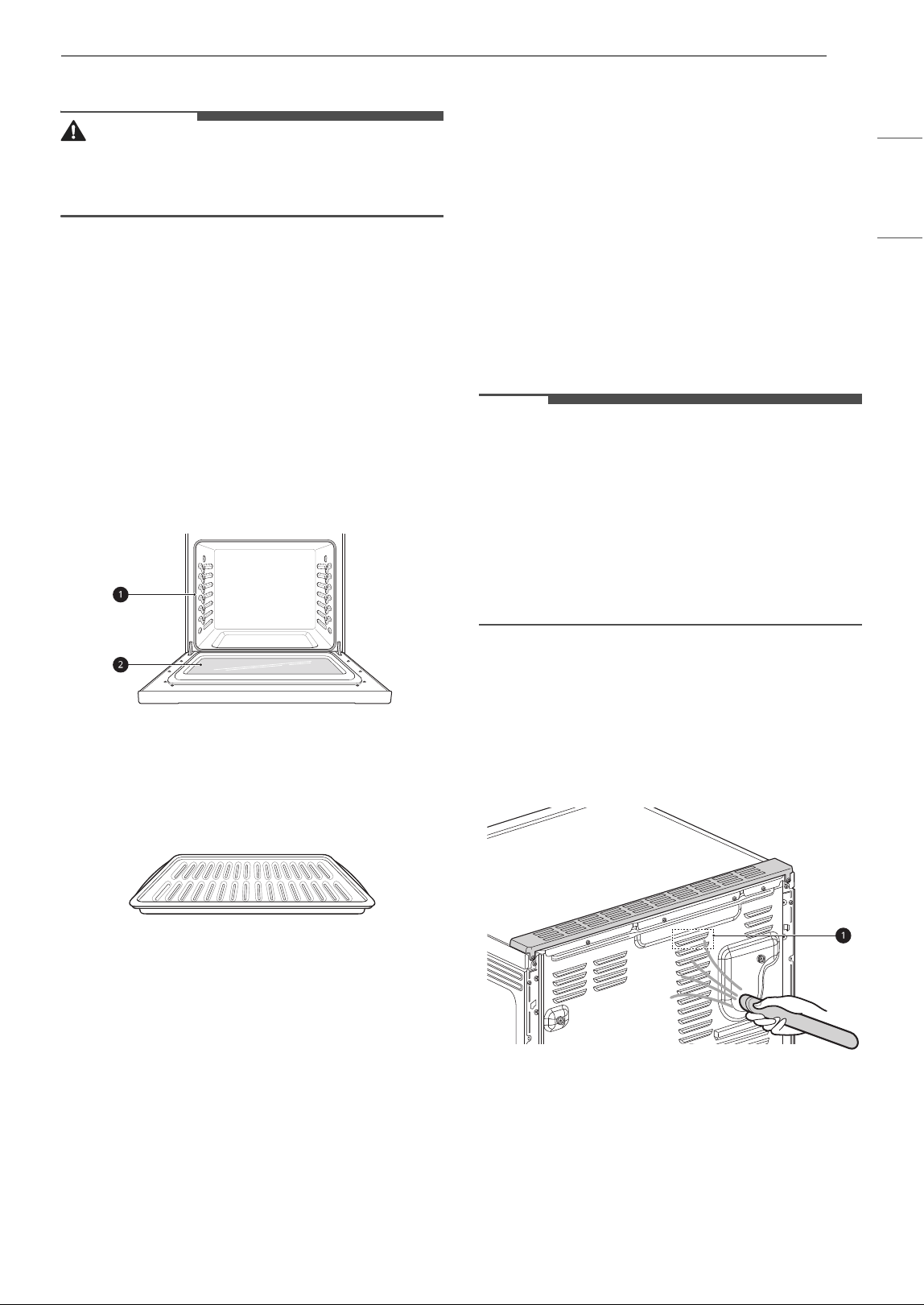

Oven Door
CAUTION
• Do not use harsh cleaners or harsh abrasive
cleaning materials on the outside of the oven
door. Doing so can cause damage.
• Use soapy water to thoroughly clean the oven
door. Rinse well. Do not immerse the door in
water.
• You may use a glass cleaner on the outside glass
of the oven door. Do not spray water or glass
cleaner on the door vents.
• Do not use oven cleaners, cleaning powders, or
harsh abrasive cleaning materials on the outside
of the oven door.
• Do not clean the oven door gasket. The oven
door gasket is made of a woven material that is
essential for a good seal. Care should be taken
not to rub, damage, or remove this gasket.
a Don’t hand clean oven door gasket
b Do hand clean door
Broiler Pan and Grid
• Do not store a soiled broiler pan or grid
anywhere in the range.
• Do not clean the broiler pan or grid in a self
cleaning mode. (Available on some models)
• Remove the grid from the pan. Carefully pour
out the grease from the pan into a proper
container.
• Wash and rinse the broiler pan and grid in hot
water with a soap-filled or plastic scouring pad.
• If food has burned on, sprinkle the grid with
cleaner while hot and cover with wet paper
towels or a dishcloth. Soaking the pan will
remove burned-on foods.
• Both the broiler pan and grid may be cleaned
with a commercial oven cleaner or in the
dishwasher.
Oven Racks
Remove the oven racks before operating the Self
Clean cycle (on some models) and EasyClean.
1 Clean with a mild, abrasive cleaner.
• Food spilled into the tracks could cause the
racks to become stuck.
2 Rinse with clean water and dry.
NOTE
• For models with Self Clean function:
- If the racks are cleaned using the Self Clean
cycle (not recommended), the color will turn
slightly blue and the finish will become dull.
After the Self Clean cycle is complete, and the
oven has cooled, rub the sides of the racks
with wax paper or a cloth containing a small
amount of oil. This will make the racks glide
more easily into the rack tracks.
Vent Louvers
• The appearance of the range may differ from
model to model.
Use a vacuum cleaner with a brush or crevice
attachment to clean the vent louvers a. Do not
remove the panel covering the range.
52 MAINTENANCE
Cooktop Surface
Glass-Ceramic Cooktop
WARNING
• To protect hands from burns, always wear oven mitts or use pot holders while using a scraper on the hot
cooking surface.
CAUTION
• If any sugar or food containing sugar spills, or plastic or foil melts on the cooktop, remove the material
IMMEDIATELY with a metal razor scraper while the cooking surface is still hot to avoid the risk of damage
to the glass-ceramic surface. When used correctly, the scraper will not damage the cooktop surface.
• If water or food containing water spills, remove the spill IMMEDIATELY with a dry paper towel.
• Do not use scrub pads or abrasive cleaning pads. They may damage your cooktop surface.
Use ceramic cooktop cleaner on the glass cooktop. Other cleaners may not be as effective or may scratch,
damage or stain the cooktop surface.
To maintain and protect the surface of the glass cooktop, follow these steps:
1 Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect
the top and makes cleanup easier.
2 Use ceramic cooktop cleaner daily to help keep the cooktop looking new.
3 Shake the cleaner well. Apply a few drops of cleaner directly to the cooktop.
4 Use a paper towel to clean the entire cooktop surface.
5 Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue.
NOTE
• Any damage or failure of the product resulting from the items below may not be covered under the
LIMITED WARRANTY.
- Sugary spillovers (such as preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, or chocolate)
or melted plastics can cause pitting on the surface of your cooktop.
- If food or water containing calcium (such as baking powder, wine, milk, spinach, or broccoli) is spilled
on the cooktop, it can permanently stain or discolor the surface.
Burned-On Residue
1 While the cooktop is still warm, remove any burnt on deposits or spilled food from the glass-ceramic
cooking surface with a suitable metal razor scraper.
53MAINTENANCE
ENGLISH
NOTE
• Do not use a dull or nicked blade.
• Hold the scraper at approximately a 30° angle to the cooktop.
• The razor scraper will not damage the markings on the cooking surface.
• Take care to avoid damaging the seal when cleaning the cooktop with a metal razor scraper.
2 When the cooking surface has completely cooled, apply a few dime-sized dabs of a glass-ceramic
cooktop cleaner in each burner area. Spread the cleaner over the cooktop surface with a damp paper
towel. Leave the cleaner on for 10 minutes before rinsing it off.
3 Rinse with clean water and wipe the cooktop surface with a clean, dry paper towel.
Cooktop Seal
1 To remove burned-on soil from the seal around the outside of the glass-ceramic cooktop, cover the
area with a warm, wet cloth to soften the soil.
2 After a few minutes, wipe the area clean with a mild, nonabrasive cleaner.
CAUTION
• Do not use a knife or any sharp object to clean the seal around the outside of the glass-ceramic cooktop.
• Take care to avoid damaging the seal when cleaning the cooktop with a metal razor scraper.
Maintaining the Cooktop
CAUTION
• Do not use chlorine bleach, ammonia, or other cleaners not specifically recommended for use on glass-
ceramic cooktops.
• Let your glass-ceramic cooking surface cool off before cleaning.
54 MAINTENANCE
NOTE
• For additional product information, visit our website at www.lg.com

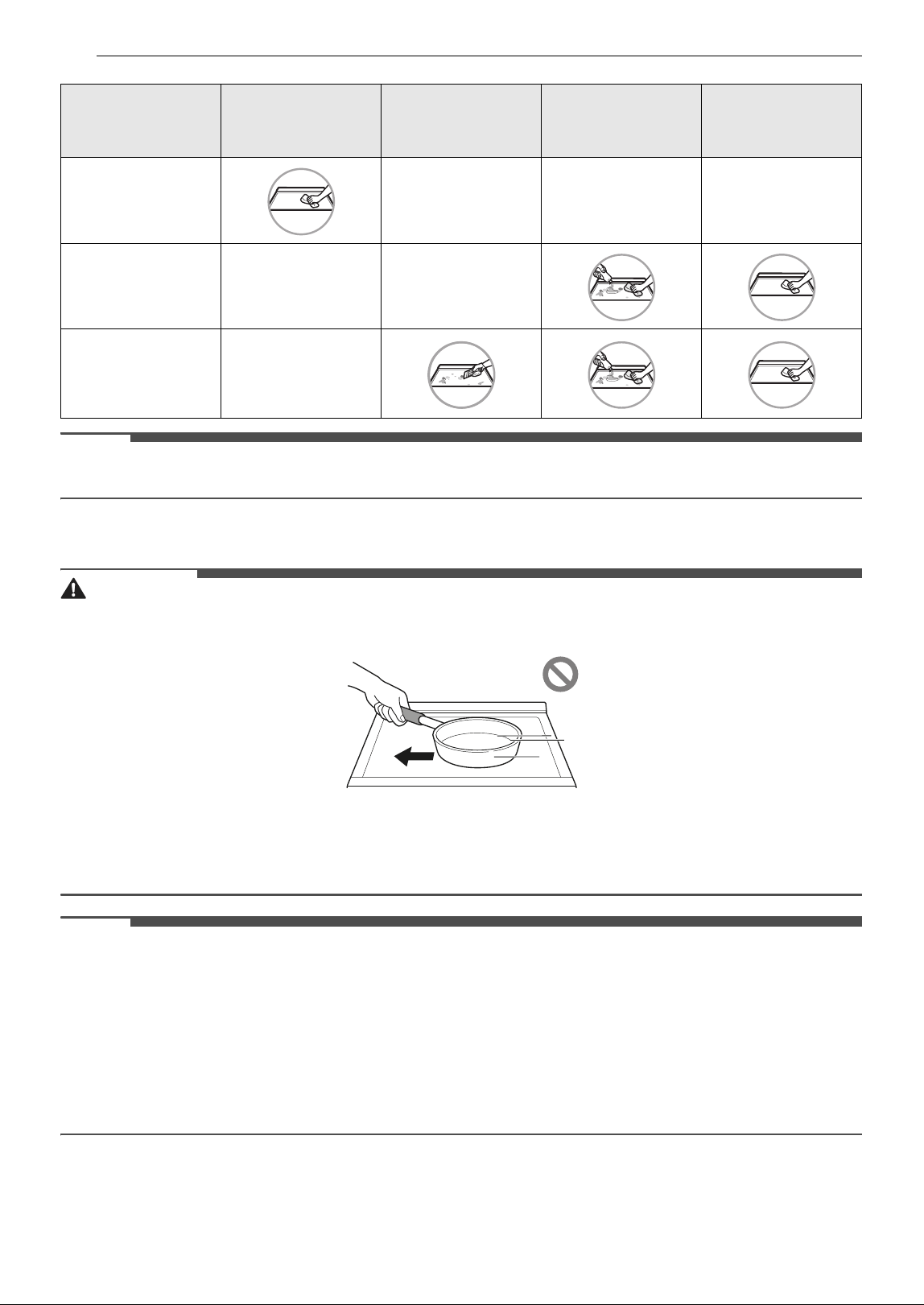

Metal Marks and Scratches
CAUTION
• Always use heavier gauge, high-quality cookware on the cooking elements and do not slide it on the
ceramic cooktop surface. Even high-quality cookware can scratch the cooktop surface.
• Any cookware that has a rough or dirty bottom can mark and scratch the cooktop surface. Always start
with clean cookware.
• Do not use cookware if there is foreign matter on the cooktop surface. Always clean the cooktop surface
before cooking.
NOTE
• Any damage or failure of the product resulting from the items below may not be covered under the
LIMITED WARRANTY.
- Be careful not to slide pots and pans across the cooktop. Doing so will leave metal markings on the
cooktop surface. To help remove these marks, use a ceramic cooktop cleaner with a cleaning pad for
ceramic cooktops.
- If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave a black
discoloration on the cooktop. This should be removed immediately before heating again or the
discoloration may be permanent.
EasyClean
LG’s EasyClean enamel technology provides two
cleaning options for the inside of the range. The
EasyClean feature takes advantage of LG’s new
enamel to help lift soils without harsh chemicals,
-
Wipe off with a
damp towel and
mild detergent
Use a metal
scraper
Apply cooktop
cleaner. Rub with
a towel.
Rinse with a
damp towel, then
wipe dry.
Regular
(Recommended
after each use)
---
Occasional
(Recommended
every week)
--
Thorough
(Recommended for
tough stains or
burnt-on food)
-
55MAINTENANCE
ENGLISH
and it runs using ONLY WATER for just 10 minutes
in low temperatures to help loosen LIGHT soils
before hand cleaning.
While EasyClean is quick and effective for small
and LIGHT soils, the Self Clean feature can be used
to remove HEAVY, built up soils. The intensity and
high heat of the Self Clean cycle may result in
smoke which will require the opening up of
windows to provide ventilation. Compared to the
more intense Self Clean process, your LG oven
gives you the option of cleaning with LESS HEAT,
LESS TIME, and virtually NO SMOKE OR FUMES.
You can reduce energy use by cleaning light oven
soils with the EasyClean feature instead of Self
Clean.
When needed, the range still provides the Self
Clean option for longer, more thorough oven
cleaning for heavier, built up soils.
• For hard to reach areas such as the back surface
of the oven, it is better to use the Self Clean
cycle.
Benefits of EasyClean
• Helps loosen light soils before hand-cleaning
• EasyClean only uses water; no chemical cleaners
• Makes for a better Self Clean experience
- Delays the need for a Self Clean cycle
- Minimizes smoke and odors
- Can allow shorter Self Clean time
NOTE
• For models without Self Clean option
- The EasyClean feature may not be effective in
removing heavy, built-up soils. Because the
range does not include a Self Clean option,
clean the oven regularly using the EasyClean
feature to prevent heavy, burnt-on soil from
building up in the oven.
When to Use EasyClean
• Example of oven soiling
Case 1
- Soil pattern: Small drops or spots
- Types of soils: Cheese or other ingredients
- Common food items that can soil your oven:
Pizza
Case 2
- Soil pattern: Light splatter
- Types of soils: Fat/grease
- Common food items that can soil your oven:
Steaks, broiled / Fish, broiled / Meat roasted at
low temperatures
EasyClean Instruction Guide
NOTE
• Allow the oven to cool to room temperature
before using the EasyClean cycle. If your oven
cavity is above 150 °F (65 °C), Hot will appear in
the display, and the EasyClean cycle will not be
activated until the oven cavity cools down.
• The range should be level to ensure that the
bottom surface of the oven cavity is entirely
covered by water at the beginning of the
EasyClean cycle.
• For best results, use distilled or filtered water.
Tap water may leave mineral deposits on the
oven bottom.
• Soil baked on through several cooking cycles will
be more difficult to remove with the EasyClean
cycle.
• Do not open the oven door during the EasyClean
cycle. Water will not get hot enough if the door is
opened during the cycle.
1 Remove oven racks and accessories from the
oven.
2 Scrape off and remove any burnt-on debris
with a plastic scraper.
• Suggested plastic scrapers:
- Hard plastic spatula
- Plastic pan scraper
- Plastic paint scraper
- Old credit card
56 MAINTENANCE

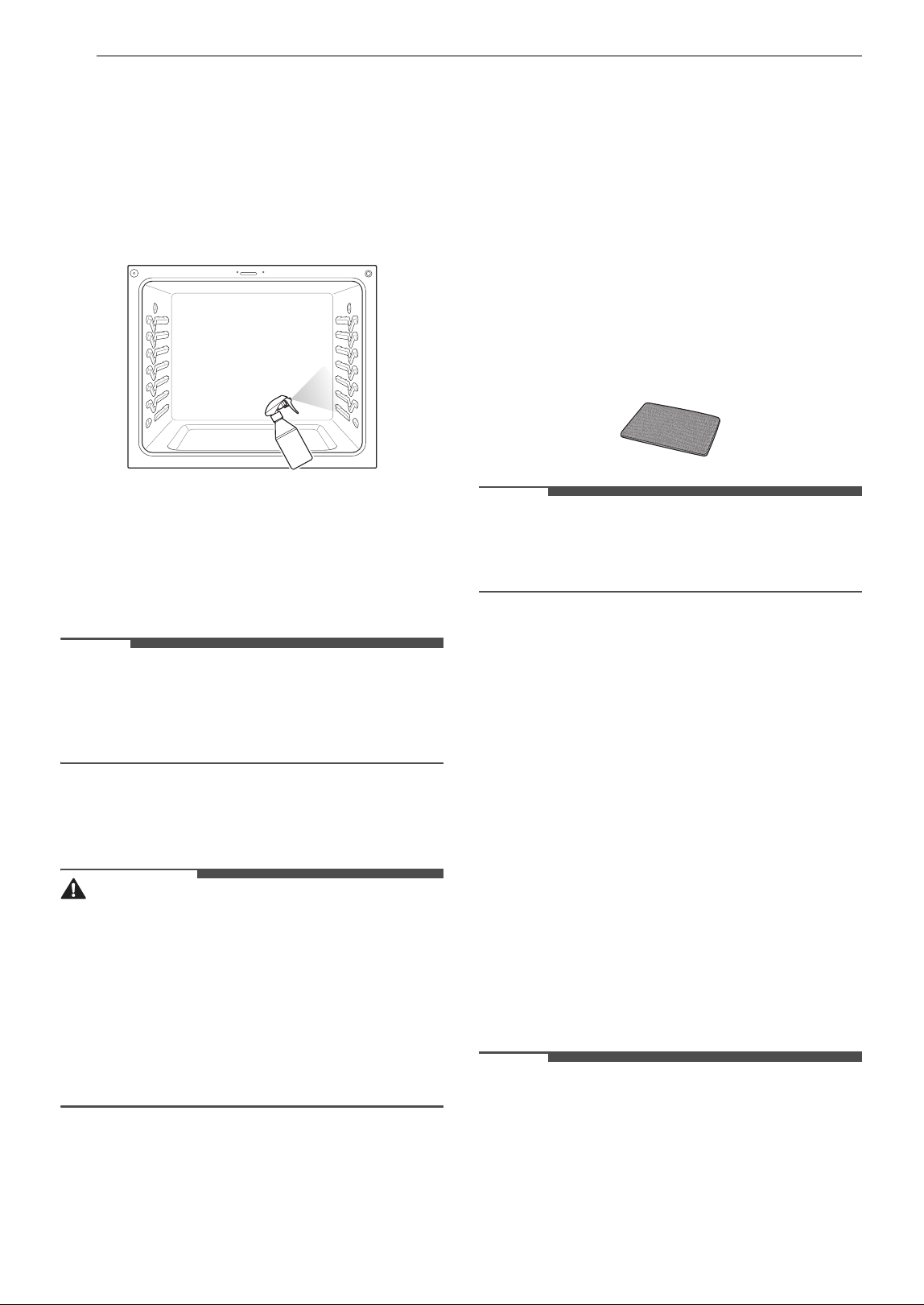

3 Fill a spray bottle (10 oz or 300 ml) with water
and use the spray bottle to thoroughly spray
the inside surfaces of the oven.
4 Use at least 1/5 (2 oz or 60 ml) of the water in
the bottle to completely saturate the soil on
both the walls and in the corners of the oven.
5 Spray or pour the remaining water (8 oz or
240 ml) onto the bottom center of the oven
cavity. The indentation on the oven bottom
should be fully covered to submerge all soils.
Add water if necessary.
NOTE
• If cleaning multiple ovens, use an entire bottle of
water to clean each oven. Do not spray water
directly on the door. Doing so will result in water
dripping to the floor.
6 Close the oven door.
Press EasyClean. Press START.
CAUTION
• Some surfaces may be hot after the EasyClean
cycle. Wear rubber gloves while cleaning to
prevent burns.
• During the EasyClean cycle, the oven becomes
hot enough to cause burns. Wait until the cycle is
over before wiping the inside surface of the
oven. Failure to do so may result in burns.
• Avoid leaning or resting on the oven door glass
while cleaning the oven cavity.
7 A tone will sound at the end of the 10 minute
cycle. Press CLEAR/OFF to clear the display
and end the tone.
8 After the cleaning cycle and during hand-
cleaning, enough water should remain on the
oven bottom to completely submerge all soils.
Add water if necessary. Place a towel on the
floor in front of the oven to capture any water
that may spill out during hand-cleaning.
9 Clean the oven cavity immediately after the
EasyClean cycle by scrubbing with a wet, non-
scratch scouring sponge or pad. (The scouring
side will not scratch the finish.) Some water
may spill into the bottom vents while
cleaning, but it will be captured in a pan under
the oven cavity and will not hurt the burner.
NOTE
• Do not use any steel scouring pads, abrasive
pads or cleaners as these materials can
permanently damage the oven surface.
10 Once the oven cavity is cleaned, wipe any
excess water with a clean dry towel. Replace
racks and any other accessories.
11 If some light soils remain, repeat the above
steps, making sure to thoroughly soak the
soiled areas.
• For models with Self Clean function
- If stubborn soils remain after multiple
EasyClean cycles, run the Self Clean cycle.
Be sure that the oven cavity is empty of
oven racks and other accessories, and
that the oven cavity surface is dry before
running the Self Clean cycle. Consult the
Self Clean section of your owner’s manual
for further details. If a Self Clean option is
not available, scrape off and remove
stubborn soil using a scraper.
NOTE
• If you forget to saturate the inside of the oven
with water before starting EasyClean, press
CLEAR/OFF to end the cycle. Wait for the range
to cool to room temperature and then spray or
pour water into the oven and start another
EasyClean cycle.
57MAINTENANCE
ENGLISH
• The cavity gasket may be wet when the
EasyClean cycle finishes. This is normal. Do not
clean the gasket.
• If mineral deposits remain on the oven bottom
after cleaning, use a cloth or sponge soaked in
vinegar to remove them.
• It is normal for the fan to operate during the
EasyClean cycle.
• Using commercial oven cleaners or bleach to
clean the oven is not recommended. Instead,
use a mild liquid cleanser with a pH value below
12.7 to avoid discoloring the enamel.
Self Clean
The Self Clean cycle uses extremely hot
temperatures to clean the oven cavity. While
running the Self Clean cycle, you may notice
smoking or an odor. This is normal, especially if
the oven is heavily soiled. During Self Clean, the
kitchen should be well ventilated to minimize the
odors from cleaning.
Before Starting Self Clean
• Clean only parts listed in manual. Remove the
oven racks, broiler pan, broiler grid, all
cookware, aluminum foil or any other material
from the oven.
- If oven racks are left in the oven cavity during
the Self Clean cycle, they will discolor and
become difficult to slide in and out.
• The kitchen should be well ventilated to
minimize the odors from cleaning. Open a
window or turn on a ventilation fan or hood
before self-cleaning.
• Wipe any heavy spillovers on the bottom of the
oven.
• Make sure that the oven light cover is in place
and the oven light is off.
• Clean the frame of the oven and door with hot
soapy water. Rinse well.
WARNING
• If the oven is heavily soiled with oil, self-clean the
oven before using the oven again. The oil could
cause a fire.
• If there is a fire in the oven during self-clean,
turn the oven off and wait for the fire to go out.
Do not force the door open. Introduction of
fresh air at self-clean temperatures may lead to
a burst of flame from the oven. Failure to follow
this instruction may result in severe burns.
CAUTION
• Do not use oven cleaners. Commercial oven
cleaner or oven liner protective coating of any
kind should not be used in or around any part of
the oven.
• The oven displays an F error code and sounds
three long beeps during the self-cleaning
process if it malfunctions in the self-clean mode.
Switch off the electrical power to the main fuse
or breaker and have the oven serviced by a
qualified technician.
• If the self cleaning mode malfunctions, turn the
range off and disconnect the power supply. Have
it serviced by a qualified technician.
• It is normal for parts of the oven to become hot
during a Self Clean cycle. Avoid touching the
cooktop, door, window or oven vent area during
a Self Clean cycle.
• Do not leave small children unattended near the
appliance. During the Self Clean cycle, the
outside of the range can become very hot to the
touch.
• If you have pet birds, move them to another
well-ventilated room. The health of some birds is
extremely sensitive to the fumes given off during
the Self Clean cycle of any range.
• Do not line the oven walls, racks, bottom or any
other part of the range with aluminum foil or
any other material. Doing so will destroy heat
distribution, produce poor baking results and
cause permanent damage to the oven interior
(aluminum foil will melt to the interior surface of
the oven).
NOTE
• The oven light cannot be turned on during a Self
Clean cycle. The oven light cannot be turned on
until the oven temperature has cooled below
500 ˚F (260 ˚C) after a Self Clean cycle is
complete.
• During the Self Clean cycle, the cooktop
elements and warming drawer cannot be used.
• Clean the frame of the oven and door with hot
soapy water. Rinse well.
• Do not clean the gasket. The fiberglass material
of the oven door gasket cannot withstand
abrasion. It is essential for the gasket to remain
intact. If you notice it becoming worn or frayed,
replace it.
• It is normal for the fan to operate during the Self
Clean cycle.
58 MAINTENANCE
NOTE
• As the oven heats, you may hear sounds of metal
parts expanding and contracting. This is normal
and will not damage the oven.
• You may notice some white ash in the oven.
Wipe it off with a damp cloth or a soap-filled
steel wool pad after the oven cools. If the oven is
not clean after one Self Clean cycle, repeat the
cycle.
• If oven racks were left in the oven and do not
slide smoothly after a Self Clean cycle, wipe racks
and rack supports with a small amount of
vegetable oil to make them glide more easily.
• After a Self Clean cycle, fine lines may appear in
the porcelain because it went through heating
and cooling. This is normal and will not affect
performance.
• The Self Clean cycle cannot be started if the
Control Lock / Lockout feature is active.
• After the oven is turned off, the convection fan
keeps operating until the oven has cooled down.

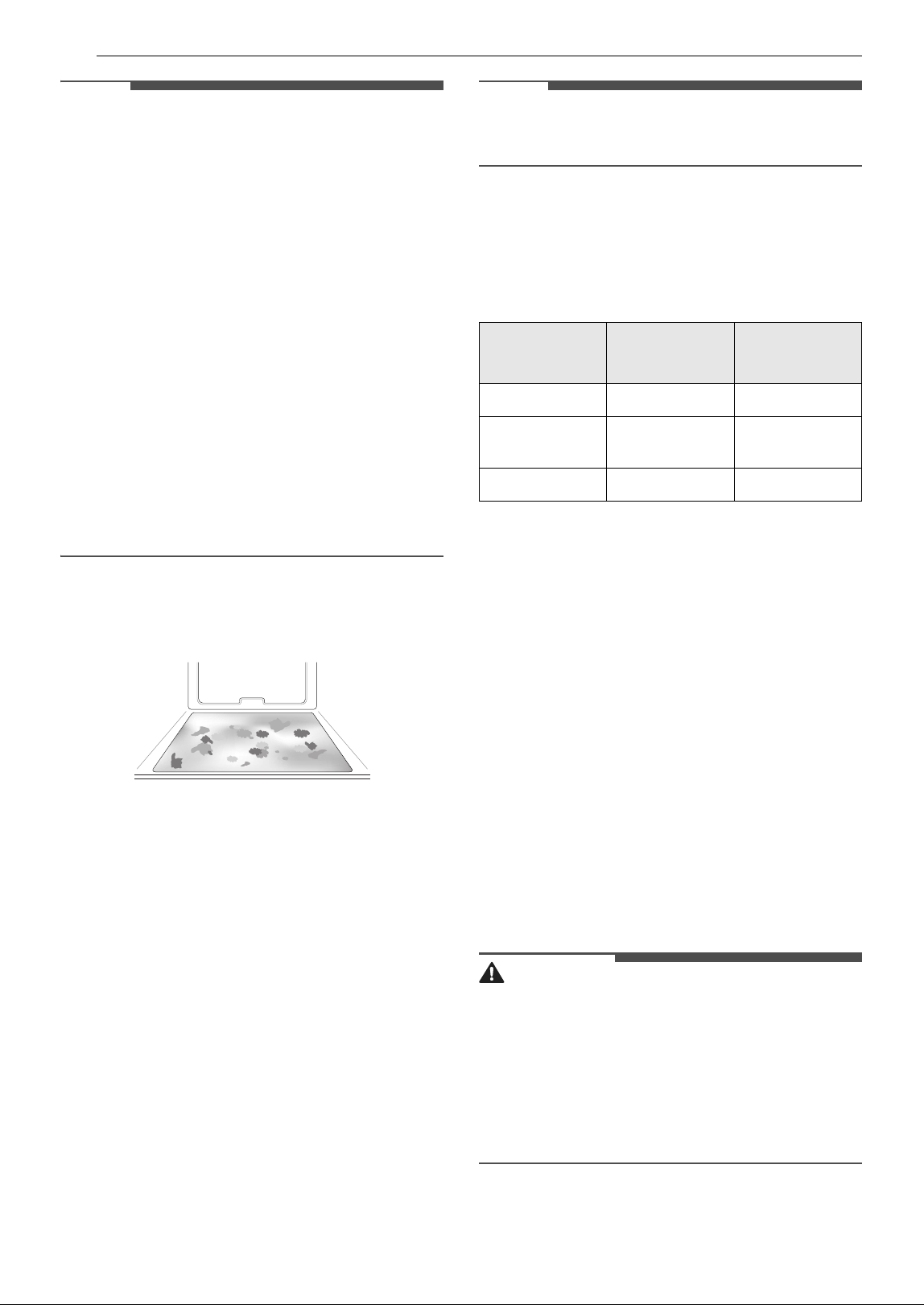

When to Use Self Clean
• Example of oven soiling
Case 1
• Soil pattern: Medium to heavy splatter
• Types of soils: Fat/grease
• Common food items that can soil your oven:
Meat roasted at high temperatures
Case 2
• Soil pattern: Drops or spots
• Types of soils: Filling or sugar based soils
• Common food items that can soil your oven: Pies
Case 3
• Soil pattern: Drops or spots
• Types of soils: Cream or tomato sauce
• Common food items that can soil your oven:
Casseroles
NOTE
• The Self Clean cycle can be used for soil that has
been built up over time.
Setting Self Clean
The Self Clean function has cycle times of 3, 4, or 5
hours.
Self Clean Setting Guide
1 Remove all racks and accessories from the
oven.
2 Press Self Clean. The oven defaults to the
recommended four-hour Self Clean for a
moderately soiled oven.
Press plus (+) or minus (-) to select a self
clean time from 3 to 5 hours.
3 Press START.
4 Once the Self Clean cycle is set, the oven door
locks automatically and the lock icon k
displays. You will not be able to open the oven
door until the oven has cooled. The lock
releases automatically when the oven has
cooled.
CAUTION
• Do not force the oven door open when the lock
icon is displayed. The oven door remains locked
until the oven temperature has cooled. Forcing
the door open will damage the door.
• Use care when opening the oven door after the
Self Clean cycle. Stand to the side of the oven
when opening the door to allow hot air or steam
to escape. The oven may still be VERY HOT.
Oven Cavity
Soil Level
Number
Button
Cycle
Time
Lightly Soiled 1 3 hr.
Moderately
Soiled
24 hr.
Heavily Soiled 3 5 hr.
59MAINTENANCE
ENGLISH
NOTE
• It may become necessary to cancel or interrupt a
Self Clean cycle due to excessive smoke or fire in
the oven. To cancel the Self Clean function, press
CLEAR/OFF.

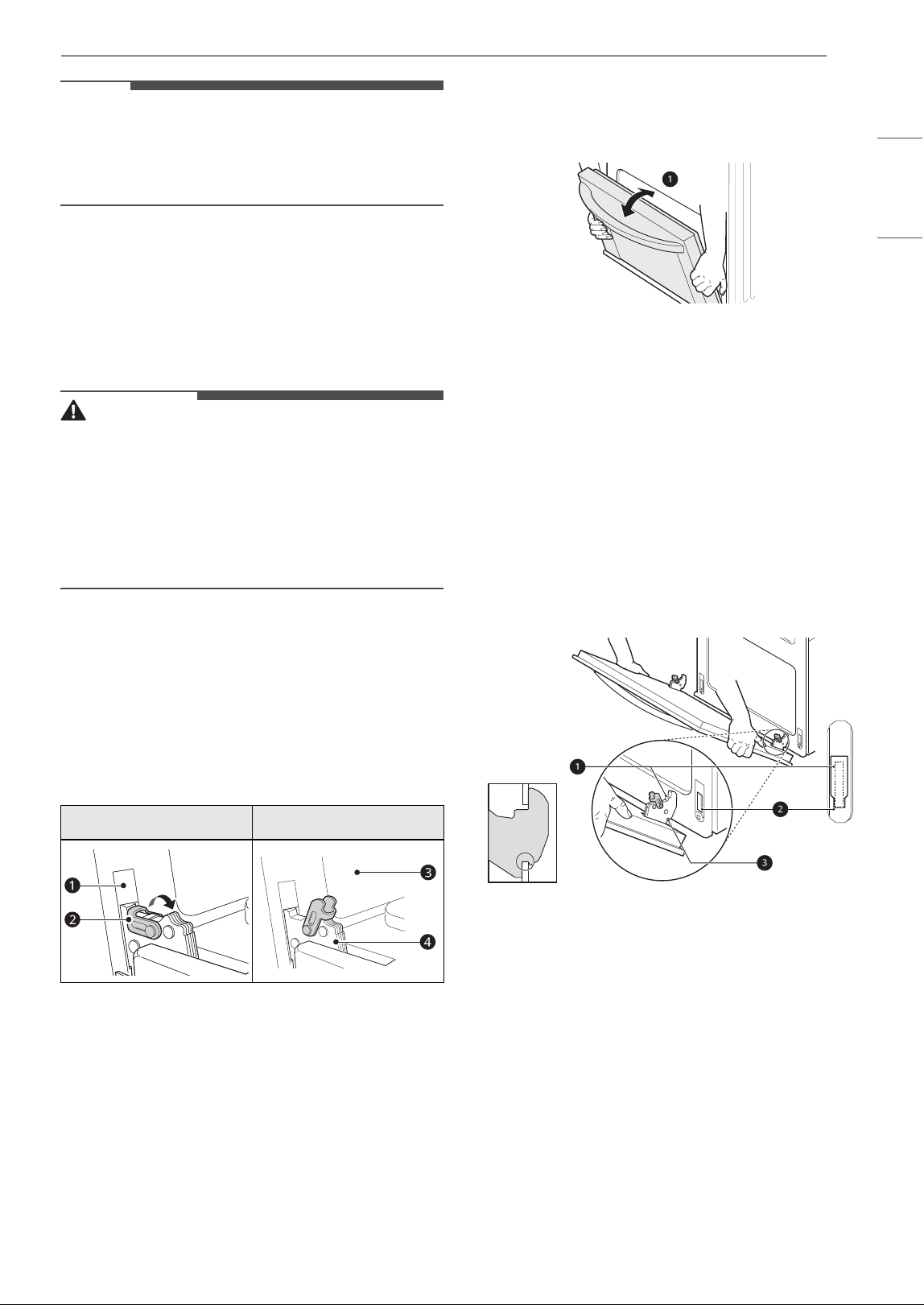

Removing/Assembling Lift-Off
Oven Doors
Door Care Instructions
Most oven doors contain glass that can break.
CAUTION
• Do not close the oven door until all the oven
racks are fully in place.
• Do not hit the glass with pots, pans, or any other
object.
• Scratching, hitting, jarring, or stressing the glass
may weaken its structure causing an increased
risk of breakage at a later time.
Removing Doors
1 Fully open the door.
2 Lift up the hinge lock b and flip it towards the
hinge arm d completely. Repeat on other
side.
a Slot
b Hinge Lock
c Oven Frame
d Hinge Arm
3 Firmly grasp both sides of the door at the top.
4 Partially close the door to approximately 5
degrees a. If the position is correct, the hinge
arms will move freely.
a about 5°
5 Lift and pull the door towards you until the
hinge latches are completely loosened.
Assembling Doors
1 Firmly grasp both sides of the door at the top.
2 Fully insert the hinge arms a into the slots b
until the indentations c on the hinge arms
rest on the bottom edges of the slots.
a Hinge Arm
b Bottom Edge of Slot
c Indentation
3 Slowly open the door fully. Make sure that the
hinge arms are properly engaged in the slots.
Locked Position Unlocked Position
60 MAINTENANCE

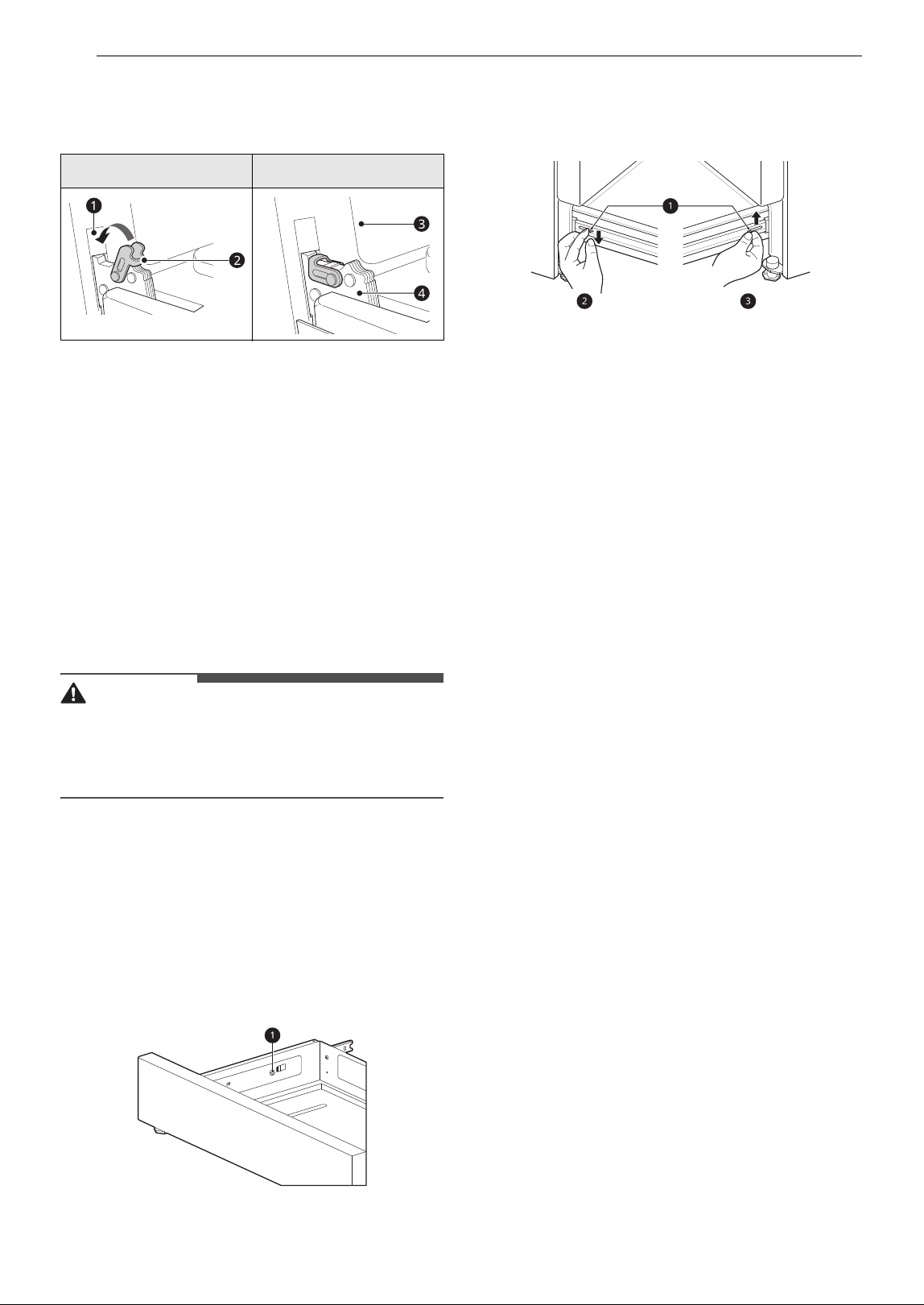

4 Lift up the hinge lock b and flip it towards the
oven c until it clicks into position. Repeat on
other side.
a Slot
b Hinge Lock
c Oven Frame
d Hinge Arm
5 Close the oven door.
Removing/Assembling Drawers
Removing Drawers
CAUTION
• Disconnect the electrical power to the range at
the main fuse or circuit breaker panel. Failure to
do so can result in severe personal injury, death,
or electrical shock.
Most cleaning can be done with the drawer in
place; however, the drawer may be removed if
further cleaning is needed. Use warm water to
thoroughly clean.
1 Fully open the drawer.
2 Unscrew the screw a on the side at the back
of the drawer.
3 Locate the glide lever on each side of the
drawer. Push down on the left glide lever and
pull up on the right glide lever.
a Lever
b Push down with finger
c Pull up with finger
4 Pull the drawer away from the range.
Assembling Drawers
1 Pull the bearing glides to the front of the
chassis glide.
2 Align the glide on each side of the drawer with
the glide slots on the range.
3 Push the drawer into the range until levers
click (approximately 2 inches).
4 Insert and tighten the screws on the side at
the back of the drawer.
5 Pull the drawer open again to seat the
bearing glides into position.
Removing/Assembling the Vent
Trim
Removing the Vent Trim
1 Using a screwdriver, remove the two screws
holding the vent trim in place.
Unlocked Position Locked Position
61MAINTENANCE
ENGLISH

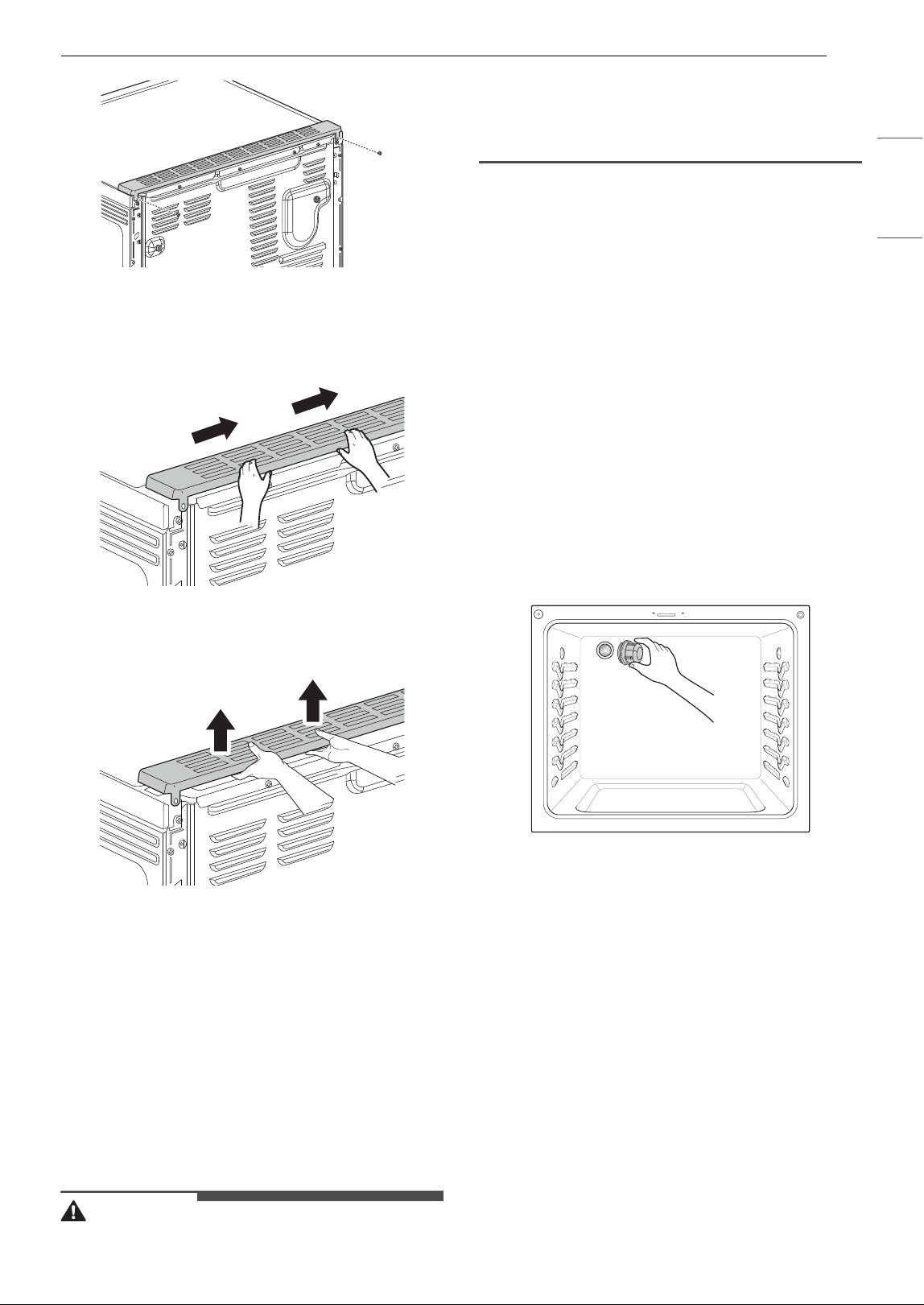

2 Move the vent trim in the indicated direction
approximately 1/4".
3 Lift the vent trim.
Assembling the Vent Trim
Assemble the vent trim in the reverse sequence of
its removal.
Periodic Maintenance
Changing the Oven Light
The oven light is a standard 40-watt appliance
halogen lamp. It turns on when the oven door is
open. When the oven door is closed, press Light to
turn it on or off.
WARNING
• Make sure that the oven and lamp are cool.
• Disconnect the electrical power to the range at
the main fuse or circuit breaker panel. Failure to
do so can result in severe personal injury, death,
or electrical shock.
1 Unplug the range or disconnect power.
2 Turn the glass lamp cover in the back of the
oven counterclockwise to remove.
3 Remove the halogen lamp from the socket.
4 Insert the new halogen lamp.
5 Insert the glass lamp cover and turn it
clockwise.
6 Plug in the range or reconnect the power.
62 TROUBLESHOOTING
TROUBLESHOOTING
FAQs
Frequently Asked Questions
CAUTION
• Foil may be used to wrap food in the oven or warming drawer, but do not allow the foil to come into
contact with the exposed heating/broiling elements in the oven. The foil could melt or ignite, causing
smoke, fire, or injury.
Q: What types of cookware are recommended for use with the cooktop?
A:
• The pans must have a flat bottom and straight sides.
• Only use heavy-gauge pans.
• The pan size must match the amount of food to be prepared and the size of the surface
element.
• Use tight fitting lids.
• Only use flat-bottom woks.
Q: Why do the heating elements appear to be turning ON and OFF during use of the cooktop or
oven?
A: Depending on your cooktop element setting or the temperature selected in your oven, it is normal for
the cooking elements to cycle on and off.
Q: My new oven doesn’t cook like my old one. Is there something wrong with the temperature
settings?
A: No. Your oven has been factory tested and calibrated. For the first few uses, follow your recipe times
and temperatures carefully. If you still think your new oven is too hot or too cold, you can adjust the
oven temperature yourself to meet your specific cooking needs. Refer to the Changing Oven Settings
section in this manual for easy instructions on how to adjust your thermostat.
Q: Is it normal to hear a clicking noise coming from the back of my oven when I am using it?
A: Your new range is designed to maintain a tighter control over your oven’s temperature. You may hear
your oven’s heating elements click on and off more frequently on your new oven. This is normal.
Q: Why is the time flashing?
A: This means that the product has just been plugged in, or that it has experienced a power
interruption. To clear the flashing time, touch any button and reset the clock if needed.
Q: During convection cooking the fan stops when I open the door. Is that normal?
A: Yes, this is normal. When the door is opened, the convection fan will stop until the door is closed.
Q: Can I use aluminum foil to catch drippings in my oven cavity?
A: Never use aluminum foil to line the bottom or sides of the oven or the warming drawer (on some
models). The foil will melt and stick to the bottom surface of the oven and will not be removable. Use
a foil-lined sheet pan placed on a lower oven rack to catch drippings instead. (If foil has already
melted onto the bottom of the oven, it will not interfere with the oven’s performance.)
Q: Can I use aluminum foil on the racks?
A: Do not cover racks with aluminum foil. Covering entire racks with foil restricts air flow, leading to
poor cooking results. Use a sheet pan lined with foil under fruit pies or other acidic or sugary foods to
prevent spillovers from damaging the oven finish.
63TROUBLESHOOTING
ENGLISH
Q: Can I leave my racks in the oven when running a Self Clean cycle? (On some models)
A: No. Although it will not damage the racks, it will discolor them and may make them hard to slide in
and out during use. Remove all items from the oven before starting a Self Clean cycle.
Q: What should I do if my racks are sticky and have become hard to slide in and out?
A: Over time, the racks may become hard to slide in and out. Apply a small amount of olive oil to the
sides of the racks. This will work as a lubricant for easier gliding.
Q: What should I do for hard to remove stains on my cooktop?
A: The cooktop should be cleaned after every use to prevent permanent staining. When cooking foods
with high sugar content, such as tomato sauce, clean the stain off with a scraper while the cooktop is
still warm. Use an oven mitt when scraping to prevent burns. Refer to the MAINTENANCE section of
this owner's manual for further instruction.
Q: Why aren't the function buttons working?
A:
Make sure that the range is not in Control Lock / Lockout mode. The lock
k will show in the display if
Control Lock / Lockout is activated. To deactivate Control Lock / Lockout, refer to the Control Lock /
Lockout section. The unlock melody sounds and Loc appears in the display until the controls are
unlocked. On models with Sabbath mode, make sure that the range is not in Sabbath mode. See the
Sabbath Mode section of the manual for instructions.
Q: My range is still dirty after running the EasyClean cycle. What else should I do?
A: The EasyClean cycle only helps to loosen light soils in your oven range to assist in hand-cleaning of
your oven. It does not automatically remove all soils after the cycle. Some scrubbing of your oven
range is required after running the EasyClean cycle.
Q: I tried scrubbing my oven after running EasyClean, but some soils still remain. What can I do?
A: The EasyClean feature works best when the soils are fully soaked and submerged in water before
running the cycle and during hand-cleaning. If soils are not sufficiently soaked in water, it can
negatively affect the cleaning performance. Repeat the EasyClean process using sufficient water.
• For models with Self Clean function:
Sugar-based and certain greasy soils are especially hard to clean. If some stubborn soils
remain, use the Self Clean feature to thoroughly clean your oven.
Q: Soils on my oven walls are not coming off. How can I get the oven walls clean?
A: Soils on the side and rear walls of your oven range may be more difficult to fully soak with water. Try
repeating the EasyClean process with more than the ¼ cup (2 oz or 60 ml) of spray recommended.
Q: Will EasyClean get all of the soils and stains out completely?
A: It depends on the soil type. Sugar-based and certain grease stains are especially hard to clean. Also, if
stains are not sufficiently soaked in water, this can negatively affect cleaning performance.
• For models with Self Clean function:
If stubborn or built-up stains remain, use the Self Clean feature. Refer to the Self Clean section
of your owner's manual.
Q: Are there any tricks to getting some of the stubborn soils out?
A: Scraping the soils with a plastic scraper before and during hand-cleaning is recommended. Fully
saturating soils with water is also recommended.
• For models with Self Clean function:
Certain types of soils are harder to clean than others. For these stubborn soils, the Self Clean
cycle is recommended. Consult the Self Clean section of your owner's manual for details.
Q: Is it safe for my convection fan or heater element to get wet during EasyClean?
64 TROUBLESHOOTING
Before Calling for Service
Review this section before calling for service; doing so will save you both time and money.
Cooking
A: Yes. The convection fan or heater element may get a little wet during cleaning. However, direct spray
onto the broil burner and heater elements is not necessary because these are self-cleaning during
regular use.
Q: Do I need to use all 1 ¼ cups (10 oz or 300 ml) of water for EasyClean?
A: Yes. It is highly recommended that 1 cup (8 oz or 240 ml) of water be sprayed or poured on the
bottom and an additional ¼ cup (2 oz or 60 ml) of water be sprayed on walls and other soiled areas to
fully saturate the soils for better cleaning performance.
Q: I see smoke coming out of my oven range’s cooktop vents during EasyClean. Is this normal?
A: This is normal. This is not smoke. It is actually water vapor (steam) from the water in the oven cavity.
As the oven heats briefly during EasyClean, the water in the cavity evaporates and escapes through
the oven vents.
Q: How often should I use EasyClean?
A: EasyClean can be performed as often as you wish. EasyClean works best when your oven is LIGHTLY
soiled from such things as LIGHT grease splatter and small drops of cheese. Please refer to the
EasyClean section in your owner's manual for more information.
Q: What is required for EasyClean?
A: A spray bottle filled with 1¼ cups (10 oz or 300 ml) of water, a plastic scraper, a non-scratch scrubbing
pad and a towel. You should not use abrasive scrubbers such as heavy-duty scouring pads or steel
wool.
Q: How can I help keep children safe around the range?
A: Children should be supervised around the range whenever it is in use, and after use until surfaces
have cooled. You can also use the Control Lock / Lockout feature to help prevent children from
accidentally turning on the cooktop or oven. The Control Lock / Lockout feature disables most control
panel buttons. On some models, it also locks the oven door. Consult the Control Lock / Lockout
section of your owner’s manual for details. (In models without a Self Clean option, the Control Lock /
Lockout feature locks the controls but does not lock the oven door.)
Q: Why isn't the Instaview working? (On some models only)
A: Level the range by adjusting the leveling legs with a wrench.
Problem Possible Cause & Solution
Oven will not work Plug on range is not completely inserted in the electrical outlet.
• Make sure electrical plug is plugged into a live, properly grounded outlet.
A fuse in your home may be blown or the circuit breaker tripped.
• Replace the fuse or reset the circuit breaker.
Oven controls improperly set.
• See the "Oven" section in the Operation chapter.
Oven too hot.
• Allow the oven to cool to below locking temperature.
65TROUBLESHOOTING
ENGLISH
Steam is exhausted
through the oven
vent.
Cooking foods with high moisture produces steam.
• This is normal.
Appliance does not
operate.
Cord is not plugged in correctly.
• Make sure cord is plugged correctly into outlet. Check circuit breakers.
Service wiring is not complete.
• Contact your electrician for assistance.
Power outage.
• Check house lights to be sure. Call your local electric company for service.
Sabbath mode is activated (on some models).
sb appears in the display and all function
buttons are inactive.
• Press and hold the Settings button for 3 seconds or until sb disappears from the display.
Oven smokes
excessively during
broiling.
Control not set properly.
• Follow instructions under Setting Oven Controls.
Meat too close to the element.
• Reposition the rack to provide proper clearance between the meat and the element.
Preheat broil element for searing.
Meat not properly prepared.
• Remove excess fat from meat. Cut remaining fatty edges to prevent curling.
Insert on broiler pan wrong side up and grease not draining.
• Always place the grid on the broiler pan with ribs up and slots down to allow grease to drip
into the pan.
Grease has built up on oven surfaces. Old grease or food spatters cause excessive
smoking.
• Regular cleaning is necessary when broiling frequently.
Food does not bake
or roast properly
Oven controls improperly set.
• See the "Oven" section in the Operation chapter.
Rack position is incorrect or the rack is not level.
• See the "Oven" section in the Operation chapter.
Incorrect cookware or cookware of improper size being used.
• See the "Oven" section in the Operation chapter.
Oven sensor needs to be adjusted.
• See the "Calibrating the Oven Temperature" section in the Operation chapter.
Food does not broil
properly
Oven controls improperly set.
• Make sure you select the Broil mode properly.
Improper rack position being used.
• See the Broiling Guide.
Cookware not suited for broiling.
• Use broiling pan and grid.
Aluminum foil used on the broiling pan and grid has not been fitted properly and slit as
recommended.
• See the "Oven" section in the Operation chapter.
In some areas the power voltage may be low.
• Preheat the broil element for 5-7 minutes. See the Broiling Guide.
Problem Possible Cause & Solution
66 TROUBLESHOOTING
Parts & Features
Oven temperature
too hot or too cold
Oven sensor needs to be adjusted.
• See the "Calibrating the Oven Temperature" section in the Operation chapter.
Excessive smoking
during a Self Clean
cycle (On some
models)
Excessive soil.
• Turn off the Self Clean function. Open the windows to rid the room of smoke. Wait until the
Self Clean mode is cancelled. Wipe up the excess soil and reset the clean.
Burning or oily odor
emitting from the
vent
This is normal in a new oven.
• This will disappear in time. To speed the process, set a Self Clean cycle for a minimum of 3
hours. See the Self Clean section. (On some models)
Moisture collects on
oven window or
steam comes from
oven vent
This happens when cooking foods high in moisture.
• This is normal.
Excessive moisture was used when cleaning the window.
• Do not use excessive moisture when cleaning the window.
Problem Possible Cause & Solution
Range is not level. Poor installation.
• Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at
base of range until the oven rack is level.
• Be sure floor is level and strong and stable enough to adequately support range.
• If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel.
• Be sure cabinets are square and have sufficient room for range clearance.
Cannot move
appliance easily.
Appliance must be
accessible for
service.
Cabinets not square or are built in too tightly.
• Contact builder or installer to make appliance accessible.
Carpet interferes with range.
• Provide sufficient space so range can be lifted over carpet.
Anti-tip device engaged.
• Uninstall the anti-tip device to move the range. Reengage the anti-tip device after pulling
the range out for cleaning, service, or any other reason.
Surface units will not
maintain a rolling
boil or cooking is not
fast enough.
Improper cookware being used.
• Use pans which are flat and match the diameter of the surface unit selected.
In some areas, the power(voltage) may be low.
• Cover pan with a lid until desired heat is obtained.
Surface units do not
work properly.
A fuse in your home may be blown or the circuit breaker tripped.
• Replace the fuse or reset the circuit breaker.
Cooktop controls improperly set.
• Check to see the correct control is set for the surface unit you are using.
Problem Possible Cause & Solution
67TROUBLESHOOTING
ENGLISH
Surface unit stops
glowing when
changed to a lower
setting.
The unit is still on and hot.
• This is normal.
Areas of
discoloration on the
cooktop
Food spillovers not cleaned before next use.
• See the "Glass-Ceramic Cooktop" section in the MAINTENANCE chapter.
Hot surface on a model with a light-colored cooktop.
• This is normal.The surface may appear discolored when it is hot. This is temporary and will
disappear as the glass cools.
Frequent cycling on
and off of surface
units
The element will cycle on and off to maintain the heat setting.
• This is normal.
Scratches or
abrasions on
cooktop surface
Coarse particles such as salt or sand between cooktop and utensils can cause
scratches.
• Be sure the cooktop surface and bottoms of utensils are clean before using. Small
scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for glass-ceramic cooktop have been used.
• See the "Glass-Ceramic Cooktop" section in the MAINTENANCE chapter.
Cookware with rough bottom has been used.
• Use smooth, flat-bottomed cookware.
Metal marks Scraping of metal utensils on cooktop surface.
• Do not slide metal utensils on cooktop surface. Use a glass-ceramic cooktop cleaning
creme to remove the marks. See the "Glass-Ceramic Cooktop" section in the
MAINTENANCE chapter.
Brown streaks or
specks
Boilovers are cooked onto surface.
• Use a blade scraper to remove soil. See the "Glass-Ceramic Cooktop" section in the
MAINTENANCE chapter.
Areas of
discoloration on
cooktop
Mineral deposits from water and food.
• Remove using a glass-ceramic cooktop cleaning creme. Use cookware with clean, dry
bottoms.
Oven control beeps
and displays any F
code error.
Electronic control has detected a fault condition.
• Turn off the oven function you are using to clear the display and stop beeping. Reprogram
oven. If fault recurs, record fault number and contact a service agent.
Oven control
displays Sb/5b/S6/56
error code.
This code is not an error code. It indicates that the product's Sabbath mode
sb is
activated.
• See the "Using the Sabbath Mode" section in the Operation chapter.
Displayed colon in
the clock is flashing
This means that the product has just been plugged in, or that it has experienced a
power interruption.
• This is normal. Reset the clock or press any button to stop the flashing.
CLEAN and door
flash in the display
(On some models)
The Self Clean cycle has been selected, but the door is not closed.
• Close the oven door.
Loc is on in the
display when you
want to cook (On
some models)
The oven is locked because of the Control Lock / Lockout feature.
• Deactivate the Control Lock / Lockout feature.
Problem Possible Cause & Solution
68 TROUBLESHOOTING
Noises
Oven light does not
work.
It is time to replace the lamp or the lamp is loose.
• Replace or tighten lamp. See "Changing the Oven Light" section in this Owner’s Manual.
Convection fan
stops. (During
Conv.Bake mode)
Convection fan stops during a convection bake cycle. It is done to allow for more even
heating during the cycle.
• This is not a failure of the range and should be considered normal operation.
Fan operation
(During Bake mode)
This is to ensure even baking results.
• It is normal for the fan to operate periodically throughout a normal bake cycle in the oven.
Oven will not Self
Clean. (On some
models)
The oven temperature is too high to set a Self Clean operation.
• Allow the range to cool and reset the controls.
Oven controls improperly set.
• See the Self Clean section.
A Self Clean cycle cannot be started if the oven Control Lock / Lockout feature is active.
• See the "Control Lock / Lockout" in "Changing Oven Settings" section.
Oven door does not
open after a Self
Clean cycle (On some
models)
Oven is too hot.
• Allow the oven to cool below locking temperature.
The control and door may be locked.
• Allow about one hour for the oven to cool after the completion of a Self Clean cycle. The
door can be opened when the lock
k is no longer displayed.
The oven is not clean
after a Self Clean
cycle (On some
models)
Oven controls not properly set.
• See the Self Clean section.
Oven was heavily soiled.
• Clean up heavy spillovers before starting the clean cycle. Heavily soiled ovens may need to
Self Clean again or for a longer period of time.
Oven racks are
difficult to slide (On
some models)
The shiny, silver-colored racks were cleaned in a Self Clean cycle.
• Apply a small amount of vegetable oil to a paper towel and wipe the edges of the oven
racks with the paper towel.
Problem Possible Cause & Solution
“Crackling” or
“popping” sound
This is the sound of the metal heating and cooling during both the cooking and Self
Clean functions.
• This is normal.
Fan noise A convection fan may automatically turn on and off.
• This is normal.
A chime sounds
when surface
elements are turned
on.
When any cooktop burner is activated, a chime sounds to indicate the cooktop is in use.
• This is normal.
Problem Possible Cause & Solution
69TROUBLESHOOTING
ENGLISH
Wi-Fi
Problem Possible Cause & Solution
Trouble connecting
appliance and
smartphone to Wi-Fi
network
The password for the Wi-Fi network was entered incorrectly.
• Delete your home Wi-Fi network and begin the connection process again.
Mobile data for your smartphone is turned on.
• Turn off the Mobile data on your smartphone before connecting the appliance.
The wireless network name (SSID) is set incorrectly.
• The wireless network name (SSID) should be a combination of English letters and
numbers. (Do not use special characters.)
The router frequency is not 2.4 GHz.
• Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and
connect the appliance to the wireless router. To check the router frequency, check with
your Internet service provider or the router manufacturer.
The appliance and the router are too far apart.
• If the appliance is too far from the router, the signal may be weak and the connection may
not be configured correctly. Move the router closer to the appliance or purchase and
install a Wi-Fi repeater.
During Wi-Fi setup, the app is requesting a password to connect to the product (on
certain phones).
• Locate the network name which starts with "LG" under Settings > Networks. Note the last
part of the network name.
- If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345.
- If the network name looks like LGE_Appliance_XXXX, enter XXXX twice as your password.
For example, if the network name appears as LGE_Appliance_8b92, then you would
enter 8b928b92 as your password. In this instance, the password is case sensitive and
the last 4 characters are unique to your appliance.
70 LIMITED WARRANTY
LIMITED WARRANTY
USA
TERMS AND CONDITIONS
ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT
REQUIRES YOU AND LG ELECTRONICS (“LG”) TO RESOLVE DISPUTES BY BINDING ARBITRATION
INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND
JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING
DISPUTES” BELOW.
Should your LG Electric Range ("Product") fail due to a defect in materials or workmanship under normal
and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the
Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and
applies only when purchased lawfully and used within the United States including U.S. Territories.
• Replacement Products and parts are warranted for the remaining portion of the original warranty period
or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory
remanufactured.
• Replaced Product or part(s) will be the property of LG.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain
warranty service under this limited warranty.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES
SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL,
CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST
GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF
REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER
BASED IN CONTRACT, TORT, OR OTHERWISE. LG’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE
PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
THIS LIMITED WARRANTY DOES NOT COVER:
• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct
unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate
electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted
drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or
contrary to the Product owner’s manual.
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts
of nature, or any other causes beyond the control of LG.
Warranty Period Scope of Warranty HOW SERVICE IS HANDLED
One (1) year from date of
original retail purchase
Parts and Labor (internal
/ functional parts only)
LG will provide, free of charge, all labor and in-home
service to replace defective part(s).
71LIMITED WARRANTY
ENGLISH
• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is
used for other than the intended purpose, or any water leakage where the Product was not properly
installed.
• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including
scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is
reported within one (1) week of delivery.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or
maintenance. Improper repair includes the use of parts not authorized by LG. Improper installation or
maintenance includes installation or maintenance contrary to the Product owner’s manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable
cleaning products, or any other products or services that were not authorized by LG.
• Damage or missing items to any display or open box Product.
• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
• Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use) or
contrary to the Product owner’s manual.
• Costs associated with removal and reinstallation of the Product for repairs, or the removal and
reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with
the Product Owner's manual.
• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air
filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under
this limited warranty.
72 LIMITED WARRANTY

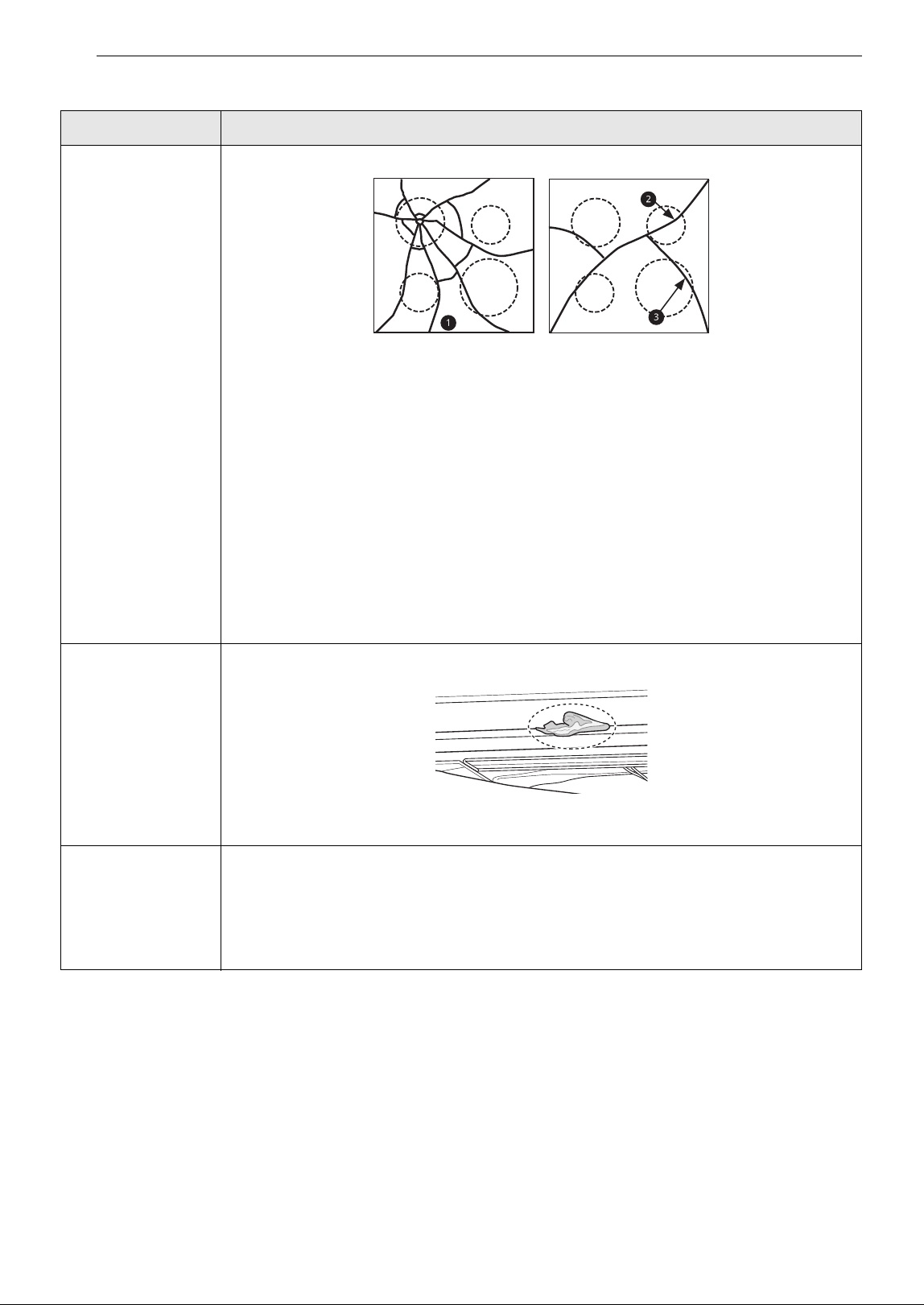

Not Covered by this Limited Warranty
Problem Possible Cause & Prevention
Cooktop crack Cooktop crack caused by impact of object
• A: Out of warranty
- a Mechanical breakage
• A: In warranty
- b Primary crack c Secondary crack
• DO NOT store heavy items above the cooktop surface as they could fall and
damage it.
• DO NOT scratch the cooktop or the cooktop could crack.
• Clean the cooktop before and after using.
NOTE
• Damage caused after delivery (Not covered by warranty)
Cooktop enamel
chipping off
Improper usage
• Do not hit enamel cooktop.
Pitting of the
cooktop glass
If not removed immediately, sugary spillovers (such as preserves, ketchup,
tomato sauce, jellies, fudge, candy, syrups, or chocolate) or melted plastic or foil
can cause surface pitting of the cooktop. (Not covered by warranty)
• Remove the molten material IMMEDIATELY with a metal razor scraper.
• For safety, wear an oven mitt or hot pad while scraping the hot surface.
AB
73LIMITED WARRANTY
ENGLISH

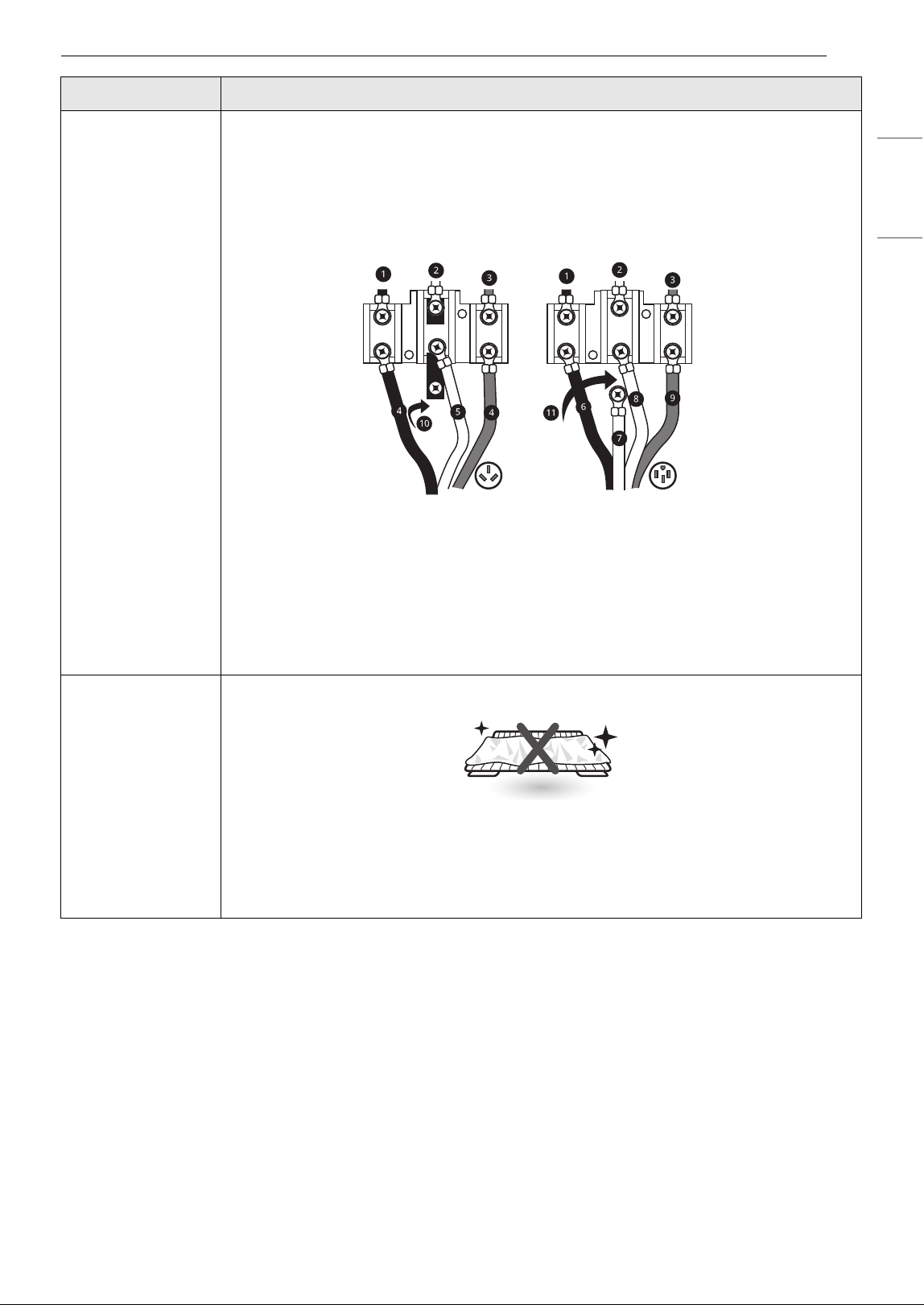

Unit has no power 1. House power turned off (power supply)
• Check power at main board before calling for service.
2. Tripped breaker
• Match power cord type and outlet type.
3. The power cord is not installed properly.
• Properly install the power cord.
• A: 3-WIRE HOOK UP
• B: 4-WIRE HOOK UP
a Black b White c Red d Outer wire
e Center wire (neutral) f Black wire
g Green ground wire h White wire (neutral)
i Red wire j Ground strap k Remove ground strap
Oven or racks are
stained after
using aluminum
foil
Aluminum foil has melted in the oven
• Never cover the oven bottom or cover an entire rack with materials such as
aluminum foil.
• If the foil has already melted onto the oven, it will not affect the performance of
the oven.
Problem Possible Cause & Prevention
<NEMA 10-50>
<NEMA 14-50>
AB
74 LIMITED WARRANTY
The cost of repair or replacement under these excluded circumstances shall be borne by You.
TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION
Call 1-800-243-0000 and select the appropriate option from the menu.
Or visit our website at http://www.lg.com
Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC
PROCEDURE FOR RESOLVING DISPUTES:
ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED
WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND
NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH
WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.
Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its
parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries,
predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include
any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute,
regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or
relating in any way to the sale, condition or performance of the product or this Limited Warranty.
Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify
LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG
Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632
USA. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim.
The notice must provide your name, address, and telephone number; identify the product that is the

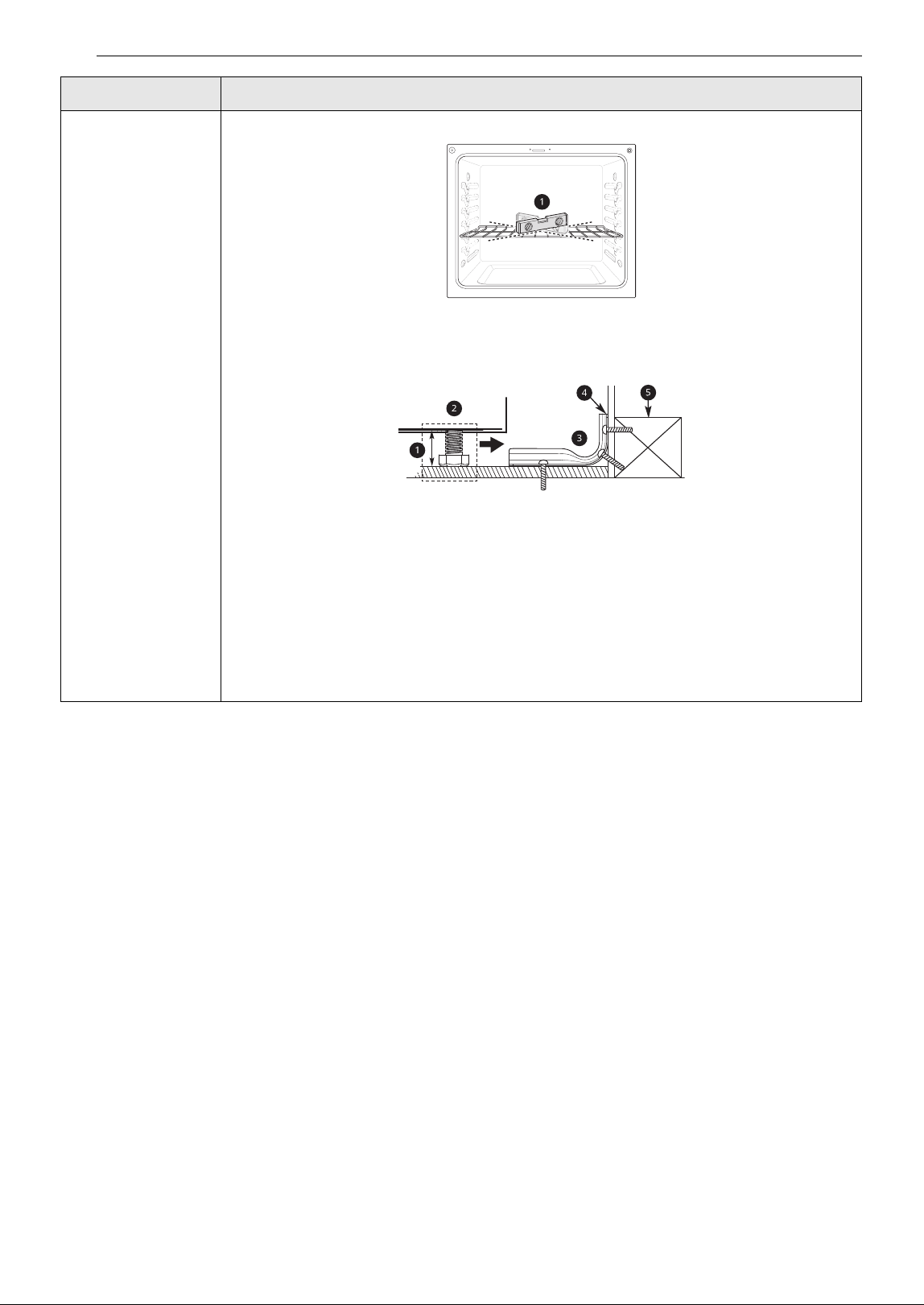

Surface is not level
Oven is tipping
Range not leveled
• Check with installer first.
• Use carpenter’s level a to check level.
Anti-tip device not installed correctly
a Approximately 0.65" (16.5 mm)
b Level both sides of range
c Screw must enter wood or concrete
d Anti-tip bracket
e Wall plate
a Use carpenter’s level to check level.
• Check with installer first.
Problem Possible Cause & Prevention
75LIMITED WARRANTY
ENGLISH
subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are
unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.
Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during
the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us
only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute
between you and LG shall not be combined or consolidated with a dispute involving any other person’s or
entity’s product or claim. More specifically, without limitation of the foregoing, any dispute between you
and LG shall not under any circumstances proceed as part of a class or representative action. Instead of
arbitration, either party may bring an individual action in small claims court, but that small claims court
action may not be brought on a class or representative basis.
Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written
demand for arbitration. The arbitration will be administered by the American Arbitration Association
(“AAA”) and will be conducted before a single arbitrator under the AAA’s Consumer Arbitration Rules that
are in effect at the time the arbitration is initiated (referred to as the “AAA Rules”) and under the
procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a
copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner
described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics,
USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632 USA. If there
is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section
will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered
on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide,
except that issues relating to the scope and enforceability of the arbitration provision and to the
arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this
provision.
Governing Law. The law of the state of your residence shall govern this Limited Warranty and any
disputes between us except to the extent that such law is preempted by or inconsistent with applicable
federal law.
Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand
for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than $25,000
in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as
otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any
arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the
arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering
factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the
foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator
can award them to the same extent that a court would. If the arbitrator finds either the substance of your
claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by
the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will
be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously
disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise
provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails
in the arbitration.
Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration
conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic
hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds $25,000, the
right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a
location within the federal judicial district in which you reside unless we both agree to another location or
we agree to a telephonic arbitration.
Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can
require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no
later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by
either: (i) sending an e-mail to [email protected]
, with the subject line: “Arbitration Opt Out” or (ii) calling 1-
800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address;
(b) the date on which the product was purchased; (c) the product model name or model number; and (d)
the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://
www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial
Number”).
76 LIMITED WARRANTY
You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail
or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure.
Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any
way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and
do not opt out, then you accept all terms and conditions of the arbitration provision described above.
77Memo
78 Memo
79Memo
80 Memo
81Memo
82 Memo
83Memo
LG Customer Information Center
Register your product Online!
www.lg.com
For inquiries or comments,
visit www.lg.com or call:
1-800-243-0000
U.S.A.
1-888-542-2623
CANADA
