Overview
VIVOTEK FD8355EHV is a professional outdoor dome network camera offering 30 fps @ 1.3-Megapixel
resolution with superb image quality.
The FD8365EHV provides 30 fps @ 2-Megapixel resolution with superb image quality.
Featuring Improved Wide Dynamic Range Technology WDR Pro II, it provides the extreme visibility in
the extremely dark & light environment with 4 times shutter. Combining 3D Noise Reduction Technology
which enables the FD8355EHV to capture clear, polished video under low-light conditions and reduce
bandwidth from sensor noise, users can identify more image details in extremely bright as well as dark
environments. The FD8365EHV comes with a standard WDR Pro feature.
Besides, as a professional day/night camera, both cameras adopt a Smart IR technology which prevents
overexposure and provides noise reduction to adjust IR lighting intensity instantaneously based on
changes in lighting in the ambient environment.
To provide top-notch image quality, the camera also comes with a P-iris lens, which controls the iris
with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the
iris opening at an optimal level at all times, resulting in superior sharpness and depth of eld as well as
image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera
can be difcult due to the level of image detail. Thus, the camera is also designed with VIVOTEK’s Smart
Focus System to make installation and adjustment easier by using remote focus and zoom adjustment.
The camera’s IP66-rated housing is designed to help the camera body withstand rain and dust and high
pressure water jets from any direction while the IK10-rated vandalproof rating provides protection against
the vandalism and impact. Additionally, the wide temperature range further enhances the camera’s
performance and reliability in extremely cold and hot weather.
Revision History
■ Rev. 1.0: Initial release
VIVOTEK
User's Manual - 5
Read Before Use
The use of surveillance devices may be prohibited by law in your country. The Network Camera
is not only a high-performance web-ready camera but can also be part of a exible surveillance
system. It is the user’s responsibility to ensure that the operation of such devices is legal before
installing this unit for its intended use.
It is important to first verify that all contents received are complete according to the Package
Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network
Camera is installed; then carefully read and follow the instructions in the Installation chapter to
avoid damage due to faulty assembly and installation. This also ensures the product is used
properly as intended.
The Network Camera is a network device and its use should be straightforward for those who
have basic networking knowledge. It is designed for various applications including video sharing,
general security/surveillance, etc. The Configuration chapter suggests ways to best utilize the
Network Camera and ensure proper operations. For creative and professional developers, the URL
Commands of the Network Camera section serves as a helpful reference to customizing existing
homepages or integrating with the current web server.
Package Contents
■ FD8155H or FD8165H
■ Alignment sticker
■ Stardriver / Screws / DC connector / AV cable
■ Software CD
■ Quick Installation Guide
Symbols and Statements in this Document
i
INFORMATION: provides important messages or advices that might help prevent
inconvenient or problem situations.
NOTE: Notices provide guidance or advices that are related to the functional integrity of
the machine.
Tips: Tips are useful information that helps enhance or facilitae an installation, function,
or process.
WARNING! or IMPORTANT!: These statements indicate situations that can be
dangerous or hazardous to the machine or you.
Electrical Hazard: This statement appears when high voltage electrical hazards might
occur to an operator.
VIVOTEK
6 - User's Manual
Physical Description

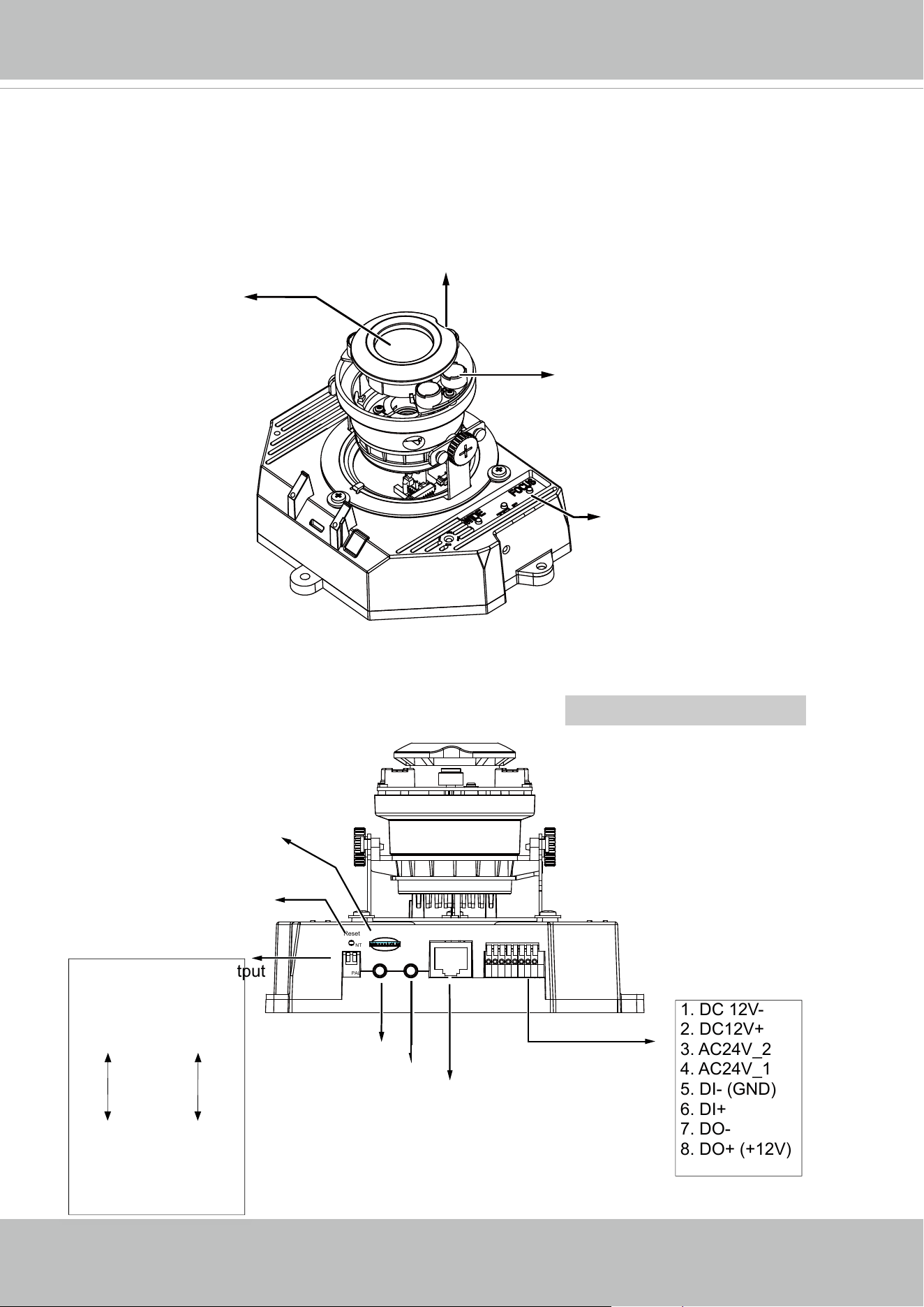

Inner View
12 3 74 5 86
Ethernet
Micro SD Card
Audio In
AV Out
Reset
NTSC
PAL
Camera Front View
Camera Rear View
Light Sensor
1. DC 12V-
2. DC12V+
3. AC24V_2
4. AC24V_1
5. DI- (GND)
6. DI+
7. DO-
8. DO+ (+12V)
Microphone In (pink)
Audio/Video Out
(green)
Jumpers
Microphone
Video Output
internal
external
NTSC 60Hz
PAL
50Hz
1
2
Reset Button
The max. output load from pins
#7 and 8 is 50mA.
NOTE:
MicroSD/SDHC/SDXC Card Slot
IR LEDs (4 units, effective up to
30m)
Focus & Zoom Buttons
Vari-focal Lens
General I/O Terminal Block
Ethernet 10/100 RJ45
Socket
VIVOTEK
User's Manual - 7
Hardware Installation
FD8155H
Dome Cover
Bottom of the Camera
Remove the dome cover using the included T10 screwdriver. Record the MAC address at
the product label.
Use the included AV cable to connect to a camera tester or LCD monitor to begin initial
setup.
Camera tester
AV Out
NOTE:
VIVOTEK
8 - User's Manual
87654321
DI/DO Diagram
Please refer to the following illustration for the connection method.
1 DC 12V-
2 DC 12V+
3 AC24V_2
4 AC24V_1
5 DI- (GND)
6 DI+
7 DO-
8 DO+ (+12V)
The max. load for power output pin 8,
12V DO, is 50mA.
NOTE:
GND
Camera Power
Input
Output
+12
VDC
Max.
VDC
Switch
BJT transistor
GND
Camera Power
Input
Output
+12
VDC
VDC
Switch
BJT transistor
Relay
Relay
12V
+12V
Digital output
PIN 8
Power+12V
PIN 7
Digital input
PIN 6
Ground
PIN 5
General I/O Terminal Block
This Network Camera provides a general I/O terminal block which is used to connect external
input / output devices. The pin denitions are described below. The 24V AC can be used as an
alternate power source.
VIVOTEK
User's Manual - 9
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, restore the factory settings and install again.
Reset: Press and release the recessed reset button with a straightened paper clip. Wait for the
Network Camera to reboot.
Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that
all settings will be restored to factory default. Upon successful restore, the status LED will blink
green and red during normal operation.
Micro SD/SDHC/SDXC Card Capacity
This network camera is compliant with Micro SD/SDHC/SDXC 8GB, 16GB, or 64GB and other
preceding standard SD cards.
Recessed Reset
Button
VIVOTEK
10 - User's Manual
1. Attach the alignment sticker to the ceilling/wall.
2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall.
3. The Network Camera can be mounted with the cable routed through the ceiling/wall or
from the side. If you want to feed the cable through the ceiling/wall, drill a cable hole.
4. Hammer the supplied plastic anchors into the holes.
5. Align the holes on the camera with the plastic anchors on the ceilling/wall, secure the
camera with the included screws.
Wall Mount
Ceiling Mount
VIVOTEK
User's Manual - 11
Network Deployment

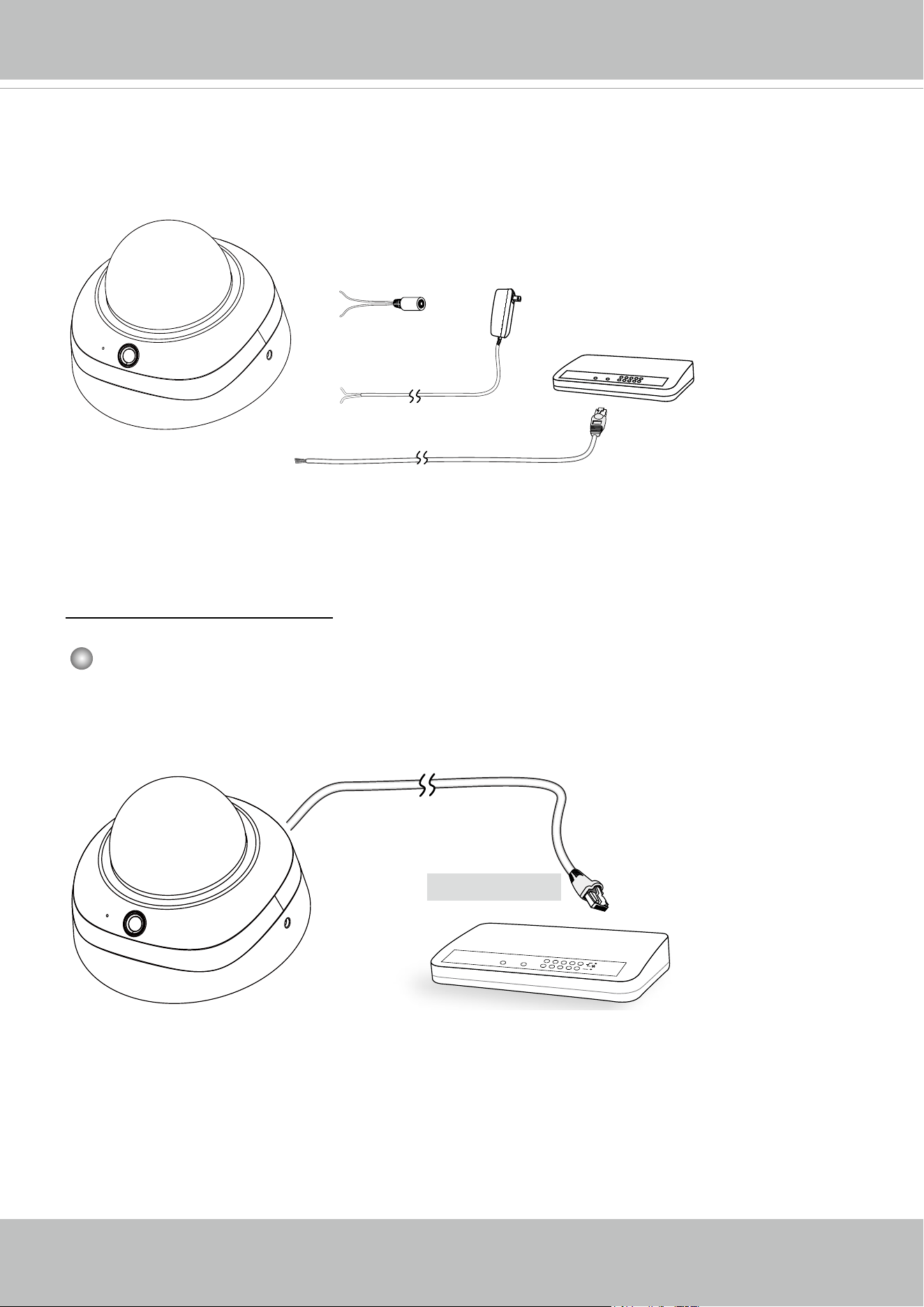

General Connection (without PoE)
1. Connect RJ45 Ethernet cable to a switch.
2. Connect the AC cables from the terminal
block as an alternate power source. The
IO cables are user-supplied.
Power over Ethernet (PoE)
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
PoE Switch
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a sin-
gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-
enabled switch via Ethernet cable.
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
Ethernet
Non-PoE Switch
Pin 1
Pin 2
AC 24V±10%
DC 12V
Pin 4
Pin 3
VIVOTEK
12 - User's Manual
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
When using a non-PoE switch

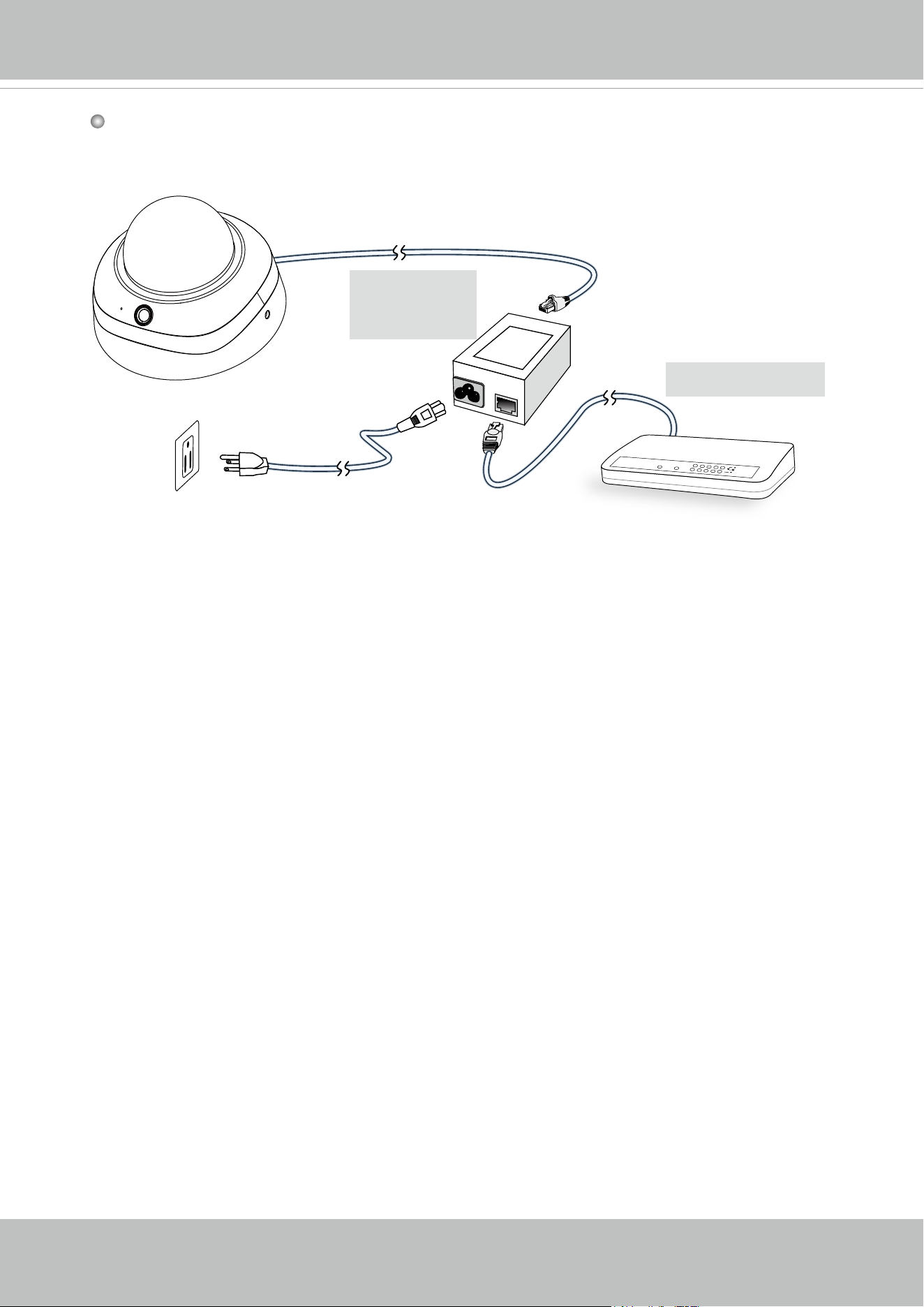

Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
PoE Power
Injector
(optional)
Non-PoE Switch
VIVOTEK
User's Manual - 13

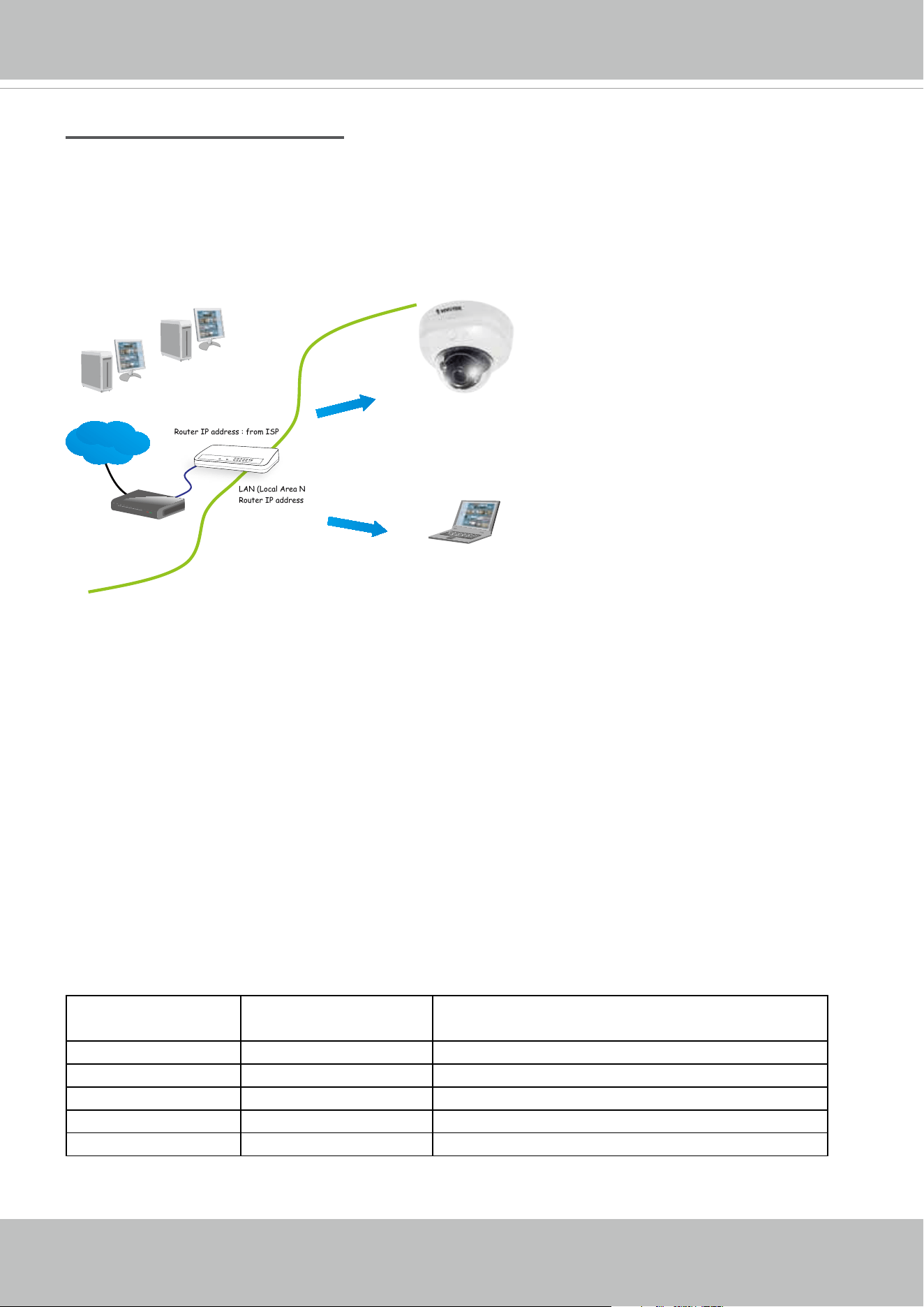

Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.
1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 15 for
details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ HTTP port: default is 80
■ RTSP port: default is 554
■ RTP port for audio: default is 5558
■ RTCP port for audio: default is 5559
■ RTP port for video: default is 5556
■ RTCP port for video: default is 5557
If you have changed the port numbers on the Network page, please open the ports
accordingly on your router. For information on how to forward ports on the router, please refer
to your router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 62 for details.
For example, your router and IP settings may look like this:
Device IP Address: internal
port
IP Address: External Port (Mapped port on the
router)
Public IP of router 122.146.57.120
LAN IP of router 192.168.2.1
Camera 1 192.168.2.10:80 122.146.57.120:8000
Camera 2 192.168.2.11:80 122.146.57.120:8001
... ... ...
VIVOTEK
14 - User's Manual
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN setting on page 62 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please
refer to PPPoE on page 63 for details.
Congure the router, virtual server or rewall, so that the router can forward any data com-
ing into a precongured port number to a network camera on the private network, and
allow data from the camera to be transmitted to the outside of the network over the same
path.
From Forward to
122.146.57.120:8000 192.168.2.10:80
122.146.57.120:8001 192.168.2.11:80
... ...
When properly congured, you can access a camera behind the router using the HTTP
request as follows: http://122.146.57.120:8000
If you change the port numbers on the Network conguration page, please open the ports
accordingly on your router. For example, you can open a management session with your
router to congure access through the router to the camera within your local network.
Please consult your network administrator for router conguration if you have troubles with
the conguration.
For more information with network conguration options (such as that of streaming ports),
please refer to Conguration > Network Settings. VIVOTEK also provides the automatic
port forwarding feature as an NAT traversal function with the precondition that your router
must support the UPnP port forwarding feature.
VIVOTEK
User's Manual - 15
Software Installation
Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up
your Network Camera on the LAN.
1. Install IW2 under the Software Utility directory from the software CD.
Double-click the IW2 shortcut on your desktop to launch the program.
2. The program will conduct an analysis of your network environment.
After your network environment is analyzed, please click Next to continue the program.
3. The program will search for all VIVOTEK network devices on the same LAN.
4. After a brief search, the installer window will prompt. Click on the MAC and model name
that matches the one printed on the product label. You can then double-click on the address to
open a management session with the Network Camera.
0002D1730202
00-02-D1-73-02-02 192.168.5.151 FD8165H
Installation
Wizard 2
IW
2
Network Camera
Model No: FD8165H
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
MAC:0002D1730202
R o HS
VIVOTEK
16 - User's Manual
Ready to Use
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-channel
recording software from the software CD in a deployment consisting of multiple cameras. For
its installation details, please refer to its related documents.
To adjust the viewing angle -- 3-axis mechanism design
1. Loosen the tilt adjustment screws on both sides
2. Turns the lens modules toward the direction you prefer.
3. Tighten the adjustment screws.
1
2
Tilt Adjustment Screws
Pan 350°
Tilt: 65°
Rotate 350°
VIVOTEK
User's Manual - 17
Focus window

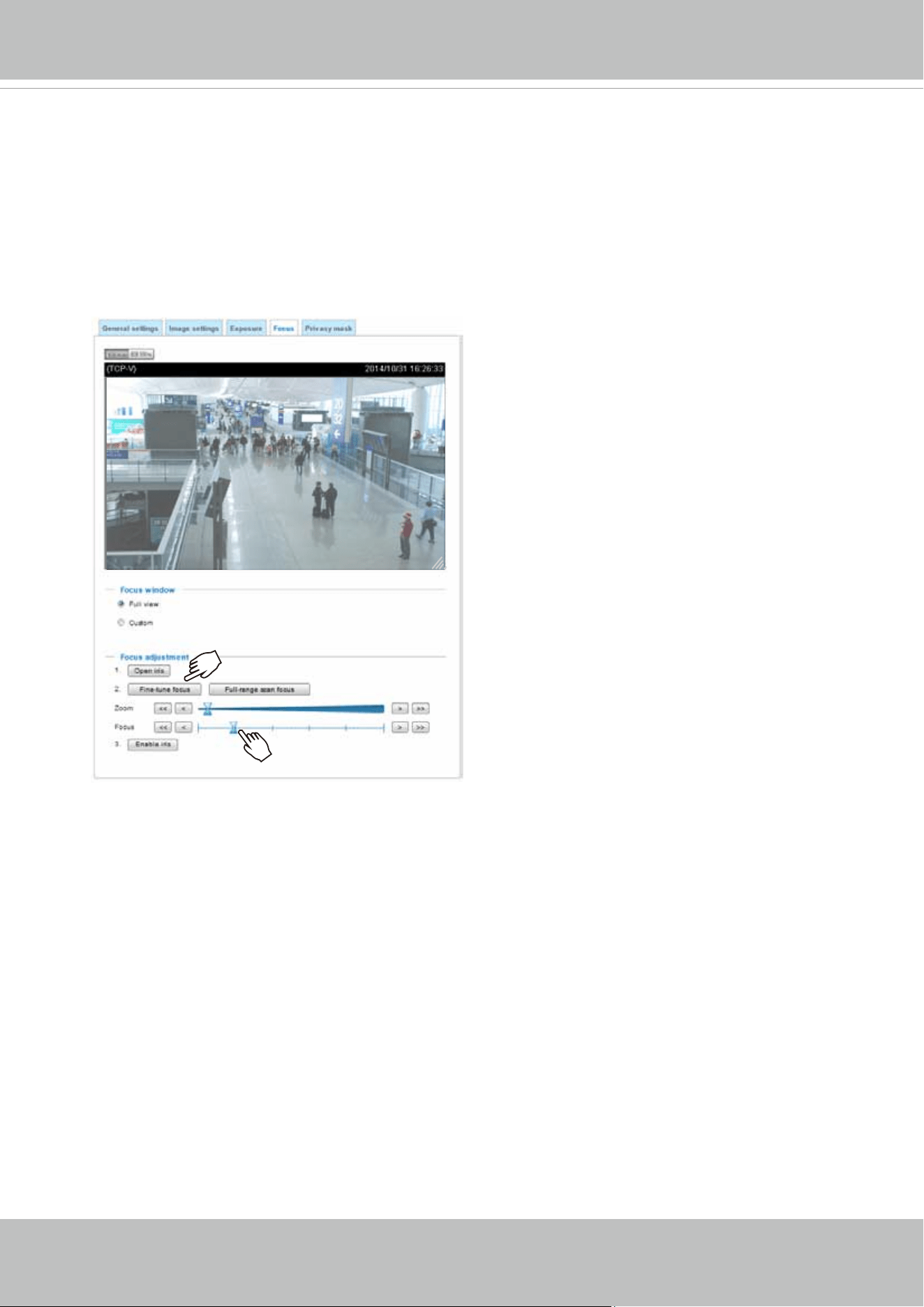

To adjust the zoom factor and focus range
1. The camera comes with a motorized vari-
focal lens module. With a web console,
you can enter the Configuration > Media
> Image > Focus page to tune the image
zoom and focus.
2. On this page, you can pull the Zoom and
Focus pointers, set up a Focus window,
and use the Perform auto focus button to
automatically obtain an optimal focus result.
You may also manually ne-tune zoom and
focus using the various functional buttons.
Please refer to your User Manual for more
information.

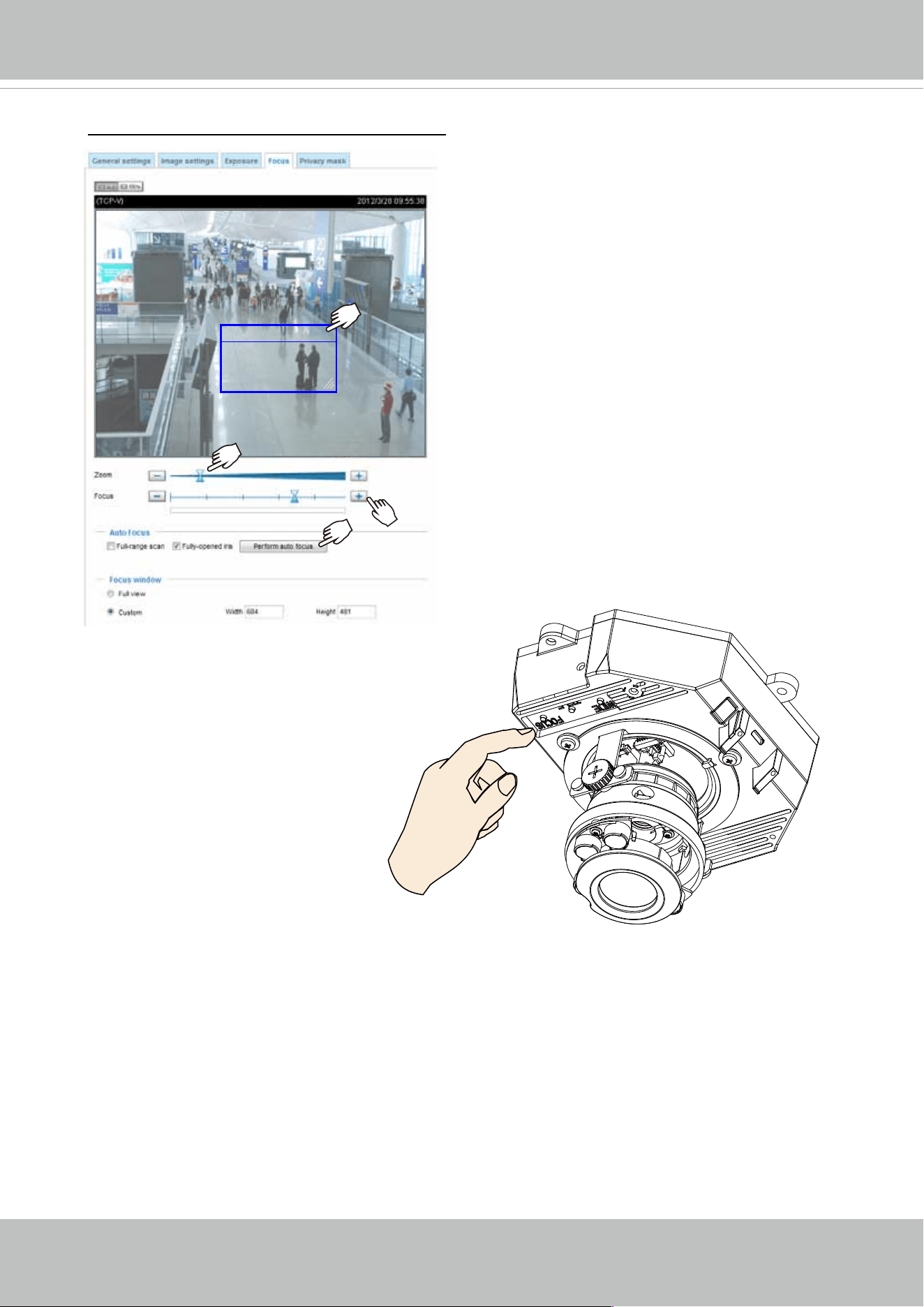

3. You may also push the Auto Focus button
on the camera to obtain the same results
especially when you are using camera
tester for onsite adjustment.
VIVOTEK
18 - User's Manual
Completion
1. If you choose to feed the cable through the ceiling/wall, arrange the cables neatly
through the cable hole A (not shown in the drawing). If you choose to feed the cable from
the side, remove plate B.
2. Attach the dome cover to the camera as the direction shown below. Tighten two screws
from the sides of the dome cover.
3. Finally, make sure all parts of the camera are securely installed.
1
B
3
2
A
Be aware of the
cable route!
Dome Cover
VIVOTEK
User's Manual - 19
Accessing the Network Camera
This chapter explains how to access the Network Camera through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software.
Using Web Browsers
Use Installation Wizard 2 (IW2) to access the Network Cameras on LAN.
If your network environment is not a LAN, follow these steps to access the Netwotk Camera:
1. Launch your web browser (ex. Microsoft
®
Internet Explorer, Mozilla Firefox, or Google
Chrome).
2. Enter the IP address of the Network Camera in the address eld. Press Enter.
3. The live video will be displayed in your web browser.
4. If it is the rst time installing the VIVOTEK network camera, an information bar will pop up as
shown below. Follow the instructions to install the required plug-in on your computer.
► For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live
video. If you don’t have Quick Time on your computer, please download it rst, then launch
the web browser.
NOTE:
VIVOTEK
20 - User's Manual
► By default, the Network Camera is not password-protected. To prevent unauthorized access,
it is highly recommended to set a password for the Network Camera.
For more information about how to enable password protection, please refer to Security on
page 80.

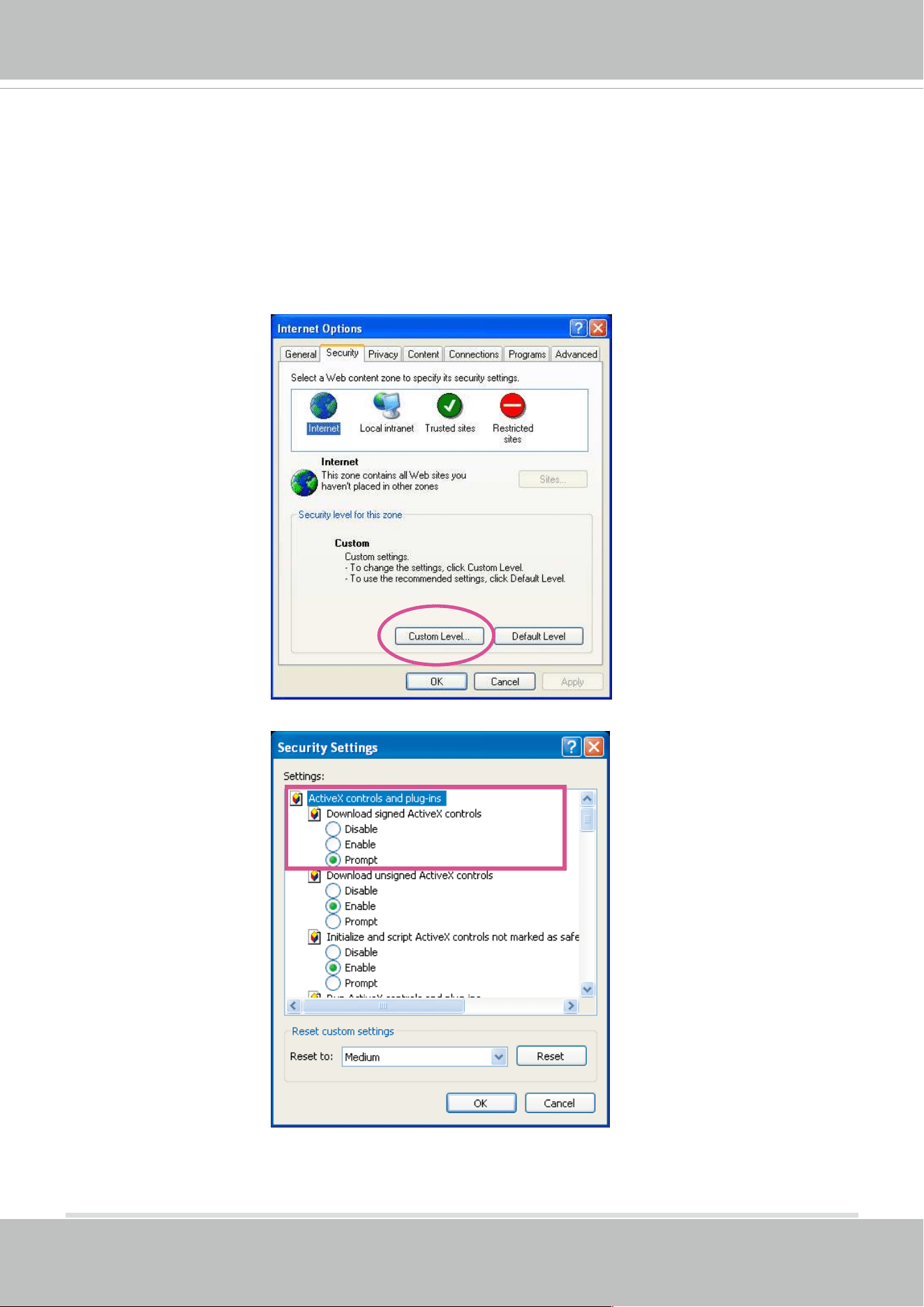

► If you see a dialog box indicating that your security settings prohibit running ActiveX
®
Controls, please enable the ActiveX
®
Controls for your browser.
1. Choose Tools > Internet Options > Security > Custom Level.
2. Look for Download signed ActiveX
®
controls; select Enable or Prompt. Click OK.
3. Refresh your web browser, then install the ActiveX
®
control. Follow the instructions to
complete installation.
VIVOTEK
User's Manual - 21
1. Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a
management/view session with the camera using a 64-bit IE browser.
2. If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\
SysWOW64. A 32-bit version of IE browser will be installed.
3. On Windows 7, the 32-bit explorer browser can be accessed from here:
C:\Program Files (x86)\Internet Explorer\iexplore.exe
1. For a megapixel camera, it is recommended to use monitors of the 24" size or larger,
and are capable of 1600x1200 or better resolutions.
2. Below are the defaults for Audio settings:
For cameras with built-in microphone: Not Muted.
For cameras without built-in microphone: Muted.
To receive audio input from external microphone, you may need to enable the audio
input from Media > Audio. Refer to page 61 for more information.
NOTE:
• The onscreen Java control can malfunction under the following situations:
A PC connects to different cameras that are using the same IP address (or the same
camera running different rmware versions). Removing your browser cookies will solve
this problem.
• In the event of plug-in compatibility issues, you may try to uninstall the plug-in that was
previously installed.
Tips:
IMPORTANT:
VIVOTEK
22 - User's Manual
Using RTSP Players
To view the streaming media using RTSP players, you can use one of the following players that
support RTSP streaming.
Quick Time Player
VLC Player
VLC media player
mpegable Player
pvPlayer
As most ISPs and players only allow RTSP streaming through port number 554, please set the
RTSP port to 554. For more information, please refer to RTSP Streaming on page 71.
For example:
4. The live video will be displayed in your player.
For more information on how to configure the RTSP access name, please refer to RTSP
Streaming on page 71 for details.
rtsp://192.168.5.151:554/live.sdp
1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for
stream #1, #2, #3, or #4>
Video 16:38:01 2012/01/25
VIVOTEK
User's Manual - 23
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the Network
Camera can be accessed over the Internet. For more information on how to set up the Network
Camera over the Internet, please refer to Setup the Network Camera over the Internet on page
11.
To utilize this feature, please check the following settings on your Network Camera:
1. Because most players on 3GPP mobile phones do not support RTSP authentication, make
sure the authentication mode of RTSP streaming is set to disable.
For more information, please refer to RTSP Streaming on page 71.
2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.
Please set the video and audio streaming parameters as listed below.
For more information,
please refer to Stream settings on page 57.
Video Mode H.264
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (G.711) PCMU
3. As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554. For more information, please refer to RTSP Streaming on page 71.
4. Launch the player on the 3GPP-compatible mobile devices (e.g., VLC Player).
5. Type the following URL commands into the player.
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming
access name for stream # with small frame size and frame rate>.
For example:
VIVOTEK
24 - User's Manual
Using VIVOTEK Recording Software
The product software CD also contains an ST-7501 recording software, allowing simultaneous
monitoring and video recording for multiple Network Cameras. Please install the recording
software; then launch the program to add the Network Camera to the Channel list. For detailed
information about how to use the recording software, please refer to the user’s manual of the
software or download it from
http://www.vivotek.com.
VIVOTEK
User's Manual - 25
Main Page
This chapter explains the layout of the main page. It is composed of the following sections:
VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live
Video Window.
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website.
Host Name
The host name can be customized to t your needs. For more information, please refer to System on page 35.
Camera Control Area
Video Stream: This Network Camera supports multiple streams (stream #1 and #2) simultaneously. You
can select either one for live viewing. For more information about multiple streams, please refer to page
57 for detailed information.
Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting
on Application page before enable this function. A total of 3 event settings can be congured. For more
information about event setting, please refer to page 96. If you want to hide this item on the homepage,
please go to Conguration> System > Homepage Layout > General settings > Customized button
to deselect “show manual trigger button”.
Digital Output: Click to turn the digital output device on or off.
Hide Button

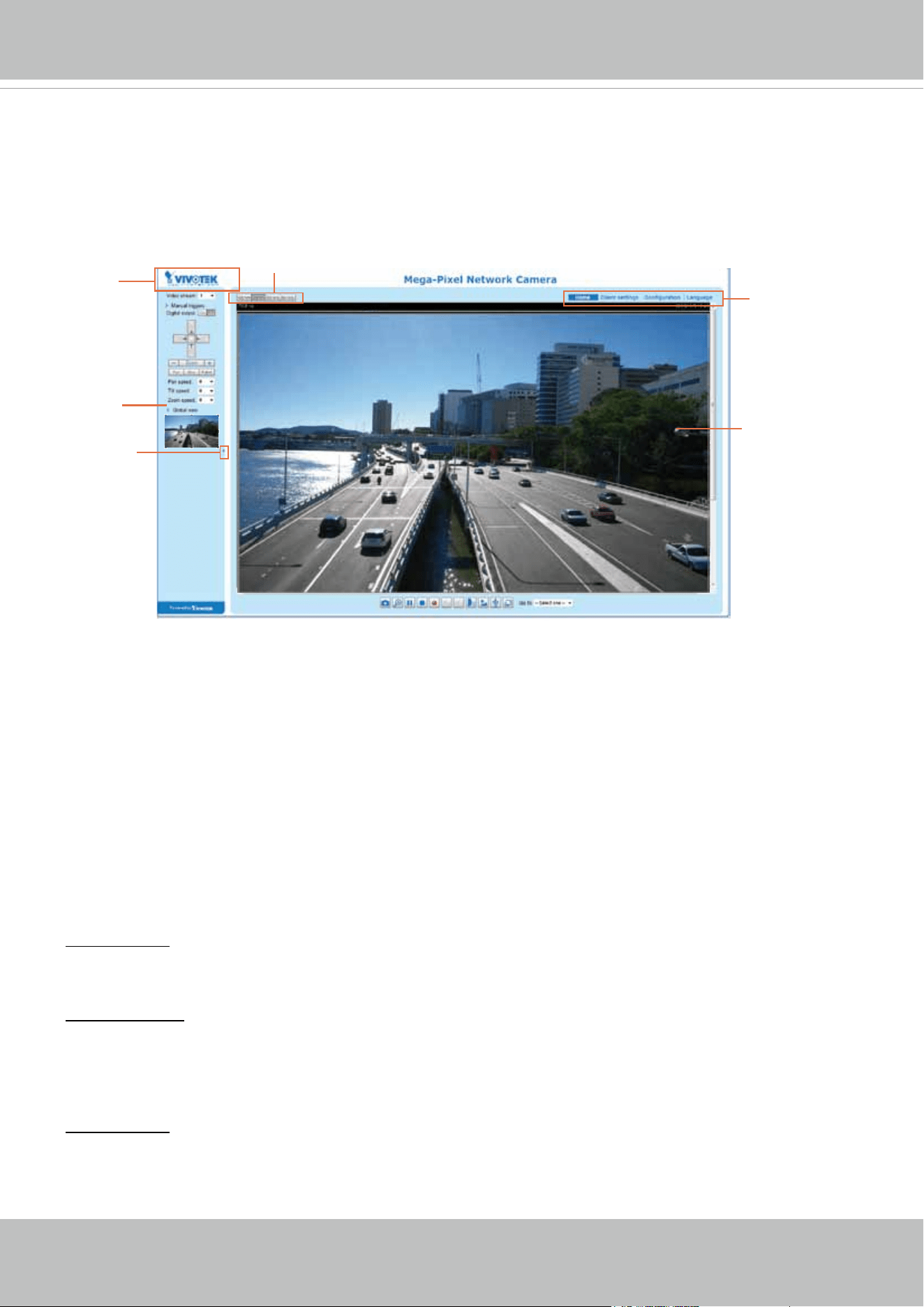

Camera Control
Area
VIVOTEK INC.
Logo
Resize Buttons
Configuration
Area
Host Name
Live View Window
VIVOTEK
26 - User's Manual
Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 30.
Conguration: Click this button to access the conguration page of the Network Camera. It is suggested
that a password be applied to the Network Camera so that only the administrator can configure the
Network Camera. For more information, please refer to Conguration on page 34.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano,
日本語
, Português,
簡体中文
, and
繁體中文
. Please
note that you can also change a language on the Conguration page; please refer to page 34.
Hide Button
You can click the hide button to hide the control panel or display the control panel.
Resize Buttons
:
Click the Auto button, the video cell will resize automatically to t the monitor.
Click 100% is to display the original homepage size.
Click 50% is to resize the homepage to 50% of its original size.
Click 25% is to resize the homepage to 25% of its original size.
Live Video Window
■ The following window is displayed when the video mode is set to H.264:

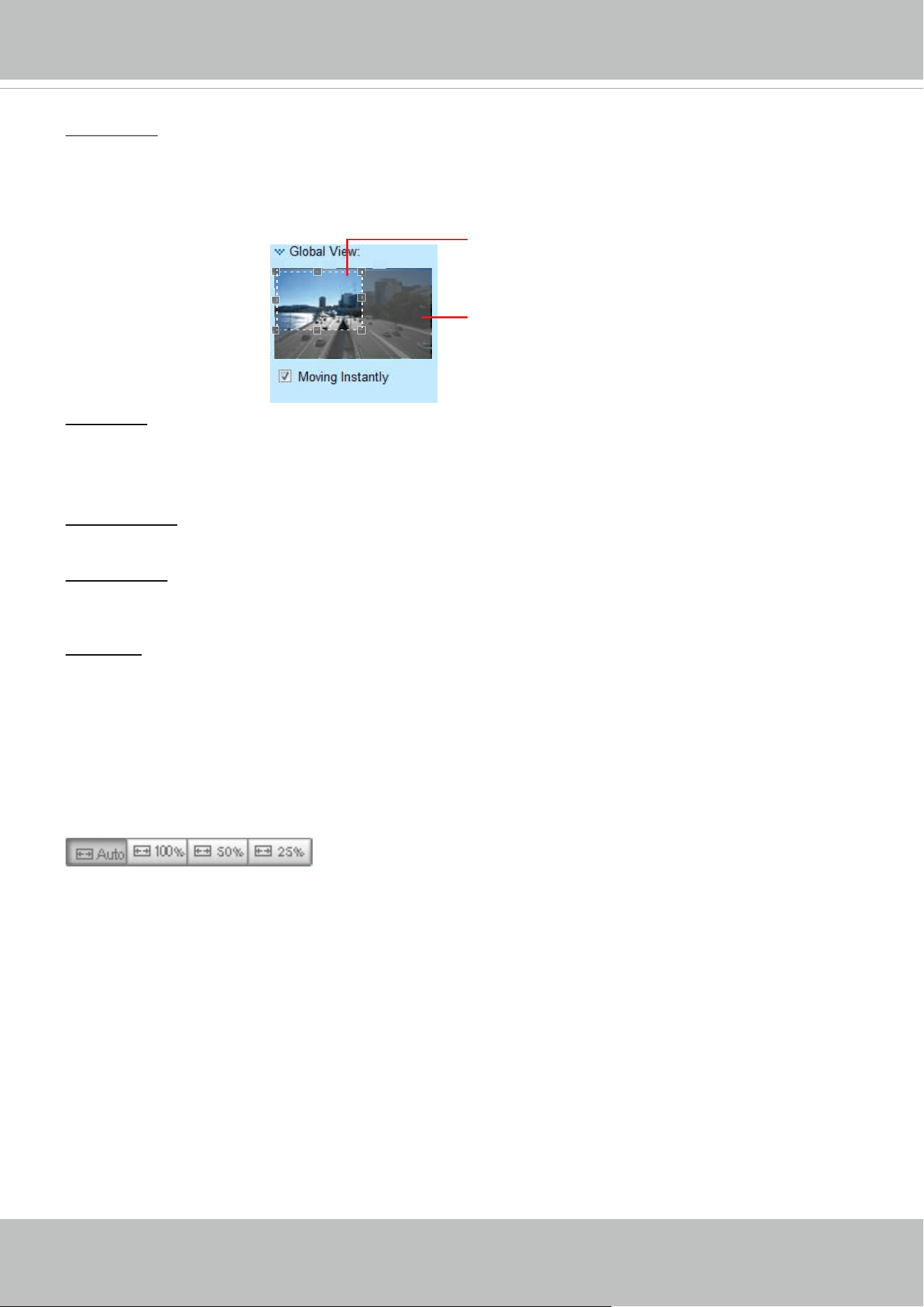

Global View: Click on this item to display the Global View window. The Global View window contains a
full view image (the largest frame size of the captured video) and a oating frame (the viewing region of
the current video stream). The oating frame allows users to control the e-PTZ function (Electronic Pan/
Tilt/Zoom). For more information about e-PTZ operation, please refer to E-PTZ Operation on page 93.
For more information about how to set up the viewing region of the current video stream, please refer to
page 60.
The viewing region of
the current video
stream
The largest frame size
PTZ Panel: This Network Camera supports both “digital“ (e-PTZ) and “mechanical“ pan/tilt/zoom control.
Please refer to PTZ settiings on page 93 for detailed information.
VIVOTEK
User's Manual - 27
Video Title: The video title can be congured. For more information, please refer to Video Settings on
page 47.
H.264 Protocol and Media Options: The transmission protocol and media options for H.264 video
streaming. For further conguration, please refer to Client Settings on page 30.
Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings
on page 47.
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Media > Image > General settings on page 47.
Video 17:08:56 2014/10/25
Title and Time
2014/10/25 17:08:56
Time
Video and Audio Control Buttons
Video (TPC-AV)
H.264 / MPEG-4 Protocol and Media Options
Video Title
x4.0
Zoom Indicator
VIVOTEK
28 - User's Manual

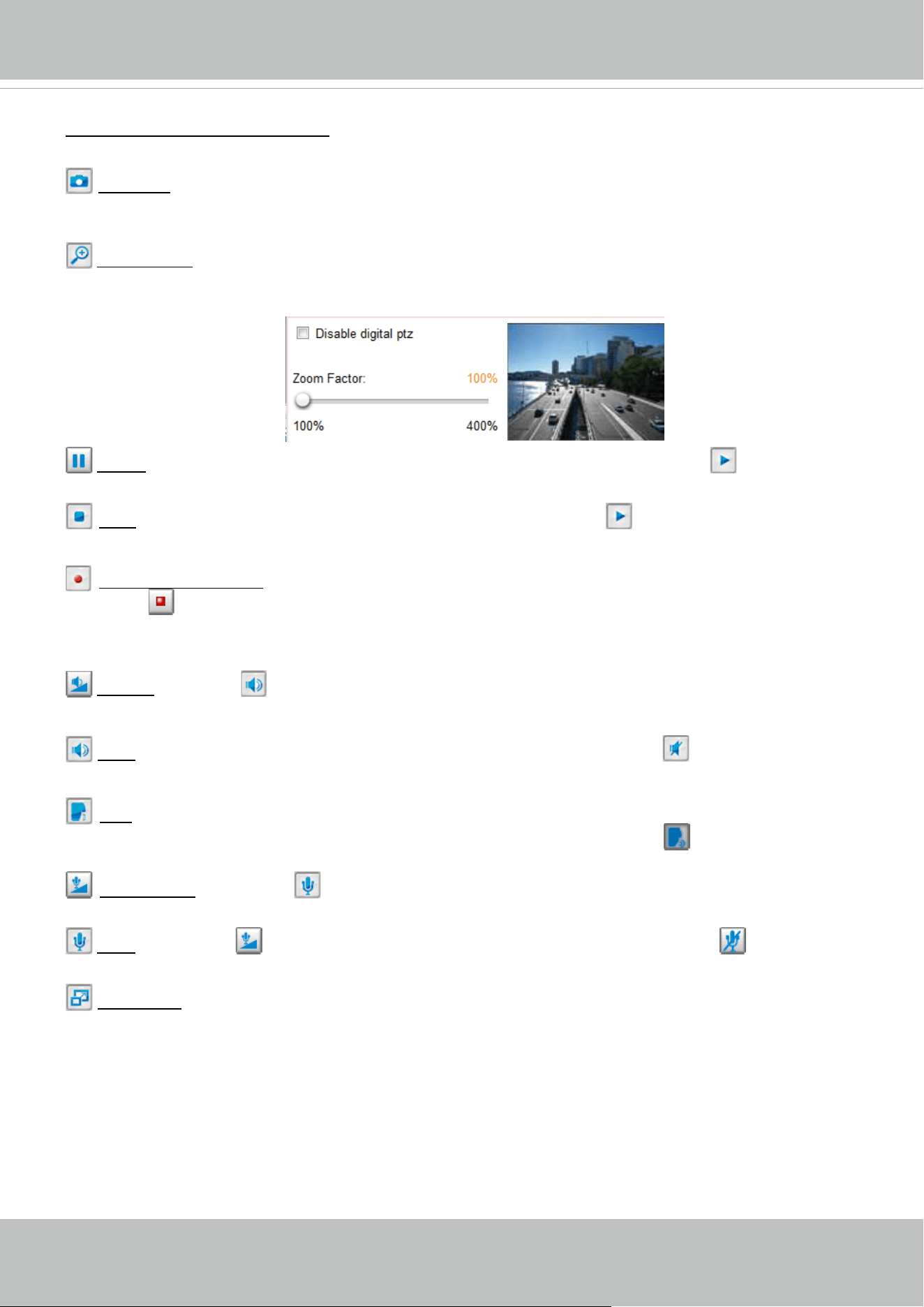

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera
conguration, some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Pause: Pause the transmission of the streaming media. The button becomes the Resume button
after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue
transmission.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 31 for details.
Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the
local computer.
Mute: Turn off the volume on the local computer. The button becomes the Audio On button after
clicking the Mute button.
Talk: Click this button to talk to people around the Network Camera. Audio will project from
the external speaker connected to the Network Camera. Click this button
again to end talking
transmission.
Mic Volume: When the Mute function is not activated, move the slider bar to adjust the
microphone volume on the local computer.
Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button
after clicking the Mute button.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
VIVOTEK
User's Manual - 29
■ The following window is displayed when the video mode is set to MJPEG:
Video Title: The video title can be congured. For more information, please refer to Media > Image on
page 47.
Time: Display the current time. For more information, please refer to Media > Image on page 47.
Title and Time: Video title and time can be stamped on the streaming video. For more information, please
refer to Media > Image on page 47.
Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera
conguration, some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 31 for details.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
Video 17:08:56 2013/10/25
Title and Time
2013/10/25 17:08:56
Time
Video (HTTP-V)
Video Title
Video Control Buttons
VIVOTEK
30 - User's Manual

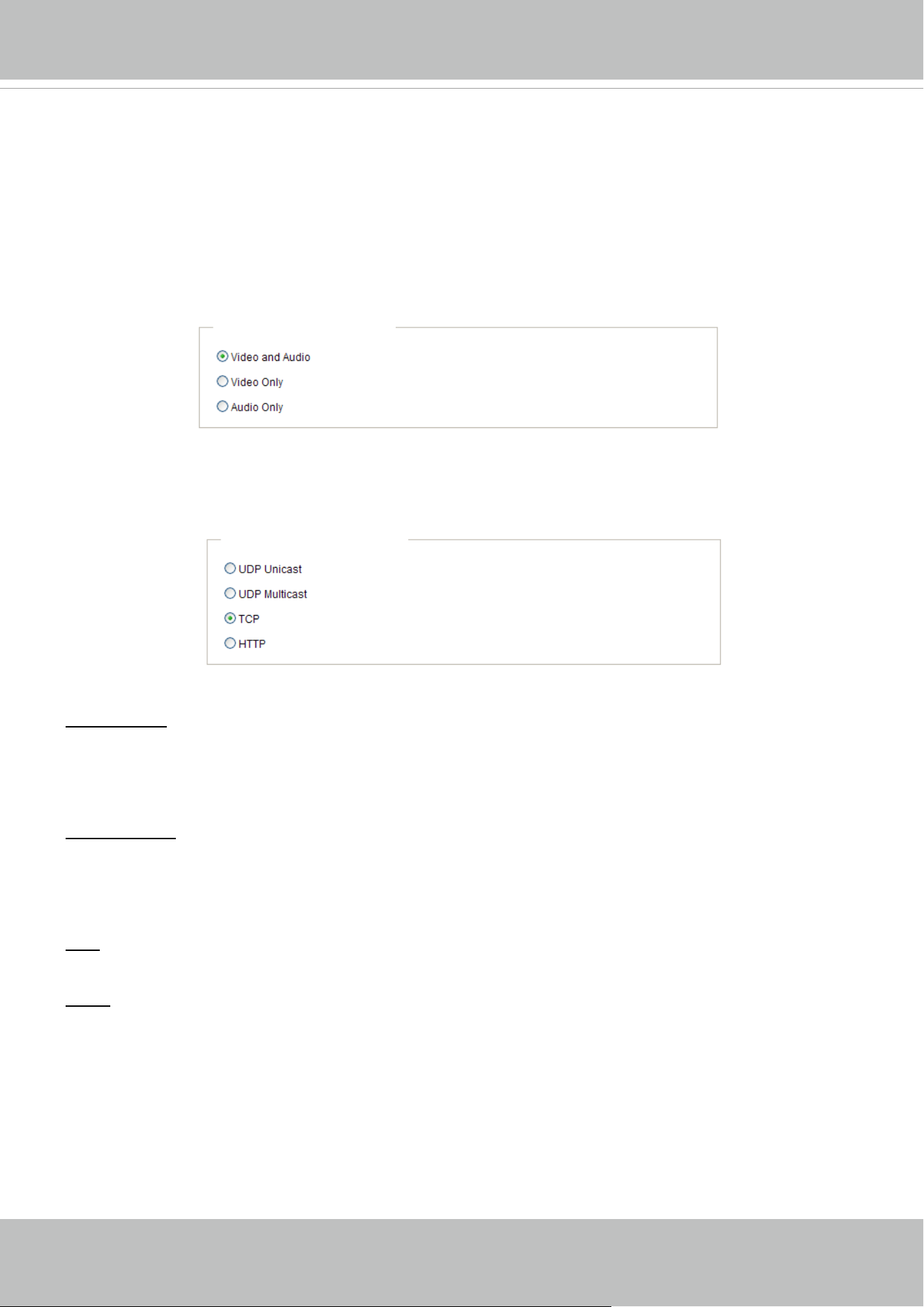

Client Settings
This chapter explains how to select the stream transmission mode and saving options on the
local computer. When completed with the settings on this page, click Save on the page bottom
to enable the settings.
H.264 Media Options
Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264.
H.264 Protocol Options
Depending on your network environment, there are four transmission modes of H.264 streaming:
UDP unicast: This protocol allows for more real-time audio and video streams. However, network
packets may be lost due to network burst trafc and images may be broken. Activate UDP connection
when occasions require time-sensitive responses and the video quality is less important. Note that each
unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up
to ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients
requesting streaming media. This helps to reduce the network transmission load of the Network Camera
while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must
be configured to enable multicast streaming at the same time. For more information, please refer to
RTSP Streaming on page 71.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video
quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for
streaming under some network environments. Users inside a firewall can utilize this protocol to allow
streaming data through.
H.264 Media Options
H.264 Protocol Options
VIVOTEK
User's Manual - 31
Two way audio
Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with
the camera.
Full duplex: Audio is transmitted in both directions simultaneously.
MP4 Saving Options
Users can record live video as they are watching it by clicking Start MP4 Recording on the main
page. Here, you can specify the storage destination and le name.
Folder: Specify a storage destination for the recorded video les.
File name prex: Enter the text that will be appended to the front of the video le name.
Add date and time sufx to the le name: Select this option to append the date and time to the end of the
le name.
Local Streaming Buffer Time
In a busy network, fluctuations in available bandwidth can occur. Video streaming may lag and may
not proceed very smoothly. If you enable this option, video streams from the camera will be temporarily
stored on the computer’s cache memory for a configurable period of time (seconds or milliseconds)
before being played on a web session. This will help you see the streaming more smoothly. If you enter
3000 Millisecond, the streaming will delay for 3 seconds.
CLIP_20110628-180853
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
VIVOTEK
32 - User's Manual
Joystick Settings
Enable Joystick
Connect to the USB plug of the joystick to a USB port on your management computer. Supported
by the plug-in in the main page (Microsoft’s DirectX), once the plug-in in the main page is loaded, it
will automatically detect if there is any joystick on the computer. The joystick should work properly
without installing any other driver or software.
Then you can begin to configure the joystick settings of connected devices. Please follow the
instructions below to enable joystick settings.
1. Right-click on a live view window. Select Joystick Settings. If your joystick is working properly, it
will be displayed on the drop-down list.
2. Select the joystick you want to congure. Check Enable Joystick, then click Congure Buttons
to open Buttons conguration window.
• If you want to assign Preset actions to your joystick, the preset locations should be congured in
advance in the Conguration > PTZ page.
• If your joystick is not working properly, it may need to be calibrated. Click the Calibrate button
to open the Game Controllers window located in Microsoft Windows control panel and follow the
instructions for trouble shooting.
NOTE:

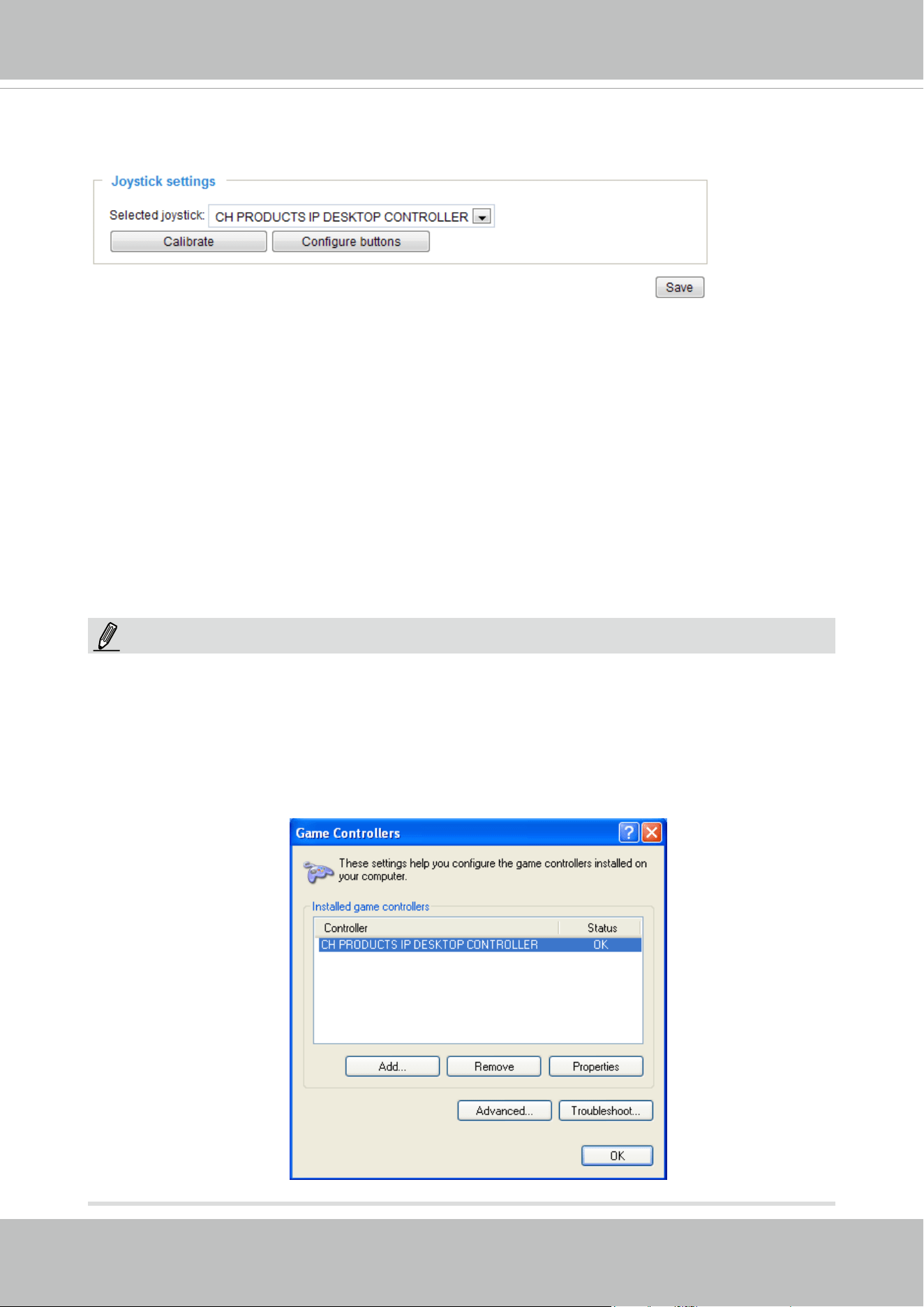

• The joystick will appear in the Game Controllers list in the Windows Control panel. If you want to
check out for your devices, go to the following page: Start -> Control Panel -> Game Controllers.
VIVOTEK
User's Manual - 33
Buttons Conguration
Click the Congure Buttons button, a window will prompt as shown below. Please follow the steps
below to congure your joystick buttons:
1. Select a button number from the Button # pull-down menu.
2. Select a corresponding action, such as Patrol or Preset#.
If you are not sure of the locations of each
button, use the Properties window in the Game
Controllers utility.
Tips
3.
Click the Assign button to assign an action to
the button. You can delete an association by
selecting a button number, and then click the
Delete button.
Repeat the process until you are done with the
conguration of all preferred actions.
The buttons you define should appear on the
button list accordingly.
4. Please remember to c
lick the Save button
on the Client settings page to preserver your
settings.
VIVOTEK
34 - User's Manual
Conguration
Click Configuration on the main page to enter the camera setting pages. Note that only
Administrators can access the conguration page.
VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with
minimal effort.
In order to simplify the user interface, the detailed information will be hidden unless you click on
the function item. When you click on the rst sub-item, the detailed information for the rst sub-
item will be displayed; when you click on the second sub-item, the detailed information for the
second sub-item will be displayed and that of the rst sub-item will be hidden.

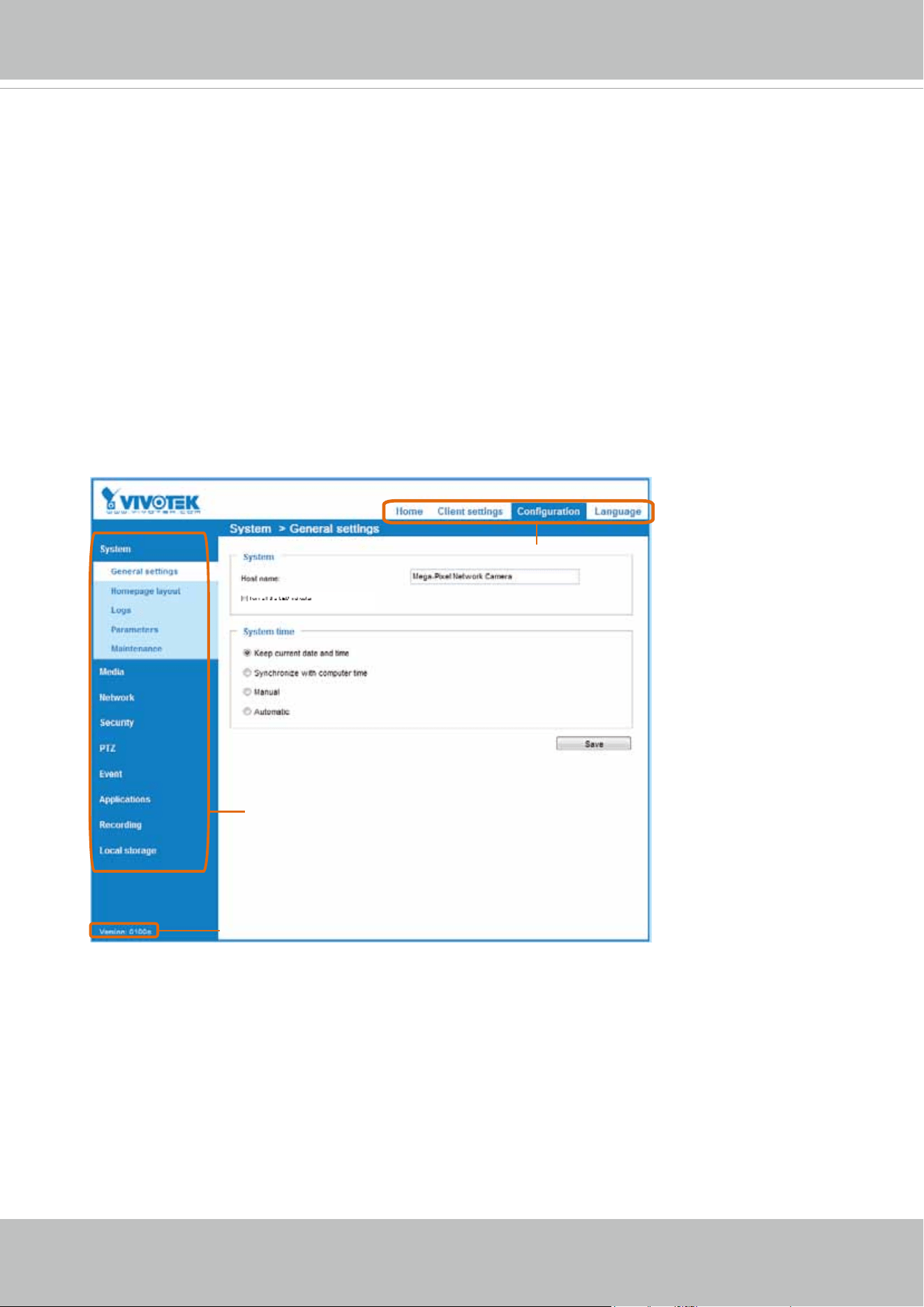

The following is the main page interface:
Each function on the conguration list will be explained in the following sections.
Navigation Area provides an instant switch among Home page (the monitoring page for live viewing),
Client settings, Conguration page, and multi-language selection.
Configuration List
Firmware Version
Navigation Area
VIVOTEK
User's Manual - 35
System > General settings
This section explains how to congure the basic settings for the Network Camera, such as the
host name and system time. It is composed of the following two columns: System, and System
Time. When finished with the settings on this page, click Save at the bottom of the page to
enable the settings.
System
Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the
main page, and also on the view cell of ST-7501 and VAST management software.
Turn off the LED indicators: If you do not want others to notice the network camera is in operation, you
can select this option to turn off the LED indicators.
VIVOTEK
36 - User's Manual
System time
Keep current date and time: Select this option to preserve the current date and time of the Network
Camera. The Network Camera’s internal real-time clock maintains the date and time even when the
power of the system is turned off.
Synchronize with computer time: Select this option to synchronize the date and time of the Network
Camera with the local computer. The read-only date and time of the PC is displayed as updated.
Manual: The administrator can enter the date and time manually. Note that the date and time format are
[yyyy/mm/dd] and [hh:mm:ss].
Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically
querying an NTP Server.
NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank
connects the Network Camera to the default time servers.
Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly
basis.
Time zone : Select the appropriate time zone from the list. If you want to upload Daylight Savings Time
rules, please refer to System > Maintenance > Import/ Export les on page 44 for details.
VIVOTEK
User's Manual - 37
System > Homepage layout
This section explains how to set up your own customized homepage layout.
General settings
This column shows the settings of your hompage layout. You can manually select the background and
font colors in Theme Options (the second tab on this page). The settings will be displayed automatically
in this Preview eld. The following shows the homepage using the default settings:
■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.
Logo graph
Here you can change the logo at the top of your homepage.
Follow the steps below to upload a new logo:
1. Click Custom and the Browse eld will appear.
2. Select a logo from your les.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.
Customized button
If you want to hide manual trigger buttons on the homepage, please uncheck this item. This item is
checked by default.
VIVOTEK
38 - User's Manual
Theme Options
Here you can change the color of your homepage layout. There are three types of preset patterns for you
to choose from. The new layout will simultaneously appear in the Preview led. Click Save to enable the
settings.
Font Color of the
Video Title
Background Color of
the Video Area
Frame Color
Font Color
Background Color of the
Control Area
Font Color of
the Configuration Area
Background Color of the
Configuration Area
Preset patterns
VIVOTEK
User's Manual - 39
■ Follow the steps below to set up the customed homepage:
1. Click Custom on the left column.
2. Click the eld where you want to change the color on the right column.
3. The palette window will pop up as shown below.
4. Drag the slider bar and click on the left square to select a desired color.
5. The selected color will be displayed in the corresponding elds and in the Preview column.
6. Click Save to enable the settings.
1
2
3
4
Color Selector
Custom
Pattern
VIVOTEK
40 - User's Manual
System > Logs
This section explains how to congure the Network Camera to send the system log to a remote
server as backup.
Log server settings
Follow the steps below to set up the remote log:
1. Select Enable remote log.
2. In the IP address text box, enter the IP address of the remote server.
2. In the port text box, enter the port number of the remote server.
3. When completed, click Save to enable the setting.
You can congure the Network Camera to send the system log le to a remote server as a log backup.
Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log
messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit
http://www.kiwisyslog.
com/kiwi-syslog-daemon-overview/
.
System log
This column displays the system log in a chronological order. The system log is stored in the Network
Camera’s buffer area and will be overwritten when reaching a certain limit.
VIVOTEK
User's Manual - 41
PC with
ST7501 Recording Software
Internet
VIVOTEK Network Cameras
3G Cell phone
Cell phone
Short message
Email
GSM
Modem
HTTP
PTZ
Digital output
You can install the included ST7501 recording software, which provides an Event
Management function group for delivering event messages via emails, GSM short
messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to
the ST7501 User Manual.
VIVOTEK
42 - User's Manual
Access log
Access log displays the access time and IP address of all viewers (including operators and
administrators) in a chronological order. The access log is stored in the Network Camera’s buffer
area and will be overwritten when reaching a certain limit.
System > Parameters
The View Parameters page lists the entire system’s parameters. If you need technical
assistance, please provide the information listed on this page.
VIVOTEK
User's Manual - 43
System > Maintenance
This chapter explains how to restore the Network Camera to factory default, upgrade rmware
version, etc.
General settings > Upgrade rmware
This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to
complete the process.
Note: Do not power off the Network Camera during the upgrade!
Follow the steps below to upgrade the rmware:
1. Download the latest rmware le from the VIVOTEK website. The le is in .pkg le format.
2. Click Browse… and specify the rmware le.
3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade
completes.
If the upgrade is successful, you will see “Reboot system now!! This connection will close”. After that, re-
access the Network Camera.
The following message is displayed when the upgrade has succeeded.
The following message is displayed when you have selected an incorrect rmware le.
General settings > Reboot
This feature allows you to reboot the Network Camera, which takes about one minute to complete. When
completed, the live video page will be displayed in your browser. The following message will be displayed
during the reboot process.
If the connection fails after rebooting, manually enter the IP address of the Network Camera in the
address eld to resume the connection.
Starting firmware upgrade...
Do not power down the server during the upgrade.
The server will restart automatically after the upgrade is
completed.
This will take about 1 - 5 minutes.
Wrong PKG file format
Unpack fail
Reboot system now!!
This connection will close.
VIVOTEK
44 - User's Manual

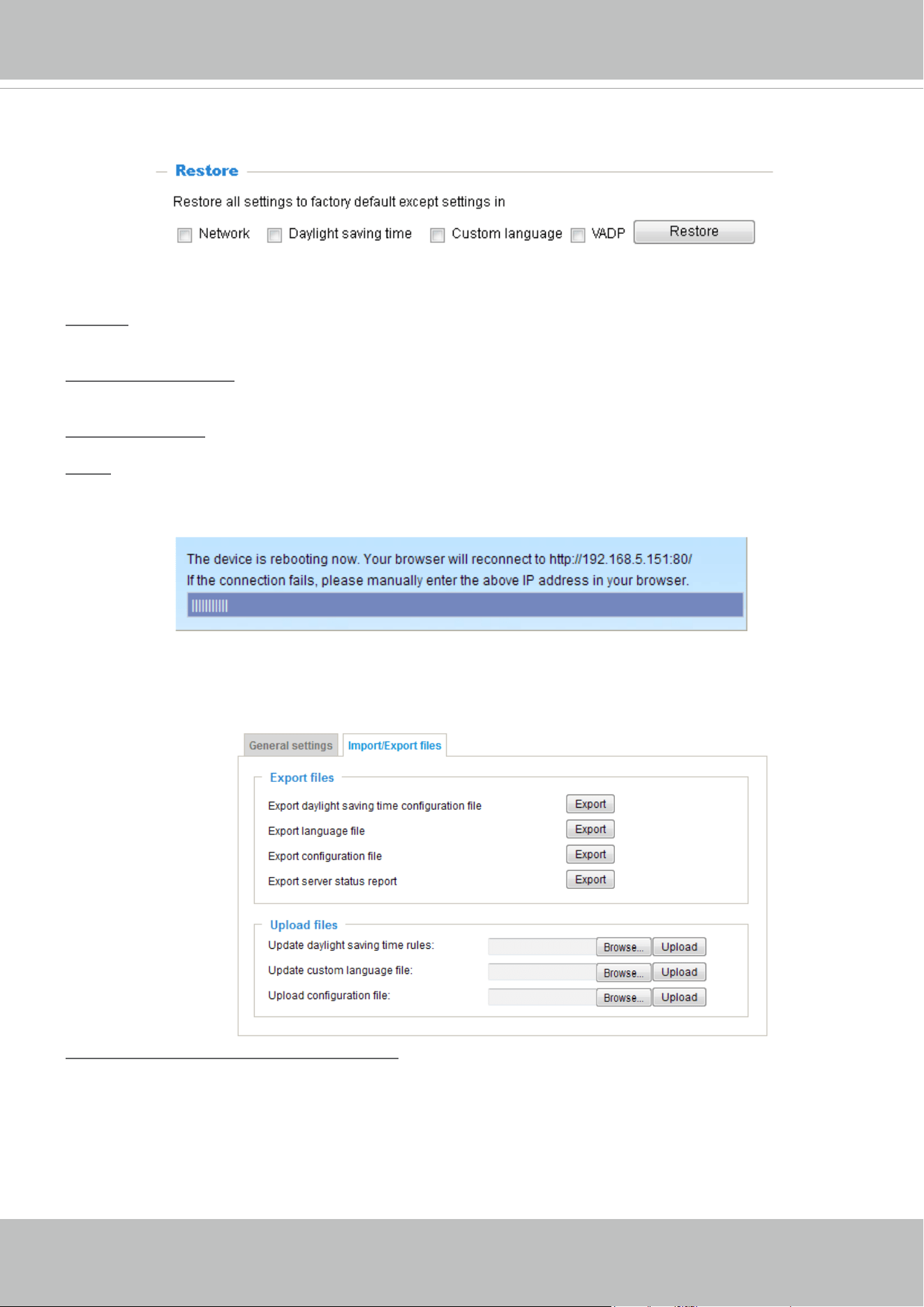

General settings > Restore
This feature allows you to restore the Network Camera to factory default settings.
Network: Select this option to retain the Network Type settings (please refer to Network Type on page
62).
Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to
Import/Export les below on this page).
Custom Language: Select this option to retain the Custom Language settings.
VADP: Retain the VADP modules (3rd-party software stored on the SD card) and related settings.
If none of the options is selected, all settings will be restored to factory default. The following message is
displayed during the restoring process.
Import/Export les
This feature allows you to Export / Update daylight saving time rules, custom language le, conguration
le, and server status report.
Export daylight saving time conguration le: Click to set the start and end time of DST (Daylight Saving).
Follow the steps below to export:
1. In the Export les column, click Export to export the daylight saving time conguration le from the
Network Camera.

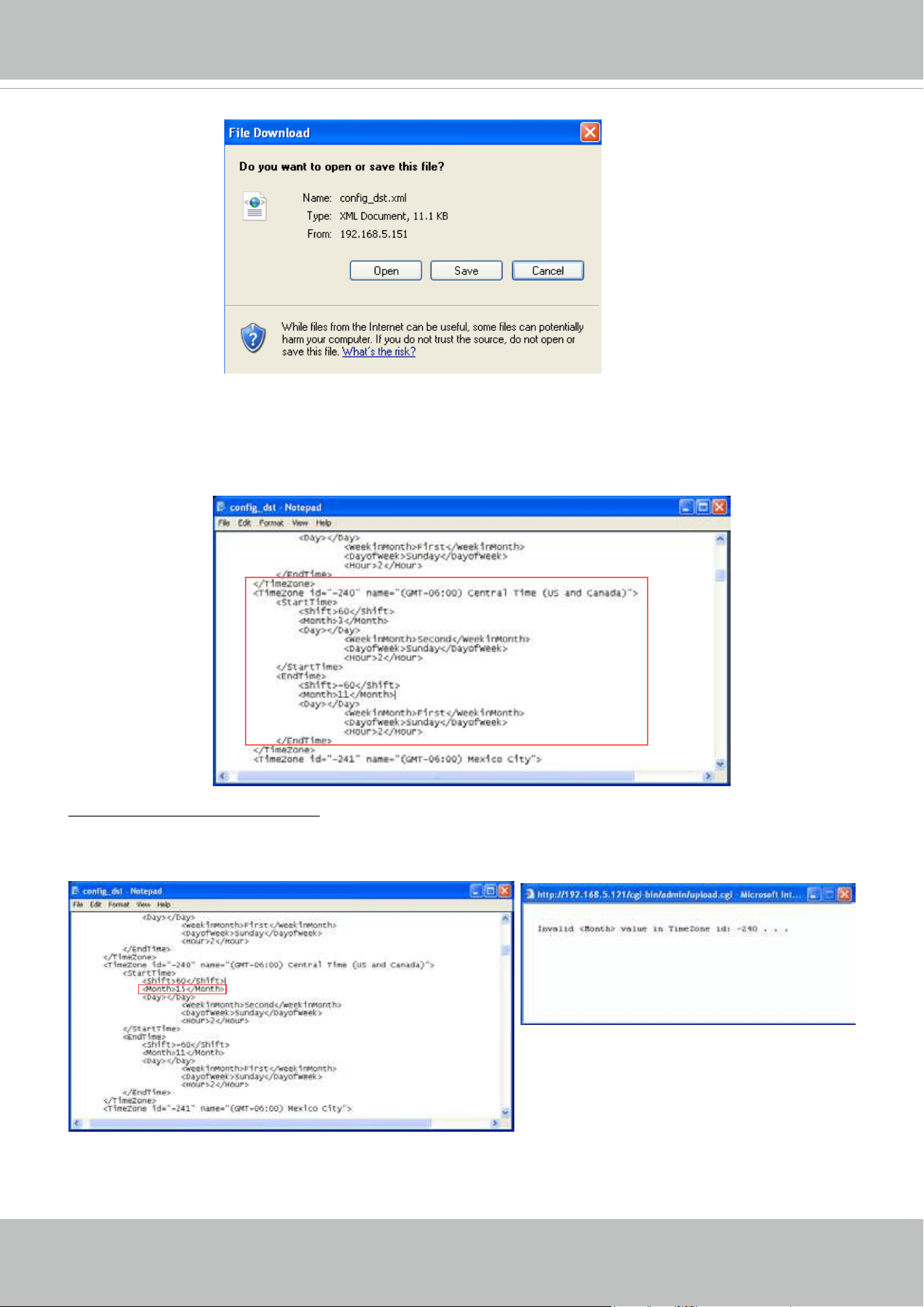

2. A le download dialog will pop up as shown below. Click Open to review the XML le or click Save to
store the le for editing.
VIVOTEK
User's Manual - 45
3. Open the le with Microsoft
®
Notepad and locate your time zone; set the start and end time of DST.
When completed, save the le.
In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at
2:00 a.m. on the rst Sunday in November.
Update daylight saving time rules: Click Browse… and specify the XML le to update.
If the incorrect date and time are assigned, you will see the following warning message when uploading
the le to the Network Camera.
VIVOTEK
46 - User's Manual

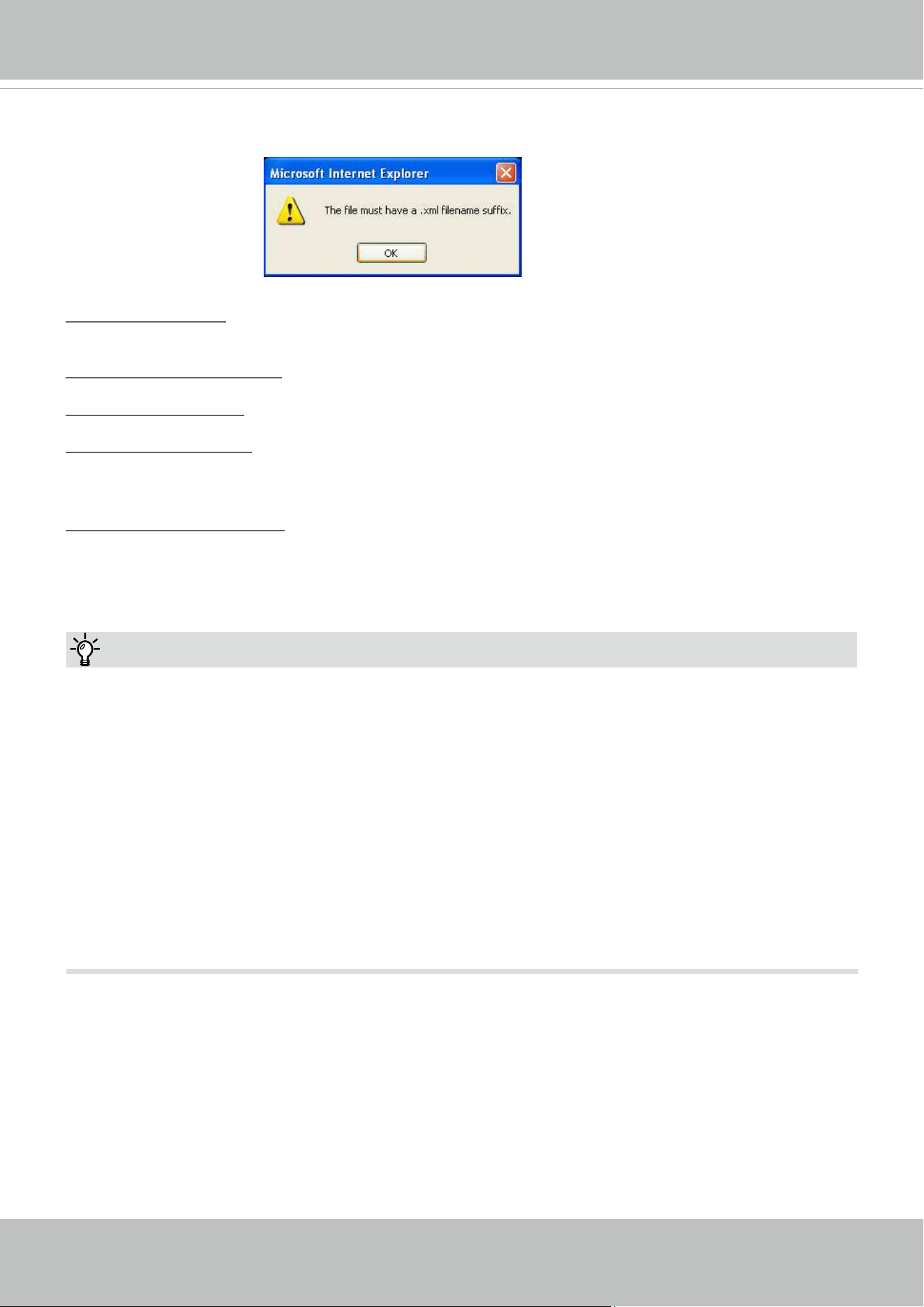

The following message is displayed when attempting to upload an incorrect le format.
Export language file: Click to export language strings. VIVOTEK provides nine languages: English,
Deutsch, Español, Français, Italiano,
日本語,
Português,
簡体中文
, and
繁體中文
.
Update custom language le: Click Browse… and specify your own custom language le to upload.
Export conguration le: Click to export all parameters for the device and user-dened scripts.
Update conguration le: Click Browse… to update a conguration le. Please note that the model and
rmware version of the device should be the same as the conguration le. If you have set up a xed IP
or other special settings for your device, it is not suggested to update a conguration le.
Export server staus report: Click to export the current server status report, such as time, logs,
parameters, process status, memory status, le system status, network status, kernel message ... and so
on.
Tips:
• If a firmware upgrade is accidentally disrupted, say, by a power outage, you still have a last resort
method to restore normal operation. See the following for how to bring the camera back to work:
Applicable scenario:
(1) Power disconnected during rmware upgrade.
(2) Unknown reason causing abnormal LED status, and a Restore cannot recover normal working
condition.
You can use the following methods to activate the camera with its backup rmware:
(1) Press and hold down the reset button for at least one minute.
(2) Power on the camera until the Red LED blinks rapidly.
(3) After boot up, the rmware should return to the previous version before the camera hanged. (The
procedure should take 5 to 10 minutes, longer than the normal boot-up process). When tthis
process is completed, the LED status should return to normal.
VIVOTEK
User's Manual - 47

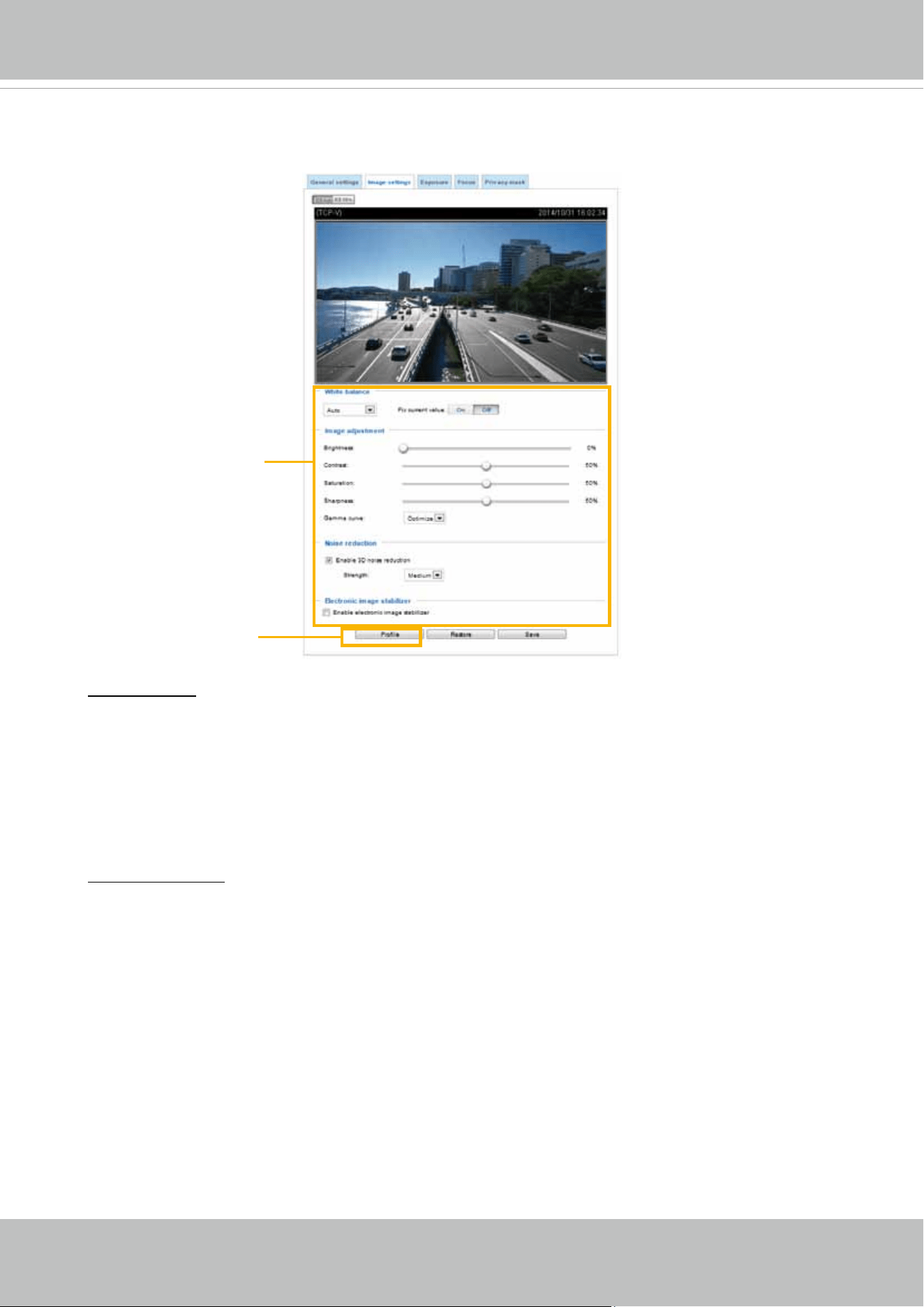

Media > Image
This section explains how to configure the image settings of the Network Camera. It is
composed of the following five columns: General settings, Image settings, Exposure,
Focus, and Privacy mask.
General settings
Video title
Show_timestamp_and video_title_in_video_and_snapshots: Enter a name that will be displayed on
the title bar of the live video as the picture shown below.
Video Title
2013/02/09 17:08:56
Title and Time
Video 17:08:56 2013/02/09
Position of timestamp and video title on image: Select to display time stamp and video title on the
top or at the bottom of the video stream.
Timestamp and video title font size: Select the font size for the time stamp and title.
Color: Select to display color or black/white video streams.
Position of timestamp and video title on image: Select to display time stamp and video title on the
top or at the bottom of the video stream.
Timestamp and video title font size: Select the font size for the time stamp and title.
Power line frequency: Set the power line frequency consistent with local utility settings to eliminate
image flickering associated with fluorescent lights. Note that after the power line frequency is
changed, you must disconnect and reconnect the power cord of the Network Camera in order for
the new setting to take effect.
VIVOTEK
48 - User's Manual
Day/Night Settings
Switch to B/W in night mode
Select this to enable the Network Camera to automatically switch to Black/White during night
mode.
Turn on external IR illuminator in night mode
Select this to turn on the external IR illuminators when the camera detects low light condition and
enters the night mode. This can be done by connecting a pair of DO signals to external IR device,
and conguring a DO triggering event via the event setting.
Turn on built-in IR illuminator in night mode
Select this to turn on the built-in IR illuminators (effective range up to 15 meters) when the camera
detects low light condition and enters the night mode.
Video orientation: Flip - vertically reect the display of the live video; Mirror - horizontally reect the
display of the live video. Select both options if the Network Camera is installed upside-down (e.g.,
on the ceiling) to correct the image orientation. Please note that if you have preset locations, those
locations will be cleared after ip/mirror setting.
Rotation:
If the surveillance area is a tall, narrow corridor or the interior of a vehicle, you may need to rotate
the image to t the scenario. You can choose to rotate the image to 90 or 270 degrees depending
on the requirements at the installation site.
• Note that the Rotation function is only available by selecting “Video Rotation (Max. 30fps)” in
Conguration > Media > Video mode window.
NOTE:
• Changing the rotation setting will clear your previous congurationsf with the Motion detection,
Privacy mask, Preset position, Exposure, and focus window.
• The Rotation function does not apply to the JPEG stream, and hence the JPEG option is not
available when the Rotation mode is selected.
• Also note that enabling or disabling the mode can take several minutes.
VIVOTEK
User's Manual - 49
IR cut lter
With a removable IR-cut lter, this Network Camera can automatically remove the lter to allow IR
light enter the sensor during low light conditions.
■ Auto mode
The Network Camera automatically removes the lter by judging the level of ambient light.
■ Day mode
In day mode, the Network Camera switches on the IR cut lter at all times to block infrared light
from reaching the sensor so that the colors will not be distorted.
■ Night mode
In night mode, the Network Camera switches off the IR cut lter at all times for the sensor to
accept infrared light, thus helping to improve low light sensitivity.
■ Synchronize with digital input
The Network Camera automatically removes the IR cut lter when a Digital Input is triggerred.
This applies when the camera is installed into a housing that provides its own IR lights and
sensor.
■ Schedule mode
The Network Camera switches between day mode and night mode based on a specified
schedule. Enter the start and end time for day mode. Note that the time format is [hh:mm] and is
expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00
and 18:00.
Light sensor sensitivity
Select Low, Normal, or High sensitivity for the light sensor.
VIVOTEK
50 - User's Manual
Image settings
On this page, you can tune the White balance and Image adjustment.
White balance: Adjust the value for the best color temperature.
■ You may follow the steps below to adjust the white balance to the best color temperature.
1. Place a sheet of paper of white or cooler-color temperature, such as blue, in front of the lens,
then allow the Network Camera to automatically adjust the color temperature.
2. Click the On button to Fix current value and conrm the setting while the white balance is being
measured.
■ You may also manually tune the color temperature by pulling the RGain and BGain slide bars.
Image Adjustment
■ Brightness: Adjust the image brightness level, which ranges from
0% to 100%
.
■ Contrast: Adjust the image contrast level, which ranges from 0% to 100%.
■ Saturation: Adjust the image saturation level, which ranges from 0% to 100%.
■ Sharpness:
Adjust the image sharpness level, which ranges from
0% to 100%
.
Sensor Setting 2:
For special situations
Sensor Setting 1:
For normal situations
■ Gamma curve:
Adjust the image sharpness level, which ranges from
0 to 0.45
.
You may let firmware Optimize your display or select a value to change the preferred level of
Gamma correction towards higher contrast or towards the higher luminance for detailed expression
for both dark and lighted areas of an image.
VIVOTEK
User's Manual - 51
Exposure
On this page, you can set the Measurement window, Exposure level, and Exposure mode. Detailed
congurations will be automatically adjusted since the sensor library will automatically adjust the
value according to the ambient light.
Note that the Preview button has been cancelled, all changes made to image settings is directly
shown on screen. You can click Restore to recall the original settings without incorporating the
changes. When completed with the settings on this page, click Save to enable the setting. You can
also click on Prole to adjust all settings above in a pop-up window for special lighting conditions.

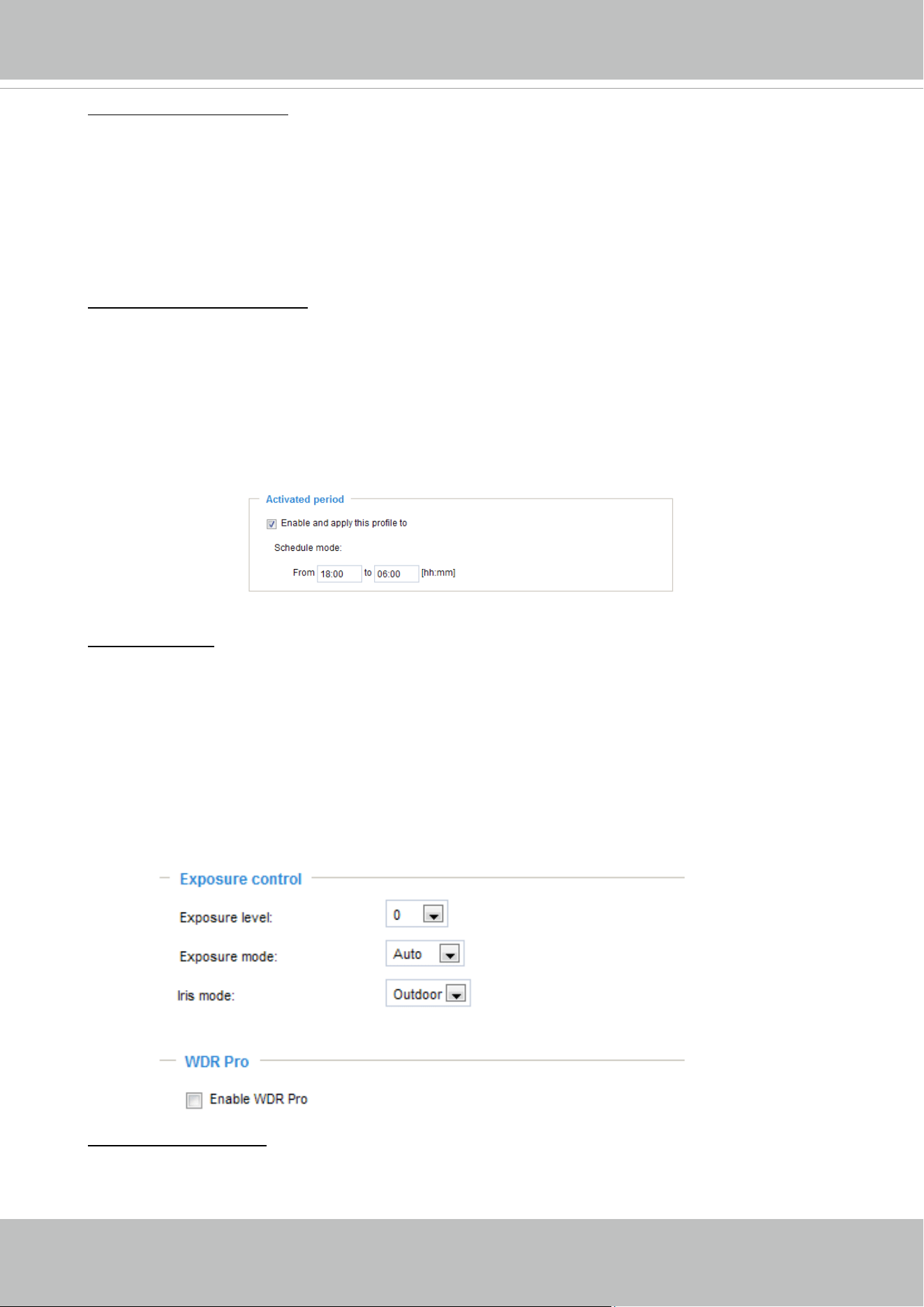

Activated period:
Select the mode this profile will apply to: Day mode, Night mode, or Schedule
mode. Please manually enter a range of time if you choose Schedule mode. Then check Save to
take effect.
Measurement Window: This function allows user to set measurement window(s) for low light
compensation.
■ Full view: Calculate the full range of view and offer appropriate
light compesation.
Enable 3D noise reduction
■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and ickers
in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to
adjust the reduction strength. Note that applying this function to the video channel will consume
system computing power.
3D Noise Reduction is mostly applied in low-light conditions. When enabled in a low-light
condition with fast moving objects, trails of after-images may occur. You may then select a lower
strength level or disable the function.
Enable image stabilizer (EIS)
Select the checkbox to enable the Electronic image stabilization (EIS) function.
VIVOTEK
52 - User's Manual
Exposure control:
■
Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark
to bright). You can click and drag the pointers on the Exposure time and Gain control slide
bars to specify a range of shutter time and Gain control values within which the camera can
automatically tune to an optimal imaging result. You may prefer a shorter shutter time to better
capture moving objects, while a faster shutter reduces light and needs to be compensated by
electrical brightness gains.
■
Exposure mode:
Auto: If you set Exposure mode as Auto, the Exposure time and Gain control will not be
congurable since the sensor library will automatically adjust the value according to the ambient
light. Then you can set iris mode as “indoor” or “outdoor” to reach the best image quality.
■ Iris mode:
Select Indoor or Outdoor iris mode to adapt to the installation. The preset iris
aperture setting will apply.
Manual: (Note that some of the Manual options will be disabled when WDR Pro is
enabled!)
■
Iris Adjustment (available in the Manual mode): The camera comes with a P-iris lens, which
controls the iris opening with extreme precision by its built-in stepping motor. Via software
controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior
sharpness and depth of eld as well as image quality.
You can manually tune the value of iris opening (aperture size), which can range from 0
(Close. smallest aperture size) to 100 (Open, largest aperture size).
Once set, the iris will stay at current position as long as the lighting condition allows. When
external lighting conditions exceed an acceptable range, the P-iris mechanism adjusts itself.

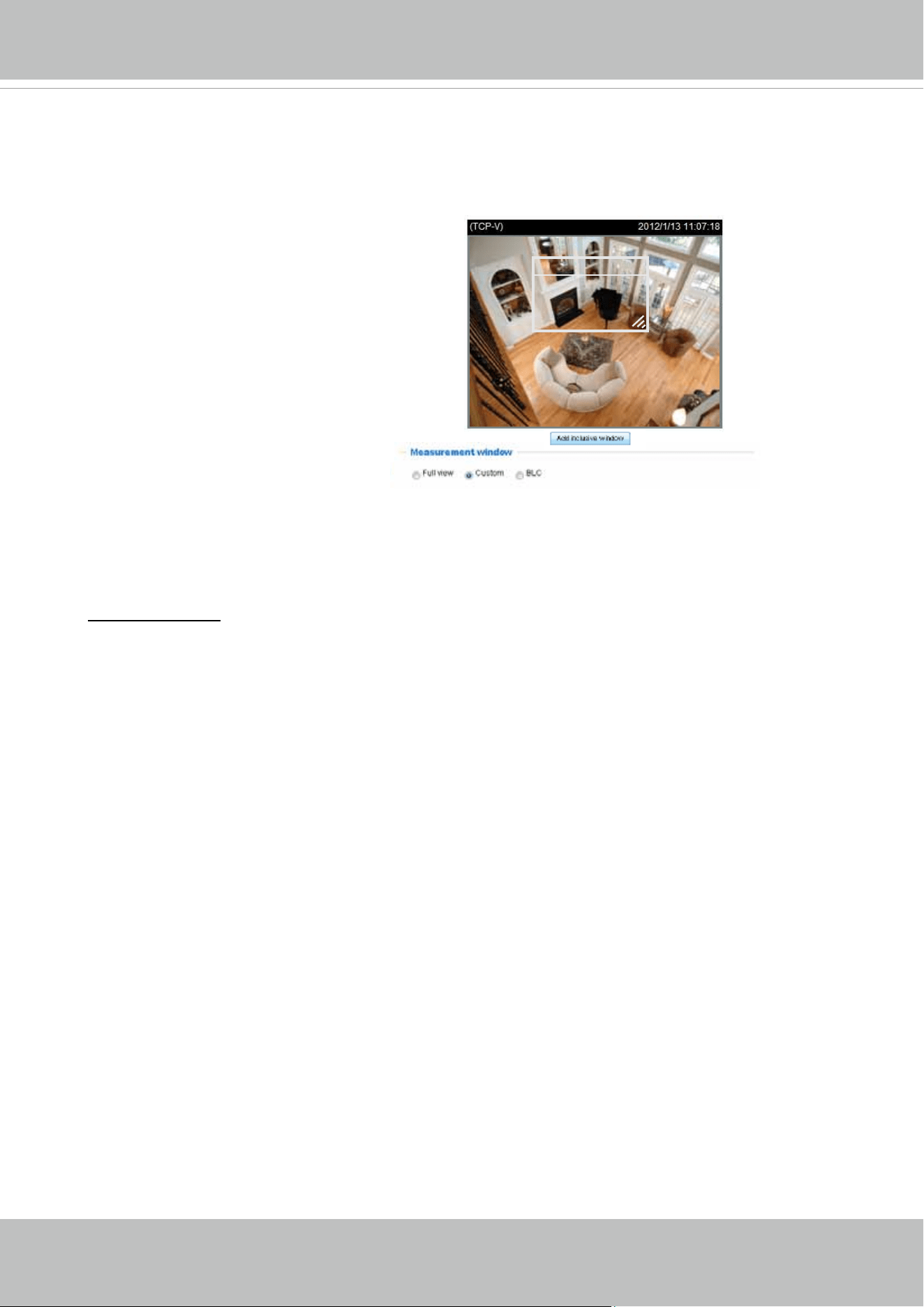

■ Custom: This mode is only available if you select the “Single Stream (Max. 60fps)” option for
Video.
This option allows you to manually add a specic window as a measuring area. The measuring
window refers to “weighted window“ where the lighting condition within the particular area is taken
into account.
Window
■ BLC: When selected, a BLC window will appear on screen meaning that the center of the scene
will be taken as a weighed area. This option enables light compensation for images that are too
dark or too bright to recognize; for example, for the dark side of objects that is posed against
bright sunlight.
Camera firmware then adopts
the weighted averages method to
calculate the value. You can create
up to 10 inclusive windows.
VIVOTEK
User's Manual - 53

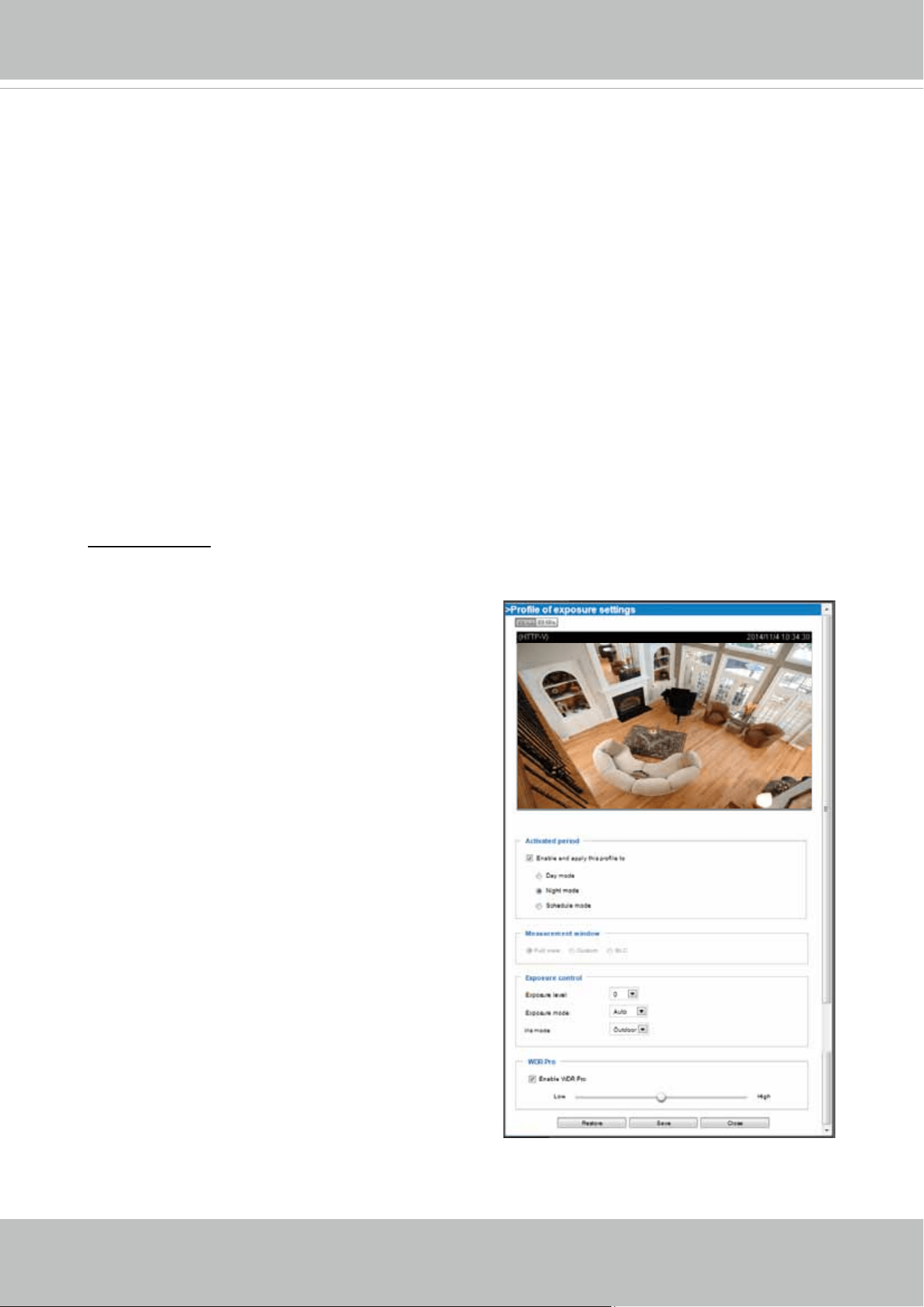

Please follow the steps below to setup a prole:
1. Select the Enable and apply this profile to
checkbox.
2. Select the applied mode: Day mode, Night mode,
or Schedule mode. Please manually enter a range
of time if you choose the Schedule mode.
3. Congure Exposure control settings in the folowing
columns. In this way, you can tell the camera to
adapt to special lighting conditions, say, during the
night time, by setting a prole for the night hours.
Please refer to previous dicussions for detailed
information.
4. Click Save to enable the setting and click Close to
exit the page.
You can click Restore to recall the original settings without incorporating the changes. When
completed with the settings on this page, click Save to enable the settings.
■
Exposure Time: The congurable max. exposure time is tunable according to lighting conditions
with values ranging from 1/10000 to 1/5 of a second.
■
Gain Control: Tune the slider bar to set the Gain Control to the best image quality. Higher gain
control value will generate a certain amount of noises.
■
WDR Pro : When enabled, you can select the strength of the WDR function. The Low, Medium,
High options correspond to the level of contrast between the overly-lit area and the shaded areas.
For example, the High option applies to a high contrast scenario. Note that when the exposure
time is set to longer than 1/60 second, the WDR function will be disabled.
The Sensitivity option applies to the response speed to the change in bright-to-dark lighting
contrast.
If you want to congure another sensor setting for day/night/schedule mode, please click Prole to
open the Prole of exposure settings page as shown below.
Activated period:
Select the mode this prole to apply to the Schedule mode. Please manually enter
a range of time if you choose Schedule mode. Then check Save to take effect.
VIVOTEK
54 - User's Manual
Focus
Focus, also known as Remote Focus, is applicable to Network Cameras that are equipped
with stepping motor lens. The automated focus adjustment function eliminates the needs
to physically adjust camera focus. In an outdoor deployment consisting of a large number
of cameras, the auto focus function can be very helpful when these cameras become out
of focus after days or weeks of operation. And that can easily result from the effects of
natural forces, e.g., shrink and expand due to a wide range of operating temperatures and
the vibration caused by wind.
.
Below is the procedure to perform the
automated Zoom and Focus function:
1. Use the Zoom slide bar to find an
optimal view of the area of interest
where you want to adjust its focus. Click
and drag the double-triangle pointer to
rapidly adjust the zoom ratio. The Focus
pointer moves with the Zoom pointer
correspondingly.
2. Select from the bottom of the screen
whether you want to perform focus
adjustment on the Full view or within a
Custom focus window. You can create
a custom window and click and drag the
window to a desired position on screen.
3. Click to select the Full-range scan and/or the Fully-open iris checkboxes. When
selected, a full-range scan through the camera's entire focal length can take about 30
to 80 seconds. If not, the auto focus scan will only go through the length where optimal
focus may occur, and that takes about 15 to 20 seconds. In theory, best results of
the auto scan can be acquired when the camera's iris is fully open. The iris fully open
checkbox is selected by default.
4. Click on the Fine-tune focus button, and wait for the scan to complete.
5. After a short while, the clearest image obtained should be displayed and the optimal
focus range achieved. Use the arrow marks on the sides to ne-tune the focus if you are
not satised with the results.
The methodology of using the Resize Buttons at the upper left corner of the streaming
window is the same as that on the home page.
VIVOTEK
User's Manual - 55
Auto Focus:
Click the Fine-tune focus or the Full-range scan focus button for the camera to automatically
nd the best focus. The process takes about several seconds to complete. The Focus pointer will
stay at the optimal location on the slide bar.
You may still need to use the arrow marks to ne-tune the focus depending on the live image on
your screen. “>” means moving from wide to tele end; and “<” tele to wide.
■
Full-range scan: If selected, the auto focus scan will be performed throughout the complete
range of focus. The full-range scan takes a longer time to complete. A full-range scan usually
takes approximately 3 minutes or longer.
■
Enable iris: Click to restore and use the normal iris control.
Focus window:
By default, the optimal focus is found on a full view window. You may designate a custom window
within your current eld of view to acquire the best focus out of it. However, you can not place a
focus window on a distant background, e.g., a hall way that stretches away for 3 meters or farther.
Doing so you will not benet from the Focus window function.
■
Full view: The focus tuning takes place by referring to the full view.
■
Custom: You can create a focus window and drag it to a place of interest in your view window.
Note that it is recommended to use this function only when you have a solid object in your view
window that is showing a consistent color or texture. This function will not take effect if you set
the focus window on a distant background.
VIVOTEK
56 - User's Manual
Privacy mask
Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to
address privacy concerns.
■ To set the privacy mask windows, follow the steps below:
1. Click New to add a new window.
2. You can use the mouse cursor to size and drag-drop the window, which is recommended to be
at least twice the size of the object (height and width) you want to cover.
3. Enter a Window Name and click Save to enable the setting.
4. Click on the Enable privacy mask checkbox to enable this function.
►
Up to 5 privacy mask windows can be set up on the same screen.
► If you want to delete the
privacy mask
window, please click the ‘x’ on the upper right corner of
the window.
2012/11/09 17:08:56
NOTE:
VIVOTEK
User's Manual - 57
Stream settings
This Network Camera supports multiple streams with frame sizes ranging from
176 x 144 to 1280 x 1024 (FD8155H)
- or -
176 x 144 to 1920 x1080 (FD8165H).
Due to the limitations on system resources, select a video streaming option using its checkbox:
■ Dual Stream (Max. 30fps): This allows streaming two video streams at the 30fps frame rate.
■ Video Rotation (Max. 30fps): This allows a rorated video scene conguration. Two streams are
allowed at the 30fps frame rate.
■ Single Stream (Max. 60fps): This allows a single video stream at the highest 60fps frame rate,
best for capturing fast-moving objects.
Media > Video
VIVOTEK
58 - User's Manual

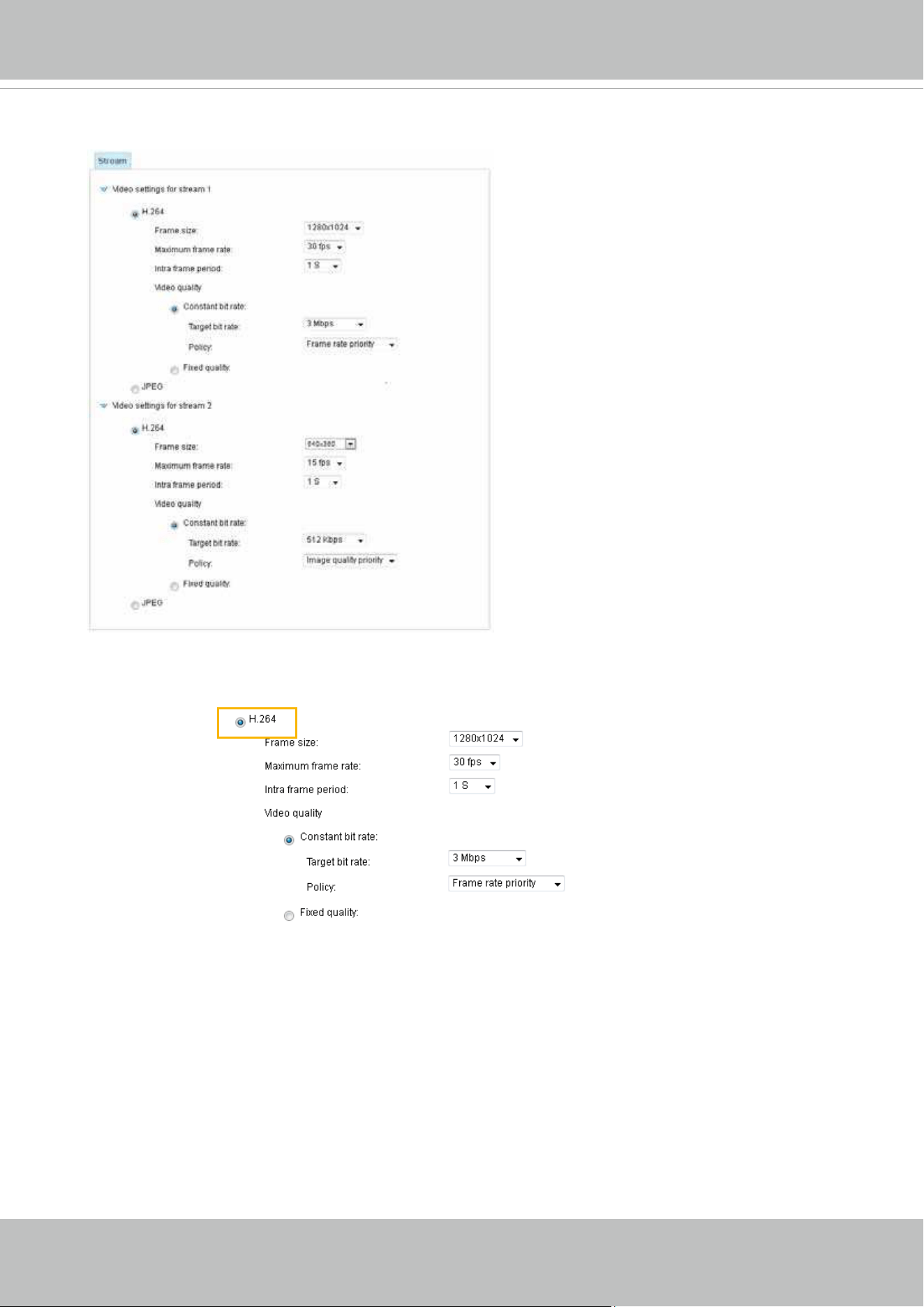

Click the stream item to display the detailed information. The maximum frame size will follow your
settings in the above Viewing Window sections.
This Network Camera offers real-time H.264 and MJPEG compression standards (Dual Codec) for
real-time viewing. If the H.264 mode is selected, the video is streamed via RTSP protocol. There
are several parameters through which you can adjust the video performance:
■ Frame size
You can set up different video resolutions for different viewing devices. For example, set a
smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video
size and a higher bit rate for live viewing on web browsers. Note that a larger frame size takes
up more network bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother
video quality and for recognizing moving objects in the eld of view.
If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps,
8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates
are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps.
Higher frame rate is available when the Single Stream mode is selected.
VIVOTEK
User's Manual - 59
■ Intra frame period
Determine how often for rmware to plant an I frame. The shorter the duration, the more likely
you will get better video quality, but at the cost of higher network bandwidth consumption. Select
the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds,
3 seconds, and 4 seconds.
■
Video quality
• Constant bit rate: A complex scene generally produces a larger le size, meaning that
higher bandwidth will be needed for data transmission. The bandwidth utilization is
congurable to match a selected level, resulting in mutable video quality performance.
The bit rates are selectable at the following rates:
20Kbps, 30Kbps, 40Kbps, 50Kbps,
64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps,
8Mbps, and 16Mbps
. You can also select Customize and manually enter a value.
- Target bit rate: select a bit rate from the pull-down menu. The bit rate ranges from
20kbps to a maximum of 16Mbps. The bit rate then becomes the Average or Upper
bound bit rate number. The Network Camera will strive to deliver video streams
around or within the bit rate limitation you impose.
- Policy: If Frame Rate Priority is selected, the Network Camera will try to maintain
the frame rate per second performance, while the image quality will be compromised.
If Image quality priority is selected, the Network Camera may drop some video
frames in order to maintain image quality.
• Fixed quality: On the other hand, if Fixed quality is selected, all frames are
transmitted with the same quality; bandwidth utilization is therefore unpredictable.
The video quality can be adjusted to the following settings: Medium, Standard, Good,
Detailed, and Excellent. You can also select Customize and manually enter a value.
- Maximum bit rate: With the guaranteed image quality, you might still want to place
a bit rate limitation to control the size of video streams for bandwidth and storage
concerns. The congurable bit rate starts from 1Mbps to 40Mbps.
The Maximum bit rate setting in the Fixed quality configuration can ensure a
reasonable and limited use of network bandwidth. For example, in low light conditions
where a Fixed quality setting is applied, video packet sizes can tremendously
increase when noises are produced with electrical gain.
You may also manually enter a bit rate number by selecting the Customized option.
VIVOTEK
60 - User's Manual

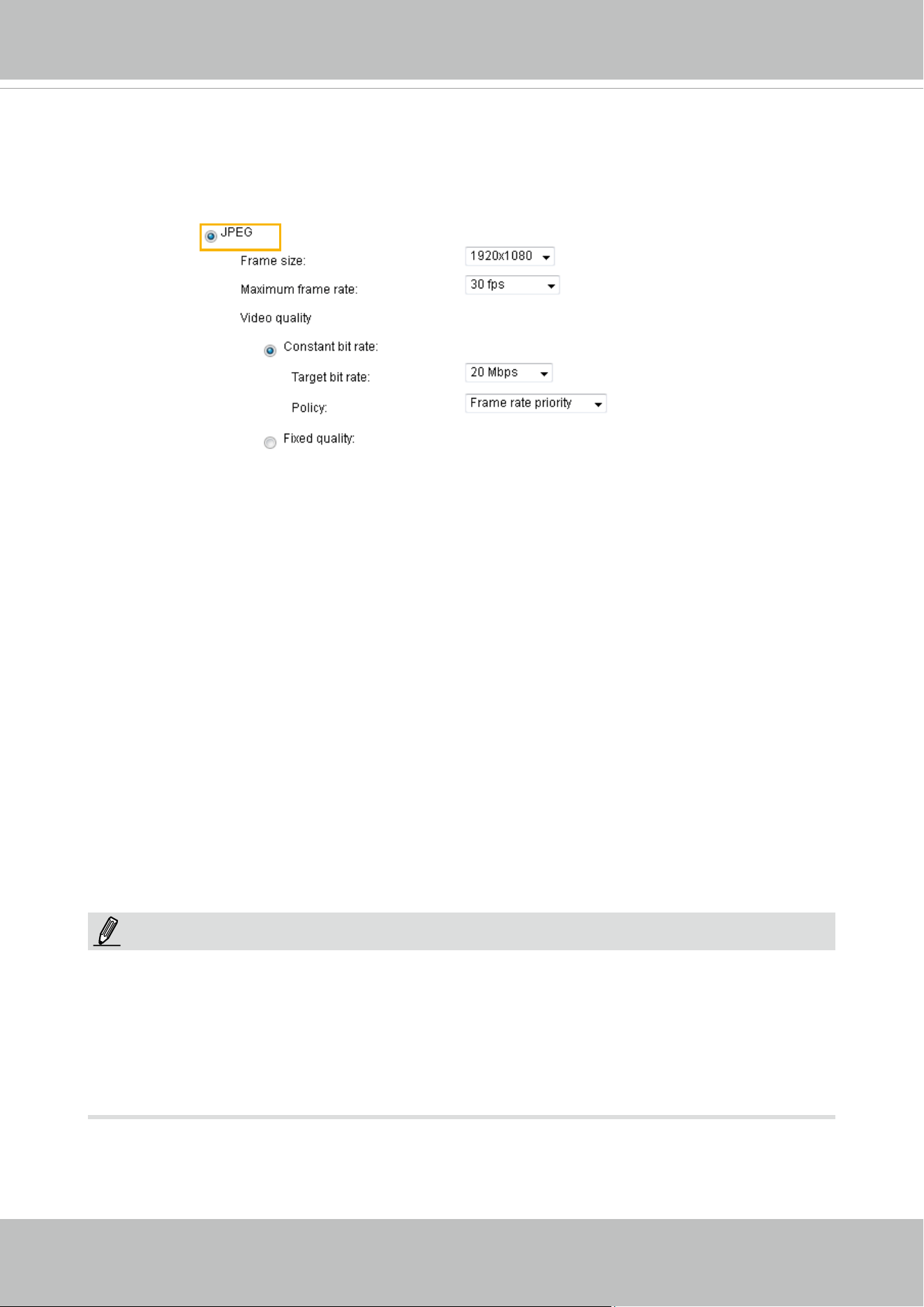

If JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client,
producing a moving effect similar to a lmstrip. Every single JPEG image transmitted guarantees
the same image quality, which in turn comes at the expense of variable bandwidth usage. Because
the media contents are a combination of JPEG images, no audio data is transmitted to the client.
There are three parameters provided in MJPEG mode to control the video performance:
■ Frame size
You can set up different video resolution for different viewing devices. For example, set a smaller
frame size and lower bit rate for remote viewing on mobile phones and a larger video size and
a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more
bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother
video quality.
If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps,
8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates
are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. The frame
rate will decrease if you select a higher resolution.
■ Video quality
Refer to the previous page setting an average or upper bound threshold for controlling the
bandwidth consumed for transmitting motion jpegs. The conguration method is identical to that
for MPEG4 and H.264.
For Constant Bit Rate and other settings, refer to the previous page for details.
►
Video quality and xed quality refers to the compression rate, so a lower value will produce higher
quality.
►
Converting high-quality video may signicantly increase the CPU loading, and you may encounter
streaming disconnection or video loss while capturing a complicated scene. In the event of
occurance, we suggest you customize a lower video resolution or reduce the frame rate to obtain
smooth video.
NOTE:
VIVOTEK
User's Manual - 61
Media > Audio
Audio Settings
Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note
that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client
Settings page. In that case, the following message is displayed:
External microphone input gain: Select the gain of the external audio input according to ambient
conditions. Adjust the gain from 100% (most sensitive) to 0% (least sensitive).
Audio type: Select audio codec AAC or GSM-AMR and the bit rate.
■ AAC provides good sound quality at the cost of higher bandwidth consumption. The bit rates are
selectable from: 16Kbps, 32Kbps, 48Kbps, 64Kbps, 96Kbps, and 128Kbps.
■ G.711 also provides good sound quality and requires about 64Kbps. Select pcmu (μ-Law) or
pcma (A-Law) mode.
■ G.726 is a speech codec standard covering voice transmission at rates of 16, 24, 32, and 40kbit/
s.
When completed with the settings on this page, click Save to enable the settings.
VIVOTEK
62 - User's Manual
Network > General settings
This section explains how to configure a wired network connection for the Network
Camera.
Network Type
LAN
Select this option when the Network Camera is deployed on a local area network (LAN) and is
intended to be accessed by local computers. The default setting for the Network Type is LAN.
Please rememer to click on the Save button when you complete the Network setting.
Get IP address automatically: Select this option to obtain an available dynamic IP address assigned
by the DHCP server each time the camera is connected to the LAN.
Use fixed IP address: Select this option to manually assign a static IP address to the Network
Camera.
1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the
Network Camera on LAN. Please refer to Software Installation on page 15 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP or
network administrator.
Subnet mask: This is used to determine if the destination is in the same subnet. The default value
is “255.255.255.0”.
Default router: This is the gateway used to forward frames to destinations in a different subnet.
Invalid router setting will disable the transmission to destinations across different subnets.
VIVOTEK
User's Manual - 63

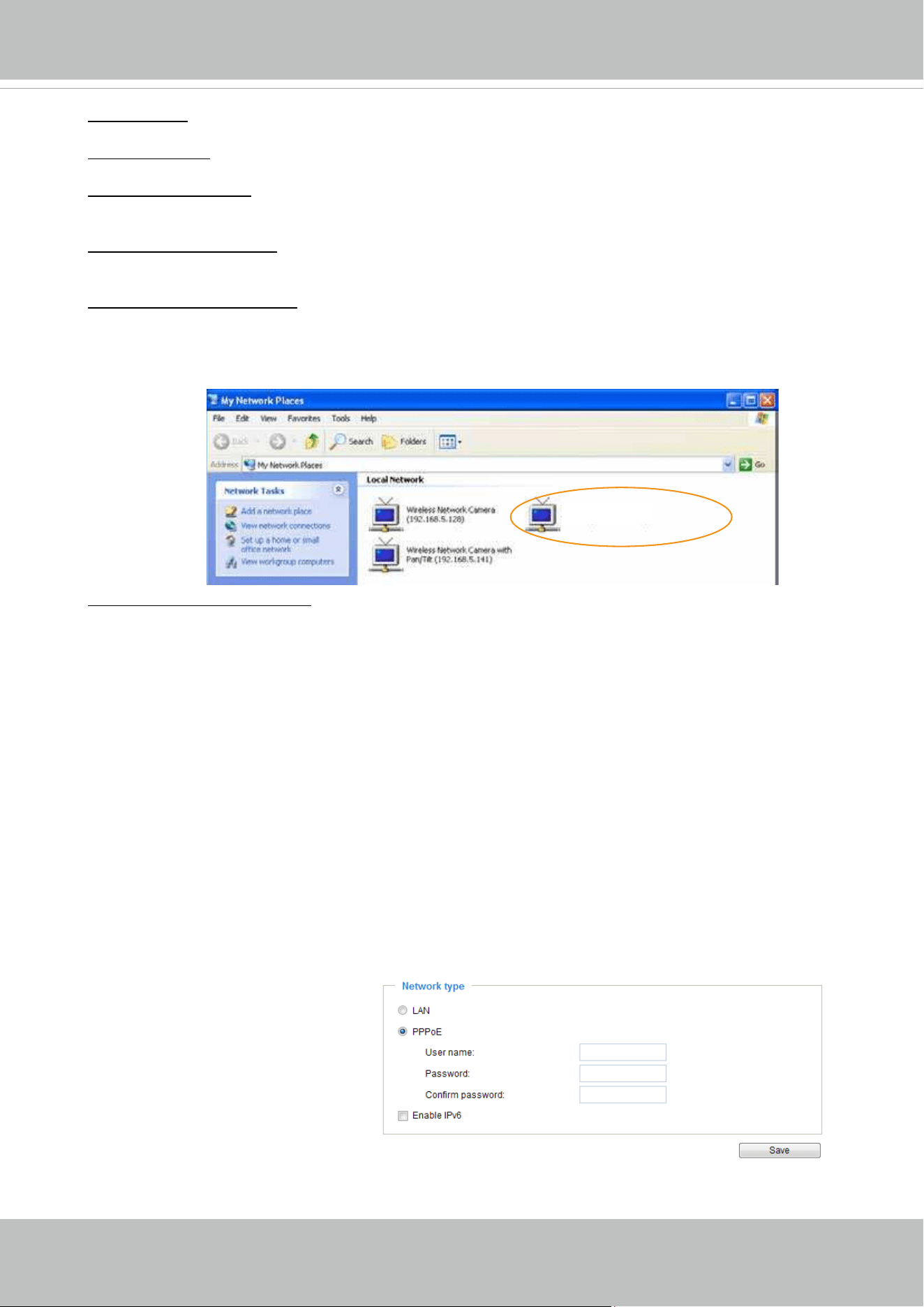

Primary DNS: The primary domain name server that translates hostnames into IP addresses.
Secondary DNS: Secondary domain name server that backups the Primary DNS.
Primary WINS server: The primary WINS server that maintains the database of computer names
and IP addresses.
Secondary WINS server: The secondary WINS server that maintains the database of computer
names and IP addresses.
Enable UPnP presentation: Select this option to enable UPnP
TM
presentation for your Network
Camera so that whenever a Network Camera is presented to the LAN, the shortcuts to connected
Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web
browser. Currently, UPnP
TM
is supported by Windows XP or later. Note that to utilize this feature,
please make sure the UPnP
TM
component is installed on your computer.
Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option
to allow the Network Camera to open ports automatically on the router so that video streams can
be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP
TM
and
it is activated.
PPPoE (Point-to-point over Ethernet)
Select this option to congure your Network Camera to make it accessible from anywhere as long
as there is an Internet connection. Note that to utilize this feature, it requires an account provided
by your ISP.

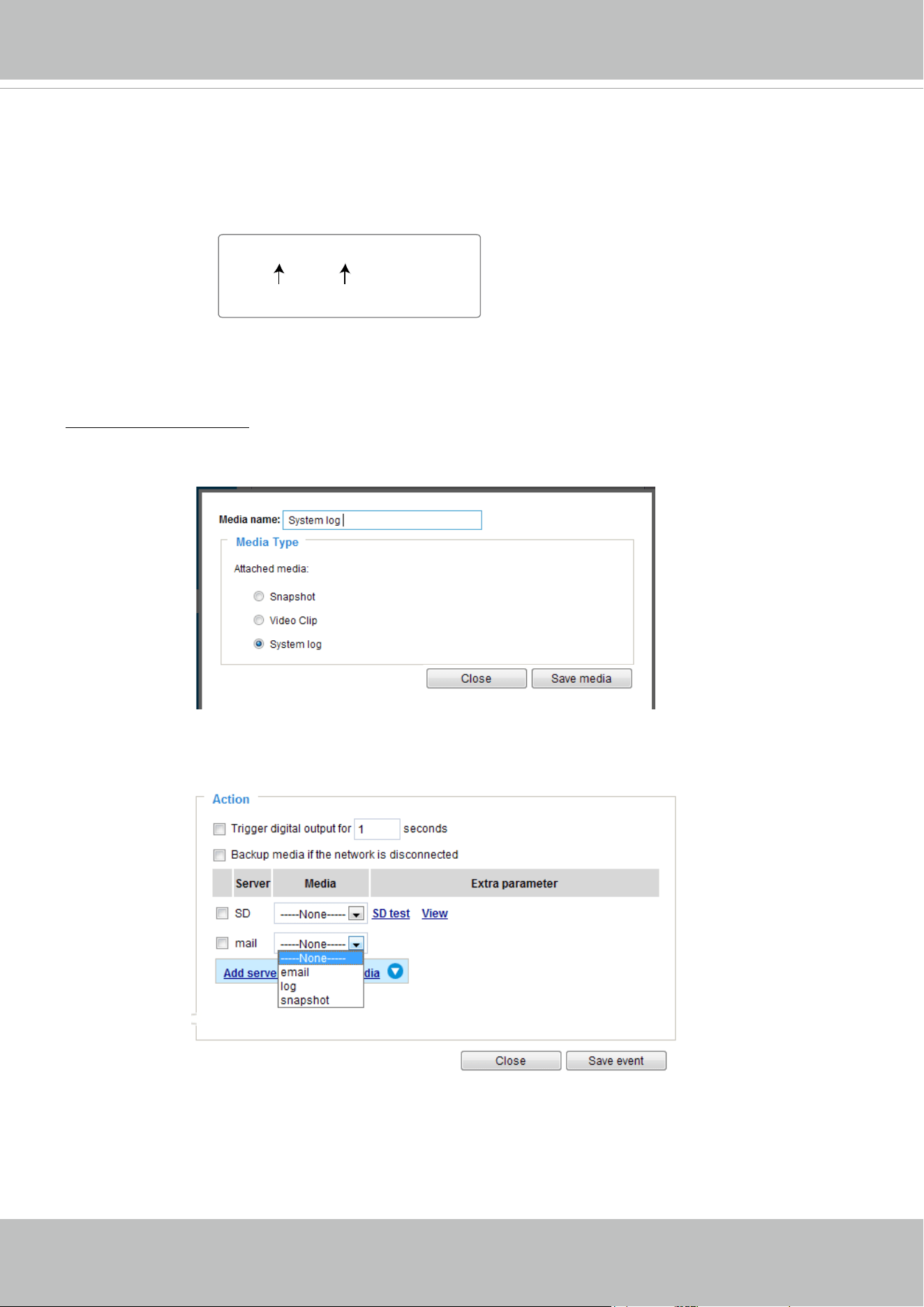

Follow the steps below to acquire your Network Camera’s public IP address.
1. Set up the Network Camera on the LAN.
2. Go to Conguration > Event > Event settings > Add server (please refer to Add server on page
101) to add a new email or FTP server.
3. Go to Conguration > Event > Event settings > Add media (please refer to Add media on page
106).
Select System log so that you will receive the system log in TXT le format which contains the
Network Camera’s public IP address in your email or on the FTP server.
4. Go to Conguration > Network > General settings > Network type. Select PPPoE and enter the
user name and password provided by your ISP. Click Save to enable the setting.
5. The Network Camera will reboot.
6. Disconnect the power to the Network Camera; remove it from the LAN environment.
Mega-pixel Network Camera (192.168.5.151)
VIVOTEK
64 - User's Manual
► If the default ports are already used by other devices connected to the same router, the Network
Camera will select other ports for the Network Camera.
► If UPnP
TM
is not supported by your router, you will see the following message:
Error: Router does not support UPnP port forwarding.
► Steps to enable the UPnP
TM
user interface on your computer:
Note that you must log on to the computer as a system administrator to install the UPnP
TM
components.
1. Go to Start, click Control Panel, then click Add or Remove Programs.
2. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.
3.
In the Windows Components Wizard dialog box, select Networking Services and click
Details.
NOTE:
VIVOTEK
User's Manual - 65
4. In the Networking Services dialog box, select Universal Plug and Play and click OK.
5. Click Next in the following window.
6. Click Finish. UPnP
TM
is enabled.
► How does UPnP
TM
work?
UPnP
TM
networking technology provides automatic IP configuration and dynamic discovery of
devices added to a network. Services and capabilities offered by networked devices, such as
printing and file sharing, are available among each other without the need for cumbersome
network conguration. In the case of Network Cameras, you will see Network Camera shortcuts
under My Network Places.

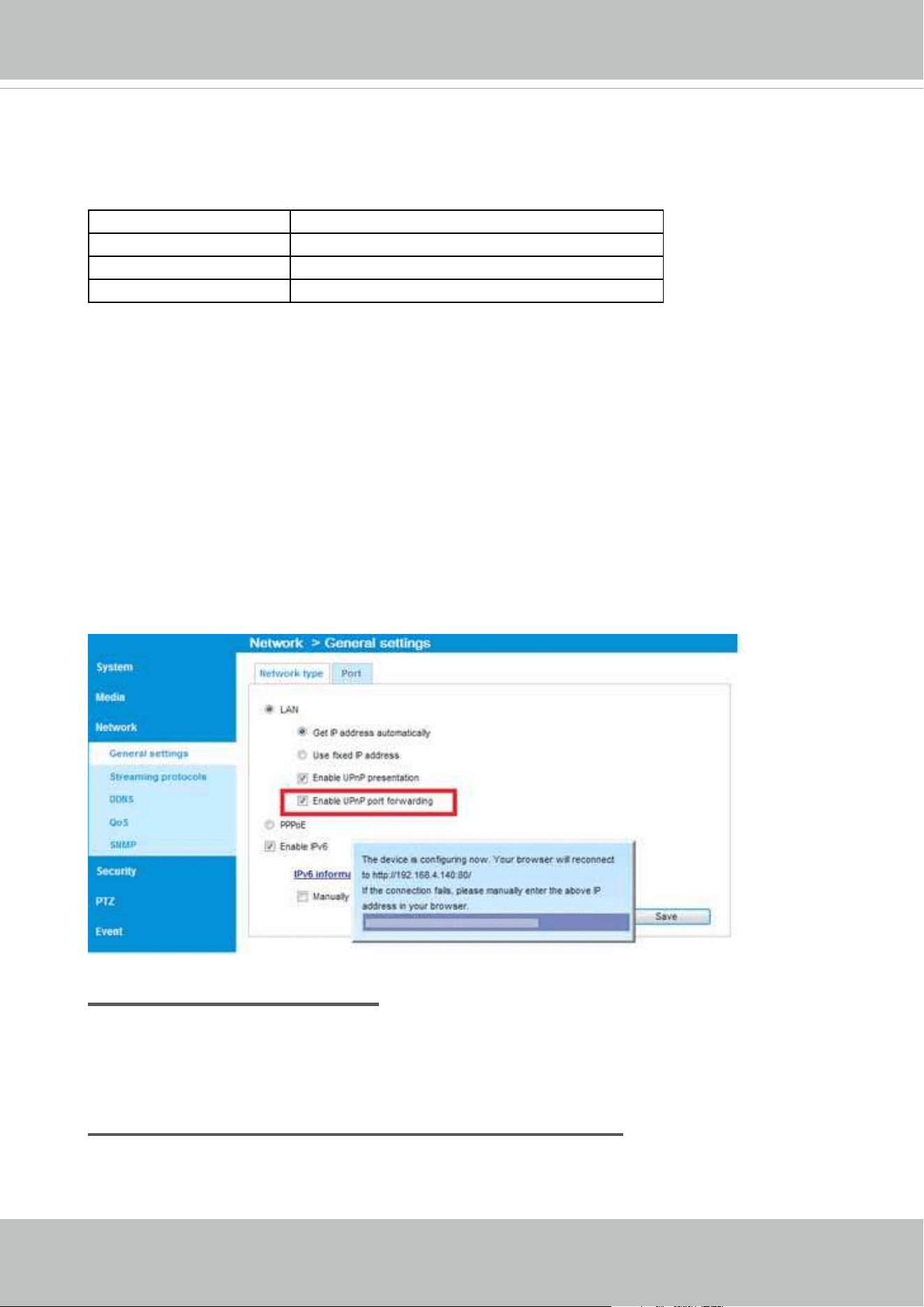

► Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on
the router-not HTTP port-meaning that you have to add the secondary HTTP port number to the
Network Camera’s public address in order to access the Network Camera from the Internet. For
example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to
the list below for the Network Camera’s IP address.
From the Internet In LAN
http://203.67.124.123:8080 http://192.168.4.160 or
http://192.168.4.160:8080
► If the PPPoE settings are incorrectly congured or the Internet access is not working, restore
the Network Camera to factory default; please refer to Restore on page 44 for details. After the
Network Camera is reset to factory default, it will be accessible on the LAN.
VIVOTEK
66 - User's Manual
Enable IPv6
Select the Enable IPv6 checkbox and click Save to enable IPv6 settings.
Please note that this only works if your network environment and hardware equipment support
IPv6. The browser should be Microsoft
®
Internet Explorer 7 or 8, Mozilla Firefox 13.0 or above.
When IPv6 is enabled, by default, the network camera will listen to router advertisements and be
assigned with a link-local IPv6 address accordingly.
IPv6 Information: Click this button to obtain the IPv6 information as shown below.
If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The
IPv6 address will be displayed as follows:
Link-global IPv6 address/network mask
Link-local IPv6 address/network mask
Refers to Ethernet
VIVOTEK
User's Manual - 67

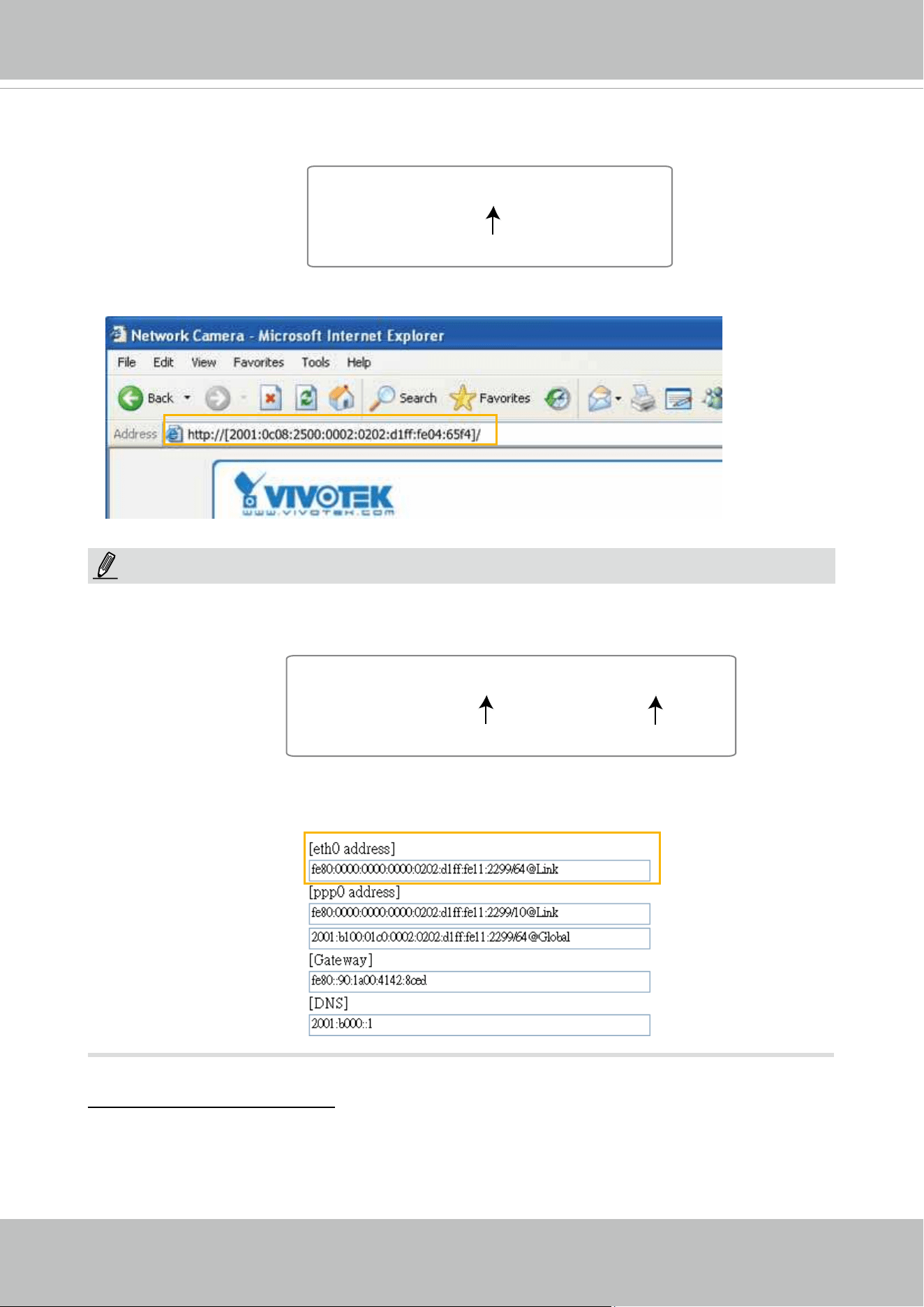

Please follow the steps below to link to an IPv6 address:
1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.
3. The format should be:
4. Press Enter on the keyboard or click Refresh button to refresh the webpage.
For example:
► If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage
using the following address format: (Please refer to HTTP streaming on page 70 for detailed
information.)

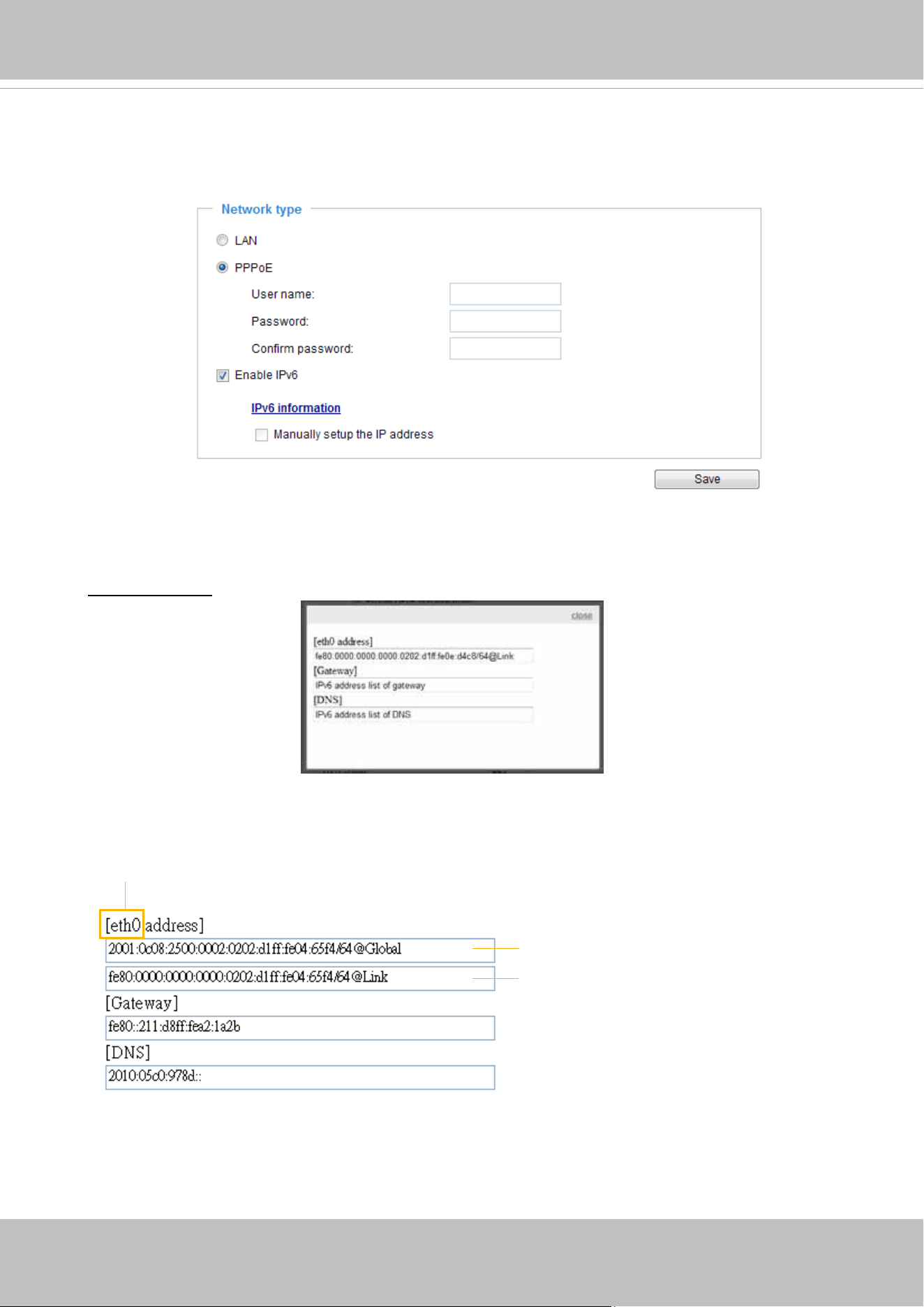

► If you choose PPPoE as the Network Type, the [
PPP0 address] will be displayed in the IPv6
information column as shown below.
Manually setup the IP address: Select this option to manually configure IPv6 settings if your
network environment does not have DHCPv6 server and router advertisements-enabled routers.
If you check this item, the following blanks will be displayed for you to enter the corresponding
information:
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/
IPv6 address
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080
IPv6 address
Secondary HTTP port
NOTE:
VIVOTEK
68 - User's Manual

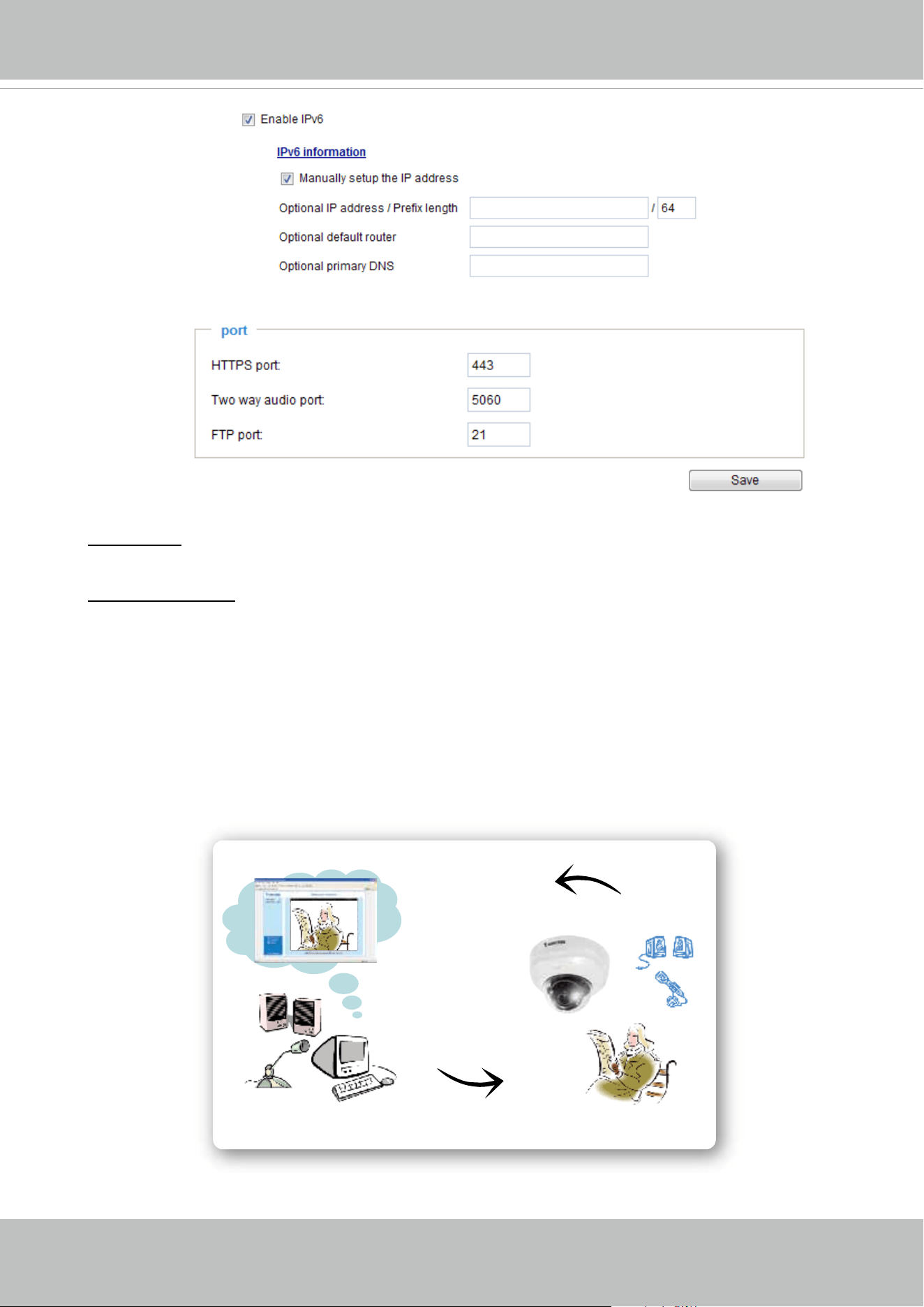

Port
HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port
number between 1025 and 65535.
Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned
to another port number between 1025 and 65535.
The Network Camera supports two way audio communication so that operators can transmit and
receive audio simultaneously. By using the Network Camera’s built-in or external microphone and
an external speaker, you can communicate with people around the Network Camera.
Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way
audio function, make sure the video mode is set to "H.264" on the Media > Video > Stream settings
page and the media option is set to “Media > Video > Stream settings” on the Client Settings page.
Please refer to Client Settings on page 30 and Stream settings on page 57.
Audio transmitted from operators
Audio transmitted to operators
America
Taiwan
VIVOTEK
User's Manual - 69
2014/06/09 17:08:56
Audio is being transmitted to the Network Camera
Mute
Mic Volume
Talk Button
Click to enable audio transmission to the Network Camera; click to adjust the volume of
microphone; click
to turn off the audio. To stop talking, click again.
FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's
Installation Wizard 2 to upgrade the rmware via FTP server. By default, the FTP port is set to 21.
It also can be assigned to another port number between 1025 and 65535.
VIVOTEK
70 - User's Manual
Network > Streaming protocols
HTTP streaming
To utilize HTTP authentication, make sure that your have set a password for the Network Camera
rst; please refer to Security > User account on page 80 for details.
Authentication: Depending on your network security requirements, the Network Camera provides
two types of security settings for an HTTP transaction: basic and digest.
If
basic authentication is selected, the password is sent in plain text format and there can be
potential risks of being intercepted. If
digest authentication is selected, user credentials are
encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses.
HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP
port is set to 8080. They can also be assigned to another port number between 1025 and 65535. If
the ports are incorrectly assigned, the following warning messages will be displayed:
To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can
be used to access the Network Camera. For example, when the HTTP port is set to 80 and the
secondary HTTP port is set to 8080, refer to the list below for the Network Camera’s IP address.
Access name for stream 1 ~ 2: This Network camera supports multiple streams simultaneously.
The access name is used to identify different video streams. Users can click Media > Video >
Stream settings to set up the video quality of linked streams. For more information about how to
set up the video quality, please refer to Stream settings on page 57.
When using Mozilla Firefox to access the Network Camera and the video mode is set to JPEG,
users will receive video comprised of continuous JPEG images. This technology, known as “server
push”, allows the Network Camera to feed live pictures to Mozilla Firefox.
On the LAN
http://192.168.4.160 or
http://192.168.4.160:8080
VIVOTEK
User's Manual - 71

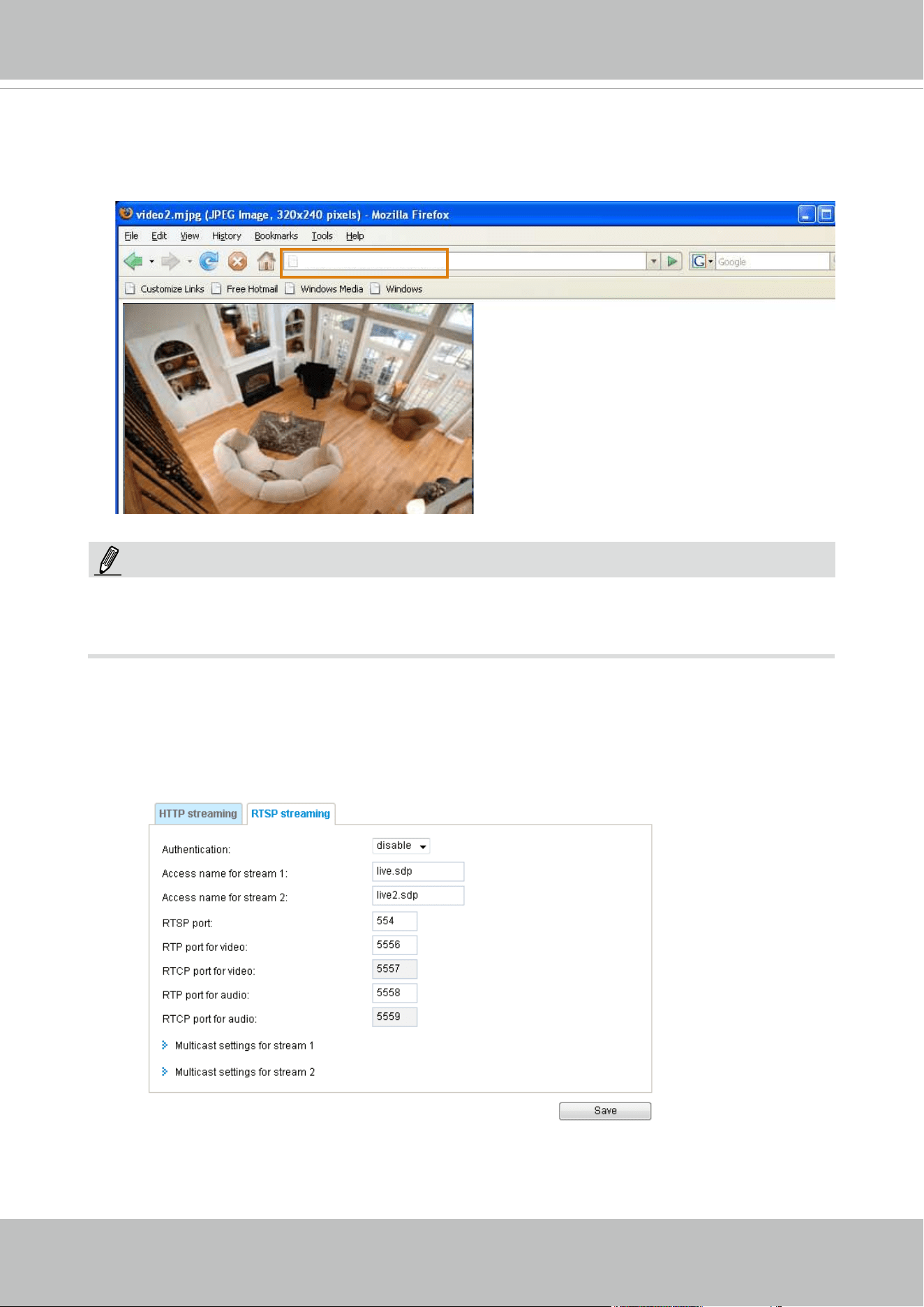

URL command -- http://<ip address>:<http port>/<access name for stream 1~2>
For example, when the Access name for stream 2 is set to video2.mjpg:
1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.
► Microsoft
®
Internet Explorer does not support server push technology; therefore, you will not be
able to access a video stream using
http://<ip address>:<http port>/<access name for stream
1~2>
.
RTSP Streaming
To utilize RTSP streaming authentication, make sure that you have set a password for controlling
the access to video stream rst. Please refer to Security > User account on page 80 for details.
http://192.168.5.151/video2.mjpg
NOTE:
VIVOTEK
72 - User's Manual
Authentication: Depending on your network security requirements, the Network Camera provides
three types of security settings for streaming via RTSP protocol: disable, basic, and digest.
If basic authentication is selected, the password is sent in plain text format, but there can be
potential risks of it being intercepted. If
digest authentication is selected, user credentials are
encrypted using MD5 algorithm, thus providing better protection against unauthorized access.
The availability of the RTSP streaming for the three authentication modes is listed below:
Access name for stream 1 ~ 2: This Network camera supports multiple streams simultaneously.
The access name is used to differentiate the streaming source.
If you want to use an
RTSP player to access the Network Camera, you have to set the video mode
to
H.264 and use the following RTSP URL command to request transmission of the streaming data.
rtsp://<ip address>:<rtsp port>/<access name for stream 1 to 2>
For example, when the access name for stream 1 is set to live.sdp:
1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player as shown
below.
RTSP port /RTP port for video and RTCP port for video
■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the
port number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video data to the clients. By default,
the RTP port for video is set to 5556.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the
data by monitoring the Internet trafc volume. By default, the RTCP port for video is set to 5557.
The ports can be changed to values between 1025 and 65535. The RTP port must be an even
number and the RTCP port is the RTP port number plus one, and thus is always an odd number.
When the RTP port changes, the RTCP port will change accordingly.
If the RTP ports are incorrectly assigned, the following warning message will be displayed:
rtsp://192.168.5.151:554/live.sdp
Quick Time player VLC
Disable O O
Basic O O
Digest O X
Video 16:38:01 2013/02/25
VIVOTEK
User's Manual - 73
Multicast settings for stream 1 ~ 2: Click the items to display the detailed conguration information.
Select the Always multicast option to enable multicast for stream 1 ~ 2.
Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the
other hand, sends a stream to the multicast group address and allows multiple clients to acquire
the stream at the same time by requesting a copy from the multicast group address. Therefore,
enabling multicast can effectively save Internet bandwith.
The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an
even number and the multicast RTCP port number is the multicast RTP port number plus one, and
thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change
accordingly.
If the multicast RTP video ports are incorrectly assigned, the following warning message will be
displayed:
Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range
a packet can be forwarded.
Initial TTL Scope
0 Restricted to the same host
1 Restricted to the same subnetwork
32 Restricted to the same site
64 Restricted to the same region
128 Restricted to the same continent
255 Unrestricted in scope
VIVOTEK
74 - User's Manual
Network > DDNS
This section explains how to congure the dynamic domain name service for the Network
Camera. DDNS is a service that allows your Network Camera, especially when assigned
with a dynamic IP address, to have a xed host and domain name.

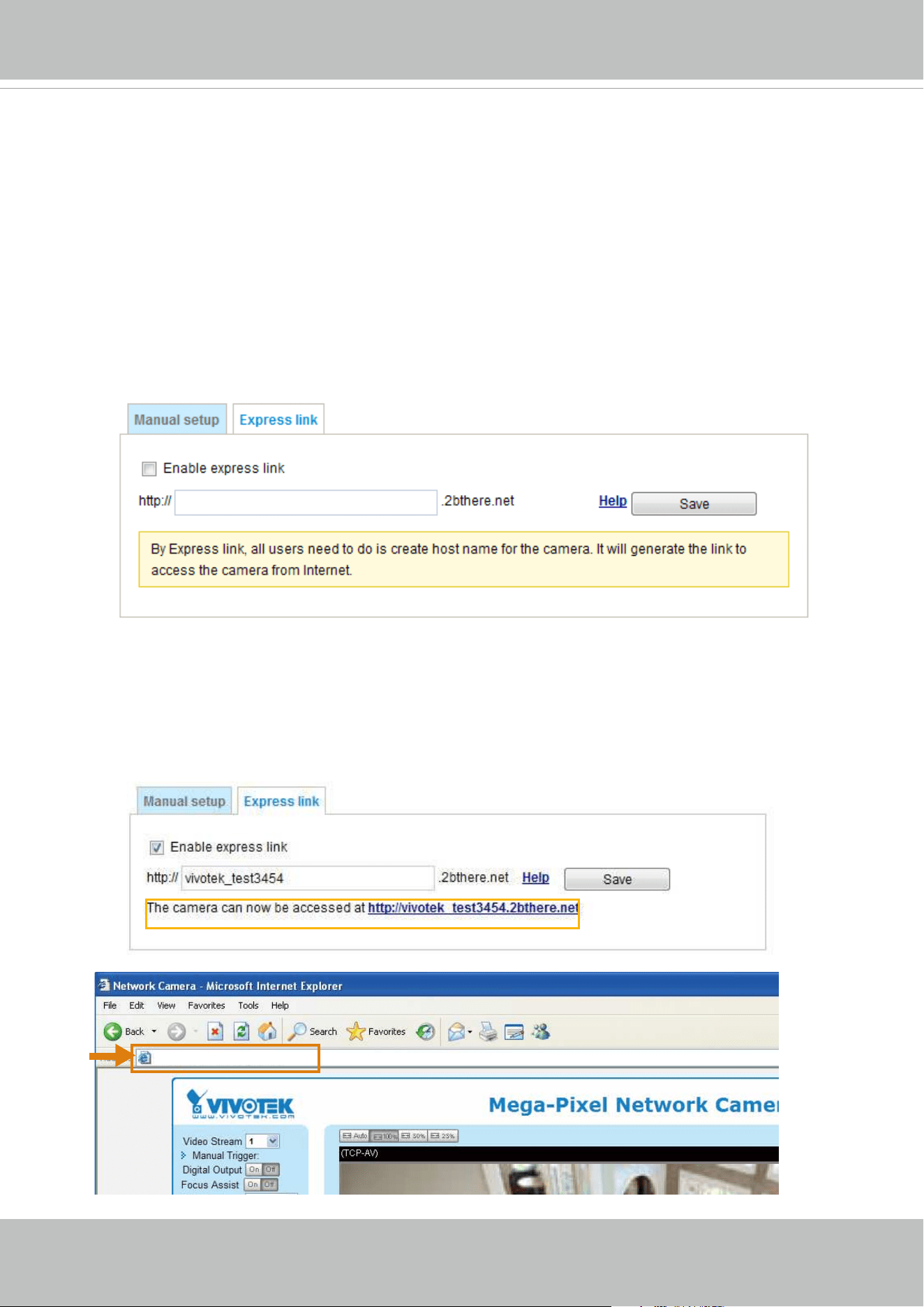

Express link
Express Link is a free service provided by VIVOTEK server, which allows users to register
a domain name for a network device. One URL can only be mapped to one MAC address.
This service will examine if the host name is valid and automatically open a port on your
router. If using DDNS, the user has to manually congure UPnP port forwarding. Express
Link is more convenient and easier to set up.
Please follow the steps below to enable Express Link:
1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check Enable express link.
3. Enter a host name for the network device and click Save. If the host name has been used by
another device, a warning message will show up. If the host name is valid, it will display a
message as shown below.
https://0002D1123456.2bthere.net
VIVOTEK
User's Manual - 75
Manual setup
DDNS: Dynamic domain name service
Enable DDNS: Select this option to enable the DDNS setting.
Provider: Select a DDNS provider from the provider drop-down list.
VIVOTEK offers
Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It
is recommended that you register
Safe100.net to access VIVOTEK’s Network Cameras from the
Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.
org(Custom), CustomSafe100, and dyn-interfree.it. Note that before utilizing this function, please
apply for a dynamic domain account rst.
■ Safe100.net
1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing
the terms of the Service Agreement.
2. In the Register column, ll in the Host name (xxxx.safe100.net), Email, Key, and Conrm Key,
and click Register. After a host name has been successfully created, a success message will
be displayed in the DDNS Registration Result column.
3. Click Copy and all the registered information will automatically be uploaded to the corresponding
elds in the DDNS column at the top of the page as seen in the picture.
[Register] Successfully Your account information has
been mailed to registered e-mail address
VIVOTEK
76 - User's Manual
[Register] Successfully Your account information has
been mailed to registered e-mail address
4. Select Enable DDNS and click Save to enable the setting.
■
CustomSafe100
VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and
system integrators. You can use CustomSafe100 to register a dynamic domain name if your
distributor or system integrators offer such services.
1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, ll in the Host name, Server name, Email, Key, and Conrm Key; then
click Register.
Enter “ns1.safe100.net” as the Server name.
After a host name has been successfully created, you will see a success message in the DDNS
Registration Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding elds in
the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.
Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your
account information will be sent to your email address.
Refer to the following links to apply for a dynamic domain account when selecting other
DDNS providers:
■
Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
VIVOTEK
User's Manual - 77
Network > QoS (Quality of Service)
Quality of Service refers to a resource reservation control mechanism, which guarantees a certain
quality to different services on the network. Quality of service guarantees are important if the
network capacity is insufcient, especially for real-time streaming multimedia applications. Quality
can be dened as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
The following are the main benets of a QoS-aware network:
■
The ability to prioritize trafc and guarantee a certain level of performance to the data ow.
■
The ability to control the amount of bandwidth each application may use, and thus provide higher
reliability and stability on the network.
Requirements for QoS
To utilize QoS in a network environment, the following requirements must be met:
■
All network switches and routers in the network must include support for QoS.
■
The network video devices used in the network must be QoS-enabled.
QoS models
CoS (the VLAN 802.1p model)
IEEE802.1p denes a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of
Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from
0 (lowest) to 7 (highest). The priority is set up on the network switches, which then use different
queuing disciplines to forward the packets.
Below is the setting column for CoS. Enter the VLAN ID of your switch (0~4095) and choose the
priority for each application (0~7).
If you assign Video the highest level, the switch will handle video packets rst.
► A VLAN Switch (802.1p) is required. Web browsing may fail if the CoS setting is incorrect.
►The Class of Service technologies do not guarantee a level of service in terms of bandwidth
and delivery time; they offer a "best-effort." Users can think of CoS as "coarsely-grained" trafc
control and QoS as "nely-grained" trafc control.
► Although CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees
since it is based on L2 protocol.
NOTE:
VIVOTEK
78 - User's Manual
QoS/DSCP (the DiffServ model)
DSCP-ECN denes QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model
is based on packet marking and router queuing disciplines. The marking is done by adding a eld
to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that
provides 64 different class IDs. It gives an indication of how a given packet is to be forwarded,
known as the Per Hop Behavior (PHB). The PHB describes a particular service level in terms of
bandwidth, queueing theory, and dropping (discarding the packet) decisions. Routers at each
network node classify packets according to their DSCP value and give them a particular forwarding
treatment; for example, how much bandwidth to reserve for it.

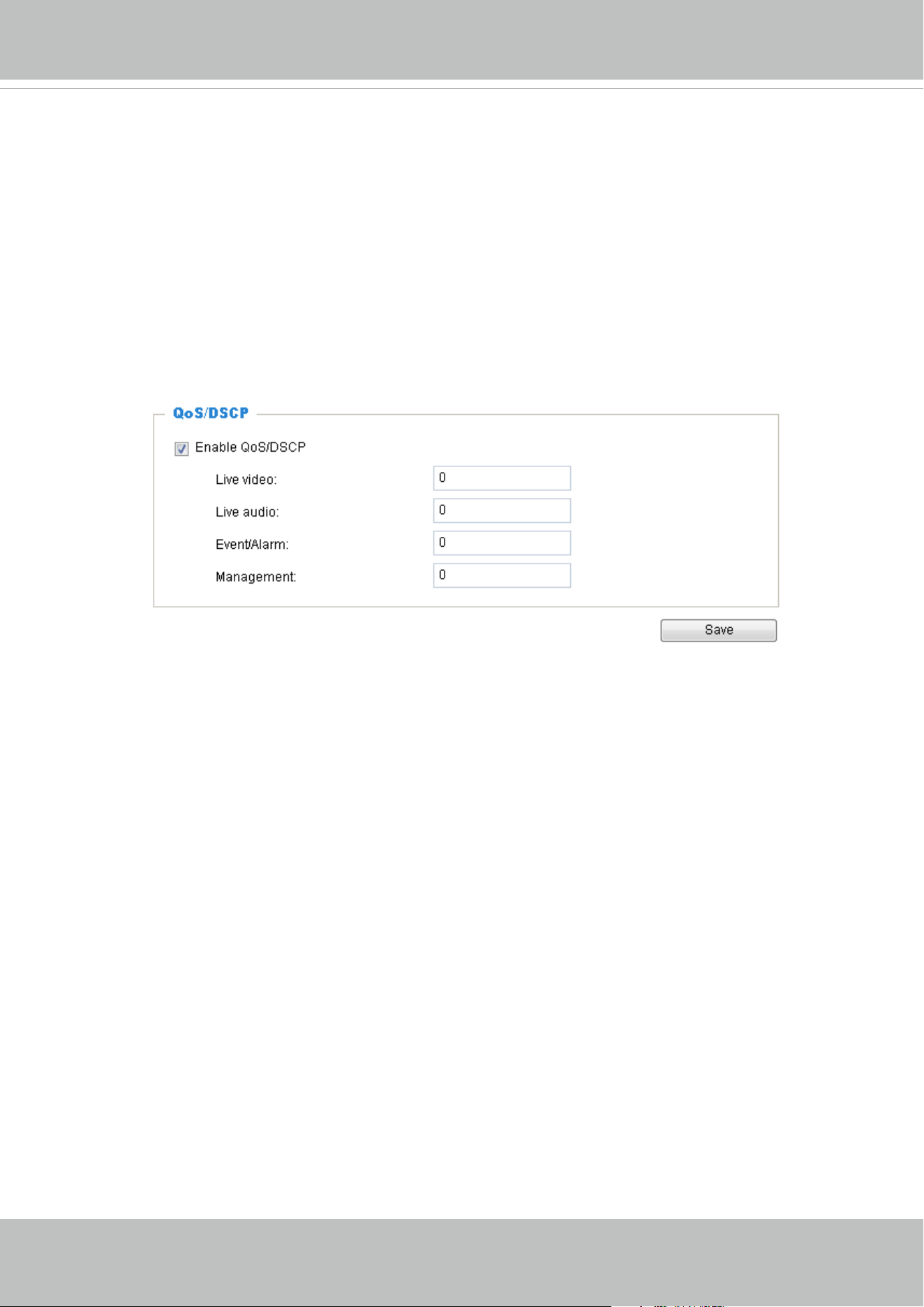

Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each
application (0~63).
VIVOTEK
User's Manual - 79
Network > SNMP
(Simple Network Management Protocol)
This section explains how to use the SNMP on the network camera. The Simple Network
Management Protocol is an application layer protocol that facilitates the exchange of
management information between network devices. It helps network administrators to
remotely manage network devices and nd, solve network problems with ease.
■ The SNMP consists of the following three key components:
1. Manager: Network-management station (NMS), a server which executes applications that
monitor and control managed devices.
2. Agent: A network-management software module on a managed device which transfers the status
of managed devices to the NMS.
3. Managed device: A network node on a managed network. For example: routers, switches,
bridges, hubs, computer hosts, printers, IP telephones, network cameras, web server, and
database.
Before conguring SNMP settings on the this page, please enable your NMS rst.

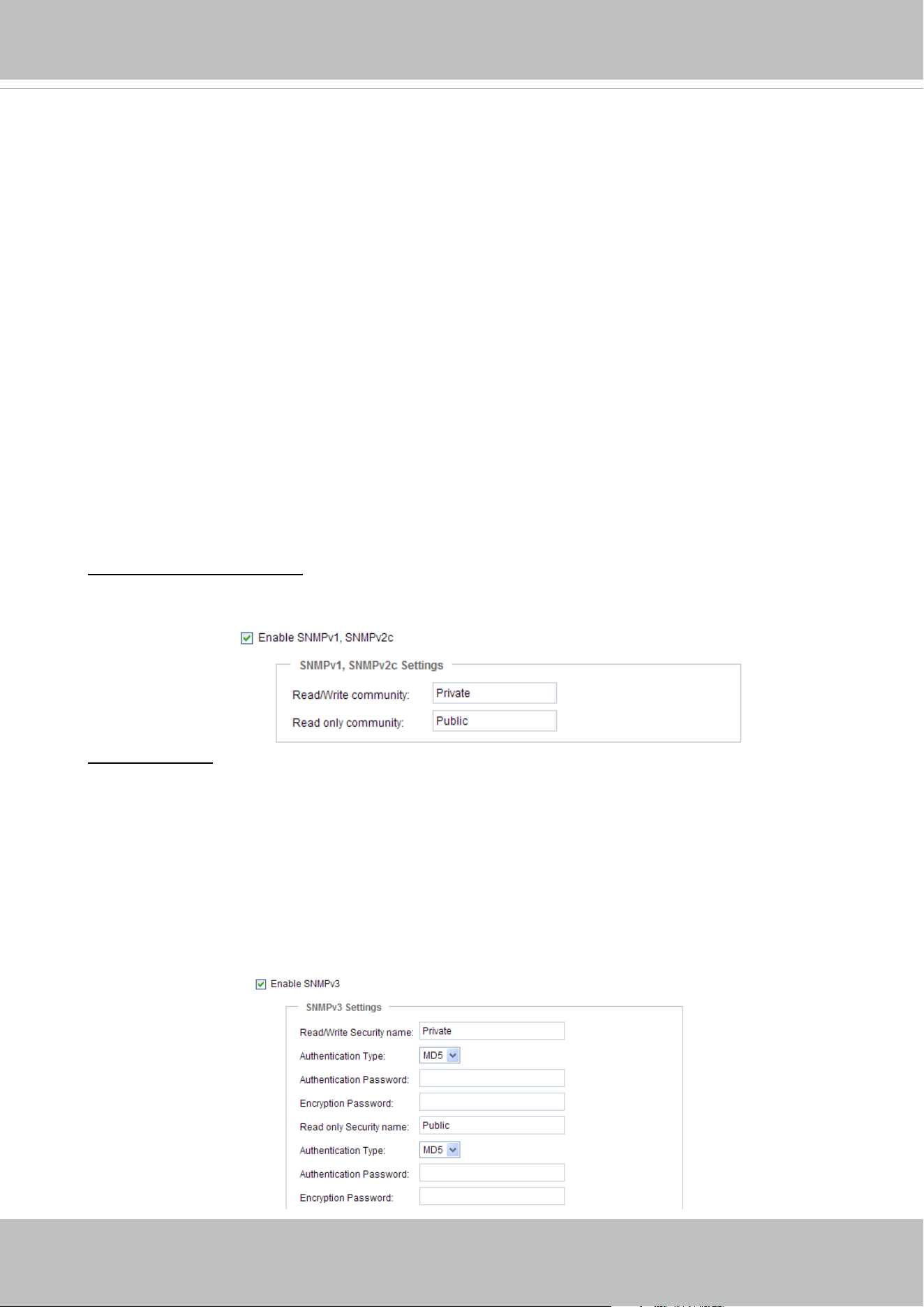

SNMP Conguration
Enable SNMPv1, SNMPv2c
Select this option and enter the names of Read/Write community and Read Only community
according to your NMS settings.
Enable SNMPv3
This option contains cryptographic security, a higher security level, which allows you to set the
Authentication password and the Encryption password.
■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the
community name.
■ Authentication type: Select MD5 or SHA as the authentication method.
■ Authentication password: Enter the password for authentication (at least 8 characters).
■ Encryption password: Enter a password for encryption (at least 8 characters).
VIVOTEK
80 - User's Manual

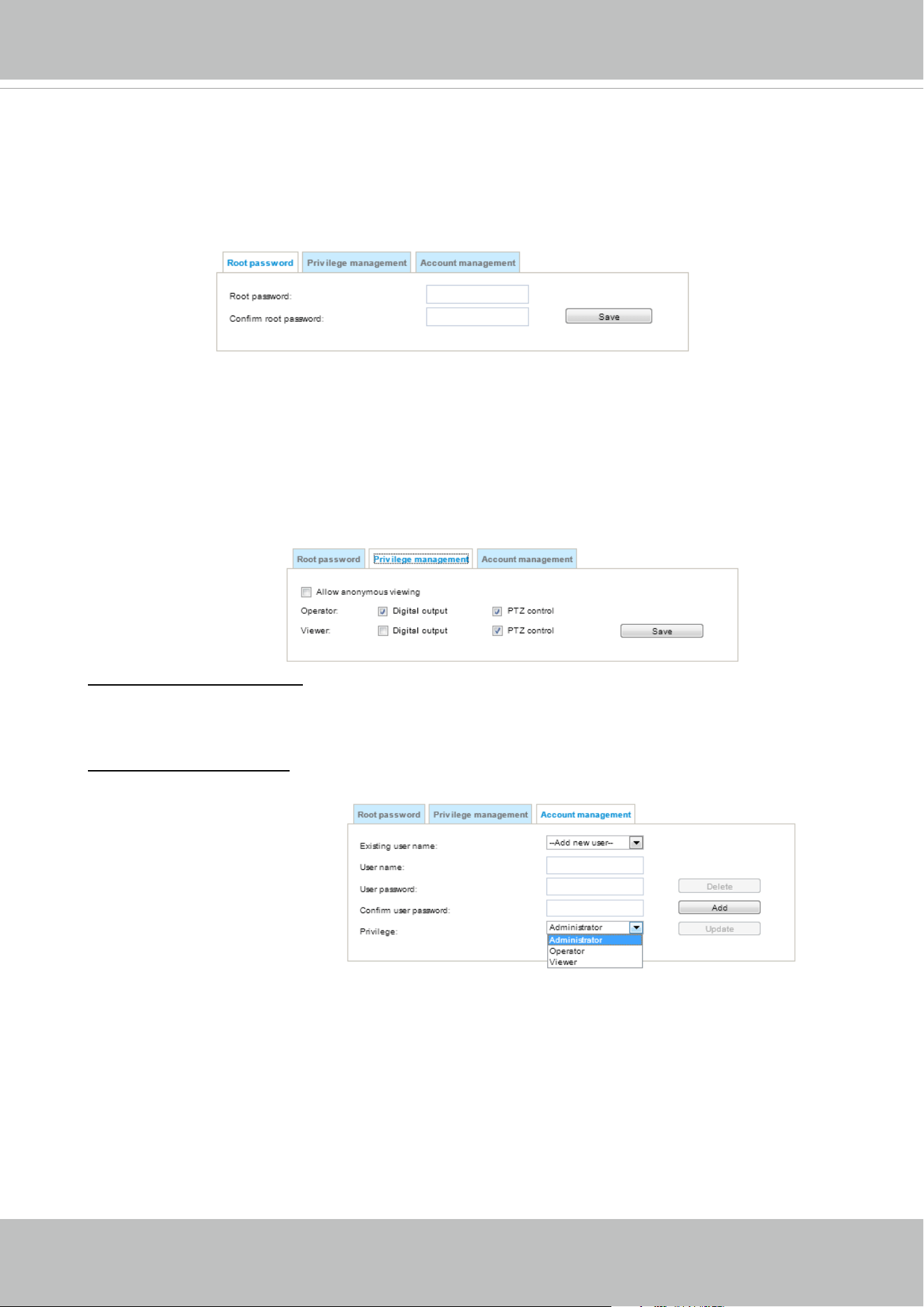

Security > User Account
This section explains how to enable password protection and create multiple accounts.
Root Password
The administrator account name is “root”, which is permanent and can not be deleted. If you
want to add more accounts in the Manage User column, please apply the password for the “root”
account rst.
1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will be prompted for authentication; type the correct user’s name and password in their
respective elds to access the Network Camera.
Privilege Management
Digital Output & PTZ control: You can modify the manage privilege of operators or viewers. Check
or uncheck the item, then click Save to enable the settings. If you give Viewers the privilege,
Operators will also have the ability to control the Network Camera through the main page. (Please
refer to Conguration on page 34).
Allow anonymous viewing: If you check this item, any client can access the live stream without
entering a User ID and Password.
Account Management
Administrators can add up to 20 user accounts.
1. Input the new user’s name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.
Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only
administrators can access the Configuration page. Though operators cannot access the
Conguration page, they can use the URL Commands to get and set the value of parameters. For
more information, please refer to URL Commands of the Network Camera on page 128. Viewers
access only the main page for live viewing.
Here you also can change a user’s access rights or delete user accounts.
1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.
VIVOTEK
User's Manual - 81
Security > HTTPS
(Hypertext Transfer Protocol over SSL)
This section explains how to enable authentication and encrypted communication over
SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet
on higher security level.
Create and Install Certicate Method
Before using HTTPS for communication with the Network Camera, a Certicate must be created
rst. There are three ways to create and install a certicate:

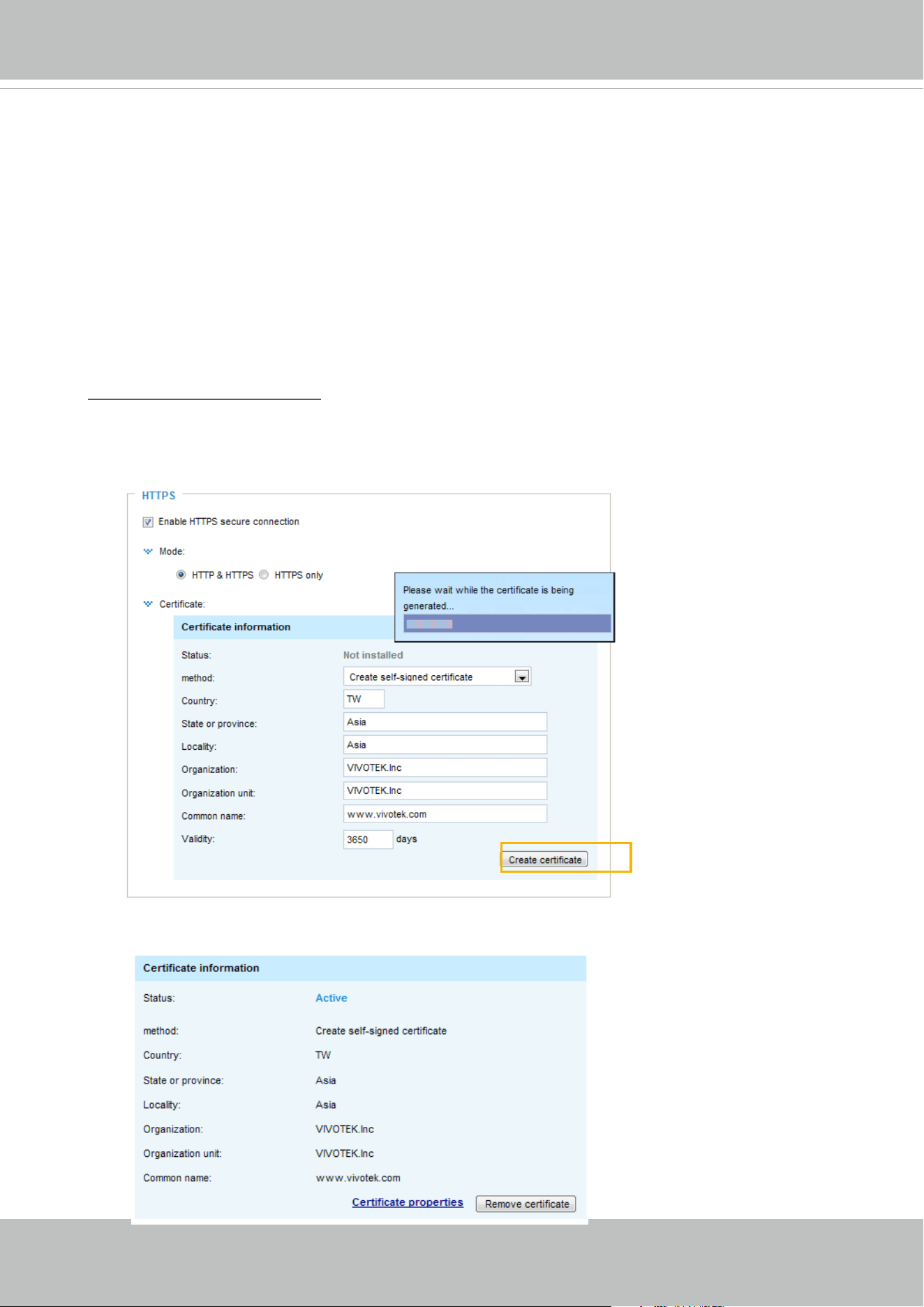

Create self-signed certificate
1. Select this option from a pull-down menu.
2. In the rst column, select Enable HTTPS secure connection, then select a connection option:
“HTTP & HTTPS” or “HTTPS only”.
3. Click Create certicate to generate a certicate.
4. The Certicate Information will automatically be displayed as shown below. You can click Certi-
cate properties to view detailed information about the certicate.
VIVOTEK
82 - User's Manual
5. Click Save to preserve your conguration, and your current session with the camera will change
to the encrypted connection.
6. If your web session does not automatically change to an encrypted HTTPS session, click Home
to return to the main page. Change the URL address from “
http://” to “https://“ in the address bar
and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to
enable HTTPS.
https://192.168.5.151/index.html
https://
VIVOTEK
User's Manual - 83

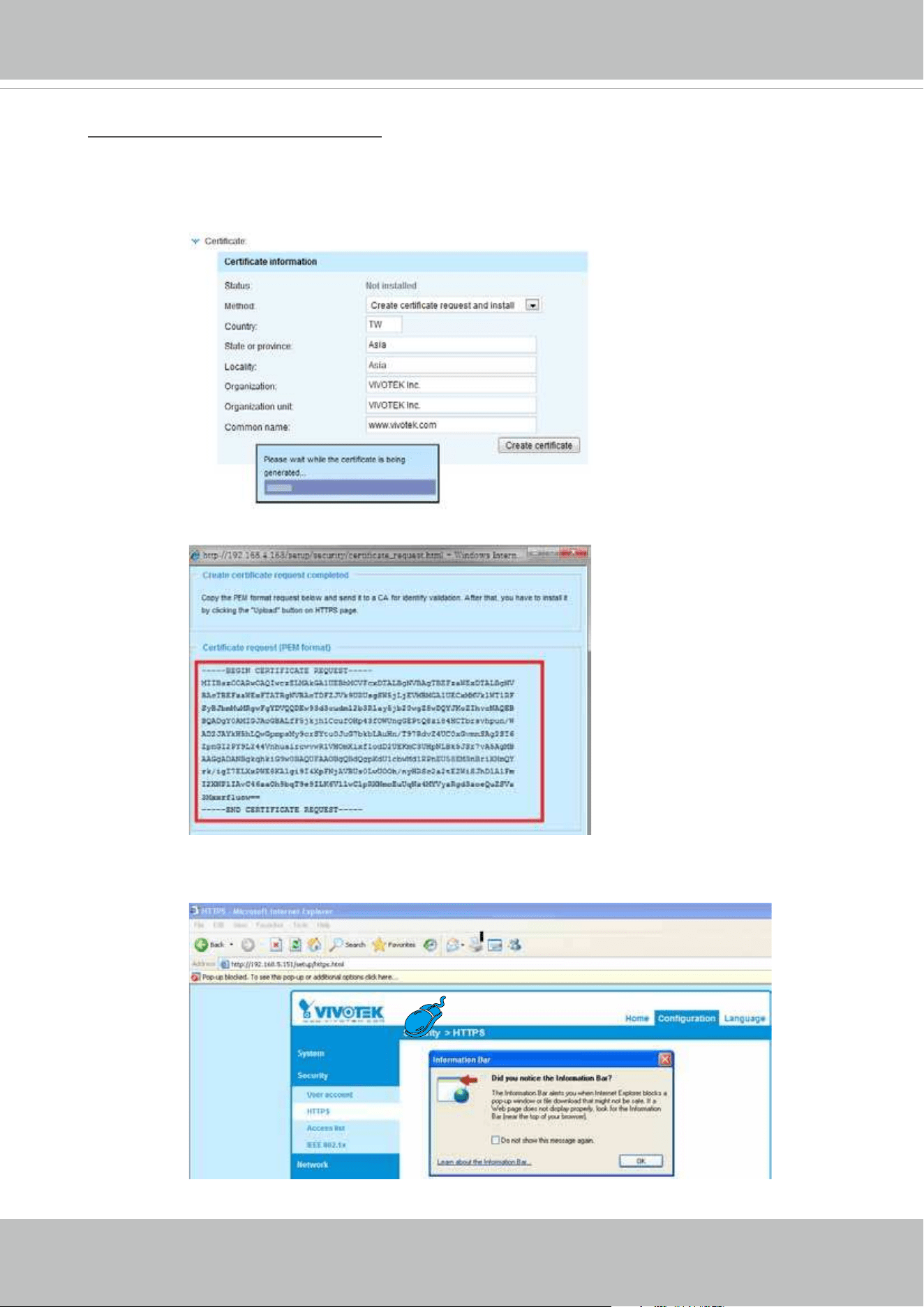

Create certificate request and install
1. Select the option from the Method pull-down menu.
2. Click Create certicate to proceed.
3. The following information will show up in a pop-up window after clicking Create. Then click Save
to generate the certicate request.
4. The Certicate request window will prompt.
If you see the following Information bar, click OK and click on the Information bar at the top of
the page to allow pop-ups.
VIVOTEK
84 - User's Manual
5. Look for a trusted certicate authority, such as Symantec’s VeriSign Authentication Services, that
issues digital certicates. Sign in and purchase the SSL certication service. Copy the certicate
request from your request prompt and paste it in the CA’s signing request window. Proceed with
the rest of the process as CA’s instructions on their webpage.
6. Once completed, your SSL certicate should be delivered to you via an email or other means.
Copy the contents of the certicate in the email and paste it in a text/HTML/hex editor/converter,
such as IDM Computer Solutions’ UltraEdit.
VIVOTEK
User's Manual - 85

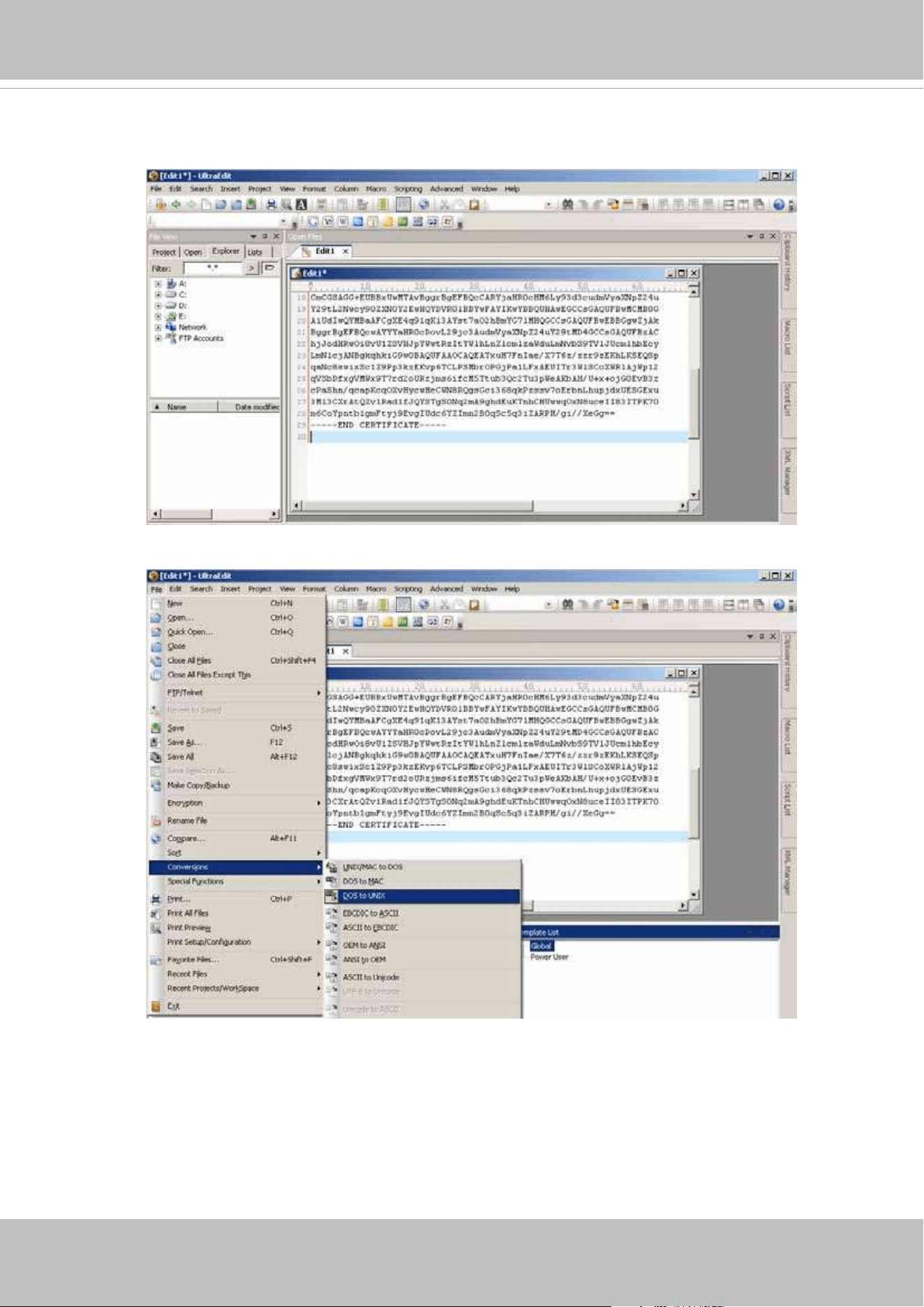

7. Open a new edit, paste the certicate contents, and press ENTER at the end of the contents to
add an empty line.
8. Convert le format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
VIVOTEK
86 - User's Manual
9. Save the edit using the “.crt” extension, using a le name like “CAcert.crt.”
10. Return to the original rmware session, use the Browse button to locate the crt certicate le,
and click Upload to enable the certication.
VIVOTEK
User's Manual - 87
11. When the certifice file is successfully loaded, its status will be stated as Active.
Note that
a certicate must have been created and installed before you can click on the “Save"
button for the conguration to take effect.
12.To begin an encrypted HTTPS session, click Home to return to the main page. Change the URL
address from “
http://” to “https://“ in the address bar and press Enter on your keyboard. Some
Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.
VIVOTEK
88 - User's Manual
Security > Access List
This section explains how to control access permission by verifying the client PC’s IP
address.
General Settings

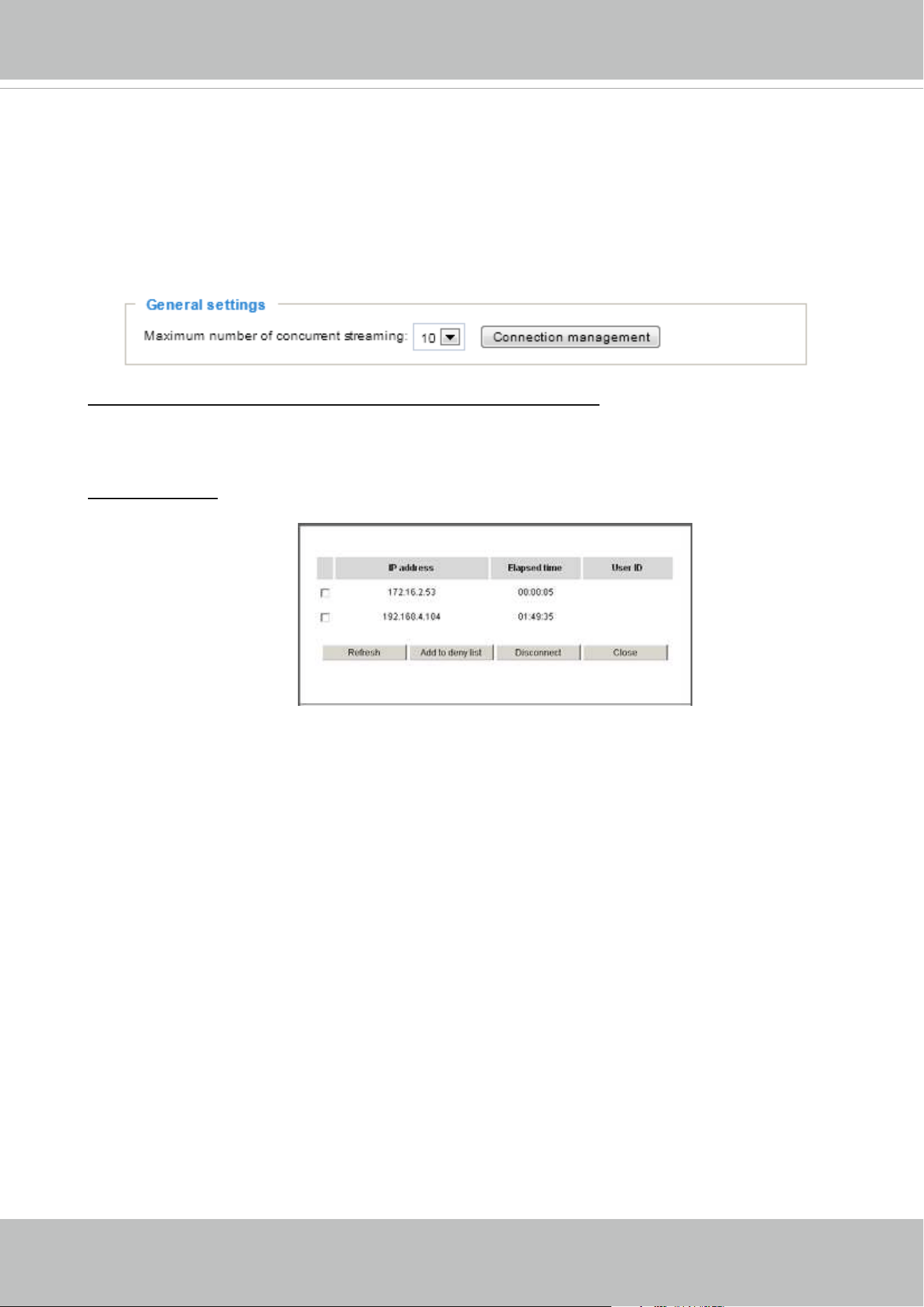

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for
1~10 clients (including stream 1 and stream 2). The default value is 10. If you modify the value
and click Save, all current connections will be disconnected and automatically attempt to re-link (IE
Explore or Quick Time Player).
View Information: Click this button to display the connection status window showing a list of the
current connections. For example:
Note that only consoles that are currently displaying live streaming will be listed in the View
Information list.
■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a
user name and password to access the live video. The user name will be displayed in the User
ID column. If the administrator allows clients to link to the webpage without a user name and
password, the User ID column will be empty.
There are some situations that allow clients access to the live video without a user name and
password:
1. The administrator does not set up a root password. For more information about how to set up
a root password and manage user accounts, please refer to Security > User account on page
80.
2. The administrator has set up a root password, but set RTSP Authentication to “disable“. For
more information about RTSP Authentication, please refer to RTSP Streaming on page 71.
3. The administrator has set up a root password, but allows anonymous viewing. For more
information about Allow Anonymous Viewing, please refer to page 80.
VIVOTEK
User's Manual - 89
■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the
Deny List to deny access. Please note that those checked connections will only be disconnected
temporarily and will automatically try to re-link again (IE Explore or Quick Time Player). If you
want to enable the denied list, please check Enable access list ltering and click Save in the
rst column.
■ Disconnect: If you want to break off the current connections, please select them and click this
button. Please note that those checked connections will only be disconnected temporarily and
will automatically try to re-link again (IE Explore or Quick Time Player).
Enable access list ltering: Check this item and click Save if you want to enable the access list
ltering function.

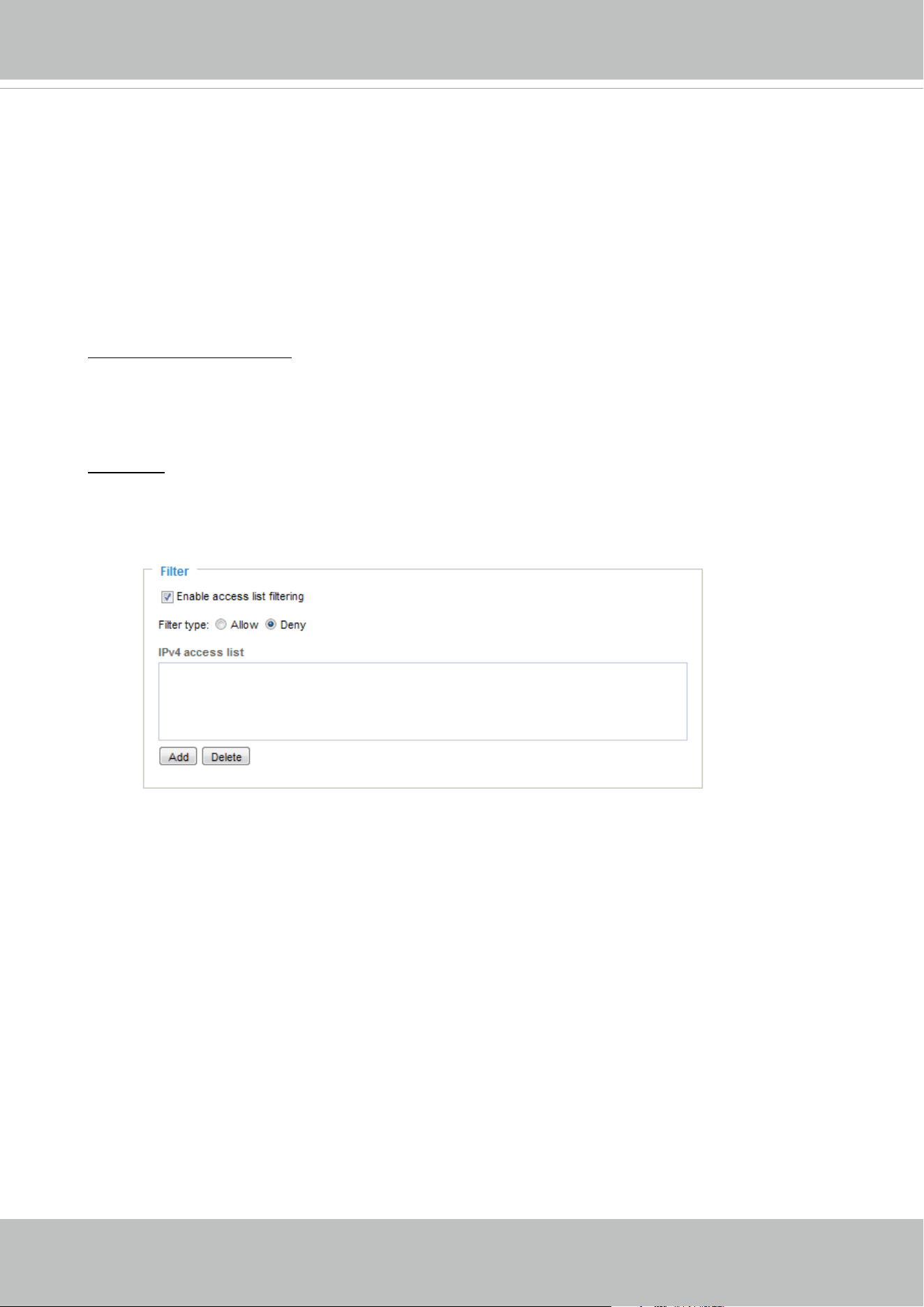

Filter
Filter type: Select Allow or Deny as the lter type. If you choose Allow Type, only those clients
whose IP addresses are on the Access List below can access the Network Camera, and the others
cannot access. On the contrary, if you choose Deny Type, those clients whose IP addresses are
on the Access List below will not be allowed to access the Network Camera, and the others can
access.
Then you can Add a rule to the following Access List. Please note that the IPv6 access list column
will not be displayed unless you enable IPv6 on the Network page. For more information about
IPv6 Settings, please refer to Network > General settings on page 62 for detailed information.
VIVOTEK
90 - User's Manual

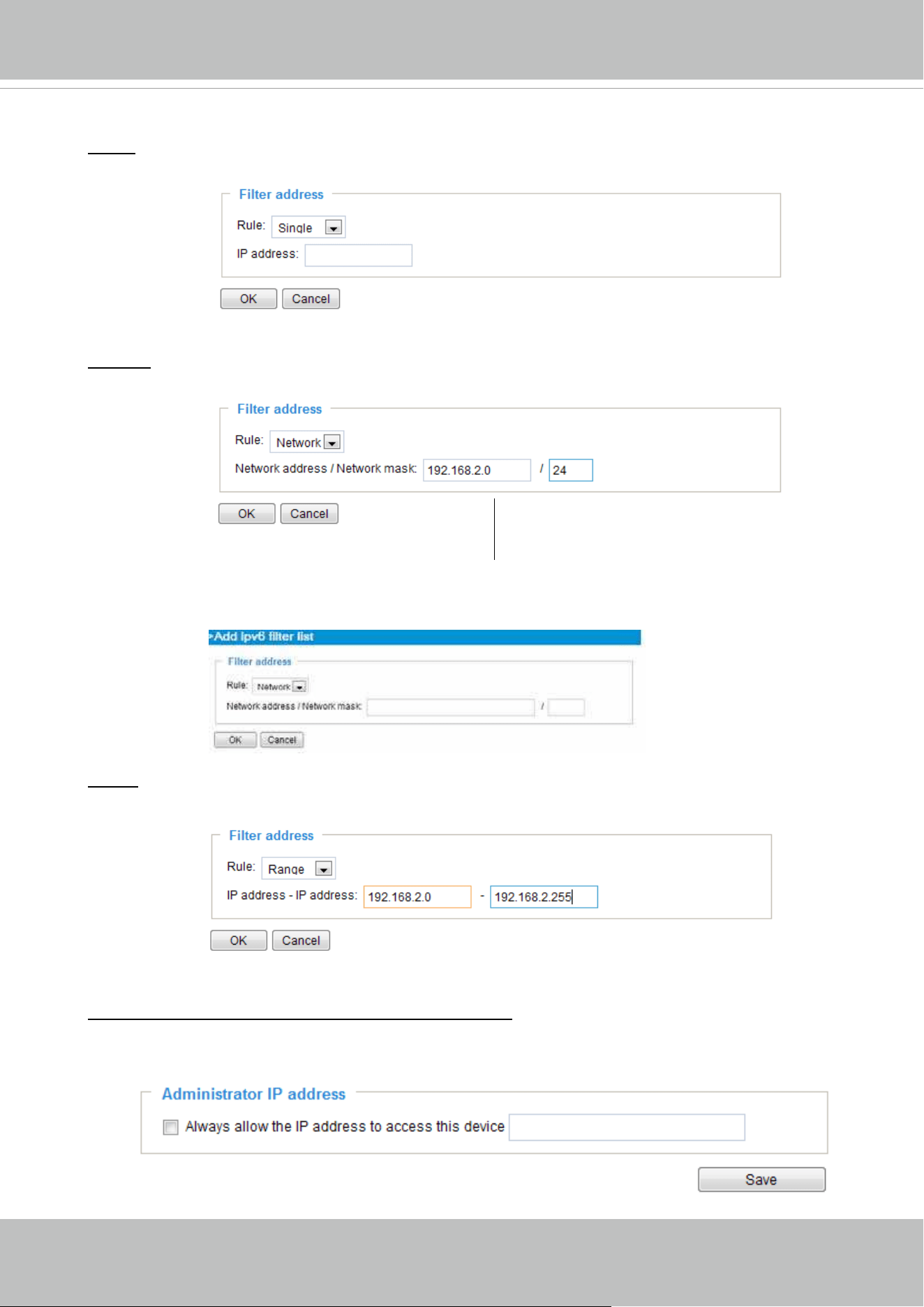

Network: This rule allows the user to assign a network address and corresponding subnet mask to
the Allow/Deny List. The address and network mask are written in CIDR format.
For example:
Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.
Note: This rule is only applied to IPv4.
For example:
Administrator IP address
Always allow the IP address to access this device: You can check this item and add the
Administrator’s IP address in this eld to make sure the Administrator can always connect to the
device.
IP address 192.168.2.x will be bolcked.
There are three types of rules:
Single: This rule allows the user to add an IP address to the Allowed/Denied list.
For example:
192.168.2.1
If IPv6 lter is preferred, you will be prompted by the following window. Enter the IPv6 address and
the two-digit prex length to specify the range of IP addresses in your conguration.
VIVOTEK
User's Manual - 91
Security > IEEE 802.1X
Enable this function if your network environment uses IEEE 802.1x, which is a port-based network
access control. The network devices, intermediary switch/access point/hub, and RADIUS server
must support and enable 802.1x settings.
The 802.1x standard is designed to enhance the security of local area networks, which provides
authentication to network devices (clients) attached to a network port (wired or wireless). If all
certicates between client and server are veried, a point-to-point connection will be enabled; if
authentication fails, access on that port will be prohibited. 802.1x utilizes an existing protocol, the
Extensible Authentication Protocol (EAP), to facilitate communication.
■
The components of a protected network with 802.1x authentication:
1.
Supplicant: A client end user (camera), which requests authentication.
2.
Authenticator (an access point or a switch): A “go between” which restricts unauthorized end
users from communicating with the authentication server.
3.
Authentication server (usually a RADIUS server): Checks the client certificate and decides
whether to accept the end user’s access request.
■
VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-
PEAP and EAP-TLS.
Please follow the steps below to enable 802.1x settings:
1. Before connecting the Network Camera to the protected network with 802.1x, please apply
a digital certificate from a Certificate Authority (i.e., your network administrator) which can be
validated by a RADIUS server.
2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the
conguration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as
the EAP method. In the following blanks, enter your ID and password issued by the CA, then
upload related certicate(s).
Supplicant
(Network Camera)
Authenticator
(Network Switch)
Authentication Server
(RADIUS Server)
IMPORTANT
The maximum length of password is 200
symbols.
VIVOTEK
92 - User's Manual

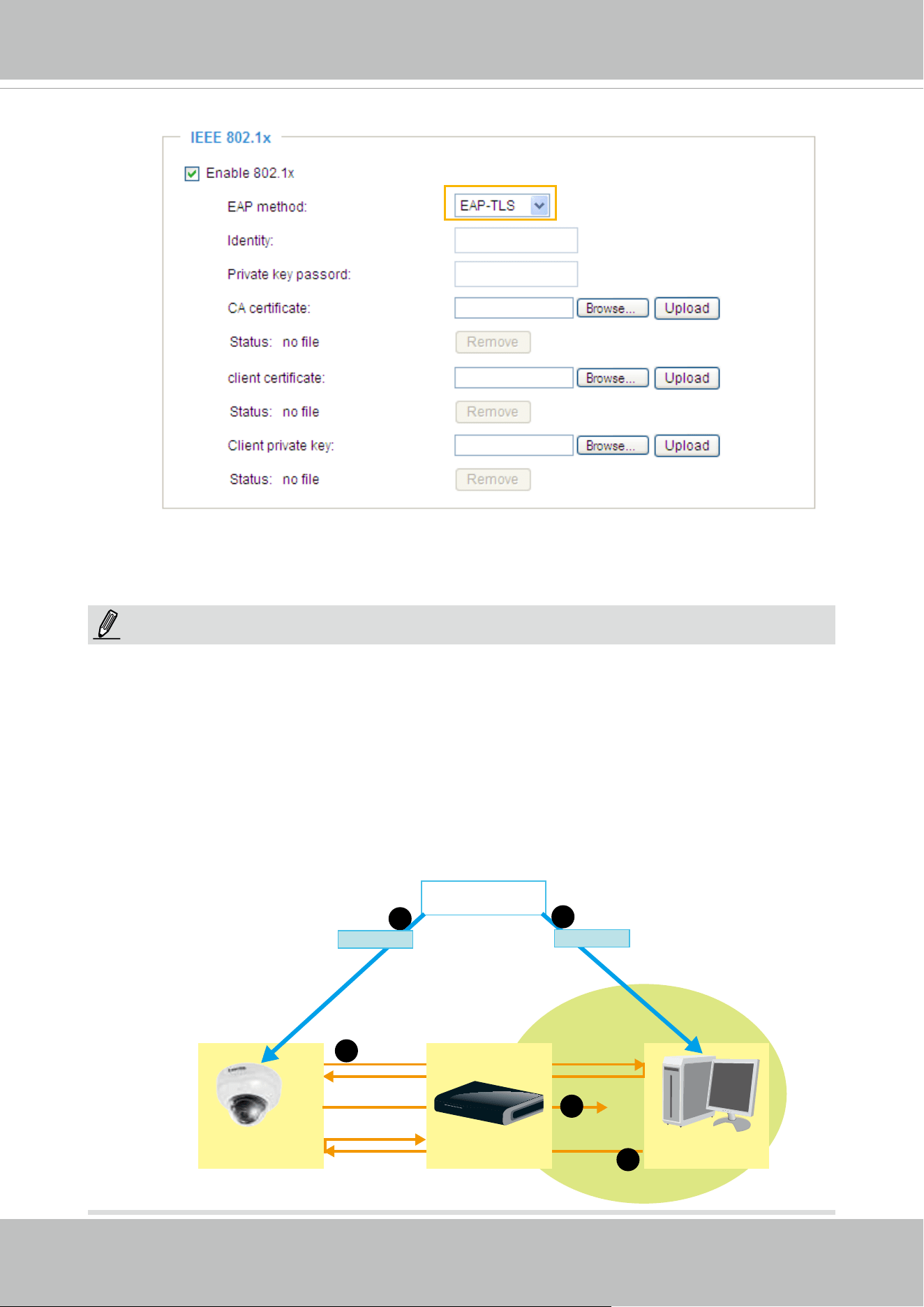

3. When all settings are complete, move the Network Camera to the protected LAN by connecting
it to an 802.1x enabled switch. The devices will then start the authentication automatically.
► The authentication process for 802.1x:
1. The Certicate Authority (CA) provides the required signed certicates to the Network Camera
(the supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the
authenticator). The client offers its identity and client certicate, which is then forwarded by the
switch to the RADIUS Server, which uses an algorithm to authenticate the Network Camera and
returns an acceptance or rejection back to the switch.
3. The switch also forwards the RADIUS Server’s certicate to the Network Camera.
4. Assuming all certicates are validated, the switch then changes the Network Camera’s state to
authorized and is allowed access to the protected network via a pre-congured port.
VIVOTEK
Network Camera
RADIUS Server
Certificate Authority
(CA)
Protected LAN
Certificate
1
1
2
3
4
Network Switch
Certificate
NOTE:
VIVOTEK
User's Manual - 93
PTZ > PTZ settings
This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation.
The e-PTZ fucntion allows users to quickly move the focus to a target area for close-up viewing
without physically moving the camera. Please refer to below for detailed instruction.

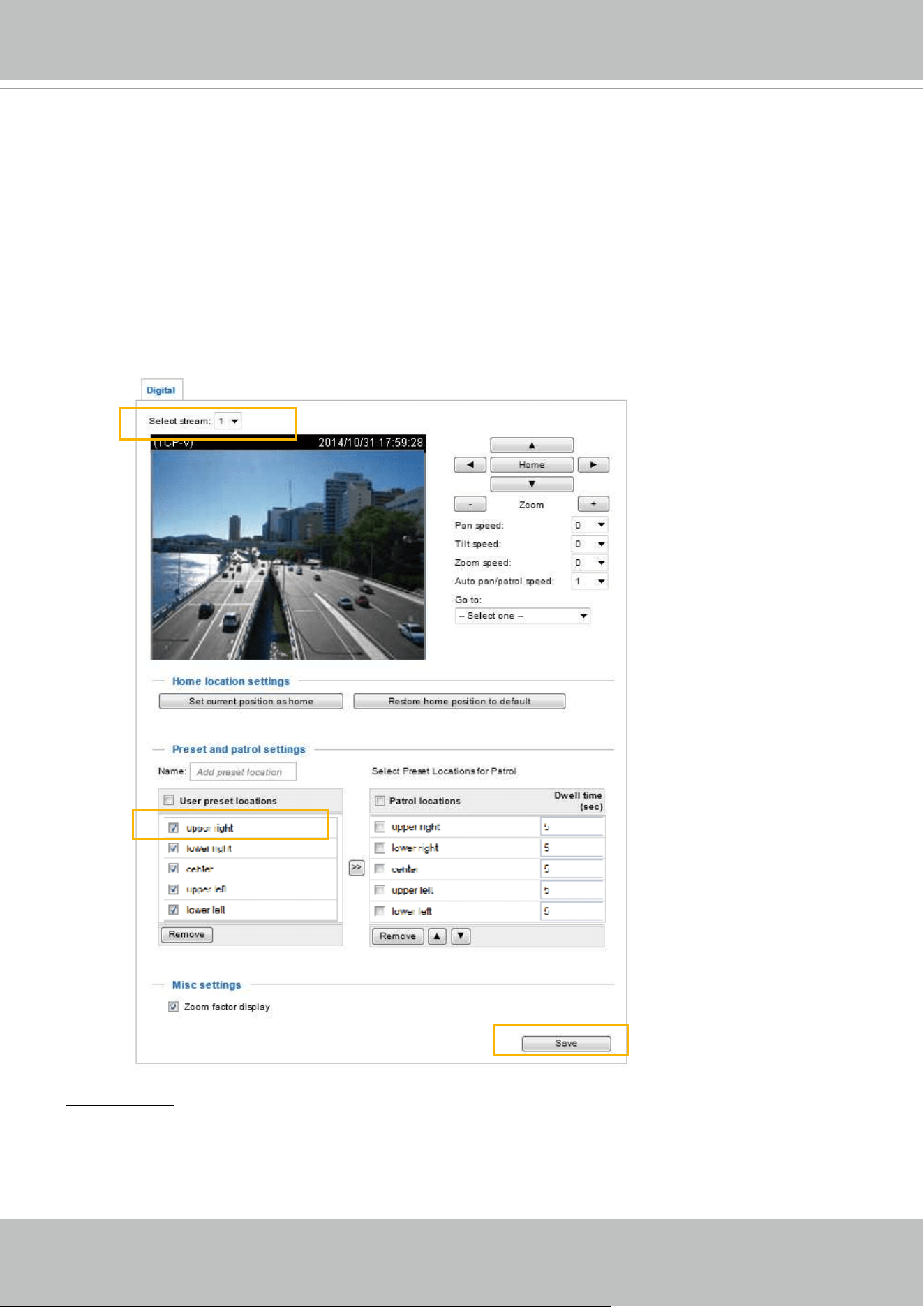

Digital PTZ Operation (E-PTZ Operation)
■ Home location settings: If you are not displaying the full of what the camera can capture, such as
zooming in on a surveillance scene or currently displaying a crop of a scene, you can move to a view
and congure it as the home position.
Select Stream: Select stream #1 to set up the e-PTZ control. Please note that each stream can possess
its own preset and patrol settings. For detailed information about how to set up
preset and patrol settings,
please refer to page 93.
VIVOTEK
94 - User's Manual
Auto pan/patrol speed: Select the speed from 1~5 (slow/fast) to set up the Auto pan/patrol speed
control.
When completed with the e-PTZ settings, click Save to enable the settings on this page.

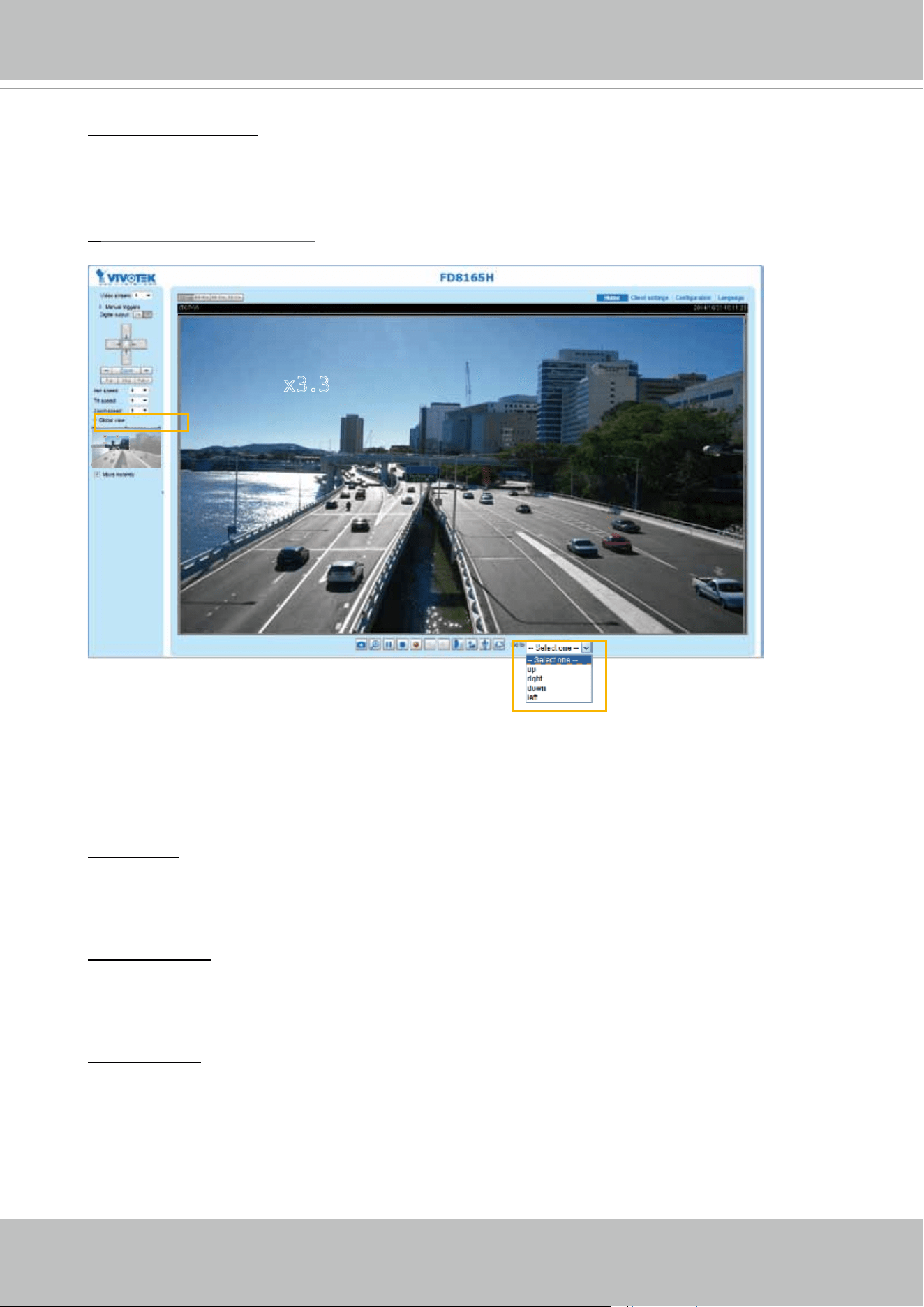

Home page in E-PTZ Mode
■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down
list, and the Network Camera will move to the selected e-preset position.
■ If you have set up different e-preset positions for different streams, you can select one of the
video streams to display its separate e-preset positions.
Global View
In addition to using the e-PTZ control panel, you can also use the mouse to drag or resize the
floating frame to pan/tilt/zoom the viewing region. The live view window will also move to the
viewing region accordingly.
Moving Instantly
If you check this item, the live view window will switch to the new viewing region instantly after
you move the oating frame. If deselected, the process moving from one point to the other will be
shown, yet it is not easy to observe if the move is not over a long distance.
Click on Image
The e-PTZ function also supports “Click on Image“. When you click on any point of the Global View
Window or Live View Window, the viewing region will also move to that point.
Note that the”Click on Image” function only applies when you have congured a smaller “Region
of Interest” out of the maximum output frame! e.g., a 800x600 region from the camera’s 1280x800
maximum frame size.
x3.3
VIVOTEK
User's Manual - 95
Patrol settings
You can select some preset positions for the Network Camera to patrol.
Please follow the steps below to set up a patrol schedule:
1. Select the preset locations on the list, and click
.
2. The selected preset locations will be displayed on the Patrol locations list.
3. Set the Dwelling time for the preset location during auto patrol.
4. If you want to delete a preset location from the Patrol locations list, select it and click Remove.
5. Select a location and click
to rearrange the patrol order.
6. Select patrol locations you want to save in the list and click Save to enable the patrol settings.
7. To implement the patrol schedule, please go to homepage and click on Patrol button. Please refer to
the next page.
2011/03/10 17:08:56
x2.1
1
2
6
54
3
VIVOTEK
96 - User's Manual
NOTE
►
The Preset Positions will also be displayed on the home page. Select one from the Go to drop-down
list, and the Network Camera will move to the selected preset position.
►
Click Patrol: The Network Camera will patrol along the selected positions repeatedly. Please
refer to page 95 to see more details.
Home page in the e-PTZ Mode
The Preset positions will also be displayed on the home page. Select one from the Go to drop-down
list, and the Network Camera will move to the selected preset position.
Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions
continuously.
NOTE:
VIVOTEK
User's Manual - 97
Event > Event settings

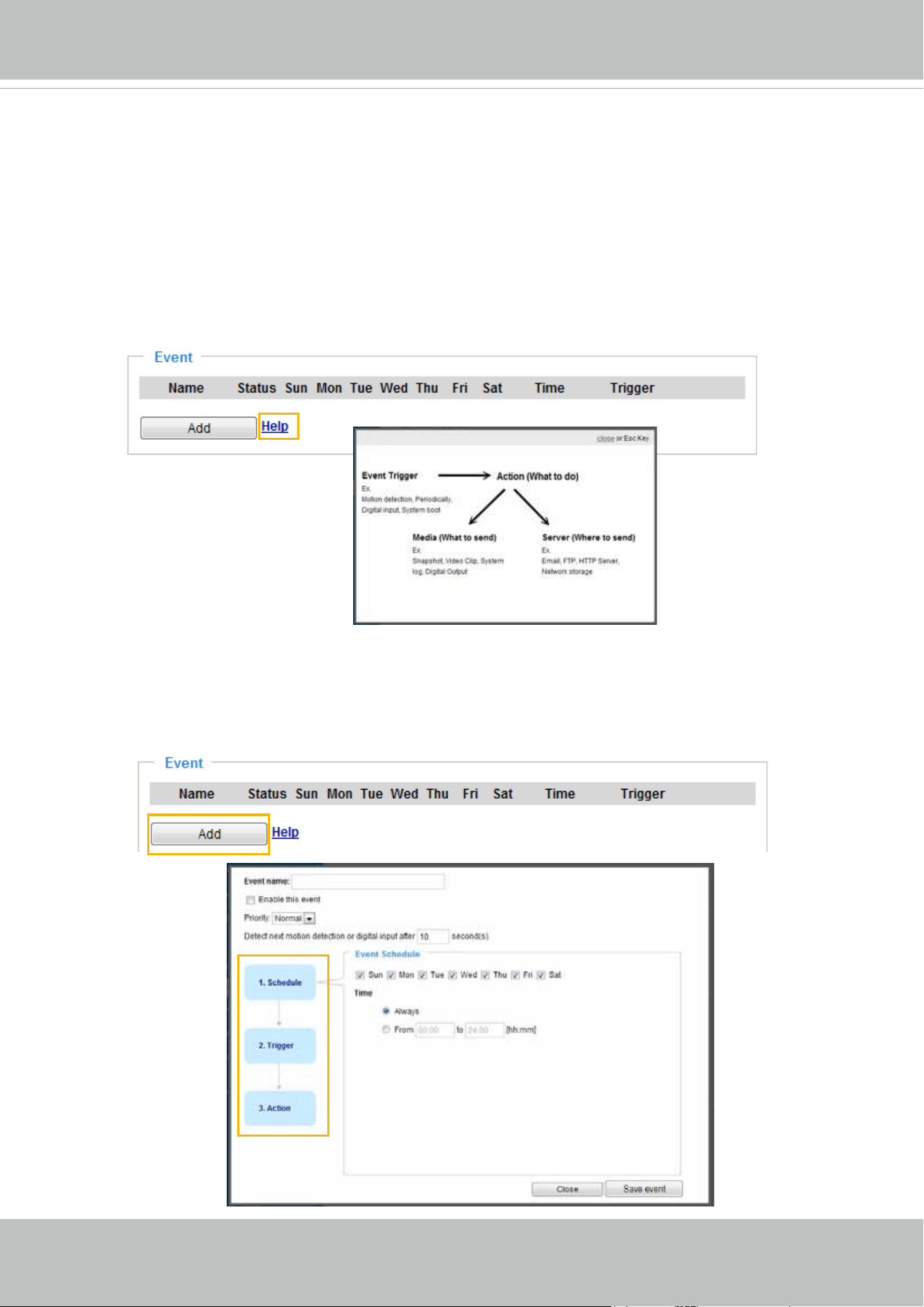

This section explains how to congure the Network Camera to responds to particular situations
(event). A typical application is that when a motion is detected, the Network Camera sends
buffered images to an FTP server or e-mail address as notifications. Click on Help, there is
an illustration shown in the pop-up window explaining that an event can be triggered by many
sources, such as motion detection or external digital input devices. When an event is triggered,
you can specify what type of action that will be performed. You can configure the Network
Camera to send snapshots or videos to your email address or FTP site.
Event
To set an event with recorded video or snapshots, it is necessary to configure the server and media
settings so that the Network Camera will know what action to take (such as which server to send the
media les to) when a trigger is activated. An event is an action initiated by a user-dened trigger source
.
In the Event column, click Add to open the event settings window. Here you can arrange three elements
-- Schedule, Trigger, and Action to set an event. A total of 3 event settings can be congured.
VIVOTEK
98 - User's Manual
■ Event name: Enter a name for the event setting.
■ Enable this event: Select this option to enable the event setting.
■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher
priority setting will be executed rst.
■ Detect next motion detection or digital input after
seconds: Enter the duration in seconds to pause
motion detection after a motion is detected. This can prevent event-related actions to be too frequently
performed.
1.
Schedule
Specify the period of time during which the event trigger will take place. Please select the days of the
week and the time in a day (in a 24-hr time format) for the event triggering schedule.
2. Trigger
This is the cause or stimulus which denes when to trigger the Network Camera. The trigger source can
be congured to use the Network Camera’s built-in motion detection mechanism or external digital input
devices.
There are several choices of trigger sources as shown on next page.
Select the item to display the
detailed conguration options.
■ Video motion detection
This option makes use of the built-in motion detection mechanism as a trigger source. To enable this
function, you need to congure a Motion Detection Window rst. For more information, please refer to
Motion Detection on page 111 for details.
■ Periodically
This option allows the Network Camera to trigger periodically for every other dened minute. Up to 999
minutes are allowed.
■ Digital input
This option allows the Network Camera to use an external digital input device or sensor as a trigger
source. Depending on your application, there are many choices of digital input devices on the market
which helps to detect changes in temperature, vibration, sound, and light, etc.
■ System boot
This option triggers the Network Camera when the power to the Network Camera is disconnected.
■ Recording notify
This option allows the Network Camera to trigger when the recording disk is full or when recording
starts to rewrite older data.
VIVOTEK
User's Manual - 99

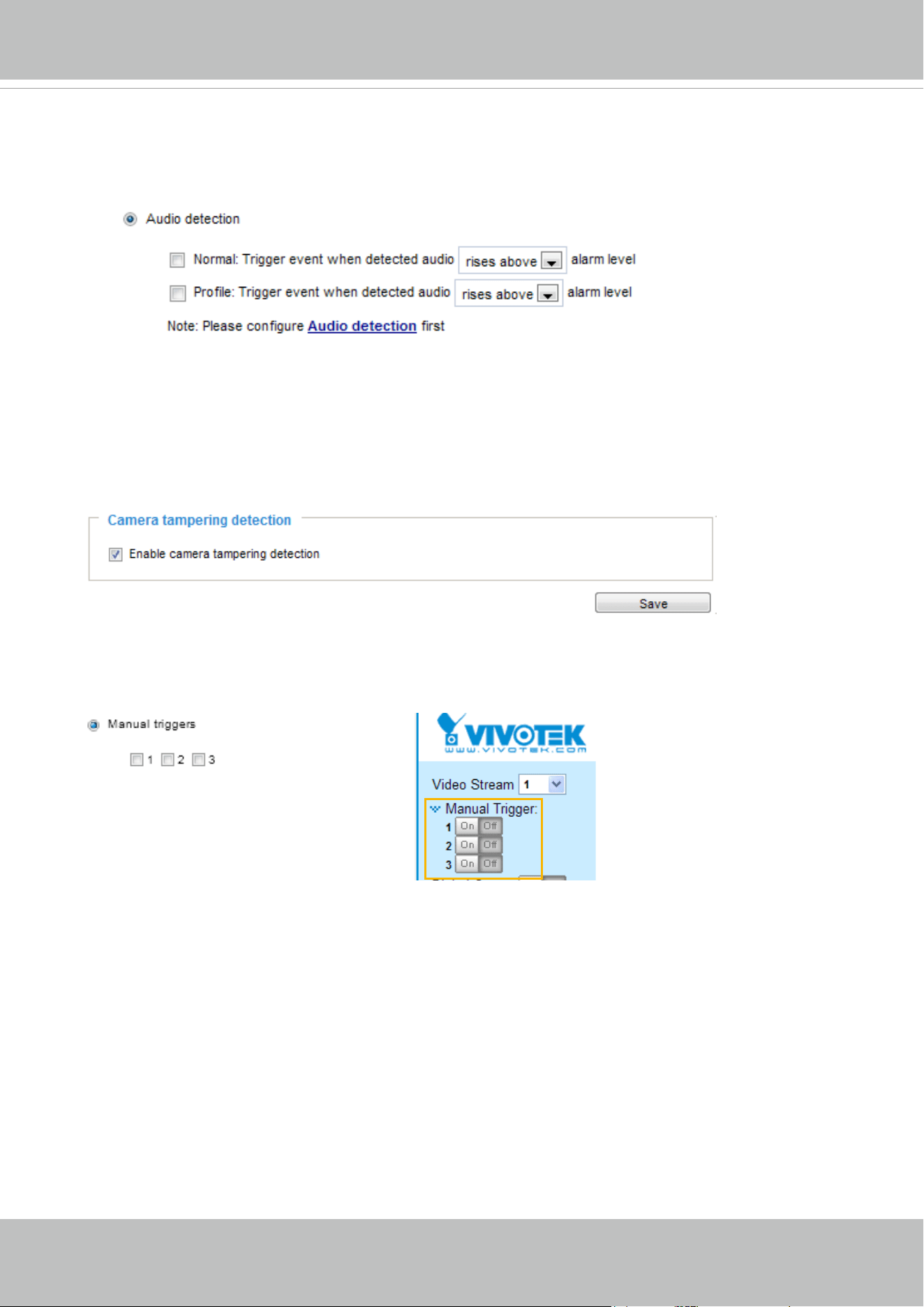

■ Audio detection
A preset threshold can be congured with an external microphone as the trigger to system event. The
triggering condition can be an input exceeding or falling below a threshold. Audio detection can take
place as a complement to motion detection or as a method to detect activities not covered by the
camera's view.
Once you have a preset audio alarm level, you can dene the triggering condition either as an audio
input rises above or falls below the alarm level.
■ Camera tampering detection
This option allows the Network Camera to trigger when the camera detects that is is being tampered
with. To enable this function, you need to congure the Tampering Detection option rst. Please refer
to page 114 for detailed information.
■ Manual Triggers
This option allows users to enable event triggers manually by clicking the on/off button on the
homepage. Please congure 1 to 3 associated events before using this function.
VIVOTEK
100 - User's Manual

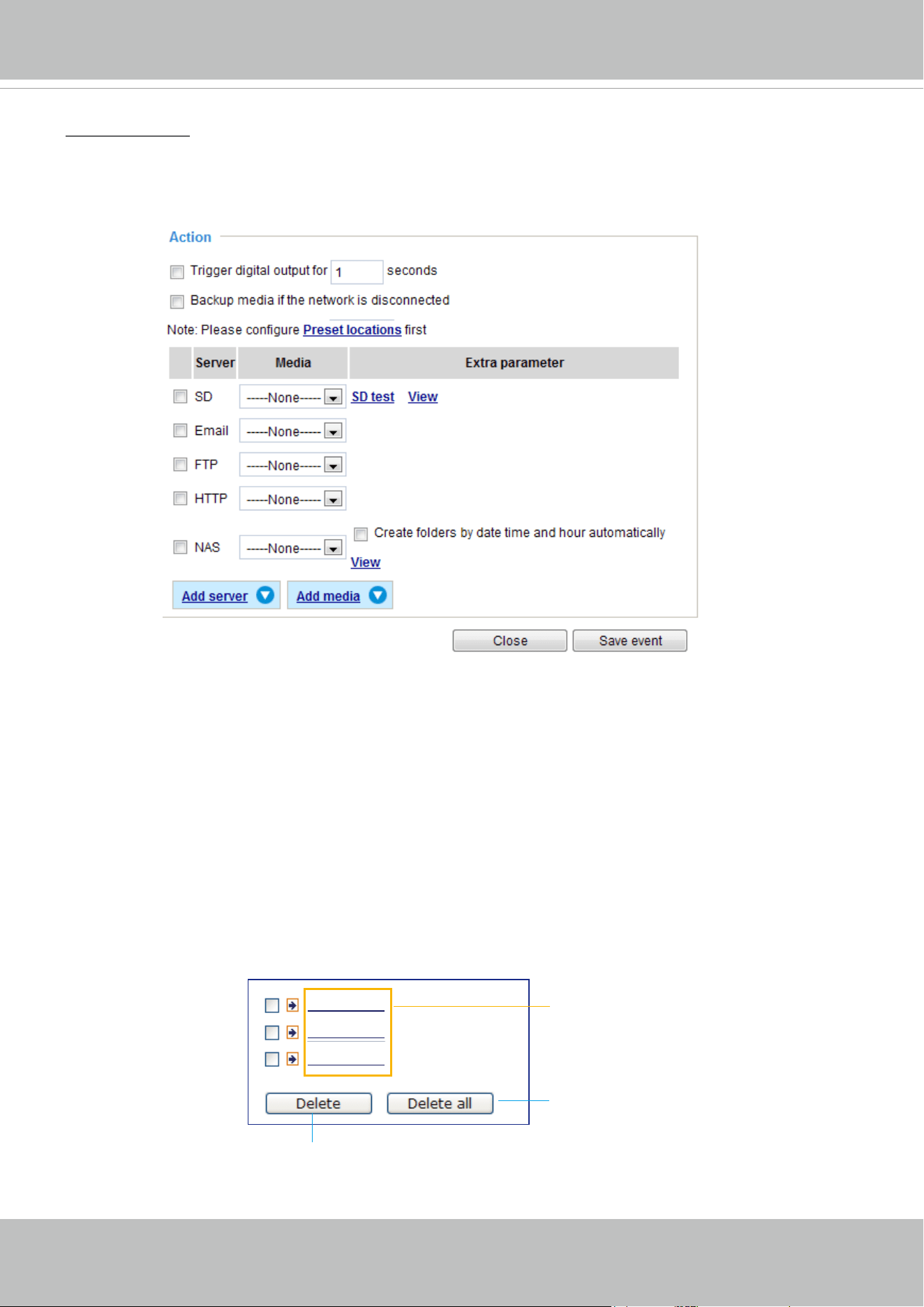

3. Action
Dene the actions to be performed by the Network Camera when a trigger is activated.
■ Trigger digital output for
seconds
Select this option to turn on the external digital output device when a trigger is activated. Specify
the length of the trigger interval in the text box.
■ Backup media if the network is disconnected
Select this option to backup media le on SD card if the network is disconnected. This function
will only be displayed after you set up a network storage (NAS).
VIVOTEK
User's Manual - 101
Add server
To set an event with recorded video or snapshots, it is necessary to configure the server and media
settings so that the Network Camera will know what action to take (such as which server to send the
media les to) when a trigger is activated. Click
Add server
to open the server setting window. You can
specify where the notication messages are sent when a trigger is activated. A total of 5 server settings
can be congured.
There are four choices of server types available: Email, FTP, HTTP, and Network storage.
Select the item
to display the detailed conguration options. You can congure either one or all of them.
Server type - Email
Select to send the media les via email when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.
If your SMTP server requires a secure connection (SSL), check This server requires a secure
connection (SSL).
VIVOTEK
102 - User's Manual

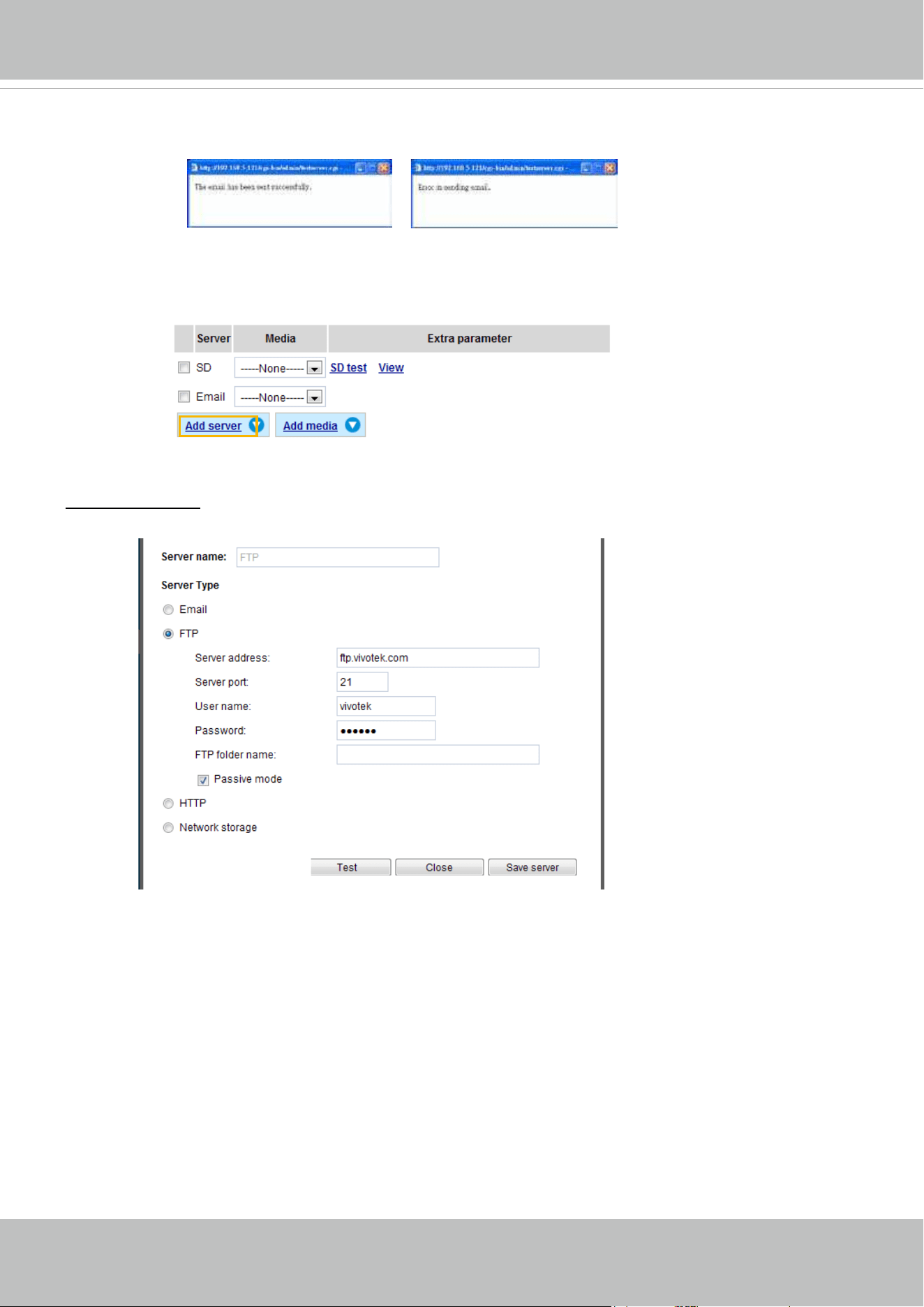

To verify if the email settings are correctly congured, click Test. The result will be shown in a pop-up
window. If successful, you will also receive an email indicating the result.
Click Save server to enable the settings.
Note that after you set up the rst event server, the new event server will automatically display on the
Server list. If you wish to add other server options, click Add server.
Server type - FTP
Select to send the media les to an FTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number
between 1025 and 65535.
■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name
Enter the folder where the media le will be placed. If the folder name does not exist, the Network
Camera will automatically create one on the FTP server.
VIVOTEK
User's Manual - 103
■ Passive mode
Most firewalls do not accept new connections initiated from external requests. If the FTP server
supports passive mode, select this option to enable passive mode FTP and allow data transmission to
pass through the rewall. The rmware default has the Passive mode checkbox selected.
To verify if the FTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as shown below. If successful, you will also receive a test.txt le on the FTP server.
Click Save server to enable the settings.
Server type - HTTP
Select to send the media les to an HTTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.
To verify if the HTTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as below. If successful, you will receive a test.txt le on the HTTP server.
Click Save server to enable the settings.
VIVOTEK
104 - User's Manual
Network storage:
Select to send the media les to a network storage location when a trigger is activated. Please refer to
NAS server on page 121 for details.
Click Save server to enable the settings.
■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If
you want to use your SD card for local storage, please format it before use. Please refer to page 124
for detailed information.
■ View: Click this button to open a le list window. This function is only for SD card and Network Storage.
If you click the View button of SD card, a Local storage page will pop up for you to manage recorded
les on SD card. For more information about Local storage, please refer to page 124. If you click the
View button of Network storage, a le directory window will pop up for you to view recorded data on
Network storage. For detailed illustration, please refer to the next page.
■ Create folders by date, time, and hour automatically: If you check this item, the system will generate
folders automatically by the date when video footages are stored onto the networked storage.
The following is an example of a le destination with video clips:
20130820
20130821
20130822
Click to delete selected items
Click to delete all recorded data
The format is: YYYYMMDD
Click to open the directory
VIVOTEK
User's Manual - 105

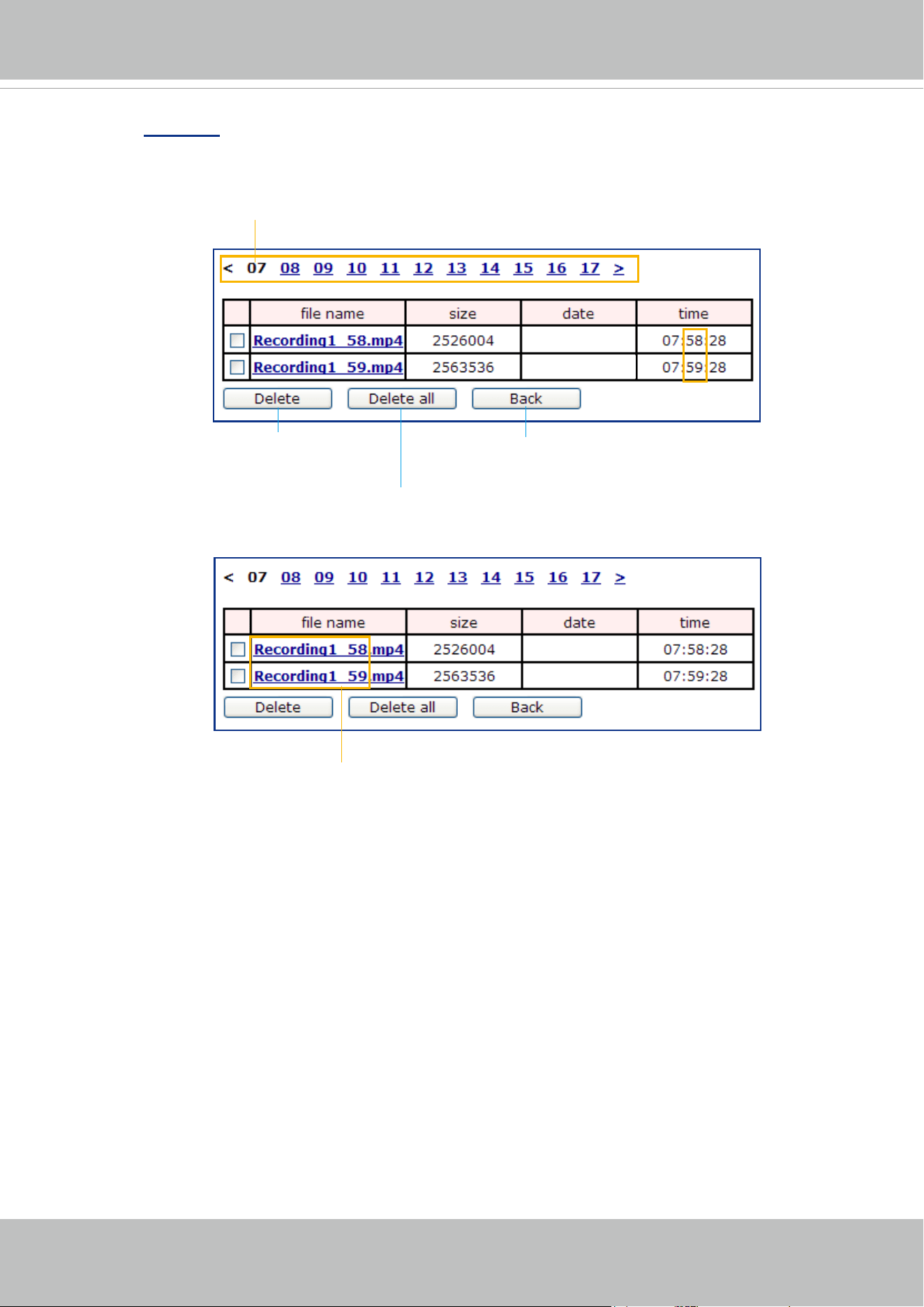

Click 20130220 to open the directory:
Click to delete
selected items
Click to delete all
recorded data
Click to go back to the previous
level of the directory
The format is: HH (24r)
Click to open the le list for that hour
The format is: File name prex + Minute (mm)
You can set up the le name prex on Add media page. Please
refer to
next page for detailed information.
2013/02/20
2013/02/20
2013/02/20
2013/02/20
VIVOTEK
106 - User's Manual
Add media
Click
Add media
to open the media setting window. You can specify the type of media that will be
sent when a trigger is activated. A total of 5 media settings can be congured. There are three choices
of media types available: Snapshot, Video Clip, and System log.
Select the item to display the detailed
conguration options. You can congure either one or all of them.
Media type - Snapshot
Select to send snapshots when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Source: Select to take snapshots from a video stream.
■ Send
pre-event images
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number
to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.
■ Send
post-event images
Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can
be generated.
For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15
images are generated after a trigger is activated.
■ File name prex
Enter the text that will be appended to the front of the le name.
1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.
10 pic. 11 pic. 10 pic. 12 pic. 13 pic. 14 pic. 15 pic.
Trigger Activation
VIVOTEK
User's Manual - 107
■ Add date and time sufx to the le name
Select this option to add a date/time sufx to the le name.
For example:
Click Save media to enable the settings.
To note that after you set up the first media server, a new column for media server will automatically
show up on the Media list. If you wish to add more other media options, click Add media.
Media type -
Video clip
Select to send video clips when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Source: Select the source of video clip.
■ Pre-event recording
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number
to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.
■ Maximum duration
Specify the maximum recording duration in seconds. Up to 10 seconds can be set.
For example, if pre-event recording is set to five seconds and the maximum duration is set to ten
seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
Snapshot_20130713_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
1 sec. 2 sec. 3 sec. 4 sec. 5 sec. 6 sec. 7 sec. 8 sec. 9 sec. 10 sec.
Trigger Activation
VIVOTEK
108 - User's Manual
■ Maximum le size
Specify the maximum le size allowed.
■ File name prex
Enter the text that will be appended to the front of the le name.
For example:
Click Save media to enable the settings.
Media type - System log
Select to send a system log when a trigger is activated.
Click Save media to enable the settings, then click Close to exit the page.
Video_20130813_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
VIVOTEK
User's Manual - 109
In the Event settings column, the Servers and Medias you congured will be listed; please make sure the
Event -> Status is indicated as ON, in order to enable the event triggering action.
When completed, click Save event to enable the settings and click Close to exit Event Settings page.
The new Event / Server settings / Media will appear in the event drop-down list on the Event setting
page.
Please see the example of the Event setting page below:
When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will
automatically send snapshots via e-mail.
If you want to stop the event trigger, you can click on the
ON button to turn its status to OFF or click
Delete to remove the event setting.
To remove a server setting from the list, select a server name from the drop-down list and click Delete.
Note that you can only delete a server setting when it is not applied to an existing event setting.
To remove a media setting from the list, select a media name from the drop-down list and click Delete.
Note that you can only delete a media setting when it is not applied to an event setting.
VIVOTEK
110 - User's Manual

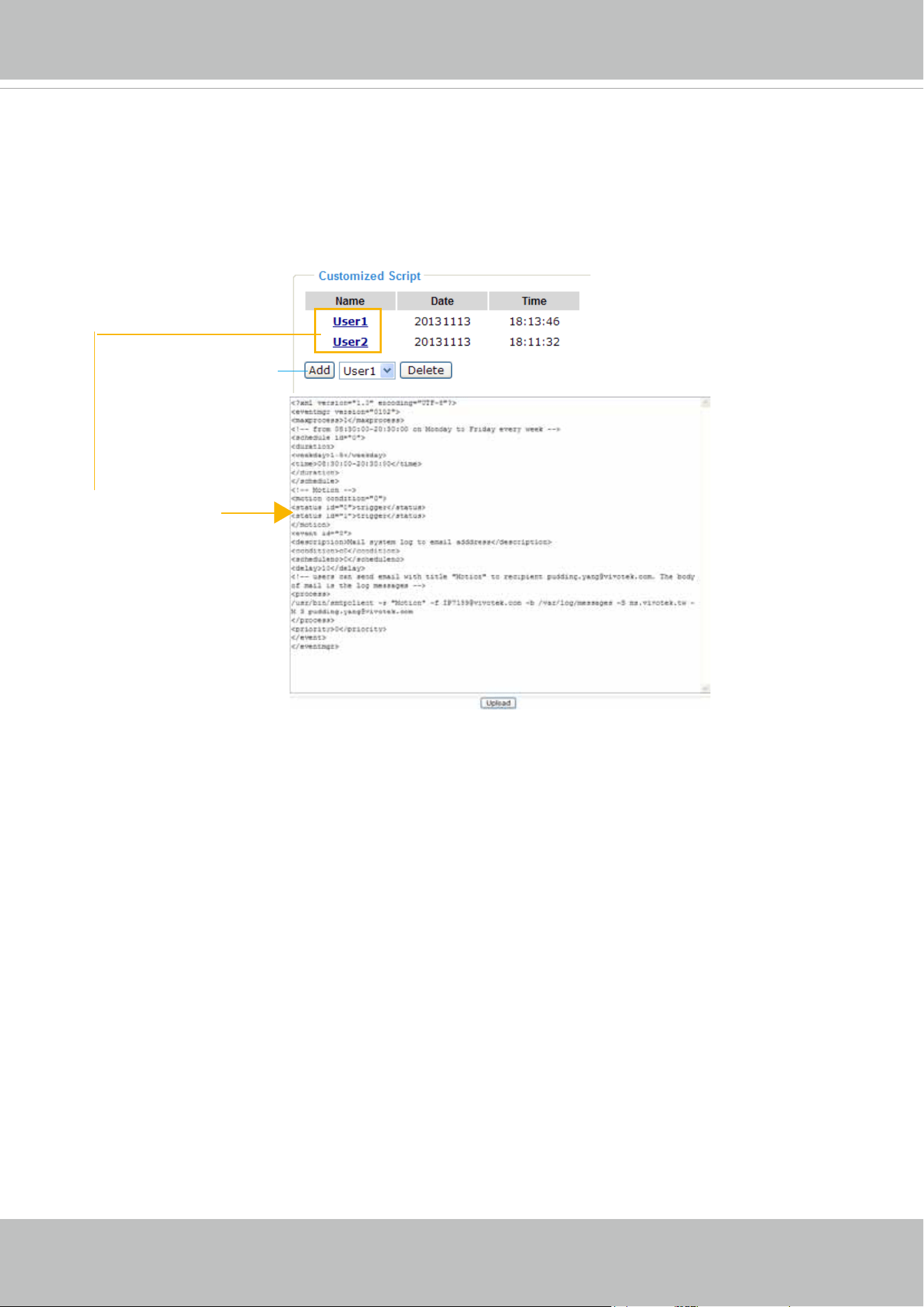

Customized Script
This function allows you to upload a sample script (.xml le) to the webpage, which will save your time on
conguring the settings. Please note that there is a limited number of customized scripts you can upload;
if the current amount of customized scripts has reached the limit, an alert message will prompt. If you
need more information, please contact VIVOTEK technical support.
Click to upload a le
Click to modify the
script online
VIVOTEK
User's Manual - 111

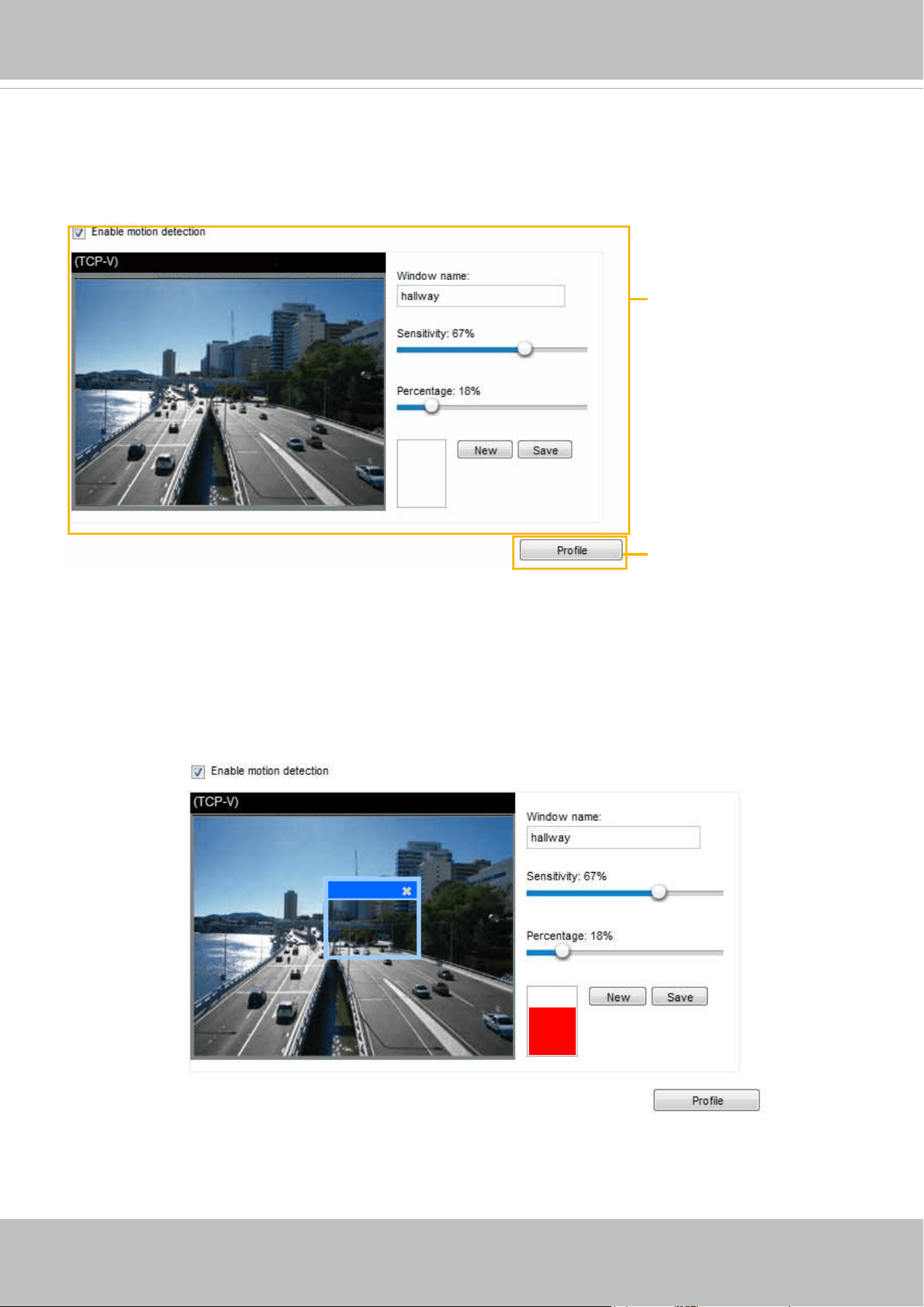

Applications > Motion detection
This section explains how to congure the Network Camera to enable motion detection. A total
of three motion detection windows can be congured.
Follow the steps below to enable motion detection:
Follow the steps below to enable motion detection:
1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.
■ To move and resize the window, drag and drop your mouse on the window.
■ To delete a window, click X on the upper right corner of the window.
3. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the
Sensitivity and Percentage slider bar.
4. Click Save to enable the settings.
5. Select Enable motion detection to enable this function.
For example:
The Percentage Indicator will rise or fall depending on the variation between sequential images. When
motions are detected by the Network Camera and are judged to exceed the defined threshold, the
red bar rises. Meanwhile, the motion detection window will be outlined in red. Photos or videos can be
captured instantly and congured to be sent to a remote server (Email, FTP) by utilizing this feature as a
trigger source. For more information on how to set an event, please refer to Event settings on page 97.
2010/12/10 17:08:56
2013/11/5 14:39:12
Video(TCP-AV)
2010/12/10 17:08:56
hallway
2013/11/5 14:39:12
Motion Detection Setting 2:
For special situations
Motion Detection Setting 1:
For normal situations
VIVOTEK
112 - User's Manual

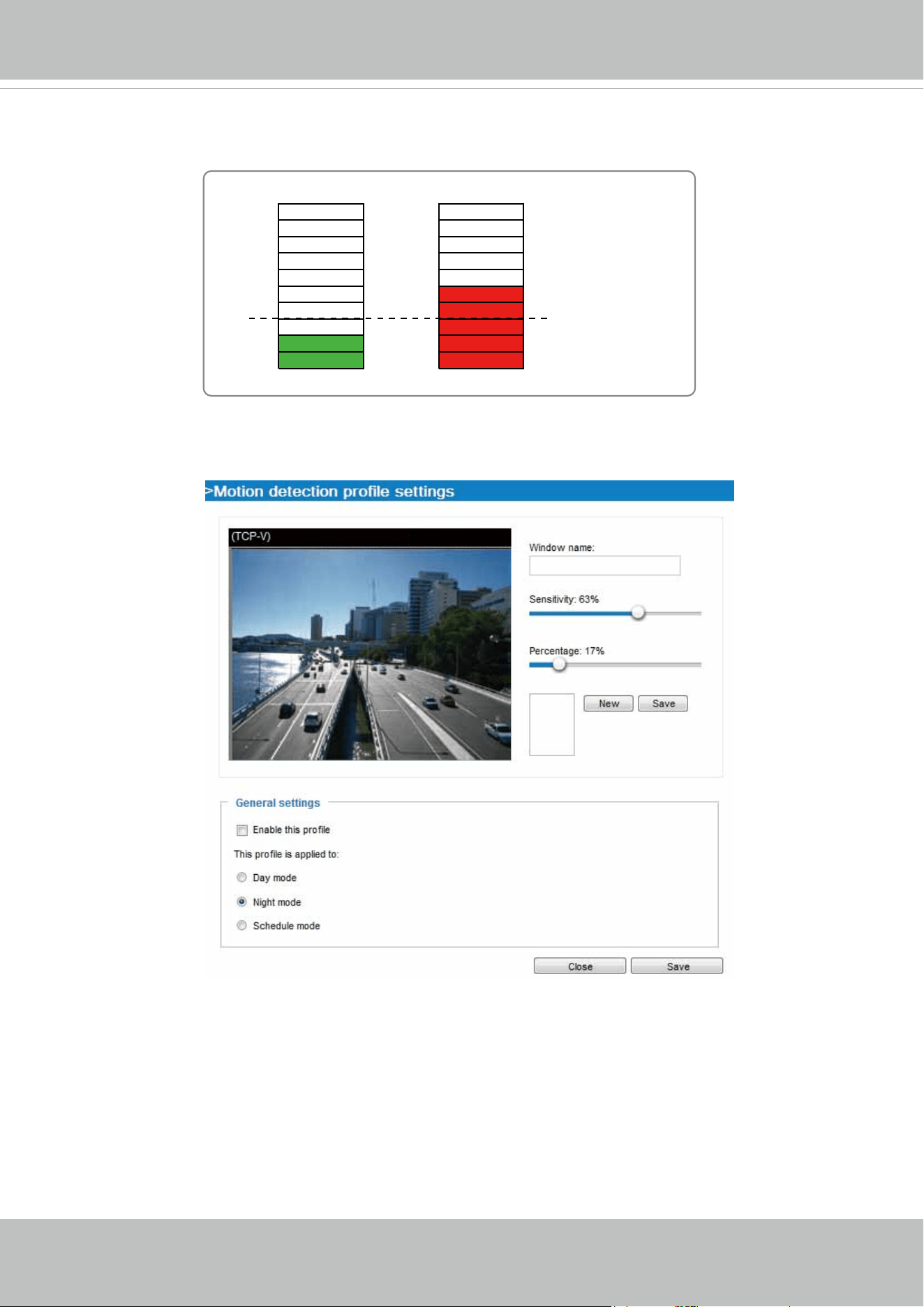

A green bar indicates that even though motions have been detected, the event has not been triggered
because the image variations still fall under the dened threshold.
If you want to congure other motion detection settings for day/night/schedule mode, please click Prole
to open the Motion Detection Profile Settings page as shown below. A total of three motion detection
windows can be congured on this page as well.
Please follow the steps beolw to set up a prole:
1. Create a new motion detection window.
2. Check Enable this prole.
3. Select the applicable mode: Day mode, Night mode, or Schedule mode. Please manually enter a time
range if you choose Schedule mode.
4. Click Save to enable the settings and click Close to exit the page.
This motion detection window will also be displayed on the Event Settings page. You can go to Event
> Event settings > Trigger to choose it as a trigger source. Please refer to page 120 for detailed
information.
Percentage = 30%
Video(TCP-AV)
2010/12/10 17:08:56
2013/11/5 14:39:12
VIVOTEK
User's Manual - 113
NOTE
► How does motion detection work?
There are two motion detection parameters: Sensitivity and Percentage. In the illustration above,
frame A and frame B are two sequential images. Pixel differences between the two frames are
detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity
is a value that expresses the sensitivity to moving objects. Higher sensitivity settings are expected to
detect slight movements while smaller sensitivity settings will neglect them. When the sensitivity is set
to 70%, the Network Camera denes the pixels in the purple areas as “alerted pixels” (frame D).
Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion
detection window. In this case, 50% of pixels are identied as “alerted pixels”. When the percentage is
set to 30%, the motions are judged to exceed the dened threshold; therefore, the motion window will
be outlined in red.
For applications that require a high level of security management, it is suggested to use higher
sensitivity settings and smaller percentage values.
A
B D
C
NOTE:
VIVOTEK
114 - User's Manual

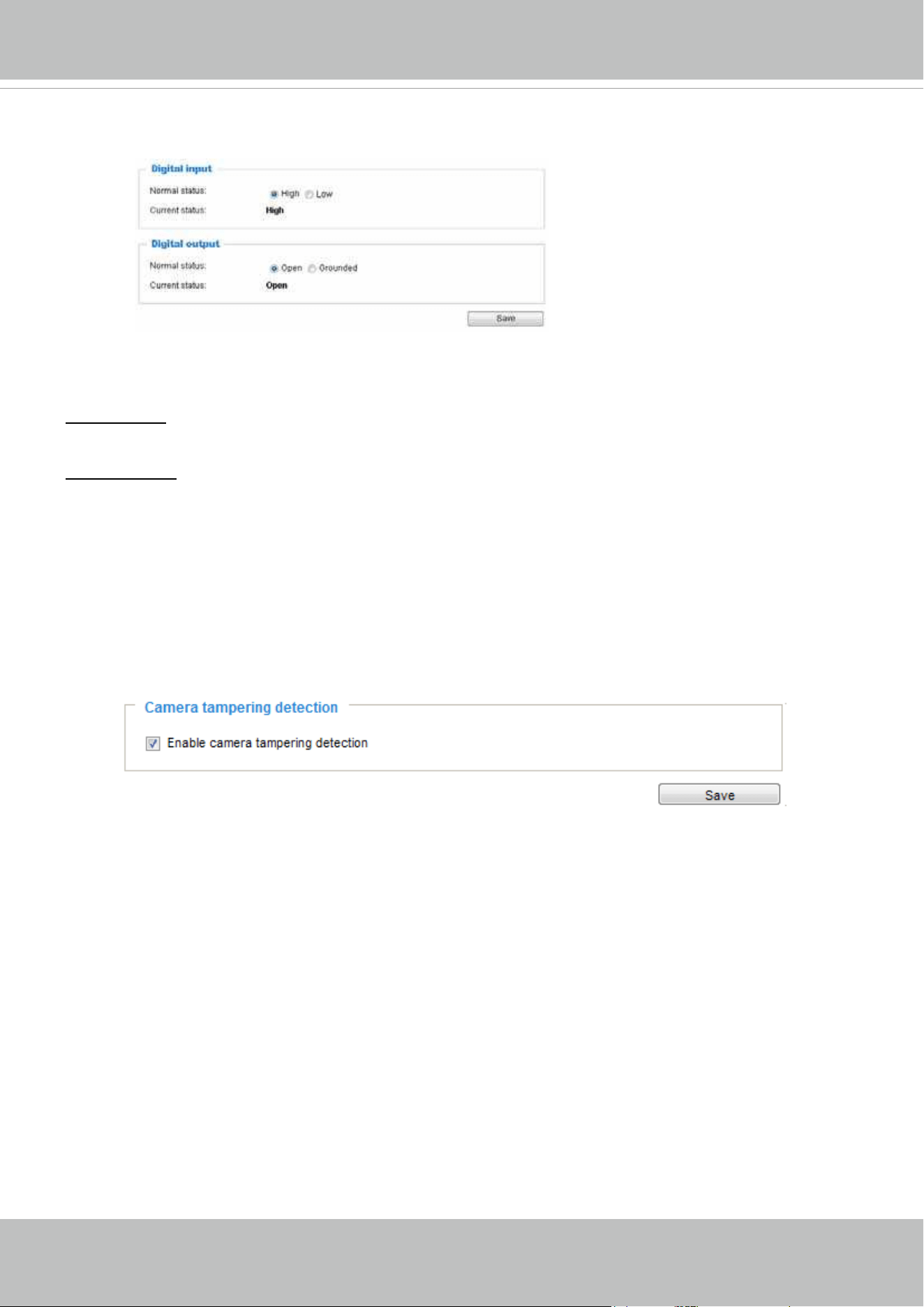

Applications > DI and DO
Connect DI or DO devices to the camera's terminal block, the camera will automatically detect
the current connection state as pulled-high or pulled-low. You may then define the triggering
condition.
Digital input: Select High or Low to dene the "active state" for the digital input. The Network
Camera will report the current status.
Digital output: Select Grounded or Open to dene the "active state" for the digital output. The
Network Camera will show whether the trigger is activated or not.
Applications > Tampering detection
This section explains how to set up camera tamper detection. With tamper detection, the
camera is capable of detecting incidents such as redirection, blocking or defocusing, or even
spray paint.
Please follow the steps below to set up the camera tamper detection function:
1. Check Enable camera tampering detection.
2. The tamper alarm will be triggered only when the tampering factor (the difference between
current frame and pre-saved background) exceeds the trigger threshold.
3. Set up the event source as Camera Tampering Detection on Event > Event settings >
Trigger. Please refer to page 120 for detailed information.
VIVOTEK
User's Manual - 115
Applications > Audio detection
Audio detection, along with video motion detection, is applicable in the following scenarios:
1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a
door/window.
2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of
machines.
3. A PTZ camera can be directed to turn to a preset point by the occurrence of audio events.
4. Dark environments where video motion detection may not function well.
The red circles indicate where the audio alarms can be triggered when breaching or falling below
the preset threshold.
How to congure Audio detection:
1. Once the Audio detection window is opened, the current sound input will be interactively
indicated by a uctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the “Enable audio detection“ checkbox and click Save to enable the feature.
1. Note that the volume numbers (0~100) on the side of wave diagram does not represent decibel
(dB). Sound intensity level has already been mapped to preset values. You can, however, use
the real-world inputs at your installation site that are shown on the wave diagram to congure
an alarm level.
2. To configure this feature, you must not mute the audio in Configuration > Media > Audio.
The default of the camera can be muted due to the lack of an internal microphone. An external
microphone is provided by users.
NOTE:
VIVOTEK
116 - User's Manual
IMPORTANT:
• If the Alarm level and the received volume are set within a range of 20% on the wave
diagram, frequent alarms will be triggered. It is recommended to set the Alarm level
farther apart from the detected sound level.
• To configure and enable this feature, you must not configure video stream #1 into
Motion JPEG. If an external microphone input is connected and recording of audio
stream is preferred, audio stream is transmitted between camera and viewer/recording
station along with stream #1.
• Refer to page 61 for Audio settings, and page 57 for video streaming settings.
You can use the Prole window to congure a different Audio detection setting. For example, a
place can be noisy in the day time and become very quiet in the night.
1. Click on the Enable this prole checkbox. Once the Audio detection window is opened, the
current sound input will be interactively indicated by a uctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the Day, Night, or Schedule mode check circles. You may also manually congure a
period of time during which this prole will take effect.
4. Click Save and then click Close to complete your conguration.
VIVOTEK
User's Manual - 117
Applications > VADP (VIVOTEK Application Development
Platform)
Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's
flash memory or SD card. These software modules can apply in video analysis for
intelligent video applications such as license plate recognition, object counting, or as an
agent for edge recording, etc.
• Once the software package is successfully uploaded, the module conguration (vadp.
xml) information is displayed. When uploading a module, the camera will examine
whether the module ts the predened VADP requirements. Please contact technical
support or the vendor of your 3rd-party module for the parameters contained within.
• Users can also run VIVOTEK's VADP packages as a means to access updated
functionality instead of replacing the entire rmware.
• Note that for some cameras the flash is too small to hold VADP packages. These
cameras will have its "Save to SD card" checkbox selected and grayed-out for all time.
• The le system of SD card (FAT32) does not support soft (symbolic) link. It will return
failure if your module tries to create soft links on SD card.
To utilize a software module, acquire the software package and click Browse and Upload
buttons. The screen message for a successful upload is shown below:
VIVOTEK
118 - User's Manual
To start a module, select the checkcircle in front, and click the Start button.
If you should need to remove a module, select the checkcircle in front and then click the
Stop button. By then the module status will become OFF, and the X button will appear at
the end of the row. Click on the X button to remove an existing module.
When prompted by a conrm message, Click Yes to proceed.
Yes
No
Note that the actual memory consumed while operating the module will be indicated on the
Memory status eld. This helps determine whether a running module has consumed too
much of system resources.
VIVOTEK
User's Manual - 119
Recording > Recording settings
This section explains how to congure the recording settings for the Network Camera.
Recording Settings
NOTE
► Please remember to format your SD card when using it for the rst time. Please refer to page 124 for
detailed information.
Insert your SD card and click here to test
Recording Settings
Click Add to open the recording setting window. On this page, you can dene the adaptive recording,
recording source, recording schedule, and recording capacity. A total of 2 recording settings can be
congured.
■ Recording name: Enter a name for the recording setting.
■ Enable this recording: Select this option to enable video recording.
■ With adaptive recording:
Select this option will activate the frame rate control according to alarm trigger.
The frame control means that when there is a triggered alarm, the frame rate will raise up to the value
you’ve set on Video quality page. Please refer to page 58 for more information.
NOTE:
VIVOTEK
120 - User's Manual
The alarm trigger includes: motion detection and DI detection. Please refer to Event Settings on page 97.
■ Pre-event recording and post-event recording
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number
to decide the duration of recording before and after a trigger is activated.
■ Priority: Select the relative importance of this recording (High, Normal, or Low). Recording with a higher
priority setting will be executed rst.
■ Source: Select a stream for the recording source.
NOTE
► To enable recording notication please congure Event settings rst . Please refer to page 97.
If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event
is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only
request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage
space.

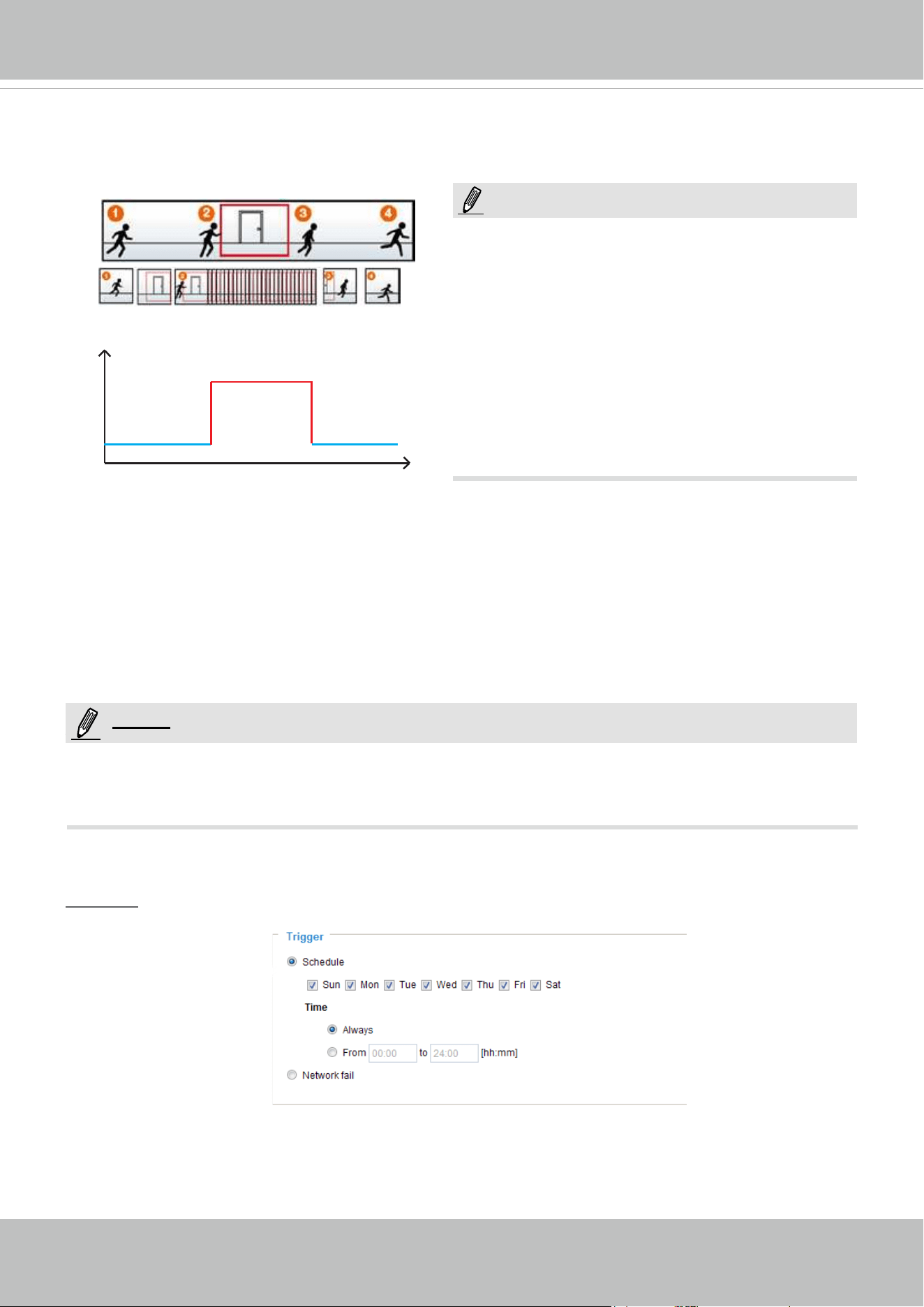

Time
Bandwidth
Bandwidth
Activity Adaptive Streaming
for Dynamic Frame Rate Control
I frame ---> Full frame rate ---> I frame
Continuous recording
► To enable adaptive recording, please make sure
you’ve set up the trigger source such as Motion
Detection, DI Device, or Manual Trigger.
► When there is no alarm trigger:
- JPEG mode: record 1 frame per second.
- H.264 mode: record I frame only.
► When the I frame period is >1s on Video settings
page, firmware will force decrease the I frame
period to 1s when adaptive recording is enabled.
Please follow the steps below to set up the recording.
1. Trigger
Select a trigger source.
■ Schedule: The server will start to record les on the local storage or networked storage (NAS).
■ Network fail: Since network fail, the server will start to record les on the local storage (SD card).
NOTE:
NOTE:
VIVOTEK
User's Manual - 121
2. Destination
You can select the SD card or network storage (NAS) for the recorded video les.
NAS server
Click Add NAS server to open the server setting window and follow the steps below to set up:
1. Fill in the information for your server.
For example:
2. Click Test to check the setting. The result will be shown in the pop-up window.
1
2
3
4
Network storage path
(\\server name or IP address\folder name)
User name and password for your server
VIVOTEK
122 - User's Manual
If successful, you will receive a test.txt le on the network storage server.
3. Enter a server name.
4. Click Save to complete the settings and click Close to exit the page.
■ Capacity: You can choose either the entire free space available or limit the reserved space. The
recording size limit must be larger than the reserved amount for cyclic recording.
■ File name prex: Enter the text that will be appended to the front of the le name.
■ Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest le
will be overwritten by the latest one. The reserved amount is reserved for the transaction stage when
the storage space is about to be full and new data arrives. The minimum for the Reserved space must
be larger than 15 MBytes.
f you want to enable recording notification, please click
Event
to configure event triggering settings.
Please refer to Event > Event settings on page 97 for more details.
When completed, select Enable this recording. Click Save to enable the setting and click Close to exit
this page. When the system begins recording, it will send the recorded les to the network storage. The
new recording name will appear in the drop-down list on the recording page as shown below.
VIVOTEK
User's Manual - 123

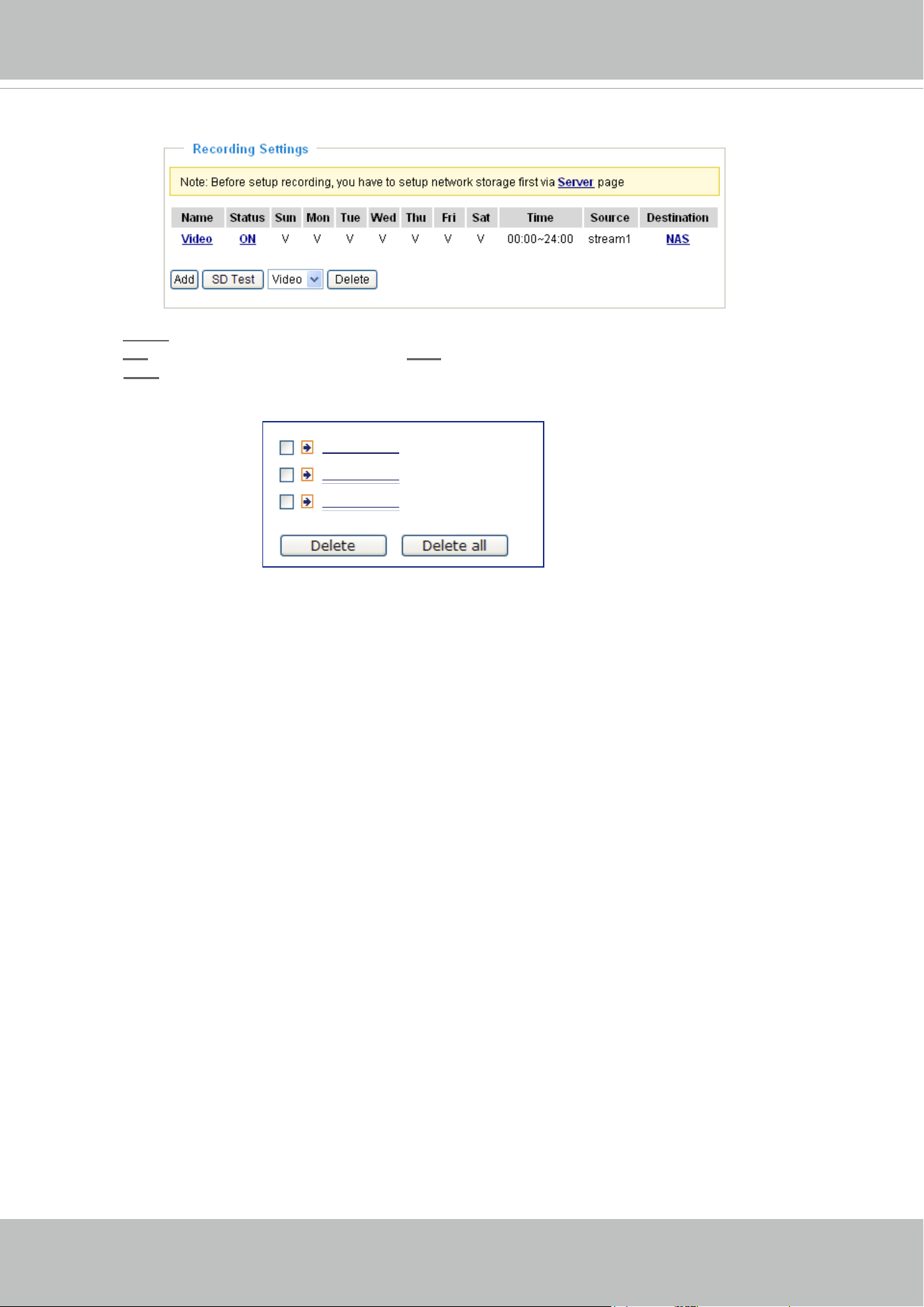

To remove a recording setting from the list, select a recording name from the drop-down list and click
Delete.
■ Click
Video (Name): Opens the Recording Settings page to modify.
■ Click
ON (Status): The Status will become OFF and stop recording.
■ Click
NAS (Destination): Opens the le list of recordings as shown below. For more information about
folder naming rules, please refer to page 121 for details.
20131010
20131011
20131012
VIVOTEK
124 - User's Manual
Local storage > SD card management
This section explains how to manage the local storage on the Network Camera. Here you can
view SD card status, and implement SD card control.
SD card staus
This column shows the status and reserved space of your SD card. Please remember to format the SD
card when using for the rst time.
SD card control
■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum
capacity is reached, the oldest le will be overwritten by the latest one.
■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a le.
For example, if you enter “7 days”, the recorded les will be stored on the SD card for 7 days.
Click Save to enable your settings.
no SD card
VIVOTEK
User's Manual - 125
Local storage > Content management
This section explains how to manage the content of recorded videos on the Network Camera. Here you
can search and view the records and view the searched results.
Searching and Viewing the Records
This column allows the user to set up search criteria for recorded data. If you do not select any criteria
and click Search button, all recorded data will be listed in the Search Results column.
■ File attributes: Select one or more items as your search criteria.
■ Trigger time: Manually enter the time range you want to search.
Click Search and the recorded data corresponding to the search criteria will be listed in Search Results
window.
VIVOTEK
126 - User's Manual

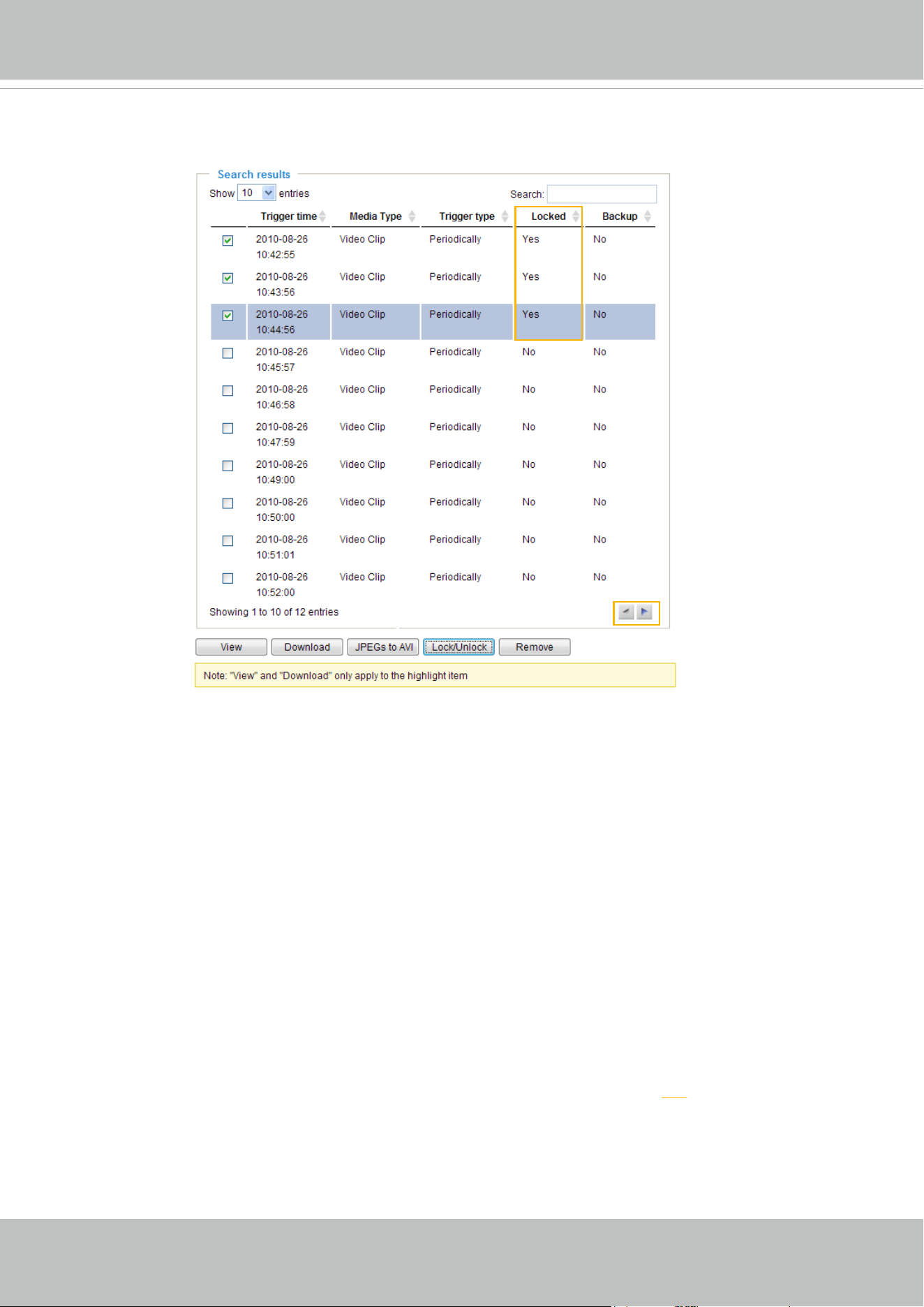

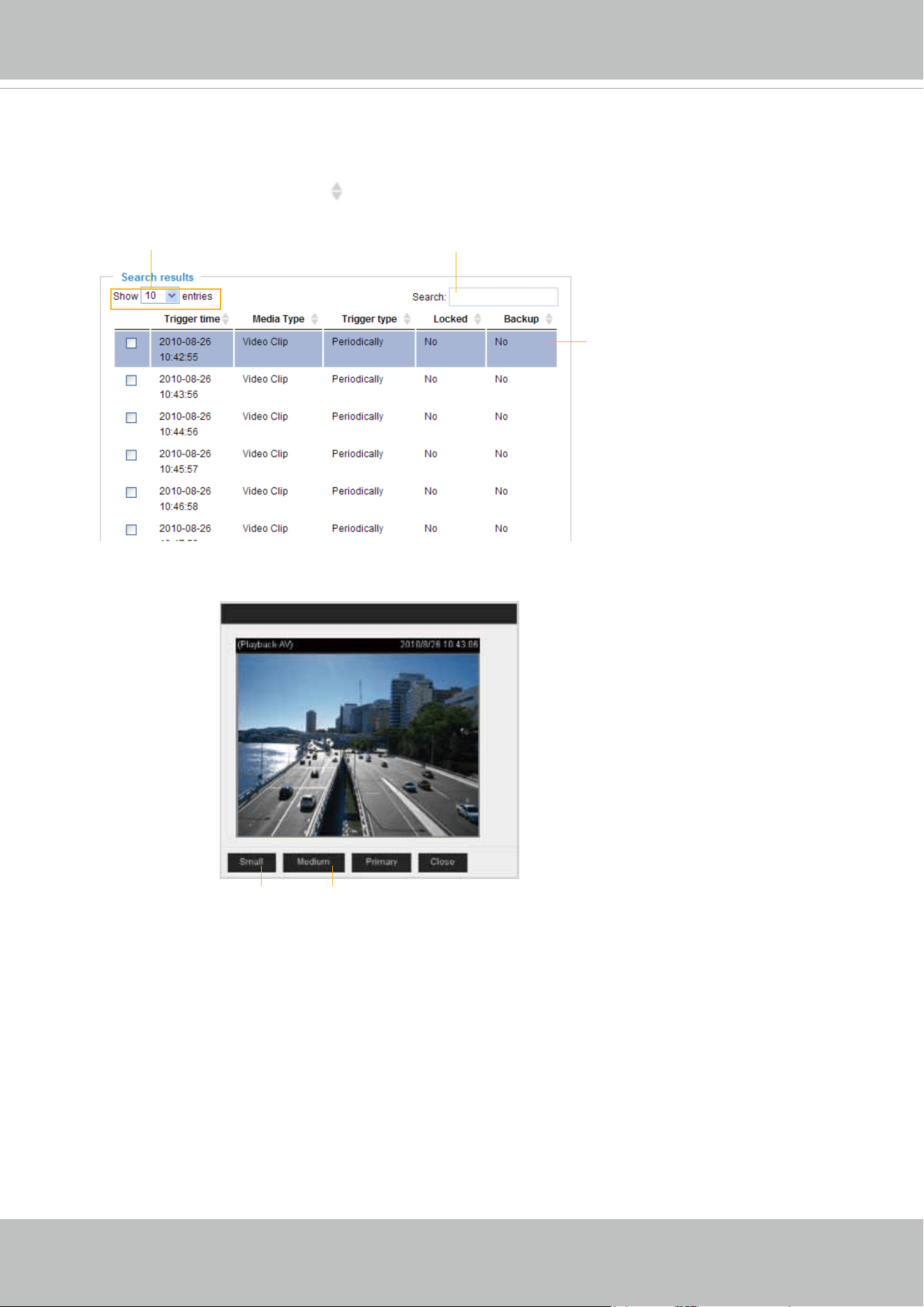

Search Results
The following is an example of search results. There are four columns: Trigger time, Media type,
Trigger type, and Locked. Click
to sort the search results in either direction.
Numbers of entries displayed
on one page
Enter a key word to lter the
search results
Highlight an item
■ View: Click on a search result which will highlight the selected item in purple as shown above.
Click the View button and a media window will pop up to play back the selected le.
For example:
Click to adjust the image size
■ Download: Click on a search result to highlight the selected item in purple as shown above. Then
click the Download button and a le download window will pop up for you to save the le.
■ JPEGs to AVI: This functions only applies to “JPEG“ format files such as snapshots. You can
select several snapshots from the list, then click this button. Those snapshots will be converted
into an AVI le.
VIVOTEK
User's Manual - 127
■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become
Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections.
For example:
■ Remove: Select the desired search results, then click this button to delete the les.
Click to switch
pages
VIVOTEK
128 - User's Manual
Appendix
URL Commands for the Network Camera
1. Overview
For some customers who already have their own web site or web control application, the Network
Camera/Video Server can be easily integrated through URL syntax. This section specifies the external
HTTP-based application programming interface. The HTTP-based camera interface provides the
functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set
internal parameter values. The image and CGI-requests are handled by the built-in Web server.
2. Style Convention
In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that
is to be replaced with either a value or a string. When replacing the text string, the angle brackets
should also be replaced. An example of this is the description of the name for the server, denoted with
<servername> in the URL syntax description below, that is replaced with the string myserver in the URL
syntax example further down in the page.
URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced
syntax as shown below. For example, name of the server is written as <servername> and is intended to
be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.
adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg
Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is
returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n.
Return:
HTTP/1.0 <HTTP code> <HTTP text>\r\n
URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box
with the example.
Example: request a single snapshot image
http://mywebserver/cgi-bin/viewer/video.jpg
VIVOTEK
User's Manual - 129
3. General CGI URL Syntax and Parameters
CGI parameters are written in lower-case and as one word without any underscores or other separators. When the
CGI request includes internal camera parameters, these parameters must be written exactly as they are named in
the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory.
The file extension .cgi is required.
Syntax:
http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>
[?<parameter>=<value>[&<parameter>=<value>...]]
Example: Set digital output #1 to active
http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1
4. Security Level
SECURITY LEVEL SUB-DIRECTORY DESCRIPTION
0 anonymous Unprotected.
1 [view] anonymous, viewer,
dido, camctrl
1. Can view, listen, talk to camera.
2. Can control DI/DO, PTZ of the camera.
4 [operator] anonymous, viewer,
dido, camctrl, operator
Operator access rights can modify most of the camera’s
parameters except some privileges and network options.
6 [admin] anonymous, viewer,
dido, camctrl, operator,
admin
Administrator access rights can fully control the camera’s
operations.
7 N/A Internal parameters. Unable to be changed by any external
interfaces.
VIVOTEK
130 - User's Manual
5. Get Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]
[&<parameter>…]
Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any
parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the
related group will be returned.
When querying parameter values, the current parameter values are returned.
A successful control request returns parameter pairs as follows:
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where <parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
<length> is the actual length of content.
Example: Request IP address and its response
Request:
VIVOTEK
User's Manual - 131
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n
6. Set Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>][&return=<return page>]
http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
PARAMETER VALUE DESCRIPTION
<group>_<name>
value to assigned Assign <value> to the parameter <group>_<name>.
update
<boolean> Set to 1 to update all fields (no need to update parameter in each
group).
return
<return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according
to the current path. If you omit this parameter, it will redirect to an
empty page.
(Note: The return page can be a general HTML file (.htm, .html) or a
VIVOTEK server script executable (.vspx) file. It cannot be a CGI
command or have any extra parameters. This parameter must be
VIVOTEK
132 - User's Manual
placed at the end of the parameter list
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where <parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
Only the parameters that you set and are readable will be returned.
Example: Set the IP address of server to 192.168.0.123:
Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n
7. Available parameters on the server
Valid values:
VALID VALUES DESCRIPTION
string[<n>] Text strings shorter than ‘n’ characters. The characters “,’, <,>,& are invalid.
string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters. The
characters “,’, <,>,& are invalid.
password[<n>] The same as string but displays ‘*’ instead.
integer Any number between (-2
31
– 1) and (2
31
– 1).
positive integer Any number between 0 and (2
32
– 1).
<m> ~ <n> Any number between ‘m’ and ‘n’.
domain name[<n>] A string limited to a domain name shorter than ‘n’ characters (eg. www.ibm.com).
email address [<n>] A string limited to an email address shorter than ‘n’ characters (eg.
joe@www.ibm.com).
ip address A string limited to an IP address (eg. 192.168.1.1).
VIVOTEK
User's Manual - 133
mac address A string limited to contain a MAC address without hyphens or colons.
boolean A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or
Disable].
<value1>,
<value2>,
<value3>,
…
Enumeration. Only given values are valid.
blank A blank string.
everything inside <> A description
integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by
the server.
text SQLite data type. The value is a text string, stored using the database encoding
(UTF-8, UTF-16BE or UTF-16-LE).
coordinate x, y coordinate (eg. 0,0)
window size window width and height (eg. 800x600)
NOTE: The camera should not be restarted when parameters are changed.
VIVOTEK
134 - User's Manual
7.1 system
Group: system
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
hostname string[64] Mega-Pixel
Network
Camera
1/6 Host name of server
(Network Camera,
Wireless Network Camera,
Video Server,
Wireless Video Server).
ledoff <boolean> 0 6/6 Turn on (0) or turn off (1) all led
indicators.
date <YYYY/MM/
DD>,
keep,
auto
<current
date>
6/6 Current date of system. Set to ‘keep’
to keep date unchanged. Set to ‘auto’
to use NTP to synchronize date.
time <hh:mm:s
s>,
keep,
auto
<current
time>
6/6 Current time of the system. Set to
‘keep’ to keep time unchanged. Set to
‘auto’ to use NTP to synchronize time.
datetime <MMDDhh
mmYYYY.ss
>
<blank> 7/6 Another current time format of the
system.
ntp <domain
name>,
<ip
address>,
<blank>
<blank> 6/6 NTP server.
*Do not use “skip to invoke default
server” for default value.
timezoneindex -489 ~ 529 320 6/6 Indicate timezone and area.
-480: GMT-12:00 Eniwetok, Kwajalein
-440: GMT-11:00 Midway Island,
Samoa
-400: GMT-10:00 Hawaii
-360: GMT-09:00 Alaska
-320: GMT-08:00 Las Vegas,
San_Francisco,
Vancouver
-280: GMT-07:00 Mountain Time,
Denver
VIVOTEK
User's Manual - 135
-281: GMT-07:00 Arizona
-240: GMT-06:00 Central America,
Central Time, Mexico City,
Saskatchewan
-200: GMT-05:00 Eastern Time, New
York, Toronto
-201: GMT-05:00 Bogota, Lima,
Quito, Indiana
-180: GMT-04:30 Caracas
-160: GMT-04:00 Atlantic Time,
Canada, La Paz, Santiago
-140: GMT-03:30 Newfoundland
-120: GMT-03:00 Brasilia, Buenos
Aires,
Georgetown, Greenland
-80: GMT-02:00 Mid-Atlantic
-40: GMT-01:00 Azores,
Cape_Verde_IS.
0: GMT Casablanca, Greenwich Mean
Time: Dublin,
Edinburgh, Lisbon, London
40: GMT 01:00 Amsterdam, Berlin,
Rome, Stockholm, Vienna, Madrid,
Paris
41: GMT 01:00 Warsaw, Budapest,
Bern
80: GMT 02:00 Athens, Helsinki,
Istanbul, Riga
81: GMT 02:00 Cairo
82: GMT 02:00 Lebanon, Minsk
83: GMT 02:00 Israel
120: GMT 03:00 Baghdad, Kuwait,
Riyadh, Moscow, St. Petersburg,
Nairobi
121: GMT 03:00 Iraq
140: GMT 03:30 Tehran
160: GMT 04:00 Abu Dhabi, Muscat,
Baku,
Tbilisi, Yerevan
180: GMT 04:30 Kabul
VIVOTEK
136 - User's Manual
200: GMT 05:00 Ekaterinburg,
Islamabad, Karachi, Tashkent
220: GMT 05:30 Calcutta, Chennai,
Mumbai, New Delhi
230: GMT 05:45 Kathmandu
240: GMT 06:00 Almaty, Novosibirsk,
Astana, Dhaka, Sri Jayawardenepura
260: GMT 06:30 Rangoon
280: GMT 07:00 Bangkok, Hanoi,
Jakarta, Krasnoyarsk
320: GMT 08:00 Beijing, Chongging,
Hong Kong, Kuala Lumpur, Singapore,
Taipei
360: GMT 09:00 Osaka, Sapporo,
Tokyo, Seoul, Yakutsk
380: GMT 09:30 Adelaide, Darwin
400: GMT 10:00 Brisbane, Canberra,
Melbourne, Sydney, Guam,
Vladivostok
440: GMT 11:00 Magadan, Solomon
Is., New Caledonia
480: GMT 12:00 Aucklan, Wellington,
Fiji, Kamchatka, Marshall Is.
520: GMT 13:00 Nuku'Alofa
daylight_enable <boolean> 0 6/6 Enable automatic daylight saving time
in time zone.
daylight_dstactualmode < positive
integer >
1~4 6/7 Check if current time is under daylight
saving time.
(Used internally)
daylight_auto_begintime string[19] NONE 6/7 Display the current daylight saving
start time.
daylight_auto_endtime string[19] NONE 6/7 Display the current daylight saving
end time.
daylight_timezones string ,-360,-320,
-280,-240,
-241,-200,
-201,-160,
-140,-120,
-80,-40,0,
40,41,80,
6/6 List time zone index which support
daylight saving time.
VIVOTEK
User's Manual - 137
81,82,83,
120,140,
380,400,48
0
updateinterval 0,
3600,
86400,
604800,
2592000
0 6/6 0 to Disable automatic time
adjustment, otherwise, it indicates
the seconds between NTP automatic
update intervals.
restore 0,
<positive
integer>
N/A 7/6 Restore the system parameters to
default values after <value> seconds.
reset 0,
<positive
integer>
N/A 7/6 Restart the server after <value>
seconds if <value> is non-negative.
restoreexceptnet <Any
value>
N/A 7/6 Restore the system parameters to
default values except (ipaddress,
subnet, router, dns1, dns2, pppoe).
This command can cooperate with
other “restoreexceptXYZ” commands.
When cooperating with others, the
system parameters will be restored to
the default value except for a union of
the combined results.
restoreexceptdst <Any
value>
N/A 7/6 Restore the system parameters to
default values except all daylight
saving time settings.
This command can cooperate with
other “restoreexceptXYZ” commands.
When cooperating with others, the
system parameters will be restored to
default values except for a union of
combined results.
restoreexceptlang <Any
Value>
N/A 7/6 Restore the system parameters to
default values except the custom
language file the user has uploaded.
This command can cooperate with
other “restoreexceptXYZ” commands.
When cooperating with others, the
system parameters will be restored to
VIVOTEK
138 - User's Manual
the default value except for a union of
the combined results.
7.1.1 system.info
Subgroup of system: info (The fields in this group are unchangeable.)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
modelname string[40] FD8365EHV/
FD8355EHV
0/7 Internal model name of the server
extendedmodelname string[40] FD8365EHV/
FD8355EHV
0/7 ODM specific model name of server
(eg. DCS-5610). If it is not an ODM
model, this field will be equal to
“modelname”
serialnumber <mac
address>
<product
mac
address>
0/7 12 characters MAC address (without
hyphens).
firmwareversion string[40] <product
dependent>
0/7 Firmware version, including model,
company, and version number in the
format: <MODEL-BRAND-VERSION>
language_count <integer> 9 0/7 Number of webpage languages
available on the server.
language_i<0~(count-1)> string[16] <product
dependent>
0/7 Available language lists.
customlanguage_maxcoun
t
<integer> 1 0/6 Maximum number of custom
languages supported on the server.
customlanguage_count <integer> 0 0/6 Number of custom languages which
have been uploaded to the server.
customlanguage_i<0~(ma
xcount-1)>
string <blank> 0/6 Custom language name.
VIVOTEK
User's Manual - 139
7.2 status
Group: status
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
di_i<0~(ndi-1)>
<product dependent>
<boolean> 0 1/7 0 => Inactive, normal
1 => Active, triggered
(capability.ndi > 0)
do_i<0~(ndo-1)>
<product dependent>
<boolean> 0 1/7 0 => Inactive, normal
1 => Active, triggered
(capability.ndo > 0)
onlinenum_rtsp integer 0 6/7 Current number of RTSP
connections.
onlinenum_httppush integer 0 6/7 Current number of HTTP push
server connections.
eth_i0 <string> <product
dependent>
1/7 Get network information from
mii-tool.
vi_i<0~(nvi-1)>
<product dependent>
<boolean> 0 1/7 Virtual input
0 => Inactive
1 => Active
(capability.nvi > 0)
7.3 digital input behavior define
Group: di_i<0~(ndi-1)>
(capability.ndi > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
normalstate high,
low
high 1/1 Indicates open circuit or closed
circuit (inactive status)
7.4 digital output behavior define
Group: do_i<0~(ndo-1)>
(capability.ndo > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
normalstate open,
grounded
open 1/1 Indicate open circuit or closed
circuit (inactive status)
VIVOTEK
140 - User's Manual
7.5 security
Group: security
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
privilege_do
<product dependent>
view, operator,
admin
operator 1/6 Indicate which privileges and
above can control digital
output
(capability.ndo > 0)
privilege_camctrl
<product dependent>
view, operator,
admin
view 1/6 Indicate which privileges and
above can control PTZ
(capability.ptzenabled > 0 or
capability.eptz > 0)
user_i0_name string[64] root 6/7 User name of root
user_i<1~20>_name string[64] <blank> 6/7 User name
user_i0_pass password[64] <blank> 6/6 Root password
user_i<1~20>_pass password[64] <blank> 7/6 User password
user_i0_privilege view,
operator,
admin
admin 6/7 Root privilege
user_i<1~20>_ privilege view,
operator,
admin
<blank> 6/6 User privilege
7.6 network
Group: network
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
preproces
s
<positive
integer>
<blank> 6/6 An 32-bit integer, each bit can be set separately as
follows:
Bit 0 => HTTP service;
Bit 1=> HTTPS service;
Bit 2=> FTP service;
Bit 3 => Two way audio and RTSP Streaming service;
To stop service before changing its port settings. It’s
recommended to set this parameter when change a
service port to the port occupied by another service
currently. Otherwise, the service may fail.
VIVOTEK
User's Manual - 141
Stopped service will auto-start after changing port
settings.
Ex:
Change HTTP port from 80 to 5556, and change RTP
port for video from 5556 to 20480.
Then, set preprocess=9 to stop both service first.
”/cgi-bin/admin/setparam.cgi?
network_preprocess=9&network_http_port=5556&
network_rtp_videoport=20480”
type lan,
pppoe
<product
dependent>
lan 6/6 Network connection type.
resetip <boolean> 1 6/6 1 => Get ipaddress, subnet, router, dns1, dns2 from
DHCP server at next reboot.
0 => Use preset ipaddress, subnet, rounter, dns1,
and dns2.
ipaddress <ip
address>
<product
dependent>
6/6 IP address of server.
subnet <ip
address>
<blank> 6/6 Subnet mask.
router <ip
address>
<blank> 6/6 Default gateway.
dns1 <ip
address>
<blank> 6/6 Primary DNS server.
dns2 <ip
address>
<blank> 6/6 Secondary DNS server.
wins1 <ip
address>
<blank> 6/6 Primary WINS server.
wins2 <ip
address>
<blank> 6/6 Secondary WINS server.
VIVOTEK
142 - User's Manual
7.6.1 802.1x
Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable/disable IEEE 802.1x
eapmethod eap-peap,
eap-tls
eap-peap 6/6 Selected EAP method
identity_peap String[64] <blank> 6/6 PEAP identity
identity_tls String[64] <blank> 6/6 TLS identity
password String[253] <blank> 6/6 Password for TLS
privatekeypassword String[253] <blank> 6/6 Password for PEAP
ca_exist <boolean> 0 6/6 CA installed flag
ca_time <integer> 0 6/7 CA installed time. Represented in
EPOCH
ca_size <integer> 0 6/7 CA file size (in bytes)
certificate_exist <boolean> 0 6/6 Certificate installed flag (for TLS)
certificate_time <integer> 0 6/7 Certificate installed time.
Represented in EPOCH
certificate_size <integer> 0 6/7 Certificate file size (in bytes)
privatekey_exist <boolean> 0 6/6 Private key installed flag (for
TLS)
privatekey_time <integer> 0 6/7 Private key installed time.
Represented in EPOCH
privatekey_size <integer> 0 6/7 Private key file size (in bytes)
7.6.2 QOS
Subgroup of network: qos_cos (capability.protocol.qos.cos > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable/disable CoS (IEEE 802.1p)
vlanid 1~4095 1 6/6 VLAN ID
video 0~7 0 6/6 Video channel for CoS
audio
<product
dependent>
0~7 0 6/6 Audio channel for CoS
(capability.naudio > 0)
eventalarm 0~7 0 6/6 Event/alarm channel for CoS
VIVOTEK
User's Manual - 143
management 0~7 0 6/6 Management channel for CoS
eventtunnel 0~7 0 6/6 Event/Control channel for CoS
Subgroup of network: qos_dscp (capability.protocol.qos.dscp > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable/disable DSCP
video 0~63 0 6/6 Video channel for DSCP
audio 0~63 0 6/6 Audio channel for DSCP
(capability.naudio > 0)
eventalarm 0~63 0 6/6 Event/alarm channel for DSCP
management 0~63 0 6/6 Management channel for DSCP
eventtunnel 0~63 0 6/6 Event/Control channel for DSCP
7.6.3 IPV6
Subgroup of network: ipv6 (capability.protocol.ipv6 > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable IPv6.
addonipaddress <ip address> <blank> 6/6 IPv6 IP address.
addonprefixlen 0~128 64 6/6 IPv6 prefix length.
addonrouter <ip address> <blank> 6/6 IPv6 router address.
addondns <ip address> <blank> 6/6 IPv6 DNS address.
allowoptional <boolean> 0 6/6 Allow manually setup of IP address
setting.
7.6.4 FTP
Subgroup of network: ftp
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 21, 1025~65535 21 6/6 Local ftp server port.
VIVOTEK
144 - User's Manual
7.6.5 HTTP
Subgroup of network: http
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 80, 1025 ~
65535
80 1/6 HTTP port.
alternateport 1025~65535 8080 6/6 Alternate HTTP port.
authmode basic,
digest
basic 1/6 HTTP authentication mode.
s0_accessname string[32] video.mjpg 1/6 HTTP server push access name for
stream 1.
(capability.protocol.spush_mjpeg =1
and capability.nmediastream > 0)
s1_accessname
<product
dependent>
string[32] video2.mjpg 1/6 HTTP server push access name for
stream 2.
(capability.protocol.spush_mjpeg =1
and capability.nmediastream > 1)
s2_accessname
<product
dependent>
string[32] video3.mjpg 1/6 Http server push access name for
stream 3
(capability.protocol.spush_mjpeg =1
and capability.nmediastream > 2)
anonymousviewing <boolean> 0 1/6 Enable anonymous streaming
viewing.
7.6.6 HTTPS port
Subgroup of network: https_port
(capability.protocol.https > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 443, 1025 ~
65535
443 1/6 HTTPS port.
VIVOTEK
User's Manual - 145
7.6.7 RTSP
Subgroup of network: rtsp (capability.protocol.rtsp > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 554, 1025 ~
65535
554 1/6 RTSP port.
(capability.protocol.rtsp=1)
anonymousviewing <boolean> 0 1/6 Enable anoymous streaming
viewing.
authmode disable,
basic,
digest
disable 1/6 RTSP authentication mode.
(capability.protocol.rtsp=1)
s0_accessname string[32] live.sdp 1/6 RTSP access name for stream1.
(capability.protocol.rtsp=1 and
capability.nmediastream > 0)
s1_accessname string[32] live2.sdp 1/6 RTSP access name for stream2.
(capability.protocol.rtsp=1 and
capability.nmediastream > 1)
s2_accessname string[32] live3.sdp 1/6 RTSP access name for stream3
(capability.protocol.rtsp=1 and
capability.nmediastream > 2)
s0_audiotrack <boolean> -1 7/6 Enable audio for stream1.
s1_audiotrack <boolean> -1 7/6 Enable audio for stream2.
s2_audiotrack <boolean> -1 7/6 Enable audio for stream3.
7.6.7.1 RTSP multicast
Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count
(capability.protocol.rtp.multicast > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
alwaysmulticast <boolean> 0 4/4 Enable always multicast.
ipaddress <ip address> For n=0,
239.128.1.99
For n=1,
239.128.1.100,
and so on.
4/4 Multicast IP address.
videoport 1025 ~ 65535 5560+n*2 4/4 Multicast video port.
VIVOTEK
146 - User's Manual
audioport
<product
dependent>
1025 ~ 65535 5562+n*2 4/4 Multicast audio port.
(capability.naudio > 0)
ttl 1 ~ 255 15 4/4 Mutlicast time to live value.
7.6.8 SIP port
Subgroup of network: sip (capability.protocol.sip> 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 1025 ~ 65535 5060 1/6 SIP port.
7.6.9 RTP port
Subgroup of network: rtp
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
videoport 1025 ~ 65535 5556 6/6 Video channel port for RTP.
(capability.protocol.rtp_unicast=1)
audioport 1025 ~ 65535 5558 6/6 Audio channel port for RTP.
(capability.protocol.rtp_unicast=1)
7.6.10 PPPoE
Subgroup of network: pppoe (capability.protocol.pppoe > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
user string[128] <blank> 6/6 PPPoE account user name.
pass password[64] <blank> 6/6 PPPoE account password.
VIVOTEK
User's Manual - 147
7.7 IP Filter
Group: ipfilter
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable access list filtering.
admin_enable <boolean> 0 6/6 Enable administrator IP
address.
admin_ip String[43] <blank> 6/6 Administrator IP address.
maxconnection 1~10 10 6/6 Maximum number of
concurrent streaming
connection(s).
type 0, 1 1 6/6 Ipfilter policy :
0 => allow
1 => deny
ipv4list_i<0~9> Single address:
<ip address>
Network address:
<ip address /
network mask>
Range
address:<start ip
address - end ip
address>
<blank> 6/6 IPv4 address list.
ipv6list_i<0~9> String[43] <blank> 6/6 IPv6 address list.
7.8 Video input
Group: videoin
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
cmosfreq 50, 60 60 4/4 CMOS frequency.
(capability.videoin.type=2)
whitebalance auto, manual,
rbgain <product
dependent>
auto 4/4 “auto” indicates auto white balance.
“manual” indicates keep current
value.
“rbgain” indicates using rgain and
gbain.
VIVOTEK
148 - User's Manual
exposurelevel 0~12 6 4/4 Exposure level
autoiris <boolean> 0 1/4 Enable auto Iris.
irismode fixed, indoor,
outdoor
outdoor 1/4 Video Iris mode.
enableblc <boolean> 0 1/4 Enable backlight compensation.
color 0, 1 1 1/4 0 =>monochrome
1 => color
flip <boolean> 0 1/4 Flip the image.
mirror <boolean> 0 1/4 Mirror the image.
rotate 0,90,180,270 0 1/4
(rotation
mode)
The rotation angle of image.
Support only in Rotation mode
(capability.videoin.c0.mode==1)
ptzstatus <integer> 0 1/7 A 32-bit integer, each bit can be set
separately as follows:
Bit 0 => Support camera control
function; 0(not support), 1(support)
Bit 1 => Built-in or external
camera; 0 (external), 1(built-in)
Bit 2 => Support pan operation;
0(not support), 1(support)
Bit 3 => Support tilt operation;
0(not support), 1(support)
Bit 4 => Support zoom operation;
0(not support), 1(support)
Bit 5 => Support focus operation;
0(not support), 1(support)
text string[64] <blank> 4/4 Enclose caption.
imprinttimestamp <boolean> 0 1/4 Overlay time stamp on video.
maxexposure 1~10000
<product
dependent>
30 1/4 Maximum exposure time.
enablepreview <boolean> 0 4/4 Usage for UI of exposure settings.
Preview settings of video profile.
VIVOTEK
User's Manual - 149
7.8.1 Video input setting per channel
Group: videoin_c<0~(n-1)> for n channel products, and m is stream number
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
cmosfreq 50, 60 60 1/4 CMOS frequency.
(capability.videoin.type=2)
mode 0,1,2 0 4/4 Set video mode
0: Dual stream mode (Max.
30fps)
1: Dual stream mode with
video rotation (Max. 30fps)
2: Single stream mode with
high framerate (Max. 60fps)
whitebalance auto, manual,
rbgain
<product
dependent>
auto 4/4 “auto” indicates auto white
balance.
“manual” indicates keep
current value.
“rbgain” indicates using rgain
and gbain.
rgain 0~100 30 1/4 Manual set rgain value of
gain control setting.
bgain 0~100 30 1/4 Manual set bgain value of
gain control setting.
exposurelevel 0~12 6 1/4 Exposure level
autoiris 0~1 0 4/4 set 1 to enable auto iris, set 0
to disable auto iris.
irismode fixed, indoor,
outdoor
outdoor 1/4 Video Iris mode.
piris_mode manual, indoor,
outdoor
outdoor 1/4 PIris mode
manual = 0
indoor=1
outdoor=2
piris_position 1~100 1 1/4 Position of piris
enableblc 0~1 0 1/4 Enable backlight
compensation
maxgain 0~100 100 1/4 Manual set maximum gain
value.
VIVOTEK
150 - User's Manual
mingain 0~100 0 1/4 Manual set minimum gain
value.
color 0, 1 1 1/4 0 =>monochrome
1 => color
flip <boolean> 0 1/4 Flip the image.
mirror <boolean> 0 1/4 Mirror the image.
rotate 0,90,180,270 0 4/4 The rotation angle of image.
Support only in Rotation
mode
(capability.videoin.c0.mode
=1)
text string[64] <blank> 1/4 Enclose caption.
imprinttimestamp <boolean> 0 1/4 Overlay time stamp on video.
textonvideo_position top, bottom Top 1/4 Text on video string position
textonvideo_size 15, 25, 30 15 1/4 Text on video font size
exposuremode auto,fixed auto 1/4 Exposure mode
maxexposure 1~ 10000 30 1/4 Maximum exposure time.
minexposure 480~ 10000 10000 1/4 Minimum exposure time.
enablepreview <boolean> 0 1/4 Usage for UI of exposure
settings. Preview settings of
video profile.
s<0~(m-1)>_codectype mjpeg, h264 H264 1/4 Video codec type.
s<0~(m-1)>_resolution Reference
capability_vide
oin_resolution
FD8365:
s0:1920x1080
s1:640x360
FD8355:
s0:1280x1024
s1:640x480
1/4 Video resolution in pixels.
s<0~(m-1)>_h264_intraperi
od
250, 500,
1000, 2000,
3000, 4000
1000 1/4 Intra frame period in
milliseconds.
s<0~(m-1)>_h264_ratecont
rolmode
cbr, vbr cbr 1/4 cbr, constant bitrate
vbr, fix quality
s<0~(m-1)>_h264_quant 1~5,
99, 100
3 1/4 Quality of video when
choosing vbr in
“ratecontrolmode”.
99 is the customized manual
input setting.
1 = worst quality, 5 = best
VIVOTEK
User's Manual - 151
quality.
100 is percentage mode.
s<0~(m-1)>_h264_qvalue 10~51 31 1/4 Manual video quality level
input.
(s<0~(m-1)>_h264_quant
= 99)
s<0~(m-1)>_h264_qpercen
t
1~100 50 1/4 Manual video quality level
input.
(s<0~(m-1)>_h264_quant
= 100)
s<0~(m-1)>_h264_bitrate 4000~400000
00
FD8365:
s0:6000000
s1: 512000
FD8355:
s0:3000000
s1: 512000
4/4 Set bit rate in bps when
choosing cbr in
“ratecontrolmode”.
s<0~(m-1)>_h264_maxvbr
bitrate
1000~400000
00
40000000 1/4 Set bit rate in bps when
choosing vbr in
“ratecontrolmode”.
s<0~(m-1)>_h264_maxfra
me
1,2,3,5,8,10,1
2,15,20,25,30
s0:30
s1:15
1/4 Set maximum frame rate in
fps (for h264).
3M : 1~30fps
2M : 1~60fps
(for NTSC or 60Hz CMOS)
s<0~(m-1)>_h264_profile
<product dependent>
0~2 1 1/4 Indicate H264 profiles
0: baseline
1: main profile
2: high profile
s<0~(m-1)>_h264_priorityp
olicy
framerate,imag
equality
s0:framerate
s1:imagequality
1/4 Set prioritypolicy
s<0~(m-1)>_mjpeg_ratecon
trolmode
<product dependent>
cbr, vbr vbr 1/4 cbr, constant bitrate
vbr, fix quality
s<0~(m-1)>_mjpeg_quant 1~5,
99, 100
3 1/4 Quality of JPEG video.
99 is the customized manual
input setting.
1 = worst quality, 5 = best
quality.
100 is percentage mode.
s<0~(m-1)>_mjpeg_qvalue 2~97 49 1/4 Manual video quality level
VIVOTEK
152 - User's Manual
input.
(s<0~(m-1)>_mjpeg_quant
= 99)
s<0~(m-1)>_mjpeg_qperce
nt
1~100 50 1/4 Manual video quality level
input.
(s<0~(m-1)>_mjpeg_quant
= 100)
s<0~(m-1)>_mjpeg_bitrate 4000~400000
00
FD8365:
s0:14000000
s1: 512000
FD8355:
s0:6000000
s1:512000
1/4 Set bit rate in bps when
choosing cbr in
“ratecontrolmode”.
s<0~(m-1)>_mjpeg_maxvb
rbitrate
1000~400000
00
40000000 1/4 Set bit rate in bps when
choosing vbr in
“ratecontrolmode”.
s<0~(m-1)>_mjpeg_maxfra
me
1,2,3,5,8,10,1
2,15,20,25,30
s0:10
s1:15
1/4 Set maximum frame rate in
fps (for JPEG).
3M : 1~30fps
2M : 1~60fps
(for NTSC or 60Hz CMOS)
s<0~(m-1)>_mjpeg_priority
policy
framerate,imag
equality
s0:framerate
s1:imagequality
1/4 Set prioritypolicy
wdr_mode 0~2(FD8355)
0~1(FD8365)
1 1/4
FD8355，30fps:WDRProII
FD8355，60fps:WDRPro
FD8365，30fps:WDRPro
FD8365，60fps:no WDR
WDRPro:3 level (from low to
high)
level1: wdr_mode=1,
wdr_strength=0
level2: wdr_mode=1,
wdr_strength=1
level3: wdr_mode=1,
wdr_strength=2
WDRProII:6 level (from low
to high)
level1: wdr_mode=2,
wdr_strength 0~2 1 1/4
VIVOTEK
User's Manual - 153
wdr_strength=0
level2: wdr_mode=2,
wdr_strength=1
level3: wdr_mode=2,
wdr_strength=2
level4: wdr_mode=1,
wdr_strength=0
level5: wdr_mode=1,
wdr_strength=1
level6: wdr_mode=1,
wdr_strength=2
7.8.1.1 Alternative video input profiles per channel
In addition to the primary setting of video input, there can be alternative profile video input setting for each
channel which might be for different scene of light (daytime or nighttime).
Group: videoin_c0_profile_i<0~(m-1)>
(capability. nvideoinprofile > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 1/4 Enable/disable this profile setting
policy day,
night,
schedule
night 1/4 The mode which the profile is applied
to.
begintime hh:mm 18:00 1/4 Begin time of schedule mode.
endtime hh:mm 06:00 1/4 End time of schedule mode.
exposuremode auto,fixed auto 1/4 Exposure Mode
maxexposure 1~10000 30 1/4 Maximum exposure time.
minexposure 480~10000 10000 1/4 Minimum exposure time.
enableblc <boolean> 0 1/4 Enable backlight compensation.
exposurelevel 0~12 6 1/4 Exposure level
maxgain 0~100 100 4/4 Manual set maximum gain value.
mingain 0~100 0 4/4 Manual set minimum gain value.
autoiris <boolean> 0 1/4 Enable auto Iris.
piris_mode manual, indoor,
outdoor
outdoor 1/4 PIris mode
manual = 0
indoor=1
outdoor=2
piris_position 1~100 1 1/4 Position of piris
VIVOTEK
154 - User's Manual
irismode fixed, indoor,
outdoor
outdoor 1/4 Video Iris mode.
wdr_mode 0~1 1 4/4 WDR enhanced.
0: off
1: on
wdr_strength 0~2 1 4/4 WDR enhanced.
0: low
1: medium
2: high
7.9 Video input preview
The temporary settings for video preview
Group: videoinpreview
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
exposuremode auto,fixed auto 1/4 Exposure Mode
maxexposure 1~10000 30 1/4 Maximum exposure time.
minexposure 480~10000 10000 1/4 Minimum exposure time.
exposurelevel 0~12 6 1/4 Exposure level
enableblc <boolean> 0 1/4 Enable backlight compensation.
irismode fixed, indoor,
outdoor
outdoor 1/4 Video Iris mode.
piris_mode manual, indoor,
outdoor
outdoor 1/4 PIris mode
manual = 0
indoor=1
outdoor=2
piris_position 1~100 1 1/4 Position of piris
wdr_mode 0~1 1 1/4 WDR enhanced.
0: off
1: on
wdr_strength 0~2 1 1/4 WDR enhanced.
0: low
1: medium
2: high
maxgain 0~100 100 4/4 Manual set maximum gain value.
mingain 0~100 0 4/4 Manual set minimum gain value.
autoiris <boolean> 0 1/4 Enable auto Iris.
VIVOTEK
User's Manual - 155
7.10 IR cut control
Group: ircutcontrol (capability.nvideoinprofile > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
mode auto,
day,
night,
di,
schedule
<product
dependent>
auto 1/6 Set IR cut control mode
daymodebegintime 00:00~23:59 07:00 6/6 Day mode begin time
daymodeendtime 00:00~23:59 18:00 6/6 Day mod end time
disableirled <boolean> 0 6/6 Enable/disable built-in IR led
(capability.ir > 0)
enableextled <boolean> 0 1/6 Enable/disable external IR led
(capability.extir > 0)
bwmode <boolean> 1 1/6 Switch to B/W in night mode if
enabled
sensitivity low,
normal,
high
normal 1/6 Sensitivity of light sensor
7.11 Image setting per channel
Group: image_c<0~(n-1)> for n channel products
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
brightness -5~5,100 100 4/4 Adjust brightness of image
according to mode settings.
saturation -5~5,100 100 4/4 Adjust saturation of image
according to mode settings.
contrast -5~5,100 100 4/4 Adjust contrast of image
according to mode settings.
sharpness -3~3,100 100 4/4 Adjust sharpness of image
according to mode settings.
brightnesspercent 0~100 0 4/4 Adjust brightnesspercent of
saturationpercent 0~100 50 4/4 Adjust saturation value of
VIVOTEK
156 - User's Manual
percentage when
saturation=100
contrastpercent 0~100 50 4/4 Adjust contrastpercent of image
sharpnesspercent 0~100 50 4/4 Adjust sharpness value of
percentage when
sharpness=100
gammacurve 0~100 0 4/4 Gamma curve.
lowlightmode <boolean> 1 4/4 Enable/disable low light mode.
dnr_mode 0~1 1 4/4 0:disable
1:enable
dnr_strength 1~100 50 4/4 Strength of DNR
eis 0~1 0 4/4 Electronic image stabilizer
0:disable
1:enable
profile_i0_enable <boolean> 0 4/4 Enable/disable this profile
setting
profile_i0_policy day,
night,
schedule
night 4/4 The mode which the profile is
applied to.
profile_i0_begintime hh:mm 18:00 4/4 Begin time of schedule mode.
profile_i0_endtime hh:mm 06:00 4/4 End time of schedule mode.
profile_i0_brightness -5~5,100 100 4/4 Adjust brightness of image
according to mode settings.
profile_i0_sturation -5~5,100 100 4/4 Adjust saturation of image
according to mode settings.
profile_i0_cntrast -5~5,100 100 4/4 Adjust contrast of image
according to mode settings.
profile_i0_sarpness -3~3,100 100 4/4 Adjust sharpness of image
according to mode settings.
profile_i0_brightnesspercent 0~100 0 4/4 Adjust brightnesspercent of
profile_i0_contrastpercent 0~100 50 4/4 Adjust contrastpercent of image
profile_i0_saturationpercent 0~100 50 4/4 Adjust saturationpercent of
profile_i0_sharpnesspercent 0~100 50 4/4 Adjust sharpnesspercent value
of image
profile_i0_gammacurve 0~100 0 4/4 Gamma curve.
profile_i0_lowlightmode <boolean> 1 4/4 Enable/disable low light mode.
profile_i0_dnr_mode 0~1 1 4/4 0:disable
VIVOTEK
User's Manual - 157
1:enable
profile_i0_dnr_strength 1~100 50 4/4 Strength of DNR
profile_i0_eis 0~1 0 4/4 Electronic image stabilizer
0:disable
1:enable
VIVOTEK
158 - User's Manual
7.12 Image setting for preview
Group: imagepreview_c<0~(n-1)> for n channel products
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
brightness -5~5,100 100 4/4 Adjust brightness of image
according to mode settings.
saturation -5~5,100 100 4/4 Adjust saturation of image
according to mode settings.
100 for saturation percentage
mode.
contrast -5~5,100 100 4/4 Adjust contrast of image
according to mode settings.
sharpness -3~3,100 100 4/4 Adjust sharpness of image
according to mode settings.
brightnesspercent 0~100 0 4/4 Adjust brightnesspercent of
saturationpercent 0~100 50 4/4 Adjust saturation value of
percentage when
saturation=100
contrastpercent 0~100 50 4/4 Adjust contrastpercent of image
sharpnesspercent 0~100 50 4/4 Adjust sharpness value of
percentage when
sharpness=100
gammacurve 0~100 0 4/4 Gamma curve.
lowlightmode <boolean> 1 4/4 Enable/disable low light mode.
dnr_mode 0~1 1 4/4 0:disable
1:enable
dnr_strength 1~100 50 4/4 Strength of DNR
eis 0~1 0 4/4 Electronic image stabilizer
0:disable
1:enable
Group: imagepreview
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
videoin_whitebalance auto,
manual,
rbgain
auto 1/4 Preview of adjusting white balance of image
according to mode settings
VIVOTEK
User's Manual - 159
videoin_restoreatwb 1~ 1 4/4 Restore of adjusting white balance of image
according to mode settings
videoin_rgain 0~100 30 1/4 Manual set rgain value of gain control
setting.
videoin_bgain 0~100 30 1/4 Manual set bgain value of gain control
setting.
VIVOTEK
160 - User's Manual
7.13 Exposure window setting per channel
Group: exposurewin_c<0~(n-1)> for n channel products
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
mode auto, custom, blc auto 4/4 The mode indicates how to
decide the exposure.
auto: Use full view as the only
one exposure window.
custom: Use inclusive and
exclusive window.
blc: Use BLC.
win_i<0~9>_enable <boolean> 0 4/4 Enable or disable the window.
win_i<0~9>_policy 0~1 0 4/4 0: Indicate exclusive.
1: Indicate inclusive.
win_i<0~9>_home <coordinate> (110,80) 4/4 Left-top corner coordinate of the
window.
win_i<0~9>_size <window size> (100x75) 4/4 Width and height of the window.
Group: exposurewin_c<0~(n-1)>_profile for m profile and n channel product
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
i<0~(m-1)>_mode auto, custom,
blc
auto 4/4 The mode indicates how to
decide the exposure.
auto: Use full view as the
only one exposure window.
custom: Use inclusive and
exclusive window.
blc: Use BLC.
i<0~(m-1)>_win_i<0~9>_enable <boolean> 0 4/4 Enable or disable the
window.
i<0~(m-1)>_win_i<0~9>_policy 0~1 0 4/4 0: Indicate exclusive.
1: Indicate inclusive.
i<0~(m-1)>_win_i<0~9>_home <coordinate> (110,80) 4/4 Left-top corner coordinate
of the window.
i<0~(m-1)>_win_i<0~9>_size <window size> (100x75) 4/4 Width and height of the
window.
VIVOTEK
User's Manual - 161
7.14 Audio input per channel
Group: audioin_c<0~(n-1)> for n channel products
(capability.audioin>0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
source linein linein 4/4 micin => use built-in microphone
input.
linein => use external microphone
input.
mute 0, 1 1 1/4 Disable audio mute.
gain 0~100 65 4/4 Gain of input.
(audioin_c<0~(n-1)>_source =
linein)
boostmic 0~100 65 4/4 Enable microphone boost.
Gain of input.
(audioin_c<0~(n-1)>_source =
micin)
s<0~(m-1)>_codectype aac4, g711,
g726
g711 4/4 Set audio codec type for input.
s<0~(m-1)>_aac4_bitrate
<product dependent>
16000,
32000,
48000,
64000,
96000,
128000
16000 4/4 Set AAC4 bitrate in bps.
s<0~(m-1)>_g711_mode
<product dependent>
pcmu,
pcma
pcmu 4/4 Set G.711 mode.
s<0~(m-1)>_g726_bitrate 16000,
24000,
32000,
40000
32000 4/4 Set G.726 bitrate in bps.
s<0~(m-1)>_g726
_bitstreampackingmode
little, big little 4/4 Set G.726 bit streaming packing
mode
s<0~(m-1)>_g726
_vlcmode
0, 1 0 4/4 Enable vlcmode for G.726
alarm_enable 0, 1 0 4/4 Enable audio detection
alarm_level 1~100 50 4/4 Audio detection alarm level
profile_i0_enable <boolean> 0 4/4 Enable/disable this profile setting
profile_i0_policy day,
night,
night 4/4 The mode which the profile is
applied to.
VIVOTEK
162 - User's Manual
schedule
profile_i0_begintime hh:mm 18:00 4/4 Begin time of schedule mode.
profile_i0_endtime hh:mm 06:00 4/4 End time of schedule mode.
profile_i0_alarm_level 1~100 50 4/4 Audio detection alarm level
7.15 Motion detection settings
Group: motion_c<0~(n-1)> for n channel product
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 4/4 Enable motion detection.
algorithm advmotion advmotion 4/4 Algorithm type
win_i<0~2>_enable <boolean> 0 4/4 Enable motion window 1~3.
win_i<0~2>_name string[14] <blank> 4/4 Name of motion window 1~3.
win_i<0~2>_left 0 ~ 320 0 4/4 Left coordinate of window position.
win_i<0~2>_top 0 ~ 240 0 4/4 Top coordinate of window position.
win_i<0~2>_width 0 ~ 320 0 4/4 Width of motion detection window.
win_i<0~2>_height 0 ~ 240 0 4/4 Height of motion detection window.
win_i<0~2>_objsize 0 ~ 100 0 4/4 Percent of motion detection window.
win_i<0~2>_sensitivity 0 ~ 100 0 4/4 Sensitivity of motion detection
window.
Group: motion_c<0~(n-1)> profile for m profile and n channel product (capability.nmotionprofile > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
i<0~(m-1)>_enable <boolean> 0 4/4 Enable profile 1 ~
(m-1).
i<0~(m-1)>_policy day,
night,
schedule
night 4/4 The mode which the
profile is applied to.
i<0~(m-1)>_begintime hh:mm 18:00 4/4 Begin time of
schedule mode.
i<0~(m-1)>_endtime hh:mm 06:00 4/4 End time of
schedule mode.
i<0~(m-1)>_win_i<0~2>_enable <boolean> 0 4/4 Enable motion
window.
i<0~(m-1)>_win_i<0~2>_name string[40] <blank> 4/4 Name of motion
window.
i<0~(m-1)>_win_i<0~2>_left 0 ~ 320 0 4/4 Left coordinate of
VIVOTEK
User's Manual - 163
window position.
i<0~(m-1)>_win_i<0~2>_top 0 ~ 240 0 4/4 Top coordinate of
window position.
i<0~(m-1)>_win_i<0~2>_width 0 ~ 320 0 4/4 Width of motion
detection window.
i<0~(m-1)>_win_i<0~2>_height 0 ~ 240 0 4/4 Height of motion
detection window.
i<0~(m-1)>_win_i<0~2>_objsize 0 ~ 100 0 4/4 Percent of motion
detection window.
i<0~(m-1)>_win_i<0~2>_sensitivity 0 ~ 100 0 4/4 Sensitivity of
motion detection
window.
7.16 Tempering detection settings
Group: tampering_c<0~(n-1)> for n channel product
(capability.tampering > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 4/4 Enable or disable tamper detection.
threshold 0 ~ 255 120 1/7 Threshold of tamper detection.
duration 10 ~ 20 2 1/7 If tampering value exceeds the ‘threshold’ for
more than ‘duration’ second(s), then tamper
detection is triggered.
7.17 DDNS
Group: ddns (capability.ddns > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable or disable the dynamic DNS.
provider CustomSafe100,
DyndnsDynamic,
DyndnsCustom,
Safe100
DyndnsDyn
amic
6/6 Safe100 => safe100.net
DyndnsDynamic => dyndns.org
(dynamic)
DyndnsCustom => dyndns.org
CustomSafe100 =>
Custom server using safe100 method
<provider>_ho
stname
string[128] <blank> 6/6 Your DDNS hostname.
<provider>_us string[64] <blank> 6/6 Your user name or email to login to the
VIVOTEK
164 - User's Manual
ernameemail DDNS service provider
<provider>_pa
sswordkey
string[64] <blank> 6/6 Your password or key to login to the
DDNS service provider.
<provider>_se
rvername
string[128] <blank> 6/6 The server name for safe100.
(This field only exists if the provider is
customsafe100)
7.18 Express link
Group: expresslink
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable or disable express link.
state onlycheck,
onlyoffline,
checkonline,
badnetwork
badnetwork 6/6 Camera will check the status of network
environment and express link URL
url string[63] NULL 6/6 The url user define to link to camera
7.19 UPnP presentation
Group: upnppresentation
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 1 6/6 Enable or disable the UPnP
presentation service.
7.20 UPnP port forwarding
Group: upnpportforwarding
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable or disable the UPnP port
forwarding service.
upnpnatstatus 0~3 0 6/7 The status of UPnP port forwarding,
used internally.
0 = OK, 1 = FAIL, 2 = no IGD router, 3 =
no need for port forwarding
VIVOTEK
User's Manual - 165
7.21 System log
Group: syslog
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enableremotelog <boolean> 0 6/6 Enable remote log.
serverip <IP address> <blank> 6/6 Log server IP address.
serverport 514,
1025~65535
514 6/6 Server port used for log.
level 0~7 6 6/6 Levels used to distinguish the
importance of the information:
0: LOG_EMERG
1: LOG_ALERT
2: LOG_CRIT
3: LOG_ERR
4: LOG_WARNING
5: LOG_NOTICE
6: LOG_INFO
7: LOG_DEBUG
setparamlevel 0~2 0 6/6 Show log of parameter setting.
0: disable
1: Show log of parameter setting
set from external.
2. Show log of parameter setting
set from external and internal.
7.22 SNMP
Group: snmp (capability.snmp > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
v2 0~1 0 6/6 SNMP v2 enabled. 0 for disable, 1 for
enable
v3 0~1 0 6/6 SNMP v3 enabled. 0 for disable, 1 for
enable
secnamerw string[31] Private 6/6 Read/write security name
secnamero string[31] Public 6/6 Read only security name
authpwrw string[8~128] <blank> 6/6 Read/write authentication password
VIVOTEK
166 - User's Manual
authpwro string[8~128] <blank> 6/6 Read only authentication password
authtyperw MD5,SHA MD5 6/6 Read/write authentication type
authtypero MD5,SHA MD5 6/6 Read only authentication type
encryptpwrw string[8~128] <blank> 6/6 Read/write passwrd
encryptpwro string[8~128] <blank> 6/6 Read only password
encrypttyperw DES DES 6/6 Read/write encryption type
encrypttypero DES DES 6/6 Read only encryption type
rwcommunity string[31] Private 6/6 Read/write community
rocommunity string[31] Public 6/6 Read only community
syslocation string[128] <blank> 6/6 System location
syscontact string[128] <blank> 6/6 System contact
7.23 Layout configuration
Group: layout (New version)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
logo_default <boolean> 1 1/6 0 => Custom logo
1 => Default logo
logo_link string[64] http://ww
w.vivotek.c
om
1/6 Hyperlink of the logo
logo_powerbyvvtk_hidden <boolean> 0 1/6 0 => display the power by vivotek
logo
1 => hide the power by vivotek
logo
custombutton_manualtrigger_s
how
<product dependent>
<boolean> 1 1/6 Show or hide manual trigger (VI)
button in homepage
0 -> Hidden
1 -> Visible
theme_option 1~4 1 1/6 1~3: One of the default themes.
4: Custom definition.
theme_color_font string[7] #ffffff 1/6 Font color
theme_color_configfont string[7] #ffffff 1/6 Font color of configuration area.
theme_color_titlefont string[7] #098bd6 1/6 Font color of video title.
VIVOTEK
User's Manual - 167
theme_color_controlbackgroun
d
string[7] #565656 1/6 Background color of control area.
theme_color_configbackground string[7] #323232 1/6 Background color of configuration
area.
theme_color_videobackground string[7] #565656 1/6 Background color of video area.
theme_color_case string[7] #323232 1/6 Frame color
7.24 Privacy mask
Group: privacymask_c<0~(n-1)> for n channel product
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 4/4 Enable privacy mask.
win_i<0~4>_enable <boolean> 0 4/4 Enable privacy mask window.
win_i<0~4>_name string[40] <blank> 4/4 Name of the privacy mask
window.
win_i<0~4>_left 0 ~ 320 0 4/4 Left coordinate of window
position.
win_i<0~4>_top 0 ~ 240 0 4/4 Top coordinate of window
position.
win_i<0~4>_width 0 ~ 320 0 4/4 Width of privacy mask window.
win_i<0~4>_height 0 ~ 240 0 4/4 Height of privacy mask window.
VIVOTEK
168 - User's Manual
7.25 Capability
Group: capability
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
api_httpversion <string> 0300a 0/7 The HTTP API version.
bootuptime <positive
integer>
60 0/7 Server bootup time.
nir 0,
<positive
integer>
1 0/7 Number of IR interfaces.
npir 0,
<positive
integer>
0 0/7 Number of PIRs.
ndi 0,
<positive
integer>
1 0/7 Number of digital inputs.
nvi 0,
<positive
integer>
3 0/7 Number of virtual inputs
(manual trigger)
ndo 0,
<positive
integer>
1 0/7 Number of digital outputs.
naudioin 0,
<positive
integer>
1 0/7 Number of audio inputs.
naudioout 0,
<positive
integer>
1 0/7 Number of audio outputs.
nvideoin <positive
integer>
1 0/7 Number of video inputs.
nvideoinprofile <positive
integer>
1 0/7 Number of video input
profiles.
nmediastream <positive
integer>
2 0/7 Number of media stream per
channels.
naudiosetting <positive
integer>
1 0/7 Number of audio settings per
channel.
nuart 0,
<positive
0 0/7 Number of UART interfaces.
VIVOTEK
User's Manual - 169
integer>
nmotion <positive
integer>
3 0/7 Number of motions
nmotionprofile 0, <positive
integer>
1 0/7 Number of motion profiles.
ptzenabled 0, <positive
integer>
0 0/7 An 32-bit integer, each bit
can be set separately as
follows:
Bit 0 => Support camera
control function;
0(not support), 1(support)
Bit 1 => Built-in or external
camera;
0(external), 1(built-in)
Bit 2 => Support pan
operation, 0(not support),
1(support)
Bit 3 => Support tilt
operation; 0(not support),
1(support)
Bit 4 => Support zoom
operation;
0(not support), 1(support)
Bit 5 => Support focus
operation;
0(not support), 1(support)
Bit 6 => Support iris
operation;
0(not support), 1(support)
Bit 7 => External or built-in
PT; 0(built-in), 1(external)
Bit 8 => Invalidate bit 1 ~ 7;
0(bit 1 ~ 7 are valid),
1(bit 1 ~ 7 are invalid)
Bit 9 => Reserved bit;
Invalidate lens_pan,
Lens_tilt, lens_zoon,
lens_focus, len_iris.
0(fields are valid),
1(fields are invalid)
VIVOTEK
170 - User's Manual
evctrlchannel <boolean> 1 0/7 Indicate whether to support
HTTP tunnel for
event/control transfer.
joystick <boolean> 1 0/7 Indicate whether to support
joystick control.
remotefocus <boolean> 1 0/7 Indicate whether to support
remote focus function.
storage_dbenabled <boolean> 1 0/7 Media files are indexed in
database.
protocol_https < boolean > 1 0/7 Indicate whether to support
HTTP over SSL.
protocol_rtsp < boolean > 1 0/7 Indicate whether to support
RT S P.
protocol_sip <boolean> 1 0/7 Indicate whether to support
S I P.
protocol_maxconnection <positive
integer>
10 0/7 The maximum allowed
simultaneous connections.
protocol_maxgenconnection <positive
integer>
10 0/7 The maximum general
streaming connections .
protocol_rtp_multicast_
scalable
<boolean> 1 0/7 Indicate whether to support
scalable multicast.
protocol_rtp_multicast_
backchannel
<boolean> 1 0/7 Indicate whether to support
backchannel multicast.
protocol_rtp_tcp <boolean> 1 0/7 Indicate whether to support
RTP over TCP.
protocol_rtp_http <boolean> 1 0/7 Indicate whether to support
RTP over HTTP.
protocol_spush_mjpeg <boolean> 1 0/7 Indicate whether to support
server push MJPEG.
protocol_snmp <boolean> 1 0/7 Indicate whether to support
SNMP.
protocol_ipv6 <boolean> 1 0/7 Indicate whether to support
IPv6.
protocol_pppoe <boolean> 1 0/7 Indicate whether to support
PPPoE.
protocol_ieee8021x <boolean> 1 0/7 Indicate whether to support
IEEE802.1x.
protocol_qos_cos <boolean> 1 0/7 Indicate whether to support
CoS.
VIVOTEK
User's Manual - 171
protocol_qos_dscp <boolean> 1 0/7 Indicate whether to support
QoS/DSCP.
protocol_ddns <boolean> 1 0/7 Indicate whether to support
DDNS.
videoin_type 0, 1, 2 2 0/7 0 => Interlaced CCD
1 => Progressive CCD
2 => CMOS
videoin_c0_mode <Integer> 0 0/7 Indicate current video mode.
0:Dual stream mode (Max.
30fps)
1: Video rotation mode (Max.
30fps)
2: Single stream mode (Max.
60fps)
videoin_c0_nmode <Integer> 3 0/7 Indicate how many video
modes supported by this
channel.
videoin_c0_rotation <boolean> 0 0/7 Indicate current mode
whether support video
rotation
videoin_c0_nresolution <positive
integer>
FD8365:
7
FD8355:
8
0/7 Number of videoin
resolution.
videoin_c0_resolution <a list of
available
resolution
separated by
commas>
<product
dependent>
FD8365:
176x144,
384x216,
640x360,
1280x720
,
1360x768
,1600x90
4,
1920x108
0
FD8355:
176x144,
320x240,
0/7 Available resolutions list.
VIVOTEK
172 - User's Manual
640x480,
720x480,
800x600,
960x768,
1280x720
,1280x10
24
videoin_c0_maxsize <WxH> FD8365:
1920x108
0
FD8355:
1280x102
4
0/7 The maximum resolution of
this channel, the unit is pixel.
videoin_c0_mode0_rotation <boolean> 0 0/7 Indicate this mode whether
support video rotation
videoin_c0_mode0_effectivepixel <WxH> FD8365:
1920x108
0
FD8355:
1280x102
4
0/7 The visible area of full scene
in this video mode.
The unit is pixel in source.
* This value must <=
"capability_videoin_c<n>_m
axsize"
* If "effectivepixel" <
"capability_videoin_c<n>_m
axsize", then the visible area
is located at the center of full
scene.
videoin_c0_mode0_outputsize <WxH> FD8365:
1920x108
0
FD8355:
1280x102
4
0/7 The output size of source,
equal to the captured size by
device, in this video mode.
The unit is pixel.
This value is used as a basic
coordinate system for many
features, like ePTZ, privacy
mask, motion, etc.
* Source (most for image
sensor) may perform scale or
binning, etc on image data,
and output data with smaller
VIVOTEK
User's Manual - 173
size. This parameter is
designed to represent this.
videoin_c0_mode0_binning binning 0 0/7 Indicate binning is used or
not in this video mode.
0: No binning
1: 2x2 binning
3: 3x3 binning
videoin_c0_mode0_nresolution <positive
integer>
FD8365:
7
FD8355:
8
0/7 Available resolutions list.
videoin_c0_mode0_resolution <a list of
available
resolution
separated by
commas>
<product
dependent>
FD8365:
176x144,
384x216,
640x360,
1280x720
,
1360x768
,1600x90
4,1920x1
080
FD8355:
176x144,
320x240,
640x480,
720x480,
800x600,
960x768,
1280x720
,1280x10
24
0/7 Available resolutions list.
videoin_c0_mode0_maxframerate A list of
<Positive
Integer>
FD8365:
30,30,30,
30,30,30,
30
FD8355:
30,30,30,
30,30,30,
30,30
0/7 Indicate how many frame
rate image sensor outputs in
this video mode.
* One to one mapping to the
resolution in "resolution".
* The element number is
defined as "nresolution" in
this group.
VIVOTEK
174 - User's Manual
* This parameter records the
frame rate when
"videoin_c<n>_cmosfreq"=
60 or
"videoin_c<n>_modulation"
=ntsc
videoin_c0_mode0_maxfps_mjpeg <Integer> FD8365:
30,30,30,
30,30,30,
30
FD8355:
30,30,30,
30,30,30,
30
30
0/7 Maximum fps that the device
can encode
videoin_c0_mode0_maxfps_h264 <Integer> FD8365:
30,30,30,
30,30,30,
30
FD8355:
30,30,30,
30,30,30,
30
30
0/7 Maximum fps that the device
can encode
videoin_c0_mode0_description <String[128]> Dual
Stream
(Max.
30fps)
0/7 Description about this mode
videoin_c0_mode1_rotation <boolean> 1 0/7 Indicate this mode whether
support video rotation
videoin_c0_mode1_effectivepixel <WxH> FD8365:
1920x108
0
FD8355:
1280x102
4
0/7 The visible area of full scene
in this video mode.
The unit is pixel in source.
* This value must <=
"capability_videoin_c<n>_m
axsize"
* If "effectivepixel" <
"capability_videoin_c<n>_m
axsize", then the visible area
VIVOTEK
User's Manual - 175
is located at the center of full
scene.
videoin_c0_mode1_outputsize <WxH> FD8365:
1920x108
0
FD8355:
1280x102
4
0/7 The output size of source,
equal to the captured size by
device, in this video mode.
The unit is pixel.
This value is used as a basic
coordinate system for many
features, like ePTZ, privacy
mask, motion, etc.
* Source (most for image
sensor) may perform scale or
binning, etc on image data,
and output data with smaller
size. This parameter is
designed to represent this.
videoin_c0_mode1_binning binning 0 0/7 Indicate binning is used or
not in this video mode.
0: No binning
1: 2x2 binning
3: 3x3 binning
videoin_c0_mode1_nresolution <positive
integer>
FD8365:
7
FD8355:
8
0/7 Available resolutions list.
videoin_c0_mode1_resolution <a list of
available
resolution
separated by
commas>
<product
dependent>
FD8365:
176x144,
384x216,
640x360,
1280x720
,
1360x768
,1600x90
4,1920x1
080
FD8355:
176x144,
320x240,
640x480,
0/7 Available resolutions list.
VIVOTEK
176 - User's Manual
720x480,
800x600,
960x768,
1280x720
,1280x10
24
videoin_c0_mode1_maxframerate A list of
<Positive
Integer>
FD8365:
30,30,30,
30,30,30,
30
FD8355:
30,30,30,
30,30,30,
30,30
0/7 Indicate how many frame
rate image sensor outputs in
this video mode.
* One to one mapping to the
resolution in "resolution".
* The element number is
defined as "nresolution" in
this group.
* This parameter records the
frame rate when
"videoin_c<n>_cmosfreq"=
60 or
"videoin_c<n>_modulation"
=ntsc
videoin_c0_mode1_maxfps_mjpeg <Integer> FD8365:
30,30,30,
30,30,30,
30
FD8355:
30,30,30,
30,30,30,
30
30
0/7 Maximum fps that the device
can encode
videoin_c0_mode1_maxfps_h264 <Integer> FD8365:
30,30,30,
30,30,30,
30
FD8355:
30,30,30,
30,30,30,
30
30
0/7 Maximum fps that the device
can encode
videoin_c0_mode1_description <String[128]> Video 0/7 Description about this mode
VIVOTEK
User's Manual - 177
Rotation
(Max.
30fps)
videoin_c0_mode2_rotation <boolean> 0 0/7 Indicate this mode whether
support video rotation
videoin_c0_mode2_effectivepixel <WxH> FD8365:
1920x108
0
FD8355:
1280x102
4
0/7 The visible area of full scene
in this video mode.
The unit is pixel in source.
* This value must <=
"capability_videoin_c<n>_m
axsize"
* If "effectivepixel" <
"capability_videoin_c<n>_m
axsize", then the visible area
is located at the center of full
scene.
videoin_c0_mode2_outputsize <WxH> FD8365:
1920x108
0
FD8355:
1280x102
4
0/7 The output size of source,
equal to the captured size by
device, in this video mode.
The unit is pixel.
This value is used as a basic
coordinate system for many
features, like ePTZ, privacy
mask, motion, etc.
* Source (most for image
sensor) may perform scale or
binning, etc on image data,
and output data with smaller
size. This parameter is
designed to represent this.
videoin_c0_mode2_binning binning 0 0/7 Indicate binning is used or
not in this video mode.
0: No binning
1: 2x2 binning
3: 3x3 binning
videoin_c0_mode2_nresolution <positive
integer>
FD8365:
7
FD8355:
0/7 Available resolutions list.
VIVOTEK
178 - User's Manual
8
videoin_c0_mode2_resolution <a list of
available
resolution
separated by
commas>
<product
dependent>
FD8365:
176x144,
384x216,
640x360,
1280x720
,
1360x768
,1600x90
4,1920x1
080
FD8355:
176x144,
320x240,
640x480,
720x480,
800x600,
960x768,
1280x720
,1280x10
24
0/7 Available resolutions list.
videoin_c0_mode2_maxframerate A list of
<Positive
Integer>
FD8365:
60,60,60,
60,60,60,
60
FD8355:
60,60,60,
60,60,60,
60,60
0/7 Indicate how many frame
rate image sensor outputs in
this video mode.
* One to one mapping to the
resolution in "resolution".
* The element number is
defined as "nresolution" in
this group.
* This parameter records the
frame rate when
"videoin_c<n>_cmosfreq"=
60 or
"videoin_c<n>_modulation"
=ntsc
videoin_c0_mode2_maxfps_mjpeg <Integer> FD8365:
60,60,60,
60,60,60,
60
0/7 Maximum fps that the device
can encode
VIVOTEK
User's Manual - 179
FD8355:
60,60,60,
60,60,60,
60,60
videoin_c0_mode2_maxfps_h264 <Integer> FD8365:
60,60,60,
60,60,60,
60
FD8355:
60,60,60,
60,60,60,
60,60
0/7 Maximum fps that the device
can encode
videoin_c0_mode2_description <String[128]> Single
Stream
(Max.
60fps)
0/7 Description about this mode
videoin_flexiblebitrate <boolean> 1 0/7 Indicate whether to support
flexible bit rate control.
audio_aec <boolean> 0 0/7 Indicate whether to support
acoustic echo cancellation.
audio_mic <boolean> 0 0/7 Indicate whether to support
built-in microphone input.
audio_extmic <boolean> 1 0/7 Indicate whether to support
external microphone input.
audio_linein <boolean> 1 0/7 Indicate whether to support
external line input.
(It will be replaced by
audio_mic and
audio_extmic.)
audio_lineout <boolean> 1 0/7 Indicate whether to support
line output.
audio_headphoneout <boolean> 0 0/7 Indicate whether to support
headphone output.
audioin_codec aac4, g711,
g726
aac4,
g711,
g726
0/7 Available codec list for audio
input.
audioout_codec N/A N/A 0/7 Available codec list for SIP.
camctrl_httptunnel <boolean> 0 0/7 Indicate whether to support
VIVOTEK
180 - User's Manual
httptunnel.
camctrl_privilege <boolean> 1 0/7 Indicate whether to support
“Manage Privilege” of PTZ
control in the Security page.
1: support both
/cgi-bin/camctrl/camctrl.cgi
and
/cgi-bin/viewer/camctrl.cgi
0: support only
/cgi-bin/viewer/camctrl.cgi
uart_httptunnel <boolean> 0 0/7 Indicate whether to support
HTTP tunnel for UART
transfer.
transmission_mode Tx,
Rx,
Both
Tx 0/7 Indicate transmission mode
of the machine: TX = server,
Rx = receiver box, Both =
DVR.
network_wire <boolean> 1 0/7 Indicate whether to support
Ethernet.
network_wireless <boolean> 0 0/7 Indicate whether to support
wireless.
wireless_s802dot11b <boolean> 0 0/7 Indicate whether to support
wireless 802.11b+.
wireless_s802dot11g <boolean> 0 0/7 Indicate whether to support
wireless 802.11g.
wireless_s802dot11n <boolean> 0 0/7 Indicate whether to support
wireless 802.11n.
wireless_beginchannel 1 ~ 14 N/A 0/7 Indicate the begin channel of
wireless network
wireless_endchannel 1 ~ 14 N/A 0/7 Indicate the end channel of
wireless network
wireless_encrypt_wep <boolean> 0 0/7 Indicate whether to support
wireless WEP.
wireless_encrypt_wpa <boolean> 0 0/7 Indicate whether to support
wireless WPA.
wireless_encrypt_wpa2 <boolean> 0 0/7 Indicate whether to support
wireless WPA2.
derivative_brand <boolean> 1 0/7 Indicate whether to support
the upgrade function for the
VIVOTEK
User's Manual - 181
derivative brand. For
example, if the value is true,
the VVTK product can be
upgraded to VVXX.
(TCVV<->TCXX is excepted)
npreset 0, <positive
integer>
20 0/7 Number of preset locations
eptz 0, <positive
integer>
3 0/7 A 32-bit integer, each bit can
be set separately as follows:
Bit 0 => stream 1 supports
ePTZ or not.
Bit 1 => stream 2 supports
ePTZ or not.
The rest may be deduced by
analogy
nanystream 0, <positive
integer>
0 0/7 number of any media stream
per channel
iva <boolean> 0 0/7 Indicate whether to support
Intelligent Video analysis
tampering <boolean> 1 0/7 Indicate whether to support
tampering detection.
version_onvifdaemon <string> 1.7.1.4 0/7 Indicate ONVIF daemon
version
media_totalspace <positive
integer>
20000 0/7 Available memory space (KB)
for media.
media_snapshot_sizepersecond <positive
integer>
800 0/7 Maximum size (KB) of one
snapshot image.
media_snapshot_maxpreevent <positive
integer>
7 0/7 Maximum snapshot number
before event occurred.
media_snapshot_maxpostevent <positive
integer>
7 0/7 Maximum snapshot number
after event occurred.
media_videoclip_maxsize <positive
integer>
3072 0/7 Maximum size (KB) of a
videoclip.
media_videoclip_maxlength <positive
integer>
20 0/7 Maximum length (second) of
a videoclip.
media_videoclip_maxpreevent <positive
integer>
9 0/7 Maximum duration (second)
after event occurred in a
videoclip.
image_wdrc <Boolean> 0 0/7 Indicate whether to support
WDR enhanced.
VIVOTEK
182 - User's Manual
image_iristype <string> piris 0/7 Indicate iris type.
image_focusassist <Boolean> 0 0/7 Indicate whether to support
focus assist.
localstorage_manageable <boolean> 1 0/7 Indicate whether
manageable local storage is
supported.
localstorage_seamless <boolean> 1 0/7 Indicate whether seamless
recording is supported.
localstorage_modnum 0,
<positive
integer>
4 0/7 The maximum MOD
connection numbers.
localstorage_slconnum 0,
<positive
integer>
1 0/7 The maximum seamless
connection number.
adaptiverecording <boolean> 1 0/7 Indicate whether to support
adaptive recording.
adaptivestreaming <boolean> 1 0/7 Indicate whether to support
adaptive streaming.
vadp <positive
integer>
0 0/7 An 32-bit integer, each bit
can be set separately as
follows:
Bit 0 => VADP interface
Bit 1 => Capture video raw
data
Bit 2 => Support encode
jpeg
Bit 3 => Audio
Bit 4 => Event
7.26 Customized event script
Group: event_customtaskfile_i<0~2>
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
name string[40] <blank> 6/6 Custom script identification of this entry.
date string[4~20] <blank> 6/6 Date of custom script.
time string[4~20] <blank> 6/6 Time of custom script.
VIVOTEK
User's Manual - 183
7.27 Event setting
Group: event_i<0~2>
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
name string[40] <blank> 6/6 Identification of this entry.
enable 0, 1 0 6/6 Enable or disable this event.
priority 0, 1, 2 1 6/6 Indicate the priority of this event:
“0” = low priority
“1” = normal priority
“2” = high priority
delay 1~999 10 6/6 Delay in seconds before detecting the
next event.
trigger boot,
di,
motion,
seq,
recnotify,
tampering,
vi,
volalarm
boot 6/6 Indicate the trigger condition:
“boot” = System boot
“di”= Digital input
“motion” = Video motion detection
“seq” = Periodic condition
“visignal” = Video input signal loss.
“recnotify” = Recording notification.
“tampering” = Tamper detection.
“vi”= Virtual input (Manual trigger)
“volalarm”= Audio detection
triggerstatus String[40] trigger 6/6 The status for event trigger
exttriggerstatus trigger,
normal~trigger
,
trigger~norma
l
<blank> 6/6 The status for event DI 1 trigger
exttriggerstatus1 trigger,
normal~trigger
,
trigger~norma
l
<blank> 6/6 The status for event audio detection
profile trigger
VIVOTEK
184 - User's Manual
di <integer> 1 6/6 Indicate the source id of di trigger.
This field is required when trigger
condition is “di”.
One bit represents one digital input.
T
he
LSB indicates DI 0.
mdwin <integer> 0 6/6 Indicate the source window id of motion
detection.
This field is required when trigger
condition is “md”.
One bit represents one window.
The LSB indicates the 1
st
window.
For example, to detect the 1
st
and 3
rd
windows, set mdwin as 5.
mdwin0 <integer> 0 6/6 Similar to mdwin. The parameter takes
effect when profile 1 of motion detection
is enabled.
vi <integer> 0 6/6 Indicate the source id of vi trigger.
This field is required when trigger
condition is “vi”.
One bit represents one digital input. The
LSB indicates VI 0.
valevel 0,1 0 6/6 Select audio detection event.
0: not select
1: select
valevel0 0,1 0 6/6 Select audio detection profile event.
0: not select
1: select
inter 1~999 1 6/6 Interval of snapshots in minutes.
This field is used when trigger condition
is “seq”.
VIVOTEK
User's Manual - 185
weekday 0~127 127 6/6 Indicate which weekday is scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on Friday
and Sunday, set weekday as 66.
begintime hh:mm 00:00 6/6 Begin time of the weekly schedule.
endtime hh:mm 24:00 6/6 End time of the weekly schedule.
(00:00 ~ 24:00 sets schedule as always
on)
lowlightcondition
<product dependent>
0, 1 1 6/6 Switch on white light LED in low light
condition
0 => Do action at all times
1 => Do action in low-light conditions
action_do_i<0~(ndo-1)
>_enable
0, 1 0 6/6 Enable or disable trigger digital output.
action_do_i<0~(ndo-1)
>_duration
1~999 1 6/6 Duration of the digital output trigger in
seconds.
action_cf_enable <Boolean> 0 6/6 Enable or disable sending media to SD
card.
action_cf_folder string[128] <blank> 6/6 Path to store media.
action_cf_media NULL, 0~4,101 <blank> 6/6 Index of the attached media.
action_cf_datefolder <boolean> 1 6/6 Enable this to create folders by date,
time, and hour automatically.
action_cf_backup <Boolean> 0 6/6 Enable or disable the function that send
media to SD card for backup if network is
disconnected.
action_server_i<0~4>_e
nable
0, 1 0 6/6 Enable or disable this server action.
action_server_i<0~4>_
media
NULL, 0~4,101 <blank> 6/6 Index of the attached media.
101 means “Recording Notify”
action_server_i<0~4>_
datefolder
<boolean> 0 6/6 Enable this to create folders by date,
time, and hour automatically.
VIVOTEK
186 - User's Manual
7.28 Server setting for event action
Group: server_i<0~4>
PARAMETER VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Identification of this entry
type email,
ftp,
http,
ns
email 6/6 Indicate the server type:
“email” = email server
“ftp” = FTP server
“http” = HTTP server
“ns” = network storage
http_url string[128] http:// 6/6 URL of the HTTP server to upload.
http_username string[64] NULL 6/6 Username to log in to the server.
http_passwd string[64] NULL 6/6 Password of the user.
ftp_address string[128] NULL 6/6 FTP server address.
ftp_username string[64] NULL 6/6 Username to log in to the server.
ftp_passwd string[64] NULL 6/6 Password of the user.
ftp_port 0~65535 21 6/6 Port to connect to the server.
ftp_location string[128] NULL 6/6 Location to upload or store the media.
ftp_passive 0, 1 1 6/6 Enable or disable passive mode.
0 = disable passive mode
1 = enable passive mode
email_address string[128] NULL 6/6 Email server address.
email_sslmode 0, 1 0 6/6 Enable support SSL.
email_port 0~65535 25 6/6 Port to connect to the server.
email_username string[64] NULL 6/6 Username to log in to the server.
email_passwd string[64] NULL 6/6 Password of the user.
email_senderemail string[128] NULL 6/6 Email address of the sender.
email_recipientemail string[640] NULL 6/6 Email address of the recipient.
ns_location string[128] NULL 6/6 Location to upload or store the media.
ns_username string[64] NULL 6/6 Username to log in to the server.
ns_passwd string[64] NULL 6/6 Password of the user.
ns_workgroup string[64] NULL 6/6 Workgroup for network storage.
VIVOTEK
User's Manual - 187
7.29 Media setting for event action
Group: media_i<0~4> (media_freespace is used internally.)
PARAMETER VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Identification of this entry
type snapshot,
systemlog,
videoclip,
recordmsg
snapshot 6/6 Media type to send to the server or store
on the server.
snapshot_source <integer> 0 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
snapshot_prefix string[16] Snapshot[n]_ 6/6 Indicate the prefix of the filename.
media_i0=> Snapshot1_
media_i1=> Snapshot2_
media_i2=> Snapshot3_
media_i3=> Snapshot4_
media_i4=> Snapshot5_
snapshot_datesuffix 0, 1 0 6/6 Add date and time suffix to filename:
1 = Add date and time suffix.
0 = Do not add.
snapshot_preevent 0 ~ 7 1 6/6 Indicates the number of pre-event
images.
snapshot_postevent 0 ~ 7 1 6/6 The number of post-event images.
videoclip_source <integer> 0 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
videoclip_prefix string[16] VideoClip[n]_ 6/6 Indicate the prefix of the filename.
videoclip_preevent 0 ~ 9 0 6/6 Indicates the time for pre-event
recording in seconds.
videoclip_maxduration 1 ~ 20 5 6/6 Maximum duration of one video clip in
seconds.
videoclip_maxsize 50 ~ 3072 500 6/6 Maximum size of one video clip file in
Kbytes.
VIVOTEK
188 - User's Manual
7.30 Recording
Group: recording_i<0~1>
PARAMETER VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Identification of this entry.
trigger schedule,
networkfail
schedule 6/6 The event trigger type
schedule: The event is triggered by
schedule
networkfail: The event is triggered by the
failure of network connection.
enable 0, 1 0 6/6 Enable or disable this recording.
priority 0, 1, 2 1 6/6 Indicate the priority of this recording:
“0” indicates low priority.
“1” indicates normal priority.
“2” indicates high priority.
source 0~2 0 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and so on.
limitsize 0,1 0 6/6 0: Entire free space mechanism
1: Limit recording size mechanism
cyclic 0,1 0 6/6 0: Disable cyclic recording
1: Enable cyclic recording
notify 0,1 1 6/6 0: Disable recording notification
1: Enable recording notification
notifyserver 0~31 0 6/6 Indicate which notification server is
scheduled.
One bit represents one application server
(server_i0~i4).
bit0 (LSB) = server_i0.
bit1 = server_i1.
bit2 = server_i2.
bit3 = server_i3.
bit4 = server_i4.
For example, enable server_i0,
server_i2, and server_i4 as notification
servers; the notifyserver value is 21.
VIVOTEK
User's Manual - 189
weekday 0~127 127 6/6 Indicate which weekday is scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on Friday
and Sunday, set weekday as 66.
begintime hh:mm 00:00 6/6 Start time of the weekly schedule.
endtime hh:mm 24:00 6/6 End time of the weekly schedule.
(00:00~24:00 indicates schedule always
on)
prefix string[16] <blank> 6/6 Indicate the prefix of the filename.
cyclesize 200~ 100 6/6
T
he maximum size for cycle recording in
Kbytes when choosing to limit recording
size.
reserveamount 0~ 100 6/6 The reserved amount in Mbytes when
choosing cyclic recording mechanism.
dest cf,
0~4
cf 6/6 The destination to store the recorded
data.
“cf” means local storage (CF or SD card).
“0” means the index of the network
storage.
cffolder string[128] NULL 6/6 Folder name.
maxsize
<product dependent>
100~2000 100 6/6 Unit: Mega bytes.
When this condition is reached, recording
file is truncated.
maxduration
<product dependent>
60~3600 60 6/6 Uuit: Second
When this condition is reached, recording
file is truncated.
adaptive_enable
<product dependent>
0,1 0 6/6 Indicate whether the adaptive recording
is enabled
adaptive_preevent
<product dependent>
0~9 5 6/6 Indicate when is the adaptive recording
started before the event trigger point
(seconds)
VIVOTEK
190 - User's Manual
adaptive_postevent
<product dependent>
0~10 5 6/6 Indicate when is the adaptive recording
stopped after the event trigger point
(seconds)
7.31 HTTPS
Group: https (capability.protocol.https > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 To enable or disable secure HTTP.
policy <Boolean> 0 6/6 If the value is 1, it will force HTTP
connection redirect to HTTPS
connection
method auto,
manual,
install
auto 6/6 auto => Create self-signed
certificate automatically.
manual => Create self-signed
certificate manually.
install => Create certificate
request and install.
status -3 ~ 1 0 6/6 Specify the https status.
-3 = Certificate not installed
-2 = Invalid public key
-1 = Waiting for certificate
0 = Not installed
1 = Active
countryname string[2] TW 6/6 Country name in the certificate
information.
stateorprovincename string[128] Asia 6/6 State or province name in the
certificate information.
localityname string[128] Asia 6/6 The locality name in the certificate
information.
organizationname string[64] VIVOTEK Inc. 6/6 Organization name in the
certificate information.
unit string[32] VIVOTEK Inc. 6/6 Organizational unit name in the
certificate information.
commonname string[64] www.vivotek.
com
6/6 Common name in the certificate
information.
validdays 0 ~ 3650 3650 6/6 Valid period for the certification.
VIVOTEK
User's Manual - 191
7.32 Storage management setting
Currently it’s for local storage (SD, CF card)
Group: disk_i<0~(n-1)> n is the total number of storage devices.
(capability.storage.dbenabled > 0)
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
cyclic_enabled <boolean> 0 6/6 Enable cyclic storage method.
autocleanup_enabled <boolean> 0 6/6 Enable automatic clean up method.
Expired and not locked media files will be
deleted.
autocleanup_maxage <positive
integer>
7 6/6 To specify the expired days for automatic
clean up.
7.33 Region of interest
Group: roi_c<0~(n-1)> for n channel product, and m is the number of streams which support ROI.
(capability.eptz > 0)
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
s<0~(m-1)>_home <coordinate> <product
dependent>
1/6 ROI left-top corner coordinate.
s<0~(m-1)>_size <window size> <product
dependent>
1/6 ROI width and height. The width value
must be multiples of 16 and the height
value must be multiples of 8
7.34 ePTZ setting
Group: eptz_c<0~(n-1)> for n channel product.
(capability.eptz > 0)
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
osdzoom <boolean> 1 1/4 Indicates multiple of zoom in is
“on-screen display” or not
smooth <boolean> 1 1/4 Enable the ePTZ "move smoothly"
feature
tiltspeed -5 ~ 5 0 1/7 Tilt speed
(It should be set by eCamCtrl.cgi rather
than by setparam.cgi.)
VIVOTEK
192 - User's Manual
panspeed -5 ~ 5 0 1/7 Pan speed
(It should be set by eCamCtrl.cgi rather
than by setparam.cgi.)
zoomspeed -5 ~ 5 0 1/7 Zoom speed
(It should be set by eCamCtrl.cgi rather
than by setparam.cgi.)
autospeed 1 ~ 5 1 1/7 Auto pan/patrol speed
(It should be set by eCamCtrl.cgi rather
than by setparam.cgi.)
Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product and m is the number of streams which support
ePTZ. (capability.eptz > 0)
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
patrolseq string[120] <blank> 1/4 The patrol sequence of ePTZ. All the
patrol position indexes will be separated
by ","
patroldwelling string[160] <blank> 1/4 The dwelling time (unit: second) of each
patrol point, separated by “,”.
preset_i<0~19>_name string[40] <blank> 1/7 Name of ePTZ preset.
(It should be set by ePreset.cgi rather
than by setparam.cgi.)
preset_i<0~19>_pos <coordinate> <blank> 1/7 Left-top corner coordinate of the preset.
(It should be set by ePreset.cgi rather
than by setparam.cgi.)
preset_i<0~19>_size <window size> <blank> 1/7 Width and height of the preset.
(It should be set by ePreset.cgi rather
than by setparam.cgi.)
7.35 Focus Window setting
Group: focuswindow_c<0~(n-1)> for n channel product.
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
win_i0_enable <boolean> 0 4/4 Enable or disable the window.
win_i0_home FD8365:
(0~1728, 0~936)
FD8355:
(0~1088, 0~880)
FD8365:
(864, 468)
FD8355:
(544, 440)
4/4 Left-top corner coordinate of the window.
VIVOTEK
User's Manual - 193
win_i0_size FD8365:
(192~1920, 144~1080)
FD8355:
(192~1280, 144~1024)
(192x144) 4/4 Width and height of the window.
7.36 Exposure window setting per channel
Group: exposurewin_c<0~(n-1)> for n channel products
<product dependent>
(capability_videoin_supportexpwin = 1)
NAME VALUE DEFAULT
SECURITY
(get/set)
DESCRIPTION
mode auto, custom, blc auto 4/4
The mode indicates how to
decide the exposure.
auto: Use full view as the only
one exposure window.
custom: Use inclusive and
exclusive window.
blc: Use BLC.
win_i<0~9>_enable <boolean> 0 4/4 Enable or disable the window.
win_i<0~9>_policy 0~1 0 4/4
0: Indicate exclusive.
1: Indicate inclusive.
win_i<0~9>_home (0~320, 0~240) (110,80) 4/4
Left-top corner coordinate of the
window.
win_i<0~9>_size (0~320, 0~240) (100x75) 4/4 Width and height of the window.
Group: exposurewin_c<0~(n-1)>_profile for m profile and n channel product
(capability_videoin_supportexpwin = 1)
NAME VALUE DEFAULT
SECURITY
(get/set)
DESCRIPTION
i<0~(m-1)>_mode auto, custom,
blc
auto 4/4
The mode indicates how to
decide the exposure.
auto: Use full view as the
only one exposure window.
custom: Use inclusive and
exclusive window.
blc: Use BLC.
i<0~(m-1)>_win_i<0~9>_enabl
e
<boolean> 0 4/4
Enable or disable the
window.
i<0~(m-1)>_win_i<0~9>_policy 0~1 0 4/4
0: Indicate exclusive.
1: Indicate inclusive.
VIVOTEK
194 - User's Manual
i<0~(m-1)>_win_i<0~9>_home (0~320, 0~240) (110,80) 4/4
Left-top corner coordinate
of the window.
i<0~(m-1)>_win_i<0~9>_size (0~320, 0~240) (100x75) 4/4
Width and height of the
window.
7.37 Seamless recording setting
Group: seamlessrecording (capability.localstorage.seamless > 0)
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
diskmode seamless,
manageable
seamless 1/6 “seamless” indicates enable seamless
recording.
“manageable” indicates disable seamless
recording.
maxconnection 3 3 1/6 Maximum number of connected
seamless streaming.
stream 1~4 1 1/6 (Internal used, read only)
output 0~3 2 1/6 (Internal used, read only)
enable <boolean> 0 1/6 Indicate whether seamless recording is
recording to local storage or not at
present.
(Read only)
guid<0~2>_id string[127] <blank> 1/6 The connected seamless streaming ID.
(Read only)
guid<0~2>_number 0~3 0 1/6 Number of connected seamless
streaming with guid<0~2>_id.
(Read only)
7.38 VIVOTEK Application Development Platform setting
Group: vadp
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
version <string> <product
dependent>
6/7 Indicate the VADP version.
resource_total_memory <integer> <product
dependent>
6/7 Indicate total available memory
size for VADP modules.
resource_total_storage <integer> <product
dependent>
6/7 Indicate total size of the
internal storage space for
VIVOTEK
User's Manual - 195
storing VADP modules.
resource_free_memory <integer> <product
dependent>
6/7 Indicate free memory size for
VADP modules.
resource_free_storage <integer> <product
dependent>
6/7 Indicate current free storage
size for uploading VADP
modules.
module_number <integer> 0 6/7 Record the total module
number that already stored in
the system.
module_order
string[40]
<blank> 6/6 The execution order of the
enabled modules.
module_save2sd <boolean> <product
dependent>
6/6 Indicate if the module should
be saved to SD card when user
want to upload it.
If the value is false, save
module to the internal storage
space and it will occupy storage
size.
number
string[128]
<product
dependent>
6/7 This number is used to register
license key for VADP
application.
Group: vadp_module_i<0~(n-1)>
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Indicate if the module is
enabled or not.
If yes, also add the index of this
module to the module_order.
name
string[40]
<blank> 6/6 Module name
url
string[120]
<blank> 6/6 Define the URL string after the
IP address if the module
provides it own web page.
vender
string[40]
<blank> 6/6 The provider of the module.
vendorurl
string[120]
<blank> 6/6 URL of the vendor.
version
string[40]
<blank> 6/6 Version of the module.
license
string[40]
<blank> 6/6 Indicate the license status of
the module.
licmsg
string[128]
<blank> 6/6 Indicate the message that will
VIVOTEK
196 - User's Manual
be show on license status when
mouse over.
path
string[40]
<blank> 6/6 Record the storage path of the
module.
initscr
string[40]
<blank> 6/6 The script that will handle
operation commands from the
system.
status
string[40]
<blank> 6/6 Indicate the running status of
the module.
statmsg
string[128]
<blank> 6/6 Indicate the message that will
be show on the running status
when mouse over.
vvtklicensemec
string[40]
<blank> 6/7 Indicate the module use
VIVOTEK license mechanism
VIVOTEK
User's Manual - 197
8. Useful Functions
Drive the Digital Output
(capability.ndo > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>]
[&do3=<state>][&do4=<state>]
Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
PARAMETER VALUE DESCRIPTION
do<num> 0, 1 0 – Inactive, normal state
1 – Active, triggered state
Example: Drive the digital output 1 to triggered state and redirect to an empty page.
http://myserver/cgi-bin/dido/setdo.cgi?do1=1
Query Status of the Digital Input (capability.ndi > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]
If no parameter is specified, all of the digital input statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n
[di1=<state>]\r\n
[di2=<state>]\r\n
[di3=<state>]\r\n
where <state> can be 0 or 1.
VIVOTEK
198 - User's Manual
Example: Query the status of digital input 1 .
Request:
http://myserver/cgi-bin/dido/getdi.cgi?di1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
di1=1\r\n
Query Status of the Digital Output
(capability.ndo > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]
If no parameter is specified, all the digital output statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[do0=<state>]\r\n
[do1=<state>]\r\n
[do2=<state>]\r\n
[do3=<state>]\r\n
where <state> can be 0 or 1.
Example: Query the status of digital output 1.
Request:
http://myserver/cgi-bin/dido/getdo.cgi?do1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
VIVOTEK
User's Manual - 199
\r\n
do1=1\r\n
Capture Single Snapshot
Note: This request requires Normal User privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>]
[&quality=<value>][&streamid=<value>]
If the user requests a size larger than all stream settings on the server, this request will fail.
PARAMETER VALUE DEFA
ULT
DESCRIPTION
channel 0~(n-1) 0 The channel number of the video source.
resolution FD8365:
(160~640, 120~360)
FD8355:
(160~1280, 120~1024)
0 The resolution of the image.
quality 1~5 3 The quality of the image.
streamid 0~(m-1) 2 The stream number.
The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size
and quality of the image will be set according to the video settings on the server.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>
VIVOTEK
200 - User's Manual
Account Management
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/editaccount.cgi?
method=<value>&username=<name>[&userpass=<value>][&privilege=<value>]
[&privilege=<value>][…][&return=<return page>]
PARAMETER VALUE DESCRIPTION
method Add Add an account to the server. When using this method, the
“username” field is necessary. It will use the default value of other
fields if not specified.
Delete Remove an account from the server. When using this method, the
“username” field is necessary, and others are ignored.
edit Modify the account password and privilege. When using this method,
the “username” field is necessary, and other fields are optional. If not
specified, it will keep the original settings.
username <name> The name of the user to add, delete, or edit.
userpass <value> The password of the new user to add or that of the old user to modify.
The default value is an empty string.
Privilege <value> The privilege of the user to add or to modify.
viewer Viewer privilege.
operator Operator privilege.
admin Administrator privilege.
Return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 201
System Logs
Note: This request require Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/syslog.cgi
Server will return the most up-to-date system log.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <syslog length>\r\n
\r\n
<system log information>\r\n
Upgrade Firmware
Note: This request requires Administrator privileges.
Method: POST
Syntax:
http://<servername>/cgi-bin/admin/upgrade.cgi
Post data:
fimage=<file name>[&return=<return page>]\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated.
VIVOTEK
202 - User's Manual
ePTZ Camera Control (capability.eptz > 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>] – Move home, up, down, left, right
[&auto=<value>] – Auto pan, patrol
[&zoom=<value>]
– Zoom in, out
[&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] – Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>] ] – Set speeds
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&vx=2&vy=2&vz=2
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100&
videosize=640x480&resolution=640x480&stretch=0
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
stream <0~(m-1)> Stream.
move home Move to home ROI.
up Move up.
down Move down.
left Move left.
right Move right.
auto pan Auto pan.
patrol Auto patrol.
stop Stop auto pan/patrol.
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
VIVOTEK
User's Manual - 203
zooming wide or tele Zoom without stopping for larger view or further view with zs speed,
used for joystick control.
zs 0 ~ 6 Set the speed of zooming, “0” means stop.
vx <integer> The direction of movement, used for joystick control.
vy <integer>
vs 0 ~ 7 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
videosize <window size> The size of plug-in (ActiveX) window in web page
resolution <window size> The resolution of streaming.
stretch <boolean> 0 indicates that it uses resolution (streaming size) as the range of
the coordinate system.
1 indicates that it uses videosize (plug-in size) as the range of the
coordinate system.
speedpan -5 ~ 5 Set the pan speed.
speedtilt -5 ~ 5 Set the tilt speed.
speedzoom -5 ~ 5 Set the zoom speed.
speedapp 1 ~ 5 Set the auto pan/patrol speed.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
the current path.
VIVOTEK
204 - User's Manual
ePTZ Recall (capability.eptz > 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>&
recall=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
recall Text string less than 40
characters
One of the present positions to recall.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
the current path.
ePTZ Preset Locations (capability.eptz > 0)
Note: This request requires Operator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value>
[&addpos=<value>][&delpos=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
addpos <Text string less than
40 characters>
Add one preset location to the preset list.
delpos <Text string less than
40 characters>
Delete preset location from the preset list.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
VIVOTEK
User's Manual - 205
the current path.
IP Filtering
Note: This request requires Administrator access privileges.
Method: GET/POST
Syntax: <product dependent>
http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret
urn=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
allow, deny Set IP filter type
method addv4 Add IPv4 address into access list.
addv6 Add IPv6 address into access list.
delv4 Delete IPv4 address from access list.
delv6 Delete IPv6 address from access list.
ip <IP address> Single address: <IP address>
Network address: <IP address / network mask>
Range address:<start IP address - end IP address>
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according
to the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
206 - User's Manual
IP Filtering for ONVIF
Syntax: <product dependent>
http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret
urn=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
allow, deny Set IP filter type
method addv4 Add IPv4 address into access list.
addv6 Add IPv6 address into access list.
delv4 Delete IPv4 address from access list.
delv6 Delete IPv6 address from access list.
ip <IP address> Single address: <IP address>
Network address: <IP address / network mask>
Range address:<start IP address - end IP address>
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according
to the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 207
Get SDP of Streams
Note: This request requires Viewer access privileges.
Method: GET/POST
Syntax:
http://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
“network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the
“subgroup of network: rtsp” for setting the accessname of SDP.
You can get the SDP by HTTP GET.
When using scalable multicast, Get SDP file which contains the multicast information via HTTP.
Open the Network Stream
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<0~m-1>_accessname>
For RTSP (MP4), the user needs to input the URL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
For details on streaming protocol, please refer to the “control signaling” and “data format” documents.
VIVOTEK
208 - User's Manual
Storage managements (capability.storage.dbenabled > 0)
Note: This request requires
administrator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…]
The commands usage and their input arguments are as follows.
PARAMETER VALUE DESCRIPTION
cmd_type <string> Required.
Command to be executed, including search, insert, delete, update,
and queryStatus.
Command: search
PARAMETER VALUE DESCRIPTION
label <integer primary key> Optional.
The integer primary key column will automatically be assigned a
unique integer.
triggerType <text> Optional.
Indicate the event trigger type.
Please embrace your input value with single quotes.
Ex. mediaType=’motion’
Support trigger types are product dependent.
mediaType <text> Optional.
Indicate the file media type.
Please embrace your input value with single quotes.
Ex. mediaType=’videoclip’
Support trigger types are product dependent.
destPath <text> Optional.
Indicate the file location in camera.
Please embrace your input value with single quotes.
Ex. destPath =’/mnt/auto/CF/NCMF/abc.mp4’
resolution <text> Optional.
Indicate the media file resolution.
Please embrace your input value with single quotes.
Ex. resolution=’800x600’
isLocked <boolean> Optional.
VIVOTEK
User's Manual - 209
Indicate if the file is locked or not.
0: file is not locked.
1: file is locked.
A locked file would not be removed from UI or cyclic storage.
triggerTime <text> Optional.
Indicate the event trigger time. (not the file created time)
Format is “YYYY-MM-DD HH:MM:SS”
Please embrace your input value with single quotes.
Ex. triggerTime=’2008-01-01 00:00:00’
If you want to search for a time period, please apply “TO”
operation.
Ex. triggerTime=’2008-01-01 00:00:00’+TO+’2008-01-01
23:59:59’ is to search for records from the start of Jan 1
st
2008 to
the end of Jan 1
st
2008.
limit <positive integer> Optional.
Limit the maximum number of returned search records.
offset <positive integer> Optional.
Specifies how many rows to skip at the beginning of the matched
records.
Note that the offset keyword is used after limit keyword.
To increase the flexibility of search command, you may use “OR” connectors for logical “OR” search operations.
Moreover, to search for a specific time period, you can use “TO” connector.
Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and
2008-01-01 23:59:59.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType=’motion’+OR+’di’+OR+’seq’&triggerTi
me=’2008-01-01 00:00:00’+TO+’2008-01-01 23:59:59’
Command: delete
PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
Ex. Delete records whose key numbers are 1, 4, and 8.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8
VIVOTEK
210 - User's Manual
Command: update
PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
isLocked <boolean> Required.
Indicate if the file is locked or not.
Ex. Update records whose key numbers are 1 and 5 to be locked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5
Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=0&label=2&label=3
Command: queryStatus
PARAMETER VALUE DESCRIPTION
retType xml or javascript Optional.
Ex. retype=javascript
The default return message is in XML format.
Ex. Query local storage status and call for javascript format return message.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript
Virtual input (capability.nvi > 0)
Note: Change virtual input (manual trigger) status.
Method: GET
Syntax:
http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>]
[&return=<return page>]
PARAMETER VALUE DESCRIPTION
vi<num> state[(duration)nstate]
Where "state" is 0, 1. “0”
Ex: vi0=1
Setting virtual input 0 to trigger state
VIVOTEK
User's Manual - 211
means inactive or normal
state while “1” means
active or triggered state.
Where "nstate" is next
state after duration.
Ex: vi0=0(200)1
Setting virtual input 0 to normal state, waiting 200
milliseconds, setting it to trigger state.
Note that when the virtual input is waiting for next state, it
cannot accept new requests.
return <return page> Redirect to the page <return page> after the request is
completely assigned. The <return page> can be a full URL
path or relative path according the current path. If you omit
this parameter, it will redirect to an empty page.
Return Code Description
200 The request is successfully executed.
400 The request cannot be assigned, ex. incorrect parameters.
Examples:
setvi.cgi?vi0=0(10000)1(15000)0(20000)1
No multiple duration.
setvi.cgi?vi3=0
VI index is out of range.
setvi.cgi?vi=1
No VI index is specified.
503 The resource is unavailable, ex. Virtual input is waiting for next state.
Examples:
setvi.cgi?vi0=0(15000)1
setvi.cgi?vi0=1
Request 2 will not be accepted during the execution time(15 seconds).
Open Timeshift Stream (capability.timeshift > 0,
timeshift_enable=1, timeshift_c<n>_s<m>_allow=1)
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v
alue>&forcechk&minsft=<value>]
For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<va
lue>&forcechk&minsft=<value>]
VIVOTEK
212 - User's Manual
“n” is the channel index.
“m” is the timeshift stream index.
For details on timeshift stream, please refer to the “TimeshiftCaching” documents.
PARAMETER VALUE DEFAULT DESCRIPTION
maxsft <positive
integer>
0 Request cached stream at most how many seconds ago.
tsmode normal,
adaptive
normal Streaming mode:
normal => Full FPS all the time.
adaptive => Default send only I-frame for MP4 and H.264, and
send 1 FPS for MJPEG. If DI or motion window are triggered, the
streaming is changed to send full FPS for 10 seconds.
(*Note: this parameter also works on non-timeshift streams.)
reftime mm:ss The time
camera receives
the request.
Reference time for maxsft and minsft.
(This provides more precise time control to eliminate the
inaccuracy due to network latency.)
Ex: Request the streaming from 12:20
rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30
forcechk N/A N/A Check if the requested stream enables timeshift, feature and
if minsft is achievable.
If false, return “415 Unsupported Media Type”.
minsft <positive
integer>
0 How many seconds of cached stream client can accept at least.
(Used by forcechk)
Return Code Description
400 Bad Request Request is rejected because some parameter values are illegal.
415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the
timeshift feature of the target stream is not enabled.
VIVOTEK
User's Manual - 213
Open Anystream (capability.nanystream > 0)
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/videoany.mjpg?codectype=mjpeg[&resolution=<value>&mjpeg_quant=<value>&mjpeg
_qvalue=<value>&mjpeg_maxframe=<value>]
For RTSP (MPEG4), the user needs to input the URL below into an RTSP compatible player.
rtsp://<servername>/liveany.sdp?codectype=mpeg4[&resolution=<value>&mpeg4_intraperiod=<value>&mpe
g4_ratecontrolmode=<value>&mpeg4_quant=<value>&mpeg4_qvalue=<value>&mpeg4_bitrate=<value>&m
peg4_maxframe=<value>]
For RTSP (H264), the user needs to input the URL below into an RTSP compatible player.
rtsp://<servername>/liveany.sdp?codectype=h264[&resolution=<value>&h264_intraperiod=<value>&
h264_ratecontrolmode=<value>& h264_quant=<value>& h264_qvalue=<value>& h264_bitrate=<value>&
h264_maxframe=<value>]
<product dependent>
PARAMETER VALUE DEFAULT DESCRIPTION
codectype mjpeg, mpeg4, h264 N/A Set codec type for Anystream.
solution capability_videoin_resolution <product
dependent>
Video resolution in pixels.
mjpeg_quant 99, 1~5 3 Quality of JPEG video.
0,99 is the customized manual input
setting.
1 = worst quality, 5 = best quality.
mjpeg_qvalue 2~97 50 Manual video quality level input.
(This must be present if mjpeg_quant is
equal to 0, 99)
mjpeg_maxframe 1~30 (3M mode)
1~60 (2M mode)
30 Set maximum frame rate in fps (for JPEG).
mpeg4_intraperiod 250, 500, 1000, 2000, 3000,
4000
1000 Intra frame period in milliseconds.
mpeg4_ratecontrolmode cbr, vbr Cbr cbr: constant bitrate
vbr: fix quality
VIVOTEK
214 - User's Manual
mpeg4_quant 99, 1~5 3 Quality of video when choosing vbr in
“mpeg4_ratecontrolmode”.
0,99 is the customized manual input
setting.
1 = worst quality, 5 = best quality.
mpeg4_qvalue 2~31 7 Manual video quality level input.
(This must be present if mpeg4_quant is
equal to 0, 99)
<product dependent>
mpeg4_bitrate 4~32000000 8000000 Set bit rate in bps when choosing cbr in
“mpeg4_ratecontrolmode”.
mpeg4_maxframe 1~30 (3M mode)
1~60 (2M mode)
30
60
Set maximum frame rate in fps (for
MPEG-4).
h264_intraperiod 250, 500, 1000, 2000, 3000,
4000
1000 Intra frame period in milliseconds.
h264_ratecontrolmode cbr, vbr vbr cbr: constant bitrate
vbr: fix quality
h264_quant 99, 1~5 3 Quality of video when choosing vbr in
“h264_ratecontrolmode”.
0,99 is the customized manual input
setting.
1 = worst quality, 5 = best quality.
h264_qvalue 0~51 30 Manual video quality level input.
(This must be present if h264_quant is
equal to 0, 99)
h264_bitrate 20~32000000 8000000 Set bit rate in bps when choosing cbr in
“h264_ratecontrolmode”.
h264_maxframe 1~30 (3M mode)
1~60 (2M mode)
30
60
Set maximum frame rate in fps (for H264).
VIVOTEK
User's Manual - 215
Remote Focus
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>]
[&position=<value>][&steps=<value>][&iris]
PARAMETER VALUE DESCRIPTION
function zoom,
focus,
auto,
scan,
stop,
positioning,
irisopen,
irisenable,
getstatus
Function type
zoom – Move zoom motor
focus – Move focus motor
auto – Perform auto focus
scan – Perform focus scan
stop – Stop current operation
positioning – Position the motors
irisopen – Open iris. It will maintain this status until sending irisenable
cgi.
irisenable – Not open iris
getstatus – Information of motors, return value as below:
remote_focus_focus_motor_max: Maximum steps of focus motor
remote_focus_zoom_motor_max: Maximum steps of zoom motor
remote_focus_focus_motor_start: Start point of effective focal
length
remote_focus_focus_motor_end: End point of effective focal
length
remote_focus_focus_motor: Current position of focus motor
remote_focus_zoom_motor: Current position of zoom motor
remote_focus_focus_enable: Current function of focus motor
remote_focus_zoom_enable: Current function of zoom motor
remote_focus_value_mode: Source of focus value. 0: ISP, 1: Edge.
remote_focus_iris_open: The current status of iris. 0: irisenable,
1: irisopen
direction direct,
forward,
backward
Motor’s moving direction.
It works only if function=zoom | focus.
VIVOTEK
216 - User's Manual
position 0 ~ <motor_max> Motor’s position.
It works only if function=zoom | focus and direction=direct.
<motor_max> is refer to remote_focus_focus_motor_max or
remote_focus_zoom_motor_max which replied from
"function=getstatus"
steps 1 ~ <motor_max> Motor’s moving steps.
It works only if function=zoom | focus and direction=forward |
backward.
<motor_max> is refer to remote_focus_focus_motor_max or
remote_focus_zoom_motor_max which replied from
"function=getstatus"
iris N/A Open iris or not.
It works only if function=auto | scan.
Export Files
Note: This request requires Administrator privileges.
Method: GET
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/exportDst.cgi
For language file:
http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value>
PARAMETER VALUE DESCRIPTION
currentlanguage 0~20 Available language lists.
Please refer to:
system_info_language_i0 ~ system_info_language_i19
.
For setting backup file:
http://<servername>/cgi-bin/admin/export_backup.cgi?backup
VIVOTEK
User's Manual - 217
Upload Files
Note: This request requires Administrator privileges.
Method: POST
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/upload_dst.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For language file:
http://<servername>/cgi-bin/admin/upload_lan.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For setting backup file:
http://<servername>/cgi-bin/admin/upload_backup.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upload this one to camera.
VIVOTEK
218 - User's Manual
9. Video out supporting issues
The Video Out support depends on different video modes. In following video modes, Video out will not support in
such cases:
Dual stream mode Video rotation mode Single stream mode
FD8355 Always support Video Out Both stream resolution > 720p Not support Video Out
FD8365 Both stream resolution > 720p Both stream resolution > 720p Not support Video Out
VIVOTEK
User's Manual - 219
Technical Specications
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
VIVOTEK USA
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36 -5298-434
E: saleseurope@vivotek.com
Ver. 5
Distributed by:
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
VIVOTEK Europe
Model FD 8155H
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 256MB
RAM 384MB
Camera Features
Image Sensor 1/3" Progressive CMOS
Maximum Resolution 1280x1024 (1.3MP)
Lens Type Vari-focal, Remote Focus
Focal Length f = 3 ~ 10 mm
Aperture F1.3 ~ F2.5
Auto-iris P-iris/DC-iris (Reserved)
Field of View
30° ~ 95° (Horizontal)
24° ~ 75° (Vertical)
39° ~ 123° (Diagonal)
Shutter Time 1/5 sec. to 1/10000 sec.
WDR Technology WDR Pro II
Day/Night
Removable IR-cut filter for day & night function
Smart IR Technology to avoid overexposure (WDR on)
Minimum Illumination
0.05 Lux @ F1.3 (Color)
0.001 Lux @ F1.3 (B/W)
Pan/tilt/zoom Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators
Built-in IR illuminators, effective up to 30 meters
IR LED*4, with Smart IR Technology
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264, MJPEG
Maximum Frame Rate
30 fps @ 1280x1024
60 fps @ 1280x1024 (One-stream mode only)
In both compression modes
Maximum Streams 2 simultaneous streams
S/N Ratio 64dB
Dynamic Range Up to 140dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white
balance, exposure control, gain, backlight compensation,
privacy masks, scheduled profile settings, 3D noise reduction,
seamless recording
Audio
Audio Capability Two-way audio (full duplex)
Compression AAC, G.711, G.726
Interface
External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
Technical Specifications
Compatible Accessories
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers
Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification, camera
tampering detection
Alarm Events
Event notification using digital output, HTTP, SMTP, FTP and
NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Smart Focus System Remote focus
Connectors
RJ-45 for Network/PoE connection
Audio input/output
AV output
AC 24V power input
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input
DC12 V/AC 24V
IEEE 802.3af PoE
Power Consumption
DC 12V: Max. 8 W
AC 24V: Max. 8.8 W
PoE: Max. 10.6 W
Dimensions Ø: 157 mm x 109 mm
Weight Net: 758g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
Warranty 24 months
System Requirements
Operating System Microsoft Windows 7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation Wizard 2,
ST7501 32-channel recording software
Others
Quick installation guide, warranty card, alignment sticker,
L-type hex key wrench, screws, hex nut, AV cable, power cable
Dimensions
AM -215
L Shape Bracket
Mounting Kits
AM-516
Adaptor Ring
AM-520
Mounting Adaptor
Ø157 mm
Ø61 mm
109 mm
VIVOTEK
220 - User's Manual
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
VIVOTEK USA
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36 -5298- 434
E: saleseurope@vivotek.com
Ver. 6
Distributed by:
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
VIVOTEK Europe
Model FD8165H
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 256MB
RAM 384MB
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Maximum Resolution 1920x1080 (2MP)
Lens Type Vari-focal, Remote Focus
Focal Length f = 3 ~ 10 mm
Aperture F1.3 ~ F2.5
Auto-iris P-iris/DC-iris (Reserved)
Field of View
33° ~ 104° (Horizontal)
19° ~ 56° (Vertical)
39° ~ 121° (Diagonal)
Shutter Time 1/5 sec. to 1/10000 sec.
WDR Technology WDR Pro
Day/Night
Removable IR-cut filter for day & night function
Smart IR Technology to avoid overexposure
Minimum Illumination
0.16Lux @ F1.3 (Color)
0.001 Lux @ F1.3 (B/W)
Pan/tilt/zoom Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in,12x built in)
IR Illuminators
Built-in IR illuminators, effective up to 20 meters
IR LED*4, with Smart IR Technology
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264, MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
60 fps @ 1920x1080 (one-stream mode only)
In both compression modes
Maximum Streams 2 simultaneous streams
S/N Ratio 62 dB
Dynamic Range Up to 100dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white
balance, exposure control, gain, backlight compensation,
privacy masks, scheduled profile settings, 3D noise reduction,
seamless recording
Audio
Audio Capability Two-way audio (full duplex)
Compression AAC, G.711, G.726
Interface
External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
ONVIF Supported, specification available at w ww.onvif.org
Technical Specifications
Compatible Accessories
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers
Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification, camera
tampering detection
Alarm Events
Event notification using digital output, HTTP, SMTP, FTP and
NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Smart Focus System Remote focus
Connectors
RJ-45 for Network/PoE connection
Audio input/output
AV output
AC 24V power input
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input
DC12 V/AC 24V
IEEE 802.3af PoE
Power Consumption
DC 12V: Max. 7.6 W
AC 24V: Max. 8.6 W
PoE: Max. 10.6 W
Dimensions Ø: 157 mm x 109 mm
Weight Net: 758g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
Warranty 24 months
System Requirements
Operating System Microsoft Windows 7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation Wizard 2,
ST7501 32-channel recording software
Others
Quick installation guide, warranty card, alignment sticker,
L-type hex key wrench, screws, hex nut, AV cable, power cable
Dimensions
AM -215
L Shape Bracket
Mounting Kits
AM-516
Adaptor Ring
AM-520
Mounting Adaptor
Ø157 mm
Ø61 mm
109 mm
VIVOTEK
User's Manual - 221
Technology License Notice
AMR-NB Standard
THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH
RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY:
TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA
CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621;
CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621;
GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621;
SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT.
9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK
PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP.
8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO
TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR’S WEBSITE AT
HTTP://WWW.VOICEAGE.COM.
VIVOTEK
222 - User's Manual
Electromagnetic Compatibility (EMC)
FCC Statement
This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.
■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a partial
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
VCCI Warning
この装置は、情報処理装置等電波障害自主規制協議会（ＶＣＣＩ）の基準にづくクラスＢ情報技術装置
です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン
受信機に近接して使用されると、受信障害を引き起こすことがあります。
取扱説明書に従って正しい取り扱いをして下さい
Liability
VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right
to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty
of any kind with regard to the material contained within this document, including, but not limited to, the
implied warranties of merchantability and fitness for any particular purpose.
