Swing Down
Crib Rail
OWNER’S MANUAL MODEL: 2015, 2015CA
• READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF CRIB RAIL.
• KEEP INSTRUCTIONS FOR FUTURE USE.
English 3
Before Using Product
Read and follow all instructions carefully to ensure that your product is properly
installed. Failure to follow these instructions for the assembly of use of your crib rail
could result in serious injury or death. The safety of your child is your responsibility.
Please keep these instructions for your reference.
IMPORTANT
• Do not use two separate bed rails on one bed. The bed rails will not function
properly and could be a safety hazard. Should you need coverage on both
sides of the bed, purchase the Regalo Double Sided Bed Rail.
WARNING
• SUFFOCATION AND STRANGULATION HAZARD
• Gaps in and around bed rails have entrapped young children and
killed infants.
• NEVER use with children younger than 2 years old. USE ONLY with
older children who can get in and out of toddler and adult size beds
without help.
• NEVER use in place of crib.
• NEVER use unless crib rail is tight against mattress, without gaps,
and at least 9 in. from headboard and footboard. Do not fill gaps
with pillows, blankets, or other items that can suffocate children.
• NEVER use on adult bed, bunk bed, water bed or bed with
inflatable mattress.
• Use ONLY on convertible crib.
• This crib rail is intended for use with children 2 years to
5 years of age.
• Discontinue use if damaged, broken or if parts are missing.
• Do not use if crib rail is not fully assembled.
• Periodically check that all spring pins are fully engaged on crib rail
support bars.
English4

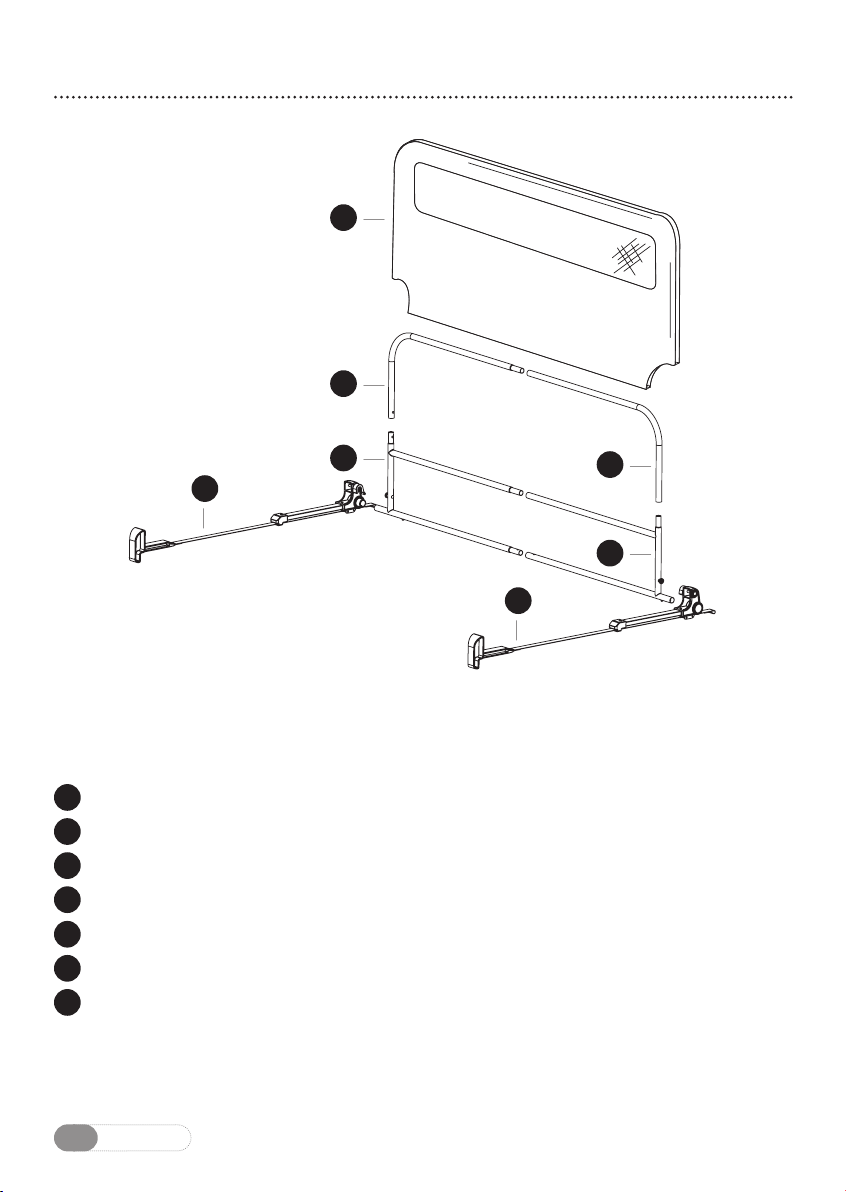

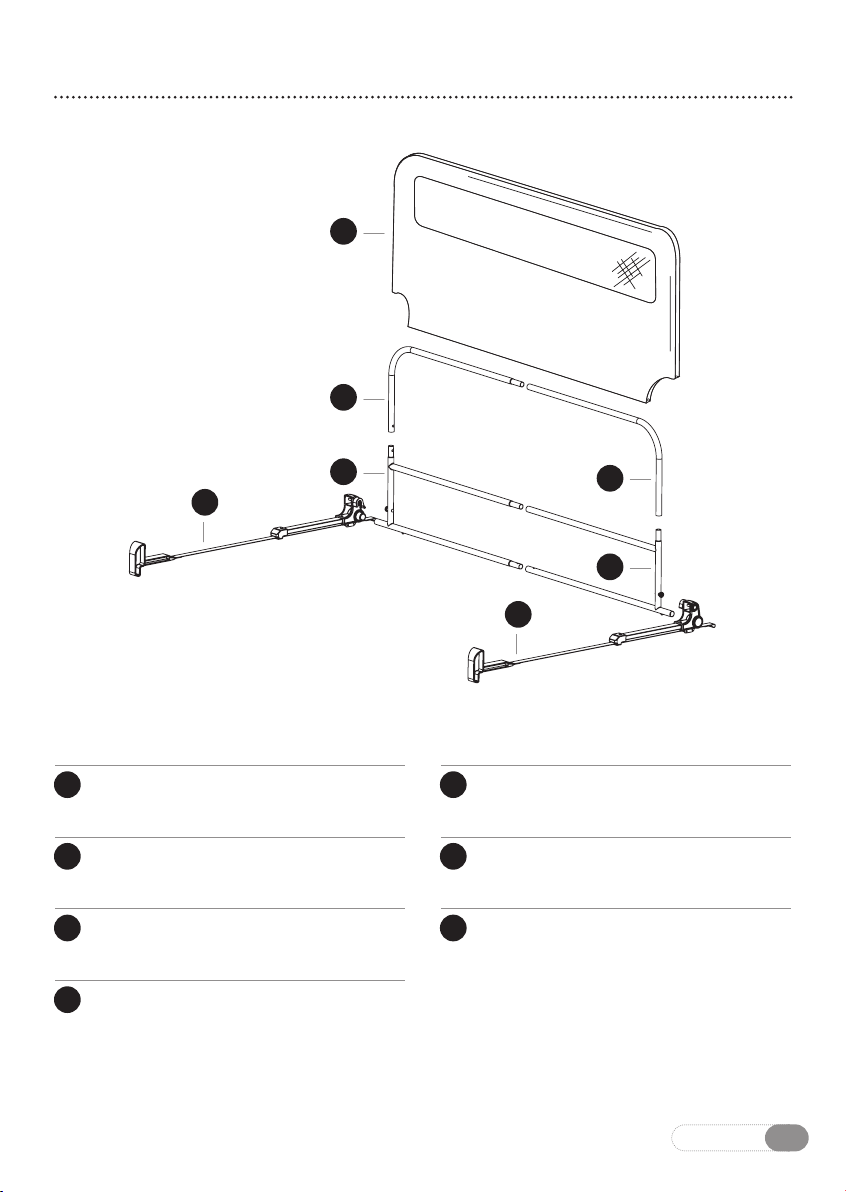

PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS:
A Mesh Wall
B Right Upper Support Bar
C Left Upper Support Bar
D Right Bottom Support Bar
E Left Bottom Support Bar
F Right Swing Lock and Strap Assembly
G Left Swing Lock and Strap Assembly
Before Assembly
A
B
D
C
E
F
G
Pull straps to tighten Latch Closed
Latch Open
Swung Down
Pull straps to tighten Latch Closed
Latch Open
Swung Down
English 5
Assembling Your Crib Rail
NOTE: Make sure that the spring pins are secured into the opposing holes
so that the crib rail cannot pull apart.

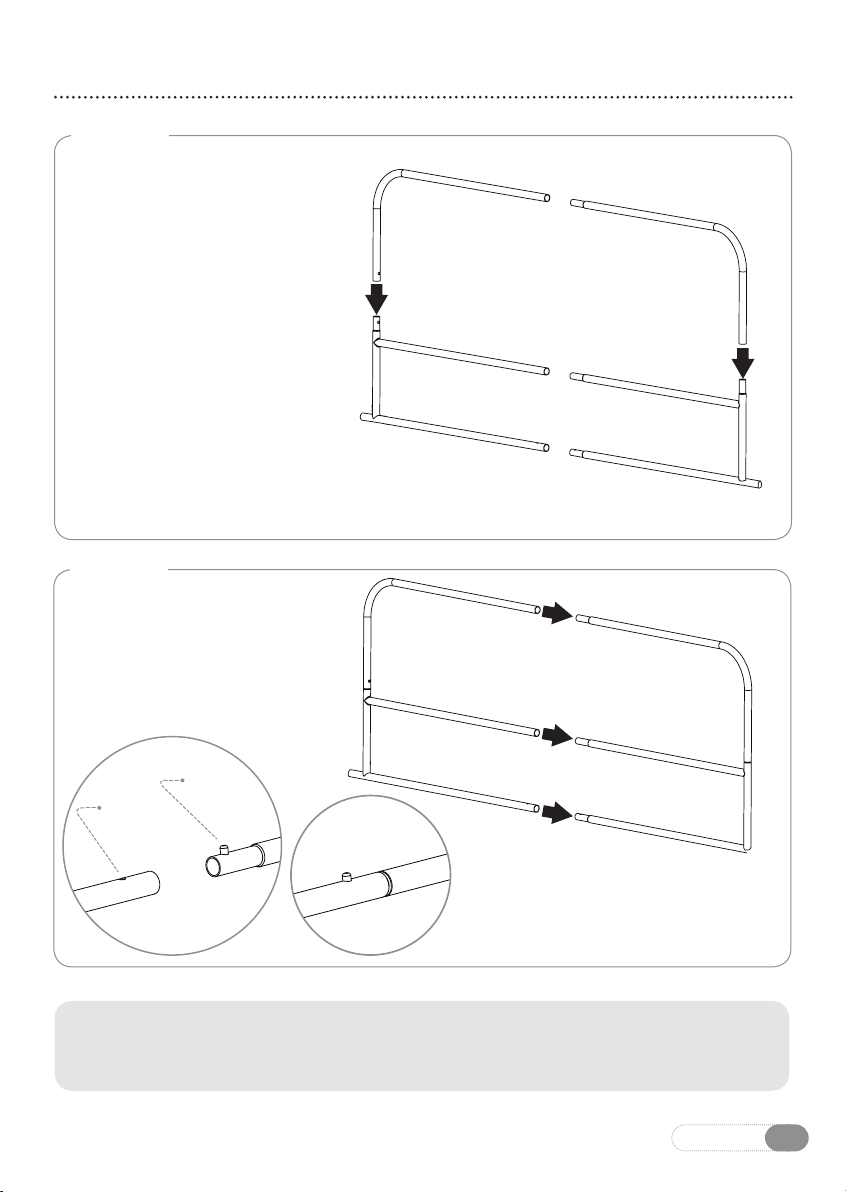

STEP 1
Insert the left upper support
bar into the left bottom
support bar. Make sure the
spring pin fits securely into
the opposing hole so that
the two pieces cannot pull
apart. Repeat on the right
side of the crib rail.
STEP 2
With the left and right sides
of the crib rail assembled,
connect the two sides.
SECURED
SPRING
BUTTON
SPRING
PIN
English6
NOTE: If the zipper does not close securely, make the necessary adjustments
to ensure proper closure. DO NOT use the crib rail without securely zipping the
mesh wall properly.

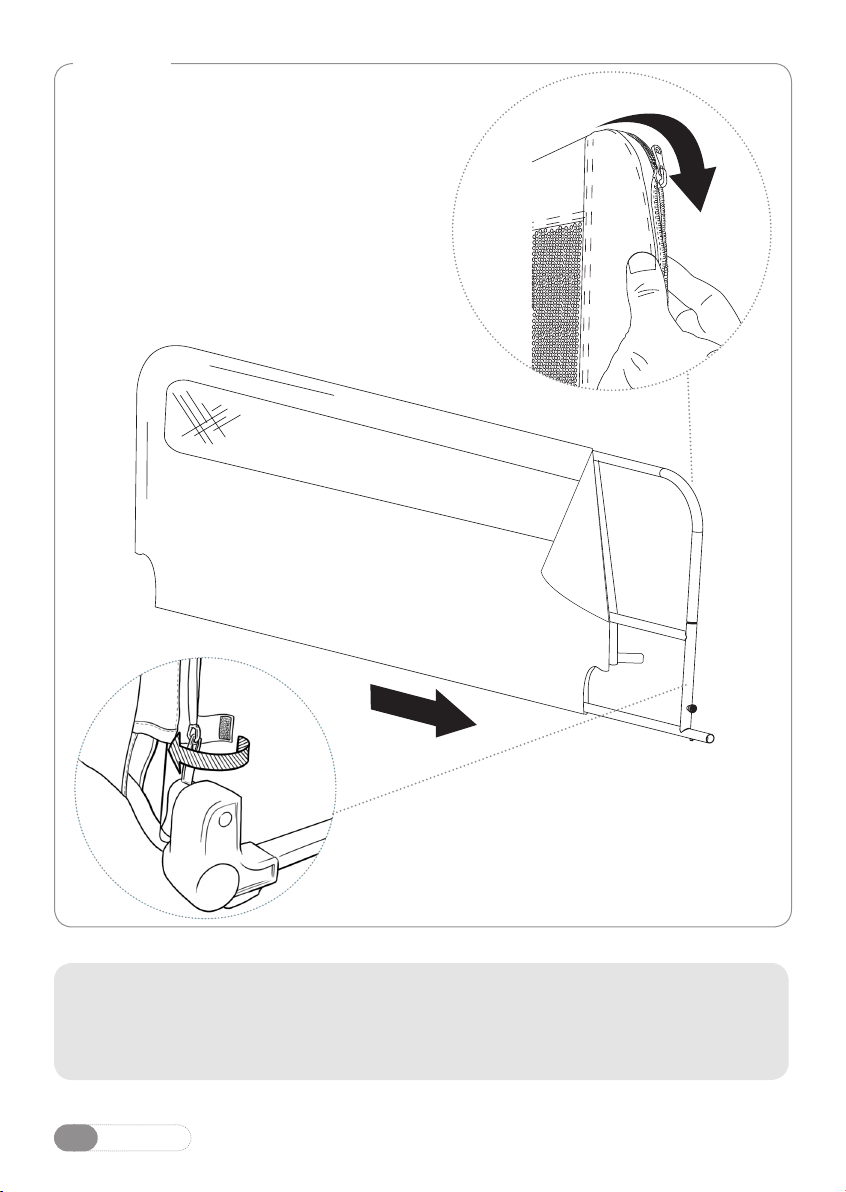

STEP 3
To install the mesh wall on the crib rail,
slide it over the frame until it reaches
the other end, zip it shut, then attach
the velcro strap over the zipper to
complete the installation.
Pull straps to tighten Latch Closed
Latch Open
Swung Down
Pull straps to tighten Latch Closed
Latch Open
Swung Down
English 7

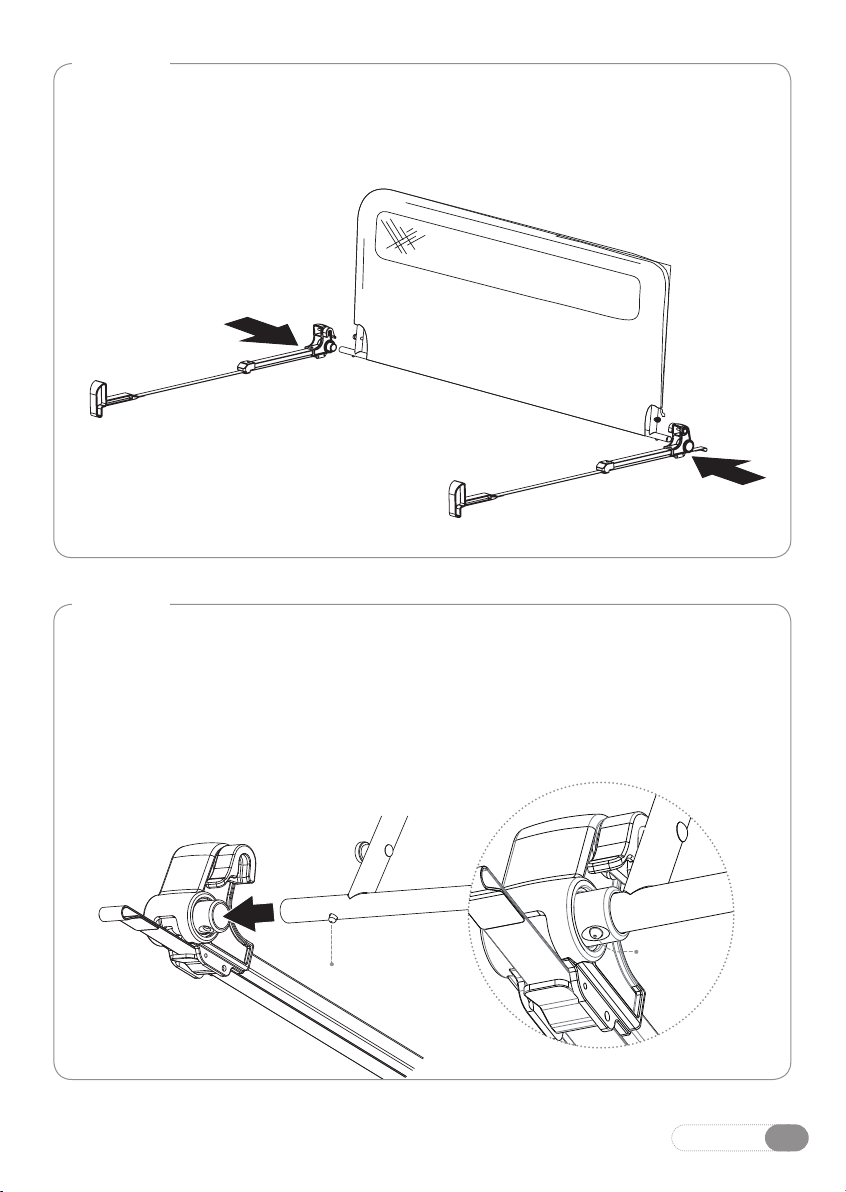

STEP 4
With the wall of the crib rail completely assembled, you will now connect
the left and right swing lock and strap assemblies.
STEP 5
Insert one side of the wall frame into one of the leg pieces. Press in the metal
spring button to fully insert the tube into the hole in the plastic hinge.
The spring button should line up with the access hole in the plastic sleeve on
the hinge. The spring button will rebound and lock the tube in place.
Repeat to complete the assembly of the other leg.
Pull straps to tighten Latch Closed
Latch Open
Swung Down
SPRING BUTTON
SPRING
BUTTON
English8
Installing Your Crib Rail
NOTE: The following steps may require the help of an additional person.

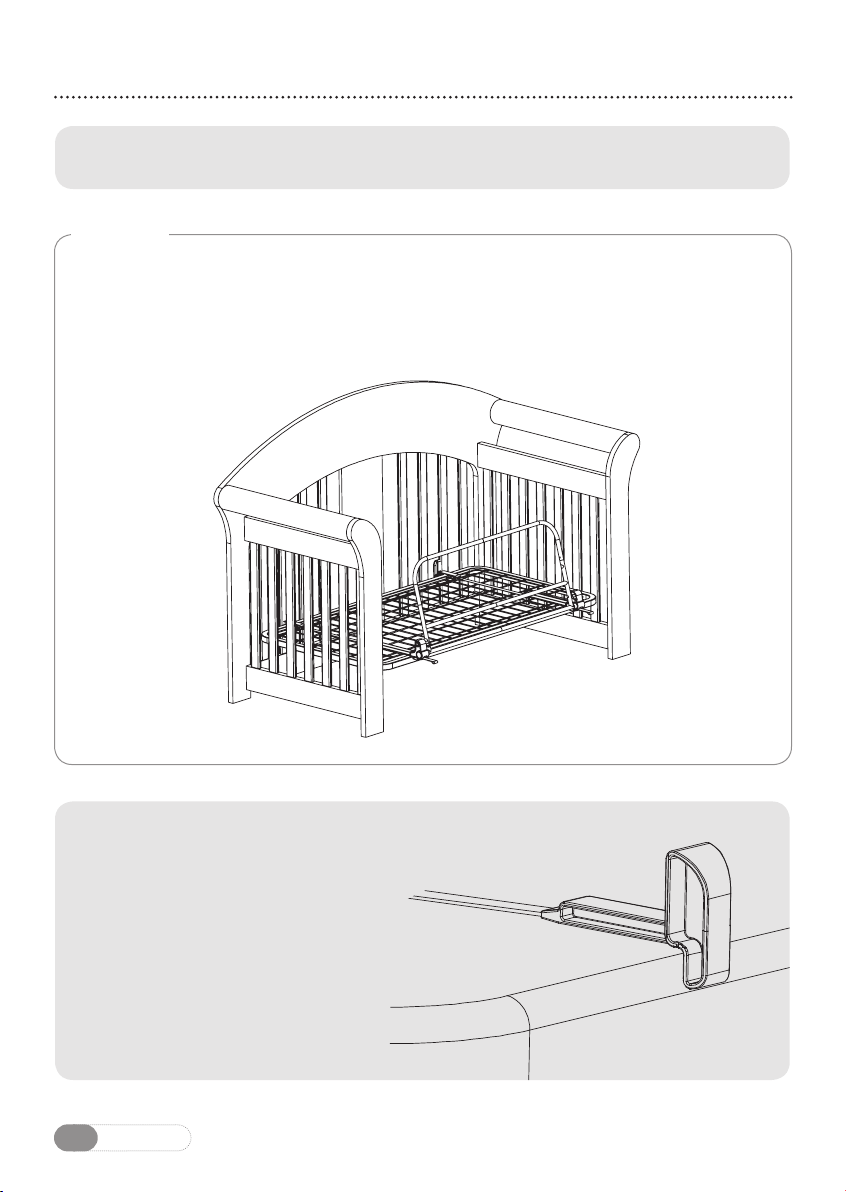

STEP 1
Make sure that you have configured your convertible crib into its toddler bed
configuration, and the crib mattress has been removed. Place the crib rail atop
the mattress support structure so that it is positioned to create a barrier across
the opening of your convertible crib.
NOTE: You may need to release
the strap locking buckles located
on the under side of the plastic
hinges. Ensure that the large end
of the anchor is pointing up. The
anchoring straps should not be
twisted. If twisted, the anchoring
straps will not tighten properly.
Pull straps to tighten Latch Closed
Latch Open
Swung Down
English 9
STEP 2
Once the crib rail is properly
placed, check to make
sure the left and right swing
lock and strap assemblies
are parallel to one another.
Then, place the mattress on
top of the assembly.
NOTE: In order for the crib mesh wall to be firmly held against the side of
the mattress you MUST properly tighten the anchoring straps. Please follow
STEPS 3 – 4 carefully.

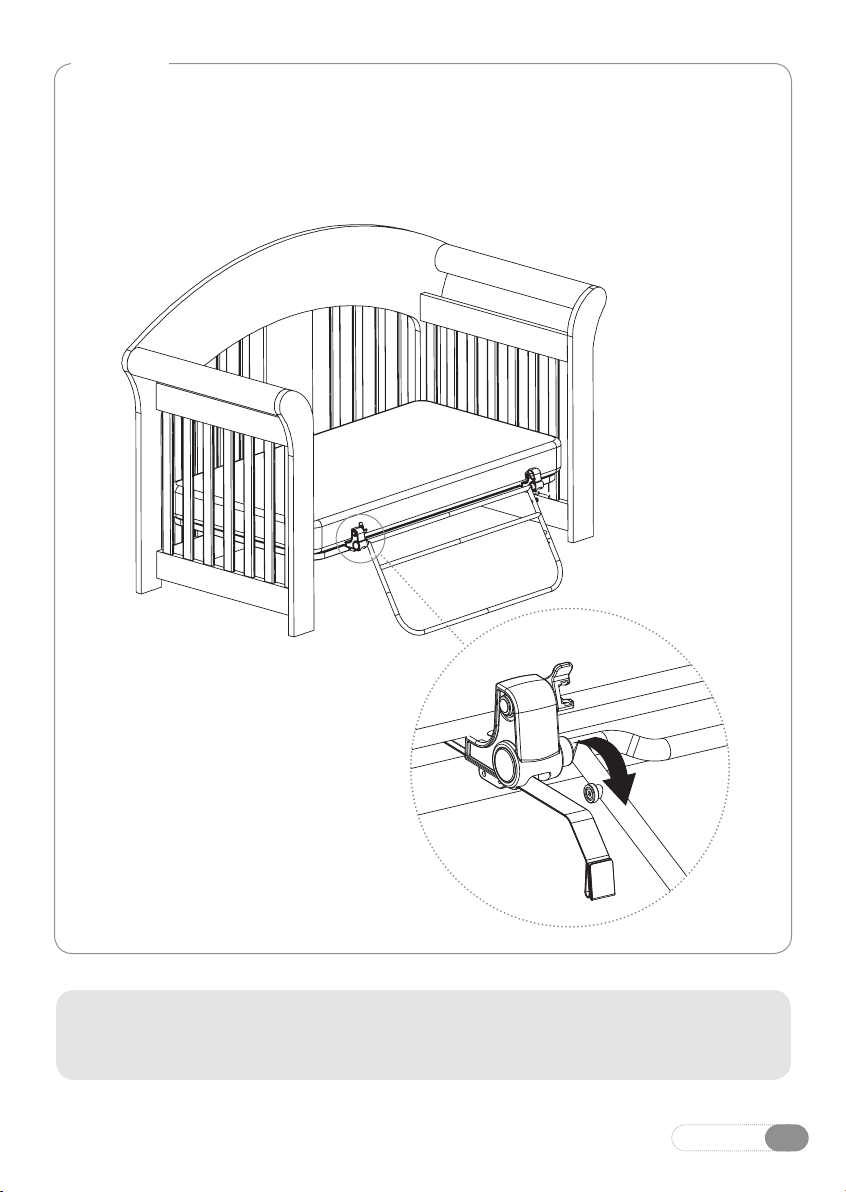

STEP 3
Tighten the straps to bring the crib rail into its proper position. To tighten the
straps, first release the strap locks on the under side of the left and right under
bars. Pull the straps towards you until all the excess slack has been pulled out
from under the mattress.
UNLOCKED
LOCKED
UNLOCKED
LOCKED
English10
NOTE: When using this crib rail on a foam mattress with little or no internal
structure, make sure not to over-tighten the mounting straps. If over-tightened,
the mattress will likely fold or buckle in the middle and this will cause the
crib rail to not provide your child with the highest level of safety. Make slight
adjustments to find the best level of tightness on your mattress.

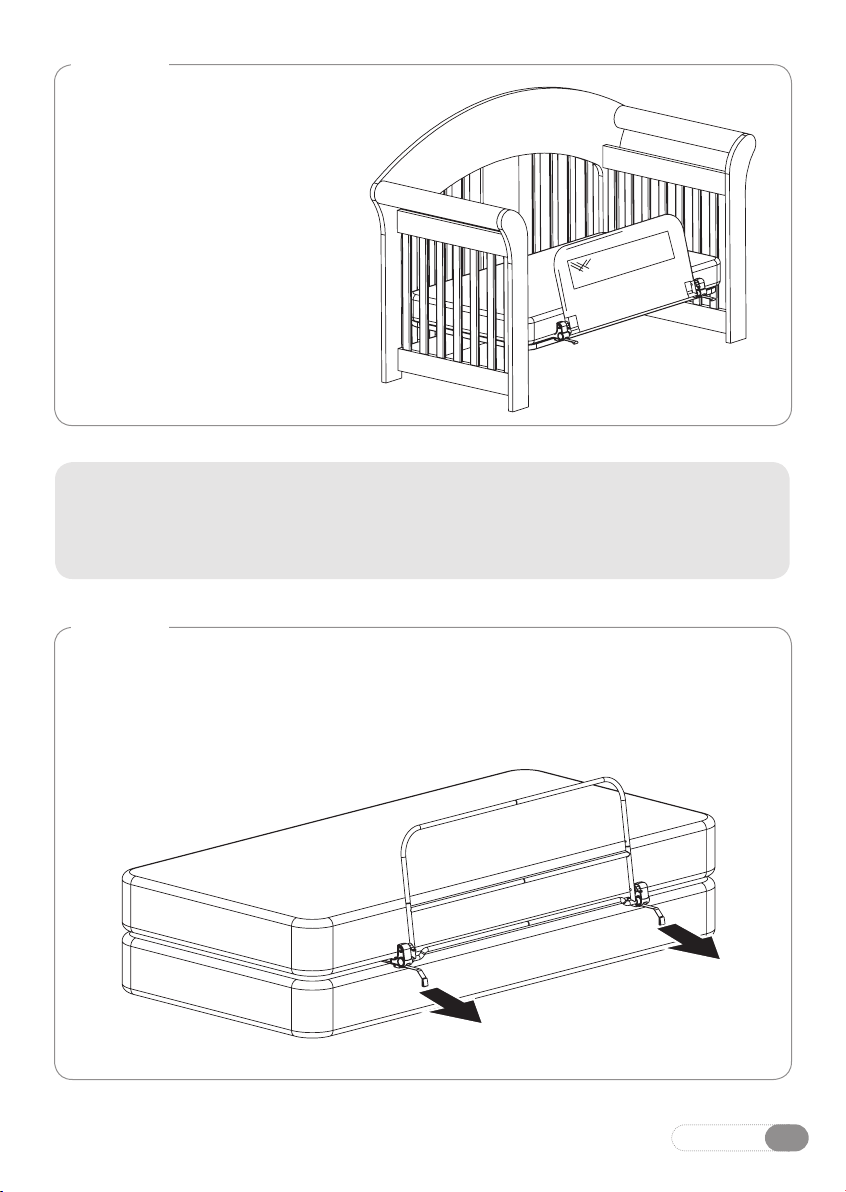

STEP 4
If the strap does not pull through smoothly, the strap may be twisted under the
mattress. Correct this before continuing with the installation. Once you have
taken the slack out of the straps, give one final pull on the strap end, hold it,
and push down on the locking buckle to secure the strap tension. Use the
same procedure for each side to properly secure the crib rail.
LOCKING
BUCKLE
English 11
NOTE: After locking both buckles, check to make sure that the mesh wall of
the crib rail is firmly up against the side of the mattress. There should be NO
GAPS. If the mesh wall is not firmly against the side of the mattress, check to
make sure the locking buckle is functioning properly and that the strap is not
twisted beneath the mattress. Once this has been checked and corrected if
needed, unlock the buckle and pull on the end of the strap tightly and lock the
buckle again.
Store the excess anchoring and strap material by tucking it under the mattress.
Do not cut excess strap, may cause strap to fray.
STEP 5

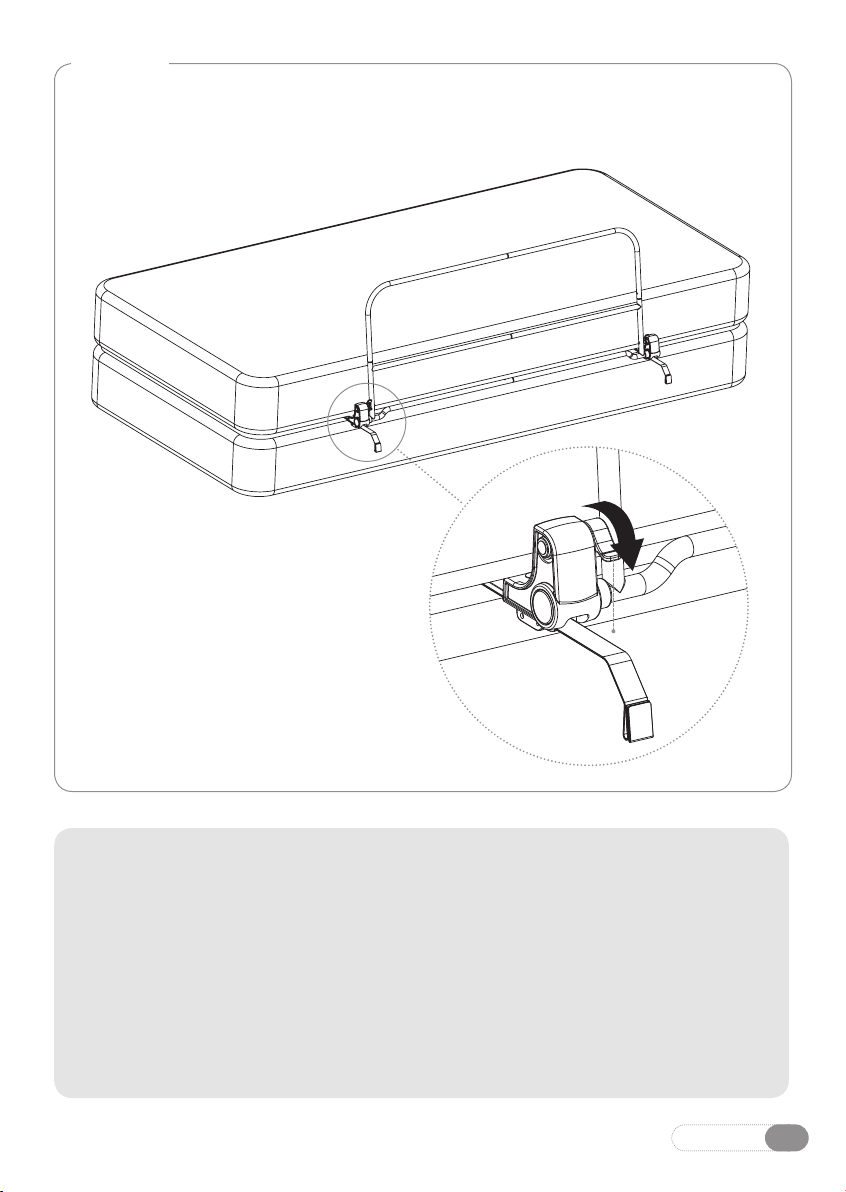

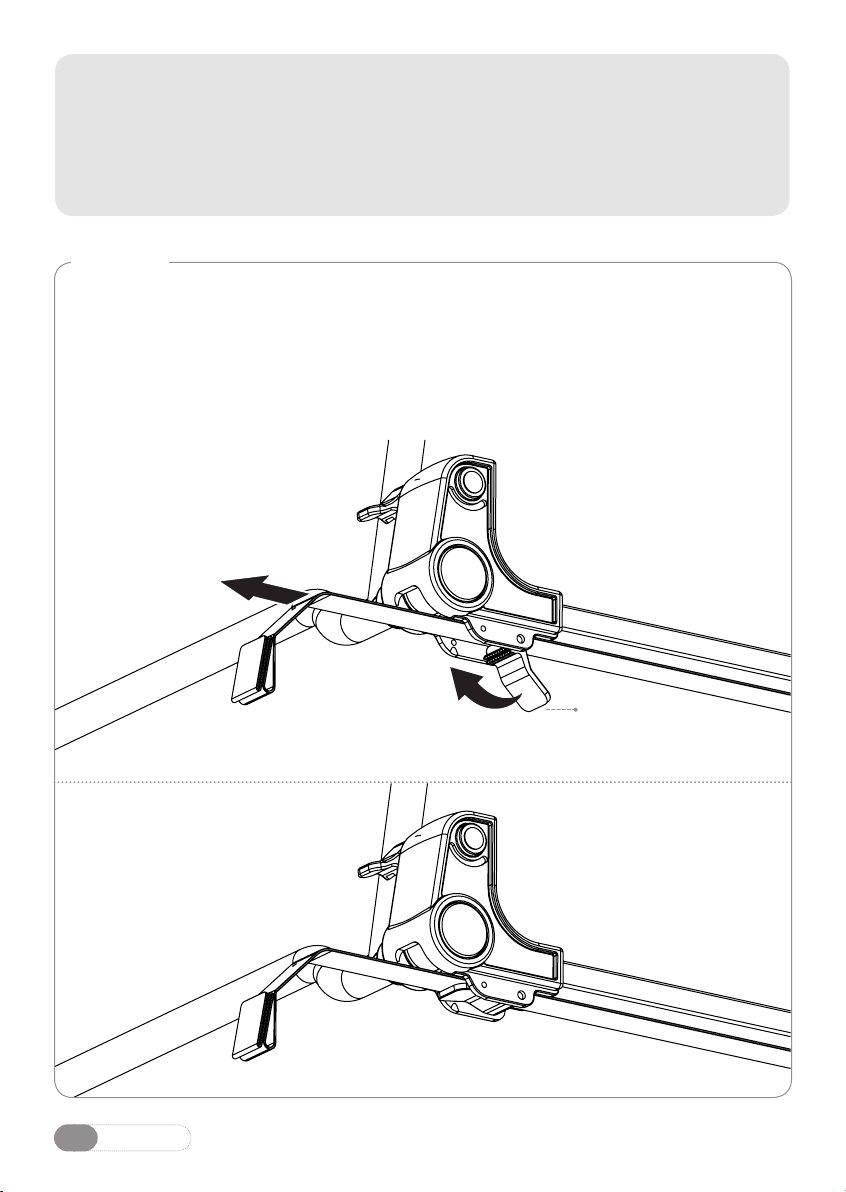

With your crib rail in the 'up' position push down on the locking tabs to secure
your crib rail in place.
LOCKING TAB
English12
NOTE: Be sure to continue to hold the upper part of the crib rail so that it does
not drop down on its own.

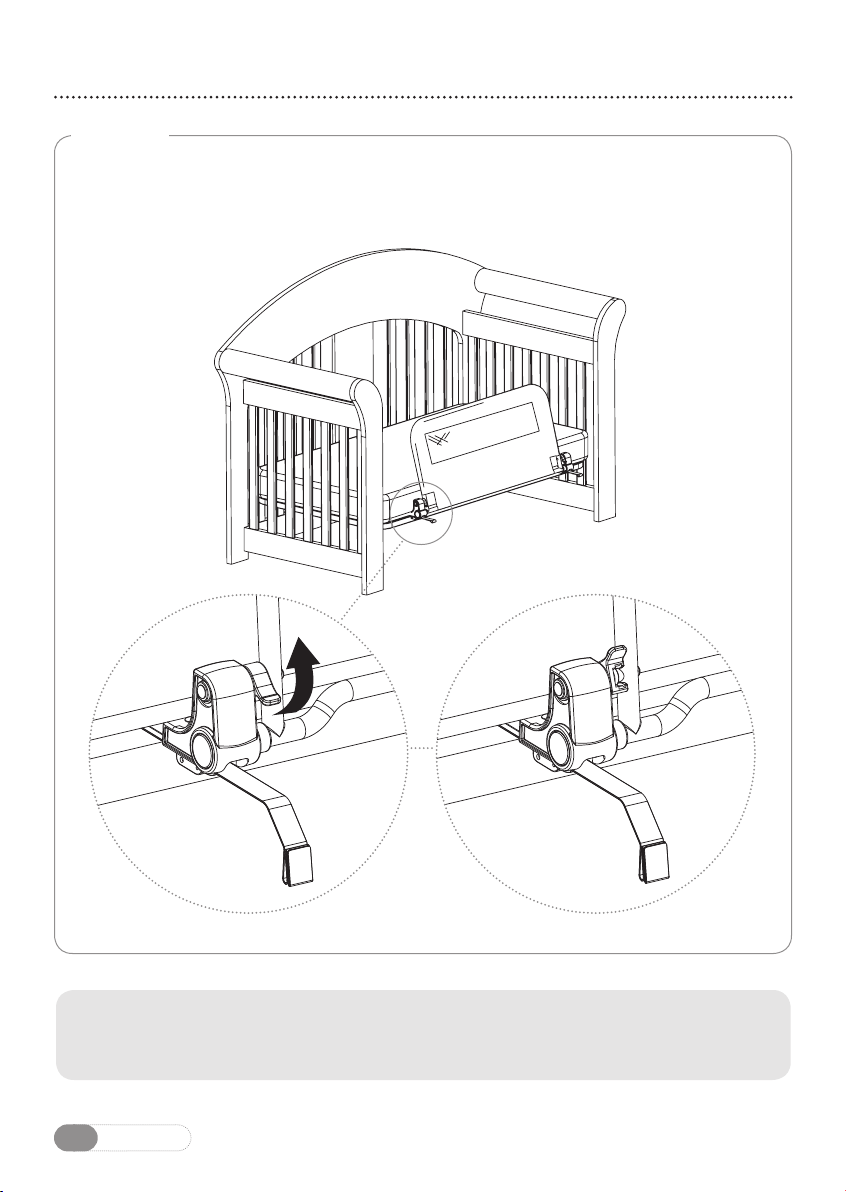

Operating the Swing Down Feature
STEP 1
With the crib rail side in the ‘up’ position, release the locking tabs on each
swing lock and arm assembly by pushing them up. This will allow the upper
part of the crib rail to move freely.
English 13
STEP 2
With both locking tabs turned to the ‘open’ position, hold the upper part
of the crib rail firmly and swing it down. The crib rail should now be in the
‘down’ position.
To return the crib rail to the ‘up’ position, reverse STEPS 1 – 2.
NOTE: Make sure that the crib rail is in the ‘up’ position and the locking tabs
are securely closed before leaving a child alone in the bed.
English14
CARE AND MAINTENANCE
Periodically check the crib rail for signs of damage, wear or for missing
components. Do not use if any part is missing, worn or damaged. Check the crib rail
regularly to make sure all hardware and mountings are tight and secure. Do not use
abrasive cleaners or bleach when cleaning. Proper cleaning of crib rail can be done
by sponging it with warm water and mild detergent.
90 DAYS LIMITED WARRANTY
If, during the first 90 days after consumer purchase of the item, under reasonable
and non-commercial use and conditions of maintenance, it fails while owned by
the original purchaser because of the quality of materials or workmanship of finish
and assembly, Regalo International, LLC, will replace or repair it at Regalo’s option.
PROOF OF PURCHASE REQUIRED.
English 15
Replacement Parts
A CR – Mesh Wall
White = #23062
B CR – Right Upper Support Bar
Platinum = #24063
C
C CR – Left Upper Support Bar
Platinum = #24064
D CR – Right Bottom Support Bar
Platinum = #24068
E CR – Left Bottom Support Bar
Platinum = #24067
F CR – Right Swing Lock
and Strap Assembly
White = #23065
G CR – Left Swing Lock
and Strap Assembly
White = #23066
A
B
D
C
E
F
G
