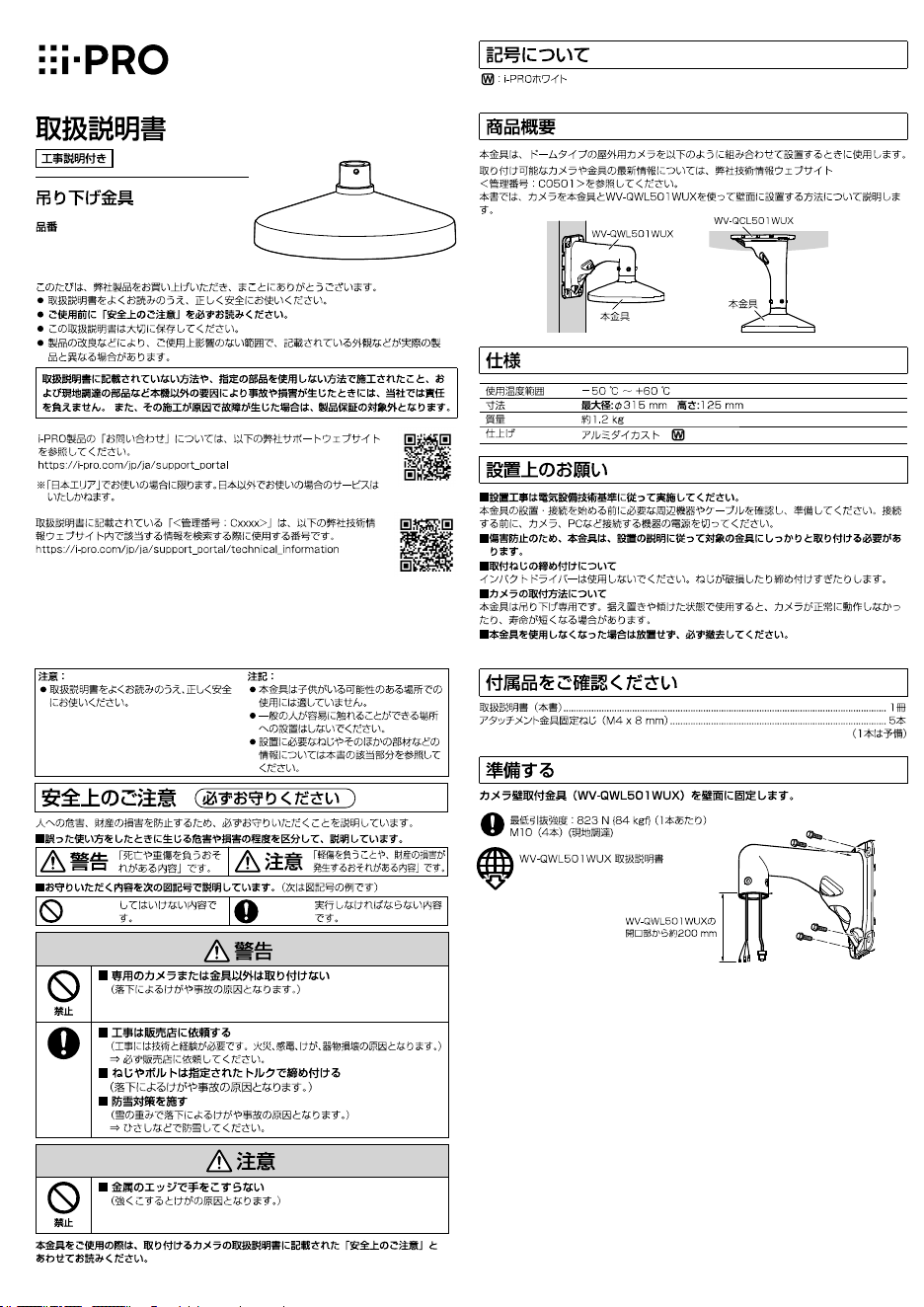

About notations
Precautions
Do not use this product except with suitable cameras or brackets.
Failure to observe this may cause a drop resulting in injury.
Refer installation work to the dealer.
Installation work requires technique and experiences.
Failure to observe this may cause fire, electric shock, injury, or damage to the product.
Be sure to consult the dealer.
The screws and bolts must be tightened to the specified torque.
Failure to observe this may cause a drop resulting in injury or accidents.
The measures of protection against a fall of this product shall be taken.
Failure to observe this may cause a drop resulting in injury or accidents.
Be sure to install the safety wire.
The measures of protection against snowfall shall be taken.
Weight of snow may cause a fall of the product resulting in injury or accidents.
Protect the product against snowfall by installing it under eaves.
Do not rub the edges of metal parts with your hand.
Strong rubbing may cause injury.
When using this product, also read the “Precautions” described in the operating instruc-
tions for the camera to be attached.
Operating Instructions
Included Installation Instructions
Mount Bracket
Model No.
WV-QSR503
• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• The external appearance and other parts shown in this manual may differ from the actual
product within the scope that will not interfere with normal use due to improvement of the
product.
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting from
failures arising out of improper installation, operation inconsistent with this documentation
or through use of parts other than this product
,
such as locally procured parts.
Caution:
• Before attempting to connect or operate this
product, please read these instructions care-
fully.
Notice:
• This product is not suitable for use in loca-
tions where children are likely to be present.
• Do not install this product in locations where
ordinary persons can easily reach.
• For information about screws and other
parts required for installation, refer to the
corresponding section of this document.
© i-PRO Co., Ltd. 2022
avs0322-0
Printed in China
For U.S. and Canada:
i-PRO Americas Inc.
For Europe and other countries:
i-PRO EMEA B.V.
https://www.i-pro.com/
"<Control No.: C****>" used in these documents should be used to search for information
on our technical information website (https://i-pro.com/global/en/surveillance/training-
support/support/technical-information) and will guide you to the right information.
Connection part specifications of this product Mount bracket corresponding
with this product
QSR503QSR503
4 holes
WV-QWL501-W
WV-QCL501-W
QSR503FQSR503F
Female screw (ISO)
40A, Rp 1-1/2, 11 crest
deep 25.4 mm
{1 inches}
(parallel thread)
Locally procured
40A, R 1-1/2, 11crest
length 25.4 mm
{1 inches} or more
(taper pipe thread)
QSR503F1QSR503F1
Female screw (ANSI)
40A, NPSC 1-1/2, 11.5 crest
deep 25.4 mm
{1 inches}
(parallel thread)
Locally procured
40A, NPT 1-1/2, 11.5 crest
length 25.4 mm
{1 inches} or more
(taper pipe thread)
QSR503MQSR503M
Male screw (ISO)
40A, R 1-1/2, 11crest
length 25.4 mm
{1 inches}
(taper pipe thread)
Locally procured
40A, Rp 1-1/2, 11 crest
deep 25.4 mm
{1 inches} or more
(parallel thread)
QSR503M1QSR503M1
Male screw (ANSI)
40A, NPT 1-1/2, 11.5 crest
length 25.4 mm
{1 inches}
(taper pipe thread)
Locally procured
40A, NPSC 1-1/2, 11.5 crest
deep 25.4 mm
{1 inches} or more
(parallel thread)

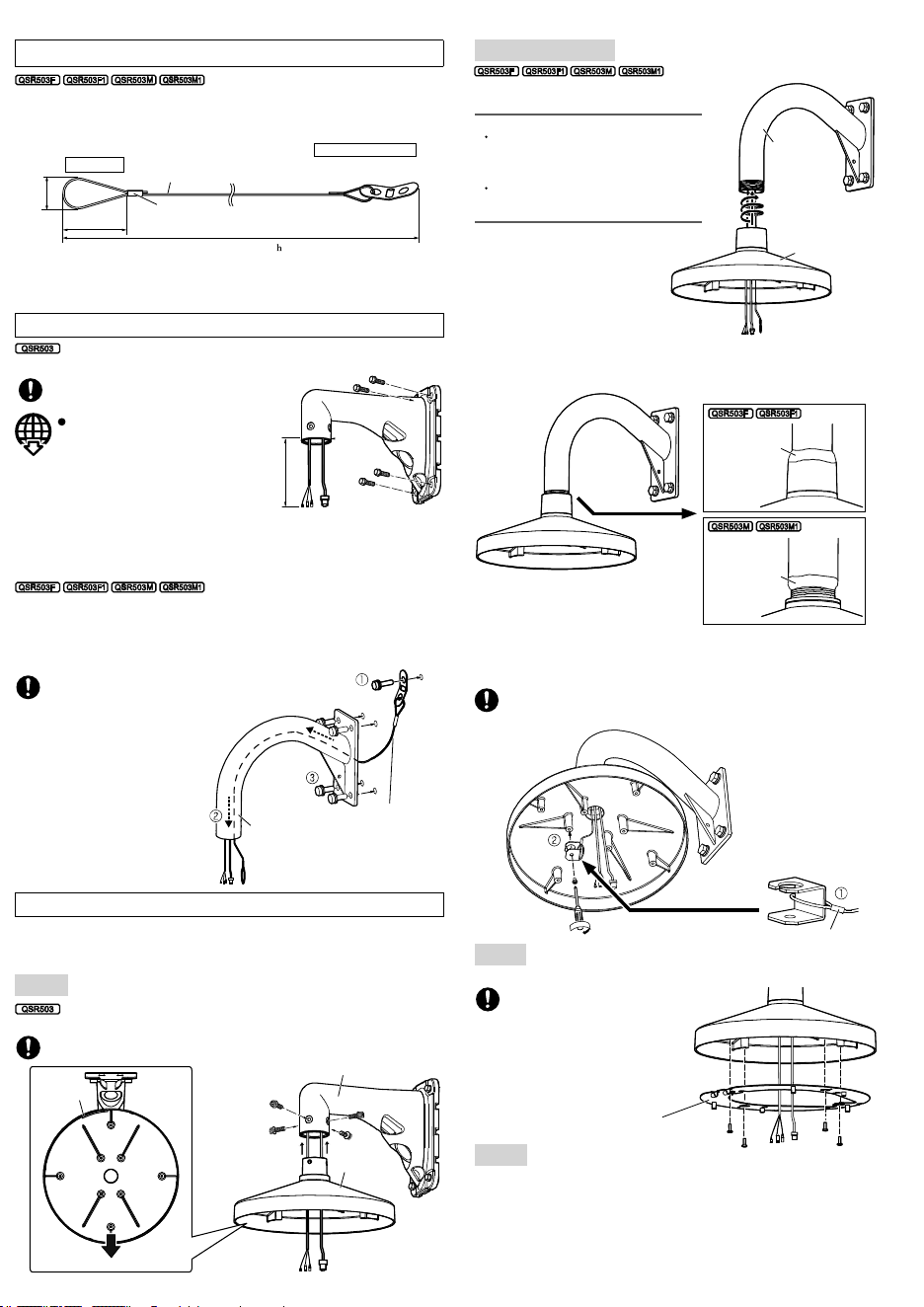

Preparations
QSR503QSR503
Fix the wall mount bracket (WV-QWL501-W) on a wall.
QSR503FQSR503F
QSR503F1QSR503F1
QSR503MQSR503M
QSR503M1QSR503M1
Fix the mount bracket (locally procured) according to the Operating Instructions
for the
mount bracket and also fix the safety wire (locally procured) on the installation
surface.
Minimum pull-out strength: 823 N {185 lbf} (per 1 pc.)
M10 (4 pcs.) (locally procured)
Approx. 200 mm
{7-7/8 inches}
from the opening of
WV-QWL501-W
●
Operating Instructions
WV-QWL501-W
Installation/Connections
Be sure to read "Precautions" and "Precautions for installation" before installation.
Refer to the operating instructions of the camera or the bracket for details including the
camera or bracket mounting, their adjustment and the cable connection.

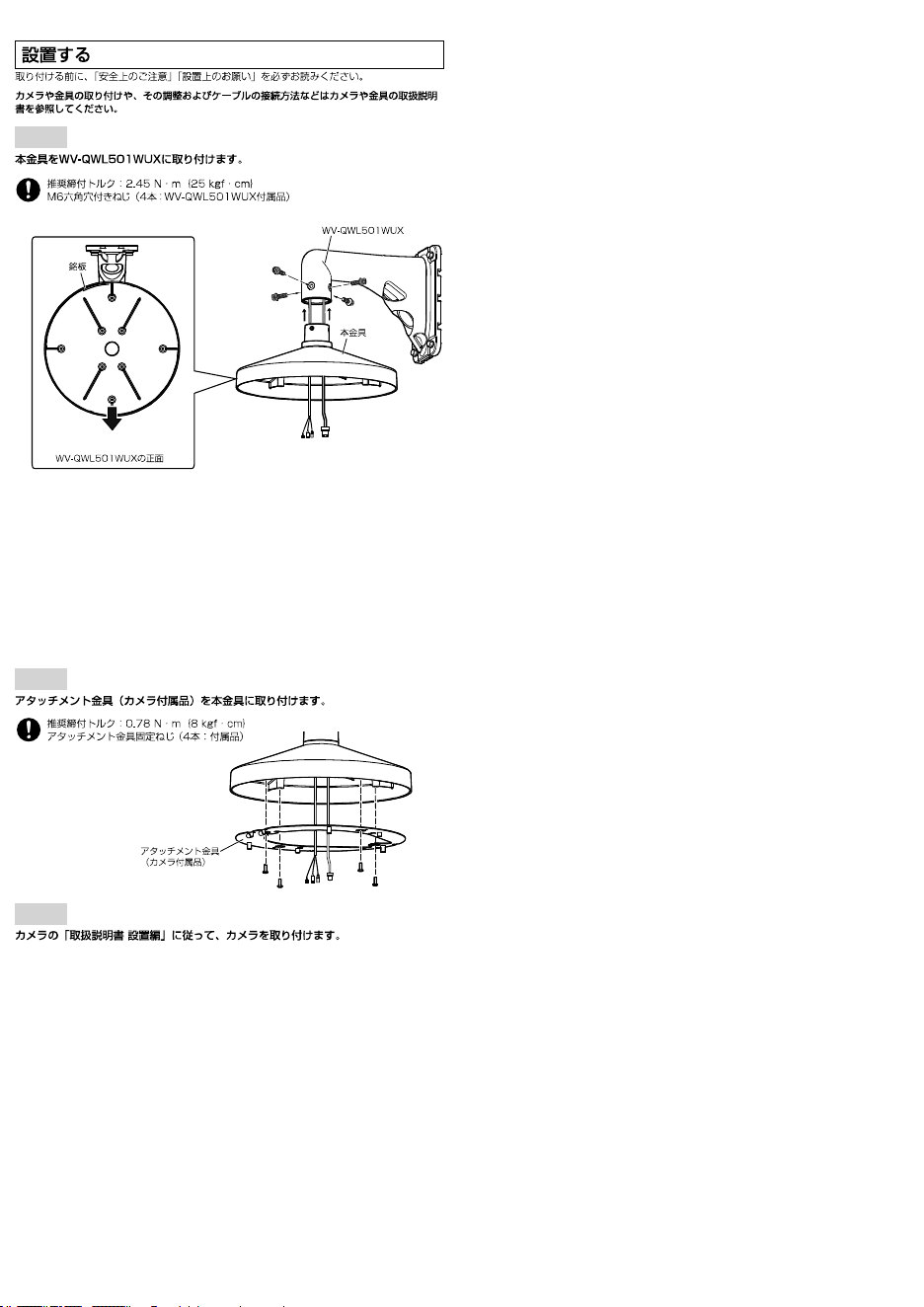

Step 1
QSR503QSR503
Attach this product to the WV-QWL501-W.
Recommended tightening torque: 2.45 N·m {1.81 lbf·ft}
M6 hexagon screw (4 pcs.: accessory of WV-QWL501-W)
WV-QWL501-W
This product
Step 2
Attach the attachment plate (accessory of the camera) to this product.
Attachment plate
(accessory of the camera)
Recommended tightening torque: 0.78 N·m {0.58 lbf·ft}
Fixing screws for attachment plate (4 pcs)
(M4×8 mm {5/16 inches}: accessory).
Step 3
Install the camera by following the Installation Guide of the camera.
Step 1 (Continued)
QSR503FQSR503F
QSR503F1QSR503F1
QSR503MQSR503M
QSR503M1QSR503M1
1.
A
ttach this product to the mount bracket
(locally procured).
2. Fill the gap between the mount bracket and this product with waterproof
material (locally procured) such as silicon clay.
Note:
Depending on the fixing position of this bracket,
the camera may not face the front. Perform an
adjustment of the camera direction by panning
the camera.
Depending on the fixing position of this bracket,
some functions such as “Easy installation” may
be unavailable.
This product
Mount bracket
(locally procured)
Camera side
Installation surface side
Process the edges in accordance
with the installation place.
30 mm
8 mm
*1 Maximum weight: 5 kg {11 lbs}
*2 Safety wire (locally procured)
*3 Use the dedicated tool when processing the wire.
Crimping process
Length: Distance to the wire holder on the this product
through the inside of the bracket + MAX. 50 mm
Wire specification: SUS ø1.5 7x7
Rupture strength: 1127 N or higher
•
Select a fixing method in accordance with the installation
place surface for a part where the safety wire is to be fixed.
• Pass the safety wire inside of the bracket.
3. Attach the safety wire (locally procured) to this product.
Recommended tightening torque: 0.78 N·m {0.58 lbf·ft}
Fixing screw for the wire holder (1 pc)
(M4×8 mm {5/16 inches}: accessory).
①
②
Waterproof material
(locally procured)
QSR503FQSR503F
QSR503F1QSR503F1
QSR503MQSR503M
QSR503M1QSR503M1
Waterproof material
(locally procured)
①
③
Mount bracket
(locally procured)
Safety wire
(locally procured)
②
WV-QWL501-W
This product
WV-QCL501-W
This product
ISO mark
ISO mark
Front direction of WV-QWL501-W
Indication label
Other items that are needed (not included)
QSR503FQSR503F
QSR503F1QSR503F1
QSR503MQSR503M
QSR503M1QSR503M1
Mount bracket (locally procured)
*1
............................................................................................. 1 set
Safety wire (locally procured)
*2 *3
................................................................................................ 1 pc.
Preface
QSR503QSR503
This product is designed to be used to
install a outdoor dome type camera for use
in the right side ways.
For the latest information on cameras and
brackets which can be installed, refer to
our
technical information
website <Control
No.: C0501>).
This document explains how to install the
camera on the wall using this product and
WV-QWL501-W.
QSR503FQSR503F
QSR503F1QSR503F1
QSR503MQSR503M
QSR503M1QSR503M1
This product is used to mount the camera on a locally procured mounting bracket.
For the latest information about the supported cameras, refer to our technical information website
<Control No.: C0501>.
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to 140 °F}
Dimensions:
ø315 mm × 125 mm (H)
{ø12-13/32 inches × 4-29/32 inches (H)}
Mass: Approx. 1.2 kg {2.65 lbs}
Finish: Aluminum die cast
W
Precautions for installation
In order to prevent injury, the product must be securely mounted to the mount bracket
according to the Operating Instructions.
Screw tightening
Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening excessively.
Mounting method for this product
This product is designed to be used as a pendant mount camera. If the product is mounted on a
desktop or at a slant, it may not work correctly and its lifetime may be shortened.
Make sure to remove this product if it will no longer be used.
Standard accessories
Operating Instructions (this document) ....................................................................................... 1 pc.
Fixing screw for the attachment plate (M4×8 mm {5/16 inches}) ................................................ 5 pcs.
(of them, 1 for spare)
QSR503FQSR503F
QSR503F1QSR503F1
QSR503MQSR503M
QSR503M1QSR503M1
Wire holder ................................................................................................................................ 1 pc.
Fixing screw for the wire holder (M4×8 mm {5/16 inches}) ......................................................... 1 pc.
: i-PRO white
W
Wire holder
(accessory)
Safety wire
(locally procured)
