Please retain this user manual for future reference
User Manual
10 Year Life Wireless Interlink Smoke Alarm
ST-632 + W2-Module
TEST YOUR ALARM MONTHLY
2
INTRODUCTION
Groundbreaking Thermoptek technology
combines the very latest in optical sensing
with thermal enhancement, providing faster
response to both fire types eliminating the
need for ionisation sources which can be
harmful to the environment. In addition, this
smoke alarm allows the low battery warning
chirp to be silenced until it is convenient to
replace the alarm (recommended within no
more than 30 days).
IMPORTANT: This user manual contains
important information regarding the
operation of your smoke alarm. Ensure you
read this user manual fully before installing
and operating the alarm. If you are installing
this smoke alarm for use by others, you must
leave this manual with the end user.
AUTOMATIC POWER
ENGAGE
Your 10 year life smoke alarm is powered
by an internal lithium battery. To avoid
unnecessary use of the battery prior to
installation, and to ease disposal when
the alarm reaches the end of its life, the
alarm is supplied with the battery in a
deactivated state. The battery on this alarm
is automatically enabled when the alarm is
fully locked on to the base plate.
WARNING: Lithium batteries must not be
exposed to excessive heat.
IMPORTANT: Your alarm will not work until
it is correctly fitted to the base plate.
Introduction . . . . . . . . . . . . . . . .3
Automatic Power Engage . . . . . . . . .3
Sensor Technology. . . . . . . . . . . . . 3
Positioning . . . . . . . . . . . . . . . . . 3
How to install your Smoke Alarm . . . . .5
Interlinking your smoke alarms. . . . . . .6
Operation. . . . . . . . . . . . . . . . . . 8
Note: This User Manual is also available in large text and other formats.
Please call 0330 094 5830 for further information
LED Indicators . . . . . . . . . . . . . . . 9
Alarm Test . . . . . . . . . . . . . . . . 10
Alarm Smart Silence™ . . . . . . . . . . 10
Sleep Easy™ . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . 15
Disposal . . . . . . . . . . . . . . . . . 15
Warranty . . . . . . . . . . . . . . . . . 15
CONTENTS
FireAngel Safety Technology Limited Vanguard Centre, Coventry CV4 7EZ UK www.reangeltech.com
Technical Support: 0330 094 5830 / EIRE dial 1-800 523171 Email: technicalsupport@reangeltech.com
0832-CPR-F2598
EN 14604:2005+AC:2008
Smoke Alarm Devices
FSTDOP19002
Model No. ST-632
19
651d/13
ST-632 + W2-Module
GN5488R1
W2-Module Independently tested to:
EN 301 489-1
EN 301 489-3
EN 300 220-2
Frequency 868MHz
Max RF power: +10dBm
Hereby, FireAngel Safety Technology Limited, declares that
W2-Module is in compliance with the essential require-
ments and other relevant provisions of Directive 2014/53/
EU. The declaration of conformity may be consulted at
http://spru.es/EC-W2-Module
3
THERMOPTEK
TECHNOLOGY
Thermoptek alarms are “toast-proof”
meaning they can be positioned in areas
close to kitchens that may be affected by
cooking fumes. Heat alarms should be used
in kitchens where required.
This combines an optical sensing chamber
with thermal enhancement. The alarm is
effective at detecting slow burning fires, and
constant monitoring of temperature changes
enables the sensitivity of the alarm to be
instantly increased thereby quickening the
typical response time to fast flaming fires
significantly.
POSITIONING
WARNING: Your smoke alarm can be
installed into a new build property as
additional protection to an existing smoke
detection system only. It cannot be used
as a substitute for a hard wired system as
required in new build properties. In this
type of property the building regulations
require alarms to be interlinked. You can
obtain further information from your local
fire service or building control department
at your local council offices. These sources
generally provide advice on new builds or
projects that require planning permission.
Your smoke alarm typically meets the
minimum requirements for family living
units in existing buildings, as long as at least
one unit is installed on each floor/level of
your property.
INTRODUCTION
Groundbreaking Thermoptek technology
combines the very latest in optical sensing
with thermal enhancement, providing faster
response to both fire types eliminating the
need for ionisation sources which can be
harmful to the environment. In addition, this
smoke alarm allows the low battery warning
chirp to be silenced until it is convenient to
replace the alarm (recommended within no
more than 30 days).
IMPORTANT: This user manual contains
important information regarding the
operation of your smoke alarm. Ensure you
read this user manual fully before installing
and operating the alarm. If you are installing
this smoke alarm for use by others, you must
leave this manual with the end user.
AUTOMATIC POWER
ENGAGE
Your 10 year life smoke alarm is powered
by an internal lithium battery. To avoid
unnecessary use of the battery prior to
installation, and to ease disposal when
the alarm reaches the end of its life, the
alarm is supplied with the battery in a
deactivated state. The battery on this alarm
is automatically enabled when the alarm is
fully locked on to the base plate.
WARNING: Lithium batteries must not be
exposed to excessive heat.
IMPORTANT: Your alarm will not work until
it is correctly fitted to the base plate.
Note: This User Manual is also available in large text and other formats.
Please call 0330 094 5830 for further information
LED Indicators . . . . . . . . . . . . . . . 9
Alarm Test . . . . . . . . . . . . . . . . 10
Alarm Smart Silence™ . . . . . . . . . . 10
Sleep Easy™ . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . 15
Disposal . . . . . . . . . . . . . . . . . 15
Warranty . . . . . . . . . . . . . . . . . 15
CONTENTS
FireAngel Safety Technology Limited Vanguard Centre, Coventry CV4 7EZ UK www.reangeltech.com
Technical Support: 0330 094 5830 / EIRE dial 1-800 523171 Email: technicalsupport@reangeltech.com
Hereby, FireAngel Safety Technology Limited, declares that
W2-Module is in compliance with the essential require-
ments and other relevant provisions of Directive 2014/53/
EU. The declaration of conformity may be consulted at
http://spru.es/EC-W2-Module
4
sleeping/resident rooms, providing the same
conditions are met as for a single-family
residence. However, there must already be
a primary fire detection system that meets
regulatory requirements for common areas
such as lobbies and hallways. Use of this
smoke alarm in common areas may not
provide sufficient fire warning to residents or
meet regulatory requirements. This smoke
alarm is designed to operate as a standalone
smoke alarm.
WARNING: Without interlinking, this
smoke alarm will not communicate with
other smoke alarms. It is not intended as a
substitute for a complete alarm system.
Mobile Homes and Caravans
This smoke alarm is suitable for use in
mobile homes and caravans.
Commercial and Industrial Premises
This smoke alarm is not intended for any
non-residential, commercial or industrial
application, nor for any other purpose than
described above.
IMPORTANT: Obstructions such as steel
reinforcement in concrete could block
or impede the wireless signal. While
the wireless range is over 200 metres in
clear air / clear line of sight, the effective range
may be reduced by wall and other obstructions
in the building. Always ensure that after any
building work or after repositioning large items
of furniture (beds, sofas, shelving units etc.),
you carry out an alarm test on all networked
smoke alarms to ensure they are all still
working. It is recommended not to exceed
35m as the maximum distance between smoke
alarms in the network.
300mm from light fittings and walls.
Ideally as central as possible in the room.
If positioning your smoke alarm on the
wall, the top of the detection element must
be between 150mm and 300mm below the
ceiling, and at least 300mm from a wall.
Smoke alarms should be positioned at no
more than 600mm vertically below the
highest point in the room.
.
300mm
150mm
150mm
600mm
300mm
Multi-family or mixed occupant
residence (Tenancy building, student
accommodation)
Your smoke alarm can also be used in
individual flats and bedsits, providing the
same conditions are met as for a single-
family residence. However, there must
already be a primary fire detection system
that meets regulatory requirements for
common areas such as lobbies and hallways.
Institutions and Hotels
This includes motels, hospitals, day care
facilities, long-term health care facilities,
boarding houses and dormitories. Your
smoke alarm can be used in individual
In order to achieve the earliest fire warning,
we recommend that a smoke alarm is fitted
in all rooms where the temperature is
normally between 4°C (40°F) and 38°C
(100°F). Check the section on ‘Positioning’ to
ensure that the smoke alarm is to be correctly
positioned for the particular dwelling into
which it is intended to be installed.
For further advice on where to install your
alarms refer to BS 5839-6
WARNING:
The alarm positions shown are
based on typical homes. Construction and
layout of individual dwellings will vary, so this
should be regarded only as a guide. Check with
your local fire station f
or additional guidance
or, for further advice, see standard BS5839-6.
Smoke alarms should be sited at least
LOUNGE
CELLAR
BEDROOMBEDROOM HALL
DINING ROOM
MINIMUM RECOMMENDATIONS
EXISTING HOMES
NOTE: Kitchens should be covered by a self
contained heat detector.
RECOMMENDED FOR ADDITIONAL PROTECTION
5
NOTE: The W2-Module in your ST-632 unit
enables the alarm to interlink with up to 50
Wi-Safe 2 devices in a single network.
HOW TO INSTALL YOUR
SMOKE ALARM
IMPORTANT: Make sure you have read and
understood this manual before installing
your smoke alarm.
1. Preparation
The base plate should be attached to the
ceiling or wall.

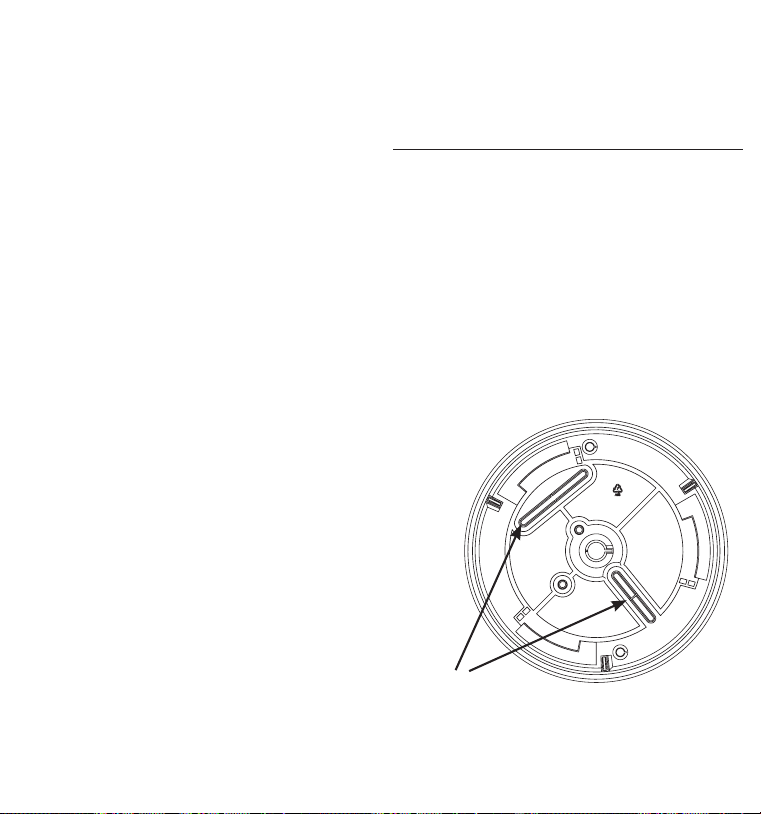

Break out the tabs from the base plate. Use
the fixing slots on the base plate as a guide
when marking the position of the drill holes.
With an appropriately sized drill, drill the
holes and insert the plastic fixing anchors
supplied (if needed).
Base
plate tabs
sleeping/resident rooms, providing the same
conditions are met as for a single-family
residence. However, there must already be
a primary fire detection system that meets
regulatory requirements for common areas
such as lobbies and hallways. Use of this
smoke alarm in common areas may not
provide sufficient fire warning to residents or
meet regulatory requirements. This smoke
alarm is designed to operate as a standalone
smoke alarm.
WARNING: Without interlinking, this
smoke alarm will not communicate with
other smoke alarms. It is not intended as a
substitute for a complete alarm system.
Mobile Homes and Caravans
This smoke alarm is suitable for use in
mobile homes and caravans.
Commercial and Industrial Premises
This smoke alarm is not intended for any
non-residential, commercial or industrial
application, nor for any other purpose than
described above.
IMPORTANT: Obstructions such as steel
reinforcement in concrete could block
or impede the wireless signal. While
the wireless range is over 200 metres in
clear air / clear line of sight, the effective range
may be reduced by wall and other obstructions
in the building. Always ensure that after any
building work or after repositioning large items
of furniture (beds, sofas, shelving units etc.),
you carry out an alarm test on all networked
smoke alarms to ensure they are all still
working. It is recommended not to exceed
35m as the maximum distance between smoke
alarms in the network.
300mm from light fittings and walls.
Ideally as central as possible in the room.
If positioning your smoke alarm on the
wall, the top of the detection element must
be between 150mm and 300mm below the
ceiling, and at least 300mm from a wall.
Smoke alarms should be positioned at no
more than 600mm vertically below the
highest point in the room.
.
300mm
150mm
150mm
600mm
300mm
Multi-family or mixed occupant
residence (Tenancy building, student
accommodation)
Your smoke alarm can also be used in
individual flats and bedsits, providing the
same conditions are met as for a single-
family residence. However, there must
already be a primary fire detection system
that meets regulatory requirements for
common areas such as lobbies and hallways.
Institutions and Hotels
This includes motels, hospitals, day care
facilities, long-term health care facilities,
boarding houses and dormitories. Your
smoke alarm can be used in individual
6

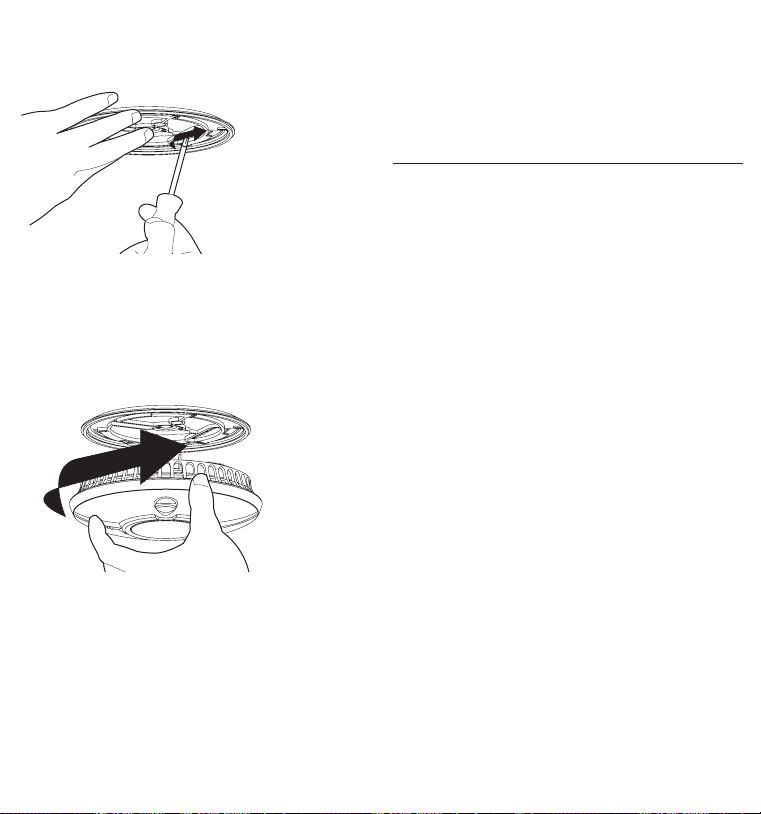

2. Install Base Plate
Fit the base plate to the ceiling or wall using
the screws provided.
3. Fit Your FireAngel Smoke Alarm
To fit to the smoke alarm to the base plate
included in this pack, position the alarm on
the base plate then twist it clockwise until
the alarm is locked in position. Make sure the
alarm is twisted on fully.
The battery will now activate. The red
indicator LED on the front of the alarm
should flash approximately once every
45 seconds to show that the alarm is active.
WARNING: Removing the smoke alarm
from its base plate will deactivate the unit
and prevent it from detecting smoke.
4. Test Your FireAngel smoke alarm
After fitting the alarm to the base plate, wait
for 5 seconds for the alarm to settle, then test
the alarm. See “Alarm Test”.
INTERLINKING YOUR
SMOKE ALARMS
The W2-Module in your ST-632 enables you
to wirelessly interlink with other alarms with a
W2-Module and create a Wi-Safe 2 network.
In order to communicate with each other,
W2-Module enabled alarms need to be “learned
in” or interlinked. If one alarm activates, all
other interlinked smoke alarms will also sound.
Note that Wi-Safe 2 smoke alarms can only be
interlinked with other Wi-Safe 2 smoke alarms
and other products within the Wi-Safe 2 range.
“Learning in” (interlinking) your Smoke
Alarms:
The process below describes ‘learning in’
two alarms into a network, “Alarm 1” and
“Alarm 2”.
1. Alarm 1: Install Alarm 1 as described
previously.
2. Alarm 2: Install the base plate for Alarm 2
in one of the recommended locations. Do
not t the second alarm to its base plate
yet.

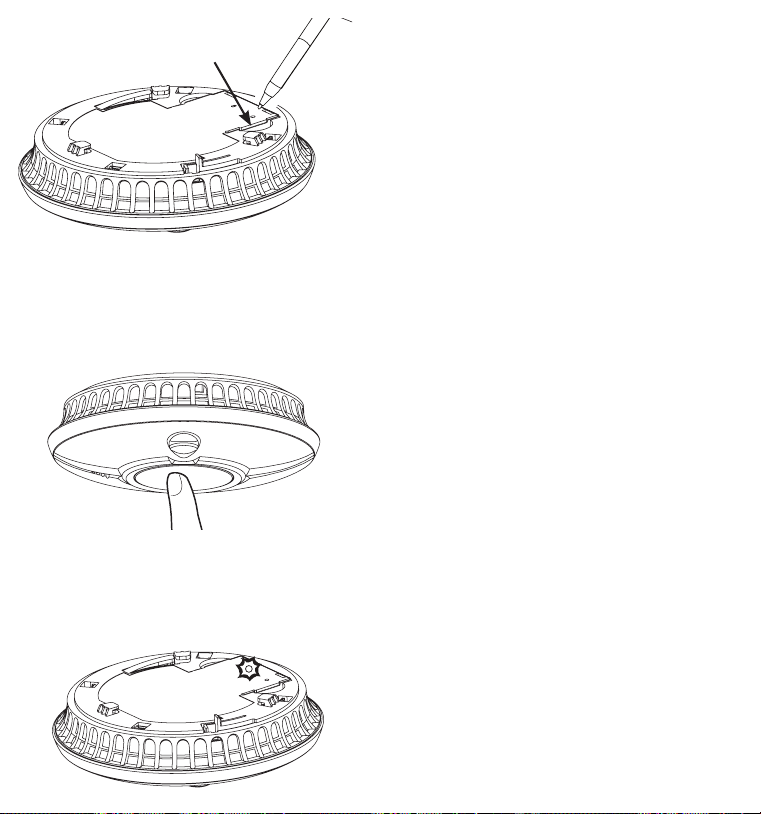

3. Alarm 2: Using a pen, a paper clip that has
been opened out, briey push and release
the learn button located in a circular hole in
the back of Alarm 2.
Circular hole
The red LED next to the learn button will ash
briey then light up for approximately ve
seconds to show that it is ready to receive the
“learn in” signal. During these ve seconds
you will need to briey press the test button on
Alarm 1 to wirelessly interlink the two alarms.
Alarm 1 will give an audible sound consisting of
2 cycles of 3 loud beeps.
Alarm 2 The red LED on the wireless module
of Alarm 2 will ash to indicate that it has been
“learned-in” successfully.
7
4. Test Your FireAngel smoke alarm
After fitting the alarm to the base plate, wait
for 5 seconds for the alarm to settle, then test
the alarm. See “Alarm Test”.
INTERLINKING YOUR
SMOKE ALARMS
The W2-Module in your ST-632 enables you
to wirelessly interlink with other alarms with a
W2-Module and create a Wi-Safe 2 network.
In order to communicate with each other,
W2-Module enabled alarms need to be “learned
in” or interlinked. If one alarm activates, all
other interlinked smoke alarms will also sound.
Note that Wi-Safe 2 smoke alarms can only be
interlinked with other Wi-Safe 2 smoke alarms
and other products within the Wi-Safe 2 range.
“Learning in” (interlinking) your Smoke
Alarms:
The process below describes ‘learning in’
two alarms into a network, “Alarm 1” and
“Alarm 2”.
1. Alarm 1: Install Alarm 1 as described
previously.
2. Alarm 2: Install the base plate for Alarm 2
in one of the recommended locations. Do
not t the second alarm to its base plate
yet.
3. Alarm 2: Using a pen, a paper clip that has
been opened out, briey push and release
the learn button located in a circular hole in
the back of Alarm 2.
Circular hole
The red LED next to the learn button will ash
briey then light up for approximately ve
seconds to show that it is ready to receive the
“learn in” signal. During these ve seconds
you will need to briey press the test button on
Alarm 1 to wirelessly interlink the two alarms.
Alarm 1 will give an audible sound consisting of
2 cycles of 3 loud beeps.
Alarm 2 The red LED on the wireless module
of Alarm 2 will ash to indicate that it has been
“learned-in” successfully.
Note: If the test button is not pressed quickly
enough (before the red LED on the wireless
module of Alarm 2 has extinguished), the learn-
in process will fail. If this happens, repeat the
process again, as described above.
5. Fit Alarm 2 onto its base plate to
complete the installation.
6. Additional alarms should be “learned-in”
the same way. When learning in additional
alarms, any alarm already in the network,
can be used as ‘Alarm 1’. This means that
you can “learn-in” the additional alarm to
any alarm already in the network. It will
then become part of the whole network.
You do not have to “learn it in” to each
alarm in the network.
7. After completing the “learn-in” procedure,
test the alarms as described in “Alarm Test”.
If any interlinked alarm fails to respond to the
“Alarm Test”, remove it from its base plate and
repeat the learning in process.
Unlearning a Wi-Safe 2 Alarm
To remove an alarm from a network, push and
release, then push and hold the learn button.
When the red LED goes out, release the button.
Once the LED has ashed 5 times you have
successfully ‘Unlearned’ the alarm.
When removing an alarm from any Wi-Safe 2
network it is generally good practice to “unlearn”
every alarm (in the same way as mentioned
above) and rebuild the network once again by
following the “learn-in” process on page 6.
Please note:
It is important not to rush the
Wi-Safe 2 system and is also good practice
to allow several minutes after un-learning the
system before rebuilding the network once again.
8
LOW BATTERY CONDITION
IMPORTANT: Your smoke alarm requires
that its battery has sufficient power capacity
to operate correctly.
Should your FireAngel smoke alarm enter a
low battery condition, the unit will emit an
audible ‘chirp’ once every 45 seconds and
the amber LED will flash at around the same
time. All other alarms in the network will also
emit an audible low battery chirp once every
4 hours.
When this occurs, we recommend you
replace the alarm immediately. Your smoke
alarm will continue to warn of this low
battery condition for at least 30 days,
however, failure to change the alarm after
this time would mean your smoke alarm
may have insufficient power to alert you
in a real fire situation. When the alarm is
removed from the base plate the battery will
automatically deactivate and the low power
warning chirp should stop, allowing you to
dispose of the alarm.
ST-632 LED Indicators
Red LED Amber LED
Audible
signal
Status Action required
Flashes every
second
3 loud beeps
repeating
Alarm
Check if there is a re hazard and
vacate property
Flashes once
every 45 seconds
3 loud beeps
repeating
Other alarm in
network in alarm
status
Check if there is a re hazard and
vacate property
Flashes once
every 10 seconds
for up to 10 mins
“Smart
Silence” Alarm
has reduced
sensitivity
This will be as a result of you
silencing a false alarm. Sensitivity
will return to normal within 10 mins
Flashes once
every 45 seconds
Flashes at the same
time as the red LED
see note
Single chirp at
the same time as
the LED ash
Low
powerpack
Replace within 30 days
Flashes once
every 45 seconds
Flashes once every
45 seconds, 20-25
seconds after the
red LED
Single chirp at
the same time
as the red LED
ash
Fault
Call Technical Support if within
warranty. If not replace alarm
immediately
Flashes once
every 45 seconds
Flashes at the same
time as the red LED
see note
Sounder Fault
Call Technical Support if within
warranty. If not replace alarm
immediately
Flashes once
every 45 seconds
Single chirp
every four hours
Other alarm in
network has low
powerpack
Locate alarm with low powerpack
and replace
Flashes once
every 45 seconds
Double ashes at the
same time as the red
LED see note
Single chirp at
the same time as
the LED ash
Radio module
low battery
Call Technical Support if within
warranty. If not replace alarm
immediately
Flashes once
every 45 seconds
Double ashes every
45 seconds, 20-25
seconds after the
red LED
Single chirp at
same time as the
red LED ash
Radio module
fault
Call Technical Support if within
warranty. If not replace alarm
immediately
Note: The amber LED may ash twice on the ST-632, indicating that the fault is with
the wireless module. In this event, please contact Technical Support for guidance
on how to replace W2-Module within the unit. Telephone: 0330 094 5830 or e-mail:
technicalsupport@reangeltech.com
OPERATION
NORMAL CONDITION
The alarm will check its sounder once a
month. If the alarm is interlinked with a
FireAngel Wireless Gateway unit via a Wi-
Safe 2 network, it will report the alarm status
into the Wireless Gateway.
During normal operation, the LED does not
flash and the audible alarm signal does not
sound.
NOTE: The alarm checks the sounder every
30 days. During this time the unit may emit
an unobtrusive clicking noise. This does not
resemble the alarm signal or fault signal and
will be difficult to detect during everyday
activity.
ALARM CONDITION
If the alarm goes into alarm, 3 loud beeps
will sound, which continually repeat until the
cause of the alarm being activated is found
and resolved. The red LED on the alarm will
flash rapidly (once per second) during these
alarms. All interlinked alarms will sound the
same pattern.
FAULT INDICATION
If the yellow LED flashes and an short
audible beep is heard at a different time, this
indicates that there is a fault; the unit may
not detect smoke and may not sound an
alarm in the event of a fire. If this occurs, it is
strongly recommended that you replace the
alarm immediately.
9
LOW BATTERY CONDITION
IMPORTANT: Your smoke alarm requires
that its battery has sufficient power capacity
to operate correctly.
Should your FireAngel smoke alarm enter a
low battery condition, the unit will emit an
audible ‘chirp’ once every 45 seconds and
the amber LED will flash at around the same
time. All other alarms in the network will also
emit an audible low battery chirp once every
4 hours.
When this occurs, we recommend you
replace the alarm immediately. Your smoke
alarm will continue to warn of this low
battery condition for at least 30 days,
however, failure to change the alarm after
this time would mean your smoke alarm
may have insufficient power to alert you
in a real fire situation. When the alarm is
removed from the base plate the battery will
automatically deactivate and the low power
warning chirp should stop, allowing you to
dispose of the alarm.
ST-632 LED Indicators
Red LED Amber LED
Audible
signal
Status Action required
Flashes every
second
3 loud beeps
repeating
Alarm
Check if there is a re hazard and
vacate property
Flashes once
every 45 seconds
3 loud beeps
repeating
Other alarm in
network in alarm
status
Check if there is a re hazard and
vacate property
Flashes once
every 10 seconds
for up to 10 mins
“Smart
Silence” Alarm
has reduced
sensitivity
This will be as a result of you
silencing a false alarm. Sensitivity
will return to normal within 10 mins
Flashes once
every 45 seconds
Flashes at the same
time as the red LED
see note
Single chirp at
the same time as
the LED ash
Low
powerpack
Replace within 30 days
Flashes once
every 45 seconds
Flashes once every
45 seconds, 20-25
seconds after the
red LED
Single chirp at
the same time
as the red LED
ash
Fault
Call Technical Support if within
warranty. If not replace alarm
immediately
Flashes once
every 45 seconds
Flashes at the same
time as the red LED
see note
Sounder Fault
Call Technical Support if within
warranty. If not replace alarm
immediately
Flashes once
every 45 seconds
Single chirp
every four hours
Other alarm in
network has low
powerpack
Locate alarm with low powerpack
and replace
Flashes once
every 45 seconds
Double ashes at the
same time as the red
LED see note
Single chirp at
the same time as
the LED ash
Radio module
low battery
Call Technical Support if within
warranty. If not replace alarm
immediately
Flashes once
every 45 seconds
Double ashes every
45 seconds, 20-25
seconds after the
red LED
Single chirp at
same time as the
red LED ash
Radio module
fault
Call Technical Support if within
warranty. If not replace alarm
immediately
Note: The amber LED may ash twice on the ST-632, indicating that the fault is with
the wireless module. In this event, please contact Technical Support for guidance
on how to replace W2-Module within the unit. Telephone: 0330 094 5830 or e-mail:
technicalsupport@reangeltech.com
10

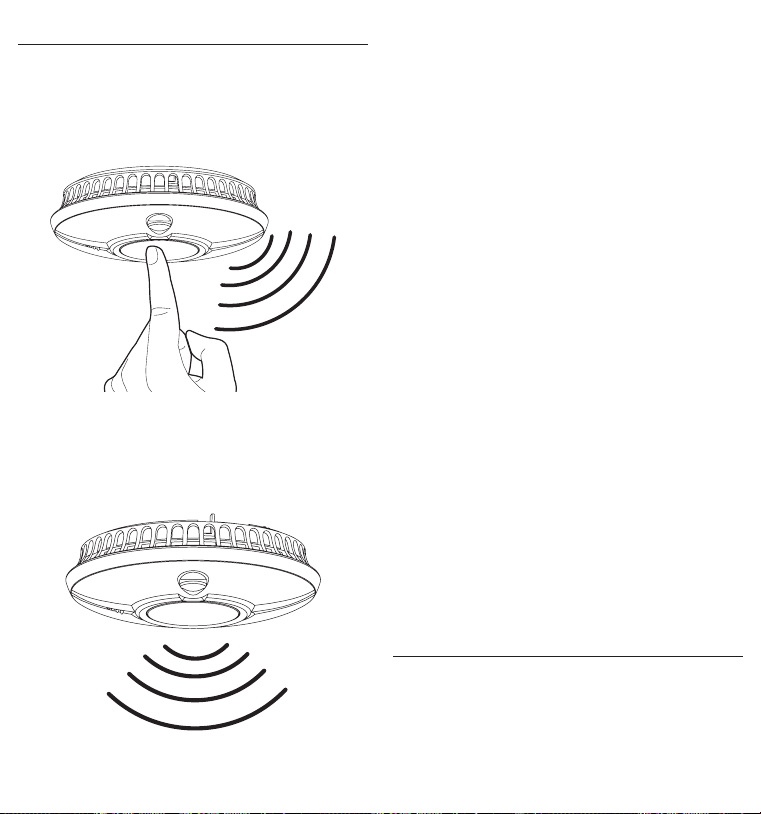

ALARM TEST
The alarm must be properly attached to the
base plate before it can be tested.
a) Press the test button in the centre and
release.
b) The unit will give an audible alarm
consisting of 2 cycles of 3 loud beeps, then
stop automatically.
c) The red LED on the alarm will flash rapidly
during the audible signal.
alarm silence function after making sure that
there is no ongoing fire emergency situation.
Do not block the vents on the alarm or
disable the smoke alarm in any way, as this
will remove your protection. Smoke alarms
can sometimes react to cooking fumes or
other non emergency situations. Your smoke
alarm features “Smart Silence” technology.
In the event of a known false alarm your
smoke alarm can be temporarily silenced by
pressing the central test button. Your alarm
will automatically return to full sensitivity
within 10 minutes.
NOTE: If the level of smoke reaching the
alarm is very high, the alarm silence will be
overridden and the alarm will continue to
sound.
1. Briefly press and release the pause button,
the alarm sound will shortly stop.
2. Your alarm will silence and enter into
a reduced sensitivity reset cycle for
approximately 10 minutes.
NOTE: The test button accurately tests
the alarm’s smoke sensing circuit, there is
no need to test your alarm with smoke. If
your smoke alarm fails to give an audible
test signal, please refer immediately to the
trouble shooting guide at the end of this
manual.
WARNING: You should test your smoke
alarm every month.
If your ST-632 is interlinked with other smoke
alarms, we recommend that every individual
smoke alarm is tested during the monthly test.
a) Briey press the test button in the centre
of the smoke alarm and release.
b) The unit you are testing will give an
audible alarm consisting of 2 cycles of
3 loud beeps, then stop automatically.
The red LED on this alarm will ash rapidly
(once per second) during the audible
alarm. All interlinked alarms will give an
audible alarm consisting of 2 cycles
of 3 loud beeps, then stop automatically,
indicating the test is complete. The red
LED on all interlinked alarms will not ash
rapidly. If any alarm fails to self-test, see
Troubleshooting..

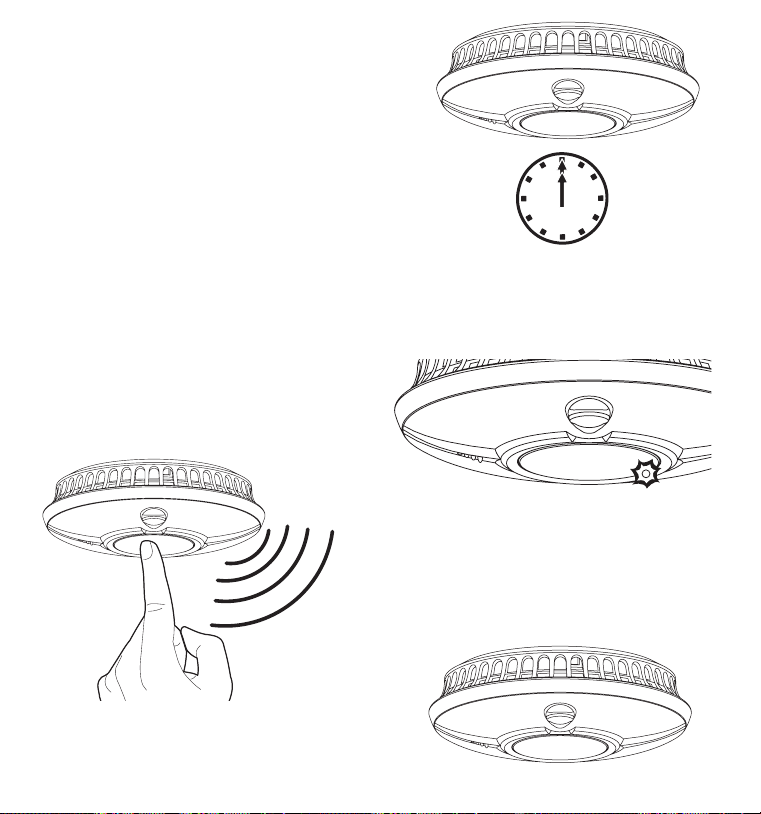

ALARM SMART
SILENCE™
DANGER: If your smoke alarm emits the
full alarm signal and you are not testing the
unit, the smoke alarm is warning you of a
potentially dangerous situation that requires
your immediate attention. Only use the
11
alarm silence function after making sure that
there is no ongoing fire emergency situation.
Do not block the vents on the alarm or
disable the smoke alarm in any way, as this
will remove your protection. Smoke alarms
can sometimes react to cooking fumes or
other non emergency situations. Your smoke
alarm features “Smart Silence” technology.
In the event of a known false alarm your
smoke alarm can be temporarily silenced by
pressing the central test button. Your alarm
will automatically return to full sensitivity
within 10 minutes.
NOTE: If the level of smoke reaching the
alarm is very high, the alarm silence will be
overridden and the alarm will continue to
sound.
1. Briefly press and release the pause button,
the alarm sound will shortly stop.
2. Your alarm will silence and enter into
a reduced sensitivity reset cycle for
approximately 10 minutes.
NOTE: The test button accurately tests
the alarm’s smoke sensing circuit, there is
no need to test your alarm with smoke. If
your smoke alarm fails to give an audible
test signal, please refer immediately to the
trouble shooting guide at the end of this
manual.
WARNING: You should test your smoke
alarm every month.
If your ST-632 is interlinked with other smoke
alarms, we recommend that every individual
smoke alarm is tested during the monthly test.
a) Briey press the test button in the centre
of the smoke alarm and release.
b) The unit you are testing will give an
audible alarm consisting of 2 cycles of
3 loud beeps, then stop automatically.
The red LED on this alarm will ash rapidly
(once per second) during the audible
alarm. All interlinked alarms will give an
audible alarm consisting of 2 cycles
of 3 loud beeps, then stop automatically,
indicating the test is complete. The red
LED on all interlinked alarms will not ash
rapidly. If any alarm fails to self-test, see
Troubleshooting..
ALARM SMART
SILENCE™
DANGER: If your smoke alarm emits the
full alarm signal and you are not testing the
unit, the smoke alarm is warning you of a
potentially dangerous situation that requires
your immediate attention. Only use the
3. During the reduced sensitivity reset cycle,
the red LED on your alarm will continue
to flash more rapidly than normal,
approximately once every 10 seconds.
4. Once the reset cycle is complete, your
alarm will automatically return to full
sensitivity after a maximum of 10 minutes
and the red LED will revert to flashing
once every 45 seconds.
12
you replace your alarm immediately, and
certainly within 30 days, as your alarm may
then have insufficient power to warn you of
a real fire situation after this time.
WARNING: Your smoke alarm cannot be
silenced if the chirp is indicating a fault. In
this instance, the unit should be replaced
immediately to ensure protection in the
event of a fire.
DANGER: Never ignore any alarm. Ignoring
the alarm may result in injury or death. If
your smoke alarm activates and alarms and
you are not absolutely certain of the source
of the smoke, get everyone out of the house
immediately.
If your ST-632 is interlinked with other alarms,
pressing the test button will also silence other
alarms in the network. However, any alarm
that has sensed smoke (an instigating alarm)
cannot be remotely silenced. This means that
any alarm that has sensed smoke will continue
to sound allowing you to locate it.
If any instigating alarm in the network has not
been silenced after a short period (2-4 minutes),
all other alarms will start sounding again to alert
you.
WARNING: If any alarm in the network is
sounding, it is warning you of a potentially
hazardous situation. Do not ignore it.
SLEEP EASY™
Low battery warnings often start at night or
when it maybe inconvenient to replace your
alarm. You can silence the audible chirp for a
period of 8 hours by pressing the test button.
Your smoke alarm will still detect smoke
during this time of low battery warning
silence. However it is recommended that
TROUBLESHOOTING
Problem Solution
Your FireAngel
smoke alarm does
not sound during
testing.
• Make sure alarm has been rotated clockwise as far as it can go and
is securely located on base plate (this means the battery has been
activated). If testing immediately after first activating the alarm you
should allow a few seconds for the alarm to settle before testing.
• Make sure you push the centre of the test button rmly.
• Check the LED ashing pattern (see the section on “LED indicators”).
• If the unit has been silenced and is in low sensitivity mode, it may not test.
Wait 15 minutes then try again.
• If the alarm has been recently tted and it still fails to self-test then contact
technical support (see below).
Your FireAngel
smoke alarm cannot
be removed from its
base plate.
If you nd that you cannot remove the smoke alarm from its base plate, the
locking mechanism may have been engaged.
Undue force may result in damage to the smoke alarm or the base plate, or
both. For more information, contact your installer, or the FireAngel Technical
Support Team between 9am - 5pm Monday – Friday.
Telephone: 0330 094 5830.
Your FireAngel
smoke alarm
activates when no
smoke is visible.
• Check the location of your smoke alarm (see the section on "Positioning").
• Clean the smoke alarm (see the section on "Maintenance").
• If the alarm is sounding but the red LED is only ashing once every 45
seconds, this indicates that an interlinked alarm has detected smoke.
Vacate the property if there is a re hazard.
Other interlinked
units fail to silence
when one unit is
silenced
• Interlinked units that have sensed smoke can’t be silenced. If one or more
unit remains in alarm, all other interlinked units will emit their audible
warning again within 4 minutes. Vacatethe property if there is a re hazard.
13
you replace your alarm immediately, and
certainly within 30 days, as your alarm may
then have insufficient power to warn you of
a real fire situation after this time.
WARNING: Your smoke alarm cannot be
silenced if the chirp is indicating a fault. In
this instance, the unit should be replaced
immediately to ensure protection in the
event of a fire.
TROUBLESHOOTING
Problem Solution
Your FireAngel
smoke alarm does
not sound during
testing.
• Make sure alarm has been rotated clockwise as far as it can go and
is securely located on base plate (this means the battery has been
activated). If testing immediately after first activating the alarm you
should allow a few seconds for the alarm to settle before testing.
• Make sure you push the centre of the test button rmly.
• Check the LED ashing pattern (see the section on “LED indicators”).
• If the unit has been silenced and is in low sensitivity mode, it may not test.
Wait 15 minutes then try again.
• If the alarm has been recently tted and it still fails to self-test then contact
technical support (see below).
Your FireAngel
smoke alarm cannot
be removed from its
base plate.
If you nd that you cannot remove the smoke alarm from its base plate, the
locking mechanism may have been engaged.
Undue force may result in damage to the smoke alarm or the base plate, or
both. For more information, contact your installer, or the FireAngel Technical
Support Team between 9am - 5pm Monday – Friday.
Telephone: 0330 094 5830.
Your FireAngel
smoke alarm
activates when no
smoke is visible.
• Check the location of your smoke alarm (see the section on "Positioning").
• Clean the smoke alarm (see the section on "Maintenance").
• If the alarm is sounding but the red LED is only ashing once every 45
seconds, this indicates that an interlinked alarm has detected smoke.
Vacate the property if there is a re hazard.
Other interlinked
units fail to silence
when one unit is
silenced
• Interlinked units that have sensed smoke can’t be silenced. If one or more
unit remains in alarm, all other interlinked units will emit their audible
warning again within 4 minutes. Vacatethe property if there is a re hazard.
14
Problem Solution
Your FireAngel
smoke alarm
emits a brief beep
intermittently.
• Check the location of your smoke alarm (see "Application" and
"Positioning").
• Check that your smoke alarm is denitely the source of the beeping; ensure
the noise isn’t coming from another alarm (smoke/carbon monoxide/gas/
burglar alarm) by process of elimination.
• If the brief beep is emitted once every 45 seconds, and the yellow LED is
ashing around the same time, this indicates that the battery is low. The
unit should be replaced within 7 days.
• If your smoke alarm is chirping once every 4 hours, it is indicating that
another alarm in the network has entered a low battery condition. Locate
the alarm with the low battery condition and replace the alarm as soon as
possible and in any event within 30 days.
You experience
frequent unwanted
alarms.
• Check the location of your smoke alarm (see "Positioning").
• Clean the smoke alarm (see "Maintenance").
• Any activated alarm will cause other interlinked alarms to sound. Carry out
these checks on the activated alarms in particular (red LED ashing rapidly
during alarm).
• Any activated alarm will cause other interlinked alarms to sound. Carry out
these checks on the activated alarms in particular (red LED ashing rapidly
during alarm).
The yellow LED is
ashing and the
alarm is emitting a
short ‘chirp’.
• If the yellow LED is ashing at around the same time as the chirp, this
indicates low power status; the alarm should be replaced as soon as
possible, within a maximum of 7 days.
• If the yellow LED is ashing at a different time to the chirp, this indicates a
fault; the alarm should be replaced as soon as possible.
If you have any questions, please contact the Technical Support Team between
9am - 5pm Monday – Friday. Telephone: 0330 094 5830 or e-mail:
technicalsupport@fireangeltech.com You can also visit the support section of our website
www.fireangeltech.com
MAINTENANCE
Your smoke alarm has been designed to be
as maintenance-free as possible, however
there are several things you must do to keep
it working properly.
CAUTION: Your smoke alarm is a sealed
electrical device and no attempt should be
made to open the case. Attempting to open
the case will invalidate your Warranty.
Testing
Test your smoke alarm once every month
see ‘Alarm Test’. Any test failures should be
reported to the Technical Support Team.

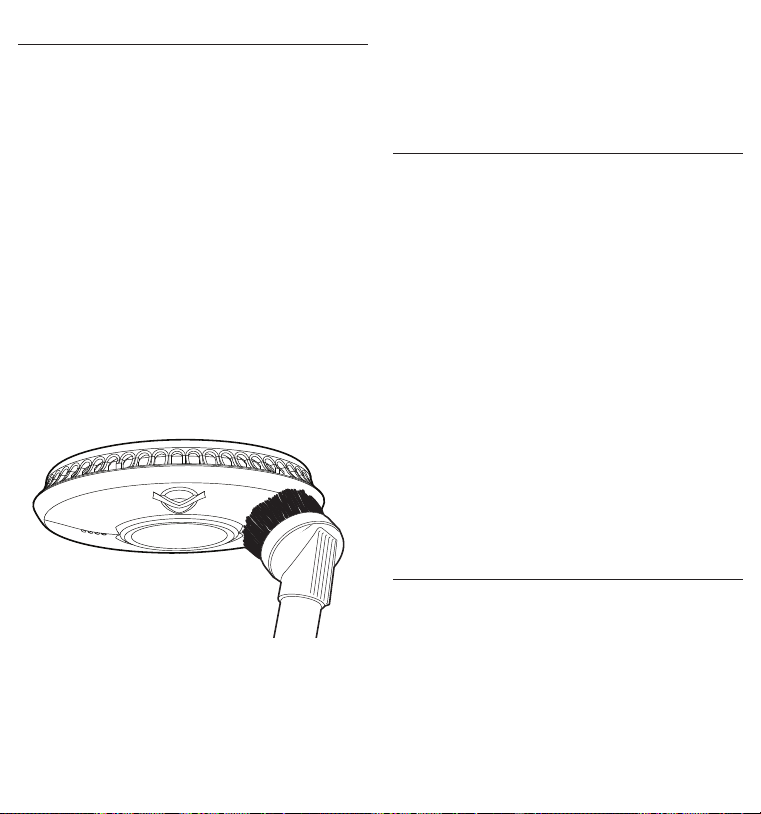

Cleaning
As a minimum your smoke alarm should
be cleaned once every 3 months using your
vacuum cleaner fitted with the soft brush
attachment.
WARNING: Your smoke alarm may false
alarm when it is being cleaned using a
vacuum cleaner.
IMPORTANT: Do not use solvents or
cleaners on your smoke alarm, as they may
cause damage to the sensor or circuitry. The
15
Problem Solution
Your FireAngel
smoke alarm
emits a brief beep
intermittently.
• Check the location of your smoke alarm (see "Application" and
"Positioning").
• Check that your smoke alarm is denitely the source of the beeping; ensure
the noise isn’t coming from another alarm (smoke/carbon monoxide/gas/
burglar alarm) by process of elimination.
• If the brief beep is emitted once every 45 seconds, and the yellow LED is
ashing around the same time, this indicates that the battery is low. The
unit should be replaced within 7 days.
• If your smoke alarm is chirping once every 4 hours, it is indicating that
another alarm in the network has entered a low battery condition. Locate
the alarm with the low battery condition and replace the alarm as soon as
possible and in any event within 30 days.
You experience
frequent unwanted
alarms.
• Check the location of your smoke alarm (see "Positioning").
• Clean the smoke alarm (see "Maintenance").
• Any activated alarm will cause other interlinked alarms to sound. Carry out
these checks on the activated alarms in particular (red LED ashing rapidly
during alarm).
• Any activated alarm will cause other interlinked alarms to sound. Carry out
these checks on the activated alarms in particular (red LED ashing rapidly
during alarm).
The yellow LED is
ashing and the
alarm is emitting a
short ‘chirp’.
• If the yellow LED is ashing at around the same time as the chirp, this
indicates low power status; the alarm should be replaced as soon as
possible, within a maximum of 7 days.
• If the yellow LED is ashing at a different time to the chirp, this indicates a
fault; the alarm should be replaced as soon as possible.
If you have any questions, please contact the Technical Support Team between
9am - 5pm Monday – Friday. Telephone: 0330 094 5830 or e-mail:
technicalsupport@fireangeltech.com You can also visit the support section of our website
www.fireangeltech.com
DISPOSAL
Waste electrical products should not be
disposed of with your other household
waste. The alarm is ideally suited for disposal
within the waste electronic and electrical
equipment (WEEE) recycling scheme.
Please recycle where facilities exist. Check
with your local authority, retailer or contact
our technical support team for recycling/
disposal advice as regional variations apply.
Once the alarm is removed from the base
plate the internal battery will be deactivated
and the alarm will stop emitting the low
power warning chirp. The unit is now ready
for disposal.
WARNING: Do not attempt to open.
WARNING: Do not burn.
WARRANTY
FireAngel Safety Technology Limited warrants to the
original purchaser that its enclosed smoke alarm
be free from defects in materials and workmanship
under normal residential use and service for a period
of 5 (five) years from the date of purchase. Provided
product is sent back to FireAngel Safety Technology
Limited with proof and date of purchase, FireAngel
Safety Technology Limited hereby warrants that during
the 5 (five) year period commencing from the date of
purchase FireAngel Safety Technology Limited, at its
discretion, agrees to replace the unit free of charge.
The warranty on any replacement ST-632 alarm, will last
MAINTENANCE
Your smoke alarm has been designed to be
as maintenance-free as possible, however
there are several things you must do to keep
it working properly.
CAUTION: Your smoke alarm is a sealed
electrical device and no attempt should be
made to open the case. Attempting to open
the case will invalidate your Warranty.
Testing
Test your smoke alarm once every month
see ‘Alarm Test’. Any test failures should be
reported to the Technical Support Team.
Cleaning
As a minimum your smoke alarm should
be cleaned once every 3 months using your
vacuum cleaner fitted with the soft brush
attachment.
WARNING: Your smoke alarm may false
alarm when it is being cleaned using a
vacuum cleaner.
IMPORTANT: Do not use solvents or
cleaners on your smoke alarm, as they may
cause damage to the sensor or circuitry. The
unit can be wiped with a slightly damp cloth.
CAUTION: Do not paint the smoke alarm
as this may block the openings and prevent
smoke from entering the sensor.
(UK) technicalsupport@reangeltech.com
(DE) technik@reangeltech.com
(FR) supporttechnique@reangeltech.com
(NL) klantenservice@reangeltech.com
(INT) Internationalsupport@reangeltech.com
for the remainder of the period of the original warranty
in respect of the alarm originally purchased – that is
from the date of original purchase and not from the
date of receipt of the replacement product. FireAngel
Safety Technology Limited reserves the right to offer an
alternative product similar to that being replaced if the
original model is no longer available or in stock. This
warranty applies to the original retail purchaser from the
date of original retail purchase and is not transferable.
Proof of purchase is required.
This warranty does not cover damage resulting
from accident, misuse, disassembly, abuse or lack of
reasonable care of the product, or applications not in
accordance with the user manual. It does not cover
events and conditions outside of FireAngel Safety
Technology Limited’s control, such as Acts of God (fire,
severe weather etc.). It does not apply to retail stores,
service centres or any distributors or agents. FireAngel
Safety Technology Limited will not recognise any
changes to this warranty by third parties.
FireAngel Safety Technology Limited shall not be liable
for any incidental or consequential damages caused by
the breach of any expressed or implied warranty. Except
to the extent prohibited by applicable law, any implied
warranty of merchantability or fitness for a particular
purpose is limited in duration for 5 (five) years.
This warranty does not affect your statutory rights.
Except for death or personal injury, FireAngel Safety
Technology Limited shall not be liable for any loss of
use, damage, cost or expense relating to this product
or for any indirect, or consequential loss, damages or
costs incurred by you or any other user of this product.
