520iHD60, 520iHD70
EN Operator's manual 2-18
Contents
Introduction..................................................................... 2
Safety..............................................................................4
Assembly...................................................................... 10
Operation...................................................................... 10
Maintenance................................................................. 12
Troubleshooting............................................................ 13
Transportation, storage and disposal........................... 14
Technical data.............................................................. 15
Declaration of Conformity............................................. 17
Introduction
Product description
Husqvarna 520iHD60, 520iHD70 is a battery hedge
trimmer with an electrical motor.
Work is constantly in progress to increase your safety
and efficiency during operation. Speak to your servicing
dealer for more information.
Intended use
Use the product to cut branches and twigs. Do not use
the product for other tasks.

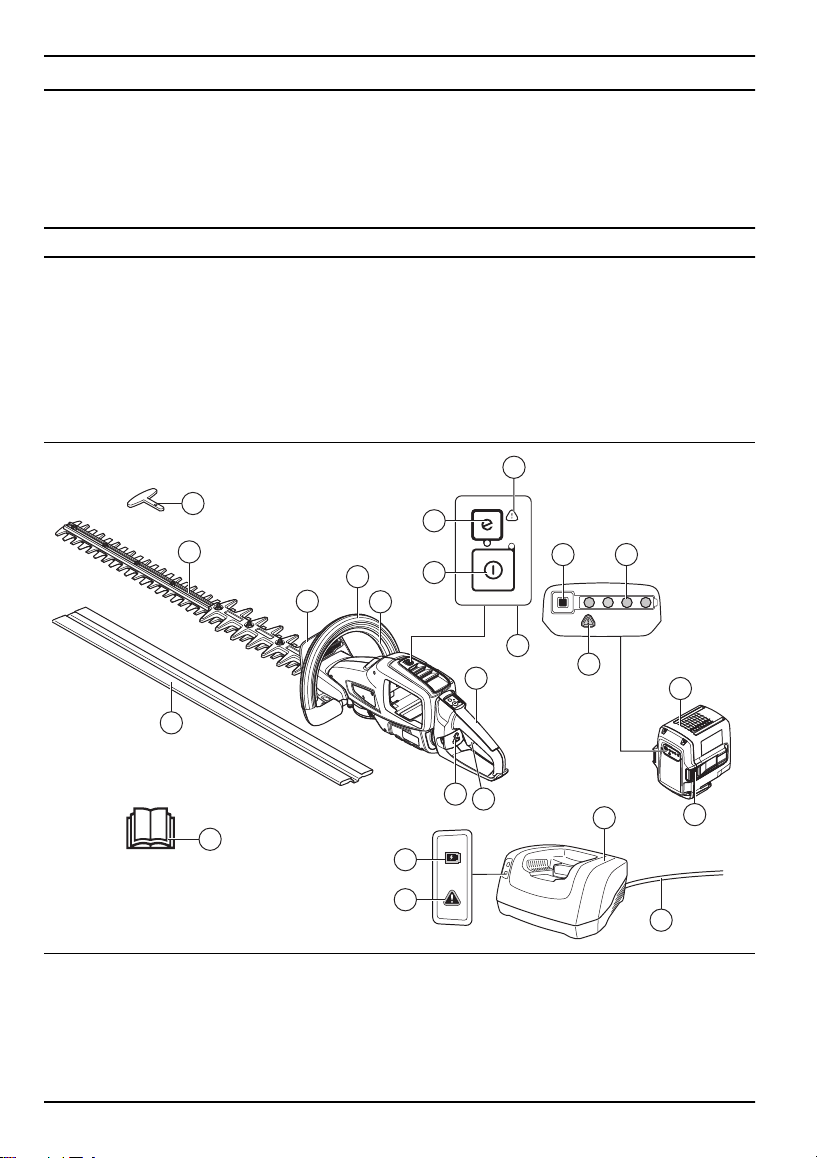

Product overview
2
15
11
10
1413
18
18
17
1
16
21
12
19
5
9
4
3
20
15
8
7
6
1. Operator's manual
2. Rear handle
3. Power trigger lockout
4. Front handle
5. Blade and blade guard
6. Transport guard
7. Power trigger
8. Keypad
9. Hand guard
10. Battery
11. Battery charger
12. Cord
2 773 - 005 - 11.09.2023
13. Battery indicator button
14. Battery status
15. Warning indicator
16. SavE button
17. Start and stop button
18. Power on and warning indicator
19. Battery release buttons
20. Lock for handle
21. Blade tip protection

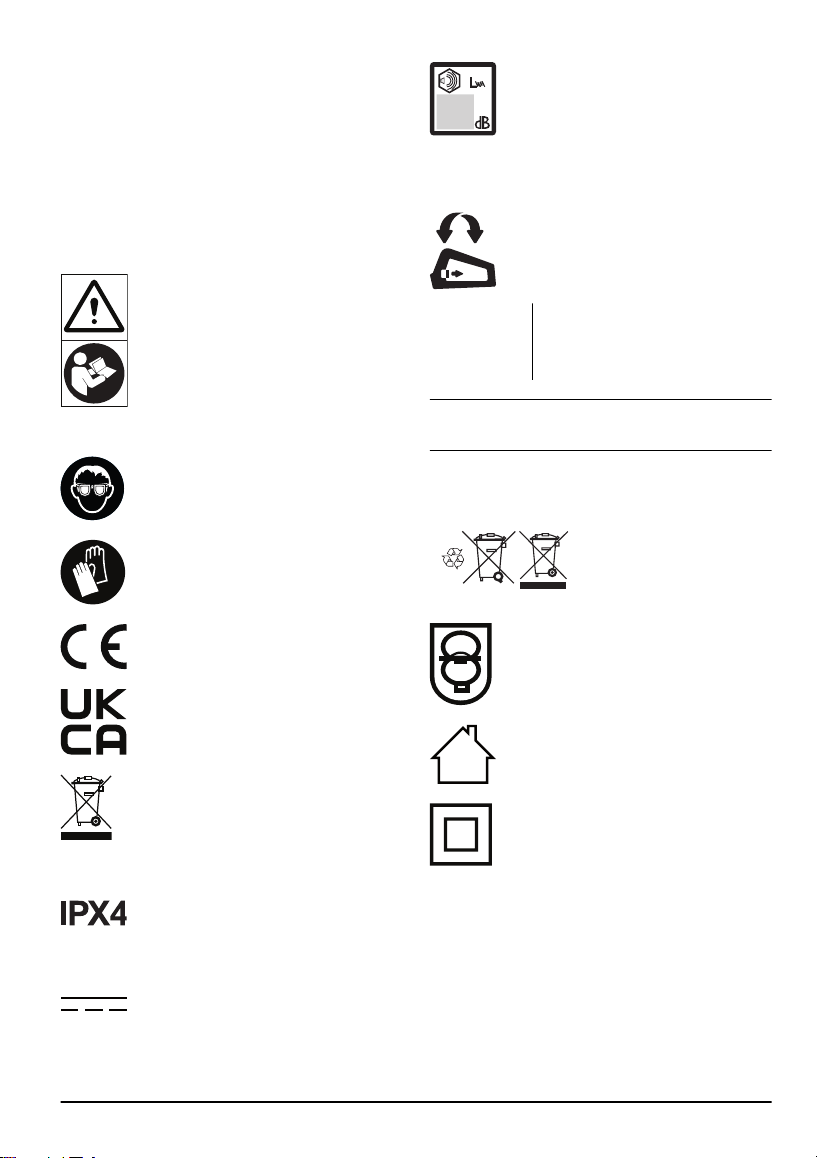

Symbols on the product
WARNING! This product is dangerous.
Injury or death can occur to the operator
or bystanders if the product is not
used carefully and correctly. To prevent
injury to the operator or bystanders,
read and obey all safety instructions in
the operator's manual. Please read the
operator's manual carefully and make
sure that you understand the instructions
before use.
Use approved eye protection.
Use approved protective gloves.
The product agrees with the applicable
EC directives.
This product conforms to the applicable
UK regulations.
The product or package cannot be
disposed as domestic waste. The product
and package must be sent to a
correct recycling station for the recovery
of electrical and electronic equipment.
(Applies to Europe only)
Protected against splashing water.
Direct current.
Noise emission to the environment
label as per EU and UK directives
and regulations, and New South Wales
legislation "Protection of the Environment
Operations (Noise Control) Regulation
2017". The guaranteed sound power level
of the product is specified in
Technical
data on page 15
and on the label.
Lock for handle adjustment.
yyyywwxxxx The rating plate shows the serial
number. yyyy is the production year,
ww is the production week and xxxx
is the sequential number.
Note: Other symbols/decals on the product refer to
certification requirements for some markets.
Symbols on the battery and/or on the
battery charger
Recycle this product at a recy-
cling station for electrical and
electronic equipment. (Applies
to Europe only)
Fail-safe transformer.
Use and keep the battery charger indoors
only.
Double insulation.
Product damage
We are not responsible for damages to our product if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not
from the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
773 - 005 - 11.09.2023
3
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
General power tool safety warnings
WARNING: Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
Note: Save all warnings and instructions for future
reference. The term "power tool" in the warnings refers
to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
Work area safety
• Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
Electrical safety
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
•
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
• If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of a RCD reduces the risk of
electric shock.
Personal safety
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
• Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting. Ensure the switch is
in the OFF-position before connecting to a power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
• Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personal injury.
• Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
• If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
4
773 - 005 - 11.09.2023
• The vibration emission during actual use of the
power tool can differ from the declared total value
depending on the ways in which the tool is used.
Operators should identify safety measures to protect
themselves that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger).
Power tool use and care
• Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it
was designed.
• Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
• Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the
power tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
• Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool´s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
• Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
Battery tool use and care
• Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used
with another battery pack.
• Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
• When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
• Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from
the battery may cause irritations or burns.
• Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or
risk of injury.
• Do not expose a battery pack or tool to fire
or excessive temperature.Exposure to fire or
temperature above 130 ºC (265 ºF) may cause
explosion.
• Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions.Charging
improperly or at temperatures outside the specified
range may damage the battery and increase the risk
of fire.
Service
• Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is
maintained.
• Never service damaged battery packs. Service of
battery packs should only be performed by the
manufacturer or authorized service providers.
Hedge trimmer safety warnings - Personal
safety
• Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold material
to be cut when blades are moving. Make sure
the switch is off when clearing jammed material.
A moment of inattention while operating the hedge
trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the
cutter blade stopped. When transporting or storing
the hedge trimmer always fit the cutting device
cover. Proper handling of the hedge trimmer will
reduce possible personal injury from the cutter
blades.
• Hold the power tool by insulated gripping surface
only, because the cutter blade may contact hidden
wiring or its own cord. Cutter blades contacting
a ”live” wire may make exposed metal parts of the
power tool ” live” and could give the operator an
electric shock.
• Keep cable away from cutting area. During operation
the cable may be hidden in shrubs and can be
accidentally cut by the blade.
773 - 005 - 11.09.2023
5
General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• Remove the battery to prevent the product from
being started by accident.
• This product is a dangerous tool if you are not
careful or if you use the product incorrectly. This
product can cause serious injury or death to the
operator or others.
• Do not use the product if it is changed from its initial
specification. Do not change a part of the product
without approval from the manufacturer. Only use
parts that are approved by the manufacturer.
Injury or death is a possible result of incorrect
maintenance.
• Do a check of the product before use. See,
To
do before you start the product on page 11
and
Maintenance schedule on page 12
. Do not use
a product that is damaged or does not operate
correctly. Do the safety checks, maintenance and
service instructions described in this manual.
• Children should be supervised to ensure that they
do not play with the product. Never allow children or
other persons not trained in the use of the product
and/or the battery to use or service it. Local laws
may regulate the age of the user.
• Keep the product in a locked area to prevent access
for children or persons that are not approved.
• Store the product out of reach of children.
• Under no circumstances may the design of the
product be modified without the permission of the
manufacturer. Always use original accessories. Non-
authorized modifications and/or accessories can
result in serious personal injury or the death of the
operator and others.
Note:
National or Local laws can regulate the use.
Comply to given regulations.
Safety instructions for operation
WARNING:
Read the warning
instructions that follow before you use the
product.
• If you encounter a situation where you are uncertain
how to proceed you should ask an expert. Contact
your dealer or your service workshop. Avoid all
usage which you consider to be beyond your
capability.
• Never use the product if you are fatigued, while
under the influence of alcohol or drugs, medication
or anything that could affect your vision, alertness,
coordination or judgment.
• Working in bad weather is tiring and often brings
added risk. Due to the added risk, it is not
recommended to use the machine in very bad
weather, for instance in dense fog, heavy rain,
strong winds, intense cold, risk of lightning, etc.
• Faulty blades can increase the risk of accidents.
• Do not allow children to use or be in the vicinity
of the product. Since the product is easy to start,
children may be able to start it if they are not kept
under full surveillance. This can mean a risk of
serious personal injury. Disconnect the battery when
the product is not under close supervision.
• Ensure that no people or animals come closer than
15 metres while you work. When several operators
are working in the same area the safety distance
should be at least 15 metres. Otherwise there is
a risk of serious personal injury. Stop the product
immediately if anyone approaches. Never swing the
product around without first checking behind you to
make sure that no one is within the safety zone.
• Ensure that people, animals or other things can
not affect your control of the product or that they
do not come in contact with the cutting attachment
or loose objects that are thrown out by the cutting
attachment. However, do not use the product unless
you are able to call for help in the event of an
accident.
• Always inspect the working area. Remove all loose
objects such as stones, broken glass, nails, steel
wire, string, etc., that could be thrown out or become
wrapped around the cutting attachment.
• Make sure that you can move and stand safely.
Check the area around you for possible obstacles
(roots, rocks, branches, ditches, etcetera) in case
you have to move suddenly. Take great care when
you work on sloping ground.
• Keep a good balance and a firm foothold at all times.
Do not overreach.
• Deactivate the product before you move to another
area. Attach the transport guard when the product is
not in use.
• Never put the product down unless you have
deactivated it and removed the battery. Do not leave
the product unsupervised when it is switched on.
• Make sure that no clothes or parts of the body
come in contact with the cutting attachment when
the product is activated.
• If anything jams in the blades while you operate
the product, stop and deactivate the product. Make
sure that the cutting attachment stops completely.
Remove the battery before you clean, inspect or
repair the product and/or the blades.
• Keep your hands and feet away from the cutting
attachment until it has stopped completely when the
product is deactivated.
• Watch out for stumps of branches that can be thrown
out when you cut. Do not cut to close to the ground
where stones and other objects can be thrown out.
6
773 - 005 - 11.09.2023
• Watch out for thrown objects. Always wear
approved eye protection. Never lean over the cutting
attachment guard. Stones, rubbish, etcetera, can be
thrown up into the eyes which can cause blindness
or serious injury.
• Listen out for warning signals or shouts when
you wear hearing protection. Always remove your
hearing protection as soon as the product stops.
• Never work from a ladder, stool or any other raised
position that is not fully secured.
• Use both hands when you hold the product. Hold the
product at the side of your body.

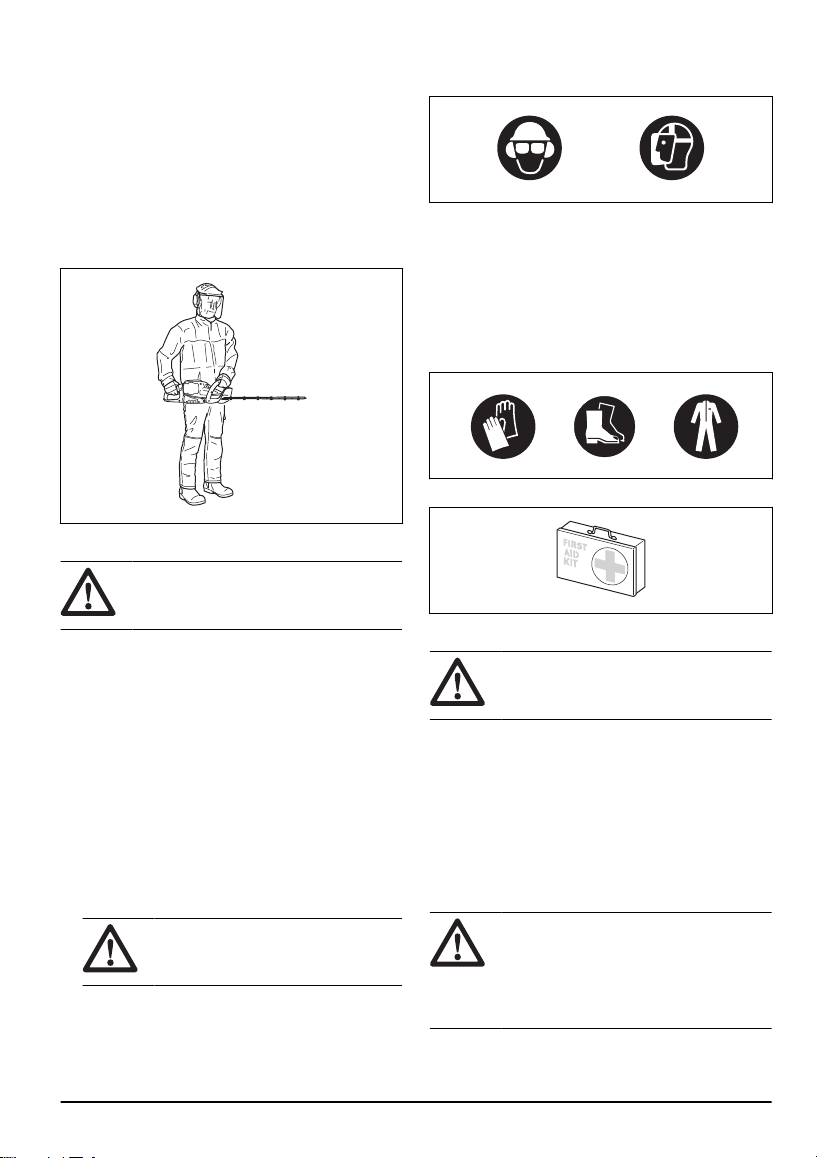

Personal protective equipment
WARNING: Read the warning
instructions that follow before you use the
product.
• Always use approved personal protective equipment
when you use the product. Personal protective
equipment cannot fully prevent injury but it
decreases the degree of injury if an accident does
occur. Let your dealer help you select the right
equipment.
• Use a protective helmet where there is a risk of
falling objects.
• Long term exposure to noise can result in damaged
hearing. In general, battery powered products
are relatively quiet but damage can result from
a combination of noise level and long usage.
Husqvarna recommends that operators use hearing
protectors when using products for a longer coherent
time of a day. Continual and regular users should
have their hearing checked regularly.
WARNING:
Hearing protectors limit
the ability to hear sounds and warning
signals.
• Use approved eye protection. If you use a visor,
you must also use approved protective goggles.
Approved protective goggles must comply with the
ANSI Z87.1 standard in the USAs or EN 166 in EU
countries.
• Use a visor for face protection. A visor is not enough
for protection of the eyes.
+
• Use gloves when necessary, for example when you
attach, examine or clean the cutting equipment.
• Use sturdy non-slip boots or shoes.
• Use clothing made of a strong fabric. Always use
heavy, long pants and long sleeves. Do not use
loose clothing that can catch on twigs and branches.
Do not wear jewelry, short pants, sandals or go with
bare feet. Put your hair up safely above shoulder
level.
• Keep first aid equipment close at hand.
Safety devices on the product
WARNING:
Read the warning
instructions that follow before you use the
product.
In this section the product’s safety features, its purpose
and how checks and maintenance should be carried
out to ensure that it operates correctly. See instructions
under the heading
Product overview on page 2
to find
where these parts are located on your product.
The life span of the product can be reduced and the risk
of accidents can increase if product maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest servicing dealer.
WARNING:
Never use a product with
damaged safety components. The product's
safety equipment must be inspected and
maintained as described in this section.
If your product fails any of these checks,
contact your service agent to get it repaired.
773 - 005 - 11.09.2023 7
CAUTION: All servicing and repair work
on the machine requires special training.
This is especially true of the machine′s
safety equipment. If your machine fails
any of the checks described below you
must contact your service agent. When
you buy any of our products we guarantee
the availability of professional repairs and
service. If the retailer who sells your
machine is not a servicing dealer, ask him
for the address of your nearest service
agent.

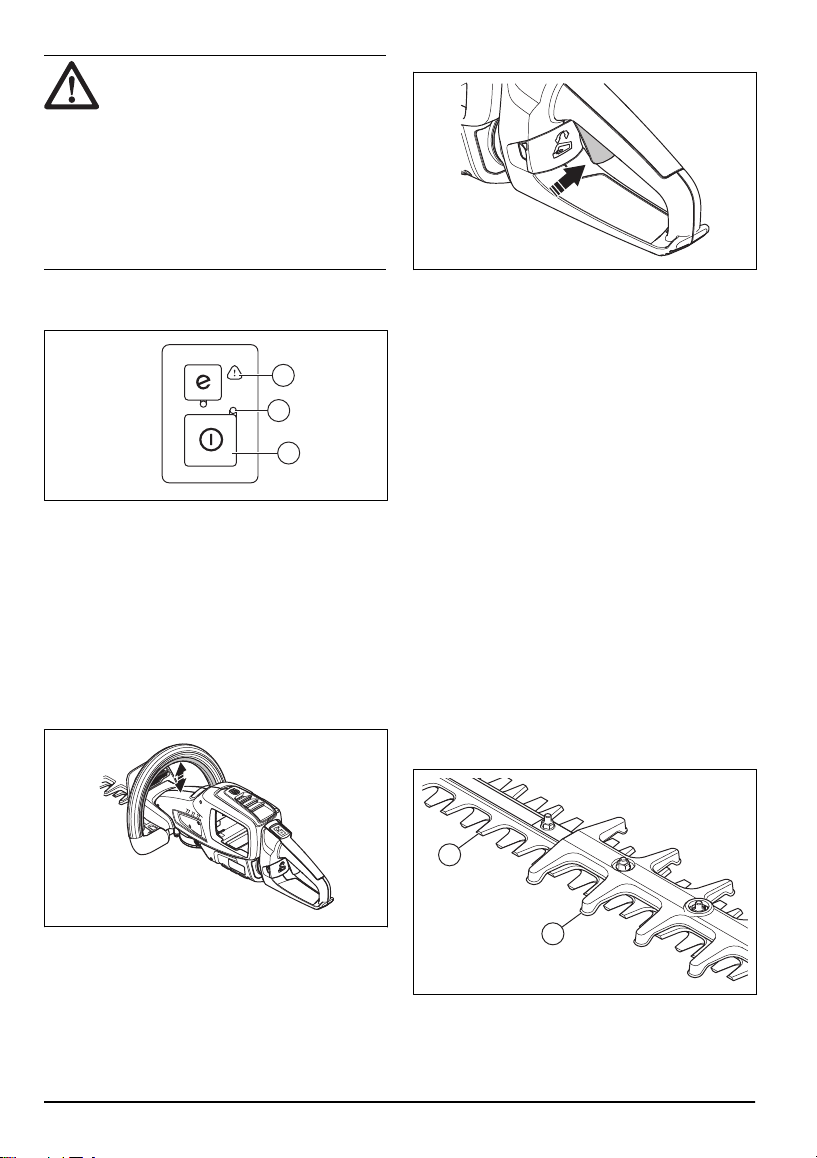

To do a check of the keypad
1. Press and hold the start/stop button (1).
1
2
3
a) The product is switched on when the LED (2) is
lit.
b) The product is switched off when the LED (2) is
out.
2. See
Keypad on page 13
if the warning indicator (3)
is lit or flashes.
To do a check of the power trigger and power trigger
lockout
1. Start the product, refer to
To start the product on
page 11
.
2. Push the power trigger lockout up.
3. Push the power trigger up and apply full power.
4. Release the power trigger and make sure that the
return spring operates correctly. The blade must stop
in less than 1 second.
5. Stop the product.
6. Do step 1 and 2.
7. Release the power trigger lockout and make sure
that the return spring of the power trigger lockout
operates correctly. The blade must stop in less than
1 second.
To do a check of the hand guard
The hand guard prevents hands from accidental contact
with the blades.
1. Stop the product.
2. Remove the battery.
3. Check that the hand guard is attached correctly.
4. Examine the hand guard for damages.
To do a check of the blades and blade guards
1. Stop the product.
2. Remove the battery.
3. Put on protective gloves.
4. Make sure that the blades (A) and blade guard (B)
are not damaged or twisted. Replace the blades and
blade guards if they are damaged or bent.
A
B
8
773 - 005 - 11.09.2023
Battery safety
WARNING: Read the warning
instructions that follow before you use the
product.
• Only use the BLi battery. Refer to
Technical data on
page 15
. The battery is software encrypted.
• Use the BLi battery that is rechargable as a power
supply for the related Husqvarna products only. To
prevent injury, do not use the battery as a power
supply for other devices.
• Risk of electrical shock. Do not connect the battery
terminals to keys, coins, screws or other metal. This
can cause a short circuit of the battery.
• Do not use non-rechargeable batteries.
• Do not put objects into the air slots of the battery.
• Keep the battery away from sunlight, heat or open
flame. The battery can cause burns and/or chemical
burns.
• Keep the battery away from rain and wet conditions.
• Keep the battery away from microwaves and high
pressure.
• Do not try to disassemble or break the battery.
• If the battery leaks, do not let the liquid touch your
body or eyes. If you have touched the liquid, clean
the area with a large quantity of water and soap, and
get medical aid. If you get liquid in your eyes, do not
rub but flush with water for a minimum of 15 minutes
and get medical aid.
• Use the battery in temperatures between -10 °C (14
°F) and 40 °C (114 °F).
• Do not clean the battery or the battery charger with
water. Refer to
To clean the product, the battery and
the battery charger on page 13
.
• Do not use a defective or damaged battery.
• Keep batteries in storage away from metal objects
such as nails, screws or jewelry.
• Keep the battery away from children.
Battery charger safety
WARNING:
Read the warning
instructions that follow before you use the
product.
• Risk of electrical shock or short circuit if the safety
instructions are not obeyed.
• Do not use other battery chargers than the one
supplied for your product. Only use QC chargers
when you charge BLi replacement batteries.
• Do not try to disassemble the battery charger.
• Do not use a defective or damaged battery charger.
• Do not lift the battery charger by the power cord. To
disconnect the battery charger from a mains socket,
pull out the plug. Do not pull the power cord.
• Keep all cables and extension leads away from
water, oil and sharp edges. Make sure that the cable
is not caught between objects, for example, doors,
fences or equivalent.
• Do not use the battery charger near flammable
materials or materials that can cause corrosion.
Make sure that the battery charger is not covered.
Pull out the plug to the battery charger if there is
smoke or fire.
• Only charge the battery indoors in a location with
good airflow and away from sunlight. Do not charge
the battery outdoors. Do not charge the battery in
wet conditions.
• Only use the battery charger where the temperature
is between 5 °C (41 °F) and 40 °C (104 °F). Use the
charger in an environment which has a good airflow,
dry and free from dust.
• Do not put objects into the cooling slots of the
battery charger.
• Do not connect the battery charger terminals to
metal objects as this can short circuit the battery
charger.
• Use approved mains sockets that are not damaged.
Make sure that the cord of the battery charger is not
damaged. If extension cables are used, make sure
that the extension cables are not damaged.
Safety instructions for maintenance
WARNING: Read the warning
instructions that follow before you do
maintenance on the product.
• Remove the battery before you do maintenance,
other checks or assemble the product.
• The operator must only do the maintenance and
servicing shown in this operator's manual. Turn to
your servicing dealer for maintenance and servicing
of a larger extension.
• Do not clean the battery or the battery charger with
water. Strong detergent can cause damage to the
plastic.
• If you do not do maintenance, it decreases the
life cycle of the product and increases the risk of
accidents.
• Special training is necessary for all servicing and
repair work, especially for the safety devices on the
product. If not all checks in this operator's manual
are approved after you have done maintenance, turn
to your servicing dealer. We guarantee that there are
professional repairs and servicing available for your
product.
• Keep the teeth of the blade correctly sharpened.
Obey our recommendations. Also refer to the
instructions on the blade package.
• Only use original spare parts.
• Always use heavy duty gloves when you repair the
cutting attachment. The blades are very sharp and
can easily cause injuries.
773 - 005 - 11.09.2023
9

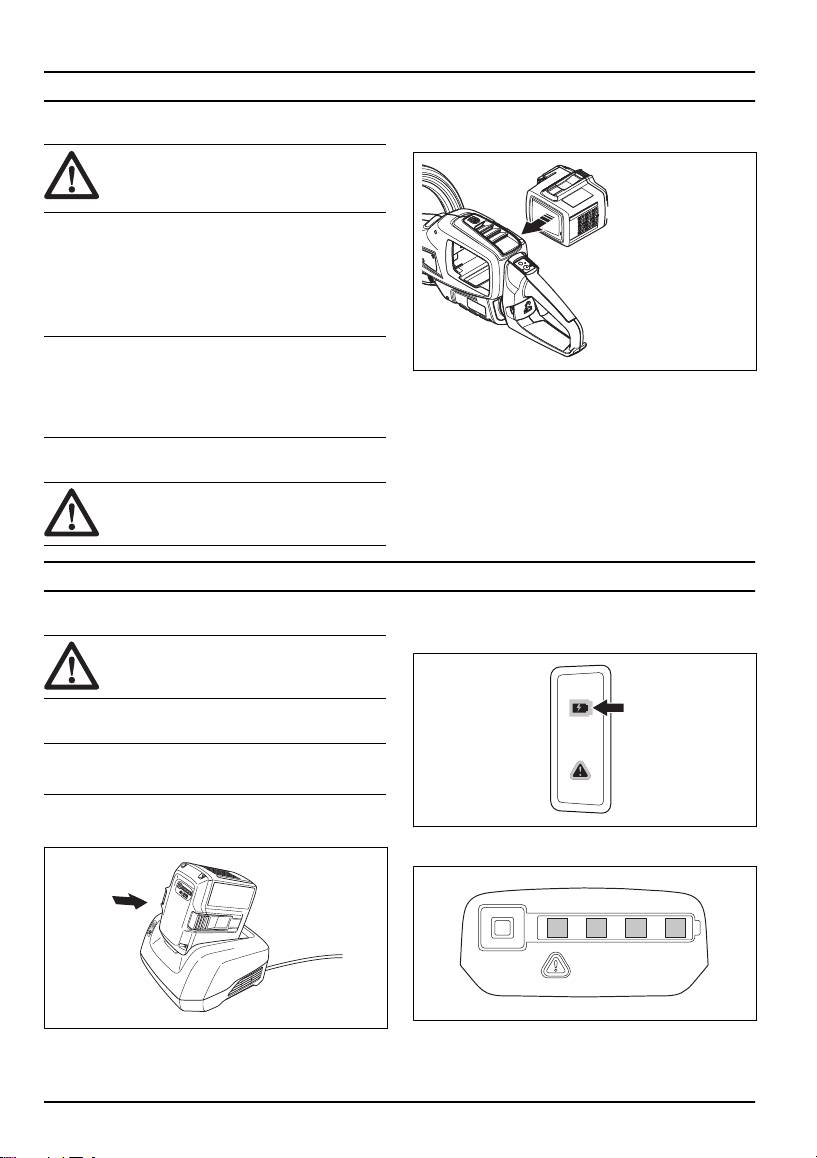

Assembly
Introduction
WARNING: Read and understand the
safety chapter before you assemble the
product.
To connect the battery charger
1. Connect the battery charger to the voltage and
frequency that is specified on the rating plate.
2. Put the plug in a grounded socket outlet. The LED
on the battery charger flashes green one time.
Note: The battery does not charge if the battery
temperature is more than 50 °C/122 °F. If the
temperature is more than 50 °C/122 °F, the battery
charger makes the battery become cool before the
battery charges.
To connect the battery to the product
WARNING: Only use the original
Husqvarna battery in the product.
1. Fully charge the battery.
2. Put the battery into the battery holder of the product.
a) Make sure that the battery is installed correctly.
If the battery can not move easily, the installation
of the battery is not correct.
b) Make sure that the battery locks into position.
When you hear a click, the battery locks.
Battery information
Refer to the operator's manual of the battery for
information about how to use the battery.
Operation
Introduction
WARNING: Read and understand the
safety chapter before you use the product.
To charge the battery
Note: Charge the battery if it is the first time that you
use it. A new battery is only 30% charged.
1. Make sure that the battery is dry.
2. Put the battery in the battery charger.
3. Make sure that the green charging light on the
battery charger comes on. That means that the
battery is connected correctly to the battery charger.
4. When all LEDs on the battery come on, the battery is
fully charged.
5. To disconnect the battery charger from the mains
socket, pull the plug. Do not pull the cable.
10 773 - 005 - 11.09.2023
6. Remove the battery from the battery charger.
Note: Refer to the battery and battery charger
manuals for more information.
To do before you start the product
1. Examine the work area. Remove objects that can be
thrown out.
2. Examine the cutting attachment. Make sure that the
blades are sharp, and have no cracks and damages.
3. Make sure that the product works correctly. Examine
that all nuts and screws are tight.
4. Make sure that the handle and safety devices are
not damaged and are attached correctly. Do not
operate a product with missing parts or is changed
from its initial specification. Use protective gloves
when it is necessary.
5. Make sure that the covers are not damaged and are
attached correctly, before you operate the product.

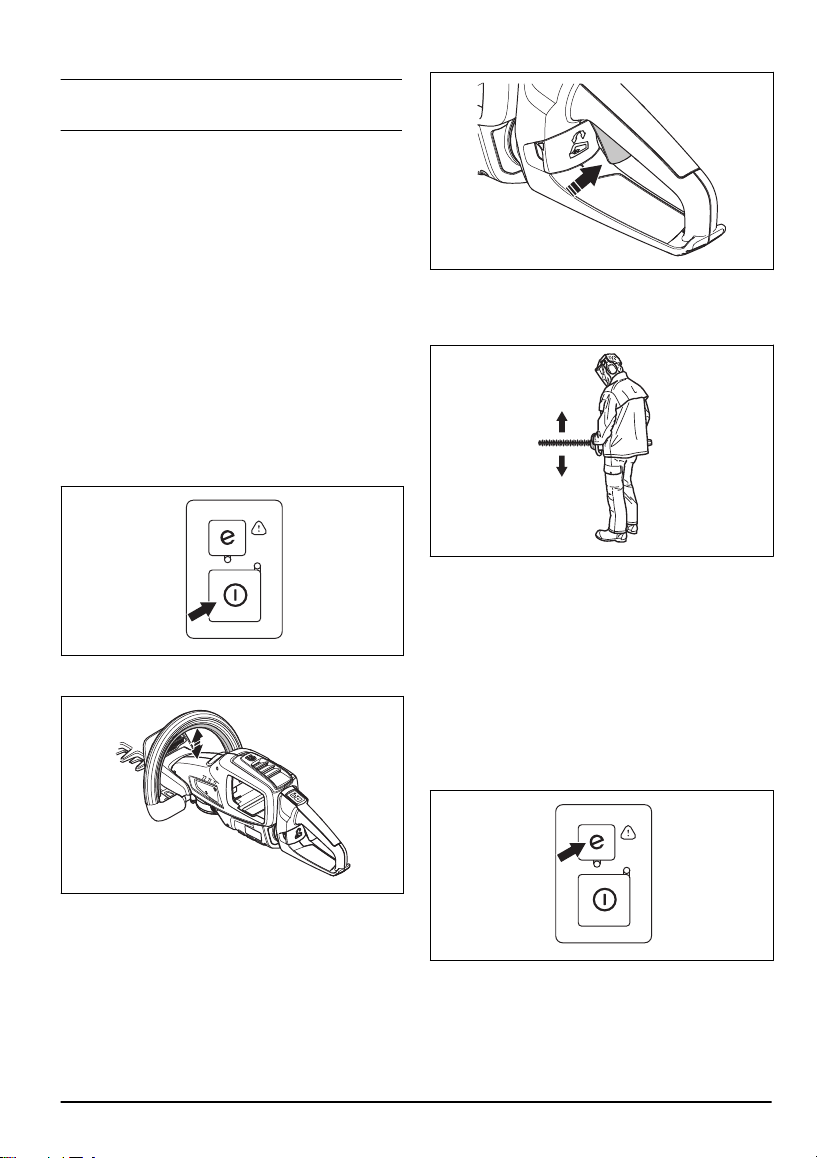

To start the product
1. Push and hold the start/stop button until the green
LED comes on.
2. Push and hold the power trigger lockout on the front
handle.
3. To apply full speed, push the power trigger fully.
To operate the product
1. Start near the ground and move the product up
along the hedge when you cut the sides.
2. Adjust the speed to align with the work load.
3. Hold the product near your body for a stable work
position.
4. Make sure that the tip of the cutting equipment does
not touch the ground.
5. Be careful and work slowly until all the branches are
correctly cut.
To start the SavE function
The product has a battery saving function, SavE.
1. Push the SavE button to start the function. A green
LED comes on to show that the function is on.
Automatic shutdown function
The product has an automatic shutdown function that
stops the product if it is not used. The green LED for
start/stop indication goes off and the product stops after
45 seconds.
773 - 005 - 11.09.2023
11

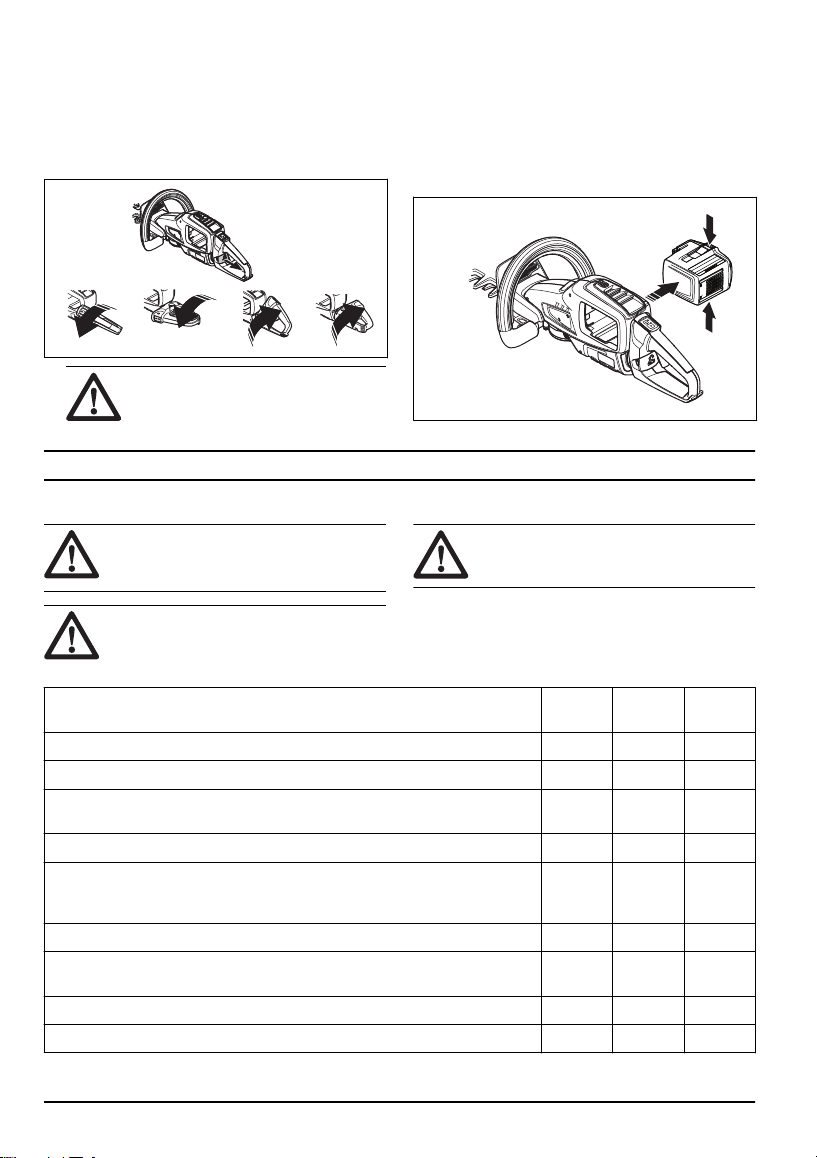

To adjust the angle of the product
To get the best operation position, this product can be
adjusted in 5 different positions. If the angle is adjusted,
make sure that the bottom of the rear handle points
down when you operate the product.
1. Release the handle lock and turn the handle.
WARNING: Do not operate the
cutting attachment when you adjust the
handle.
To stop the product
1. Release the power trigger or the power trigger
lockout.
2. Push the start/stop button until the green LED goes
out.
3. Push the release buttons on the battery and pull the
battery out.
Maintenance
Introduction
WARNING: Read and understand the
safety chapter before you do maintenance
work on the product.
WARNING: Remove the battery before
you do maintenance on the product.
Maintenance schedule
WARNING: Remove the battery before
you do maintenance.
The following is a list of the maintenance steps that you
must do on the product.
Maintenance Before
use
Weekly Monthly
Clean the external parts of the product. X
Examine that the start and stop switch works correctly and is not damaged. X
Make sure that the power trigger and the power trigger lockout function correctly
from a safety point of view.
X
Make sure that all controls work and are not damaged. X
Make sure that the cutter blade and cutter guard have no cracks and that they
are not damaged. Replace the cutter blade or the cutter guard if they have
cracks or if they have been exposed to impact.
X
Speak to your dealer to replace the cutter blade if it is bent or damaged. X
Make sure that the hand guard is not damaged. Replace the guard if it is dam-
aged.
X
Make sure that the screws and nuts are tight. X
Make sure that the battery is not damaged. X
12 773 - 005 - 11.09.2023
Maintenance Before
use
Weekly Monthly
Make sure that the battery is charged. X
Make sure that the battery charger is not damaged. X
Make sure that the screws that hold the cutter blades together are correctly
tightened.
X
Do a check of the connections between the battery and the product. Do a check
of the connection between the battery and the battery charger.
X
To examine the battery and the battery
charger
1. Examine the battery for damages, for example
cracks.
2. Examine the battery charger for damages, for
example cracks.
3. Make sure that the connection cord of the battery
charger is not damaged and that there are no cracks
in it.
To clean the product, the battery and
the battery charger
1. Clean the product with a dry cloth after use.
2. Clean the battery and battery charger with a dry
cloth. Keep the battery guide tracks clean.
3. Make sure that the terminals on the battery and the
battery charger are clean before the battery is put in
the battery charger or the product.
To examine the blade
1. Clean the blade from unwanted materials with an
anti corrosion cleaning agent before and after you
use the product.
2. Examine the edges of the blade for damages and
deformation.
3. Use a file to remove burrs on the blade.
4. Make sure that the blades move freely.
To lubricate the blade
1. Lubricate the blade bars with a recommended spray
grease before long periods of storage.
Troubleshooting
Keypad
Problem Possible faults Possible solution
Green start LED
flashes.
Low battery voltage. Charge the battery.
Red error LED flash-
es.
Overload. The cutting attachment is blocked. stop the
product. Remove the battery. Clean the cut-
ting attachment from unwanted materials.
Loosen the chain.
Temperature deviation. Let the product become cool.
The power trigger and the start button are
pushed at the same time.
Release the power trigger and push the start
button.
The product does not
start.
Dirt in the battery connectors. Clean the battery connectors with com-
pressed air or a soft brush.
Red error LED
comes on.
It is necessary to do servicing on the product. Speak to your servicing dealer.
773 - 005 - 11.09.2023 13
Battery
Problem Possible faults Possible solution
Green LED flashes. Low battery voltage. Charge the battery.
Red error LED flashes. The battery is empty. Charge the battery.
Temperature deviation. Use the battery in temperatures between
-10°C (14°F) and 40°C (104°F).
Overvoltage. Remove the battery from the battery charger.
Red error LED comes on. Cell difference is to much (1V). Speak to your servicing dealer.
Battery charger
Problem
Possible faults Possible solution
Red error LED flashes. Temperature deviation. Use the battery charger in tempera-
tures between 5 °C (41 °F) and 40 °C
(104 °F).
Red error LED comes on. Speak to your servicing dealer.
Transportation, storage and disposal
Transportation and storage
• The supplied Li-ion batteries obey the Dangerous
Goods Legislation requirements.
• Obey the special requirement on package and labels
for commercial transportation, including by third
parties and forwarding agents.
• Speak to a person with special training in dangerous
material before you send the product. Obey all
applicable national regulations.
• Use tape on open contacts when you put the battery
in a package. Put the battery in the package tightly
to prevent movement.
• Remove the battery for storage or transportation.
• Put the battery and the battery charger in a space
that is dry and free from moisture and frost.
• Do not keep the battery in an area where static
electricity can occur. Do not keep the battery in a
metal box.
• Put the battery in storage where the temperature is
between 5°C/41°F and 25°C/77°F and away from
open sunlight.
• Put the battery charger in storage where the
temperature is between 5 °C/41 °F and 45°C/113°F
and away from open sunlight.
• Use the battery charger only when the surrounding
temperature is between 5°C/41°F and 40°C/104°F.
• Charge the battery 30% to 50% before you put it in
storage for long periods.
• Put the battery charger in storage in a space that is
closed and dry.
• Keep the battery away from the battery charger
during storage. Do not let children and other not
approved persons to touch the equipment. Keep the
equipment in a space that you can lock.
• Clean the product and do a full servicing before you
put the product in storage for a long time.
• Use the transportation guard on the product to
prevent injuries or damage on the product during
transportation and storage.
• Attach the product safely during transportation.
Disposal of the battery, battery charger
and product
The symbol below means that the product is not
domestic waste. Recycle it at a recycling station
14 773 - 005 - 11.09.2023
for electrical and electronic equipment. This helps to
prevent damage to the environment and to persons.
Speak to local authorities, domestic waste service or
your dealer for more information.
Note: The symbol shows on the product or package of
the product.
Technical data
Technical data
520iHD60 520iHD70
Motor
Motor type PMDC (4-
brush)
PMDC (4-
brush)
Weight
Weight without battery, kg 3.8 3.9
Weight with battery (Default battery BLi200), kg 4.6 4.7
Cutting equipment
Type Double si-
ded
Double si-
ded
Blade length, mm 600 700
Blade speed cuts/min in the SavE mode 3200 3200
Blade speed cuts/min not in the SavE mode 4000 4000
Water protection level
IPX4
1
Yes Yes
Noise emissions
2
Sound power level, measured dB(A) 89 89
Sound power level, guaranteed L
WA
94 94
Sound levels
Sound pressure level at the operator's ear, measured according to EN 60745-1 and
EN 60745-2-15, dB(A)
78 78
1
The Husqvarna Handheld Battery products marked with IPX4 fulfils these requirements on product approval
level
2
Noise emissions in the environment measured as sound power (L
WA
) in conformity with EC directive
2000/14/EC. The difference between guaranteed and measured sound power is that guaranteed sound power
also includes dispersion in the measurement result and the variations between different products of the same
model refer to Directive 2000/14/EC.
773 - 005 - 11.09.2023 15
520iHD60 520iHD70
Vibration levels
3
Vibration levels (a
h
) at handles refer to EN 60745-1 and EN 60745-2-15, m/s
2
Front/
rear handles
1.6/2.5 2.3/3.5
Approved batteries
Only use original BLi batteries for this product.
Approved battery chargers
Battery charger QC330 QC500
Input voltage, V 100-240 100-240
Frequency, Hz 50-60 50-60
Power, W 330 500
3
Reported date for vibration level has a typical statistical dispersion (standard deviation) of 1,5 m/s
2
.
The declared vibration total value has been measured in accordance with a standard test method and may be
used for comparing on tool with another.
The declared vibration total value may also be used in a preliminary assessment of exposure.
16 773 - 005 - 11.09.2023
Declaration of Conformity
EU Declaration of Conformity
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:
+46-36-146500, declare on our sole responsibility that
the product:
Description Battery-operated Hedge Trimmer
Brand Husqvarna
Type / Model 520iHD60, 520iHD70
Identification Serial numbers dating from 2023 and onwards
complies fully with the following EU directives and
regulations:
Directive/Regulation Description
2006/42/EC “relating to machinery"
2014/30/EMC ”relating to electromagnetic compatibility”
2011/65/EU “relating to restriction of hazardous substances”
2000/14/EC “relating to outdoor noise”
and that the following standards and/or technical
specifications are applied: EN 60745-1:2009+A11:2010,
EN 60745-2-15:2009+A1:2010, EN 55014-1:2017
+A11:2020, EN 55014-2:1997+A2:2008, EN IEC
63000:2018.
0404, SMP Svensk Maskinprovning AB, Box 4053,
SE-904 03 Umeå, Sweden has carried out EC
type examination in accordance with the machinery
directive's (2006/42/EC) article 12, clause 3b.
0404, SMP Svensk Maskinprovning AB, has also
verified agreement with annex V of the council's
directive 2000/14/EC. Certificate No 01/094/024.
For information relating to noise emission, refer to
Technical data on page 15
.
Huskvarna, 2023-07-01.
Stefan Holmberg, R&D Director, Technology
Management, Husqvarna AB.
Responsible for technical documentation.
773 - 005 - 11.09.2023 17
UK Declaration of Conformity
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:
+46-36-146500, declare on our sole responsibility that
the product:
Description Battery-operated Hedge Trimmer
Brand Husqvarna
Type / Model 520iHD60, 520iHD70
Identification Serial numbers dating from 2023 and onwards
complies fully with the following UK regulations:
Description
The Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations
2012
The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001
and that the following standards and/or technical
specifications are applied: EN 60745-1:2009+A11:2010,
EN 60745-2-15:2009+A1:2010, EN 55014-1:2017
+A11:2020, EN 55014-2:1997+A2:2008, EN IEC
63000:2018.
The Swedish Machinery Testing Institute, Sweden, has
also verified agreement with the statutory instrument S.I.
2001/1701, conformity assessment procedure: Schedule
8.
Huskvarna, 2023-07-01.
Stefan Holmberg, R&D Director, Technology
Management, Husqvarna AB.
Responsible for technical documentation.
UK Importer:
Husqvarna UK Ltd
Preston Road, Co. Durham
DL5 6UP
18 773 - 005 - 11.09.2023
773 - 005 - 11.09.2023 19
www.husqvarna.com
Original instructions
1143402-26
2023-09-19
