Axis 01055-001 ~ EOL P1448-LE 4K Network Bullet Camera User Manual

AXISP14NetworkCameraSeries

AXISP1447-LENetworkCamera

AXISP1448-LENetworkCamera

UserManual

AXISP14NetworkCameraSeries

Aboutthismanual

ThisUserManualprovidesinformationontheproductregarding:

•Access

•Mainusecases

•Troubleshooting

•Specications

Note

TheUserManualmayincludemorethanoneproduct.Partofthecontent,e.g.someusecasesorspecications,mayonly

applytosomeofthem.Formoreinformationontheexactfeaturesetandspecications,seetheproduct’swebpageand

datasheetatwww.axis.com

AXISP14NetworkCameraSeries

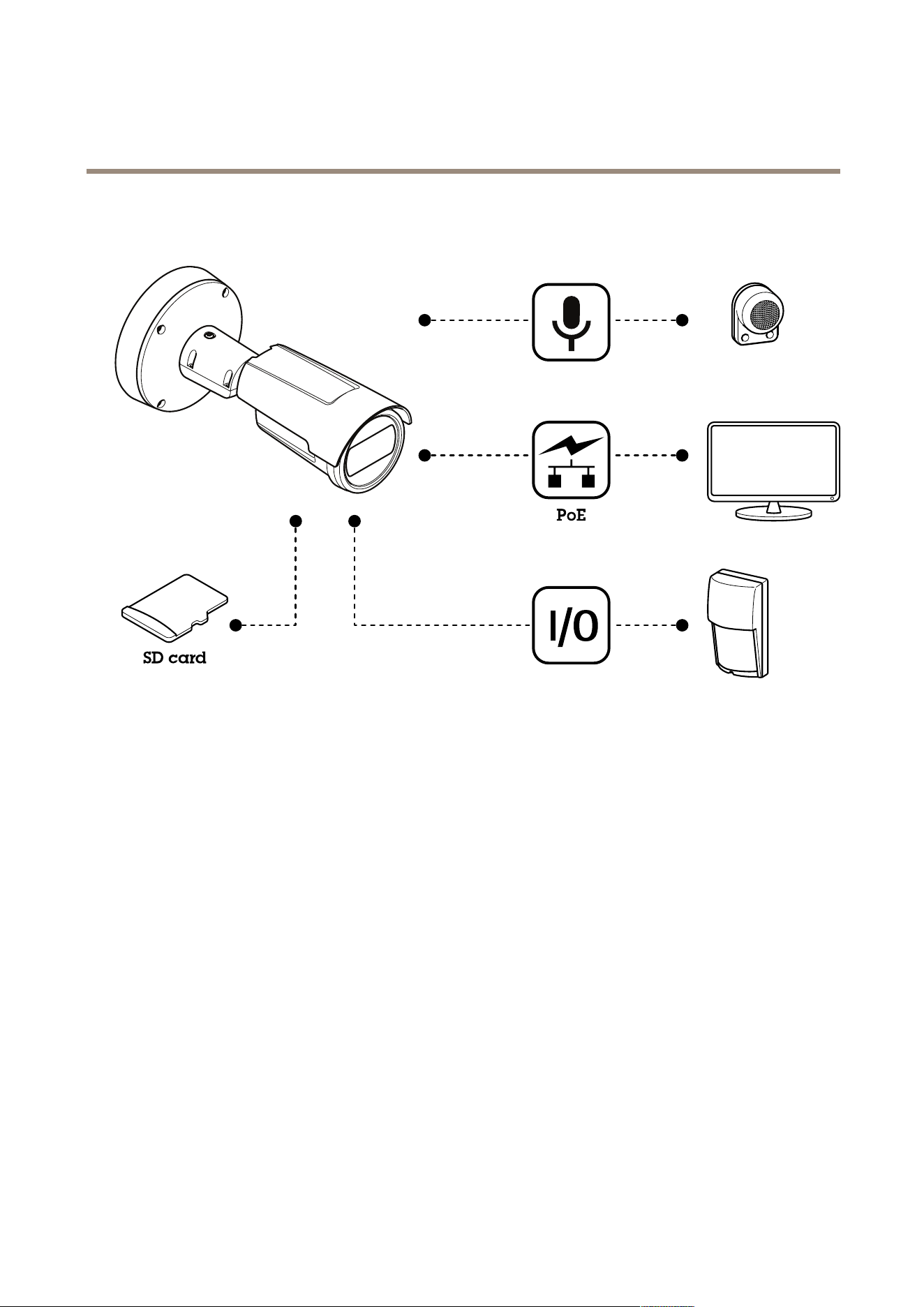

Solutionoverview

AXISP14NetworkCameraSeries

Productoverview

I/Oconnector

Audioconnector

StatusLEDindicator

Controlbutton

microSDcardslot

Networkconnector

Partnumber(P/N)&Serialnumber(S/N)

AXISP14NetworkCameraSeries

Howtoaccesstheproduct

AXISIPUtilityandAXISCameraManagementarerecommendedmethodsforndingAxisproductsonthenetworkandassigning

themIPaddressesinWindows®.Bothapplicationsarefreeandcanbedownloadedfromaxis.com/support

Theproductcanbeusedwiththefollowingbrowsers:

•Chrome

(recommended),Firefox

,Edge

,orOpera

withWindows

•Chrome

(recommended)orSafari

withOSX

•Chrome

orFirefox

withotheroperatingsystems.

Ifyouneedmoreinformationaboutrecommendedbrowsers,gotoaxis.com/browser-support

Howtoaccesstheproductfromabrowser

1.Startawebbrowser.

2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser’saddresseld.

ToaccesstheproductfromaMaccomputer(OSX),gotoSafari,clickonBonjourandselecttheproductfromthe

drop-downlist.ToaddBonjourasabrowserbookmark,gotoSafari>Preferences.

IfyoudonotknowtheIPaddress,useAXISIPUtilitytolocatetheproductonthenetwork.Forinformationabout

howtodiscoverandassignanIPaddress,seethedocumentAssignanIPAddressandAccesstheVideoStreamonAxis

Supportwebataxis.com/support

3.Enteryourusernameandpassword.Ifthisisthersttimetheproductisaccessed,therootpasswordmustrstbe

congured.

4.Theproduct’sliveviewpageopensinyourbrowser.

Aboutsecurepasswords

Important

Axisdevicessendtheinitiallysetpasswordincleartextoverthenetwork.Toprotectyourdeviceaftertherstlogin,set

upasecureandencryptedHTTPSconnectionandthenchangethepassword.

Thedevicepasswordistheprimaryprotectionforthedataandservices.Axisdevicesdonotimposeapasswordpolicyastheymaybe

usedinvarioustypesofinstallations.Toprotectyourdatawerecommendthatyou:

•Changethedefaultpasswordthatcomeswiththedevices.

•Useapasswordwithatleast8characters,preferablycreatedbyapasswordgenerator.

•Don’texposethepassword.

•Changepasswordatarecurringinterval,atleastonceayear.

Setasecurepasswordfortherootaccount

Important

Thedefaultadministratorusernamerootcannotbedeleted.Ifthepasswordforrootislost,thedevicemustberesetto

thefactorydefaultsettings.

1.Makesuretofollowtheinstructionsaboutsecurepasswords.SeeAboutsecurepasswordsonpage5.

2.Typeapasswordandthenretypeittoconrmthespelling.

AXISP14NetworkCameraSeries

Howtoaccesstheproduct

3.ClickCreatelogin.Thepasswordhasnowbeencongured.

AXISP14NetworkCameraSeries

Setup

Abouttheproduct'sbuilt-inhelp

Youcanaccessthebuilt-inhelpthroughyourproduct’swebpage.Thehelpprovidesmoredetailedinformationontheproduct’s

featuresandtheirsettings.

Imagequality

Howtoselectexposuremode

Therearedifferentexposuremodeoptionsinthecamerathatadjustsaperture,shutterspeed,andgaintoimproveimagequalityfor

specicsurveillancescenes.GotoSettings>Image>Exposureandselectbetweenthefollowingexposuremodes:

•Formostusecases,selectAutomaticexposure.

•Forenvironmentswithcertainarticiallighting,forexampleuorescentlighting,selectFlicker-free.

•Forenvironmentswithcertainarticiallightandbrightlight,forexampleoutdoorswithuorescentlightingatnightand

sunduringdaytime,selectFlicker-reduced.

•Tolockthecurrentexposuresettings,selectHoldcurrent.

Aboutviewarea

Aviewareaisacroppedpartofthefullview.Youcanstreamandstoreviewareasinsteadofthefullviewtominimizebandwidth

andstorageneeds.IfyouenablePTZforaviewarea,youcanpan,tiltandzoomwithinit.Byusingviewareasyoucanremoveparts

ofthefullview,forexample,thesky.

Whenyousetupaviewarea,werecommendyoutosetthevideostreamresolutiontothesamesizeasorsmallerthantheviewarea

size.Ifyousetthevideostreamresolutionlargerthantheviewareasizeitimpliesdigitallyscaledupvideoaftersensorcapture,

whichrequiresmorebandwidthwithoutaddingimageinformation.

Howtohidepartsoftheimagewithprivacymasks

Whatisaprivacymask?

Aprivacymaskisauser-denedareathatpreventsusersfromviewingapartofthemonitoredarea.Inthevideostream,privacy

masksappearasblocksofsolidcolor.

You’llseetheprivacymaskonallsnapshots,recordedvideo,andlivestreams.

YoucanusetheVAPIX®applicationprogramminginterface(API)toturnofftheprivacymasks.

Important

Usingmultipleprivacymasksmayaffecttheproduct’sperformance.

AXISP14NetworkCameraSeries

Setup

Howtocreateaprivacymask

Tocreateaprivacymask,gotoSettings>Privacymask.

Howtofocus

1.GotoSettings>Image>Focus.

2.ClickAutofocus.

Aboutremotefocusandzoom

Theremotefocusandzoomfunctionalityallowsyoutomakefocusandzoomadjustmentstoyourcamerafromacomputer.Itisa

convenientwaytoensurethatthescene’sfocus,viewingangleandresolutionareoptimizedwithouthavingtovisitthecamera’s

installationlocation.

Left:nofocus.Right:remotefocusapplied.

Left:nozoom.Right:remotezoomapplied.

AXISP14NetworkCameraSeries

Setup

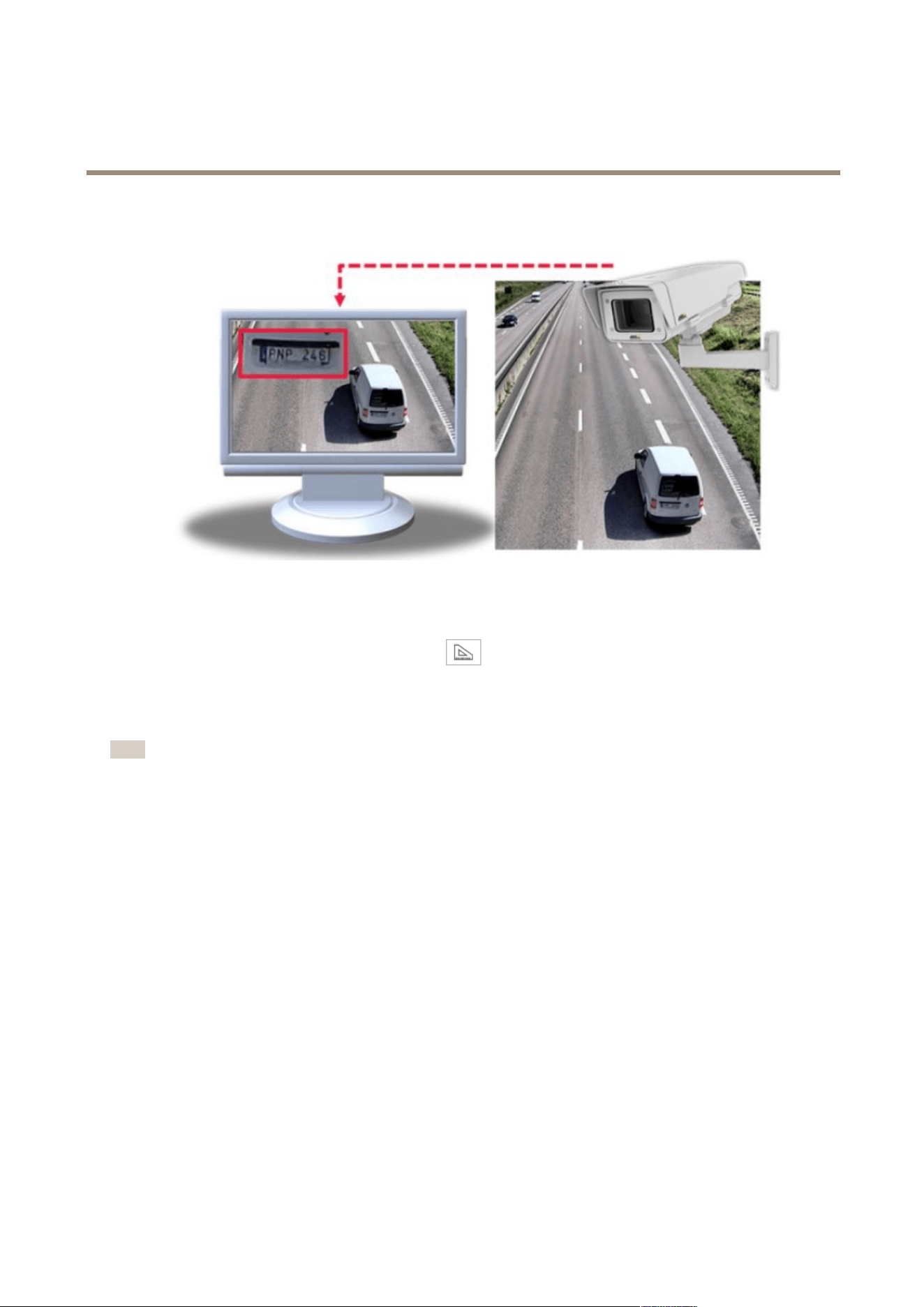

Howtoenhancelicenseplaterecognition

Tobetterrecognizethelicenseplateofacarpassingbythecamera,youcanapplyandadjustanumberofthings.

Oneoptionistousethepixelcounterinyourcameratosettheoptimalpixelresolution:

1.GotoSettings>System>Orientationandclick

2.Adjustthesizeandplacementoftherectangleinthecamera’sliveviewaroundtheareaofinterest,forexample

wherethelicenseplatesofpassingcarsareexpectedtoappear.Youcanthenseethenumberofpixelsrepresentedby

thesidesoftherectangle.

Note

Youcanuseanobjectofaknownsizeintheviewasareferencetodecidehowmuchresolutionisneededforrecognition.

Inaddition,youcantrytoadjustthefollowingtooptimizelicenseplaterecognition:

•Shutterspeed

•Gain

•Zoom

Howtomonitorlongandnarrowareas

Usecorridorformattobetterutilizethefulleldofviewinalongandnarrowarea,forexampleastaircase,hallway,road,ortunnel.

AXISP14NetworkCameraSeries

Setup

1.Dependingonyourproduct,turnthecameraorthe3–axislensinthecamera90°or270°.

2.Ifyourproductdoesn’trotatetheviewautomatically,gotoSettings>Stream>Orientationontheproduct’swebpage

androtatetheview90°or270°.

Findoutmoreataxis.com/axis-corridor-format

Howtoreducenoiseinlow-lightconditions

Toreducenoiseinlow-lightconditions,youcanadjustoneormoreofthefollowingsettings:

•Makesurethattheexposuremodeisautomatic.

Note

Increasingthemaxshuttervaluecanresultinmotionblur.

•Theshutterspeedshouldbeasslowaspossible,whichmeansyoushouldsetmaxshuttertothehighestpossiblevalue.

•Reducesharpnessintheimage.

•Tryloweringthemaxgainvalue.

Howtohandlesceneswithstrongbacklight

Tomakebothdarkandbrightareasoftheimagevisible,turnonWDR.

1.GotoSettings>Image.

2.TurnonWDRunderWidedynamicrange.

ImagewithoutWDR.

AXISP14NetworkCameraSeries

Setup

ImagewithWDR.

Note

IfyouuseWDR,youmayexperiencesomeWDRartifactsintheimage.

FindoutmoreaboutWDRandhowtouseitataxis.com/web-articles/wdr

HowtobenetfromIRlightinlow-lightconditionsusingnightmode

Yourcamerausesvisiblelighttodelivercolorimagesduringtheday.Aslightdiminishes,youcansetthecameratoautomatically

shifttonightmode.Innightmodethecamerausesbothvisiblelightandnear-infraredlighttodeliverblack-and-whiteimages.

Sincethecamerausesmoreoftheavailablelightitcandeliverbrighter,moredetailed,images.

1.GotoSettings>Image>Dayandnight,andmakesurethattheIRcutlterissettoAuto.

2.Todetermineatwhatlightlevelyouwantthecameratoshifttonightmode,movetheThresholdslidertowardBright

orDark.

Note

Ifyousettheshifttooccurwhenit’sbrighter,theimageremainssharperastherewillbelesslow-lightnoise.Ifyou

settheshifttooccurwhenit’sdarker,theimagecolorsaremaintainedlongerbuttherewillbemoreimageblurdue

tolow-lightnoise.

3.EnableIRilluminationtousethecamera’sbuilt-inIRlightwhenthenightmodeisactivated.

Howtomaximizedetailsinanimage

Important

Ifyoumaximizedetailsinanimage,bitrateincreasesandmightleadtoreducedframerate.

•Setcompressionaslowaspossible.

•SelectMJPEGstreaming.

•TurnofftheZipstreamfunctionality.

Overlays

Aboutoverlays

Overlaysaresuperimposedoverthevideostream.Theyareusedtoprovideextrainformationduringrecordings,suchasatimestamp,

orduringproductinstallationandconguration.

AXISP14NetworkCameraSeries

Setup

Howtoshowatextoverlaywhenthecameradetectsmotion

Thisexampleexplainshowtodisplaythetext“Motiondetected”whenthecameradetectsmotion:

MakesuretheAXISVideoMotionDetectionapplicationisrunning:

1.GotoSettings>Apps>AXISVideoMotionDetection.

2.Starttheapplicationifitisnotalreadyrunning.

3.Makesureyouhavesetuptheapplicationaccordingtoyourneeds.

Addtheoverlaytext:

4.GotoSettings>Overlay.

5.Enter#Dinthetexteld.

6.Choosealignment,textsizeandappearance.

7.Includethetextoverlay.

Createanactionrule:

8.GotoSystem>Events>Actionrules.

9.CreateanactionrulewithAXISVideoMotionDetectionastrigger.

10.Fromthelistofactions,selectOverlaytext.

11.Type“Motiondetected”.

12.Settheduration.

Streamingandstorage

Howtochoosevideocompressionformat

Decidewhichcompressionmethodtousebasedonyourviewingrequirements,andonthepropertiesofyournetwork.The

availableoptionsare:

MotionJPEG

MotionJPEGorMJPEGisadigitalvideosequencethatismadeupofaseriesofindividualJPEGimages.Theseimagesarethen

displayedandupdatedataratesufcienttocreateastreamthatshowsconstantlyupdatedmotion.Fortheviewertoperceivemotion

videotheratemustbeatleast16imageframespersecond.Fullmotionvideoisperceivedat30(NTSC)or25(PAL)framespersecond.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage

containedinthestream.

H.264orMPEG-4Part10/AVC

Note

H.264isalicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed

copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

H.264can,withoutcompromisingimagequality,reducethesizeofadigitalvideolebymorethan80%comparedtotheMotion

JPEGformatandbyasmuchas50%comparedtotheMPEG-4standard.Thismeansthatlessnetworkbandwidthandstoragespace

arerequiredforavideole.Orseenanotherway,highervideoqualitycanbeachievedforagivenbitrate.

AXISP14NetworkCameraSeries

Setup

Howtoreducebandwidthandstorage

Important

Ifyoureducethebandwidthitcanresultinlossofdetailsinthepicture.

1.GotoliveviewandselectH.264.

2.GotoSettings>Stream.

3.Dooneormoreofthefollowing:

-TurnontheZipstreamfunctionalityandselectthedesiredlevel.

-TurnondynamicGOPandsetahighGOPlengthvalue.

-Increasethecompression.

-TurnondynamicFPS.

Howtosetupnetworkstorage

Tostorerecordingsonthenetwork,youneedtosetupnetworkstorage:

1.GotoSettings>System>Storage.

2.ClickSetupunderNetworkstorage.

3.EntertheIPaddressofthehostserver.

4.Enterthenameofthesharedlocationonthehostserver.

5.Movetheswitchifthesharerequiresalogin,andenterusernameandpassword.

6.ClickConnect.

Howtoaddaudiotoyourrecording

Editthestreamprolewhichisusedfortherecording:

1.GotoSettings>System>Streamproles.

2.SelectthestreamproleandclickModify.

3.IntheAudiotab,selecttheAudiostreamcheckboxandselectOnfromthedrop-downlist.

4.ClickOk.

Events

Aboutevents

Theeventpagesallowyoutocongureyourproducttoperformactionswhendifferenteventsoccur.Forexample,theproduct

canstartarecordingorsendanemailnoticationwhenmotionisdetected.Thesetofconditionsthatdeneshowandwhen

theactionistriggerediscalledanactionrule.

Howtotriggeranaction

1.GotoSettings>System>Eventstosetupanactionrule.Theactionruledeneswhenthecamerawillperformcertain

actions.Actionrulescanbesetupasscheduled,recurring,orforexample,triggeredbymotiondetection.

AXISP14NetworkCameraSeries

Setup

2.SelectwhatTriggermustbemettotriggertheaction.Ifyouspecifymorethanonetriggerfortheactionrule,all

ofthemmustbemettotriggertheaction.

3.SelectwhichActionthecamerashouldperformwhentheconditionsaremet.

Note

Ifyoumakechangestoanactiveactionrule,theactionruleneedstoberestartedforthechangestotakeeffect.

Howtorecordvideowhenthecameradetectsmotion

ThisexampleexplainshowtosetupthecameratostartrecordingtotheSDcardvesecondsbeforeitdetectsmotionandto

stoponeminuteafter.

MakesuretheAXISVideoMotionDetectionapplicationisrunning:

1.GotoSettings>Apps>AXISVideoMotionDetection.

2.Starttheapplicationifitisnotalreadyrunning.

3.Makesureyouhavesetuptheapplicationaccordingtoyourneeds.

Createanactionrule:

4.GotoSettings>System>Eventsandaddanactionrule.

5.Typeanamefortheactionrule.

6.Fromthelistoftriggers,selectApplicationsandthenselectAXISVideoMotionDetection(VMD).

7.Fromthelistofactions,selectRecordvideo.

8.Selectanexistingstreamproleorcreateanewone.

9.Setthepre-triggertimeto5seconds.

10.Setthepost-triggertimeto60seconds.

11.SelectSDcardfromthelistofstorageoptions.

12.ClickOk.

HowtorecordvideowhenaPIRdetectorsensesmotion

ThisexampleexplainshowtoconnectanAxisPIRdetectortothecamera,andsetupthecameratostartrecordingwhenthe

detectorsensesmotion.

Requiredhardware

•3–wirecable(ground,power,I/O)

•AxisPIRdetector

NO NO

TICE TICE

TICE

Disconnectthecamerafrompowerbeforeconnectingthewires.Reconnecttopowerafterallconnectionsaredone.

Connectthewirestothecamera’sI/Oconnector

Note

ForinformationontheI/Oconnector,seeConnectorsonpage20

1.Connectthegroundwiretopin1(GND/-).

2.Connectthepowerwiretopin2(12VDCoutput).

AXISP14NetworkCameraSeries

Setup

3.ConnecttheI/Owiretopin3(I/Oinput).

ConnectthewirestothePIRdetector’sI/Oconnector

1.Connecttheotherendofthegroundwiretopin1(GND/-).

2.Connecttheotherendofthepowerwiretopin2(DCinput/+).

3.ConnecttheotherendoftheI/Owiretopin3(I/Ooutput).

ConguretheI/Oportinthecamera’swebpage

1.GotoSettings>System>I/Oports.

2.Givetheinputmoduleadescriptivename.

3.TomakethePIRdetectorsendasignaltothecamerawhenitsensesmotion,selectClosedcircuitinthedrop-downlist.

TotriggerthecameratostartrecordingwhenitreceivesasignalfromthePIRdetector,youneedtocreateanactionruleinthe

camera’swebpage.

Applications

Aboutapplications

AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications

forAxisproducts.Tondoutmoreaboutavailableapplications,downloads,trialsandlicenses,gotoaxis.com/applications

TondtheusermanualsforAxisapplications,gotoaxis.com

Note

•Severalapplicationscanrunatthesametimebutsomeapplicationsmightnotbecompatiblewitheachother.Certain

combinationsofapplicationsmightrequiretoomuchprocessingpowerormemoryresourceswhenruninparallel.Verify

thattheapplicationsworktogetherbeforedeployment.

AXISPeopleCounter

AXISPeopleCounterisananalyticapplicationthatcanbeinstalledonanetworkcamera.

Thecounterisembeddedinthecamerawhichmeansyoudonotneedadedicatedcomputertoruntheapplication.

AXISPeopleCounterisintendedforretailenvironments,likestoresorshoppingmalls,orotherenvironmentswhereyouwantto

countpeople.

AXISP14NetworkCameraSeries

Setup

AXISP14NetworkCameraSeries

Troubleshooting

Howtoresettofactorydefaultsettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultresetsallsettings,includingtheIPaddress,to

thefactorydefaultvalues.

Toresettheproducttothefactorydefaultsettings:

1.Disconnectpowerfromtheproduct.

2.Pressandholdthecontrolbuttonwhilereconnectingpower.SeeProductoverviewonpage4.

3.Keepthecontrolbuttonpressedfor15–30secondsuntilthestatusLEDindicatorashesamber.

4.Releasethecontrolbutton.TheprocessiscompletewhenthestatusLEDindicatorturnsgreen.Theproducthasbeenreset

tothefactorydefaultsettings.IfnoDHCPserverisavailableonthenetwork,thedefaultIPaddressis192.168.0.90

5.UsetheinstallationandmanagementsoftwaretoolstoassignanIPaddress,setthepassword,andaccessthevideostream.

Theinstallationandmanagementsoftwaretoolsareavailablefromthesupportpagesonaxis.com/support

Itisalsopossibletoresetparameterstofactorydefaultviathewebinterface.GotoSettings>System>Maintenanceand

clickDefault.

Howtocheckthecurrentrmware

Firmwareisthesoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourrstactionswhentroubleshootinga

problemshouldbetocheckthecurrentrmwareversion.Thelatestversionmaycontainacorrectionthatxesyourparticular

problem.

Tocheckthecurrentrmware:

1.Gototheproduct’swebpage.

2.Clickonthehelpmenu.

3.ClickAbout.

Howtoupgradethermware

Important

Preconguredandcustomizedsettingsaresavedwhenthermwareisupgraded(providedthatthefeaturesareavailablein

thenewrmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

Important

Makesuretheproductremainsconnectedtothepowersourcethroughouttheupgradeprocess.

Note

Whenyouupgradetheproductwiththelatestrmware,theproductreceivesthelatestfunctionalityavailable.Alwaysread

theupgradeinstructionsandreleasenotesavailablewitheachnewreleasebeforeupgradingthermware.Tondthelatest

rmwareandthereleasenotes,gotoaxis.com/support/rmware

1.Downloadthelatestrmwareletoyourcomputer,availablefreeofchargeataxis.com/support/rmware

AXISP14NetworkCameraSeries

Troubleshooting

2.Logintotheproductasanadministrator.

3.GotoSettings>System>Maintenanceintheproduct’swebpageandfollowtheinstructions.Whentheupgradehas

nished,theproductrestartsautomatically.

AXISCameraManagementcanbeusedformultipleupgrades.Findoutmoreataxis.com/products/axis-camera-management

Technicalissues,cluesandsolutions

Ifyoucan’tndwhatyou’relookingforhere,trythetroubleshootingsectionataxis.com/support

Problemsupgradingthermware

FirmwareupgradefailureIfthermwareupgradefails,theproductreloadsthepreviousrmware.Themostcommonreason

isthatthewrongrmwarelehasbeenuploaded.Checkthatthenameofthermwarele

correspondstoyourproductandtryagain.

ProblemssettingtheIPaddress

Theproductislocatedona

differentsubnet

IftheIPaddressintendedfortheproductandtheIPaddressofthecomputerusedtoaccessthe

productarelocatedondifferentsubnets,youcannotsettheIPaddress.Contactyournetwork

administratortoobtainanIPaddress.

TheIPaddressisbeingused

byanotherdevice

DisconnecttheAxisproductfromthenetwork.Runthepingcommand(inaCommand/DOS

window,typepingandtheIPaddressoftheproduct):

•Ifyoureceive:Replyfrom<IPaddress>:bytes=32;time=10...

thismeansthattheIPaddressmayalreadybeinusebyanotherdeviceonthenetwork.

ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.

•Ifyoureceive:Requesttimedout,thismeansthattheIPaddressisavailable

forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.

PossibleIPaddressconict

withanotherdeviceonthe

samesubnet

ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress.

ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay

beproblemsaccessingtheproduct.

Theproductcannotbeaccessedfromabrowser

Cannotlogin

WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting

tologin.Youmayneedtomanuallytypehttporhttpsinthebrowser’saddresseld.

Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.

SeeHowtoresettofactorydefaultsettingsonpage17.

TheIPaddresshasbeen

changedbyDHCP

IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IftheIPaddresshas

beenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthe

network.Identifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthename

hasbeencongured).

Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,gotoaxis.com/support

Certicateerrorwhenusing

IEEE802.1X

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductmustbe

synchronizedwithanNTPserver.GotoSettings>System>Dateandtime

Theproductisaccessiblelocallybutnotexternally

Routerconguration

CheckthatyourrouterallowsincomingdatatrafctotheAxisproduct.Theroutermustsupport

UPnP

Firewallprotection

ChecktheInternetrewallwithyournetworkadministrator.

AXISP14NetworkCameraSeries

Troubleshooting

Problemswithstreaming

MulticastH.264only

accessiblebylocalclients

Checkifyourroutersupportsmulticasting,oriftheroutersettingsbetweentheclientandthe

productneedtobecongured.TheTTL(TimeToLive)valuemayneedtobeincreased.

NomulticastH.264

displayedintheclient

CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct

arevalidforyournetwork.

Checkwithyournetworkadministratortoseeifthereisarewallpreventingviewing.

PoorrenderingofH.264

images

Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe

downloadedfromthemanufacturer’swebsite.

Colorsaturationisdifferent

inH.264andMotionJPEG

Modifythesettingsforyourgraphicsadapter.Gototheadapter’sdocumentationformore

information.

Lowerframeratethan

expected

•SeePerformanceconsiderationsonpage19.

•Reducethenumberofapplicationsrunningontheclientcomputer.

•Limitthenumberofsimultaneousviewers.

•Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.

•Lowertheimageresolution.

•Themaximumframespersecondisdependentontheutilityfrequency(60/50Hz)of

theAxisproduct.

Performanceconsiderations

Whensettingupyoursystem,itisimportanttoconsiderhowvarioussettingsandsituationsaffecttheperformance.Somefactors

affecttheamountofbandwidth(thebitrate)required,otherscanaffecttheframerate,andsomeaffectboth.Iftheloadonthe

CPUreachesitsmaximum,thisalsoaffectstheframerate.

Thefollowingfactorsarethemostimportanttoconsider:

•Highimageresolutionorlowercompressionlevelsresultinimagescontainingmoredatawhichinturnaffectsthe

bandwidth.

•AccessbylargenumbersofMotionJPEGorunicastH.264clientsaffectsthebandwidth.

•Simultaneousviewingofdifferentstreams(resolution,compression)bydifferentclientsaffectsbothframerateand

bandwidth.

Useidenticalstreamswhereverpossibletomaintainahighframerate.Streamprolescanbeusedtoensurethat

streamsareidentical.

•AccessingMotionJPEGandH.264videostreamssimultaneouslyaffectsbothframerateandbandwidth.

•Heavyusageofeventsettingsaffectstheproduct’sCPUloadwhichinturnaffectstheframerate.

•UsingHTTPSmayreduceframerate,inparticularifstreamingMotionJPEG.

•Heavynetworkutilizationduetopoorinfrastructureaffectsthebandwidth.

•Viewingonpoorlyperformingclientcomputerslowersperceivedperformanceandaffectsframerate.

•RunningmultipleAXISCameraApplicationPlatform(ACAP)applicationssimultaneouslymayaffecttheframerateand

thegeneralperformance.

AXISP14NetworkCameraSeries

Speciﬁcations

Tondthelatestversionoftheproduct’sdatasheet,gototheproductpageonaxis.comandlocateSupport&Documentation.

LEDIndicators

StatusLED

Indication

Unlit

Connectionandnormaloperation.

GreenShowssteadygreenfor10secondsfornormaloperationafterstartupcompleted.

Amber

Steadyduringstartup.Flashesduringrmwareupgradeorresettofactorydefault.

Amber/RedFlashesamber/redifnetworkconnectionisunavailableorlost.

RedFirmwareupgradefailure.

SDcardslot

NO NO

TICE TICE

TICE

•RiskofdamagetoSDcard.Donotusesharptools,metalobjects,orexcessiveforcewheninsertingorremovingthe

SDcard.Useyourngerstoinsertandremovethecard.

•Riskofdatalossandcorruptedrecordings.DonotremovetheSDcardwhiletheproductisrunning.UnmounttheSDcard

fromtheproduct’swebpagebeforeremoval.

ThisproductsupportsmicroSD/microSDHC/microSDXCcards.

ForSDcardrecommendations,seeaxis.com

Buttons

Controlbutton

Thecontrolbuttonisusedfor:

•Resettingtheproducttofactorydefaultsettings.SeeHowtoresettofactorydefaultsettingsonpage17.

•ConnectingtoanAXISVideoHostingSystemservice.Toconnect,pressandholdthebuttonforabout3secondsuntilthe

statusLEDashesgreen.

Connectors

Networkconnector

RJ45EthernetconnectorwithPoweroverEthernet(PoE).

Audioconnector

TheAxisproducthasthefollowingaudioconnectors:

•Audioin(pink)–3.5mminputforamonomicrophone,oraline-inmonosignal.

Foraudioin,theleftchannelisusedfromastereosignal.

AXISP14NetworkCameraSeries

Speciﬁcations

3.5mmaudioconnectors

(stereo)

1Tip2Ring

3Sleeve

AudioInput

Microphone/Linein

Microphonebiasvoltage

Ground

I/Oconnector

UsetheI/Oconnectorwithexternaldevicesincombinationwith,forexample,motiondetection,eventtriggering,andalarm

notications.Inadditiontothe0VDCreferencepointandpower(DCoutput),theI/Oconnectorprovidestheinterfaceto:

Digitalinput-Forconnectingdevicesthatcantogglebetweenanopenandclosedcircuit,forexamplePIRsensors,door/window

contacts,andglassbreakdetectors.

Digitaloutput-ForconnectingexternaldevicessuchasrelaysandLEDs.ConnecteddevicescanbeactivatedbytheVAPIX®

ApplicationProgrammingInterfaceorintheproduct’swebpage.

4-pinterminalblock

Example

DCground

DCoutput12V,max25mA

I/Odigitalinput

I/Odigitaloutput

UserManualVer.M1.8

AXISP14NetworkCameraSeries

Date:February2018

PartNo.T10116329

Axis 01055-001 ~ EOL P1448-LE 4K Network Bullet Camera 01055-001

Product's Documents

Axis P1448-LE User Manual

Specifications

Axis 01055-001 ~ EOL Questions and Answers
