Unpack the machine and check the components
Toner Cartridge and Drum Unit
Assembly
Toner Cartridge Replacement
(MFC-L2820DWXL /
MFC-L2900DWXL only.
Save for later use.)
AC Power Cord
Quick Setup Guide
Product Safety Guide
1
Remove the packing materials and install the toner cartridge and drum unit assembly
2

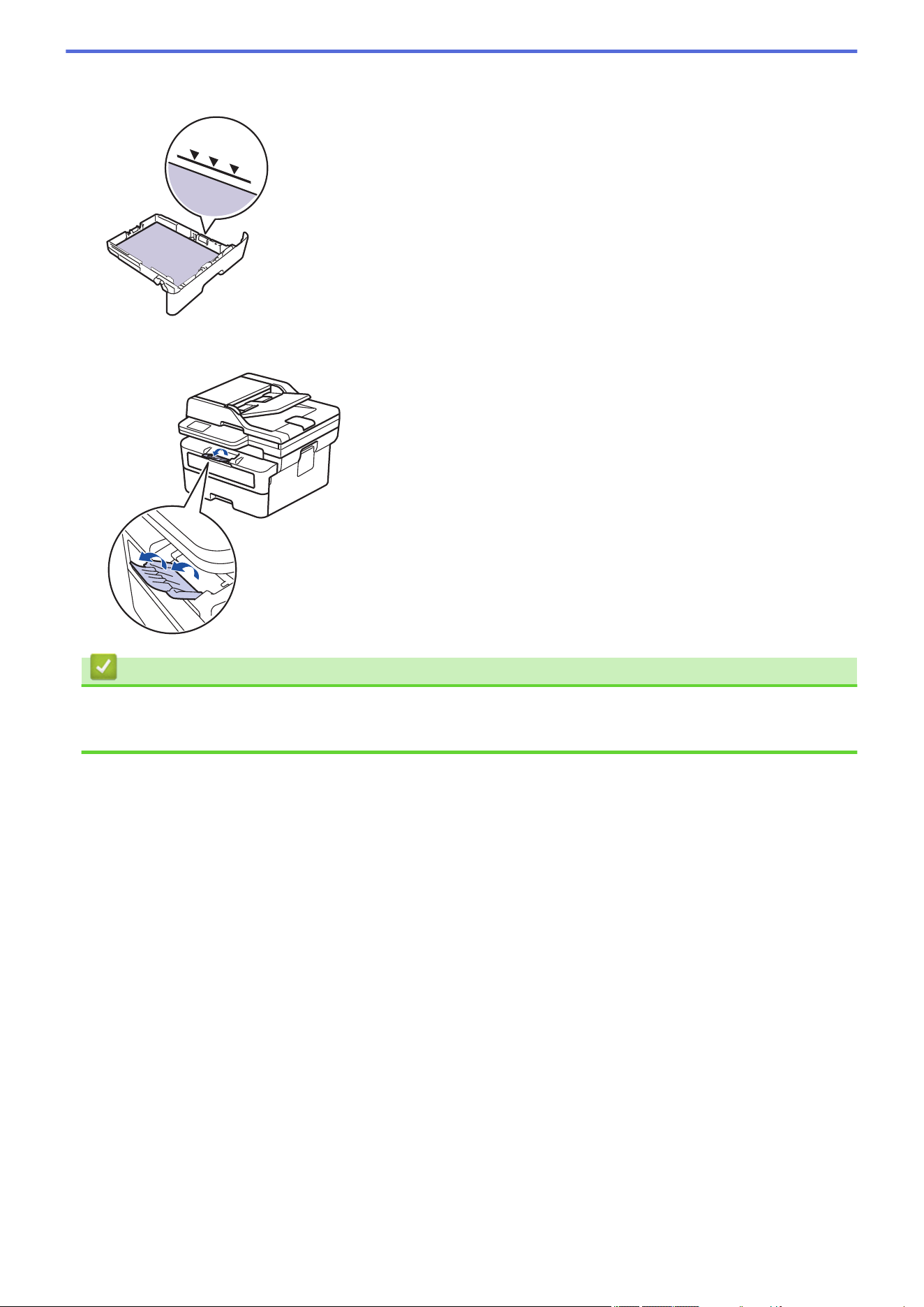

Load paper in the paper tray
3
Connect the power cord and
turn the machine on
Back Front
NOTE:
Before connecting the power cord, locate the Serial Number
label on the back or side of the machine. Record this number
for product registration and warranty support.
NOTE:
•Manuals in Spanish for this model are available at support.brother.com.
Manuales en Español para este modelo están disponibles en
support.brother.com.
•The components included in the box may differ depending on your country.
•The available connection interfaces vary depending on the model.
If you use a wired connection, you must purchase the correct cable for the
interface you want to use.
•USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than
6 feet (2 meters) long.
•Network cable (for wired network models only)
Use a straight-through Category 5 (or greater) twisted-pair cable.
•The screens and images in this Quick Setup Guide show the MFC-L2820DW.

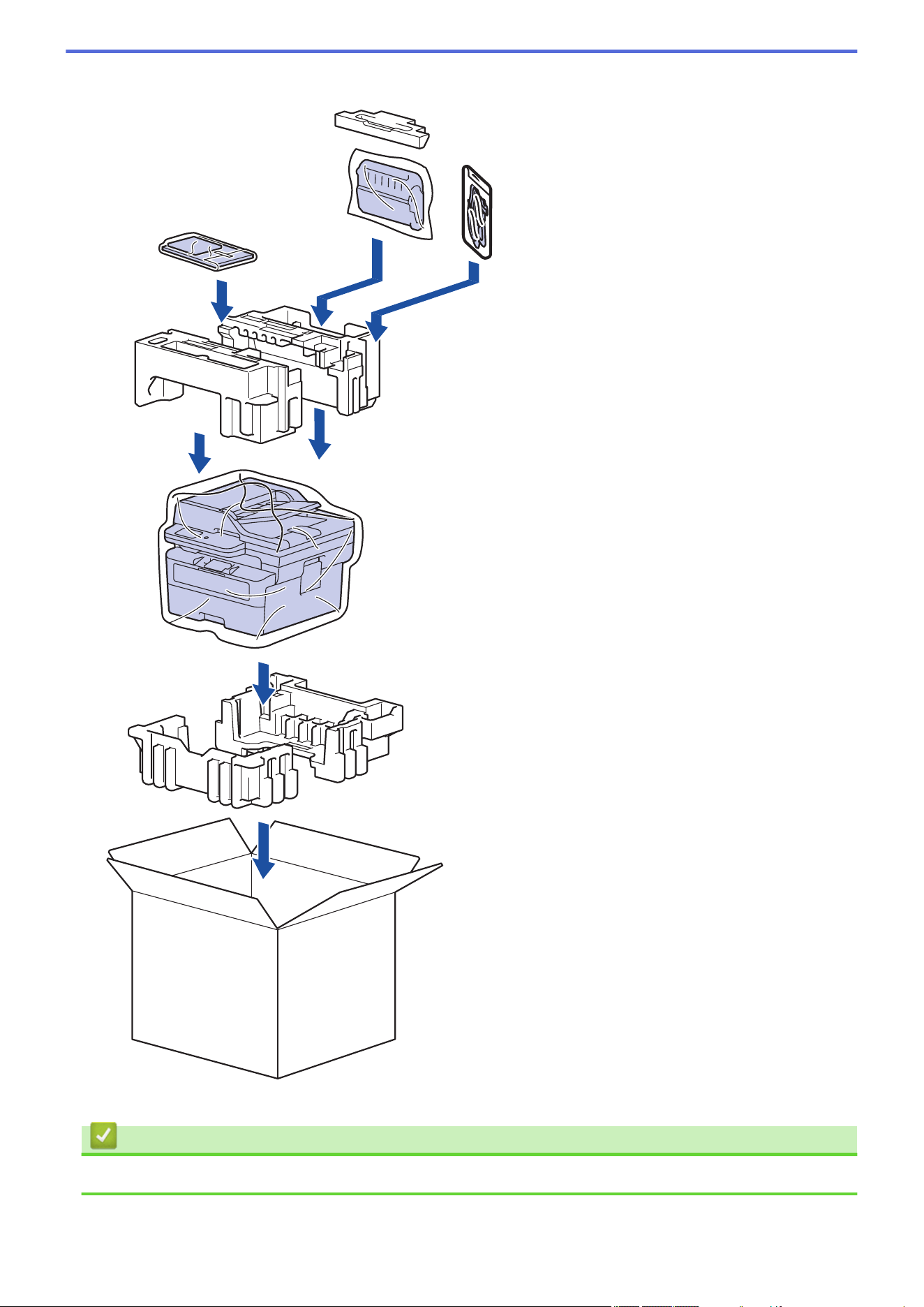

•Save all packing materials and the box in case you must ship your machine.
4
Select your language (if needed)

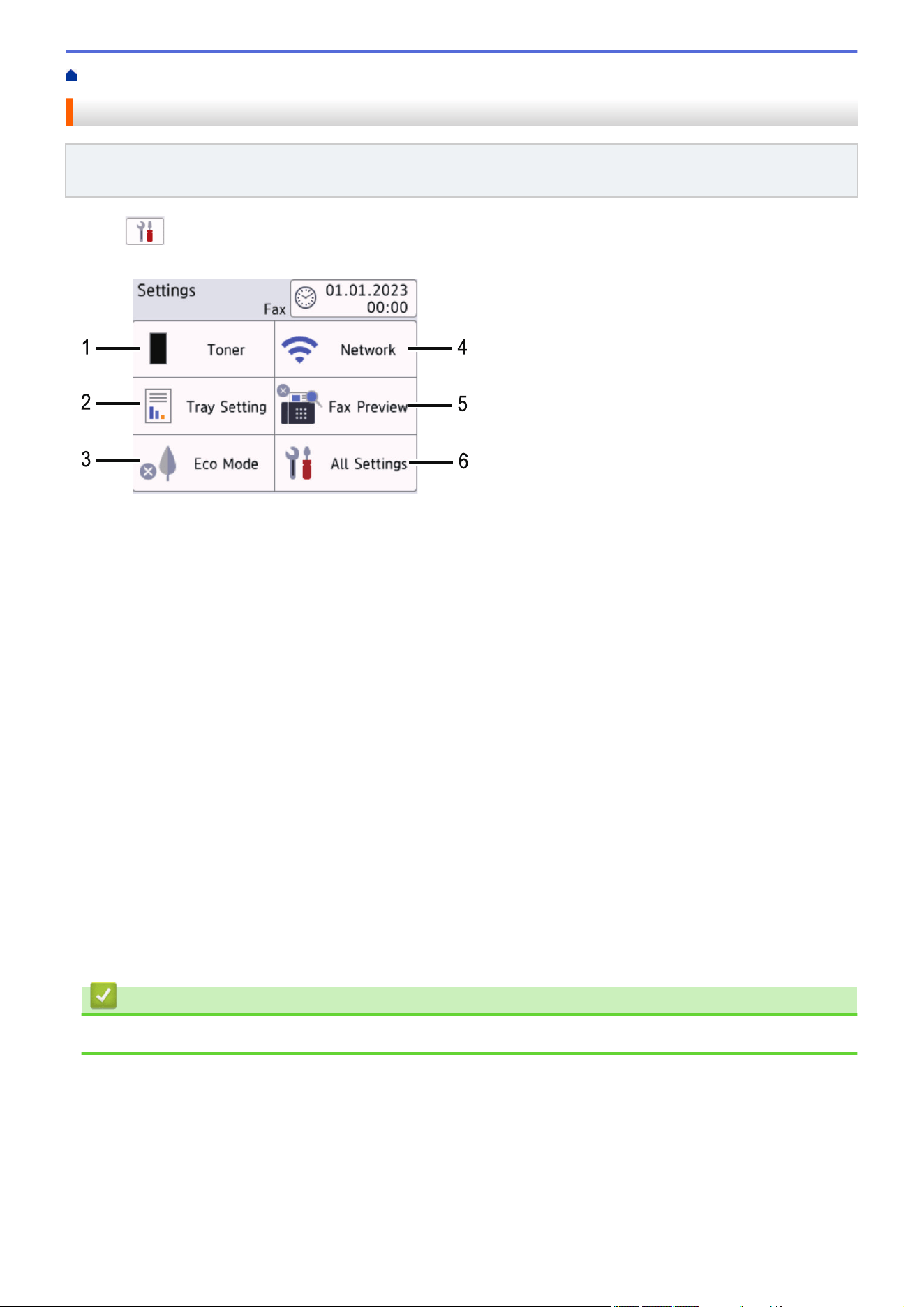

For touchscreen models:
1. On the machine’s touchscreen,
press
[Settings] >
[All Settings] >
[Initial Setup] >
[Local Language].
2. Select your language.
3. Press .
Remove the orange part.
1
1
2
Push firmly.
Adjust the paper
guides.
Do not exceed this mark.
For LCD models:
1. Press Menu.
2. Press▲or▼todisplay
[Initial Setup], and then
press OK.
3. Press▲or▼todisplay
[Local Language], and then
press OK.
4. Press▲or▼toselectyour
language, and then press OK.
5. Press Stop/Exit.
Remove the protective tape or film covering the machine and the supplies.
Quick Setup Guide
Read the Product Safety Guidefirst,thenreadthisQuick Setup Guide for the correct installation procedure.
Not all models are available in all countries.
The latest manuals are available at the Brother support website:
support.brother.com/manuals
EN
HL-L2465DW / DCP-L2640DW / DCP-L2660DW / HL-L2480DW /
MFC-L2760DW / MFC-L2807DW / MFC-L2820DW / MFC-L2820DWXL /
MFC-L2880DW / MFC-L2900DW / MFC-L2900DWXL / MFC-L2980DW
D02ZKY001-00
USA/CAN
Version B
