Axis M4318-PLR 12MP Panoramic Camera User Manual

AXISM43SeriesPanoramicCamera

AXISM4318-PLVEPanoramicCamera

AXISM4318-PLRPanoramicCamera

Usermanual

AXISM43SeriesPanoramicCamera

TableofContents

Getstarted................................................3

Findthedeviceonthenetwork....................................3

Openthedevice'swebinterface....................................3

Createanadministratoraccount...................................3

Securepasswords...............................................3

Verifythatnoonehastamperedwiththermware....................4

Webinterfaceoverview..........................................4

Installation................................................5

Previewmode..................................................5

Congureyourdevice........................................6

Basicsettings..................................................6

Adjusttheimage................................................6

Viewandrecordvideo............................................11

Setuprulesforevents...........................................12

Thewebinterface...........................................19

Status........................................................19

Video.........................................................20

Recordings.....................................................29

Apps..........................................................30

System........................................................

Maintenance...................................................

Learnmore................................................51

Viewarea......................................................

Capturemodes.................................................51

Privacymasks..................................................

Overlays.......................................................

Streamingandstorage...........................................52

Applications....................................................53

Cybersecurity...................................................

Specications..............................................57

Productoverview................................................

LEDindicators..................................................

SDcardslot....................................................

Buttons.......................................................

Connectors....................................................

Cleaningrecommendations...................................60

Troubleshooting............................................61

Resettofactorydefaultsettings...................................61

Firmwareoptions...............................................61

Checkthecurrentrmwareversion.................................

Upgradethermware............................................61

Technicalissues,clues,andsolutions................................

Performanceconsiderations.......................................

Contactsupport.................................................64

AXISM43SeriesPanoramicCamera

Getstarted

Findthedeviceonthenetwork

TondAxisdevicesonthenetworkandassignthemIPaddressesinWindows®,useAXISIPUtilityorAXISDeviceManager.Both

applicationsarefreeandcanbedownloadedfromaxis.com/support.

FormoreinformationabouthowtondandassignIPaddresses,gotoHowtoassignanIPaddressandaccessyourdevice.

Browsersupport

Youcanusethedevicewiththefollowingbrowsers:

Chrome

Firefox

Edge

Safari

Windows

recommended

macOS

recommendedrecommended

Linux

recommendedrecommended

Otheroperatingsystems*

*TouseAXISOSwebinterfacewithiOS15oriPadOS15,gotoSettings Settings

Settings

> >

Safari Safari

Safari

> >

Advanced Advanced

Advanced

> >

Experimental Experimental

Experimental

Features Features

Features

anddisable

NSURLSessionWebsocket.

Ifyouneedmoreinformationaboutrecommendedbrowsers,gotoAXISOSPortal.

Openthedevice'swebinterface

1.OpenabrowserandtypetheIPaddressorhostnameoftheAxisdevice.

IfyoudonotknowtheIPaddress,useAXISIPUtilityorAXISDeviceManagertondthedeviceonthenetwork.

2.Typetheusernameandpassword.Ifyouaccessthedeviceforthersttime,youmustcreateanadministratoraccount.See

Createanadministratoraccountonpage3.

Createanadministratoraccount

Thersttimeyoulogintoyourdevice,youmustcreateanadministratoraccount.

1.Enterausername.

2.Enterapassword.SeeSecurepasswordsonpage3.

3.Re-enterthepassword.

4.ClickAdduser.

Important

Thedevicehasnodefaultaccount.Ifyoulosethepasswordforyouradministratoraccount,youmustresetthedevice.See

Resettofactorydefaultsettingsonpage61.

Securepasswords

Important

Axisdevicessendtheinitiallysetpasswordincleartextoverthenetwork.Toprotectyourdeviceaftertherstlogin,set

upasecureandencryptedHTTPSconnectionandthenchangethepassword.

AXISM43SeriesPanoramicCamera

Getstarted

Thedevicepasswordistheprimaryprotectionforyourdataandservices.Axisdevicesdonotimposeapasswordpolicyasthey

maybeusedinvarioustypesofinstallations.

Toprotectyourdatawestronglyrecommendthatyou:

•Useapasswordwithatleast8characters,preferablycreatedbyapasswordgenerator.

•Don’texposethepassword.

•Changethepasswordatarecurringinterval,atleastonceayear.

Verifythatnoonehastamperedwiththermware

TomakesurethatthedevicehasitsoriginalAxisrmware,ortotakefullcontrolofthedeviceafterasecurityattack:

1.Resettofactorydefaultsettings.SeeResettofactorydefaultsettingsonpage61.

Afterthereset,securebootguaranteesthestateofthedevice.

2.Congureandinstallthedevice.

Webinterfaceoverview

Thisvideogivesyouanoverviewofthedevice’swebinterface.

Towatchthisvideo,gotothewebversionofthisdocument.

help.axis.com/?&piaId=76564&section=web-interface-overview

Axisdevicewebinterface

AXISM43SeriesPanoramicCamera

Installation

Previewmode

Previewmodeisidealforinstallerswhennetuningthecameraviewduringtheinstallation.Nologinisrequiredtoaccessthe

cameraviewinpreviewmode.Itisavailableonlyinfactorydefaultedstateforalimitedtimefrompoweringupthedevice.

Towatchthisvideo,gotothewebversionofthisdocument.

help.axis.com/?&piaId=76564&section=preview-mode

Thisvideodemonstratehowtousepreviewmode.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

Basicsettings

Setthecapturemode

1.GotoVideo>Installation>Capturemode.

2.ClickChange.

3.SelectacapturemodeandclickSaveandrestart.

SeealsoCapturemodesonpage51.

Setthemountingposition

1.GotoVideo>Installation>Mountingposition.

2.ClickChange.

3.SelectamountingpositionandclickSaveandrestart.

Setthepowerlinefrequency

1.GotoVideo>Installation>Powerlinefrequency.

2.ClickChange.

3.SelectapowerlinefrequencyandclickSaveandrestart.

Adjusttheimage

Thissectionincludesinstructionsaboutconguringyourdevice.Ifyouwanttolearnmoreabouthowcertainfeatureswork,go

toLearnmoreonpage51.

Rotatetheimagewithdigitalroll

Note

Ifyourotatetheimage,allviewsareaffected.

Torotatethe360°view,gotoVideo>InstallationandusetheRollslider.

Youcanalsoenteravaluefortherollangleinthetexteld.

Congurethequadview

Note

Quadviewisavailableinthesemountingpositions:

•Desk

•Ceiling

1.Click

andselectLegacydeviceinterface.

2.SelectQuadviewamongthelivefeedsources.

3.GotoSettings>System>Orientationandclick

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

4.Tochangethevieworder,draganddroptheyellowboxes.

Levelthecamera

Toadjusttheviewinrelationtoareferenceareaoranobject,usethelevelgridincombinationwiththedigitalrollsliderinthecamera.

1.GotoVideo>Installationandclick

2.Clicktoshowthelevelgrid.

3.AdjustthecamerausingtheRollslideruntilthepositionofthereferenceareaortheobjectisalignedwiththelevelgrid.

Straightenthehorizon

Asheyelensisawide-anglelensthathasacurvedprotrudingfront,whichmakestheimagecircular.Tocompensatefortheimage

distortion,youcanuseHorizonstraighteningtogetanimagethatisperceivedasstraightandinlinewiththehorizon.

1.GotoVideo>InstallationandclickChange.

2.SetCapturemodetoadewarpedview.

3.SetMountingpositiontoWallmounted.

4.ClickSaveandrestart.

5.GotoVideo>StreamandsettheviewtoPanorama.

6.ClickHorizonstraighteningandusetheHorizonlineslidertoadjustthehorizon.

7.UsetheTiltslidertotilttheimage.

Selectexposuremode

Toimproveimagequalityforspecicsurveillancescenes,useexposuremodes.Exposuremodesletsyoucontrolaperture,shutter

speed,andgain.GotoVideo>Image>Exposureandselectbetweenthefollowingexposuremodes:

•Formostusecases,selectAutomaticexposure.

•Forenvironmentswithcertainarticiallighting,forexampleuorescentlighting,selectFlicker-free.

Selectthesamefrequencyasthepowerlinefrequency.

•Tolockthecurrentexposuresettings,selectHoldcurrent.

BenetfromIRlightinlow-lightconditionsbyusingnightmode

Yourcamerausesvisiblelighttodelivercolorimagesduringtheday.Butasthevisiblelightdiminishes,colorimagesbecomeless

brightandclear.Ifyouswitchtonightmodewhenthishappens,thecamerausesbothvisibleandnear-infraredlighttodeliverbright

anddetailedblack-and-whiteimagesinstead.Youcansetthecameratoswitchtonightmodeautomatically.

1.GotoVideo>Image>Day-nightmode,andmakesurethattheIR-cutlterissettoAuto.

2.Tousethebuilt-inIRlightwhenthecameraisinnightmode,turnonAllowilluminationandSynchronizeillumination.

OptimizeIRillumination

Dependingontheinstallationenvironmentandtheconditionsaroundthecamera,forexampleexternallightsourcesinthescene,

youcansometimesimprovetheimagequalityifyoumanuallyadjusttheintensityoftheLEDs.Ifyouhaveproblemswithreections

fromtheLEDs,youcantrytoreducetheintensity.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

1.GotoVideo>Image>Day-nightmode.

2.TurnonAllowillumination.

3.Click

intheliveviewandselectManual.

4.Adjusttheintensity.

Reducenoiseinlow-lightconditions

Toreducenoiseinlow-lightconditions,youcanadjustoneormoreofthefollowingsettings:

•Adjustthetrade-offbetweennoiseandmotionblur.GotoVideo>Image>ExposureandmovetheBlur-noisetrade-off

slidertowardLownoise.

•Settheexposuremodetoautomatic.

Note

Ahighmaxshuttervaluecanresultinmotionblur.

•Toslowdowntheshutterspeed,setmaxshuttertothehighestpossiblevalue.

•Ifpossible,opentheaperture.

Reducemotionblurinlow-lightconditions

Toreducemotionblurinlow-lightconditions,adjustoneormoreofthefollowingsettingsinVideo>Image>Exposure:

•MovetheBlur-noisetrade-offslidertowardLowmotionblur.

Note

Whenyouincreasethegain,imagenoisealsoincreases.

•SetMaxshuttertoashortertime,andMaxgaintoahighervalue.

Ifyoustillhaveproblemswithmotionblur:

•Increasethelightlevelinthescene.

•Mountthecamerasothatobjectsmovetowarditorawayfromitratherthansideways.

Maximizethedetailsinanimage

Important

Ifyoumaximizethedetailsinanimage,thebitratewillprobablyincreaseandyoumightgetareducedframerate.

•GotoVideo>Stream>Generalandsetthecompressionaslowaspossible.

•Belowtheliveviewimage,click

andinVideoformat,selectMJPEG.

•GotoVideo>Stream>ZipstreamandselectOff.

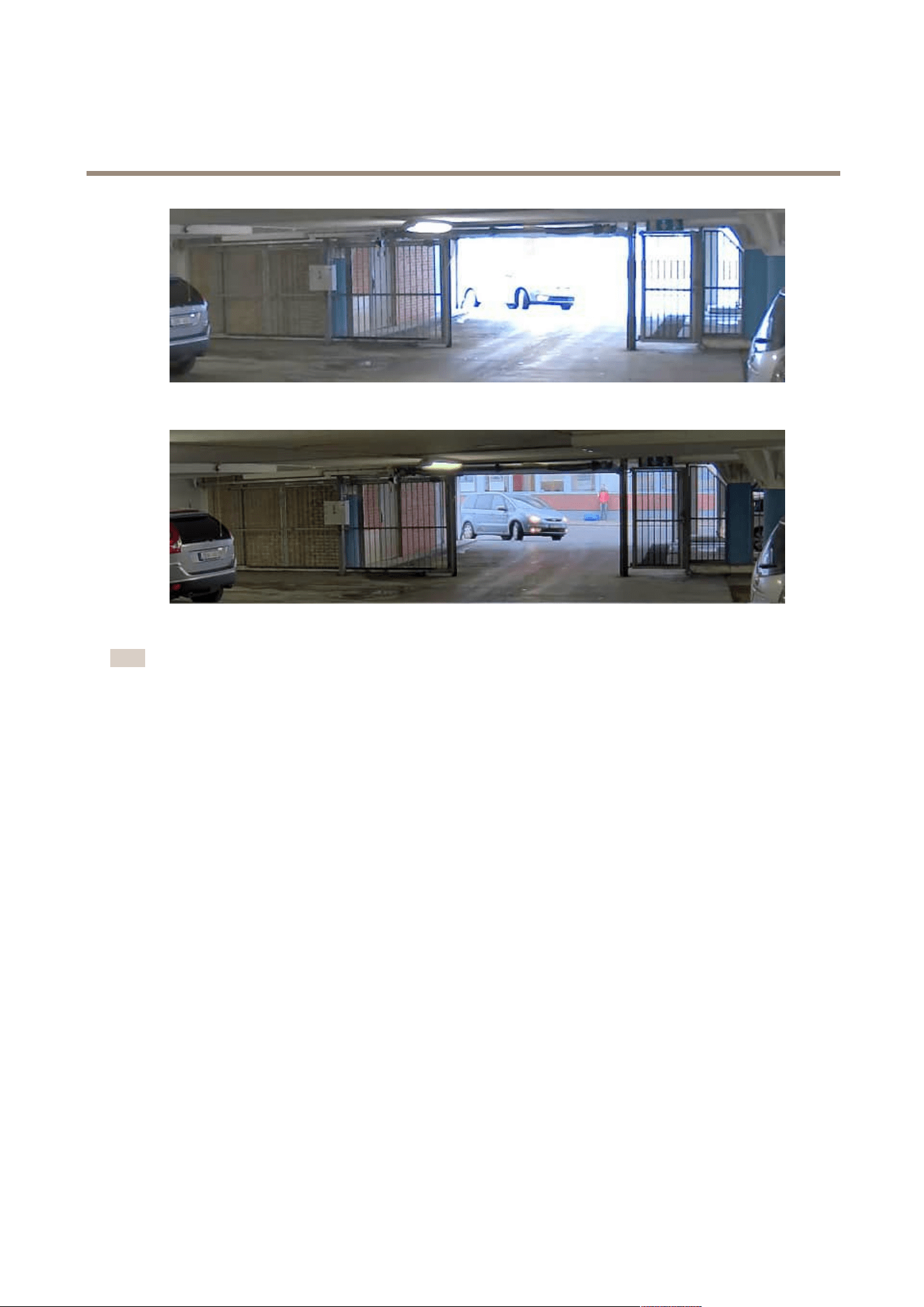

Handlesceneswithstrongbacklight

Dynamicrangeisthedifferenceinlightlevelsinanimage.Insomecasesthedifferencebetweenthedarkestandthebrightest

areascanbesignicant.Theresultisoftenanimagewhereeitherthedarkorthebrightareasarevisible.Widedynamicrange

(WDR)makesbothdarkandbrightareasoftheimagevisible.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

ImagewithoutWDR.

ImagewithWDR.

Note

•WDRcancauseartifactsintheimage.

•WDRmaynotbeavailableforallcapturemodes.

1.GotoVideo>Image>Widedynamicrange.

2.TurnonWDR.

3.UsetheLocalcontrastslidertoadjusttheamountofWDR.

4.UsetheTonemappingslidertoadjusttheamountofWDR.

5.Ifyoustillhaveproblems,gotoExposureandadjusttheExposurezonetocovertheareaofinterest.

FindoutmoreaboutWDRandhowtouseitataxis.com/web-articles/wdr.

Verifythepixelresolution

Toverifythatadenedpartoftheimagecontainsenoughpixelsto,forexample,recognizelicenseplates,youcanusethepixel

counter.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

ABC 123

1.GotoVideo>Image.

2.Click

3.ClickforPixelcounter.

4.Inthecamera’sliveview,adjustthesizeandpositionoftherectanglearoundtheareaofinterest,forexamplewhereyou

expectlicenseplatestoappear.

5.Youcanseethenumberofpixelsforeachoftherectangle’ssides,anddecideifthevaluesareenoughforyourneeds.

Hidepartsoftheimagewithprivacymasks

Youcancreateoneorseveralprivacymaskstohidepartsoftheimage.

1.GotoVideo>Privacymasks.

2.Click

3.Clickthenewmaskandtypeaname.

4.Adjustthesizeandplacementoftheprivacymaskaccordingtoyourneeds.

5.Tochangethecolorforallprivacymasks,clickPrivacymasksandselectacolor.

SeealsoPrivacymasksonpage51

Showanimageoverlay

Youcanaddanimageasanoverlayinthevideostream.

1.GotoVideo>Overlays.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

2.SelectImageandclick.

3.ClickImages.

4.Draganddropanimage.

5.ClickUpload.

6.ClickManageoverlay.

7.Selecttheimageandaposition.Youcanalsodragtheoverlayimageintheliveviewtochangetheposition.

Showatextoverlay

Youcanaddatexteldasanoverlayinthevideostream.Thisisusefulforexamplewhenyouwanttodisplaythedate,timeora

companynameinthevideostream.

1.GotoVideo>Overlays.

2.SelectTextandclick

3.Typethetextyouwanttodisplayinthevideostream.

4.Selectaposition.Youcanalsodragtheoverlaytexteldintheliveviewtochangetheposition.

Viewandrecordvideo

Thissectionincludesinstructionsaboutconguringyourdevice.Tolearnmoreabouthowstreamingandstorageworks,goto

Streamingandstorageonpage52.

Reducebandwidthandstorage

Important

Reducingthebandwidthcanleadtolossofdetailintheimage.

1.GotoVideo>Stream.

2.Click

intheliveview.

3.SelectVideoformatH.264.

4.GotoVideo>Stream>GeneralandincreaseCompression.

5.GotoVideo>Stream>Zipstreamanddooneormoreofthefollowing:

Note

TheZipstreamsettingsareusedforbothH.264andH.265.

-SelecttheZipstreamStrengththatyouwanttouse.

-TurnonOptimizeforstorage.ThiscanonlybeusediftheVMSsupportsB-frames.

-TurnonDynamicFPS.

-TurnonDynamicGOPandsetahighUpperlimitGOPlengthvalue.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

Note

Mostwebbrowsersdon’tsupportH.265decodingandbecauseofthisthedevicedoesn’tsupportitinitswebinterface.

InsteadyoucanuseavideomanagementsystemorapplicationthatsupportsH.265decoding.

Setupnetworkstorage

Tostorerecordingsonthenetwork,youneedtosetupyournetworkstorage.

1.GotoSystem>Storage.

2.Click

AddnetworkstorageunderNetworkstorage.

3.TypetheIPaddressofthehostserver.

4.TypethenameofthesharedlocationonthehostserverunderNetworkshare.

5.Typetheusernameandpassword.

6.SelecttheSMBversionorleaveitonAuto.

7.SelectAddshareevenifconnectionfailsifyouexperiencetemporaryconnectionissues,oriftheshareisnotyet

congured.

8.ClickAdd.

Recordandwatchvideo

Recordvideodirectlyfromthecamera

1.GotoVideo>Image.

2.Tostartarecording,click.

Ifyouhaven’tsetupanystorage,click

and.Forinstructionsonhowtosetupnetworkstorage,seeSetup

networkstorageonpage12

3.Tostoprecording,click

again.

Watchvideo

1.GotoRecordings.

2.Click

foryourrecordinginthelist.

Setuprulesforevents

Youcancreaterulestomakeyourdeviceperformanactionwhencertaineventsoccur.Aruleconsistsofconditionsandactions.

Theconditionscanbeusedtotriggertheactions.Forexample,thedevicecanstartarecordingorsendanemailwhenitdetects

motion,orshowanoverlaytextwhilethedeviceisrecording.

Tolearnmore,checkoutourguideGetstartedwithrulesforevents.

Triggeranaction

1.GotoSystem>Eventsandaddarule.Theruledeneswhenthedevicewillperformcertainactions.Youcanset

uprulesasscheduled,recurring,ormanuallytriggered.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

2.EnteraName.

3.SelecttheConditionthatmustbemettotriggertheaction.Ifyouspecifymorethanoneconditionfortherule,allofthe

conditionsmustbemettotriggertheaction.

4.SelectwhichActionthedeviceshouldperformwhentheconditionsaremet.

Note

Ifyoumakechangestoanactiverule,therulemustbeturnedonagainforthechangestotakeeffect.

Savepowerwhennomotionisdetected

Thisexampleexplainshowtoturnonpowersavingmodewhennomotionisdetectedinthescene.

Note

Whenyouturnonpowersavingmode,theIRilluminationrangeisreduced.

MakesurethatAXISObjectAnalyticsisrunning:

1.GotoApps>AXISObjectAnalytics.

2.Starttheapplicationifitisnotalreadyrunning.

3.Makesureyouhavesetuptheapplicationaccordingtoyourneeds.

Createarule:

1.GotoSystem>Eventsandaddarule.

2.Typeanamefortherule.

3.Inthelistofconditions,underApplication,selectObjectAnalytics.

4.SelectInvertthiscondition.

5.Inthelistofactions,underPowersavingmode,selectUsepowersavingmodewhiletheruleisactive.

6.ClickSave.

Recordvideowhenthecameradetectsanobject

ThisexampleexplainshowtosetupthecameratostartrecordingtotheSDcardwhenthecameradetectsanobject.Therecording

willincludevesecondsbeforedetectionandoneminuteafterdetectionends.

Beforeyoustart:

•MakesureyouhaveanSDcardinstalled.

MakesurethatAXISObjectAnalyticsisrunning:

1.GotoApps>AXISObjectAnalytics.

2.Starttheapplicationifitisnotalreadyrunning.

3.Makesureyouhavesetuptheapplicationaccordingtoyourneeds.

Createarule:

1.GotoSystem>Eventsandaddarule.

2.Typeanamefortherule.

3.Inthelistofconditions,underApplication,selectObjectAnalytics.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

4.Inthelistofactions,underRecordings,selectRecordvideowhiletheruleisactive.

5.Inthelistofstorageoptions,selectSD_DISK.

6.Selectacameraandastreamprole.

7.Settheprebuffertimeto5seconds.

8.Setthepostbuffertimeto1minute.

9.ClickSave.

Showatextoverlayinthevideostreamwhenthedevicedetectsanobject

Thisexampleexplainshowtodisplaythetext“Motiondetected”whenthedevicedetectsanobject.

MakesurethatAXISObjectAnalyticsisrunning:

1.GotoApps>AXISObjectAnalytics.

2.Starttheapplicationifitisnotalreadyrunning.

3.Makesureyouhavesetuptheapplicationaccordingtoyourneeds.

Addtheoverlaytext:

1.GotoVideo>Overlays.

2.UnderOverlays,selectTextandclick

3.Enter#Dinthetexteld.

4.Choosetextsizeandappearance.

5.Topositionthetextoverlay,click

andselectanoption.

Createarule:

1.GotoSystem>Eventsandaddarule.

2.Typeanamefortherule.

3.Inthelistofconditions,underApplication,selectObjectAnalytics.

4.Inthelistofactions,underOverlaytext,selectUseoverlaytext.

5.Selectavideochannel.

6.InText,type“Motiondetected”.

7.Settheduration.

8.ClickSave.

Providevisualindicationofanongoingevent

YouhavetheoptiontoconnecttheAXISI/OIndicationLEDtoyournetworkcamera.ThisLEDcanbeconguredtoturnonwhenever

certaineventsoccurinthecamera.Forexample,toletpeopleknowthatvideorecordingisinprogress.

Requiredhardware

•AXISI/OIndicationLED

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

•AnAxisnetworkvideocamera

Note

ForinstructionsonhowtoconnecttheAXISI/OIndicationLED,seetheinstallationguideprovidedwiththeproduct.

ThefollowingexampleshowshowtocongurearulethatturnsontheAXISI/OIndicationLEDtoindicatethatcameraisrecording.

1.GotoSystem>Accessories>I/Oports.

2.FortheportthatyouconnectedtheAXISI/OIndicationLEDto,click

tosetthedirectiontoOutput,andclick

tosetthenormalstatetoCircuitopen.

3.GotoSystem>Events.

4.Createanewrule.

5.SelecttheConditionthatmustbemettotriggerthecameratostartrecording.Itcan,forexample,beatimescheduleor

motiondetection.

6.Inthelistofactions,selectRecordvideo.Selectastoragespace.Selectastreamproleorcreateanew.Alsosetthe

PrebufferandPostbufferasrequired.

7.Savetherule.

8.CreateasecondruleandselectthesameConditionasintherstrule.

9.Inthelistofactions,selectToggleI/Owhiletheruleisactive,andthenselecttheporttheAXISI/OIndicationLEDis

connectedto.SetthestatetoActive.

10.Savetherule.

OtherscenarioswhereAXISI/OIndicationLEDcanbeusedareforexample:

•ConguretheLEDtoturnonwhenthecamerastarts,toindicatethepresenceofthecamera.SelectSystemreadyas

acondition.

•ConguretheLEDtoturnonwhenlivestreamisactivetoindicatethatapersonoraprogramisaccessingastreamfrom

thecamera.SelectLivestreamaccessedasacondition.

Detecttamperingwithinputsignal

Thisexampleexplainshowtosendanemailwhentheinputsignaliscutorshort-circuited.Formoreinformationaboutthe

I/Oconnector,seepage58.

1.GotoSystem>AccessoriesandturnonSupervisedfortherelevantport.

Addanemailrecipient:

1.GotoSystem>Events>Recipientsandaddarecipient.

2.Typeanamefortherecipient.

3.SelectEmail.

4.Typeanemailaddresstosendtheemailto.

5.Thecameradoesn’thaveit’sownemailserver,soithastologintoanotheremailservertosendmails.Fillintherestofthe

informationaccordingtoyouremailprovider.

6.Tosendatestemail,clickTest.

7.ClickSave.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

Createarule:

1.GotoSystem>Events>Rulesandaddarule.

2.Typeanamefortherule.

3.Inthelistofconditions,underI/O,selectSupervisedinputtamperingisactive.

4.Selecttherelevantport.

5.Inthelistofactions,underNotications,selectSendnoticationtoemailandthenselecttherecipientfromthelist.

6.Typeasubjectandamessagefortheemail.

7.ClickSave.

Triggeranalarmifsomeoneopensthehousing

Thisexampleexplainshowtotriggeranalarmifsomeoneopensthehousing.

Addarecipient:

1.GotoSystem>Events>RecipientsandclickAddrecipient.

2.Typeanamefortherecipient.

3.SelectEmail.

4.Typeanemailaddresstosendtheemailto.

5.Thecameradoesn’thaveit’sownemailserver,soitwillneedtologintoanotheremailservertobeabletosendmails.Fill

intherestoftheinformationaccordingtoyouremailprovider.

6.Tosendatestemail,clickTest.

7.ClickSave.

Createarule:

8.GotoSystem>Events>Rulesandaddarule.

9.Typeanamefortherule.

10.Inthelistofconditions,selectCasingopen.

11.Inthelistofactions,selectSendnoticationtoemail.

12.Selectarecipientfromthelist.

13.Typeasubjectandamessagefortheemail.

14.ClickSave.

Setuptheintrusionalarm

Usetheintrusionalarmswitchto,forexample,sendanoticationifsomeoneopensthecamerahousing.

Beforeyoustart

•Connecttheintrusionalarmswitchtopin1(ground)andpin3(digitalI/O)ofthecamera’sI/Oconnector.

Conguretheinputport

1.GotoSystem>Accessories>I/Oports.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

2.ForPort1:

2.1SelectInput.

2.2SelectCircuitclosed.

Addarecipient:

3.GotoSystem>Events>RecipientsandclickAddrecipient.

4.Typeanamefortherecipient.

5.SelectEmail.

6.Typeanemailaddresstosendtheemailto.

7.Thecameradoesn’thaveit’sownemailserver,soitwillneedtologintoanotheremailservertobeabletosendmails.Fill

intherestoftheinformationaccordingtoyouremailprovider.

8.Tosendatestemail,clickTest.

9.ClickSave.

Createarule

10.GotoSystem>Events>Rulesandaddarule.

11.Typeanamefortherule.

12.Inthelistofconditions,underI/O,selectDigitalinput.

13.Inthelistofports,selectPort1.

14.Inthelistofactions,underNotications,selectSendnoticationtoemail.

15.SelectarecipientfromthelistorgotoRecipientstocreateanewrecipient.

Tocreateanewrecipient,click

.Tocopyanexistingrecipient,click.

16.Typeasubjectandamessagefortheemail.

17.ClickSave.

Sendanemailautomaticallyifsomeonespraypaintsthelens

Activatethetamperingdetection:

1.GotoSystem>Detectors>Cameratampering.

2.SetavalueforTriggerdelay.Thevalueindicatesthetimethatmustpassbeforeanemailissent.

3.TurnonTriggerondarkimagestodetectifthelensissprayed,covered,orrenderedseverelyoutoffocus.

Addanemailrecipient:

4.GotoSystem>Events>Recipientsandaddarecipient.

5.Typeanamefortherecipient.

6.SelectEmail.

7.Typeanemailaddresstosendtheemailto.

AXISM43SeriesPanoramicCamera

Conﬁgureyourdevice

8.Thecameradoesn’thaveit’sownemailserver,soithastologintoanotheremailservertosendmails.Fillintherestofthe

informationaccordingtoyouremailprovider.

9.Tosendatestemail,clickTest.

10.ClickSave.

Createarule:

11.GotoSystem>Events>Rulesandaddarule.

12.Typeanamefortherule.

13.Inthelistofconditions,underVideo,selectTampering.

14.Inthelistofactions,underNotications,selectSendnoticationtoemailandthenselecttherecipientfromthelist.

15.Typeasubjectandamessagefortheemail.

16.ClickSave.

AXISM43SeriesPanoramicCamera

Thewebinterface

Toreachthedevice’swebinterface,typethedevice’sIPaddressinawebbrowser.

Note

Supportforthefeaturesandsettingsdescribedinthissectionvariesbetweendevices.Thisicon

indicatesthat

thefeatureorsettingisonlyavailableinsomedevices.

Showorhidethemainmenu.

Accessthereleasenotes.

Accesstheproducthelp.

Changethelanguage.

Setlightthemeordarktheme.

Theusermenucontains:

•Informationabouttheuserwhoisloggedin.

•

Changeuser:Logoutthecurrentuserandloginanewuser.

•

Logout:Logoutthecurrentuser.

Thecontextmenucontains:

•Analyticsdata:Accepttosharenon-personalbrowserdata.

•Feedback:Shareanyfeedbacktohelpusimproveyouruserexperience.

•Legal:Viewinformationaboutcookiesandlicenses.

•About:Viewdeviceinformation,includingrmwareversionandserialnumber.

•Legacydeviceinterface:Changethedevice’swebinterfacetothelegacyversion.

Status

Timesyncstatus

ShowsNTPsynchronizationinformation,includingifthedeviceisinsyncwithanNTPserverandthetimeremaininguntil

thenextsync.

NTPsettings:ViewandupdatetheNTPsettings.TakesyoutotheDateandtimepagewhereyoucanchangetheNTPsettings.

Ongoingrecordings

Showsongoingrecordingsandtheirdesignatedstoragespace.

Recordings:Viewongoingandlteredrecordingsandtheirsource.Formoreinformation,seeRecordingsonpage29

Showsthestoragespacewheretherecordingissaved.

AXISM43SeriesPanoramicCamera

Thewebinterface

Deviceinfo

Showsthedeviceinformation,includingrmwareversionandserialnumber.

Upgradermware:Upgradethermwareonyourdevice.TakesyoutotheMaintenancepagewhereyoucandoarmware

upgrade.

Connectedclients

Showsthenumberofconnectionsandconnectedclients.

Viewdetails:Viewandupdatethelistoftheconnectedclients.ThelistshowsIPaddress,protocol,port,andPID/Process

ofeachclient.

Video

Clicktoplaythelivevideostream.

Clicktofreezethelivevideostream.

Clicktotakeasnapshotofthelivevideostream.Theleissavedinthe‘Downloads’folderonyourcomputer.Theimage

lenameis[snapshot_YYYY_MM_DD_HH_MM_SS.jpg].Thesizeofthesnapshotdependsonthecompressionthatthespecic

web-browserenginewherethesnapshotisreceivedapplies,therefore,thesnapshotsizemayvaryfromtheactualcompression

settingthatisconguredinthedevice.

ClicktoshowI/Ooutputports.Usetheswitchtoopenorclosethecircuitofaport,forexample,totestexternal

devices.

ClicktomanuallyturnonorturnofftheIRillumination.

Clicktomanuallyturnonorturnoffthewhitelight.

Clicktoaccessonscreencontrols:

•Predenedcontrols:Turnontousetheavailableonscreencontrols.

•Customcontrols:Click

Addcustomcontroltoaddanonscreencontrol.

Startsthewasher.Whenthesequencestarts,thecameramovestotheconguredpositiontoreceivethewash

spray.Whenthewholewashsequenceiscompleted,thecamerareturnstoitspreviousposition.Thisiconisonlyvisiblewhenthe

washerisconnectedandcongured.

Startsthewiper.

Clickandselectapresetpositiontogotothatpresetpositionintheliveview.Or,clickSetuptogotothepreset

positionpage.

AXISM43SeriesPanoramicCamera

Thewebinterface

Addsorremovesafocusrecallarea.Whenyouaddafocusrecallarea,thecamerasavesthefocussettingsat

thatspecicpan/tiltrange.Whenyouhavesetafocusrecallareaandthecameraentersthatareaintheliveview,thecamera

recallsthepreviouslysavedfocus.It’senoughtocoverhalfoftheareaforthecameratorecallthefocus.

Clicktoselectaguardtour,thenclickStarttoplaytheguardtour.Or,clickSetuptogototheguardtourspage.

Clicktomanuallyturnontheheaterforaselectedperiodoftime.

Clicktostartacontinuousrecordingofthelivevideostream.Clickagaintostoptherecording.Ifarecordingisongoing,it

willresumeautomaticallyafterareboot.

Clicktoshowthestoragethatisconguredforthedevice.Tocongurethestorage,youneedtobeloggedinasan

administrator.

Clicktoaccessmoresettings:

•Videoformat:Selecttheencodingformattouseintheliveview.

•Clientstreaminformation:Turnontoshowdynamicinformationaboutthevideostreamusedbythebrowserthat

showsthelivevideostream.Thebitrateinformationdiffersfromtheinformationshowninatextoverlay,becauseof

differentinformationsources.Thebitrateintheclientstreaminformationisthebitrateofthelastsecond,andit

comesfromtheencodingdriverofthedevice.Thebitrateintheoverlayistheaveragebitrateofthelast5seconds,

anditcomesfromthebrowser.Bothvaluescoveronlytherawvideostreamandnottheadditionalbandwidth

generatedwhenit’stransportedoverthenetworkthroughUDP/TCP/HTTP.

•Adaptivestream:Turnontoadapttheimageresolutiontotheviewingclient’sactualdisplayresolution,toimprove

theuserexperienceandhelppreventapossibleoverloadoftheclient’shardware.Theadaptivestreamisonly

appliedwhenyouviewthelivevideostreaminthewebinterfaceinabrowser.Whenadaptivestreamisturnedon,

themaximumframerateis30fps.Ifyoutakeasnapshotwhileadaptivestreamisturnedon,itwillusetheimage

resolutionselectedbytheadaptivestream.

•Levelgrid:Click

toshowthelevelgrid.Thegridhelpsyoudecideiftheimageishorizontallyaligned.Click

tohideit.

•Pixelcounter:Clicktoshowthepixelcounter.Dragandresizetheboxtocontainyourareaofinterest.Youcan

alsodenethepixelsizeoftheboxintheWidthandHeightelds.

•Refresh:Click

torefreshthestillimageintheliveview.

•PTZcontrols

:TurnontodisplayPTZcontrolsintheliveview.

Clicktoshowtheliveviewatfullresolution.Ifthefullresolutionislargerthanyourscreensize,usethesmallerimageto

navigateintheimage.

Clicktoshowthelivevideostreaminfullscreen.PressESCtoexitfullscreenmode.

AXISM43SeriesPanoramicCamera

Thewebinterface

Installation

Capturemode:Acapturemodeisapresetcongurationthatdeneshowthecameracapturesimages.Whenyouchange

thecapturemode,itcanaffectmanyothersettings,suchasviewareasandprivacymasks.

Mountingposition

:Theorientationoftheimagecanchangedependingonhowyoumountthecamera.

Powerlinefrequency:Tominimizeimageicker,selectthefrequencyyourregionuses.TheAmericanregionsusuallyuse60Hz.

Therestoftheworldmostlyuses50Hz.Ifyou'renotsureofyourregion'spowerlinefrequency,checkwiththelocalauthorities.

ResetPTR:ResetPTRifforsomereasonthePan,Tilt,orRollsettingsaren’tworkingasexpected.ThePTRmotorsarealways

calibratedinanewcamera.Butcalibrationcanbelost,forexample,ifthecameralosespowerorifthemotorsaremovedbyhand.

WhenyouresetPTR,thecameraisre-calibratedandreturnstoitsfactorydefaultposition.

Pan:Turnthecamerahorizontally.

Tilt:Turnthecameravertically.

Roll:Rotatetheimage.


Appearance

Sceneprole:Selectasceneprolethatsuitsyoursurveillancescenario.Asceneproleoptimizesimagesettings,

includingcolorlevel,brightness,sharpness,contrast,andlocalcontrast,foraspecicenvironmentorpurpose.

•Forensic:Suitableforsurveillancepurposes.

•Indoor

:Suitableforindoorenvironments.

•Outdoor:Suitableforoutdoorenvironments.

•Vivid:Usefulfordemonstrationpurposes.

•Trafcoverview:Suitableforvehicletrafcmonitoring.

Saturation:Usetheslidertoadjustthecolorintensity.Youcan,forexample,getagrayscaleimage.

Contrast:Usetheslidertoadjustthedifferencebetweenlightanddark.

AXISM43SeriesPanoramicCamera

Thewebinterface

Brightness:Usetheslidertoadjustthelightintensity.Thiscanmakeobjectseasiertosee.Brightnessisappliedafterimage

capture,anddoesn’taffecttheinformationintheimage.Togetmoredetailsfromadarkarea,it’susuallybettertoincrease

gainorexposuretime.

Sharpness:Usetheslidertomakeobjectsintheimageappearsharperbyadjustingtheedgecontrast.Ifyouincreasethe

sharpness,itmayincreasethebitrateandtheamountofstoragespaceneededaswell.

Widedynamicrange

WDR:Turnontomakebothbrightanddarkareasoftheimagevisible.

Localcontrast

:Usetheslidertoadjustthecontrastoftheimage.Ahighervaluemakesthecontrasthigherbetween

darkandlightareas.

Tonemapping:Usetheslidertoadjusttheamountoftonemappingthatisappliedtotheimage.Ifthevalueissetto

zero,onlythestandardgammacorrectionisapplied,whileahighervalueincreasesthevisibilityofthedarkestandbrightest

partsintheimage.

Whitebalance

Whenthecameradetectsthecolortemperatureoftheincominglight,itcanadjusttheimagetomakethecolorslookmorenatural.

Ifthisisnotsufcient,youcanselectasuitablelightsourcefromthelist.

Theautomaticwhitebalancesettingreducestheriskofcolorickerbyadaptingtochangesgradually.Ifthelightingchanges,or

whenthecameraisrststarted,itcantakeupto30secondstoadapttothenewlightsource.Ifthereismorethanonetypeoflight

sourceinascene,thatis,theydifferincolortemperature,thedominatinglightsourceactsasareferencefortheautomaticwhite

balancealgorithm.Thisbehaviorcanbeoverriddenbychoosingaxedwhitebalancesettingthatmatchesthelightsourceyou

wanttouseasareference.

AXISM43SeriesPanoramicCamera

Thewebinterface

Lightenvironment:

•Automatic:Automaticidenticationandcompensationforthelightsourcecolor.Thisistherecommendedsetting

whichcanbeusedinmostsituations.

•Automatic–outdoors

:Automaticidenticationandcompensationforthelightsourcecolor.Thisisthe

recommendedsettingwhichcanbeusedinmostoutdoorsituations.

•Custom–indoors

:Fixedcoloradjustmentforaroomwithsomearticiallightotherthanuorescentlighting

andgoodforanormalcolortemperaturearound2800K.

•Custom–outdoors

:Fixedcoloradjustmentforsunnyweatherconditionswithacolortemperaturearound

5500K.

•Fixed–uorescent1:Fixedcoloradjustmentforuorescentlightingwithacolortemperaturearound4000K.

•Fixed–uorescent2:Fixedcoloradjustmentforuorescentlightingwithacolortemperaturearound3000K.

•Fixed–indoors:Fixedcoloradjustmentforaroomwithsomearticiallightotherthanuorescentlightingand

goodforanormalcolortemperaturearound2800K.

•Fixed–outdoors1:Fixedcoloradjustmentforsunnyweatherconditionswithacolortemperaturearound5500K.

•Fixed–outdoors2:Fixedcoloradjustmentforcloudyweatherconditionwithacolortemperaturearound6500K.

•Streetlight–mercury

:Fixedcoloradjustmentforultravioletemissioninmercuryvaporlightscommon

instreetlighting.

•Streetlight–sodium

:Fixedcoloradjustmentthatcompensatesfortheyelloworangecolorofsodiumvapor

lightscommoninstreetlighting.

•Holdcurrent:Keepthecurrentsettingsanddonotcompensateforlightchanges.

•Manual

:Fixthewhitebalancewiththehelpofawhiteobject.Dragthecircletoanobjectthatyouwant

thecameratointerpretaswhiteintheliveviewimage.UsetheRedbalanceandBluebalancesliderstoadjustthe

whitebalancemanually.

Day-nightmode

IR-cutlter:

•Auto:SelecttoautomaticallyturnonandofftheIR-cutlter.Whenthecameraisindaymode,theIR-cutlter

isturnedonandblocksincominginfraredlight,andwheninnightmode,theIR-cutlteristurnedoffandthe

camera’slightsensitivityincreases.

•On:SelecttoturnontheIR-cutlter.Theimageisincolor,butwithreducedlightsensitivity.

•Off:SelecttoturnofftheIR-cutlter.Theimageisinblackandwhiteforincreasedlightsensitivity.

Threshold:Usetheslidertoadjustthelightthresholdwherethecamerachangesfromdaymodetonightmode.

•MovetheslidertowardsBrighttodecreasethethresholdfortheIR-cutlter.Thecamerachangestonightmode

earlier.

•MovetheslidertowardsDarktoincreasethethresholdfortheIR-cutlter.Thecamerachangestonightmodelater.

IRlight

Ifyourdevicedoesn’thavebuilt-inillumination,thesecontrolsareonlyavailablewhenyouconnectasupportingAxisaccessory.

Allowillumination:Turnontoletthecamerausethebuilt-inlightinnightmode.

Synchronizeillumination:Turnontoautomaticallysynchronizetheilluminationwiththesurroundinglight.Thesynchronization

betweendayandnightonlyworksiftheIR-cutlterissettoAutoorOff.

Automaticilluminationangle

:Turnontousetheautomaticilluminationangle.

AXISM43SeriesPanoramicCamera

Thewebinterface

Illuminationangle:Usetheslidertomanuallysettheilluminationangle,forexample,iftheangleneedstobedifferent

fromthecamera’sangleofview.Ifthecamerahasawideangleofview,youcansettheilluminationangletoanarrowerangle,

whichequalsagreaterteleposition.Thiswillresultindarkcornersintheimage.

IRwavelength

:SelectthedesiredwavelengthfortheIRlight.

Whitelight

Allowillumination

:Turnontoletthecamerausewhitelightinnightmode.

Synchronizeillumination

:Turnontoautomaticallysynchronizethewhitelightwiththesurroundinglight.

Exposure

Selectanexposuremodetoreducerapidlychangingirregulareffectsintheimage,forexample,ickerproducedbydifferenttypesof

lightsources.Werecommendyoutousetheautomaticexposuremode,orthesamefrequencyasyourpowernetwork.

Exposuremode:

•Automatic:Thecameraadjuststheaperture,gain,andshutterautomatically.

•Automaticaperture

:Thecameraadjuststheapertureandgainautomatically.Theshutterisxed.

•Automaticshutter

:Thecameraadjuststheshutterandgainautomatically.Theapertureisxed.

•Holdcurrent:Locksthecurrentexposuresettings.

•Flicker-free

:Thecameraadjuststheapertureandgainautomatically,andusesonlythefollowingshutter

speeds:1/50s(50Hz)and1/60s(60Hz).

•Flicker-free50Hz

:Thecameraadjuststheapertureandgainautomatically,andusestheshutterspeed1/50s.

•Flicker-free60Hz

:Thecameraadjuststheapertureandgainautomatically,andusestheshutterspeed1/60s.

•Flicker-reduced

:Thisisthesameasicker-free,butthecameramightuseshutterspeedsfasterthan

1/100s(50Hz)and1/120s(60Hz)forbrighterscenes.

•Flicker-reduced50Hz

:Thisisthesameasicker-free,butthecameramightuseshutterspeedsfaster

than1/100sforbrighterscenes.

•Flicker-reduced60Hz

:Thisisthesameasicker-free,butthecameramightuseshutterspeedsfaster

than1/120sforbrighterscenes.

•Manual

:Theaperture,gain,andshutterarexed.

Exposurezone

:Useexposurezonestooptimizetheexposureinaselectedpartofthescene,forexample,theareain

frontofanentrancedoor.

Note

Theexposurezonesarerelatedtotheoriginalimage(unrotated),andthenamesofthezonesapplytotheoriginalimage.

Thismeans,forexample,thatifthevideostreamisrotated90°,thentheUpperzonebecomestheRightzoneinthe

stream,andLeftbecomesLower.

•Automatic:Suitableformostsituations.

AXISM43SeriesPanoramicCamera

Thewebinterface

•Center:Usesaxedareainthecenteroftheimagetocalculatetheexposure.Theareahasaxedsizeand

positionintheliveview.

•Full

:Usestheentireliveviewtocalculatetheexposure.

•Upper

:Usesanareawithaxedsizeandpositionintheupperpartoftheimagetocalculatetheexposure.

•Lower

:Usesanareawithaxedsizeandpositioninthelowerpartoftheimagetocalculatetheexposure.

•Left

:Usesanareawithaxedsizeandpositionintheleftpartoftheimagetocalculatetheexposure.

•Right

:Usesanareawithaxedsizeandpositionintherightpartoftheimagetocalculatetheexposure.

•Spot:Usesanareawithaxedsizeandpositionintheliveviewtocalculatetheexposure.

•Custom:Usesanareaintheliveviewtocalculatetheexposure.Youcanadjustthesizeandpositionofthearea.

Maxshutter:Selecttheshutterspeedtoprovidethebestimage.Lowshutterspeeds(longerexposure)mightcausemotionblur

whenthereismovement,andatoohighshutterspeedmightaffecttheimagequality.Maxshutterworkswithmaxgainto

improvetheimage.

Maxgain:Selectthesuitablemaxgain.Ifyouincreasethemaxgain,itimprovesthevisiblelevelofdetailindarkimages,but

alsoincreasesthenoiselevel.Morenoisecanalsoresultinincreaseduseofbandwidthandstorage.Ifyousetthemaxgain

toahighvalue,imagescandifferalotifthelightconditionsareverydifferentfromdaytonight.Maxgainworkswithmax

shuttertoimprovetheimage.

Motion-adaptiveexposure

:Selecttoreducemotionblurinlow-lightconditions.

Blur-noisetrade-off:Usetheslidertoadjusttheprioritybetweenmotionblurandnoise.Ifyouwanttoprioritizelowbandwidth

andhavelessnoiseattheexpenseofdetailsinmovingobjects,movetheslidertowardsLownoise.Ifyouwanttoprioritizethe

preservationofdetailsinmovingobjectsattheexpenseofnoiseandbandwidth,movetheslidertowardsLowmotionblur.

Note

Youcanchangetheexposureeitherbyadjustingtheexposuretimeorbyadjustingthegain.Ifyouincreasetheexposure

time,itresultsinmoremotionblur,andifyouincreasethegain,itresultsinmorenoise.IfyouadjusttheBlur-noise

trade-offtowardsLownoise,theautomaticexposurewillprioritizelongerexposuretimesoverincreasinggain,andthe

oppositeifyouadjustthetrade-offtowardsLowmotionblur.Boththegainandexposuretimewilleventuallyreach

theirmaximumvaluesinlow-lightconditions,regardlessofthepriorityset.

Lockaperture

:TurnontokeeptheaperturesizesetbytheApertureslider.Turnofftoallowthecameratoautomatically

adjusttheaperturesize.Youcan,forexample,locktheapertureforsceneswithpermanentlightconditions.

Aperture:Usetheslidertoadjusttheaperturesize,thatis,howmuchlightpassesthroughthelens.Toallowmorelight

toenterthesensorandtherebyproduceabrighterimageinlow-lightconditions,movetheslidertowardsOpen.Anopenaperture

alsoreducesthedepthofeld,whichmeansthatobjectsclosetoorfarfromthecameracanappearunfocused.Toallowmoreof

theimagetobeinfocus,movetheslidertowardsClosed.

Exposurelevel:Usetheslidertoadjusttheimageexposure.

Defog

:Turnontodetecttheeffectsoffoggyweatherandautomaticallyremovethemforaclearerimage.

Note

WerecommendyounottoturnonDefoginsceneswithlowcontrast,largelightlevelvariations,orwhentheautofocusis

slightlyoff.Thiscanaffecttheimagequality,forexample,byincreasingthecontrast.Furthermore,toomuchlightcan

negativelyimpacttheimagequalitywhendefogisactive.

AXISM43SeriesPanoramicCamera

Thewebinterface

Stream

General

Resolution:Selecttheimageresolutionsuitableforthesurveillancescene.Ahigherresolutionincreasesbandwidthandstorage.

Framerate:Toavoidbandwidthproblemsonthenetworkorreducestoragesize,youcanlimittheframeratetoaxedamount.

Ifyouleavetheframerateatzero,theframerateiskeptatthehighestpossiblerateunderthecurrentconditions.Ahigher

frameraterequiresmorebandwidthandstoragecapacity.

Compression:Usetheslidertoadjusttheimagecompression.Highcompressionresultsinalowerbitrateandlowerimagequality.

Lowcompressionimprovestheimagequality,butusesmorebandwidthandstoragewhenyourecord.

Signedvideo

:Turnontoaddthesignedvideofeaturetothevideo.Signedvideoprotectsthevideofromtamperingby

addingcryptographicsignaturestothevideo.

Zipstream

Zipstreamisabitratereductiontechnology,optimizedforvideosurveillance,thatreducestheaveragebitrateinanH.264orH.265

streaminrealtime.AxisZipstreamappliesahighbitrateinsceneswheretherearemultipleregionsofinterest,forexample,inscenes

withmovingobjects.Whenthesceneismorestatic,Zipstreamappliesalowerbitrate,andtherebyreducestherequiredstorage.

Tolearnmore,seeReducingthebitratewithAxisZipstream

SelectthebitratereductionStrength:

•Off:Nobitratereduction.

•Low:Novisiblequalitydegradationinmostscenes.Thisisthedefaultoptionanditcanbeusedinalltypes

ofscenestoreducethebitrate.

•Medium:Visibleeffectsinsomescenesthroughlessnoiseandaslightlylowerlevelofdetailinregionsoflower

interest,forexample,wherethere’snomovement.

•High:Visibleeffectsinsomescenesthroughlessnoiseandalowerlevelofdetailinregionsoflowerinterest,for

example,wherethere’snomovement.Werecommendthislevelforcloud-connecteddevicesanddevicesthat

uselocalstorage.

•Higher:Visibleeffectsinsomescenesthroughlessnoiseandalowerlevelofdetailinregionsoflowerinterest,

forexample,wherethere’snomovement.

•Extreme:Visibleeffectsinmostscenes.Thebitrateisoptimizedforsmallestpossiblestorage.

Optimizeforstorage:Turnontominimizethebitratewhilemaintainingquality.Theoptimizationdoesnotapplytothestream

showninthewebclient.ThiscanonlybeusedifyourVMSsupportsB-frames.TurningonOptimizeforstoragealsoturnson

DynamicGOP.

DynamicFPS(framespersecond):Turnontoallowthebandwidthtovarybasedonthelevelofactivityinthescene.More

activityrequiresmorebandwidth.

Lowerlimit:Enteravaluetoadjusttheframeratebetweenminimalfpsandthestreamdefaultfpsbasedonscenemotion.We

recommendyoutouselowerlimitinsceneswithverylittlemotion,wherethefpscoulddropto1orlower.

DynamicGOP(GroupofPictures):TurnontodynamicallyadjusttheintervalbetweenI-framesbasedonthelevelofactivity

inthescene.

Upperlimit:EnteramaximumGOPlength,thatis,themaximumnumberofP-framesbetweentwoI-frames.AnI-frameisa

self-containedimageframethatisindependentofotherframes.

P-frames:AP-frameisapredictedimagethatshowsonlythechangesintheimagefromthepreviousframe.Enterthedesired

numberofP-frames.Thehigherthenumber,thelessbandwidthisrequired.However,ifthereisnetworkcongestion,therecould

beanoticeabledeteriorationinthevideoquality.

Bitratecontrol

AXISM43SeriesPanoramicCamera

Thewebinterface

•Average:Selecttoautomaticallyadjustthebitrateoveralongertimeperiodandprovidethebestpossibleimage

qualitybasedontheavailablestorage.

Clicktocalculatethetargetbitratebasedonavailablestorage,retentiontime,andbitratelimit.

-Targetbitrate:Enterdesiredtargetbitrate.

-Retentiontime:Enterthenumberofdaystokeeptherecordings.

-Storage:Showstheestimatedstoragethatcanbeusedforthestream.

-Maximumbitrate:Turnontosetabitratelimit.

-Bitratelimit:Enterabitratelimitthatishigherthanthetargetbitrate.

•Maximum:Selecttosetamaximuminstantbitrateofthestreambasedonyournetworkbandwidth.

-Maximum:Enterthemaximumbitrate.

•Variable:Selecttoallowthebitratetovarybasedonthelevelofactivityinthescene.Moreactivityrequiresmore

bandwidth.Werecommendthisoptionformostsituations.

Orientation

Mirror:Turnontomirrortheimage.

Horizonstraightening

Horizonstraighteningprovidesanimagethatisperceivedtobestraightandalignedwiththehorizon.Itcompensatesforthe

distortioncausedbythewide-anglelensandcameratilt.

Horizonline:Usetheslidertoadjustthehorizon.

Tilt:Usetheslidertotilttheimage.Youcanalsotiltdirectlyintheliveviewimage.

Overlays

:Clicktoaddanoverlay.Selectthetypeofoverlayfromthedropdownlist:

•Text:Selecttoshowatextthatisintegratedintheliveviewimageandvisibleinallviews,recordingsandsnapshots.

Youcanenteryourowntext,andyoucanalsoincludepre-conguredmodierstoautomaticallyshow,forexample,

time,date,andframerate.

:Clicktoaddthedatemodier%Ftoshowyyyy-mm-dd.

:Clicktoaddthetimemodier%Xtoshowhh:mm:ss(24-hourclock).

-Modiers:Clicktoselectanyofthemodiersshowninthelisttoaddthemtothetextbox.Forexample,

%ashowsthedayoftheweek.

-Size:Selectthedesiredfontsize.

-Appearance:Selectthetextcolorandbackgroundcolor,forexample,whitetextonablackbackground

(default).

:Selectthepositionoftheoverlayintheimage.

•Image:Selecttoshowastaticimagesuperimposedoverthevideostream.Youcanuse.bmp,.png,.jpeg,or.svgles.

Touploadanimage,clickImages.Beforeyouuploadanimage,youcanchooseto:

-Scalewithresolution:Selecttoautomaticallyscaletheoverlayimagetotthevideoresolution.

-Usetransparency:SelectandentertheRGBhexadecimalvalueforthatcolor.UsetheformatRRGGBB.

Examplesofhexadecimalvalues:FFFFFFforwhite,000000forblack,FF0000forred,6633FFforblue,and

669900forgreen.Onlyfor.bmpimages.

•Streamingindicator

:Selecttoshowananimationsuperimposedoverthevideostream.Theanimation

indicatesthatthevideostreamislive,evenifthescenedoesn’tcontainanymotion.

-Appearance:Selecttheanimationcolorandbackgroundcolor,forexample,redanimationonatransparent

background(default).

-Size:Selectthedesiredfontsize.

AXISM43SeriesPanoramicCamera

Thewebinterface

-:Selectthepositionoftheoverlayintheimage.

Privacymasks

:Clicktocreateanewprivacymask.

Privacymasks:Clicktochangethecolorofallprivacymasks,ortodeleteallprivacymaskspermanently.

Cellsize:Ifyouchoosemosaiccolor,theprivacymasksappearaspixilatedpatterns.Usetheslidertochangethesizeofthepixels.

Maskx:Clicktorename,disable,orpermanentlydeletethemask.

Recordings

Ongoingrecordings:Showallongoingrecordingsonthecamera.

Startarecordingonthecamera.

Choosewhichstoragedevicetosaveto.

Stoparecordingonthecamera.

Triggeredrecordingswillendwhenmanuallystoppedorwhenthecameraisshutdown.

Continuousrecordingswillcontinueuntilmanuallystopped.Evenifthecameraisshutdown,therecordingwillcontinue

whenthecamerastartsupagain.

Playtherecording.

Stopplayingtherecording.

Showorhideinformationandoptionsabouttherecording.

Setexportrange:Ifyouonlywanttoexportpartoftherecording,enteratimespan.

Encrypt:Selecttosetapasswordforexportedrecordings.Itwillnotbepossibletoopentheexportedlewithoutthepassword.

Clicktodeletearecording.

Export:Exportthewholeorapartoftherecording.

AXISM43SeriesPanoramicCamera

Thewebinterface

Clicktoltertherecordings.

From:Showrecordingsdoneafteracertainpointintime.

To:Showrecordingsupuntilacertainpointintime.

Source

:Showrecordingsbasedonsource.Thesourcereferstothesensor.

Event:Showrecordingsbasedonevents.

Storage:Showrecordingsbasedonstoragetype.

Apps

Addapp:Installanewapp.

Findmoreapps:Findmoreappstoinstall.YouwillbetakentoanoverviewpageofAxisapps.

Allowunsignedapps:Turnontoallowinstallationofunsignedapps.

Allowroot-privilegedapps:Turnontoallowappswithrootprivilegesfullaccesstothedevice.

Note

Thedevice’sperformancemightbeaffectedifyourunseveralappsatthesametime.

Usetheswitchnexttotheappnametostartorstoptheapp.

Open:Accesstheapp’ssettings.Theavailablesettingsdependontheapplication.Someapplicationsdon’thaveanysettings.

Thecontextmenucancontainoneormoreofthefollowingoptions:

•Open-sourcelicense:Viewinformationaboutopen-sourcelicensesusedintheapp.

•Applog:Viewalogoftheappevents.Thelogishelpfulwhenyoucontactsupport.

•Activatelicensewithakey:Iftheapprequiresalicense,youneedtoactivateit.Usethisoptionifyourdevice

doesn’thaveinternetaccess.

Ifyoudon’thavealicensekey,gotoaxis.com/products/analytics.YouneedalicensecodeandtheAxisproductserial

numbertogeneratealicensekey.

•Activatelicenseautomatically:Iftheapprequiresalicense,youneedtoactivateit.Usethisoptionifyourdevicehas

internetaccess.Youneedalicensecodetoactivatethelicense.

•Deactivatethelicense:Deactivatethelicensetoreplaceitwithanotherlicense,forexample,whenyouchangefroma

triallicensetoafulllicense.Ifyoudeactivatethelicense,youalsoremoveitfromthedevice.

•Settings:Conguretheparameters.

•Delete:Deletetheapppermanentlyfromthedevice.Ifyoudon’tdeactivatethelicenserst,itremainsactive.

System

Timeandlocation

Dateandtime

Thetimeformatdependsonthewebbrowser’slanguagesettings.

Note

Werecommendyousynchronizethedevice’sdateandtimewithanNTPserver.

AXISM43SeriesPanoramicCamera

Thewebinterface

Synchronization:Selectanoptionforthedevice’sdateandtimesynchronization.

•Automaticdateandtime(manualNTSKEservers):SynchronizewiththesecureNTPkeyestablishmentservers

connectedtotheDHCPserver.

-ManualNTSKEservers:EntertheIPaddressofoneortwoNTPservers.WhenyouusetwoNTPservers,

thedevicesynchronizesandadaptsitstimebasedoninputfromboth.

•Automaticdateandtime(NTPserversusingDHCP):SynchronizewiththeNTPserversconnectedtotheDHCPserver.

-FallbackNTPservers:EntertheIPaddressofoneortwofallbackservers.

•Automaticdateandtime(manualNTPservers):SynchronizewithNTPserversofyourchoice.

-ManualNTPservers:EntertheIPaddressofoneortwoNTPservers.WhenyouusetwoNTPservers,the

devicesynchronizesandadaptsitstimebasedoninputfromboth.

•Customdateandtime:Manuallysetthedateandtime.ClickGetfromsystemtofetchthedateandtimesettings

oncefromyourcomputerormobiledevice.

Timezone:Selectwhichtimezonetouse.Timewillautomaticallyadjusttodaylightsavingtimeandstandardtime.

Note

Thesystemusesthedateandtimesettingsinallrecordings,logs,andsystemsettings.

Devicelocation

Enterwherethedeviceislocated.Yourvideomanagementsystemcanusethisinformationtoplacethedeviceonamap.

•Latitude:Positivevaluesarenorthoftheequator.

•Longitude:Positivevaluesareeastoftheprimemeridian.

•Heading:Enterthecompassdirectionthatthedeviceisfacing.0isduenorth.

•Label:Enteradescriptivenameforthedevice.

•Save:Clicktosaveyourdevicelocation.

Network

IPv4

AssignIPv4automatically:SelecttoletthenetworkrouterassignanIPaddresstothedeviceautomatically.Werecommend

automaticIP(DHCP)formostnetworks.

IPaddress:EnterauniqueIPaddressforthedevice.StaticIPaddressescanbeassignedatrandomwithinisolatednetworks,

providedthateachaddressisunique.Toavoidconicts,werecommendyoucontactyournetworkadministratorbeforeyou

assignastaticIPaddress.

Subnetmask:Enterthesubnetmasktodenewhataddressesareinsidethelocalareanetwork.Anyaddressoutsidethelocal

areanetworkgoesthroughtherouter.

Router:EntertheIPaddressofthedefaultrouter(gateway)usedtoconnectdevicesthatareattachedtodifferentnetworksand

networksegments.

FallbacktostaticIPaddressifDHCPisn’tavailable:SelectifyouwanttoaddastaticIPaddresstouseasfallbackifDHCP

isunavailableandcan’tassignanIPaddressautomatically.

IPv6

AssignIPv6automatically:SelecttoturnonIPv6andtoletthenetworkrouterassignanIPaddresstothedeviceautomatically.

Hostname

Assignhostnameautomatically:Selecttoletthenetworkrouterassignahostnametothedeviceautomatically.

Hostname:Enterthehostnamemanuallytouseasanalternativewayofaccessingthedevice.Theserverreportandsystemlog

usethehostname.AllowedcharactersareA–Z,a–z,0–9and-.

AXISM43SeriesPanoramicCamera

Thewebinterface

DNSservers

AssignDNSautomatically:SelecttolettheDHCPserverassignsearchdomainsandDNSserveraddressestothedevice

automatically.WerecommendautomaticDNS(DHCP)formostnetworks.

Searchdomains:Whenyouuseahostnamethatisnotfullyqualied,clickAddsearchdomainandenteradomaininwhichto

searchforthehostnamethedeviceuses.

DNSservers:ClickAddDNSserverandentertheIPaddressoftheDNSserver.ThisprovidesthetranslationofhostnamestoIP

addressesonyournetwork.

HTTPandHTTPS

HTTPSisaprotocolthatprovidesencryptionforpagerequestsfromusersandforthepagesreturnedbythewebserver.Theencrypted

exchangeofinformationisgovernedbytheuseofanHTTPScerticate,whichguaranteestheauthenticityoftheserver.

TouseHTTPSonthedevice,youmustinstallanHTTPScerticate.GotoSystem>Securitytocreateandinstallcerticates.

Allowaccessthrough:SelectifauserisallowedtoconnecttothedevicethroughtheHTTP,HTTPS,orbothHTTPandHTTPS

protocols.

Note

IfyouviewencryptedwebpagesthroughHTTPS,youmightexperienceadropinperformance,especiallywhenyou

requestapageforthersttime.

HTTPport:EntertheHTTPporttouse.Thedeviceallowsport80oranyportintherange1024-65535.Ifyouareloggedinasan

administrator,youcanalsoenteranyportintherange1-1023.Ifyouuseaportinthisrange,yougetawarning.

HTTPSport:EntertheHTTPSporttouse.Thedeviceallowsport443oranyportintherange1024-65535.Ifyouareloggedinas

anadministrator,youcanalsoenteranyportintherange1-1023.Ifyouuseaportinthisrange,yougetawarning.

Certicate:SelectacerticatetoenableHTTPSforthedevice.

Networkdiscoveryprotocols

Bonjour

:Turnontoallowautomaticdiscoveryonthenetwork.

Bonjourname:Enterafriendlynametobevisibleonthenetwork.ThedefaultnameisthedevicenameandMACaddress.

UPnP

:Turnontoallowautomaticdiscoveryonthenetwork.

UPnPname:Enterafriendlynametobevisibleonthenetwork.ThedefaultnameisthedevicenameandMACaddress.

WS-Discovery:Turnontoallowautomaticdiscoveryonthenetwork.

One-clickcloudconnection

One-clickcloudconnection(O3C)togetherwithanO3Cserviceprovideseasyandsecureinternetaccesstoliveandrecordedvideo

fromanylocation.Formoreinformation,seeaxis.com/end-to-end-solutions/hosted-services.

AXISM43SeriesPanoramicCamera

Thewebinterface

AllowO3C:

•One-click:Thisisthedefaultsetting.PressandholdthecontrolbuttononthedevicetoconnecttoanO3Cservice

overtheinternet.YouneedtoregisterthedevicewiththeO3Cservicewithin24hoursafteryoupressthecontrol

button.Otherwise,thedevicedisconnectsfromtheO3Cservice.Onceyouregisterthedevice,Alwaysisenabledand

thedevicestaysconnectedtotheO3Cservice.

•Always:ThedeviceconstantlyattemptstoconnecttoanO3Cserviceovertheinternet.Onceyouregisterthedevice,

itstaysconnectedtotheO3Cservice.Usethisoptionifthecontrolbuttononthedeviceisoutofreach.

•No:DisablestheO3Cservice.

Proxysettings:Ifneeded,entertheproxysettingstoconnecttotheproxyserver.

Host:Entertheproxyserver’saddress.

Port:Entertheportnumberusedforaccess.

LoginandPassword:Ifneeded,enterusernameandpasswordfortheproxyserver.

Authenticationmethod:

•Basic:ThismethodisthemostcompatibleauthenticationschemeforHTTP.It’slesssecurethantheDigestmethod

becauseitsendstheusernameandpasswordunencryptedtotheserver.

•Digest:Thismethodismoresecurebecauseitalwaystransfersthepasswordencryptedacrossthenetwork.

•Auto:Thisoptionletsthedeviceselecttheauthenticationmethoddependingonthesupportedmethods.Itprioritizes

theDigestmethodovertheBasicmethod.

Ownerauthenticationkey(OAK):ClickGetkeytofetchtheownerauthenticationkey.Thisisonlypossibleifthedeviceis

connectedtotheinternetwithoutarewallorproxy.

SNMP

TheSimpleNetworkManagementProtocol(SNMP)allowsremotemanagementofnetworkdevices.

SNMP:SelecttheversionofSNMPtouse.

•v1andv2c:

-Readcommunity:Enterthecommunitynamethathasread-onlyaccesstoallsupportedSNMPobjects.The

defaultvalueispublic.

-Writecommunity:EnterthecommunitynamethathasreadorwriteaccesstoallsupportedSNMPobjects

(exceptread-onlyobjects).Thedefaultvalueiswrite.

-Activatetraps:Turnontoactivatetrapreporting.Thedeviceusestrapstosendmessagesforimportant

eventsorstatuschangestoamanagementsystem.Inthewebinterface,youcansetuptrapsforSNMPv1

andv2c.TrapsareautomaticallyturnedoffifyouchangetoSNMPv3orturnoffSNMP.IfyouuseSNMPv3,

youcansetuptrapsthroughtheSNMPv3managementapplication.

-Trapaddress:EntertheIPaddressorhostnameofthemanagementserver.

-Trapcommunity:Enterthecommunitytousewhenthedevicesendsatrapmessagetothemanagement

system.

-Traps:

-Coldstart:Sendsatrapmessagewhenthedevicestarts.

-Warmstart:SendsatrapmessagewhenyouchangeanSNMPsetting.

-Linkup:Sendsatrapmessagewhenalinkchangesfromdowntoup.

-Authenticationfailed:Sendsatrapmessagewhenanauthenticationattemptfails.

Note

AllAxisVideoMIBtrapsareenabledwhenyouturnonSNMPv1andv2ctraps.Formoreinformation,see

AXISOSPortal>SNMP.

•v3:SNMPv3isamoresecureversion,whichprovidesencryptionandsecurepasswords.TouseSNMPv3,we

recommendyoutoactivateHTTPS,asthepasswordisthensentthroughHTTPS.Thisalsopreventsunauthorized

parties’accesstounencryptedSNMPv1andv2ctraps.IfyouuseSNMPv3,youcansetuptrapsthroughtheSNMPv3

managementapplication.

-Passwordfortheaccount“initial”:EntertheSNMPpasswordfortheaccountnamed“initial”.Althoughthe

passwordcanbesentwithoutactivatingHTTPS,wedon’trecommendit.TheSNMPv3passwordcanonly

AXISM43SeriesPanoramicCamera

Thewebinterface

besetonce,andpreferablyonlywhenHTTPSisenabled.Oncethepasswordisset,thepasswordeldisno

longerdisplayed.Tosetthepasswordagain,youmustresetthedevicetofactorydefaultsettings.

Security

Certicates

Certicatesareusedtoauthenticatedevicesonanetwork.Thedevicesupportstwotypesofcerticates:

•Client/servercerticates

Aclient/servercerticatevalidatesthedevice’sidentity,andcanbeself-signedorissuedbyaCerticateAuthority(CA).

Aself-signedcerticateofferslimitedprotectionandcanbeusedbeforeaCA-issuedcerticatehasbeenobtained.

•CAcerticates

YoucanuseaCAcerticatetoauthenticateapeercerticate,forexampletovalidatetheidentityofanauthentication

serverwhenthedeviceconnectstoanetworkprotectedbyIEEE802.1X.Thedevicehasseveralpre-installedCA

certicates.

Theseformatsaresupported:

•Certicateformats:.PEM,.CER,and.PFX

•Privatekeyformats:PKCS#1andPKCS#12

Important

Ifyouresetthedevicetofactorydefault,allcerticatesaredeleted.Anypre-installedCAcerticatesarereinstalled.

Filterthecerticatesinthelist.

Addcerticate:Clicktoaddacerticate.

Thecontextmenucontains:

•Certicateinformation:Viewaninstalledcerticate’sproperties.

•Deletecerticate:Deletethecerticate.

•Createcerticatesigningrequest:Createacerticatesigningrequesttosendtoaregistrationauthoritytoapply

foradigitalidentitycerticate.

Securekeystore

•Secureelement(CCEAL6+):Selecttousesecureelementforsecurekeystore.

•TrustedPlatformModule2.0(CCEAL4+,FIPS140-2Level2):SelecttouseTPM2.0forsecurekeystore.

IEEE802.1x

IEEE802.1xisanIEEEstandardforport-basednetworkadmissioncontrolprovidingsecureauthenticationofwiredandwireless

networkdevices.IEEE802.1xisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1x,networkdevicesmustauthenticatethemselves.Theauthenticationisperformedby

anauthenticationserver,typicallyaRADIUSserver(forexample,FreeRADIUSandMicrosoftInternetAuthenticationServer).

Certicates

WhenconguredwithoutaCAcerticate,servercerticatevalidationisdisabledandthedevicetriestoauthenticateitself

regardlessofwhatnetworkitisconnectedto.

Whenusingacerticate,inAxis'implementation,thedeviceandtheauthenticationserverauthenticatethemselveswithdigital

certicatesusingEAP-TLS(ExtensibleAuthenticationProtocol-TransportLayerSecurity).

Toallowthedevicetoaccessanetworkprotectedthroughcerticates,youmustinstallasignedclientcerticateonthedevice.

AXISM43SeriesPanoramicCamera

Thewebinterface

Clientcerticate:SelectaclientcerticatetouseIEEE802.1x.Theauthenticationserverusesthecerticatetovalidatethe

client’sidentity.

CAcerticate:SelectCAcerticatestovalidatetheauthenticationserver’sidentity.Whennocerticateisselected,thedevice

triestoauthenticateitselfregardlessofwhatnetworkitisconnectedto.

EAPidentity:Entertheuseridentityassociatedwiththeclientcerticate.

EAPOLversion:SelecttheEAPOLversionthatisusedinthenetworkswitch.

UseIEEE802.1x:SelecttousetheIEEE802.1xprotocol.

Preventbrute-forceattacks

Blocking:Turnontoblockbrute-forceattacks.Abrute-forceattackusestrial-and-errortoguesslogininfoorencryptionkeys.

Blockingperiod:Enterthenumberofsecondstoblockabrute-forceattack.

Blockingconditions:Enterthenumberofauthenticationfailuresallowedpersecondbeforetheblockstarts.Youcansetthe

numberoffailuresallowedbothonpagelevelanddevicelevel.

IPaddresslter

Uselter:SelecttolterwhichIPaddressesareallowedtoaccessthedevice.

Policy:ChoosewhethertoAlloworDenyaccessforcertainIPaddresses.

Addresses:EntertheIPnumbersthatareeitherallowedordeniedaccesstothedevice.YoucanalsousetheCIDRformat.

Custom-signedrmwarecerticate

ToinstalltestrmwareorothercustomrmwarefromAxisonthedevice,youneedacustom-signedrmwarecerticate.The

certicateveriesthatthermwareisapprovedbyboththedeviceownerandAxis.Thermwarecanonlyrunonaspecic

devicewhichisidentiedbyitsuniqueserialnumberandchipID.OnlyAxiscancreatecustom-signedrmwarecerticates,

sinceAxisholdsthekeytosignthem.

Install:Clicktoinstallthecerticate.Youneedtoinstallthecerticatebeforeyouinstallthermware.

Accounts

Addaccount:Clicktoaddanewaccount.Youcanaddupto100accounts.

Account:Enterauniqueaccountname.

Newpassword:Enterapasswordfortheaccount.Passwordsmustbe1to64characterslong.OnlyASCIIprintablecharacters

(code32to126)areallowedinthepassword,forexample,letters,numbers,punctuation,andsomesymbols.

Repeatpassword:Enterthesamepasswordagain.

Privileges:

•Administrator:Hasfullaccesstoallsettings.Administratorscanalsoadd,update,andremoveotheraccounts.

•Operator:Hasaccesstoallsettingsexcept:

-AllSystemsettings.

-Addingapps.

•Viewer:Hasaccessto:

-Watchandtakesnapshotsofavideostream.

AXISM43SeriesPanoramicCamera

Thewebinterface

-Watchandexportrecordings.

-Pan,tilt,andzoom;withPTZuseraccess.

Thecontextmenucontains:

Updateaccount:Edittheaccountproperties.

Deleteaccount:Deletetheaccount.Youcan’tdeletetherootaccount.

Anonymousaccess

Allowanonymousviewing:Turnontoallowanyoneaccessthedeviceasaviewerwithoutlogginginwithanaccount.

AllowanonymousPTZoperating:Turnontoallowanonymoususerstopan,tilt,andzoomtheimage.

SSHaccounts

AddSSHaccount:ClicktoaddanewSSHaccount.

•Restrictrootaccess:Turnontorestrictfunctionalitythatrequiresrootaccess.

•EnableSSH:TurnontouseSSHservice.

Account:Enterauniqueaccountname.

Newpassword:Enterapasswordfortheuser.Passwordsmustbe1to64characterslong.OnlyASCIIprintablecharacters(code

32to126)areallowedinthepassword,forexample,letters,numbers,punctuation,andsomesymbols.

Repeatpassword:Enterthesamepasswordagain.

Comment:Enteracomment(optional).

Thecontextmenucontains:

UpdateSSHaccount:Edittheaccountproperties.

DeleteSSHaccount:Deletetheaccount.Youcan’tdeletetherootaccount.

Events

Rules

Aruledenestheconditionsthattriggerstheproducttoperformanaction.Thelistshowsallthecurrentlyconguredrulesin

theproduct.

Note

Youcancreateupto256actionrules.

AXISM43SeriesPanoramicCamera

Thewebinterface

Addarule:Createarule.

Name:Enteranamefortherule.

Waitbetweenactions:Entertheminimumtime(hh:mm:ss)thatmustpassbetweenruleactivations.Itisusefuliftheruleis

activatedby,forexample,day-nightmodeconditions,toavoidthatsmalllightchangesduringsunriseandsunsetactivate

therulerepeatedly.

Condition:Selectaconditionfromthelist.Aconditionmustbemetforthedevicetoperformanaction.Ifmultiple

conditionsaredened,allofthemmustbemettotriggertheaction.Forinformationaboutspecicconditions,see

Getstartedwithrulesforevents.

Usethisconditionasatrigger:Selecttomakethisrstconditionfunctiononlyasastartingtrigger.Itmeansthatoncetherule

isactivated,itremainsactiveforaslongasalltheotherconditionsaremet,nomatterthestateoftherstcondition.Ifyoudon’t

selectthisoption,therulewillsimplybeactivewheneveralltheconditionsaremet.

Invertthiscondition:Selectifyouwanttheconditiontobetheoppositeofyourselection.

Addacondition:Clicktoaddanadditionalcondition.

Action:Selectanactionfromthelistandenteritsrequiredinformation.Forinformationaboutspecicactions,see

Getstartedwithrulesforevents.

Recipients

Youcansetupyourdevicetonotifyrecipientsabouteventsorsendles.Thelistshowsalltherecipientscurrentlyconguredinthe

product,alongwithinformationabouttheirconguration.

Note

Youcancreateupto20recipients.

Addarecipient:Clicktoaddarecipient.

Name:Enteranamefortherecipient.

Type:Selectfromthelist:

•FTP

-Host:Entertheserver'sIPaddressorhostname.Ifyouenterahostname,makesurethataDNSserveris

speciedunderSystem>Network>IPv4andIPv6.

-Port:EntertheportnumberusedbytheFTPserver.Thedefaultis21.

-Folder:Enterthepathtothedirectorywhereyouwanttostoreles.Ifthisdirectorydoesn’talreadyexist

ontheFTPserver,youwillgetanerrormessagewhenuploadingles.

-Username:Entertheusernameforthelogin.

-Password:Enterthepasswordforthelogin.

-Usetemporarylename:Selecttouploadleswithtemporary,automaticallygeneratedlenames.The

lesgetrenamedtothedesirednameswhentheuploadcompletes.Iftheuploadisaborted/interrupted,

youdon’tgetanycorruptles.However,youprobablystillgetthetemporaryles.Thiswayyouknow

thatalllesthathavethedesirednamearecorrect.

-UsepassiveFTP:Undernormalcircumstances,theproductsimplyrequeststhetargetFTPservertoopenthe

dataconnection.ThedeviceactivelyinitiatesboththeFTPcontrolanddataconnectionstothetargetserver.

ThisisnormallyneededifthereisarewallbetweenthedeviceandthetargetFTPserver.

•HTTP

-URL:EnterthenetworkaddresstotheHTTPserverandthescriptthatwillhandletherequest.Forexample,

http://192.168.254.10/cgi-bin/notify.cgi.

-Username:Entertheusernameforthelogin.

-Password:Enterthepasswordforthelogin.

AXISM43SeriesPanoramicCamera

Thewebinterface

-Proxy:TurnonandentertherequiredinformationifaproxyservermustbepassedtoconnecttotheHTTP

server.

•HTTPS

-URL:EnterthenetworkaddresstotheHTTPSserverandthescriptthatwillhandletherequest.Forexample,

https://192.168.254.10/cgi-bin/notify.cgi.

-Validateservercerticate:SelecttovalidatethecerticatethatwascreatedbyHTTPSserver.

-Username:Entertheusernameforthelogin.

-Password:Enterthepasswordforthelogin.

-Proxy:TurnonandentertherequiredinformationifaproxyservermustbepassedtoconnecttotheHTTPS

server.

•Networkstorage

YoucanaddnetworkstoragesuchasNAS(network-attachedstorage)anduseitasarecipienttostoreles.Theles

arestoredintheMatroska(MKV)leformat.

-Host:EntertheIPaddressorhostnameforthenetworkstorage.

-Share:Enterthenameoftheshareonthehost.

-Folder:Enterthepathtothedirectorywhereyouwanttostoreles.

-Username:Entertheusernameforthelogin.

-Password:Enterthepasswordforthelogin.

•SFTP

-Host:Entertheserver'sIPaddressorhostname.Ifyouenterahostname,makesurethataDNSserveris

speciedunderSystem>Network>IPv4andIPv6.

-Port:EntertheportnumberusedbytheSFTPserver.Thedefaultis22.

-Folder:Enterthepathtothedirectorywhereyouwanttostoreles.Ifthisdirectorydoesn’talreadyexiston

theSFTPserver,youwillgetanerrormessagewhenuploadingles.

-Username:Entertheusernameforthelogin.

-Password:Enterthepasswordforthelogin.

-SSHhostpublickeytype(MD5):Enterthengerprintoftheremotehost’spublickey(a32-digit

hexadecimalstring).TheSFTPclientsupportsSFTPserversusingSSH-2withRSA,DSA,ECDSA,andED25519

hostkeytypes.RSAisthepreferredmethodduringnegotiation,followedbyECDSA,ED25519,andDSA.Make

suretoentertherightMD5hostkeythatisusedbyyourSFTPserver.WhiletheAxisdevicesupportsboth

MD5andSHA-256hashkeys,werecommendusingSHA-256duetostrongersecurityoverMD5.Formore

informationonhowtocongureanSFTPserverwithanAxisdevice,gototheAXISOSPortal.

-SSHhostpublickeytype(SHA256):Enterthengerprintoftheremotehost’spublickey(a43-digitBase64

encodedstring).TheSFTPclientsupportsSFTPserversusingSSH-2withRSA,DSA,ECDSA,andED25519host

keytypes.RSAisthepreferredmethodduringnegotiation,followedbyECDSA,ED25519,andDSA.Make

suretoentertherightMD5hostkeythatisusedbyyourSFTPserver.WhiletheAxisdevicesupportsboth

MD5andSHA-256hashkeys,werecommendusingSHA-256duetostrongersecurityoverMD5.Formore

informationonhowtocongureanSFTPserverwithanAxisdevice,gototheAXISOSPortal.

-Usetemporarylename:Selecttouploadleswithtemporary,automaticallygeneratedlenames.The

lesgetrenamedtothedesirednameswhentheuploadcompletes.Iftheuploadisabortedorinterrupted,

youdon’tgetanycorruptles.However,youprobablystillgetthetemporaryles.Thisway,youknow

thatalllesthathavethedesirednamearecorrect.

•SIPorVMS

SIP:SelecttomakeaSIPcall.

VMS:SelecttomakeaVMScall.

-FromSIPaccount:Selectfromthelist.

-ToSIPaddress:EntertheSIPaddress.

-Test:Clicktotestthatyourcallsettingsworks.

•Email

-Sendemailto:Entertheemailaddresstosendemailsto.Toentermultipleaddresses,usecommasto

separatethem.

-Sendemailfrom:Entertheemailaddressofthesendingserver.

-Username:Entertheusernameforthemailserver.Leavethiseldemptyifthemailserverdoesnot

requireauthentication.

-Password:Enterthepasswordforthemailserver.Leavethiseldemptyifthemailserverdoesnotrequire

authentication.

-Emailserver(SMTP):EnterthenameoftheSMTPserver,forexample,smtp.gmail.com,smtp.mail.yahoo.com.

-Port:EntertheportnumberfortheSMTPserver,usingvaluesintherange0-65535.Thedefaultvalueis587.

-Encryption:Touseencryption,selecteitherSSLorTLS.

-Validateservercerticate:Ifyouuseencryption,selecttovalidatetheidentityofthedevice.Thecerticate

canbeself-signedorissuedbyaCerticateAuthority(CA).

AXISM43SeriesPanoramicCamera

Thewebinterface

-POPauthentication:TurnontoenterthenameofthePOPserver,forexample,pop.gmail.com.

Note

Someemailprovidershavesecurityltersthatpreventusersfromreceivingorviewinglargeamountof

attachments,fromreceivingscheduledemailsandsimilar.Checktheemailprovider'ssecuritypolicytoavoid

youremailaccountbeinglockedormissingoutonyourexpectedemails.

•TCP

-Host:Entertheserver'sIPaddressorhostname.Ifyouenterahostname,makesurethataDNSserveris

speciedunderSystem>Network>IPv4andIPv6.

-Port:Entertheportnumberusedtoaccesstheserver.

Test:Clicktotestthesetup.

Thecontextmenucontains:

Viewrecipient:Clicktoviewalltherecipientdetails.

Copyrecipient:Clicktocopyarecipient.Whenyoucopy,youcanmakechangestothenewrecipient.

Deleterecipient:Clicktodeletetherecipientpermanently.

Schedules

Schedulesandpulsescanbeusedasconditionsinrules.Thelistshowsalltheschedulesandpulsescurrentlyconguredinthe

product,alongwithinformationabouttheirconguration.

Addschedule:Clicktocreateascheduleorpulse.

Manualtriggers

Youcanusethemanualtriggertomanuallytriggerarule.Themanualtriggercan,forexample,beusedtovalidateactions

duringproductinstallationandconguration.

MQTT

MQTT(MessageQueuingTelemetryTransport)isastandardmessagingprotocolfortheInternetofThings(IoT).Itwasdesignedfor

simpliedIoTintegrationandisusedinawidevarietyofindustriestoconnectremotedeviceswithasmallcodefootprintand

minimalnetworkbandwidth.TheMQTTclientinAxisdevicermwarecansimplifyintegrationofdataandeventsproducedinthe

devicetosystemswhicharenotvideomanagementsoftware(VMS).

SetupthedeviceasanMQTTclient.MQTTcommunicationisbasedontwoentities,theclientsandthebroker.Theclientscan

sendandreceivemessages.Thebrokerisresponsibleforroutingmessagesbetweenclients.

YoucanlearnmoreaboutMQTTinAXISOSPortal.

ALPN

ALPNisaTLS/SSLextensionthatallowsfortheselectionofanapplicationprotocolduringthehandshakephaseoftheconnection

betweentheclientandserver.ThisisusedtoenableMQTTtrafcoverthesameportthatisusedforotherprotocols,suchasHTTP.

Insomecases,theremightnotbeadedicatedportopenforMQTTcommunication.AsolutioninsuchcasesistouseALPNto

negotiatetheuseofMQTTastheapplicationprotocolonastandardport,allowedbytherewalls.

MQTTclient

AXISM43SeriesPanoramicCamera

Thewebinterface

Connect:TurnonorofftheMQTTclient.

Status:ShowsthecurrentstatusoftheMQTTclient.

Broker

Host:EnterthehostnameorIPaddressoftheMQTTserver.

Protocol:Selectwhichprotocoltouse.

Port:Entertheportnumber.

•1883isthedefaultvalueforMQTToverTCP

•8883isthedefaultvalueforMQTToverSSL

•80isthedefaultvalueforMQTToverWebSocket

•443isthedefaultvalueforMQTToverWebSocketSecure

ALPNprotocol:EntertheALPNprotocolnameprovidedbyyourMQTTbrokerprovider.ThisisonlyapplicablewithMQTToverSSL

andMQTToverWebSocketSecure.

Username:Entertheusernamethattheclientwillusetoaccesstheserver.

Password:Enterapasswordfortheusername.

ClientID:EnteraclientID.Theclientidentierissenttotheserverwhentheclientconnectstoit.

Cleansession:Controlsthebehavioratconnectionanddisconnectiontime.Whenselected,thestateinformationisdiscarded

atconnectanddisconnect.

Keepaliveinterval:Enablestheclienttodetectwhentheserverisnolongeravailablewithouthavingtowaitforthelong

TCP/IPtimeout.

Timeout:Thetimeintervalinsecondstoallowaconnecttocomplete.Defaultvalue:60

Devicetopicprex:UsedinthedefaultvaluesforthetopicintheconnectmessageandLWTmessageontheMQTTclienttab,

andinthepublicationconditionsontheMQTTpublicationtab.

Reconnectautomatically:Specieswhethertheclientshouldreconnectautomaticallyafteradisconnect.

Connectmessage

Speciesifamessageshouldbesentoutwhenaconnectionisestablished.

Sendmessage:Turnontosendmessages.

Usedefault:Turnofftoenteryourowndefaultmessage.

Topic:Enterthetopicforthedefaultmessage.

Payload:Enterthecontentforthedefaultmessage.

Retain:SelecttokeepthestateofclientonthisTopic

QoS:ChangetheQoSlayerforthepacketow.

LastWillandTestamentmessage

TheLastWillTestament(LWT)letsaclientprovideatestamentalongwithitscredentialswhenconnectingtothebroker.Ifthe

clientdisconnectsungracefullyatsomepointlater(maybebecausehispowersourcedied),itcanletthebrokerdeliveramessage

tootherclients.ThisLWTmessagehasthesameformasanordinarymessageandgetsroutedviathesamemechanics.

Sendmessage:Turnontosendmessages.

Usedefault:Turnofftoenteryourowndefaultmessage.

Topic:Enterthetopicforthedefaultmessage.

AXISM43SeriesPanoramicCamera

Thewebinterface

Payload:Enterthecontentforthedefaultmessage.

Retain:SelecttokeepthestateofclientonthisTopic

QoS:ChangetheQoSlayerforthepacketow.

MQTTpublication

Usedefaulttopicprex:Selecttousethedefaulttopicprex,thatisdenedinthedevicetopicprexintheMQTTclienttab.

Includetopicname:SelecttoincludethetopicthatdescribestheconditionintheMQTTtopic.

Includetopicnamespaces:SelecttoincludeONVIFtopicnamespacesintheMQTTtopic.

Includeserialnumber:Selecttoincludethedevice’sserialnumberintheMQTTpayload.

Addcondition:Clicktoaddacondition.

Retain:DeneswhichMQTTmessagesaresentasretained.

•None:Sendallmessagesasnon-retained.

•Property:Sendonlystatefulmessagesasretained.

•All:Sendbothstatefulandstatelessmessagesasretained.

QoS:SelectthedesiredlevelfortheMQTTpublication.

MQTTsubscriptions

Addsubscription:ClicktoaddanewMQTTsubscription.

Subscriptionlter:EntertheMQTTtopicthatyouwanttosubscribeto.

Usedevicetopicprex:AddthesubscriptionlterasprextotheMQTTtopic.

Subscriptiontype:

•Stateless:SelecttoconvertMQTTmessagesintoastatelessmessage.

•Stateful:SelecttoconvertMQTTmessagesintoacondition.Thepayloadisusedasthestate.

QoS:SelectthedesiredlevelfortheMQTTsubscription.

SIP

Settings

SessionInitiationProtocol(SIP)isusedforinteractivecommunicationsessionsbetweenusers.Thesessionscanincludeaudio

andvideo.

AXISM43SeriesPanoramicCamera

Thewebinterface

EnableSIP:CheckthisoptiontomakeitpossibletoinitiateandreceiveSIPcalls.

Allowincomingcalls:CheckthisoptiontoallowincomingcallsfromotherSIPdevices.

Callhandling

•Callingtimeout:Setthemaximumdurationofanattemptedcallifnooneanswers.

•Incomingcallduration:Setthemaximumtimeanincomingcallcanlast(max10min).

•Endcallsafter:Setthemaximumtimethatacallcanlast(max60minutes).SelectInnitecalldurationifyoudon’t

wanttolimitthelengthofacall.

Ports

Aportnumbermustbebetween1024and65535.

•SIPport:ThenetworkportusedforSIPcommunication.Thesignalingtrafcthroughthisportisnon-encrypted.

Thedefaultportnumberis5060.Enteradifferentportnumberifrequired.

•TLSport:ThenetworkportusedforencryptedSIPcommunication.Thesignalingtrafcthroughthisportisencrypted

withTransportLayerSecurity(TLS).Thedefaultportnumberis5061.Enteradifferentportnumberifrequired.

•RTPstartport:ThenetworkportusedfortherstRTPmediastreaminaSIPcall.Thedefaultstartportnumberis

4000.SomerewallsblockRTPtrafconcertainportnumbers.

NATtraversal

UseNAT(NetworkAddressTranslation)traversalwhenthedeviceislocatedonanprivatenetwork(LAN)andyouwantto

makeitavailablefromoutsideofthatnetwork.

Note

ForNATtraversaltowork,theroutermustsupportit.TheroutermustalsosupportUPnP®.

EachNATtraversalprotocolcanbeusedseparatelyorindifferentcombinationsdependingonthenetworkenvironment.

•ICE:TheICE(InteractiveConnectivityEstablishment)protocolincreasesthechancesofndingthemostefcient

pathtosuccessfulcommunicationbetweenpeerdevices.IfyoualsoenableSTUNandTURN,youimprovetheICE

protocol’schances.

•STUN:STUN(SessionTraversalUtilitiesforNAT)isaclient-servernetworkprotocolthatletsthedevicedetermineif

itislocatedbehindaNATorrewall,andifsoobtainthemappedpublicIPaddressandportnumberallocatedfor

connectionstoremotehosts.EntertheSTUNserveraddress,forexample,anIPaddress.

•TURN:TURN(TraversalUsingRelaysaroundNAT)isaprotocolthatletsadevicebehindaNATrouterorrewallreceive

incomingdatafromotherhostsoverTCPorUDP.EntertheTURNserveraddressandthelogininformation.

Audioandvideo

•Audiocodecpriority:SelectatleastoneaudiocodecwiththedesiredaudioqualityforSIPcalls.Drag-and-dropto

changethepriority.

Note

Theselectedcodecsmustmatchthecallrecipientcodec,sincetherecipientcodecisdecisivewhenacallismade.

•Audiodirection:Selectallowedaudiodirections.

•H.264packetizationmode:Selectwhichpacketizationmodetouse.

-Auto:(Recommended)Thedevicedecideswhichpacketizationmodetouse.

-None:Nopacketizationmodeisset.Thismodeisofteninterpretedasmode0.

-0:Non-interleavedmode.

-1:SingleNALunitmode.

•Videodirection:Selectallowedvideodirections.

Additional

•UDP-to-TCPswitching:SelecttoallowcallstoswitchtransportprotocolsfromUDP(UserDatagramProtocol)toTCP

(TransmissionControlProtocol)temporarily.Thereasonforswitchingistoavoidfragmentation,andtheswitchcan

takeplaceifarequestiswithin200bytesofthemaximumtransmissionunit(MTU)orlargerthan1300bytes.

•Allowviarewrite:SelecttosendthelocalIPaddressinsteadoftherouter'spublicIPaddress.

•Allowcontactrewrite:SelecttosendthelocalIPaddressinsteadoftherouter'spublicIPaddress.

•Registerwithserverevery:SethowoftenyouwantthedevicetoregisterwiththeSIPserverfortheexisting

SIPaccounts.

•DTMFpayloadtype:ChangesthedefaultpayloadtypeforDTMF.

AXISM43SeriesPanoramicCamera

Thewebinterface

Accounts

AllcurrentSIPaccountsarelistedunderSIPaccounts.Forregisteredaccounts,thecoloredcircleletsyouknowthestatus.

TheaccountissuccessfullyregisteredwiththeSIPserver.

Thereisaproblemwiththeaccount.Possiblereasonscanbeauthorizationfailure,thattheaccountcredentialsarewrong,

orthattheSIPservercan’tndtheaccount.

Thepeertopeer(default)accountisanautomaticallycreatedaccount.Youcandeleteitifyoucreateatleastoneotheraccount

andsetthataccountasdefault.ThedefaultaccountisalwaysusedwhenaVAPIX®ApplicationProgrammingInterface(API)call

ismadewithoutspecifyingwhichSIPaccounttocallfrom.

Account:ClicktocreateanewSIPaccount.

•Active:Selecttobeabletousetheaccount.

•Makedefault:Selecttomakethisthedefaultaccount.Theremustbeadefaultaccount,andtherecanonly

beonedefaultaccount.

•Answerautomatically:Selecttoautomaticallyansweranincomingcall.

•PrioritizeIPv6overIPv4

:SelecttoprioritizeIPv6addressesoverIPv4addresses.Thisisusefulwhenyou

connecttopeer-to-peeraccountsordomainnamesthatresolveinbothIPv4andIPv6addresses.Youcanonly

prioritizeIPv6fordomainnamesthataremappedtoIPv6addresses.

•Name:Enteradescriptivename.Thiscan,forexample,bearstandlastname,arole,oralocation.Thenameis

notunique.

•UserID:Entertheuniqueextensionorphonenumberassignedtothedevice.

•Peer-to-peer:UsefordirectcallstoanotherSIPdeviceonthelocalnetwork.

•Registered:UseforcallstoSIPdevicesoutsidethelocalnetwork,throughaSIPserver.

•Domain:Ifavailable,enterthepublicdomainname.ItwillbeshownaspartoftheSIPaddresswhencallingother

accounts.

•Password:EnterthepasswordassociatedwiththeSIPaccountforauthenticatingagainsttheSIPserver.

•AuthenticationID:EntertheauthenticationIDusedforauthenticatingagainsttheSIPserver.Ifitisthesameasthe

userID,youdon’tneedtoentertheauthenticationID.

•CallerID:Thenamewhichispresentedtotherecipientofcallsfromthedevice.

•Registrar:EntertheIPaddressfortheregistrar.

•Transportmode:SelecttheSIPtransportmodefortheaccount:UPD,TCP,orTLS.

•TLSversion(onlywithtransportmodeTLS):SelecttheversionofTLStouse.Versionsv1.2andv1.3arethemost

secure.Automaticselectsthemostsecureversionthatthesystemcanhandle.

•Mediaencryption(onlywithtransportmodeTLS):Selectthetypeofencryptionformedia(audioandvideo)inSIPcalls.

•Certicate(onlywithtransportmodeTLS):Selectacerticate.

•Verifyservercerticate(onlywithtransportmodeTLS):Checktoverifytheservercerticate.

•SecondarySIPserver:TurnonifyouwantthedevicetotrytoregisteronasecondarySIPserverifregistration

ontheprimarySIPserverfails.

•SIPsecure:SelecttouseSecureSessionInitiationProtocol(SIPS).SIPSusestheTLStransportmodetoencrypttrafc.

•Proxies

Proxy:Clicktoaddaproxy.

-Prioritize:Ifyouhaveaddedtwoormoreproxies,clicktoprioritizethem.

-Serveraddress:EntertheIPaddressoftheSIPproxyserver.

-Username:Ifrequired,entertheusernamefortheSIPproxyserver.

-Password:Ifrequired,enterthepasswordfortheSIPproxyserver.

•Video

-Viewarea:Selecttheviewareatouseforvideocalls.Ifyouselectnone,thenativeviewisused.

-Resolution:Selecttheresolutiontouseforvideocalls.Theresolutionaffectstherequiredbandwidth.

-Framerate:Selectthenumberofframespersecondforvideocalls.Theframerateaffectstherequired

bandwidth.

-H.264prole:Selecttheproletouseforvideocalls.

•DTMF

-UseRTP(RFC2833):Selecttoallowdual-tonemultifrequency(DTMF)signaling,othertonesignalsand

telephonyeventsinRTPpackets.

AXISM43SeriesPanoramicCamera

Thewebinterface

-UseSIPINFO(RFC2976):SelecttoincludetheINFOmethodtotheSIPprotocol.TheINFOmethodadds

optionalapplicationlayerinformation,generallyrelatedtothesession.

DTMFsequence:Clicktoaddanactionruletriggeredbytouch-tone.Youmustactivatetheaction

ruleintheEventstab.

-Sequence:Enterthecharacterstotriggertheactionrule.Allowedcharacters:0–9,A-D,#,and*.

-Description:Enteradescriptionoftheactiontobetriggered.

Testcall

SIPaccount:Selectwhichaccounttomakethetestcallfrom.

SIPaddress:EnteraSIPaddressandclick

tomakeatestcallandverifythattheaccountworks.

Storage

Networkstorage

Ignore:Turnontoignorenetworkstorage.

Addnetworkstorage:Clicktoaddanetworksharewhereyoucansaverecordings.

•Address:EntertheIPaddressorhostnameofthehostserver,typicallyaNAS(network-attachedstorage).We

recommendyoutocongurethehosttouseaxedIPaddress(notDHCPsinceadynamicIPaddresscanchange)or

thatyouuseDNS.WindowsSMB/CIFSnamesarenotsupported.

•Networkshare:Enterthenameofthesharedlocationonthehostserver.SeveralAxisdevicescanusethesame

networksharesinceeachdevicegetsitsownfolder.

•User:Iftheserverrequiresalogin,entertheusername.Tologintoaspecicdomainserver,type

DOMAIN\username.

•Password:Iftheserverrequiresalogin,enterthepassword.

•SMBversion:SelecttheSMBstorageprotocolversiontoconnecttotheNAS.IfyouselectAuto,thedevicetries

tonegotiateoneofthesecureversionsSMB:3.02,3.0,or2.1.Select1.0or2.0toconnecttoolderNASthatdon’t

supporthigherversions.YoucanreadmoreaboutSMBsupportinAxisdeviceshere.

•Addshareevenifconnectiontestfails:Selecttoaddthenetworkshareevenifanerrorisdiscoveredduringthe

connectiontest.Theerrorcanbe,forexample,thatyoudidn’tenterapasswordeventhoughtheserverrequiresone.

Removenetworkstorage:Clicktounmount,unbind,andremovetheconnectiontothenetworkshare.Thisremovesallsettings

forthenetworkshare.

Unbind:Clicktounbindanddisconnectthenetworkshare.

Bind:Clicktobindandconnectthenetworkshare.

Unmount:Clicktounmountthenetworkshare.

Mount:Clicktomountthenetworkshare.

Writeprotect:Turnontostopwritingtothenetworkshareandprotectrecordingsfrombeingremoved.Youcan’tformata

write-protectednetworkshare.

Retentiontime:Selecthowlongtokeeprecordings,tolimittheamountofoldrecordings,ortocomplywithregulationsregarding

datastorage.Ifthenetworkstoragebecomesfull,oldrecordingsareremovedbeforetheselectedtimeperiodpasses.

Tools

•Testconnection:Testtheconnectiontothenetworkshare.

•Format:Formatthenetworkshare,forexample,whenyouneedtoquicklyerasealldata.CIFSistheavailable

lesystemoption.

Usetool:Clicktoactivatetheselectedtool.

Onboardstorage

AXISM43SeriesPanoramicCamera

Thewebinterface

Important

Riskofdatalossandcorruptedrecordings.DonotremovetheSDcardwhilethedeviceisrunning.UnmounttheSD

cardbeforeyouremoveit.

Unmount:ClicktosafelyremovetheSDcard.

Writeprotect:TurnontostopwritingtotheSDcardandprotectrecordingsfrombeingremoved.Youcan’tformata

write-protectedSDcard.

Autoformat:TurnontoautomaticallyformatanewlyinsertedSDcard.Itformatsthelesystemintoext4.

Ignore:TurnontostopstoringrecordingsontheSDcard.WhenyouignoretheSDcard,thedevicenolongerrecognizesthatthe

cardexists.Thesettingisonlyavailableforadministrators.

Retentiontime:Selecthowlongtokeeprecordings,tolimittheamountofoldrecordings,ortocomplywithregulationsregarding

datastorage.IftheSDcardbecomesfull,oldrecordingsareremovedbeforetheselectedtimeperiodhaspassed.

Tools

•Check:CheckforerrorsontheSDcard.Thisonlyworksfortheext4lesystem.

•Repair:Repairerrorsintheext4lesystem.TorepairanSDcardwiththeVFATlesystem,ejecttheSDcard,insertit

inacomputer,andperformadiskrepair.

•Format:FormattheSDcard,forexample,whenyouneedtochangethelesystemorquicklyerasealldata.VFAT

andext4arethetwoavailablelesystemoptions.Therecommendedformatisext4,duetoitsresilienceagainst

datalossifthecardisejectedorifthereisanabruptpowerloss.However,youneedathird-partyext4driveror

applicationtoaccessthelesystemfromWindows®.

•Encrypt:UsethistooltoformattheSDcardandenableencryption.EncryptdeletesalldatastoredontheSDcard.

AfterusingEncrypt,thedatathat’sstoredontheSDcardisprotectedusingencryption.

•Decrypt:UsethistooltoformattheSDcardwithoutencryption.DecryptdeletesalldatastoredontheSDcard.After

usingDecrypt,thedatathat’sstoredontheSDcardisnotprotectedusingencryption.

•Changepassword:ChangethepasswordrequiredtoencrypttheSDcard.

Usetool:Clicktoactivatetheselectedtool.

Weartrigger:SetavaluefortheSDcardwearlevelatwhichyouwanttotriggeranaction.Thewearlevelrangesfrom0–200%.

AnewSDcardthathasneverbeenusedhasawearlevelof0%.Awearlevelof100%indicatesthattheSDcardiscloseto

itsexpectedlifetime.Whenthewear-levelreaches200%,thereisahighriskoftheSDcardmalfunctioning.Werecommend

settingtheweartriggerbetween80–90%.ThisgivesyoutimetodownloadanyrecordingsaswellasreplacetheSDcardin

timebeforeitpotentiallywearsout.Theweartriggerallowsyoutosetupaneventandgetanoticationwhenthewear

levelreachesyoursetvalue.

Streamproles

Astreamproleisagroupofsettingsthataffectthevideostream.Youcanusestreamprolesindifferentsituations,forexample,

whenyoucreateeventsanduserulestorecord.

Addstreamprole:Clicktocreateanewstreamprole.

Preview:Apreviewofthevideostreamwiththestreamprolesettingsyouselect.Thepreviewupdateswhenyouchangethe

settingsonthepage.Ifyourdevicehasdifferentviewareas,youcanchangetheviewareainthedrop-downinthebottomleft

corneroftheimage.

Name:Addanameforyourprole.

Description:Addadescriptionofyourprole.

Videocodec:Selectthevideocodecthatshouldapplyfortheprole.

Resolution:SeeStreamonpage27foradescriptionofthissetting.

AXISM43SeriesPanoramicCamera

Thewebinterface

Framerate:SeeStreamonpage27foradescriptionofthissetting.

Compression:SeeStreamonpage27foradescriptionofthissetting.

Zipstream
