Installation

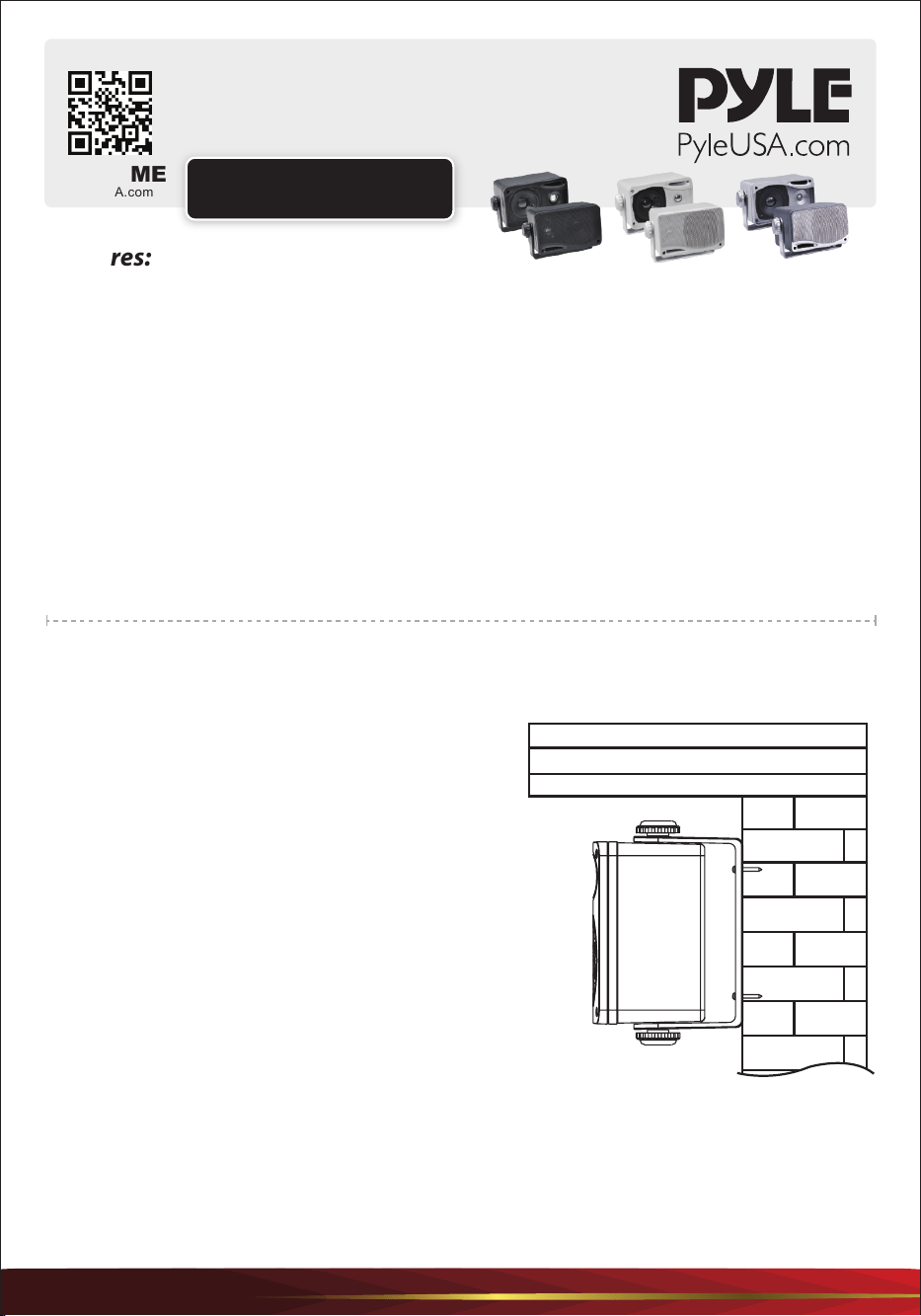

MOUNTING THE BRACKET MOUNTING
1. Remove the bracket knobs and the bracket
from the speaker.
2. Hold the bracket up to the mounting surface.
"PYLE" can be mounted either horizontally
or vertically. Hold the bracket so that the speaker
wire ts through the large, circular wire hole in
the bracket. Align the bracket to be square with
the surrounding. (Use a level for accuracy)
3. Mark the locations of the three shaped screw holes.
Use all of the holes.
4. Drill pilot holes into the mounting surface.
5. Gently pull the speaker wire through the wire hole
in the center of the mounting bracket.
Align the bracket so that the holes all line up.
6. Use your hardware to attach the bracket to the mounting surface.
Visit Our Website
SCAN ME
PyleUSA.com
USER GUIDE
3.5” 200 Watt 3-Way Weather
Proof Mini Box Speaker System
• Excellent for Use On Boats/Marine/
• Decks/patios/Poolside/Outdoors
• Completely Weather Proof
• 3.5” Aluminum Injection Cone Woofer
• 24 Oz. Magnet Structure
• 1.75” Wide Dispersion Cone Midrange
• 1” Super Dome Tweeter
• Capacitor Crossover Network
• Bass Reex Vent for Added Bass Response
• Heavy Duty ABS Construction
• Quick Connect/Disconnect Speaker
Terminals
• Removable Rustproof Mesh Grills
• Power: 100Watts RMS/200Watts Peak
• Frequency Response: 70-21K Hz
• Impedance: 4 Ohms
• Complete Mounting Kit ＆Wires
• Dimensions: 5.25”(W)x3.75”(H)x3.75”(D)
www.PyleUSA.com
FINAL ADJUSTMENTS
1. After checking that the speaker is in phase and works correctly, angle the speaker for the
best sound.
2. Hand-tighten the bracket knobs only. Power tools may over-tighten the knob and strip
the threads of the insert.
3. Check that the entire installation is safe and secure.
Connecting Your Speakers
California Prop 65 Warning
WARNING:
This product can expose you to chemicals, which is known to
the state of California to cause cancer birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs

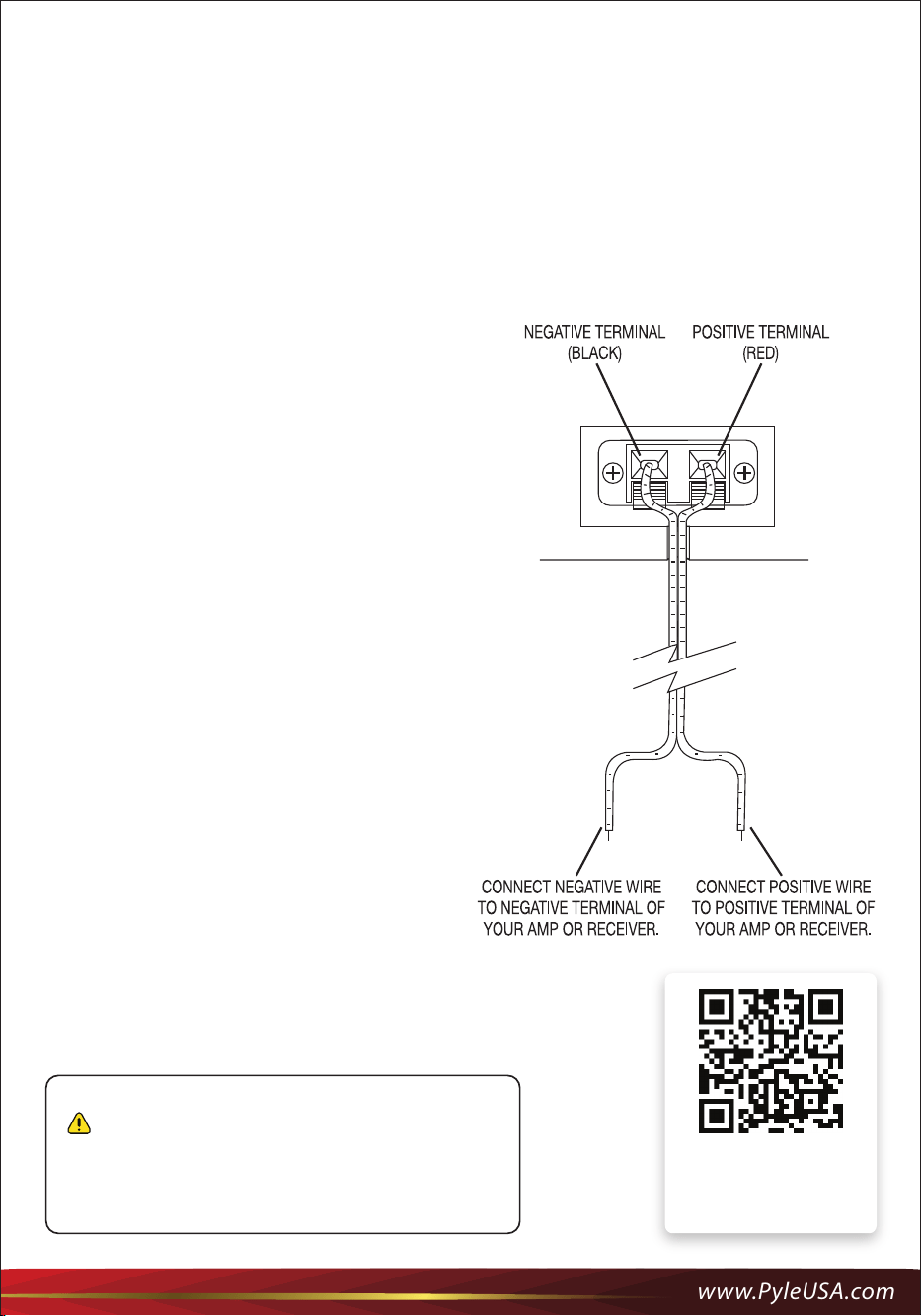

Connecting the speakers to your amplier
or receiver.
•
First, turn your amplier o to avoid
damage which may result from accidental
shorting of the speaker leads.
•
Correct phase polarity is critical for proper
stereo imaging and bass performance.
The red (+) terminal on your amplier or
receiver must be connected to the red (+)
terminal on your speaker; the same applies
to the black (-) terminal.
•
Connect one loudspeaker at a time to
ensure proper connection of left and right
channels. Make sure all wires are rmly
fastened.
•
If you notice a high level of bass or central
image focus, double-check your connections
for proper polarity.
