HEAVY-DUTY 2-IN-1 COMPACT RIVETER
MODEL NO: AK3989
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this tool.
9 Familiarise yourself with the application and the limitations of the riveter, as well as the potential hazards.
9 Maintain the riveter in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the riveter clean for best and safest performance.
9 Check moving parts alignment on a regular basis.
8 DO NOT hold the workpiece by hand. Secure unstable workpiece with a clamp, vice or other adequate holding device.
9 Ensure the workpiece is correctly secured before using the riveter.
8 DO NOT use the riveter for any purpose other than that it was designed for.
8 DO NOT operate the riveter if any parts are damaged or missing, as this may cause failure and/or personal injury.
9 When not in use store in a safe, dry, childproof location.
WARNING! Always wear approved eye or face protection when operating the riveter.
2. INTRODUCTION
Comfortable ergonomic grips. Heavy-duty head suitable for xing blind rivets and threaded nut rivets to thin sheet aluminium, steel and
stainless steel. Short arms provide eortless functionality and access to restricted spaces. Supplied with nozzle spanner.
3. SPECIFICATION & CONTENTS
Model No.: ................................................................ AK3989
Rivet Nut Sizes: .....................................................................
M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1, M8 x 1.25, M10 x 1.5mm
Blind Rivet Sizes:
2.4mm (3/32”), 3.2mm (1/8”), 4mm (5/32”), 4.8mm (3/16”), 6.4mm (1/4”)
Length: .......................................................................255mm
Rivet Materials:
Aluminium, Steel, Stainless Steel, Structural
AK3989 Issue 2 (4) 18/10/21
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection

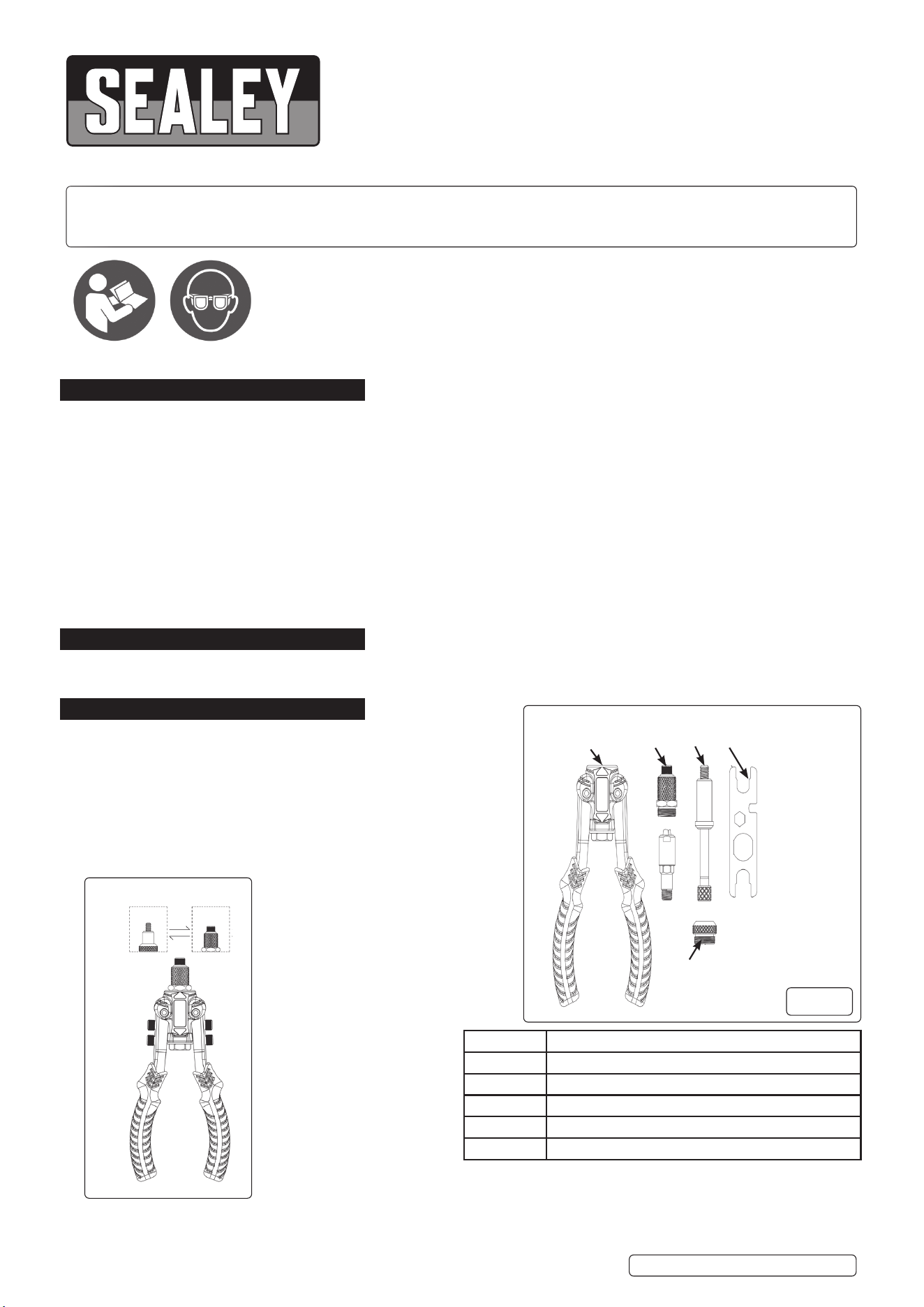

Item No. Description
1 Hand Riveter Body
2 Hand Rivet Assembly (Rod + Sleeve + Nosepiece)
3 Nut Rivet Assembly (Rod + Sleeve)
4 Multi Function Spanner
5 Sleeve xing Nut
1
3
4
2
5
g.1

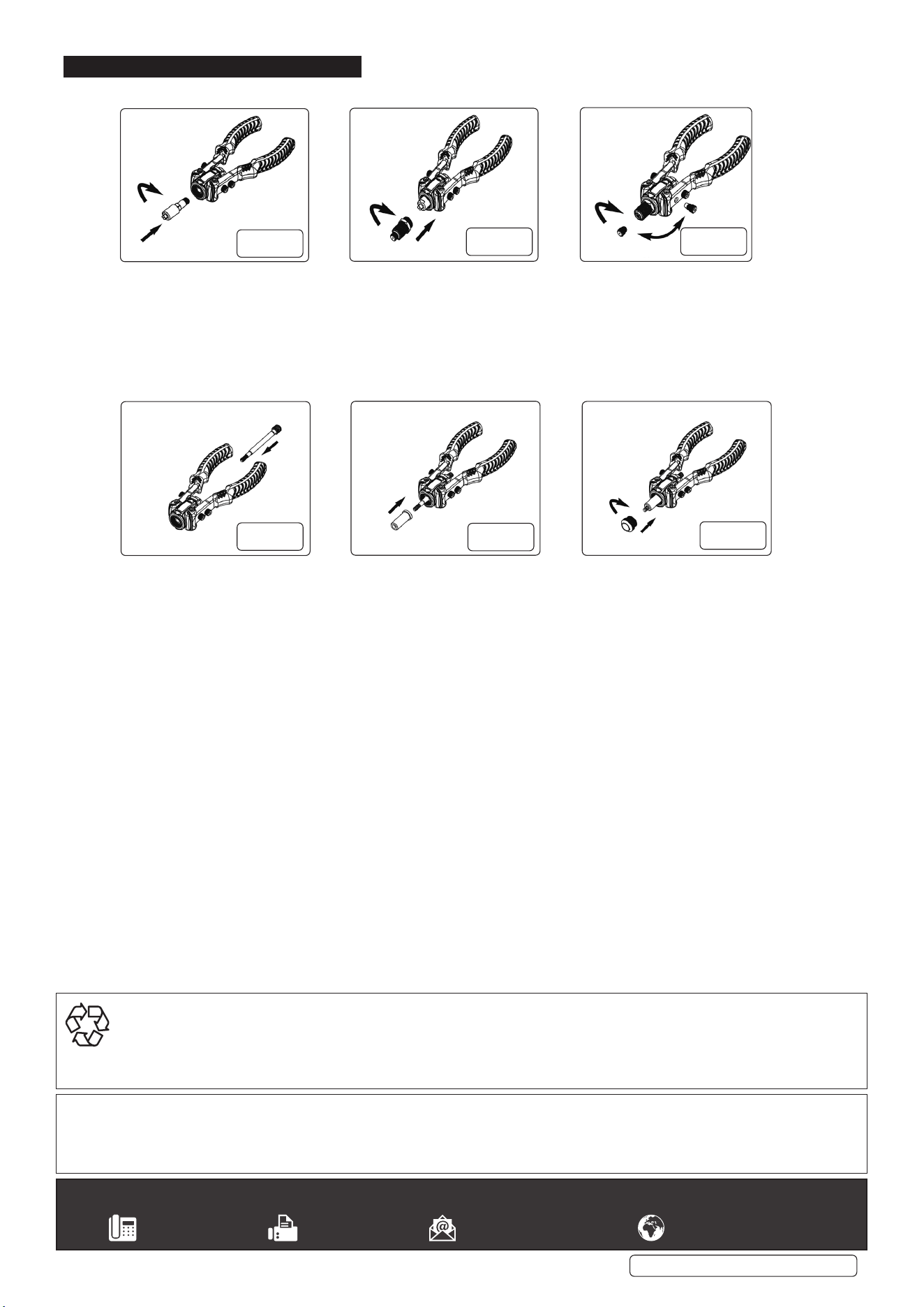

4. OPERATION
4.1. RIVETING
4.1.1. Screw rivet assembly rod (g.1.2) into the handle.(g.2).
4.1.2. Screw rivet sleeve piece (g.1.2) into the rod (g.3).
4.1.3. Place correct size nose piece into unit (g.4).
4.1.4. Drill a hole suitable for the specications of the rivet on the two pieces of material to be riveted.
4.1.5. Insert a rivet gun tted with rivets of appropriate specications into the drilled hole.
4.1.6. Close the handle to x the rivet in place, then withdraw the tool.
4.2. NUT RIVETING
4.2.1. Fit nut rivet rod (g.1.3) into the handle (g.5).
4.2.2. Insert the nut rivet sleeve (g.1.3) into the body (g.6).
4.2.3. Screw the sleeve xing nut (g.1.5) into the unit (g.7).
4.2.4. Screw in the appropriate nut rivet.
4.2.5. Put nut rivet into the prepared hole and rive the nut rivet into place.
4.2.6. After riveting completed withdraw the tool.
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Life-long guarantee from purchase date, proof of which is required for any claim.
g.2
g.3
g.4
g.5
g.6
g.7
AK3989 Issue 2 (4) 18/10/21
