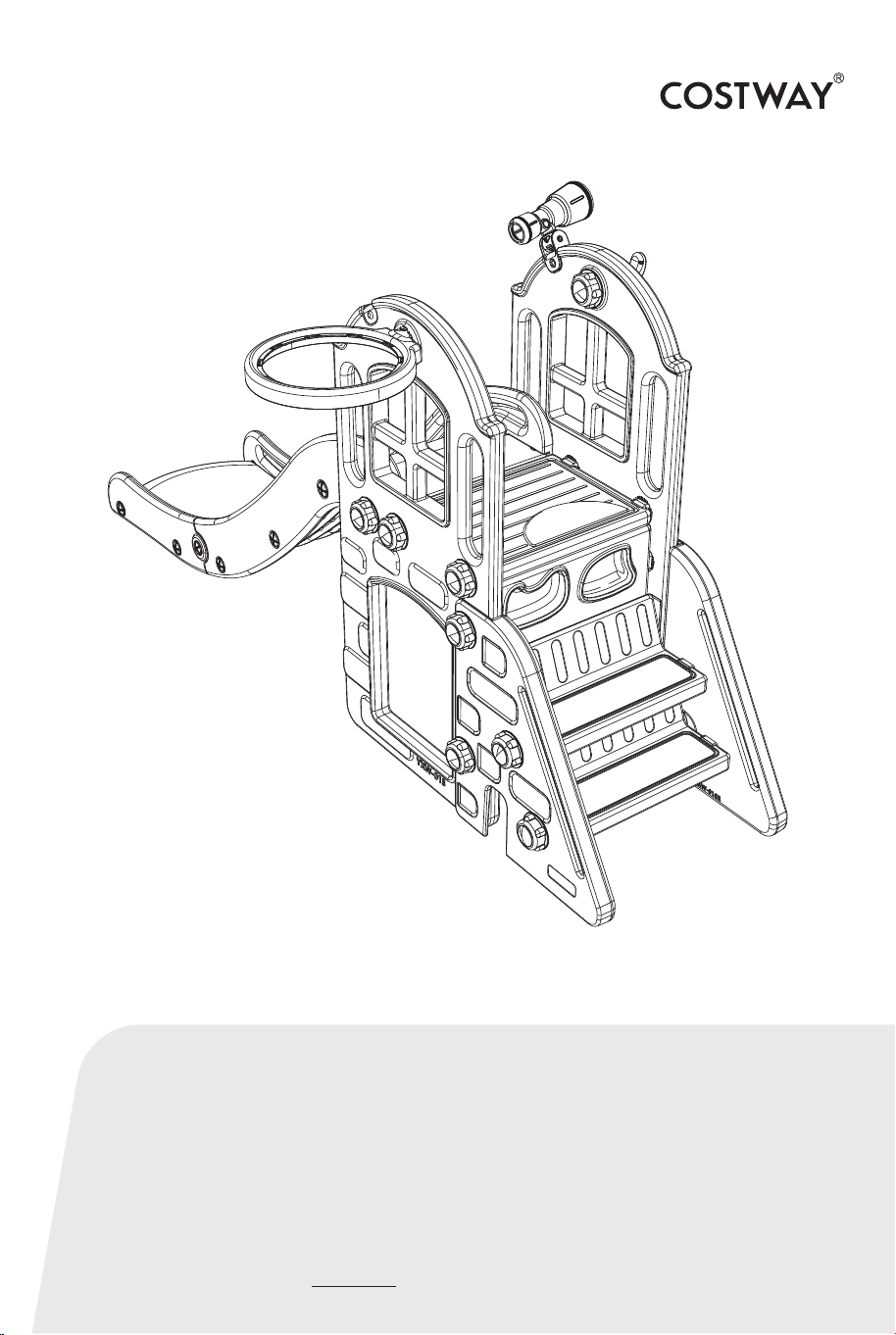

Toddler Climber Slide
TS10024
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
02
Before You Start
General Warnings:
The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all packaging, separate and count all parts and hardware.
Please ensure that all parts are correctly installed, incorrect installation can lead to a
danger.
We recommend that, where possible, all items are assembled near the area in
which they will be placed in use, to avoid moving the product unnecessarily once
assembled.
Ensure a secure surface during installation, and place the product always on a flat,
steady and stable surface.
Please check and maintain it regularly, and the most important part needs to be
suspended, fixed, or anchored to the ground.
Warnings:
Attention: For home use only.
Attention: The product is not suitable for the children under 3 years
Danger: Keep all small parts and packaging materials for this product away from babies
and children, otherwise they may pose a choking hazard.
Danger: Lack of attachment may cause a risk of tipping or falling hazard.
Please read all instructions carefully and keep it for future reference.
03
x2A x2Cx1B
x1D x1E x1F
x2G x2H x16I
x12J x2K x1L
x2M x1O x1R
x3Sx1P
04
x1N x1Q
x6J
Connect the upper handrail (A*2)
with the upper slide section (B*1)
by the knob (J*6) and complete
the installation of Part 2.
2
x4J
Connect the lower handrail (C*2)
with the lower sliding end (f*1)
through the knob (J*4) and
complete the installation of Part 1.
1
Installation instructions
F
C
J
B
A
J
3
Assemble the sliding part 1 and
part 2 with the knob (J * 2) and
square bracket (K * 2), and
complete the installation of Part 3.
x2J x2K
4
Assemble the part 3 and
two side panels (M*2),
seat panel (D*1),
climbing panel (E*1)
using the big nuts (I*6),
and complete the
installation of Part 4.
x6I
05
J
K
2
1
I
E
D
M
3
x6I
Install the basket frame (L*1), hook
(O*1) and triangular plate (H*2) on
the side panel (M*2)
with the big nuts (I*6). Finally clip
the telescope (N*1) into the side
panel, and install the basketball net
(R*1) on the basket frame (L*1) to
complete the assembly of climbing
mode.
5
Assembly form 1
x10I
Install the basket frame (L*1), hook
(O*1), triangle plate (H*2) and
pedal (G*2) onto the side panel
(M*2) with the big nuts (I*10).
Finally, clip the telescope (N*1) into
the side panel, and install the
basketball net (R*1) onto the
basket frame (L*1)to complete the
assembly of pedal mode.
5
Assembly form 2
06
I
N
O
4
H
L
I
G
4
H
L
O
N
Climbing mode1 Pedal mode2
×
√
Place on a flat, spacious
floor.
Can not be placed on a
slope.
×
×
Can not be placed in
water or seepage place.
Can not be placed in the
sand surface, uneven
ground.
07
Slide usage mode:
