DRAPER 13597 Suction Oil Drainer and Vacuum, 110L User Manual

13597

Original Instructions

Version 1

January 2024

110L SUCTION AND VACUUM

OIL DRAINER

1.1 Product Reference

User Manual for: 110L Suction Oil Drainer and Vacuum

Stock No: 13597

Part No: OD110L

1.2 Revisions

Version 1: January 2024

First release

As our manuals are continually updated, always ensure

that the latest version is used.

Please visit drapertools.com/manuals for the latest

version of this manual and the associated parts list, if

applicable.

1.3 Understanding the Safety Content of

This Manual

WARNING!

– Situations or actions that may result

in personal injury or death.

CAUTION! – Situations or actions that may result

in damage to the product or surroundings.

Important: – Information or instructions of particular

importance.

Permission is granted to reproduce this manual for

personal and educational use ONLY. Commercial

copying, redistribution, hiring or lending is strictly

prohibited.

No part of this manual may be stored in a retrieval system

or transmitted in any other form or means without written

permission from Draper Tools Limited.

In all cases, this copyright notice must remain intact.

1. Preface

– 2 –

These are the original product instructions. This

document is part of the product; retain it for the life

of the product, passing it on to subsequent holders.

Read this manual in full before attempting to

assemble, operate or maintain this product.

This Draper Tools manual describes the purpose

of the product and contains all the necessary

information to ensure its correct and safe use.

Following all the instructions and guidance in

this manual will ensure the safety of both the

product and the operator and increase the

lifespan of the product.

All photographs and drawings within this manual are

supplied by Draper Tools to help illustrate correct

operation of the product.

Every eort has been made to ensure the

information contained in this manual is accurate.

However, Draper Tools reserves the right to amend

this document without prior warning. Always use the

latest version of the product manual.

2. Contents

– 3 –

1. Preface 2

1.1 Product Reference 2

1.2 Revisions 2

1.3 Understanding the Safety Content of This

Manual 2

2. Contents 3

3. Product Introduction 4

3.1 Intended Use 4

3.2 Specication 4

4. Health and Safety Information 5

4.1 General Health and Safety Warnings 5

4.2 Residual Risk 5

5. Identication and Unpacking 6

5.1 Product Overview 6-7

5.2 Packaging 7

6. Assembling Instructions 8

7. Operating Instructions 9-10

7.1 Collecting Waste Oil by Gravity 9

7.2 Collecting Waste Oil by Suction 9

7.3 Draining the Waste Oil Tank 10

7.4 Using the Vacuum Attachment 10

8. Maintenance and Troubleshooting 11

9. Spares, Returns and Disposal 12

10. Warranty 13

3. Product Introduction

Stock No. 13597

Part No. OD110L

Oil Tank Capacity: 110L

Collection Drainer Capacity: 10L

Coupler Type: 1/4” BSP UK

Air Working Pressure: 6 - 8 Bars

Draining working Pressure: 0.5 Bars

Vacuum Pressure: -0 .5 Bars

Recommended Working Oil Temperature: 40 - 50°C

Max. Collection Height: 1871.5mm

Min. Collection Height: 1231.5mm

Dipstick probe diameter:

Plastic 6mm

Plastic 8mm

Copper 6mm

Weight (empty): 36kg

Product Dimensions: 729 X 473 X 1500mm

– 4 –

3.2 Specication

3.1 Intended Use

This product is designed to drain waste engine and gear

oil by either gravity or suction. It is also tted with a

vacuum attachment for cleaning up any oil spillages.

Any other application beyond the conditions established

for use will be considered misuse. Draper Tools accepts

no responsibility for improper use of this product.

Read this manual in full before assembling, operating or

maintaining the product, and retain it for later use.

4. Health and Safety Information

Important: Read all the Health and Safety instructions

before operating, maintaining or repairing this product.

Non-compliance with these instructions may result in

injury or damage to the user or the product.

4.1 General Health and Safety Warnings

WARNING! Read all safety warnings,

instructions, illustrations and specications

provided with this product. Failure to follow all

instructions listed below may result in damage

or injury to the user.

• Ensure all Health and Safety, Local Authority and

general workshop regulations are followed when

using this equipment.

• Familiarise yourself with the process and all

limitations of the oil drainers as well as any potential

hazards.

WARNING! Ensure that the oil drainer is

disconnected from the air supply before

changing accessories, servicing or undertaking

any maintenance.

• DO NOT modify any parts and only use accessories

and spare parts supplied by Draper Tools.

• Keep the work area clean and tidy and ensure that

there is adequate lighting.

• Ensure the oor is not slippery and wear non-slip

shoes in case of oil spillages.

WARNING! When extracting high temperature

oils, ensure that hands, face and body are

protected using suitable personal protective

equipment (PPE).

• Important: Always ensure the vehicle engine is

switched o before draining oil or irreparable damage

will occur to the engine.

• DO NOT extract caustic or ammable liquids.

CAUTION: Never use the oil drainer near open

ames or other heat sources.

• NEVER ll above the maximum level indicator on

the tank.

• Keep children and unauthorised personnel away from

the work area.

• Only trained and competent personnel may operate

this equipment.

WARNING! Ensure the correct air pressure is

maintained and it does not exceed the maximum

specied (Refer to section 3.2 specication).

• Keep the air hose away from heat, oil or sharp edges.

Check the air hose for signs of wear and tear before

each use. Ensure that all connections are secure.

• Only use the oil drainer for its intended purpose.

• DO NOT operate if any parts are damaged or missing

as this may cause failure and/or personal injury.

• DO NOT stand on the oil drainer.

• DO NOT adjust or tamper with the safety valve.

• DO NOT move the drainer by the hose or pull the hose

from its air supply, always use the handle.

• DO NOT place attachments close to your face

(especially eyes or ears). Do not point or direct the

hose at person(s) or animals.

• DO NOT operate if you are tired or under the inuence

of alcohol, drugs or intoxicating medicine.

• DO NOT leave the oil drainer unattended when

operating.

WARNING! DO NOT release the oil pan drainage

valve if there is pressure in the tank as the

drainage tube and pan will be propelled upwards

with great force. This could result in damage to

the equipment or risk serious injury.

• Always use on a at level surface capable of

supporting the product and its maximum load.

• When not in use, disconnect from the air supply, vent

the tank and store in a safe, dry and childproof place.

• Dispose of any waste oil in accordance with local

authority regulations.

WARNING! DO NOT pollute the environment

through uncontrolled discharge of any waste oil.

4.2 Residual Risk

The safety instructions in this manual cannot account for

all possible conditions and situations that may occur.

Exercise common sense and caution when using this

product and protect against any additional conceivable

risks.

– 5 –

5. Identication and Unpacking

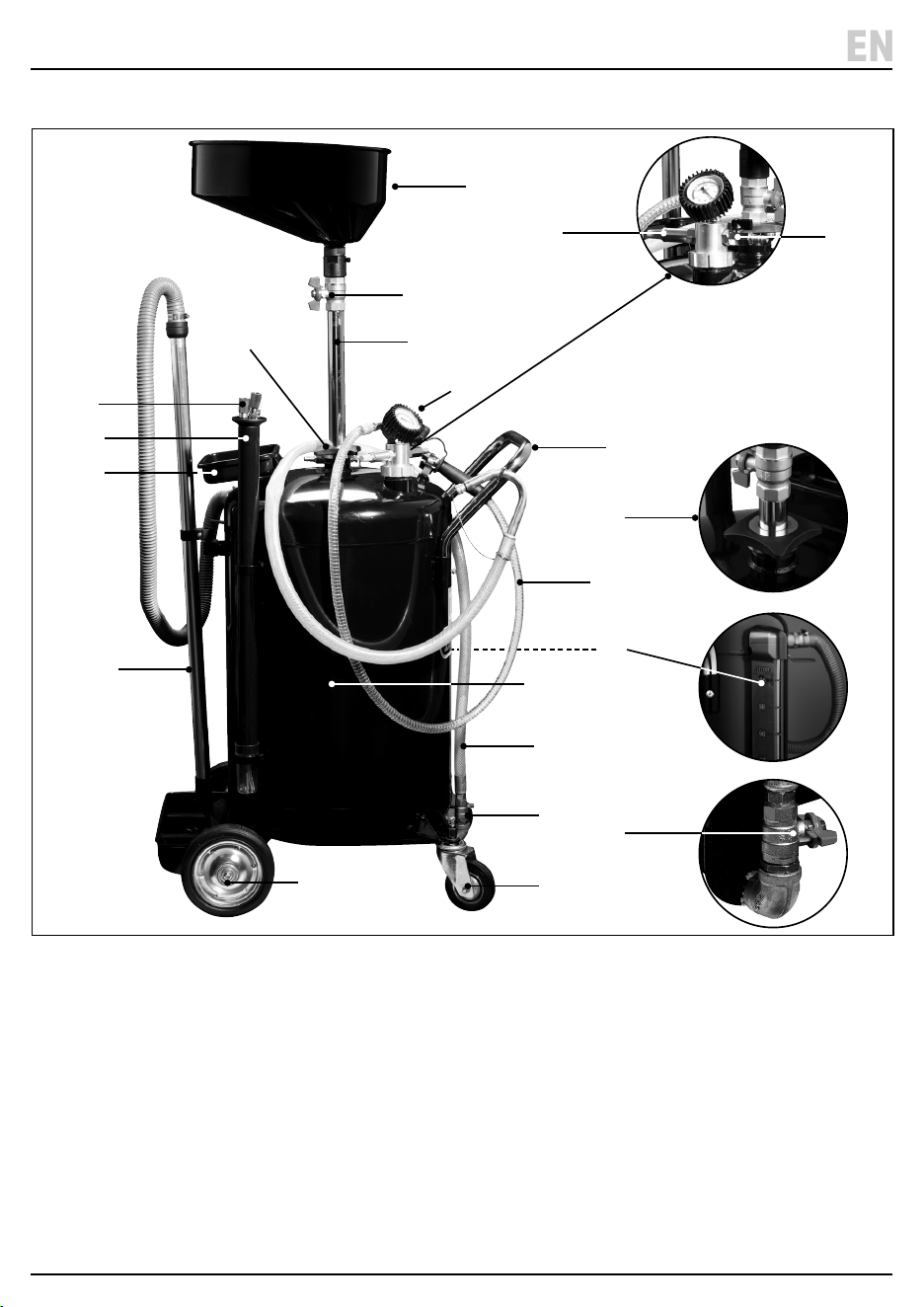

5.1 Product Overview

(1) Oil collecting pan

(2) Oil pan drainage valve

(3) Oil drainage steel tube

(4) Air pressure gauge

(5) Safety valve

(6) Air connector with valve

(7) Handle

(8) Suction hose with valve

(9) Tank level indicator tube

(10) Oil waste tank

(11) Tank drainage hose

(12) Tank drainage hose valve

(13) Wheels/castors

(14) Vacuum Attachment with drip tray

(15) Parts tray

(16) Suction probe holder

(17) Suction probes X 3

(18) Oil pan height adjustment

(19) Vacuum spool

(20) Suction air inlet connector with valve

– 6 –

(14)

(15)

(16)

(17)

(18)

(2)

(3)

(4)

(10)

(7)

(8)

(9)

(11)

(12)

(13)

(1)

(18)

(19)

(12)

(20)

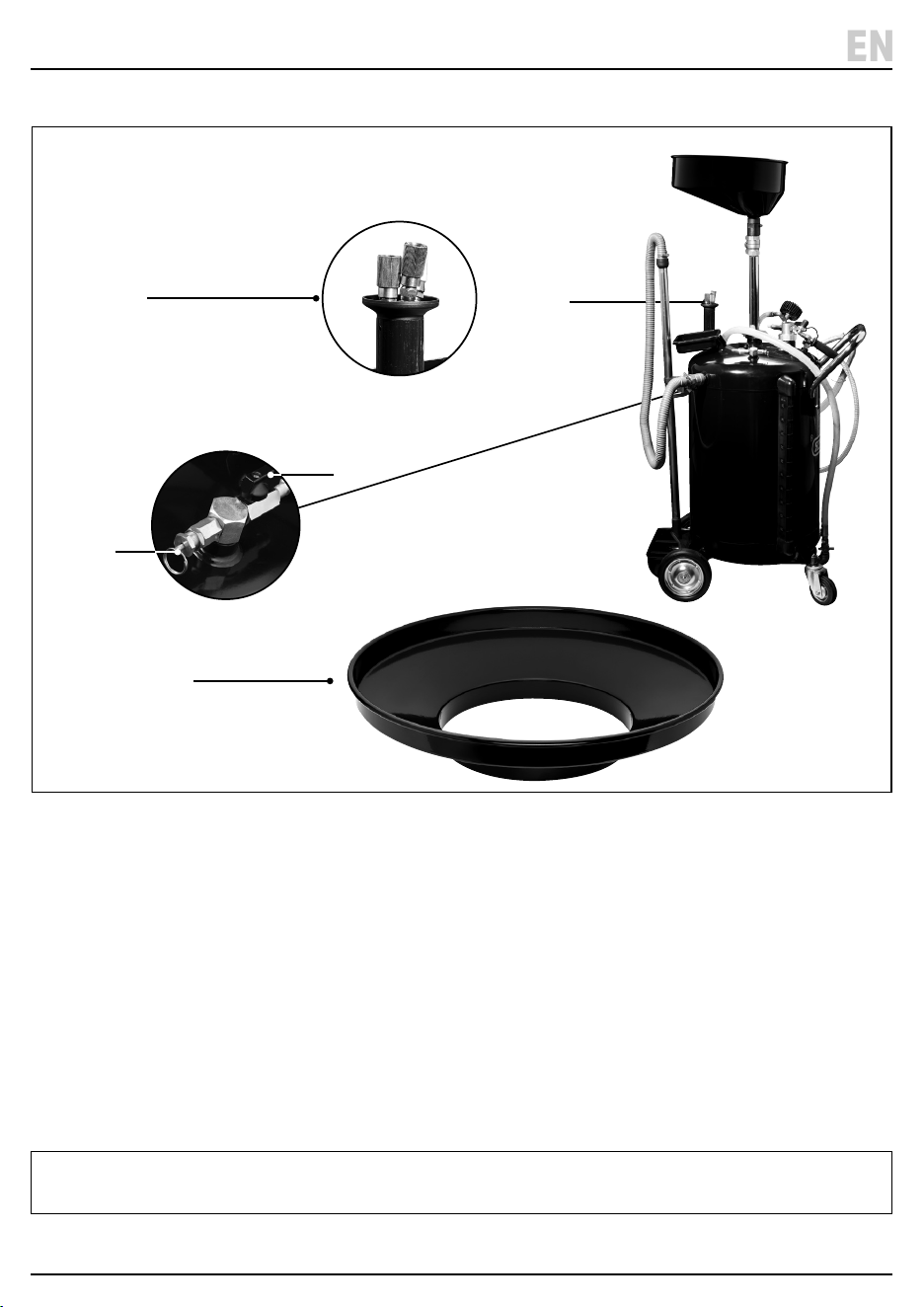

5. Identication and Unpacking

5.2 Packaging

Keep the product packaging for the duration of the

warranty period for reference should the product need to

be returned for repair.

WARNING! Keep packaging materials out of reach of

children. Dispose of packaging correctly and

responsibly and in accordance with local regulations.

(17) 1 X Plastic 6mm diameter

1 X Plastic 8mm diameter

1 X Copper 6mm diameter

Oil drainer extension (optional attachment Stock No:

(21144)

Please visit drapertools.com for our full range of accessories and consumables.

– 7 –

5.1 Product Overview

(17)

(21144)

(5)

(6)

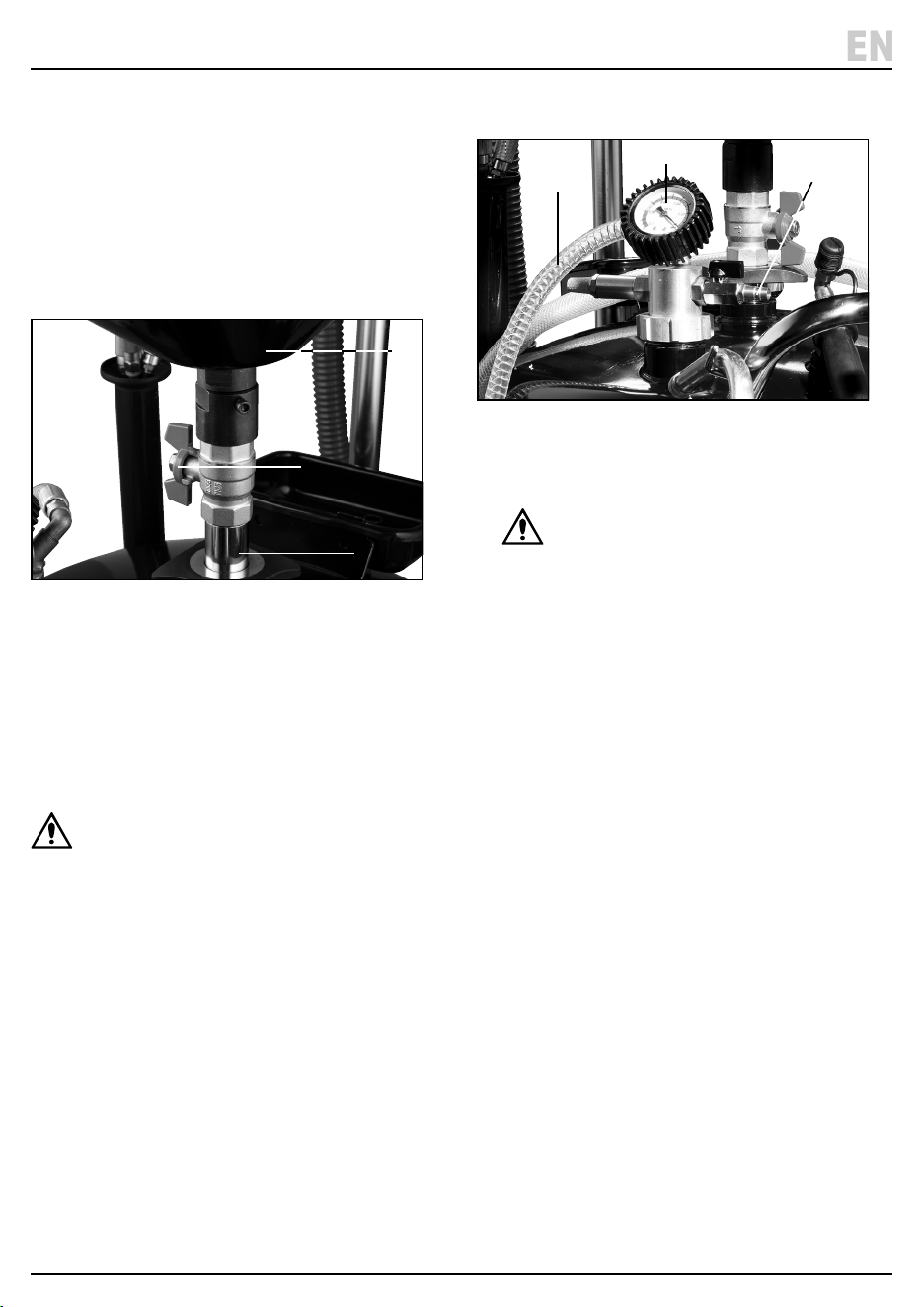

6. Assembling Instructions

1. The following parts need assembling before the oil

drainer can be used.

Castors/Wheels (13)

• Insert the bolts on the top of the castors into the

ange plates. Slide the at washer, circlip and cover

nut onto the bolt, tighten securely.

• Slide the two wheels onto each end of the axle at the

base of the tank. Secure with the washer and bolt and

tighten.

Handle (7)

• Insert the handle into the two slots on the side of the

tank, tighten with screws.

Oil Pan (1)/Drainage Tube (3)

• Insert the oil drainage tube into the top of the tank

and tighten using the height adjustment knob.

• Attach the pan to the top of the oil drainage tube,

tighten securely. Then place the plastic screen into

the pan.

Vacuum Attachment with Drip Tray (15)

• Assemble the vacuum attachment. Then insert the

end of the vacuum hose into the tank and tighten

securely. Use the screws and nuts to t the tray to the

oil drainer.

– 8 –

Important: Before preparing or adjusting this product,

read and understand all the safety instructions listed in

this manual.

• Important: Always ensure the vehicle engine is

switched o before draining oil or irreparable damage

will occur to the engine.

•

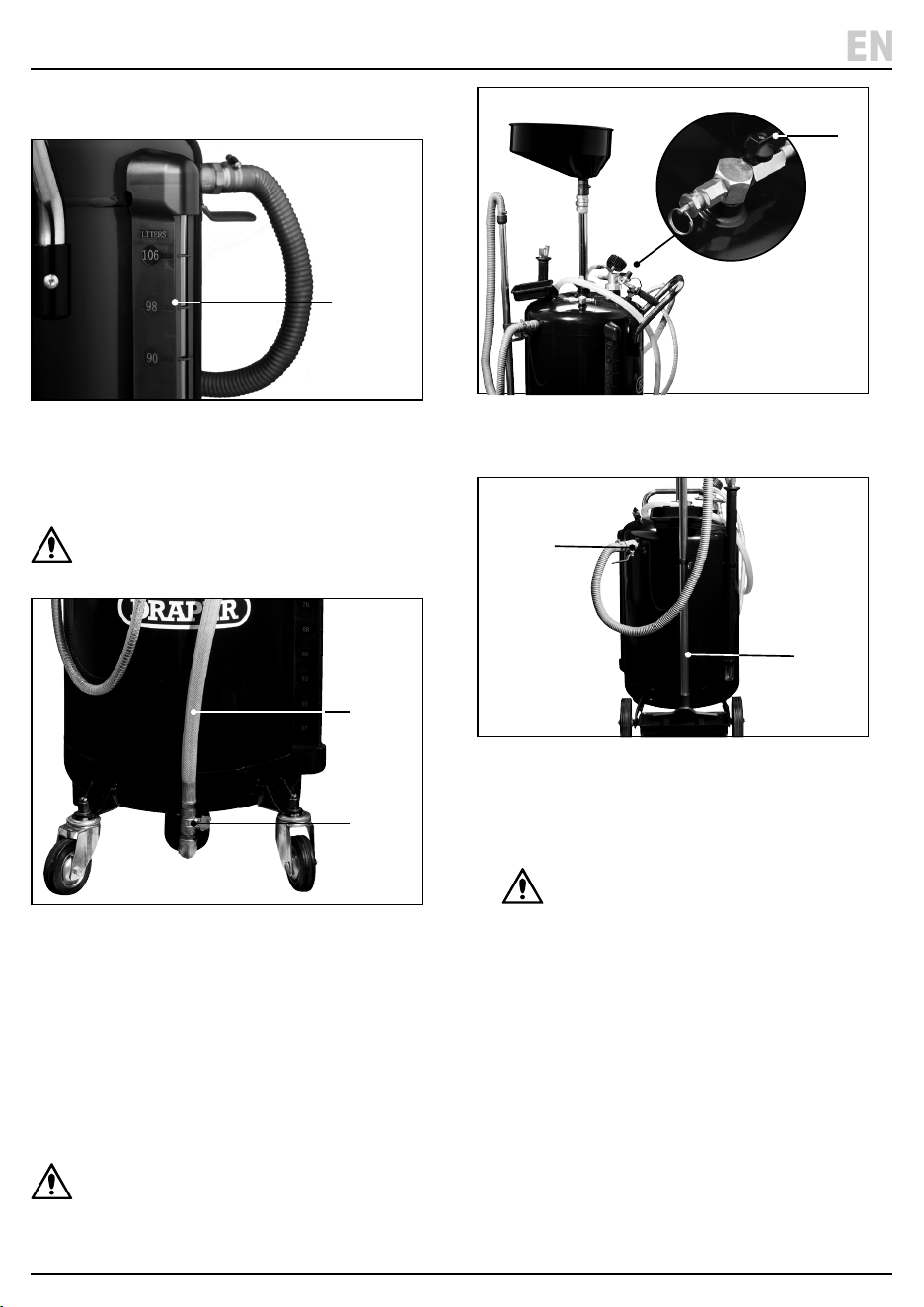

7.1 Collecting Waste Oil by Gravity

1 Fig.

1. Open the oil pan drainage valve (2).

2. Raise the vehicle with a vehicle lift.

3. Push the oil drainer underneath the vehicle ensuring

that the oil pan (1) is directly beneath the oil drain

plug. Adjust the height of the oil pan (1) as required

using the height adjustment (18).

4. Then unscrew the vehicle’s oil drainage plug.

WARNING! Ensure that the oil pan is positioned

correctly and that all the other valves are closed

before opening the vehicle’s oil drainage plug.

• DO NOT smoke or have any source of ignition near the

oil drainer.

• Keep an eye on the oil level in the tank during

operation. DO NOT ll above the maximum level on

the tank indicator tube (9).

7.2 Collecting Waste Oil by Suction

2 Fig.

1. Connect a pressurised air supply to the suction air

inlet (20) and open the valve.

WARNING! Check that all the other valves

are closed especially the oil drainage valve

(2) and the tank drainage valve (12).

2. Check the air pressure gauge (4) and allow the

pressure to drop down to -0.5bars. Then close the air

inlet valve and shut o the compressed air. The oil

drainer is depressurised and ready to use.

3. With the vehicle’s engine still warm, remove the oil

dipstick. Then select the most suitable suction probe

(17) and insert into the engine as far as possible.

4. Connect the suction hose (8) to the probe.

5. Open the valve on the suction hose and the oil will be

extracted.

6. Once the oil is completely drained from the engine,

close the valve on the suction hose.

7. Operating Instructions

– 9 –

(18)

(20)

(4)

(8)

(1)

(2)

7. Operating Instructions

7.3 Draining the Waste Oil Tank

3 Fig.

• The oil level indicator (9) on the side of the tank will

show the level of waste oil collected. Empty when at

the maximum level.

WARNING! Ensure the oil pan valve (2), vacuum

and suction hose valves are closed before

draining the tank.

4 Fig.

1. Put the end of the tank drainage hose (11) into a

suitable waste oil container.

2. Connect an air supply to the air connector (6) and

open the air valve (g.5).

3. Then open the tank drainage hose valve (12).

4. After all the oil has been transferred from the tank to

the waste container, close the hose drainage valve

(12) and disconnect the air supply.

WARNING! Clean up any spillages immediately

and wash your hand afterwards.

5 Fig.

7.4 Using the Vacuum Attachment

6 Fig.

1. Connect the air supply to the suction air inlet

connector (20) and open the air valve (refer to section

7.2 and g.2).

WARNING! Check that all the other valves

are closed especially the oil pan drainage

valve (2) and the tank oil drainage valve

(12).

2. Check the air pressure gauge (4) and allow the

pressure to drop down to -0.5bars. Then close the air

inlet valve and shut o the compressed air. The oil

drainer is depressurised and ready to use.

3. Open the valve on the vacuum attachment hose.

4. Use the vacuum attachment (14) to clean up any oil

spillages.

5. As soon as the oil spillage is cleared, close the valve

and disconnect the air supply.

– 10 –

(9)

(12)

(11)

(14)

Vacuum

Valve

(6)

8. Maintenance and Troubleshooting

8.1 General Maintenance

• When not in use, disconnect from the air supply, vent

the tank and store in a safe, dry and childproof place.

• Check the suction air hoses for signs of wear and tear

before each use. Ensure that all connections are

secure.

• Regularly unscrew and clean the vacuum spool (19).

• To prevent corrosion do not store waste oil in the tank

for long periods.

• Wipe the surface areas of the oil drainer regularly with

a mild soap and damp cloth to keep it clean and free

from oil.

• When not in use store in a cool, dark place and out of

direct sunlight.

•

Problem Possible Cause Remedy

Pressure not dropping on air

pressure gauge

Valve left open. Close valve correctly.

Incorrect air pressure value. Check section 3.2 Specication

For correct pressure required.

Oil not pumping even with

correct pressure

Poor seal between air supply and

suction hose.

Check correctly sealed.

Waste Oil temperature too low

below 40°C.

Check engine is still warm.

Suction hose valve closed. Open the valve.

Suction hose blocked or touching

bottom of the tank.

Clean hose or reposition in tank.

– 11 –

8.2 Troubleshooting

For spare parts, servicing, and repair and replacement

options, please contact the Draper Tools Product

Helpline for details of your nearest authorised agent.

Draper Tools will endeavour to hold any spare parts, if

applicable, for seven years from the date that it sells the

nal matching stock item.

Any servicing or repairs carried out by unauthorised

personnel or installation of spare parts not supplied by

Draper Tools will invalidate your warranty.

Important: For safety, ALWAYS drain and clean the

product of any oil, fuel, chemicals or other substances

before returning it to Draper Tools or its authorised

agent. Store these materials in suitable containers and

dispose of them in accordance with local regulations.

Draper Tools and its agents cannot be responsible for the

disposal of these substances.

At the end of its working life, dispose of the product

responsibly and in line with local regulations. Recycle

where possible.

• DO NOT dispose of this product with domestic waste;

most local authorities provide appropriate recycling

facilities.

• Dispose of oil separately and in accordance with local

regulations; DO NOT abandon it in the environment.

9. Spares, Returns and Disposal

– 12 –

10. Warranty

This warranty covers parts and labour for the lifetime of

the product. However, if the tools are hired out, the

warranty period is 90 days from the date of purchase.

Draper Tools products are carefully tested and inspected

before shipment and are guaranteed to be free from

defective materials and workmanship.

Should the tool develop a fault, return the complete tool

to your nearest distributor or contact Draper Tools

directly. Contact information can be found at the back of

this manual.

Proof of purchase must be provided.

This warranty does not apply to any consumable parts,

batteries or normal wear and tear, nor does it cover any

damage caused by misuse, careless or unsafe handling,

alterations, accidents, or repairs attempted or made by

any personnel other than the authorised Draper Tools

repair agent.

In all cases, to make a claim for faulty workmanship or

materials within the standard warranty period, please

contact or return the product to the place of purchase.

Proof of purchase may be required.

If the place of purchase is no longer trading or if you

experience any diculties with your warranty, please

contact Customer Services with the product details and

your proof of purchase. Contact details can be found at

the back of this manual.

If the tool is not covered by the terms of this warranty,

repairs and carriage charges will be quoted and charged

accordingly.

This warranty supersedes any other guarantees

expressed or implied and variations of its terms are not

authorised.

Your Draper Tools guarantee is not eective until you can

produce, upon request, a dated receipt or invoice to

verify your purchase within the guarantee period.

Please note that this warranty is an additional benet

and does not aect your statutory rights.

Draper Tools Limited

– 13 –

Notes

– 14 –

Notes

– 15 –

Delta International

Delta International BV

Oude Graaf 8

6002 NL

Weert

Netherlands

Contact Details

Draper Tools

Draper Tools Limited

Hursley Road

Chandler’s Ford

Eastleigh

Hampshire

SO53 1YF

Website: drapertools.com

Email: [email protected]

Product Helpline: +44 (0) 23 8049 4344

Telephone Sales Desk: +44 (0) 23 8049 4333

General Enquiries: +44 (0) 23 8026 6355

General Fax: +44 (0) 23 8026 0784

Please contact the Draper Tools Product Helpline for repair and servicing enquiries.

DRAPER 13597 Suction Oil Drainer and Vacuum, 110L

Product's Documents

Original Instructions

Specifications

DRAPER 13597 Questions and Answers
