Please give us a chance to make it right and do better !
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP !
Contact Us!
Do NOT return this item.

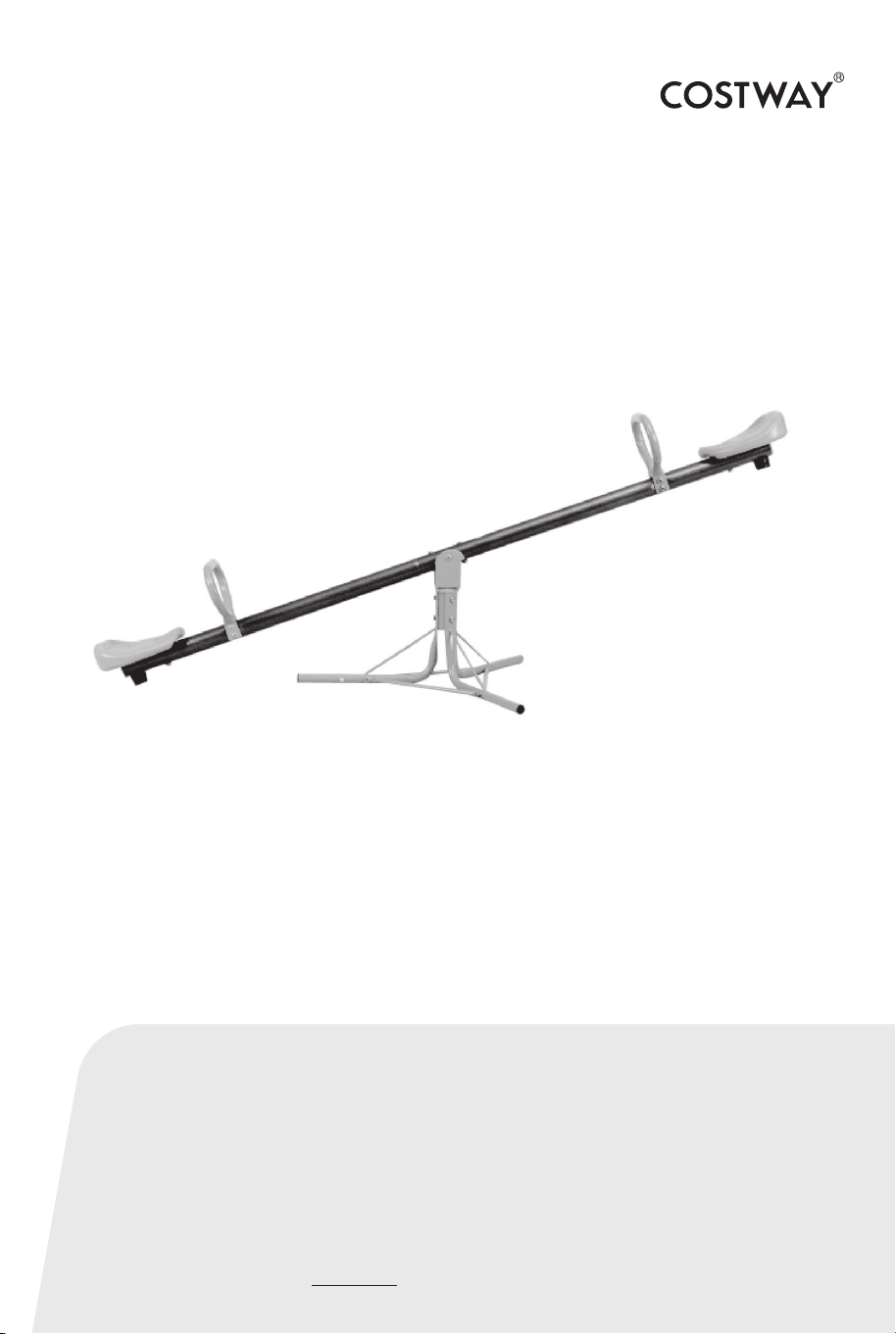

360 Deg Rotating Seesaw
OP3299
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville
PL office: Gdańsk
US:cs.us@costway.com
UK:cs.uk@costway.com
Please give us a chance to make it right and do better !
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP !
Contact Us!
Do NOT return this item.
360 Deg Rotating Seesaw
OP3299
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville
PL office: Gdańsk
US:cs.us@costway.com
UK:cs.uk@costway.com
360 Deg Rotating Seesaw
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
02 03
Thank you for purchasing the 360 Deg Rotating Seesaw
The outdoor play centre you have chosen adheres to European
standards
and has been certified by an independent laboratory.
Advice for assembly
-Respect exactly the assembly instructions .This product must be
assembled by an adult
-Keep the instruction sheet especially for the identification of the
component by the after sales service
-Before commencing, check that none of the parts are missing; You
can retain excess parts as spares for future use when necessary.
Advice for safety
-This product must not used by children under 36 months (the small
parts could be swallowed).It is only for children from 3 to 7 with a
35kg maximum weight, It must be used under adult supervision.
- This product is only for private use at home and must never be
used in parks and public gardens, in schools, camp sites, hotels,
public leisure areas, etc.
-The Seesaw should be set up on a flat surface and 2 metres away
from all other thing
Structures or obstacles(walls ,fences ,trees ,washing lines or electric
cables etc ).that could cause injury during use.
-The product must not be set up on hard surfaces (concrete, tarmac,
etc) .Grass or soft surface are better .
-The play centre must be embedded firmly into the ground,
respecting the assembly ins tructions，Only use this product when
the concrete is dry.
-The anchorage must be checked regularly ,in addition to the hooks
and fixtures.
Do not throw packaging in nature and do not leave with the range of
children
360 Deg Rotating Seesaw
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
02 03
Thank you for purchasing the 360 Deg Rotating Seesaw
The outdoor play centre you have chosen adheres to European
standards
and has been certified by an independent laboratory.
Advice for assembly
-Respect exactly the assembly instructions .This product must be
assembled by an adult
-Keep the instruction sheet especially for the identification of the
component by the after sales service
-Before commencing, check that none of the parts are missing; You
can retain excess parts as spares for future use when necessary.
Advice for safety
-This product must not used by children under 36 months (the small
parts could be swallowed).It is only for children from 3 to 7 with a
35kg maximum weight, It must be used under adult supervision.
- This product is only for private use at home and must never be
used in parks and public gardens, in schools, camp sites, hotels,
public leisure areas, etc.
-The Seesaw should be set up on a flat surface and 2 metres away
from all other thing
Structures or obstacles(walls ,fences ,trees ,washing lines or electric
cables etc ).that could cause injury during use.
-The product must not be set up on hard surfaces (concrete, tarmac,
etc) .Grass or soft surface are better .
-The play centre must be embedded firmly into the ground,
respecting the assembly ins tructions，Only use this product when
the concrete is dry.
-The anchorage must be checked regularly ,in addition to the hooks
and fixtures.
Do not throw packaging in nature and do not leave with the range of
children
04 05
Maintenance
The metal parts do not need any particular care .However ,in certain
regions( ie seaside areas),certain coatings could be prone to damage
,In this case ,it is advised to use a rust prevention treatment.
All parts that are under constant friction can be oiled regularly whith
a suitable lubricant.
The ground on which the game is placed should be controlled
regularly. All elements such as stones or other objects that could
cause injury in the case of a fall, should be removed.
It is advised to remove the apparatus during the winter period，
when not in use .to avoid any deterioration due to bad weather
conditions.
Practical advice
-Certain safety checks should be carried out regularly on the swing
set. This chek should includes, if necessary ,removing any sharp
edges, replacing missing screw covers, tightening the nuts and bolts
etc, to avoid any danger through normal wear and tear or any
upturning of the swing set.
Fixing into the ground see overleaf
IMPORTANT! For safety reasons .the game must be embedded into
the ground :
Place the game in the desired position ,mark a square 350* 350mm
around each (the feet must be in the centre of the square) and dig a
hole 350mm deep Fill those holes whith a minimum of 300mm of
concrete .Do not exceed the ground level .Fit the embedding piece
into the centre of the concrete so that fixtures for screwing the posts
into place rise out of the concrete when the concrete is dry ,screw
the posts to the embedding pieces.
IMPORTANT! Wait until the concrete is set before using play centre
and check anchorages regularly
S34
x3
S4
x1
L6
x6
Z1
x6
S6
x3
G1
x8
G8
x3
K
x4
Z1
x3
S38
x3
D6
x8
C50
x2
S1
x1
S2
x1
Z6
x2
Z7
x2
O
x2
D8
x4
L8
x4
F1
x8
1
2
3
04 05
Maintenance
The metal parts do not need any particular care .However ,in certain
regions( ie seaside areas),certain coatings could be prone to damage
,In this case ,it is advised to use a rust prevention treatment.
All parts that are under constant friction can be oiled regularly whith
a suitable lubricant.
The ground on which the game is placed should be controlled
regularly. All elements such as stones or other objects that could
cause injury in the case of a fall, should be removed.
It is advised to remove the apparatus during the winter period，
when not in use .to avoid any deterioration due to bad weather
conditions.
Practical advice
-Certain safety checks should be carried out regularly on the swing
set. This chek should includes, if necessary ,removing any sharp
edges, replacing missing screw covers, tightening the nuts and bolts
etc, to avoid any danger through normal wear and tear or any
upturning of the swing set.
Fixing into the ground see overleaf
IMPORTANT! For safety reasons .the game must be embedded into
the ground :
Place the game in the desired position ,mark a square 350* 350mm
around each (the feet must be in the centre of the square) and dig a
hole 350mm deep Fill those holes whith a minimum of 300mm of
concrete .Do not exceed the ground level .Fit the embedding piece
into the centre of the concrete so that fixtures for screwing the posts
into place rise out of the concrete when the concrete is dry ,screw
the posts to the embedding pieces.
IMPORTANT! Wait until the concrete is set before using play centre
and check anchorages regularly
S34
x3
S4
x1
L6
x6
Z1
x6
S6
x3
G1
x8
G8
x3
K
x4
Z1
x3
S38
x3
D6
x8
C50
x2
S1
x1
S2
x1
Z6
x2
Z7
x2
O
x2
D8
x4
L8
x4
F1
x8
1
2
3
4 8
5
6 7
06 07
S3
x2
T2
x4
G8
x4
D8
x4
T3
x2
Z1
x9
Z6
x2
Z7
x2
L6
x6
H
x3
S1
x1
S2
x1
S3
x2
C50
x2
S4
x1
S34
x3
S38
x3
K
x4
F
x2
L8
x7
G1
x8
S6
x3
S10
x2
A4
T2
x4
T3
x2
T7
x1
F1
x8
G8
x10
D6
x8
D8
x14
O
x2
D8
x2
L8
x2
G8
x2
S10
x2
D8
x1
G8
x1
T7
x1
F
x2
H
x3
Φ8/M6x35
Φ8/M6x40
Φ8/M6x55
M6/Φ8x20
Φ6
Φ6
Φ8
Φ8
M6x20
M6x13
M6
K10K13
M8x60
M8x70
4 8
5
6 7
06 07
S3
x2
T2
x4
G8
x4
D8
x4
T3
x2
Z1
x9
Z6
x2
Z7
x2
L6
x6
H
x3
S1
x1
S2
x1
S3
x2
C50
x2
S4
x1
S34
x3
S38
x3
K
x4
F
x2
L8
x7
G1
x8
S6
x3
S10
x2
A4
T2
x4
T3
x2
T7
x1
F1
x8
G8
x10
D6
x8
D8
x14
O
x2
D8
x2
L8
x2
G8
x2
S10
x2
D8
x1
G8
x1
T7
x1
F
x2
H
x3
Φ8/M6x35
Φ8/M6x40
Φ8/M6x55
M6/Φ8x20
Φ6
Φ6
Φ8
Φ8
M6x20
M6x13
M6
K10K13
M8x60
M8x70
