2
ENGLISH
CONTENTS
PREPARATION
INSTALLATION
12 Ceiling-Type Installation
13 Projection Distance per Screen Size
19 Adjusting the Focus of the Projection Display
20 Adjusting the Position of Projection Display

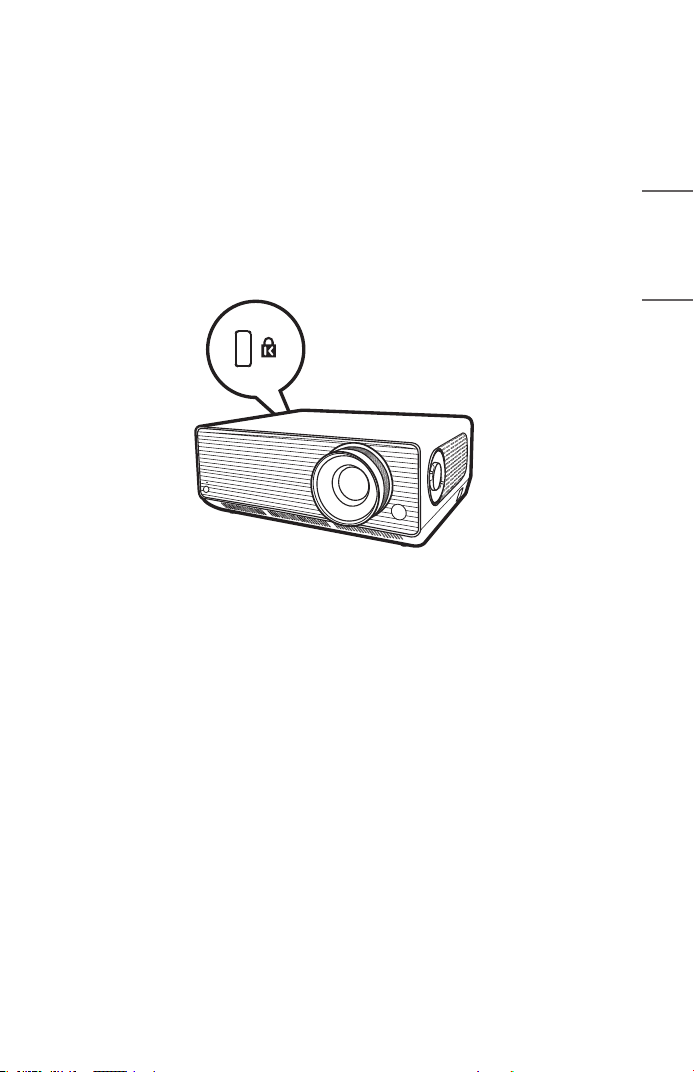

23 Kensington Security System
USING REMOTE CONTROL
24 Inserting Batteries in the Remote Control
25 Viewing the Remote Control Features
MAKING CONNECTIONS
29 Connecting to a PC
29 External Device Connection

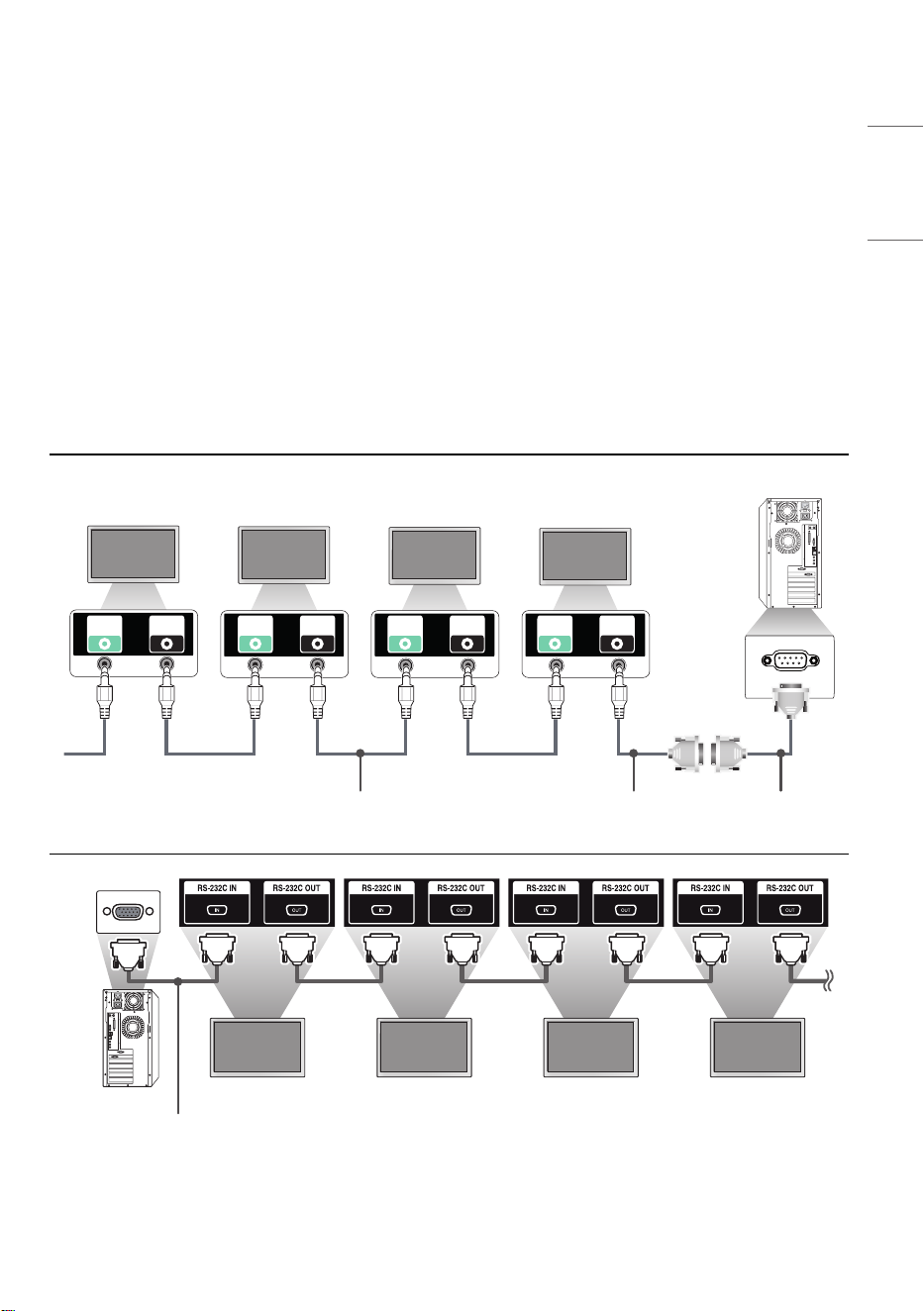

31 Connecting Multiple Projectors
SAFETY PRECAUTIONS
CHECKING BEFORE REPORTING MALFUNCTION
44 Projector Safety Check
45 Troubleshooting
CHECKING INFORMATION
47 Specifications
49 HDMI Supported mode

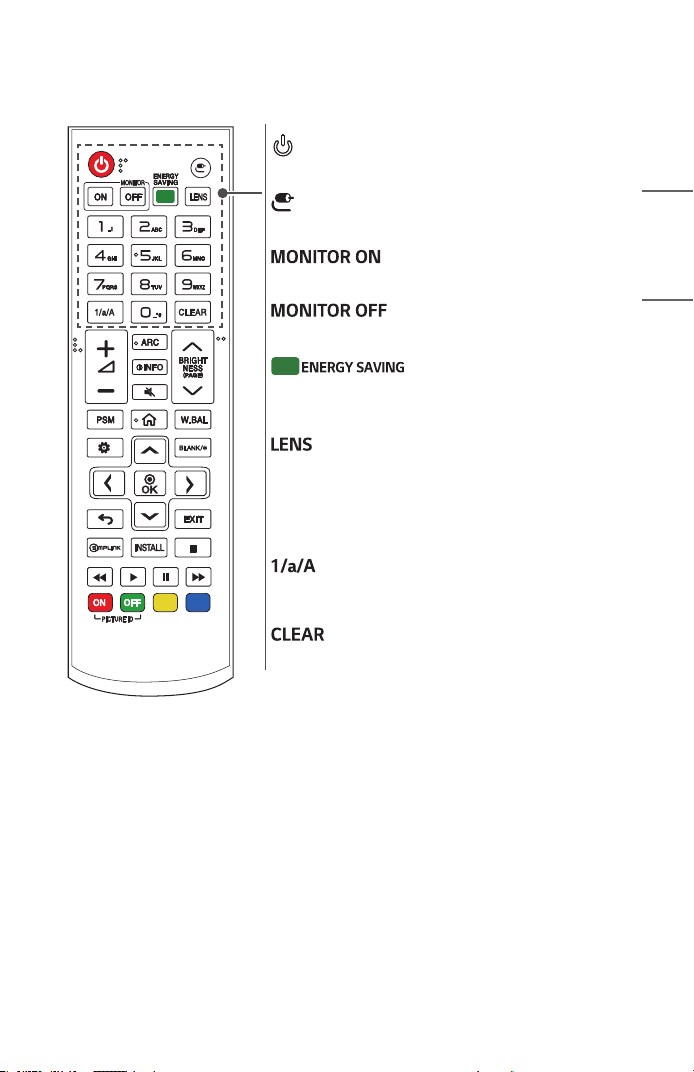

52 Licenses
53 Open Source Software Notice Information
54 Other specifications
55 Symbols
This manual is produced for public use and may contain images or contents
different from the product you purchased.
This manual is subject to change depending on the company’s circumstances.
3
ENGLISH
PREPARATION
The pictures may differ slightly from the actual product.

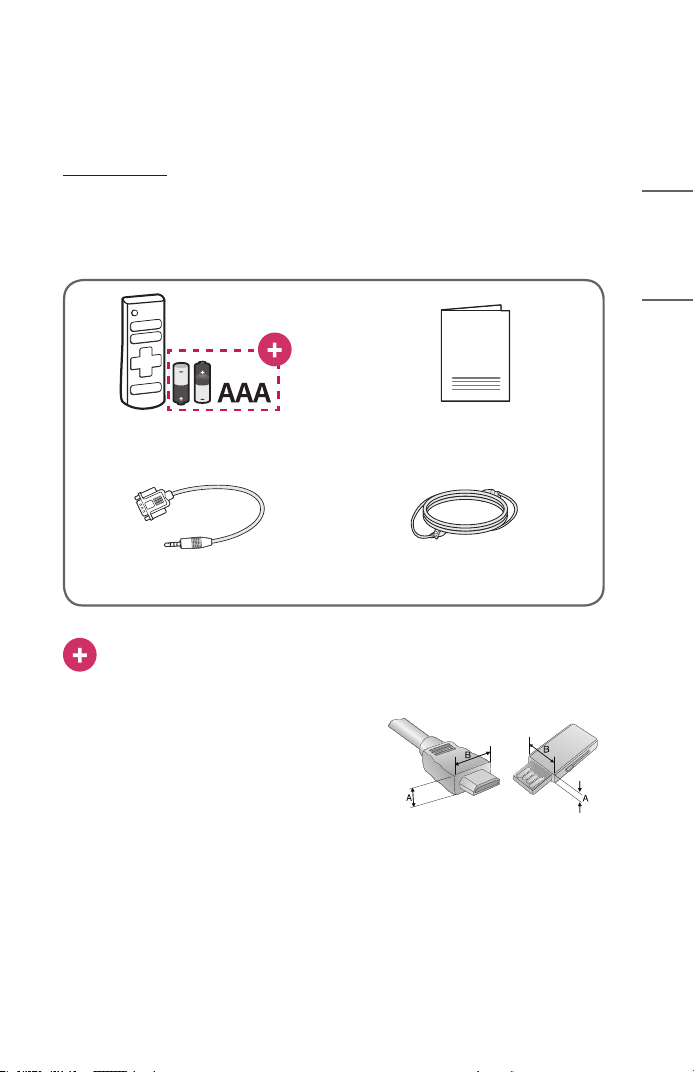

Accessories
Accessories included with the projector are show below.
Accessories are subject to change without prior notice.
New accessories may be added or old ones removed.
Remote Control
Two AAA Batteries
Owner's Manual
D-Sub To Phone Jack Cable Power cord
AAA: Due to the environment government regulations about import and
batteries destruction in Colombia, projectors will not bring the batteries of
remote control included.
• When connecting an HDMI or USB cable, or
connecting a USB flash drive to the HDMI or
USB port, use a product that has a width of
18mm (0.7inches) or less and a height of
10mm (0.3inches) or less. If the USB cable
or USB flash drive does not fit the USB ports
of the projector, use an extension cable that
supports USB 2.0.
A ≤ 10mm (0.3inches)
B ≤ 18mm (0.7inches)
• When connecting two USB devices at the same time, each one should have
bezels less than 8.5mm (0.3inches) thick.
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a
connection error may occur. (Recommended HDMI cable types)
— Ultra High Speed HDMI
®
/™ Cable
4
ENGLISH
Optional Extras
To purchase optional accessories, visit an electronics store or online shopping site or
contact the retail store where you purchased the product. Optional accessories are
subject to change without prior notice.
5
ENGLISH

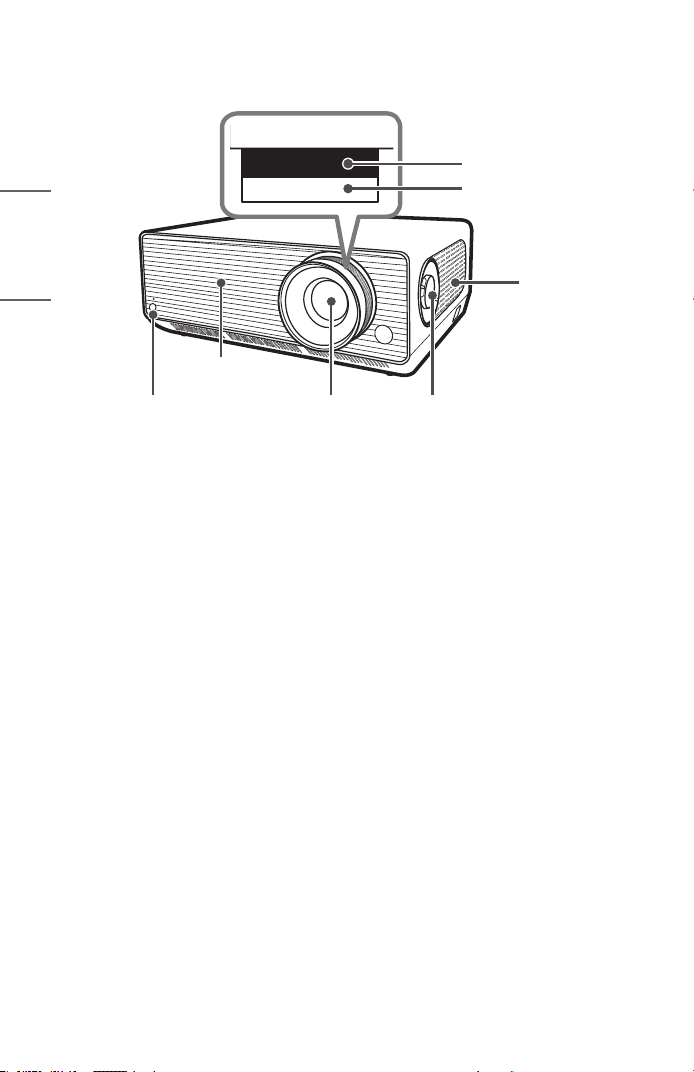

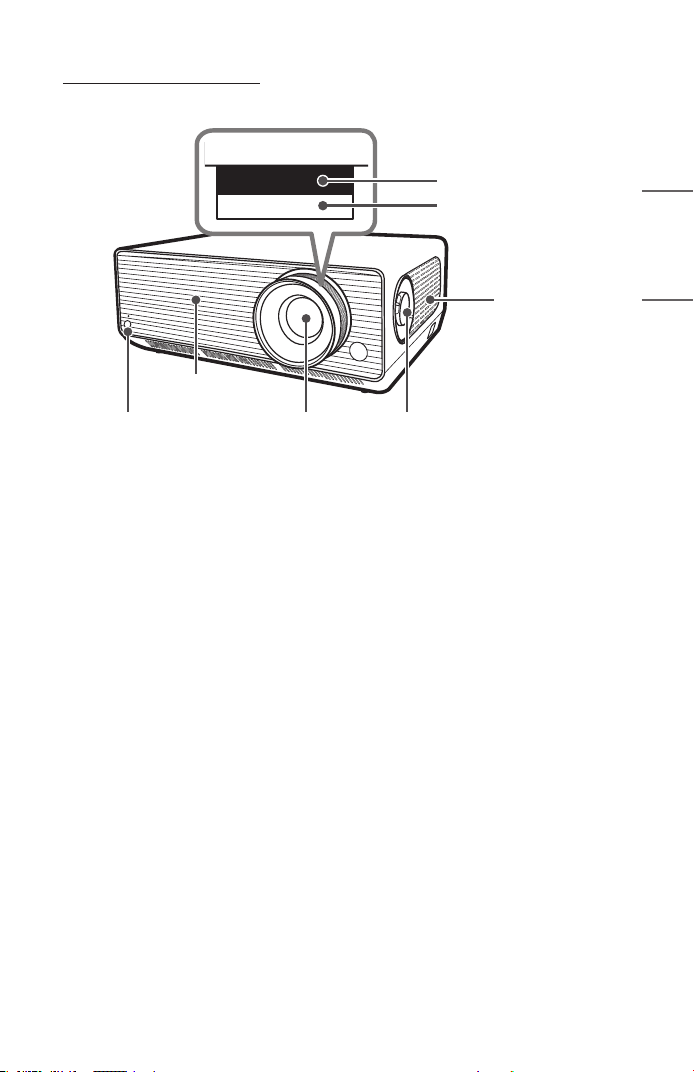

Parts and Components
• BF50RG / BF60RG / DBF510RG model only
Inlet Vent
Inlet Vent
IR Receiver
Projection Screen (Lens)
Position Adjustment Dial
Lens
1)
Focus Ring
Zoom Ring
1) Do not touch the lens when using the projector. The lens may be damaged. (Keep
lens away from sharp objects.)
6
ENGLISH
• BF53RG model only
Inlet Vent
Inlet Vent
IR Receiver
Projection Screen (Lens)
Position Adjustment Dial
Lens
1)
Zoom Ring
Focus Ring
1) Do not touch the lens when using the projector. The lens may be damaged. (Keep
lens away from sharp objects.)
7
ENGLISH

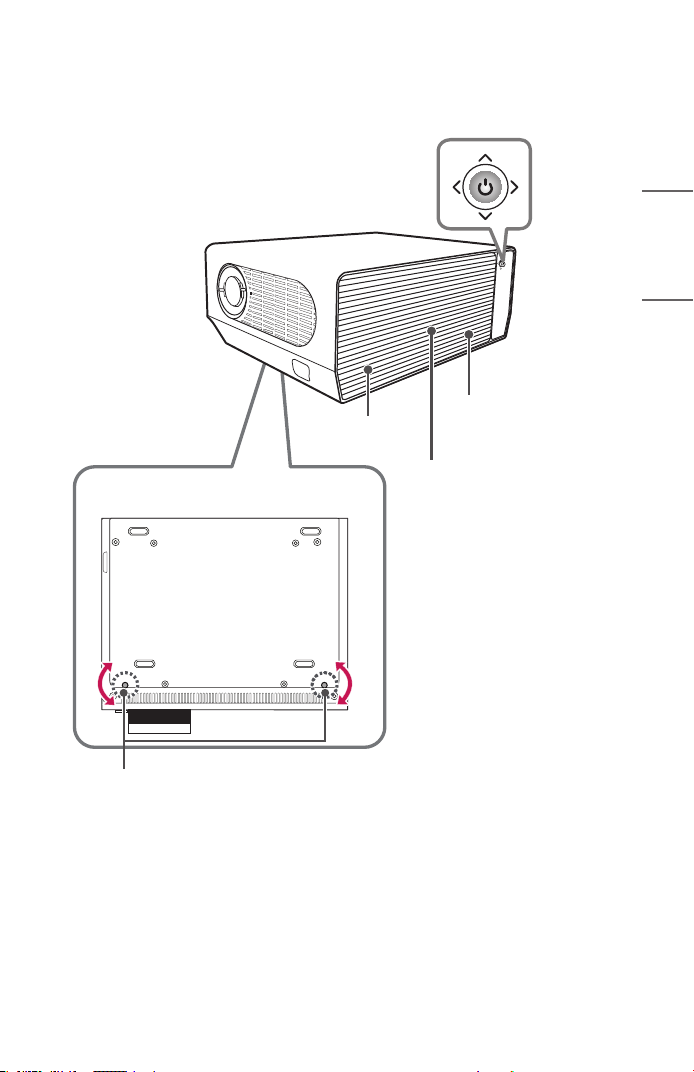

Bottom of the Projector
Adjustable leg
2)
Outlet Vent
1)
Speaker
Speaker
Joystick Button
1) Due to the high temperature of vent area, do not get close to the vent area.
2) Turn the adjustable leg left or right to adjust the angle.
8

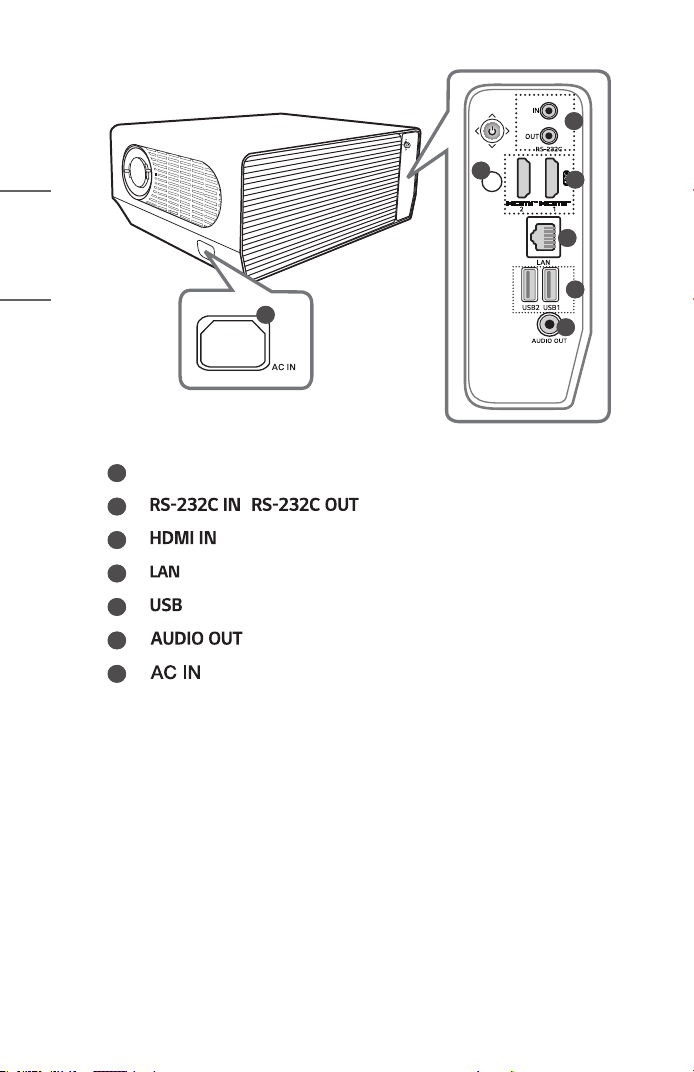

ENGLISH
1
2
3
4
5
6
7
1
IR Receiver
2
/ Port
3
Port
4
Port
5
Port
6
Port
7
(AC IN Port)
9
ENGLISH
Using the Joystick Button
You can operate the projector by pressing the button or moving the joystick left, right,
up, or down.
Basic functions
Power On
When the projector is turned off, place your
nger on the joystick button, press it once, and
release it.
Power Off
(Press and
Hold)
Press and hold the joystick button for more than
3 seconds while the projector is on.
Volume
Control
Place your nger over the joystick button and
move it left or right, you can adjust the volume
level.
Up/Down/
Left/Right
If you move the joystick up, down, left, or right,
you can move the cursor to select the menu
items.
NOTE
• When moving the joystick button up, down, left or right, be careful not to move
the button while it is being pressed. The volume may not be adjusted and the
cursor may not move when the joystick button is pressed and moved.
10
ENGLISH
Adjusting the menu
When the projector is turned on, press the joystick button one time.
You can adjust the menu items moving the joystick button left, right, up, or down. Move
to the desired menu item, and then press the joystick button once to select it.
Turns the power off.
Changes the input source.
Clears on-screen displays and returns to projector viewing.
Displays the Settings menu.
11
ENGLISH

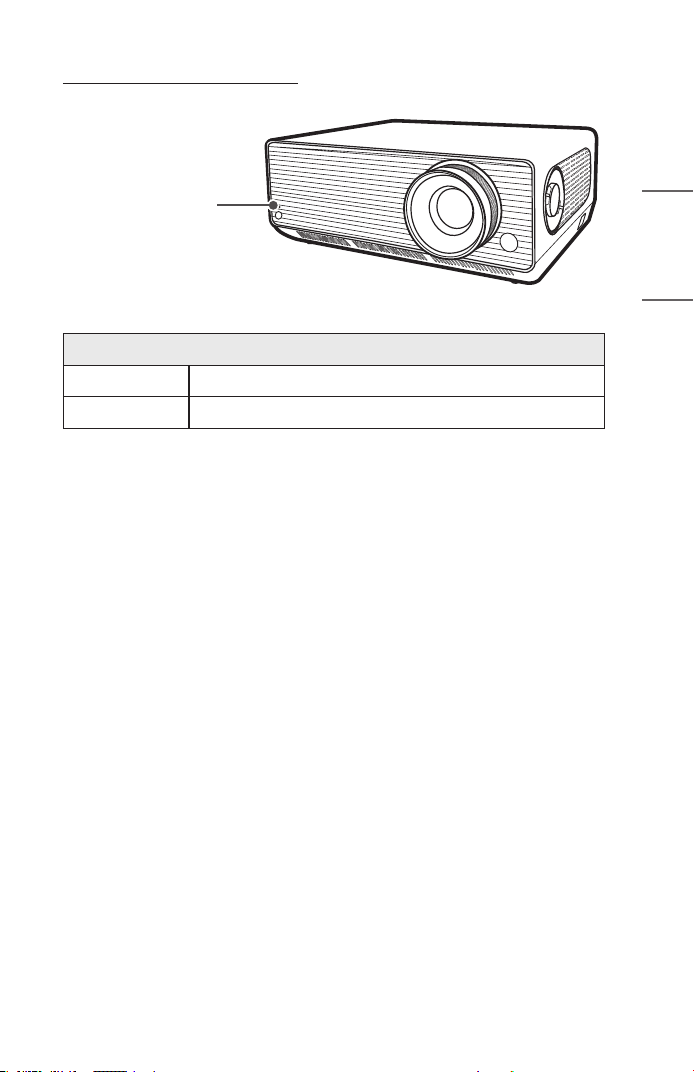

Projector Status Indicators
LED Power Indicator
LED Power Indicator
Red
Power standby state
Off
The projector is operating with the power on.
12
ENGLISH
INSTALLATION
Ceiling-Type Installation
WARNING
When installing the product on the ceiling, observe the following precautions
to prevent the projector from falling:
— It is recommended to install the product through a professional installation
services provider. (If installing on the ceiling, modify the projector’s PJT Mode
settings)
— Do not use adhesive, lubricant, oil, etc. when using the mounting equipment.
— Do not tighten the screws with an excessive force since the projector may fall
due to breakage of the screw connection part.
— Standard screw: M4 x 8 mm, M6 x 10 mm, 1/4-20 UNC x 5 mm
(Applicable screw types may vary depending on the model.)
— Recommended torque: 5-8kgf.cm (4.34-6.94lbf-in)
• A failure to follow the precautions may result in injury or death and product
damage due to the fall of the product.
13
ENGLISH
Projection Distance per Screen Size
1 Place the projector on a sturdy, level surface, together with the PC or audio/
video source.
2 Place the projector an appropriate distance away from the screen. The distance
between the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is at a right angle to the screen. If the
projector is not at a right angle, the projected image will look distorted. To
correct the distortion, use the Edge Adjustment function.
4 Connect the power cord of the projector and the connected device to the wall
outlet.
Ratio of upward projection: 100 %
X/2 X/2
Projection Distance (D)
Screen Height (X)
Screen
Y/2 Y/2
Projection Distance (D)
Screen
Screen Width (Y)
NOTE
• If the projected image looks distorted or bent, check to see if the screen is
installed properly.
14
ENGLISH
Adjusting the Size of Projection Display
2
• BF50RG / BF60RG / DBF510RG model only
1.6 x Zoom 1.0 x Zoom
Zoom Ring
• BF53RG model only
1.2 x Zoom 1.0 x Zoom
Zoom Ring
15
ENGLISH
• BF50RG / BF60RG / DBF510RG model only
16:10 Aspect Ratio (1.6 x Zoom)
Screen Size Screen Width (Y) Screen Height (X)
Projection
Distance (D)
inches mm inches mm inches mm inches mm
40 1016.2 33.9 861.6 21.2 538.5 42.9 1090
60 1525.2 50.8 1292.3 31.7 807.7 65.3 1660
80 2034.2 67.8 1723.1 42.4 1077.0 87.7 2230
100 2543.1 84.7 2153.9 53 1346.2 110.2 2800
120 3052.3 101.7 2584.7 63.5 1615.4 132.2 3360
140 3557.3 118.7 3015.5 74.2 1884.7 154.7 3930
160 4061.4 135.6 3446.3 84.7 2153.9 177.1 4500
180 4572.2 152.6 3877.0 95.4 2423.2 199.6 5070
200 5079.4 169.5 4307.8 106 2692.4 221.6 5630
220 5590.0 186.5 4738.6 116.5 2961.6 244.0 6200
240 6096.9 203.5 5169.4 127.2 3230.9 266.5 6770
260 6601.8 220.4 5600.2 137.7 3500.1 288.9 7340
280 7114.7 237.4 6031.0 148.4 3769.4 311.4 7910
300 7618.7 254.3 6461.7 159 4038.6 333.8 8480
The projection distance may vary depending on the installation conditions.
16
ENGLISH
• BF50RG / BF60RG / DBF510RG model only
16:10 Aspect Ratio (1.0 x Zoom)
Screen Size Screen Width (Y) Screen Height (X)
Projection
Distance (D)
inches mm inches mm inches mm inches mm
40 1016.2 33.9 861.6 21.2 538.5 69.6 1770
60 1525.2 50.8 1292.3 31.7 807.7 105.5 2680
80 2034.2 67.8 1723.1 42.4 1077.0 141.7 3600
100 2543.1 84.7 2153.9 53 1346.2 177.1 4500
120 3052.3 101.7 2584.7 63.5 1615.4 212.2 5390
140 3557.3 118.7 3015.5 74.2 1884.7 248.4 6310
160 4061.4 135.6 3446.3 84.7 2153.9 284.2 7220
180 4572.2 152.6 3877.0 95.4 2423.2 320.0 8130
200 5079.4 169.5 4307.8 106 2692.4 356.2 9050
220 5590.0 186.5 4738.6 116.5 2961.6 391.7 9950
240 6096.9 203.5 5169.4 127.2 3230.9 427.1 10850
260 6601.8 220.4 5600.2 137.7 3500.1 463.7 11780
280 7114.7 237.4 6031.0 148.4 3769.4 498.8 12670
300 7618.7 254.3 6461.7 159 4038.6 535.0 13590
The projection distance may vary depending on the installation conditions.
17
ENGLISH
• BF53RG model only
16:10 Aspect Ratio (1.2 x Zoom)
Screen Size Screen Width (Y) Screen Height (X)
Projection
Distance (D)
inches mm inches mm inches mm inches mm
40 1016.2 33.9 861.6 21.2 538.5 30.9 786
60 1525.2 50.8 1292.3 31.7 807.7 47.1 1197
80 2034.2 67.8 1723.1 42.4 1077.0 63.2 1607
100 2543.1 84.7 2153.9 53 1346.2 79.4 2017
120 3052.3 101.7 2584.7 63.5 1615.4 95.5 2427
140 3557.3 118.7 3015.5 74.2 1884.7 111.6 2837
160 4061.4 135.6 3446.3 84.7 2153.9 127.8 3247
180 4572.2 152.6 3877.0 95.4 2423.2 144.0 3658
200 5079.4 169.5 4307.8 106 2692.4 160.1 4068
220 5590.0 186.5 4738.6 116.5 2961.6 176.2 4478
240 6096.9 203.5 5169.4 127.2 3230.9 192.4 4888
260 6601.8 220.4 5600.2 137.7 3500.1 208.5 5298
280 7114.7 237.4 6031.0 148.4 3769.4 224.7 5709
300 7618.7 254.3 6461.7 159 4038.6 240.9 6119
The projection distance may vary depending on the installation conditions.
18
ENGLISH
• BF53RG model only
16:10 Aspect Ratio (1.0 x Zoom)
Screen Size Screen Width (Y) Screen Height (X)
Projection
Distance (D)
inches mm inches mm inches mm inches mm
40 1016.2 33.9 861.6 21.2 538.5 37.8 962
60 1525.2 50.8 1292.3 31.7 807.7 57.4 1460
80 2034.2 67.8 1723.1 42.4 1077.0 77.0 1957
100 2543.1 84.7 2153.9 53 1346.2 96.6 2455
120 3052.3 101.7 2584.7 63.5 1615.4 116.2 2953
140 3557.3 118.7 3015.5 74.2 1884.7 135.8 3451
160 4061.4 135.6 3446.3 84.7 2153.9 155.4 3948
180 4572.2 152.6 3877.0 95.4 2423.2 175.0 4446
200 5079.4 169.5 4307.8 106 2692.4 194.6 4944
220 5590.0 186.5 4738.6 116.5 2961.6 214.2 5442
240 6096.9 203.5 5169.4 127.2 3230.9 233.8 5940
260 6601.8 220.4 5600.2 137.7 3500.1 253.4 6437
280 7114.7 237.4 6031.0 148.4 3769.4 273.0 6935
300 7618.7 254.3 6461.7 159 4038.6 292.6 7433
The projection distance may vary depending on the installation conditions.
19
ENGLISH

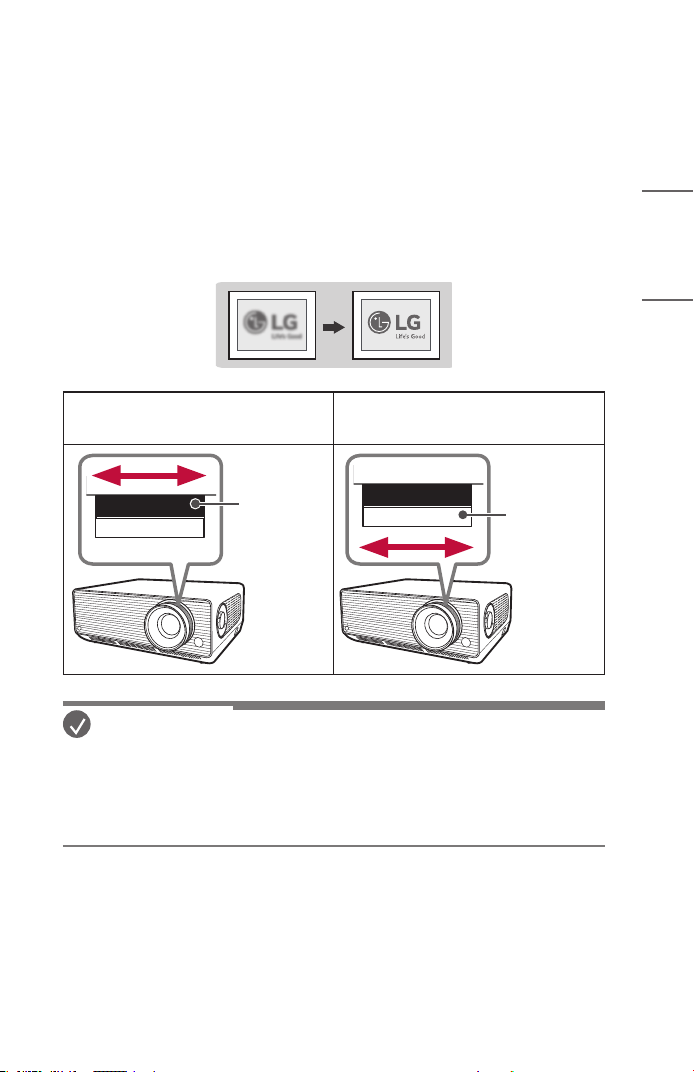

Adjusting the Focus of the Projection Display
When an image appears on the screen, check if it is in focus and ts the screen
properly.
To adjust the focus of the image, slowly adjust the focus ring to the left or right while
looking at the top center of the screen. You can adjust the focus most effectively when
the left and right screen are balanced. When adjusting the focus on the screen, do not
let the product shake.
2
• BF50RG / BF60RG / DBF510RG
model only
• BF53RG model only
Focus Ring
Focus Ring
NOTE
• After using the product at room temperature, turning on the power may blur the
focus if the inside temperature is low, but it will recover over time.
• This defocusing is a temporary phenomenon that occurs in low-temperature
environments, and this will not affect the product’s performance or lifespan.
20
ENGLISH

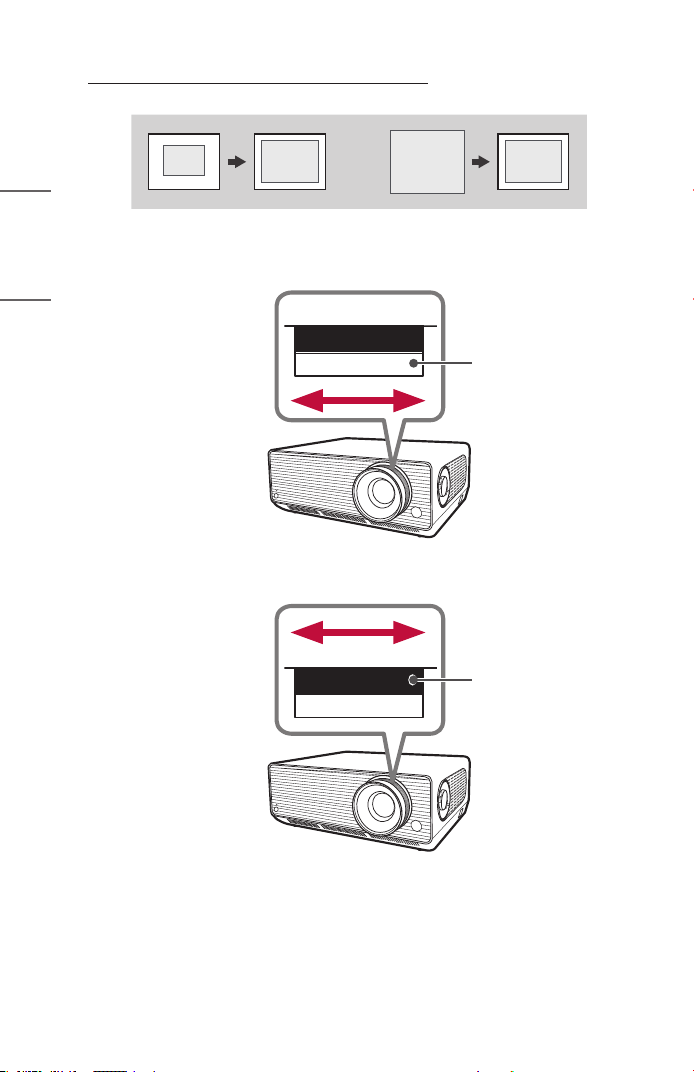

Adjusting the Position of Projection Display
You can use the Projection Screen (Lens) Position Adjustment Dial to adjust the
position of the projection screen without moving the projector up, down, left or right.
If the projection screen does not align properly on the screen even after adjusting
the position of the projection screen using the Projection Screen (Lens) Position
Adjustment Dial, use the [Edge Adjustment] function.

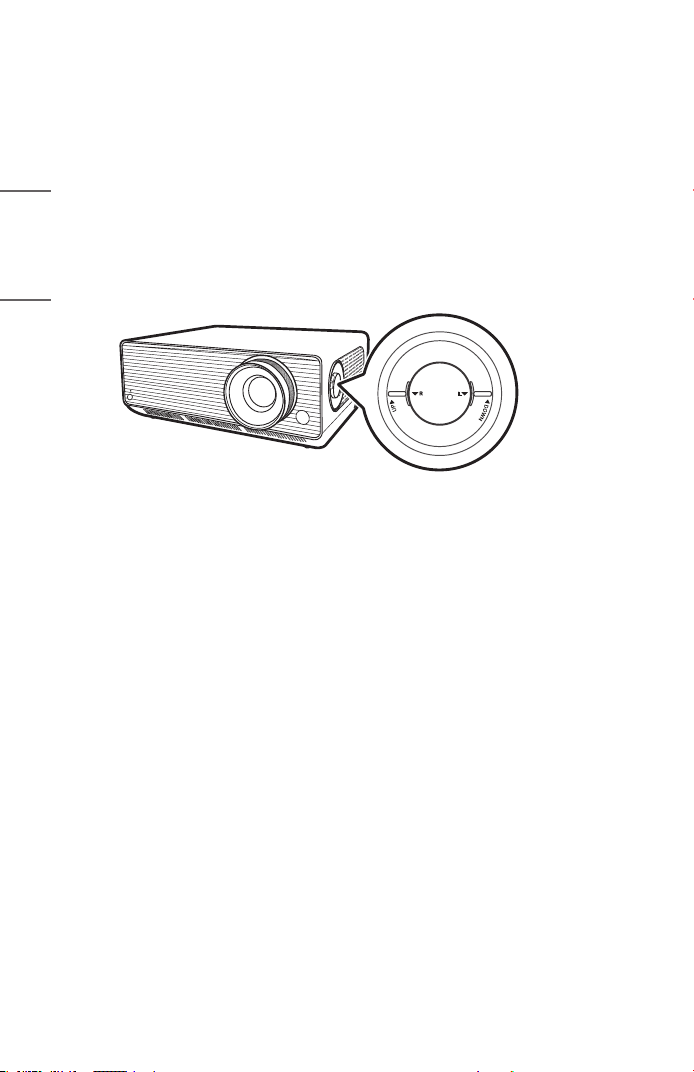

Projection Screen (Lens) Position Adjustment Dial
21
ENGLISH
How to Use the Projection Screen (Lens) Position Adjustment
Dial
You can use the dial to move the position of the projection screen (lens) without
moving the projector.
Up/Down Dial (V-Shift) Left/Right Dial (H-Shift)
CAUTION
• Clicking sounds while rotating the dial indicates that no further adjustment can
be made. Continuing to rotate the dial after reaching the maximum position may
cause damage to the dial.
22
ENGLISH
Adjustment Range of the Position of the Projection Screen
The range for moving the position of the projection screen using the Projection Screen
(Lens) Position Adjustment Dial is shown below.
• When the lens position is at its vertical limit (up/down), you cannot move the
lens horizontally (left/right).
• When the lens position is at its horizontal limit (left/right), you cannot move the
lens vertically (up/down).
Position of the Lens
Position of the Lens
Position Adjustment Range
23
ENGLISH
Kensington Security System
• This projector has a Kensington Security Standard connector as an anti-theft
mechanism. Connect a Kensington Security System cable as shown below.
• For more information on installation and use of the Kensington Security System,
refer to the user’s guide provided with the Kensington Security System.
• The Kensington Security System is an optional accessory.
• What is Kensington?
Kensington is a company that provides safety systems for laptops and other
electronic devices. Website: http://www.kensington.com
24
ENGLISH
USING REMOTE CONTROL
Inserting Batteries in the Remote Control
Use 1.5V, AAA-type alkaline batteries. Replace the two batteries with new ones and
insert them according to the direction indicator inside the remote control.
1 Remove the battery cover on the back of the
remote control.
2 Insert the batteries to match the +, - polarity
symbols.
3 Close the battery cover.
CAUTION
• Do not mix new batteries with old ones.
25
ENGLISH
Viewing the Remote Control Features
(Power)
Turns the Projector on or off.
(Input)
Selects the input mode.
Turns the Projector on.
Turns the Projector off.
Reduces power consumption by adjusting peak
screen brightness.
This function is not supported.
Number and Alphabet buttons
Enters numerical or alphabetical characters depending upon
the setting.
Toggles between numerical and alphabetical. (This function is
not supported.)
Deletes the entered numerical or alphabetical character.
26
ENGLISH

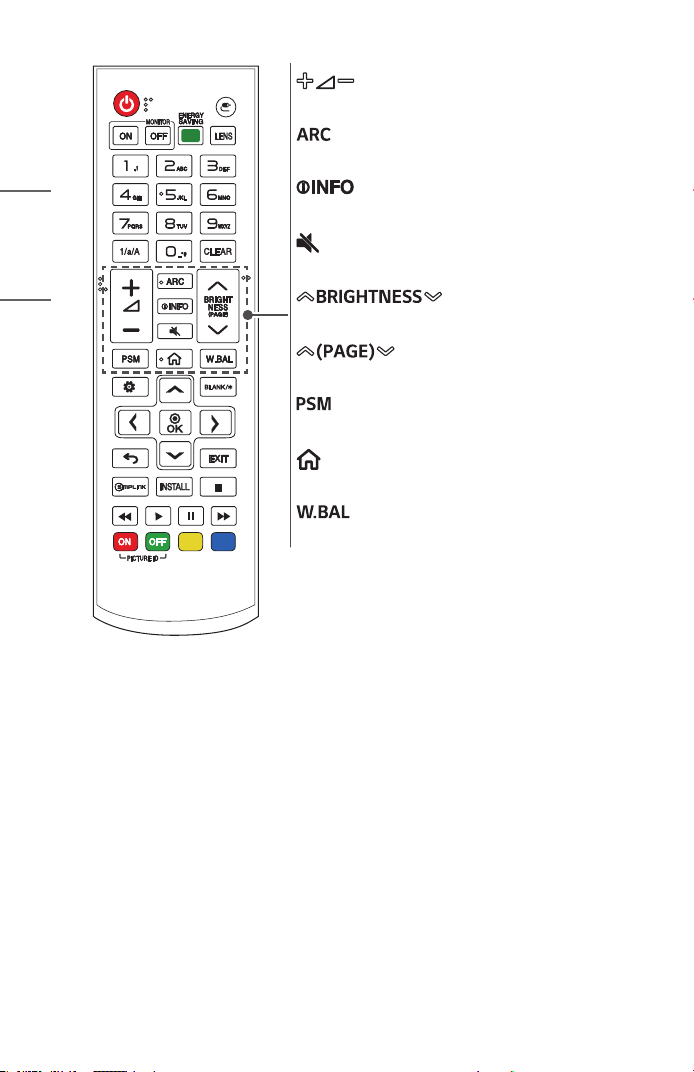

(Volume Button)
Adjusts the volume level.
(Aspect Ratio)
Selects the screen size.
Shows information on the current screen.
(Mute)
Mutes all sounds.
(Brightness Up/Down)
Adjusts the brightness of the display.
(Page Up/Down)
Moves to the previous or next screen.
(Picture Mode)
Selects the Picture Mode.
(Home menu)
Activates the Launcher.
(White Balance)
Enters the White Balance menu.
27
ENGLISH

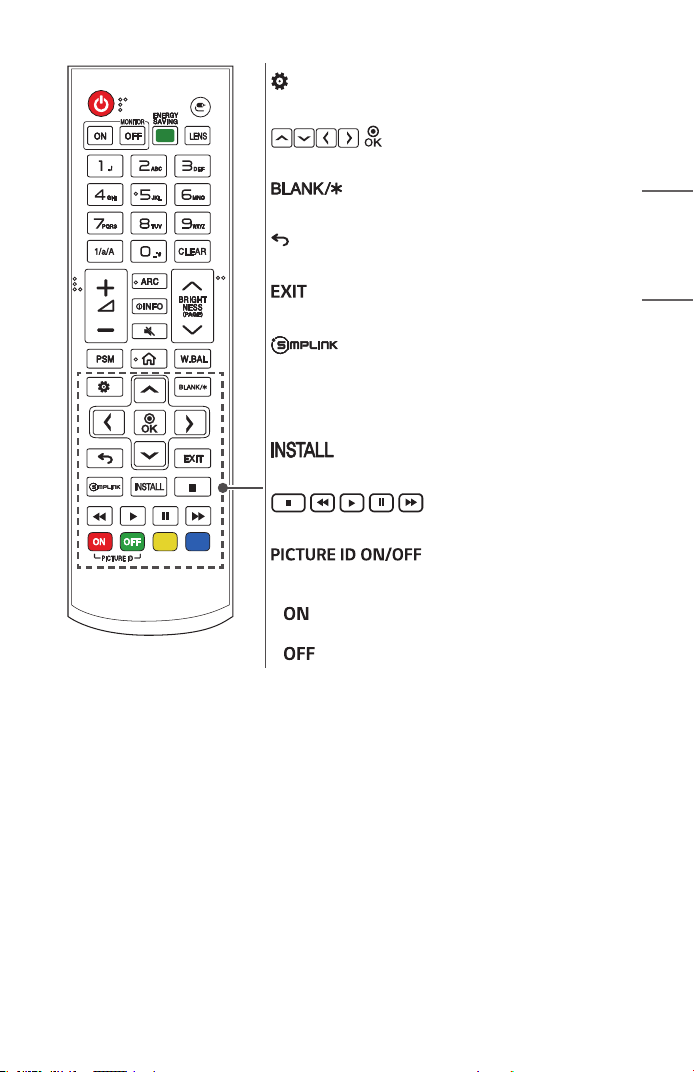

(Settings)
Accesses the main menus or saves your input and exit menus.
, (Up, Down, Left, Right, OK)
After selecting the menu, select and adjust functions.
Blanks the screen.
(Back)
Returns to the previous screen.
Exits the menu.
Allows you to control various multimedia devices to
enjoy multimedia simply by using the remote control
through the SIMPLINK menu.
(Installation Wizard)
Accesses the [Installation Wizard].
(Control Buttons)
Controls media playback.

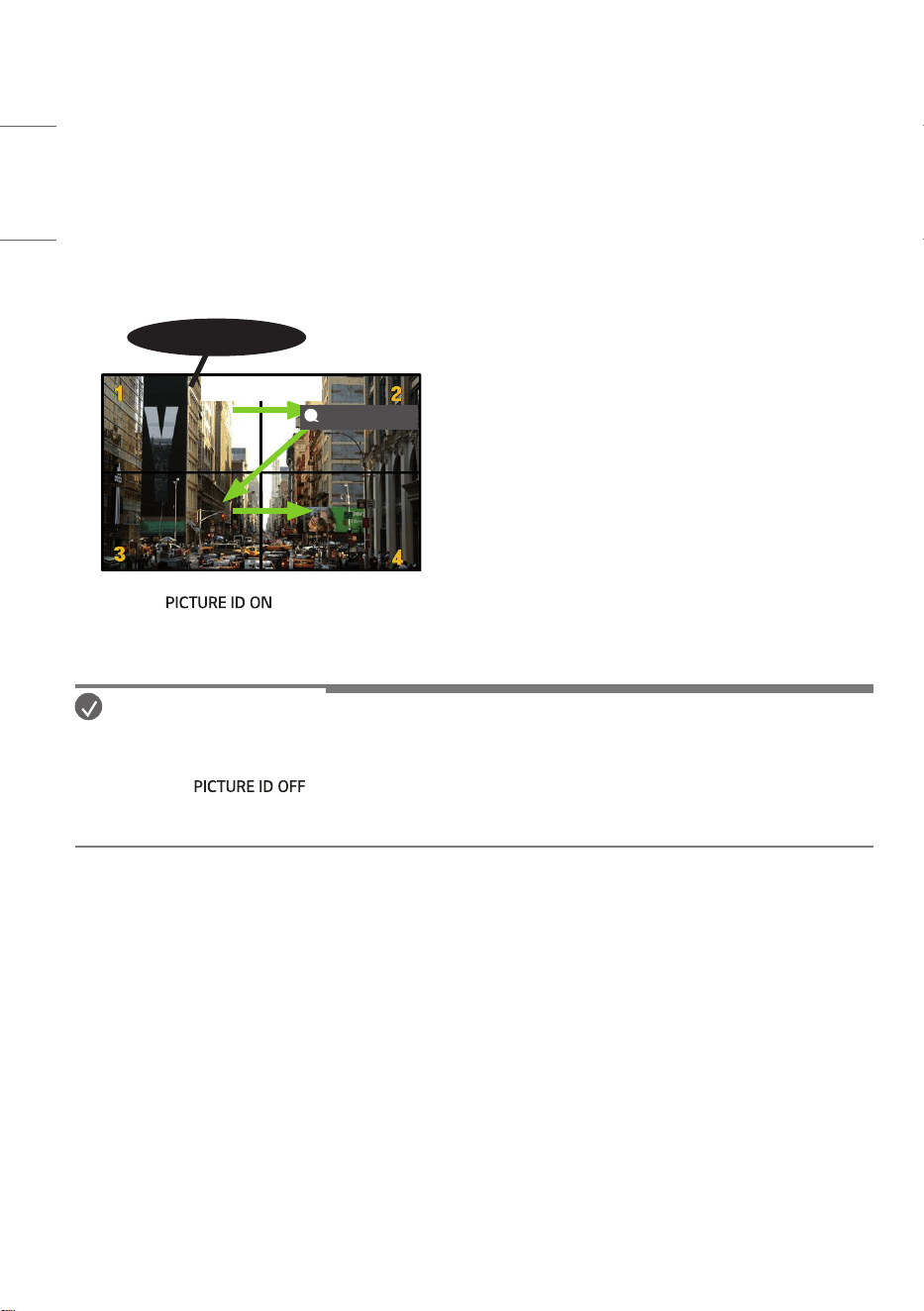

When the Picture ID number matches the Set ID number, you
can control whichever projector you want in multi-display format.
— : Individually control the projectors with an image ID
assigned to each of them.
—
: Control the projectors at once.
28
ENGLISH
NOTE
• When using the remote control, the optimal operation range is 6meters
(19.6feet) or less (left/right) and within a 30 degree arc of the remote control
IR receiver.
• If a cable is connected to the back port, the optimal operating range is 3meters
(9.8feet) or less (left/right) and within a 30 degree arc of the remote control
IR receiver.
• For seamless operation, do not block the IR receiver.
• Some features of the remote control may not be supported in certain models.
• The product’s internal and external batteries should not be exposed to excessive
heat such as direct sunlight, fire, or the like.
• When you carry the remote control in the portable bag, make sure that
the buttons on the remote control are not pressed by the projector, cables,
documents, or any other accessories in the bag. Otherwise, it may significantly
reduce the battery life.
29
ENGLISH
MAKING CONNECTIONS
You can connect various external devices to your projector. Change the input mode and
select the external device you want to connect.
For more information about external device connections, see the user manual provided
with each device.
Connecting to a PC
Some of the cables are not provided. This projector supports the *
feature.
* : a feature that enables a PC to recognize devices attached by the user
without device conguration or user intervention when powering up.
External Device Connection
Connect a HD receiver, DVD, or VCR player to the projector and select an appropriate
input mode.
Some of the cables are not provided. For the best picture and sound quality, connecting
external devices to your projector using HDMI cables is recommended.
30
ENGLISH
NOTE
• For the best image quality, using the projector with HDMI connection is
recommended.
• To comply with the standard specifications of the product, use a shielded
interface cable with a ferrite core, such as a DVI-D/HDMI cable.
• If you turn the projector on when the set is cold, the screen may flicker. This is
normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
• Use a High Speed HDMI
®
/™ cable.
• Use a certified cable with the HDMI logo attached. If you do not use a certified
HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI Cable Types
— High Speed HDMI
®
/™ Cable
— High Speed HDMI
®
/™ Cable with Ethernet
• If you cannot hear any sound in HDMI mode please check your PC settings.
Some PCs require you to manually change the default audio output to HDMI.
• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.
• You may experience compatibility issues if you use HDMI-PC mode.
• Make sure the power cable is disconnected.
• If you connect a gaming device to the projector, use the cable provided with the
gaming device.
31
ENGLISH
Connecting Multiple Projectors
• Images may differ according to the model.
To use multiple products, connect an external device to a product and then connect
one side of the supported signal input cable to the (output) connector of the
product, and connect the other side to the (input) connector of another product to
be connected.
HDMI OUT
HDMI IN
HDMI OUT
HDMI IN
HDMI OUT
HDMI IN
32
ENGLISH
SAFETY PRECAUTIONS
Please take note of the safety instructions to prevent any potential accident or misuse
of the projector.
Child injuries can be prevented by following these simple safety precautions.
The precautions should be followed in the same manner when you store or move your
existing projector.
• Safety precautions are given in two forms, i.e., WARNING and CAUTION as
detailed below.
WARNING: Failure to follow the instructions may cause serious injury and
even death.
CAUTION: Failure to follow the instructions may cause personal injury or
product damage.
• Read the owner’s manual carefully and keep it on hand.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the device.
WARNING/CAUTION
— TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
33
ENGLISH
Read these instructions. Keep these instructions.
Heed all warnings. Follow all instructions.
Indoor Installation
WARNING
Do not install products including projectors and remote controls in the
following places:
— Any place exposed to direct sunlight;
— Any humid place such as bathroom;
— Any place near hot objects such as ammables and stoves;
— Any place where oil, oil mist, and steam can reach such as a worktop or places
near a humidier;
— Any place where water can splash like a vase or the aquarium;
— Any place that is dusty or exposed to wind and rain;
— Any place that is under the air conditioner or is directly exposed to the wind
from the air conditioner;
— Any place near ammable materials such as ammable sprays, etc.; or
— Any cupboard, bookcase shelf or cabinet without a xture installed and any
place where a pet can access.
• It may cause an electric shock, fire, malfunction, deformation or falling.
Be careful not to drop the projector when connecting an external device.
• It may cause injury or damage to the product.
34
ENGLISH
Keep the following precautions in mind to prevent the temperature rise inside
the projector:
— Install the air vents at least 30cm (11.8inches) away from the wall.
— Do not install the product in a place where it cannot be ventilated, such as on a
bookcase or in a closet.
— Do not install the product on carpet or cushion.
— Make sure that the air vents are not blocked with tablecloths, curtains, etc.
• It may cause a fire.
For places where oil or oil mist can reach, do not install the product on a wall
or ceiling.
• The product may be damaged and fall.
Do not allow a child to hang or climb on the installed projector.
• The projector may fall and cause injury or death.
35
ENGLISH
CAUTION
When moving the projector, be sure to turn off the power switch and
disconnect the power plug, antenna cable and the connection cord between
the devices.
• A failure to do so may cause damage to the projector or the cord, resulting in a
fire or electric shock.
Do not install the projector on a shaky shelf, a slanted place, a place subject
to vibrations, a place where the projector is not fully supported or on a fabric
such as tablecloths.
• It may cause injury as the projector falls or tips over, or it may cause a
malfunction of the projector.
To prevent damage to the power cord or plug, do not install the projector
where the cord can be walked on.
• It may cause a fire or electric shock.
When installing the projector, do not install it too close to the wall.
• The cable connection may be deteriorated or the projector and its cables may be
damaged.
When installing the projector on a cabinet or a shelf, make sure that the front
end of the bottom of the projector does not come out.
• The projector may fall due to the unbalance of the center of gravity and cause
injury to people or a malfunction.
36
ENGLISH
When in Use
WARNING
When thunder or lightning strikes, unplug the power cord and do not touch
the antenna wire.
• It may cause an electric shock.
If there is a gas leak from the gas lines, do not touch the outlet and be sure to
vent by opening the window.
• Sparks may be caused and lead to a fire or burns.
When using the product with an external device connected such as a games
console, make sure the connection cable is long enough.
• The product may fall over and cause injury or product damage.
Do not scratch or give an impact on the projector with metallic materials or
objects.
• It may cause injury to people or damage to the product.
Do not insert metallic objects including coins, hairpins or a piece of iron or
ammableobjectssuchaspaperormatchesintotheprojector.
• It may cause a fire or electric shock.
When replacing the batteries used for the remote control, be careful not to let
children eat them and keep the batteries out of reach of children.
• If a child swallows the battery, consult a doctor immediately.
37
ENGLISH
Keep the plastic wrapping of the product out of the reach of children.
• If a child misuses it, it may suffocate the child.
Do not touch near the vents during the operation or immediately after the
power is turned off as they generate intense heat.
• The heat does not indicate a defect or a problem of the projector when it is
operating so use it with confidence.
Do not look into the front of the lens when the projector is operating. Strong
light is projected from the product which can cause injury to your eyes.
Never try to disassemble or modify the projector yourself. Always seek a
qualiedservicetechnicianorconsultyourdealerorlocalServiceCenterfor
inspection, adjustment or repairs.
• It may cause a fire or electric shock.
38
ENGLISH
CAUTION
Do not use any product that uses high voltage electricity near the projector.
(e.g.Anelectricyswatter)
• It may cause a malfunction.
Do not place any liquid containers such as a vase, pot, cup, cosmetics or
medicine, decorations such as candles or any heavy objects on top of the
projector.
• Doing so may cause a fire, electric shock and injury due to failing.
The surface of the AC adapter is hot, so be careful not to put the surface
against your skin or let the children touch the surface during use. (Except for
the models that do not use an adapter)
Do not hold or move the projector upside down by grabbing only the power
cord, signal cable, or projection mirror.
• Doing so may damage the product or cause an electric shock or fire.
Even if the projector is turned off with the remote control or the button, the
power is not completely cut off if the power cord is plugged in.
If you use headphones or earphones, do not use them at high volume or for a
long period of time. (It applies only to the models that support headphones
(earphones).)
• Doing so may damage your hearing.
Do not start the projector when the volume is high.
• A loud volume can cause hearing loss.
Do not use or store the projector outdoors for an extended period of time.
Do not touch the projector’s lens or give an impact on it.
• It may cause damage to the product.
Do not block the light from the projector lens with a person, book or other
objects.
• If the light from the projector shines on an object for a long time, it can cause
fire due to the heat of such light. Also, the reflected light can heat the lens and
cause damage to the projector.
39
ENGLISH
Do not mix old and new batteries together.
• It may cause battery rupture or fire due to liquid leakage or may cause electrical
shock.
When replacing the batteries, make sure that they are properly installed
according to the polarities (+, -).
• Battery rupture or leakage may lead to fire, explosion, injury or contamination
(damage) of the surrounding area.
Donotexposethebatteriestodirectsunlight,replace,electricheater,high
temperatureabove60°C(140°F),excessivelyhumidplacesorexcessiveheat.
• It can cause an explosion or fire.
Do not throw or disassemble the battery.
• It can cause a fire and explosion due to battery damage.
Do not carelessly throw away old batteries.
• It can cause an explosion or fire. The disposal method may vary by country and
region. Dispose of it in an appropriate manner.
Riskofreorexplosionifthebatteryisreplacedbyanincorrecttype.
Supervise children and to never allow them to stare into the projector beam at
any distance from the projector.
Use caution when using the remote control for staring the projector while in
front of the projection lens.
The user to avoid the use of optical aids such as binoculars or telescopes inside
the beam.
Iftheambienttemperaturerisesabove30°C(86°F),thefanmayrunfaster
to protect the internal parts of the projector.
Iftheambienttemperatureexceeds35°C(95°F),thelightoutputmaybe
reduced to protect the projector.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations
of your local authority.
40
ENGLISH
Power
WARNING
Make sure the power plug is securely plugged in to prevent it from shaking.
• If the connection is unstable, it may cause a fire.
Do not plug too many devices into one multi-power outlet.
• This may result in fire due to the power outlet overheating.
Do not insert a metal object such as chopsticks into the other end of the
power plug while it is plugged into a wall outlet. Also, do not touch the power
plug immediately after unplugging it from the outlet.
• It can cause an electric shock.
Connect the power plug to a grounded outlet or multi-tap. (Except for any
device without ground connection)
• A failure to do so may cause an electric shock due to a malfunction or electrical
short.
Never touch the power plug with wet hands.
• It may cause an electric shock.
Disconnect the power plug from the outlet when you are not using the
projector for a long time or absent.
• Dust collects and may cause an electric shock and fire caused by a short circuit
due to heat, ignition and insulation/degradation.
The Power Plug is the disconnecting device. In case of an emergency, the
Power Plug must remain readily accessible.
41
ENGLISH
If any of the following occurs, it could be a malfunction of the product, so
you must immediately turn the projector off, unplug the power cord from the
outlet, and contact the service center:
— When the product is damaged;
— When the product fails;
— When there is a foreign substance inside the product; or
— When the product smokes or smells.
• It may cause a fire or electric shock.
CAUTION
Do not unplug or plug the power plug from/in the outlet while the power
switch is on. (Do not use the power plug as a switch.)
• It may cause a fire or malfunction.
When removing the AC adapter or power cord, be sure to hold the plug part.
• A failure to do so may cause a fire or damage to the product.
Do not damage the AC adapter, power cord or power plug, place heavy objects
on them or give an impact on them.
• It may cause a fire, electric shock or damage to the product.
Attach the power cord and AC adapter connected to the projector in a way
that they are fully seated.
• Poor contact can cause a malfunction of the product and fire.
If there is dust on the pin part of the power plug or the outlet, clean it
thoroughly.
• It may cause a fire.
Keep the power cord away from heat sources.
• The coating of the cord may melt and cause a fire or electric shock.
Use only the authorized power cord or AC adapter supplied by LG Electronics.
Do not use any other products.
• It may cause a malfunction of the product, fire or electric shock.
42
ENGLISH
Cleaning
WARNING
Do not spray water directly onto the projector when cleaning it.
• It may cause a fire or electric shock.
CAUTION
How to clean the projector
— Disconnect the plug from the outlet before cleaning.
— Do not wipe the optical system (the lens and mirror) immediately after the
power is turned off.
— Do not spray the water with a sprayer on the product or wipe the product with
a damp cloth.
— Wipe the product gently with a soft cloth.
— Do not use any detergents, automotive or industrial polishes, abrasives, waxes,
benzenes or alcohols.
• It may cause a fire, electric shock or damage to the projector (deformation,
corrosion, and breakage).
How to clean the lens
— Clean the lens if any dust or smudge appears on the surface of the lens.
— Clean the surface of the lens with an air sprayer or a soft, dry cloth.
— To remove dust or stains on the lens, use a compressed air duster, cotton swab,
or soft cloth to gently wipe the lens.
— Never clean the lens when the projector is operating or immediately after the
projector is turned off.
— Do not use any detergents, automotive or industrial polishes, abrasives, waxes,
benzenes, alcohols, water, etc. on the lens, as they will damage the projector.
Consult your dealer or the service center for cleaning the interior of the
product once a year.
• If you do not clean the interior of the projector for a long time while dust
collects, it may cause a fire or malfunction.
43
ENGLISH
Laser
WARNING
• You risk being exposed to laser radiation if you manipulate or alter the product
in a way not specified in the user manual.
• Be sure not to let infants or people with diseases directly watch the light source.
CAUTION
• This product is a class 1 laser device that meets IEC 60825-1.
Built-in laser standard (class 4 laser module)
• Blue
— Wavelength: 449 nm - 461 nm
— Light output: approx. 95 W (BF50RG/DBF510RG/BF53RG),
approx. 125 W (BF60RG)
Product Laser Class Label
CLASS 1 LASER PRODUCT
1
The laser class label of product is attached to the bottom of the product.
44
ENGLISH
CHECKING BEFORE REPORTING
MALFUNCTION
Please check the list below when you experience the following symptoms during use of
the product. It may not be a failure.
Projector Safety Check
Symptoms
• The projector does not display anything on the screen or output sound when
it is turned on.
• The product emits smoke or a burning smell.
• Water or foreign substances are present inside the product.
• Part of the projected image is cut out.
• A strange noise (crackling or sparking sound) regularly occurs from inside the
projector.
• The projector still displays the screen or outputs sound when it is turned off.
• There are other errors or failures.
Causes and Solutions
• For safety, turn off the power switch and remove the plug from the socket.
• Contact the place of purchase or authorized service center for product
inspection.
• Do not attempt to repair the product yourself.
45
ENGLISH
Troubleshooting
Symptoms Causes and Solutions
I cannot turn on
the Projector.
• Please make sure your projector power plug is correctly
connected to the outlet.
• There may be a problem with the outlet, so try plugging
the power cord of another product into the outlet
where the projector was plugged in.
Cannot control
the Projector
with the remote
control.
• The remote control may not work properly where a
lamp with electronic stabilizer or a three-wavelength
lamp is installed.
— In this case, replace the lamp with electronic
stabilizer or the three-wavelength lamp with
international standard products to ensure the
remote control works properly.
• Check if there is any obstacle between the product and
the remote control.
• When replacing the batteries, make sure that they are
properly installed according to the polarities (+, -).
• Replace both used batteries with new ones.
The power turns
off suddenly.
• Check if the Off time is set.
• See if the external devices are operating together.
• Check if the No Signal Power Off (15 min.) is set. This
product is equipped with the No Signal Power Off
function which allows the power to be automatically
turned off when there is no input signal for 15 minutes.
• Check if the No IR Signal Power Off (4 hours) is set.
• Check if the DPM (Standby Mode) is set.
46
ENGLISH
Symptoms Causes and Solutions
I see dots on the
screen.
• There is a colored dot (bright dots, dark dots, stationary
dots, and/or flickering dots) on the screen.
— This projector was produced with high precision
technology. However, a tiny dark or bright dot may
appear on the screen. This is a common occurrence
due to the production process, and it does not
indicate a functional failure.
※ Bright spot: brightly lit dots, Dark spot: invisible or blurred
point of text or objects, Blinking: ashing dots, Bright dot:
glowing dots that are brighter than regular images
I hear a noise. • Electrical noise: this is a small sound generated from
the operation of the high-speed switching circuit that
supplies current to the projector, and the noise may
vary depending on the product. This noise is normal and
does not affect the projector’s functions. LG Electronics
manages the manufacturing of projectors according to
strict standards. A fixed level of noise does not indicate
a problem. Please understand that this does not allow
you to get an exchange or refund.
• Fan sound: to maintain the temperature inside the
projector at an appropriate level, the fan sound may
increase or decrease depending on the ambient
temperature.
47
ENGLISH
CHECKING INFORMATION
Specications
MODEL
BF50RG (BF50RG-GL) / BF60RG (BF60RG-GL) /
DBF510RG (DBF510RG-GL) / BF53RG (BF53RG-GL)
Resolution (Pixel)
1920 (Horizontal) × 1200 (Vertical)
Aspect ratio
16:10 (Horizontal:Vertical)
Working range of
the remote control
6m (19.6feet) (Max.)
Projection distance
— Screen size
BF50RG/BF60RG/DBF510RG: 1090mm to 8480mm
(42.9inches to 333.8inches)
— 1016.2mm to 7618.7mm (40inches to 300inches)
BF53RG: 786mm to 6119mm (30.9inches to 240.9inches)
— 1016.2mm to 7618.7mm (40inches to 300inches)
Ratio of upward
projection
100 %
Ratio of downward
projection
-100 %
Power
consumption
BF50RG/DBF510RG/BF53RG: 400 W
BF60RG: 460 W
Power
BF50RG/DBF510RG/BF53RG: AC 100 - 240V~, 50/60Hz,
4.0A
BF60RG: AC 100 - 240V~, 50/60Hz, 4.6A
48
ENGLISH
MODEL
BF50RG (BF50RG-GL) / BF60RG (BF60RG-GL) /
DBF510RG (DBF510RG-GL) / BF53RG (BF53RG-GL)
Height
143.7mm (5.6inches) (without foot), 155.7mm (6.1inches)
(with foot)
Width
370mm (14.5inches)
Depth
BF50RG/BF60RG/DBF510RG: 290mm (11.4inches)
(without lens), 326.2mm (12.8inches) (with lens)
BF53RG: 290 mm (11.4inches) (without lens), 332.0 mm
(13.0inches) (with lens)
Weight
9.2 kg (20.2 lbs)
USB Device
5 V, 0.5 A (Max.)
Environment
Condition
Temperature
Operation
0 °C to 40 °C (32 °F to 104 °F)
Storage
-20 °C to 60 °C (-4 °F to 140 °F)
Relative Humidity
Operation
0 % to 80 %
Storage
0 % to 85 %
• Contents in this manual may be changed without prior notice due to upgrade of
product functions.
49
ENGLISH
HDMI Supported mode
DTV
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
640 x 480 31.46 59.94
640 x 480 31.5 60
720 x 480 31.47 59.94
720 x 480 31.5 60
720 x 576 31.25 50
1280 x 720 44.96 59.94
1280 x 720 45 60
1280 x 720 37.5 50
1920 x 1080i 28.12 50
1920 x 1080i 33.72 59.94
1920 x 1080i 33.75 60
1920 x 1080p 26.97 23.97
1920 x 1080p 27 24
1920 x 1080p 33.71 29.97
1920 x 1080p 33.75 30
1920 x 1080p 56.25 50
1920 x 1080p 67.43 59.94
1920 x 1080p 67.5 60
50
ENGLISH
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
3840 x 2160p 53.95 23.98
3840 x 2160p 54 24
3840 x 2160p 56.25 25
3840 x 2160p 61.43 29.97
3840 x 2160p 67.5 30
3840 x 2160p 112.5 50
3840 x 2160p 134.86 59.94
3840 x 2160p 135 60
51
ENGLISH
PC
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
640 x 350 31.46 70.09
720 x 400 31.46 70.08
640 x 480 31.46 59.94
800 x 600 37.87 60.31
1024 x 768 48.36 60
1360 x 768 47.71 60.01
1152 x 864 54.34 60.05
1280 x 1024 63.98 60.02
1920 x 1080 67.5 60
1920 x 1200 74.038 59.95
3840 x 2160 53.95 23.98
3840 x 2160 54 24
3840 x 2160 56.25 25
3840 x 2160 61.43 29.97
3840 x 2160 67.5 30
3840 x 2160 112.5 50
3840 x 2160 134.86 59.94
3840 x 2160 135 60
• If an invalid signal is input into the projector, it will not be displayed properly on
the screen or a message such as [No Signal] or [Invalid Format] will be displayed.
• The projector supports the DDC1/2B type as the Plug and Play function (Auto-
recognition of PC monitor).
• 1920 x 1200 is recommended as the best picture quality in the PC mode.
52
ENGLISH
Licenses
Supported licenses may differ by model. For more information about licenses, visit
www.lg.com.
The terms HDMI, HDMI High-Denition
Multimedia Interface, HDMI trade dress
and the HDMI Logos are trademarks or
registered trademarks of HDMI Licensing
Administrator, Inc.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Vision
IQ, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
53
ENGLISH
Open Source Software Notice Information
To obtain the source code that is contained in this product, under GPL, LGPL, MPL,
and other open source licenses that have the obligation to disclose source code, and
to access all referred license terms, copyright notices and other relevant documents,
please visit https://opensource.lge.com.
LG Electronics will also provide open source code to you on CD-ROM for a charge
covering the cost of performing such distribution (such as the cost of media, shipping,
and handling) upon email request to[email protected].
This offer is valid to anyone in receipt of this information for a period of three
yearsafter our last shipment of this product.
54
ENGLISH
Otherspecications
As with any bright light source, do not stare into the beam, RG2 IEC 62471-
5:2015.
Risk Group 2
CAUTION Possibly hazardous optical radiation
emitted from this product. Do not stare at
operating lamp. May be harmful to the eye.
This label is attached to the bottom of the product and language may differ.
55
ENGLISH
Symbols
Refers to alternating current (AC).
Refers to direct current (DC).
Refers to class II equipment.
Refers to stand-by.
Refers to “ON” (power).
Refers to dangerous voltage.
ABOUT LG PROJECTOR
The images in this user manual are for illustration purposes only and may look different from the real
product.
The contents of this user manual may be changed or added without prior notice to improve the
quality of the product.
Your projector’s OSD (On Screen Display) may differ slightly from that shown in this manual.
[ ]: the buttons and the text to be displayed on the projector screen.
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
ABOUT LG PROJECTOR
www.lg.com
2
ENGLISH
CONTENTS
SETTINGS ......................................4
- Home .......................................................................................4
Global Buttons
Dashboard
[Content Manager]
- Ez Setting .............................................................................5
[Installation Wizard]
[On/Off Scheduler]
[SI Server Setting]
[Server Setting]
[Fail Over]
[Status Mailing]
[Play via URL]
[Setting Data Cloning]
[Sync Mode]
[LG ConnectedCare]
[Multi Screen]
[Office Meeting Mode]
- General ................................................................................15
[Language]
[System Information]
[Set ID]
[Time & Date]
[Power]
[Network]
[User Agreement]
[Audio Guidance]
[Advanced Setting]
- Display .................................................................................27
[Picture Mode]
[Aspect Ratio]
[Rotation]
[Advanced Setting]
- Sound ...................................................................................33
[Sound Mode]
[Sound Out]
[Audio Out]
[AV Sync Adjustment]
[Digital Sound Output]
- Admin ...................................................................................37
[Lock Mode]
[Change Password]
[Enterprise Settings]
[Factory Reset]
CONTENT MANAGER ................ 40
- Web Login .......................................................................... 40
- Content Manager ..........................................................40
[Player]
[Scheduler]
[Editor]
- Group Manager 2.0 ......................................................48
- Screen Share ....................................................................51
How to Use [Screen Share]
- LG Presenter.....................................................................52
How to use LG Presenter
3
ENGLISH
MANAGEMENT TOOLS .............. 53
- Control Manager ............................................................53
- Picture ID ............................................................................54
IR CODE ...................................... 55
CONTROLLING MULTIPLE
PRODUCTS .................................. 57
- Connecting cables .........................................................57
- Communication Parameter ......................................58
- Command Reference List ..........................................59
- Transmission/Reception Protocol .........................63
TROUBLESHOOTING .................. 81
- Troubleshooting Power/Remote Issues .............81
- Troubleshooting Screen Issues ...............................82
- Troubleshooting Sound Issues ................................83
- Troubleshooting PC Connection Issues .............84
- Troubleshooting Movie Playback Issues ............85
- Troubleshooting Network Connection Issues 86
• Software-related content may be changed
without prior notice due to upgrades of the
product functions.
• Some features described in the User Manual may
not be supported in certain models and countries.
• SNMP 2.0 is supported.
4
ENGLISH
SETTINGS
Home
Global Buttons
• [Input]: Navigate to the external input selection screen
• [Setting]: Navigate to the Settings screen
Dashboard
• This feature displays key information about your Projector in the center of the home screen. In the Dashboard, you
can manually change settings by selecting the corresponding items.
NOTE
• If the dashboard is locked, the focus does not move.
[Content Manager]
• [Player]: Play a variety of content including images, videos, and SuperSign content.
• [Scheduler]: Manage schedules for content that will be played at different times.
• [Editor]: You can create your own content using templates and media files.
• [Group Manager 2.0]: Distribute content schedules and setting data to the connected device.
5
ENGLISH
Ez Setting
[Installation Wizard]
[Ez Setting] [Installation Wizard]
• [PJT Mode]: This function turns the projected image upside down or flips horizontal.
• [Edge Adjustment]: [Edge Adjustment] adjusts the horizontal and vertical sides of the projected image if the
projector is at an angle and not perpendicular to the screen. This feature ensures the shape of the projected image is
not distorted. Use this feature only when the projector cannot be set up at the optimal angle. [Edge Adjustment] may
result in a loss of image quality.
- Some models may not be supported.
- The configurable items differ depending upon model.
- [H/V Keystone]: You can adjust the screen in a horizontal/vertical direction.
- [Smooth Adjustment]: Screen adjustment will be adjusted as a curve. You can select this only in the 9, 15, and
25-point screen adjustments.
- You can adjust the screen by selecting one out of [4 points]/[9 points]/[15 points]/[25 points].
>- [4 points]: Screen fit is adjustable using 4 points.
>- [9 points]: Screen fit is adjustable using 9 points.
>- [15 points]: Screen fit is adjustable using 15 points.
>- [25 points]: Screen fit is adjustable using 25 points.
• [Edge Blending]: This setting is for displaying one integrated screen using multiple projectors.
- Some models may not be supported.
- [Video Wall]
>- [Tile Mode]: Turns the [Tile Mode] On/Off.
>- [Tile Mode Setting]: Sets the Tile mode. (Row/Column/Tile ID)
- [Blending Settings]
>- [Blending Mode]: Turns the [Blending Mode] On/Off.
>- [Blending Range Settings]: Sets the blending range. (Screen Size, Overlapping Range, Clip Range, Zoom)
>- [Blending Quality Settings]: Sets the blending quality. (Brightness Level, White Balance, Color Uniformity, Black
Level)
• [Auto Screen Adjustment]: This function automatically adjusts the focus, zoom, lens, and keystone.
- Some models may not be supported.
- If the screen is not installed, it works only within 5 meters (16.4 feet) of the wall.
- If the installation angle between the screen and the product exceeds 10 degrees, it may not work properly.
- If there is an obstacle between the screen and the product, it may not work properly.
- If the screen is a unique and not normal shape, it may not work properly. (If the screen’s border is not black, the
screen may not be identified correctly.)
- When working the [Auto Screen Adjustment] function, if the surrounding environment (brightness, obstacle, etc.)
changes, it may not work properly.
- In an environment so dark that the screen cannot be identified, it may not work properly.
- [Auto Screen Adjustment] function is a function that automatically helps installation, so each function (zoom,
focus, lens shift, screen adjustment) may need to be minutely adjusted after the operation is completed.
- Please refer to a separate page for the screen size and the standard distance between the screen and the product.
6
ENGLISH
• [High Altitude]: If the projector is used at an altitude higher than 1200 meters (3937.0 feet), turn this on.
- Otherwise, the projector may overheat or its protection function may be activated. If this happens, turn the
projector off and then on again after waiting for several minutes.
- Some models may not be supported.
• [Remote Setting]: The power button on the LG TV remote control can be used separately or together with the
projector.
- [Projector + TV]: The power on the projector and TV can be used together. You can turn the projector on and off
with the LG TV remote control.
- [Projector Only]: The power on the projector and TV can be used separately. You cannot turn the projector on and
off with the LG TV remote control.
- Some projector models may not support this feature.
- Other company’s products are not compatible.
• [Blank Mode]: This function temporarily hides the screen.
• [Panel Aspect Ratio]: Select 16:6, 16:9, 16:10, 21:9, 4:3 for the panel screen.
- Some models may not be supported.
7
ENGLISH
[On/Off Scheduler]
[Ez Setting] [On/Off Scheduler]
Set a schedule to use your Projector by time and day of the week.
• [On/Off Time Setting]: Set on/off times for each day of the week.
• [Holiday Setting]: Set holidays by date and by day of the week.
[SI Server Setting]
[Ez Setting] [SI Server Setting] [SI Server Setting]
Set up to connect your Projector to an external SI server. Set up a server environment for SI app installation.
[Ez Setting] [SI Server Setting] [Developer Mode & Beanviser]
This feature provides great convenience to the app developers.
Set up to install and activate the Developer mode and Beanviser app.
NOTE
• To use these features, an account (ID/PASSWORD) for webOS Signage developer website (http://webosSignage.
developer.lge.com/) is required.
[Server Setting]
[Ez Setting] [Server Setting]
Set up to connect your Projector to a SuperSign server.
• CMS Server
• Control Server
• LG Pro:Cloud Server (It may not be supported depending on the model.)
8
ENGLISH
[Fail Over]
[Ez Setting] [Fail Over]
Set the priority of the input devices when a fault occurs. Automatically play the content stored in the device or run the
set app.
• [On/Off]: Turns [Fail Over] on or off.
• [Input Priority]: Set the priority of input sources for fail over.
• [Play Backup Content]: When there is no input signal, this feature automatically plays the content stored in the
device or runs the set app. When set to [On], [Auto Capture Images], [Media Storage],
[SuperSign Content], and [SI App/Play via URL] items are activated.
- [Auto Capture Images]: When the automatic input switches due to taking screenshots of an image or video that is
playing at regular intervals, this feature will play back the file.
>- Capture time Interval: The time interval can be set to 30 min, 1 hour, 2 hours and 3 hours.
- [Media Storage]: When the automatic input switches due to the image and video file being uploaded, the feature
will play back the file.
>- [Backup media select]: Using the settings button, you can upload a single file in the internal / external memory.
>- [Preview]: You can preview the uploaded file.
- [SuperSign Content]: When the automatic input switches, this feature will play the file(s) distributed in SuperSign
CMS.
- [SI App/Play via URL] Run SI App or Play via URL when automatic input switch occurs.
>- [SI App]: SI App behavior depends on the settings from [SI Server Setting] menu in [Ez Setting].
>- [Play via URL]: Play via URL behavior depends on the settings from [Play via URL] menu in [Ez Setting].
>- If both [Play via URL] and [SI Server Setting] can be run, it runs [Play via URL] when automatic input switch
occurs.
• [Reset]: Reset to initial settings.
9
ENGLISH
[Status Mailing]
[Ez Setting] [Status Mailing]
This feature configures the system so that the status of the device is assessed and then notified to the administrator
by e-mail.
• [On/Off]: Turns [Status Mailing] on or off.
• [Mailing Option], [Scheduling]: Sets the email sending interval.
• [User E-mail Address]: Set the user email address of the sender.
• [Sending Server (SMTP)]: Set the address of the SMTP server.
• [ID]: Enter the account ID of the sender.
• [Password]: Enter the password for the sender’s account.
• [Receiver E-mail Address]: Set the email address of the recipient.
• [Send message]: Immediately assess the status of the device and deliver the information to the specified email
address.
• [Reset]: Reset to initial settings.
NOTE
• If the status regarding any of the following items changes or becomes abnormal, a status message can be sent.
- 1. LAN Status, WiFi Status: An email is sent when the network’s connection status is changed. The maximum
number of network status changes that can be saved is limited to 50. The saved value is reset once the power
turns off.
- 2. No Signal Check: Checks whether there is a signal. If there are no signals for more than 10 seconds, an email is
sent.
- 3. Schedule Play Status: An email is sent if content cannot be played between the scheduled start time and end
time in either Content Management Schedule status or SuperSign Content status. However, this does not apply
when terminated using the remote control.
- 4. Fail Over Status: An email is sent if input switching occurred due to an error. (Excludes input switching initiated
by the user (RC, RS232C, SuperSign))
• Only SMTP ports 25, 465, and 587 are supported.
• The occurrence of internal input switches, excluding external input switches (RC, RS232C, SuperSign), are considered
as Fail Over Status.
• One email containing the “Failover status: Failover” message is sent when switching to Fail Over Status, and the
following status emails sent regularly or upon status changes contain the message “Failover status: None”.
10
ENGLISH
[Play via URL]
[Ez Setting] [Play via URL]
Play content you want to play automatically through the built-in web browser.
• [URL Loader]: Turns [Play via URL] on or off.
• [Set URL]: Enter the URL address to display automatically.
• [Preview]: Preview your desired website by accessing the specified URL.
• [Save]: Save the specified URL.
• [Reboot to Apply]: Restarts the Projector set after saving the specified URL.
• [Reset]: Reset to initial settings.
NOTE
• This feature does not apply when [Screen Rotation] is enabled, and using this feature disables [Preview].
• If [Time & Date] is not set to [Set Automatically], website navigation may be difficult.
- Check [General] [Time & Date] [Set Automatically]
[Setting Data Cloning]
[Ez Setting] [Settings Data Cloning]
This feature is used to copy and import the settings of the device to other devices.
• [Export Setting Data]: Export the settings of the device to another device.
• [Import Setting Data]: Import the settings of another device into the device.
[Sync Mode]
[Ez Setting] [Sync Mode]
Sync up time and content among multiple Projector.
• [RS-232C Sync]: Sync up multiple Projector connected by RS-232C.
• [Network contents sync]: Sync up multiple Projector connected to the same network.
11
ENGLISH
[LG ConnectedCare]
[Ez Setting] [LG ConnectedCare]
You can install the [LG ConnectedCare] (fault diagnosis) solution for fault diagnosis and prediction service.
• [Install]: Installs the [LG ConnectedCare] solution.
1) [ENTER ACCOUNT NUMBER]: Enters the 6-digit account number to install the [LG ConnectedCare] solution.
- Account Number: The number assigned when the [LG ConnectedCare] solution is registered. When the account
number is entered, the account name corresponding to the number is obtained.
2) [CONFIRM ACCOUNT NUMBER]: Displays the account number and the account name corresponding to the
account number and validates the account number.
- If the account number is registered, the account name corresponding to the account number is displayed, and you
can continue to install the [LG ConnectedCare] solution.
- If the account number is not registered, “Unknown” is displayed as the account name, and you cannot continue to
install the solution.
• [Enable]/[Disable]: Sets whether to Enable/Disable the [LG ConnectedCare] solution.
• [Account]: Displays user’s currently connected account number and name.
• [Version]: Displays the version of the [LG ConnectedCare] solution.
• [Check for Update]: Checks for available updates in the server.
• [Update]: Updates the [LG ConnectedCare] solution to the latest version.
• [Server Status]: Displays the status of connection between the set and server.
- [Connected]: Displayed when the set and server are connected.
- [Not Connected]: Displayed when the set and server are disconnected.
- [Waiting for Approval]: Displayed when the server is waiting for approval.
- [Rejected]: Displayed when the server rejected the connection.
• [Reset]: Deletes the installed [LG ConnectedCare] solution.
12
ENGLISH

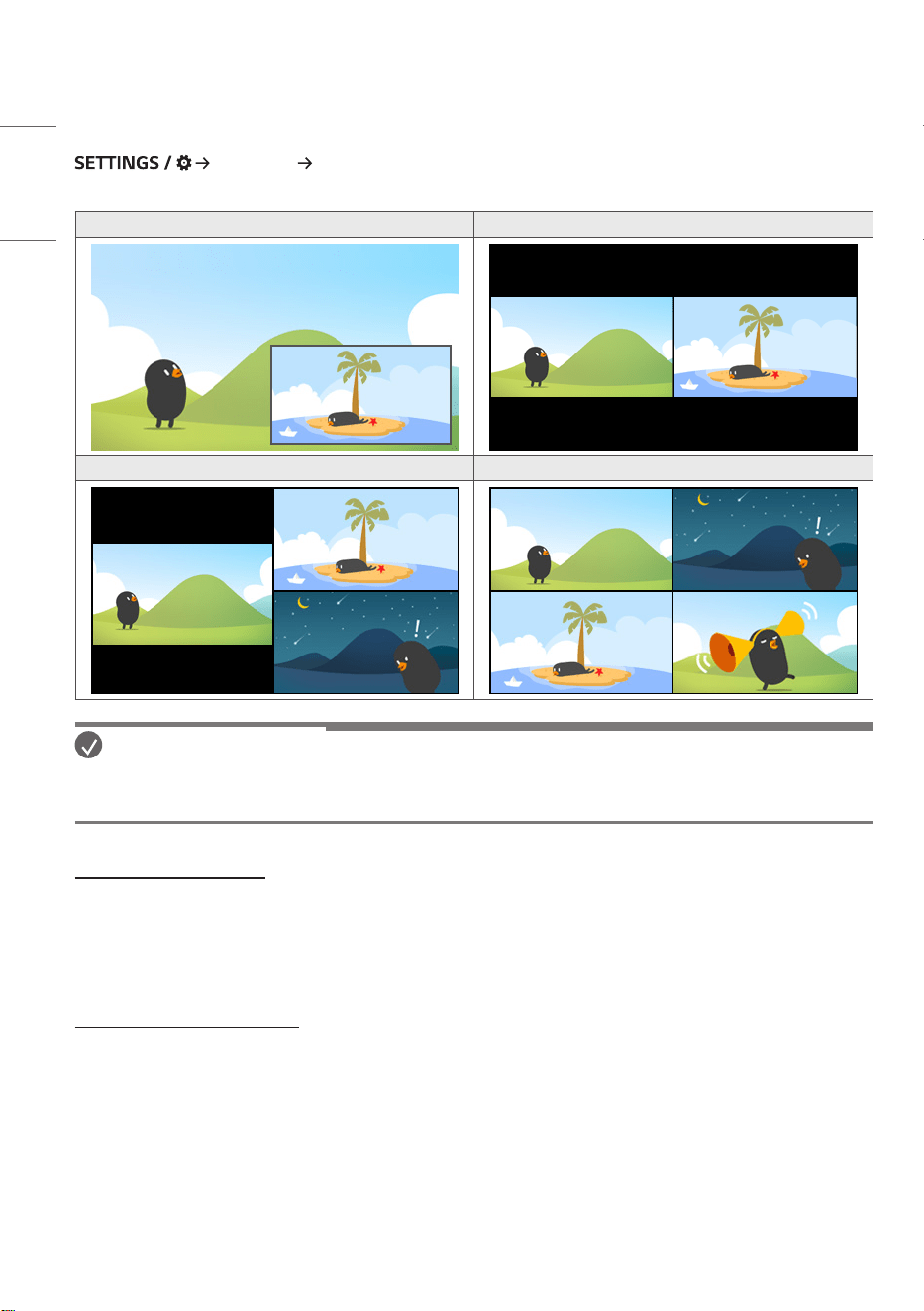

[Multi Screen]
[Ez Setting] [Multi Screen]
This feature allows you to view multiple external inputs and videos on a single screen.
PIP Mode PBP Mode
3-Screen Split Mode 4-Screen Split Mode
NOTE
• In multi-screen mode, the HDMI daisy chain feature is not supported.
• The number of split screens you can have may vary depending on the model.
Selecting Screen Layout
When you enter multi-screen mode without having set any screen layout, the screen layout selection menu appears.
When the screen layout selection menu is not displayed on the screen, go to the screen layout menu bar by pressing
the up arrow key on your remote control and select your desired screen layout. If you want to close the screen layout
menu, press the back key.
Closing Screen Layout Menu
From the screen layout menu, press the up arrow key on the remote control to go to the screen layout menu bar and
select it or press the back key to close the screen layout menu.
13
ENGLISH
Changing Screen Input
Press the button on the top right of each split screen to select the desired input.
NOTE
• Inputs which have already been selected for other split screens cannot be selected again. To select them, press the
reset button to reset the inputs for all screens first.
• The PIP mode works only when Screen Rotation is set to Off or 180.
• Interlaced formats are not supported. E.g. 1080i
• When setting PIP, PBP, 3-division, and 4-division, the maximum supported resolution is as follows.
PIP PBP 3-Division 4-Division
3840 x 2160
1)
3840 x 2160
1)
3840 x 2160
1)
1920 x 1080
1) Some models only support up to 30 frames.
• There may be additional restrictions on media depending on the codec combination.
Playing Videos on Split Screens
Press the button on the upper right of each split screen, select Video File, and then select a storage device to view
the list of videos in the selected device. Next, select your desired video from the list to play it.
NOTE
• Videos created with HEVC, MPEG1,2,4, H.264, VP8 or VP9 codecs can be played on split screens. When using PIP
mode, the following combinations cannot be used.
Main Sub
HEVC HEVC
H.264 HEVC
MPEG2 HEVC
VP9 VP9
H.264 4K MPEG2
H.264 4K VP9
• The limitations of 3 and 4-screen split are as below.
When Using 4K It supports only up to 2 videos.
A combination of max. 4K @ 60 fps + 2K @ 60 fps is available.
However, H.264 4K supports max. 30 fps.
When Using Only 2K 60fps You can combine up to 1 MPEG2, 2 H.264, and 4 other codecs.
30fps You can combine up to 2 MPEG2 and 4 other codecs.
• Recommended Framerate: 24, 25, 30, 60 (including 23.9, 24.9, 29.9, 59.9)
We do not guarantee performance when you play contents with other framerates.
14
ENGLISH
[Office Meeting Mode]
[Ez Setting] [Office Meeting Mode]
You can set up Quick Functions to use the product in a conference room.
• [Office Meeting Mode]: Turning on this feature enables you to set functions related to the conference room meeting
mode.
• [Meeting Guide Screen]
- [Meeting Guide Screen]: Turning on this feature will allow you to use the conference information screen. This
feature is for displaying a background image when there is no external input. Turning it on will turn on the [No
Signal Image] feature.
- [Meeting Room Name]: When the conference information screen is on, you can change the conference room name
displayed on the screen or select whether or not to display the conference room name.
- [Time]: When the conference information screen is on, you can select whether or not to display the current time on
the screen.
• [Advanced Settings]
- [Picture Mode]: Set the same picture mode for all external input supported by this product.
- Input Auto Switching: When an external input is inserted, it is automatically converted to the relevant external
input. Removing the external input or closing the app switches the input back to the previous status. Features
supported by input auto switching are external input, SuperSign content, the SI app, and Play via URL. Turning this
feature on switches the [Ez Setting] [Fail Over] feature off.
>- [SI App]: The SI app operates according to the settings in the [SI Server Setting] menu in [Ez Setting].
>- [Play via URL]: Play via URL operates according to the settings in the [Play via URL] menu in [Ez Setting].
- Auto Power Off: Switch the power off automatically. When this feature is turned on, the [No Signal Power Off (15
Min)] and [No IR Power Off (4hour)] features will be turned on.
- Edit Input Name: Change the name of each external input.
- [Presentation Timer]: Use the presentation timer. Turning on this feature will display the [Presentation Timer] on the
screen for selecting an external input.
>- [Presentation Timer]
>- The time of operation can be set up to 120 minutes in intervals of ten minutes. When the time has been set,
press [Start] to begin the timer.
>- Press the yellow button on the remote control to pause the timer. When the timer is paused, the time is
displayed in blue.
>- Press the yellow button on the remote control to restart the timer.
>- The time is displayed in red when the remaining time is less than three minutes. The time will blink when the
remaining time is less than one minute.
>- Press the blue button on the remote control to end the timer.
>- The UI will disappear automatically ten minutes after the timer has ended.
>- The product may turn off while the timer is still in operation due to the auto-off and power saving settings.
NOTE
• If the No Signal image has been downloaded, turning on [Meeting Guide Screen] will display the downloaded image
first when there is no signal.
• If using the [Meeting Room Name] and [Time] items in the [Meeting Guide Screen], and if using the downloaded
image as the No Signal image, it is recommended to use a brightly-colored image in accordance with the optimal
resolution of the Projector model.
15
ENGLISH
General
[Language]
[General] [Language]
You can select the menu language to be displayed on the screen.
• [Menu Language]: Sets the language of your Projector.
• [Keyboard Language]: Sets the language of the keyboard displayed on the screen.
[System Information]
[General] [System Information]
This feature displays information such as the device name, software version, and storage space.
[Set ID]
[General] [Set ID]
• [Set ID] (1-1000): Assigns a unique Set ID number to each product when several products are connected via RS-
232C. Assign numbers ranging from 1 to 1000 and exit the option. You can control each product separately by using
the Set ID you assigned to each product.
• [Auto Set ID]: Automatically assigns a unique Set ID number to each product when several products are connected
for display.
• [Reset Set ID]: Reset the Set ID of the product to 1.
[Time & Date]
[General] [Time & Date]
This feature enables you to view and change the time and date on the device.
• [Set Automatically]: Set [Time] and [Date].
• [Daylight Saving Time]: Set the start and end times for Daylight Saving Time. The DST start/end times function only
when you set them more than one day apart from each other.
• [Time Zone]: Allows you to change the time zone based on continent, country/region, city or user settings.
• [NTP Server Setting]: Allows you to set other NTP servers other than the basic NTP server.
16
ENGLISH
[Power]
[General] [Power]
Power-related feature settings
[No Signal Power Off (15 Min)]
Set whether to use the 15 Min Auto Off feature.
• You can set this option to [On] or [Off].
• If you set this feature to [On], the product turns off after it’s remained in No Signal status for 15 minutes.
• If you set this feature to [Off], the 15 Min Force Off feature is disabled.
• It is recommended that you set this feature to [Off] if you intend to use the product for long periods of time as the
feature turns the power of the product off.
[No IR Power Off (4hour)]
Set whether to use 4 Hours Off feature.
• You can set this option to [On] or [Off].
• If you set this feature to [On] the product turns off if there is no input from the remote control for 4 hours.
• If you set this feature to [Off], the 4 Hours Off feature is disabled.
• It is recommended that you set this feature to [Off] if you intend to use the product for long periods of time as the
feature turns the power of the product off.
[DPM (Standby Mode)]
Set the Display Power Management (DPM) mode.
• If this feature is not set to [Off], the Projector will enter DPM mode when there is no input signal.
• If you set this feature to [Off], [DPM (Standby Mode)] is disabled.
[DPM (Standby Mode) Wake Up Control]
Turns on the set according to the digital signal processing of the connected HDMI port.
• Some models may not be supported.
• When set to [Clock], the set only checks for digital clock signals and turns on once it finds the clock signal.
• When set to [Clock+DATA], the set turns on if the digital clock and data signals are both input.
17
ENGLISH
[PM Mode]
• [Power Off(Default)]: Set the normal DC off mode.
• [Sustain Aspect Ratio]: The PC retains the Extended Display Identification Data (EDID) even when the power is off.
• [Screen Off]: Switches to [Screen Off] status when entering DPM, Auto Power Off (15 min, 4 hours), or Abnormal
Shut Down mode.
• [Screen Off Always]: Switches to [Screen Off] status when entering DPM, Auto Power Off (15 min, 4 hours), Off
Time Scheduling, or Abnormal Shut Down mode, or when there is input from the remote control’s Power button or
the Projector’s Off button.
• [Network Ready]: Projector is turned off, but you can control power internally through the network.
NOTE
• In order for the screen to switch from [Screen Off] to On status, there must be input from the remote control’s
Power or Input, or button.
[Power On Delay(0-250)]
• This feature prevents overload by implementing a power-on delay when multiple Projector sets turn on.
• You can set the delay interval in the range of 0 to 250 seconds.
[Power On Status]
• Select the operating status of the Projector when the main power has turned on.
• You can choose from among [PWR(Power On)], [STD(Standby)], and [LST(Last Status)].
• [PWR(Power On)] keep the Projector powered on when the main power has turned on.
• [STD(Standby)] switch the Projector to Standby status when the main power has turned on.
• [LST(Last Status)] switches the Projector back to its previous status.
[Wake On LAN (Networked Standby Mode)]
• Set whether to use [Wake On LAN (Networked Standby Mode)].
• You can set the feature to On or Off for each wired/wireless network.
• [Wired]: When set to [On], the [Wake On LAN (Networked Standby Mode)] feature is enabled, letting you turn the
product on remotely through a wired network.
• [Wireless]: When set to [On], the [Wake On LAN (Networked Standby Mode)] feature is enabled, letting you turn the
product on remotely through a wireless network.
18
ENGLISH
[Power On/Off History]
Display the device’s power on/off history.
[Quick Start+]
This setting puts your Projector in standby mode when it’s turned off so it will help using Projector’s functions quicker
when you turn the Projector back on.
• Some models may not be supported.
• Turning this option on may increase energy consumption.
[Network]
[General] [Network]
[Wired Connection (Ethernet)]
• Wired Connection: Connects the Projector to a local area network (LAN) via the LAN port and configures wired
network settings. Only wired network connections are supported. After setting up a physical connection, the display
will automatically connect without any adjustments on most networks. A small number of networks may require the
display settings to be adjusted. For detailed information, contact your Internet provider or consult your router manual.
• 802.1X EAP: Authentication based on IEEE 802.1X is available for wired connection. Select the desired EAP type and
Phase 2 Authentication, enter the ID/Password registered with the authentication server, and press the CONNECT
button to attempt the connection.
[Wi-Fi Connection]
If you have set your Projector up for a wireless network, you can view and connect to available wireless Internet
networks.
• [Add a Hidden Wireless Network]: You can add a wireless network by manually typing in its name.
• [Connect via WPS PBC]: Press the button on the wireless router that supports PBC to easily connect to the router.
• [Connect via WPS PIN]: Enter the PIN number in the web page of the PIN-supporting wireless router to connect to
the router in a simple manner.
• [Advanced Wi-Fi Settings]: When there is no available wireless network displayed on the screen, you can connect to
the wireless network by entering the network information directly.
19
ENGLISH
[Certificate Download]
• Download the certificates used for 802.1X EAP stored in USB.
• Only pem file extension can be downloaded.
NOTE
• On models that support Wi-Fi dongles, the Wireless Network Connection menu is enabled only when a Wi-Fi dongle
is connected.
• When connected to a network that supports IPv6, you can select IPv4 / IPv6 in the wired / wireless network
connection. But, IPv6 connection only supports automatic connection.
[SoftAP]
If you set up a SoftAP, you can connect many devices via a Wi-Fi connection without a wireless router and use wireless
Internet.
• The SoftAP and Screen Share features cannot be used at the same time.
• On models that support Wi-Fi dongles, the SoftAP menu is enabled only when a Wi-Fi dongle is connected to the
product.
• Wi-Fi Channel: You can directly select a Wi-Fi channel.
• SoftAp Access Information
- SSID: A unique identifier necessary to make a wireless Internet connection
- Security Key: The security key you enter to connect to the desired wireless network
- Number of connected devices: Shows the number of devices currently connected to your Projector device via a Wi-
Fi connection. Up to 10 devices are supported.
20
ENGLISH
[Ping Test]
Check your network status with the ping test.
[Port Control]
Unused ports can be blocked for network security.
[Connection Domain]
Change domain for checking network connection.
NOTE
• A reboot is recommended for the settings to be applied properly.
21
ENGLISH
Tips for Network Settings
• Use a standard LAN cable (Cat5 or higher with an RJ45 connector) with this display.
• Many network connection problems during set up can often be fixed by re-setting the router or modem. After
connecting the display to the home network, quickly power off and/or disconnect the power cable of the home
network router or cable modem, Then power on and/or connect the power cable again.
• Depending on the Internet service provider (ISP), the number of devices that can receive INTERNET service may be
limited by the applicable terms of service. For details, contact your ISP.
• LG is not responsible for any malfunction of the display or Internet connection failures due to communication errors/
malfunctions associated with your Internet connection or other connected equipment.
• LG is not responsible for problems within your INTERNET connection.
• You may experience undesired results if the network connection speed does not meet the requirements of the
content being accessed.
• Some INTERNET connection operations may not be possible due to certain restrictions set by the Internet service
provider (ISP) supplying your Internet connection.
• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
NOTE
• If you want to access the Internet directly on your display, the INTERNET connection should always be on.
• If you cannot access the Internet, check the network conditions from a PC on your network.
• When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on.
• If you do not complete the network settings, the network may not function correctly.
CAUTION
• Do not connect a modular phone cable to the LAN port.
• Since there are various connection methods, please follow the specifications of your telecommunication carrier or
Internet service provider.
• Network setting menu will not be available until the display connected to physical network.
22
ENGLISH
Tips for When Configuring Wireless Network Settings
• The wireless network may be affected by interference from a device that uses 2.4 GHz frequency, such as a wireless
telephone, Bluetooth device or microwave. Interference may also be caused by a device that uses 5 GHz frequency
such as Wi-Fi devices.
• The wireless network service may run slowly depending on the surrounding wireless environment.
• Some devices may have a network traffic jam if any local home networks are turned on.
• To connect to a wireless router, a router that supports wireless connection is necessary; the wireless connection
function of the corresponding router must also be activated. Ask the router manufacturer whether the router
supports wireless connection.
• To connect to a wireless router, verify the SSID and security settings of the wireless router. Please refer to the user
guide of the corresponding router regarding SSID and security settings of the wireless router.
• The Projector may not work properly if network devices (wired/wireless router or hub, etc.) are incorrectly set up. Be
sure to install the devices correctly by referring to their user guides before configuring the network connection.
• The connection method may vary according to the manufacturer of the wireless router.
[User Agreement]
[General] [User Agreement]
Check the terms and conditions or change whether to agree or not.
[Audio Guidance]
[General] [Audio Guidance]
If [Audio Guidance] is set to [On], audio guides will be provided in various situations, such as when you adjust the
volume or change settings and input signals.
• [Speed]: Adjust the speed of spoken guide.
• [Volume]: Adjust the volume of spoken guide.
• [Pitch]: Adjust the tone of spoken guide.
• This feature is available on certain languages only.
• Some models may not be supported.
• The configurable items differ depending upon model.
• For visually impaired users.
23
ENGLISH
[Advanced Setting]
[General] [Advanced Setting]
[Beacon]
• This option enables BLE Beacon, one of Bluetooth 4.0’s features.
• Beacon Mode (On/Off Toggle): enables the Beacon feature.
• The LG Beacon/iBeacon/Eddystone Type Beacon features are supported.
• iBeacon
- Beacon UUID (hex): Set the UUID.
1. Field1: 4byte hex value (8 digits)
2. Field2: 2byte hex value (4 digits)
3. Field3: 2byte hex value (4 digits)
4. Field4: 2byte hex value (4 digits)
5. Field5: 6byte hex value (12 digits)
- Major (0–65535): Sets the Major value.
- Minor (0–65535): Sets the Minor value.
• Eddystone
- Frame: Set UUID or URL.
• 1. Setting the URL method
- Beacon UUID (hex): Set the UUID.
1 - Field1: 10byte hex value (20 digits)
2 - Field2: 6byte hex value (12 digits)
• 2. Setting the URL method
- URL Prefix: Sets the prefix of the URL.
- URL Suffix: Set the suffix of the URL.
- URL: Enter the part of the URL that excludes the prefix and suffix.
- URL string length is limited to 15 characters.
• [Check] button: The button used to complete and apply the Beacon settings.
NOTE
• Some models do not support background screening services in iOS.
• A reboot is recommended for the settings to be applied properly.
• The UUID value is hexadecimal and the exact number of digits must be entered.
• The distance to Beacon may vary depending on the device.
• The distance to Beacon may vary depending on the application used in the device.
• The Beacon function is affected by radio waves because it employs the Bluetooth Low Energy (BLE) technology. It
may not function properly if the frequency range is not around 2.4GHz.
• When you set iBeacon, LG Beacon will be set to be the same as the value of iBeacon field. But the LG Beacon setting
item won’t be provided separately.
24
ENGLISH
[Control Interface]
Devices connected to the display can be controlled via the interface.
• [PC Power Control]: Enable you to control the power of PC as you turn the display on and off.
- [Disable]: Disable [PC Power Control].
- [Sync(On)]: Set the PC power to be turned on when the display is turned on.
- [Sync(On/Off)]: Set the PC power to be turned on when the display is turned on and set the PC power to be turned
off when the display is turned off.
• [Control Interface Selection]: Select the serial communication path between the display and the connected devices.
- Some models may not be supported.
- [Display]: Serial communication is available via a display RS-232C IN terminal.
- [HDBaseT]: Serial communication is available with the display via HDBaseT equipment.
NOTE
• Depending on the model, it can be displayed as [PC Control].
• Some models may not be supported.
• Depending on the supported interface, the sub-menu of [Control Interface Selection] may be different.
• The PC products that support the power control are MP500/MP700, and you have to purchase them separately if
necessary.
• If you change [Control Interface Selection], the [RS232C SYNC] feature of [Sync Mode] may be restricted.
- Depending on model
[Background Image]
This feature enables you to set the default background image.
• [Booting Logo Image]: Change the logo image that appears when the device boots up. If you set this option to Off, no
logo image appears when the device boots up. Download or initialize an image file on the storage device.
• [No Signal Image]: Change the image that appears when there is no signal. If you set this option to Off, no image
appears when there is no signal. Download or initialize an image file on the storage device.
NOTE
• To download an image, an image file must exist in a folder named “LG_MONITOR” or “lg_monitor” in the external
memory (USB).
• Supported image file formats: “BMP”, “JPG”
25
ENGLISH
[Input Manager]
You can set the PC or DTV label for each external input.
[SIMPLINK Setup]
• When the [SIMPLINK Setup] is set to [On], you can use the SIMPLINK provided by LG Projector.
• [Device ID]: Set the ID of the device connected via CEC wiring. You can choose a value between [All] and [E].
• [StandBy]: Sets the scenarios for sending and receiving the OpStandBy (0x0c) command. Detailed scenarios are as
follows:
Transmission Reception
All O O
Send Only O X
Receive Only X O
[Crestron]
(Depending on model)
[Crestron Connected] V1
• This function enables synchronization with applications provided by Crestron.
• [Server]: This menu sets the server’s IP address for the network connection with the server (equipment provided by
Crestron).
• [Port] (1024~65535): This menu sets the port for the network connection with the server. The default port number
is 41794.
• [IP ID] (3-254): This menu sets a unique ID for synchronizing with the application.
[Crestron Connected] V2
• The connection status of the server type shall be indicated by pictures and phrases. (Disconnected, Connecting,
Connected)
• [Type]: You can select the server type you want to connect to (Off, , , )
• [CONNECT]: If you press the button once, a set tries to connect to the server and the button phrase is changed into
[DISCONNECT]. In this case, the upper items are immutable. To disconnect and change upper items, pressing the
button again is needed.
• Information for connecting with the server
- [Type]:
- [Server]: Enter the IP information of the server
- [Port]: Enter the Port information for the server
- [IP ID]: A unique ID that distinguishes crestron equipment from server
- [Type]:
- [Room ID]: A unique ID that distinguishes room from server. If the [IP ID] is the same, but the [Room ID] is
different, the server recognizes it as a different equipment.
- [Server], [Port], [IP ID] are the same as ’s.
26
ENGLISH
- [Type]:
- [Method]: Connection direction can be selected. ([Device to Fusion], [Fusion to Device])
- [Device to Fusion]: How to connect from set to server
- [URL]: Server URL
- [Port]: Server Port
- [Fusion to Device]: How to connect from server to set
• [Auto Discovery]: The ability to locate other Crestron equipment in the network
• [SSL]: Communication security with server can be established. The following items are meaningful only at [SSL] on
- [User], [Password]: When the [Authentication] function is turned on on the server, [User] and [Password] must be
entered to connect with the server.
- [Verify Certificate]: A feature that checks whether a certificate installed on a server is valid. If it is not valid, it does
not connect to the server
- [Certificate Download]: The certificate must be stored in the set to perform the [Verify Certificate] function. Only
certificates with extensions .pem, .crt in the USB root directory are recognized and can be added or deleted through
the menu. All certificates stored at the time of [Factory Reset] are deleted.
[LG promota]
This feature allows connection of promota app on mobile device.
For more information on how to use it, please visit the promota website (https://www.promota.net/).
Autorun promota App function automatically runs promota after booting.
27
ENGLISH
Display
[Picture Mode]
[Display] [Picture Mode]
[Mode]
This feature enables you to choose the optimal picture mode for your installation environment.
• [Mall/QSR], [Transportation], [Education], [Screen Game], [Gov./Corp.]: Display the picture optimally for your
installation environment.
• [General]: Display the picture at normal contrast, brightness, and sharpness.
• [Expert], [Calibration]: Allow an expert, or anyone who loves picture quality, to manually tune to the best picture
quality.
• [Hospital]: An image setting mode optimized for medical images.
NOTE
• The type of [Picture Mode] you can select may vary depending on the model or input signal.
• [Expert] is an option that allows a picture quality expert to fine-tune the picture quality using a specific image. Thus,
it may not be effective for a normal picture.
• When changing [Picture Mode], the aperture of the lens may move and make a sound, which is a normal operation.
- Depending on model
[HDR]
This feature enables you to choose the optimal picture mode for your installation environment.
• [Mall/QSR]: sharpens the image by increasing the contrast, brightness and sharpness.
• [General]: In a normal viewing environment, it opens a screen that can properly show the expressiveness and
brightness of HDR.
• [Gov./Corp.]: The screen appears brighter and clearer than of the General screen.
• [Education]: Suitable picture for education.
• [Screen Game]: Suitable picture for screen game.
28
ENGLISH
[Customize]
• [Contrast]: Adjust the difference between the light and dark areas of the picture. The closer the value is to 100, the
greater the difference is.
• [Brightness]: Adjust the overall brightness of the screen. The closer the value is to 100, the brighter the screen is.
• [Sharpness]: Adjust the sharpness of the edges of objects. The closer the value is to 50, the clearer and the sharper
the edge becomes.
• [Color]: Soften or deepen the tints on the screen. The closer the value is to 100, the deeper the colors become.
• [Tint]: Adjust the balance between red and green levels displayed on the screen. The closer to Red 50, the redder the
color will be. The closer to Green 50, the greener the color will be.
• [Color Temperature]: The higher you set the color temperature, the cooler the colors on the screen will feel. The lower
you set the color temperature, the warmer the colors on the screen will feel.
• [Advanced Controls] / [Expert Controls]: Customize the advanced options.
- [Dynamic Contrast]: Optimize the difference between the light and dark parts of the screen according to the
brightness of the image.
- [Super Resolution]: Sharpen the areas of the screen that are blurry or barely distinguishable.
- [Color Gamut]: Select the range of colors available.
- [Dynamic Color]: Adjust the tint and saturation of the image for a more vivid and lively display.
- [Gamma]: Adjust gamma settings to compensate for the brightness of the input signal.
- [White Balance]: Adjust the overall color fidelity of the screen to your liking. In Expert mode, you can fine-tune the
picture using the Method/Pattern options.
- [Color Management System]: Experts use the color management system when they adjust the colors by using the
test pattern. The color management system allows you to make an adjustment by selecting from among 6 different
color spaces (Red/Yellow/Blue/Cyan/Magenta/Green) without affecting other colors. In a normal picture, you may
not notice the color changes you have made.
- [Dynamic Tone Mapping]: Suitable contrast settings based on image brightness of the HDR content.
29
ENGLISH
• [Picture Option]: Customize the picture options.
- [Noise Reduction]: Remove randomly popping dots to make the picture look clearer.
- [MPEG Noise Reduction]: Reduce the noise generated in the process of creating a digital video signal.
- [Smooth Gradation]: Reduces step-shaped irregularities in the image edges, resulting in a smooth display.
- [Black Level]: Adjust the brightness and contrast of the screen by adjusting the black level of the screen.
(Recommended settings based on input signals: RGB 0 - 255: High, RGB 16 - 235: Low, YCbCr: Low)
- [Real Cinema]: Optimize the video image for a cinematic look.
- [TruMotion]: Reduce image shaking and image sticking that can occur with /moving images. (If you set the [External
Input Rotation], this feature is unavailable.)
• [Apply to all inputs]: Copies the current value of the detailed setting menu to the entire input, and applies only to the
selected picture mode.
• [Reset]: Reset the picture settings. Because the picture settings are reset according to the Projector’s picture mode,
please select the picture mode before resetting the picture settings.
30
ENGLISH
[Aspect Ratio]
[Display] [Aspect Ratio]
This feature enables you to change the picture size to view the picture at its optimal resolution.
• [Full]: Stretch the picture to fill the screen.
• [Original]: Display the picture at its original resolution.
[Rotation]
[Display] [Rotation]
[Screen Rotation]
• This feature rotates the screen clockwise.
• You can set this feature to Off/90/180/270.
• When set to off, this feature is deactivated.
• It is recommended that you use content designed to be used in Portrait mode.
• When the screen rotation is enabled, the PIP mode of the multi-screen is unavailable.
[External Input Rotation]
• This feature rotates the screen clockwise.
• You can set this feature to Off/90/180/270.
• Setting External Input Rotation to On (90 or 270) resizes the video to be [Full Wide] for the ARC.
• If [External Input Rotation] is enabled during WiDi operation, the position of the mouse cursor may not be displayed
accurately.
• Please note that the degradation of picture quality that occurs when you have enabled [External Input Rotation]
during the use of external input has nothing to do with the product itself.
31
ENGLISH
[Advanced Setting]
[Display] [Advanced Setting]
[UHD Deep Color]
If you connect an HDMI or DP device to one of the Deep Color adjustable ports, you can select between UHD Deep
Color On (6G) or Off (3G) in the UHD Deep Color settings menu.
If a compatibility issue occurs with a graphics card when the Deep Color option is set to On at 3840 x 2160 @ 60 Hz,
set the Deep Color option back to Off.
• HDMI, and DP specifications may vary depending on the input port. Check the specifications of each device before
connecting.
• HDMI input port 1, 2 is best suited for high definition videos that are 4K@60 Hz (4:4:4, 4:2:2). However, video or
audio may not be supported depending on the specifications of the external device. If this is the case, please connect
the device to a different HDMI port.
• This feature may not be available on some models.
[Average Picture Level Auto Control]
Can use image quality control based on APL (Average Picture Level) of the Projector input image.
When using the Projector as a Video Wall, it is recommended to set this function off to prevent an image quality
difference between the Projectors. (Depending on model)
NOTE
• Return to default settings by clicking [Admin] > [Factory Reset].
32
ENGLISH
[Energy Saving]
• [Brightness Control]: Adjust the brightness of the screen to save energy.
- Minimum/Medium/Maximum: Use energy saving according to the energy saving level set for the Projector.
NOTE
• Return to default settings by clicking [Admin] > [Factory Reset].
[HDMI IT Content]
Set the HDMI IT Contents function.
• [Off]: Disable the HDMI IT Contents function.
• [On]: Enable the HDMI IT Contents function.
This feature automatically changes the Projector’s picture mode based on HDMI Contents information when an HDMI
signal is entered.
Even if the Projector’s picture mode has been changed by the HDMI IT Contents feature, you can change the picture
mode again manually.
As this has a higher priority than the picture mode set by the user, the existing picture mode may be changed when
the HDMI signal changes.
33
ENGLISH
Sound
[Sound Mode]
[Sound] [Sound Mode]
[Sound Mode]
The best sound quality will be selected automatically depending on the video type currently being watched.
• [Standard]: This sound mode works well for content of all types.
• [Cinema]: Optimize sound for watching movies.
• [Clear Voice III]: Enhance voices so they can be heard more clearly.
• [Sports]: Optimize sound for watching sports.
• [Music]: Optimize sound for listening to music.
• [Game]: Optimize sound for playing video games.
[Balance]
• [Balance]: Adjust the output volume for the left speaker and the right speaker.
[Equalizer]
• [Equalizer]: Manually adjust sound by using the equalizer.
[Reset]
• [Reset]: Resets sound settings.
34
ENGLISH
[Sound Out]
[Sound] [Sound Out]
• [Main Speaker]: You can output audio either through your Projector’s internal speaker or through an external speaker
connected to it.
- [Use Speaker Sound]: Enables you to turn the speaker on and off. If you are using an external audio device, turning
off this feature allows you to play sound through the external audio device only.
• [HDMI ARC]: Enables the sound of the Projector to be output through an external audio device connected to the
HDMI (ARC) terminal. This option is activated when SIMPLINK has been set to On.
• [LG Sound Sync / Bluetooth]: Enables you to connect Bluetooth audio devices or Bluetooth headsets wirelessly to
Projector so that you can enjoy richer audio conveniently.
NOTE
• Some recently connected devices may automatically attempt to reconnect to the Projector when it is turned on.
• It is recommended that you set LG audio devices that support LG Sound Sync to LG TV mode or LG Sound Sync mode
before connecting.
• Press Device Selection to view the devices that are or that can be connected and connect other devices.
• You can use the Projector remote control to adjust the volume of the connected device.
• If the audio device fails to connect, check that it is switched on and available for connection.
• Depending on the type of the Bluetooth device, the device may not connect correctly or an abnormal behavior may
occur such as unsynchronized video and audio.
• Sound may stutter or sound quality may be reduced if:
- The Bluetooth device is too far from the Projector.
- There is an obstructing object between the Bluetooth device and the Projector.
- The Bluetooth device is used together with radio equipment such as a microwave oven or wireless LAN.
35
ENGLISH
[Audio Out]
[Sound] [Audio Out]
• [Off]: Disables the use of [Audio Out]. (No audio outputted.)
• [Variable]: You can specify an output range for the external audio device connected to the Projector and adjust the
volume within the range. You can change the volume of an external audio device within the range of 0 to 100 (the
same as the Projector speaker volume). However, there may be a difference in the actual volume level outputted.
• [Fixed]: Sets a fixed audio output level for the external audio device.
- If there is no external input, no external audio is outputted.
- The variable audio output level 100 is the same as the fixed audio output level.
[AV Sync Adjustment]
[Sound] [AV Sync Adjustment]
This feature adjusts audio timing to synchronize video and audio.
• [AV Sync Adjustment]: You can set AV Sync Adjustment feature to [On/Off].
• [Main Speaker] (0~60): Adjust the sync of sound from the main speakers. The larger the number is, the slower the
voice output is than the default value.
• [Bypass]: Output the broadcast signals or the sound from external devices without any audio delay. Audio may be
outputted earlier than video due to the processing time for video that is inputted into the Projector.
• [HDMI ARC] (0~60): Adjust the sync of sound from the HDMI ARC. The larger the number is, the slower the voice
output is than the default value.
36
ENGLISH
[Digital Sound Output]
[Sound] [Digital Sound Output]
Enables you to configure the settings for Export Digital Sound.
• [Sound] This can be set if [Sound Out] is optical digital/HDMI ARC.
• Sound effect output may not work if using Pass Through.
• The codec which is being output to the device may differ from the codec of the input signal.
Audio Input Digital Sound Output
Auto/Pass
Through
Dolby Digital Plus Dolby Digital
Dolby Digital Dolby Digital
AAC (Media) Dolby Digital
AAC Dolby Digital
HE-AAC Dolby Digital
MPEG PCM
PCM All PCM
37
ENGLISH
Admin
[Lock Mode]
[Admin] [Lock Mode]
[Home Dashboard Lock]
When you set the Home Dashboard Lock, you can limit the change in the settings of the Home Dashboard.
[USB Lock]
This feature enables you to configure the USB lock feature so that settings or content cannot be changed.
[OSD Lock]
This feature enables you to configure the OSD lock feature so that settings or content cannot be changed.
• Press and hold the Settings key for at least 10 seconds and enter password to access the settings menu in OSD Lock.
[IR Operation Lock]
• If you set this feature to [Off (Normal)], you can use your remote control.
• If you set this feature to [On (Power Key Only)], you can only use the power key.
• If you set this feature to [On (Block All)], you cannot use your remote control. (However, Power On feature is
available.)
• Press and hold the Settings key for at least 10 seconds and enter password to access the settings menu in IR
Operation Lock.
[Local Key Operation Lock]
This feature enables you to configure the Local Key Operation Lock feature so that settings or content cannot be
changed.
• If you set this feature to [Off (Normal)], you can use the local keys on the Projector.
• If you set this feature to [On (Power Key Only)], you can only use the power key. (When you use a joystick, press and
hold a local key to turn on/off the Projector.)
• If you set this feature to [On (Block All)], you cannot use the local keys. (However, Power On feature is available.)
38
ENGLISH
[Wi-Fi Lock]
This feature enables you to turn the Wi-Fi feature on or off.
[Screen Share Lock]
• [On]: This feature enables you to turn the Screen Share feature off.
• [Off]: This feature enables you to turn the Screen Share feature on.
• [Off (PIN)]: This feature enables you to use the Screen Share feature using PIN number.
If the Screen Share Lock value is changed, the function is not applied without a reboot.
[Change Password]
This feature enables you to set the password you use to enter the Installation menu. (The default password: 000000)
1 Enter your current password.
2 Enter a new 6-digit password.
3 Enter the same password again in the Confirm Password field for confirmation.
[Enterprise Settings]
• Enter your company account code to apply the corresponding enterprise settings.
• When your code has been entered, the Projector set gets reset, thereby applying the corresponding enterprise
settings.
• This feature does not get activated if a code has already been entered.
39
ENGLISH
[Factory Reset]
Initializes all settings in [Setting] and files from the internal storage.
The exceptions are RGB gain value of [Calibration] mode, [Installation Wizard] ([Video Wall] > [Tile Mode], [Tile Mode
Setting]) and [Server Setting] items of [Ez Setting], and [Set ID] items of [General]. (Depending on model)
NOTE
• It keeps the existing settings because the Off / On button in the User menu only affects the active / inactive status
of the submenu.
• [Focus], [Zoom], [H-Shift], and [V-Shift] items that can be adjusted by the button on the remote control and
the product are exception items to the [Factory Reset], and their existing settings will be maintained.
- Some models may not be supported.
40
ENGLISH
CONTENT MANAGER
Web Login
• Different features are supported depending on the product.
This Projector product comes with a feature that enables you to access it on your PC or mobile device.
- Content Manager, Group Manager 2.0, Control Manager, Log Out, Change Password menus are provided.
• URL: https://set, IP:3777
• The default password: (Serial Number) + LGe12#
E.g. If the serial number is ABCD123456789, enter ABCD123456789LGe12# as the password.
- The serial number can be found on the tag attached to the product or on the [General]
[System Information] menu.
CAUTION
• Supported resolutions (this program is optimized for the following resolutions):
- PC: 1920 x 1080 / 1280 x 1024
- Mobile: 360 x 640 (1440 x 2560, 1080 x 1920), DPR
• Supported browsers (this program is optimized for the following browsers):
- Chrome 56 or later (recommended)
Content Manager
[Player]
(Player)
The Content Manager app’s player feature enables you to play/manage contents of video, image, template, SuperSign
and playlist in an integrated way.
[Continuous Play]
1 Select your desired type of content from the tab on the left and then select your desired content.
2 Click [Play] in the upper right-hand corner of the screen and enjoy the content you have selected.
[Export]
1 Select your desired type of content from the tab on the left and click [Export] in the upper right-hand corner of the
screen.
2 Select the content you wish to export.
3 Click [Copy]/[Move] in the upper right-hand corner of the screen and select the device to which you wish to export
the content. (If a content file stored on the target device has been selected, the processing of the content file is
skipped.)
4 You can see that the content has been moved/copied to the device.
41
ENGLISH
[Delete]
1 Select your desired type of content from the tab on the left and click [Delete] in the upper right-hand corner of the
screen.
2 Select the content you wish to delete.
3 Click [Delete] in the upper right-hand corner of the screen.
4 You can see that the content has been deleted.
[Filter/Sort]
1 Click [Filter/Sort] in the upper right-hand corner of the screen.
2 1) Choose your desired sort criterion to sort content files either by file name or in the order they have been played
(the most recently played file shown at the top of the list).
2) It is possible to only view the content stored on your desired device by filtering content files by device.
3) It is possible to only view the content of your desired type by filtering content files by content type.
[Create Playlist]
When creating a playlist, you cannot include characters that cannot be used in file names on Windows — such as \, /,:,
*,?, “, <,>, and | — in the names of the files in the playlist. In addition, if the playlist contains content files whose names
include such characters, you cannot move or copy the playlist.
1 Select the [Playlist] tap from the tab on the left and click [Create Playlist] in the upper right-hand of the screen.
2 Select the content you wish to add to the playlist and click [NEXT] in the upper right-hand of the screen.
3 Set a play time for each piece of content (applicable only for photo and template content), as well as other items
such as Conversion Effect, Ratio, and Auto Playback, and then click [DONE] button in the upper right-hand corner
of the screen.
4 You can see a new [Playlist] has been created.
[Distribution]
1 Click [Distribute] in the upper right-hand corner of the screen.
2 Go to the Group Manager app to distribute the created playlists.
NOTE
• The Distribute button shows only when playlist is selected as media type.
42
ENGLISH
[Scheduler]
(Scheduler)
The Content Manager app’s scheduler feature enables certain content to be played at a scheduled time through a
playlist or external input.
[Creating a Schedule]
1 Click [New Schedule] in the upper right-hand corner of the screen.
2 Choose between [Playlist] and [Input Source].
3 1) If you have selected [Playlist], select the playlist you wish to schedule the playback of.
2) If you have selected [Input Source], select the external input source you wish to schedule the playback of.
4 Enter schedule information and create a new schedule. (When creating a schedule, you cannot include characters
that cannot be used in file names on Windows — such as \, /,:, *,?, “, <,>, and | — in the name of the schedule file.
In addition, if the playlist linked to the schedule contains content files whose names include such characters, you
cannot move or copy the playlist.)
5 Watch the playlist or external input you selected play back at its scheduled time.
[Importing a Schedule]
1 Click [Import] in the upper right-hand corner of the screen.
2 Select the external storage device from which you wish to import a schedule.
3 Select the schedule you wish to import to your Projector. (You can only choose a single schedule.)
4 Click [Select] in the upper right-hand corner of the screen.
5 Check that the schedule has been imported to the Projector’s internal storage memory.
[Exporting a Schedule]
1 Click [Export] in the upper right-hand corner of the screen.
2 Select the external storage device to which you wish to export a schedule.
3 Select the schedule you wish to export from your Projector. (You can choose multiple schedules.)
4 Click [Select] in the upper right-hand corner of the screen.
5 Check that the schedule has been exported to the external storage device you selected.
43
ENGLISH
[Delete Schedule]
1 Click [DELETE] in the upper right-hand corner of the screen.
2 Select the schedules you wish to delete.
3 Click [DELETE].
4 Check that the schedules have been deleted.
[Calendar View]
1 When you have registered schedules, click [Calendar View].
2 You can see that the schedules registered are displayed in the form of a timetable.
[Distribute]
1 Click [Distribute] in the upper right-hand corner of the screen.
2 Go to the Group Manager app to distribute the created schedules.
NOTE
• If the schedule creation time overlaps, the previously created schedule is deleted.
• When a schedule that has not been set repeatedly is completed, the schedule is automatically deleted.
• Schedule does not work while Scheduling list app is running.
[Editor]
(Editor)
The Content Manager app’s editor feature enables you to add your desired templates.
1 Select the template of your desired format. (You can choose between Landscape mode and Portrait mode.)
2 Modify the template’s text.
2-1. Apply your desired font style (Size, Weight, Underline, Italic)
3 Modify the media file.
3-1. Select and apply the rate you want.
4 Save the template by clicking [Save] in the top right-hand corner of the screen.
5 Check that the template you saved is shown in the template list.
44
ENGLISH
Supported Photo & Video Files
NOTE
• Subtitles are not supported.
Supported video codecs
Extension Codec
.asf, .wmv Video VC-1 Advanced Profile (except for WMVA), VC-1 Simple and Main Profiles
Audio WMA Standard (excluding WMA v1/WMA Speech)
.avi Video Xvid (except for GMC), H.264/AVC, Motion Jpeg, MPEG-4
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM
.mp4, .m4v, .mov Video H.264/AVC, MPEG-4, HEVC
Audio Dolby Digital, Dolby Digital Plus, AAC, MPEG-1 Layer III (MP3), Dolby AC-4
.3gp, .3g2 Video H.264/AVC, MPEG-4
Audio AAC, AMR-NB, AMR-WB
.mkv Video MPEG-2, MPEG-4, H.264/AVC, VP8, VP9, HEVC
Audio Dolby Digital, Dolby Digital Plus, AAC, PCM, MPEG-1 Layer I, II, MPEG-1
Layer III (MP3)
.ts, .trp, .tp, .mts Video H.264/AVC, MPEG-2, HEVC
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus,
AAC, PCM, Dolby AC-4
.mpg, .mpeg, .dat Video MPEG-1, MPEG-2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)
.vob Video MPEG-1, MPEG-2
Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
• Dolby AC-4: Some models may not be supported.
Maximum transmit ratio
Full HD movie H.264 1920 x 1080@60P BP/MP/[email protected] 40Mbps
HEVC 1920 x 1080@60P Main/[email protected] 40Mbps
ULTRA HD movie
(UHD models only.)
H.264 3840 x 2160@30P BP/MP/[email protected] 50Mbps
HEVC 3840 x 2160@60P Main/[email protected] 60Mbps
45
ENGLISH
Supported Photo File Formats
File type Format Resolution
.jpeg, .jpg, .jpe JPEG • Minimum: 64 x 64
• Maximum: Normal Type: 15360 (W) x 8640 (H)
Progressive Type: 1920 (W) x 1440 (H)
.png PNG • Minimum: 64 x 64
• Maximum: 5760 (W) x 5760 (H)
.bmp BMP • Minimum: 64 x 64
• Maximum: 1920 (W) x 1080 (H)
Cautions for Video Playback
• Streams that include Global Motion Compensation (GMC) and Quarterpel Motion Estimation (Qpel) are not
supported.
• ULTRA HD video (ULTRA HD models only): 3840 X 2160, 4096 X 2160
• Some HEVC-encoded ULTRA HD videos other than the content officially provided by LG Electronics may not be
played.
• Some codecs can be supported after a software upgrade.
Extension Codec
.mkv, .mp4, .ts Video H.265/AVC, HEVC
Audio Dolby Digital, Dolby Digital Plus, AAC
• Only Window Media Audio V7 and later are supported.
• The AAC Main Profile is not supported.
• Video files created by some encoders may not be played.
• Video files in a different format than specified may not be played properly.
• Video files stored on a USB storage device that does not support High Speed may not be played properly.
• Videos with unsupported audio only play video or do not play.
46
ENGLISH
Tips for using USB storage devices
• Only USB storage devices are recognized.
• USB storage devices connected to the Projector through a USB hub may not work properly.
• USB storage devices that use an automatic recognition program may not be recognized.
• USB storage devices that use their own drivers may not be recognized.
• The recognition speed of a USB storage device may depend on each device.
• Please do not turn off the display or unplug the USB device when the connected USB storage device is working.
When the device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
• Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause
the product to malfunction or fail to be played. Remember to only use USB storage devices that store normal music,
image, and/or movie files.
• Storage devices formatted with utility programs that are not supported by Windows may not be recognized.
• Please connect power to a USB storage device (over 0.5A) which requires an external power supply. Otherwise, the
device may not be recognized.
• Please connect a USB storage device with the cable offered by the device maker.
• Some USB storage devices may not be supported or operated smoothly.
• File alignment methods of the USB storage device is similar to Windows and filenames can include up to 100 English
characters.
• Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be
responsible for any data loss.
• If the USB HDD does not have an external power source, the USB device may not be detected. So make sure to
connect it to an external power source.
- Please use a power adapter for an external power source. No USB cable is provided for an external power source.
47
ENGLISH
• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to four
partitions or USB memory devices.
• If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected.
• If the USB storage device does not work properly, remove it and connect it again.
• If the USB storage device is connected in Standby Mode, a specific hard disk will automatically be loaded when the
display is turned on.
• The recommended capacity is 1TB or less for a USB external hard disk and 32GB or less for USB memory.
• Any device with more than the recommended capacity may not work properly.
• If a USB external hard disk with an [Energy Saving] feature does not work, turn the hard disk off and on again to
make it work properly.
• USB storage devices (USB 2.0 or below) are also supported. However, they may not work properly in the videos list.
• A maximum of 999 folders or files can be recognized under one folder.
• When distributing contents to USB while playing a video in UHD resolution, the video might experience temporary
stuttering.
• USB storage devices supported by a mobile device may not be recognized.
• Even if multiple USB storage devices are connected, up to three USB storage devices can be used.
• When using SuperSign CMS, it is recommended to use only one USB storage device.
48
ENGLISH
Group Manager 2.0
This feature enables you to group together multiple Projector sets on a single network into the same group and to
distribute content (schedules and playlists) or copy setting data on a group basis. This feature has two modes, Master
and Slave, and it can access the browser on your PC or mobile device.
[Master]
• Add, edit, and delete group.
• Clone your device’s settings data.
• Distribute [Schedule] and [Playlists] on a group basis.
• All Projector sets initially come in Master mode.
[Slave]
• Play [Schedule] and [Playlists] distributed in Master mode.
• Remove Projector sets for their groups.
• Projector sets that have been added to a group are automatically switched to Slave mode. Conversely, when a
Projector set has been deleted from a group, it is automatically initialized and switched to Master mode.
• If a new Slave has been added to an existing group, or if the [Data Cloning] or the distribution of [Schedule]/[Playlist]
has not been properly performed, the [Data Cloning] or [Sync] button will be activated.
• You can duplicate the master device’s setting data to the group by using [Data Cloning].
• You can re-download the content distributed to the group by using [Sync].
49
ENGLISH
[GROUP MANAGEMENT]
• Creating a New Group
1. Click [Add New Group].
2. Enter a group name.
3. Click [Add Device], select the devices you wish to add to the group, and add them.
4. Click [Done], and you will see that a new group has been created.
• Editing a Group
1. Click the group you wish to edit.
2. Add a new device by using [Add Device].
3. Delete a device by using [Delete Device].
4. Check whether the devices in the group are connected to a network by using [Device Check].
5. If there are any sets of devices in the group that are not [Data Cloning] or content synchronized, [Data Cloning] or
[Sync] button will be activated.
6. You can re-copy the master device’s setting data to the group by using [Data Cloning].
7. You can re-distribute the content distributed to the group by using [Sync].
• Deleting a Group
1. Click [Delete Group].
2. Select the group you wish to delete and click [Delete].
3. Check that the group you selected has been deleted.
• All Devices View: This page enables you to manage all slave Projector sets that are connected to the same network.
1. Click [All Devices View].
2. Click [Reset Device Mode].
3. Select the slave Projector set whose device mode you wish to change and click [Reset].
50
ENGLISH
[Setting Data Cloning]
1 Select your desired group and click Clone.
2 Check that the data have been copied on the slave sets.
[Content Distribute]
1 Select the type of content you wish to distribute (Schedules or Playlists).
2 Select the content you wish to distribute.
3 Select the group to which you wish to distribute the content and click [Distribute].
4 Run the Content Manager app on the slave sets and check that the content has been distributed.
How to Use
• Projector: Run, add, delete or edit app on the home screen.
• Mobile devices: Run the app in the Launcher bar or access the app from a mobile device using the QR code or URL
provided.
CAUTION
• You can create up to 25 groups.
• You can add up to 12 slave devices to a group.
• You can distribute the schedules stored on external devices after executing Content Manager’s import operation.
• Make sure to delete all schedules stored on the slave sets before distributing any schedules.
• A list of devices you can add to your desired group appears only when the following conditions have been met:
- The devices you wish to add must be on the same network as the master device.
- The devices you wish to add must be in Master mode, and they must not belong to any existing group.
- Port 1900 (UDP) needs to be activated ([Setting] > [General] > [Network] > [Port Control]: Port 1900 (UDP)
unregistered).
• It may not work properly in wireless network environments. It is recommended you use a wired network.
• Run the initial settings for Slave function when deleting the group.
51
ENGLISH
Screen Share
This feature allows the screen of a user’s device such as a mobile or PC Windows to be shared with a display using a
wireless connection such as WiDi or Miracast.
How to Use [Screen Share]
[Screen Share]
1 Connect according to the instructions provided by the guide that can be accessed through the CONNECTION GUIDE
button in the upper right.
2 Once the connection is established, Screen Share between the user device and the Projector is enabled.
NOTE
• For the information on how to use Intel WiDi, visit PC/laptop manufacturer webpage.
• This feature only works properly with WiDi 3.5 or later versions.
• This feature only works on Windows 8.1 or later.
52
ENGLISH
LG Presenter
This feature uses the web browser on your PC to display the PC screen on the Projector that is connected to your PC
via cable or wireless.
How to use LG Presenter
On Projector
LG Presenter
On PC
Enter the URL provided on the Projector into the address bar of your web browser.
NOTE
• This feature may not be supported depending on the product.
• Only PC screen sharing is supported. Audio sharing is not supported.
• Some web browsers do not support screen sharing. We recommend using the latest version of Chrome.
• When connecting via a web browser, a warning may appear indicating that the connection is unsafe. This is not a
security issue, and you can proceed as usual.
• Since some UIs related to screen sharing are provided by the PC browser, the displayed language or the action may be
different.
• The handover feature is used to share another client’s screen when one client is already connected. It requests the
currently connected client to hand over the screen sharing privilege.
• The handover request notification appears only if the user has allowed notifications.
CAUTION
• The Projector and PC must be on a network where they can be connected to each other.
• If Screen Share does not work or if a normal connection cannot be made to the Projector device, check the firewall
settings on your PC.
• LG Presenter does not support video playback.
53
ENGLISH
MANAGEMENT TOOLS
Control Manager
Control and check the status of the display through the Web browser.
This function is available for PCs and mobile devices.
Different features are supported depending on the product.
Function
• [Dashboard]: Display a summary of the product’s status and provides links to each page.
• [Display & sound]: Provides features such as Screen Brightness, Sound, Input, and Reboot.
• [Time & Date]: Enable/disable Set Automatically feature and displays/changes the time set for the product.
• [Network]: Set the name and IP address of your Projector.
• [Tile Mode]: Display the tile mode settings of the product.
• [Fail Over]: Turns the Fail Over feature on or off and sets related items.
• [Play via URL]: Turn Play via URL on or off and set URLs.
• [S/W Update]: Update the firmware of the product.
• [Charts]: Output the product’s status information such as its temperature and fan status.
• [Log]: Output product malfunction records.
• [System Information]: Output information such as the product’s software version and model name.
54
ENGLISH
Picture ID
[Picture ID] is used to change the settings of a specific set (display) using a single IR receiver for multi-vision.
Communication is possible between a Projector with an IR receiver and other Projectors using RS-232C cables. Each
Projector is identified by a Set ID. Setting [Picture ID] allows you to only use the remote control with Projectors with a
[Set ID] that matches the [Picture ID].
1 Assign [Set ID] to the installed Projectors as shown below:
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
IR & Light Sensor
RS-232C Cable
Picture ID On “2”
2
Press the (red) button on the remote control.
3
Make sure that the Picture ID you set is identical to the [Set ID] of the Projector you wish to control.
• A set with a [Set ID] that is different from the [Picture ID] cannot be controlled by IR signals.
NOTE
• If [Picture ID] has been set to 2, only the upper right Projector, which has a [Set ID] of 2, can be controlled by IR
signals.
• If you press the (green) button on your remote control, the [Picture ID] for all Projectors are turned
off. If you then press any button on the remote control, all Projectors can be controlled by IR signals regardless of
their [Set ID]’s.
55
ENGLISH
IR CODE
• All models do not support the HDMI/USB function.
• Some key codes may not be supported depending on the model.
Code (Hex) Function Remarks
08
(Power)
Remote control button
C4 (Projector on) Remote control button
C5 (Projector off) Remote control button
95 Remote control button
0B INPUT (Select input) Remote control button
10 Number Key 0 Remote control button
11 Number Key 1 Remote control button
12 Number Key 2
Remote control button
13 Number Key 3
Remote control button
14 Number Key 4 Remote control button
15 Number Key 5 Remote control button
16 Number Key 6
Remote control button
17 Number Key 7 Remote control button
18 Number Key 8 Remote control button
19 Number Key 9 Remote control button
02
(Vol +)
Remote control button
03
(Vol -)
Remote control button
E0
(Brightness/Page Up)
Remote control button
E1
(Brightness/Page Down)
Remote control button
98 Remote control button
32 Remote control button
2F Remote control button
7E Remote control button
79 (Mark/Aspect Ratio) Remote control button
4D (Picture Mode)
Remote control button
09 (MUTE) Remote control button
56
ENGLISH
Code (Hex) Function Remarks
43 (Settings/Menu) Remote control button
AA
(Information)
Remote control button
40 (Up) Remote control button
41 (Down) Remote control button
06
(Right)
Remote control button
07
(Left)
Remote control button
44
(OK)
Remote control button
28 (BACK) Remote control button
57 (Installation Wizard) Remote control button
5B
(Exit) Remote control button
72
(red) Remote control button
71
(green) Remote control button
63
Yellow Remote control button
61 Blue Remote control button
5F
(White Balance) Remote control button
84
(Blank) Remote control button
7C
(Home Menu) Remote control button
57
ENGLISH
CONTROLLING MULTIPLE PRODUCTS
• This only applies to certain models.
Use this method to connect several products to a single PC. You can control several products at a time by connecting
them to a single PC.
In the Option menu, the Set ID must be between 1 and 1000 without being duplicated.
Connecting cables
• Images may differ according to the model.
Connect the RS-232C cable as shown in the picture.
The RS-232C protocol is used for communication between the PC and product. You can turn the product on/off, select
an input source and adjust the OSD menu from your PC.
Projector 4 Projector 3 Projector 2 Projector 1 PC
RS-232C
IN
RS-232C
OUT
RS-232C
IN
RS-232C
OUT
RS-232C
IN
RS-232C
OUT
RS-232C
IN
RS-232C
OUT
4P Cable (sold separately) RS-232C Gender
(sold separately)
RS-232C Cable
(sold separately)
RS-232C Cable (sold separately)
PC
Projector 1 Projector 2 Projector 3 Projector 4
58
ENGLISH
Communication Parameter
• Baud Rate: 9600bps
• Data Length: 8bits
• Parity Bit: None
• Stop Bit: 1bit
• Flow Control: None
• Communication Code: ASCII code
NOTE
• When using 3-wire connections (non-standard), an IR daisy chain cannot be used.
• Be sure to only use the provided gender to connect properly.
• When you have daisy-chained multiple Projector products to control them simultaneously, if you attempt to turn
on/off the master device in a continuous manner, some products may not turn on. In this case, you can turn those
Projectors on by pressing the Projector button, not the Power button.
ID
BACK
TILE
ON
OFF
EXIT
(Power)
59
ENGLISH
Command Reference List
The configurable items differ depending upon model.
Command
Data
(Hexadecimal)
1 2
01. [Power] k a 00 to 02
02. Select Input x b See Select Input
03. [Aspect Ratio] k c See [Aspect Ratio]
04. [Brightness Control] j q 00 to 03
05. [Picture Mode] d x See [Picture Mode]
06. [Contrast] k g 00 to 64
07. [Brightness] k h 00 to 64
08. [Sharpness] k k 00 to 32
09. [Color] k i 00 to 64
10. [Tint] k j 00 to 64
11. [Color Temperature] x u 70 to D3
12. [Balance] k t 00 to 64
13. [Sound Mode] d y See [Sound Mode]
14. [Mute on] k e 00 to 01
15. Volume Control k f 00 to 64
16. [Current Time] 1 (year/month/
day)
f a See [Current Time] 1
17. [Current Time] 2 (hour/minute/
second)
f x See [Current Time] 2
18. [No Signal Power Off (15 Min)] f g 00 to 01
19. [No IR Power Off (4hour)] m n 00 to 01
20. [Language] f i See [Language]
21. [Default] Settings f k 00 to 02
22. Current Temperature d n FF
23. [Key] m c See [Key]
24. Time Elapsed d l FF
25. Check product serial number f y FF
26. [Software Version] f z FF
60
ENGLISH
Command
Data
(Hexadecimal)
1 2
27. [White Balance] Red Gain j m 00 to FE
28. [White Balance] Green Gain j n 00 to FE
29. [White Balance] Blue Gain j o 00 to FE
30. [White Balance] Red Offset s x 00 to 7F
31. [White Balance] Green Offset s y 00 to 7F
32. [White Balance] Blue Offset s z 00 to 7F
33. [Screen Off] k d 00 to 01
34. [Tile Mode] d d 00 to FF
35. Check [Tile Mode] d z FF
36. [Tile ID] d i See [Tile ID]
37. [DPM (Standby Mode)] f j See [DPM (Standby Mode)]
38. Remote Control/Local Key Lock k m 00 to 01
39. [Power On Delay] f h 00 to FA
40. Select [Fail Over] Mode m i 00 to 02
41. Select [Fail Over] Input m j See Select [Fail Over] Input
42. Remote Control Key Lock t p 00 to 02
43. [Local Key Operation Lock] t o 00 to 02
44. Status Check s v See Status Check
45. [Daylight Saving Time] s d See [Daylight Saving Time]
46. [PM Mode] s n, 0c 00 to 05
47. [Network Settings] s n, 80(81)(82) See [Network Settings]
48. [Power On Status] t r 00 to 02
49. Wired [Wake On LAN
(Networked Standby Mode)]
f w 00 to 01
50. [Screen Rotation] t h 00 to 03
51. [Time Sync] s n, 16 00 to 01
61
ENGLISH
Command
Data
(Hexadecimal)
1 2
52. [Contents Sync] t g 00 to 01
53. [External Input Rotation] s n, 85 00 to 03
54. [Beacon] s n, 88 00 to 01
55. [Multi Screen] Mode & Input x c See [Multi Screen] Mode & Input
56. [Aspect Ratio] (Multi screen) x d See [Aspect Ratio] (Multi screen)
57. [Screen Off] (Multi screen) x e See [Screen Off] (Multi screen)
58. [Screen Off Always] s n, 0d 00 to 01
59. Stop Video k x 00 to 01
60. Wireless [Wake On LAN
(Networked Standby Mode)]
s n, 90 00 to 01
61. [OSD Lock] k l 00 to 01
62. [HDMI IT Content] s n, 99 00 to 01
63. [Holiday Setting] s n, 9b See [Holiday Setting]
64. [UPnP] s n, 9c 00 to 01
65. [Home Dashboard Lock] s n, 9d 00 to 01
66. [USB Lock] s n, 9e 00 to 01
67. [Wi-Fi Lock] s n, 9f 00 to 01
68. [Screen Share Lock] s n, a0 00 to 01
69. [Play Backup Content] s n, a1 See [Play Backup Content]
70. [Booting Logo Image] s n, a3 00 to 01
71. [SoftAP] s n, a4 00 to 01
72. Play Saved Internal Media s n, a8 See Play Saved Internal Media
73. [No Signal Image] s n, a9 00 to 01
74. [Audio Out] s n, aa 00 to 02
75. [DPM (Standby Mode) Wake Up
Control]
s n, 0b 00 to 01
76. [Apply to all inputs] s n, 52 01
62
ENGLISH
Command
Data
(Hexadecimal)
1 2
77. [Timer Power On] Scheduling f d See [Timer Power On] Scheduling
78. [Timer Power Off] Scheduling f e See [Timer Power Off] Scheduling
79. LCIN008 Control s n, b8 See LCIN008 Control
80. [Transfer Control] s n, cb See [Transfer Control]
81. Multichannel s n, 76 01 to 09
82. Change SetID j x See Change SetID
83. [Gamma] s n, ad 00 to 03
84. [Black Level] s n, ae 00 to 02
85. [UHD Deep Color] s n, af See [UHD Deep Color]
86. [Sync Mode] s n, b0 00 to 01
87. [Input Manager] s n, b1 See [Input Manager]
88. [PC Power Control] s n, 8b 00 to 02
89. [Average Picture Level Auto
Control]
s n, be 00 to 01
90. [Stereo Mode] s n, c2 00 to 02
91. [HDR Picture Mode] s n, c4 See [HDR Picture Mode]
92. [Dynamic Tone Mapping] s n, c5 00 to 01
93. [Change Password] s n, a7 See [Change Password]
94. [Color Calibration] s n, d6 00 to 01
95. [Quick Start+] s n, 0e 00 to 01
* Note Commands may not work when there is no external input used.
* Some commands may not be supported on some models.
63
ENGLISH
Transmission/Reception Protocol
Transmission
(Command1)(Command2)( )(Set ID)( )(Data)(Cr)
* (Command1): This command is used to identify between the adjustment setting or the user adjustment modes.
* (Command2): This command is used to control the Projector.
* (Set ID): Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging from 1 to
1000 (01H to 3E8H) under Settings in the OSD menu. Selecting ‘00H’ for Set ID allows the simultaneous
control of all connected Projectors. (The maximum value may differ depending on the model.)
* (Data): Transmits command data. Data count may increase depending on the command.
* (Cr): Carriage Return. This parameter corresponds to ‘0 x 0D’ in ASCII code.
* ( ): White Space. This parameter corresponds to ‘0 x 20’ in ASCII code.
ACK (Acknowledgment)
(Command2)( )(Set ID)( )(OK/NG)(Data)(x)
* The product transmits an ACK (acknowledgment) based on this format when receiving normal data. At this point,
if the data is FF, it indicates the present status data. If the data is in data write mode, it returns the data of the PC
computer.
* If a command is sent with Set ID ‘00’ (=0 x 00), the data is reflected to all Projectors and they do not send an
acknowledgment (ACK).
* If you send “FF” as the value of the data in control mode via RS-232C, you can check the value currently set for the
relevant feature (not applicable to some features).
* Some commands may not be supported on some models.
64
ENGLISH
01. [Power] (Command: k a)
Controls the power on/off status of the Projector.
Transmission
(k)(a)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
02: Restart
Acknowledgment
(a)( )(Set ID)( )(OK/NG)(Data)(x)
* The Acknowledgment signal is returned properly only when
the Projector is fully powered on.
* There may be a delay between the Transmission and
Acknowledgment signals.
* This feature may not be available for all models.
02. Select Input (Command: x b)
Selects an input signal.
Transmission
(x)(b)( )(Set ID)( )(Data)(Cr)
Data 90: HDMI1 (DTV)
A0: HDMI1 (PC)
91: HDMI2 (DTV)
A1: HDMI2 (PC)
92: HDMI3/HDBaseT (DTV)
A2: HDMI3/HDBaseT (PC)
C0: DISPLAYPORT (DTV)
D0: DISPLAYPORT (PC)
E0: SuperSign webOS Player
E1: Others
E2: Multi Screen
E3: Play via URL
E8: SI App
Acknowledgment
(b)( )(Set ID)( )(OK/NG)(Data)(x)
* Some input signals may not be available for all models.
* If it is not distributed from SuperSign W, webOS Player
returns NG.
* The SI App only supports Set operations over RS232C.
03. [Aspect Ratio] (Command: k c)
Adjusts the aspect ratio of your Projector.
Transmission
(k)(c)( )(Set ID)( )(Data)(Cr)
Data 02: [Full Screen]
06: [Original]
Acknowledgment
(c)( )(Set ID)( )(OK/NG)(Data)(x)
* The aspect ratio may differ depending on the model’s input
configuration.
04. [Brightness Control] (Command: j q)
Sets the brightness of your Projector.
Transmission
(j)(q)( )(Set ID)( )(Data)(Cr)
Data 01: [Minimum]
02: [Medium]
03: [Maximum]
Acknowledgment
(q)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
05. [Picture Mode] (Command: d x)
Selects a picture mode.
Transmission
(d)(x)( )(Set ID)( )(Data)(Cr)
Data 00: [Mall/QSR]
01: [General]
02: [Gov./Corp.]
03: [Transportation]
04: [Education], [Screen Game]
05: [Expert1]
11: [Calibration]
12: [Hospital]
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
* Some picture modes may not be available for all models.
06. [Contrast] (Command: k g)
Adjusts the screen contrast.
Transmission
(k)(g)( )(Set ID)( )(Data)(Cr)
Data 00-64: Contrast 0-100
Acknowledgment
(g)( )(Set ID)( )(OK/NG)(Data)(x)
07. [Brightness] (Command: k h)
Adjusts the screen brightness.
Transmission
(k)(h)( )(Set ID)( )(Data)(Cr)
Data 00-64: Brightness 0-100
Acknowledgment
(h)( )(Set ID)( )(OK/NG)(Data)(x)
65
ENGLISH
08. [Sharpness] (Command: k k)
Adjusts the screen sharpness.
Transmission
(k)(k)( )(Set ID)( )(Data)(Cr)
Data 00-32: Sharpness 0-50
Acknowledgment
(k)( )(Set ID)( )(OK/NG)(Data)(x)
09. [Color] (Command: k i)
Adjusts the screen colors.
Transmission
(k)(i)( )(Set ID)( )(Data)(Cr)
Data 00-64: Color 0-100
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
10. [Tint] (Command: k j)
Adjusts the screen tints.
Transmission
(k)(j)( )(Set ID)( )(Data)(Cr)
Data 00-64: Tint Red 50-Green 50
Acknowledgment
(j)( )(Set ID)( )(OK/NG)(Data)(x)
11. [Color Temperature] (Command: x u)
Adjusts the screen color temperature.
Transmission
(x)(u)( )(Set ID)( )(Data)(Cr)
Data 70-D2: 3200K-13000K
Data 70-D3: 3200K-13000K, 13100K(Natural)
Acknowledgment
(u)( )(Set ID)( )(OK/NG)(Data)(x)
12. [Balance] (Command: k t)
Adjusts the sound balance.
Transmission
(k)(t)( )(Set ID)( )(Data)(Cr)
Data 00-64: Left 50-Right 50
Acknowledgment
(t)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
13. [Sound Mode] (Command: d y)
Selects a sound mode.
Transmission
(d)(y)( )(Set ID)( )(Data)(Cr)
Data 01: [Standard]
02: [Music]
03: [Cinema]
04: [Sports]
05: [Game]
07: [Clear Voice III]
Acknowledgment
(y)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
14. [Mute on] (Command: k e)
Mutes/unmutes audio.
Transmission
(k)(e)( )(Set ID)( )(Data)(Cr)
Data 00: [Mute] (Volume off)
01: Mute off (Volume on)
Acknowledgment
(e)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
15. Volume Control (Command: k f)
Adjusts the playback volume.
Transmission
(k)(f)( )(Set ID)( )(Data)(Cr)
Data 00-64: Volume 0-100
Acknowledgment
(f)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
66
ENGLISH
16. [Current Time] 1 (year/month/day) (Command:
f a)
Sets the Clock 1 (year/month/day) values and Auto Time.
Transmission
1. (f)(a)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
2. (f)(a)( )(Set ID)( )(0)(0)( )(Data1)(Cr)
1. When setting Clock 1 (year/month/day)
Data1 00-: 2010 -
Data2 01-0C: January - December
Data3 01-1F: 1-31
* The minimum and maximum values for Data1 differ
depending on the product’s release year.
* Enter “fa [Set ID] ff” to view Clock 1 (year/month/day)
settings.
2. When Setting Auto Time
Data1 00: [Auto]
01: [Manual]
* To view the set value of the Auto time, enter “fa [Set ID] 00
f f ”.
Acknowledgment
1. (a)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
2. (a)( )(Set ID)( )(OK/NG)(0)(0)(Data1)(x)
17. [Current Time] 2 (hour/minute/second)
(Command: f x)
Sets the Clock 2 values (hour/minute/second).
Transmission
(f)(x)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
Data1 00-17: 00-23 hours
Data2 00-3B: 00 - 59 minutes
Data3 00-3B: 00-59 seconds
* Enter “fx [Set ID] ff” to view the Time 2 (hour/minute/
second) settings.
* This feature is only available when Clock 1 (year/month/day)
has been set.
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
18. [No Signal Power Off (15 Min)] (Command: f g)
Sets the Projector to enter Automatic Standby mode if there is
no signal for 15 minutes.
Transmission
(f)(g)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(g)( )(Set ID)( )(OK/NG)(Data)(x)
19. [No IR Power Off (4hour)] (Command: m n)
Activates Auto Power Off when there is no IR signal for 4 hours.
Transmission
(m)(n)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data)(x)
20. [Language] (Command: f i)
Sets the OSD language.
Transmission
(f)(i)( )(Set ID)( )(Data)(Cr)
Data 00: Czech
01: Danish
02: German
03: English
04: Spanish (Europe)
06: French
07: Italian
08: Dutch
09: Norwegian
0A: Portuguese
0B: Portuguese (Brazil)
0C: Russian
0D: Finnish
0E: Swedish
0F: Korean
10: Chinese (Mandarin)
11: Japanese
12: Chinese (Cantonese)
13: Arabic
14: Turkish
15: Polish
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
* Some languages may not be available for all models.
67
ENGLISH
21. [Default] Settings (Command: f k)
Executes Reset.
(Initialize Screen can only be executed in RGB input mode.)
Transmission
(f)(k)( )(Set ID)( )(Data)(Cr)
Data 00: [Picture Reset]
02: [Reset to Initial Settings]
Acknowledgment
(k)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
22. Current Temperature (Command: d n)
Checks the current temperature of the product.
Transmission
(d)(n)( )(Set ID)( )(Data)(Cr)
Data FF: Status Check
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data)(x)
* The temperature is displayed in hexadecimal.
23. [Key] (Command: m c)
Sends a key code for the IR remote control.
Transmission
(m)(c)( )(Set ID)( )(Data)(Cr)
Data IR_KEY_CODE
Acknowledgment
(c)( )(Set ID)( )(OK/NG)(Data)(x)
* For key codes, see IR Codes.
* Some key codes may not be supported depending on the
model.
24. Time Elapsed (Command: d l)
Displays the time that has elapsed after your Projector has
turned on.
Transmission
(d)(l)( )(Set ID)( )(Data)(Cr)
Data FF: Read status
Acknowledgment
(l)( )(Set ID)( )(OK/NG)(Data)(x)
* The data received is displayed in hexadecimal.
25. Check product serial number (Command: f y)
Checks the serial number of the product.
Transmission
(f)(y)( )(Set ID)( )(Data)(Cr)
Data FF: Check product serial number
Acknowledgment
(y)( )(Set ID)( )(OK/NG)(Data)(x)
* Data is in ASCII format.
26. [Software Version] (Command: f z)
Checks the software version of the product.
Transmission
(f)(z)( )(Set ID)( )(Data)(Cr)
Data FF: Check the software version
Acknowledgment
(z)( )(Set ID)( )(OK/NG)(Data)(x)
27. [White Balance] Red Gain (Command: j m)
Adjusts the red gain value for white balance.
Transmission
(j)(m)( )(Set ID)( )(Data)(Cr)
Data 00-FE: Red Gain 0-254
FF: Checks red gain value
Acknowledgment
(m)( )(Set ID)( )(OK/NG)(Data)(x)
28. [White Balance] Green Gain (Command: j n)
Adjusts the green gain value for white balance.
Transmission
(j)(n)( )(Set ID)( )(Data)(Cr)
Data 00-FE: Green Gain 0-254
FF: Checks green gain value
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data)(x)
29. [White Balance] Blue Gain (Command: j o)
Adjusts the blue gain value for white balance.
Transmission
(j)(o)( )(Set ID)( )(Data)(Cr)
Data 00-FE: Blue Gain 0-254
FF: Checks blue gain value
Acknowledgment
(o)( )(Set ID)( )(OK/NG)(Data)(x)
68
ENGLISH
30. [White Balance] Red Offset (Command: s x)
Adjusts the red offset value for white balance.
Transmission
(s)(x)( )(Set ID)( )(Data)(Cr)
Data 00-7F: Red Offset 0-127
FF: Checks red offset value
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
31. [White Balance] Green Offset (Command: s y)
Adjusts the green offset value for white balance.
Transmission
(s)(y)( )(Set ID)( )(Data)(Cr)
Data 00-7F: Green Offset 0-127
FF: Checks green offset value
Acknowledgment
(y)( )(Set ID)( )(OK/NG)(Data)(x)
32. [White Balance] Blue Offset (Command: s z)
Adjusts the blue offset value for white balance.
Transmission
(s)(z)( )(Set ID)( )(Data)(Cr)
Data 00-7F: Blue Offset 0-127
FF: Checks blue offset value
Acknowledgment
(z)( )(Set ID)( )(OK/NG)(Data)(x)
33. [Screen Off] (Command: k d)
Turns off/off the screen.
Transmission
(k)(d)( )(Set ID)( )(Data)(Cr)
Data 00: Screen On
01: Screen Off
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
34. [Tile Mode] (Command: d d)
Sets a tile mode and values for the tile rows and columns.
Transmission
(d)(d)( )(Set ID)( )(Data)(Cr)
Data 00-FF: The first byte - tile column
The second byte - tile row
* 00, 01, 10, and 11 mean that the tile mode is off.
* The maximum value may differ depending on the model.
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
* There can be up to 9 values of Tile’s Row x Column.
35. Check [Tile Mode] (Command: d z)
Checks the tile mode.
Transmission
(d)(z)( )(Set ID)( )(Data)(Cr)
Data FF: Check Tile Mode
Acknowledgment
(z)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
Data1 00: Tile Mode off
01: Tile Mode on
Data2 00-0F: Tile column
Data3 00-0F: Tile row
* This feature may not be available for all models.
36. [Tile ID] (Command: d i)
Sets the tile ID value of the product.
Transmission
(d)(i)( )(Set ID)( )(Data)(Cr)
Data 01-E1: Tile ID 1-225
FF: Checks the Tile ID
* The data value cannot exceed the value of row x column.
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
* If you enter a value that exceeds the value of row x column
for the Data parameter (except for 0xFF), Ack becomes NG.
* This feature may not be available for all models.
* If you change the values on a Video Wall model, please reboot
for it to work normally.
69
ENGLISH
37. [DPM (Standby Mode)] (Command: f j)
Sets the DPM(Display Power Management) function.
Transmission
(f)(j)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
02: 10 seconds
04: 1 minute
05: 3 minutes
06: 5 minutes
07: 10 minutes
Acknowledgment
(j)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
38. Remote Control/Local Key Lock (Command: k m)
Adjusts the remote control/local key (product) lock.
Transmission
(k)(m)( )(Set ID)( )(Data)(Cr)
Data 00: [Off] (Lock Off)
01: [On] (Lock On)
* When the Projector is turned off, the power key works even
in On (01) mode.
Acknowledgment
(m)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
39. [Power On Delay] (Command: f h)
Sets the schedule delay for when the power turns on. (Unit:
seconds)
Transmission
(f)(h)( )(Set ID)( )(Data)(Cr)
Data 00-FA: Min 0- Max 250 (sec)
Acknowledgment
(h)( )(Set ID)( )(OK/NG)(Data)(x)
* The maximum value may differ depending on the model.
40. Select [Fail Over] Mode (Command: m i)
Selects the Fail Over mode.
Transmission
(m)(i)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [Auto]
02: [User Setting]
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
41. Select [Fail Over] Input (Command: m j)
Selects an input source for fail over. (This feature is only
available when Fail Over is set to Custom.)
Transmission
(m)(j)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)( )(Data4)
… ( )(DataN)(Cr)
Data1-N (Input priority 1-N)
90: HDMI1
91: HDMI2
92: HDMI3/HDBaseT
C0: DISPLAYPORT
Acknowledgment
(j)( )(SetID)( )(OK/NG)(Data1)(Data2)(Data3)(Data4)
… (DataN)(x)
* Some input signals may not be available for all models.
* The data number (N) may vary depending on the model. (The
data number depends on the number of supported input
signals.)
* This feature operates as the last input, and supports data in
DTV format.
42. Remote Control Key Lock (Command: t p)
Configures the settings of the product’s remote control key.
Transmission
(t)(p)( )(Set ID)( )(Data)(Cr)
Data 00: Unlocks all keys
01: Locks all keys except Power key
02: Locks all keys
Acknowledgment
(p)( )(Set ID)( )(OK/NG)(Data)(x)
* When the Projector is turned off, the power key works even
in the locks on all of the keys (02) mode.
70
ENGLISH
43. [Local Key Operation Lock] (Command: t o)
Configures the local key operation settings of the product.
Transmission
(t)(o)( )(Set ID)( )(Data)(Cr)
Data 00: Unlocks all keys
01: Locks all keys except Power key
02: Locks all keys
Acknowledgment
(o)( )(Set ID)( )(OK/NG)(Data)(x)
* When the Projector is turned off, the power key works even
in the locks on all of the keys (02) mode.
* This feature may not be available for all models.
44. Status Check (Command: s v)
Checks the current signal of the product.
Transmission
(s)(v)( )(Set ID)( )(Data)( )(FF)(Cr)
Data 02: Check whether there is a signal
03: The Projector is currently in PM Mode
Acknowledgment
(v)( )(Set ID)( )(OK/NG)(Data)(Data1)(x)
Data 02 (when a signal is found)
Data1 00: No signal
01: Signal present
Data 03 (when the Projector is currently in PM mode)
Data1 00: Screen is on
01: Screen is off
02: Screen Off Always is activated
03: Sustain Aspect Ratio is activated
* The data number (N) may vary depending on the model.
* This feature may not be available for all models.
45. [Daylight Saving Time] (Command: s d)
Sets Daylight Savings Time.
Transmission
(s)(d)( )(Set ID)( )(Data1)( )(Data2)( )
(Data3)( )(Data4)( )(Data5)( )(Cr)
Data1 00: Off (Data2-5: FF)
01: Start Time
02: End Time
Data2 01~0C: January - December
Data3 01-06: Week 1 - 6
* The maximum value of [Data3] may vary depending on the
date.
Data4 00-06: (Sunday - Saturday)
Data5 00-17: 00 - 23 hours
* If you wish to read the start/end times, enter FF for
parameters [Data2] through [Data5].
(Example 1: sd 01 01 ff ff ff ff - Checks the start time.
Example 2: sd 01 02 ff ff ff ff - Checks the end time.)
* This feature only works when Clock 1 (year/month/day) and
Clock 2 (hour/minute/second) have been set.
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data1)(Data2)
(Data3)(Data4)(Data5)(x)
* This feature may not be available for all models.
46. [PM Mode] (Command: s n, 0c)
Sets the PM mode.
Transmission
(s)(n)( )(Set ID)( )(0)(c)( )(Data)(Cr)
Data 00: [Power Off] (Basic)
01: [Sustain Aspect Ratio]
02: [Screen Off]
03: [Screen Off Always]
05: [Network Ready]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(0)(c)(Data)(x)
* This feature may not be available for all models.
71
ENGLISH
47. [Network Settings] (Command: s n, 80 or 81 or
82)
Configures network and DNS settings.
Transmission
(s)(n)( )(Set ID)( )(Data1)( )(Data2)( )
(Data3)( )(Data4)( )(Data5)(Cr)
Data1 80: Configures/views the temporary IP mode
(Auto/Manual), subnet mask, and gateway.
81: Configures/views the temporary DNS address.
82: Saves temporary settings and views
information about the current network.
* If Data1 is 80,
Data2 00: Auto
01: Manual
FF: Views the temporary IP mode (Auto/Manual),
subnet mask, and gateway.
* If Data2 is 01 (Manual),
Data3 Manual IP address
Data4 Subnet mask address
Data5 Gateway address
* If Data1 is 81,
Data2 DNS address
FF: Displays the temporary DNS address.
* If Data1 is 82,
Data2 80: Applies the temporary IP mode (Auto/
Manual), subnet mask, and gateway.
81: Applies the temporary DNS address
FF: I nformation on the current network (IP, subnet
gateway and DNS)
* An example of settings,
1. Auto: sn 01 80 00
2. Manual: sn 01 80 01 010177223241 255255254000
010177222001(IP:10.177.223.241, subnet:
255.255.254.0, gateway: 10.177.222.1)
3. Network read: sn 01 80 ff
4. DNS setting: sn 01 81 156147035018 (DNS:
156.147.35.18)
5. Applying the settings: sn 01 82 80 (applies the saved IP
mode (auto/manual), subnet mask, and
gateway), sn 01 82 81 (applies the
saved DSN)
* Each IP address contains 12 decimal digits.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data1)(Data)(x)
* This feature is available only for wired networks.
* This feature may not be available for all models.
48. [Power On Status] (Command: t r)
Sets the Power On status of the Projector.
Transmission
(t)(r)( )(Set ID)( )(Data)(Cr)
Data 00: [LST(Last Status)]
01: [STD(Standby)]
02: [PWR(Power On)]
Acknowledgment
(r)( )(Set ID)( )(OK/NG)(Data)(x)
49. Wired [Wake On LAN (Networked Standby
Mode)] (Command: f w)
Selects a Wired Wake On LAN option.
Transmission
(f)(w)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(w)( )(Set ID)( )(OK/NG)(Data)(x)
50. [Screen Rotation] (Command: t h)
Sets the Screen Rotation feature.
Transmission
(t)(h)( )(Set ID)( )(Data) (Cr)
Data 00: [Off]
01: 90 degrees
02: 270 degrees
03: 180 degrees
Acknowledgment
(h)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
72
ENGLISH
51. [Time Sync] (Command: s n, 16)
Sets Time Sync.
Transmission
(s)(n)( )(Set ID)( )(1)(6)( )(Data)(Cr)
Data 00: [Off]
01: [On]
* This feature only works when the Projector is in Master
mode.
* This feature does not work if the current time is not set.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(1)(6)(Data)(x)
* This feature may not be available for all models.
52. [Contents Sync] (Command: t g)
Sets Content Sync.
Transmission
(t)(g)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(g)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
53. [External Input Rotation] (Command: s n, 85)
Sets the External Input Rotation feature.
Transmission
(s)(n)( )(Set ID)( )(8)(5)( )(Data)(Cr)
Data 00: [Off]
01: 90 degrees
02: 270 degrees
03: 180 degrees
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(5)(Data)(x)
* This feature may not be available for all models.
54. [Beacon] (Command: s n, 88)
Turns on/off Beacon.
Transmission
(s)(n)( )(Set ID)( )(8)(8)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(8)(Data)(x)
* This feature may not be available for all models.
55. [Multi Screen] Mode & Input (Command: x c)
Saves and controls Multi Screen modes and inputs.
Transmission
(x)(c)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)( )(Data4)
( )(Data5)( )(Cr)
Data1 (Sets MultiScreen mode)
10: PIP
22: PBP2
23: PBP3
24: PBP4
25: PBP3 (1:2:1)
Data2 (Sets the Main input of Multi screen)
Data3 (Sets the Sub1 input of Multi screen)
Data4 (Sets the Sub2 input of Multi screen)
Data5 (Sets the Sub3 input of Multi screen)
90: HDMI1
91: HDMI2
92: HDMI3/HDBaseT
C0: DISPLAYPORT
Acknowledgment
(c)( )(Set ID)( )(OK/NG)( )(Data1)(Data2)(Data3)
(Data4)(Data5)(x)
* This feature may not be available for all models.
* Only the input modes supported by the model works.
* This feature operates as the last input, and supports data in
DTV format.
* When the Read operation is performed, 00 is returned if it is
not for an external input.
73
ENGLISH
56. [Aspect Ratio] (Multi screen) (Command: x d)
Controls the aspect ratio of Multi Screen.
Transmission
(x)(d)( )(Set ID)( )(Data1)( )(Data2)(Cr)
Data1 01: Controls the Main input
02: Controls the Sub1 input
03: Controls the Sub2 input
04: Controls the Sub3 input
Data2 00: Full Screen
01: Original
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)
* This feature may not be available for all models.
57. [Screen Off] (Multi screen) (Command: x e)
Turns on/off each screen in the Multi Screen.
Transmission
(x)(e)( )(Set ID)( )(Data1)( )(Data2)(Cr)
Data1 01: Controls the Main input
02: Controls the Sub1 input
03: Controls the Sub2 input
04: Controls the Sub3 input
Data2 00: Screen On
01: Screen Off
* This feature only works when the Multi Screen app is running.
* This feature does not work when there is no signal.
Acknowledgment
(e)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)
* This feature may not be available for all models.
58. [Screen Off Always] (Command: s n, 0d)
If you activate the Screen Off Always feature, the Projector
enters Screen Off mode regardless of whether or not you have
activated PM mode.
Transmission
(s)(n)( )(Set ID)( )(0)(d)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(0)(d)(Data)(x)
* This feature may not be available for all models.
59. Stop Video (Command: k x)
Controls Stop Video.
Transmission
(k)(x)( )(Set ID)( )(Data)(Cr)
Data 00: The Stop Video feature is on.
01: The Stop Video feature is off.
* This feature only works in single input mode.
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
60. Wireless [Wake On LAN (Networked Standby
Mode)] (Command: s n, 90)
Sets the Wireless Wake-on-LAN feature.
Transmission
(s)(n)( )(Set ID)( )(9)(0)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(0)(Data)(x)
* This feature may not be available for all models.
61. [OSD Lock] (Command: k l)
Sets OSD Lock.
Transmission
(k)(l)( )(Set ID)( )(Data)(Cr)
Data 00: OSD Lock
01: Unlock OSD Lock
Acknowledgment
(l)( )(Set ID)( )(OK/NG)(Data)(x)
62. [HDMI IT Content] (Command: s n, 99)
Automatically sets the picture mode based on HDMI data.
Transmission
(s)(n)( )(Set ID)( )(9)(9)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(9)(Data)(x)
* This feature may not be available for all models.
74
ENGLISH
63. [Holiday Setting] (Command: s n, 9b)
Sets holidays.
Transmission
1. (s)(n)( )(Set ID)( )(9)(b)( )
(Data1)( )(Data2)( )(Data3)( )
(Data4)( )(Data5)( )(Data6)(Cr)
2. (s)(n)( )(Set ID)( )(9)(b)( )(Data1)( )(Data2)(Cr)
3. (s)(n)( )(Set ID)( )(9)(b)( )(Data1)(Cr)
1. Setting a Holiday
Data1 Start year
00-: 2010-
Data2 Start month
01 - 0c: January - December
Data3 Start date
01 - 1F: 01-31
Data4 For how long from the start year/month/date
01-07: For 1 to 7 days
Data5 Repetition
00: None
01: Every month
02: Every Year
Data6 Repeats the schedule on a date/day-of-the-week
basis.
01: On a date basis.
02: On a day-of-the-week basis.
* The minimum and maximum values for Data1 differ
depending on the product’s release year.
* You can input a value for [Data 6] only when a value has
already been set for [Data 5] (every year or every month).
2. Checking a Schedule
Data1 Select the desired schedule.
F1: Reads the 1st schedule
F2: Reads the 2nd schedule
F3: Reads the 3rd schedule
F4: Reads the 4th schedule
F5: Reads the 5th schedule
F6: Reads the 6th schedule
F7: Reads the 7th schedule
Data2
FF
3. Deleting a Schedule
E0: Deletes all holiday schedules
E1: Deletes the 1st holiday schedule
E2: Deletes the 2nd holiday schedule
E3: Deletes the 3rd holiday schedule
E4: Deletes the 4th holiday schedule
E5: Deletes the 5th holiday schedule
E6: Deletes the 6th holiday schedule
E7: Deletes the 7th holiday schedule
* This feature does not work if the current time is not set.
Acknowledgment
1. (n)( )(Set ID)( )(OK/NG)(9)(b)
(Data1)(Data2)(Data3)(Data4)(Data5)(Data6)(x)
2. (n)( )(Set ID)( )(OK/NG)(9)(b)(f)(1~7)
(Data1)(Data2)(Data3)(Data4)(Data5)(Data6)(x)
3. (n)( )(Set ID)( )(OK/NG)(9)(b)(Data1)(x)
* This feature may not be available for all models.
75
ENGLISH
64. [UPnP] (Command: s n, 9c)
Sets UPnP.mode.
Transmission
(s)(n)( )(Set ID)( )(9)(c)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(c)(Data)(x)
* This feature may not be available for all models.
* Changing UPnP mode results in a reboot.
65. [Home Dashboard Lock] (Command: s n, 9d)
Sets Home Dashboard Lock.
Transmission
(s)(n)( )(Set ID)( )(9)(d)( )(Data)(Cr)
Data 00: Home Dashboard Unlock
01: Home Dashboard Lock
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(d)(Data)(x)
* This feature may not be available for all models.
66. [USB Lock] (Command: s n, 9e)
Sets USB Lock.
Transmission
(s)(n)( )(Set ID)( )(9)(e)( )(Data)(Cr)
Data 00: USB Unlock
01: USB Lock
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(e)(Data)(x)
* This feature may not be available for all models.
67. [Wi-Fi Lock] (Command: s n, 9f)
Sets Wi-Fi Lock.
Transmission
(s)(n)( )(Set ID)( )(9)(f)( )(Data)(Cr)
Data 00: Wi-Fi Unlock
01: Wi-Fi Lock
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(f)(Data)(x)
* This feature may not be available for all models.
68. [Screen Share Lock] (Command: s n, a0)
Sets Screen Share Lock.
Transmission
(s)(n)( )(Set ID)( )(a)(0)( )(Data)(Cr)
Data 00: Screen Share Unlock
01: Screen Share Lock
02: Screen Share Lock (PIN)
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(0)(Data)(x)
* This feature may not be available for all models.
69. [Play Backup Content] (Command: s n, a1)
When there is no input signal, this feature automatically plays
the content stored in the device or runs the set app.
Transmission
1. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Cr)
2. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Data2)(Cr)
1. Disabling Play Backup Content.
Data1 00: Off
2. Setting Play Backup Content to Auto Capture Images
Data1 01: Auto Capture Images
Data2 01: 30 minutes
02: 1 hour
03: 2 hours
04: 3 hours
3. Setting Play Backup Content to Media Storage
Data1 02: Media Storage
4. Setting Play Backup Content to SuperSign Content
Data1 03: SuperSign Contents
5. Set to SI App/Play via URL
Data 1 04: [SI App/Play via URL]
Acknowledgment
1. (n)( )(Set ID)( )(OK/NG)(a)(1)(Data1)(x)
2. (n)( )(Set ID)( )(OK/NG)(a)(1)(Data1)(Data2)(x)
* This feature may not be available for all models.
76
ENGLISH
70. [Booting Logo Image] (Command: s n, a3)
Sets Booting Logo Image.
Transmission
(s)(n)( )(Set ID)( )(a)(3)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(3)(Data)(x)
* This feature may not be available for all models.
71. [SoftAP] (Command: s n, a4)
Sets SoftAP Mode.
Transmission
(s)(n)( )(Set ID)( )(a)(4)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(4)(Data)(x)
* This feature may not be available for all models.
72. Play Saved Internal Media (Command: s n, a8)
Plays media files saved on internal storage. Internal storage
media: videos and images stored on the Projector’s internal
storage after being exported via Contents Management Player.
* Not applicable: Template content, SuperSign content, and
playlist content.
Transmission
(s)(n)( )(Set ID)( )(a)(8)( )(Data)(Cr)
Data 01: Play
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(8)( )(Data)(x)
* This feature may not be available for all models.
73. [No Signal Image] (Command: s n, a9)
Sets the No Signal Image feature.
Transmission
(s)(n)( )(Set ID)( )(a)(9)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(9)(Data)(x)
* This feature may not be available for all models.
74. [Audio Out] (Command: s n, aa)
Sets Audio Out to Off/Variable/Fixed.
Transmission
(s)(n)( )(Set ID)( )(a)(a)( )(Data)(Cr)
Data 00: [Off]
01: [Variable]
02: [Fixed]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(a)(Data)(x)
* This feature may not be available for all models.
75. [DPM (Standby Mode) Wake Up Control]
(Command: s n, 0b)
Controls the DPM Wake Up Control settings.
Transmission
(s)(n)( )(Set ID)( )(0)(b)( )(Data)(Cr)
Data 00: [Clock]
01: [Clock+DATA]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(0)(b)(Data)(x)
* This feature may not be available for all models.
76. [Apply to all inputs] (Command: s n, 52)
Apply the video mode and low value of the current input to the
same video value of all inputs.
Transmission
(s)(n)( )(Set ID)( )(5)(2)( )(Data)(Cr)
Data 01: Apply
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(5)(2)(Data)(x)
* This feature may not be available for all models.
* Other commands do not work for a certain time after
applying.
77
ENGLISH
77. [Timer Power On] Scheduling (Command: f d)
Sets On Timer settings.
Depending on the model, the number of schedules for Timer
Power On can be either 16 or 21.
Transmission
(f)(d)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
Data1
1. To f1h ~ ffh, a1h ~ a6h (data reading)
F1 ~ FF: Read data for the 1st to 15th times for Timer
Power On.
A1 ~ A6: Read data for the 16th to 21st times for Timer
Power On.
2. e1h ~ efh, b1h~b6h (Deletes one index), e0h (Deletes
all indexes)
E0: Delete all Timer Power On’s
E1 ~ EF: Delete the 1st to 15th times for Timer Power On.
B1 ~ B6: Delete the 16th ~ 21st times for Timer Power
On.
3. 01h to 0ch (Timer Power On days setting)
02: Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06: Repeat on Sunday
07: Repeat on Monday
08: Repeat on Tuesday
09: Repeat on Wednesday
0A: Repeat on Thursday
0B: Repeat on Friday
0C: Repeat on Saturday
Data2 00-17: 00 - 23 hours
Data3 00-3B: 00 - 59 minutes
* To read or delete a Timer Power On you have set, [Data2]
[Data3] must be set to FFH.
Example 1: fd 01 f1 ff ff - Reads the 1st index data in Timer
Power On.
Example 2: fd 01 e1 ff ff - Reads the 1st index data in Timer
Power On.
Example 3: fd 01 04 02 03 - Sets the Timer Power On as
Monday - Saturday 02:03.
* This feature only works when Clock 1 (year/month/day) and
Clock 2 (hour/minute/second) have been set.
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
78. [Timer Power Off] Scheduling (Command: f e)
Sets Off Timer settings.
Depending on the model, the number of schedules for Timer
Power Off can be either 16 or 21.
Transmission
(f)(e)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
Data1
1. To f1h ~ ffh, a1h ~ a6h (data reading)
F1 ~ FF: Read data for the 1st to 15th times for Timer
Power On.
A1 ~ A6: Read data for the 16th to 21st times for Timer
Power On.
2. e1h ~ efh, b1h ~ b6h (Deletes one index), e0h (Deletes
all indexes)
E0: Delete all Timer Power Off’s
E1 ~ EF: Delete the 1st to 15th times for Timer Power Off.
B1 ~ B6: Delete the 16th ~ 21st times for Timer Power
Of f.
3. 01h to 0ch (Timer Power Off days setting)
02: Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06: Repeat on Sunday
07: Repeat on Monday
08: Repeat on Tuesday
09: Repeat on Wednesday
0A: Repeat on Thursday
0B: Repeat on Friday
0C: Repeat on Saturday
Data2 00-17: 00 - 23 hours
Data3 00-3B: 00 - 59 minutes
* To read or delete a Timer Power Off you have set, [Data2]
[Data3] must be set to FF.
Example 1: fe 01 f1 ff ff - Reads the 1st index data in Timer
Power Off.
Example 2: fe 01 e1 ff ff - Reads the 1st index data in Timer
Power Off.
Example 3: fe 01 04 02 03 - Sets the Timer Power Off as
Monday - Saturday 02:03.
* This feature only works when Clock 1 (year/month/day) and
Clock 2 (hour/minute/second) have been set.
Acknowledgment
(e)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
78
ENGLISH
79. LCIN008 Control (Command: s n, b8)
It controls the LCIN008 device.
Transmission
(s)(n)( )(Set ID)( )(b)(8)( )(Data1)(Data2)(Cr)
Data 1 00: LCIN008 Power
01: LCIN008 Brightness
Data 2
1. For Power
0 x 00: Off
0 x 01: On
2. For Brightness
0 x ff: Read
0 x 00 ~ 0 x 64: Applies a set value
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(8)(Data1)(Data2)(x)
* This feature may not be available for all models.
* Other commands do not work for a certain time after
applying.
80. [Transfer Control] (Command: s n, cb)
It transfers the command to RS232C out.
Transmission
(s)(n)( )(Set ID)( )(c)(b)( )(Data)(Cr)
Data Data that goes out to RS232C out
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(b)(Data)(x)
Data Response value of Data transferred to RS232C
out
* This feature may not be available for all models.
* Other commands do not work for a certain time after
applying.
81. Multichannel (Command: s n, 76)
It changes the channel.
Transmission
(s)(n)( )(Set ID)( )(7)(6)( )(Data)(Cr)
Data 01 - 09: Channel to switch to
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(7)(6)(Data)(x)
* This feature may not be available for all models.
82. Change SetID (Command: j x)
Changes and checks SetID.
Read only
Transmission
(j)(x)( )(Set ID)( )(Data)(Cr)
Data FF: Check the value of SetID
The returned value is indicated as a value of hexadecimal
numbers corresponding to the ASCII code value.
(Return when SetID is 1: x 01 OK31x
Return when SetID is 1000: x 3e8 OK31303030x)
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
* It works even if the SetID does not match.
* This feature may not be available for all models.
83. [Gamma] (Command: s n, ad)
Sets Gamma Mode.
Transmission
(s)(n)( )(Set ID)( )(a)(d)( )(Data)(Cr)
Data 00: [Low](1.9)
01: [Medium](2.2)
02: [High1](2.4)
03: [High2](BT.1886)
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(d)(Data)(x)
* This feature may not be available for all models.
84. [Black Level] (Command: s n, ae)
It sets the Black Level mode.
Transmission
(s)(n)( )(Set ID)( )(a)(e)( )(Data)(Cr)
Data 00: Low
01: High
02: Auto
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(e)(Data)(x)
* This feature may not be available for all models.
79
ENGLISH
85. [UHD Deep Color] (Command: s n, af)
It sets the UHD Deep Color mode for each input.
Transmission
(s)(n)( )(Set ID)( )(a)(f)( )(Data1)( )(Data2)(Cr)
Data 1 90: HDMI1
91: HDMI2
C0: DISPLAYPORT
Data2 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(f)(Data1)(Data2)(x)
* This feature may not be available for all models.
86. [Sync Mode] (Command: s n, b0)
Sets Sync Mode.
Transmission
(s)(n)( )(Set ID)( )(b)(0)( )(Data)(Cr)
Data 00: [Slave Mode]
01: [Master Mode]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(0)(Data)(x)
* This feature may not be available for all models.
87. [Input Manager] (Command: s n, b1)
It sets labels by input.
Transmission
(s)(n)( )(Set ID)( )(b)(1)( )(Data1)( )(Data2)(Cr)
Data 1 90: HDMI1
91: HDMI2
92: HDMI3/HDBaseT
C0: DISPLAYPORT
Data2 00: DTV
01: PC
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(1)(Data1)(Data2)(x)
* This feature may not be available for all models.
88. [PC Power Control] (Command: s n, 8b)
It sets the PC Power Control mode.
Transmission
(s)(n)( )(Set ID)( )(8)(b)( )(Data)(Cr)
Data 00: [Disable]
01: [Sync(On)]
02: [Sync(On/Off)]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(b)(Data)(x)
* This feature may not be available for all models.
89. [Average Picture Level Auto Control] (Command:
s n, be)
Sets Average Picture Level Auto Control.
Transmission
(s)(n)( )(Set ID)( )(b)(e)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(e)(Data)(x)
* This feature may not be available for all models.
90. [Stereo Mode] (Command: s n, c2)
Controls Stereo Mode.
Transmission
(s)(n)( )(Set ID)( )(c)(2)( )(Data)(Cr)
Data 00: Left/Right
01: Left/Left
02: Right/Right
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(2)(Data)(x)
* This feature may not be available for all models.
80
ENGLISH
91. [HDR Picture Mode] (Command: s n, c4)
Selects a HDR Picture Mode.
Transmission
(s)(n)( )(Set ID)( )(c)(4)( )(Data)(Cr)
Data 00: Mall/QSR
01: General
02: Gov./Corp.
04: Education, Screen Game
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(4)(Data)(x)
* Depending on the model, some picture modes may not be
supported.
* It works only when the HDR content is running.
92. [Dynamic Tone Mapping] (Command: s n, c5)
Selects Dynamic Tone Mapping.
Transmission
(s)(n)( )(Set ID)( )(c)(5)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(5)(Data)(x)
* Depending on the model, some picture modes may not be
supported.
* It works only when the HDR content is running.
93. [Change Password] (Command: s n, a7)
Changes password.
Transmission
(s)(n)( )(Set ID)( )(a)(7)( )(Data1)(Data2)(Data3)
(Data4)(Data5)(Data6)( )(Data7)(Data8)(Data9)
(Data10)(Data11)(Data12)(Cr)
Data 1~6: 0~9(Previously set password)
Data 7~12: 0~9(New password)
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(7)( )(Data1)(Data2)(Data3)
(Data4)(Data5)(Data6)( )(Data7)(Data8)(Data9)
(Data10)(Data11)(Data12)(x)
* This feature may not be available for all models.
94. [Color Calibration] (Command: s n, d6)
Selects Colour Calibration.
Transmission
(s)(n)( )(Set ID)( )(d)(6)( )(Data)(Cr)
Data 00: Off
01: On
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(d)(6)(Data)(x)
* It may not be supported depending on the model.
95. [Quick Start+] (Command: s n, 0e)
Selects Quick Start+ Mode.
Transmission
(s)(n)( )(Set ID)( )(0)(e)( )(Data)(Cr)
Data 00: Off
01: On
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(0)(e)(Data)(x)
* It may not be supported depending on the model.
81
ENGLISH
TROUBLESHOOTING
Please check the list below when you experience the following symptoms during use of the product. It may not be a
failure.
Information on customer service for product problems is available in [General] [System Information]
on the projector.
Troubleshooting Power/Remote Issues
Please check the list below when you experience the following symptoms during use of the product. It may not be a
failure.
I cannot turn on the Projector.
• Please make sure your projector power plug is correctly connected to the outlet.
• If you are using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug
the projector’s power plug directly to a wall outlet and observe its operation.
• Try to power on using the button on your projector set.
• If you are using a standby power cut-off switch, turn off the standby power cut-off and turn the power on again.
The power is on, but the screen does not turn on for some time.
• It is not a sign of defect because the screen may turn on later to prevent possible noise from the screen when the
power is turned on.
I cannot turn the projector on with the remote control.
• Please make sure your projector power plug is correctly connected to the outlet.
• Replace the batteries in the remote control. (Use alkaline batteries.)
• Check whether there are any obstacles in front of the projector’s remote control sensor. Sound bars or other
obstacles placed in front of the projector’s lower receiver may obstruct IR signal reception.
The power turns off suddenly.
• Make sure [Power Off Timer] is set.
• There is also a chance that the internal protection circuitry has activated because the internal temperature of the
product has risen unusually or excessively.
82
ENGLISH
Troubleshooting Screen Issues
Please check the list below when you experience the following symptoms during use of the product. It may not be a
failure.
It says there is no signal on the screen.
• Check if the cable connected to the external device is properly connected to the projector.
• Go to INPUT button to choose the connected input.
• The signal from the PC (Graphics card) is out of the vertical or horizontal frequency range of the product. Adjust the
frequency range by referring to the specifications in this manual.
Part of the projected image is cut out.
• Check if the graphics card resolution and frequency are supported by the product. If the frequency exceeds the
supported range, use PC settings to set the resolution to the recommended value.
The screen shakes after the momentary appearance of vertical/horizontal lines and net pattern.
• Use a different wall outlet than where you plug wireless telephones, hairdryers, electrical drills etc. The problem is
caused by high-frequency electronic devices such as another projector or strong electromagnetic sources.
I don’t see anything, or the image keeps flickering when I try to connect the HDMI cable.
• Check whether your HDMI
®
cable is compliant with the specifications. You may experience flickering or a blank screen
if the HDMI
®
cable is faulty (bent, broken).
• Make sure that the cable is correctly connected to the port. Bad or loose contact may cause display problems on the
screen.
• Turn off the Deep Color function for each input (HDMI1, HDMI2, DISPLAYPORT) at [Display]
[Advanced Setting] [UHD Deep Color].
- Some models may not be supported. Some input signals may not be available for all models.
The screen looks too dim or dark.
• Change to the desired video mode at [Display] [Picture Mode].
• Change the brightness to Minimum Energy-Saving at [Display] [Advanced Setting] [Energy
Saving].
The screen is in black and white or displaying strange colors.
• Check the input mode or cable connection.
• Go to INPUT button to choose the connected input.
83
ENGLISH
Troubleshooting Sound Issues
Please check the list below when you experience the following symptoms during use of the product. It may not be a
failure.
The screen is fine, but it does not play any sound.
• See if the audio cable is connected properly.
• Adjust the volume of the product or external device.
• See if the sound is set properly.
Sound is too dull.
• Select the appropriate equalizer sound.
Sound is too low.
• Adjust the volume of the product or external device.
There is no sound coming from one of the speakers.
• Adjust the balance as necessary with the Navigation button in [Sound] [Sound Mode]
[Balance].
84
ENGLISH
Troubleshooting PC Connection Issues
Please check the list below when you experience the following symptoms during use of the product. It may not be a
failure.
The screen remains blank after it is connected to a PC.
• Check that the PC is properly connected to the projector.
• Turn the projector off and back on using the remote control.
• Restart the PC with the projector on.
• Make sure that the output resolution set on the PC is set to the HDMI-PC supported resolution of the projector.
• To use dual monitors, check that the PC or notebook supports dual-monitor mode.
• Reconnect the high speed HDMI
®
cable.
• If you have connected the RGB output port of your PC to the HDMI input port or your projector. You need an RGB to
HDMI gender.
You will not see anything on the screen if you use an HDMI to RGB gender.
The screen is cut off or moved to one side after it is connected to a PC.
• Set the PC’s resolution to one supported by the projector.
• Set the connected HDMI device’s name to PC.
- Change to PC at [General] [Advanced Setting] [Input Manager].
The sound does not play when the PC is connected with an HDMI
®
cable.
• In PC settings, set Control Panel Sound Play LG projector as the default device.
• Consult your manufacturer on whether your graphics card supports HDMI audio output.
85
ENGLISH
Troubleshooting Movie Playback Issues
Please check the list below when you experience the following symptoms during use of the product. It may not be a
failure.
For more information about supported files, see “Supported Photo & Video Files”.
I cannot find a file in the [Player].
• Check that the files on the USB storage device can be read by a PC.
• Check that the file extension is supported.
I get a message saying “This file is not supported” or the sound is playing normally but the video is not.
• Check that the file plays without any problems on a PC’s video player. Also check for file damage.
• Check that the file extension is supported.
• Check that the resolution is supported.
• Check that the video codec is supported.
• Check that the frame rate is supported.
I get a message saying “This audio is not supported” or the video is playing normally but the audio is not.
• Check that the file plays without any problems on a PC’s video player. Also check for file damage.
• Check that the file extension is supported.
• Check that the audio codec is supported.
• Check that the bit rate is supported.
• Check that the sample rate is supported.
• Check that the audio channel separation is supported.
I cannot see the subtitles.
• Subtitles are not supported.
My USB storage device is not recognized when connected.
• Check whether it is a USB storage device supported by the projector.
86
ENGLISH
Troubleshooting Network Connection Issues
Please check the list below when you experience the following symptoms during use of the product. It may not be a
failure.
Before connecting to a wireless network, check the name and password of the Wi-Fi device to connect.
You can check the network connection status as shown below.
• [General] [Network] [Wired Connection (Ethernet)]
• [General] [Network] [Wi-Fi Connection] [Advanced Wi-Fi Settings]
When X appears next to projector
• Check the projector or the AP (Router).
• Check the connection status of the projector, AP (Router) and Cable Modem.
• Power off and power on in the following order;
1. The Cable Modem, wait for the Cable Modem to reset.
2. Turn your cable modem off and back on, and wait for the device to reset.
3. The projector.
• If you want to establish a wired LAN connection check whether an IP address can be obtained from your router
properly. If you are setting up your network manually check whether all settings are correct.
• If you want to establish a wireless connection check the following points as well.
1. Set your router’s SSID (network name) or wireless channel.
2. Set your router’s security key.
If you do not know this setting, check the router’s instruction manual and the manual provided by the Internet
provider. If you are still not sure, contact the router company or the Internet company.
• If you are using a static IP, enter the IP directly.
87
ENGLISH
When X appears next to Gateway
• Check the AP (Router) or consult your Internet service provider.
• Unplug the power cord of the AP (Router), Cable Modem, wait 10 seconds. Reapply power.
• Initialize (Reset) on the AP (Router) or Cable Modem.
• Check the AP (Router) manufacturer’s website to make sure your router has the latest firmware version installed.
• If you do not know this setting, check the router’s instruction manual and the manual provided by the Internet
provider. If you are still not sure, contact the router company or the Internet company.
When X appears next to DNS
• Check the AP (Router) or consult your Internet service provider.
• Unplug the power cord of the AP (Router), Cable Modem, wait 10 seconds. Reapply power.
• Initialize (Reset) on the AP (Router) or Cable Modem.
• Check that the MAC address of the projector/AP (Router) is registered with your Internet service provider. (The
MAC address displayed on the pane of the network status window should be registered with your Internet service
provider.)
• If you do not know this setting, check the router’s instruction manual and the manual provided by the Internet
provider. If you are still not sure, contact the router company or the Internet company.
