HIACE - OCT - 2022 - 001
Toyota Alarm System
USER MANUAL
Please read this manual for proper operation and keep it for future reference.
HIACE - OCT - 2022 - 001
Introduction
Security Overview
Arming the alarm system
Disarming the alarm system
Alarm Activation
Switching off the alarm activation
Alarm activation diagnostic
Panic alarm (Car finder)
Comfort automatic door locking
Emergency alarm system override
System override procedure
Warranty
Toyota Alarm System
USER MANUAL
Section
Title
Page
1.0
2.0
2.1
2.2
3.0
3.1
3.2
3.3
3.4
4.0
4.1
5.0
Please read this manual for proper operation and keep it for future reference.
HIACE - OCT - 2022 - 001
To reduce the possibility of the vehicle being broken into or stolen, the
following precautions should always be taken when leaving the vehicle
unattended.
• Close all windows. The smallest gap could present an opportunity to a thief.
take all valuables with you, or lock them in the glove box or boot
compartment. Do not leave vehicle ownership documents in the vehicle.
• Ensure all doors, the glove box and bonnet boot compartment are properly
closed and the alarm system is armed.
• At night, park in a well illuminated area.
! WARNING
No additions or modifications should be made to the security system
installation or its components. Any repairs on the security system or its
components should be undertaken by an Authorised UMW Toyota Motor
Dealer.
SECTION 1.0
Introduction
Please read this manual for proper operation and keep it for future reference.
3/7
HIACE - OCT - 2022 - 001
To assist in securing your car, the following features are provided.
Alarm system comprising warning alarm and perimetric protection with Remote Control
electronically coded to the car.

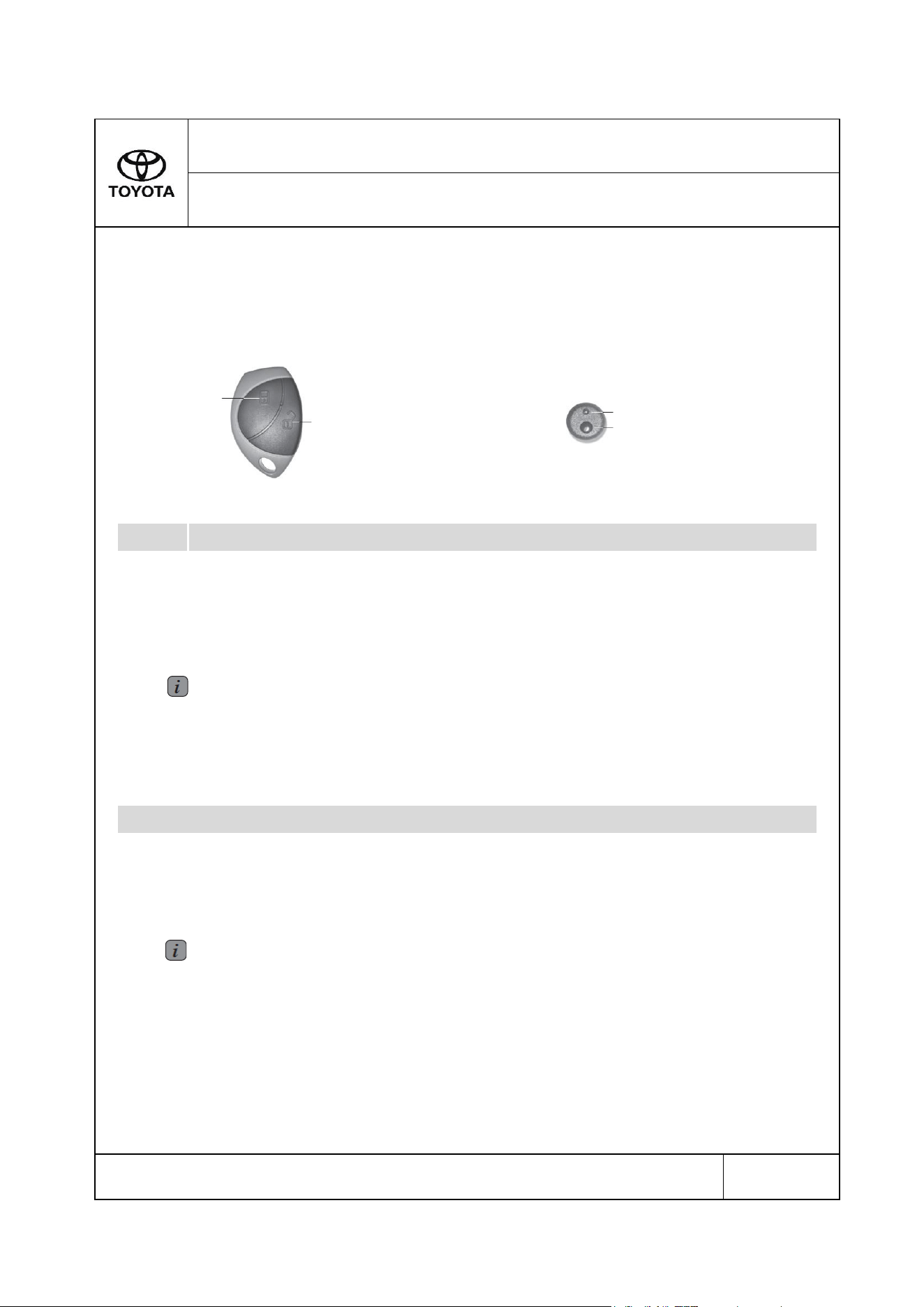

Indicator:
A A : Lock (Arm)/Panic button A
B B : Unlock (Disarm)/Cancel Panic button B
Remote Control LED Push Button panel
Arming the alarm system
Press the lock button to lock the car. The turn signals will flash and beep twice,
the alarm LED will light on for 5 seconds then fast blink to indicate that
the alarm system is armed.
Note
Door ajar warning
If any of the doors is ajar, the buzzer will issue 3 beeps and signal will flash 3 times, all doors
will then lock and the alarm will arm.
Disarming the alarm system
The alarm system is disarmed when the Remote Control is used to unlock the car
Press the unlock button to unlock the car. The turn signals will flash and beep once and then
the alarm LED goes off to indicate that the alarm system is disarmed.
Note
If a door has not been opened within 30 seconds of unlocking the car, all doors will automatically
relock and the alarm system rearms.
Push Button
SECTION 2.0
Security Overview
Security overview
LED
2.1
The alarm system is armed when the Remote Control is used to lock the car.
2.2
Please read this manual for proper operation and keep it for future reference.
4/7
HIACE - OCT - 2022 - 001
Alarm activation
The system activates an alarm if the following unauthorised actions are carried out when the car
is locked.
Opening of doors
The alarm is sounded and turn signals flash for approximately 30 seconds per cycle up to a
maximum of 9 cycles.
Switching off the alarm activation
The alarm can be switched off by pressing the unlock button twice.
Alarm activation diagnostic
If an alarm had activated, on unlocking the car with the Remote Control, the alarm will issue
5 beeps and signal will flash 5 times.
You can diagnose the cause of the alarm activation by opening the driver’s door and switching ON
the vehicle ignition (switch OFF and ON the ignition to review the diagnostics memory).
Check the alarm LED display:
1 flash - alarm activated by opening of driver/passenger door
2 flashes - alarm activated by switching ON the ignition
4 + 6 flashes - alarm activated by opening of sliding/back door
Note
The alarm activation diagnostic memory will be erased when the Remote Control is used to lock
the vehicle and arm the alarm system.
Panic alarm (Car finder)
When the alarm is in armed mode (LED is blinking), press the lock button & hold for 5 seconds,
the siren + horn will sound and turn signals will flash for 10 seconds.
Comfort automatic door locking
• When the car is driving with the speed of about 20km/hr, all doors will lock
• All doors will unlock when the car ignition is switched OFF
SECTION 3.0
Alarm Activation
3.0
Ignition ON
3.1
3.2
3.3
3.4
Please read this manual for proper operation and keep it for future reference.
5/7
HIACE - OCT - 2022 - 001
Emergency alarm system override
The alarm system can be disarmed manually if there is a malfunction with the Remote Control,
for example the Remote Control is not able to unlock the vehicle remotely and you have to insert
the mechanical key to manually unlock the vehicle. This will activate the alarm.

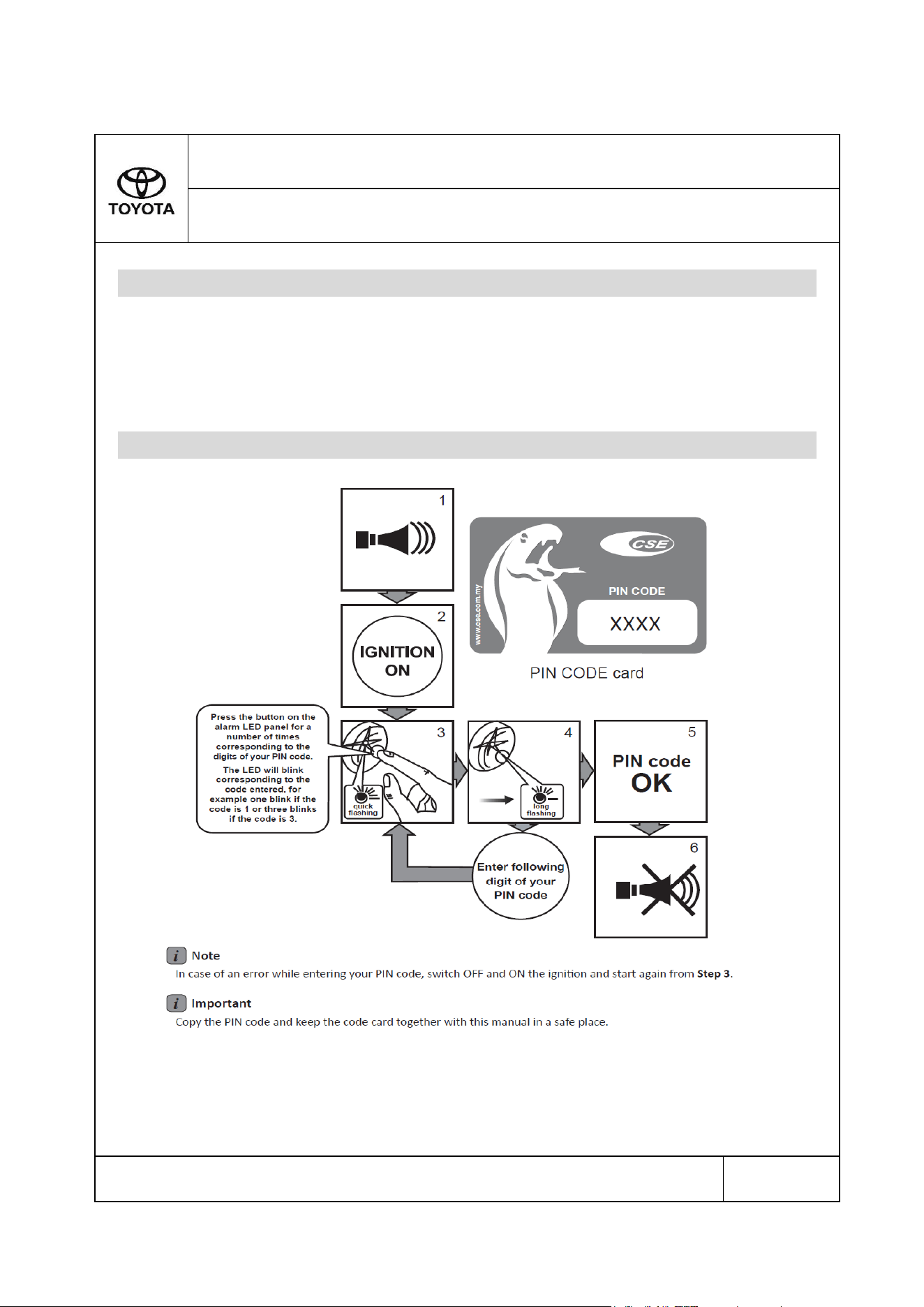

Proceed to manually override the system with the PIN code provided.
SECTION 4.0
Emergency Alarm System Override
4.0
4.1
System override procedure
Please read this manual for proper operation and keep it for future reference.
6/7
HIACE - OCT - 2022 - 001
The Toyota vehicle security system comes under the vehicle warranty terms and conditions
The warranty is void if the system has been tampered with or display signs of tempering signs of
tampering or negligence that are not due to manufacturer’s defects.
For more information on the vehicle warranty terms and conditions,
refer to an Authorised UMW Toyota Motor Dealer.
SECTION 5.0
Warranty
Please read this manual for proper operation and keep it for future reference.
7/7
