ParkAlert Roof and Bumper Rear Sensing System
INSTALLATION MANUAL
PS-6CRBP
Thank you for purchasing the
PS-6CRBP
• (6) Surface-mount sensors with 18” pigtail
• (6) Rubber Sleeves
• (6) 6° Sensor Bezels
• (6) 12° Sensor Bezels
• Control Module
• Speaker with Volume Control
• Main Sensor Harness
• Roof Sensor Harness
• Power/Speaker Harness
• 24.5mm Metal Hole Saw
• Install Accessory Pack
2
WHAT’S INCLUDED:
This ultrasonic detection system is designed to assist in the avoidance of obstacles while reversing.
Disclaimer:
This system is strictly a driver assistance device, and should not be relied upon as a substitute for safe driving practices. Use common
sense when parking and always follow recommended safe driving guidelines from your local, State and County Department of Motor
Vehicles regarding parking procedures. To help prevent accidents, always use caution when parking, looking visually to ensure your path is
clear. Keep speeds under three miles per hour. The owner shall not be entitled to recover from the Company, its successors or assignees,
incidental and consequential damages, such as personal injury, loss of income, loss of time, loss of prots, loss of vehicle use or property
damage. No employee, agent or representative of the Company of the Selling Retailer may modify, alter or extend this Warranty in any way.
This Warranty gives you specic legal rights. You may also have other rights under this Warranty which may vary from state to state.
Note: Under no circumstances should you attempt to open the control box or any other component. Doing so will void all manufacturer’s
warranties.
3
Recommended Tools:
• High Torque Drill with low RPM setting for drilling metal
• Grease Pencil and Center Punch for marking drill point
• 1/8” carbide-tipped drill bit for starting pilot hole
• Pliers, Crimpers and Soldering Iron
• Multi-Meter
• Zinc Galvanizer or a rust inhibitor for metal
• Angle Gauge Sleeve Selector
• Measuring Tape
• Panel Pry Tool
• Wire Pulling Tool
• Semi-circular metal le (for smoothing hole edges when necessary
Installation
Determining Sensor Position: Measure Twice, Drill Once
Inspect behind the bumper in the approximate mounting area to check for any possible
obstructions.
A proper installation will take into consideration two factors:
(1) Placement: height and distance on either side of the mounting surface center (refer to
diagram on page 4)
(2) Angle: accurate detection depends on the correct sensor angle
The sensors need a 1” clearance space behind the mounting surface to be completely
inserted. Some bumpers have an outside cover or fascia and a metal backing. You may
have to drill through both layers to ensure you have enough clearance in order to t the
sensors. Other bumpers require some removal of foam backing.
CAUTION: Be careful of hot parts and/or sharp edges under the bumper.
DO NOT INSTALL SENSORS ABOVE EXHAUST PIPE. Doing so may cause false alerts.
4
8-20in
200-500mm
8-12in
200-300mm
24-28in
600-700mm
8-16in
200-400mm
8-16in
200-400mm
Vehicle Width X1 X
<87in/2200mm
16in/400mm
16in/400mm
<87in/2200mm 16in/400mm 24in/600mm
>87in/2200mm 24in/600mm 24in/600mm
GROUND
H

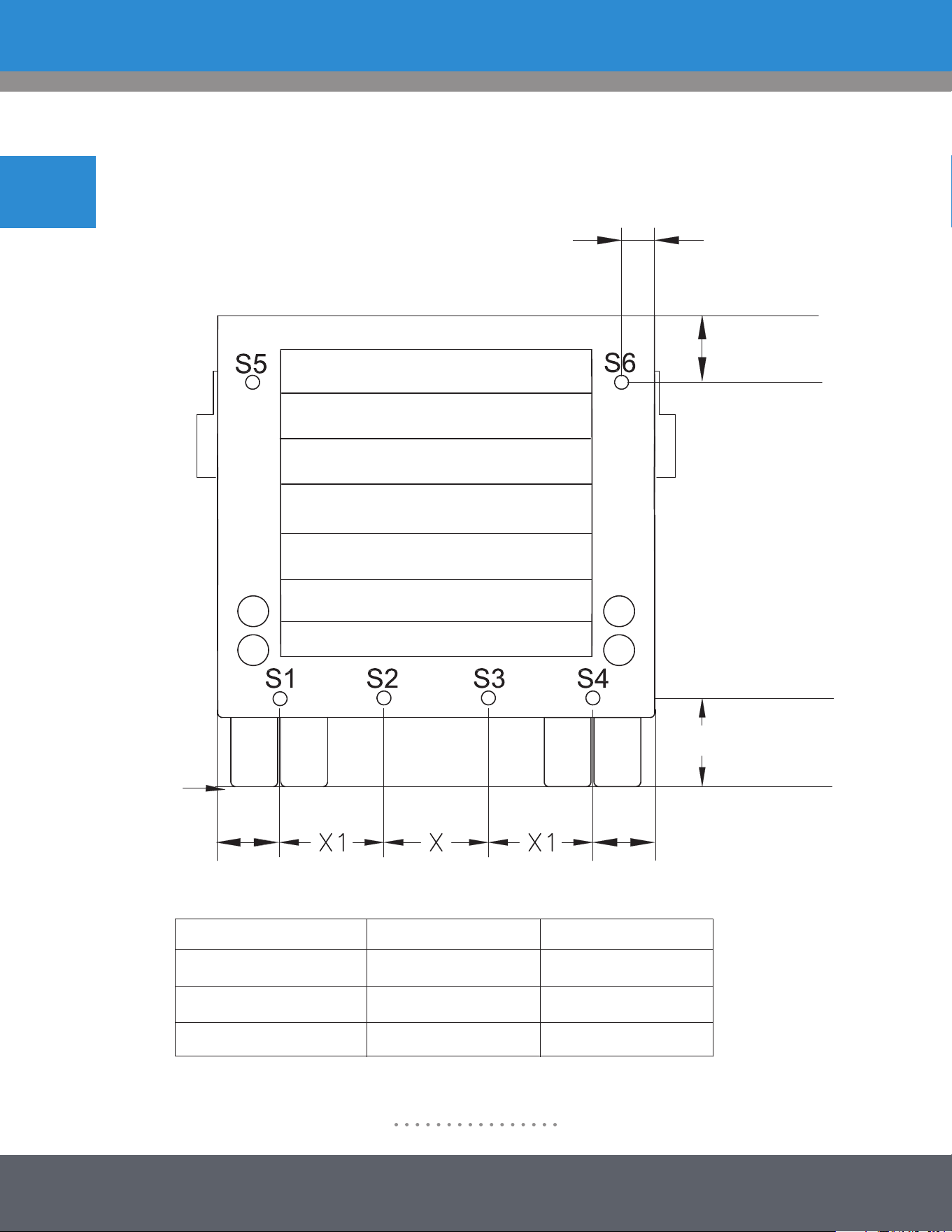

Sensor Placement
5
Drilling Holes and Installing Sensors
Warnings/Precautions: Please consult with us before installing on a vehicle with any
rear mounted external appliances which may interfere with the system’s detection and
cause false detection.
(1) The Sensor Holes
Using the provided Hole Saw, drill the sensor holes. Always wear approved safety
glasses when drilling and use caution. If drilling through metal, coat edges of holes with
Zinc Galvanizer, a rust inhibitor. Metal bumpers also require the use of rubber sleeves
with installation of sensors.
Connecting the Power Harness
Use a Multi-Meter to locate the reverse wire at the vehicle’s tail lamp. The reverse
wire will register 12 volts when the vehicle is in reverse and 0 volts when not in
reverse.
NOTE: Never Use A Test Light To Probe Wires.
It is recommended to solder all connections.
Once the reverse wire is found, connect the red wire from the power harness to it.
Connect the black ground wire from the harness to the vehicle’s ground wire. Route
cable to control module and plug in.

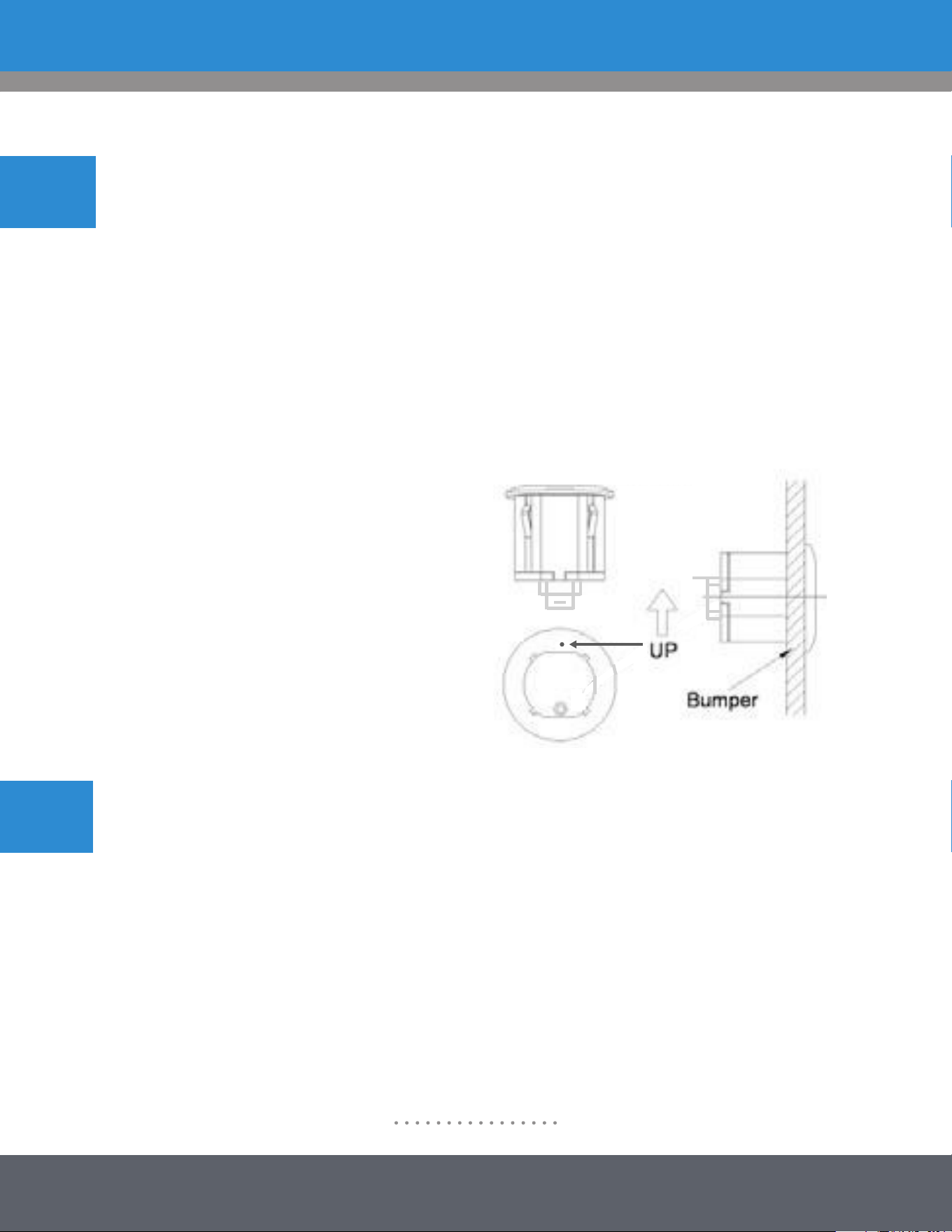

(2) Mount Sensor
Ensure correct angle sleeve is being used. Insert
sensor with the “up” marking facing up.
Rubber sleeves must be oriented with the ‘UP’
notation mounted up.
6
Routing Sensor Harnesses to Control Module
Many vehicles will have factory grommets to allow routing of wires from the outside to
the inside of the vehicle. If drilling a hole through a metal body panel to route the sensor
wires into the vehicle, determine where the sensor wires will enter into the vehicle and
route to the control module.
Mounting Speaker and Setting Volume
The speaker has 3 volume adjustment positions: High, Low and Off.
Clean the mounting surfaces, afx adhesive to the back of the speaker and rmly press
the speaker into place. Connect the speaker to the connector on the power harness.
Mounting the Control Module
Mount the control module behind one of the vehicle’s body panels. Clean a suitable
location. Plug in all connectors. Finish by securing any loose and/or excess wiring.
Before reassembling any panels that might have been removed, test the system.
Operating Guide
System will become engaged when vehicle is put into reverse. The system should beep
one time when reverse is activated to notify the driver that it is on and working. Once
an object is detected within the range, the system will alert the driver via audible tone.

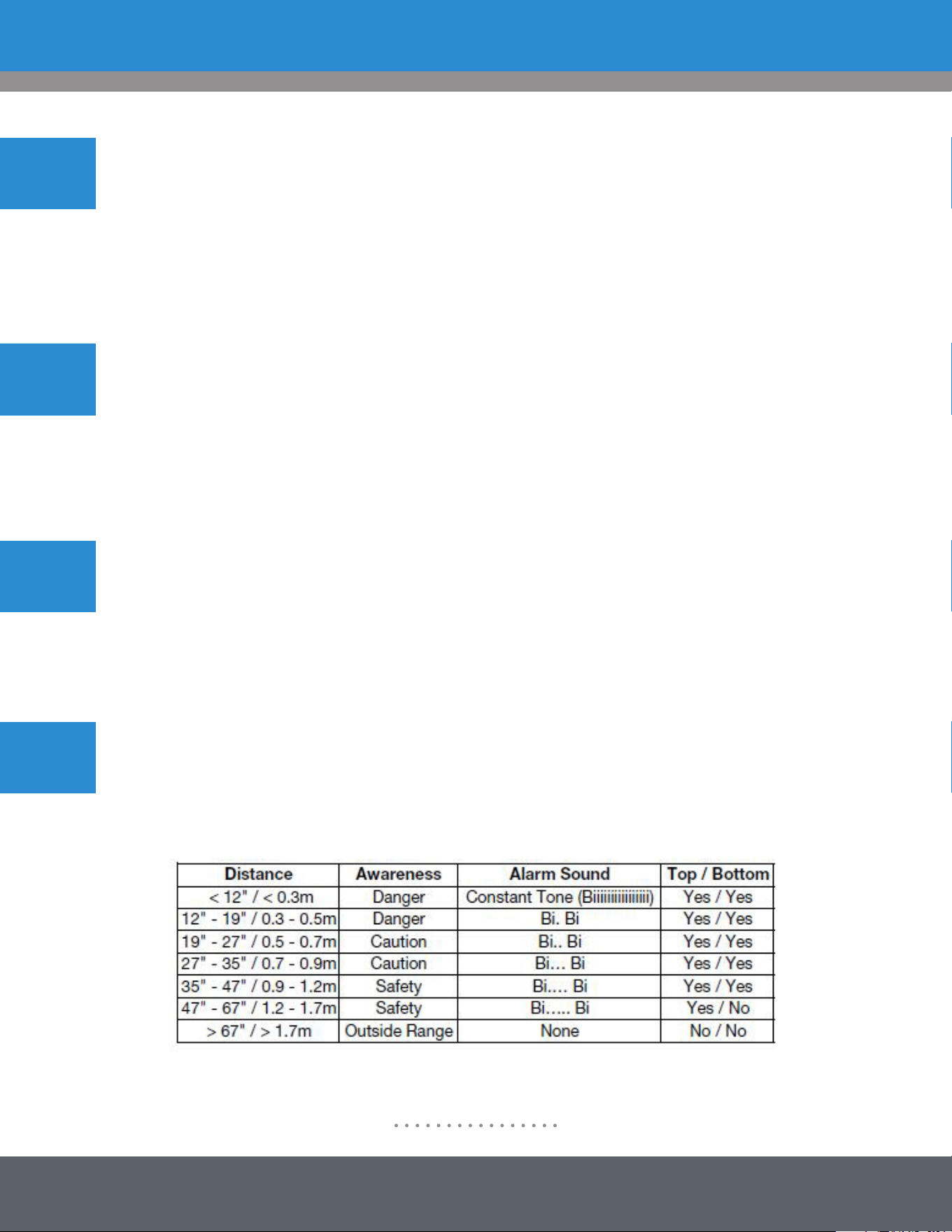

NOTE: The chart reects the default zone range. Performance may be affected by the
following: Heavy rain, loose gravel/bumpy road, steep slopes, at/smooth surfaces.
7

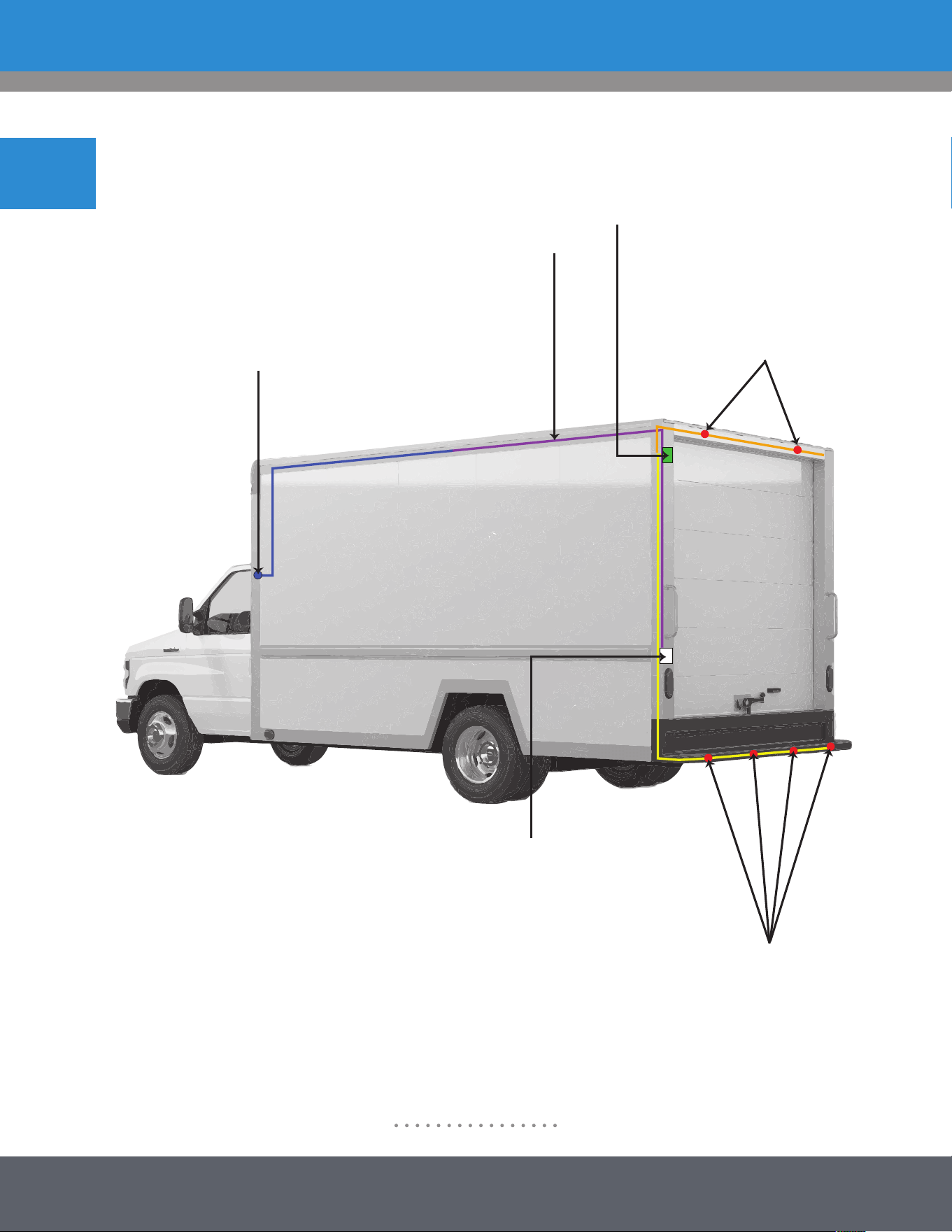

Wiring Diagram
Speaker Harness
Top Sensor Harness - Orange
Module - Green
Speaker- Blue
Main Harness - Yellow
Power/Speaker Harness - Purple
Sensors - Red
Top Sensors
Module
Bottom Sensors
Power &
Ground
Connection
Speaker

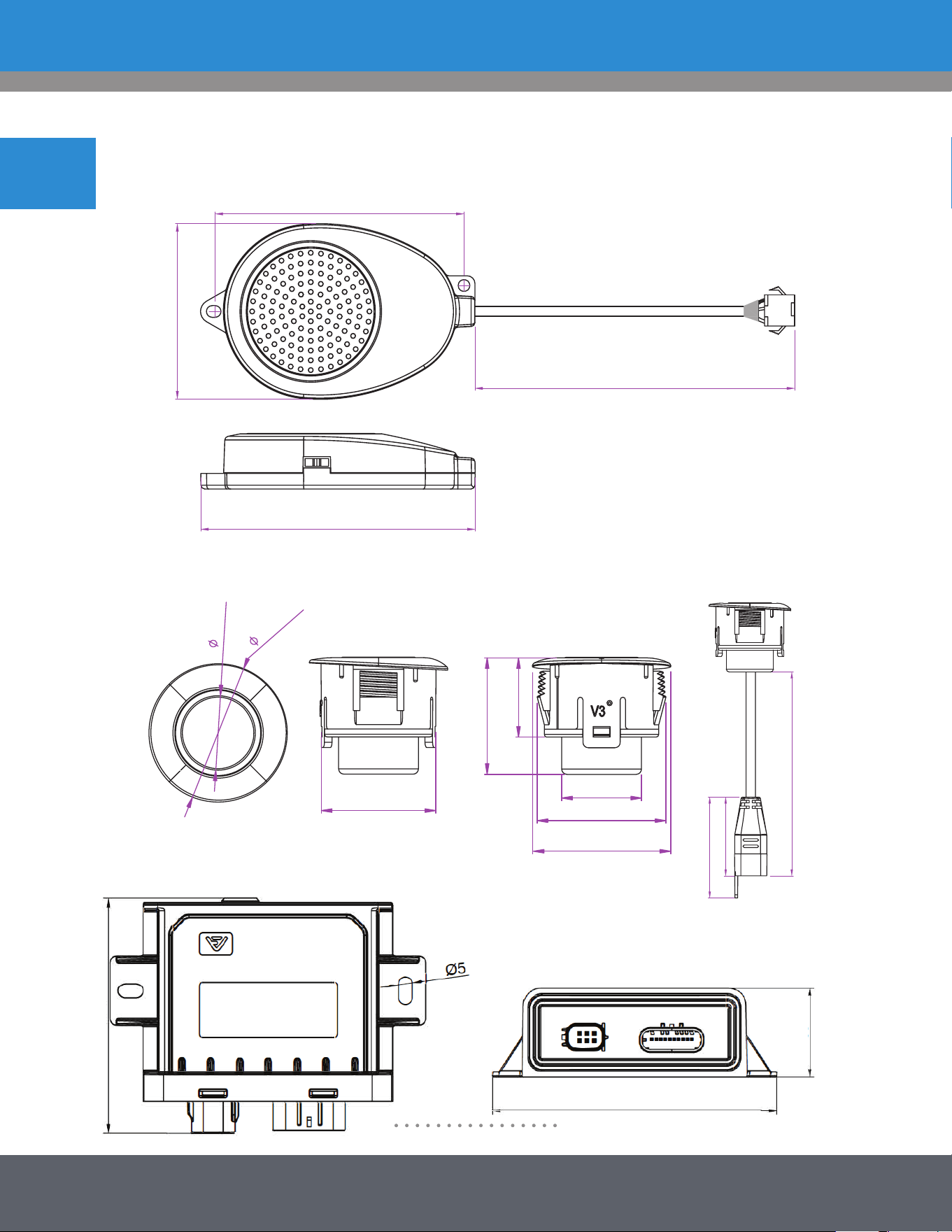

Dimensions (mm/in)
8
63.7mm / 2.5”
44.8mm / 1.7”
70.2 / 2.8”
2000mm / 78.7”
14.0mm / 0.55”
26.0mm / 1.0”
21.9mm / 0.9”
14.9mm / 0.6”
21.5mm / 0.8”
26mm / 1.0”
24.2mm / 0.95”
15.0mm/0.9”
460mm/18”
32mm/1.25”
25mm/0.98”
85.0mm/3.3”
/0.2”
115mm/4.5”
36mm/1.4”
Specications
Operating Voltage Range 9-16V DC
Rated Voltage 12V DC
Rated Current <350 mA
Operating Temperature -30°C - 80°C
Waterproof Grade (Sensors & Module) IP67
Detection Range (Top / Bottom) 3.9' (1.2m) / 5.6' (1.7m)
Main Sensor Harness Length 19.1' (5.8m)
Hole Saw 24.5mm (use with Rubber Sleeves)
Angle Sleeves 6° and 12°
PS-6CRBP
9

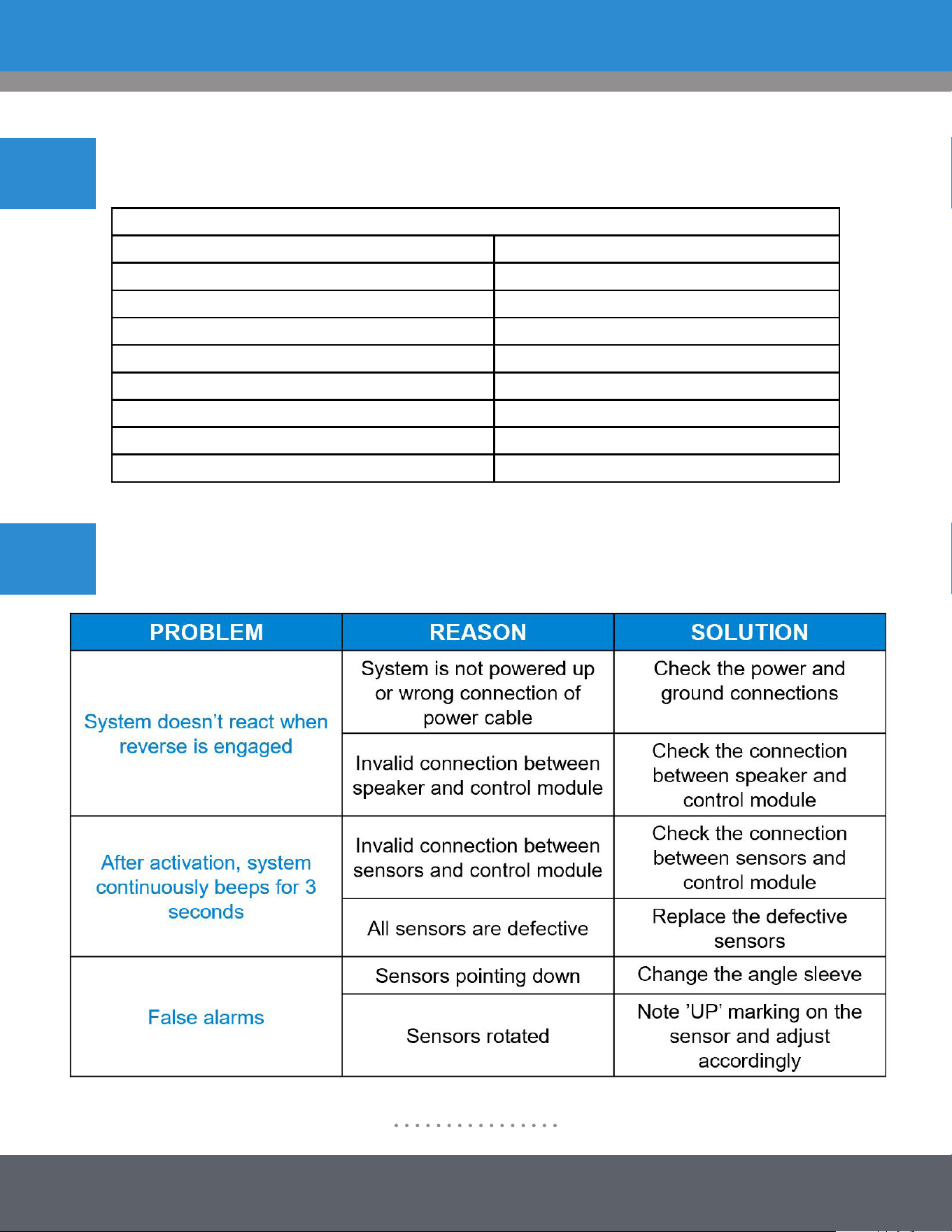

Troubleshooting
