Instruction Manual
SAVE THIS MANUAL FOR FUTURE REFERENCE.
AcuRite Atlas
®
High-Definition Display
models 06104 / 06105
This product requires an AcuRite Atlas Weather Sensor
(sold separately) to be operational.
Questions? Visit www.acurite.com/support
CONTENTS
Unpacking Instructions ........................2
Package Contents ................................2
Product Registration.............................2
Features & Benefits ..............................2
Setup ....................................................5
Placement Guidelines ..........................6
Using the Weather Station ..................7
Lightning Detection ..............................8
Troubleshooting ...................................9
Care & Maintenance ...........................10
Specifications .......................................10
FCC Information ..................................11
Customer Support ................................ 11
Warranty..............................................11
2
Congratulations on your new AcuRite product. To ensure the best possible product
performance, please read this manual in its entirety and retain it for future reference.
Unpacking Instructions
Remove the protective film that is applied to the LED screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display with Tabletop Stand
2. Power Adapter
3. Quick Start Guide
PRODUCT REGISTRATION
Register online to receive 1-year warranty protection
www.acurite.com/product-registration
IMPORTANT
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
1
2
auto
3 4 5
7
8
9
10
11
12
13
14
1516171819202123 22
24
25
26
27
28
6
3

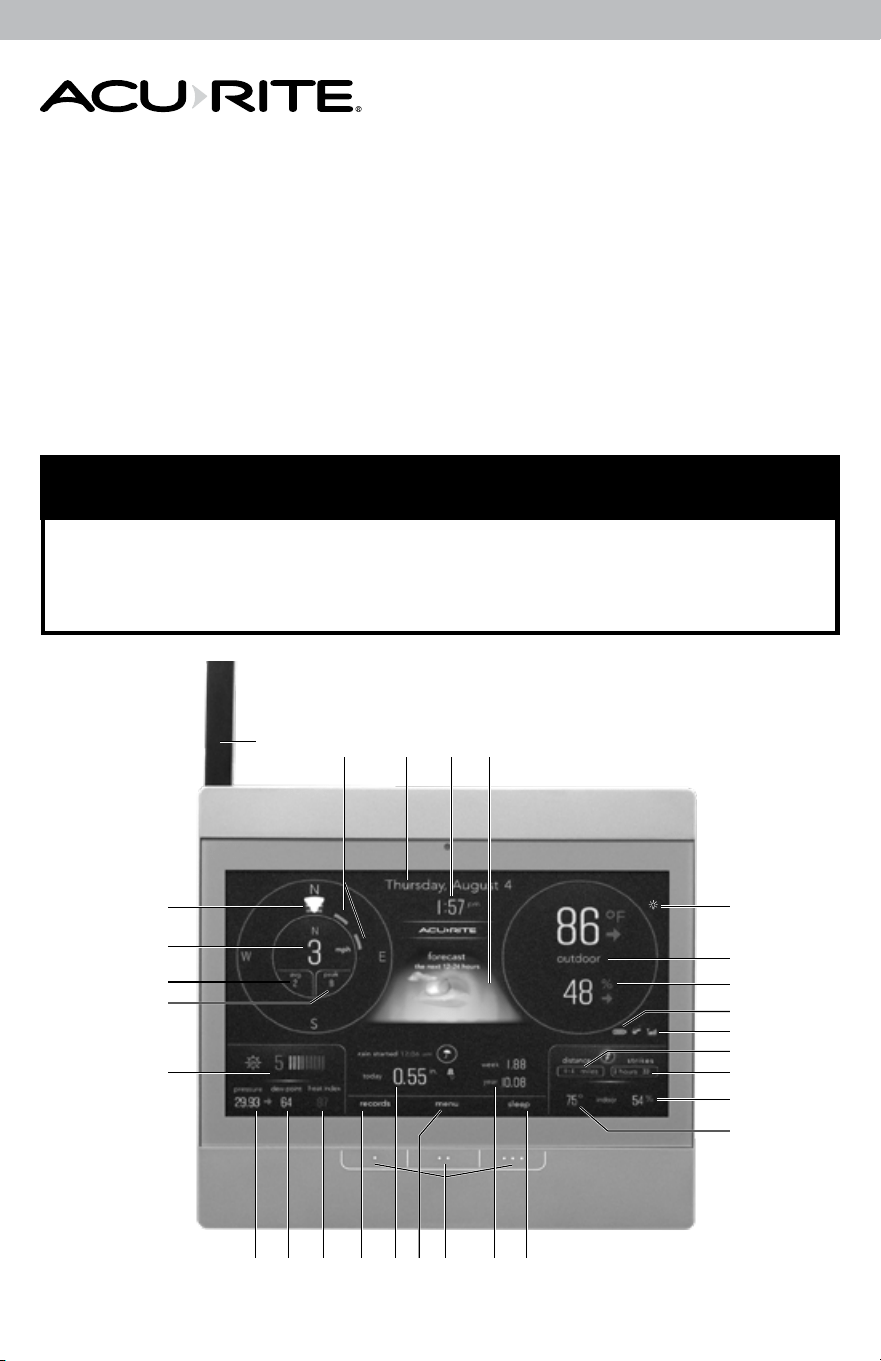

1. Antenna
Keep in the vertical position for best signal strength.
2. Previous Two Wind Directions
3. Date & Day of the Week
4. Clock
5. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecast pulls data from your AcuRite Atlas
®
Sensor to generate your personal forecast.

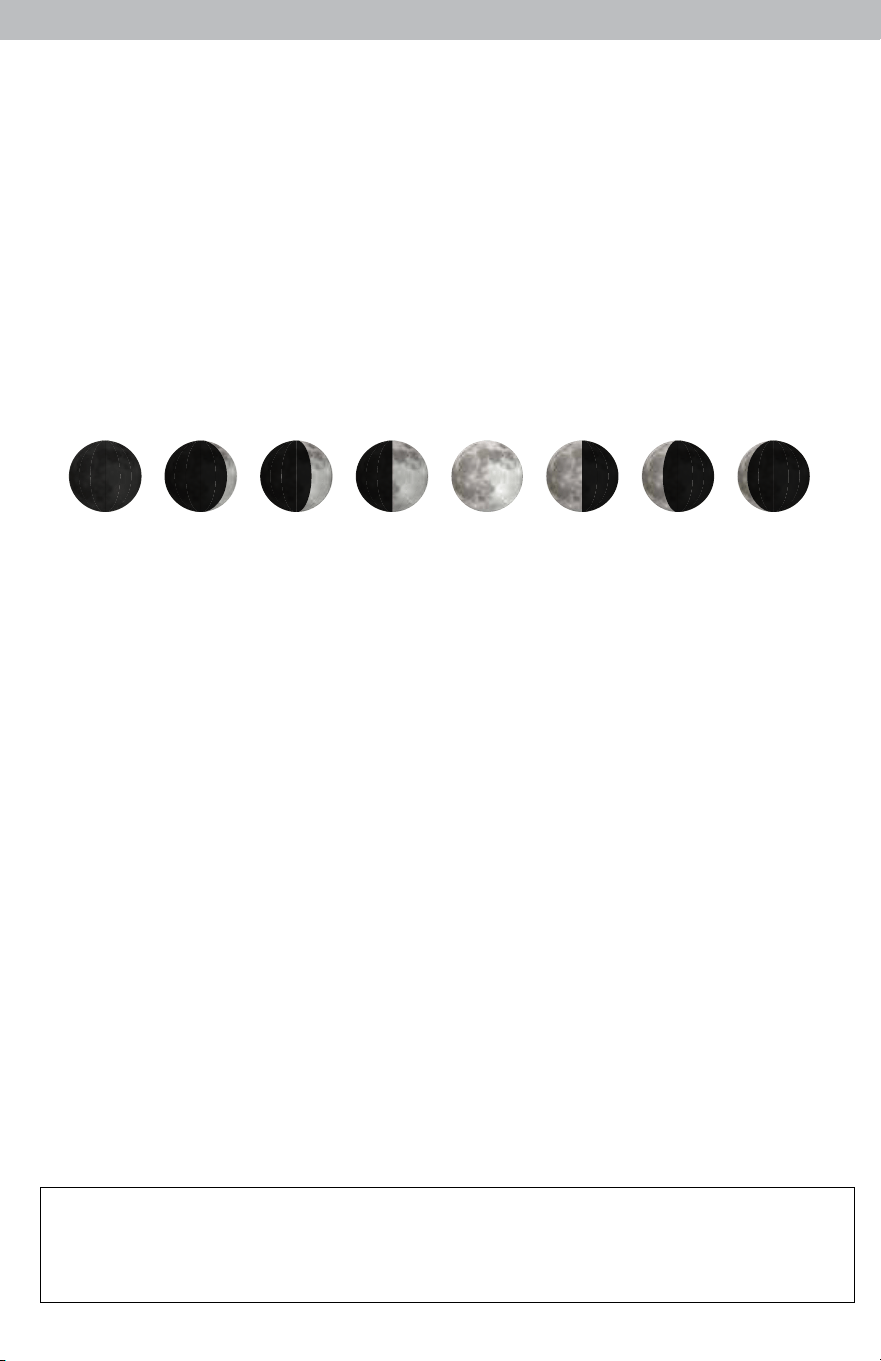

Moon phase will be shown during evening hours when visibility allows (see page 8).
6. Icon
Indicates display is in auto dim mode.
7. Current Outdoor Temperature
Arrow indicates direction temperature is trending.
8. Current Outdoor Humidity
Arrow indicates direction humidity is trending.
9. Sensor Low Battery Indicator
10. Sensor Signal Strength
11. Estimated Distance to Storm Front
If using optional lightning sensor, updates with latest lightning strikes detected today. If not, shows current
barometric pressure (#23).
12. Strike Counter
If using optional lightning sensor, displays most recent total of lightning strikes that have been detected
(last 3 hours, today, this year). If not, shows current barometric pressure (#23).
13. Current Indoor Humidity
14. Current Indoor Temperature
15. Sleep Mode Access
While in normal operation mode, press the button below to enter sleep mode (see page 7).
16. Rainfall History
Displays rainfall records for the current week, and alternates between current month and year.
17. Menu Navigation Buttons
18. Menu Access
While in normal operation mode, press the button below to access the main menu (see page 7).
19. Current Rainfall
Displays rainfall from today.
20. Records Access
While in normal operation mode, press the button below to access daily and all-time records.
21. Seasonal Information
Heat Index calculation displays when temperature is 80˚F (27˚C) or higher. Wind chill calculation displays
when temperature is 40˚F (4˚C) or lower.
22. Dew Point
23. Barometric Pressure
Arrow icon indicates direction pressure is trending.
24. Current UV Index
Indicates the level of UV radiation.
25. Peak Wind Speed
Highest speed from the last 60 minutes.
26. Average Wind Speed
Average wind speed over the past 2 minutes.
27. Current Wind Speed
28. Current Wind Direction
Features & Benefits
Front of Display
4
1. Integrated Hangers
For easy wall mounting.
2. Plug-in for Power Adapter
3. Display Stand
4. Battery Compartment Cover
5. Backup Battery Compartment
11
5

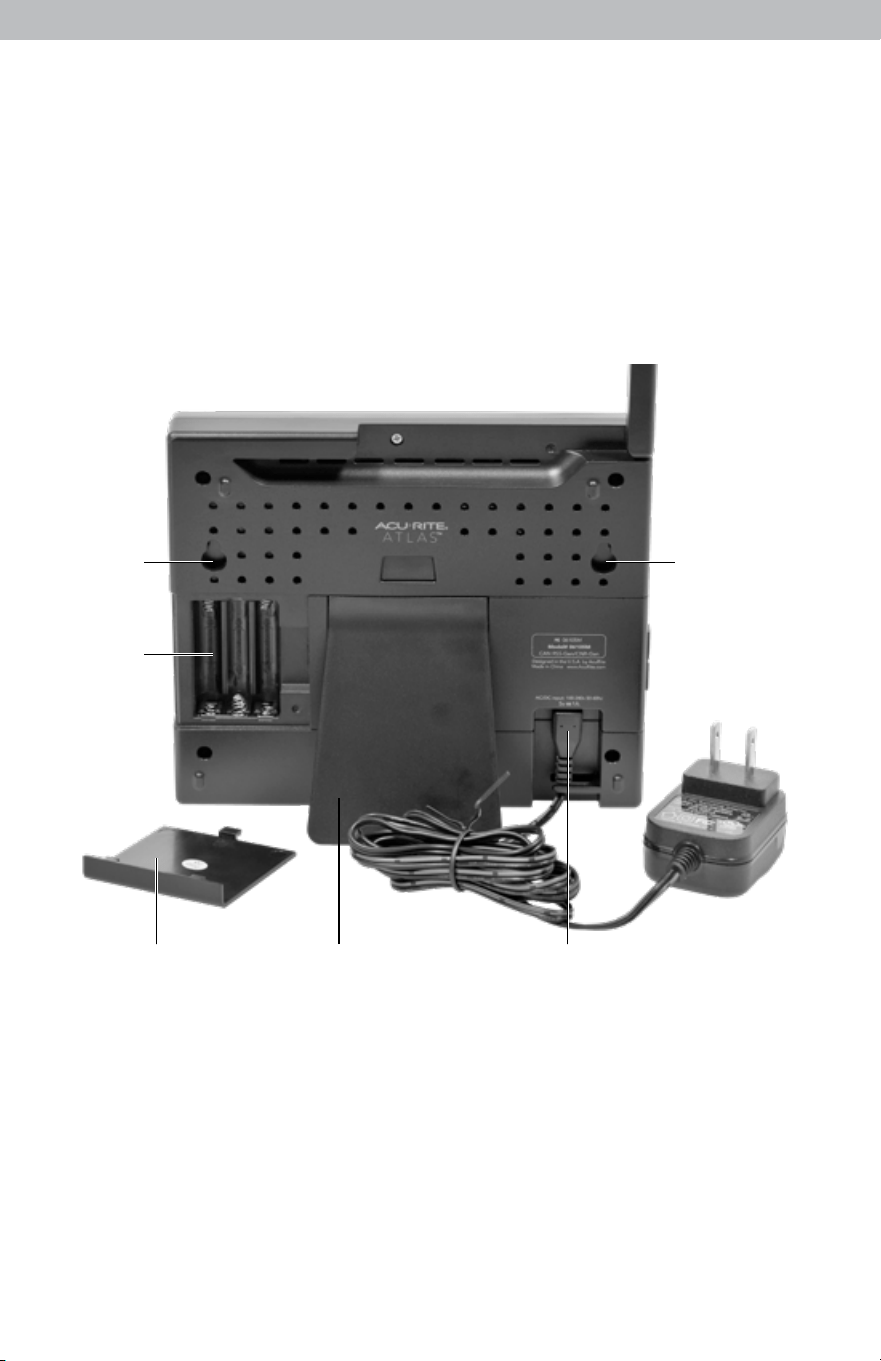

Features & Benefits
Back of Display
234
5

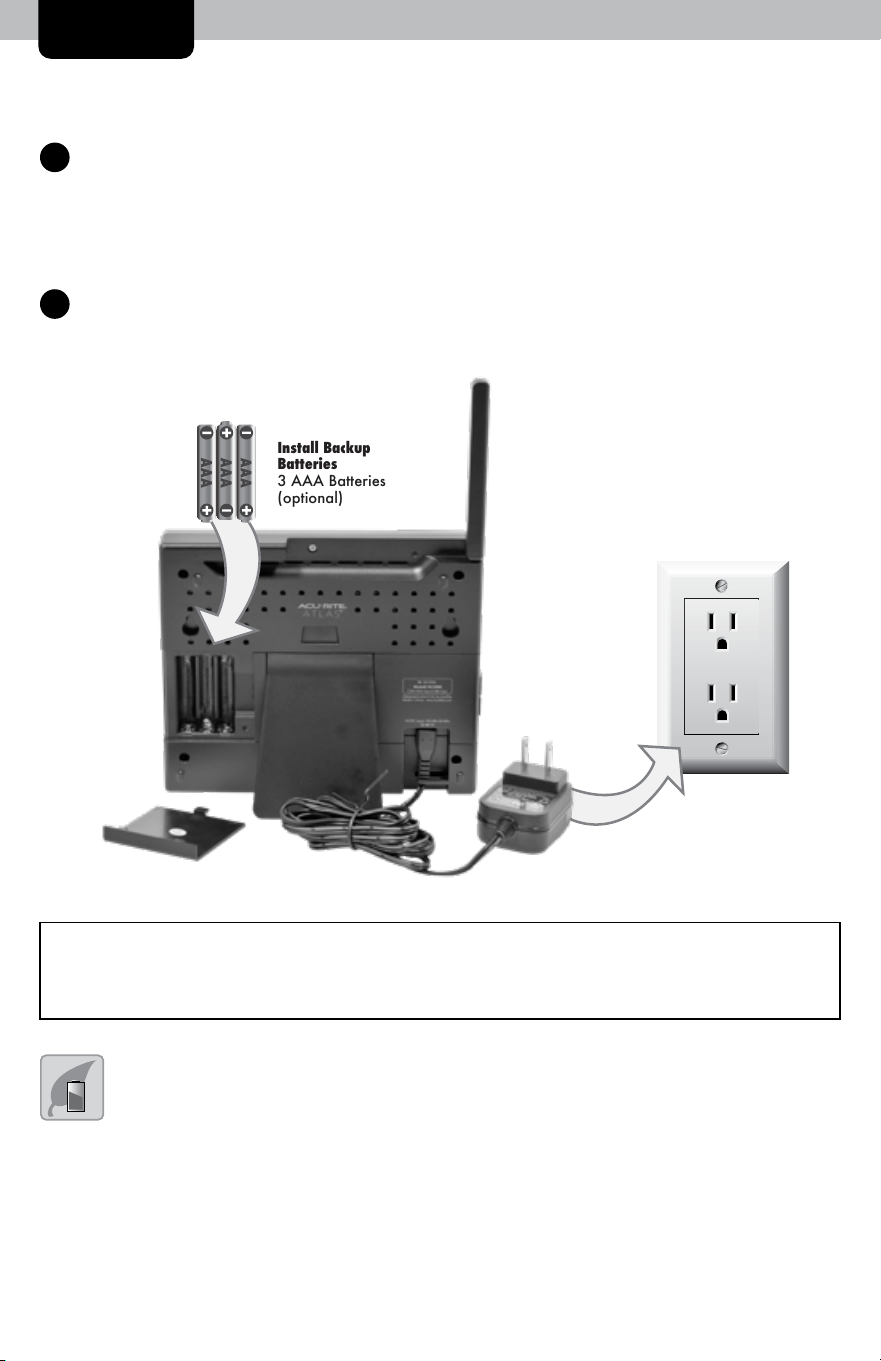

Display Setup
SETUP
1
Install or Replace Backup Batteries (optional; recommended)
1. Remove the battery compartment cover.
2. Insert 3 x AAA batteries into the battery compartment, as shown. Follow the polarity
(+/-) diagram in the battery compartment.
3. Replace the battery cover.
2
Plug in Power Adapter
For the best performance, plug in the power adapter as the main power source for
this product.
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be used for an
extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only
batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak.
DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit
the supply terminals.
IMPORTANT: Batteries are a backup power source to preserve records in the event of a
power outage. Power adapter is required as the primary power source to enjoy the full
functionality of this product.
SETUP
Display Setup
1
Set the A-B-C Switch
2. Insert 3 x AAA batteries into the
battery compartment, as
1
Locate the A-B-C switch inside the
shown. Follow the polarity
battery compartment. Set the A-B-C
(+/-) diagram in the battery
switch to A, B or C. You must select
compartment.
the same letter choices for both the
2
sensor and the display in order for
3. Replace the battery cover.
the units to synchronize.
2
Plug in Power Adapter
Install or Replace Backup
3
3
For the best performance, plug
Batteries
(optional)
in the power adapter as the main
1. Remove the battery
power source for this product.
4
8
compartment cover.
Display Setup
6
7
DISPLAY BACK
1. Backlight Button
5. Plug-in for Power Adapter
For momentary backlight and dimmer
6. Battery Compartment Cover
settings.
7. Power Adapter
2
. In
tegrated Hang Holes
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
For easy wall mounting.
8. RESET Button
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
3. Backup Battery Compartment
Press and release to clear historical record.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to
Press and hold for 10 seconds for full reset
be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of
4. A-B-C Switch
to factory defaults.
used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries
ID code that must match sensor’s A-B-C
switch to ensure units synchronize.
recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.
4 5
5
Install Backup
Batteries
3 AAA Batteries
(optional)
Plug in
Power Adapter
A B C
A-B-C Switch
Set to match sensor's
ABC switch
IMPORTANT: Batteries are a backup power source to preserve records in the event of a
power outage. Power adapter is required as the primary power source to enjoy the full
functionality of this product.
SETUP
Display Setup
1
Set the A-B-C Switch
2. Insert 3 x AAA batteries into the
battery compartment, as
1
Locate the A-B-C switch inside the
shown. Follow the polarity
battery compartment. Set the A-B-C
(+/-) diagram in the battery
switch to A, B or C. You must select
compartment.
the same letter choices for both the
2
sensor and the display in order for
3. Replace the battery cover.
the units to synchronize.
2
Plug in Power Adapter
Install or Replace Backup
3
3
For the best performance, plug
Batteries
(optional)
in the power adapter as the main
1. Remove the battery
power source for this product.
4
8
compartment cover.
Display Setup
6
7
DISPLAY BACK
1. Backlight Button
5. Plug-in for Power Adapter
For momentary backlight and dimmer
6. Battery Compartment Cover
settings.
7. Power Adapter
2
. In
tegrated Hang Holes
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
For easy wall mounting.
8. RESET Button
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
3. Backup Battery Compartment
Press and release to clear historical record.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to
Press and hold for 10 seconds for full reset
be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of
4. A-B-C Switch
to factory defaults.
used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries
ID code that must match sensor’s A-B-C
switch to ensure units synchronize.
recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.
4 5
5
Install Backup
Batteries
3 AAA Batteries
(optional)
Plug in
Power Adapter
A B C
A-B-C Switch
Set to match sensor's
ABC switch
IMPORTANT: Batteries are a backup power source to preserve records in the event of a
power outage. Power adapter is required as the primary power source to enjoy the full
functionality of this product.
Plug in
Power Adapter
6
Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of
both the display and the sensor are critical to the accuracy and performance of this unit.
Display Placement
Place the display in a dry area free of dirt and dust. Display stands upright
for tabletop use and and is also wall-mountable.
Important Placement Guidelines
• To ensure accurate temperature measurement, place units out of direct sunlight and away
from any heat sources or vents.
• Display and sensor must be within 330 feet (100 m) of each other.
• To maximize wireless range, place units away from large metallic items, thick walls, metal
surfaces, or other objects that may limit wireless communication.
• To prevent wireless interference, place units at least 3 feet (.9 m) away from electronic devices
(TV, computer, microwave, radio, etc.).
Settings
After powering on for the first time, the display will automatically enter setup mode. Follow
the on-screen instructions to set up the display.
To adjust the currently selected item as well as save your adjustments, use the menu
navigation buttons. The preference set order is as follows:
CLOCK HOUR
CLOCK MINUTE
AUTO DST (daylight saving time YES or NO)*
CALENDAR MONTH
CALENDAR DATE
CALENDAR YEAR
MEASUREMENT UNITS (metric or U.S.)
WIND SPEED UNITS (MPH, KPH, Knots)
WIND DIRECTION DISPLAY (degrees or NNW)
ALARM VOLUME
*If you live in an area that observes daylight saving time, DST should be set to YES, even if
it is not currently daylight saving time.
Enter setup mode at any time by navigating to “General Setup” in the menu using the menu
navigation buttons.
7

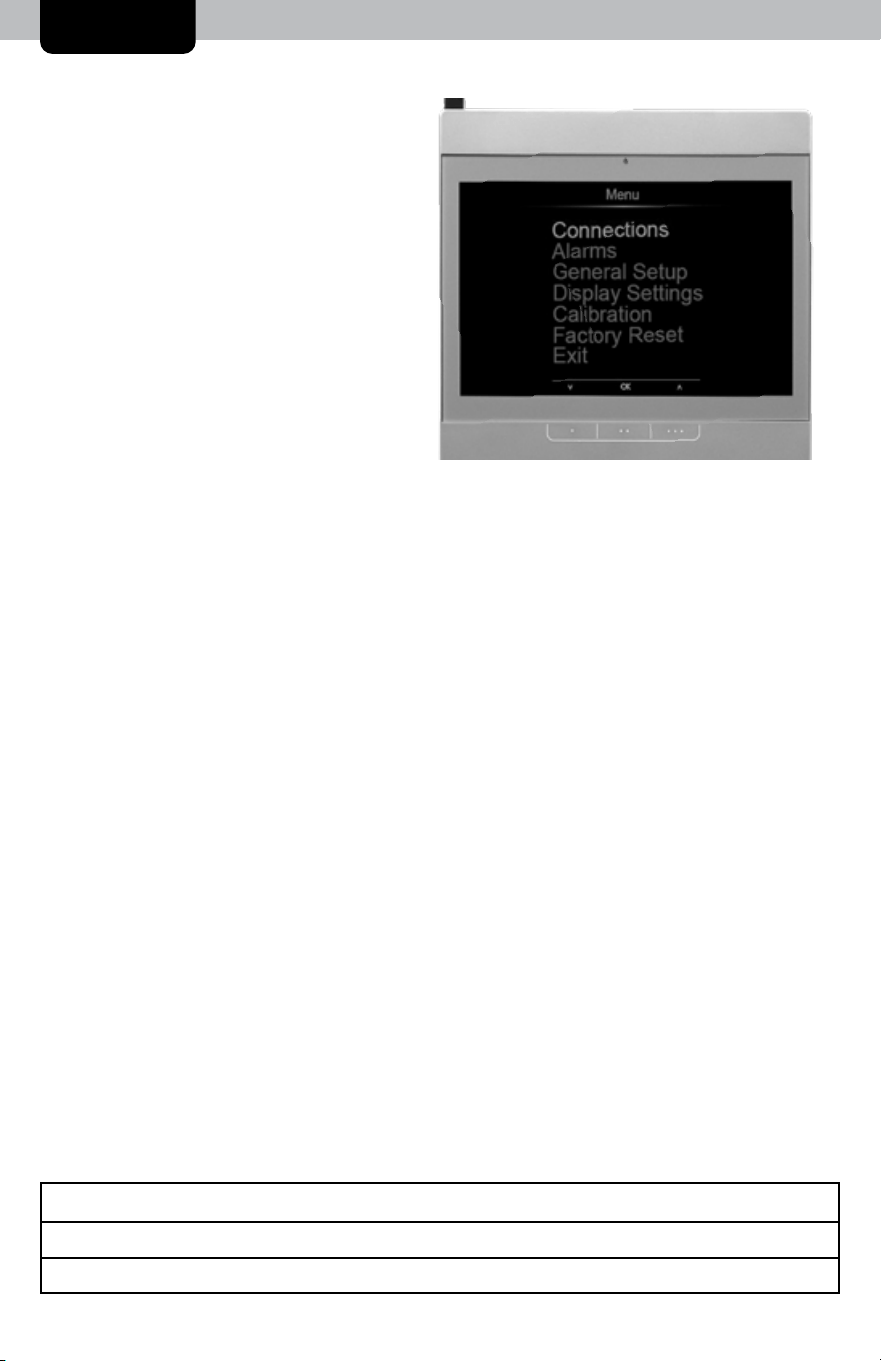

Using the Weather Station
OPERATION
1. Connections
Access the “Connections” sub-menu to view your sensor’s information, including
battery life status and signal strength, and to add or remove a sensor.
2. Alarms
Access the “Alarms” sub-menu to set and edit alarm values for temperature, humidity,
wind speed, rainfall, UV, and lightning (optional). This display will sound an alert to
notify you when a value has been reached or exceeded. When an alarm is triggered,
the display emits an audible beep and flashes data in the affected category.
3. General Setup
Access the “General Setup” sub-menu to enter the initial setup process and edit fields
like time, date, and unit preferences.
4. Display Settings
Access the “Display Settings” sub-menu to adjust sleep mode, auto dim mode, or
display brightness, contrast, and tint.
When sleep mode is activated, the backlight automatically turns off during the time
frame you choose. Weather information will continue to be received as normal even
with the backlight off. When auto dim mode is activated, the backlight automatically
dims the brightness based on the time of day.
5. Calibration
Access the “Calibration” sub-menu to adjust display or sensor data. Select the category
for which you wish to calibrate readings and follow the on-screen prompts to adjust the
value.
6. Factory Reset
Access the “Factory Reset” sub-menu to revert the display back to factory defaults.
Follow the on-screen prompts to perform the reset.
AUTO DIM MODE: Automatically adjusts display brightness based on time of day.
6:00 a.m. - 9:00 p.m. = 100% brightness
9:01 p.m. - 5:59 a.m. = 15% brightness
Navigate to the main menu at any time by
using the menu navigation buttons below
the display. From the main menu, you can
set alarms, modify display settings, review
your connection with the sensor, and more.
8
Weather Overview Dashboard
Weather Forecast
AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast of weather
conditions for the next 12 to 24 hours by collecting data from a sensor in your backyard. It
generates a forecast with pinpoint accuracy - personalized for your exact location.
Self-Calibrating Forecasting uses a unique algorithm to analyze changes in pressure over a time
period (called Learning Mode) to determine your altitude. After 14 days, the self-calibrated
pressure is tuned in to your location and the unit is ready for superior weather prediction.
Moon Phase
Near your personalized forecast, the moon phase displays between 7:00 p.m. and 5:59 a.m.
when conditions allow for moon visibility. The phases of the moon are conveyed through
these lunar phase icons:
FULL
NEW WAXING
CRESCENT
WANING
CRESCENT
1ST
QUARTER
3RD
QUARTER
Lightning Detection - Optional; May Be Sold Separately
When the lightning sensor is used, it allows the AcuRite Atlas sensor to detect lightning
strikes within 25 miles (40 kilometers), track total strikes and estimate the distance of the
most recent strike. The sensor detects cloud-to-cloud, cloud-to-ground and intra-cloud light-
ning. See instructions included with the lightning sensor for installation guidelines.
When strikes are recorded for today, the display shows the total strike count along with the
estimated distance of the most recent strike. After 3 hours of no lightning activity, the dis-
play shows the total strike count for today along with how long it’s been since the last strike
was detected. If no strikes are recorded for today, the display shows the historical strike
count for the year along with how long it’s been since the last strike was detected.
Interference
The display features enhanced interference rejection capabilities to prevent false lightning
detection. When the sensor cannot detect lightning due to interference from nearby
equipment, the interference indicator will flash on the display.
Sensor may detect interference if located near:
• Electric motors (windshield wiper motor or fan motors in cars, hard drive and optical
drive motors on your PC and AV equipment, well pumps, sump pumps)
• CRT monitors (PC monitors, TV’s)
• Fluorescent light fixtures (turned off or on)
• Microwave ovens (while in use)
• PC’s and mobile phones
WARNING: Take shelter IMMEDIATELY when lightning is present, whether or not it has been
detected by the lightning sensor. If you are concerned about lightning strikes, follow all safety
precautions to keep yourself and others safe. DO NOT rely on this lightning sensor as your only
source for warnings about potentially deadly lightning strikes or other severe weather conditions.
9
Problem Possible Solution
No reception
no bars
• Relocate the display and/or the AcuRite Atlas
®
sensor.
The units must be within 330 ft (100 m) of each other.
• Make sure both units are placed at least 3 ft (.9 m) away from
electronics that may interfere with the wireless communication
(such as TVs, microwaves, computers, etc).
• Use standard alkaline batteries (or lithium batteries in sensor
when temperature is below -4˚F/-20˚C). Do not use heavy
duty or rechargeable batteries.
NOTE: It may take a few minutes for display and sensor to
synchronize after batteries are replaced.
• Navigate to the “Connections” sub-menu to remove and re-
add your sensor (see page 7).
• Confirm the red light indicator on the bottom of the sensor
is blinking every 10 seconds. If it’s not blinking, perform a
factory reset on the display by navigating to the “Factory
Reset” sub-menu (see page 7).
Temperature is
showing dashes
When the outdoor temperature is showing dashes, it may be an
indication of wireless interference between the sensor and display.
• Re-add sensor to display by accessing the “Connections”
sub-menu (see page 7).
Inaccurate forecast
• Weather Forecast icon predicts conditions for the next 12 to
24 hours, not current conditions.
• Allow product to run continuously for 33 days. Powering
down or resetting the display will restart Learning Mode. After
14 days, forecast should be fairly accurate, however Learning
Mode calibrates for a total of 33 days.
Troubleshooting
NOTE: Under no circumstances shall the Lightning Detection Sensor, Chaney Instrument Co.
or the Primex Family of Companies be held responsible for any damages whatsoever that may
result from the use of or inability to use this product, including without limitation any indirect,
incidental, special, exemplary or consequential damages, which are expressly disclaimed. This
disclaimer of liability applies to any damages or injury caused by any failure of performance,
error, omission, inaccuracy, interruption, deletion, defect, delay in operation or transmission
software virus, communication failure, theft or destruction or unauthorized access to, alteration
of, or use of the product, whether for breach of contract, tortuous behavior (including, without
limitation, strict liability), negligence, or under any other cause of action, to the fullest extent
permissible by law. This does not affect any statutory rights which may not be disclaimed. The
contents of this product, including all lightning and weather data are provided “as is” and
without warranty or condition of any kind, express or implied, including, without limitation, any
warranty of merchantability or fitness for a particular purpose. Chaney Instrument Co. & the
Primex Family of Companies do not warrant that this product or the data that it provides will be
free of errors, interruptions, viruses or other harmful components. Chaney Instrument Co. & the
Primex Family of Companies do not warrant the accuracy or reliability of any lightning strike
alerts, weather data or other information provided by the product. Chaney Instrument Co. & the
Primex Family of Companies reserve the right to alter the product or withdraw it from the market
at its sole discretion.
10
Problem Possible Solution
Inaccurate wind
readings
• What is wind reading being compared to? Pro weather
stations are typically mounted at 30 ft (9 m) or higher. Make
sure to compare data using a sensor positioned at the same
mounting height.
• Check location of the sensor. Ensure it’s mounted a minimum
of 5 ft (1.5 m) in the air with no obstructions around it (within
several feet).
• Ensure wind cups are spinning freely. If they hesitate or stop, try
lubricating with graphite powder or spray lubricant.
Inaccurate temperature
or humidity
• Make sure both the display and AcuRite Atlas
®
sensor are
placed away from any heat sources or vents
(see page 6).
• Make sure both units are positioned away from moisture
sources (see page 6).
• Make sure AcuRite Atlas sensor is mounted at least 5 ft
(1.5 m) off of the ground.
• Calibrate indoor and outdoor temperature and humidity (see
“Calibration” on page 7).
Display screen
not working
• Is the display in sleep mode? Press any button to wake it up.
• Check that the power adapter is plugged into the display and
an electrical outlet.
No rainfall
• Check to ensure the rain gauge stabilizer (plastic tab) has
been removed from the bottom of the sensor.
• Clear debris, such as leaves, out of the rain collector funnel
and debris screen.
• Verify the sensor’s internal tipping lever is moving freely by
dripping a little water through the rain collector. You should
hear the lever tipping. If you do not hear it, you may need to
clean inside the sensor.
Care & Maintenance
Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt,
and moisture. Clean ventilation ports regularly with a gentle puff of air.
Specifications
DISPLAY’S BUILT-IN
TEMPERATURE SENSOR RANGE
32˚F to 122˚F; 0˚C to 50˚C
DISPLAY’S BUILT-IN HUMIDITY
SENSOR RANGE
1% to 99%
OPERATING FREQUENCY
433 MHz
POWER
5V power adapter
3 x AAA alkaline batteries (optional)
DATA REPORTING
Indoor temperature & humidity: 60 second updates
If your AcuRite product does not operate properly after trying the troubleshooting
steps, visit www.acurite.com/support.
1111
Customer Support
AcuRite customer support is committed to providing you with best-in-class service. For assistance, please
have the model number of this product available and contact us by visiting www.acurite.com/support
PRODUCT REGISTRATION
Register online to receive 1-year warranty protection
www.acurite.com/product-registration
IMPORTANT
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
AcuRite is a wholly owned subsidiary of Chaney Instrument
Company. For purchases of AcuRite products, AcuRite provides the
benefits and services set forth herein.
For purchases of Chaney products, Chaney provides the benefits
and services set forth herein. We warrant that all products we
manufacture under this warranty are of good material and
workmanship and, when properly installed and operated, will be
free of defects for a period of one year from the date of purchase.
Any product which, under normal use and service, is proven to
breach the warranty contained herein within ONE YEAR from
date of sale will, upon examination by us, and at our sole option,
be repaired or replaced by us. Transportation costs and charges
for returned goods shall be paid for by the purchaser. We hereby
disclaim all responsibility for such transportation costs and charges.
This warranty will not be breached, and we will give no credit for
products which have received normal wear and tear not affecting
the functionality of the product, been damaged (including by acts
of nature), tampered, abused, improperly installed, or repaired or
altered by others than our authorized representatives.
Remedy for breach of this warranty is limited to repair or
replacement of the defective item(s). If we determine that repair
or replacement is not feasible, we may, at our option, refund the
amount of the original purchase price.
THE ABOVE-DESCRIBED WARRANTY IS THE SOLE WARRANTY
FOR THE PRODUCTS AND IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ALL OTHER WARRANTIES
OTHER THAN THE EXPRESS WARRANTY SET FORTH HEREIN
ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY
AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE.
We expressly disclaim all liability for special, consequential, or
incidental damages, whether arising in tort or by contract from any
breach of this warranty. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
We further disclaim liability from personal injury relating to
its products to the extent permitted by law. By acceptance of
any of our products, the purchaser assumes all liability for the
consequences arising from their use or misuse. No person, firm
or corporation is authorized to bind us to any other obligation or
liability in connection with the sale of our products. Furthermore,
no person, firm or corporation is authorized to modify or waive the
terms of this warranty unless done in writing and signed by a duly
authorized agent of ours.
In no case shall our liability for any claim relating to our products,
your purchase or your use thereof, exceed the original purchase
price paid for the product.
Applicability of Policy
This Return, Refund, and Warranty Policy applies only to purchases
made in the United States and Canada. For purchases made in a
country other than the United States or Canada, please consult
the policies applicable to the country in which you made your
purchase. Additionally, this Policy applies only to the original
purchaser of our products. We do cannot and do not offer any
return, refund, or warranty services if you buy products used or
from resale sites such as eBay or Craigslist.
Governing Law
This Return, Refund, and Warranty Policy is governed by the laws of
the United States and the State of Wisconsin. Any dispute relating to
this Policy shall be brought exclusively in the federal or State courts
having jurisdiction in Walworth County, Wisconsin; and purchaser
consents to jurisdiction within the State of Wisconsin.
Limited 1-Year Warranty
FCC Information
This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.
© Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark
of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and
copyrights are the property of their respective owners. AcuRite uses patented
technology. Visit www.acurite.com/patents for details.
Printed in China
06104_06105 INST 091522
www.AcuRite.com
