Model No. DG281
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
DG281 Issue:1 28/05/24
2 x 2 x 1.5m Galvanised Steel dog Kennel with Roof cover
& Chain Link Fencing
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Wear
Gloves
• Introduction
• Provides a safe enclosure for your pet with enough room for exercise or play. Heavy-duty frame is quick and easy to build with spring loaded
buttons and the roof cover attaches securely with toggles. Supplied with weather proof UV resistant cover that protects pets from rain and
provides shade. Manufactured from high quality rust resistant galvanised steel which makes the kennel suitable for all weather conditions.
Lockable door with wide opening door makes feeding or cleaning the kennel easier by removing the risk of pets escaping. Steel chain link
fencing ensures the kennel will remain secure. Perfect for dogs as well as a wide range of other pets and animals.
• Specication
• Model No.: DG281
• Nett Weight: 34.5kg
• Product Dimensions (W x D x H): 2 x 2 x 1.5m

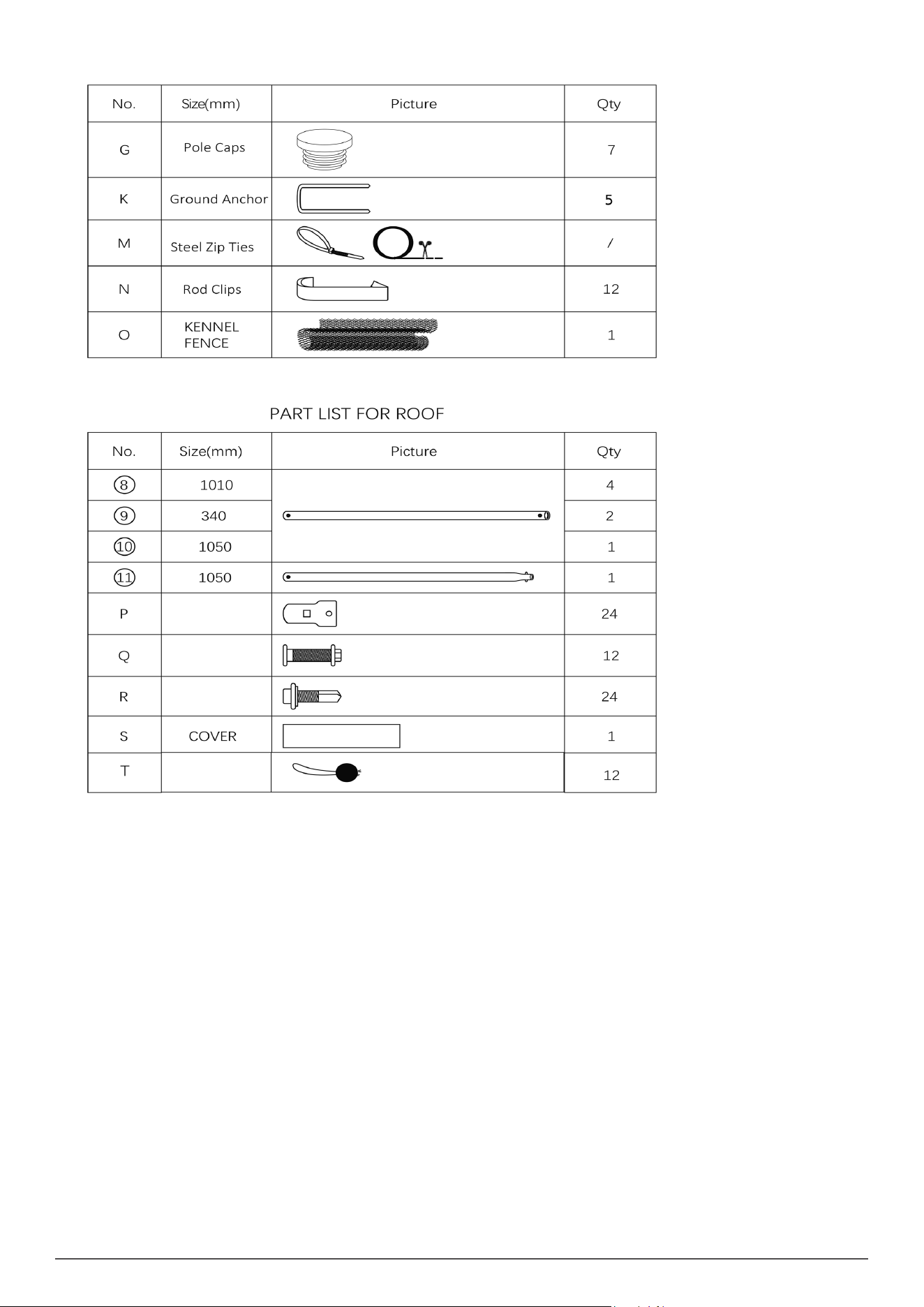

• Contents
www.dellonda.co.uk
NOTE:
Place all parts from the packaging box in a cleared area and arrange them on the ground.
Remove all packaging materials and place them back in the box.
DO NOT dispose of the packaging materials until assembly is complete.
Check for completeness and transport damages.
WARNING! DO NOT place the product under trees from which hard fruit such as apples, walnuts or heavy pine cones, etc., may
fall. The shed’s cover only protects against normal leaves and light debris, whereas large branches or other falling items may
puncture or tear the cover material.
www.dellonda.co.uk
www.dellonda.co.uk

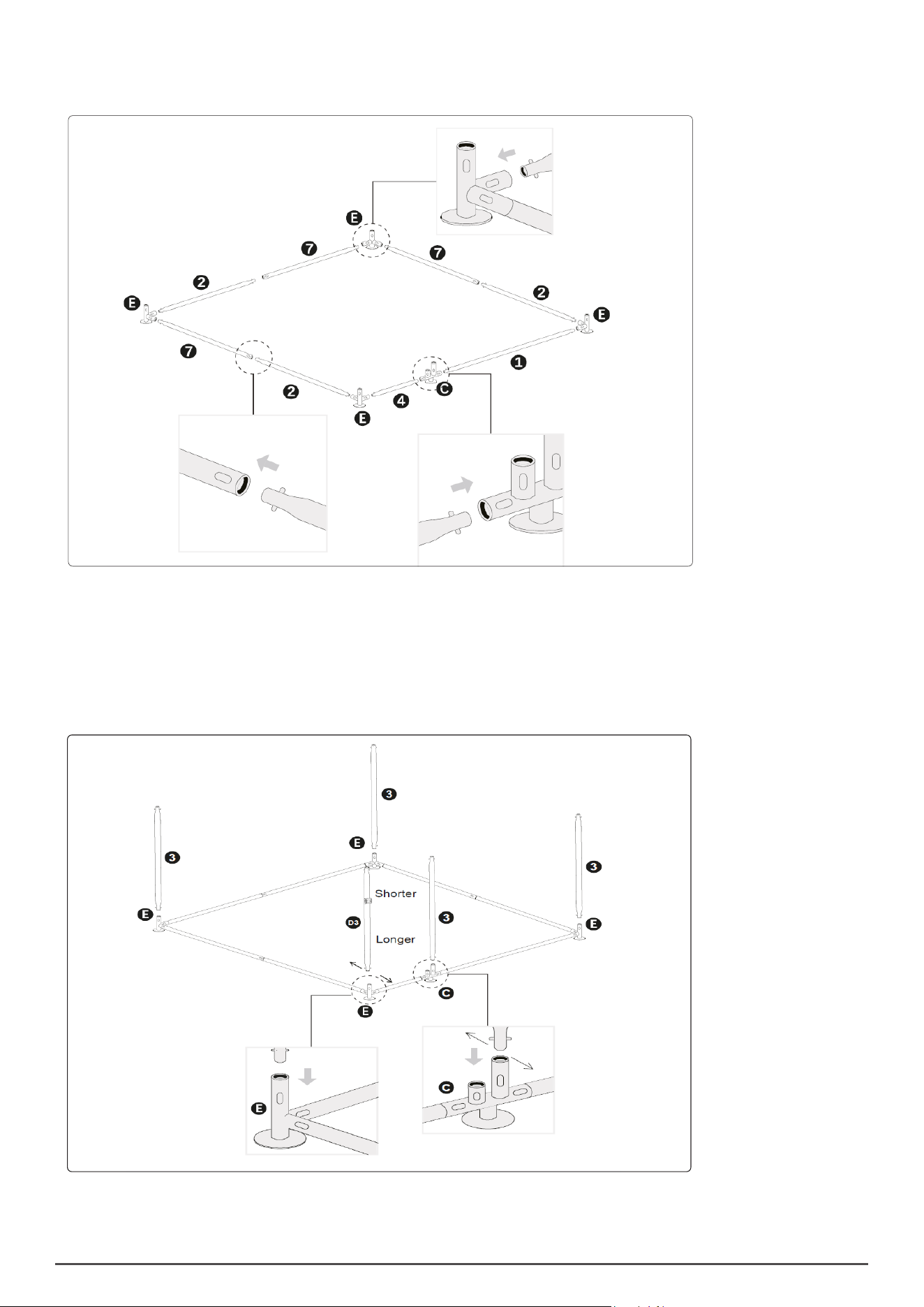

Base Frame Assembly
Install frame uprights
• Assembly
www.dellonda.co.uk

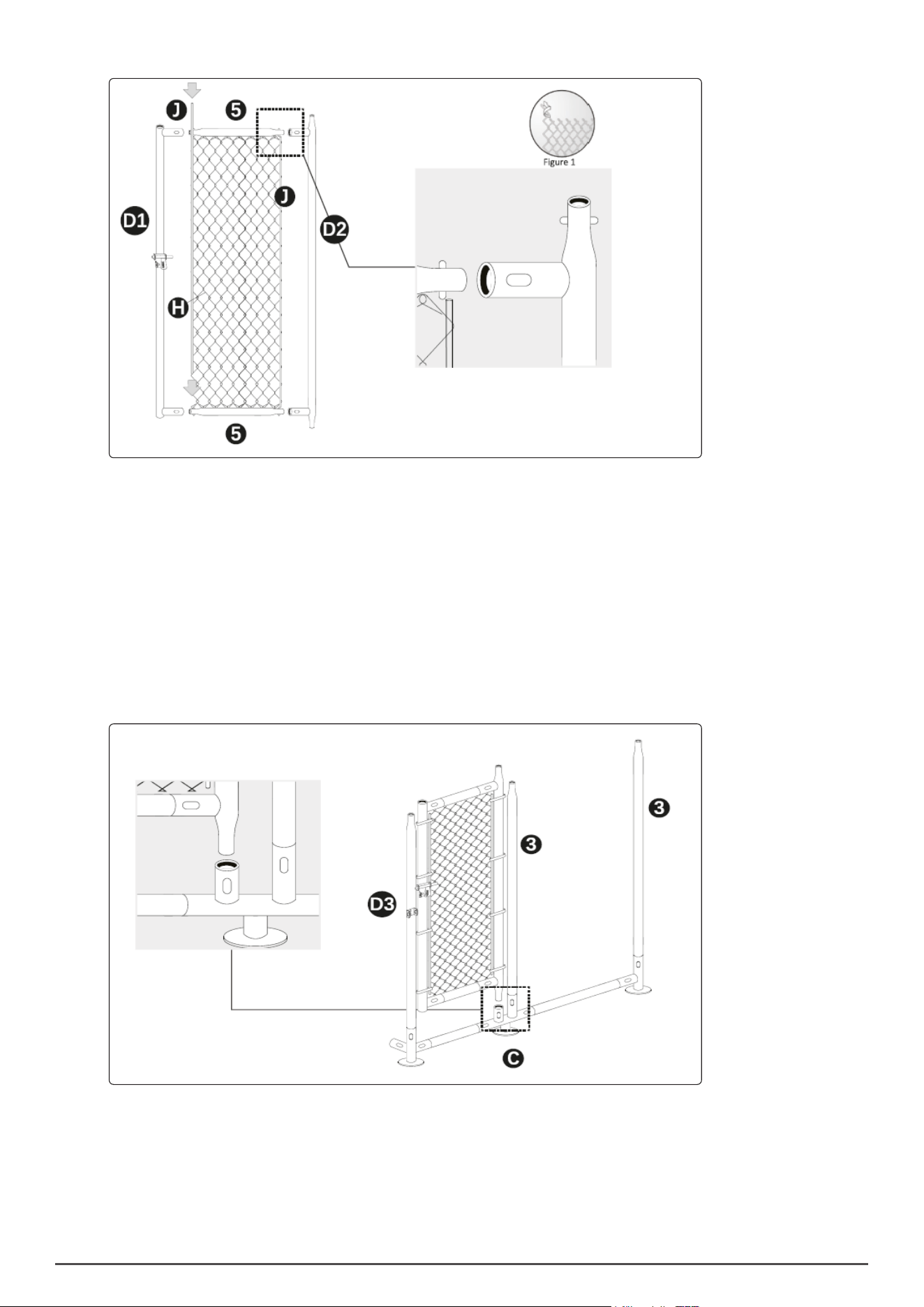

Assemble the kennel door section and insert the underside of D2 into the bottom frame part C when complete.
NOTE: When assembling the dog kennel door, since the door fence (H) is pre-cut, in order to maintain a moderate
tension, part of the door fence (H) can be removed as needed, and it can be removed by twisting upward (gure 1).
www.dellonda.co.uk

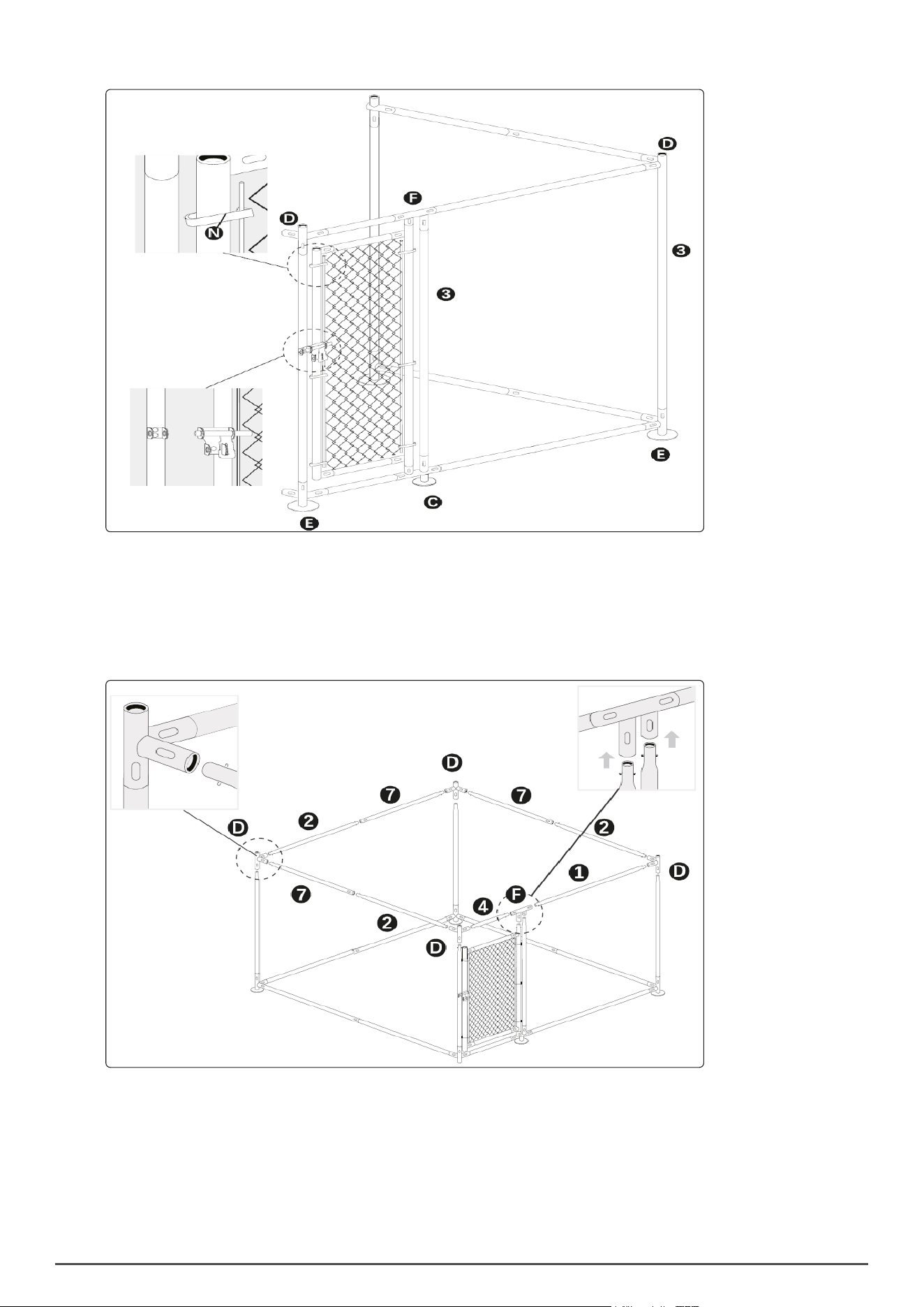

Secure the tie rods (J) to D1 and D2 using rod clips (N)clips
Continue installing the upper frame as shown
www.dellonda.co.uk

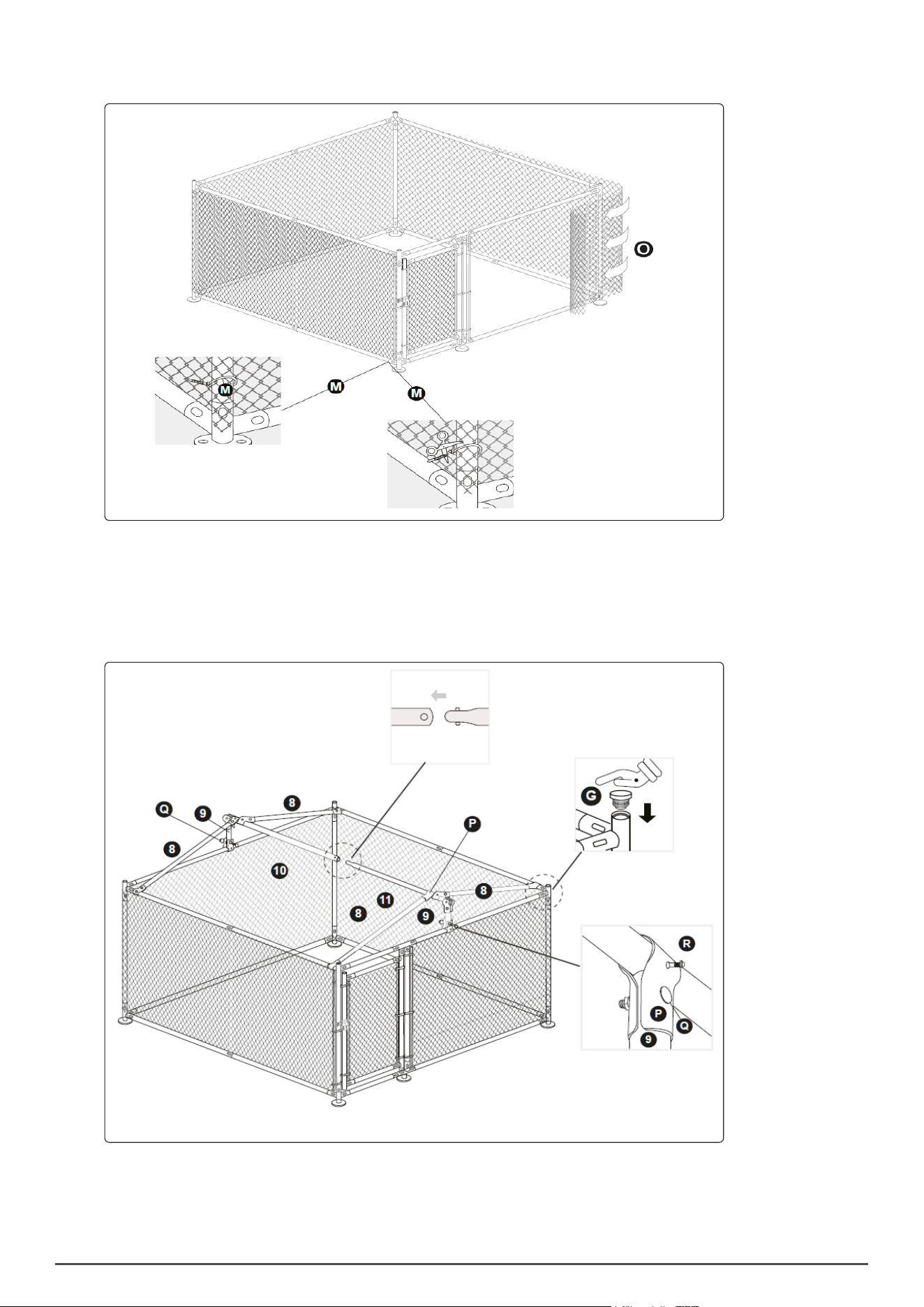

Install the top frame as shown, x the top frame with screws (Q), and block
the frame tube with the pole caps (G).
Put the fence (O) around the outside of the kennel frame. Tension the fence
at each centre and corner and secure the kennel with zip ties (M).
• Maintenance
8 DO NOT use bleach, alkaline or harsh detergents for cleaning. Doing so will damage the polyethylene material. Soap and warm
water are recommended.
www.dellonda.co.uk
Spread the tarpaulin (G)
across the top frame, pull taut
and x it with bungees (T) to
side panel chicken wire.
Insert the ground anchors
(K) via bottom frame into the
ground to make the kennel
more stable.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please
dispose of it in an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local
wast regulations. It is our policy to continually improve products and we reserve the right to alter data,
specifications and parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months from
purchase date, proof of which is required for any claim.
