OWNER’S GUIDE
FEB24V3
BOTTOM MOUNT
REFRIGERATOR
MODEL NUMBERS: UGP-595L W AC ,UGP-595L B AC, UGP-595L LG AC, UGP-595L T AC
Desktop/Untitled.JPG0L T AC
2
TABLE OF CONTENTS
03 Safety and warning information
06 Important safety notes
09 Dimensions
10 Product features
11 Installation instructions
13 Door handle installation
14 Installing the water line
15 Leveling the refrigerator
NEED HELP?
WELCOME
Congratulations on your purchase! We are proud of our quality products and we believe in the
dependable service we provide.
Before using the appliance, read through this manual carefully including all the information on
safety, installation, operation, and cleaning. These guidelines do not cover every possible condition
or situation that may occur. Be safe using common sense and caution when installing, operating
and cleaning this appliance. If you are unsure about any of these instructions or warnings, contact
your local product dealer or Unique Appliances for assistance.
Before you call for service, here are a few things you can do to help us serve you better.
Read this owner’s manual: It contains instructions to help you use and maintain your appliance
properly.
Visit out website: Our website www.UniqueAppliances.com will give you access to self service
tools, FAQs and much more.
If you receive a damaged appliance: Immediately contact the retailer that sold you the
appliance.
Save time and money: Check the troubleshooting section at the end of this manual before
calling. This section will help you solve common problems that may occur.
ENVIRONMENTAL PROTECTION
Discarded electric appliances are recyclable and should not be discarded in the domestic waste!
Please actively support us in conserving resources and protecting the environment by returning
this appliance to the collection centres (if available). This symbol on the product or in its packing
indicates that this product may not be treated as household waste. Instead, it should be taken to the
appropriate waste collection point for the recycling of electrical and electronic equipment. By en-
suring this product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by the inappropriate waste
handling of this product. For more detailed information about the recycling of this product, please
contact your local council, your household waste disposal service, or the shop where you purchased
the product

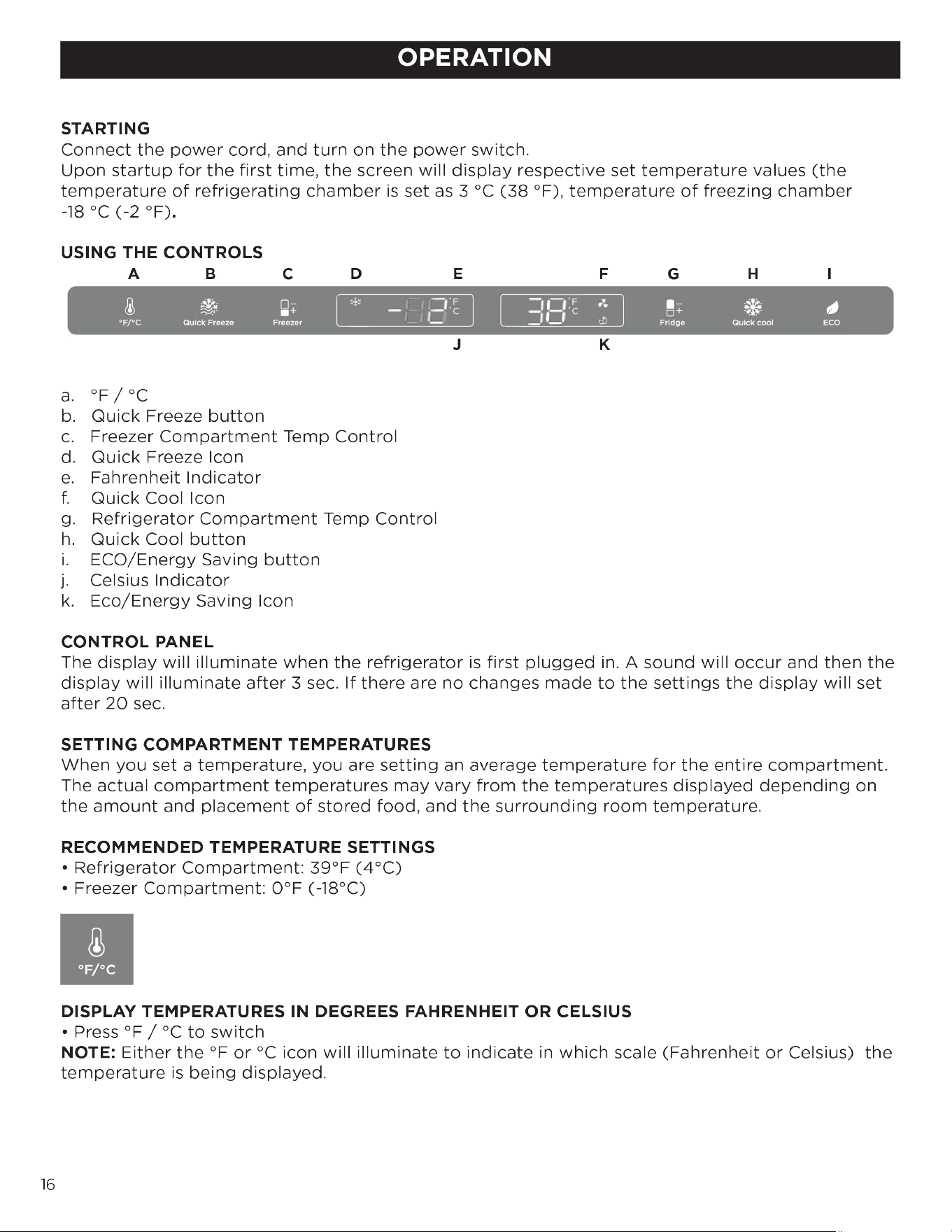

16 Operation
19 Defrosting
19 Cleaning
21 Trouble shooting
23 Warranty

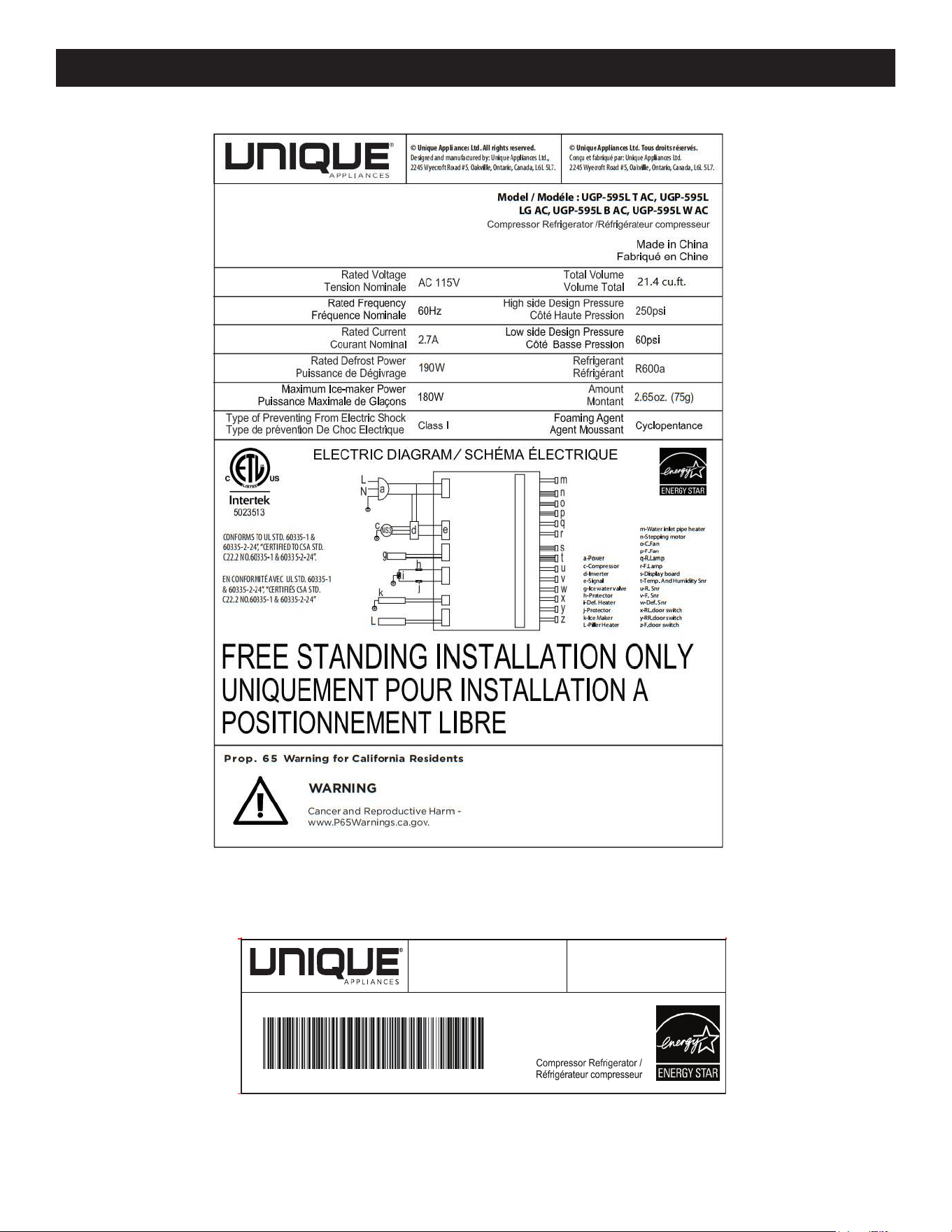

25 Appliance information
25 Product registration
25 Contact us
3
SAFETY AND WARNING INFORMATION
Basic safety symbol
This guide contains many important safety messages.
Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages
that inform you of hazards that can kill or hurt you or others or
cause damage to the product. All safety messages will be
preceded bu the safety alert symbol and the hazard signal word
DANGER, WARNING, or CAUTION. These words mean:
You will be killed or seriously injured if you don’t follow the
instructions.
You will be killed or seriously injured if you don’t follow the
instructions.
Indicated an imminently hazardous situation which if not avoided
may result in minor or moderate injury or product damage only.
The appliance must be applied with single phase alternating
current of 110-115V/60Hz. If the voltage fluctuates exceeding the
upper limit, A.C. automatic voltage regulator of more than 350W
should be applied to the refrigerator for safety use.
To reduce the risk of fire electric shock or injury to persons when
using your product basic safety precautions should be followed,
including the following:
Read all instructions before using the appliance.
Do not damage the refrigerant circuit.
Refrigerant will cause serious injury when it splashes into the eyes.
If it occurs please go to the hospital immediately.
Keep ventilation openings in the appliance enclosure or in the
built-in structure clear of obstructions.
Do not use electrical appliance inside the food storage chambers
of the appliance unless they are of the type recommended by the
manufacturer.
Do not use mechanical devices or other means to accelerate the
defrosting process other than those recommended by the manu-
facturer.
DANGER
WARNING
CAUTION
Appliance connection
Safety and warning information
CAUTION
WARNING
4
SAFETY AND WARNING INFORMATION
Safety and warning information
The appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities or lack
of experience and knowledge unless they have been given super-
vision instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
Do not use or store flammable materials either, benzene, alcohol,
medicine, LP gas, spray or cosmetics near or in the fridge, it may
cause explosion or fire.
Do not put glassware in freezing chamber or refrigerator chamber
air outlet, it may cause explosion or injury.
Make sure of grounding.
Consult a qualified electrician or service person if the grounding
instructions are not completely understood or if you have doubts
on whether the appliance is properly grounded.
The incorrect grounding may cause breakdown and electric shock
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
The appliance is intended to be used in household and similar ap-
plications such as:
- sta kitchen areas in shops, oces and other working environ-
ments.
- farm houses and by clients in hotels, motels and other residential
type environments:
- bed and breakfast type environments:
- catering and similar non-retail applications
CAUTION
DANGER
PROP 65 WARNING
CALIFORNIA PROPOSITION 65 WARNING
CAUTION
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
5
SAFETY AND WARNING INFORMATION
These warnings are provided in the interest of your safety. Please ensure that you understand
them all before installing or using this fridge. Your safety is of paramount importance. If you
are unsure about any of these meanings or warnings, contact your local product dealer or
Unique Appliances for assistance.
IMPORTANT: To reduce the risk of fire,electrical shock,injury to persons,or damage when using the
refrigerator, follow basic precautions including the following:
WARNING
• A dedicated outlet should be used.
• Using several devices at one outlet may cause fire.
• Install the appliances in a dry, well ventilated room.
• The appliance should be placed close to a socket, so that it is easy to cut o the power supply
at the time of an accident.
• Do not allow the power plug to face upwards or to be squeezed at the back of the fridge.
• Water may be flown into or the plug may be damaged which causes fire or electrical shock.
• Do not allow the power cord to be bent or pressed by a heavy object. If it is damaged it must
be replaced by the service agent or a similarly qualified person in order to avoid a hazard.
• if the supply cord is damaged it must be replaced by the manufacturer, its service agent or sim-
ilarly qualified persons in order to avoid a hazard.
• Unplug the power plug when cleaning or handling the interior light of the fridge. It may cause
electric shock or injury. If the LED lamp is damaged it must be replaced by the manufacturer or
service agent.
• Remove water or dust from the power plug with clean dry cloth, do not use wet hands to touch
it and ensure it is inserted with the ends of the pins securely connected.
• Do not touch food or containers in the freezer with wet hands, it may cause frostbite
• Do not place heavy objects or dangerous objects such as: cups, flowers vases, cosmetics, medi-
cines or any container with water on top of the fridge.
• Doing so may cause the object to drop and cause injury, fire or electrical shock when opening
or closing the door.
• Do not spray water on the outside or the inside of the fridge
• Do not clean the appliance with benzene or thinner.
• Wait for 5 minutes or longer when reconnecting the plug, it may cause the operation of the
freezer to fail.
• Do not use the fridge for non domestic purposes (storing medicine or testing material, blood).
Doing so may cause an unexpected risk such as fire, electrical shock, deterioration of stored
material or chemical reaction.
• Do not use a drier to dry the inside, nor light a candle to remove odor, it may cause explosion
or fire.
• Do not cling to the door or the drawers and/or shelves of the door, it may make the fridge fall
down or cause injury. Do not allow children to the above mentioned.
• When there is a gas leak do not touch the fridge or the outlet and ventilate the room immedi-
ately. An explosion by spark may cause a fire or burn. When there is a gas leak by severe dam-
age during delivery, installing or use of the fridge, any spark may cause fire or burn.
• Do not insert hands or any metal object into the exit of the cool air, the cover, the bottom of
the fridge, the heatproof grill (exhaust hole) at the back of the appliance, doing so may cause
electrical shock or injury.
• Do not put ice in thin crystal or ceramic ware as it may break and cause injury.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or sim-
ilarly qualified persons.
6
IMPORTANT SAFETY NOTES
• Do not use a submerged fridge as it may cause electrical shock or fire.
• Do not install the fridge in a wet place or a place which water or rain can reach the appliance.
Deterioration of insulation or electrical parts may cause electric leakage. Please check the
fridge rectangularly.
• Do not allow any person except a qualified engineer to disassemble, repair or alter the fridge
doing so may cause injury, electrical shock or fire.
WARNING:
• The appliance must be positioned so that the plug is accessible.
• This refrigerator must be properly installed and located in accordance with the installation
instructions before it is used. When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Unplug the refrigerator before making repairs or cleaning or the use is suspended.
• Note: power to the refrigerator cannot be disconnected by any setting on the control panel.
• Note: repairs must be performed by a qualified service professional.
• That’s necessary, the power supply must be properly grounded and wiring to the circuit with a
rcbo (residual current circuit breaker with over current protection), the active current of rcbo
must not greater than 30ma.
• To prevent suocation and entrapment hazards to children,remove the fresh food and freezer
doors from any refrigerator before disposing of it or discontinuing its use.
• To avoid serious injury or death, children should not stand on, or play in or with the appliance.
• Children and persons with reduced physical, sensory or mental capabilities or lack of expe-
rience and knowledge can use this appliance only if they are supervised or have been given
instructions on safe use and understand the hazards involved.
• If the refrigerator is not installed on the ground, adequate fixing or protective measures are
taken to avoid accidental dumping causing personal injury.
• Glass parts(such as glass-door,glass-shelves,etc.) Is broken by external forces can cause per-
sonal injury
• This appliance is not intended for commercial purposes.
• If the LED light is damaged,it must be replaced by the manufacturer,its service agent or similar-
ly qualified persons in order to avoid a hazard.
• Warning: keep ventilation openings,in the appliance enclosure or in the built-in structure, clear
of obstruction.
• Refrigerator with ice making function
- Before installing the water supply line, you will need to fill with potable water only.
The water supply system must be installed and connected by a professional technician.
- Connect the refrigerator with the cold water pipe:
The maximum inlet water pressure is 690kpa;
The minimum inlet water pressure is 140kpa
PROHIBIT:
• Do not try to fix the lamp and open the back guard, refer to agent or manufacture for help.
• Do not try to put your finger into the ventilated grille or back grille, especially children.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this ap-
pliance.
• Do not use an adapter plug or an extension cord. Do not use multiple portable socket-outlets
or portable power supply on the appliance
7
IMPORTANT SAFETY NOTES
• Repair or replace immediately, all electric service cords that have become frayed or otherwise
damaged.
• Do not use a cord that shows cracks or abrasion damage along its length, the plug or the con-
nector end.
• Do not place unpackaged foods directly on the shelves of the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance unless
they are of the type recommended by the manufacturer
To reduce the risk of injury when using your refrigerator,follow these basic safety precautions
CAUTION:
• To avoid contamination of food, please respect the following instructions.
- Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage
systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
• Do not clean refrigerator with warm water when it is cold. Components may break if exposed
to sudden temperature changes or impact, such as bumping or dropping.
• Keep fingers out of the “pinch point” areas; clearances between the lid and cabinet are neces-
sarily small. Be careful closing doors when children are in the area.
• Do not touch the cold surfaces in the refrigerator compartment when hands are damp or wet,
skin may stick to these extremely cold surfaces.
• The refrigerant must be replaced by the manufacturer, its service agent or similar qualified per-
sons in order to avoid a hazard.
• Maximum loading of each shelf in storage compartment is 8 kg.
• Maximum loading of door balcony is 5 kg.
• Sound pressure level at workstation is far below 70dB.
EXPLOSION HAZARD:
Symbol ISO 7010 W021 Warning:
Risk of fire/flammable materials
Flammable Refrigerant
This appliance contains isobutane refrigerant, R600a, a natural gas with high environmental com-
patibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of inju-
ry or property damage.
8
IMPORTANT SAFETY NOTES
WARNING:
• When handling, installing and operating the appliance, care should be taken to avoid damage
to the refrigerant tubing and ensure that none of the componentsof the refrigerant circuit be-
comes damaged.
• Service shall only be performed by authorized service personnel. Use only manufacturer-autho-
rized service parts.”
• Dispose of refrigerator in accordance with Federal and Local Regulations. Flammable refriger-
ant and insulation material used require special disposal procedures. Contact your local author-
ities for the environmentally safe disposal of your refrigerator.
• Keep ventilation openings in the appliance enclosures or in the built-in structure clear of ob-
struction.
PROPER DISPOSAL OF YOUR OLD APPLIANCE
WARNING:
Failure to follow these disposal instructions can result in death or serious injury.
Child entrapment and suocation are not problems of the past. Junked or abandoned appliances
are still dangerous even if they will sit for “just a few days.” If you are getting rid of your old appli-
ance, please follow the instructions below to help prevent accidents.
Take o the doors. Leave the shelves in place before you throw away your old appliance, so that
children may not easily climb inside.
REFRIGERANT AND FOAM DISPOSAL
The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so
only at an authorized waste disposal centre. Do not expose to flame.
Dispose of refrigerator in accordance with Federal and Local Regulations
Flammable refrigerant and insulation material used require special disposal procedures. Contact
your local authorities for the environmentally safe disposal of your refrigerator
9
OUTLINE DIMENSION
Select a good location to place your appliance where it is flat and easy to use. Avoid placing the
unit near heat sources, direct sunlight or moisture.
DIMENSIONS
DOOR OPEN DIMENSION
10
PRODUCT FEATURES
FEATURES:
1: Control panel
2: LED light
3: Shelves
4: Wine rack
5: Crisper-big
6: Crisper
7: Ice maker
8: Freezer drawer
9: Freezer compartment
10: Freezer light
11: Adjustable door shelf
PRODUCT FEATURES
• Energy saving and noise reduction
• Quick freeze optimal refrigeration system
• Intuitive control panel with LED display and touch button
• C-temperature and F-temperature
• Automatic defrosting
• Door-opening alarm system - If open for than 1 minute the door-opening alarm system will re-
mind you to close the door.
• Tempered glass, safe and reliable, easy clean and durable.
• Easy clean and removable door seal
• Automatic ice maker
PARTS
All figures in this manual are schematic; some features and devices may not be consistent fully
with your refrigerator and the specific structure and configuration shall be subject to the actual
product.
12: Fridge door
11
INSTALLATION INSTRUCTIONS
BEFORE USE
Remove all packages, including the foam backing at the bottom of refrigerator and the tapes fixing
accessories in the box. Place the refrigerator to a proper position, and adjust the feet to level. It is
better to clean the refrigerator before use.
Remove the film: There is a layer of transparent film on the side of our product, which can protect
the appliance from being scratched in the process of production and transportation, and you can
choose to reserve or remove the film as needed.
Place the refrigerator and adjust to level, clean it, let the refrigerator stand for above 2 ~ 6 hours to
let the compressor gas settle. Power on to ensure that the refrigerator can operate normally
TRANSPORT
Do not carry the refrigerator by holding the door or handle; the refrigerator should be carried by
lifting the bottom.
LOCATION REQUIREMENTS
WARNING
• Explosion and Fire Hazard.
• Keep flammable materials and vapors, such as gasoline, away from appliance. Failure to do so
can result in death, explosion of fire.
• To ensure your refrigerator works at optimum eciency, you should install it in a location where
there is proper air circulation, and electrical connections.
• Avoid contact with strong oxidizing agents, corrosive gases and fluids.
PROHIBIT
• Do not install the refrigerator where the temperature will go below 60°(16°) or above 100°(37°),
because it will not perform properly.
• Do not install the refrigerator in a location exposed to water(rain, a bath, shower, swimming
pool, wet environment, etc.).
• Do not install your refrigerator in any location not properly insulated or heated, e.g. garage, etc.
Keep out of direct sunlight and away from heating sources such as radiators, heaters, and cook-
ing appliances.
CONNECTING ELECTRICITY
WARNING
Electrical Shock Hazard
• Plug into a grounded 3-prong outlet. The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to
min-imize the possibility of electric shock hazard from this appliance.
• Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is
properly grounded.
• The refrigerator should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating plate.
• A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides
the best performance and also prevents overloading house wiring circuits which could cause a
fire hazard from overheated wires.
• Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull
12
INSTALLATION INSTRUCTIONS
straight out from the outlet.
• Immediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must
be replaced by a qualified service professional with an authorized service part from the manu-
facturer.
• When moving the refrigerator away from the wall, be careful not to roll over or damage the
power cord
PROHIBIT
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
• Do not use an adapter.
• Do not use an extension cord.
• Failure to follow these instructions can result in death, fire, or electrical shock.
UNPACKING REFRIGERATOR
WARNING
• Explosion and Fire Hazard. Flammable refrigerant used. Handle with care when moving refrig-
erator to avoid either damaging the refrigerant tubing or increasing the risk of a leak. Failure to
do so can result in death, explosion or fire.
• When moving the refrigerator, never tilt it more than a 45° angle. This could damage the
compressor and the sealed system. If the refrigerator has been placed in a horizontal posi-
tion for any period of time, wait 6 to 8 hours before plugging in the refrigerator to allow the
refrigerant to settle.
Step1. Remove all packaging material. This includes the corrugated base and all adhesive
tape holding the refrigerator accessories inside and outside.
Step2. Inspect and remove any remains of packing, tape or printed materials before power
ing on the refrigerator.
Step3. It is advisable to clean the inside of the refrigerator with lukewarm water using a
neutral detergent, and then to dry it thoroughly prior to use.
PROPER AIR CIRCULATION
WARNING
To ensure your refrigerator works at the maximum eciency it was
designed for, you should install it in a location where there is prop-
er air circulation, plumbing and electrical connections. Your refrig-
erator is not designed to operate in temperatures below 60°(16°)
or above 100°(37°). The refrigerator must be placed on a hard,
flat ground; if cushioning is needed, stable, hard, nonflammable
cushion blocks shall be used, rather than the foam backing of re-
frigerator. The refrigerator shall be kept away from damp locations
where water is easy to splash; water or dirt shall be removed with
soft cloth timely to prevent rusting which may have an eect on the
electrical characteristics.
Place the refrigerator in a well-ventilated place, reserve a certain
space around and behind the refrigerator, and do not cover or block
the air grille on the rear cover plate of compressor at the back of
refrigerator; Keep the refrigerator away from heat source or direct
sunlight.
13
DOOR HANDLE INSTALLATION
TOOLS REQUIRED
1x 2.5mm Allen key
6 x screw caps
DOOR HANDLE INSTALLATION
DOOR HANDLE INSTALLATION
TOOLS REQUIRED
1x 2.5mm Allen key - (fridge handle)
4 x screw caps
3.
T
ighten using the provided 2.5mm (smaller) Allen
DOOR HANDLE INSTALLATION
DOOR HANDLE INSTALLATION
TOOLS REQUIRED
1x 2.5mm Allen key - (fridge handle)
4 x screw caps
3.
T
ighten using the provided 2.5mm (smaller) Allen
1) Twist on supplied threaded caps (x2) on to existing screws on the fridge door. To ensure no
gap between the handle and the door, make sure that they meet the washer. (Fig. 1 & Fig. 2)
2) Place provided fridge handle on to the screw caps on fridge door (Fig. 3) making sure that the
smaller holes on the handle face the inner edge of the door, and that the screw goes into the
center hole at each end of the handle. Tighten the screws using the provided 2.5 mm Allen key
(Fig. 4)
Fig. 1
Fig. 3
Fig. 4
Fig. 4 Fig. 5 Fig. 6 (as seen from below)
FRIDGE DOOR HANDLE INSTALLATION
Fig. 2
1) Twist on supplied threaded caps (x2) on to existing screws
on the fridge door. To ensure no gap between the handle
and the door, make sure that they meet the washer.
(Fig. 4
)
2) Place provided fridge handle on to the screw caps on
fridge door (Fig. 5) making sure that the smaller holes on
the handle face downwards, and that the screw goes up
into the center hole at each end of the handle. Tighten the
screws using the provided 2.5 mm Allen key (Fig. 6)
FRIDGE DOOR HANDLE INSTALLATION
CAUTION
Do not over tighten the screws, doing so could damage the freezer door.
Handles in place
14
INSTALLING THE WATER LINE
INSTALLING THE WATER LINE TO YOUR ICE MAKER
WARNING: Connect to potable water supply only.
The water supply system must be installed and connected by a professional technician.
NOTE: In order for the ice maker to operate properly a water line is required.
The maximum inlet water pressure is 690kPa.
The minimum inlet water pressure is 140kPa
WARNING
The water connection must be made by a qualifi ed plumber . Operation
outside the water pressure range may cause malfunction, sever and
damaging water leaks. Under normal conditions a 200cc (5.75 oz) cup
can be fi lled in about 10 seconds. If the refrigerator is installed in an
area with low water pressure (below 30psi), you can install a booster
pump to compensate for the low pressure.
NOTE: Water line installation di ers based on c opper versus PVC, ABS,
PEX, piping in your home.
NOTE: Ice maker connection kits are available at your local hardware
store based on copper or PVC piping in your
home.
TOOLS REQUIRED
(Example of copper piping water line)
1. Power drill and 1/4” drill bit
2. 1/2” or adjustable wrench
3. Flatblade and Philips head screwdrivers
NOTE: You will need to purchase several items
to complete the connection. You may fi nd
these items sold as a kit at local hardware
stores.
CONNECTING TO THE WATER SUPPLY LINE
1. First shut o the main water supply - Fig 1.
2. Using a power drill and 1/4” drill bit drill into the cold water line and connect the saddle-type
shuto valve.
3. Connect 1/4” extension tubing to shuto valve outlet.
one 1/4”
compression
1 ferrule
(sleeve)
saddle-type
shut o valve
(1/4” outlet)
1 coupler 2 clips1/4” outlet
extension tubing
Fig 1. Fig 2. Fig 3.
cold water
line
pipe
clamp
shut o
valve
saddle
-type shut
o valve
outlet valve
packing nut
compres-
sion nut
ferrule
(sleeve)
1/4” ex-
tension
tubing
1/4” threaded ice maker
line with water shut-o
located at the back of
the fridge
15
INSTALLING THE WATER LINE
4. Flush the tubing. Turn the main water supply on and fl ush out the tubing until the water is
clear. Then, shut the water o at the water valve after about a quart of water has fl ushed
through the tubing. NOTE: Ensure that the water line does not get pinched or bent when
installing. This can result in improper water fl ow through the line and will a ect the func-
tionality of the fridge - Fig4.
5. Turn the water on and check for leaks - Fig 5.
WARNING
The water line must be connected to the cold water pipe. Avoid contamination of pipe during
installation. Make sure to connect to a potable water supply only.
NOTE: Leave approximately 8ft of tubing behind the refrigerator to allow for cleaning in pulling
the refrigerator in and out. Secure the line with tape to the back of the appliance.
When the refrigerator stays in the packing box, plastic feet
are in tightened state. After carrying it out from the packing
box for placement, please make sure to adjust two front plas-
tic feet until the height is suitable; just adjust two plastic feet
with a wrench or directly by hand.
Plastic feet and rear rollers must touch the ground to prevent
the refrigerator from movement, vibration or noise. When
moving the refrigerator, adjust plastic feet counterclockwise
to keep them o the ground, and then push the refrigerator
gently to move it.
Fig 4. Fig 5.
LEVELING THE REFRIGERATOR
˚F
˚C
˚F
˚C
17
REFRIGERATOR (FRIDGE) COMPARTMENT TEMPERATURE
1. Press Fridge once to turn on the temperature control.
2. Press Fridge repeatedly to cycle through the available temperature settings, from 46°F to 35°F
or from 8°C to 2°C.
NOTE: Such as °C scenario, each press advances the setting by one degree
(4°-3°-2°-8°-7°-6°-5°-4°). Such as °F scenario, temperature control range
(39°-37°-35°-46°-44°-42°-41°-39°).
3. Release Fridge when the desired temperature setting appears.
FREEZER COMPARTMENT TEMPERATURE
1. Press Freezer once to turn on the temperature control.
2. Press Freezer repeatedly to cycle through the available temperature settings, from 5°F to -10°
F or from -15°C to -23°C.
NOTE: Such as °C scenario,each press advances the setting by one degree
(-18°-19°-20°-21°-22°-23°-15°-16°-17°-18°). Such as °F scenario, temperature control range
(0°-2°-4°-6°-8°-10°-5°-4°-2°-0°).
3. Release Freezer to select the desired temperature setting.
ADDITIONAL FEATURES
QUICK FREEZE
The Quick Freeze feature rapidly lowers the freezer compartment temperature to freeze fresh food
faster and maintain the temperature of the frozen food during periods of high usage, full grocery
loads, or temporarily warm room temperatures.
The Quick Freeze feature lowers the temperature in the freezer compartment to -10°F (-23°C).
• Press Quick Freeze once to turn On/O the Quick Freeze feature.
NOTE: When Quick Freeze is on, is illuminated and -10°F or -23°C appears in the temperature dis-
play.
• Press Freezer button to manually turn o Freeze and return to the previously set temperature.
NOTE: Quick Freeze will automatically turn o after several hours, and the freezer will revert to its
previous temperature setting.
QUICK COOL
The Quick Cool feature rapidly lowers the refrigerator compartment temperature to maintain the
temperature of the chilled food during periods of high usage, full grocery loads, or temporarily
OPERATION
18
warm room temperatures.
The Quick Cool feature lowers the temperature in the refrigerator compartment to 35°F (2°C).
• Press Quick Cool once to turn On/O the Quick Cool feature.
NOTE: When the refrigerator is in Quick Cool mode, appears in the display.
• If not manually turned o , the Quick Cool feature will automatically turn o after 50 minutes.
ENERGY SAVING
The Energy Saving feature reduces energy use by raising the Refrigerator Compartment tempera-
ture to 46°F (8°C) and the Freezer Compartment temperature to 5°F (-15°C).
IMPORTANT: The compartment temperatures in Energy Saving mode are not suitable for the stor-
age of certain food items.
• Press Energy Saving once to turn On/O this feature.
NOTE: When the refrigerator is in Energy Saving mode, is illuminated.
DOOR OPEN ALARM
If a door is kept open for longer than 1 minute, an alarm will sound to alert you. The alarm will
sound 3 times every 30s Continuously.
• To turn o the alarm, close all doors and drawer completely (This system can not be disabled).
REMOVING THE FREEZER DRAWER
Slide open the freezer drawer to its full extension
Slide open the upper storage drawer to its full extension
Remove the upper storage drawer from the glide rail by lifting up and pulling out at an angle
Remove the storage drawer from the glide rail by fl ipping up the 4 clips to unclip the drawer
Slide out the drawer at an angle to remove
AUTOMATIC ICE MAKER
NOTE: When the ice maker dumps ice into the
ice box, any sounds are part of normal opera-
tion. If ice is not dispensed for a long period of
time, it may clump in the ice box. If this occurs
please remove all the ice and empty the box.
In case of prolonged absence and the ice mak-
er is not used, close the water valve to prevent
leaks.
NOTE: The ice maker will automatically shut o when the ice tray is full activating the swing arm.
When ice is consumed the swing arm will drop back down and automatically start again.
NOTE: It is recommended that the fi rst several ice charges be discarded to ensure highest quality
of ice. Do not store cans or containers that will burst when frozen.
CAUTION
Do not allow your children to touch the ice maker, this could cause injury.
OPERATION
ON
OFF
19
HELPFUL HINTS AND TIPS
ENERGY SAVING TIPS
• Make sure to keep the refrigerator away from heat sources and direct sunlight.
• Before storing hot foods, cool them to room temperature and then put into refrigerator.
• Close the door timely, reduce the opening frequency and shorten the opening time.
• When unfreezing frozen foods you can put them into the refrigerating chamber which will as-
sist in refrigeration of the refrigerating chamber.
• Make sure that the temperature sensor is not covered or blocked by foods and keep proper
distance from other foods.
DEFROSTING
NOTE: This product has an automatic defrost function, no manual defrosting is necessary.
GENERAL INFORMATION
ON VACATION
When you want to leave for vacation ensure that the refrigerator operates continuously and leave
foods that can be stored for a short time. If you want to stop the refrigerator, remove all foods,
disconnect the power plug, clean the inside of the refrigerator fully and open the door to avoid
producing abnormal odors.
AT POWER FAILURE
Generally short term power failure will not aect the temperature of the refrigerator sharply. How-
ever, if power failure lasts for a long time, you should reduce the opening frequency of the refriger-
ator and do not put fresh foods into the refrigerator (prevent rise in temperature)
NOTE: For hygienic reasons the appliance (including exterior and interior accessories) should
be cleaned at least every two months.
CAUTION
The appliance must not be connected to the wall outlet during cleaning. Danger of electrical
shock! Before cleaning switch the appliance o and remove the plug from the wall outlet socket.
EXTERIOR CLEANING
To maintain good appearance of your appliances you should clean it regularly.
Spray water onto to a cleaning cloth instead of the surface of the appliance. This helps ensure an
even distribution of moisture to the surface.
Clean the doors, handles and cabinet surfaces with a mild detergent and then wipe dry with a soft
cloth.
CAUTION
Don’t use sharp objects to clean with as they are likely to scratch the surface.
Don’t use thinner, car detergent, bleach, essential oil, abrasive cleaners or organic solvent such as
Benzene for cleaning. They may damage the surface of the appliance and may cause fire.
CLEANING
20
CLEANING
INTERIOR CLEANING
You should clean the appliance interior regularly. it will be easier to clean when food stocks are
low. Wipe the inside of the fridge freezer with a weak solution of backing soda and water and then
rinse with warm water using a wrung out sponge or cloth. Wipe completely dry before replacing
the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them
back into place. Although theis appliance automatically defrosts, a layer of frost may occur on the
freezer compartments interior walls if the freezer door is opened frequently or kept open too
long. It the frost is too thick, choose a time when the freezer is nearly empty and proceed as
follows:
1. Remove existing food and accessories baskets. Unplug the appliance from the main power and
leave the doors open. Ventilate the room thoroughly to accelerate the process.
2. When defrosting is completed clean your freezer as described above.
WARNING
Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is
completely dry should the appliance be switched back on and plugged back into the main socket.
DOOR GASKET CLEANING
Take care to keep door gasket clean. Sticky food and drinks can cause gasket to stick to the cab-
inet and tear when you open the door. Wash gasket with a mild detergent and warm water. Rinse
and dry thoroughly after cleaning.
CAUTION
Only after the door seals are completely dry should the appliance be powered on.
REPLACING THE LED LIGHT
WARNING
The LED light must be replaced by a competent person. If the LED light is damaged contact an
authorized service personnel. Use only manufacturer-authorized service parts.
21
TROUBLE SHOOTING
NOTE: Before calling for service, review this list as it may save you both time and expense. This
list includes common occurrences that are not the result of defective workmanship or materials
in this appliance.
DEW DROPS
When external air flows into the cool inner surface of the fridge, dew drops can be formed. If the
humidity of the installed location is high or during the summer months, dew drops can form on the
outside of the fridge. This is a natural phenomenon that occurs during humid weather. Wipe the
water drops with a dry cloth.
NOISE
When you operate the fridge for the first time, the fridge will operate at high speed to cool fast
and the sound can seem louder. When the internal temperature falls below a certain level the noise
will subside. When the operation of the compressor is starting or ending, various parts expanding/
contraction or various control devices operating or temperature change within the fridge you will
hear sounds, these are normal occurrences.
HOT COMPRESSOR
When working the temperature of the outside of the compressor is more than 80°C, please do not
touch the compressor, it may cause serious injury.
COMPRESSOR KEEPS RUNNING
When the ambient temperature is too high or there is too much fresh food placed into the fridge it
will take a long time to cool down and reach the desired set temperature.
HUMMM...WHOOSH
The new high eciency compressor may run faster and longer than your old refrigerator and you
may hear a high-pitched hum or pulsating sound while it is operating. You may hear a whooshing
sound when the doors close. This is due to pressure equalizing within the refrigerator.
CLICKS, POPS, CRACKS and SNAPS
You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens
as the refrigerator cools to the correct temperature. Expansion and contraction of cooling coils
during and after defrost can cause a cracking or popping sound.
WATER
The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.
Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the
defrost cycle. A water dripping noise may occur during the defrost cycle as ice melts from the
evaporator and flows into the drain pan. Closing the door may cause a gurgling sound due to pres-
sure equalization.
22
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE REMEDIAL ACTION
No display on
the display
panel
• The power cord of the appliance
is not plugged into the socket
properly.
• The fuse for the domestic supply
is switched o.
• Check whether the power is on
• The fuse must be switched on
Alarm sound • Door is slightly open or has not
been closed for over a minute.
• Close the door completely.
The
compressor
does not work
• It is currently defrosting
• Power is not connected properly
• It is normal during defrosting period
• Check whether the power is connected
properly.
Compressor
runs too long
• The fridge has recently been
disconnected for a period of
time.
• Put too much fresh food or hot
food.
• Doors are opened too frequently
or too long.
• It takes some hours for the fridge to cool down
completely.
• Hot food will cause the fridge to run longer
until the desired temperature is reached.
• Warm air entering the fridge causes it to run
longer. Open the door less often.
Vibrating • Floor is uneven or weak.
• Items placed on the top of the
fridge are vibrating.
• Fridge is touching wall or
cabinets.
• Be sure floor is level and solid and can
adequately support fridge.
• Remove items.
• Move fridge so that it does not touch the wall
or cabinets.
23
Unique Appliances Ltd. (hereafter “Unique”) warrants that this UNIQUE fridge is free from manufacturer’s
defects in material and workmanship under normal usage and service under the following terms.
TERMS OF WARRANTY
Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.
Parts Warranty
This appliance has been designed for domestic household use. If properly installed, adjusted and operated under normal conditions in
accordance with printed instructions, it will satisfactorily perform the functions that are generally expected of this type of appliance.
If the appliance fails to do so because of a defect in material or workmanship within one year or two years on the hermetically sealed
compressor from the original date of purchase: Unique will at our option, repair, exchange, or correct by other means Unique consider
appropriate, any part(s) Unique finds to be defective except for the surface finish.
Ownership
This Warranty is made only to the first purchaser (”original purchaser”) who acquires this fridge for his/her own use and will be honored
by Unique Appliances Ltd. and by the Seller. Purchaser must retain their receipt as proof of purchase date.
Warranty Conditions
This warranty does not apply to any appliance that has been subjected to alterations, misuse, abuse (including damage by foreign
agents or chemicals), accident, improper installation or service, delivery damage, or other than normal household use and service. This
UNIQUE appliance must be serviced regularly as outlined in the Owner’s Manual. Neither Unique Appliances Ltd. nor the selling deal-
er will be liable for direct or indirect loss of foods caused by failure in operation. In case of damage, the owner must provide proof of
purchase, Model, and Serial Number to the selling dealer or Unique Appliances Ltd. This warranty is LIMITED STRICTLY to the terms
indicated herein, and no other expressed warranties or remedies thereunder shall be binding on Unique.
Purchaser’s Responsibilities
The purchaser will be responsible for the costs of any service calls requested to demonstrate or confirm the proper operation of the
appliance, the installation, or to correct malfunctions in the appearance created by the operation of the appliance in a manner not pre-
scribed by or cautioned against in the use and care instructions.
Model and Serial Number
The appliance model number and serial number can be found on a rating plate attached at the back of the fridge. The purchaser should
always refer to the model and serial number when talking to or contacting the dealer from whom the appliance was purchased.
EXCLUSIONS
Save as herein provided, by Unique, there are no other warranties, conditions, representations or guarantees, express or implied, made
or intended by Unique or its authorized distributors and all other warranties, conditions, representations or guarantees, including any
warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly
excluded. Save as herein provided, Unique shall not be responsible for any damages to persons or property, including the unit itself,
howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchas-
er does hereby agree to indemnify and hold harmless Unique from any claim for damages to persons or property caused by the unit
Removal or disfigurement of the serial plate will void the warranty. The purchaser will be responsible for any expenses involved in mak-
ing the refrigerator readily accessible for servicing. The purchaser will be responsible for any extra charges where the installation is in a
remote location such as un-assumed roads, islands, areas known as cottage country, more than 75 Km outside a Metropolitan area, or
where a technician is not available. Freight damage is not covered by this warranty.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating
conditions (ie. extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor
application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).
Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present
the proof of purchase to our authorized service depot.
Nothing within this warranty shall imply that Unique will be responsible or liable for any spoilage or damage to food or other con-
tents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper
Factory Assistance
If the purchaser is unable to locate an authorized dealer/service agent, or if the purchaser does not receive satisfaction from the dealer,
they may contact Unique Appliances Customer Service directly at Toll Free 1-877-427-2266 or 905-827- 6154
WARRANTY
24
RATING LABEL
5023513
© Unique Appliances Ltd. Tous droits réservés.
.dtL secnailppA euqinU :rap éuqirbaf te uçnoC
2245 Wyecroft Road #5, Oakville, Ontario, Canada, L6L 5L7.
© Unique Appliances Ltd. All rights reserved.
Designed and manufactured by: Unique Appliances Ltd.,
2245 Wyecroft Road #5, Oakville, Ontario, Canada, L6L 5L7.
Model / Modéle : UGP-595L T AC,
UGP-595L B AC, UGP-595L W AC
UGP-595L LG AC
35mm
110mm
Serial # / n de série:
o
XXXXXXXXXXXXXXXXXXXXXXX
*LOCATED ON THE INSIDE OF THE REFRIGERATOR
25
For questions related to the operation, safety or the purchase of your fridge, please contact your
dealer for more information. For general information, contact our customer service department:
APPLIANCE INFORMATION
(manual copy - keep with your records)
To make care and servicing of your fridge easy and ecient, please record the following informa-
tion for future reference:
Model:
Serial Number:
Purchased From:
Date Purchased:
APPLIANCE INFORMATION
CONTACT US
Toll-free
1-877-427-2266 or 1-905-827-6154
(available during regular business
hours, 8:30 am to 4:30 pm, EST.
Website
www.uniqueappliances.com
Email
info@UniqueAppliances.com
Scan the QR Code
or
Visit our website at https://uniqueappliances.com/product-registration/ to
register your product.
PRODUCT REGISTRATION
© 2023 Unique Appliances Ltd., 2245 Wyecroft
Road, Oakville, Ontario, Canada, L6L 5L7
www.uniqueappliances.com
serial number:
