1. About Your Omni C20
1.1 What's in the Box
1.2 Overview
1.3 Button Controls
1.4 LED Indication
2. Preparing Your Omni C20
2.1 Important Tips Before First Use
2.2 Install the All-in-One Station
2.3 Charge Your Robot
3. Using Your Omni C20
3.1 Download the App
3.2 Reset the Wi-Fi Connection
3.3 Mapping
3.4 Set Up No-Go Zone and No Mop Zone
3.5 Schedule Cleaning
3.6 Select a Cleaning Mode
3.6.1 Home Cleaning Mode
3.6.2 Room Cleaning
3.6.3 Zone Cleaning
3.7 Select a Suction Power Level
4. Using the Mopping System
5. Using the Robot with Amazon Alexa / The Google Assistant
6. Enabling / Disabling Child Safety Lock
7. Cleaning and Maintenance
7.1 Clean the Dustbin and Filter
7.2 Clean the Rolling Brush
7.3 Clean the Side Brush
7.4 Clean the Sensors and Charging Pins
7.5 Clean the Dirty Water Tank
7.6 Clean the Mopping Pads
7.7 Clean the Detachable Mopping Pads Cleaning Tray
8. Troubleshooting
9. Specifications
10. Customer Service
1. About Your Omni C20
1.1 What's in the Box
1.2 Overview
Front
Back
Bottom
All-in-One Station
1.3 Button Controls
Long press (3s): Power on or off
Short press (1s): Pause / finish the current task when working
Short press (1s): Return the robot to the Station
Long press (3s): Enable or disable Child Safety Lock
Long press simultaneously (3s): Reset the Wi-Fi connection
1.4 LED Indication
You can see the status of the device from the LED indicators of the robot and the base station.
LED Indication Description Status
Base Station
Steady White Powered On
Steady Red
Water Tank Empty
- Error
* Check in-app
instructions, or contact
eufy Customer Service
for solutions
Robot
Steady White Powered On
Steady Red
- Error
* Check in-app
instructions, or contact
eufy Customer Service
for solutions
2. Preparing Your Omni C20

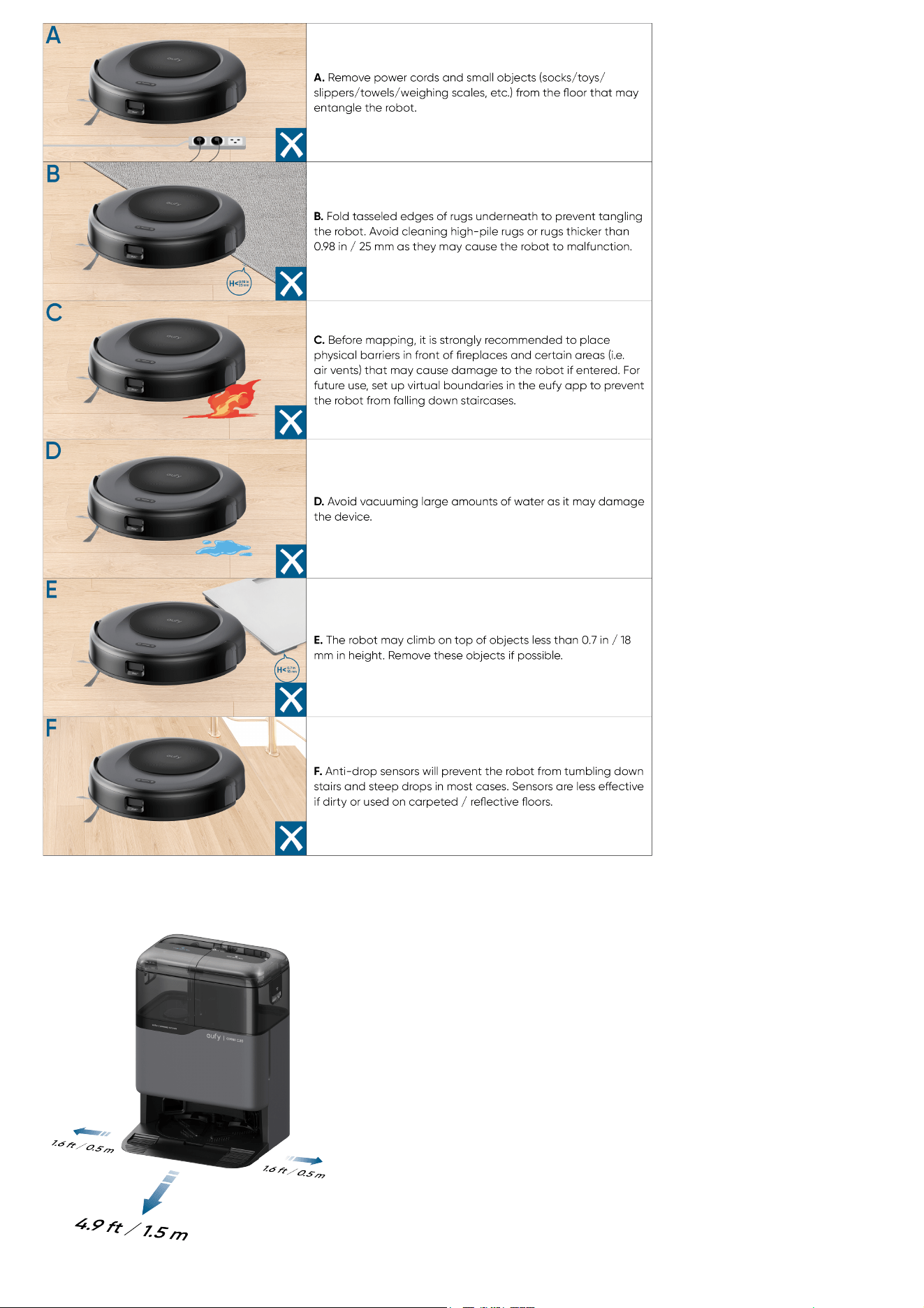

2.1 Important Tips Before First Use
2.2 Install the All-in-One Station
1. Place the station in a location that has strong Wi-Fi signal and the robot can easily access. It is recommended to place it against a wall and on a hard,
level surface.
2. Plug the station into a wall outlet.
When the station connects to AC power, the LED ring in the clean water tank will light up in red, indicating that the tank needs to be filled with
water.
3. Take out the clean water tank. Add clean water until it reaches the MAX water line.
2.3 Charge Your Robot
1. Remove the foam blocks, stickers and protective films from front and back on the robot before use.
2. Attach the robot to the base station. Then the robot will automatically power on.
3. Using Your Omni C20
Note: The UI images are for illustration purposes only. Actual display contents may vary based on the software
version.
To enjoy all the available features, it is recommended to control your robot via the eufy app.
Before you start, make sure:
Your smartphone is running iOS 11.0 (or above) or Android 8.0 (or above).
The 2.4GHz band wireless signal is enabled on your wireless router.
3.1 Download the App
1. Download the eufy Clean app from the App Store (iOS devices) or Google Play (Android devices), or by clicking this link: https://dl-
eufy.eufylife.com/qcdl/index.html?flow=eufy.
2. Open the app and create a user account.
3. Tap the "Add Device" / “+” icon to add your robot to your eufy account.
4. Follow the instructions in the app to set up the Wi-Fi connection.
After connecting successfully, you can control the robot via the app.
With the app, you can select cleaning modes, select cleaning at your desired suction power, schedule cleaning, view the system status, receive
notifications, and access additional features.
3.2 Reset the Wi-Fi Connection
If you bump into issues when connecting your robot to the eufy app, try to reset the Wi-Fi connection.
Press and hold the power and recharge buttons simultaneously for 3 seconds until you hear a voice prompt.
You will hear a voice prompt when the Wi-Fi connection has been reset, and the LED indicator on the robot will quickly flash white. Now you can follow
the in-app instructions to reset the Wi-Fi connection.
3.3 Mapping
This feature is designed to help your robot efficiently learn the layout of your home, ensuring thorough and systematic cleaning. By creating a detailed
floor plan, your robot can navigate and clean with precision.
To maximize the efficiency and accuracy of the mapping process, please follow these steps:
Open All Doors: Ensure all doors within the cleaning area are open. This allows the robot to access and map each room seamlessly.
Block Off Restricted Areas: If there are specific zones you don't want the robot to enter, use physical barriers to block these areas. This can
enhance mapping accuracy and prevent the robot from entering unwanted spaces. After the mapping is completed, you can remove physical
barriers, and set up restricted areas to prevent the robot from entering those areas.
Remove Obstacles: Clear any objects, such as toys, cables, or small furniture, that might obstruct the robot's path or become entangled in its
brushes. This helps the robot move freely and map the area without interruptions.
Do Not Move the Base Station: Once the floor plan is created, avoid relocating the base station. The robot relies on the base station as a
reference point for navigation and mapping. Moving it may disrupt the accuracy of the floor plan.
3.4 Set Up No-Go Zone and No Mop Zone
With the eufy app, you can set up a “No-Go Zone” or “No Mop Zone” as a restricted area. This eliminates the need to use physical barriers, including
boundary strips. This feature is only designed for dividing the cleaning zones, not for isolating hazardous areas.
3.5 Schedule Cleaning
With the eufy app, you can schedule the robot to start cleaning at a particular time.
3.6 Select a Cleaning Mode
You can start / pause cleaning or select a cleaning mode via the eufy app.
3.6.1 Home Cleaning Mode
Tap Start in the eufy app to enable Home Cleaning mode.
After startup, the robot moves from the base station and automatically determines its cleaning route. It begins by cleaning the edges first, followed by
navigating in a Z-shaped pattern to ensure comprehensive coverage. Once the cleaning cycle is complete, the robot will automatically return to its base
station for recharging.
To pause cleaning, press the power button on the robot.
3.6.2 Room Cleaning
In this mode, your house is automatically divided into several rooms for cleaning in the eufy app. You can also customize your room settings in the app.
The robot will clean the selected rooms only and return to the Omni Station after cleaning.
3.6.3 Zone Cleaning
In this mode, you can set up a cleaning zone and customize its size in the eufy app. The robot will clean the selected zone only.
3.7 Select a Suction Power Level
In the eufy app, select a suction power level according to your needs: Quiet, Standard (Default), Turbo, and Max. When the robot starts cleaning next
time, it will clean according to the suction power level you previously selected.
Note: If you have pets or children at home, it is recommended to select a higher suction power level.
In the eufy app, you can also select the BoostIQ™ feature according to your needs. The robot will automatically enable BoostIQ™ if it detects a carpet
during cleaning to ensure the best clean. BoostIQ™ is ideal for cleaning thicker carpets. If the vacuuming noise caused by BoostIQ™ disturbs you, you
can disable this feature.
4. Using the Mopping System
Note: The UI images are for illustration purposes only. Actual display contents may vary based on the software
version.
1. Start cleaning. The robot will automatically vacuum and mop. During mopping, you can choose between two water levels via the eufy app.
2. Regularly empty and clean the dirty water tank to prevent mildew or unpleasant smells. For instructions on how to clean the dirty water tank, refer to
the “Cleaning and Maintenance” section in this User Guide.
5. Using the Robot with Amazon Alexa / The Google Assistant
Amazon Alexa or the Google Assistant are smart voice control devices that enable you to control the robot with your voice.
Before you start, make sure:
The robot is attached to the base station to ensure there is enough power.
The robot is connected to the eufy app.
You have an Amazon Alexa-enabled device (i.e. Amazon Echo, Echo Dot, Amazon Tap, Echo Show, or Echo Spot) or a device enabled with the
Google Assistant (i.e. Google Home, Google Home Mini). These devices are sold separately.
The Amazon Alexa app or Google Home app is already installed on your smart device, and you have created an account.
To control the Robot with Amazon Alexa or the Google Assistant:
1. Open the eufy app and tap Profile > Smart Integrations.
2. Follow the on-screen instructions to complete the setup.
6. Enabling / Disabling Child Safety Lock
Press and hold the recharge button button for 3 seconds to activate the child safety lock. Once the child safety lock is enabled, all buttons will
be locked to prevent children from damaging the device or accidentally getting hurt.
To disable the child safety lock, press and hold the recharge button for 3 seconds again.
7. Cleaning and Maintenance
7.1 Clean the Dustbin and Filter
❶ Open the top cover and take out the dustbin.
❷ Press the release latch to open and empty the dustbin.
❸ Remove the filter.
❹ Tap the filter to remove dust.
❺ Rinse the dustbin and filter thoroughly with water.
❻ Air-dry the dustbin and filter completely before next use.
❼ Place the filter back into the dustbin.
❽ Push the dustbin back into the main unit.
7.2 Clean the Rolling Brush
❶ Turn over the main unit, push the release tabs with both hands to unlock the brush guard.
❷ Take out the rolling brush and remove the end caps from both sides. Clean the hair entangled on the rolling brush and debris with scissors.
❸ Rinse the rolling brush and brush guard with running water.
❹ Air dry the rolling brush and brush guard completely before next use.
❺ Reinstall the rolling brush.
❻ Press down to snap the brush guard into place.
7.3 Clean the Side Brush
Foreign substances, such as hair, can easily get tangled in the side brush, so it is best to clean it regularly.
❶ Remove the side brush with a screwdriver.
❷ Carefully unwind and pull off any hair or substances that are wrapped between the main unit and the side brush.
❸ Clean the side brush with water.
❹ Air dry the side brush before next use.
❺ Reinstall the side brush on the machine.
7.4 Clean the Sensors and Charging Pins
To maintain the best performance, clean the sensors, bumpers and charging contact pins regularly.
Dust off the sensors and charging contact pins using a soft cloth.
7.5 Clean the Dirty Water Tank
❶ Remove the dirty water tank from the base station.
❷ Empty the dirty water tank.
❸ Rinse the dirty water tank thoroughly with running water.
7.6 Clean the Mopping Pads
❶ Detach the mopping pads from the robot.
❷ Carefully wash the mopping pads with water.
❸ Sun dry the mopping pads completely before next use.
❹ Attach the mopping pads back onto the robot.
7.7 Clean the Detachable Mopping Pads Cleaning Tray
❶ Remove the cleaning tray from the base station.
❷ Rinse the cleaning tray thoroughly with water.
❸ place it back into the station.
8. Troubleshooting
Note: The UI images are for illustration purposes only. Actual display contents may vary based on the software
version.
When an error occurs, please refer to the in-app instructions for solutions. If the problem persists, please contact [email protected] for help.
9. Specifications
Power Consumption
Base Station: 20W (During Dust Collection:
650W)
Main Unit: 40W
Battery 3200mAH
Input US: 120V, EU: 230V
Output 20V 0.65A
Clean Water Tank
Capacity
2.5L
Dirty Water Tank
Capacity
2.4L
Dust Bag Capacity 3.1L
10. Customer Service
Contact Us:
www.eufy.com
(US/CA) +1 (800)994 3056
(UK) +44 (0) 1604 936 200
(DE) +49 (0) 69 9579 7960
(JP) +81 03 4455 7823
For video tutorials, FAQs, warranty policies, and more information, please visit: https://support.eufy.com/
Hereby, Anker Innovations Limited declares that this device is in compliance with The Product Security and Telecommunications Infrastructure (Security
Requirements for Relevant Connectable Products) Regulations 2023. For the Statement of Compliance, visit the website: https://www.eufy.com/uk/psti-
related.
