Axis 0778-001 F34 4 Channel HDTV 720P/1080P Quad View Main User Manual

AXISF34MainUnit

UserManual

AboutthisDocument

ThismanualisintendedforadministratorsandusersofAXISF34

MainUnit,andisapplicabletormware5.85andlater.Itincludes

instructionsforusingandmanagingtheproductonyournetwork.

Previousexperienceofnetworkingwillbeofusewhenusingthis

product.SomeknowledgeofUNIXorLinux-basedsystemsmayalsobe

usefulwhendevelopingshellscriptsandapplications.Laterversionsof

thisdocumentwillbepostedatwww.axis.com.Seealsotheproduct’s

onlinehelp,availablethroughtheweb-basedinterface.

LegalConsiderations

Videosurveillancecanberegulatedbylawsthatvaryfromcountryto

country.Checkthelawsinyourlocalregionbeforeusingthisproduct

forsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicense.Topurchase

furtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthisdocument.Please

informyourlocalAxisofceofanyinaccuraciesoromissions.Axis

CommunicationsABcannotbeheldresponsibleforanytechnicalor

typographicalerrorsandreservestherighttomakechangestothe

productandmanualswithoutpriornotice.AxisCommunicationsAB

makesnowarrantyofanykindwithregardtothematerialcontained

withinthisdocument,including,butnotlimitedto,theimplied

warrantiesofmerchantabilityandtnessforaparticularpurpose.Axis

CommunicationsABshallnotbeliablenorresponsibleforincidentalor

consequentialdamagesinconnectionwiththefurnishing,performance

oruseofthismaterial.Thisproductisonlytobeusedforitsintended

purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodied

intheproductdescribedinthisdocument.Inparticular,andwithout

limitation,theseintellectualpropertyrightsmayincludeoneormore

ofthepatentslistedatwww.axis.com/patent.htmandoneormore

additionalpatentsorpendingpatentapplicationsintheUSandother

countries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem

“About”intheproduct’suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer,

Inc.,underthetermsofApplePublicSourceLicense2.0(see

www.opensource.apple.com/apsl).Thesourcecodeisavailablefrom

https://developer.apple.com/bonjour/

EquipmentModications

Thisequipmentmustbeinstalledandusedinstrictaccordancewiththe

instructionsgivenintheuserdocumentation.Thisequipmentcontains

nouser-serviceablecomponents.Unauthorizedequipmentchangesor

modicationswillinvalidateallapplicableregulatorycertications

andapprovals.

TrademarkAcknowledgments

AXISCOMMUNICATIONS,AXIS,ETRAX,ARTPECandVAPIXare

registeredtrademarksortrademarkapplicationsofAxisABinvarious

jurisdictions.Allothercompanynamesandproductsaretrademarksor

registeredtrademarksoftheirrespectivecompanies.

Apple,Boa,Apache,Bonjour,Ethernet,InternetExplorer,Linux,

Microsoft,Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,Windows

VistaandWWWareregisteredtrademarksoftherespectiveholders.

JavaandallJava-basedtrademarksandlogosaretrademarksor

registeredtrademarksofOracleand/oritsafliates.UPnP

isa

certicationmarkoftheUPnP

ImplementersCorporation.

SD,SDHCandSDXCaretrademarksorregisteredtrademarksofSD-3C,

LLCintheUnitedStates,othercountriesorboth.Also,miniSD,microSD,

miniSDHC,microSDHC,microSDXCarealltrademarksorregistered

trademarksofSD-3C,LLCintheUnitedStates,othercountriesorboth.

RegulatoryInformation

Europe

ThisproductcomplieswiththeapplicableCEmarkingdirectives

andharmonizedstandards:

•ElectromagneticCompatibility(EMC)Directive2004/108/EC.See

ElectromagneticCompatibility(EMC)onpage2.

•LowVoltage(LVD)Directive2006/95/EC.SeeSafetyonpage3.

•RestrictionsofHazardousSubstances(RoHS)Directive2011/65/EU.

SeeDisposalandRecyclingonpage3.

Acopyoftheoriginaldeclarationofconformitymaybeobtainedfrom

AxisCommunicationsAB.SeeContactInformationonpage3.

ElectromagneticCompatibility(EMC)

Thisequipmenthasbeendesignedandtestedtofulllapplicable

standardsfor:

•Radiofrequencyemissionwheninstalledaccordingtothe

instructionsandusedinitsintendedenvironment.

•Immunitytoelectricalandelectromagneticphenomenawhen

installedaccordingtotheinstructionsandusedinitsintended

environment.

USA

Thisequipmenthasbeentestedusingashieldednetworkcable(STP)

andfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesigned

toprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiate

radiofrequencyenergyand,ifnotinstalledandusedinaccordance

withtheinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterference

willnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,which

canbedeterminedbyturningtheequipmentoffandon,theuseris

encouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfrom

thattowhichthereceiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Theproductshallbeconnectedusingashieldednetworkcable(STP)

thatisproperlygrounded.

Canada

ThisdigitalapparatuscomplieswithCANICES-3(ClassB).Theproduct

shallbeconnectedusingashieldednetworkcable(STP)thatis

properlygrounded.Cetappareilnumériqueestconformeàlanorme

CANNMB-3(classeB).Leproduitdoitêtreconnectéàl'aided'uncâble

réseaublindé(STP)quiestcorrectementmisàlaterre.

Europe

ThisdigitalequipmentfulllstherequirementsforRFemission

accordingtotheClassBlimitofEN55022.Theproductshallbe

connectedusingashieldednetworkcable(STP)thatisproperly

grounded.

Thisproductfulllstherequirementsforimmunityaccording

toEN61000-6-1residential,commercialandlight-industrial

environments.

Thisproductfulllstherequirementsforimmunityaccordingto

EN61000-6-2industrialenvironments.

Thisproductfulllstherequirementsforimmunityaccordingto

EN55024ofceandcommercialenvironments

Australia/NewZealand

ThisdigitalequipmentfulllstherequirementsforRFemission

accordingtotheClassBlimitofAS/NZSCISPR22.Theproductshall

beconnectedusingashieldednetworkcable(STP)thatisproperly

grounded.

Japan

この装置は、クラスB情報技術装置です。この装置は、家

庭環境で使用することを目的としていますが、この装置が

ラジオやテレビジョン受信機に近接して使用されると、受

信障害を引き起こすことがあります。取扱説明書に従って

正しい取り扱いをして下さい。本製品は、シールドネッ

トワークケーブル(STP)を使用して接続してください。また

適切に接地してください。

Korea

이기기는가정용(B급)전자파적합기기로서주로가정에서사

용하는것을목적으로하며,모든지역에서사용할수있습니

다.적절히접지된STP(shieldedtwistedpair)케이블을사용하여

제품을연결하십시오.

Safety

ThisproductcomplieswithIEC/EN60950-1,SafetyofInformation

TechnologyEquipment.Ifitsconnectingcablesareroutedoutdoors,

theproductshallbegroundedeitherthroughashieldednetworkcable

(STP)orotherappropriatemethod.

Thepowersupplyusedwiththisproductshallfullltherequirements

forSafetyExtraLowVoltage(SELV)andLimitedPowerSource(LPS)

accordingtoIEC/EN/UL60950-1.

Battery

TheAxisproductusesa3.0VBR2032lithiumbatteryasthepower

supplyforitsinternalreal-timeclock(RTC).Undernormalconditions

thisbatterywilllastforaminimumofveyears.

LowbatterypoweraffectstheoperationoftheRTC,causingittoreset

ateverypower-up.Whenthebatteryneedsreplacing,alogmessage

willappearintheproduct’sserverreport.Formoreinformationabout

theserverreport,seetheproduct´ssetuppagesorcontactAxissupport.

Thebatteryshouldnotbereplacedunlessrequired,butifthebattery

doesneedreplacing,contactAxissupportatwww.axis.com/techsupfor

assistance.

WARNING

•Riskofexplosionifthebatteryisincorrectlyreplaced.

•Replaceonlywithanidenticalbatteryorabatterywhichis

recommendedbyAxis.

•Disposeofusedbatteriesaccordingtolocalregulationsor

thebatterymanufacturer'sinstructions.

DisposalandRecycling

Whenthisproducthasreachedtheendofitsusefullife,disposeof

itaccordingtolocallawsandregulations.Forinformationabout

yournearestdesignatedcollectionpoint,contactyourlocalauthority

responsibleforwastedisposal.Inaccordancewithlocallegislation,

penaltiesmaybeapplicableforincorrectdisposalofthiswaste.

Europe

Thissymbolmeansthattheproductshallnotbedisposedof

togetherwithhouseholdorcommercialwaste.Directive2012/19/EU

onwasteelectricalandelectronicequipment(WEEE)isapplicablein

theEuropeanUnionmemberstates.Topreventpotentialharmto

humanhealthandtheenvironment,theproductmustbedisposed

ofinanapprovedandenvironmentallysaferecyclingprocess.For

informationaboutyournearestdesignatedcollectionpoint,contact

yourlocalauthorityresponsibleforwastedisposal.Businessesshould

contacttheproductsupplierforinformationabouthowtodispose

ofthisproductcorrectly.

ThisproductcomplieswiththerequirementsofDirective2011/65/EUon

therestrictionoftheuseofcertainhazardoussubstancesinelectrical

andelectronicequipment(RoHS).

China

Thisproductcomplieswiththerequirementsofthelegislative

actAdministrationontheControlofPollutionCausedbyElectronic

InformationProducts(ACPEIP).

ContactInformation

AxisCommunicationsAB

Emdalavägen14

22369Lund

Sweden

Tel:+46462721800

Fax:+4646136130

www.axis.com

Support

Shouldyourequireanytechnicalassistance,pleasecontactyourAxis

reseller.Ifyourquestionscannotbeansweredimmediately,your

resellerwillforwardyourqueriesthroughtheappropriatechannelsto

ensurearapidresponse.IfyouareconnectedtotheInternet,youcan:

•downloaduserdocumentationandsoftwareupdates

•ndanswerstoresolvedproblemsintheFAQdatabase.Search

byproduct,category,orphrase

•reportproblemstoAxissupportstaffbyloggingintoyourprivate

supportarea

•chatwithAxissupportstaff

•visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww.axis.com/academy/forusefultrainings,

webinars,tutorialsandguides.

AXISF34MainUnit

SafetyInformation

HazardLevels

DANGER

Indicatesahazardoussituationwhich,ifnotavoided,willresultindeathorseriousinjury.

WARNING

Indicatesahazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.

CAUTION

Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.

NO NO

TICE TICE

TICE

Indicatesasituationwhich,ifnotavoided,couldresultindamagetoproperty.

OtherMessageLevels

Important

Indicatessignicantinformationwhichisessentialfortheproducttofunctioncorrectly.

Note

Indicatesusefulinformationwhichhelpsingettingthemostoutoftheproduct.

AXISF34MainUnit

TableofContents

SafetyInformation..........................................4

HazardLevels...................................................4

OtherMessageLevels............................................4

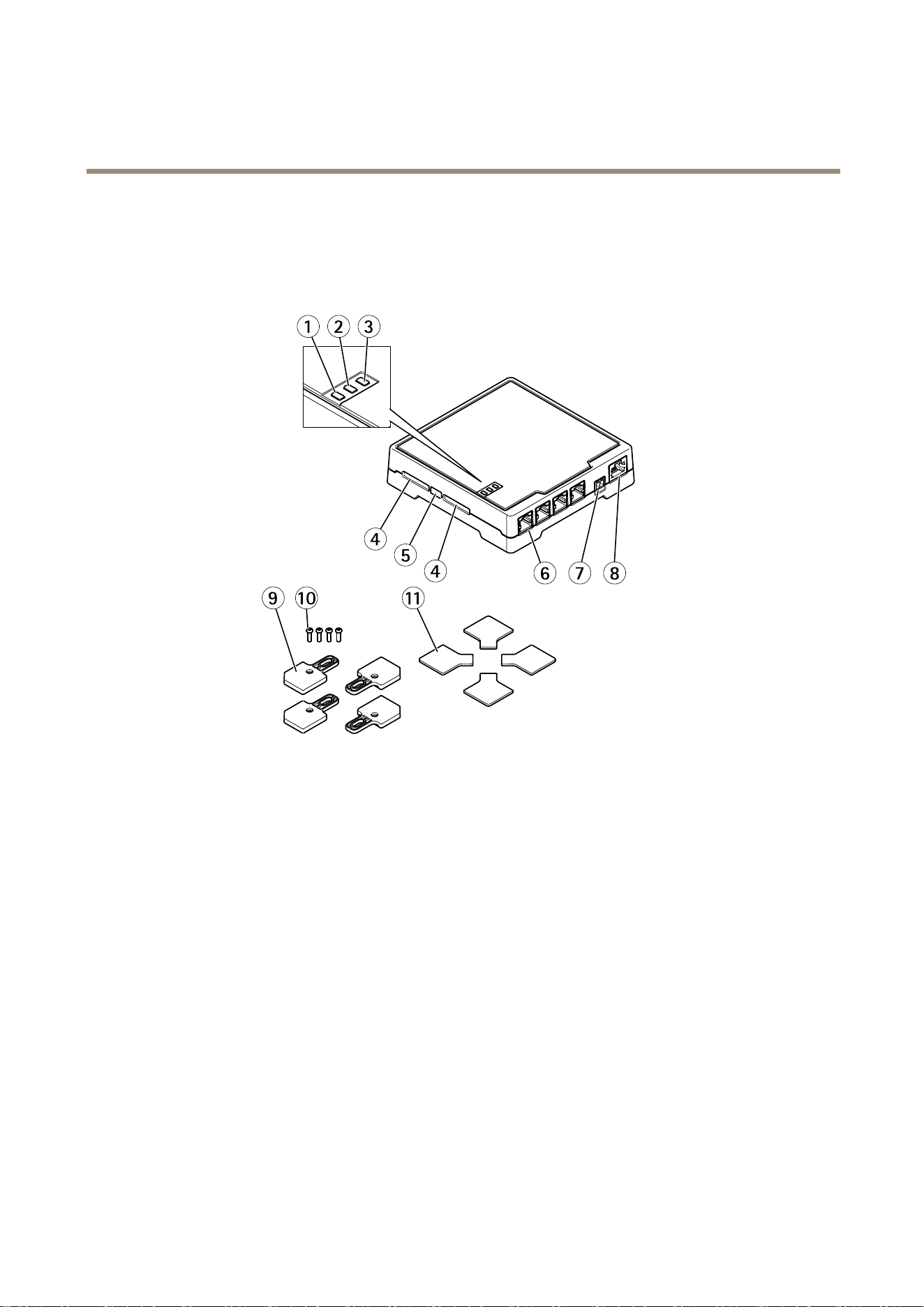

HardwareOverview..........................................7

ConnectorsandButtons..........................................8

LEDIndicators..................................................8

SensorUnits...................................................9

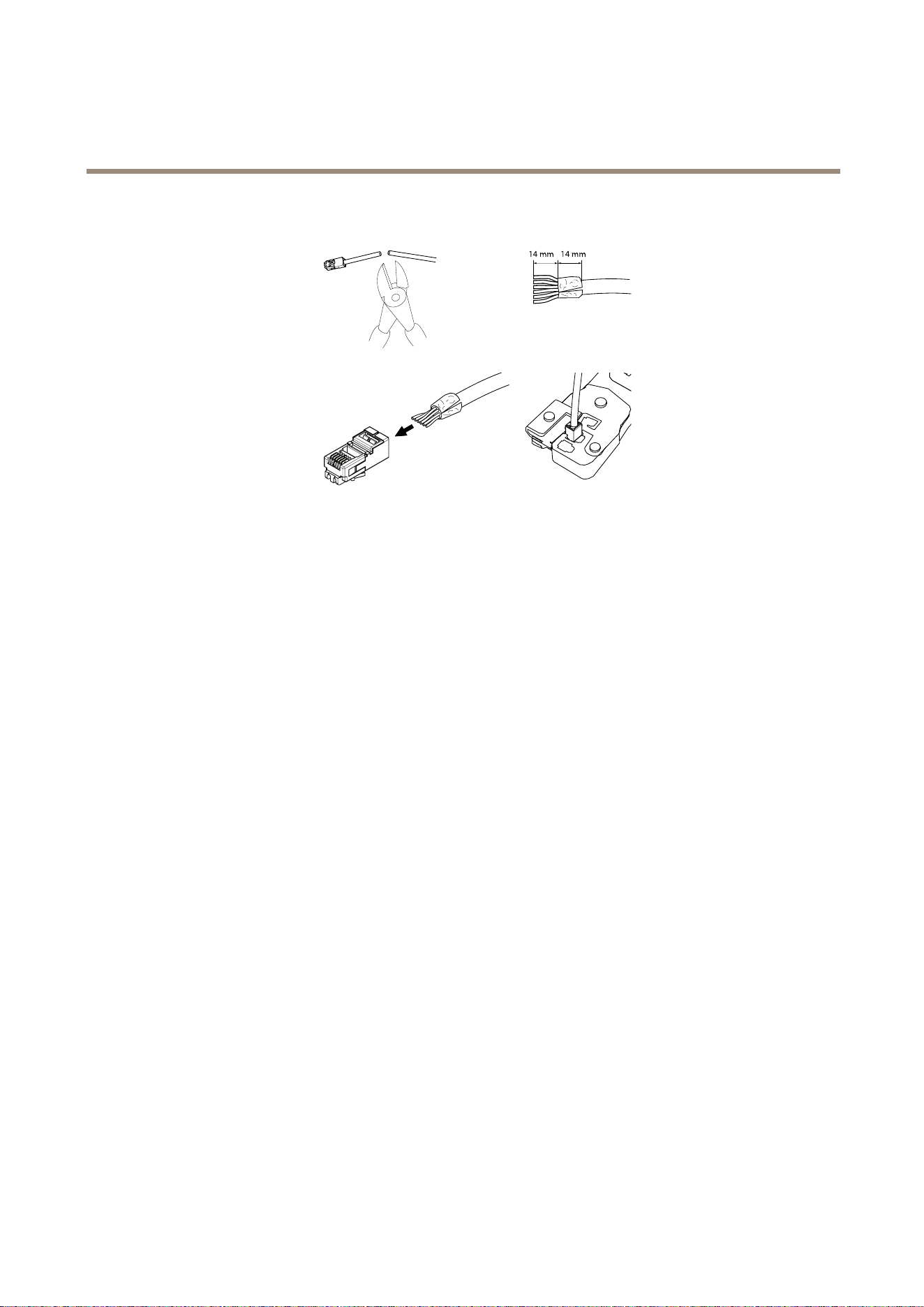

ShortenSensorUnitCable........................................9

AccesstheProduct..........................................11

AccessfromaBrowser...........................................11

AccessfromtheInternet..........................................11

SettheRootPassword...........................................12

CongureCaptureMode..........................................12

SetPowerLineFrequency.........................................12

TheLiveViewPage..............................................12

MediaStreams.............................................15

HowtoStreamH.264............................................15

MJPEG........................................................15

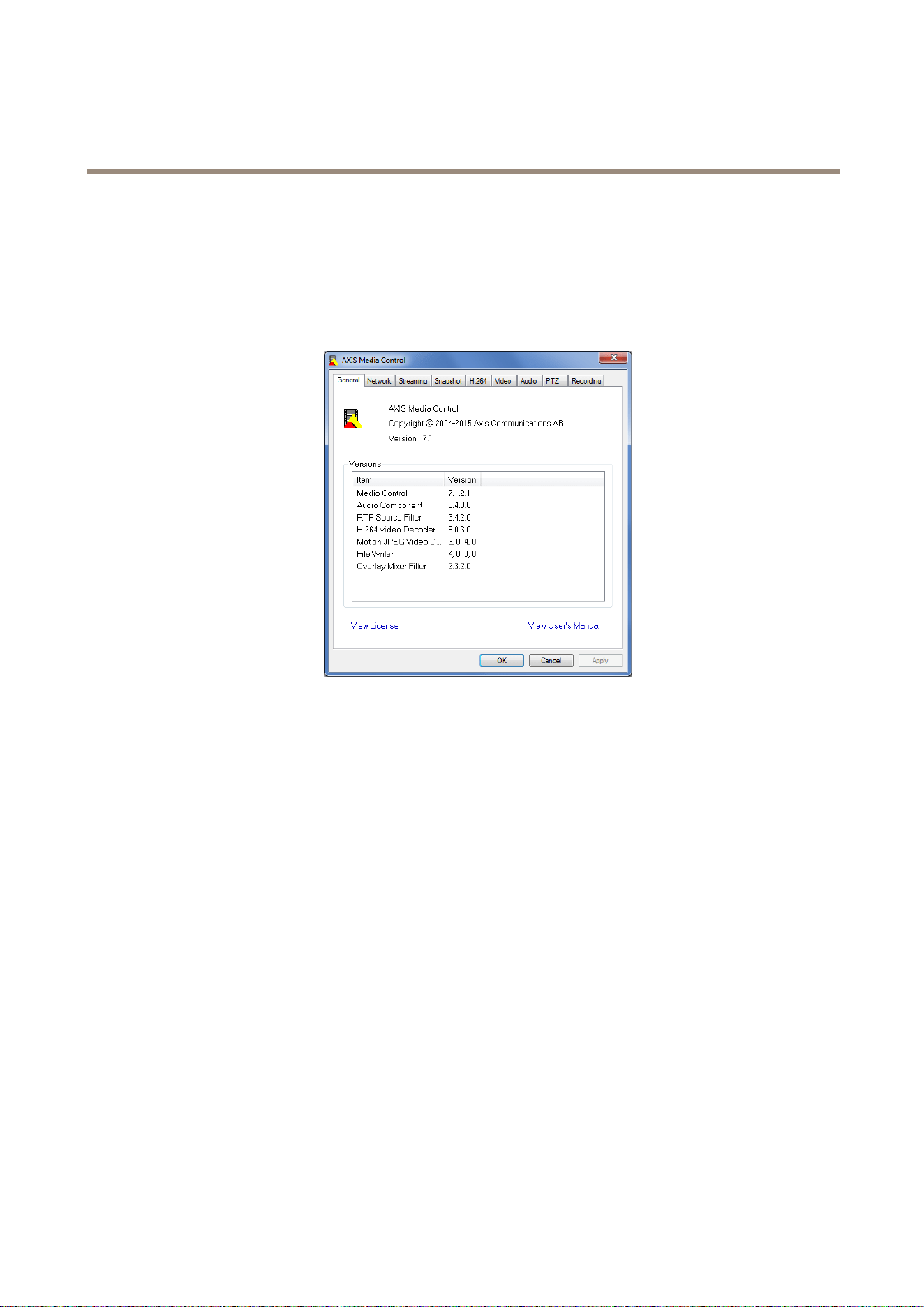

AXISMediaControl(AMC)........................................15

AlternativeMethodsofAccessingtheVideoStream....................16

SetUptheProduct..........................................18

BasicSetup....................................................18

Video.....................................................19

SetUpVideoStreams............................................19

CameraSettings................................................21

PrivacyMask...................................................22

StreamProles.................................................23

ONVIFMediaProles............................................23

ImageSynchronization...........................................23

Overlay........................................................23

ConguretheLiveViewPage.................................26

Detectors..................................................28

CameraTampering..............................................28

Applications...............................................29

ApplicationLicenses.............................................29

UploadApplication..............................................29

ApplicationConsiderations........................................29

AXISVideoMotionDetection.................................31

Considerations..................................................31

StartandStoptheApplication.....................................31

CongureApplication............................................31

UsingtheApplicationinanActionRule.............................35

Events....................................................36

SetUpActionRules.............................................36

AddRecipients..................................................37

CreateSchedules................................................38

SetUpRecurrences..............................................39

Recordings.................................................40

FindRecordings.................................................40

PlayRecording..................................................40

ExportVideoClip................................................41

ContinuousRecording............................................41

Languages.................................................42

SystemOptions.............................................43

Security.......................................................43

Date&Time....................................................45

Network.......................................................46

Storage.......................................................51

Maintenance...................................................52

Support.......................................................53

Advanced......................................................54

AXISF34MainUnit

TableofContents

ResettoFactoryDefaultSettings...................................54

Troubleshooting............................................55

ChecktheFirmware.............................................55

UpgradetheFirmware...........................................55

Symptoms,PossibleCausesandRemedialActions.....................55

TechnicalSpecications......................................58

AXISF34MainUnit..............................................58

AXISFSensorUnits..............................................59

AXISF1004SensorUnit..........................................60

AXISF4005DomeSensorUnit.....................................61

..............................................................61

AXISF4005-EDomeSensorUnit...................................62

..............................................................62

Connectors....................................................63

PerformanceConsiderations.......................................63

AXISF34MainUnit

HardwareOverview

LED(Power)

LED(Status)

LED(Network)

SDcardslot

Controlbutton

RJ12connector

Powerconnector

Networkconnector(PoE)

Mountbrackets(4x)

10.

Screws(4x)

11.

Rubberfeet(4x)

AXISF34MainUnit

HardwareOverview

ConnectorsandButtons

Fortechnicalspecications,seepage58.

NetworkConnector

RJ45EthernetconnectorwithPoweroverEthernet(PoE).

NO NO

TICE TICE

TICE

Theproductshallbeconnectedusingashieldednetworkcable(STP).Allcablesconnectingtheproducttothenetworkshall

beintendedfortheirspecicuse.Makesurethatthenetworkdevicesareinstalledinaccordancewiththemanufacturer’s

instructions.Forinformationaboutregulatoryrequirements,seeElectromagneticCompatibility(EMC)onpage2.

PowerConnector

2-pinterminalblockforpowerinput.UseaSafetyExtraLowVoltage(SELV)compliantlimitedpowersource(LPS)witheitherarated

outputpowerlimitedto≤100Woraratedoutputcurrentlimitedto≤5A.

RJ12Connector

TheRJ12connectorisusedforconnectingthesensorunittothemainunit.

ForinformationonhowtoshortenthesensorunitcableseeShortenSensorUnitCableonpage9.

SDCardSlot

NO NO

TICE TICE

TICE

•RiskofdamagetoSDcard.DonotusesharptoolsorexcessiveforcewheninsertingorremovingtheSDcard.

•Riskofdataloss.Topreventdatacorruption,theSDcardshouldbeunmountedbeforeremoval.Tounmount,gotoSetup>

SystemOptions>Storage>SDCardandclickUnmount.

ThisproductsupportsSD/SDHC/SDXCcards(notincluded).

ForSDcardrecommendations,seewww.axis.com

ControlButton

Forlocationofthecontrolbutton,seeHardwareOverviewonpage7.

Thecontrolbuttonisusedfor:

•Resettingtheproducttofactorydefaultsettings.Seepage54.

•ConnectingtoanAXISVideoHostingSystemservice.Seepage47.Toconnect,pressandholdthebuttonforabout3

secondsuntiltheStatusLEDashesgreen.

•ConnectingtoAXISInternetDynamicDNSService.Seepage47.Toconnect,pressandholdthebuttonforabout3seconds.

LEDIndicators

Note

•TheStatusLEDcanbeconguredtobeunlitduringnormaloperation.Tocongure,gotoSetup>SystemOptions>Ports

&Devices>LED.Seetheonlinehelpformoreinformation.

•TheStatusLEDcanbeconguredtoashwhileaneventisactive.

•TheStatusLEDcanbeconguredtoashforidentifyingtheunit.GotoSetup>SystemOptions>Maintenance.

AXISF34MainUnit

HardwareOverview

StatusLED

Indication

GreenSteadygreenfornormaloperation.

Amber

Steadyduringstartupandwhenrestoringsettings.

Note

TheNetworkLEDcanbedisabledsothatitdoesnotashwhenthereisnetworktrafc.Tocongure,gotoSetup>System

Options>Ports&Devices>LED.Seetheonlinehelpformoreinformation.

NetworkLEDIndication

Green

Steadyforconnectiontoa100Mbit/snetwork.Flashesfornetworkactivity.

Amber

Steadyforconnectiontoa10Mbit/snetwork.Flashesfornetworkactivity.

UnlitNonetworkconnection.

PowerLEDIndication

Green

Normaloperation.

Amber

Flashesgreen/amberduringrmwareupgrade.

SensorUnits

Itisrecommendedtoconnectthesensorunitstothemainunitbeforepoweringthemainunit.Ifyoudisconnectasensorunit,and

connectadifferentsensorunit,itmaybenecessarytorestartthemainunit.

ShortenSensorUnitCable

Note

Thesensorunit’scablecannotbeextendedorsplit.

Thesensorunitisdeliveredwithacable.Toshortenthecablefollowthesesteps:

1.Cutthecabletothedesiredlength.Measurefromthesensorunit.

2.Striptheplasticoutercoatingfromtheendofthecable.

3.Peelbacktheshield.

4.Flattenthecoloredwiresintheorderdescribedbelow.

Brown

White/brown

Notused

White/blue

Blue

5.Insertthewiresallthewayintoashielded6P6CRJ12connector.

NO NO

TICE TICE

TICE

Makesurethatthewiresstayinthecorrectorderandthatthecableshieldmakesgoodcontactwiththeconnectorshield.

AXISF34MainUnit

HardwareOverview

6.Useacrimpingtooltofastentheconnectortothecable.

14 mm 14 mm

AXISF34MainUnit

AccesstheProduct

ToinstalltheAxisproduct,seetheInstallationGuidesuppliedwiththeproduct.

Theproductcanbeusedwithmostoperatingsystemsandbrowsers.Therecommendedbrowsersare

•InternetExplorer

withWindows

•Safari

withOSX

•Chrome

orFirefox

withotheroperatingsystems.

SeeTechnicalSpecicationsonpage58.

ToviewstreamingvideoinInternetExplorer,allowinstallationofAXISMediaControl(AMC)whenprompted.

TheAxisproductincludesone(1)H.264decoderlicenseforviewingvideostreams.ThelicenseisautomaticallyinstalledwithAMC.

Theadministratorcandisabletheinstallationofthedecoders,topreventinstallationofunlicensedcopies.

Note

•QuickTime

isalsosupportedforviewingH.264streams.

AccessfromaBrowser

1.Startawebbrowser.

2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser’sLocation/Addresseld.

ToaccesstheproductfromaMaccomputer(OSX),gotoSafari,clickonBonjourandselecttheproductfromthe

drop-downlist.

IfyoudonotknowtheIPaddress,useAXISIPUtilitytolocatetheproductonthenetwork.Forinformationabout

howtodiscoverandassignanIPaddress,seethedocumentAssignanIPAddressandAccesstheVideoStreamonAxis

Supportwebatwww.axis.com/techsup

Note

ToshowBonjourasabrowserbookmark,gotoSafari>Preferences.

3.Enteryourusernameandpassword.Ifthisisthersttimetheproductisaccessed,therootpasswordmustrstbe

congured.Forinstructions,seeSettheRootPasswordonpage12.

4.Theproduct’sLiveViewpageopensinyourbrowser.

Note

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsand

userpreferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedin

yourownLiveViewpage.

AccessfromtheInternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust

congureyournetworkroutertoallowincomingdatatrafctotheproduct.Todothis,enabletheNAT-traversalfeature,which

willattempttoautomaticallyconguretheroutertoallowaccesstotheproduct.ThisisenabledfromSetup>SystemOptions>

Network>TCP/IPAdvanced.

Formoreinformation,seeNATtraversal(portmapping)forIPv4onpage49.SeealsoAXISInternetDynamicDNSServiceat

www.axiscam.net

ForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

AXISF34MainUnit

AccesstheProduct

SettheRootPassword

ToaccesstheAxisproduct,youmustsetthepasswordforthedefaultadministratoruserroot.ThisisdoneintheCongureRoot

Passworddialog,whichopenswhentheproductisaccessedforthersttime.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS

certicate.HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafcbetweenwebbrowsersandservers.The

HTTPScerticateensuresencryptedexchangeofinformation.SeeHTTPSonpage44.

Thedefaultadministratorusernamerootispermanentandcannotbedeleted.Ifthepasswordforrootislost,theproductmustbe

resettothefactorydefaultsettings.SeeResettoFactoryDefaultSettingsonpage54.

TosetthepasswordviaastandardHTTPconnection,enteritdirectlyinthedialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1.ClickUseHTTPS.

Atemporarycerticate(validforoneyear)iscreated,enablingencryptionofalltrafctoandfromtheproduct,andthe

passwordcannowbesetsecurely.

2.Enterapasswordandthenre-enterittoconrmthespelling.

3.ClickOK.Thepasswordhasnowbeencongured.

CongureCaptureMode

CapturemodedenesthemaximumresolutionandmaximumframerateavailableintheAxisproduct.Thecapturemodesettingalso

affectsthecamera’sangleofview.

Selectthedesiredcapturemodefromthedrop-downlistandclickOK.

SeealsoCaptureModeonpage21.

SetPowerLineFrequency

PowerlinefrequencyissetthersttimetheAxisproductisaccessedandcanonlybechangedfromPlainCong(seepage54)

orbyresettingtheproducttofactorydefault.

Selectthepowerlinefrequency(50Hzor60Hz)usedatthelocationoftheAxisproduct.Selectingthewrongfrequencymaycause

imageickeriftheproductisusedinuorescentlightenvironments.

Whenusing50Hz,themaximumframerateislimitedto25fps.

Note

Powerlinefrequencyvariesdependingongeographicregion.TheAmericasusuallyuse60Hz,whereasmostotherpartsof

theworlduse50Hz.Localvariationscouldapply.Alwayscheckwiththelocalauthorities.

TheLiveViewPage

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsanduser

preferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedinyourownLiveView

page.Thefollowingprovidesanoverviewofeachavailablecontrol.

AXISF34MainUnit

AccesstheProduct

ControlsontheLiveViewPage

ClicktheViewsizebuttonstoshowtheimageinfullsize(rightbutton)ortoscaledowntheimageto

tthebrowserwindow(leftbutton).

ClickWDRontoenableWDRinintensebacklightconditions.ClickWDRofftodisableWDRinlow

lightconditionsforoptimalexposure.

SelectastreamprolefortheLiveViewpagefromtheStreamProledrop-downlist.Forinformation

abouthowtocongurestreamproles,seepage23.

TheManualTriggerbuttonisusedtotriggeranactionrulefromtheLiveViewpage.Forinformation

abouthowtocongureandenablethebutton,seeManualTriggeronpage13.

ClickSnapshottosaveasnapshotofthevideoimage.Thisbuttonisprimarilyintendedforusewhen

theAXISMediaControlviewertoolbarisnotavailable.EnablethisbuttonfromLiveViewCong>

ActionButtons.

ManualTrigger

TheManualTriggerisusedtotriggeranactionrulefromtheLiveViewpage.Themanualtriggercanforexamplebeusedto

validateactionsduringproductinstallationandconguration.

Tocongurethemanualtrigger:

1.GotoSetup>Events.

2.ClickAddtoaddanewactionrule.

3.FromtheTriggerdrop-downlist,selectInputSignal.

4.Fromtheseconddrop-downlist,selectManualTrigger.

5.Selectthedesiredactionandconguretheothersettingsasrequired.

Formoreinformationaboutactionrules,seeEventsonpage36.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewCong.

2.UnderActionButtons,selectShowmanualtriggerbutton.

AXISMediaControlviewertoolbar

TheAXISMediaControlviewertoolbarisavailableinInternetExploreronly.SeeAXISMediaControl(AMC)onpage15formore

information.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

AXISF34MainUnit

AccesstheProduct

TheSnapshotbuttontakesasnapshotofthevideoimage.Thelocationwheretheimageissavedcanbespecied

intheAMCControlPanel.

ClicktheViewFullScreenbuttonandthevideoimagewilllltheentirescreen.PressESC(Escape)onthecomputer

keyboardtocancelfullscreenview.

TheRecordbuttonisusedtorecordthecurrentvideostreamonyourcomputer.Thelocationwheretherecordingissaved

canbespeciedintheAMCControlPanel.EnablethisbuttonfromLiveViewCong>ViewerSettings.

AXISF34MainUnit

MediaStreams

TheAxisproductprovidesseveralvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwilldeterminethe

typeyouuse.

TheLiveViewpageintheproductprovidesaccesstoH.264andMotionJPEGvideostreams,andtothelistofavailablestream

proles.Otherapplicationsandclientscanaccessvideostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

H.264can,withoutcompromisingimagequality,reducethesizeofadigitalvideolebymorethan80%comparedwiththeMotion

JPEGformatandasmuchas50%morethantheMPEG-4standard.Thismeansthatmuchlessnetworkbandwidthandstoragespace

arerequiredforavideole.Orseenanotherway,muchhighervideoqualitycanbeachievedforagivenbitrate.

Decidingwhichcombinationofprotocolsandmethodstousedependsonyourviewingrequirements,andonthepropertiesof

yournetwork.TheavailableoptionsinAXISMediaControlare:

UnicastRTP

Thisunicastmethod(RTPoverUDP)isused

forliveunicastvideo,especiallywhenitis

importanttohaveanup-to-datevideostream,

evenifsomeframesaredropped.

RTPoverRTSP

Thisunicastmethod(RTPtunneledoverRTSP)

isusefulasitisrelativelysimpletocongure

rewallstoallowRTSPtrafc.

RTPoverRTSPoverHTTP

Thisunicastmethodcanbeusedtotraverse

rewalls.Firewallsarecommonlyconguredto

allowtheHTTPprotocol,thusallowingRTPto

betunneled.

Unicastingisusedforvideo-on-demand

transmissionsothatthereisnovideotrafc

onthenetworkuntilaclientconnectsand

requeststhestream.

Notethatthereareamaximumof10

simultaneousunicastconnections.

MulticastRTP

Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways

up-to-date,evenifsomeframesaredropped.

Multicastingprovidesthemostefcientusageofbandwidthwhentherearelargenumbersof

clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe

routerisconguredtoallowthis.ItisnotpossibletomulticastovertheInternet,forexample.

Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof10

simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedinthe

AMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecicrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed

copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

ThisformatusesstandardJPEGstillimagesforthevideostream.Theseimagesarethendisplayedandupdatedataratesufcient

tocreateastreamthatshowsconstantlyupdatedmotion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage

containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXIS

MediaControlinInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

AXISF34MainUnit

MediaStreams

TheAMCControlPanelcanbeusedtocongurevariousvideosettings.PleaseseetheAXISMediaControlUser’sManualformore

information.

TheAMCControlPanelisautomaticallyinstalledonrstuse,afterwhichitcanbecongured.OpentheAMCControlPanelfrom:

•WindowsControlPanel(fromtheStartscreenorStartmenu)

•Alternatively,right-clickthevideoimageinInternetExplorerandclickSettings.

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

•MotionJPEGserverpush(ifsupportedbytheclient,ChromeorFirefox,forexample).ThisoptionmaintainsanopenHTTP

connectiontothebrowserandsendsdataasandwhenrequired,foraslongasrequired.

•StillJPEGimagesinabrowser.Enterthepathhttp://<ip>/axis-cgi/jpg/image.cgi?camera=<channel

no>

•WindowsMediaPlayer.ThisrequiresAXISMediaControlandtheH.264decodertobeinstalled.Thefollowingpaths

canbeused:

-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp?camera=<channelno>

-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp?camera=<channelno>

-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp?camera=<

channelno>

-Multicast:axrtpm://<ip>/axis-media/media.amp?camera=<channelno>

•QuickTime

.Thefollowingpathscanbeused:

-rtsp://<ip>/axis-media/media.amp?camera=<channelno>

-rtsp://<ip>/axis-media/media.3gp?camera=<channelno>

AXISF34MainUnit

MediaStreams

Note

•<ip>=IPaddress

•<channelno>=1,2,3,or4

•TheAxisproductsupportsQuickTime6.5.1andlater.

•QuickTimemayaddlatencytothevideostream.

•ItmaybepossibletouseotherplayerstoviewtheH.264streamusingthepathsabove,althoughAxisdoesnotguarantee

this.

AXISF34MainUnit

SetUptheProduct

TheAxisproductcanbeconguredbyuserswithadministratororoperatorrights.Toopentheproduct’sSetuppages,clickSetupin

thetopright-handcorneroftheLiveViewpage.

•Administratorshaveunrestrictedaccesstoallsettings.

•Operatorshaverestrictedaccesstosettings,seeUsersonpage43

Seealsotheonlinehelp

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage43.

2.TCP/IP.Seepage46.

3.Date&Time.Seepage45.

4.VideoStream.Seepage19.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

AXISF34MainUnit

Video

ItispossibletocongurethefollowingvideofeaturesinyourAxisproduct:

•Videostream.Seepage19.

•Streamproles.Seepage23.

•Camerasettings.Seepage21.

•Overlayimage.Seepage23.

•Privacymask.Seepage22.

SetUpVideoStreams

Tosetuptheproduct’svideostreams,gotoVideo>VideoStream.

Thevideostreamsettingsaredividedintothefollowingtabs:

•Image.Seepage19.

•H.264.Seepage20.

•Zipstream.Seepage20

•MJPEG.Seepage21.

Note

Videostreamcanbeconguredforeachchannel,includingquadstream.

PixelCounter

Thepixelcountershowsthenumberofpixelsinanareaoftheimage.Thepixelcounterisusefulinsituationswherethereis

aspecicsizerequirement,forexampleinfacerecognition.

Thepixelcountercanbeused:

•Whensettingupavideostream,seeSetUpVideoStreamsonpage19.UnderPreview,clickOpenandselecttheShow

pixelcounteroptiontoenabletherectangleintheimage.Usethemousetomoveandresizetherectangle,orenterthe

numberofpixelsintheWidthandHeighteldsandclickApply.

•WhenaccessingtheLiveViewpageinInternetExplorerwithAXISMediaControl(AMC)inWindows.Right-clickinthe

imageandselectPixelcounter.Usethemousetomoveandresizetherectangle.


ThedefaultimagesettingscanbeconguredunderVideo>VideoStream.SelecttheImagetab.

Thefollowingsettingsareavailable:

•Resolution.Selectthedefaultresolution.

•Compression.Thecompressionlevelaffectstheimagequality,bandwidthandlesizeofsavedimages;thelowerthe

compression,thehighertheimagequalitywithhigherbandwidthrequirementsandlargerlesizes.

•Mirrorimage.Ifrequired,theimagecanbemirrored.

•Rotateimage.Ifrequired,theimagecanberotated.

AXISF34MainUnit

Video

•Maximumframerate.Toavoidbandwidthproblems,theframerateallowedtoeachviewercanbeLimitedtoaxed

amount.Alternatively,theframeratecanbesetasUnlimited,whichmeanstheAxisproductalwaysdeliversthehighest

frameratepossibleunderthecurrentconditions.

•Overlaysettings.SeeOverlayonpage23.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates.

AnH.264videostreamconsistsofdifferenttypesofframessuchasI-framesandP-frames.AnI-frameisacompleteimagewhereas

P-framesonlycontainthedifferencesfrompreviousframes.

TheH.264streamsettingscanbeconguredfromtheVideo>VideoStreampage.SelecttheH.264tab.Thesettingsdenedinthis

pagewillapplytoallH.264streamsthatdonotuseastreamprole.

TheGOPlengthisthenumberofframesbetweentwoconsecutiveI-frames.IncreasingtheGOPlengthmaysaveconsiderablyon

bandwidthrequirementsinsomecases,butmayalsohaveanadverseaffectonimagequality.

TheAxisproductsupportsthefollowingH.264prole(s):

•Baseline.TheBaselineproleisrecommendedforclientsthatdon’tsupportCABACentropycoding.

•Main.TheMainproleprovideshighercompressionwithmaintainedvideoqualitycomparedtotheBaselineprolebut

requiresmoreprocessingpowertodecode.

•High.TheHighproleprovidesreducedbitrateandhighercompressionwithmaintainedvideoqualitycomparedtothe

Mainprolebutrequiresmoreprocessingpowertodecode.

ThebitratecanbesetasVariablebitrate(VBR)orMaximumbitrate(MBR).VBRadjuststhebitrateaccordingtotheimage

complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.Whentheactivityin

thesceneincreases,thebitratewouldusuallyincreaseaswell.Ifthereisasurplusinbandwidth,thismaynotbeanissueand

selectingVariablebitrate(VBR)willbesufcient.Butifbandwidthislimited,itisrecommendedtocontrolthebitratebyselecting

Maximumbitrate(MBR).Whentheactivityinthesceneincreases,VBRadjuststhebitrateaccordingtothecomplexity,usingup

morebandwidthforincreasedactivityinthescene,andlessforlowersceneactivity.MBRallowsyoutosetatargetbitratethat

limitsthebandwidthconsumption.

TheMBRtargetbitrateworksliketheceilingofatent.Itlimitsthebitrate,whilemaintainingsomeexibility.Thebitrate

maybounceupanddownwithinthesettargetbutwhenitnearsthesettargetvalue,thelimitationkicksin.However,because

MBRwillalwaysprioritizeacontinuousvideostream,itallowstemporaryovershootsfromthetargetbitrate.Becausesettinga

targetvaluepreventsthebitratefromincreasing,framerateandimagequalityareaffectednegatively.Topartlycompensatefor

this,selectwhichvariableshallbeprioritized,framerateorimagequality.Notsettingaprioritymeansthatframerateand

imagequalityareequallyaffected.

Thecurrentbitratecanbesettoappearastextoverlay.UnderOverlaySettings,selectIncludetextandenterthemodier

#bintheeld.

Toapplythesettings,clickSave.

Axis’ZipstreamTechnology

Zipstreamisabitrate-reductiontechnologyoptimizedforvideosurveillance.ZipstreamreducestheaveragebitrateintheH.264

streambyremovingunnecessarydataandmakesitpossibletoallowhigherresolutions,reducestoragecostortokeeprecordingsfor

alongertime.Toreducethebitrate,Zipstreamreducesthenumberofbitsintheareasoftheimagethatarelessinterestingfroma

videosurveillanceperspective,forexamplethebackground.Imagedetailsthatareimportantforforensicvideoanalysis,forexample

facesandlicenseplates,arepreservedwithenoughnumberofbits.

TheseZipstreamstrengthoptionsareavailable:

•Off.Zipstreamdisabled.

•LowestZipstreamstrength.Lowbandwidthreduction.Novisiblequalitydegradationinmostscenes

AXISF34MainUnit

Video

•MediumZipstreamstrength.Mediumbandwidthreduction.Limitedvisualqualitydegradationinnotprioritizedareasin

somescenes

•HighestZipstreamstrength.Highbandwidthreduction.Visiblequalitydegradationinnotprioritizedareasinmanyscenes

LowestZipstreamstrengthisthedefaultsettingfortheproduct.Thiscongurationisverysafetouseinallapplicationswhilestill

reducingthebitrate.

Forcloud-connectedcamerasorcamerasusingedgestoragethatneedtolimitthebitrateforincreasedstoragetimeitis

recommendedtoselecttheHighestZipstreamstrength.Thissettingisverygoodtocombinewithmotiondetectiontriggeringand

variablebitrate(VBR)wherethebitrateisallowedtoadapttochangesincomplexityinthescene.

Axis’ZipstreamTechnologyforH.264conformstotheH.264standardandiscompatiblewiththird-partyclientsandVMSsolutions

thatdecodeH.264video.

ThebitratecontrollerbuiltintotheproductcanbecombinedwithZipsteamtoenforceamaximumbitrate(MBR)limit.Axis

CommunicationsrecommendsusingVBRorMBRwitharatherhighbitratelimittoenablethefullpotentialofAxis’Zipstream

Technology.

MJPEG

Sometimestheimagesizeislargeduetolowlightorcomplexscenery.Adjustingthemaximumframesizehelpstocontrolthe

bandwidthandstorageusedbytheMotionJPEGvideostreaminthesesituations.SettingtheframesizetotheDefaultsetting

providesconsistentlygoodimagequalityattheexpenseofincreasedbandwidthandstorageusageinlowlight.Limitingtheframe

sizeoptimizesbandwidthandstorageusage,butmaygivepoorimagequality.Topreventincreasedbandwidthandstorageusage,

themaximumframesizeshouldbesettoanoptimalvalue.

CameraSettings

TheVideo>CameraSettingspageprovidesaccesstoadvancedimagesettingsfortheAxisproduct.

CaptureMode

CapturemodedenesthemaximumresolutionandmaximumframerateavailableintheAxisproduct.Acapturemodewithalarge

maximumresolutionhasareducedmaximumframerateandviceversa.Thecapturemodesettingalsoaffectsthecamera’sangleof

viewastheeffectivesizeoftheimagesensordiffersbetweencapturemodes.

Capturemodeissetthersttimetheproductisaccessed.SelectthedesiredcapturemodeandclickOK.

Important

Changingcapturemodewhentheproducthasbeenconguredisnotrecommendedasmostothersettingswillbeeither

removedorreset.

Tochangecapturemode,followthesesteps:

1.GotoSetup>Video>CameraSettings.

2.Selectthenewcapturemode.

3.ClickSave.

ImageAppearance

TochangeImageAppearancegotothemenusunderSetup>Video>CameraSettings.

IncreasingtheColorlevelincreasesthecolorsaturation.Thevalue100givesmaximumcolorsaturationandthevalue0gives

minimumcolorsaturation.

TheimageBrightnesscanbeadjustedintherange0–100,whereahighervalueproducesabrighterimage.

AXISF34MainUnit

Video

IncreasingtheSharpnesscanincreasebandwidthusage.Asharperimagemightincreaseimagenoiseespeciallyinlowlight

conditions.Alowersettingreducesimagenoise,butthewholeimagewillappearlesssharp.

TheContrastchangestherelativedifferencebetweenlightanddark.Itcanbeadjustedusingtheslidebar.

LocalContrastappliescontrasttoaspecicareaoftheimage.Usetheslidertoadjustthecontrast,whereahighervalueproduces

animagewithhighcontrastbetweenthedarkandlightareasandissuitableforsceneswithwidedynamicrange.

WhiteBalance

TochangethissettinggotoSetup>Video>CameraSettings

Whitebalanceisusedtomakecolorsintheimageappearthesameregardlessofthecolortemperatureofthelightsource.TheAxis

productcanbesettoautomaticallyidentifythelightsourceandcompensateforitscolor.Alternatively,selectthetypeoflight

sourcefromthedrop-downlist.Foradescriptionofeachavailablesetting,seetheonlinehelp

ThewhitebalancewindowisenabledfortheAutomaticandAutomaticoutdooroptionsthatappearintheWhitebalancedrop-down

list.Selectoneoftheoptionsfromthedrop-downlisttosetthewhitebalancewindowproperties.SelectAutomatictousethe

defaultsettingsfortheAutomaticandAutomaticoutdooroptions(intheWhitebalancedrop-downlist).SelectCustomtomanually

setareferencewindowforwhitebalanceintheviewarea.

ExposureSettings

Conguretheexposuresettingstosuittheimagequalityrequirementsinrelationtolighting,framerateandbandwidth

considerations.

Exposurevalue-UsetheExposurevalueslidertoadjusttheoverallbrightnessoftheimage.

Exposurecontrol-Thissettingisusedtoadapttotheamountoflightused.Automaticisthedefaultsettingandcanbeusedin

mostsituations.Theshutterspeedisautomaticallysettoproduceoptimumimagequality.Flicker-free50or60Hzisusedtoremove

ickerwhichcanbecausedbyuorescentandotherlightsources.TheHoldcurrentoptionlocksthecurrentexposuresettings.

Maxexposuretime-Decreasingtheexposuretimewillreducemotionblur.Formoreinformation,seetheonlinehelp

Exposurezones-Thissettingdetermineswhichpartoftheimageisusedtocalculatetheexposure.Formostsituations,theAuto

settingcanbeused.Forparticularrequirements,selectapredenedarea.

Shutter&Gain

NormalLight-UsetheslidertosetthePrioritybetweenLowmotionblurandLownoise.Whenprioritizinglownoise(slider

allthewaytotheleft)theAxisproductwillautomaticallydecreaseshutterspeedasbrightnessdecreases.Whentheshutter

speedreaches1/30stheAxisproductwillincreasegainuntilthesetmaximumgainfornormallightisreached.SelecttheMax

gainvaluefromthedrop-downlist.Thisdenestheupperlimitforgaininthecontextofnormallight.Maxfastshuttersets

shutterspeedlimitinnormallightconditions.Dependingonascenario,theshutterspeedlimitmayneedtobedened.Thisis

donethroughSystemOptions>Advanced>PlainCong.

LowLight-UsetheslidertosetthePrioritybetweenLowmotionblurandLownoise.Whenprioritizinglowmotionblur(slider

allthewaytotheright)thecamerawillautomaticallyincreasegainasbrightnessdecreases.Whenthegainreachestheset

maximumgainforlowlight,thecamerawilldecreaseshutterspeeduntilthesetmaximumshutterforlowlightisreached.

Thisisthedefaultprioritysettingforlowlight.

PrivacyMask

Aprivacymaskisauser-denedareathatpreventusersfromviewingpartsofthemonitoredarea.Privacymasksappearas

blocksofsolidcolororblurredimageelementsandareappliedonthevideostream.Privacymaskscannotbebypassedusingthe

VAPIX®applicationprogramminginterface(API).

ThePrivacyMaskList(Video>PrivacyMask)showsallthemasksthatarecurrentlyconguredintheAxisproductandindicates

iftheyareenabled.

AXISF34MainUnit

Video

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Addingmanyprivacymasksmayaffecttheproduct’sperformance.

Note

Privacymaskisnotavailableforthequadstream.However,privacymasksconguredoneachchannelwillbedisplayed

inthequad.

StreamProles

Astreamproleisasetofpredenedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream

prolescanbeused:

•Whensettinguprecordingusingactionrules.SeeEventsonpage36.

•Whensettingupcontinuousrecording.SeeContinuousRecordingonpage41.

•IntheLiveViewpage–selectthestreamprolefromtheStreamproledrop-downlist.

Forquicksetup,useoneofthepredenedstreamproles.Eachpredenedprolehasadescriptivename,indicatingitspurpose.If

required,thepredenedstreamprolescanbemodiedandnewcustomizedstreamprolescanbecreated.

Tocreateanewproleormodifyanexistingprole,gotoSetup>Video>StreamProles.

ToselectadefaultstreamprolefortheLiveViewpage,gotoSetup>LiveViewCong.

ONVIFMediaProles

AnONVIFmediaproleconsistsofasetofcongurationsthatcanbeusedtochangemediastreamsettings.ONVIFmediaproles

canbesetthroughtheONVIFMediaProleSettingspageandbeusedbyaclienttoconguremediastreamproperties.

TheONVIFMediaProlespagelistsallsuchpre-conguredproles.Theseprolescannotberemoved.Pre-conguredmedia

proleshavebeenincludedintheproductforquicksetup.ItisalsopossibletocongurenewONVIFmediaprolesasperrequired

specications.ToaddanewONVIFmediaprole,clickAddandentertherequiredinformation.Youcanalsomodifyorremovea

prolefromthispage.

ImageSynchronization

Itispossibletosynchronizetwoormoresensorunitsintermsofframesandexposure.

Framesynchronizationisautomaticinthecaseofidenticalsensorunitsthathavethesamecapturemode.

TosynchronizeexposuregotoVideo>ImageSynchronization.UnderExposuresynchronizationitispossibletogroupthecameras

asoneortwogroups.WithineachgroupthecamerathatisselectedrstbecomestheMasterandtheothercamerassynchronize

theirexposuresaccordingly.

Overlay

Overlaysareusedtoprovideextrainformation,suchasforensicvideoanalysisorduringproductinstallationandconguration.

Overlaysaresuperimposedoverthevideostream.

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.

Whenusingatextstring,modierscanbeusedtodisplayinformationsuchasthecurrentbitrateorthecurrentframerate.

AXISF34MainUnit

Video

Forinformationaboutavailablemodiers,seeFileNaming&Date/TimeFormatsintheonlinehelp.

Itisalsopossibletodisplaytextwhenanactionruleistriggered,seeUseOverlayTextinanActionRule.

Note

Toenableoverlays:

1.GotoVideo>VideoStreamandselecttheImagetab.

2.Toincludeanoverlayimage,selectIncludeoverlayimageatthecoordinates.Theoverlayimagemustrstbeuploadedto

theAxisproduct,seeOverlayImage.

3.Toincludedateandtime,selectIncludedateandIncludetime.

4.Toincludeatextstring,selectIncludetextandenterthetextintheeld.Modierscanbeused,seeFileNaming&

Date/TimeFormatsintheonlinehelp

5.Denetextoverlaycharacteristicsintherelevantelds.

6.ClickSave.

Tomodifythedateandtimeformat,gotoSystemOptions>Date&Time.SeeDate&Timeonpage45.

Note

Overlayisnotpossibleforquadstream.

OverlayImage

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexampleacompanylogo,isusedtoprovide

extrainformationortomaskapartoftheimage.

Useaprivacymasktosetupadynamicmaskwhichwillalwaysmaskthespeciedpartofmonitoredarea.

Formoreinformationaboutprivacymasks,seePrivacyMaskonpage22.

Touseanoverlayimage,theimagemustrstbeuploadedtotheAxisproduct.TheuploadedimageshouldbeaWindows24-bitBMP

imagewithmaximum250colors.Theimagewidthandheight,inpixels,mustbeexactlydivisibleby4andcannotbelargerthanthe

maximumimageresolution.Ifcombiningtextandimageoverlays,takeintoconsiderationthatthetextoverlayoccupies16or32

pixelsinheight(dependingontheresolution)andhasthesamewidthasthevideoimage.

ToautomaticallyscaletheimagetotheresolutionusedbytheAxisproduct,selecttheoptionScalewithresolutionfromthe

TransparencySettingspagewhichisdisplayedwhenuploadingintheimage.

Touploadanoverlayimage:

1.GotoVideo>OverlayImage.

2.ClickBrowseandbrowsetothele.

3.ClickUpload.

4.TheTransparencySettingspageisnowdisplayed:

-Tomakeacolorintheoverlayimagetransparent,selectUsetransparencyandentertheRGBhexadecimalvalue

forthecolor.Example:Tomakewhitetransparent,enterFFFFFF.

Formoreexamplesofhexadecimalvalues,seetheonlinehelp

-Toscaletheimageautomatically,selectScalewithresolution.Theimagewillbescaleddowntotthe

resolutionusedbytheAxisproduct.

5.ClickSave.

AXISF34MainUnit

Video

Toselecttheimagetouseasoverlay:

1.GotoVideo>OverlayImage.

2.SelecttheimagetousefromtheUseoverlayimagelistandclickSave.

Todisplaytheoverlayimage:

1.GotoVideo>VideoStreamandselecttheImagetab.

2.UnderOverlaySettings,selectIncludeoverlayimageatthecoordinates.

3.Tocontroltheimage’sposition,entertheXandYcoordinates.TheX=0andY=0positionisthetopleftcorner.Ifapartof

theimageispositionedoutsidethevideoimage,theoverlayimagewillbemovedsothatthewholeimageisvisible.

4.ClickSave.

UseOverlayTextinanActionRule

Actionrules,seepage36,candisplayanoverlaytextwhentheruleistriggered.Thetextcanbeusedtoprovideinformationfor

forensicvideoanalysis,notifysurveillanceoperatorsorvalidatetriggersandactionsduringproductinstallationandconguration.

Todisplayoverlaytextwhenanactionruleistriggered,themodier#Dshouldbeusedasdescribedbelow.Whentheruleis

triggered,#Dwillbereplacedbythetextspeciedintheactionrule.

Startbyenablingoverlaytextinthevideostream:

1.GotoVideo>VideoStreamandselecttheImagetab.

2.UnderOverlaySettings,selectIncludetext.

3.Enterthemodier#Dand,optionally,additionaltextwhichwillbedisplayedalsowhentheactionruleisnotactive.

Createtheactionrule:

1.GotoEvents>ActionRules

2.ClickAddtocreateanewrule.

3.SelectaTriggerand,optionally,aScheduleandAdditionalconditions.Seetheonlinehelpfordetails.

4.FromtheActionslist,selectOverlayText

5.EnterthetexttodisplayintheTexteld.Thisisthetextthat#Dwillbereplacedby.

6.SpecifytheDuration.Thetextcanbedisplayedwhiletheruleisactiveorforaxednumberofseconds.

AXISF34MainUnit

ConﬁguretheLiveViewPage

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.Itispossibletodenethefollowingfeaturesof

theLiveViewpage.

•DefaultLiveViewVideo.SeeDefaultLiveViewVideoonpage26.

•StreamProle.Seepage23.

•DefaultViewerforBrowser.Seepage26.

•ViewerSettings.Seepage26.

•ActionButtons.ThesearethebuttonsdescribedinControlsontheLiveViewPageonpage13.

•UserDenedLinks.Seepage27.

DefaultLiveViewVideo

FromLiveViewCong>DefaultLiveViewVideochoosethevideosourcedisplayedasthedefaultontheLiveViewpage.Selectthe

individualsourceorthequadstream.Eachvideosourcecanberenamed.

DefaultViewerforBrowsers

FromLiveViewCong>DefaultViewerselectthedefaultmethodforviewingvideoimagesinyourbrowser.Theproductattempts

toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand

selectsthebestavailablecombination.

BrowserViewerDescription

AMC

RecommendedviewerinInternetExplorer(H.264/MotionJPEG).

QuickTime

H.264.

WindowsInternetExplorer

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

ServerPush

Recommendedviewerforotherbrowsers(MotionJPEG).

QuickTime

H.264.

Otherbrowsers

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

Formoreinformation,pleaseseetheonlinehelp.

ViewerSettings

Tocongureoptionsfortheviewer,gotoLiveViewCong>ViewerSettings.

•SelectShowviewertoolbartodisplaytheAXISMediaControl(AMC)ortheQuickTimeviewertoolbarunderthevideo

imageinyourbrowser.

•H.264decoderinstallation.TheadministratorcandisableinstallationoftheH.264decoderincludedwithAXISMedia

Control.Thisisusedtopreventinstallationofunlicensedcopies.Furtherdecoderlicensescanbepurchasedfromyour

Axisreseller.

•SelectEnablerecordingbuttontoenablerecordingfromtheLiveViewpage.Thisbuttonisavailablewhenusingthe

AMCviewer.TherecordingsaresavedtothelocationspeciedintheAMCControlPanel.SeeAXISMediaControl

(AMC)onpage15.

AXISF34MainUnit

ConﬁguretheLiveViewPage

UserDenedLinks

Todisplayuser-denedlinksintheLiveViewpage,selecttheShowcustomlinkoption,givethelinkanameandthenentertheURL

tolinkto.Whendeningaweblinkdonotremovethe'http://'fromtheURLaddress.Customlinkscanbeusedtorunscriptsor

activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdenedascgilinkswillrunthe

scriptinthebackground,inahiddenframe.Deningthelinkasaweblinkwillopenthelinkinanewwindow.

AXISF34MainUnit

Detectors

CameraTampering

CameraTamperingcangenerateanalarmwheneverthecameraisrepositioned,orwhenthelensiscovered,spray-paintedorseverely

defocused.Tosendanalarm,forexampleanemail,anactionrulemustbesetup.

Toconguretamperingdetection:

1.GotoDetectors>CameraTampering.

2.SettheMinimumduration,thatis,thetimethatmustelapsebeforeanalarmisgenerated.Increasetimetoprevent

falsealarmsforknownconditionsthataffecttheimage.

3.SelectAlarmfordarkimagesifanalarmshouldbegeneratediflightsaredimmedorturnedoff,orifthelensissprayed,

covered,orrenderedseverelyoutoffocus.

4.ClickSave.

Toconguretheproducttosendanalarmwhentamperingoccurs:

1.GotoEvents>ActionRules.

2.ClickAddtosetupanewactionrule.

3.EnteraNamefortheactionrule.

4.UnderCondition,selectDetectorsfromtheTriggerlist.

5.SelectTamperingfromthelistofdetectors.

6.Optionally,selectascheduleandsetadditionalconditions.

7.Selecttheaction.Tosendanemail,selectSendNoticationandselectaRecipientfromthelistofdenedrecipients.

Note

TheWhiletheruleisactiveoptionunderDurationcannotbeusedwithcameratampering,sincecameratamperingdoesnot

haveadurationandonceithasbeentriggereditwillnotautomaticallyreturntoitsuntriggeredstate.

Formoreinformationonactionsrules,seeEventsonpage36.

AXISF34MainUnit

Applications

AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications

forAxisproducts.Forinformationaboutavailableapplications,downloads,trialsandlicenses,gotowww.axis.com/applications

Note

•Severalapplicationscanrunatthesametimebutsomeapplicationsmightnotbecompatiblewitheachother.Certain

combinationsofapplicationsmightrequiretoomuchprocessingpowerormemoryresourceswhenruninparallel.Verify

thattheapplicationsworktogetherbeforedeployment.

ApplicationLicenses

Someapplicationsneedalicensetorun.Licensescanbeinstalledintwoways:

•Automaticinstallation—requiresaccesstotheInternet

•Manualinstallation—obtainthelicensekeyfromtheapplicationvendoranduploadthekeytotheAxisproduct

Torequestalicense,theAxisproductserialnumber(S/N)isrequired.Theserialnumbercanbefoundontheproductlabelandunder

SystemOptions>Support>SystemOverview.

UploadApplication

Touploadandstartanapplication:

1.GotoSetup>Applications.

2.UnderUploadApplication,clickBrowse.LocatetheapplicationleandclickUploadPackage.

3.Installthelicense(ifapplicable).Forinstructions,seethedocumentationprovidedbytheapplicationvendor.

4.Starttheapplication.GotopageApplications,selecttheapplicationinthelistofinstalledapplicationsandclickStart.

5.Conguretheapplication.Forinstructions,seethedocumentationprovidedbytheapplicationvendor.

Note

•Applicationscanbeuploadedbyproductadministrators.

•ApplicationsandlicensescanbeinstalledonmultipleproductsatthesametimeusingAXISCameraManagement,version

3.10andlater.

Togeneratealoglefortheapplication,gotoApplications.SelecttheapplicationandclickLog.

ApplicationConsiderations

Ifanapplicationisupgraded,applicationsettings,includingthelicense,willberemoved.Thelicensemustbereinstalledand

theapplicationrecongured.

IftheAxisproduct’srmwareisupgraded,uploadedapplicationsandtheirsettingswillremainunchanged,althoughthisisnot

guaranteedbyAxisCommunications.Notethattheapplicationmustbesupportedbythenewrmware.Forinformationabout

rmwareupgrades,seeUpgradetheFirmware.

IftheAxisproductisrestarted,runningapplicationswillrestartautomatically.

IftheAxisproductisrestored,uploadedapplicationsremainunchangedbutmustberestarted.Tostarttheapplication,goto

Setup>Applications.SelecttheapplicationinthelistofinstalledapplicationsandclickStart.Forinformationaboutrestoring

theAxisproduct,seeMaintenance.

AXISF34MainUnit

Applications

IftheAxisproductisresettofactorydefault,uploadedapplicationsandtheirsettingsareremoved.Forinformationaboutfactory

default,seeResettoFactoryDefaultSettings.

AXISF34MainUnit

AXISVideoMotionDetection

AXISVideoMotionDetectionisanapplicationthatdetectsmovingobjectsinthecamera’seldofview.Whenamovingobject

isdetected,AXISVideoMotionDetectionsendsanalarmthatcanbeusedbytheAxisproductorbythird-partysoftware,to,

forexample,recordvideoorsendanotication.

AXISVideoMotionDetection3isincludedwiththeAxisproductandisavailableunderSetup>Applications.TouseAXISVideo

MotionDetection,theapplicationmustrstbestarted.Toavoiddetectingunwantedobjects,theapplicationshouldbecongured.

Duringconguration,visualconrmationcanbeusedtohelpunderstandtheeffectofthedifferentlters.Whenvisualconrmation

isenabled,redpolygonsshowwhichobjectstheapplicationdetectsandgreenpolygonsshowwhichobjectstheapplicationignores.

Considerations

BeforeusingAXISVideoMotionDetection3,takethefollowingintoconsideration:

•Smallanddistantobjectsmightnotbedetected.

•Detectionaccuracymaybeaffectedbyweatherconditionssuchasheavyrainorsnow.

•MakesurethatthelightingconditionsarewithintheAxisproduct’sspecication.Addadditionallightingifneeded.

•Makesurethatthecameraisnotsubjecttoexcessivevibrations.Vibrationsmightcausefalsedetections.

StartandStoptheApplication

Tostarttheapplication,selectitintheInstalledApplicationslistontheApplicationspageandclickStart.

Tostoptheapplication,selectitinthelistandclickStop.

CongureApplication

TheapplicationisavailablefromSetup>Applications>MotionDetection3.GotoSettingsandthenclickAXIS AXIS

AXIS

Video Video

Video

Motion Motion

Motion

Detection Detection

Detection

settings settings

settings

toopentheapplication’swebpage.

TocongureAXISVideoMotionDetection3,followthesesteps:

1.Modifythesizeandpositionoftheincludearea.Thisistheareainwhichmovingobjectswillbedetected.SeeInclude

Areaonpage32.

2.Optionally,addoneormoreexcludeareas.Objectsinanexcludeareawillbeignored.SeeExcludeAreaonpage32.

3.ClickSavetoapplythechanges.

4.Usevisualconrmationtoverifythesettings.SeeVisualConrmationonpage32.

5.Iftoomanyunwantedobjectsaredetected,enableandcongureoneormoreoftheignorelters.SeeIgnoreFilters

onpage33.

Aftermodifyingasetting,clickSavetoapplythechanges.Thevideostreamwillberestartedanditmaytakeafewseconds

beforethechangeisapplied.

MultichannelProducts

Tousetheapplicationonmultiplechannels,theapplicationmustbeenabledandconguredforeachchannel.

•Toswitchbetweenchannels,clickonthetabsbelowthevideoimage.

•Toenabletheapplicationonachannel,switchtothatchannelandclickEnable.

AXISF34MainUnit

AXISVideoMotionDetection

Itisrecommendedtoonlyenablevisualconrmationforonechannelatatime.Makesuretodisablevisualconrmationbefore

startingconguringanotherchannel.

ClickingSavewillsavechangesonallchannels.

IncludeArea

Theincludeareaistheareainwhichmovingobjectswillbedetected.Objectsmovingoutsidetheincludeareawillbeignored.

Theobjectwillbedetectedalsoifonlyapartoftheobjectisinsidetheincludearea.

Note

Tomodifytheincludearea,InternetExplorerandAXISMediaControl(AMC)mustbeused.

Thedefaultincludeareaisasquarethatcoversthewholeimage.Clickontheicontohighlightthearea.

Usethemousetoreshapeandresizetheareasothatitonlycoversthepartoftheimageinwhichmovingobjectsshouldbedetected.

Thedefaultsquarecanbechangedtoapolygonwithupto20points(corners).

•Toaddanewpoint,clickontheincludeareaborder.Dragthepointtothedesiredposition.

•Toremoveapoint,right-clickonthepoint.

•Tomoveapoint,dragthepointtothenewposition.

•Tomovetheentireincludearea,placethemousepointerinsidethearea.Whenthepointerbecomesacross,dragthe

areatothenewposition.

•Toselecttheincludearea,clickontheborder.

Toresettheincludeareatoitsdefaultsize,clickReset.

ExcludeArea

Anexcludeareaisanareainwhichmovingobjectswillbeignored.Useexcludeareasifthereareareasinsidetheincludearea

thattriggeralotofunwanteddetectedobjects.Upto10excludeareascanbeused.

Note

Toaddandmodifyexcludeareas,InternetExplorerandAXISMediaControl(AMC)mustbeused.

Toaddanexcludearea,clickAdd.Thedefaultexcludeareaisarectangleplacedinthecenteroftheimage.Usethemouse

tomove,reshapeandresizetheareasothatitcoversthedesiredpartoftheimage.Thedefaultsquarecanbechangedtoa

polygonwithupto20points(corners).

•Tomovetheexcludearea,placethemousepointerinsidethearea.Whenthepointerbecomesacross,dragthearea

tothenewposition.

•Toaddanewpoint,clickontheexcludeareaborder.Dragthepointtothedesiredposition.

•Toremoveapoint,right-clickonthepoint.

•Tomoveapoint,dragthepointtothenewposition.

•Toselectanexcludearea,clickontheborder.

Toremoveanexcludearea,selecttheareaandthenclickRemove.

Tohighlighttheexcludeareas,clickontheicon.

VisualConrmation

Visualconrmationisusedtovalidatethatthesettingsarecorrect,thatis,thatallobjectsthatshouldbedetectedaredetected.

AXISF34MainUnit

AXISVideoMotionDetection

Note

Tousevisualconrmation,InternetExplorerandAXISMediaControl(AMC)mustbeused.

Whenvisualconrmationisenabled,allmovingobjectsfoundbytheapplicationwillbeencircledandfollowedbypolygons.Ared

polygonindicatesthattheobjectisfoundandisdetectedasamovingobject.Agreenpolygonindicatesthattheobjectisfoundbut

isignoredbecauseitisnotintheincludeareaorbecauseofoneoftheignorelters.

Toenablevisualconrmation:

1.SelecttheEnablevisualconrmationoption.

2.ClickSave.

Note

•Visualconrmationisdisabledafter15minutes.

•Aftermodifyingasetting,clickSavetoapplythechange.Thevideostreamwillberestartedanditmaytakeafewseconds

beforethechangeisapplied.

•Enablingvisualconrmationmayintroducevideolatency.

IgnoreFilters

IfAXISVideoMotionDetection3detectstoomanyunwantedobjects,startbymodifyingtheincludeandexcludeareas.Ifstilltoo

manyobjectsaredetected,useoneormoreoftheignorelters.

Supportedignorelters:

•Swayingobjects—Usedtoignoreobjectsthatonlymoveashortdistance

•Short-livedobjects—Usedtoignoreobjectsthatonlyappearintheimageforashortperiodoftime

•Smallobjects—Usedtoignoresmallobjects

Ignoreltersareappliedtoallmovingobjectsfoundbytheapplicationandshouldbeconguredwithcaretoensurethatno

importantobjectsareignored.

Onlyuseignoreltersifneededanduseasfewltersaspossible.Enableandcongureonelteratatimeandusevisualconrmation

toverifythesettingsbeforeenablinganotherlter.Whenconguringalter,startwithasmallltersize,clickSaveandusevisual

conrmationtoverifythesettings.Ifrequired,increasetheltersizeinsmallstepsuntilthenumberofunwantedobjectsisreduced.

SwayingObjectIgnoreFilter

Theswayingobjectlterisusedtoavoiddetectingobjectsthatonlymoveashortdistance,forexamplemovingtrees,agsandtheir

shadows.Usethelterifsuchobjectscausealotoffalsedetections.Iftheswayingobjectsinthescenearelarge,forexamplelarge

pondsorlargetrees,useexcludeareasinsteadofthelter.Thelterwillbeappliedtoallmovingobjectsinsceneand,ifsetto

avaluetoolarge,importantobjectsmightnotbedetected.

Whentheswayingobjectlterisenabledandtheapplicationndsamovingobject,theobjectwillnotbereportedasdetected(red

polygoninvisualconrmation)untilithastravelledadistancelargerthanthesetltersize.Thealarmsentbytheapplicationwillbe

sentwhentheobjectisdetected.Ifthealarmisusedtostartarecording,congurethepre-triggertimesothattherecordingalso

includesthetimetheobjectmovedinthescenebeforebeingdetected.

Toenablethelter:

1.SelecttheSwayingobjectsoption.

2.Clickonthe

icontoshowtheltersizeintheimage.

3.Usethemousetoadjusttheltersize.Startwithasmallsize.Objectsmovingadistanceshorterthanthedistancefrom

thecenterofthecrosstooneofthearrowheadswillbeignored.Theltercanbemovedtothelocationofaswaying

objecttomakeiteasiertoadjustthesize.Notethatthelterwillbeappliedtoallobjectsintheimage,notonlytothe

onesatthelocationwherethelterisplaced.

AXISF34MainUnit

AXISVideoMotionDetection

4.ClickSavetoapplythelter.

5.Usevisualconrmationtoverifythesettings.

6.Iftheresultisnotsatisfactory,increasetheltersizeinsmallsteps.

Theltersizecanalsobesetbyenteringavaluebetween10and50intheeld.Thevaluecorrespondstothedistancefromthe

centerofthecrosstooneofthearrowheads.Thevalue100impliesthatanobjectmusttravelfromitsinitialpointtoonethirdofthe

imagewidthorheightbeforebeingdetected.Thevalue50implieshalfthatdistance,thatis,theobjectmusttraveladistanceof

onesixthoftheimagewidthorheightbeforebeingdetected.

Short-LivedObjectIgnoreFilter

Theshort-livedobjectlterisusedtoavoiddetectingobjectsthatonlyappearforashortperiodoftime,suchaslightbeamsfroma

passingcarandquicklymovingshadows.Usethelterifsuchobjectscausealotoffalsedetections.

Whentheshort-livedobjectlterisenabledandtheapplicationndsamovingobject,theobjectwillnotbereportedasdetected

(redpolygoninvisualconrmation)untilthesettimeaspassed.Thealarmsentbytheapplicationwillbesentwhentheobjectis

detected.Ifthealarmisusedtostartarecording,congurethepre-triggertimesothattherecordingalsoincludesthetimethe

objectmovedinthescenebeforebeingdetected.

Toenablethelter:

1.SelecttheShort-livedobjectsoption.

2.Enterthenumberofsecondsintheeld.Thenumberofsecondsistheminimumtimethatmustpassbeforetheobjectis

detected.Startwithasmallnumber.

3.ClickSavetoapplythelter.

4.Usevisualconrmationtoverifythesettings.

5.Iftheresultisnotsatisfactory,increasetheltersizeinsmallsteps.

SmallObjectIgnoreFilter

Thesmallobjectlterisusedtoavoiddetectingobjectsthataretoosmall.Forexample,ifonlymovingcarsshouldbedetected,the

smallobjectltercanbeusedtoavoiddetectingpeopleandanimals.

Ifusingthesmallobjectlter,takeintoconsiderationthatanobjectfarfromthecameraappearssmallerthananobjectclosetothe

camera.Ifthelterissettoignoreobjectsthesizeofaperson,peoplethatareclosetobecameracanstillbedetectedbecause

theyarelargerthantheltersize.

Toenablethelter:

1.SelecttheSmallobjectsoption.

2.Clickonthe

icontoshowtheltersizeintheimage.

3.Usethemousetoadjusttheltersize.Startwithasmallsize.Movingobjectsthattinsidetherectanglewillbeignored.

Thelterdisplayedintheimagecanbemovedtomakeiteasiertocomparetheltersizewiththesizeofobjects

intheimage.Notethatthelterwillbeappliedtoallobjectsintheimage,alsotoobjectsthatarenotlocatedat

thepositionofthedisplayedlter.

4.ClickSavetoapplythelter.

5.Usevisualconrmationtoverifythesettings.

6.Iftheresultisnotsatisfactory,increasetheltersizeinsmallsteps.

Theltersizecanalsobesetbyenteringthewidthandheightintheelds.Thewidthandheightarethemaximumwidthand

maximumheightoftheobjectstoignoreandaremeasuredinpercentoftheimagewidthandheight.Valuesbetween5and100

canbeused.

AXISF34MainUnit

AXISVideoMotionDetection

UsingtheApplicationinanActionRule

ThefollowingexampleshowshowtoconguretheAxisproducttorecordvideowhenAXISVideoMotionDetection3detectsmotion.

1.InsertanSDcardintheAxisproduct,orgotoSetup>SystemOptions>StorageintheAxisproduct’swebpagesand

conguretheproducttouseanetworkshare.

2.Optionally,gotoSetup>Video>StreamProlesandcreateastreamproletouseforrecording.

3.GotoSetup>Events>ActionRulesandclickAddtocreateanewactionrule.

4.FromtheTriggerdrop-downlist,selectApplicationsandthenselectVMD3.

5.Congureothersettingsasrequired.Forexample,toonlyrecordvideoduringcertaintimeperiods,selectaSchedule.

6.UnderActions,selectRecordVideofromtheTypedrop-downlist.

7.Selectthestreamproleandstoragedevicetouseandcongurethepre-andpost-triggertimes.

8.MakesurethattheruleisenabledandthenclickOK.

Note

ToappearintheTriggerlist,theapplicationmustbestartedanditsstatusmustbeIdleorRunning.

AXISF34MainUnit

Events

TheEventpagesallowyoutoconguretheAxisproducttoperformactionswhendifferenteventsoccur.Forexample,theproduct

canstartarecordingorsendanemailnoticationwhenmotionisdetected.Thesetofconditionsthatdeneshowandwhen

theactionistriggerediscalledanactionrule.

SetUpActionRules

Anactionruledenestheconditionsthatmustbemetfortheproducttoperformanaction,forexamplerecordvideoorsendan

emailnotication.Ifmultipleconditionsaredened,allofthemmustbemettotriggertheaction.

Formoreinformationaboutavailabletriggersandactions,seeTriggersonpage36andActionsonpage37.

Tousemorethanonetriggerfortheactionrule,selectAdditionalconditionsandclickAddtoaddadditionaltriggers.Whenusing

additionalconditions,allconditionsmustbemettotriggertheaction.

Topreventanactionfrombeingtriggeredrepeatedly,aWaitatleasttimecanbeset.Enterthetimeinhours,minutesandseconds,

duringwhichthetriggershouldbeignoredbeforetheactionrulecanbeactivatedagain.

TherecordingDurationofsomeactionscanbesettoincludetimeimmediatelybeforeandaftertheevent.SelectPre-triggertime

and/orPost-triggertimeandenterthenumberofseconds.WhenWhiletheruleisactiveisenabledandtheactionistriggered

againduringthepost-triggertime,therecordingtimewillbeextendedwithanotherpost-triggertimeperiod.

Formoreinformation,seetheonlinehelp

Triggers

Availableactionruletriggersandconditionsinclude:

•Applications–Useinstalledapplicationstotriggertherule.SeeApplicationsonpage29.

•Detectors

-LiveStreamAccessed–Triggertherulewhenanystreamisaccessedandduringedgestorageplayback.

Thiscanforexamplebeusedtosendnotications.

-Tampering–Triggertherulewhentamperingisdetected.SeeCameraTamperingonpage28.

-Videosourceconnected–Triggertherulewhenasensorunitisconnectedtoordisconnectedfromthemainunit.

•Hardware

-Network–Triggertheruleifnetworkconnectionislostorrestored.Thiscanforexamplebeusedtostart

recordingtotheSDcard.

•InputSignal

-ManualTrigger–TriggertheruleusingtheManualTriggerbuttonintheLiveViewpage.SeeControlson

theLiveViewPageonpage13.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation

andconguration.

-VirtualInputs–canbeusedbyaVMS(VideoManagementSystem)totriggeractions.Virtualinputscan,for

example,beconnectedtobuttonsintheVMSuserinterface.

•Storage

-Disruption–Triggertheruleifstorageproblemsaredetected,forexampleifthestoragedeviceisunavailable,

removed,full,lockedorifotherreadorwriteproblemsoccur.Thiscanforexamplebeusedtosendmaintenance

notications.

AXISF34MainUnit

Events

-Recording–TriggerstherulewhentheAxisproductrecordstothestoragedevice.Therecordingstatustrigger

canbeusedtonotifytheoperator,forexamplebyashingLEDlights,iftheproducthasstartedorstoppedto

recordtothestoragedevice.Notethat,thistriggercanbeusedonlyforedgestoragerecordingstatus.

•System

-SystemReady–Triggertherulewhentheproducthasbeenstartedandallservicesarerunning.Thiscanfor

examplebeusedtosendanoticationwhentheproductrestarts.

•Time

-Recurrence–Triggertheruleperiodically.SeeSetUpRecurrencesonpage39.Thiscanforexamplebeusedto

uploadanimageevery5minutes.

-UseSchedule–Triggertheruleaccordingtotheselectedschedule.SeeCreateSchedulesonpage38.

Actions

Availableactionsinclude:

•OverlayText–Displayanoverlaytext.SeeUseOverlayTextinanActionRuleonpage25.

•RecordVideo–Recordvideotoaselectedstorage.

•SendImages–Sendimagestoarecipient.

•SendNotication–Sendanoticationmessagetoarecipient.

•SendSNMPTrap–SendanSNMPtrapmessagetotheoperator.MakesurethatSNMPisenabledandcongured

underSystemOptions>Network>SNMP.

•SendVideoClip–Sendavideocliptoarecipient.

•StatusLED–FlashtheLEDindicator.Thiscanforexamplebeusedtovalidatetriggerssuchasmotiondetectionduring

productinstallationandconguration.

•WDRMode–TheWDRModecanbeturnedonoroffwhentheactionruleistriggered.

AddRecipients

Theproductcansendmedialesandmessagestonotifyusersaboutevents.Beforetheproductcansendmedialesornotication

messages,youmustdeneoneoremorerecipients.Forinformationaboutavailableoptions,seeRecipientTypesonpage37.

Toaddarecipient:

1.GotoEvents>RecipientsandclickAdd.

2.Enteradescriptivename.

3.SelectarecipientType.

4.Entertheinformationneededfortherecipienttype.

5.ClickTesttotesttheconnectiontotherecipient.

6.ClickOK.

RecipientTypes

Thefollowingrecipientsareavailable:

AXISF34MainUnit

Events

RecipientUsewithactionNotes

SendImages

SendNotication

SendVideoClip

Anemailrecipientcancontainmultipleemailaddresses.

FTP

SendImages

SendVideoClip

HTTP

SendImages

SendNotication

SendVideoClip

NetworkShareSendImages

SendVideoClip

Anetworksharecanalsobeusedasastoragedevicefor

recordedvideo.GoSystemOptions>Storagetocongure

anetworksharebeforesettingupacontinuousrecordingor

anactionruletorecordvideo.Formoreinformationabout

storagedevices,seeStorageonpage51.

TCPSendNotication

SetUpEmailRecipients

Emailrecipientscanbeconguredbyselectingoneofthelistedemailproviders,orbyspecifyingtheSMTPserver,portand

authenticationusedby,forexample,acorporateemailserver.

Note

Someemailprovidershavesecurityltersthatpreventusersfromreceivingorviewinglargeamountofattachments,from

receivingscheduledemailsandsimilar.Checktheemailprovider’ssecuritypolicytoavoiddeliveryproblemsandlocked

emailaccounts.

Tosetupanemailrecipientusingoneofthelistedproviders:

1.GotoEvents>RecipientsandclickAdd.

2.EnteraNameandselectEmailfromtheTypelist.

3.EntertheemailaddressestosendemailstointheToeld.Usecommastoseparatemultipleaddresses.

4.SelecttheemailproviderfromtheProviderlist.

5.EntertheuserIDandpasswordfortheemailaccount.

6.ClickTesttosendatestemail.

Tosetupanemailrecipientusingforexampleacorporateemailserver,followtheinstructionsabovebutselectUserdenedas

Provider.EntertheemailaddresstoappearassenderintheFromeld.SelectAdvancedsettingsandspecifytheSMTPserver

address,portandauthenticationmethod.Optionally,selectUseencryptiontosendemailsoveranencryptedconnection.Theserver

certicatecanbevalidatedusingthecerticatesavailableintheAxisproduct.Forinformationonhowtouploadcerticates,

seeCerticatesonpage45.

CreateSchedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside

ofcehours.Useoneofthepredenedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

AXISF34MainUnit

Events

1.GotoEvents>SchedulesandclickAdd.

2.Enteradescriptivenameandtheinformationneededforadaily,weekly,monthlyoryearlyschedule.

3.ClickOK.

Tousethescheduleinanactionrule,selecttheschedulefromtheScheduledrop-downlistintheActionRuleSetuppage.

SetUpRecurrences

Recurrencesareusedtotriggeractionrulesrepeatedly,forexampleevery5minutesoreveryhour.

Tosetuparecurrence:

1.GotoEvents>RecurrencesandclickAdd.

2.Enteradescriptivenameandrecurrencepattern.

3.ClickOK.

Tousetherecurrenceinanactionrule,rstselectTimefromtheTriggerdrop-downlistintheActionRuleSetuppageandthen

selecttherecurrencefromtheseconddrop-downlist.

Tomodifyorremoverecurrences,selecttherecurrenceintheRecurrencesListandclickModifyorRemove.

AXISF34MainUnit

Recordings

•Toaccessrecordings,seeFindRecordingsonpage40.

•Toplayrecordings,seePlayRecordingonpage40.

•Toexportarecordingasavideoclip,seeExportVideoCliponpage41.

•Tocongurecameracontrolledstorage,seeStorageonpage51.

FindRecordings

RecordingsstoredontheSDcardornetworksharecanbeaccessedfromtheRecordings>Listpage.Thepagelistsallrecordingson

thestoragedeviceandshowseachrecording’sstartdateandtime,durationandtheeventthattriggeredtherecording.

Note

Therecording’sstartdateandtimeissetaccordingtotheAxisproduct’sdateandtimesettings.IftheAxisproductis

conguredtouseatimezonedifferentfromthelocaltimezone,makesuretoconguretheRecordingtimeltersaccording

totheproduct’stimezone.DateandtimesettingsareconguredunderSystemOptions>Date&Time,seeDate&Time

onpage45.

Tondarecording,followthesesteps:

1.GotoRecordings>List.

2.Toreducethenumberofrecordingsdisplayed,selectthedesiredoptionsunderFilter:

Recordingtime–ListrecordingsthatstartedbetweentheFromandTotimes.

Event–Listrecordingsthatweretriggeredbyaspecicevent.Selectcontinuoustolistcontinuousrecordings.

Storage–Listrecordingsfromaspecicstoragedevice.

Sort–Specifyhowrecordingsshouldbesortedinthelist.

Results–Specifythemaximumnumberofrecordingstodisplay.

3.Toapplythelters,clicktheFilterbutton.Someltersmaytakealongtimetocomplete.

4.TherecordingsaredisplayedintheRecordinglist.

Toplayarecording,selecttherecordingandclickPlay.SeealsoPlayRecordingonpage40.

Toviewdetailedinformationaboutarecording,selecttherecordingandclickProperties.

Toexportarecordingorapartofarecordingasavideoclip,selecttherecordingandclickExport.SeealsoExportVideoClipon

page41.

Toremovearecordingfromthestoragedevice,selecttherecordingandclickRemove.

PlayRecording

RecordingsontheSDcardornetworksharecanbeplayeddirectlyfromtheAxisproduct’swebpages.

Toplayarecording,followthesesteps:

1.GotoRecordings>List.

2.Toreducethenumberofrecordingsdisplayed,selectthedesiredoptionsunderFilterandclicktheFilterbuttonto

applythelters.SeealsoFindRecordingsonpage40.

AXISF34MainUnit

Recordings

3.SelecttherecordingandclickPlay.Therecordingwillbeplayedinanewbrowserwindow.

ExportVideoClip

RecordingsontheSDcardornetworksharecanbeexportedasvideoclips.Itispossibletoexportacompleterecordingora

partofarecording.

Note

TheexportedrecordingisaMatroskavideole(.mkv).ToplaytherecordinginWindowsMediaPlayer,AXISMatroskaFile

Splittermustbeinstalled.AXISMatroskaFileSplittercanbedownloadedfromwww.axis.com/techsup/software

Toexportavideoclip,followthesesteps:

1.GotoRecordings>List.

2.Toreducethenumberofrecordingsdisplayed,selectthedesiredoptionsunderFilterandclicktheFilterbuttonto

applythelters.SeealsoFindRecordingsonpage40.

3.SelecttherecordingandclickExport.TheExportRecordingdialogopens.

4.Bydefault,thecompleterecordingisselected.Toexportapartoftherecording,modifythestartandstoptimes.

5.Optionally,enteralenamefortherecording.

6.ClickExport.

Note

Recordingscanalsobeexportedfromtheplaybackwindow.

ContinuousRecording

TheAxisproductcanbeconguredtocontinuouslysavevideotoastoragedevice.Forinformationaboutstoragedevices,seeStorage

onpage51.Topreventthediskfrombecomingfull,itisrecommendedtocongurethedisktoautomaticallyremoveoldrecordings.

Ifanewstreamproleisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecordinglistanda

newrecordingwiththenewstreamprolewillstart.Allpreviouscontinuousrecordingswillremainintherecordinglistuntilthey

areremovedmanuallyorthroughautomaticremovalofoldrecordings.

Tostartacontinuousrecording,followthesesteps:

1.GotoRecordings>Continuous.

2.SelectEnabled.

3.SelectthetypeofstoragedevicefromtheStoragelist.

4.SelectaStreamproletouseforcontinuousrecordings.

5.ClickSavetosaveandstarttherecording.

AXISF34MainUnit

Languages

MultiplelanguagescanbeinstalledintheAxisproduct.Allwebpagesincludingtheonlinehelpwillbedisplayedintheselected

language.Toswitchlanguages,gotoSetup>Languagesandrstuploadthenewlanguagele.Browseandlocatetheleandclick

theUploadLanguagebutton.SelectthenewlanguagefromthelistandclickSave.

Note

•Resettingtheproducttofactorydefaultsettingswilleraseanyuploadedlanguagelesandresettheproductlanguageto

English.

•ClickingtheRestorebuttonontheMaintenancepagewillnotaffectthelanguage.

•Armwareupgradewillnotaffectthelanguageused.Howeverifyouhaveuploadedanewlanguagetotheproductand

laterupgradethermware,itmayhappenthatthetranslationnolongermatchestheproduct'swebpages.Inthiscase,

uploadanupdatedlanguagele.

•Alanguagealreadyinstalledintheproductwillbereplacedwhenacurrentoralaterversionofthelanguageleisuploaded.

AXISF34MainUnit

SystemOptions

Security

Users

UseraccesscontrolisenabledbydefaultandcanbeconguredunderSystemOptions>Security>Users.Anadministratorcan

setupotherusersbygivingthemusernamesandpasswords.Itisalsopossibletoallowanonymousviewerlogin,whichmeans

thatanybodymayaccesstheLiveViewpage.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

•ViewershaveaccesstotheLiveViewpage

•Operatorshaveaccesstoallsettingsexcept:

-creatingandmodifyingPTZpresets

-creatingandmodifyingPTZcontrolsettings

-creatingandmodifyingprivacymasksettings

-uploadingapplicationsandlanguageles

-anyofthesettingsincludedintheSystemOptions

•Administratorshaveunrestrictedaccesstoallsettings.Theadministratorcanadd,modifyandremoveotherusers.

Note

NotethatwhentheoptionEncrypted&unencryptedisselected,thewebserverwillencryptthepassword.Thisisthedefault

optionforanewunitoraunitresettofactorydefaultsettings.

UnderHTTP/RTSPPasswordSettings,selectthetypeofpasswordtoallow.Youmayneedtoallowunencryptedpasswordsifthereare

viewingclientsthatdonotsupportencryption,orifyouupgradedthermwareandexistingclientssupportencryptionbutneed

tologinagainandbeconguredtousethisfunctionality.

UnderUserSettings,selecttheEnableanonymousviewerloginoptiontoallowanonymoususersaccesstotheLiveViewpage.

DeselecttheEnableBasicSetupoptiontohidetheBasicSetupmenu.BasicSetupprovidesquickaccesstosettingsthatshouldbe

madebeforeusingtheAxisproduct.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,

andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology.ONVIFenablesinteroperability

betweendifferentvendorproducts,increasedexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication

withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IPaddresslteringisenabledontheSystemOptions>Security>IPAddressFilterpage.Onceenabled,thelistedIPaddressare

allowedordeniedaccesstotheAxisproduct.SelectAlloworDenyfromthelistandclickApplytoenableIPaddressltering.

Theadministratorcanaddupto256IPaddressentriestothelist(asingleentrycancontainmultipleIPaddresses).

AXISF34MainUnit

SystemOptions

HTTPS

HTTPS(HyperTextTransferProtocoloverSecureSocketLayer,orHTTPoverSSL)isawebprotocolprovidingencryptedbrowsing.

HTTPScanalsobeusedbyusersandclientstoverifythatthecorrectdeviceisbeingaccessed.Thesecuritylevelprovidedby

HTTPSisconsideredadequateformostcommercialexchanges.

TheAxisproductcanbeconguredtorequireHTTPSwhenusersfromdifferentusergroups(administrator,operator,viewer)login.

TouseHTTPS,anHTTPScerticatemustrstbeinstalled.GotoSystemOptions>Security>Certicatestoinstallandmanage

certicates.SeeCerticatesonpage45.

ToenableHTTPSontheAxisproduct:

1.GotoSystemOptions>Security>HTTPS

2.SelectanHTTPScerticatefromthelistofinstalledcerticates.

3.Optionally,clickCiphersandselecttheencryptionalgorithmstouseforSSL.

4.SettheHTTPSConnectionPolicyforthedifferentusergroups.

5.ClickSavetoenablethesettings.

ToaccesstheAxisproductviathedesiredprotocol,intheaddresseldinabrowser,enterhttps://fortheHTTPSprotocol

andhttp://fortheHTTPprotocol.

TheHTTPSportcanbechangedontheSystemOptions>Network>TCP/IP>Advancedpage.

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork

devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustbeauthenticated.Theauthenticationisperformedbyanauthentication

server,typicallyaRADIUSserver,examplesofwhichareFreeRADIUSandMicrosoftInternetAuthenticationService.

InAxisimplementation,theAxisproductandtheauthenticationserveridentifythemselveswithdigitalcerticatesusingEAP-TLS

(ExtensibleAuthenticationProtocol-TransportLayerSecurity).ThecerticatesareprovidedbyaCerticationAuthority(CA).

Youneed:

•aCAcerticatetoauthenticatetheauthenticationserver.

•aCA-signedclientcerticatetoauthenticatetheAxisproduct.

Tocreateandinstallcerticates,gotoSystemOptions>Security>Certicates.SeeCerticatesonpage45.ManyCAcerticates

arepreinstalled.

ToallowtheproducttoaccessanetworkprotectedbyIEEE802.1X:

1.GotoSystemOptions>Security>IEEE802.1X.

2.SelectaCACerticateandaClientCerticatefromthelistsofinstalledcerticates.

3.UnderSettings,selecttheEAPOLversionandprovidetheEAPidentityassociatedwiththeclientcerticate.

4.ChecktheboxtoenableIEEE802.1XandclickSave.

Note

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbesynchronizedwithanNTP

server.SeeDate&Timeonpage45.

AXISF34MainUnit

SystemOptions

Certicates

Certicatesareusedtoauthenticatedevicesonanetwork.Typicalapplicationsincludeencryptedwebbrowsing(HTTPS),network

protectionviaIEEE802.1Xandsecureuploadofimagesandnoticationmessagesforexampleviaemail.Twotypesofcerticates

canbeusedwiththeAxisproduct:

Server/Clientcerticates-ToauthenticatetheAxisproduct.

CAcerticates-Toauthenticatepeercerticates,forexamplethecerticateofanauthenticationserverincasetheAxisproductis

connectedtoanIEEE802.1Xprotectednetwork.

Note

Installedcerticates,exceptpreinstalledCAcerticates,willbedeletediftheproductisresettofactorydefault.Preinstalled

CAcerticatesthathavebeendeletedwillbereinstalled.

AServer/Clientcerticatecanbeself-signedorissuedbyaCerticateAuthority(CA).Aself-signedcerticateofferslimited

protectionandcanbeusedbeforeaCA-issuedcerticatehasbeenobtained.

Toinstallaself-signedcerticate:

1.GotoSetup>SystemOptions>Security>Certicates.

2.ClickCreateself-signedcerticateandprovidetherequestedinformation.

TocreateandinstallaCA-signedcerticate:

1.Createaself-signedcerticateasdescribedabove.

2.GotoSetup>SystemOptions>Security>Certicates.

3.ClickCreatecerticatesigningrequestandprovidetherequestedinformation.

4.CopythePEM-formattedrequestandsendtotheCAofyourchoice.

5.Whenthesignedcerticateisreturned,clickInstallcerticateanduploadthecerticate.

Server/ClientcerticatescanbeinstalledasCerticatefromsigningrequestorasCerticateandprivatekey.SelectCerticate

andprivatekeyiftheprivatekeyistobeuploadasaseparateleorifthecerticateisinPKCS#12format.

TheAxisproductisshippedwithseveralpreinstalledCAcerticates.Ifrequired,additionalCAcerticatescanbeinstalled:

1.GotoSetup>SystemOptions>Security>Certicates.

2.ClickInstallcerticateanduploadthecerticate.

Date&Time

TheAxisproduct’sdateandtimesettingsareconguredunderSystemOptions>Date&Time.

CurrentServerTimedisplaysthecurrentdateandtime(24hclock).Thetimecanbedisplayedin12hclockinthetextoverlay(see

below).

Tochangethedateandtimesettings,selectthepreferredTimemodeunderNewServerTime:

•Synchronizewithcomputertime–Setsdateandtimeaccordingtothecomputer’sclock.Withthisoption,dateand

timearesetonceandwillnotbeupdatedautomatically.

•SynchronizewithNTPServer–ObtainsdateandtimefromanNTPserver.Withthisoption,dateandtimesettingsare

updatedcontinuously.ForinformationonNTPsettings,seeNTPCongurationonpage48.

IfusingahostnamefortheNTPserver,aDNSservermustbecongured.SeeDNSCongurationonpage48.

•Setmanually–Allowsyoutomanuallysetdateandtime.

AXISF34MainUnit

SystemOptions

IfusinganNTPserver,selectyourTimezonefromthedrop-downlist.Ifrequired,checkAutomaticallyadjustfordaylightsaving

timechanges.

TheDate&TimeFormatUsedinImagesisthedateandtimeformatdisplayedasatextoverlayinthevideostream.Usethe

predenedformatsorseeFileNaming&Date/TimeFormatsintheonlinehelp

forinformationonhowtocreatecustomdateand

timeformats.Toincludedateandtimeintheoverlaytext,gotoVideoandselectIncludedateandIncludetime.

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously,andatleastoneversion

mustalwaysbeenabled.

IPv4AddressConguration

Bydefault,theAxisproductissettouseIPv4(IPversion4)andtoobtaintheIPaddressautomaticallyviaDHCP.TheIPv4settingsare

conguredunderSystemOptions>Network>TCP/IP>Basic.

DHCP(DynamicHostCongurationProtocol)allowsnetworkadministratorstocentrallymanageandautomatetheassignmentof

IPaddresses.DHCPshouldonlybeenabledifusingdynamicIPaddressnotication,oriftheDHCPcanupdateaDNSserver.Itis

thenpossibletoaccesstheAxisproductbyname(hostname).

IfDHCPisenabledandtheproductcannotbeaccessed,runAXISIPUtilitytosearchthenetworkforconnectedAxisproducts,orreset

theproducttothefactorydefaultsettings(seepage54)andthenperformtheinstallationagain.

TouseastaticIPaddress,checkUsethefollowingIPaddressandspecifytheIPaddress,subnetmaskanddefaultrouter.

IPv6AddressConguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtothecongurationinthenetworkrouter.

ToenableIPv6,gotoSystemOptions>Network>TCP/IP>Basic.OthersettingsforIPv6shouldbeconguredinthenetworkrouter.

ARP/Ping

Theproduct’sIPaddresscanbeassignedusingARPandPing.Forinstructions,seeAssignIPAddressUsingARP/Pingonpage46.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP

addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional

twominutes.

Todisabletheservice,gotoSystemOptions>Network>TCP/IP>BasicandcleartheoptionEnableARP/PingsettingofIPaddress.

Pingingtheproductisstillpossiblewhentheserviceisdisabled.

AssignIPAddressUsingARP/Ping

Theproduct'sIPaddresscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

1.AcquireafreestaticIPaddressonthesamenetworksegmentasthecomputer.

2.Locatetheserialnumber(S/N)ontheproductlabel.

3.Openacommandpromptandenterthefollowingcommands:

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp

ping-s408<IPaddress>

AXISF34MainUnit

SystemOptions

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp

ping-s408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber>

ping-l408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00

ping-l408-t192.168.0.125

4.Checkthatthenetworkcableisconnectedandthenrestarttheproductbydisconnectingandreconnectingpower.

5.ClosethecommandpromptwhentheproductrespondswithReplyfrom192.168.0.125:...orsimilar.

6.Openabrowserandtypehttp://<IPaddress>intheLocation/Addresseld.

ForothermethodsofassigningtheIPaddress,seethedocumentAssignanIPAddressandAccesstheVideoStreamonAxisSupport

webatwww.axis.com/techsup

Note

•ToopenacommandpromptinWindows,opentheStartmenuandtypecmdintheRun/Searcheld.

•TousetheARPcommandinWindows8/Windows7/WindowsVista,right-clickthecommandprompticonandselect

Runasadministrator.

•ToopenacommandpromptinMacOSX,opentheTerminalutilityfromApplication>Utilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefrom

anylocation.FormoreinformationandhelptondalocalAVHSServiceProvidergotowww.axis.com/hosting

TheAVHSsettingsareconguredunderSystemOptions>Network>TCPIP>Basic.ThepossibilitytoconnecttoanAVHSservice

isenabledbydefault.Todisable,cleartheEnableAVHSbox.

One-clickenabled-Pressandholdtheproduct’scontrolbutton(seeHardwareOverviewonpage7)forabout3secondsto

connecttoanAVHSserviceovertheInternet.Onceregistered,AlwayswillbeenabledandtheAxisproductstaysconnectedto

theAVHSservice.Iftheproductisnotregisteredwithin24hoursfromwhenthebuttonispressed,theproductwilldisconnect

fromtheAVHSservice.

Always-TheAxisproductwillconstantlyattempttoconnecttotheAVHSserviceovertheInternet.Onceregisteredtheproductwill

stayconnectedtotheservice.Thisoptioncanbeusedwhentheproductisalreadyinstalledanditisnotconvenienttousethe

one-clickinstallation.

AXISInternetDynamicDNSService

AXISInternetDynamicDNSServiceassignsahostnameforeasyaccesstotheproduct.Formoreinformation,seewww.axiscam.net

ToregistertheAxisproductwithAXISInternetDynamicDNSService,gotoSystemOptions>Network>TCP/IP>Basic.Under

Services,clicktheAXISInternetDynamicDNSServiceSettingsbutton(requiresaccesstotheInternet).Thedomainnamecurrently

registeredatAXISInternetDynamicDNSservicefortheproductcanatanytimeberemoved.

Note

AXISInternetDynamicDNSServicerequiresIPv4.

AXISF34MainUnit

SystemOptions

AdvancedTCP/IPSettings

DNSConguration

DNS(DomainNameService)providesthetranslationofhostnamestoIPaddresses.TheDNSsettingsareconguredunderSystem

Options>Network>TCP/IP>Advanced.

SelectObtainDNSserveraddressviaDHCPtousetheDNSsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingDNSserveraddressandspecifythefollowing:

Domainname-Enterthedomain(s)tosearchforthehostnameusedbytheAxisproduct.Multipledomainscanbeseparatedby

semicolons.Thehostnameisalwaystherstpartofafullyqualieddomainname,forexample,myserveristhehostnameinthe

fullyqualieddomainnamemyserver.mycompany.comwheremycompany.comisthedomainname.

Primary/SecondaryDNSserver-EntertheIPaddressesoftheprimaryandsecondaryDNSservers.ThesecondaryDNSserveris

optionalandwillbeusediftheprimaryisunavailable.

NTPConguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconguredunder

SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTPserveraddressviaDHCPtousetheNTPsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingNTPserveraddressandenterthehostnameorIPaddressoftheNTPserver.

HostNameConguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS

name.ThehostnameisconguredunderSystemOptions>Network>TCP/IP>Advanced.

SelectObtainhostnameviaIPv4DHCPtousehostnameprovidedbytheDHCPserverrunningonIPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnabledynamicDNSupdatestodynamicallyupdatelocalDNSserverswhenevertheAxisproduct’sIPaddresschanges.

Formoreinformation,seetheonlinehelp

Link-LocalIPv4Address

Link-LocalAddressisenabledbydefaultandassignstheAxisproductanadditionalIPaddresswhichcanbeusedtoaccess

theproductfromotherhostsonthesamesegmentonthelocalnetwork.TheproductcanhaveaLink-LocalIPandastatic

orDHCP-suppliedIPaddressatthesametime.

ThisfunctioncanbedisabledunderSystemOptions>Network>TCP/IP>Advanced.

HTTP

TheHTTPportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditiontothe

defaultsetting,whichis80,anyportintherange1024–65535canbeused.

HTTPS

TheHTTPSportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditionto

thedefaultsetting,whichis443,anyportintherange1024–65535canbeused.

ToenableHTTPS,gotoSystemOptions>Security>HTTPS.Formoreinformation,seeHTTPSonpage44.

AXISF34MainUnit

SystemOptions

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontotheInternet.Thisisdonebyforwarding

networktrafcfromtheprivatenetworktothe“outside”,thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased

sincemostroutersarepre-conguredtostopattemptstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

UseNATtraversalwhentheAxisproductislocatedonanintranet(LAN)andyouwishtomakeitavailablefromtheother(WAN)side

ofaNATrouter.WithNATtraversalproperlycongured,allHTTPtrafctoanexternalHTTPportintheNATrouterisforwardedto

theproduct.

NATtraversalisconguredunderSystemOptions>Network>TCP/IP>Advanced.

Note

•ForNATtraversaltowork,thismustbesupportedbytherouter.TheroutermustalsosupportUPnP

•Inthiscontext,routerreferstoanynetworkroutingdevicesuchasaNATrouter,Networkrouter,InternetGateway,

Broadbandrouter,Broadbandsharingdevice,orasoftwaresuchasarewall.

Enable/Disable-Whenenabled,theAxisproductattemptstocongureportmappinginaNATrouteronyournetwork,usingUPnP

NotethatUPnP

mustbeenabledintheproduct(seeSystemOptions>Network>UPnP).

UsemanuallyselectedNATrouter-SelectthisoptiontomanuallyselectaNATrouterandentertheIPaddressfortherouterin

theeld.Ifnorouterisspecied,theproductautomaticallysearchesforNATroutersonyournetwork.Ifmorethanonerouteris

found,thedefaultrouterisselected.

AlternativeHTTPport-SelectthisoptiontomanuallydeneanexternalHTTPport.Enteraportintherange1024–65535.Ifthe

porteldisemptyorcontainsthedefaultsetting,whichis0,aportnumberisautomaticallyselectedwhenenablingNATtraversal.

Note

•AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled.ThisisusefulifyourNATrouterdoesnot

supportUPnPandyouneedtomanuallycongureportforwardingintheNATrouter.

•Ifyouattempttomanuallyenteraportthatisalreadyinuse,anotheravailableportisautomaticallyselected.

•Whentheportisselectedautomaticallyitisdisplayedinthiseld.Tochangethis,enteranewportnumberandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewrmware,userapplications,etc.TheFTPservercanbedisabled

underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct’sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe

changedunderSystemOptions>Network>TCP/IP>Advanced.Thedefaultportis554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconguredtouseaSOCKSservertoreachnetworksontheother

sideofarewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindarewall,and

notications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexampletheInternet).

SOCKSisconguredunderSystemOptions>Network>SOCKS.Formoreinformation,seetheonlinehelp

AXISF34MainUnit

SystemOptions

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspeciedresourcetoselectedtrafconanetwork.AQoS-awarenetwork

prioritizesnetworktrafcandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

TheQoSsettingsareconguredunderSystemOptions>Network>QoS.UsingDSCP(DifferentiatedServicesCodepoint)values,the

Axisproductcanmarkdifferenttypesoftrafc.

SNMP

TheSimpleNetworkManagementProtocol(SNMP)allowsremotemanagementofnetworkdevices.AnSNMPcommunityisthe

groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

AXISVideoMIB(ManagementInformationBase)forvideohardwarecanbeusedtomonitorAxis-specic,hardware-related

issuesthatmayneedadministrativeattention.FormoreinformationaboutAXISVideoMIBandtodownloadMIBles,goto

www.axis.com/techsup

ToenableandcongureSNMPintheAxisproduct,gototheSystemOptions>Network>SNMPpage.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

TrapsareusedbytheAxisproducttosendmessagestoamanagementsystemonimportanteventsandstatuschanges.CheckEnable

trapsandentertheIPaddresswherethetrapmessageshouldbesentandtheTrapcommunitythatshouldreceivethemessage.

Note

IfHTTPSisenabled,SNMPv1andSNMPv2cshouldbedisabled.

TrapsforSNMPv1/v2areusedbytheAxisproducttosendmessagestoamanagementsystemonimportanteventsandstatus

changes.CheckEnabletrapsandentertheIPaddresswherethetrapmessageshouldbesentandtheTrapcommunitythat

shouldreceivethemessage.

Thefollowingtrapsareavailable:

•Coldstart

•Warmstart

•Linkup

•Authenticationfailed

Note

AllAXISVideoMIBtrapsareenabledwhenSNMPv1/v2ctrapsareenabled.Itisnotpossibletoturnonoroffspecictraps.

SNMPv3providesencryptionandsecurepasswords.TousetrapswithSNMPv3,anSNMPv3managementapplicationisrequired.

TouseSNMPv3,HTTPSmustbeenabled,seeHTTPSonpage44.ToenableSNMPv3,checktheboxandprovidetheinitialuser

password.

Note

Theinitialpasswordcanonlybesetonce.Ifthepasswordislost,theAxisproductmustberesettofactorydefault,see

ResettoFactoryDefaultSettingsonpage54.

UPnP

TheAxisproductincludessupportforUPnP

.UPnP

isenabledbydefaultandtheproductisautomaticallydetectedbyoperating

systemsandclientsthatsupportthisprotocol.

UPnP

canbedisabledunderSystemOptions>Network>UPnP

AXISF34MainUnit

SystemOptions

RTP/H.264

TheRTPportrangeandmulticastsettingsareconguredunderSystemOptions>Network>RTP.

TheRTPportrangedenestherangeofportsfromwhichthevideoportsareautomaticallyselected.Formulticaststreams,only

certainIPaddressesandportnumbersshouldbeused.

SelectAlwaysMulticastVideotostartmulticaststreamingwithoutopeninganRTSPsession.

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating

systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

SDCard

NO NO

TICE TICE

TICE

Topreventdatacorruption,theSDcardshouldbeunmountedbeforeremoval.

Note

ForSDcardrecommendationsseewww.axis.com

TheAxisproductsupportsSD/SDHC/SDXCcards.

ThefollowingSDcardlesystemsaresupported:

•ext4—recommendedduetoitsresilienceagainstdatalossifthecardisejectedorifthereisabruptpowerloss.Toaccess

datastoredonthecardfromtheWindowsoperatingsystem,athird-partyext4driverorapplicationisrequired.

•vFAT—supportedbymostoperatingsystemsforpersonalcomputers.

TheSDcardismanagedontheSystemOptions>Storagepage.ClickSDCardtoopenStorageManagement.

Ifthecard’sstatusshowsasfailed,clickCheckdisktoseeiftheproblemcanbefoundandthentryRepair.Thisoptionisonly

availableforSDcardswithext4.ForSDcardswithvFAT,useacardreaderorcomputertotroubleshootthecard.

Toavoidllingthecard,itisrecommendedtoremoverecordingscontinuously.UnderGeneralSettings,selectRemoverecordings

olderthanandselectthenumberofdaysorweeks.

Tostopwritingtothecardandprotectrecordingsfrombeingremoved,selectLockunderGeneralSettings.

MountandUnmountSDCard

NO NO

TICE TICE

TICE

Topreventcorruptionofrecordings,theSDcardshouldalwaysbeunmountedbeforeitisejected.

TheSDcardisautomaticallymountedwhenthecardisinsertedintotheAxisproductorwhentheproductisstarted.Amanual

mountisonlyrequiredifthecardhasbeenunmountedandnotejectedandre-inserted.

TounmounttheSDcard:

1.OpentheAxisproduct’swebpagesandgotoSetup>SystemOptions>Storage.

2.ClickSDCard.

3.ClickUnmount.

AXISF34MainUnit

SystemOptions

4.Thecardcannowberemoved.

FormatSDCard

NO NO

TICE TICE

TICE

FormattingtheSDcardwillremovealldataandrecordingsstoredonthecard.

Important

Ifautoformatisenabled,onlyuseneworemptySDcards.Anydatastoredonthecardwillbelostwhenthecardisinserted

intotheAxisproduct.

AnSDcardinsertedintotheproductcanbemanuallyformattedtooneofthesupportedlesystems.Tomanuallyformatthe

SDcard,followthesesteps:

1.InserttheSDcardintheSDcardslot.

2.OpentheAxisproduct’swebpagesandgotoSetup>SystemOptions>Storage.

3.ClickSDCard.

4.ClickFormatandselectthedesiredlesystem.

5.ClickOKtostartformattingthecard.

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(network-attachedstorage).TheNASshallbededicatedfor

recordingsanddatafromtheAxisproductsconnectedtothenetwork.ForinformationaboutreferenceNASdevices,goto

www.axis.com/products/axis-camera-companion/support-and-documentation

Note

ForNASrecommendationsseewww.axis.com

Toaddanetworkshare:

1.GotoSystemOptions>Storage.

2.ClickNetworkShare.

3.EntertheIPaddress,DNSorBonjournametothehostserverintheHosteld.

4.EnterthenameoftheshareintheShareeld.Subfolderscannotbeused.

5.Ifrequired,selectThesharerequiresloginandentertheusernameandpassword.

6.ClickConnect.

ToclearallrecordingsanddatafromtheAxisproduct’sfolderonthedesignatedshare,clickClearunderStorageTools.

Toavoidllingtheshare,itisrecommendedtoremoverecordingscontinuously.UnderRecordingSettings,selectRemoverecordings

olderthanandselectthenumberofdaysorweeks.

Tostopwritingtotheshareandprotectrecordingsfrombeingremoved,selectLockunderRecordingSettings.

Maintenance

TheAxisproductprovidesseveralmaintenancefunctions.TheseareavailableunderSystemOptions>Maintenance.

ClickRestarttoperformacorrectrestartiftheAxisproductisnotbehavingasexpected.Thiswillnotaffectanyofthecurrent

settings.

AXISF34MainUnit

SystemOptions

Note

ArestartclearsallentriesintheServerReport.

ClickRestoretoresetmostsettingstothefactorydefaultvalues.Thefollowingsettingsarenotaffected:

•thebootprotocol(DHCPorstatic)

•thestaticIPaddress

•thedefaultrouter

•thesubnetmask

•thesystemtime

•theIEEE802.1Xsettings

•uploadedapplicationsarekeptbutmustberestarted

ClickDefaulttoresetallsettings,includingtheIPaddress,tothefactorydefaultvalues.Thisbuttonshouldbeusedwithcaution.The

Axisproductcanalsoberesettofactorydefaultusingthecontrolbutton,seeResettoFactoryDefaultSettingsonpage54.

ToidentifytheproductortesttheStatusLED,clickFlashLEDunderIdentifyandspecifythedurationinseconds,minutesorhours.

Thiscanbeusefulforidentifyingtheproductamongotherproductsinstalledinthesamelocation.

Forinformationaboutrmwareupgrade,seeUpgradetheFirmwareonpage55.

Support

SupportOverview

TheSystemOptions>Support>SupportOverviewpageprovidesinformationontroubleshootingandcontactinformation,

shouldyourequiretechnicalassistance.

SeealsoTroubleshootingonpage55.

SystemOverview

TogetanoverviewoftheAxisproduct’sstatusandsettings,gotoSystemOptions>Support>SystemOverview.Informationthat

canbefoundhereincludesrmwareversion,IPaddress,networkandsecuritysettings,eventsettings,imagesettingsandrecentlog

items.ManyofthecaptionsarelinkstotheproperSetuppage.

Logs&Reports

TheSystemOptions>Support>Logs&Reportspagegenerateslogsandreportsusefulforsystemanalysisandtroubleshooting.If

contactingAxisSupport,pleaseprovideavalidServerReportwithyourquery.

SystemLog-Providesinformationaboutsystemevents.

AccessLog-Listsallfailedattemptstoaccesstheproduct.TheAccessLogcanalsobeconguredtolistallconnectionstothe

product(seebelow).

ServerReport-Providesinformationabouttheproductstatusinapop-upwindow.TheAccessLogisautomaticallyincluded

intheServerReport.

ParameterList-Showstheproduct'sparametersandtheircurrentsettings.Thismayproveusefulwhentroubleshootingor

whencontactingAxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

AXISF34MainUnit

SystemOptions

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NO NO

TICE TICE

TICE

ImproperusemaycauseunexpectedbehaviorandlossofcontactwiththeAxisproduct.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide

assistanceforproblemswithcustomizedscripts.

ToopentheScriptEditor,gotoSystemOptions>Advanced>Scripting.Ifascriptcausesproblems,resettheproducttoits

factorydefaultsettings,seepage54.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Touploadale,go

toSystemOptions>Advanced>FileUpload.

Uploadedlesareaccessedthroughhttp://<ipaddress>/local/<user>/<filename>where<user>isthe

selectedusergroup(viewer,operatororadministrator)fortheuploadedle.

PlainCong

PlainCongisforadvanceduserswithexperienceofAxisproductconguration.Mostparameterscanbesetandmodiedfrom

thispage.

ToopenPlainCong,gotoSystemOptions>Advanced>PlainCong.AxisSupportdoesnotprovideassistance.

ResettoFactoryDefaultSettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultwillresetallsettings,includingtheIP

address,tothefactorydefaultvalues.

Note

Theinstallationandmanagementsoftwaretoolsareavailablefromthesupportpagesonwww.axis.com/techsup

Toresettheproducttothefactorydefaultsettings:

Itisalsopossibletoresetparameterstofactorydefaultviathewebinterface.GotoSetup>SystemOptions>Maintenance.

AXISF34MainUnit

Troubleshooting

ChecktheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourrstactionswhentroubleshootingaproblem

shouldbetocheckthecurrentrmwareversion.Thelatestversionmaycontainacorrectionthatxesyourparticularproblem.The

currentrmwareversionintheAxisproductisdisplayedinthepageSetup>BasicSetupandinSetup>About.

UpgradetheFirmware

Important

•Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.

•Preconguredandcustomizedsettingsaresavedwhenthermwareisupgraded(providingthefeaturesareavailableinthe

newrmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

Note

•Aftertheupgradeprocesshascompleted,theproductwillrestartautomatically.Ifrestartingtheproductmanuallyafterthe

upgrade,alwayswait10minutesevenifyoususpecttheupgradehasfailed.

•WhenyouupgradetheAxisproductwiththelatestrmwarefromAxiswebsite,theproductreceivesthelatestfunctionality

available.Alwaysreadtheupgradeinstructionsandreleasenotesavailablewitheachnewreleasebeforeupgrading

thermware.

Toupgradetheproduct’srmware:

1.Savethermwareletoyourcomputer.ThelatestversionofthermwareisavailablefreeofchargefromAxiswebsite

atwww.axis.com/techsup

2.GotoSetup>SystemOptions>Maintenanceintheproduct’swebpages.

3.UnderUpgradeServer,clickBrowseandlocatetheleonyourcomputer.ClickUpgrade.

4.Waitapproximately10minuteswhiletheproductisbeingupgradedandrestarted.Thenaccesstheproduct.

AXISCameraManagementcanbeusedformultipleupgrades.Seewww.axis.comformoreinformation.

Symptoms,PossibleCausesandRemedialActions

ProblemssettingtheIPaddress

WhenusingARP/Ping

Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen

appliedtotheproduct.EnsurethePinglengthissetto408.Forinstructions,seeAssignIPAddress

UsingARP/Pingonpage46.

Theproductislocatedona

differentsubnet

IftheIPaddressintendedfortheproductandtheIPaddressofthecomputerusedtoaccessthe

productarelocatedondifferentsubnets,youwillnotbeabletosettheIPaddress.Contactyour

networkadministratortoobtainanIPaddress.

AXISF34MainUnit

Troubleshooting

TheIPaddressisbeingused

byanotherdevice

DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS

window,typepingandtheIPaddressoftheproduct):

•Ifyoureceive:Replyfrom<IPaddress>:bytes=32;time=10...

thismeansthattheIPaddressmayalreadybeinusebyanotherdeviceonthenetwork.

ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.

•Ifyoureceive:Requesttimedout,thismeansthattheIPaddressisavailable

forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.

PossibleIPaddressconict

withanotherdeviceonthe

samesubnet.

ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress.

ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay

beproblemsaccessingtheproduct.

Theproductcannotbeaccessedfromabrowser

Cannotlogin

WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting

tologin.Youmayneedtomanuallytypehttporhttpsinthebrowser’saddresseld.

Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.

SeeResettoFactoryDefaultSettingsonpage54.

TheIPaddresshasbeen

changedbyDHCP

IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IftheIPaddresshas

beenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthe

network.Identifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthename

hasbeencongured).

Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,seethedocumentAssign

anIPAddressandAccesstheVideoStreamonAxisSupportwebatwww.axis.com/techsup.

Certicateerrorwhenusing

IEEE802.1X

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbe

synchronizedwithanNTPserver.SeeDate&Timeonpage45.

Theproductisaccessiblelocallybutnotexternally

RoutercongurationTocongureyourroutertoallowincomingdatatrafctotheAxisproduct,enabletheNAT-traversal

featurewhichwillattempttoautomaticallyconguretheroutertoallowaccesstotheAxis

product,seeNATtraversal(portmapping)forIPv4onpage49.TheroutermustsupportUPnP

Firewallprotection

ChecktheInternetrewallwithyournetworkadministrator.

Defaultroutersrequired

CheckifyouneedtoconguretheroutersettingsfromSystemOptions>Network>TCP/IP>

Basic.

ProblemswithstreamingH.264

ProblemswithAXISMedia

Control(InternetExplorer

only)

ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX

controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.

NoH.264displayedinthe

client

CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC

ControlPanel(streamingtab).SeeAXISMediaControl(AMC)onpage15.

IntheAMCControlPanel,selecttheH.264tabandclickSettodefaultH.264decoder.

CheckthatRTSPisenabledunderSystemOptions>Network>TCP/IP>Advanced.

MulticastH.264only

accessiblebylocalclients

Checkifyourroutersupportsmulticasting,oriftheroutersettingsbetweentheclientandthe

productneedtobecongured.TheTTL(TimeToLive)valuemayneedtobeincreased.

NomulticastH.264

displayedintheclient

CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct

arevalidforyournetwork.

Checkwithyournetworkadministratortoseeifthereisarewallpreventingviewing.

AXISF34MainUnit

Troubleshooting

PoorrenderingofH.264

images

Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe

downloadedfromthemanufacturer’swebsite.

Colorsaturationisdifferent

inH.264andMotionJPEG

Modifythesettingsforyourgraphicsadapter.Refertotheadapter’sdocumentationformore

information.

Lowerframeratethan

expected

SeePerformanceConsiderationsonpage63.

Reducethenumberofapplicationsrunningontheclientcomputer.

Limitthenumberofsimultaneousviewers.

Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.

CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonly

keyframes.

Lowertheimageresolution.

SetaCaptureModethatprioritizesframerate.Changingthecapturemodetoprioritizeframerate

willlowerthemaximumresolution.SeeCaptureModeonpage21.

Themaximumframespersecondisdependentontheutilityfrequency(60/50Hz)oftheAxis

product.SeeTechnicalSpecicationsonpage58.

StatusandNetworkindicatorLEDsareashingredrapidly

Hardwarefailure

ContactyourAxisreseller.

Productdoesnotstartup

ProductdoesnotstartupIftheproductdoesnotstartupkeepthenetworkcableconnectedandre-insertthepowercable

tothemidspan.

Videoandimageproblems,general

Imageunsatisfactory

CheckthevideostreamandcamerasettingsunderSetup>Video>VideoStreamandSetup>

Video>CameraSettings.

Storageanddiskmanagementproblems

Storagedisruption

Astoragedisruptionalarmissentifastoragedeviceisunavailable,removed,full,lockedorifother

readorwriteproblemsoccur.Toidentifythesourceoftheproblem,checktheSystemLogunder

SystemOptions>Support>Logs&Reports.Dependingontheproblem,itmightbenecessaryto

re-mountthestoragedevice.

Forinformationonhowtosetupastoragedisruptionalarm,seeEventsonpage36.

Videocannotberecorded

CheckthattheSDcardisnotwriteprotected(thatis,readonly).

SDcardcannotbemountedReformattheSDcardandthenclickMount.

NO NO

TICE TICE

TICE

Formattingthecardwillremoveallcontent,includingallrecordings,fromtheSDcard.

AXISF34MainUnit

TechnicalSpeciﬁcations

AXISF34MainUnit

Models

AXISF34:4channels,1080p/HDTV720p,quadview

Video

compression

H.264(MPEG-4Part10/AVC)Baseline,MainandHighProles

MotionJPEG

Resolutions

1920x1080(1080p)to160x90

1280x720(720p)to160x90

Framerate

H.264/MotionJPEG:

In1080p,12.5/15fps(50/60Hz);In720p,25/30fps(50/60Hz)

Video

streaming

Multiple,individuallycongurablestreamsinH.264(Main,BaselineandHighProles)andMotionJPEG

Controllableframerateandbandwidth

VBR/MBRH.264

Axis'ZipstreamTechnologyinH.264

Quadview,max.1080presolution;25/30fps(50/60Hz)with720pcapturemode;12.5/15fps(50/60Hz)with

1080pcapturemode

Imagesettings

Compression,Color,Brightness,Sharpness,Contrast,Whitebalance,Exposurevalue,Exposurecontrol,Exposure

zones,Localcontrast,Rotation,CorridorFormat,Textandimageoverlay,Privacymask,Mirroringofimages

WideDynamicRange–DynamicContrast

Network

SecurityPasswordprotection,IPaddressltering,HTTPS

encryption,IEEE802.1X

networkaccesscontrol,Digest

authentication,Useraccesslog,Centralizedcerticatemanagement

Supported

protocols

IPv4/v6,HTTP,HTTPS

,SSL/TLS

,QoSLayer3DiffServ,FTP,CIFS/SMB,SMTP,Bonjour,UPnP™,SNMPv1/v2c/v3(MIB-II),

DNS,DynDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,RTCP,ICMP,DHCP,ARP,SOCKS,SSH

Systemintegration

Application

Programming

Interface

OpenAPIforsoftwareintegration,includingVAPIX®andAXISCameraApplicationPlatform,specications

atwww.axis.com

AXISVideoHostingSystem(AVHS)withOne-ClickConnection

ONVIFProleS

Analytics

AXISCameraApplicationPlatform

Videomotiondetection3

EventtriggersAnalytics

Edgestorageevents

Eventactions

Fileupload:FTP,HTTP,HTTPS,networkshare

Notication:email,HTTP,HTTPSandTCP

Pre-andpost-alarmvideobuffering

SendSNMPtrap,WDRmode

Built-in

installation

aids

Pixelcounter

Data

streaming

Eventdata

General

Casing

Plastic

Memory1024MBRAM,256MBFlash

Power

PoweroverEthernetIEEE802.3af/802.3atType1Class3

AXISF34MainUnit

TechnicalSpeciﬁcations

max12.27W;8-28VDC,max12.58W

Connectors

FemaleRJ45for10BASE-T/100BASE-TXPoE

RJ12forsensorunits

2-pinterminalblockfor8-28VDCinput

Edgestorage

Supportforrecordingtodedicatednetwork-attachedstorage.ForSDcardandNASrecommendations,see

www.axis.com

TwoSD/SDHC/SDXCslotssupportingmemorycardupto64GB(cardnotincluded)

Operating

conditions

0°Cto40°C(32°Fto104°F)

Humidity10-85%RH(non-condensing)

Storage

conditions

-40°Cto65°C(-40°Fto149°F)

Approvals

IEC/EN/UL60950-1,IEC60068-2-1,IEC60068-2-2,IEC60068-2-6,IEC60068-2-14,IEC60068-2-78,EN55024,

EN61000-6-1,EN61000-6-2,EN61000-3-2,EN61000-3-3,EN50581,IEC60529IP32

EN55022ClassB,FCCPart15SubpartBClassB,ICES-003ClassB,VCCIClassB,C-tickAS/NZSCISPR22ClassB,

KCCKN22ClassB,KN24

Dimensions

30x121x121mm(13/16x412/16x412/16in)

Weight

238g(0.52lb)

Included

accessories

Rubberfeet,Mountbracket

InstallationGuide,Windowsdecoder1-userlicense,AVHSAuthenticationkey

Optional

accessories

AXIST812015WMidspan1-port,AXIST8129PoEExtender,Networkcablecouplerindoorslim,MainsadaptorPS-P

terminalconnector,AXISSurveillancemicroSDXCCard64GB

Video

management

software

AXISCameraCompanion,AXISCameraStation,VideomanagementsoftwarefromAxis’ApplicationDevelopment

Partnersavailableonwww.axis.com/techsup/software

Warranty

Axis3-yearwarrantyandAXISExtendedWarrantyoption,seewww.axis.com/warranty

a.Informationmayvarydependingonthesensorunit

b.Informationmayvarydependingonthesensorunit

c.ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseintheOpenSSLToolkit(http://www.openssl.org/),and

cryptographicsoftwarewrittenbyEricYoung([email protected]).

AXISFSensorUnits

Models

Sensorunitswithoptionof3-mor12-m(10-ftor39-ft)cable:

AXISF1005-E:Standard,IP66/IP67-rated

AXISF1015:Varifocal

AXISF1025:Pinhole

AXISF1035-E:Fisheye,IP66/IP67-rated

Camera

Imagesensor

AXISF1005-E/AXISF1015/AXISF1025/AXISF1035-E:1/2.8”(effective)progressivescanRGBCMOS

LensFixediris

AXISF1005-E:2.8mm,F2.0:1 13°view;73°viewinHDTV720p

AXISF1015:3-6mm,F2.0:108°to53°view;65°to35°viewinHDTV720p

AXISF1025:3.7mm,F2.5:92°view;56°viewinHDTV720p

AXISF1035-E:1.3mm,F2.8:194°view;112°viewinHDTV720p

Minimum

illumination

Color:0.3lux

ShuttertimeWithAXISF34:

1080p12.5/15fps:1/22500sto2s;

HDTV720p25/30fps:1/28000sto2s

WithAXISF41:

AXISF34MainUnit

TechnicalSpeciﬁcations

HDTV1080p25/30/50/60fps:1/143000sto2s;

WUXGA(1920x1200)25/30fps:1/143000sto2s

WithAXISF44:

1080p12.5/15fps:1/22500sto2s;

HDTV720p25/30fps:1/28000sto2s

General

Casing

Aluminum

Operating

conditions

-30°Cto55°C(-22°Fto131°F)

AXISF1005-E/F1035-E:Humidity10-100%RH(condensing)

AXISF1015/F1025:Humidity10-85%RH(non-condensing)

Storage

conditions

-40°Cto65°C(-40°Fto149°F)

Approvals

AXISF1005-E/F1015/F1025/F1035-E:ECER10rev.04,EN50121-4,IEC/EN/UL60950-1,IEC60068-2-1,

IEC60068-2-2,IEC60068-2-14,IEC60068-2-30,IEC60068-2-78,IEC60529IP4X,IEC62236-4,EN55022ClassB,

EN55024,EN61000-3-2,EN61000-3-3,EN61000-6-1,EN61000-6-2,FCCPart15SubpartBClassB,

ICES-003ClassB,VCCIClassB,C-tickAS/NZSCISPR22ClassB,KCCKN22ClassB,KN24,EN50581

AXISF1005-E/F1035-E:,IEC60068-2-60,IEC60529IP66/IP67,IEC60721-3-55M3(vibration,shock),

IEC/EN/UL60950-22,NEMA250Type4X

AXISF1015/F1025:IEC60068-2-6,IEC60068-2-27

Dimensions

AXISF1005-E:62mm(2.4in)ø30mm(1.2in)

AXISF1015:69mm(2.7in)ø30mm(1.2in)

AXISF1025:45mm(1.8in)ø20mm(0.8in)

AXISF1035-E:62mm(2.4in)ø30mm(1.2in)

Weight

AXISF1005-E(12m/39ftcable):366g(0.81lb)

AXISF1005-E(3m/10ftcable):1 16g(0.26lb)

AXISF1015(12m/39ftcable):370g(0.82lb)

AXISF1015(3m/10ftcable):120g(0.26lb)

AXISF1025(12m/39ftcable):328g(0.72lb)

AXISF1025(3m/1ftcable):78g(0.17lb)

AXISF1035-E(12m/39ftcable):346g(0.76lb)

AXISF1035-E(3m/10ftcable):96g(0.21lb)

Included

accessories

InstallationGuide

AXISF1005-E/F1015/F1035-E:AXISF8201Vari-angleMountingBracket

AXISF1025:AXISF8202StraightMountingBracket

Optional

accessories

AXISF1005-E/F1015/F1035-E:AXISF8203FixedMountBracket

AXISF1005-E:AXISF8401ClearLensProtector

Warranty

Axis3-yearwarranty,seewww.axis.com/warranty

a.Informationmayvarydependingonthesensorunit

AXISF1004SensorUnit

Camera

Imagesensor

1/4”(effective)progressivescanRGBCMOS

LensFixediris

2.1mm,F2.2:102°horizontalangleofview,56°verticalangleofview

Minimum

illumination

Color:0.4lux

Shuttertime

1/24500sto1/6s

ResolutionsMax:720p

AXISF34MainUnit

TechnicalSpeciﬁcations

Framerate

25/30fps

ImagesettingsWDR–dynamiccontrast

General

Casing

Zincandplastic

Operating

conditions

0°Cto50°C(32°Fto122°F)

Storage

conditions

-40°Cto65°C(-40°Fto149°F)

Approvals

IEC/EN/UL60950-1,IEC60068-2-1,IEC60068-2-2,IEC60068-2-6,IEC60068-2-14,IEC60068-2-27,

IEC60068-2-78,EN55024,EN61000-6-1,EN61000-6-2,EN61000-3-2,EN61000-3-3,EN50581,IEC60529IP3x,

EN55022ClassB,FCCPart15SubpartBClassB,ICES-003ClassB,VCCIClassB,C-tickAS/NZSCISPR22ClassB,

KCCKN22ClassB,KN24

Dimensions

37.5mm(11/2in)

ø16mm(5/8in)

Weight

96g(0.21lb)

Required

hardware

AXISFSeriesMainUnit

Included

accessories

InstallationGuide

Flushmountkitforinstallationinwallorceiling

Optional

accessories

AXISF8214DomeAccessory

AXISF8224RecessedMount

AXISF8204Mountingband

MountingbracketforAXISP1214,P1214-EandP1224-E

Warranty

Axis3-yearwarranty,seewww.axis.com/warranty

AXISF4005DomeSensorUnit

Camera

Imagesensor

1/2.8”(effective)progressivescanRGBCMOS

Lens2.8mm,F2.0

WithAXISF41/F44in1080p:Horizontalangleofview113°,Verticalangleofview62°

WithAXISF44in720p:Horizontalangleofview73°,Verticalangleofview41°

Minimum

illumination

0.3lux

ShuttertimeWithAXISF41:

HDTV1080p25/30/50/60fps:1/143000sto2s;

WUXGA(1920x1200)25/30fps:1/143000sto2s

WithAXISF44:

1080p12.5/15fps:1/22500sto2s;

HDTV720p25/30fps:1/28000sto2s

Cameraangle

adjustment

Tilt:120°,Rotation:90°

Widedynamic

range

ImagesettingsWDR–forensiccapture

General

Casing

Plastic

AXISF34MainUnit

TechnicalSpeciﬁcations

Operating

conditions

-30°Cto55°C(-22°Fto131°F)

Humidity10-85%RH(non-condensing)

Storage

conditions

-40°Cto65°C(-40°Fto149°F)

Approvals

ECER10rev.04,EN50121-4,IEC/EN/UL60950-1,IEC60068-2-1,IEC60068-2-2,IEC60068-2-14,

IEC60068-2-30,IEC60068-2-60,IEC60068-2-78,IEC62236-4,EN55022ClassB,EN55024,EN61000-3-2,

EN61000-3-3,EN61000-6-1,EN61000-6-2,FCCPart15SubpartBClassB,ICES-003ClassB,

VCCIClassB,C-tickAS/NZSCISPR22ClassB,KCCKN22ClassB,KN24,EN50581,IEC60068-2-60,

IEC60721-3-55M3(vibration,shock)

Dimensions

Depth:38mm(11/2in)

ø112mm(1/6in)

12-m(39ft)cable

Weight

530g(1.1lb)

Required

hardware

AXISFMainUnit

Included

accessories

InstallationGuide,Windowsdecoder1-userlicense

Warranty

Axis3-yearwarranty,seewww.axis.com/warranty

AXISF4005-EDomeSensorUnit

Camera

Imagesensor

1/2.8”(effective)progressivescanRGBCMOS

Lens2.8mm,F2.0

WithAXISF41/F44in1080p:Horizontalangleofview110°,Verticalangleofview61°

WithAXISF44in720p:Horizontalangleofview71°,Verticalangleofview40°

Minimum

illumination

0.3lux

ShuttertimeWithAXISF41:

HDTV1080p25/30/50/60fps:1/143000sto2s

WUXGA(1920x1200)25/30fps:1/143000sto2s

WithAXISF44:

1080p12.5/15fps:1/22500sto2s

HDTV720p25/30fps:1/28000sto2s

Cameraangle

adjustment

Tilt:120°,Rotation:90°

Widedynamic

range

ImagesettingsWDR–forensiccapture

General

Casing

Plastic

Operating

conditions

-30°Cto55°C(-22°Fto131°F)

Humidity10-100%RH(condensing)

Storage

conditions

-40°Cto65°C(-40°Fto149°F)

Approvals

ECER10rev.04,EN50121-4,IEC/EN/UL60950-1,IEC60068-2-1,IEC60068-2-2,IEC60068-2-14,

IEC60068-2-30,IEC60068-2-60,IEC60068-2-78,IEC62236-4,EN55022ClassB,EN55024,EN61000-3-2,

EN61000-3-3,EN61000-6-1,EN61000-6-2,FCCPart15SubpartBClassB,ICES-003ClassB,VCCIClassB,

C-tickAS/NZSCISPR22ClassB,KCCKN22ClassB,KN24,EN50581,IEC60068-2-60,IEC60529IP66,

IEC60721-3-55M3(vibration,shock),IEC62262IK09,IEC/EN/UL60950-22

Dimensions

Depth:38mm(11/2in)

AXISF34MainUnit

TechnicalSpeciﬁcations

ø112mm(1/6in)

12-m(39ft)cable

Weight

590g(1.3lb)

Required

hardware

AXISFMainUnit

Included

accessories

InstallationGuide,Windowsdecoder1-userlicense

Warranty

Axis3-yearwarranty,seewww.axis.com/warranty

Moreinformationisavailableatwww.axis.com

Connectors

PowerConnector

2-pinterminalblockforDCpowerinput.UseaSafetyExtraLowVoltage(SELV)compliant

limitedpowersource(LPS)witheitheraratedoutputpowerlimitedto≤100Woraratedoutput

currentlimitedto≤5A.

PerformanceConsiderations

Whensettingupyoursystem,itisimportanttoconsiderhowvarioussettingsandsituationswillaffectperformance.Somefactors

affecttheamountofbandwidth(thebitrate)required,otherscanaffecttheframerate,andsomeaffectboth.Iftheloadonthe

CPUreachesitsmaximum,thiswillalsoaffecttheframerate.

Thefollowingfactorsareamongthemostimportanttoconsider:

•Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.

•AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.

•Simultaneousviewingofdifferentstreams(resolution,compression)bydifferentclients.Effectonframerateand

bandwidth.

•AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.

•Heavyusageofeventsettingsaffecttheproduct’sCPUload.Framerateaffected.

•UsingHTTPSmayreduceframerate,inparticularifstreamingMotionJPEG.

•Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.

•Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.

•RunningmultipleAXISCameraApplicationPlatform(ACAP)applicationssimultaneouslymayaffecttheframerateand

thegeneralperformance.

UserManualVer.M1.14

AXISF34MainUnitDate:September2015

PartNo.54751

Axis 0778-001 F34 4 Channel HDTV 720P/1080P Quad View Main Unit

Product's Documents

Axis F34 User Manual

Specifications

Axis 0778-001 Questions and Answers
