Productoverview

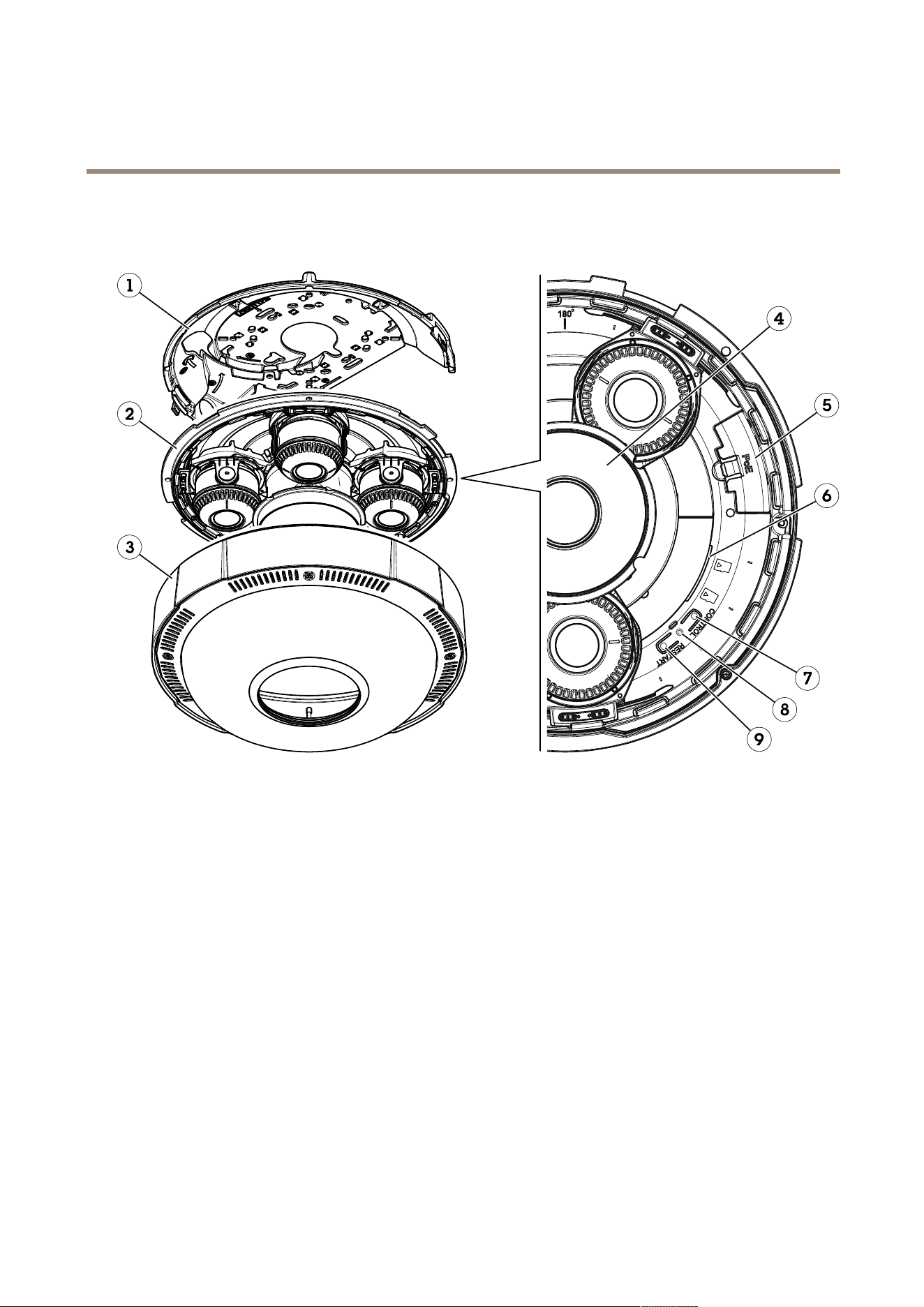

Mountingbracket

Cameraunit

Domecover

IRillumination

Networkconnector(PoE)

SDcardslots

Controlbutton

StatusLEDindicator

Restartbutton

AXISP37–PLENetworkCameraSeries

Findthedeviceonthenetwork

TondAxisdevicesonthenetworkandassignthemIPaddressesinWindows®,useAXISIPUtilityorAXISDeviceManager.Both

applicationsarefreeandcanbedownloadedfromaxis.com/support.

FormoreinformationabouthowtondandassignIPaddresses,seethedocumentHowtoassignanIPaddressandaccessyour

deviceonthedevicepageataxis.com.

Accessthedevice

1.OpenabrowserandentertheIPaddressorhostnameoftheAxisdevice.

IfyouhaveaMaccomputer(OSX),gotoSafari,clickBonjourandselectthedevicefromthedrop-downlist.Toadd

Bonjourasabrowserbookmark,gotoSafari>Preferences.

IfyoudonotknowtheIPaddress,useAXISIPUtilityorAXISDeviceManagertondthedeviceonthenetwork.

2.Entertheusernameandpassword.Ifyouaccessthedeviceforthersttime,youmustsettherootpassword.See

Setasecurepasswordfortherootaccountonpage4.

3.Theliveviewpageopensinyourbrowser.

Securepasswords

Important

Axisdevicessendtheinitiallysetpasswordincleartextoverthenetwork.Toprotectyourdeviceaftertherstlogin,set

upasecureandencryptedHTTPSconnectionandthenchangethepassword.

Thedevicepasswordistheprimaryprotectionforyourdataandservices.Axisdevicesdonotimposeapasswordpolicyasthey

maybeusedinvarioustypesofinstallations.

Toprotectyourdatawestronglyrecommendthatyou:

•Useapasswordwithatleast8characters,preferablycreatedbyapasswordgenerator.

•Don’texposethepassword.

•Changethepasswordatarecurringinterval,atleastonceayear.

Setasecurepasswordfortherootaccount

Important

Thedefaultadministratorusernameisroot.Ifthepasswordforrootislost,resetthedevicetofactorydefaultsettings.

1.Typeapassword.Followtheinstructionsaboutsecurepasswords.SeeSecurepasswordsonpage4.

2.Retypethepasswordtoconrmthespelling.

3.ClickCreatelogin.Thepasswordhasnowbeencongured.

AXISP37–PLENetworkCameraSeries

Setup

Webpageoverview

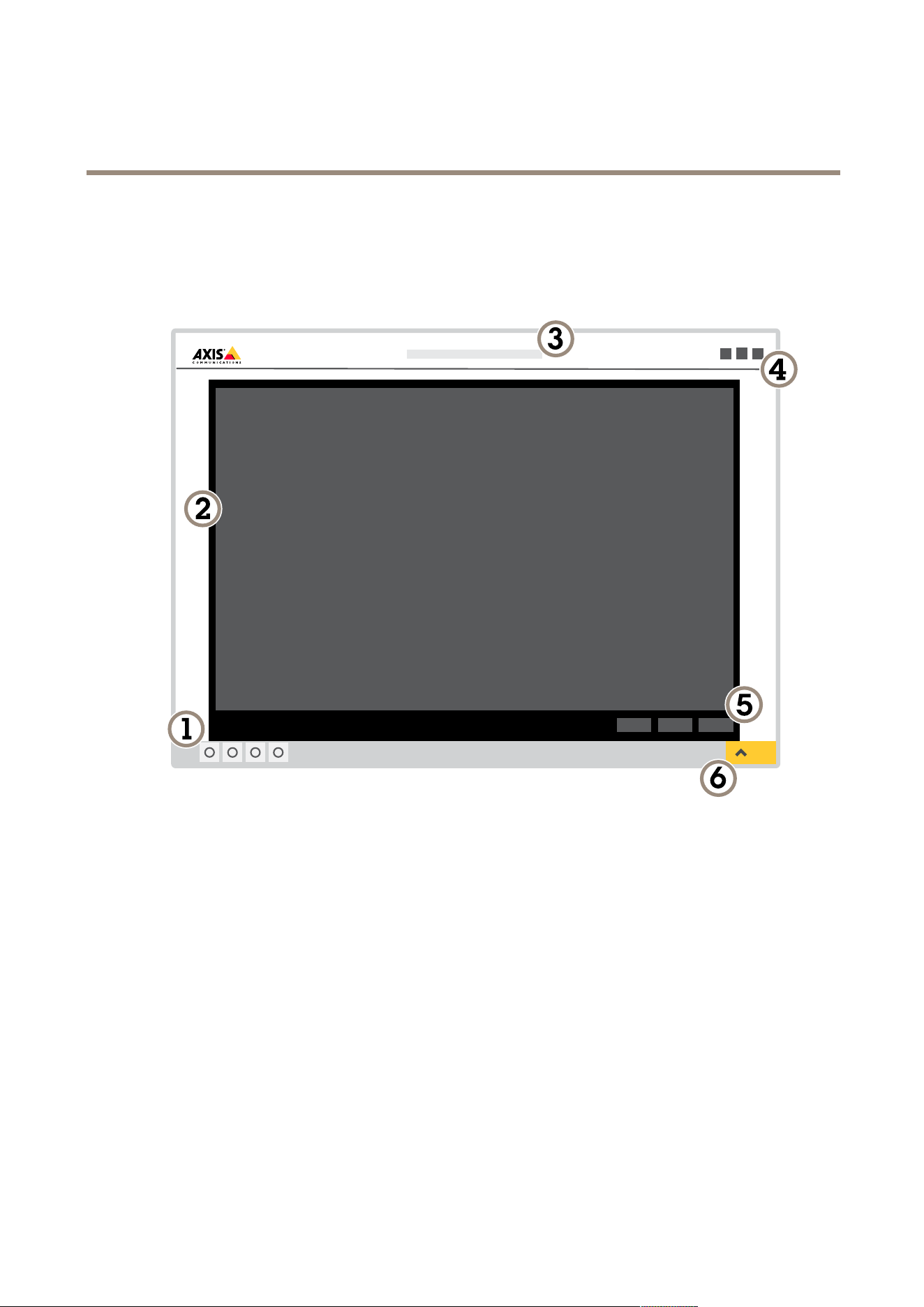

Liveviewcontrolbar

Liveview

Productname

Userinformation,colorthemes,andhelp

Videocontrolbar

Settingstoggle

AXISP37–PLENetworkCameraSeries

Setup

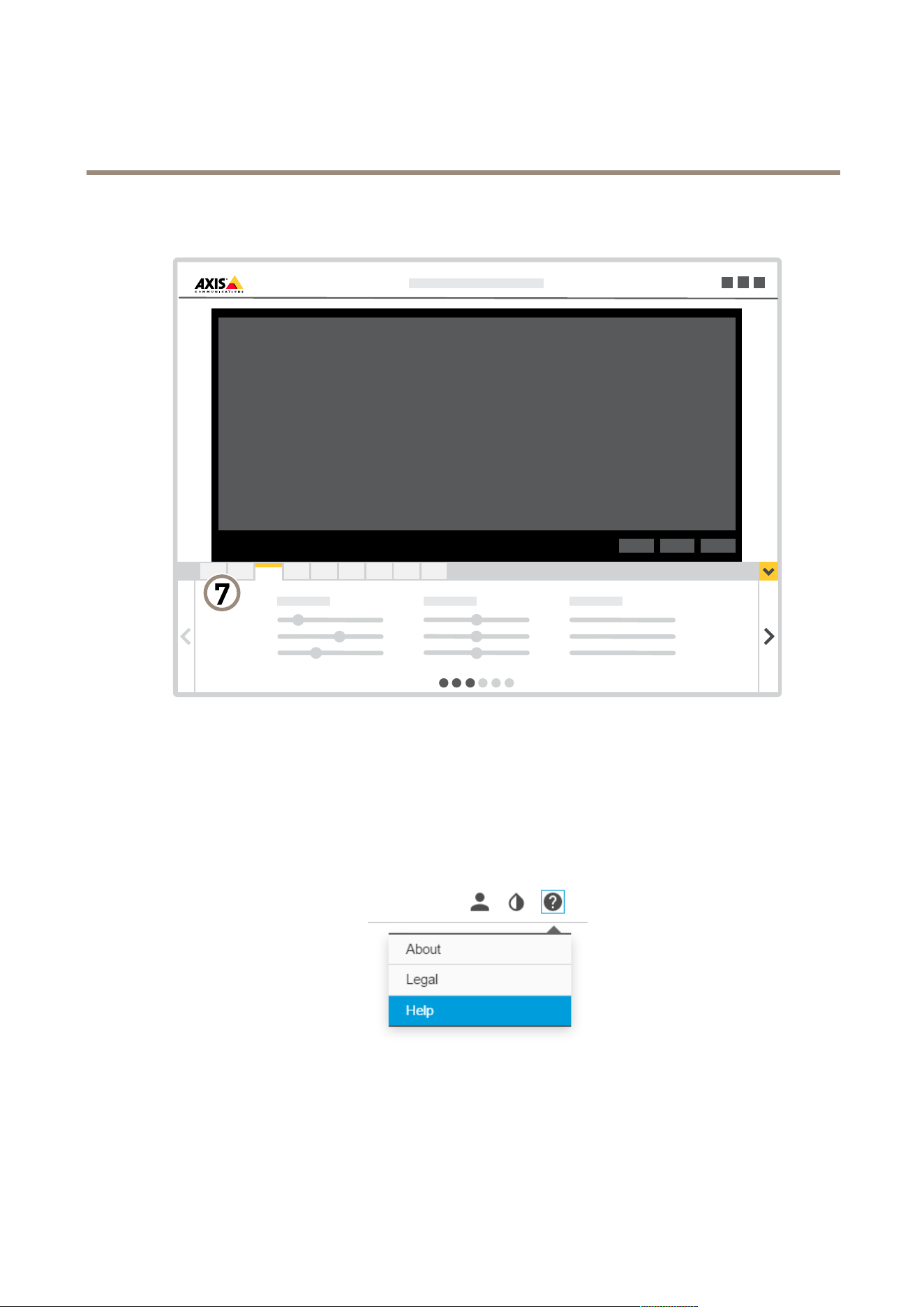

Settingstabs

Needmorehelp?

Youcanaccessthebuilt-inhelpfromthedevice’swebpage.Thehelpprovidesmoredetailedinformationonthedevice’sfeaturesand

theirsettings.

AXISP37–PLENetworkCameraSeries

Setup

Imagequality

Remotefocusandzoom

Theremotefocusandzoomfunctionalityallowsyoutomakefocusandzoomadjustmentstoyourcamerafromacomputer.Itisa

convenientwaytoensurethatthescene’sfocus,viewingangleandresolutionareoptimizedwithouthavingtovisitthecamera’s

installationlocation.

Left:nofocus.Right:remotefocusapplied.

Left:nozoom.Right:remotezoomapplied.

OptimizeIRillumination

Inmostcases,theexposureoftheimageisautomaticallyadjustedtoobtainoptimalimagequality.Ifthecameraisplacedclosetoa

walloracorner,itcansometimesresultinsaturationofpartsoftheimage.Whenthishappens,theLED’sclosesttothewallor

cornerareautomaticallydimmedtoavoidsaturatingtheimage.

Dependingontheinstallationenvironmentandtheconditionsaroundthecamera,forexampleexternallightsourcesinthescene,

youcansometimesimprovetheIRilluminationifyoumanuallyadjusttheintensityoftheLED’s.

1.GotoSettings>Image>Dayandnight,andturnonAllowIRillumination.

2.TurnonLiveviewcontrol.

3.MinimizeSettings.

4.Intheliveview,clicktheIlluminationbutton,turnonIRlightandselectManual.

AXISP37–PLENetworkCameraSeries

Setup

5.Adjusttheintensity.

BenetfromIRlightinlow-lightconditionsusingnightmode

Yourcamerausesvisiblelighttodelivercolorimagesduringtheday.Astheavailablelightdiminishes,youcansetthecamerato

automaticallyshifttonightmode,inwhichthecamerausesbothvisiblelightandnear-infraredlighttodeliverblack-and-white

images.Sincethecamerausesmoreoftheavailablelightitcandeliverbrighter,moredetailed,images.

1.GotoSettings>Image>Dayandnight,andmakesurethattheIRcutlterissettoAuto.

2.Todetermineatwhatlightlevelyouwantthecameratoshifttonightmode,movetheThresholdslidertowardBright

orDark.

3.EnableAllowIRilluminationandSynchronizeIRilluminationtousethecamera’sIRlightwhennightmodeisactivated.

Note

Ifyousettheshifttooccurwhenit’sbrighter,theimageremainssharperastherewillbelesslow-lightnoise.Ifyouset

theshifttooccurwhenit’sdarker,theimagecolorsaremaintainedforlonger,buttherewillbemoreimageblurdue

tolow-lightnoise.

Reducenoiseinlow-lightconditions

Toreducenoiseinlow-lightconditions,youcanadjustoneormoreofthefollowingsettings:

•Settheexposuremodetoautomatic.

Note

Ahighmaxshuttervaluecanresultinmotionblur.

•Toslowdowntheshutterspeed,setmaxshuttertothehighestpossiblevalue.

•Reducesharpnessintheimage.

•Setthemaxgaintoalowervalue.

Handlesceneswithstrongbacklight

Dynamicrangeisthedifferenceinlightlevelsinanimage.Insomecasesthedifferencebetweenthedarkestandthebrightest

areascanbesignicant.Theresultisoftenanimagewhereeitherthedarkorthebrightareasarevisible.Widedynamicrange

(WDR)makesbothdarkandbrightareasoftheimagevisible.

1.GotoSettings>Image>Widedynamicrange.

2.Ifrequired,turnonWDR.

3.UsetheLocalcontrastslidertoadjusttheamountofWDR.

ImagewithoutWDR.

AXISP37–PLENetworkCameraSeries

Setup

ImagewithWDR.

Note

WDRmaycauseartifactsintheimage.

FindoutmoreaboutWDRandhowtouseitataxis.com/web-articles/wdr.

Monitorlongandnarrowareas

Usecorridorformattobetterutilizethefulleldofviewinalongandnarrowarea,forexampleastaircase,hallway,road,ortunnel.

1.Dependingonyourdevice,turnthecameraorthe3-axislensinthecamera90°or270°.

2.Ifthedevicedoesn’trotatetheviewautomatically,logintothewebpageandgotoSettings>System>Orientation.

3.Click

4.Rotatetheview90°or270°.

Findoutmoreataxis.com/axis-corridor-format.

Privacymasks

Aprivacymaskisauser-denedareathatcoversapartofthemonitoredarea.Inthevideostream,privacymasksappeareitheras

blocksofsolidcolororwithamosaicpattern.

You’llseetheprivacymaskonallsnapshots,recordedvideo,andlivestreams.

YoucanusetheVAPIX®applicationprogramminginterface(API)toturnofftheprivacymasks.

Important

Ifyouusemultipleprivacymasksitmayaffecttheproduct’sperformance.

AXISP37–PLENetworkCameraSeries

Setup

Important

Setthezoomandfocusbeforeyoucreateaprivacymask.

Note

Youcan’taddprivacymaskstothequadstream,butitwillshowallprivacymasksconguredontheindividualchannels.

Hidepartsoftheimagewithprivacymasks

Createaprivacymasktohideapartoftheimage:

1.GotoSettings>Privacymask.

2.ClickNew.

Overlays

Note

Theoverlayfeatureisnotsupportedforthequadstream,onlyfortheindividualvideostreams.

Overlaysaresuperimposedoverthevideostream.Theyareusedtoprovideextrainformationduringrecordings,suchasatimestamp,

orduringproductinstallationandconguration.Youcanaddeithertextoranimage.

Showanimageoverlay

Toaddanimageasanoverlayinthevideostream:

1.GotoSettings>Overlay.

2.ClickCreateoverlay.

3.SelectImageandclickOk.

4.SelectImportanduploadanimage.

5.Selecttheimagefromthedrop-downlist.

6.Topositiontheimageoverlay,chooseCustomoroneofthepresets.

Showatextoverlayinthevideostreamwhenthedevicedetectsmotion

Thisexampleexplainshowtodisplaythetext“Motiondetected”whenthedevicedetectsmotion:

MakesuretheAXISVideoMotionDetectionapplicationisrunning:

1.GotoSettings>Apps>AXISVideoMotionDetection.

2.Starttheapplicationifitisnotalreadyrunning.

3.Makesureyouhavesetuptheapplicationaccordingtoyourneeds.

Addtheoverlaytext:

4.GotoSettings>Overlay.

5.SelectCreateoverlayandselectTextoverlay.

6.Enter#Dinthetexteld.

7.Choosetextsizeandappearance.

8.Topositionthetextoverlay,chooseCustomoroneofthepresets.

AXISP37–PLENetworkCameraSeries

Setup

Createarule:

9.GotoSystem>Events>Rulesandaddarule.

10.Typeanamefortherule.

11.Inthelistofconditions,selectAXISVideoMotionDetection.

12.Inthelistofactions,selectUseoverlaytext.

13.Selectaviewarea.

14.Type“Motiondetected”.

15.Settheduration.

16.ClickSave.

Note

Ifyouupdatetheoverlaytextitwillbeautomaticallyupdatedonallvideostreamsdynamically.

Streamingandstorage

Bitratecontrol

Bysettingthebitratecontrolyoucanmanagethebandwidthconsumptionforyourvideostream.

Variablebitrate(VBR)

Withvariablebitratethebandwidthvariesbasedonthelevelofactivityinthescene.Themoreactivityinthescene,themore

bandwidthisrequired.Thisoptionguaranteesthatimagequalityisconstantbutrequiresstoragemargins.

XBitrate

YTime

Maximumbitrate(MBR)

Themaximumbitrateoptionallowsyoutosetatargetbitratevaluetobeabletohandlesystembitratelimitations.Tokeepthe

instantaneousbitratebelowthespeciedtargetbitrate,theremaybeadecreaseinimagequalityortheframeratemaydecrease.

Youhavetheoptiontoprioritizeeitherimagequalityorframerate.Itisrecommendedtocongurethetargetbitratehigherthanthe

expectedbitratetohavemarginsforadditionalcomplexitythatneedstobecaptured.

AXISP37–PLENetworkCameraSeries

Setup

XBitrate

YTime

ATargetbitrate

Averagebitrate(ABR)

Withaveragebitrate,thebitrateisautomaticallyadjustedoveralongertimescaletomeetthespeciedtargetandprovidethebest

qualityonthevideostreambasedonavailablestorage.Bitrateishigherinsceneswithactivities,comparedtostaticscenes.The

probabilityofgettingbetterimagequalitywhendesiredishigherwhenusingtheaveragebitrateoption.Theaveragebitrateoption

allowsyoutodenethetotalstoragerequiredtostorethevideostreamforaspeciedamountoftime(retentiontime)whenimage

qualityisadjustedtomeetthespeciedtargetbitrate.Specifytheaveragebitratesettingsinoneofthefollowingways:

•Setthetargetbitrateandtheretentiontimetocalculatetheestimatedstorageneed.

•Usethetargetbitratecalculatortocalculatetheaveragebitrate,basedonavailablestorageanddesiredretentiontime.

Youhavealsotheoptiontoturnonmaximumbitratetospecifyabitratelimit.

XBitrate

YTime

ATargetbitrate

BActualaveragebitrate

AXISP37–PLENetworkCameraSeries

Setup

Videocompressionformats

Decidewhichcompressionmethodtousebasedonyourviewingrequirements,andonthepropertiesofyournetwork.The

availableoptionsare:

MotionJPEG

MotionJPEG,orMJPEG,isadigitalvideosequencethatismadeupofaseriesofindividualJPEGimages.Theseimagesarethen

displayedandupdatedataratesufcienttocreateastreamthatshowsconstantlyupdatedmotion.Fortheviewertoperceivemotion

videotheratemustbeatleast16imageframespersecond.Fullmotionvideoisperceivedat30(NTSC)or25(PAL)framespersecond.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage

containedinthestream.

H.264orMPEG-4Part10/AVC

Note

H.264isalicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Toinstalladditionalunlicensed

copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

H.264can,withoutcompromisingimagequality,reducethesizeofadigitalvideolebymorethan80%comparedtotheMotion

JPEGformatandbyasmuchas50%comparedtotheMPEG-4standard.Thismeansthatlessnetworkbandwidthandstoragespace

arerequiredforavideole.Orseenanotherway,highervideoqualitycanbeachievedforagivenbitrate.

Reducebandwidthandstorage

Important

Ifyoureducethebandwidthitcanresultinlossofdetailsinthepicture.

1.GotoliveviewandselectH.264.

2.GotoSettings>Stream.

3.Dooneormoreofthefollowing:

-TurnontheZipstreamfunctionalityandselectthedesiredlevel.

-TurnondynamicGOPandsetahighGOPlengthvalue.

-Increasethecompression.

-TurnondynamicFPS.

Setupnetworkstorage

Tostorerecordingsonthenetwork,youneedtosetupnetworkstorage:

1.GotoSettings>System>Storage.

2.ClickSetupunderNetworkstorage.

3.EntertheIPaddressofthehostserver.

4.Enterthenameofthesharedlocationonthehostserver.

5.Movetheswitchifthesharerequiresalogin,andenterusernameandpassword.

6.ClickConnect.

Recordandwatchvideo

Torecordvideoyoumustrstsetupnetworkstorage,seeSetupnetworkstorageonpage13,orhaveanSDcardinstalled.

AXISP37–PLENetworkCameraSeries

Setup

Recordvideo

1.Gotothecamera’sliveview.

2.Tostartarecording,clickRecord.Clickagaintostoptherecording.

Watchvideo

1.ClickStorage>Gotorecordings.

2.Selectyourrecordinginthelistanditwillplayautomatically.

Events

Setuprulesandalerts

Youcancreaterulestomakeyourdeviceperformanactionwhencertaineventsoccur.Aruleconsistsofconditionsandactions.

Theconditionscanbeusedtotriggertheactions.Forexample,thedevicecanstartarecordingorsendanemailwhenitdetects

motion,orshowanoverlaytextwhenitrecords.

Triggeranaction

1.GotoSettings>System>Eventstosetuparule.Theruledeneswhenthecamerawillperformcertainactions.Rules

canbesetupasscheduled,recurring,orforexample,triggeredbymotiondetection.

2.SelecttheConditionthatmustbemettotriggertheaction.Ifyouspecifymorethanoneconditionfortherule,allofthe

conditionsmustbemettotriggertheaction.

3.SelectwhichActionthecamerashouldperformwhentheconditionsaremet.

Note

Ifyoumakechangestoanactiverule,thentheruleneedstoberestartedforthechangestotakeeffect.

Recordvideowhenthecameradetectsmotion

ThisexampleexplainshowtosetupthecameratostartrecordingtotheSDcardvesecondsbeforeitdetectsmotionandto

stoponeminuteafter.

MakesuretheAXISVideoMotionDetectionapplicationisrunning:

1.GotoSettings>Apps>AXISVideoMotionDetection.

2.Starttheapplicationifitisnotalreadyrunning.

3.Makesureyouhavesetuptheapplicationaccordingtoyourneeds.

Createarule:

1.GotoSettings>System>Eventsandaddarule.

2.Typeanamefortherule.

3.Inthelistofconditions,underApplication,selectAXISVideoMotionDetection(VMD).

4.Inthelistofactions,underRecordings,selectRecordvideowhiletheruleisactive.

5.Selectanexistingstreamproleorcreateanewone.

6.Settheprebuffertimeto5seconds.

7.Setthepostbuffertimeto60seconds.

AXISP37–PLENetworkCameraSeries

Setup

8.Inthelistofstorageoptions,selectSDcard.

9.ClickSave.

Sendanemailautomaticallyifsomeonespraypaintsthelens

1.GotoSystem>Detectors.

2.TurnonTriggerondarkimages.Thiswilltriggeranalarmifthelensissprayed,covered,orrenderedseverelyoutoffocus.

3.SetadurationforTriggerafter.Thevalueindicatesthetimethatmustpassbeforeanemailissent.

Createarule:

1.GotoEvents>Rulesandaddarule.

2.Typeanamefortherule.

3.Inthelistofconditions,selectTampering.

4.Inthelistofactions,selectSendnoticationtoemailandthenselectarecipientfromthelist.GotoRecipients

tocreateanewrecipient.

5.Typeasubjectandamessagefortheemail.

6.ClickSave.

Applications

AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications

forAxisproducts.Tondoutmoreaboutavailableapplications,downloads,trialsandlicenses,gotoaxis.com/applications.

TondtheusermanualsforAxisapplications,gotoaxis.com.

Note

•Severalapplicationscanrunatthesametimebutsomeapplicationsmightnotbecompatiblewitheachother.Certain

combinationsofapplicationsmightrequiretoomuchprocessingpowerormemoryresourceswhenruninparallel.Verify

thattheapplicationsworktogetherbeforedeployment.

AXISP37–PLENetworkCameraSeries

Troubleshooting

Ifyoucan’tndwhatyou’relookingforhere,trythetroubleshootingsectionataxis.com/support.

Resettofactorydefaultsettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultresetsallsettings,includingtheIPaddress,to

thefactorydefaultvalues.

Toresettheproducttothefactorydefaultsettings:

1.Pressandholdthecontrolbuttonandtherestartbuttonatthesametime.

2.Releasetherestartbuttonbutcontinuetoholddownthecontrolbuttonfor15–30secondsuntilthestatusLEDindicator

ashesamber.

3.Releasethecontrolbutton.TheprocessiscompletewhenthestatusLEDindicatorturnsgreen.Theproducthasbeenreset

tothefactorydefaultsettings.IfnoDHCPserverisavailableonthenetwork,thedefaultIPaddressis192.168.0.90.

4.UsetheinstallationandmanagementsoftwaretoolstoassignanIPaddress,setthepasswordandaccessthevideostream.

Itisalsopossibletoresetparameterstofactorydefaultthroughthewebinterface.GotoSettings>System>Maintenanceand

clickDefault.

Checkthecurrentrmware

Firmwareisthesoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourrstactionswhentroubleshootinga

problemshouldbetocheckthecurrentrmwareversion.Thelatestversionmaycontainacorrectionthatxesyourparticular

problem.

Tocheckthecurrentrmware:

1.Gototheproduct’swebpage.

2.Clickonthehelpmenu.

3.ClickAbout.

Upgradethermware

Important

Preconguredandcustomizedsettingsaresavedwhenthermwareisupgraded(providedthatthefeaturesareavailablein

thenewrmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

Important

Makesuretheproductremainsconnectedtothepowersourcethroughouttheupgradeprocess.

Note

Whenyouupgradetheproductwiththelatestrmwareintheactivetrack,theproductreceivesthelatestfunctionality

available.Alwaysreadtheupgradeinstructionsandreleasenotesavailablewitheachnewreleasebeforeupgradingthe

rmware.Tondthelatestrmwareandthereleasenotes,gotoaxis.com/support/rmware.

1.Downloadthermwareletoyourcomputer,availablefreeofchargeataxis.com/support/rmware.

AXISP37–PLENetworkCameraSeries

Troubleshooting

2.Logintotheproductasanadministrator.

3.GotoSettings>System>Maintenance.Followtheinstructionsonthepage.Whentheupgradehasnished,the

productrestartsautomatically.

AXISDeviceManagercanbeusedformultipleupgrades.Findoutmoreataxis.com/products/axis-device-manager.

Technicalissues,cluesandsolutions

Ifyoucan’tndwhatyou’relookingforhere,trythetroubleshootingsectionataxis.com/support.

Problemsupgradingthermware

FirmwareupgradefailureIfthermwareupgradefails,thedevicereloadsthepreviousrmware.Themostcommonreason

isthatthewrongrmwarelehasbeenuploaded.Checkthatthenameofthermwarele

correspondstoyourdeviceandtryagain.

Problemsafterrmware

upgrade

Ifyouexperienceproblemsafterarmwareupgrade,rollbacktothepreviouslyinstalledversion

fromtheMaintenancepage.

ProblemssettingtheIPaddress

Thedeviceislocatedona

differentsubnet

IftheIPaddressintendedforthedeviceandtheIPaddressofthecomputerusedtoaccessthe

devicearelocatedondifferentsubnets,youcannotsettheIPaddress.Contactyournetwork

administratortoobtainanIPaddress.

TheIPaddressisbeingused

byanotherdevice

DisconnecttheAxisdevicefromthenetwork.Runthepingcommand(inaCommand/DOSwindow,

typepingandtheIPaddressofthedevice):

•Ifyoureceive:Replyfrom<IPaddress>:bytes=32;time=10...

thismeansthattheIPaddressmayalreadybeinusebyanotherdeviceonthenetwork.

ObtainanewIPaddressfromthenetworkadministratorandreinstallthedevice.

•Ifyoureceive:Requesttimedout,thismeansthattheIPaddressisavailable

forusewiththeAxisdevice.Checkallcablingandreinstallthedevice.

PossibleIPaddressconict

withanotherdeviceonthe

samesubnet

ThestaticIPaddressintheAxisdeviceisusedbeforetheDHCPserversetsadynamicaddress.

ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay

beproblemsaccessingthedevice.

Thedevicecannotbeaccessedfromabrowser

Cannotlogin

WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting

tologin.Youmayneedtomanuallytypehttporhttpsinthebrowser’saddresseld.

Ifthepasswordfortheuserrootislost,thedevicemustberesettothefactorydefaultsettings.

SeeResettofactorydefaultsettingsonpage16.

TheIPaddresshasbeen

changedbyDHCP

IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IftheIPaddresshasbeen

changed,useAXISIPUtilityorAXISDeviceManagertolocatethedeviceonthenetwork.Identify

thedeviceusingitsmodelorserialnumber,orbytheDNSname(ifthenamehasbeencongured).

Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,gotoaxis.com/support.

Thedeviceisaccessiblelocallybutnotexternally

Toaccessthedeviceexternally,werecommendusingoneofthefollowingapplicationsforWindows

•AXISCompanion:freeofcharge,idealforsmallsystemswithbasicsurveillanceneeds.

•AXISCameraStation:30-daytrialversionfreeofcharge,idealforsmalltomid-sizesystems.

Forinstructionsanddownload,gotoaxis.com/products/axis-companion.

AXISP37–PLENetworkCameraSeries

Troubleshooting

Problemswithstreaming

MulticastH.264only

accessiblebylocalclients

Checkifyourroutersupportsmulticasting,oriftheroutersettingsbetweentheclientandthe

deviceneedtobecongured.TheTTL(TimeToLive)valuemayneedtobeincreased.

NomulticastH.264

displayedintheclient

CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisdevice

arevalidforyournetwork.

Checkwithyournetworkadministratortoseeifthereisarewallpreventingviewing.

PoorrenderingofH.264

images

Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe

downloadedfromthemanufacturer’swebsite.

Colorsaturationisdifferent

inH.264andMotionJPEG

Modifythesettingsforyourgraphicsadapter.Gototheadapter’sdocumentationformore

information.

Lowerframeratethan

expected

•SeePerformanceconsiderationsonpage18.

•Reducethenumberofapplicationsrunningontheclientcomputer.

•Limitthenumberofsimultaneousviewers.

•Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.

•Lowertheimageresolution.

Performanceconsiderations

Whensettingupyoursystem,itisimportanttoconsiderhowvarioussettingsandsituationsaffecttheperformance.Somefactors

affecttheamountofbandwidth(thebitrate)required,otherscanaffecttheframerate,andsomeaffectboth.Iftheloadonthe

CPUreachesitsmaximum,thisalsoaffectstheframerate.

Thefollowingfactorsarethemostimportanttoconsider:

•Highimageresolutionorlowercompressionlevelsresultinimagescontainingmoredatawhichinturnaffectsthe

bandwidth.

•RotatingtheimageintheGUIwillincreasetheproduct'sCPUload.

•AccessbylargenumbersofMotionJPEGorunicastH.264clientsaffectsthebandwidth.

•Simultaneousviewingofdifferentstreams(resolution,compression)bydifferentclientsaffectsbothframerateand

bandwidth.

Useidenticalstreamswhereverpossibletomaintainahighframerate.Streamprolescanbeusedtoensurethat

streamsareidentical.

•AccessingMotionJPEGandH.264videostreamssimultaneouslyaffectsbothframerateandbandwidth.

•Heavyusageofeventsettingsaffectstheproduct’sCPUloadwhichinturnaffectstheframerate.

•UsingHTTPSmayreduceframerate,inparticularifstreamingMotionJPEG.

•Heavynetworkutilizationduetopoorinfrastructureaffectsthebandwidth.

•Viewingonpoorlyperformingclientcomputerslowersperceivedperformanceandaffectsframerate.

•RunningmultipleAXISCameraApplicationPlatform(ACAP)applicationssimultaneouslymayaffecttheframerateand

thegeneralperformance.

AXISP37–PLENetworkCameraSeries

Speciﬁcations

Tondthelatestversionoftheproduct’sdatasheet,gototheproductpageataxis.comandlocateSupport&Documentation.

LEDindicators

StatusLED

Indication

Unlit

Connectionandnormaloperation.

GreenShowssteadygreenfor10secondsfornormaloperationafterstartupcompleted.

Amber

Steadyduringstartup.Flashesduringrmwareupgradeorresettofactorydefault.

Amber/RedFlashesamber/redifnetworkconnectionisunavailableorlost.

StatusLEDbehaviorforfocusassistant

ThestatusLEDasheswhentheFocusAssistantisactive.

Color

Indication

RedTheimageisoutoffocus.

Adjustthelens.

AmberTheimageisclosetofocus.

Thelensneedsnetuning.

Green

Theimageisinfocus.

SDcardslot

NO NO

TICE TICE

TICE

•RiskofdamagetoSDcard.Donotusesharptools,metalobjects,orexcessiveforcewheninsertingorremovingthe

SDcard.Useyourngerstoinsertandremovethecard.

•Riskofdatalossandcorruptedrecordings.DonotremovetheSDcardwhiletheproductisrunning.UnmounttheSDcard

fromtheproduct’swebpagebeforeremoval.

ThisproductsupportsSD/SDHC/SDXCcards.

ForSDcardrecommendations,seeaxis.com.

SD,SDHC,andSDXCLogosaretrademarksofSD-3CLLC.SD,SDHCandSDXCaretrademarksorregistered

trademarksofSD-3C,LLCintheUnitedStates,othercountriesorboth.

Buttons

Controlbutton

Thecontrolbuttonisusedfor:

•Resettingtheproducttofactorydefaultsettings.SeeResettofactorydefaultsettingsonpage16.

•ConnectingtoanAXISVideoHostingSystemservice.Toconnect,pressandholdthebuttonforabout3secondsuntilthe

statusLEDashesgreen.

AXISP37–PLENetworkCameraSeries

Speciﬁcations

Restartbutton

Presstherestartbuttontorestarttheproduct.

Connectors

Networkconnector

RJ45withHighPoweroverEthernet(HighPoE).

UserManualVer.M4.1

AXISP37–PLENetworkCameraSeries

Date:November2019

PartNo.T10127371

Axis 01811-001 P1378-LE 8MP Lightfinder Outdoor Network Box Camera

Product's Documents

Axis P1378-LE User Manual

Specifications

Axis 01811-001 Questions and Answers
