ZEPHYRONLINE.COM

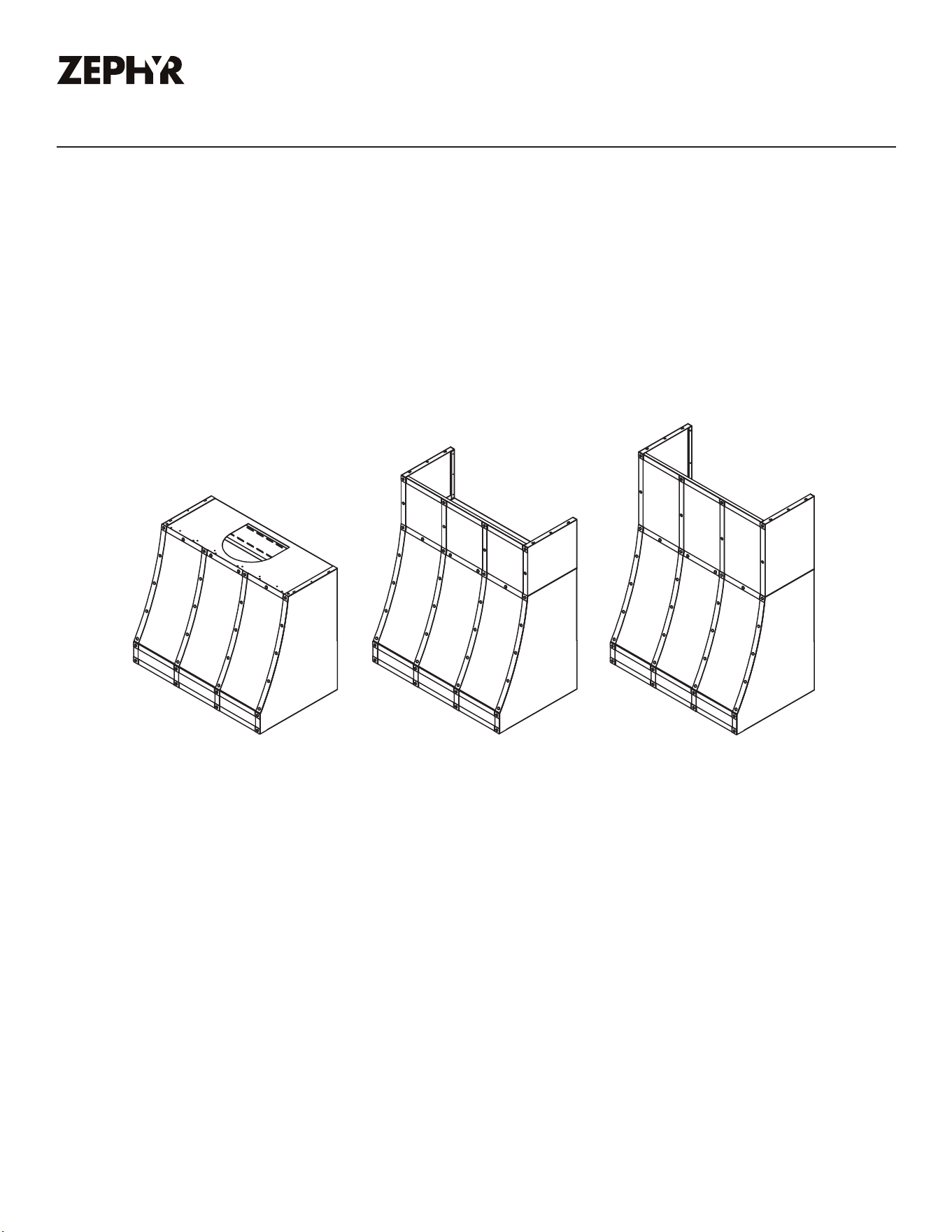

Forte Custom Hood
Installation Instructions
DEC24.0101
CHFT36A
CHFT48A
CHFT36A + DC13612A
CHFT48A + DC14812A
CHFT36A + DC13618A
CHFT48A + DC14818A
(with optional duct cover) (with optional duct cover)
2
Product Specications

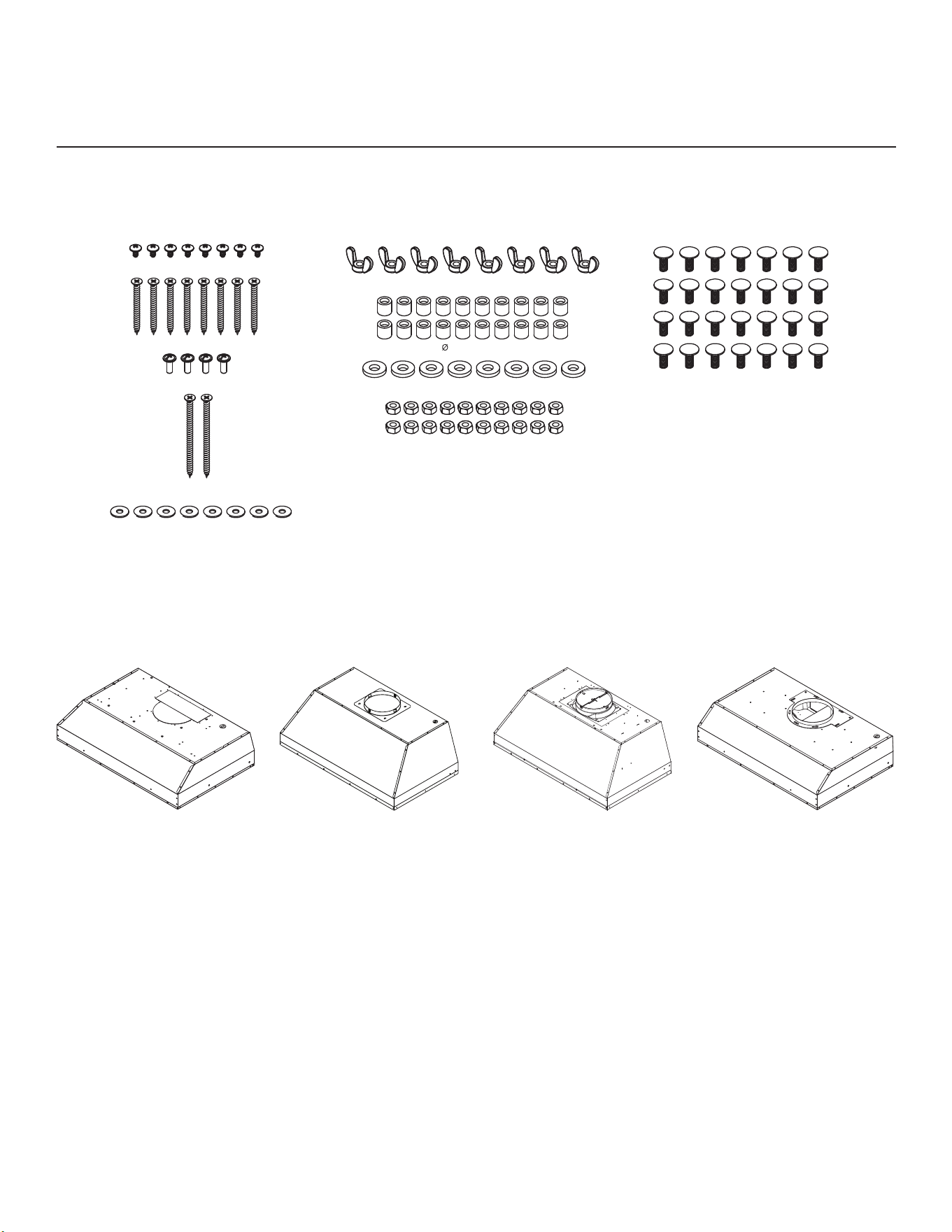

List of Materials
AK9134xS AK9234xS
AK9246xS
AK9434xS
AK9446xS
AK9534xS
AK9546xS
Hood Insert Compatibility
Below are the hood inserts compatible with the Forte custom hood. The inserts are sold separately.
Hood Installation Screws
Hood Banding Hardware Hood Rivet Bolts, SS
(8) M4 x 8
(8) #10 x 2”
(2) #10 x 3”
(4) 3/16 x 1/2
(8) 5 x 14 x 1
(28) M6
(8) M6
(20) 11*10.3 bushings
(8) OD18 x ID8 x 3
(20) M6
3

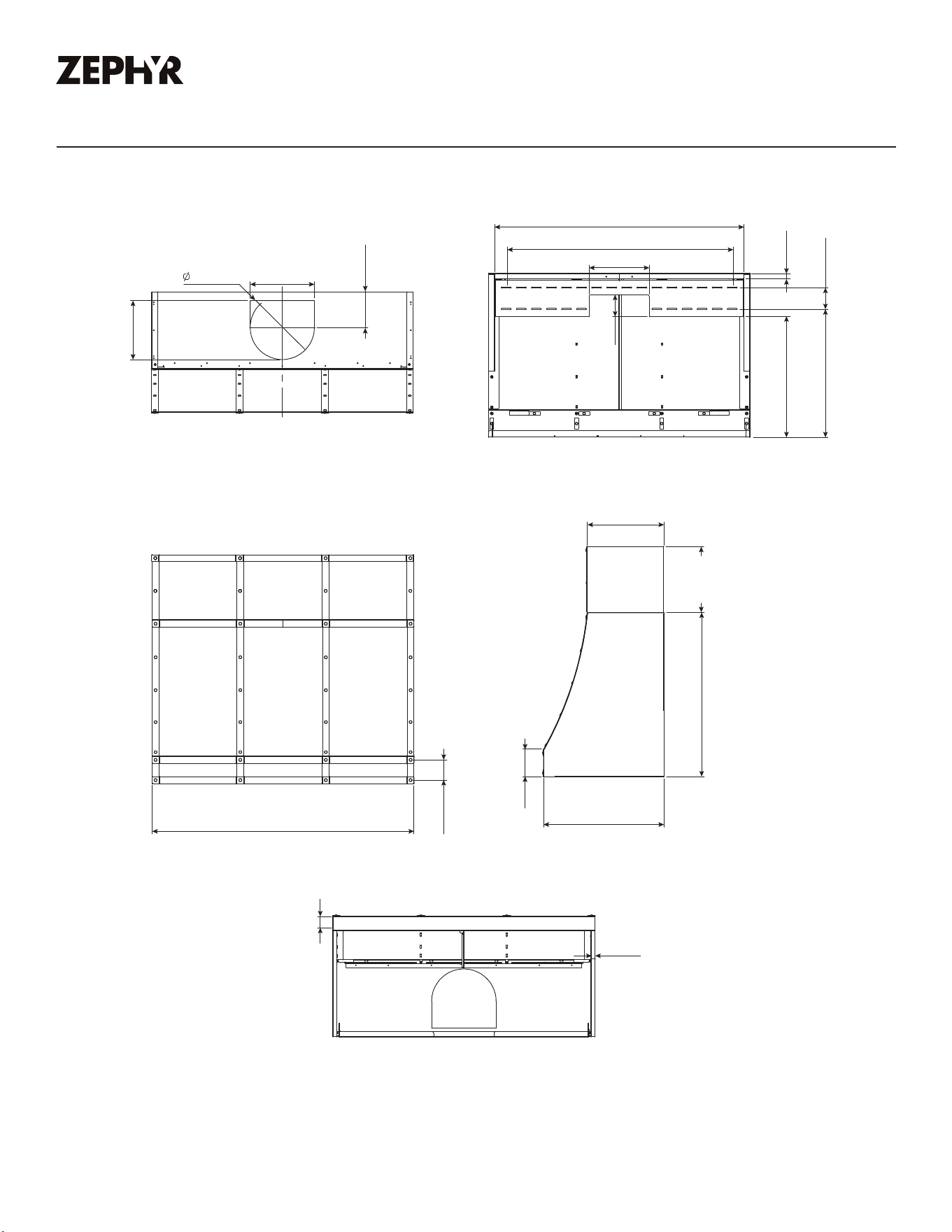

Dimensions
Product Specications
11-3/4”
11-
3/4”
6-1/2”
10-13/16”
(36”) 35-15/16”
(48”) 47-
7/8”
3-11/16”
5”
22-1/16”
30”
14”
(36”) 30-
5/16”, (48”) 41-5/16”
3-15/16”23-
7/16”
13/16”
2-11/16”
(without duct covers) 0”
(DC13612A & DC14812A) 12”
(DC13618A & DC14818A) 18”
TOP
SIDEFRONT
BACK
BOTTOM
C/L
(36”) 33-9/16”, (48”) 45-1/2”
11”
1-1/16”22-1/8”
4”
Net Weight: CHFT36ASX (48lb), CHFT48ASX (55lb)
NOTE: The duct cover accessories are sold separately.
ZEPHYRONLINE.COM
4

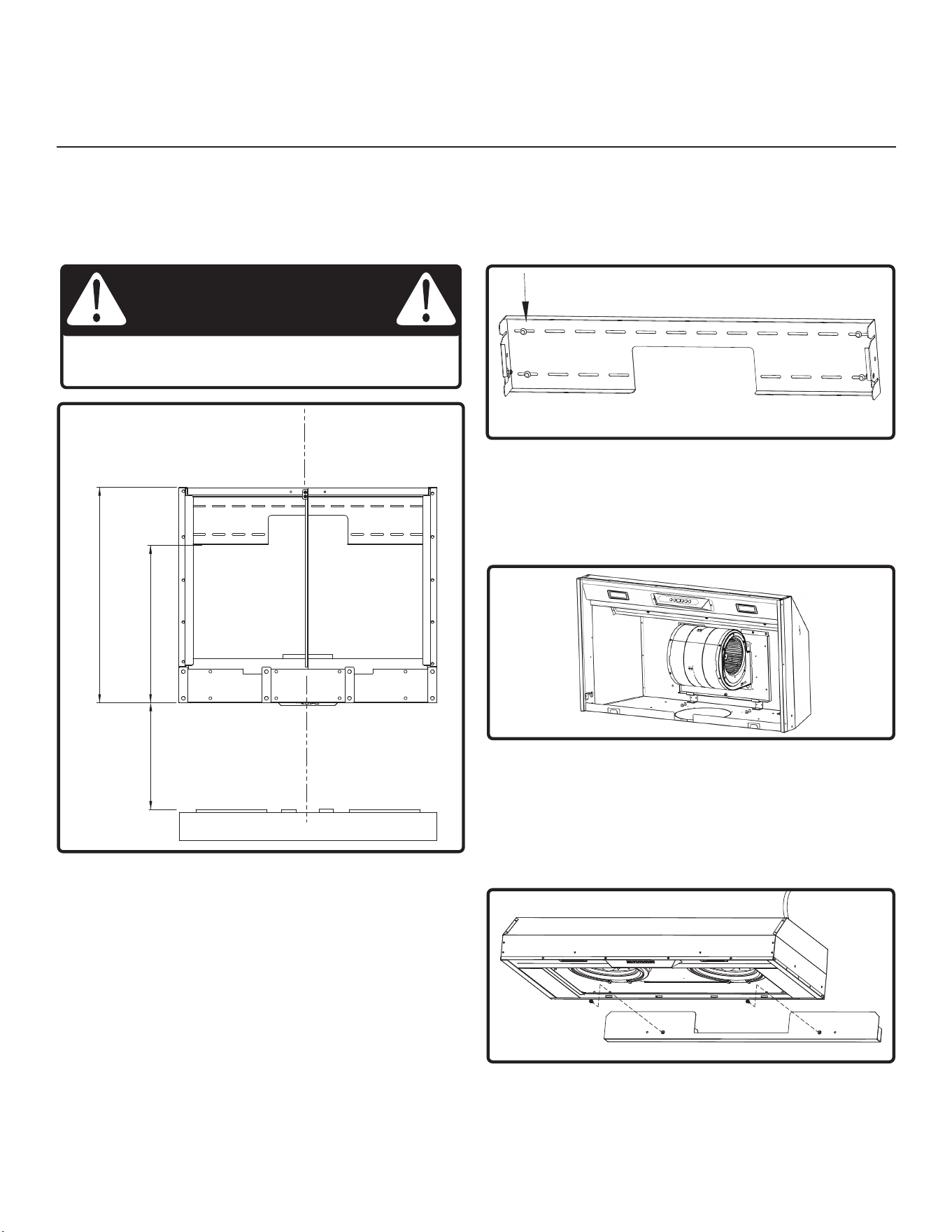

Installing the Forte Custom Hood
Refer to the installation manual of your specific hood insert and read all warnings prior to installing
your product. To install the Forte Custom Metal Hood, CHFT-A, please follow the instructions below.
Installation Instructions
24” - 36”
30”
22-1/8”
C/L
A
1. Determine the hood mounting height above
the cooking surface, 24” - 36”. Add 22-1/8” to
this number and mark Line A, which is where
the bottom of the wall bracket should be
installed.
NOTE: If the optional 12” or 18”H duct covers are
used, factor its height when mounting and adjust
accordingly.
2. Center, level, and install the mounting bracket
for the custom hood onto the wall by using
(4) #10 x 2” screws with (4) 5 x 14 x 1 washers.
Make sure to secure the screws into the wall
studs.
3. Prepare your Zephyr hood insert (sold
separately) by following the instructions
included with the insert. The filters and any
bottom panels will need to be removed prior
to installing the insert into your Forte custom
hood.
4. This step applies to insert models AK91 & AK95
only. For models AK92 & AK94, skip to the next
step. Secure the filler panel to the back of the
insert using (2) 3/16 x 1/2 screws.
WARNING
Carefully remove all protective film prior to installation. Take
care during assembly not to scratch any components.
5
Installing the Forte Custom Hood
Installation Instructions

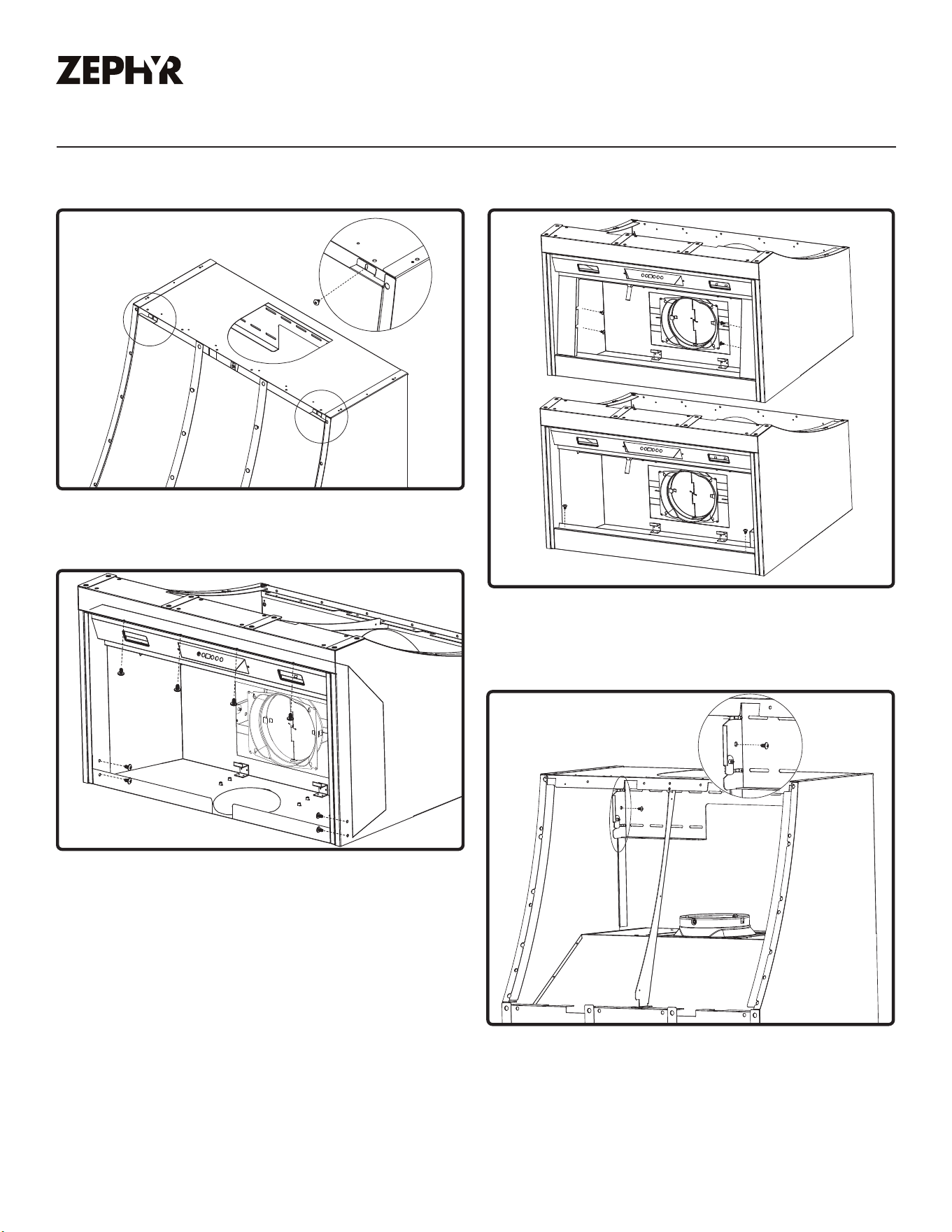

7. Reinstall all bottom panels to the hood insert
by following the instructions from the insert
manual in reverse.
8. With the help of 2-3 people, lift the custom
hood and hang it onto the mounting bracket.
The safety clips will temporarily prevent the
hood from falling o the bracket. Secure the
custom hood to the mounting bracket by (2)
M4 x 8 screws; (1) screw per side.
5. Remove the front panel of the custom hood
by (2) M4 x 8 screws at the top.
6. Lay the custom hood back on a stable
surface before placing the hood insert inside
the interior of the custom hood and securing
it with (8) M4 x 8 screws; (4) screws in the
front and (2) screws per side.
NOTE: If installing an optional duct cover, it is
recommended to secure it to the custom hood
during this step. Make sure to install all banding
to the duct cover after assembly. See the duct
cover assembly instructions for more information.
ZEPHYRONLINE.COM
6

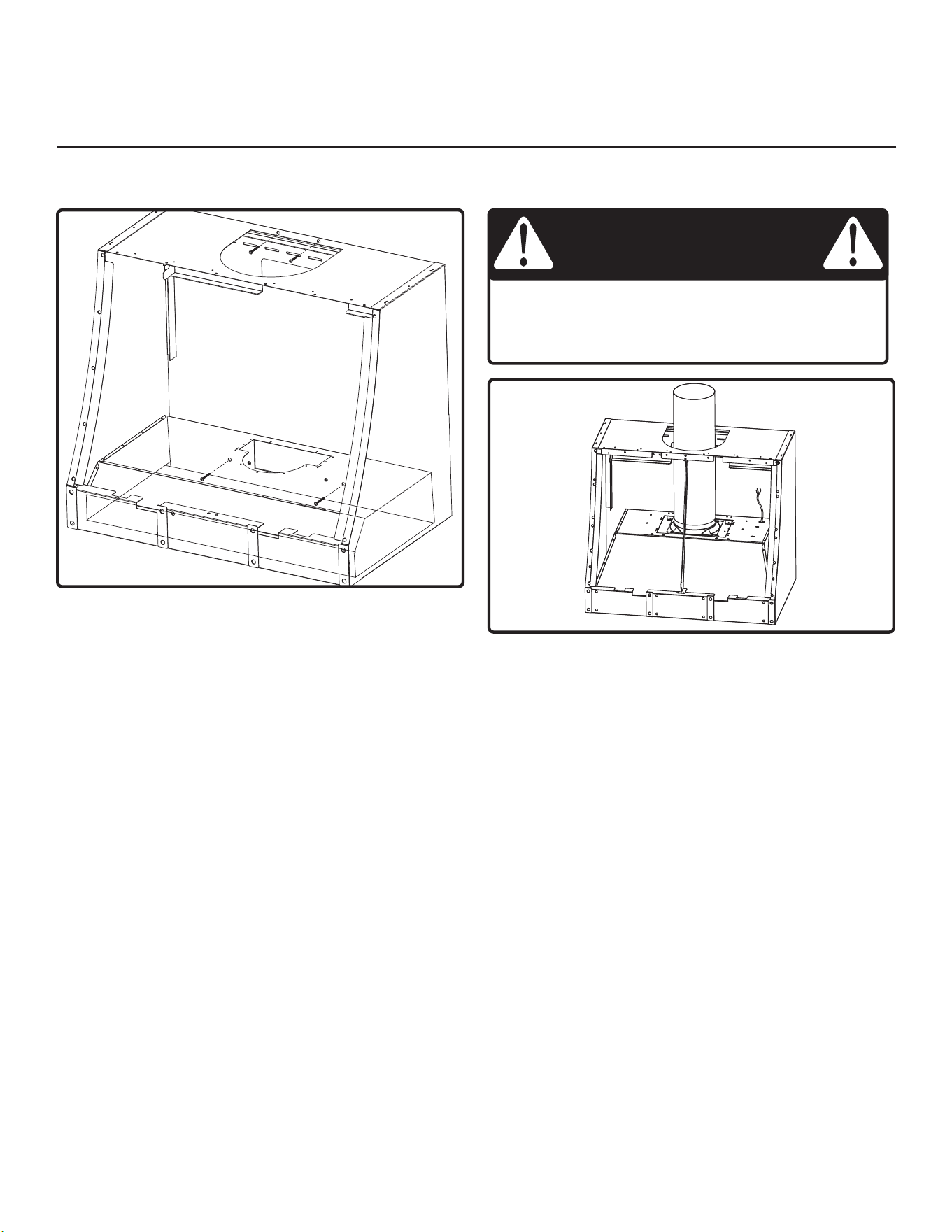

9. At the bottom (A), install (2) screws with
washers through the hood insert into the wall.
For AK92 and AK94: Use (2) #10 x 2” screws
with (2) washers.
For AK91 and AK95: Use (2) #10 x 3” screws
with with (2) washers.
At the top (B), use (2) #10 x 2” screws with
with (2) washers to further secure the hood
insert to the wall.
10. Connect the hood insert to power and
ducting. Refer to the hood insert installation
manual for detailed instructions.
Installing the Forte Custom Hood
WARNING
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
B
A
Installation Instructions
7
Installation Instructions
2
1
4
3

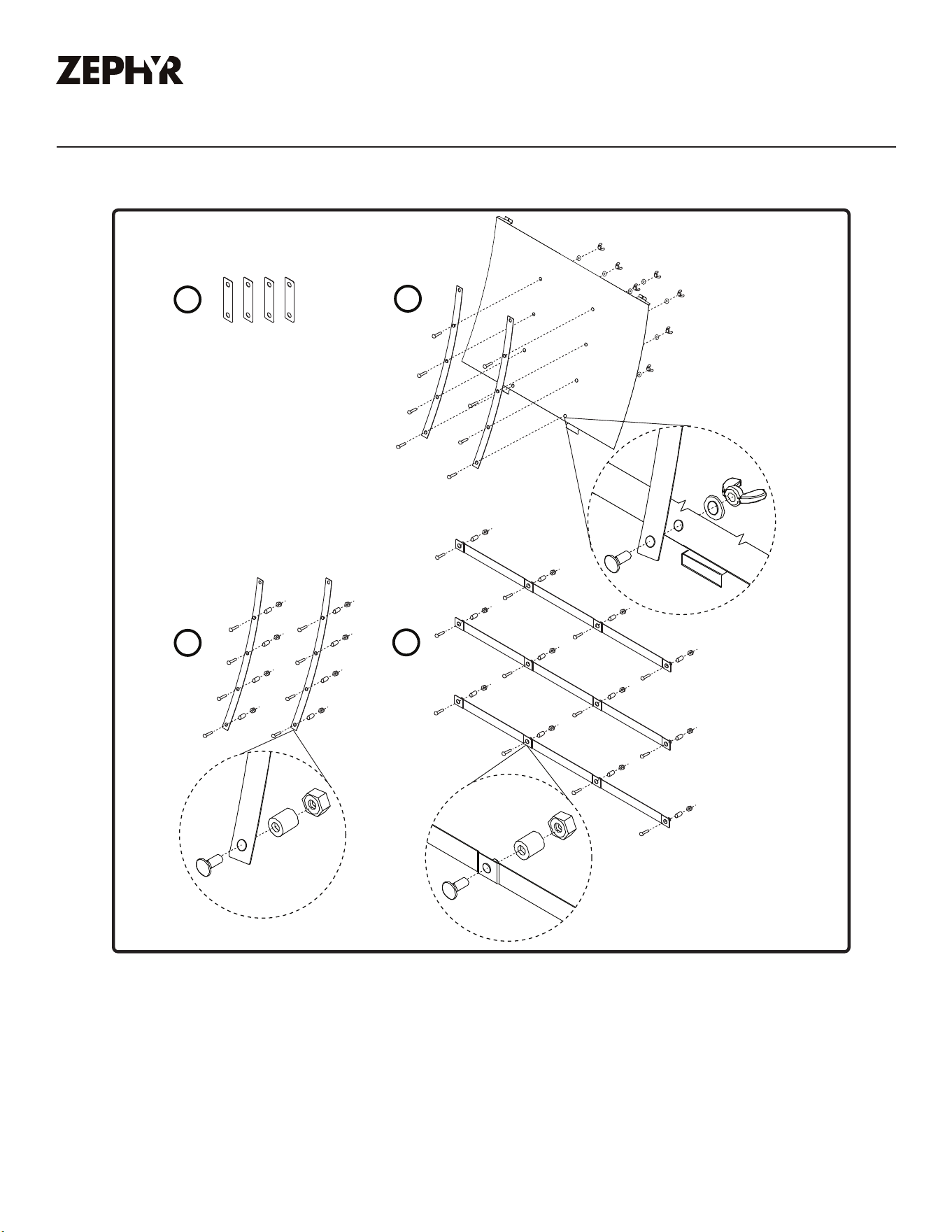

Assembling the Banding
► (4) #1 short vertical bands are secured by magnets, no assembly required.
► (2) #2 long vertical bands should be installed onto the front of the panel using (4) rivet
bolts, washers, and wingnuts per band
► (2) #3 long vertical bands and (3) #4 horizontal bands should be assembled using (4)
rivet bolts, bushings, and M6 nuts per band.
ZEPHYRONLINE.COM
8
1
1
1
1
4
4
5* 5* 5* 5*
1
1 1 1
2
23
3
4

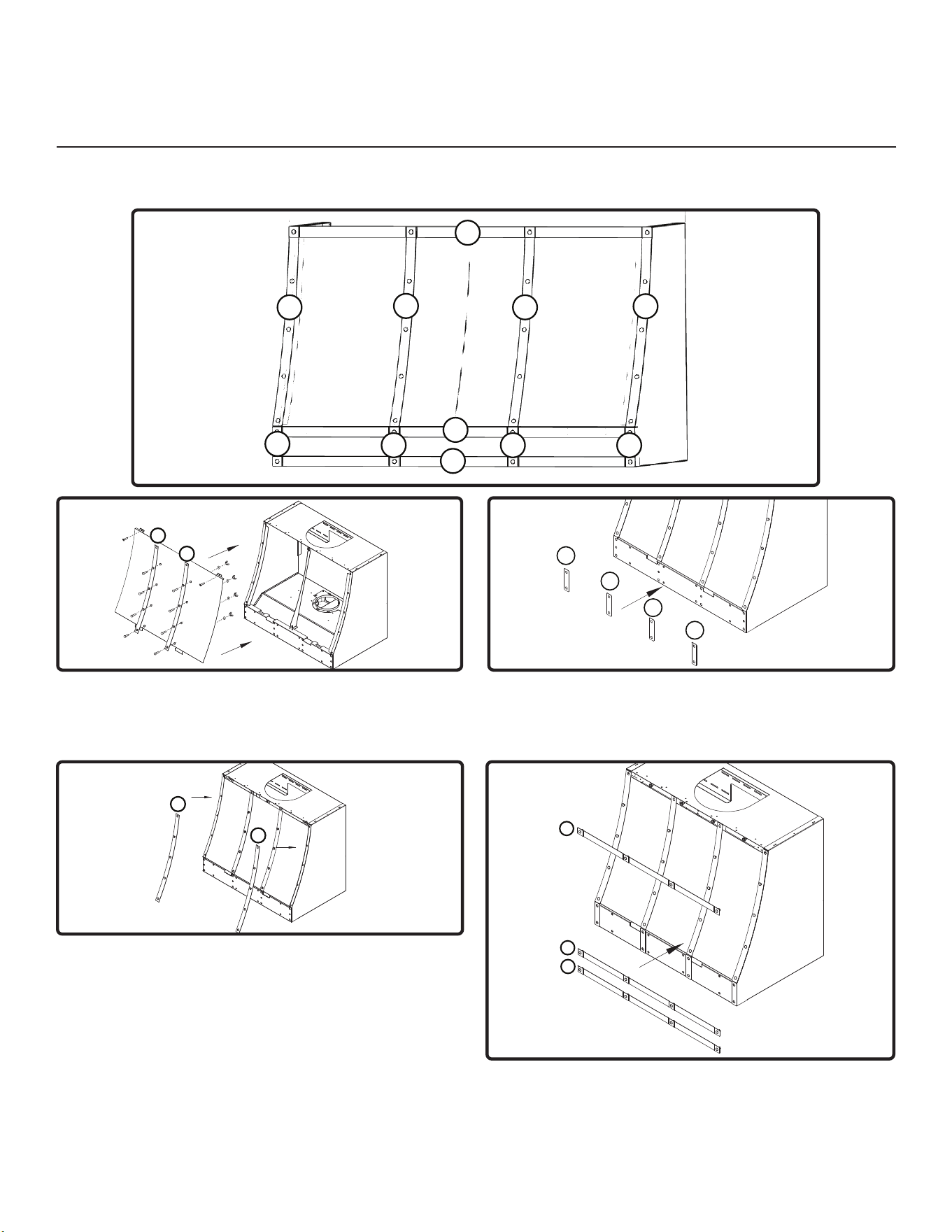

Installing the Banding
3
3
2
2
4
4
4
1. Secure the front panel with banding to the
hood body at the top by using the (2) M4 x 8
screws previously removed.
2. Place (2) #3 long vertical bands onto the
custom hood. These two bands are secured
by magnets.
3. Place (4) #1 short vertical bands onto the
custom hood. These bands are secured by
magnets.
4. Place (3) #4 horizontal bands onto the custom
hood, one at the very top of the custom hood,
and two at the bottom. These bands are
secured by magnets.
3
3
2
2
Installation Instructions
9
Maintenance
Cleaning the Forte Custom Metal Hood
Clean periodically with warm soapy water and a clean cotton cloth or micro fiber cloth. Always rub
in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser
detergent. While cleaning, carefully clean around the areas with the banding as some of the bands
are held up magnetically, which may fall o if cleaning too vigorously.
After cleaning, use a non-abrasive stainless steel polish/cleaners to polish and bu out the stainless
luster and grain. Always scrub lightly with a clean cotton cloth or micro fiber cloth and bu in the
direction of the stainless steel grain.
► Do not use corrosive detergents, abrasive detergents or oven cleaners.
► Do not use any product containing chlorine bleach or any product containing chloride.
► Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
ZEPHYRONLINE.COM
10
List of Parts & Accessories
Optional Accessories Part Number
Duct Cover, 36” x 12”, Stainless Steel DC13612A
Duct Cover, 36” x 18”, Stainless Steel DC13618A
Duct Cover, 48” x 12”, Stainless Steel DC14812A
Duct Cover, 48” x 18”, Stainless Steel DC14818A
Forte Hood Banding Kit, 36”, Matte Black BKFT36AMB
Forte Hood Banding Kit, 36”, Satin Gold BKFT36ASG
Forte Hood Banding Kit, 48”, Matte Black BKFT48AMB
Forte Hood Banding Kit, 48”, Satin Gold BKFT48ASG
Duct Cover Banding Kit, 36” x 12”, Matte Black BKDC13612AMB
Duct Cover Banding Kit, 36” x 12”, Satin Gold BKDC13612ASG
Duct Cover Banding Kit, 36” x 18”, Matte Black BKDC13618AMB
Duct Cover Banding Kit, 36” x 18”, Satin Gold BKDC13618ASG
Duct Cover Banding Kit, 48” x 12”, Matte Black BKDC14812AMB
Duct Cover Banding Kit, 48” x 12”, Satin Gold BKDC14812ASG
Duct Cover Banding Kit, 48” x 18”, Matte Black BKDC14818AMB
Duct Cover Banding Kit, 48” x 18”, Satin Gold BKDC14818ASG
To order parts, visit us online at http://store.zephyronline.com.
11
Limited Warranty
Two Year Limited Warranty for Parts: For two years
from the date of your original purchase of the
Products, we will provide, free of charge, Products or
parts to replace those that failed due to manufac-
turing defects subject to the exclusions and limita-
tions below. We may choose, in our sole discretion,
to repair or replace parts before we elect to replace
the Products.
To Obtain Service Under Limited Warranty: To qualify
for warranty service, you must: (a) notify us at the
address or telephone number stated below within 60
days of the discovery of the defect; (b) give the
model number and serial number (if applicable); and
(c) describe the nature of any defect in the Product
or part. At the time of the request for warranty service,
you must present evidence of your proof of purchase
and proof of the original purchase date. If we deter-
mine that the warranty exclusions listed above apply
or if you fail to provide the necessary documentation
to obtain service, you will be responsible for all
shipping and other costs related to the services. This
warranty is not extended or restarted upon warranty
repair or replacements.
Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser
(referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from
defects in materials or workmanship as follows:
alterations that impact serviceability of the Products. (I)
Damage to personal property or food spoilage from
use of this product. If you are outside our service area,
additional charges may apply for shipping costs for
warranty repair at our designated service locations and
for the travel cost to have a service technician come
to
your home to repair, remove or reinstall the Products. All
Products must be installed by a qualified professional installer
to be eligible for warranty repairs or service.
Limitations of Warranty: OUR OBLIGATION TO REPAIR OR
REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLU-
SIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE
FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES
ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES
IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND
EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS,
AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY
LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
Some states or provinces do not allow limitations on the
duration of an implied warranty or the exclusion or
limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to
you. To the extent that applicable law prohibits the
exclusion of implied warranties, the duration of any
applicable implied warranty is limited to the same
two-year and one-year periods described above if
permitted by applicable law. Any oral or written
description of the Products is for the sole purpose of
identifying the Products and shall not be construed as
an express warranty. Prior to using, implementing or
permitting use of the Products, you shall determine the
suitability of the Products for the intended use, and you
shall assume all risk and liability whatsoever in connec-
tion with such determination. We reserve the right to
use functionally equivalent refurbished or recondi-
tioned parts or Products as warranty replacements or
as part of warranty service. This warranty is not transfer-
able from the original purchaser and only applies to the
consumer residence where the Product was originally
installed located in the United States and Canada. This
warranty is not extended to resellers.
Please check our website for any additional Product information, www.zephyronline.com.
Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368
DEC24.0201
Warranty Exclusions: This warranty covers only repair or
replacement, at our option, of defective Products or
parts and does not cover any other costs related to
the Products including but not limited to: (a) normal
maintenance and service required for the Products
and consumable parts such as gaskets, filters, light
bulbs, fuses; (b) any Products or parts which have
been subject to freight damage, misuse, negligence,
accident, faulty installation or installation contrary to
recommended installation instructions, improper
maintenance or repair (other than by us); (c) com-
mercial or government use of the Products or use
otherwise inconsistent with its intended purpose; (d)
natural wear of the finish of the Products or wear
caused by improper maintenance, use of corrosive
and abrasive cleaning products, pads, and oven
cleaner products; (e) chips, dents or cracks caused
by abuse or misuse of the Products; (f) service trips to
your home to teach you how to use the Products; (g)
damage to the Products caused by accident, fire,
floods, acts of God; or (h) Custom installations or
TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS
United States Customers please call: 1-888-880-8368 or contact us at: zephyronline.com/contact
Canada Customers please call: 1-800-361-0799 or Email: [email protected]
Limited Warranty
ZEPHYRONLINE.COM
