Integrated with industry-defining technology, the ZLINE Bluetooth
Crown Moldings transform the seamless, elegant ceiling transition into a
Bluetooth sound system, creating the perfect entertainment area for you
and your guests.
ZLINE is fueled by a passion for innovation; A relentless pursuit of
bringing the highest end luxury designs and professional features
into everyone’s homes. Because we continually strive to improve our
products, we may change specifications and designs without prior
notice.
1
Safety & Warranty
SAFETY INSTRUCTIONS & WARRANTY
IMPORTANT SAFETY INSTRUCTIONS
• All electrical wiring must be properly installed, insulated, and grounded.
• Use this unit only in the manner intended by the manufacturer. If you have any
questions, contact the vendor.
WARRANTY
• Bluetooth crown moldings carry a one year parts warranty.
• Replacement speakers are available from ZLINE. Call 1-614-777-5004.
2
Wall CrownSound
®
Installation
WALL CROWNSOUND
®
INSTALLATION
ELECTRIC POWER RATING
Frequency: 110V/50 Hz
Power: 10W

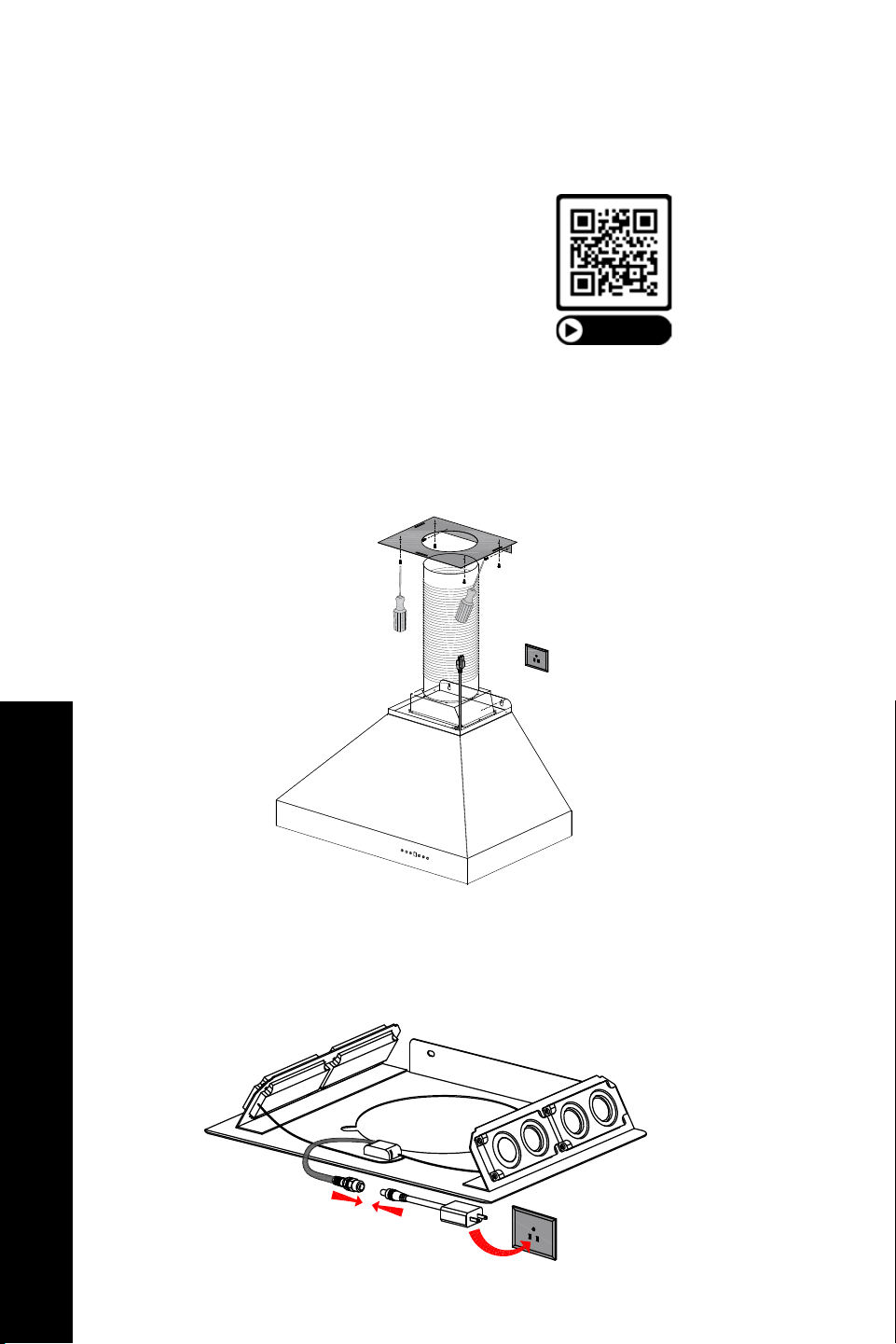

1. Attach crown molding bracket to ceiling using hardware provided. Figure 1
2. Attach ducting and electrical connections. Plug the speakers into an outlet
behind the chimney. When the connection is successful, a chime will sound.
Figure 2
Figure 2
Figure 1
Installation Tutorial Video
Watch Now
3
Wall CrownSound
®
Installation
WALL CROWNSOUND
®
INSTALLATION

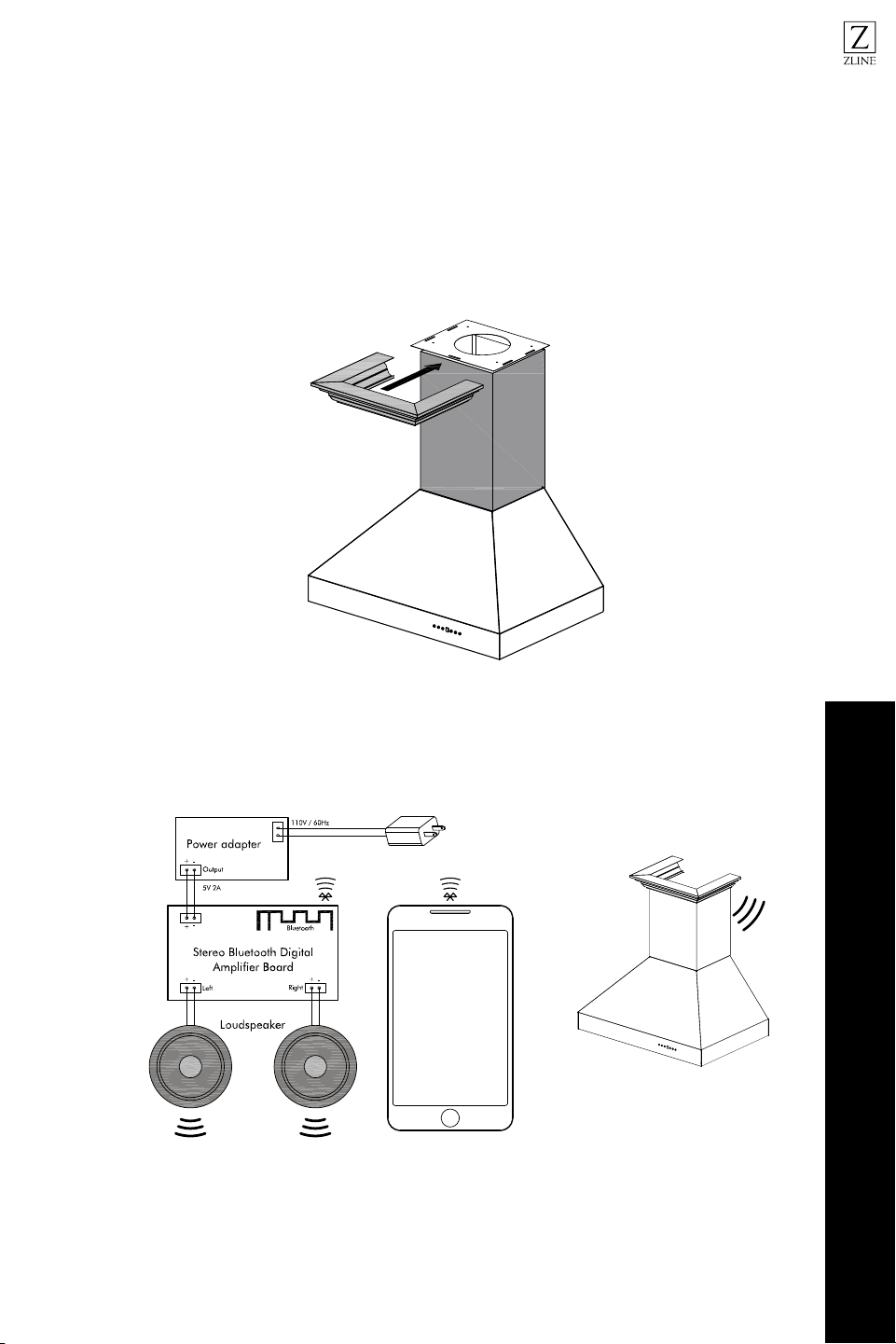

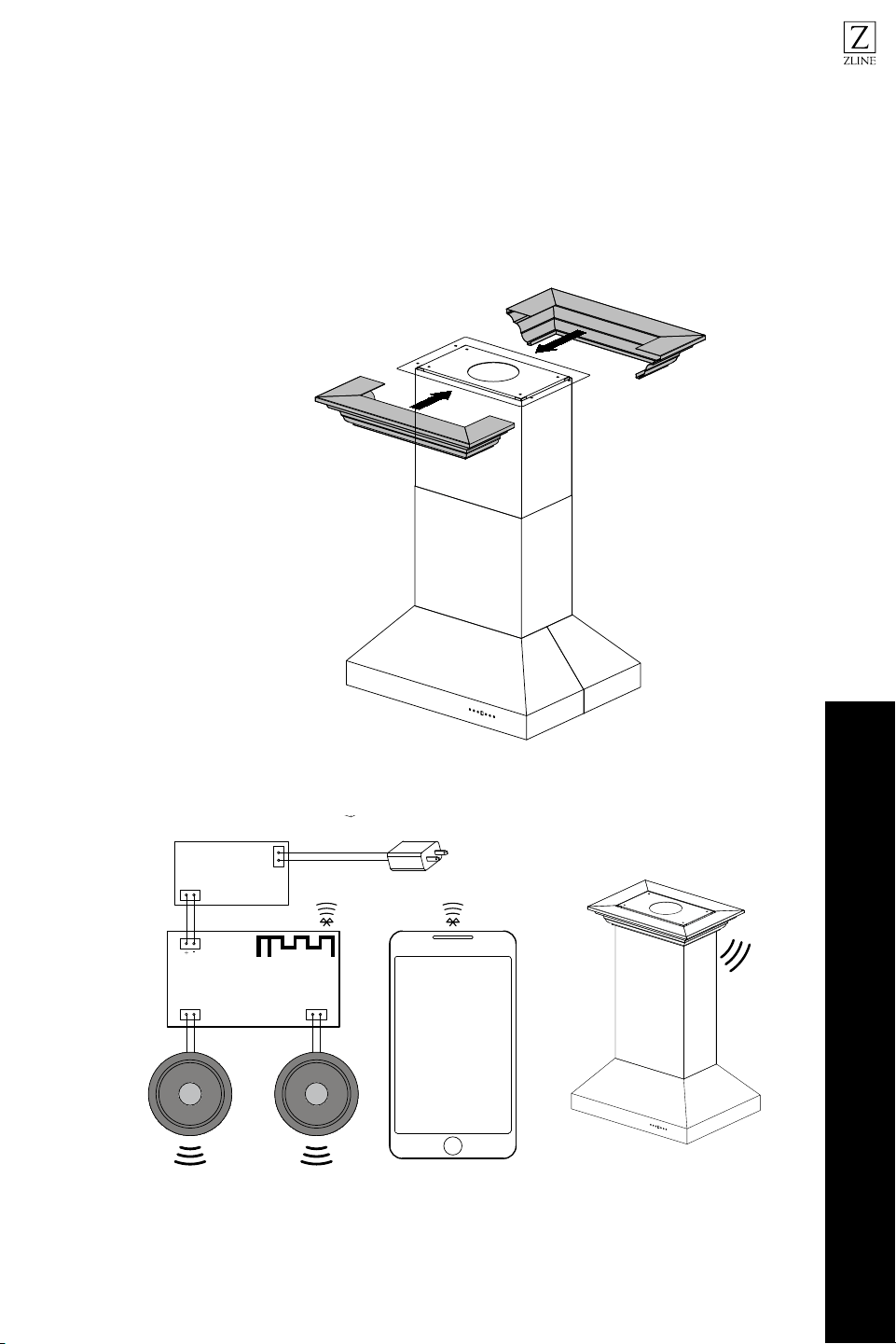

3. Extend the chimney up to the transformer. Slide the crown molding onto the
crown bracket and secure into place. The crown should cover the gap. Ensure
that it installs properly and is level. Figure 3
4. Open the phone’s Bluetooth settings and find “ZLINE Audio.“ When the
connection is successful, a chime will sound. Figure 4
Bluetooth crown moldings carry a one year parts warranty. Replacement speakers
are available from ZLINE. Call 1-614-777-5004.
Figure 3
Figure 4
Input
4
Island CrownSound
®
d Installation
ISLAND CROWNSOUND
®
INSTALLATION
ELECTRIC POWER RATING
Frequency: 110V/50 Hz
Power: 10W

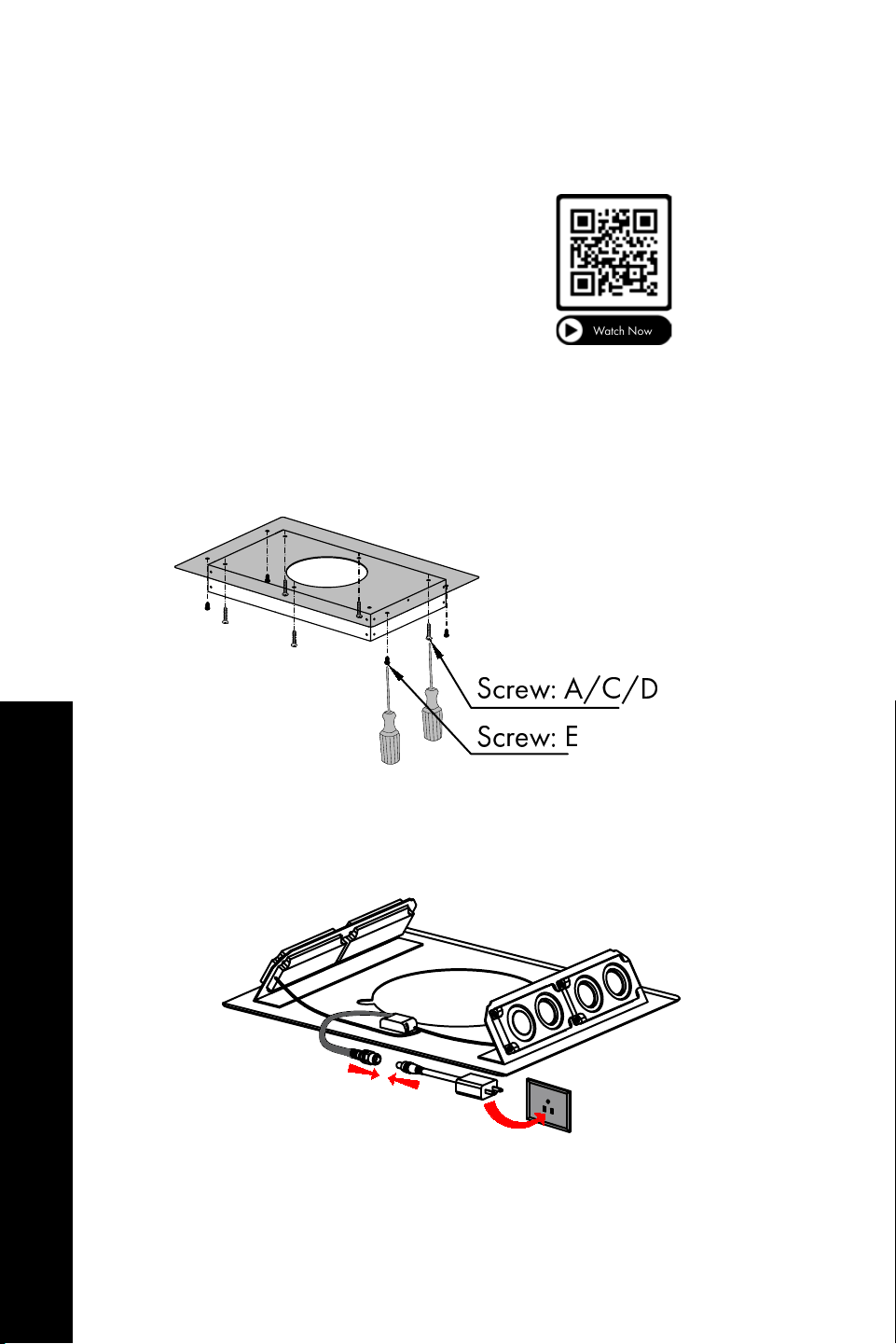

1. Attach crown molding bracket to ceiling using hardware provided. Figure 1
2. Attach ducting and electrical connections. Plug the speakers into an outlet
behind the chimney. When the connection is successful, a chime will sound.
Figure 2
Figure 2
Figure 1
Installation Tutorial Video
Screw:A/C/D
Screw:E
Se
Se
Watch Now
5
Island CrownSound
®
Installation
3. Extend the chimney up to the transformer. Slide the crown molding onto the
crown bracket and secure into place. The crown should cover the gap. Ensure
that it installs properly and is level. Figure 3
4. Open the phone’s Bluetooth settings and find “ZLINE Audio.“ When the
connection is successful, a chime will sound. Figure 4
Bluetooth crown moldings carry a one year parts warranty. Replacement speakers
are available from ZLINE. Call 1-614-777-5004.
ISLAND CROWNSOUND
®
INSTALLATION
Figure 3
Figure 4
+ -
+ -
+ -
Power adapter
Stereo Bluetooth Digital
Amplifier Board
+ -
+ -
+ -
Bluetooth
Output
Intput
110V / 60Hz
Left
Right
Loudspeaker
5V 2A
Input
6
Troubleshooting
How many devices can the Bluetooth speakers sync to at a time?
Only 1 device can sync at a time.
What is the decibel rating of the Bluetooth speakers?
Up to 100 decibels.
What is the range of the speakers? What’s the maximum distance for the connection
to work?
Up to 50 feet. If the connection is weak, move closer to the speakers or remove
obstacles that are between the device and the speakers.
“ZLINE Audio” won’t appear in the Bluetooth settings.
Check if the electrical connections are secure. A chime will sound if the connection
is successful. If “ZLINE Audio” still will not appear, call ZLINE at 1-614-5004 for a
replacement.
