Vacuum Cleaner
Model VAC-CD-AH
220-240V~ 50/60Hz 400--450Watt
USER INSTRUCTION MANUAL
IMPORTANT SAFE GUARDS
When using an electrical appliance, basic safety precautions should always be observed, including
the following
READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER.
WARNING: To reduce the risk of fire, electrical shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s recommended attachments.
5. Do not use with damaged cord or plug. Do not use vacuum if it has been dropped, damaged, left
outdoors, or dropped in water. Return it to an authorized service center.
6. Do not pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners.
7. Do not run appliance over cord. Keep cord away from heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or appliance with wet hands.
10. Do not put any object into openings. Do not use with any opening blocked; keep free of dust,
lint, hair and anything that may reduce air flow.
11. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or got ashes.
13. Turn off the control before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
16. Look on your vacuum and follow all label and marking instructions.
17. Keep end of hose, wands and other openings away from your face and body.
18. Do not use the vacuum cleaner without dust cup filter in place.
19. Always unplug this appliance before connecting or disconnecting vacuum hose.
20. Store the vacuum indoors. Put the vacuum away after us to prevent tripping accidents.
21. Using improper voltage may result in damage to the motor and possible injury to the user.
Correct voltage is listed on the rating label.
22. Use only on dry, indoor surfaces.
23. Do not use for any purpose other than described in this user’s guide.
24. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard..

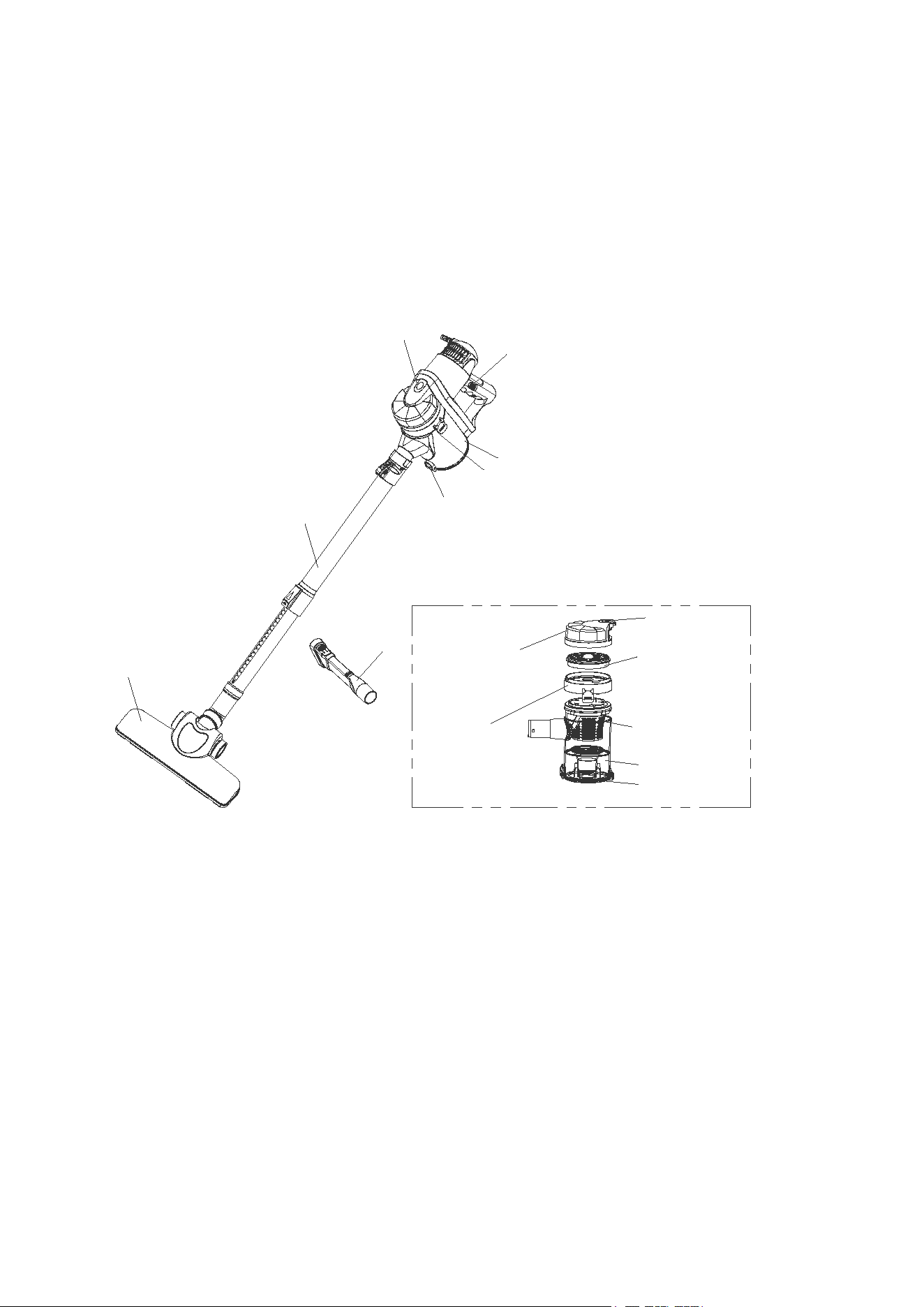

Vacuum Cleaner
Model: VAC-CD-AH
Dust Cup Set
Dust Cup Bottom
Dust Cup
Plastic Centering
Filter System
Dust Cup Cover
for Air Exhaust
Dust Cup
Release Button
Dust Cup Cover
9
2
3
5
8
1
6
7
4
1. Main Floor brush 2. Extension tube
3. Dust tank lock 4. Power Switch
5. Dust tank 6. Dust tank upper part release button
7. Dust tank bottom release button
8.Multi Crevice Brush 9. Sponge,HEPA

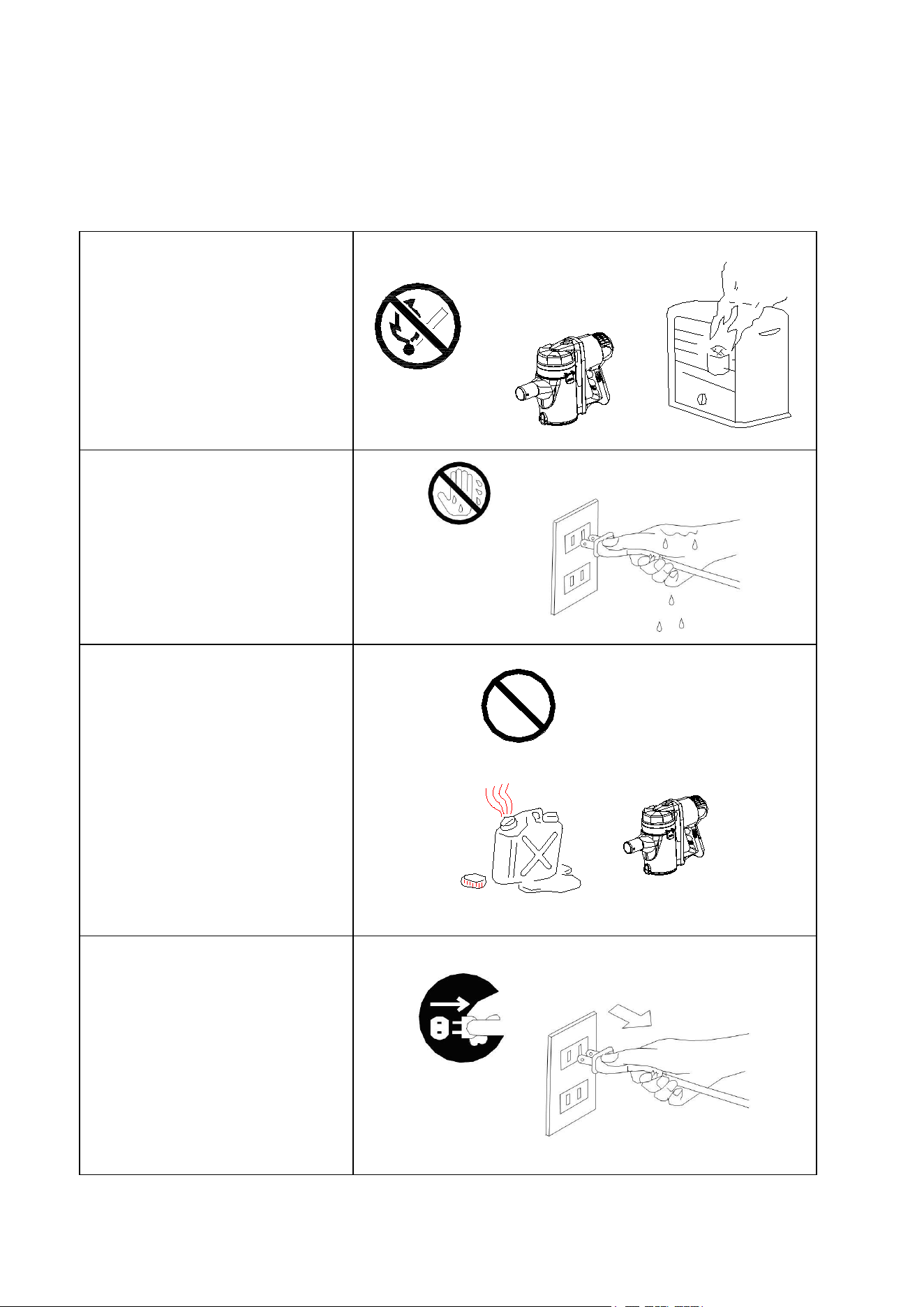

PRECAUTIONARY MEASURES
If the opening that sucks in the air, the brush or extension tubes are blocked, you should
switch off the vacuum cleaner at once. First clear the blocked substance before you attempt to
start the vacuum cleaner again.
1. Do not operate the vacuum
cleaner too close to heaters
and like radiators, cigarette
butts etc.
2. Before you insert the plug
into the wall contact, make
sure your hand is dry.
3. Before you start using the
vacuum cleaner, please remove
large or sharp objects from the
floor in order to prevent that the
filter is damaged. Do not use the
vacuum to clean anything that is
easy to burning, such as gas and
cigarettes.
4. When you want to pull the
plug
from the wall contact, please do
this at the plug itself and not by
means of the electrical cable.

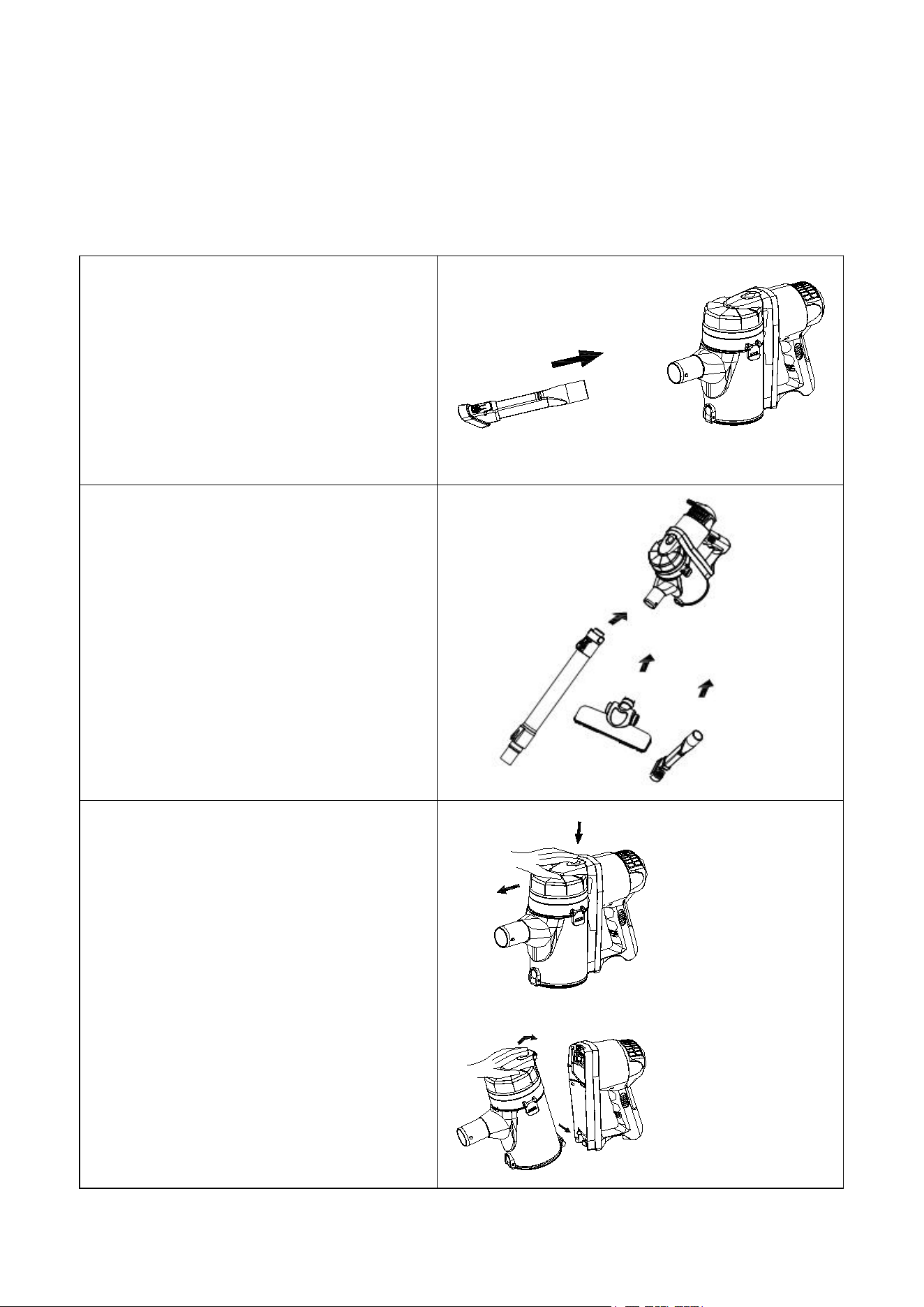

ASSEMBLING VACUUM CLEANER
Always remove the plug from the power socket before fitting or removing accessories!
1. Fitting the vacuum cleaner
When you begin to use the Vac, you must
Install the brush into the body first.
Install the brush as the body .
2. Extension tube
We can use the extension tubes to connect the
sucking mouth of the machine directly with floor
brush
We can connect the Multi brush(2 in 1 ) to the sucking
mouth of the machine directly used for the furniture,
venation, TV, and shelves,etc.
3.Remove and install the dust cup
(a) Remove dust cup from body: push
the release button of dust cup. Then
take out the dust cup from body. (fig.
A)
(b) Install dust cup on body: first make
the underside of dust cup to connect
with the body. (pls pay attention to
the fitting position and direction).
Then push the dust cup to close
with the body. The dust cup will be
locked after a voice of “kata”.
(fig.B).
2、move
1、push here
fig.A
fig.B

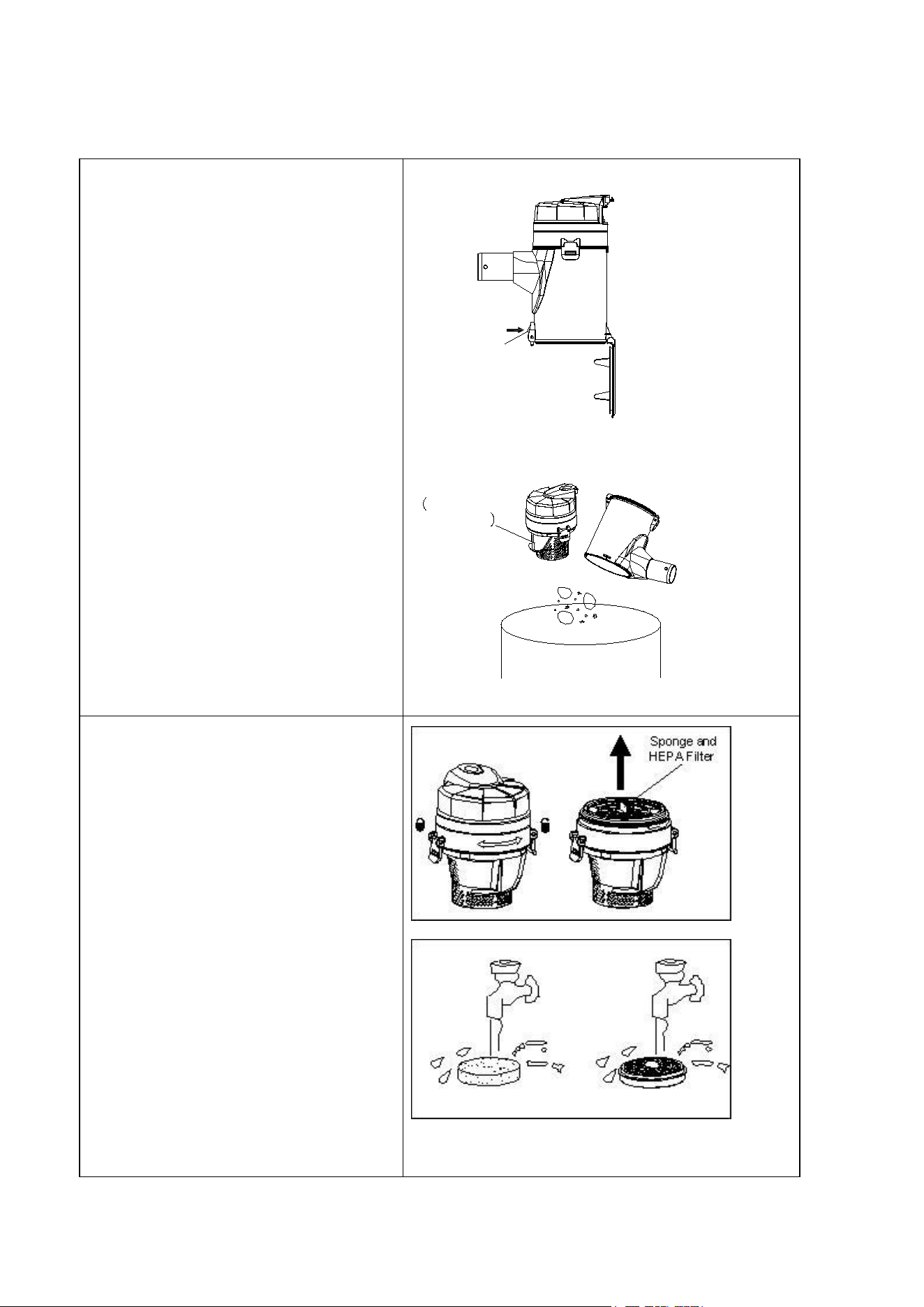

Cleaning the appliance
A.How to drop dust and clean the
dust cup
1. Remove the dust cup from body.
2. Press the dust cup bottom release
button, then the dust will fall down
automatically. Usually you may only do
like this to drop the dust. (fig. A)
3. If find the plastic filter system too dirty,
please press the dust cup cover (for air
exhaust) release button, take out the
filter assembly out of the dust cup,
then you can clean them with soft
brush or wash them with water. You
should dry them completely before you
use again.(fig.B).
Dust Cup Bottom
Release Button
Push
fig.A
Plastic Centering
Filter System
Filter Assembly
fig.B
B.Change or cleaning the sponge
and HEPA filter
1. Remove the dust cup from body.
2. Rotate the dust cup cover anticlockwise
from “close” to “open”, take out the dust
cup cover. Draw out the sponge and HEPA
filter set. (fig. A)
3. Pull up the knob of the filter frame, and
pull out the sponge filter and HEPA filter
from the case box. Cleaning the Sponge
and HEPA filter by soft brush or rinse it in
lukewarm water and dry them
completely before use again. All the
filters are washable. (we recommend you
to clean the filters when feeling the suction
power becoming weak.) (fig.B)
Note: The above filters should be
equipped in correct places when
work the vacuum machine
fig.A
fig.B
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE REASON
POSSIBLE SOLUTION
HAND VACUUM
WILL NOT OPERATE
1. no power in electrical outlet
supplying transformer
2.unit needs servicing
1. check fuse or
breaker .replace fuse/reset
breaker.
HAND VACUUM
WILL NOT PICK-UP
OR SUCTION
POWER IS WEAK
1. Dust cup is full.
2. Dust cup filter needs
cleaning.
1.Empty dust cup
(see page 6).
2.Remove dust cup filter and
check for
object(s) in air duct and
remove.
DUST ESCAPING
FROM HAND
VACUUM
1. Dust cup is full.
2. Dust cup filter is not installed
correctly.
3. Puncture/hole in dust cup
filter.
1. Empty dust cup .
2. Review dust cup filter
instruction. (see page 6).
3. Replace dust cup filter.
(see page 6)
HAND VACUUM
BRUSHES WILL NOT
PICK-UP
1. Dust cup is full.
1.Empty and clean dust cup
container.
