SET UP GUIDE
MODEL: 308-1416v2
WIRELESS COLOR
FORECAST STATION

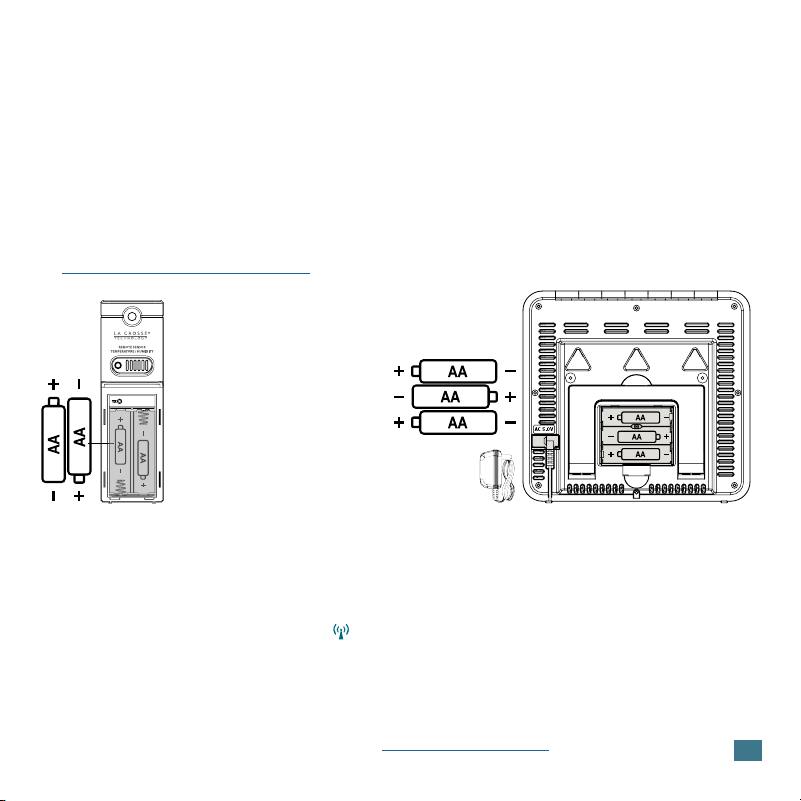

1. Insert 2-AA Alkaline batteries into your Outdoor Sensor.
2. Insert the 5 volt power cord into an outlet, then into your station.
Optional: Insert 3-AA Alkaline batteries for backup.
3. Follow the steps on page 3 to adjust your time, date, and other settings.
4. Once the sensor is reading to your weather station, place the sensor
outside in a shaded location. View our sensor mounting video here:
bit.ly/th_sensor_mounting
2
POWER UP
WWVB ATOMIC TIME SIGNAL
• The station will automatically search for the atomic time signal at UTC
7:00, 8:00, 9:00, 10:00, and 11:00.
• The Atomic Time Signal Icon will flash while searching, and be solid
when connected.
• Press and release the SEARCH button anytime, to manually search for the
atomic time signal.
• For information about WWVB visit: bit.ly/atomic_time
Outdoor Sensor
TX141TH-Bv4
Forecast Station
308-1416v2
SETTINGS MENU
1. Hold the SET button until the display changes to enter the Settings
Menu.
2. Press and release the + or - button to adjust values.
3. Press and release SET to confirm and move to the next item.
4. Press the LIGHT button at anytime to exit the Settings Menu.
Settings Menu order:
• Language (English, Español, Francais)
• Beep ON/OFF
• Atomic ON/OFF
• DST ON/OFF
• Time Zone
• 12/24-Hour Format
• Hour
• Minutes
• Year
• Month
• Date
• Temperature: Fahrenheit/Celsius
• Pressure units: INHG or HPA
• Pressure number setting
Atomic OFF: When Atomic is set to OFF, you will move directly to 12/24
hour format.
Language: When a dierent language is selected, the following instructions
and weekday will be presented in that language.
Weekday: Weekday sets automatically when Year, Month and Date are set.
Time Zone
3
4
FORECAST
• Using the station’s internal barometer, the forecast icons show a
prediction of your weather to come within the next 12 hours.
• Allow at least 7-10 days for barometric calibration.
• The Snow Icon will show when temps are below 32°F (0°C) and rain or
storms are predicted.
Note: Locations around 6,200ft or more may experience infrequent
forecast changes. Watch our video to learn more about how these icons
work: bit.ly/forecast_vid
FORECAST TREND ARROWS
The Forecast Trend Arrows indicate the change in pressure over the past
three hours. A straight arrow indicates the pressure is steady. An up arrow
indicates the pressure is rising. A down arrow indicates the pressure is
falling.
Sunny
Snow
T-Storm
Rain
Clouds
Partly Sunny
5
• Your Relative Pressure reading will come from your station’s internal
barometer.
• Please allow up to 10 days for automatic calibration, or program your local
pressure value in the Settings Menu.
• Select your desired unit of measurement (hPa or InHg) in the Settings
Menu.
RELATIVE PRESSURE
PRESSURE HISTORY GRAPH
• Read from left to right, your Pressure History Graph indicates the rise and
fall in air pressure over the past 24 hours.
• The numbers below represent the hour in which the reading was taken.
The “0h” is the current pressure level. “-3h” was the reading taken three
hours ago, compared to current pressure.
•The graph will scroll continually.

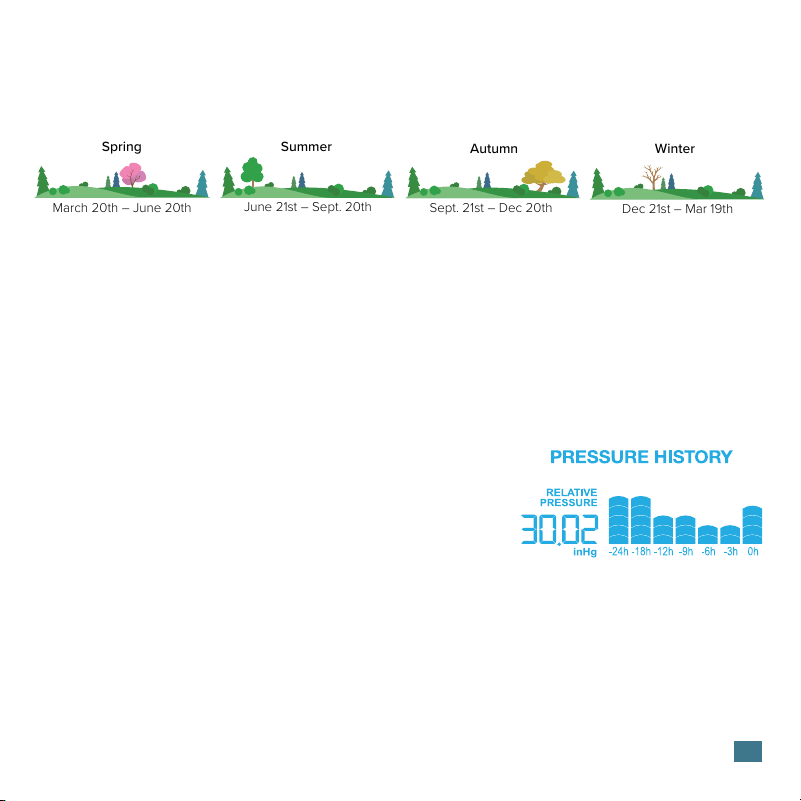

The foliage (tree) scene in the forecast section will change seasonally
according to pre-programmed dates.
March 20th – June 20th
Spring
Autumn
Summer
Winter
June 21st – Sept. 20th
Sept. 21st – Dec 20th
Dec 21st – Mar 19th
SEASONAL FOLIAGE
• When operating with the power cable, press and release the LIGHT
button to adjust the backlight brightness (High, Low, O).
• When operating with batteries only, the backlight will turn on briefly when
the LIGHT button is pressed.
ADJUSTABLE BACKLIGHT
6
TEMPERATURE & HUMIDITY RECORDS
Press and release the TEMP button to toggle through your daily indoor and
outdoor temperature and humidity records.
Records Viewing Order:
• Today’s High Indoor and Outdoor Records
• Today’s Low Indoor and Outdoor Records
• Heat Index
• Dew Point
Note: These records will reset automatically at 12:00am (midnight) each day.

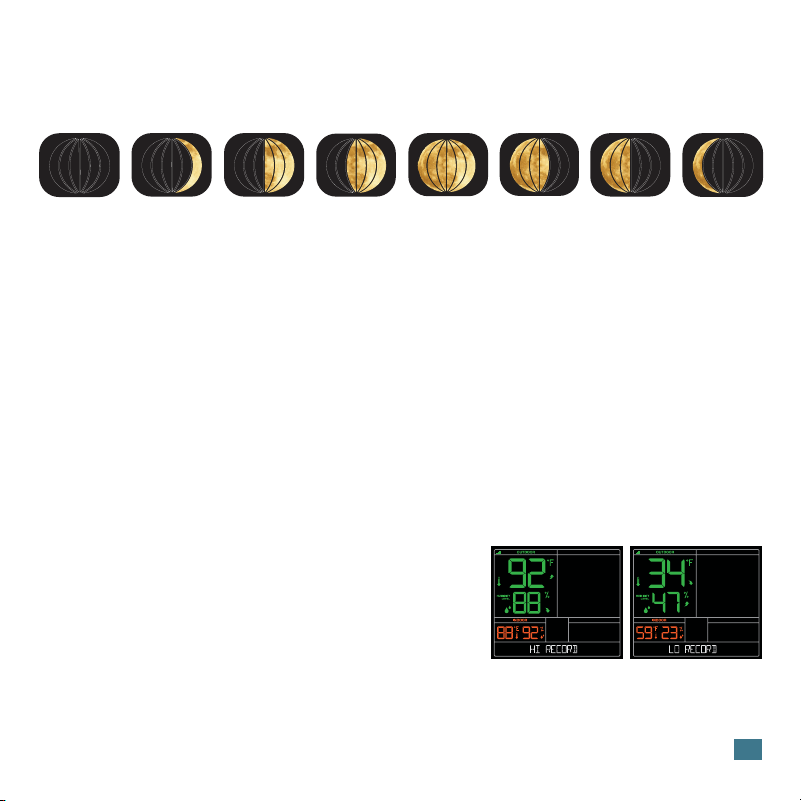

The moon phase is based on the Lunar Calendar and the year, month, and date
settings.
New
Moon
Waxing
Crescent
First
Quarter
Waxing
Gibbous
Full
Moon
Waning
Gibbous
Last
Quarter
Waning
Crescent
MOON PHASE
7
TEMPERATURE & HUMIDITY TREND ARROWS
TEMPERATURE & HUMIDITY ALERTS
To set alerts:
1. Hold the ALERTS button to enter the Alert Settings Menu.
2. Use the +/- buttons to activate/deactivate individual alerts (ON/OFF), or
press the ALERTS button to skip to the next option.
3. Once activated (ON), use the +/- buttons to adjust the alert value.
4. Press the ALERTS button to confirm and move forward.
Alert Setting Order:
• Outdoor Low Temp Alert
• Outdoor High Temp Alert
• Outdoor Low Humidity Alert
• Outdoor High Humidity Alert
• Indoor Low Temp Alert
• Indoor High Temp Alert
• Indoor Low Humidity Alert
• Indoor High Humidity Alert
• Trend Arrows near your outdoor data will update every 15 minutes,
comparing current values with the previous hour.
• When a change of 2°F (1°C) or 3% RH is recorded, an arrow will appear
indicating the change. If changes do not meet these thresholds, no
arrows will show.
8
LOW BATTERY ICONS
Low Battery Icon by Outdoor Temperature, replace batteries in the Outdoor
Sensor.
Low Battery Icon by the Indoor Temperature, replace batteries in the Station.
Active Alert:
• On your normal display, active alerts are indicated by the Alert Icon
and corresponding HI or LO letters near the particular indoor or
outdoor reading.
• When an alert values is reached, the station will beep 5 times each
minute until out of the alert range.
• Press any button to stop the alert sound. The Alert Icon will remain
flashing until out of the alert range.
Deactivate Alerts:
1. Hold the ALERTS button to enter the Alert Settings Menu.
2. Use the +/- buttons to activate/deactivate individual alerts (ON/OFF).
3. Press and release the ALERTS button to confirm and move to the
next alert option.
4. Press and release the LIGHT button to save and exit the menu.
Outdoor High Alert
Outdoor Low Alert
Indoor High Alert
Indoor Low Alert
9

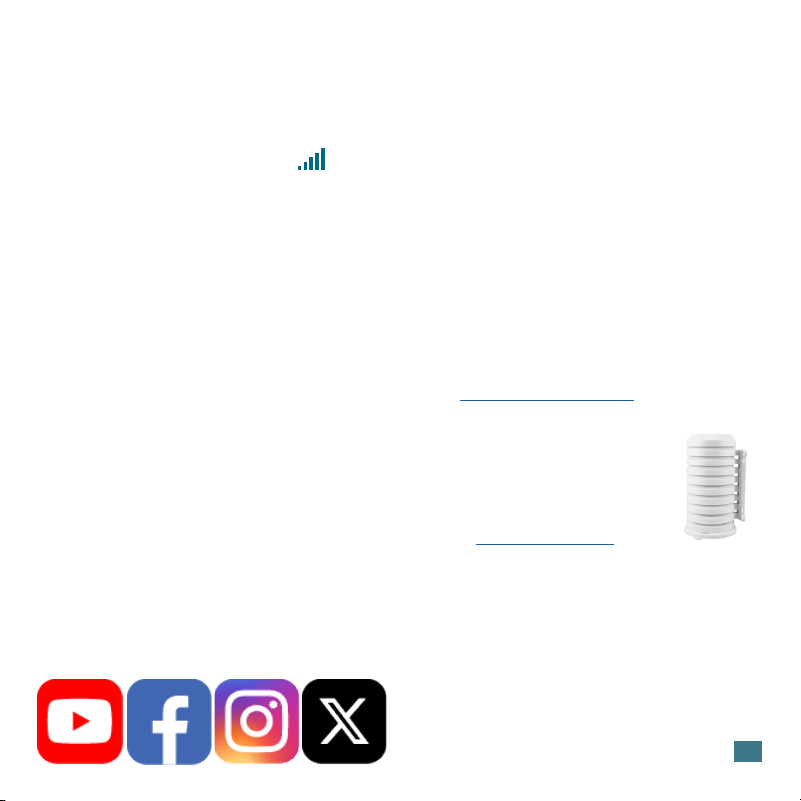

SEARCH FOR OUTDOOR SENSOR
If you are seeing dashes for any sensor readings, please try the
following steps:
1. Hold the SEARCH button to search for your outdoor sensor.
The Reception Indicator will begin to animate.
2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside
next to the display and remove power from the sensor and station.
3. Press any button on the station 20 times and leave the parts sit for a few
moments with the power o.
4. Install a new set of alkaline batteries into the sensor, then power up your
station again.
5. If your sensor data is still not appearing after these steps, please contact
our support sta. For additional help visit: bit.ly/basic_restart
SENSOR WEATHER SHIELD
• The Sensor Weather Shield is an optional add-on designed to
protect your outdoor sensor from rain, snow, and other elements.
• Purchase your add-on Weather Shield here: bit.ly/925-1418.
STAY IN TOUCH!
Ask questions, watch setup videos, and provide feedback on our social media
outlets. Follow La Crosse Technology on Youtube, Facebook, Instagram, and
X (Twitter).
Sold Seperately
10
SPECIFICATIONS
Weather Station (308-1416v2):
Indoor Temperature Range: 32°F to 99°F (0°C to 37°C)
Indoor Humidity Range: 10% to 99% RH
Update Interval: About every 60 seconds
LCD Brightness: HIGH, LOW, OFF
Relative Pressure: 23.62 to 32.48 inHg (800 to 1100 hPa)
Power Requirements: AC6: GPU280500150WA00
The plug on the power adapter is intended to serve as the disconnect device, the socket-outlet shall be
installed near the equipment and shall be easily accessible.
Battery Backup: Optional: 3 “AA” Batteries (Not Included)
Battery Life: 4+ years with power cord use

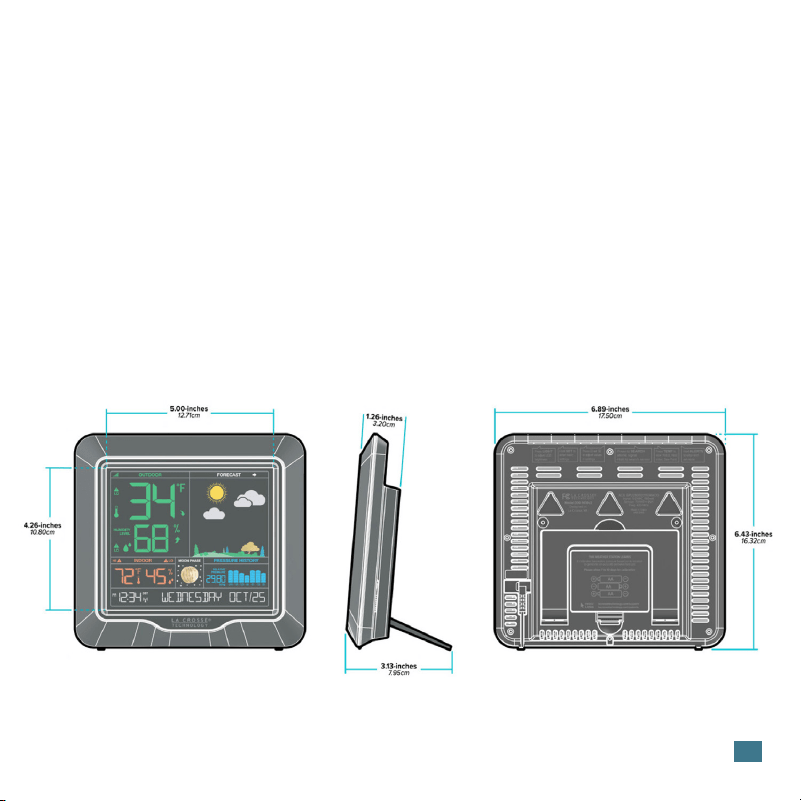

Dimensions: 6.89 in L x 1.26 in W x 6.43 in H (17.50 cm L x 3.20 cm W x 16.32 cm H)
11
Outdoor Sensor (TX141TH-Bv4)
Outdoor Temperature Range: -40°F to 140°F
(-40°C to 60°C)
Outdoor Humidity Range: 10% to 99% RH
Transmission Range: over 330 feet (100 meters) in
Open Air
Transmission Frequency: RF 433MHz
Update Interval: Every 51 Seconds
Power Requirements: 2 “AA” LR6 Batteries
(Not Included)
Battery Life: Over 24+ months with reputable batteries
(May Vary Based on Climate)

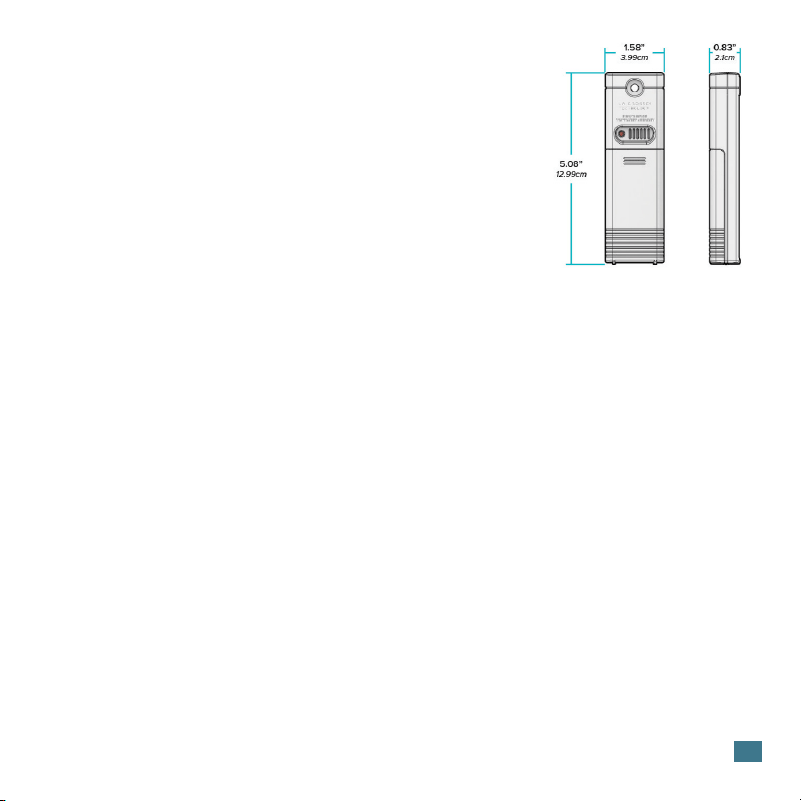

Dimensions: 1.58 in L x 0.83 in W x 5.08 in H
(3.99 cm L x 2.1 cm W x 12.99cm H)
CARE AND MAINTENANCE
When batteries of dierent brand or type are used together, or new and old batteries are used
together, some batteries may be over-discharged due to a dierence of voltage or capacity.
This can result in venting, leakage, and rupture and may cause personal injury.
• Do not mix Alkaline, Lithium, Standard, or Rechargeable batteries.
• Always purchase the correct size and grade of battery most suitable for the intended use.
• Always replace the whole set of batteries at one time, taking care not to mix old and new
ones, or batteries of dierent types.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from product during periods of non-use. Battery leakage can cause
corrosion and damage to this product.
• Remove used batteries promptly.
• For recycling and disposal of batteries, and to protect the environment, please check
the internet or your local phone directory for local recycling centers and/or follow local
government regulations.
12
WE’RE HERE TO HELP
If you require additional support, call our friendly customer
support team based out of La Crosse, Wisconsin.
Self Help: bit.ly/308-1416v2_support
Phone: 1.608.782.1610
Online: bit.ly/contact_techsupport
Our knowledgeable customer support team is available:
Monday-Friday, 8am-6pm CST.
WARRANTY & PATENTS
La Crosse Technology Ltd. provides a 1-year limited-time warranty on this product
relating to manufacturing defects in materials & workmanship. Per the Song-Beverly
Act, in the state of California, the warranty on this item becomes effective on the
date of delivery.
La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty
Patents: www.lacrossetechnology.com/patents
SCAN HERE
FOR SUPPORT
WARNING This product can expose you to chemicals including acrylonitrile,
1, 3-butadiene, and styrene, which are known to the State of California to cause cancer
and birth defects or other reproductive harm. For more information go to:
www.P65Warnings.ca.gov
CALIFORNIA RESIDENTS
13
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
•
Increase separation between equipment & receiver.
•
Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
(1 ) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
CAUTION!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or
modifications to this equipment. Such changes or modifications could void the user authority to operate the
equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or
processed using electronic, mechanical or chemical process without the written permission
of the publisher. This booklet may contain errors or misprints. The information it contains is regularly
checked and corrections are included in subsequent editions. We disclaim any responsibility for any
technical error or printing error, or their consequences. All trademarks and patents are recognized.
Designed in La Crosse, Wisconsin • Made in China • Printed in China • DC 060724
