Kucht KED304LP Professional 30 Inch Freestanding Dual Fuel Range with

User & Installation Guide - Transcript

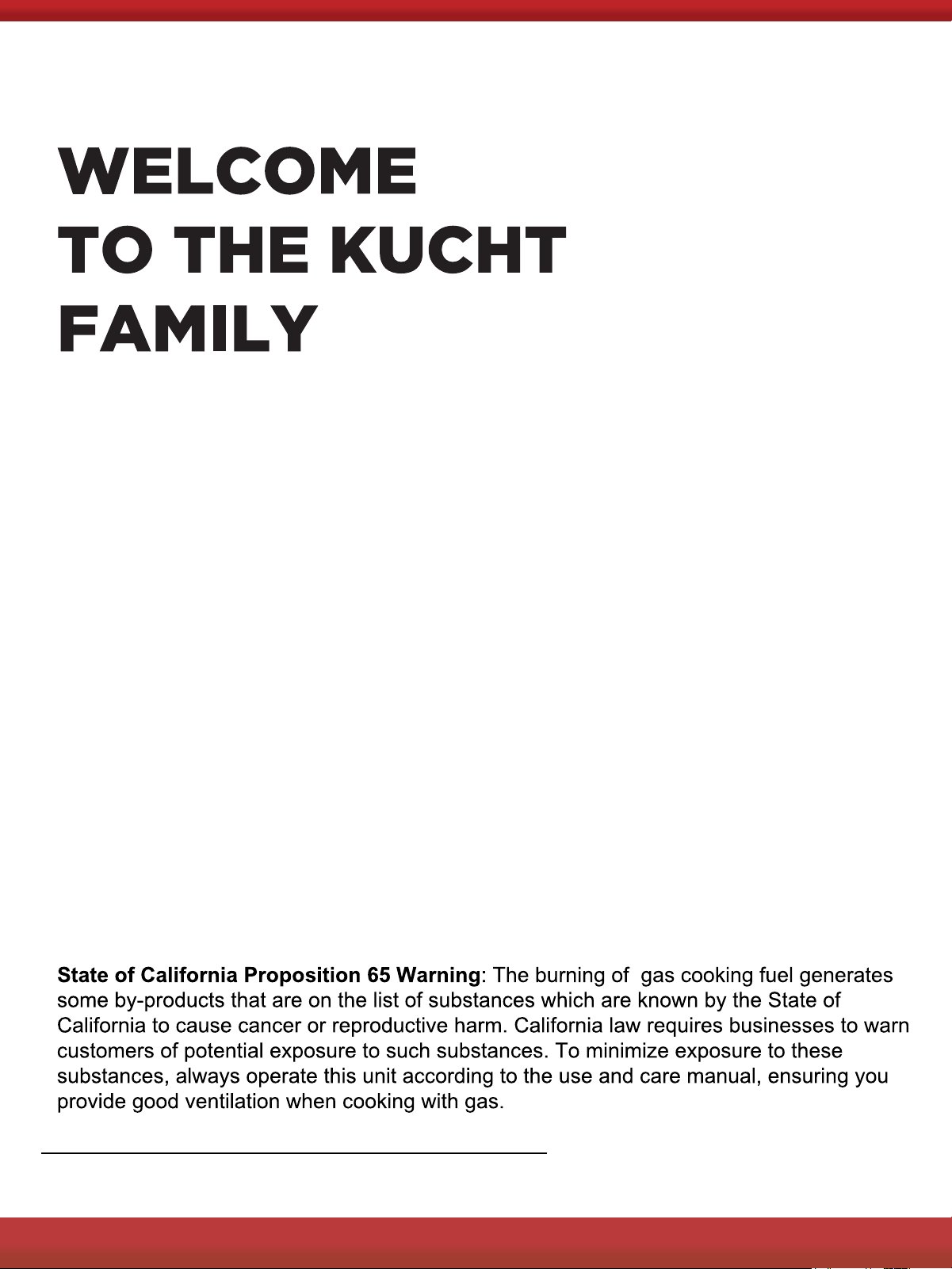

• Page 2 - English - : FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM KUCHTCOM STYLE AND SIMPLICITY TM This manual contains instructions on how to properly install and set up your new range as well as insights into many of the unique features that our product offers Please keep this manual for future reference as it contains the answers to questions that you might have as you begin to cook
• Page 3 - English - : Contents If the information in this manual is not followed exactly a fire or an explosion may result causing property damage personal injury or even death Do not store or use gasoline liquid propane cylinder or other flammable vapors and liquids in the vicinity of this appliance What to do if you smell gas WARNING FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM TABLE OF CONTENTS
• Page 4 - English - : SAFETY INSTRUCTIONS This is a safety alert symbol It will alert you to potential personal or property safety hazards Obey all safety messages to avoid any property damage personal injury or death WARNING indicates a potentially hazardous situation which if not avoided could result in serious injury or death CAUTION indicates a moderate hazardous situation which if not avoided could result in minor or moderate injury CAUTION CAUTION when used without the safety alert symbol indicates a potentially hazardous situation which if not avoided could result in property damage IMPORTANT IMPORTANT used for installation operation and maintenance information that are not related to safety If the information in this manual is not followed exactly a fire or an explosion may result causing property damage personal injury or even death Do not store or use gasoline liquid propane cylinder or other flammable vapors and liquids in the vicinity of this appliance Save this manual for future references FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 5 - English - : SAFETY INSTRUCTIONS What to do if you smell gas Do not try to light any appliance Do not touch any electrical switch Do not use any phone in your residence Immediately call your gas supplier from a neighbors phone Follow the gas suppliers instructions If you cannot reach your gas supplier call the fire department IMPORTANT The installation and service of your range product must be performed by a licensed installer an approved service agency or your gas supplier Make sure the antitip bracket is installed WARNING FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 6 - English - : WARNING WARNING DO NOT lift range by the oven door handles Extremely Heavy Proper equipment and adequate manpower when move the range to avoid personal injury or damage to the unit or the floor The unit is heavy and rests on adjust able steel legs Failure to follow this advice may result in damage or personal injury UNPACKING AND HANDLING FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 7 - English - : Do not store or use gasoline liquid propane cylinder or other flammable vapors and liquids in the vicinity of this appliance The installation and service of your range must be performed by a qualified installer an approved service agency or the gas supplier Gas appliances can cause minor exposure to four of these substances namely benzene carbon monoxide formaldehyde and soot caused primarily by the incomplete combustion of natural gas fuel When operating your range on natural gas the flames from the burners should be blue in color In addition the flames should be stable free of yellow tipping excessive noise and lifting However this yellow tipping should be restricted to the primary flame kernels only Properly adjusted burners indicated by a bluish rather than a yellow flame will minimize incomplete combustion Exposure to those substances can be minimized by venting with an open window or use of a ventilation fan or hood IMPORTANT This indoor cooking appliance is equipped with a threeprong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded threepronged receptacle DO NOT cut or remove the grounding prong from this plug FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM SAFETY INSTRUCTIONS ELECTRICAL GROUNDING
• Page 8 - English - : INSTALLATION AND OPERATION INSTRUCTIONS To ensure proper and safe operation read all instructions before using the product Install or locate the product only in accordance with the provided Installation Instructions All servicing should be performed to a qualified technician Do not attempt to adjust repair service or replace any part of your appliance unless it is specifically recommended in this guide Do not use the range for warming or heating the room Do not leave children alone or unattended in the area where the range is in use Never allow them to sit or stand on any part of the range Do not let children play with the range Have the technician show you the location of th e gas shut off valve and how to shut it off in an emergency situation Always disconnect power to appliance before any type of servicing Do not use abrasive or caustic cleaners or detergents on this appliance They may cause permanent damage to the surface When cooking set the burner controls so that the flame heats only the bottom of the utensil and does not overlap at the sides of the utensil Utensils pots and pans that conduct heat slowly ie glass pots should be used in c onjunction with burner flames at a low or medium setting Turn off all controls and wait for appliance parts to cool down before touching them Do not touch the burner grates or surrounding areas until cool Do not use water on grease fires Clean appliance with caution Always turn pot handles to the side or back of the range Do not turn handles towards the area where they can be easily burned Handles should not extend over the adjacent burners Use the range only for cooking tasks as outlined in this manual When using the range do not touch the grates burner caps burner bases or any other parts in proximity to the flame These components may be hot enough to cause burns Use dry pot holders Moist or damp pot holders on hot surfaces may result in burns from steam Remove pot holder away from hot surface areas Do not use a towel or other bulky cloth Do not heat unopened food containers Build up of pressure may cause the container to explode and result in injury During and af ter use do not touch interior surfaces of the oven until cool FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 9 - English - : INSTALLATION INSTRUCTIONS IMPORTANT Keep appliance area clear and free from combustible materials gasoline and other flammable vapors Installation of this range must conform with local codes or in the absence of local codes the National Fuel Gas Code ANSI Z2231 NFPA 54 In Canada installation must conform to the current natural Gas Installation code CAN 111M81 and with local codes where applicable This range has been designcertified according to ANSI Z211b2012 latest edition A statement of the maximum gas supply pressure in accordance with the inlet pressure rating of the gas appliance pressure regulator supplied MINIMUM GAS SUPPLY PRESSURE TO APPLIANCE FOR LP GAS140 INWC MINIMUM GAS SUPPLY PRESSURE TO APPLIANCE FOR NG 6 INWC APPLIANCE REGULATOR IS SET AT 50 IN WC OUTLET PRESSURE Do not obstruct the flow of combustion air into the range and ventilation air away from the range Ventilation it is recommended that the unit be operated with an oven head vented exhaust hood of sufficient size and capacity Before installing the range you must locate and secure the included an titip bracket to the wall for your range The use of cabinets for storage above the appliance may result in a potential fire hazard Combustible items may ignite metallic items may become hot and cause burns If a cabinet storage is to be provided the risk can be reduced by installing a range hood that projects horizontally a minimum of 5quot 127cm beyond the bottom of the cabinets The appliance shall not be used for space heating This information is based on safety considerations All openings in the wall behind the appliance and in the floor under the appliance shall be sealed FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM GAS SUPPLY REQUIREMENTS

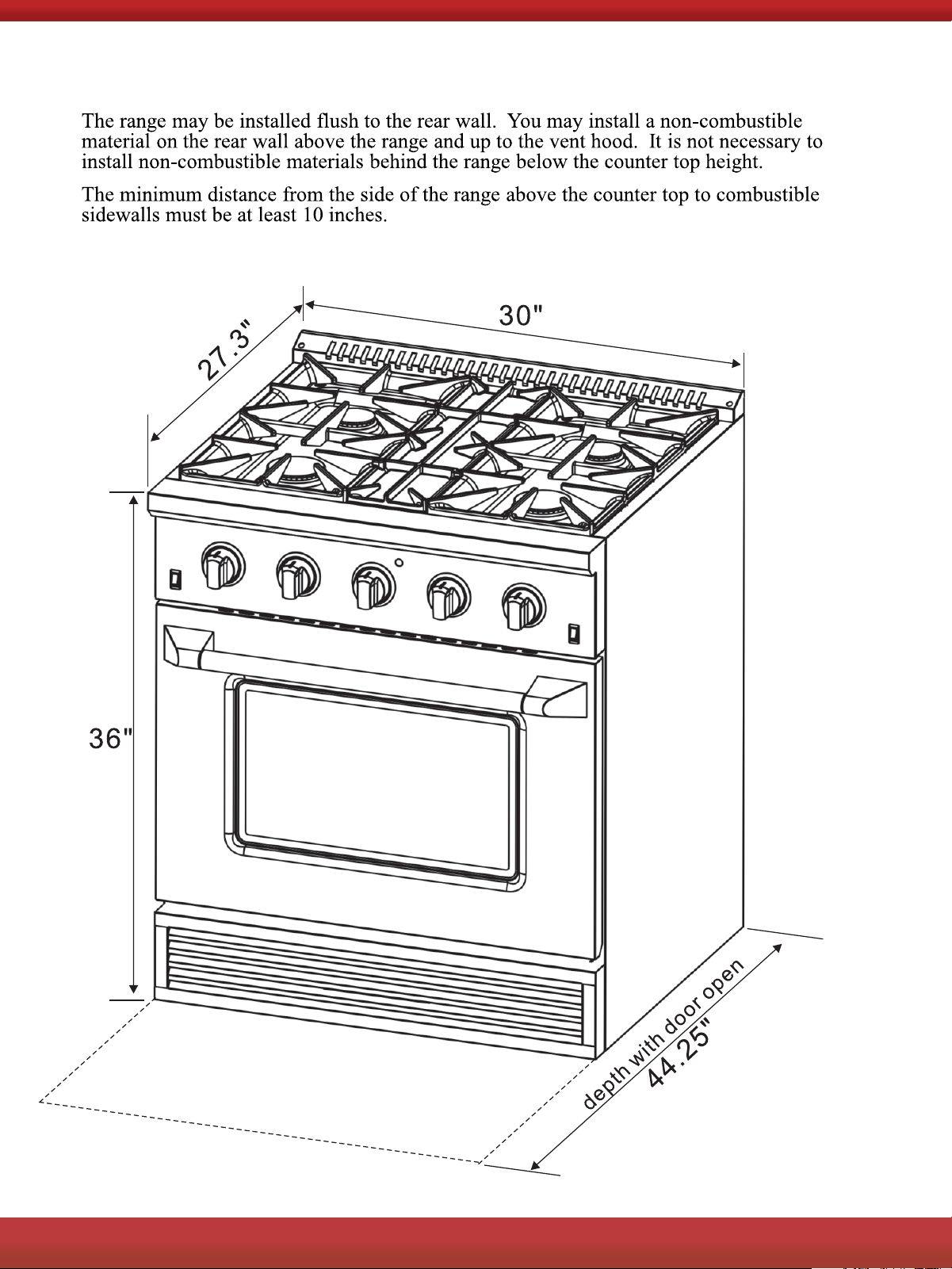

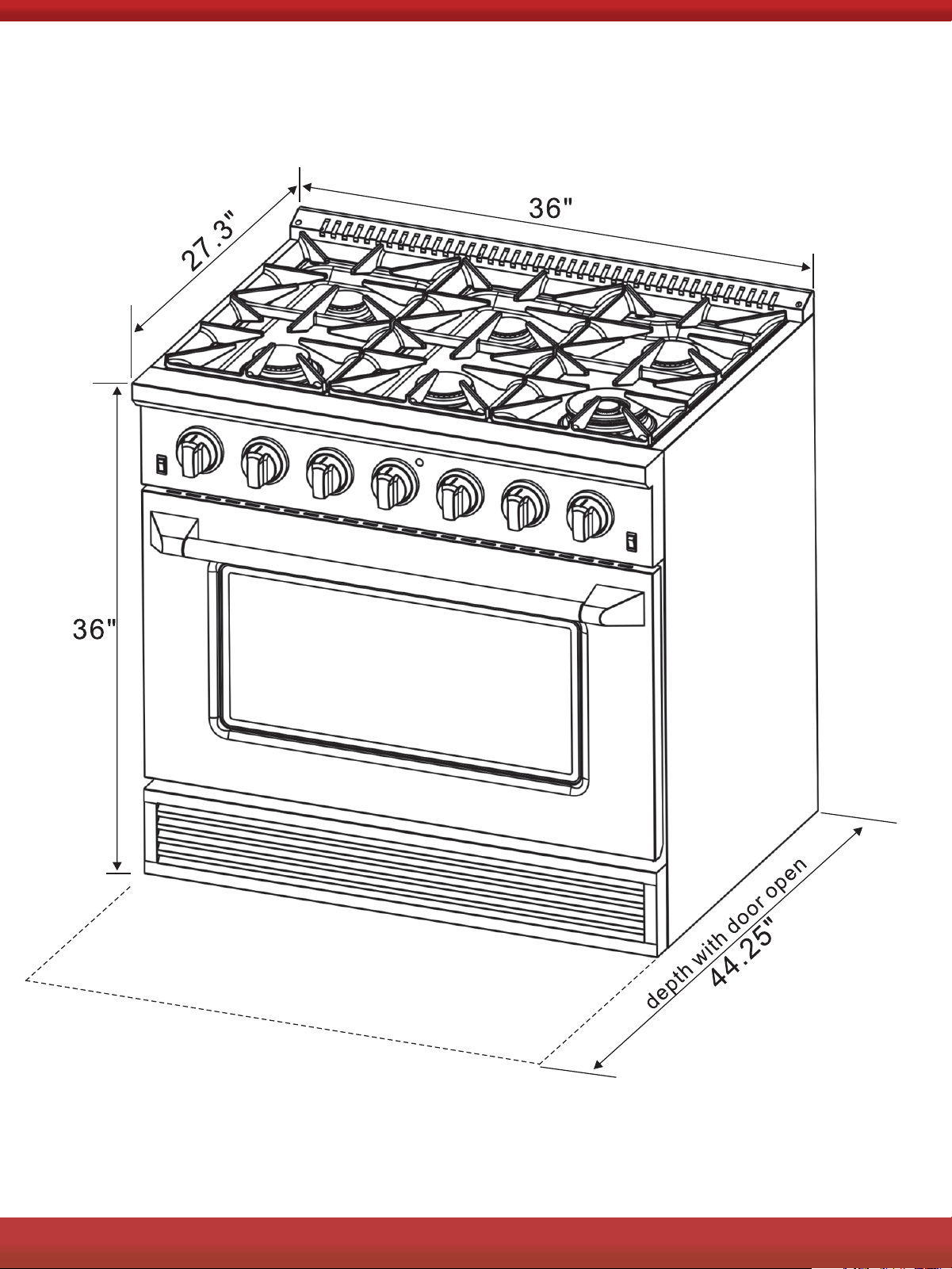

• Page 10: INSTALLATION INSTRUCTIONS DIMENSIONS AND CLEARANCES FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 11: FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 12: FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM

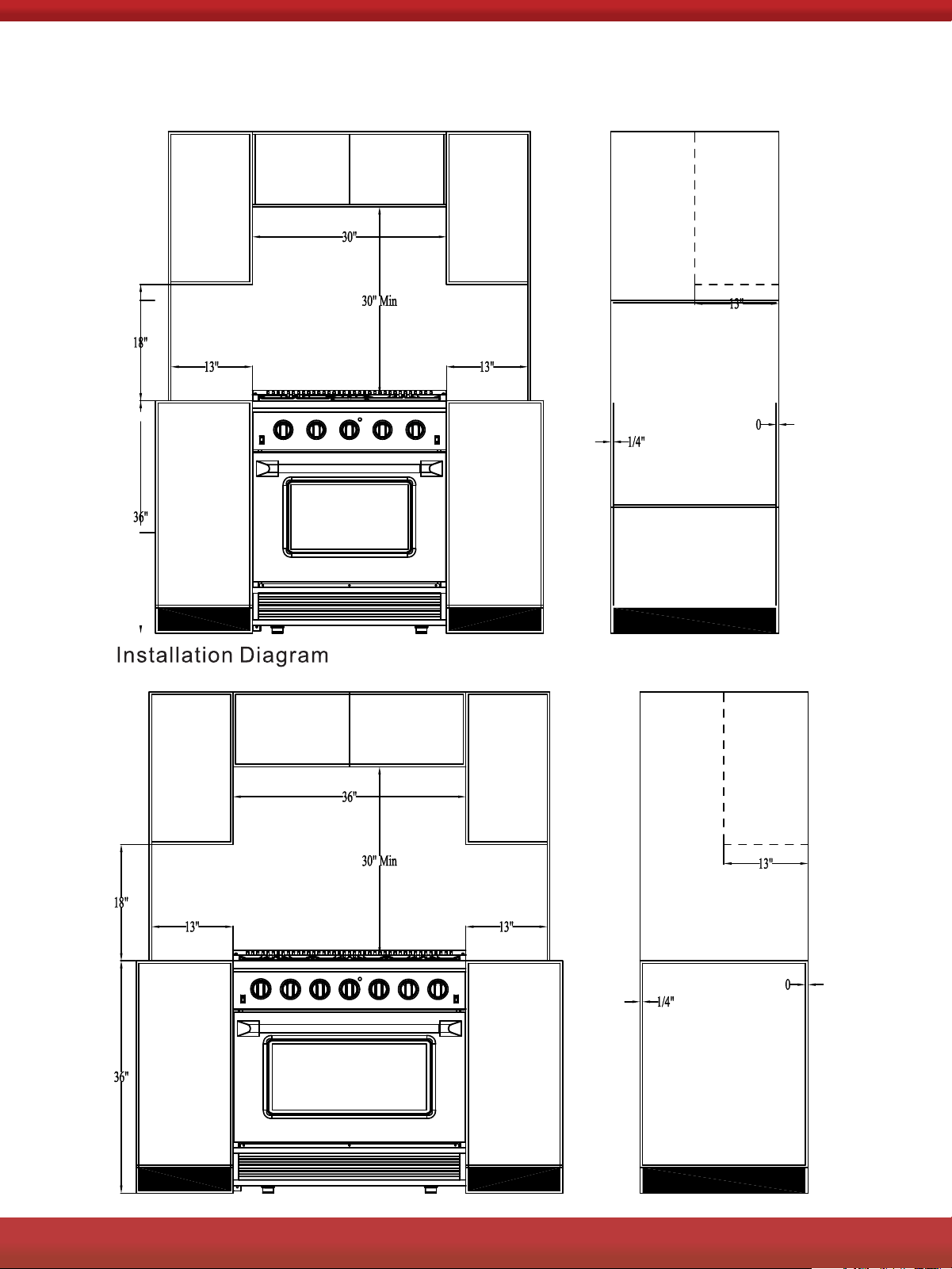

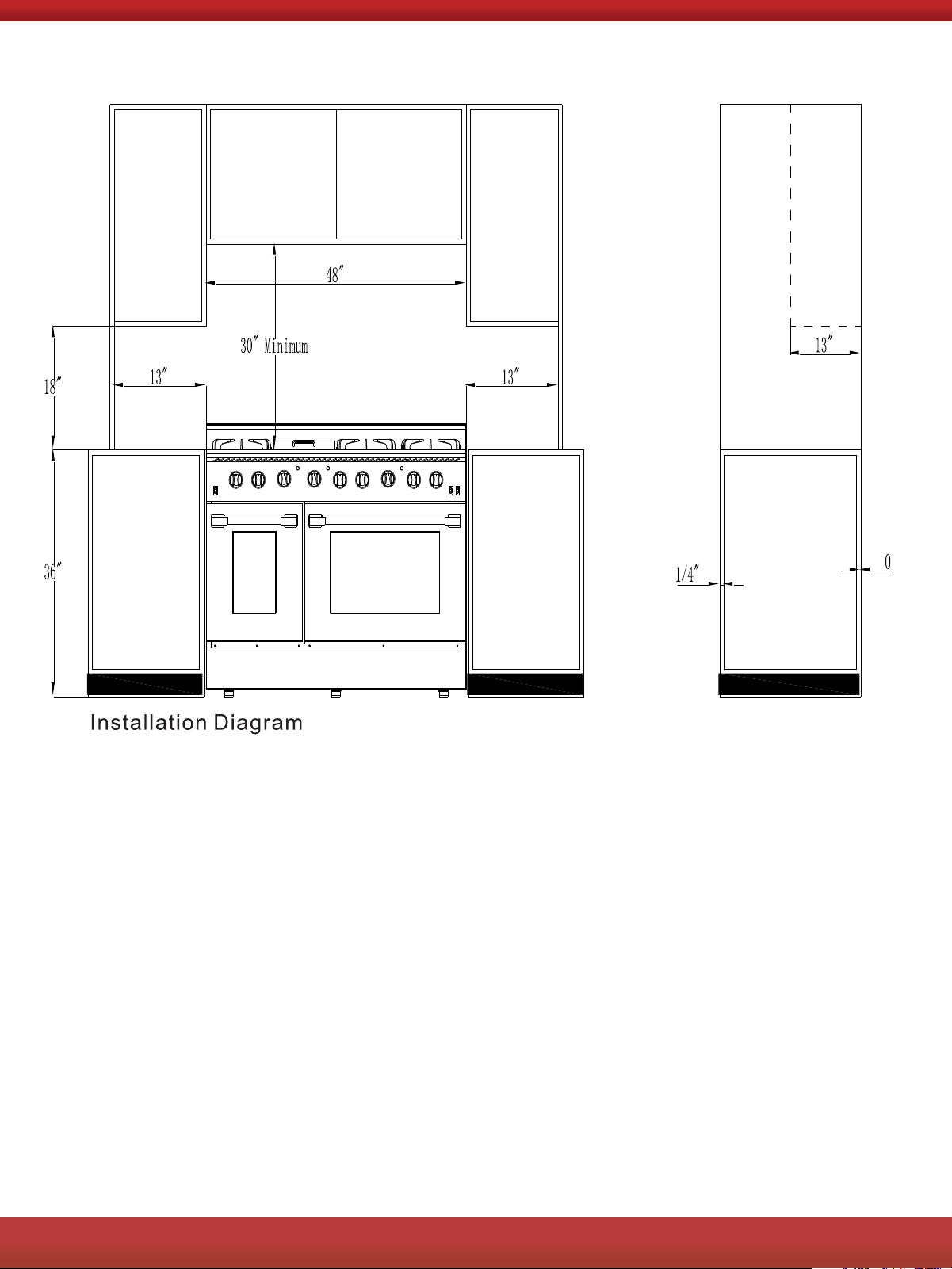

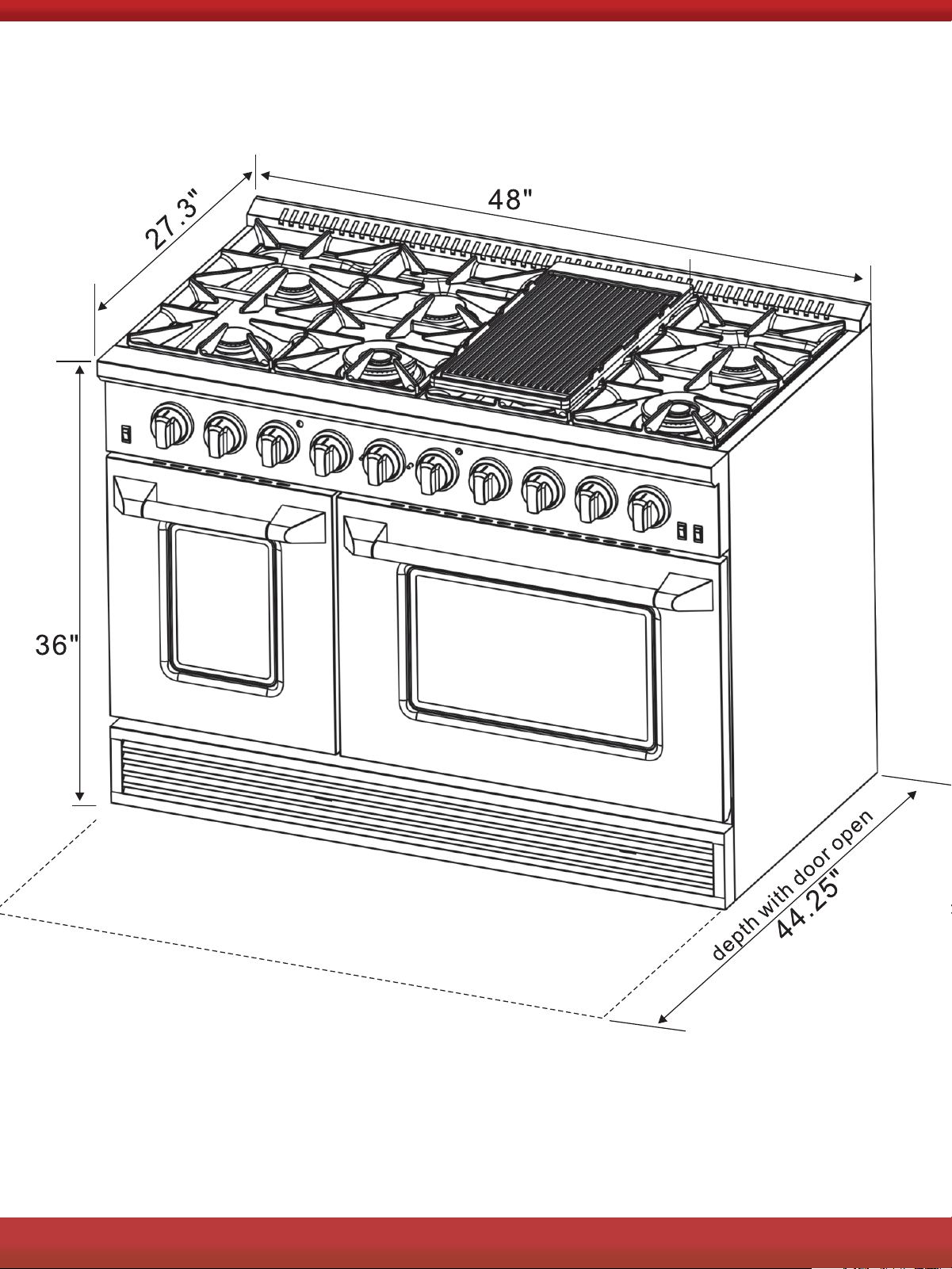

• Page 13: FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM DIMENSIONS AND CLEARANCES
• Page 14: FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM

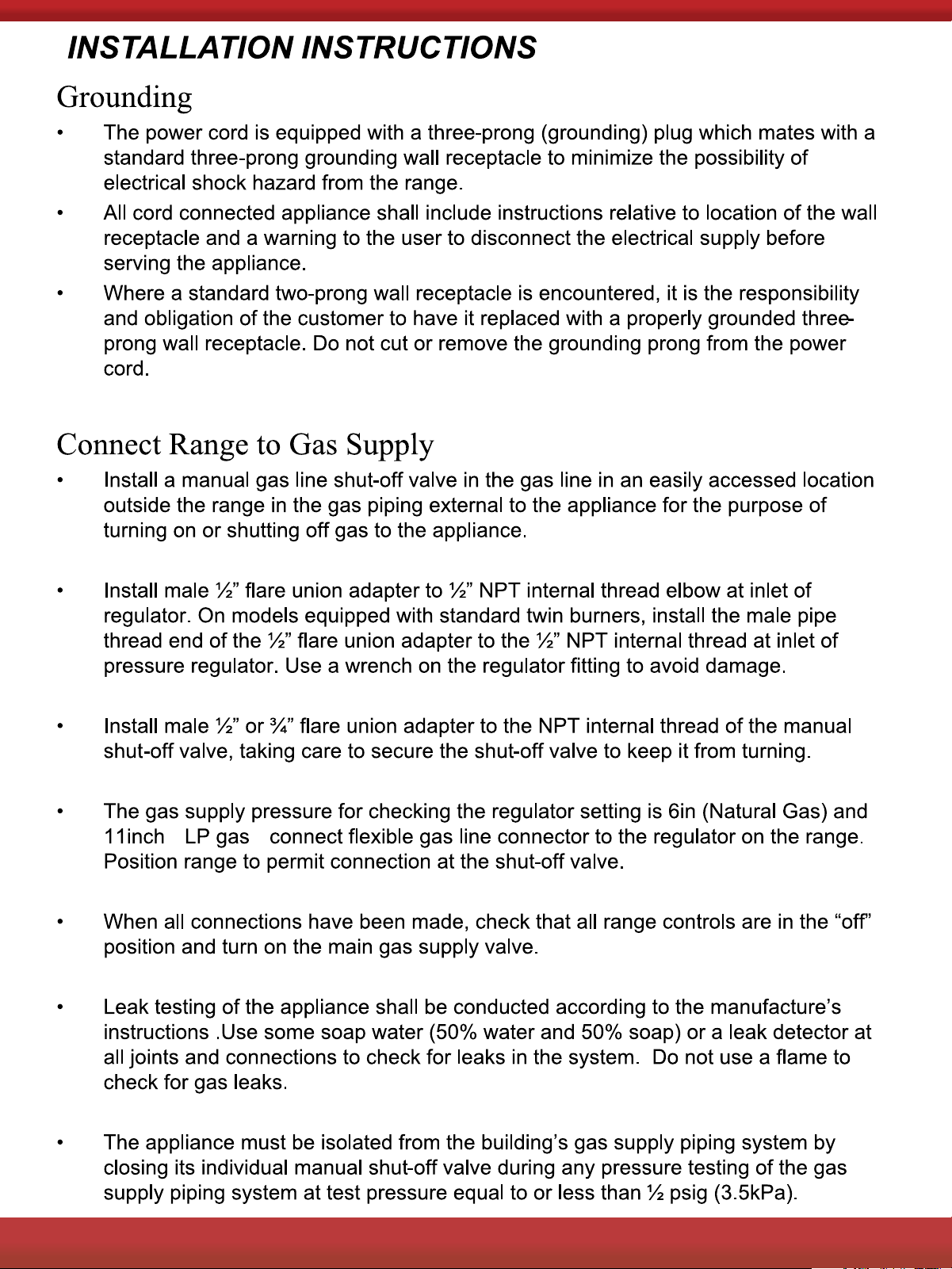

• Page 15 - English - : INSTALLATION INSTRUCTIONS WARNING Electrical Grounding Instructions Do Not Caution FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 16: FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 17 - English - : After Installation RANGE HOOD INSTALLATION FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM Due to the high power of the top burners we do not recommend the use of downdraft ventilation systems A range hood with at least 450 CFM is advisable
• Page 18 - English - : Push to release gas Adjust to appropriate flame height Turn to Ignite and Hi position NOTE Heat Settings Hi Simmer Low LowMedium Medium Medium Hi Hi COOKTOP OPERATION FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 19: Flame Size Power Failure Cooktop Approximate 1 12 Flame Height Simmer and Boil FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 20 - English - : Burner Grates Oven Vent COOKTOP OPERATION WARNING FOOD SAFETY Never use this appliance as a space heater to heat or warm the room Doing so many result in carbon monoxide poisoning and overheating of the oven Never use this appliance as a storage space and storage cabinet areas Never use this appliance doors or drawers such as stepping Leaning or setting on the doors or drawers may result in hazards and injuries FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 21: OVEN OPERATION FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM

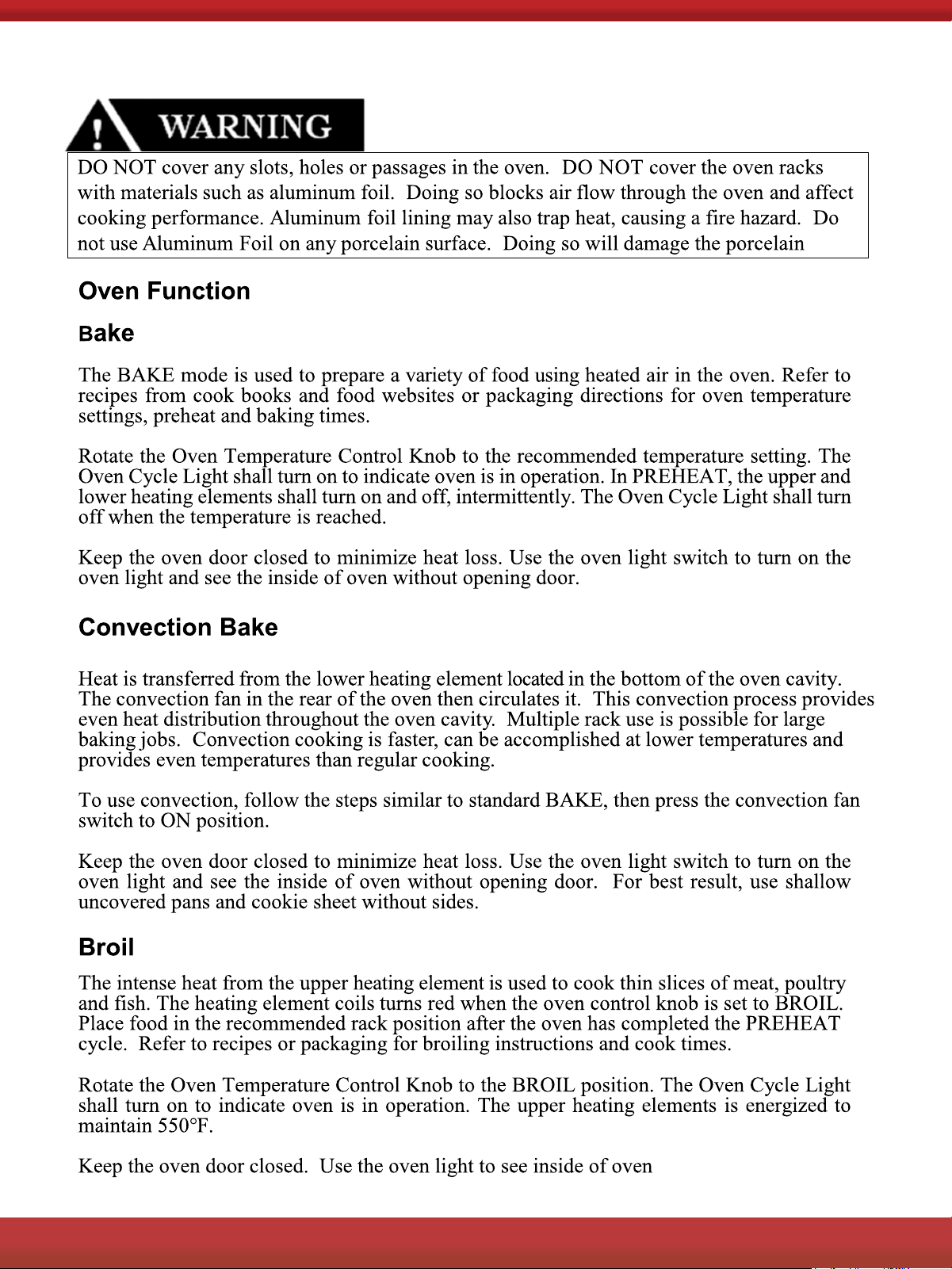

• Page 22 - English - : FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM The ovenknob displayed temperature is set to match the oven temperature with the convection mode on When using the oven with the convection feature o the temperature inside the oven could be between 25 to 50 degrees lower than the knob indicates OVEN OPERATION
• Page 23 - English - : Preheating To Broil Setting Broil DO NOT DO NOT cover the broil pan insert with foil To set the oven to Broil BROILER OPERATION Note Door must be closed during broiling operation FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 24: FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM GRIDDLE OPERATION if equipped on your model
• Page 25 - English - : CARE AND CLEANING Cooktop Control Panel Door Handle Control Housing Oven Window Porcelain Surfaces Stainless Steel Surfaces FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 26 - English - : CARE AND CLEANING Metal Finishes Plastic Finishes Oven Racks Oven Frame Oven Gasket Replacing the Oven Light Outer Oven Door Inner Oven Door FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM

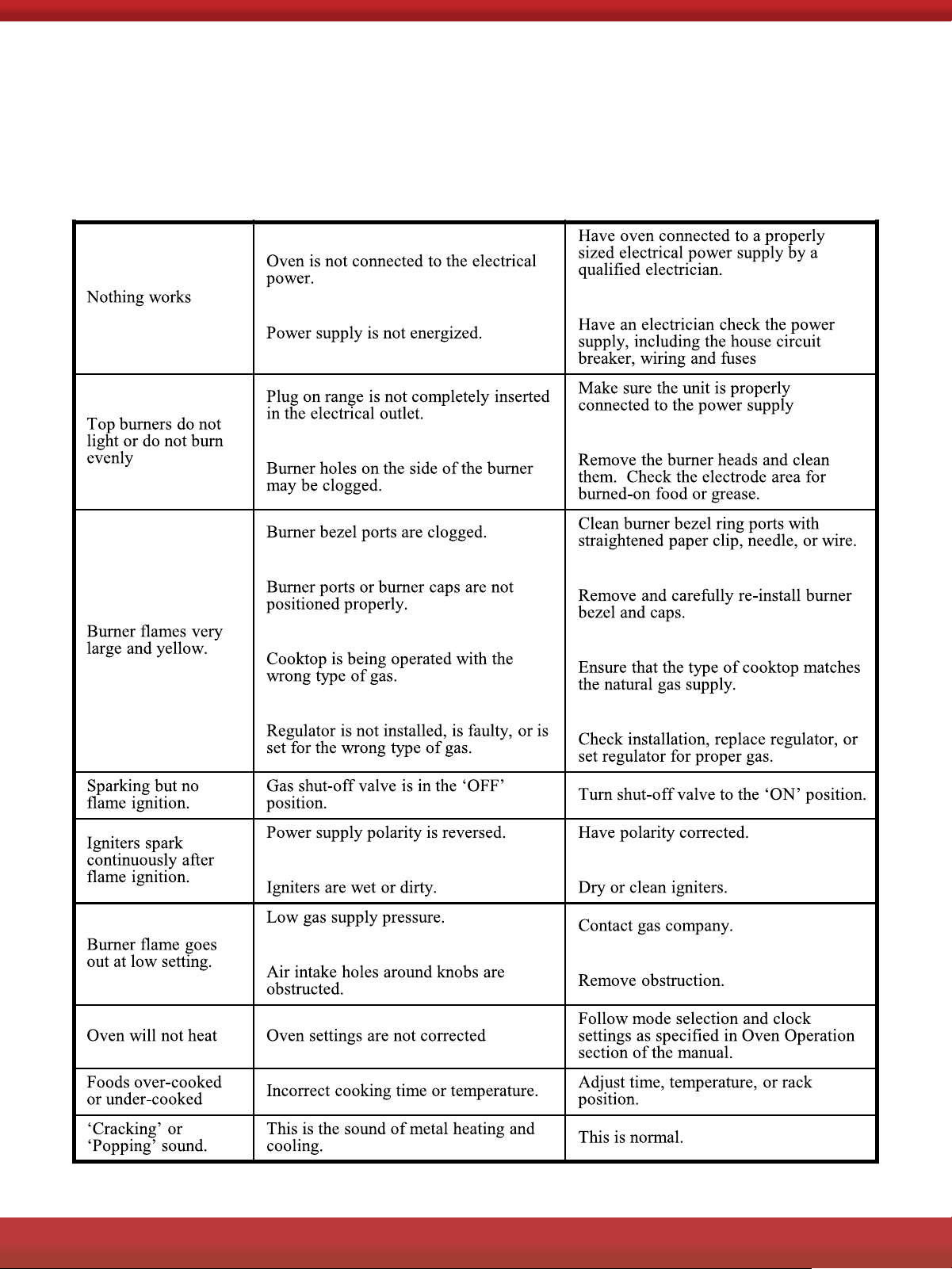

• Page 27 - English - : Before you call for service please review the potential problem possible causes and remedies shown in the table below TROUBLESHOOTING FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM
• Page 28 - English - : Remember to register your product at wwwkuchtcom FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM WARRANTY AND PRODUCT REGISTRATION

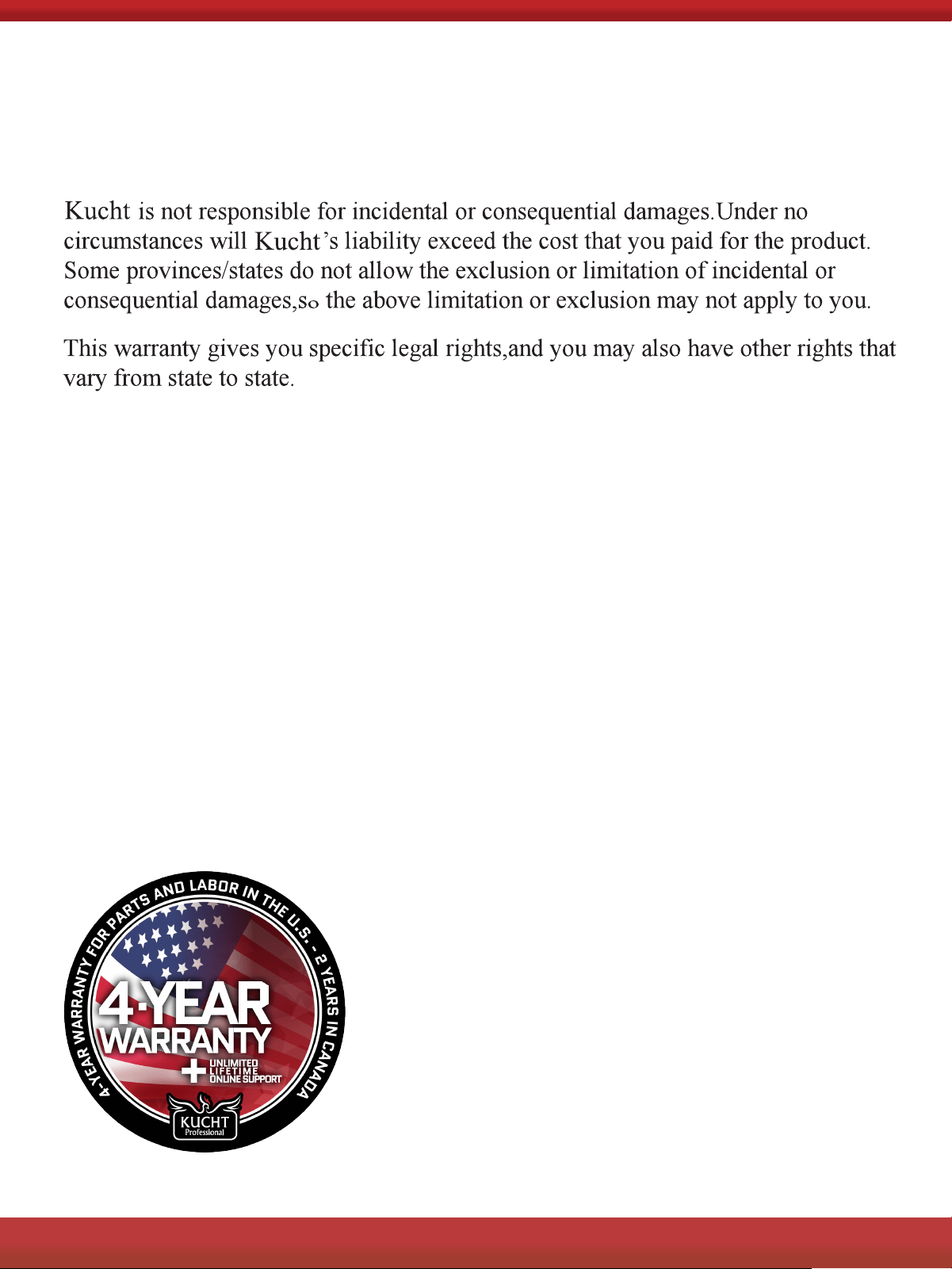

• Page 29 - English - : FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM Warranty Exclusions WARRANTY The Kucht LLC and KUCHT CARE LLC Limited Warranty covers residential installations only and is nontransferable to any other party Warranty is void when the product is installed in common areas where more than a single party has rightful access to its use or in locations considered beyond normal residential use Warranty does not apply to products installed in any commercial or nonresidential application Examples of excluded applications include but are not limited to day care centers schools bed and breakfast centers churches private clubs fire stations club houses common areas in multifamily dwellings restaurants bakeries hotels nursing homes food service locations and institutional food service locations KUCHT Warranty covers defects in Parts and Labor for functional parts that are the result of normal usage for a period of time of 4 Years for Parts and Labor from date of purchase Functional parts are those components parts that are critical to the performance of the products essential function Nonfunctional parts are those that are not critical like knobs handles or cosmetic parts KUCHT will repair or replace the unit or any parts therefore as required subject to these terms and conditions General Conditions a Warranty does not cover failure as a result of misuse abuse rust or corrosion spilled liquids or foreign objects found inside the unit repair of damage caused by accident theft fire flood external causes such as but not limited to blow fuses inadequate electrical power water and gas lines beyond the equipment or any use of the product not authorized by the manufacturer b The maximum liability of the warranty for product replacement or repair shall not exceed the original purchase price of the product c KUCHT reserves the right to repair or replace the covered product with a comparable feature model of like kind d Warranty does not cover deterioration of the appearance of the product any cosmetic part such as paint porcelain glass dents scratches chips rust or peeling e Any damage resulting from unauthorized replacement parts improper service or modifications made to the covered product are not covered f KUCHT is released from all liability due to indirect consequential or incidental damages Kucht Liability is limited to the original price of the covered equipment 4Year Warranty period is valid for every appliance bought after September 1st 2020 in the US territory Not valid for accessories parts or wine coolers All the appliances acquired before September 1st 2020 and Wine Coolers are covered with a 2year warranty for parts and labor In addition Kucht gives full UNLIMITED LIFETIME SUPPORT This means that if our customers come across any problem after the warranty has expired a qualified Kucht member will provide assistance using video chat in any repair process Users and technicians will also have access to repair videos tutorials manuals and any extra help that is available KUCHTCOM STYLE AND SIMPLICITY TM
• Page 30 - English - : FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM RETURN POLICY WARRANTY Kucht will accept return requests for purchases within the first 90 days after delivery Shipping discrepancies or products that arrive damaged must be reported to Kucht Customer Support within 5 business days of delivery in order to be eligible for a full refund Once a return request is approved Kucht will send a Return Merchandise Authorization RMA From this time the customer will have 15 calendar days to return the item to Kucht All merchandise returned to Kucht must be in original packaging with all original items eg manuals remotes cables etc that came in the box Returns with missing or damaged items will result in a partial refund Products and or Parts must be returned in new condition including all components manuals registration cards and original undamaged packaging After we receive and inspect the items the refund will be processed minus the original shipping cost Kucht wont refund the original shipping cost in any case The return shipping cost might be covered by Kucht depending on the situation in which case Kucht will send a Bill Of Lading and handle the shipping arrangements There will not be refunds or compensations related to the shipping and handling of the products under any circumstances Returns without an RMA number will not be accepted and a credit will not be issued Additional shipping charges apply with shipments outside the 48 contiguous United States expedited shipping and oversized items These additional shipping charges such as taxes custom duties and fees are the responsibility of the purchaser FOR MORE INFORMATION VISIT WWWKUCHTCOMONLINEWARRANTY KUCHTCOM STYLE AND SIMPLICITY TM
• Page 31 - English - : FOR MORE DETAILS AND INFORMATION PLEASE VISIT OUR WEBSITE WWWKUCHTCOM WE TRANSFORM A SIMPLE KITCHEN INTO A PRO ONE THIS IS WHY WE CARE ABOUT MAKING VERY HIGH PERFORMANCE RANGES AND HOODS TO MAKE YOU FEEL LIKE A PRO AND STYLISH COOKER DESIGN LONDON DC WWWLONDONDCCOM
