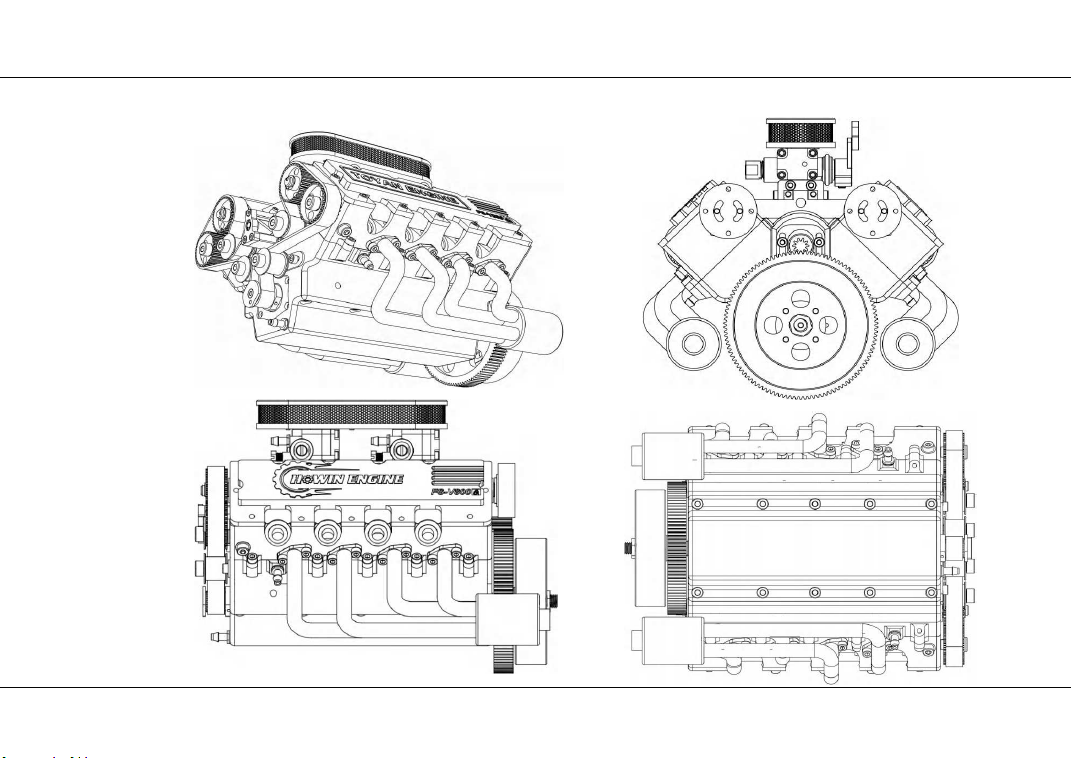

FS-
V8
00WG
L
TOYAN
拓陽精密科技
Thank you for Choosing our products,Model FS-V800WG is a DIY set with Precise V-shaped
Eight Cylinder Four-stroke model engine,.Before assemblying and operating your engine, please
read the "safety instructions and warnings" section on pages 2-3 of this booklet and contents of
accessories assembly,to strictly adhere to the advice contained therein and familiarize engine
controls and other functions.Furthermore,Keep these instructions in a safe place so that you may
readily refer to them whenever Necessary
TOYAN
拓陽精密科技
1
CATALOGUE
SAFETY INSTRUCTIONS AND WARNINGS
--------------------------------------------------------
2～3
INDUCTION
-------------------------------------------------------------------------------------------------
4
~10
ASSEMBLY OF COMPENTS
---------------------------------------------------------------------------
11~43
ATTENTION ABOUT STARTING
---------------------------------------------------------------------
46~48
OPERATION AND ADJUSTMENT
------------------------------------------------------------------
49～52
CARE AND MAINTENANCE
--------------------------------------------------------------------------
53～54
REPLACEMENT OF ACCESSORIES
---------------------------------------------------------------------
-- 54
BUG CHECKING
----------------------------------------------------------------------------------------------
-- 55

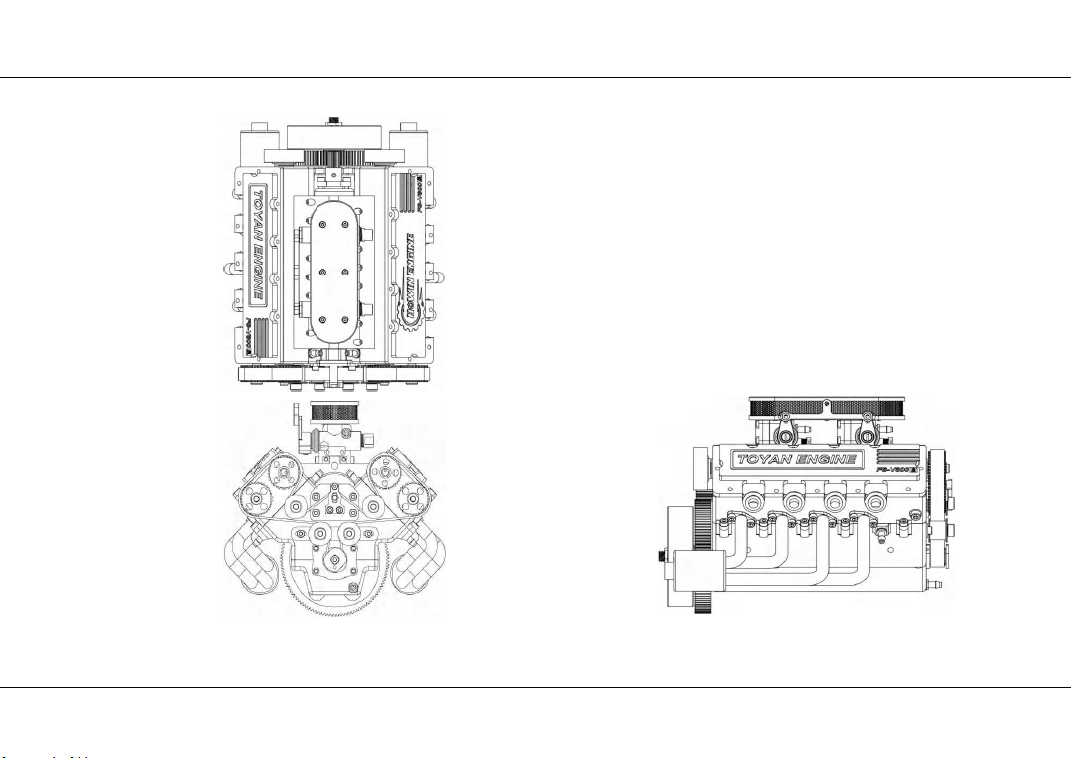

ENGINE THREE VIEW DRAWINGS
-----------------------------------------------------------------
56～57
EXPLODED VIEWS
------------------------------------------------------------------------------------------
--- 58
COMMITMENT
----------------------------------------------------------------------------------------------
--- 59
BOM LIST
--------------------------------------------------------------------------------------------------
60～61
TOYAN
拓陽精密科技
2
SAFETY INSTRUCTIONS AND WARNINGS
Remember that your engine is not a "toy", but a high-efficiency internal combustion engine, the
output power may cause you harm, or other effects, do not change or disassemble
As a professional user, please make sure the engine runs safely and carefully.
If at some future date, your Toyan engine is acquired by another person, we would respectfully
request that these instructions are also passed on to its new owner.
The advice which follows for all production engines ,Incorrect operation or Ignore safety can
lead to engine damage or danger
Warning: These cover events which might involve serious (in extreme circumstances, even fatal )injury.
Model engine fuel is poisonous. Do not allow it to come into contact with the eyes or mouth.
Always store it in a clearly marked container and out of the reach of children.
Model engine fuel is also highly flammable. Keep it away from an open flame, excessive heat, sources
of sparks, or anything else which might ignite it. Do not smoke or allow anyone else to smoke, nearto it.
Never operate your engine in an enclosed space. Model engines, like automobile engines, exhaust
deadly carbon-monoxide. Run your engine only in an open area.
Model engines generate considerable heat. Do not touch any part of your engine until it has cooled.
Contact with the muffler,cylinder head or exhaust header pipe, in particular, may result in a serious burn.
TOYAN
拓陽精密科技
3
This engine was designed for science experiments, model demonstrations, model car drives. Do not
attempt to use it for any other purpose.
Mount the engine in your model securely, following the manufacturers' recommendations, using
appropriate screws and locknuts.
Noise will happen when starts, please buy our matching muffler exhaust pipe or run away from the
living environment, because the noise of the operation may irritate others.
Safety glasses are strongly recommended.
Please note that the electric plug or battery wire should not touch the rotating parts. Also check
whether the connection of the throttle rocker arm is firm.
Tobe safe, keep all spectators (especially children) at least 3 meters away from engine when start the
engine.
If you want to stop engin, shut off the throttle completely. In an emergency, clamp the fuel line in front
of the carburetor to cut off the fuel supply
Do not attempt to remove the flywheel and start the synchronous pulley
Do not extend the starting battery wire by more than 20cm. Otherwise, the starting current will be
insufficient due to the resistance voltage drop inside the battery line
When starting the engine, please do not press the start button for a long time. The maximum starting
time is 5 seconds. If it does not start, please stop for 15 seconds and press the button to start again,
so as not to burn the starting motor and ignition circuit due to the long starting
TOYAN
拓陽精密科技
4
Ｆｌｙｗｈｅｅｌ
Ｆｌｙｗｈｅｅｌ Ｎｕｔ

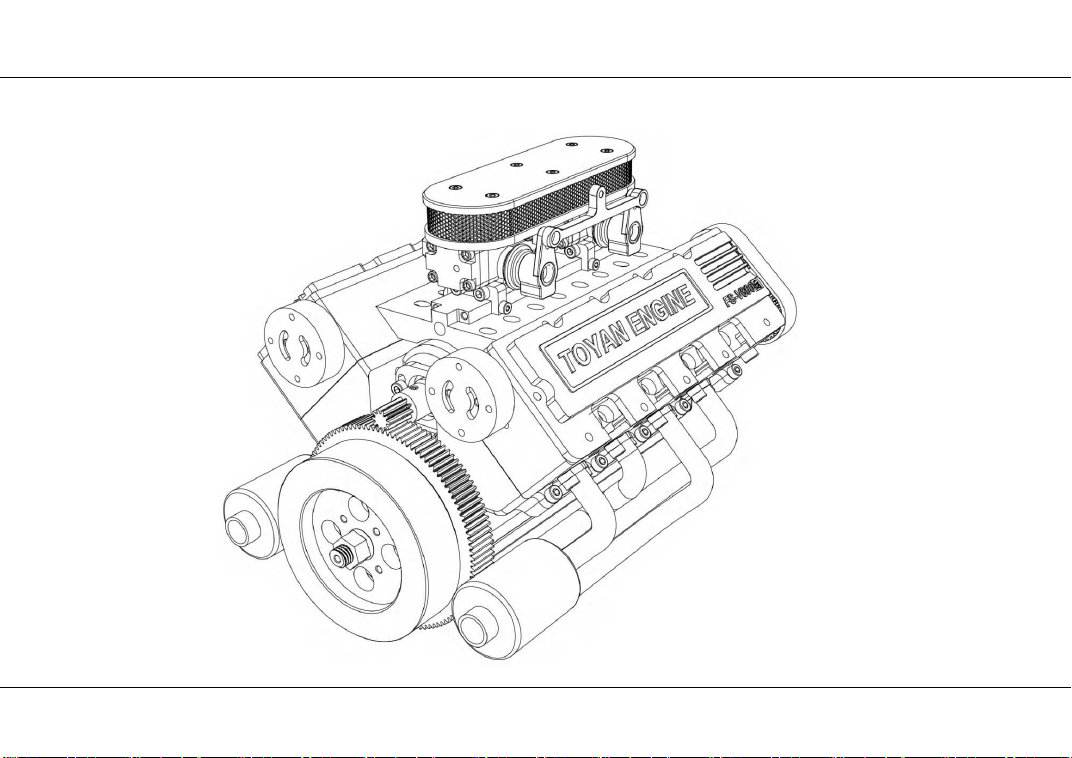

INDUCTION
engine structure and components
Ｃｙｌｉｎｄｅｒ Ｃａｐ
Start m otor
M ain body
of engine
Throttle rocker arm
Timing belt
Cam shaft Cover
Left Exhaust pipe
Ｉｎｄｕｃｔｉｏｎ ｂｙ
ｍａｇｎｅｔ
TOYAN
拓陽精密科技

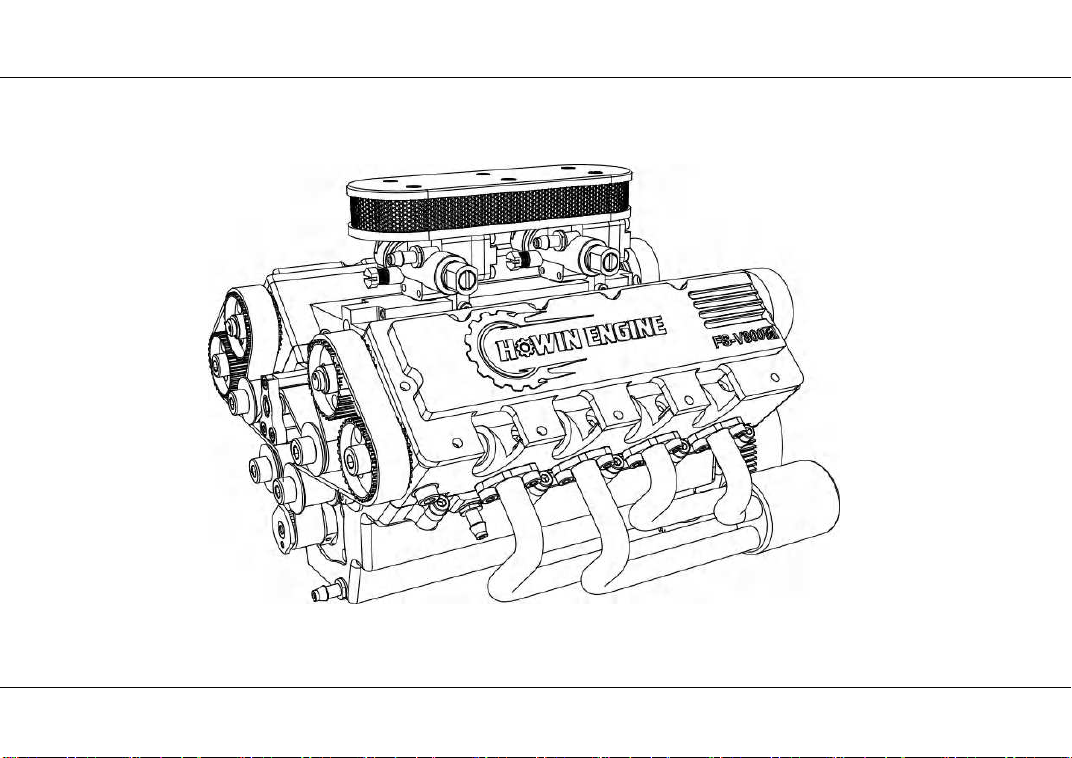

5
Timing
pulley
Water Inlet /
outlet
Exhaust nozzle
Needle valve
M outh for Glow Plug
Right Exhaust pipe
Crankcase bottom
shell
Air filter
TOYAN
拓陽精密科技
6

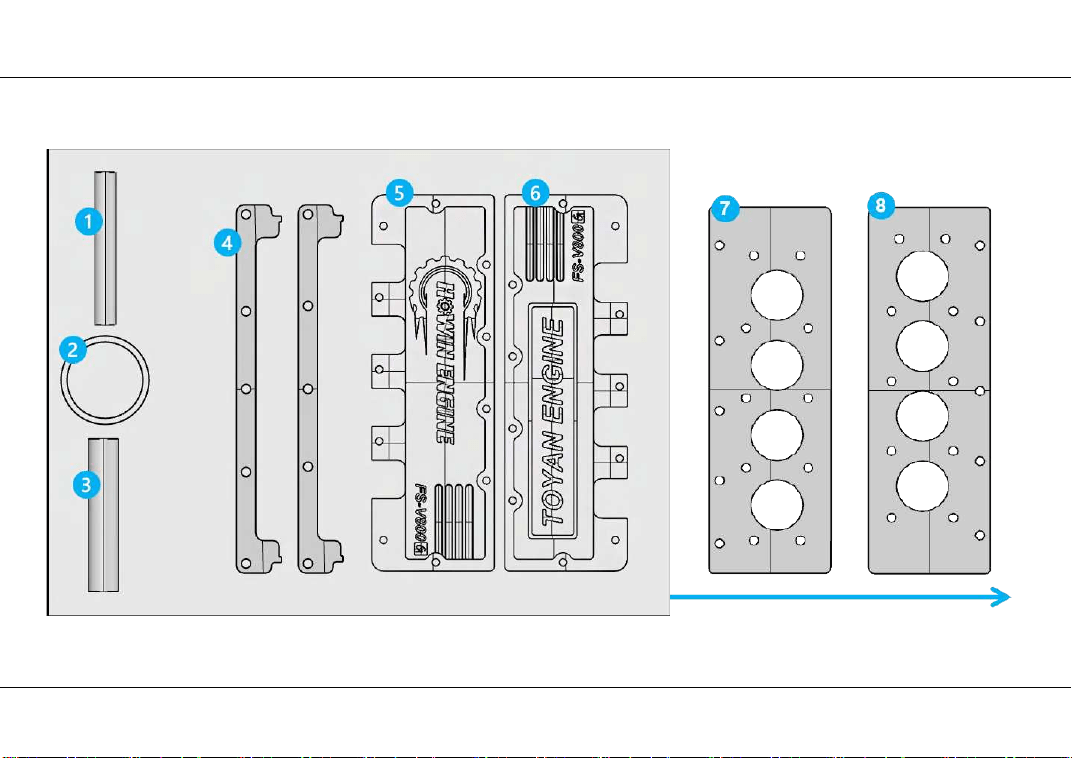

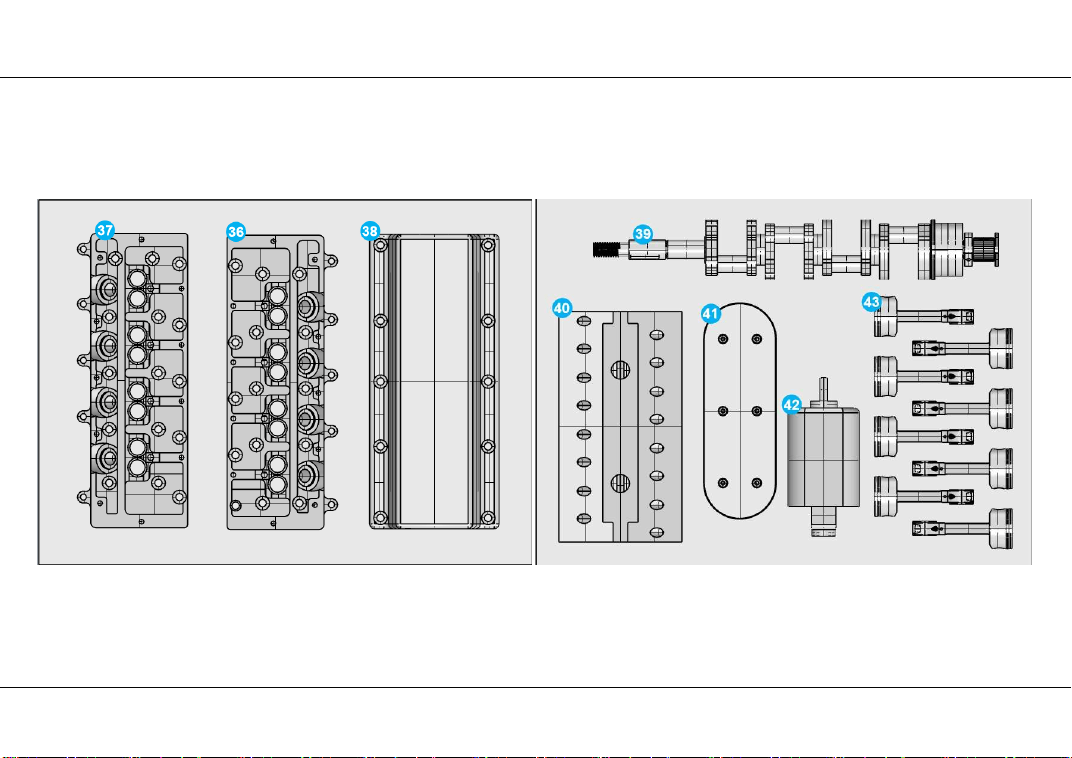

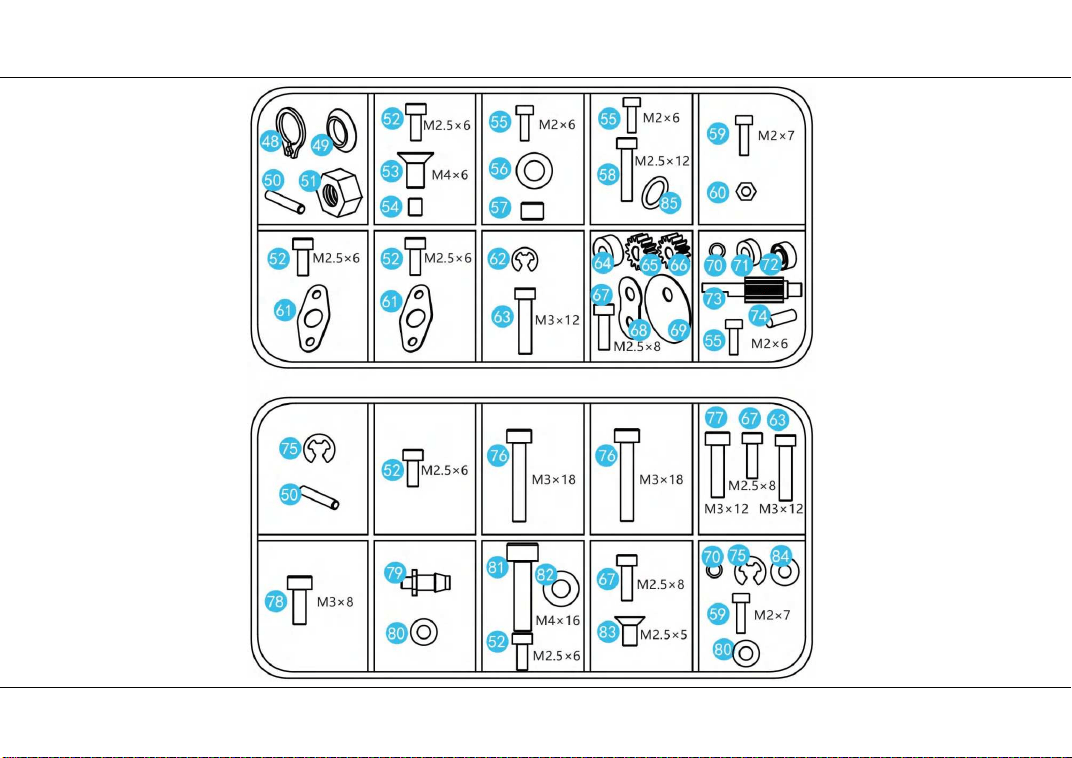

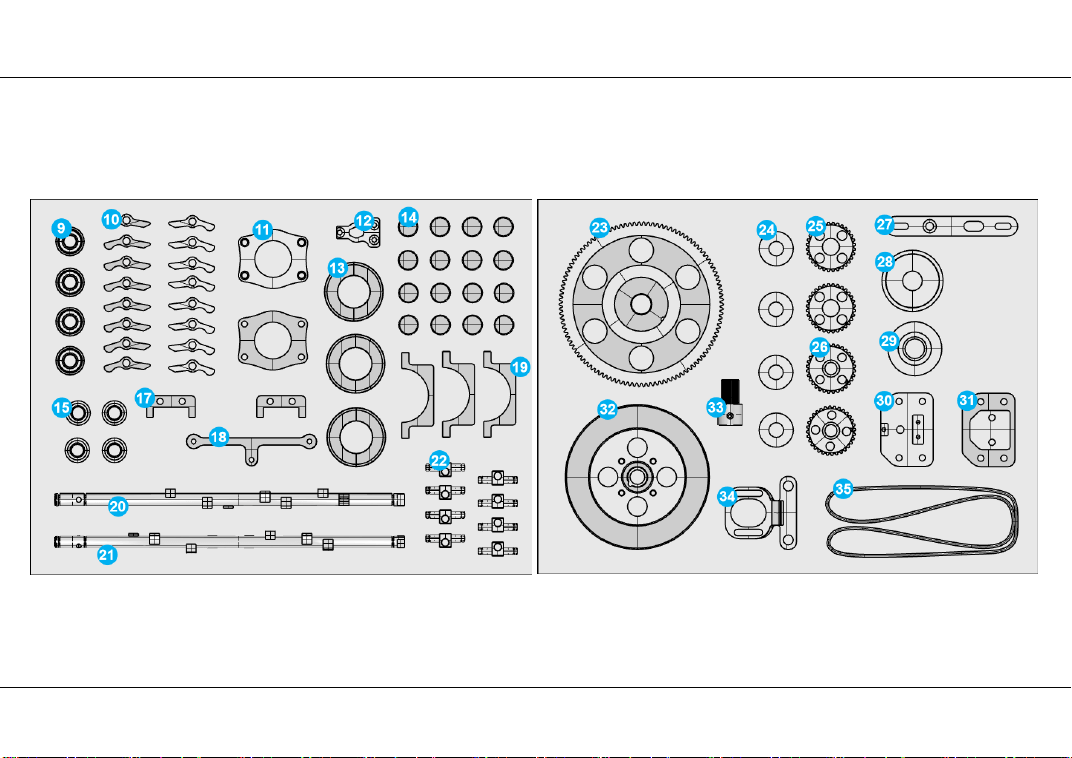

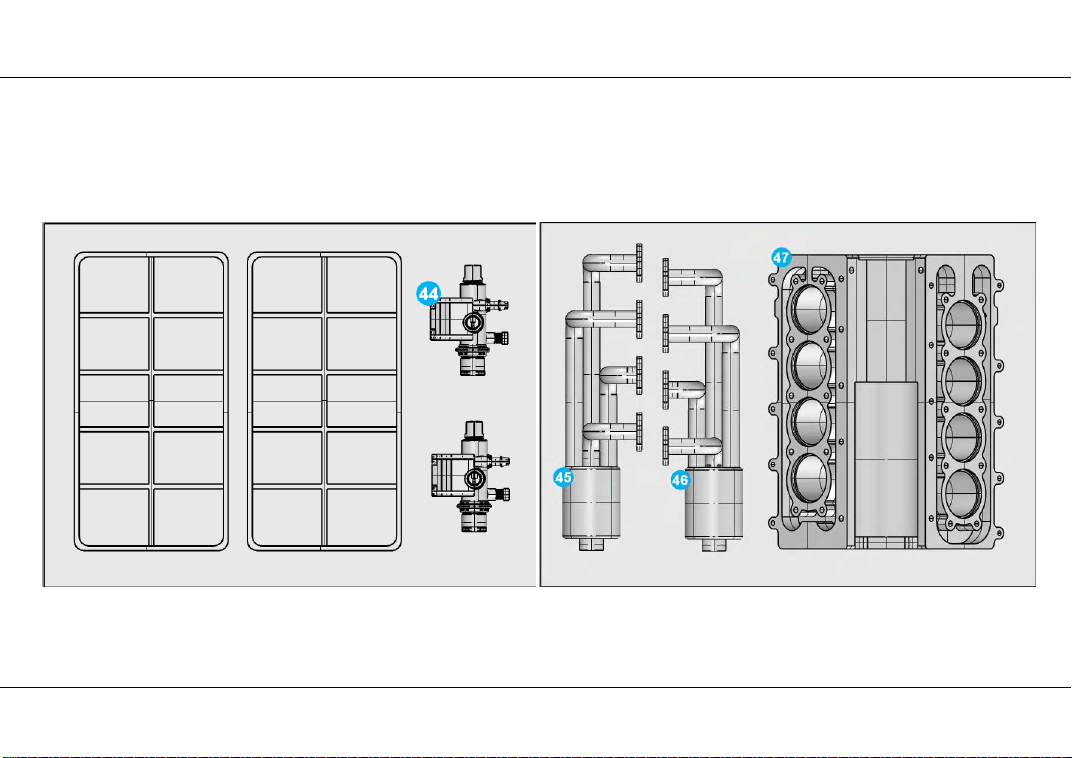

Distribution diagram of parts packaging
TOYAN
拓陽精密科技
7
TOYAN
拓陽精密科技
8
TOYAN
拓陽精密科技
9
TOYAN
拓陽精密科技
10
TOYAN
拓陽精密科技
11

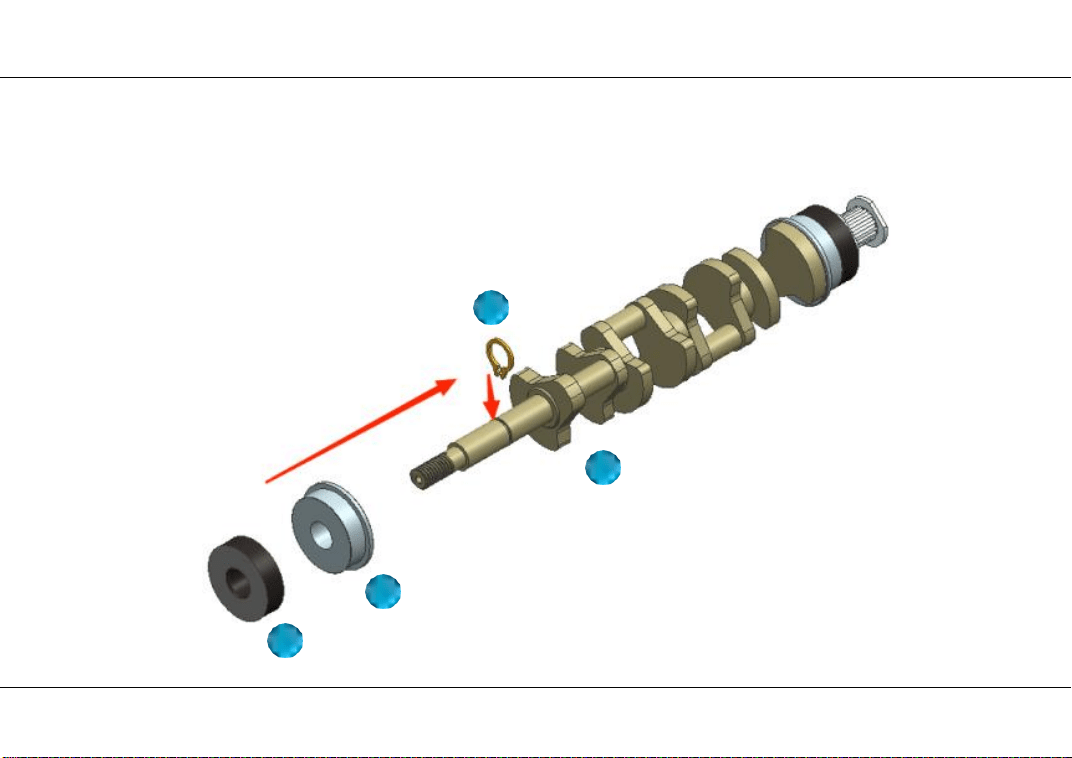

３9
28
29
48
ASSEMBLY OF COMPENTS
TOYAN
拓陽精密科技
12
13
47
TOYAN
拓陽精密科技
13

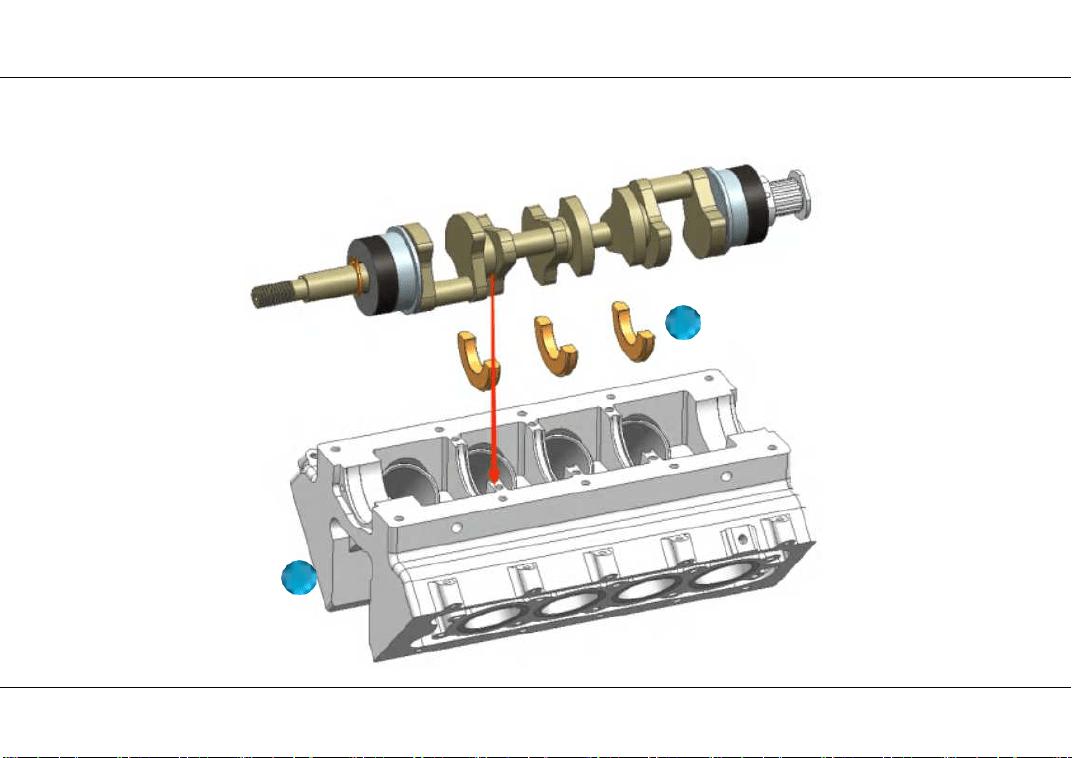

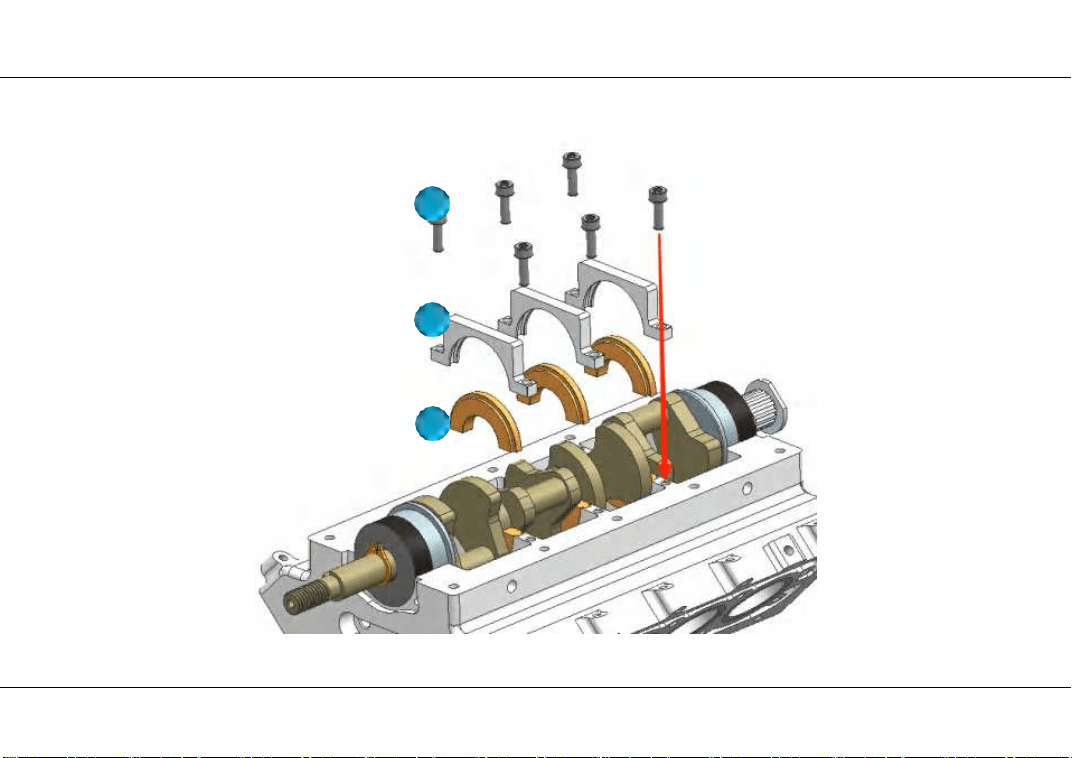

19
13
67
TOYAN
拓陽精密科技
14
16

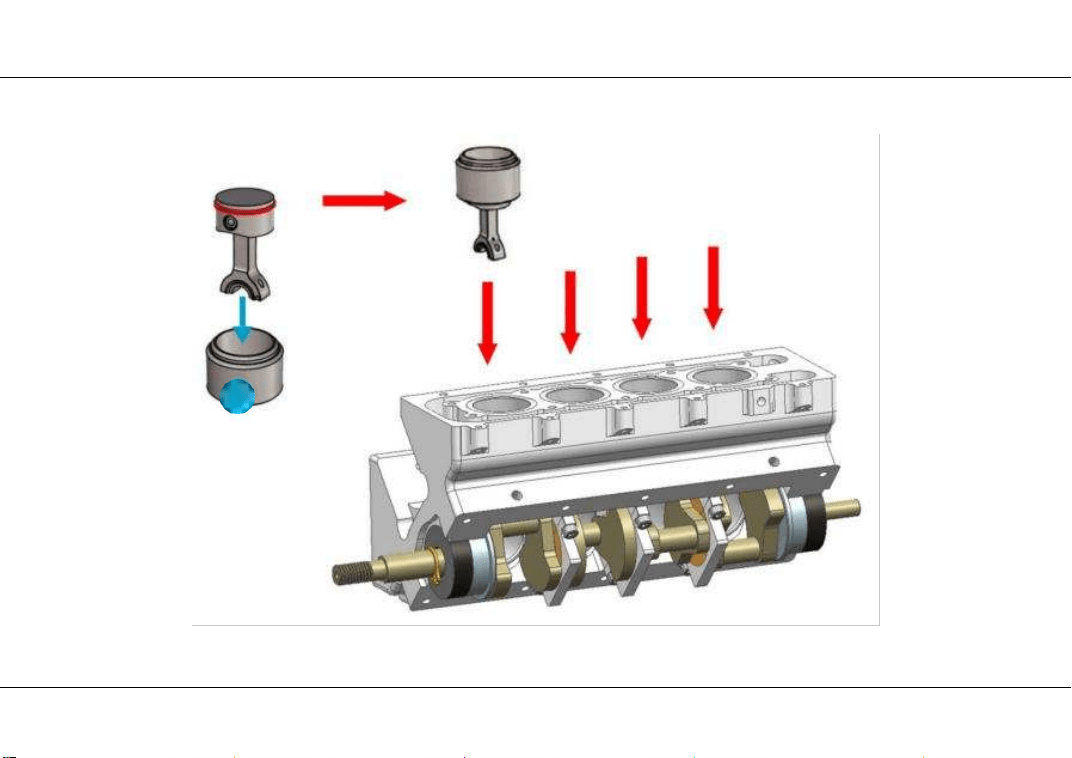

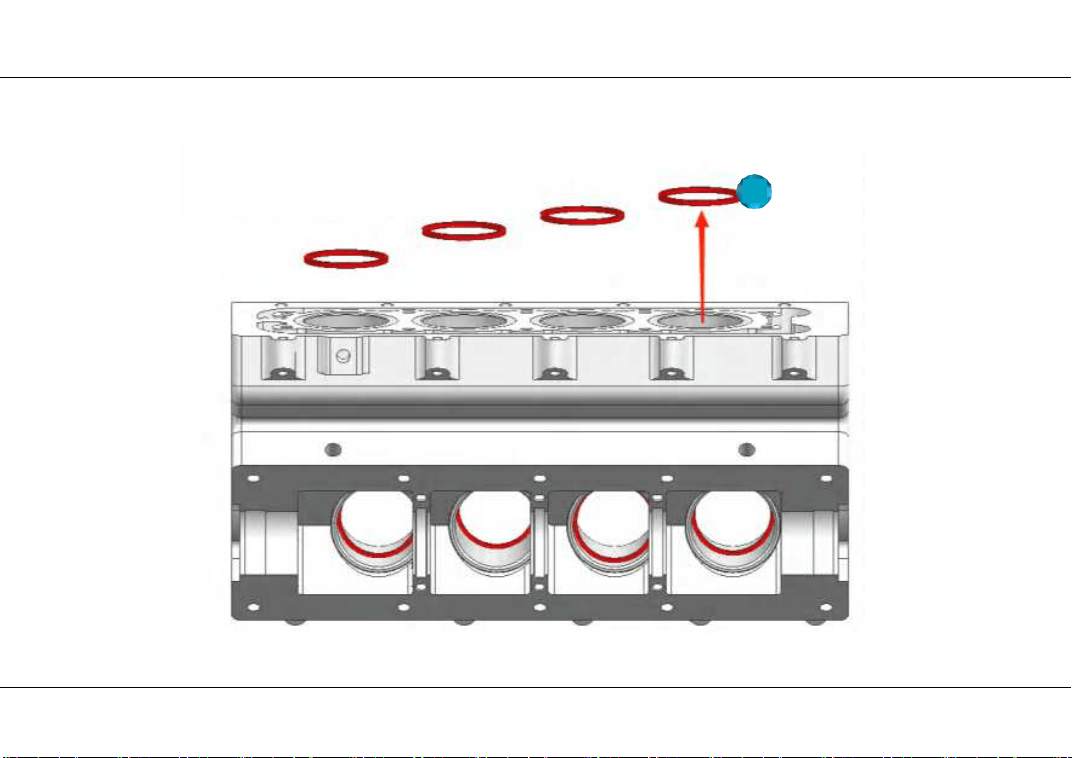

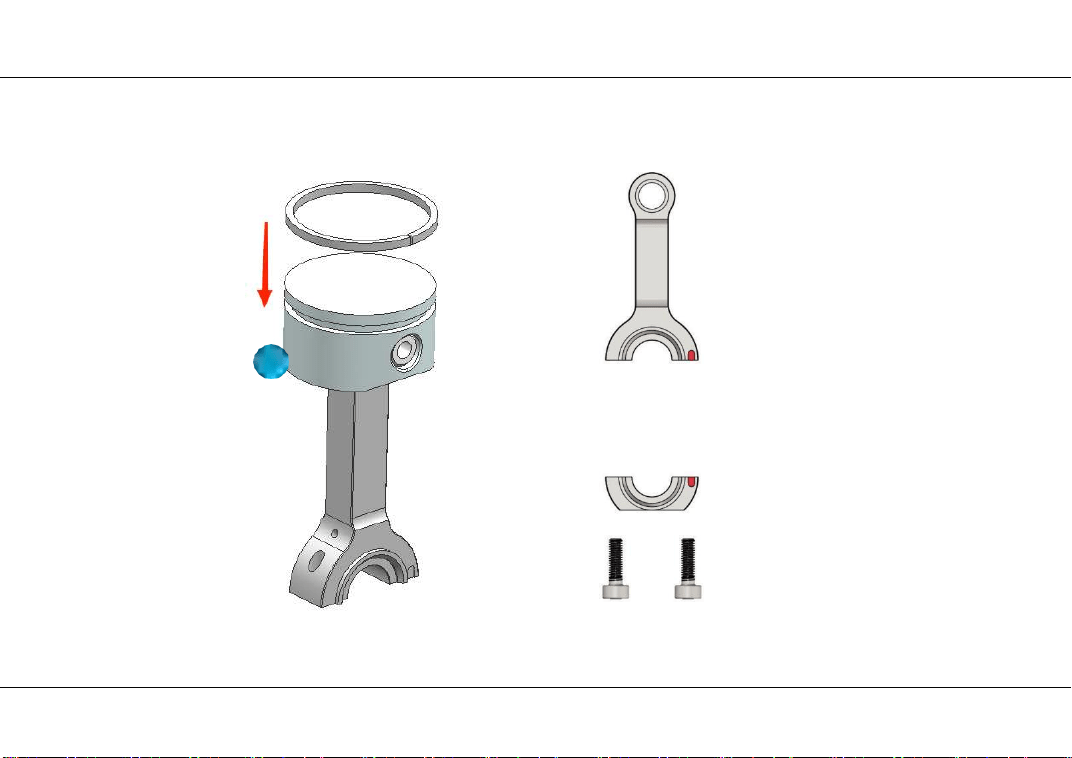

Piston ring and Cylinder liner have been paired one by
one,After removed, they shall be installed in
corresponding cylinder liner.
TOYAN
拓陽精密科技
15
43

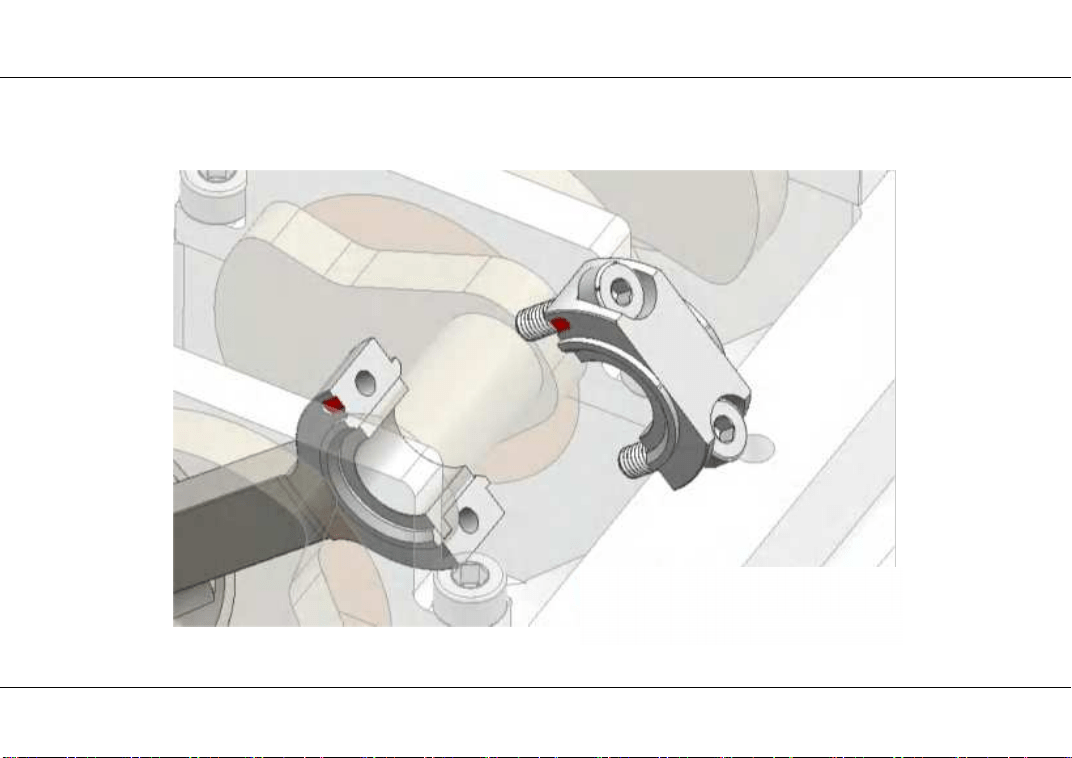

Attention!
When disassembling,
the original pairing
should be kept and
should not be confused ,
During installation, the
concave points at the
arrow should also be
kept corresponding.
TOYAN
拓陽精密科技
16
2
TOYAN
拓陽精密科技
17
One side with marked points is
mounted outwards
TOYAN
拓陽精密科技
18

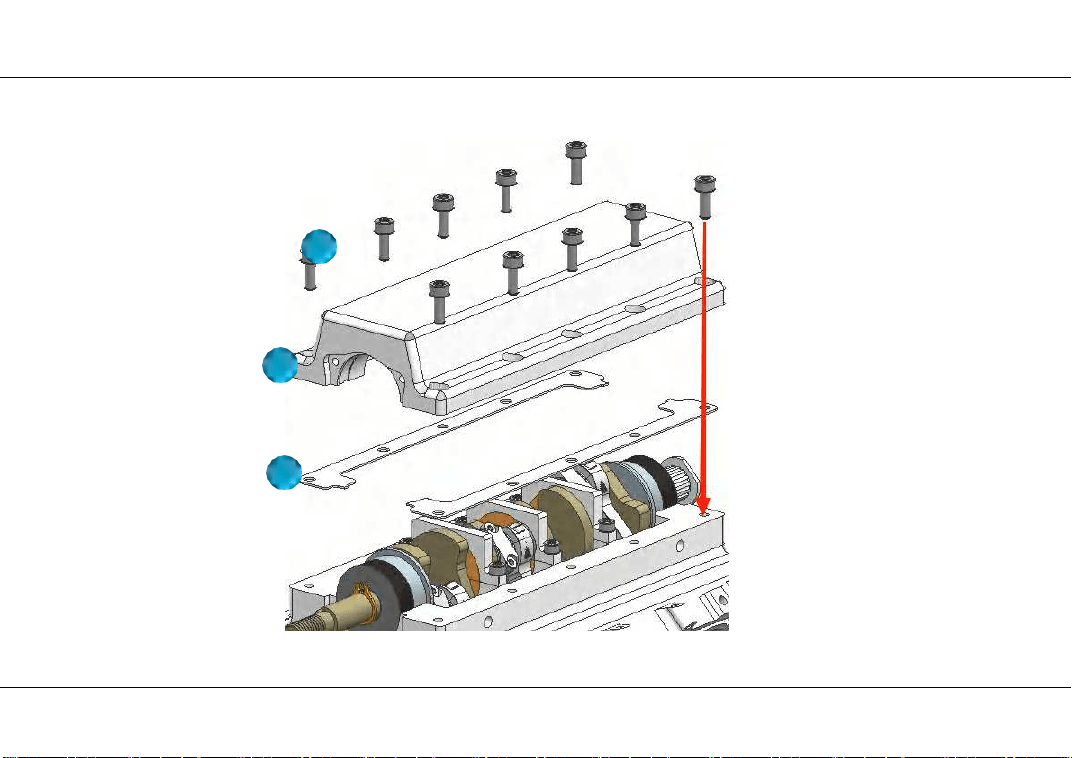

4
３8
78
TOYAN
拓陽精密科技
19
31
69
79
80
68
66
65
31
64
74
TOYAN
拓陽精密科技

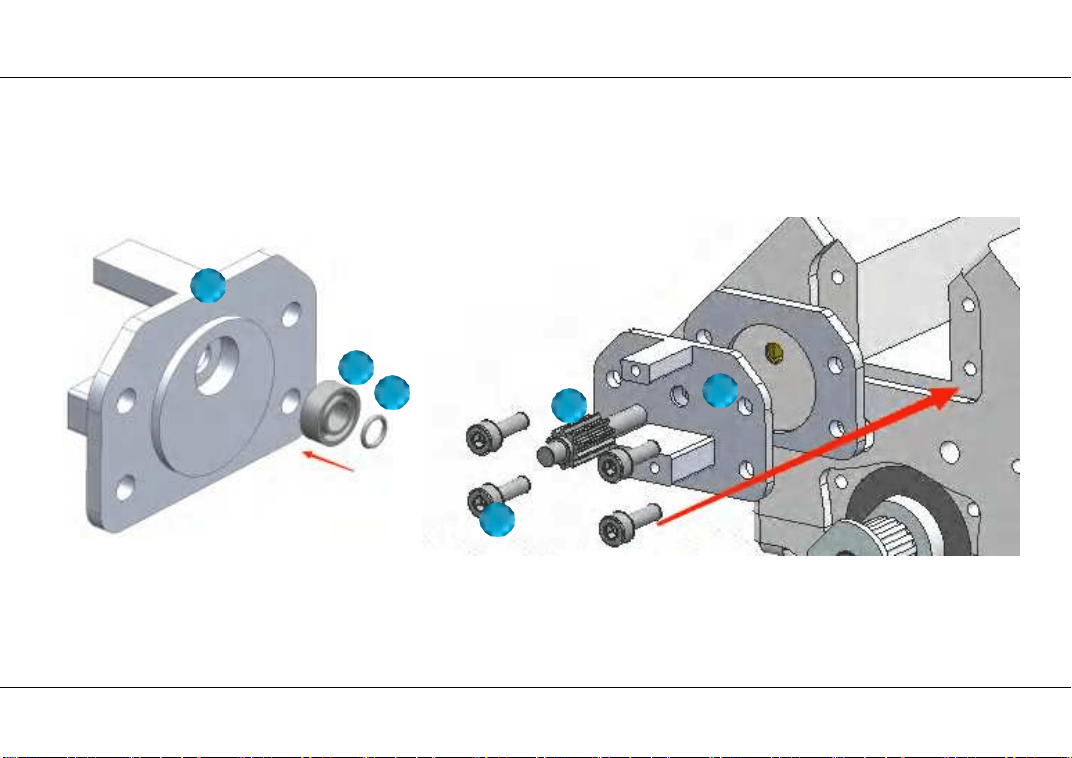

20

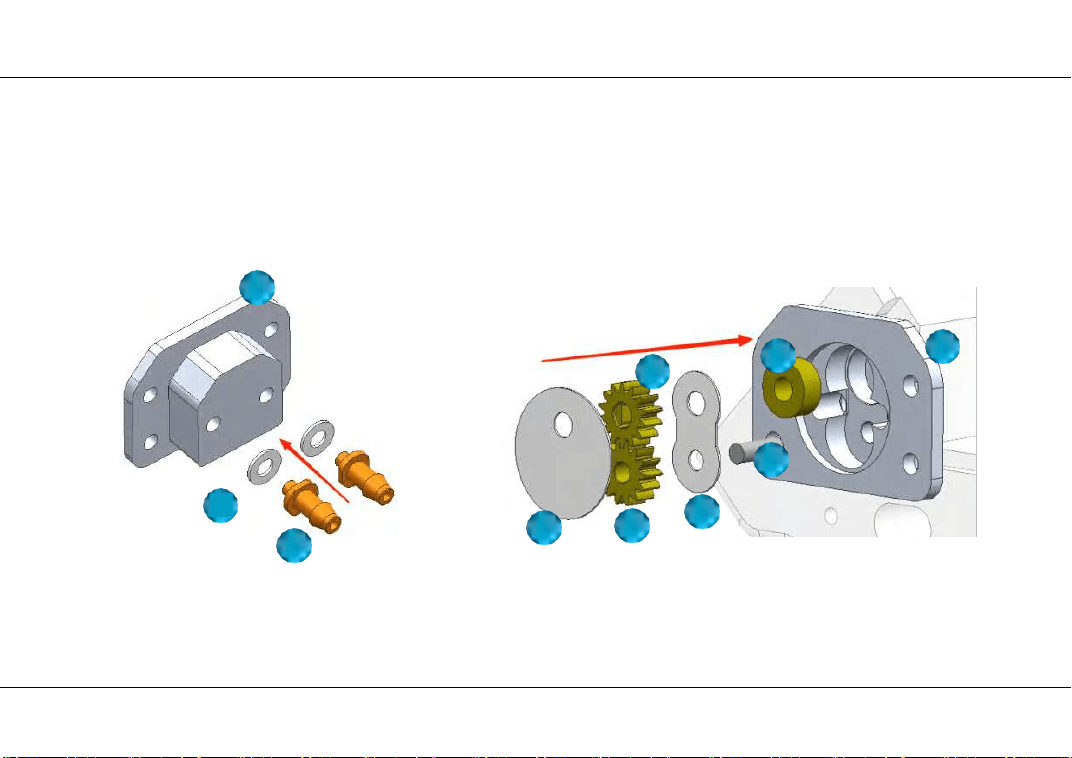

71
70
73
30
30
67
TOYAN
拓陽精密科技
21
79
80

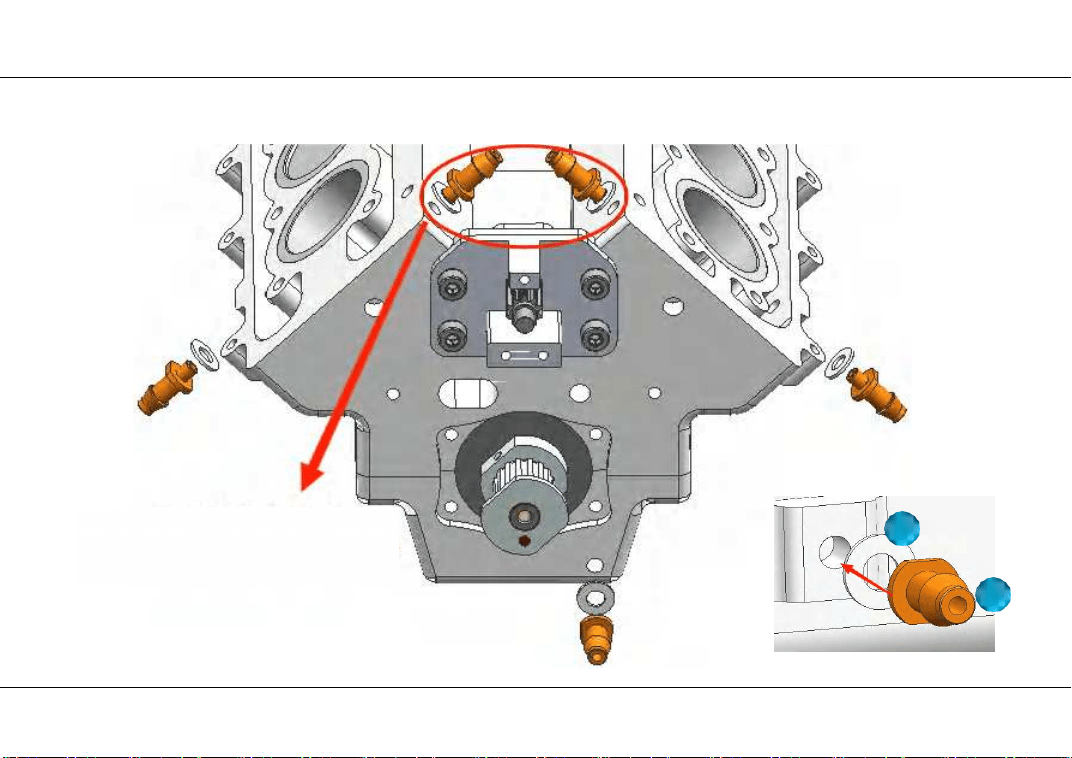

After installing the nozzle
Connect the water pipe with
pump and then proceed next
step
TOYAN
拓陽精密科技

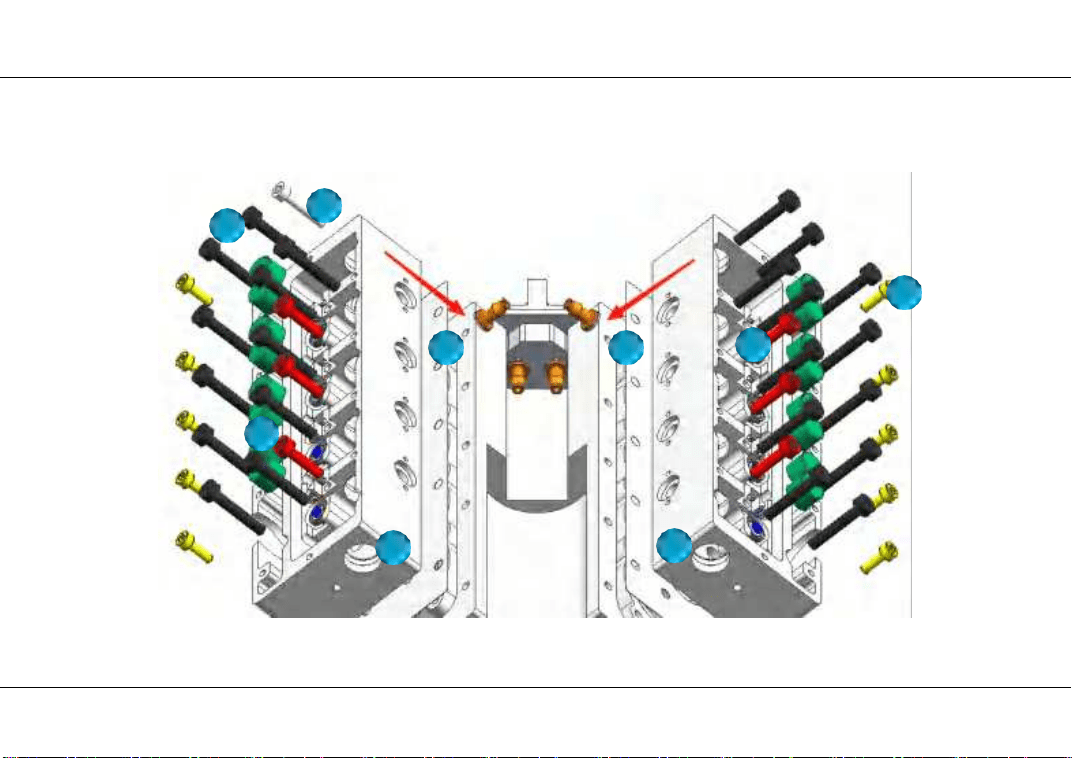

22
76
77
67
14
63
7 8
36
37
TOYAN
拓陽精密科技

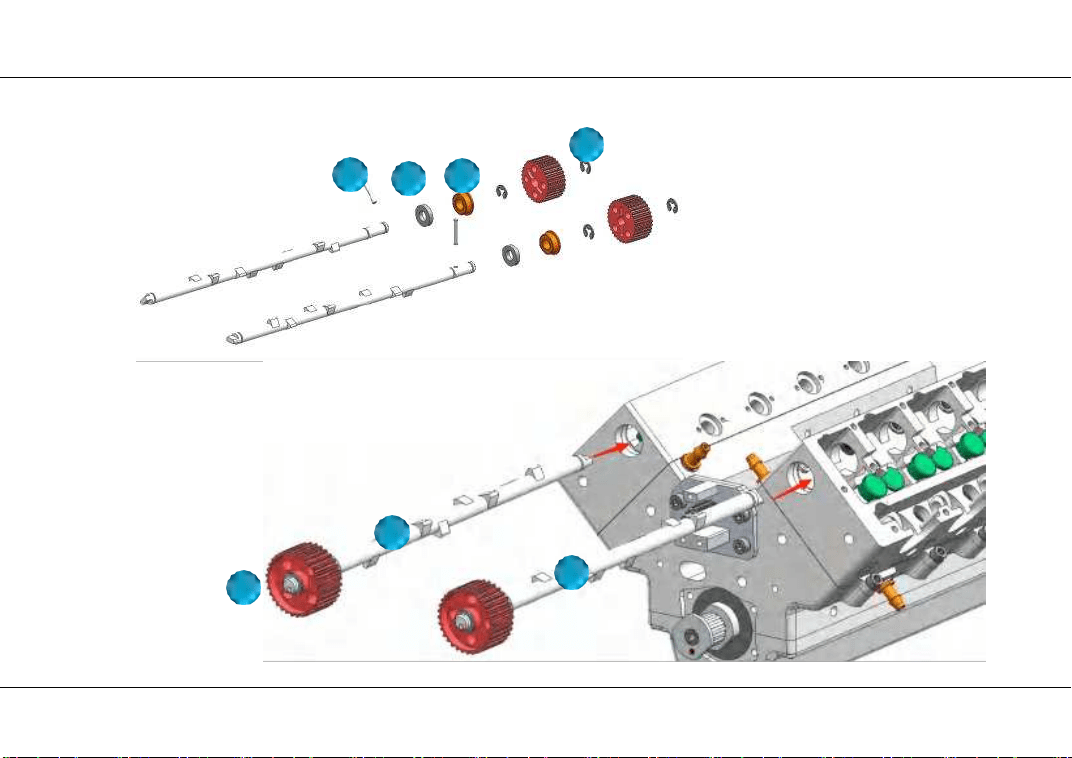

23
20
26
21
50
15
9
75
TOYAN
拓陽精密科技

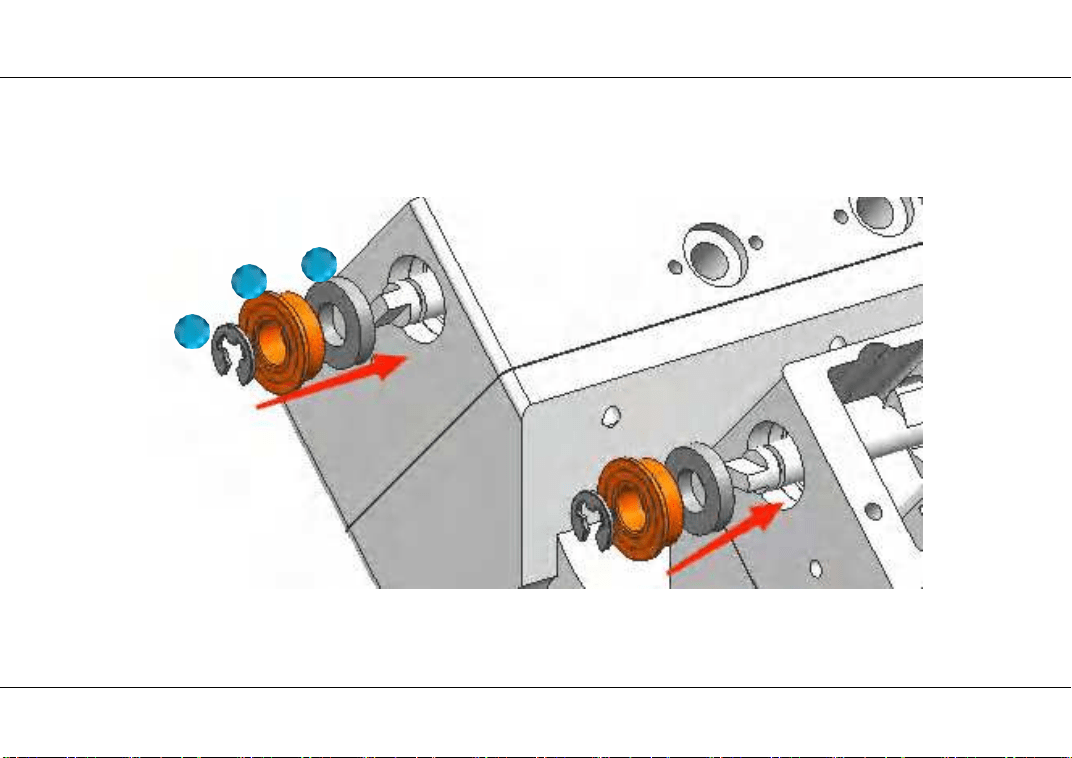

24
75
9
15
TOYAN
拓陽精密科技

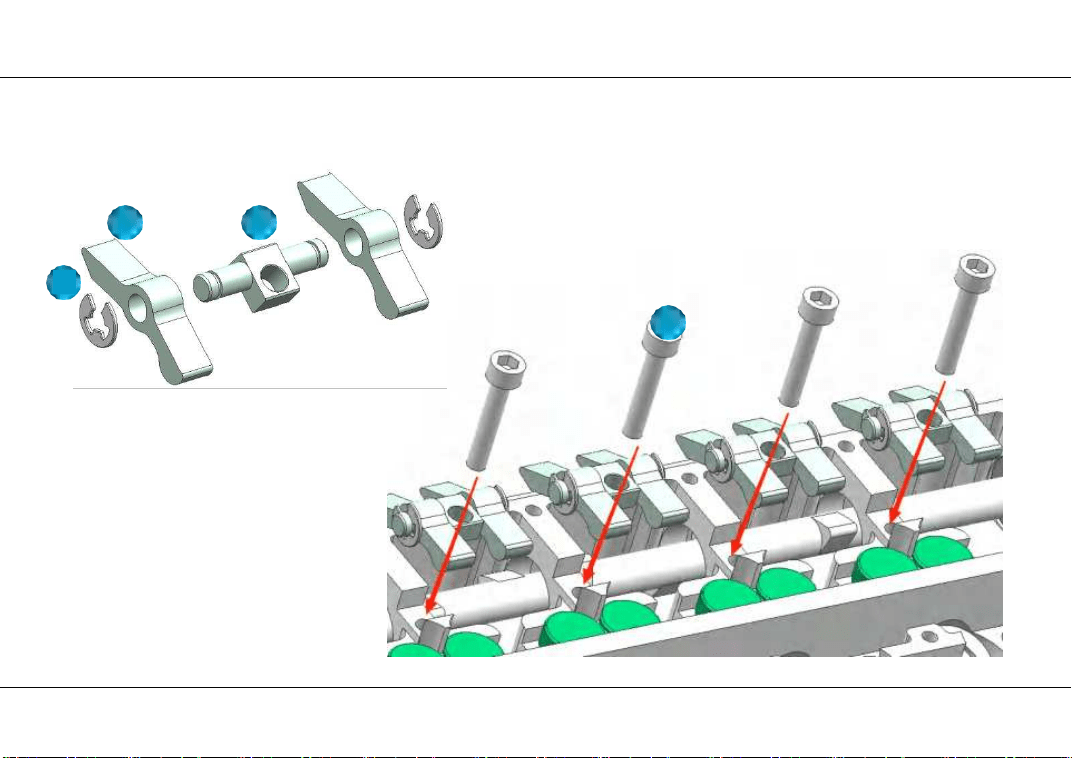

25
10 22
62
63
TOYAN
拓陽精密科技

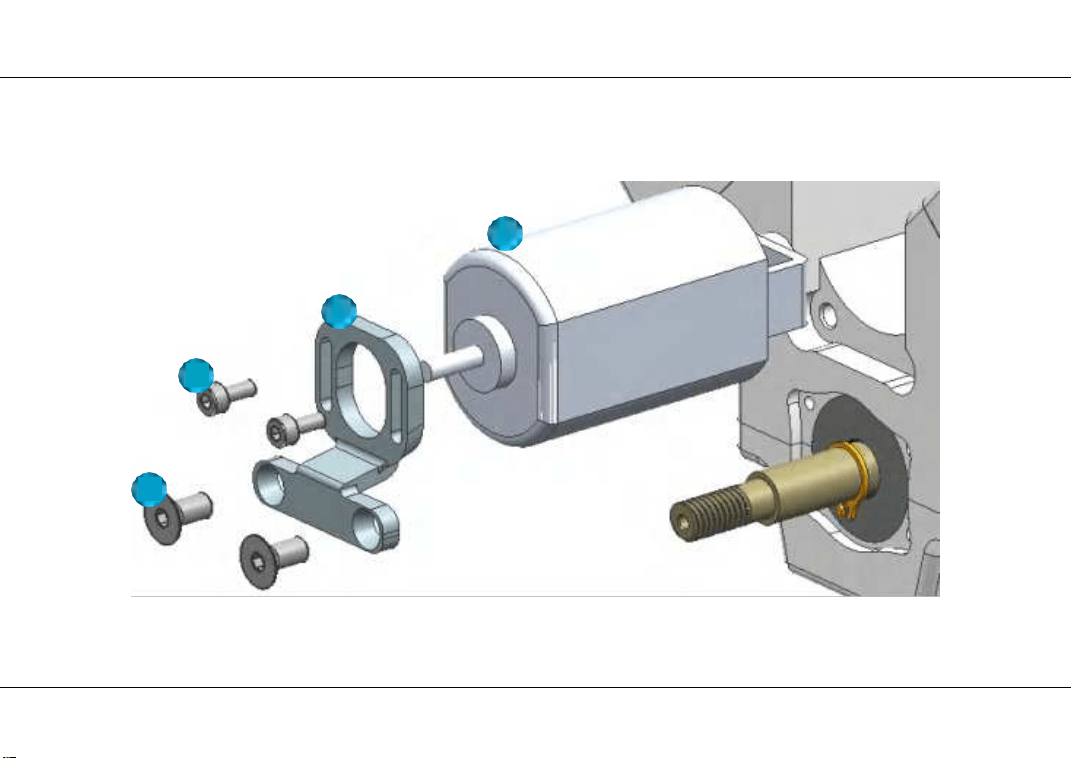

26
42
３4
53
52
TOYAN
拓陽精密科技

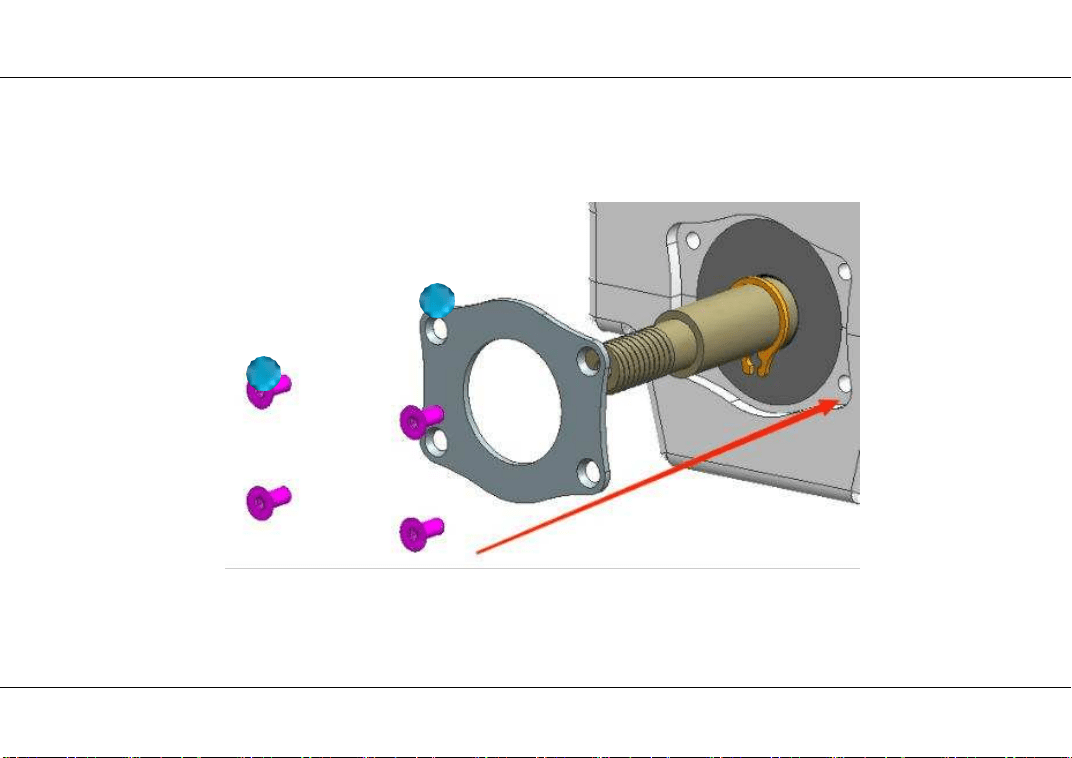

27
11
83
TOYAN
拓陽精密科技
28

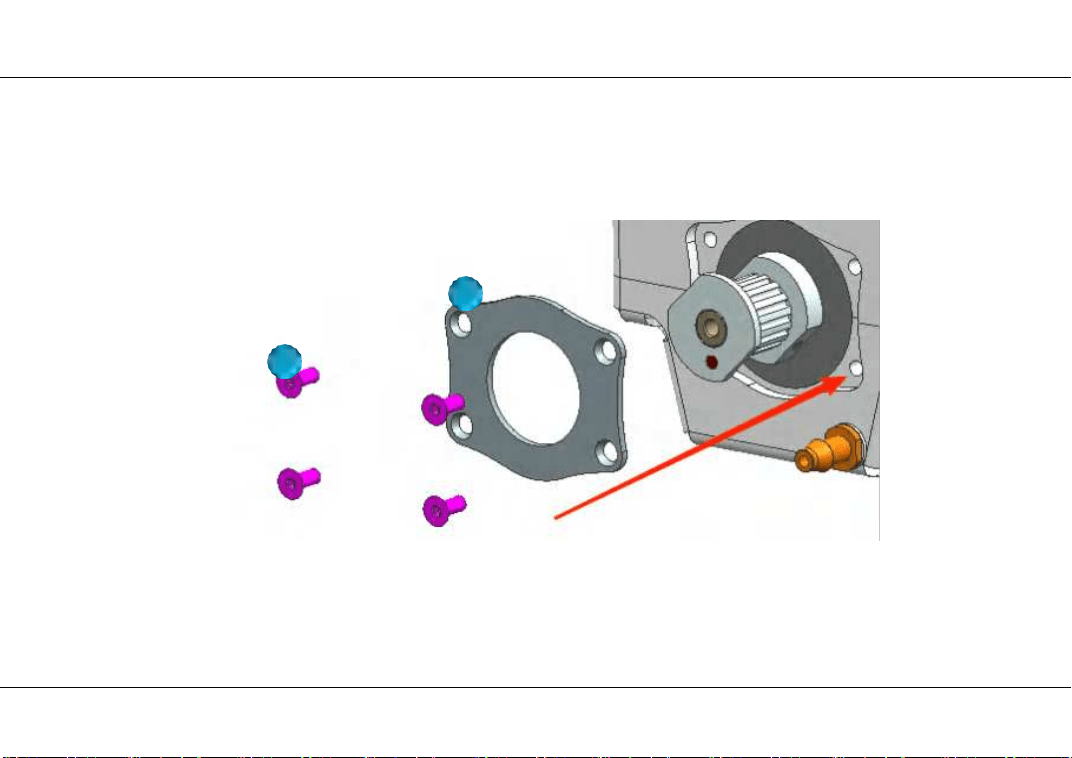

11
83
TOYAN
拓陽精密科技
29

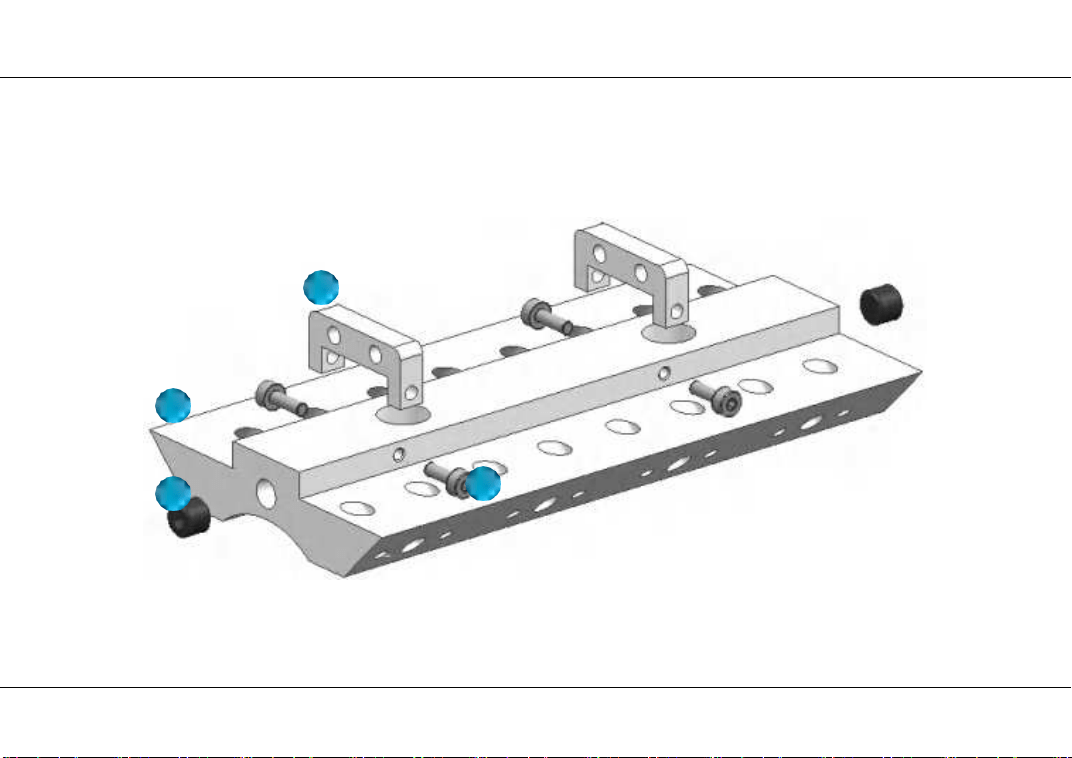

17
40
55
57
TOYAN
拓陽精密科技
30
56
TOYAN
拓陽精密科技

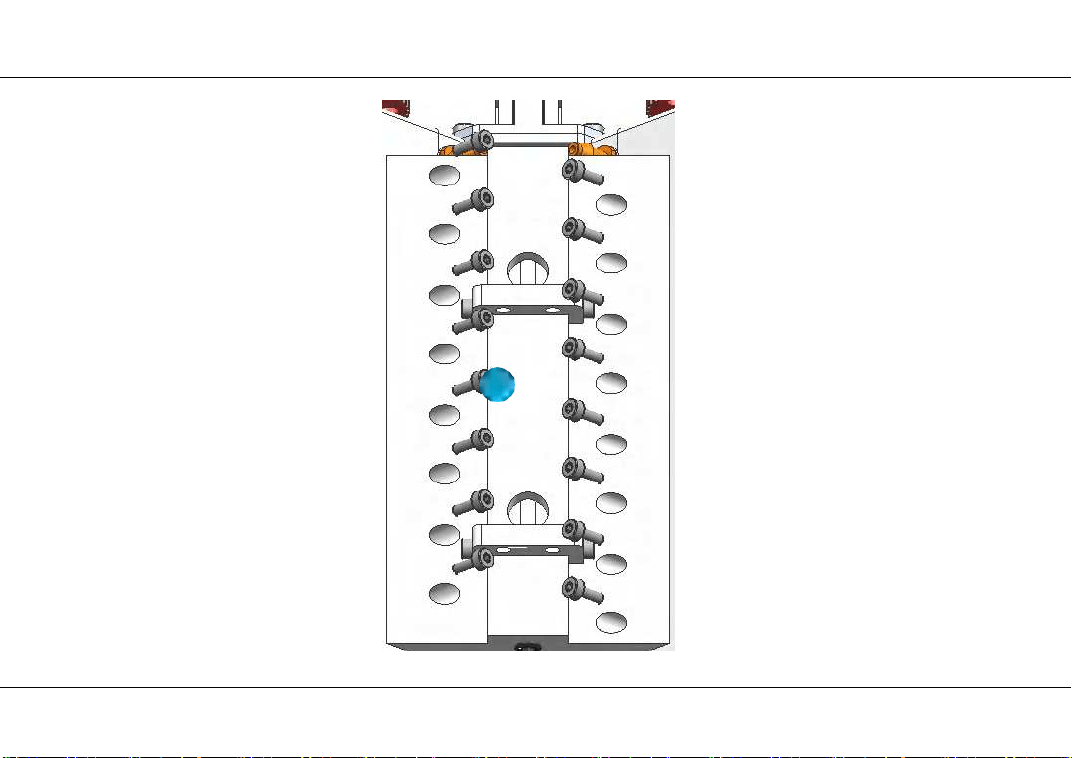

31

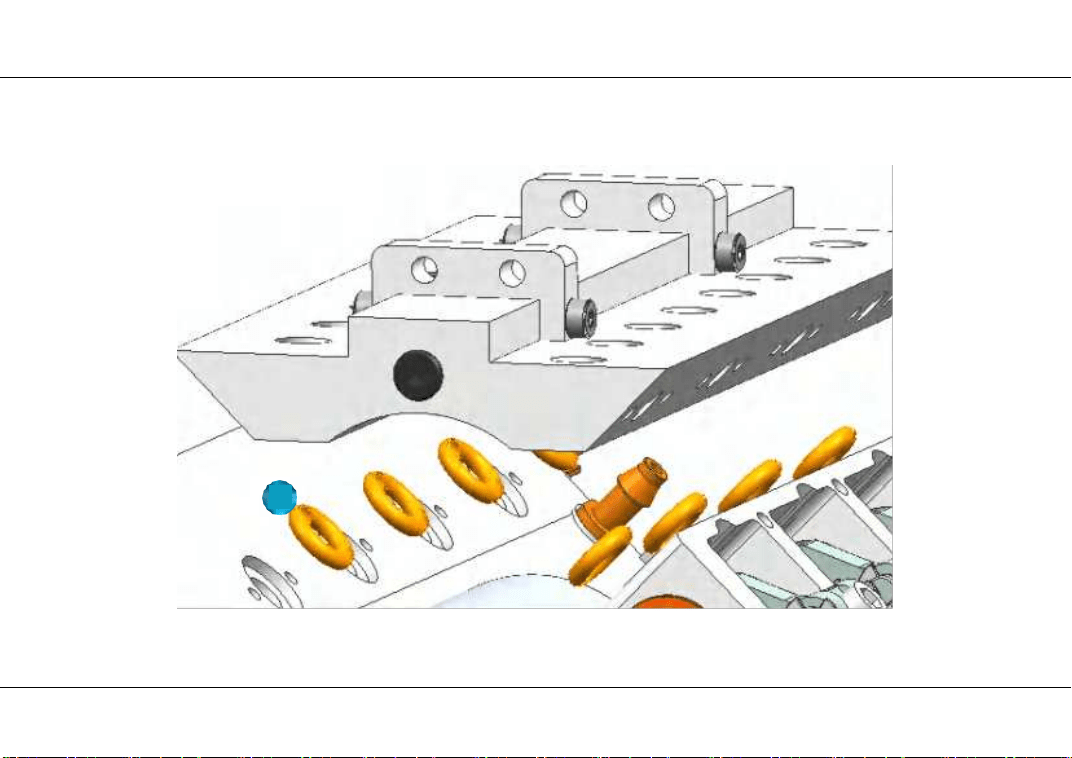

55
TOYAN
拓陽精密科技
32
44
58
85
TOYAN
拓陽精密科技

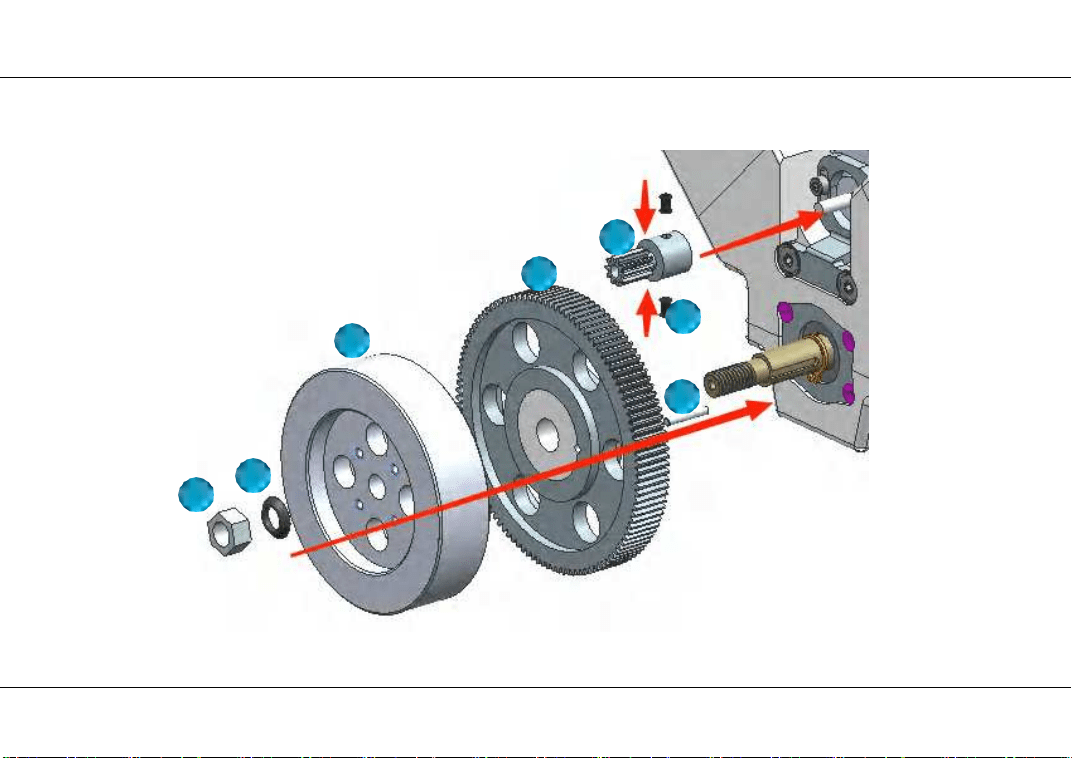

33

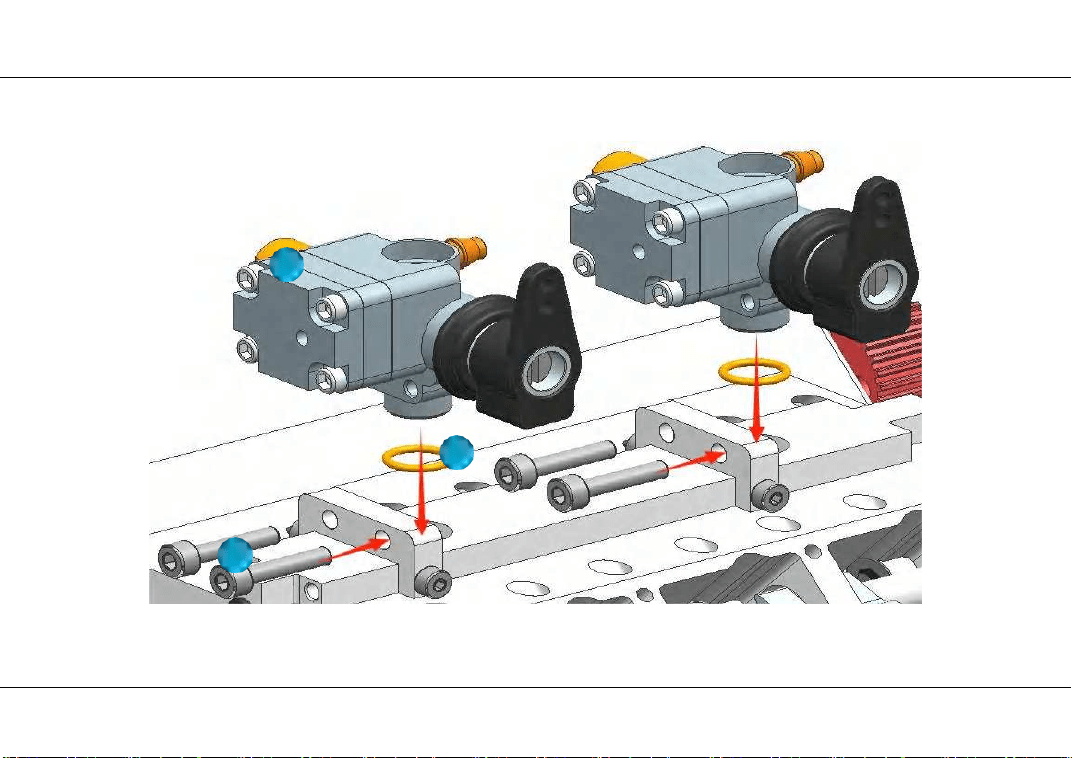

51
49
32
23
33
54
50
TOYAN
拓陽精密科技
34

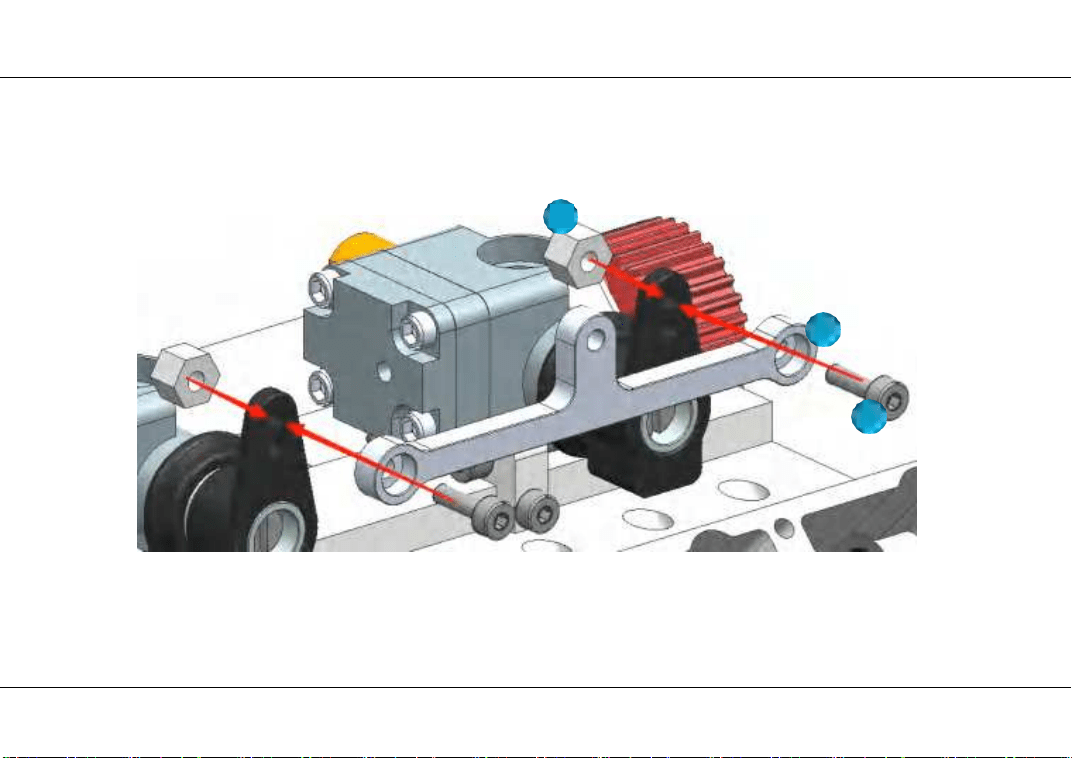

18
60
59
TOYAN
拓陽精密科技

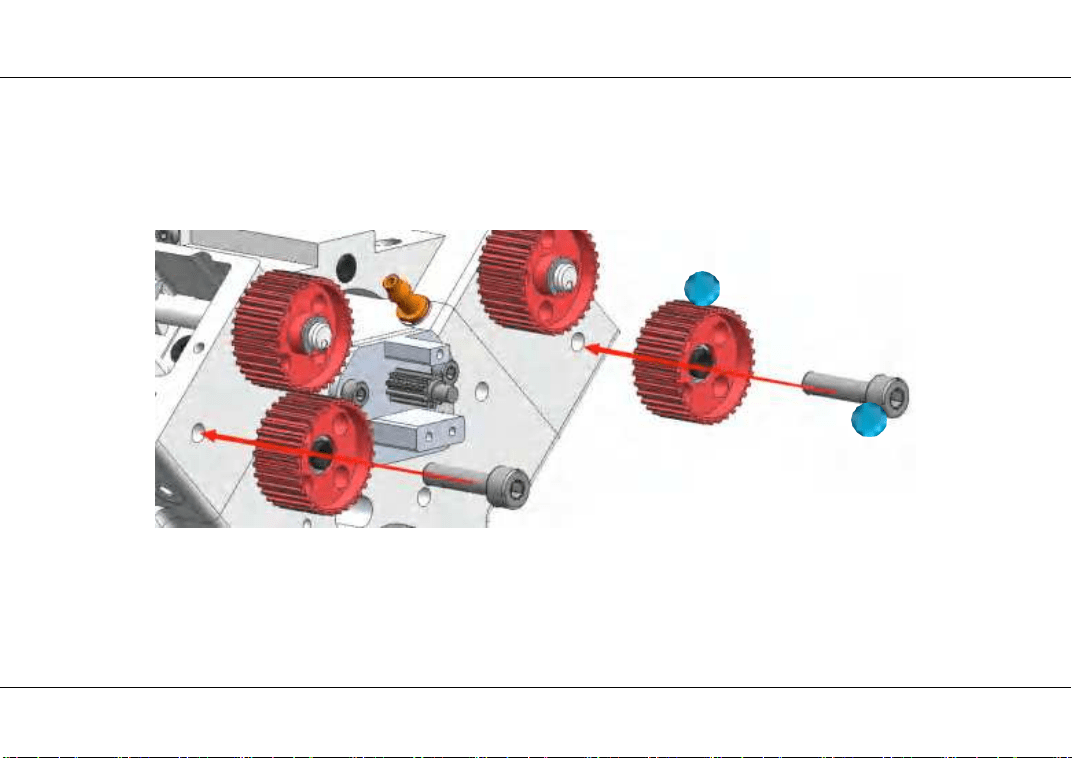

35
25
81
TOYAN
拓陽精密科技
36
27
52
TOYAN
拓陽精密科技
37

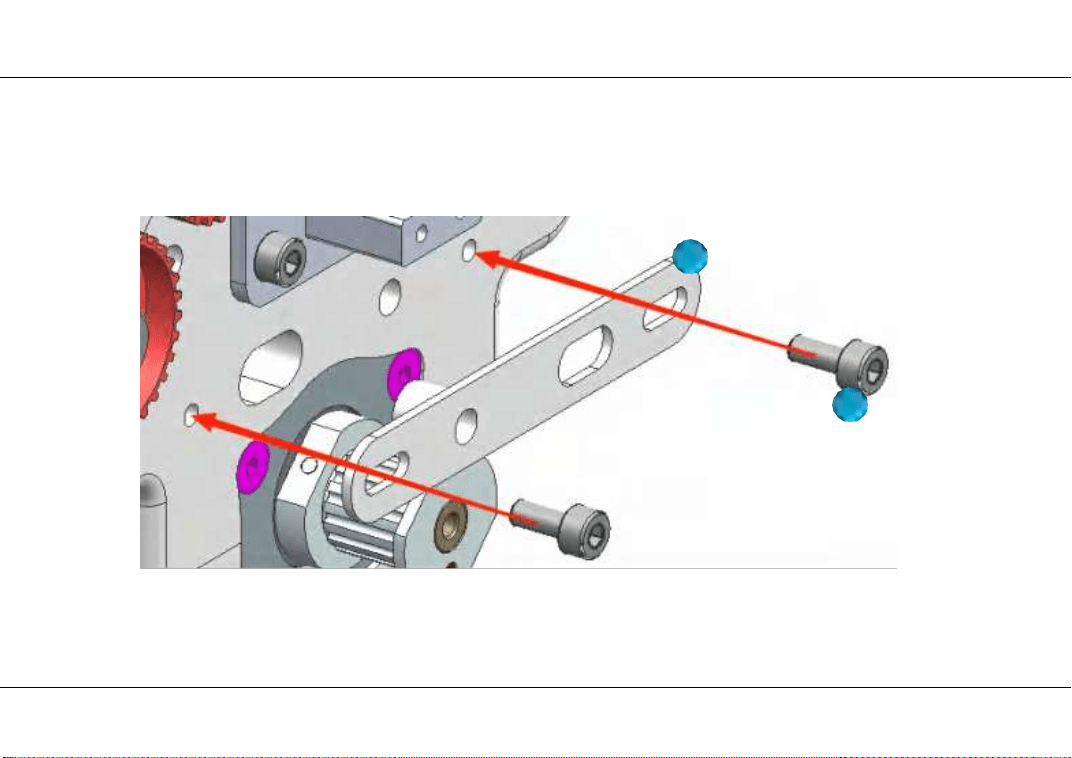

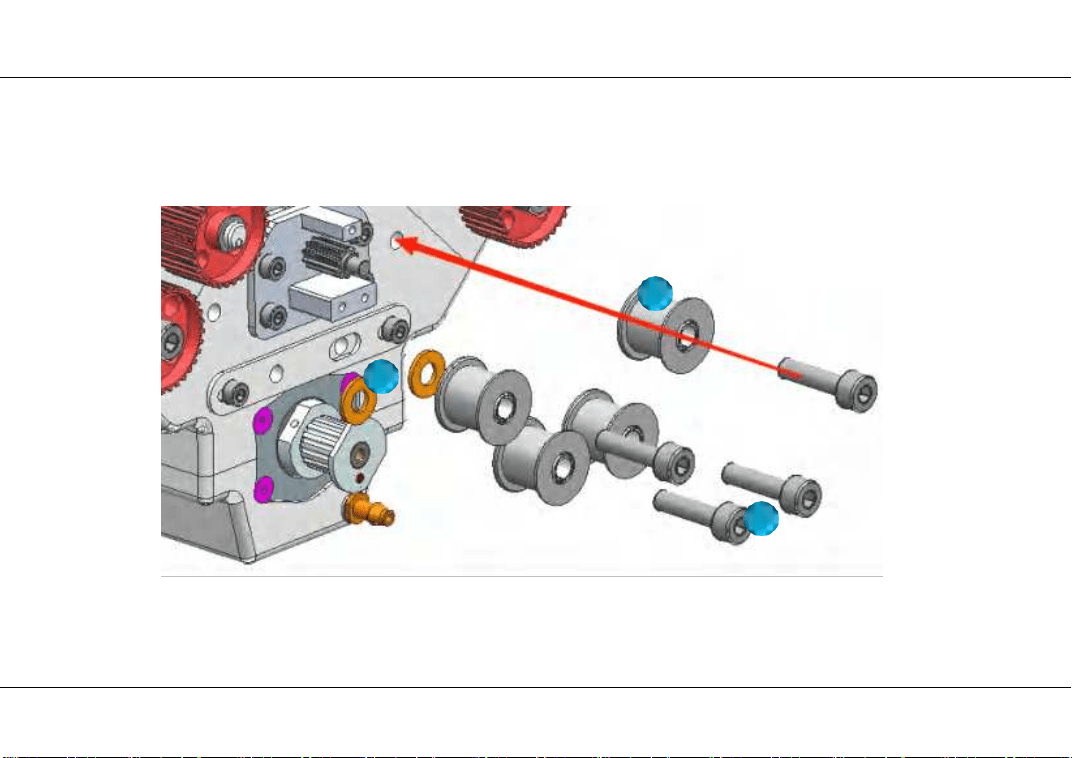

24
81
82
TOYAN
拓陽精密科技
38
12
12
３5
55
72

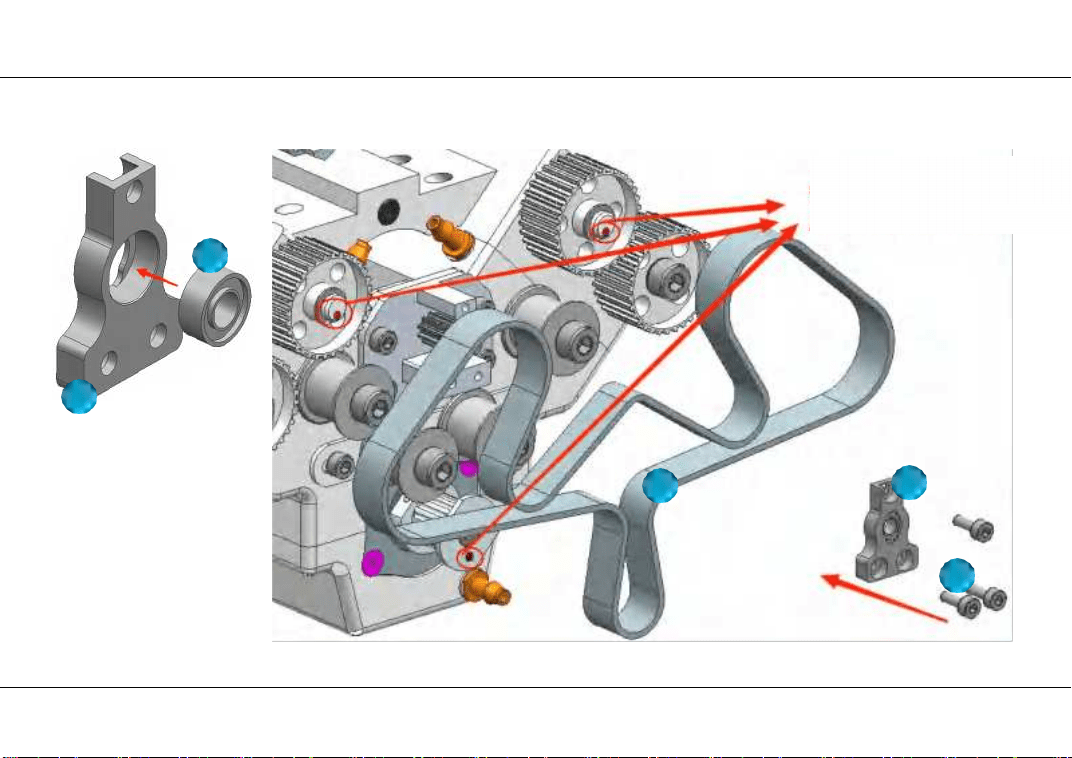

When installing the belt,
ensure that the three
points are located in the
middle and facing down
at the same t ime
TOYAN
拓陽精密科技
39
46
61
52
TOYAN
拓陽精密科技

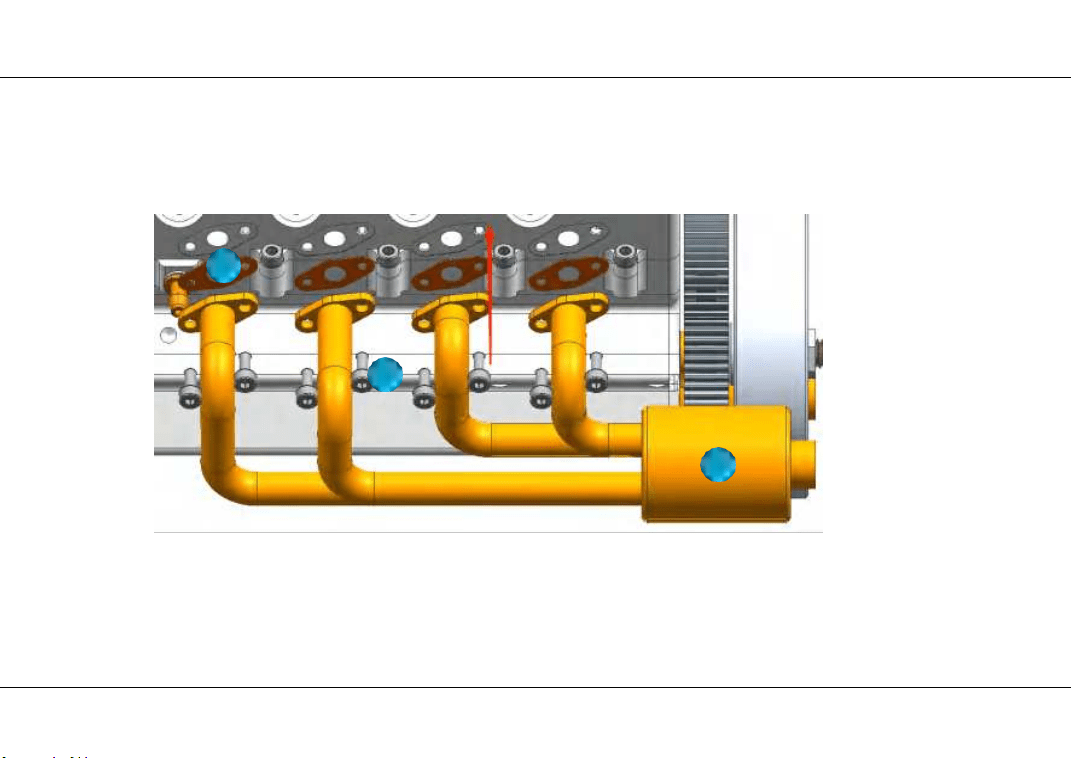

40

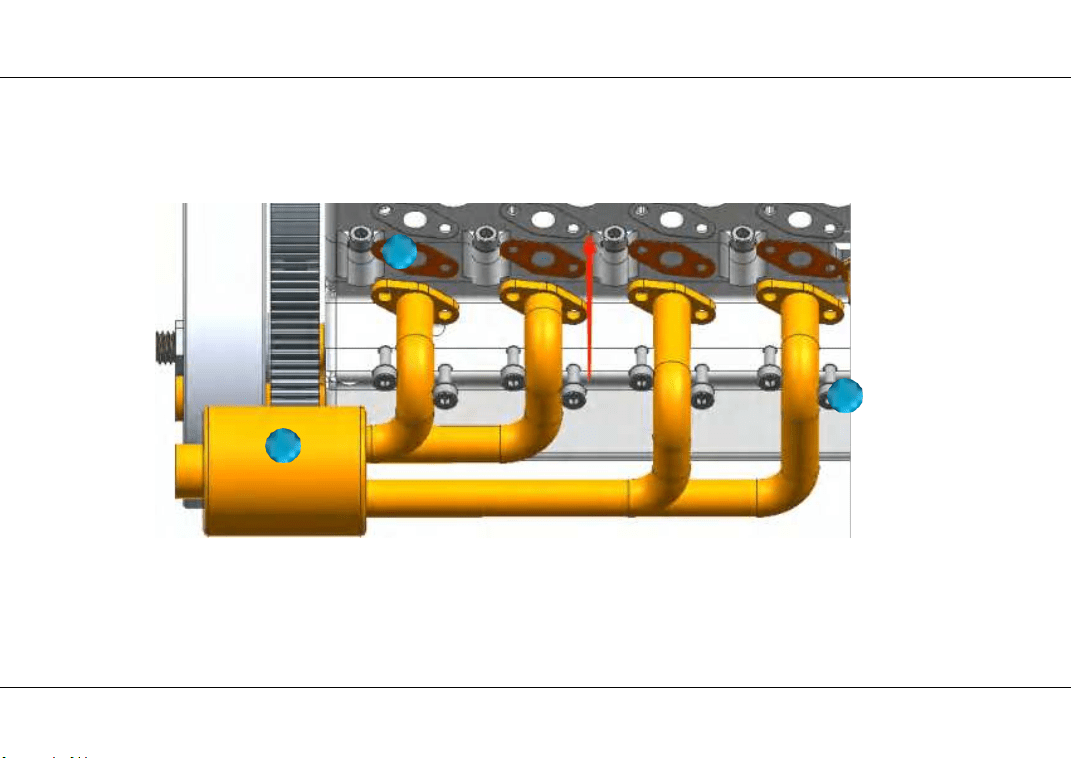

45
61
52
TOYAN
拓陽精密科技

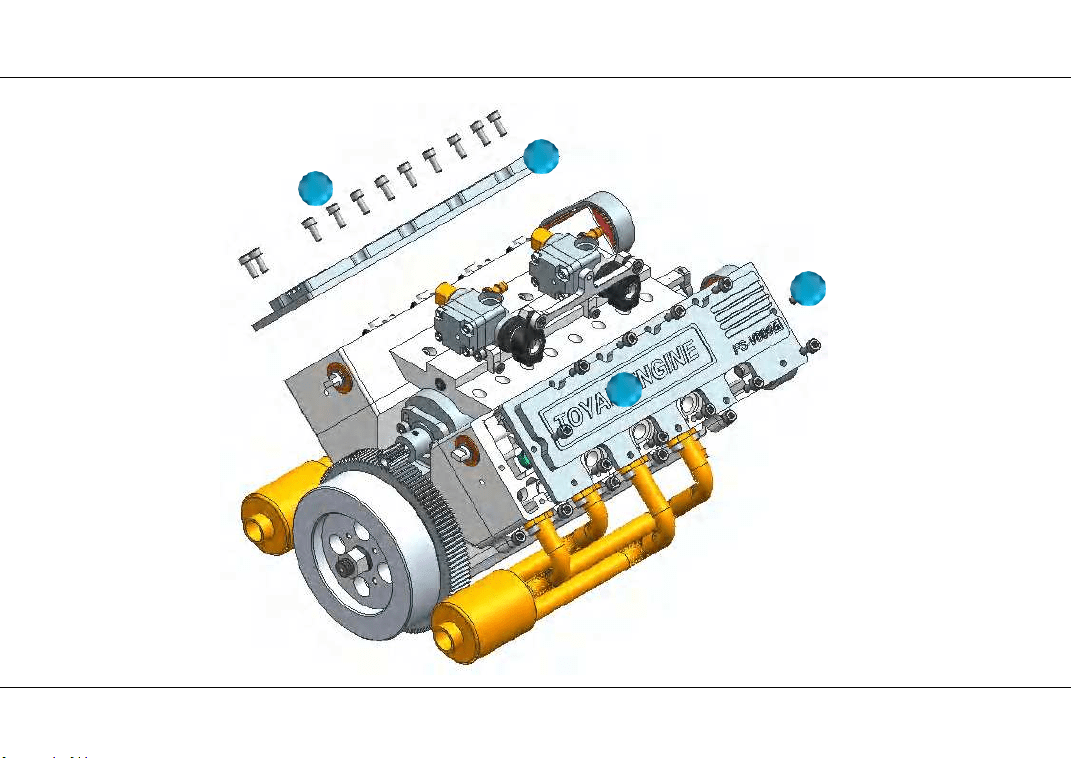

41
6
5
52
52
TOYAN
拓陽精密科技

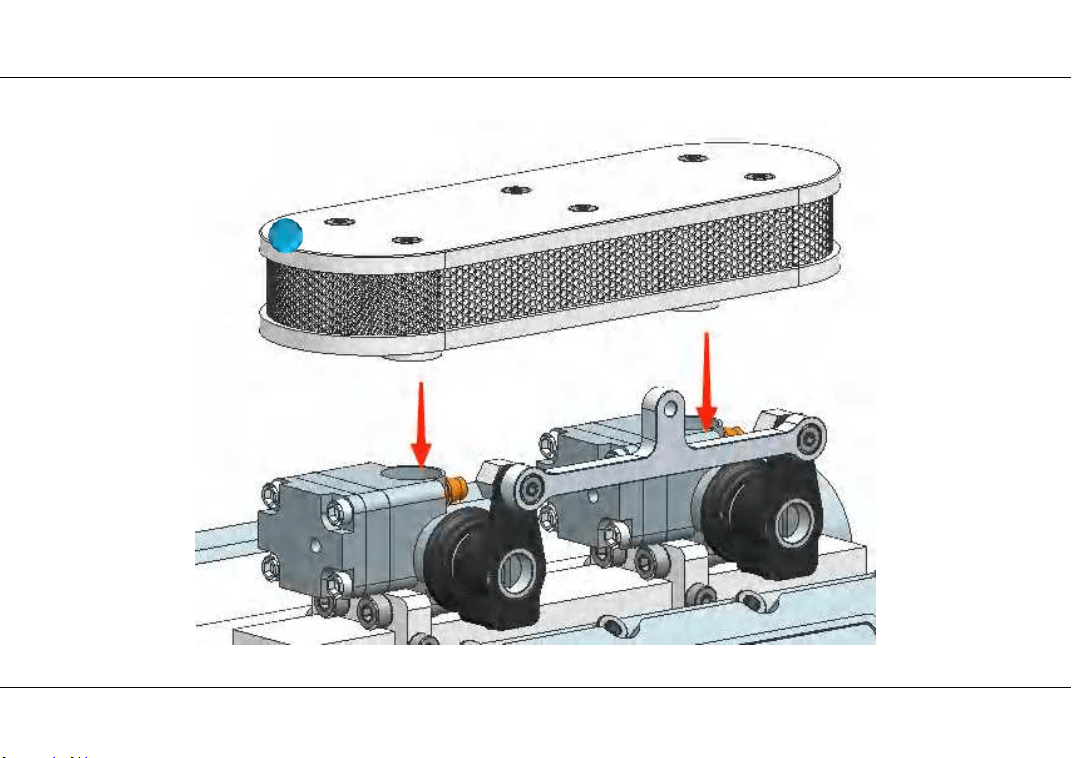

42
41
TOYAN
拓陽精密科技
43
87
86
TOYAN
拓陽精密科技
44

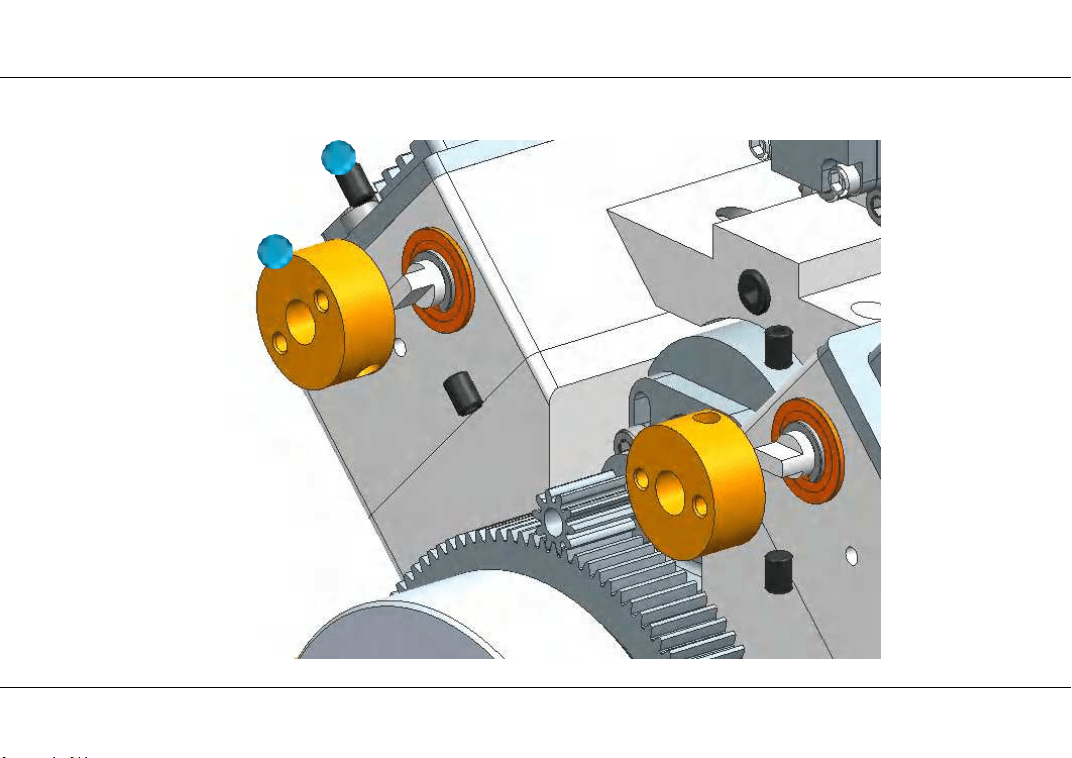

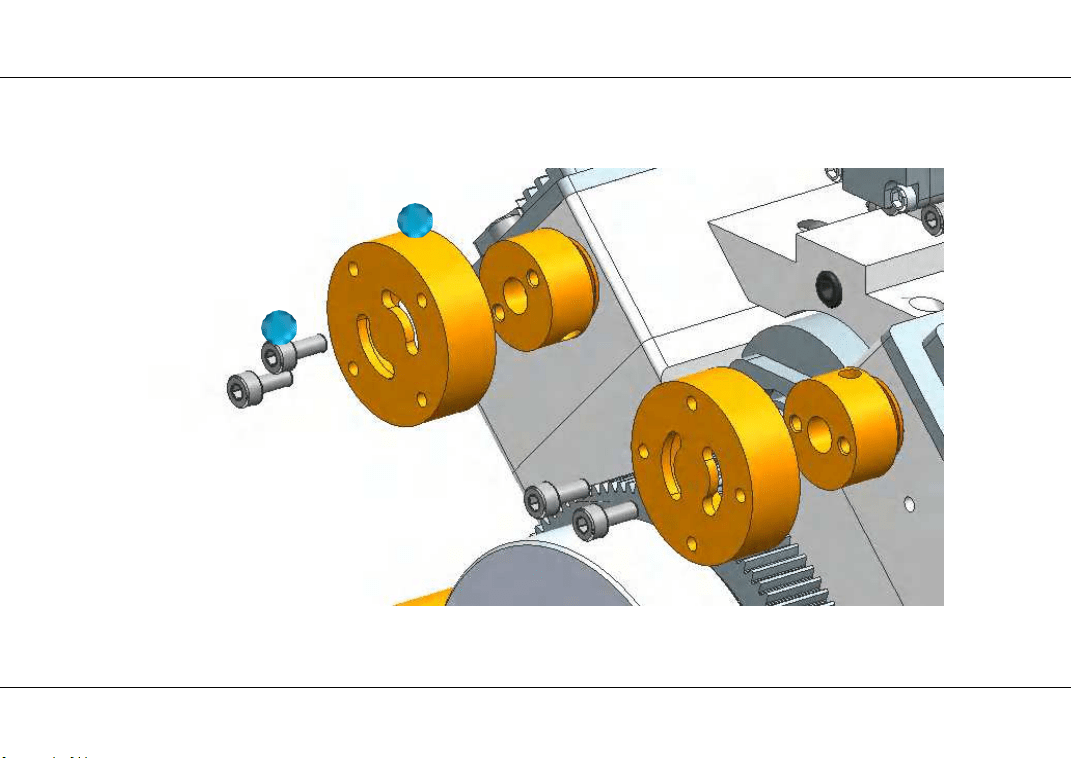

89
88
TOYAN
拓陽精密科技
45
TOYAN
拓陽精密科技

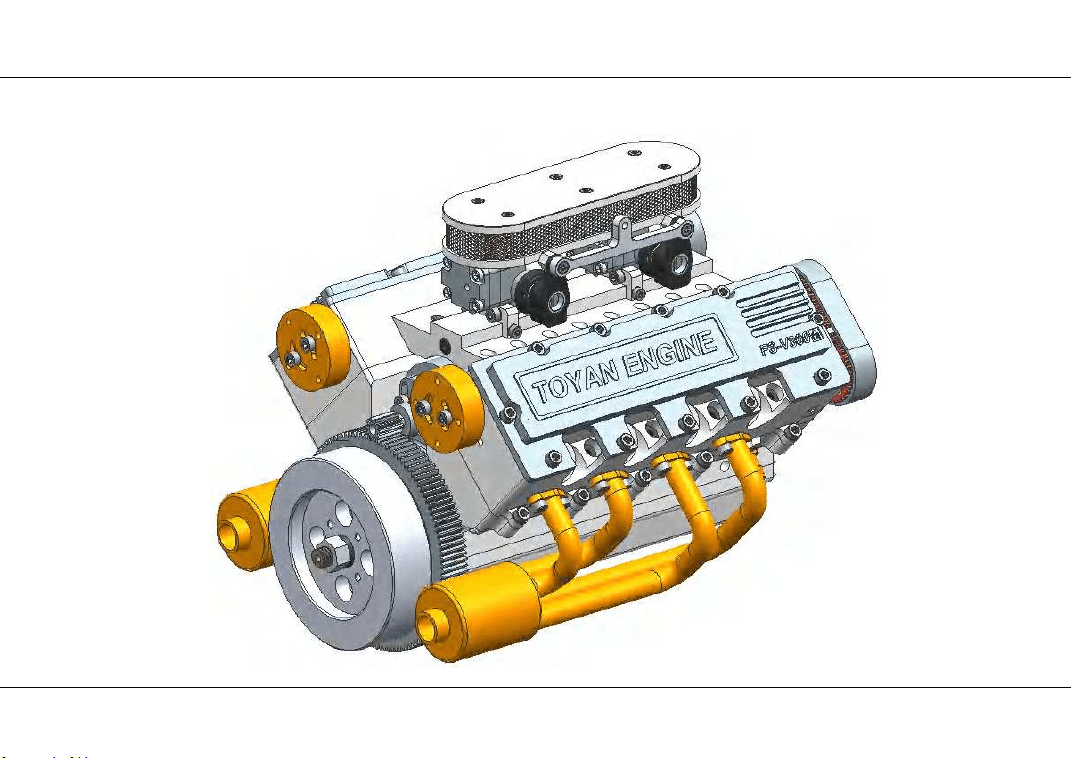

INSTALL THE BAS
46
E
Make sure the surface of engine mounting is flush and in the same flat. Improper
installation may lead to deformation of crankcase, bearing, etc. Unstable operation and
performance degradation will happen. The 3.0mm hexagon socket screws are recom-
mended when fixed engine. If installed on other engine platforms, please purchase
adjustment pads to fit between the engine bracket and the engine.
ATTENTION ABOUT STARTING
For the sake of safety, it is strongly recommended not to disassemble the engine and start the
mechanism. If any starting problems, please contact your local dealer or TOYAN technician to solve
them. If return to the factory for testing, TOYAN will provide you with high-quality after-sales service.
If any problem caused by unauthorized disassembly, you will bear the corresponding responsibilities
and expenses
1 S
park Plug
The FS-V800WG requires eight special spark plugs for a four-stroke gasoline engine. The spark
plugs require a special CDI for ignition control. when hall detects display the piston running to the
TDC, spark plug will be ignited, fuel will be ignition,then generate will acting。
TOYAN
拓陽精密科技
2.Fuel
Please use quality guaranteed methanol model engine fuel. Self - dispensing or counterfeit fuel will
greatly reduce the performance and life span of the engine. Since it is a four-stroke engine, in order to
ensure the normal operation of the engine, we require the only 20-25% nitro methane fuel can be
used. If high nitro fuel is used, the ignition time and cylinder pressure of the engine will be greatly
affected, and the normal and stable operation cannot be maintained. When the nitro content of the
fuel increases or the brand of fuel change , it is recommended to use oil-rich needle adjustments to
run the engine so that the optimal setting for the new fuel can be rechecked, (please adjust the ratio
of gasoline fuel to 1:25 to 1:30, and use 2T engine oil
47
).
Remind!
If the engine is running at very high speeds and on high nitro fuel,The life of the spark plug
does not last long. Please note that engine fuel is toxic. Keep it out of contact with eyes or
mouth and always store it in a clearly marked container and place, and keep out of reach of
children. It is highly flammable. Keep away from open fires, overheating or any source of
ignition
3.Fuel tank
It is recommended to use a 100cc tank. The tank should be installed on the same flat as the engine.
The gap between the fuel inlet & outlet of the fuel tank and carburetor should be kept within 1 cm
(the carburetor must be higher than the fuel inlet & outlet of the fuel tank). If the gap is too high,
the carburetor's working efficiency will be reduced and the engine will be started adversely. To
ensure clean fuel supply, pls use standard 5mm silicone tubing and properly install oil filters. Since
the engine itself relies on negative pressure to absorb oil, it is recommended the muffling exhaust
pipe can be used to pressurize the fuel tank
TOYAN
拓陽精密科技
5.Environment for startin
4.Start power supply
Model FS-V800WG requires a standard 7.4V 25C lithium battery, which can be quickly started
after connected. Too low or too high voltage of starting battery will not guarantee the service life
of the
48
starting motor
g
Please start the engine in an open, airy environment to avoid discomfort from burning gases
6.Platform for Starting
Since the engine will produce some vibration after starting, please place it on a stable and flat
platform
TOYAN
拓陽精密科技
OPERATION AND ADJUSTMEN
49
T
Attention!
Four-stroke engines have stronger torque output than two-stroke engines, so the
corresponding measures should be taken during operation
In order to extend the service life and improve the performance, each engine has been tested at
the factory. You need to do proper running-in and cleaning after receiving the engine. After
continuous running in, the cylinder pressure will be gradually strengthened. Due to the high
simulation degree of this engine and the large number of various parts, we do not recommend
you to fully disassemble the engine, we will provide a variety of effective sales to help you
maintain and stable use
1. Check the timing belt and CAM axle box
Open the hood and add the grease. Since the mounted camshaft is used, please add the solid grease to
ensure stable operation and avoid dry friction of the camshaft.
2. Check the power supply
Please confirm that the voltage of 7.4v universal ignition power supply is normal, and full
of electricity
3. Initial Oil Needle Setting
The prerequisite is adequate lubrication and cooling. The engine is run with very important oil
needle settings: The excess oil not only provides rich lubrication, but also conducts heat from
the surrounding metal and further assisted by the fuel nitro methane. the two-stroke model
TOYAN
拓陽精密科技
engines in pre-heating into the cylinder through the crankcase on a longer trip. But The
four-stroke engine, with its intake pipe and carburetor mounted high on the cylinder cap, means
that the rich mixture of cooling fuel and air will flow directly into the cylinder directly.With the
help of fan cooling, it can provide excellent operation experience for every enthusiasts. You can
also buy the TOYAN series of water cooling accessories, so that your engine will be able to
maintain stable operation for a long time.
Remind!
When leaving the factory, each engine has completed the oil needle setting. If you have
misadjusted the oil needle during the use, it is recommended to adjust the main oil needle
to 2.0 laps and the auxiliary oil needle to 1.5 laps. Since the methanol engine needs to
maintain the temperature of the spark plug filament to achieve ignition, when the engine is
in the oil rich state for a long time at low speed, the temperature of the filament will
gradually reduce, resulting in ignition difficulty. Therefore, it is necessary to up the speed
for cleaning oil at intervals to avoid oil enrichment at low spee
50
d
TOYAN
拓陽精密科技
Since a four-stroke engine requires a lot of air intake, it is important to set throttle
screws , the minimum throttle opening (idling setting) is about 1.5mm.,For the use of
all kinds of engine enthusiasts. do not use a strong force to twist the throttle valve
screws to adjust the size of the throttle door opening, but using valve screws to loose
throttle, and then pull the throttle rocker arm to adjust. As shown in figur
51
e
Loosen the throttle
screw and adjust the
size of the throttle
4. Start
Remind!
It is important to put the throttle in the right position before starting the engine. It is
recommended that the throttle be opened at 30% to start, the engine is not allowed to open
the throttle too far under "no load" conditions, which can quickly overheat and can seriously
damage the engine piston ring and cylinder sleeve.
Connect the spark plug battery and press the start button. Once the engine starts,
disconnect the spark plug battery and keep the eng
ine running slowly under the oil-rich
needle setting. (If necessary, gently adjust the throttle lever to keep the engine idle steady.)
1.5mm
Please keep the throttle
opening larger than 1.5mm
TOYAN
拓陽精密科技
If the engine stops, cooling it for 15 seconds before restarting. Please hold down the start key
within 5 seconds for each start, so as to protect the start motor life. Allow the engine to warm
up for 30 seconds after starting so that the oil in the fuel can be fully lubricated to each working
part. When the engine rapidly drops from high speed to low speed, or when low speed rapidly
rises to high speed, the engine is unstable or the throttle control is slow or flashover, please
confirm the carburetor working statu
52
s
Rich oil
When the engine has more fuel , smoke is emitted or accelerates slowly, indicating that the
engine has excessive oil, please turn the main oil needle clockwise, 15° as a unit, gradually
reduce the main oil needle, until the sound of engine exhaust is soft and strong, and the
exhaust pipe slightly smokes and the lubricates fuel spray out
Lean oil
If the sound of the engine is too sharp, like the sound of dry friction between metals, the
temperature rises rapidly, and the engine is stopped immediately after acceleration, indicating
that the engine has low oil, please turn the main oil needle counterclockwise, 15° as a unit,
gradually reduce the main oil needle, until the sound of engine exhaust is soft and strong, and
the exhaust pipe slightly smokes and the lubricates fuel spray out
Idling Stop
When the engine speed changes rapidly, suddenly adjust from the high speed to the low
speed, the flameout occurs, please confirm whether the throttle is closed less than 1.5mm, or
gradually reduce the auxiliary oil needle, (clockwise rotation) gradually adjust the auxiliary oil
needle, 20°as units, until the engine maintains a steady idle speed. In the debugging process,
the auxiliary oil needle should not be excessively reduced, so as not to cause engine have lean
oil, we recommend that the minimum value of auxiliary oil needle should not be less than 1
turn.
TOYAN
拓陽精密科技
CARE AND MAINTENANC
53
E
Carefully clean the carburetor and remove dirt and grease from the inlet
If an air filter is used, make sure the filter is clean and free from blockage
Recommended that the air core used for more than one hour should be replaced in time.
Be careful to remove contaminated filter elements to ensure that dirt does not enter the
Model FS-V800WG is a very precise machine that you need to clean timely. Due to the impact
of environm ent and the fuel when using, the engine parts have a certain amount of wear and
corrosion. So, TOYAN will also provide you with long-term maintenance services. You can also
complete the basic cleaning and maintenance
carburetor
Do not remove timing synchronous belt, you can use alcohol as a cleaning agent to wipe the belt. Do
not use corrosive detergent to clean synchronous belt, to avoid damage
Glow Plug must be treated as consumables. Long running glow plug will not ensure the normal operation
of the engine and you can extend its life maintain the performance of the engine if you use it carefully,
Use appropriate tools for disassembly
Use fuels containing a moderate percentage of nitromethane
Do not overtilt the engine and do not connect the battery while adjusting
The time to replace the glow plug. expect burned, It also need to be replaced on these situations because
it no longer provides optimal performance,
For example:
a.The surface of the filament becomes rough and white
b.Filament curl deformation
TOYAN
拓陽精密科技
c.External material adhered to the filament or plug corrosion
d.The engine will power off when idling
e.The power went out after the engine starte
54
d
At the end of each operation, empty the fuel tank, energize the glow plug, and try to
restart the engine to burn the possible left fuel in the fuel tank. Repeat this process until
the fuel is cleared from the engine.
Inject some antiseptic oil and briefly start the motor to distribute the oil to the working
parts. Do not inject this oil into the lubricator nozzles, as this may cause the O ring of the
carburetor to deteriorate Add solid lubricant to camshaft and valve tappet to ensure that
the CAM axle box has enough lubricant for each operation
Note!
These maintenance programs will be stored after a period of time, and there is a risk of
corrosion or startup difficulties, if you need someone to deal with, please contact us
Replacement of running parts
After long-term operation, the friction between the engine components will cause wear and
too large gap, the replacement of related parts will help you maintain your engine better.
When you are in the process of use, there is not flexible start, power reduction, idle speed
instability and so on, please feedback your usage process and poor performance of the
engine to the local dealer or TOYAN, we will serve you wholeheartedly. Parts replacement, we
will provide professional equipment and experienced team. Please do not disassemble the
engine without professional tools to avoid the risk of uncontrollable damage to the engine
TOYAN
拓陽精密科技
55
BUG CHECKING
If the engine fails to start, check the following carefully:
Whether the battery voltage is normal, whether the power is full
Whether the glow plug has failed
Whether the fuel can reach the carburetor smoothly
Do not start the engine when it is flooded. Remove the glow plug, close the oil needle and
press the start button to drain the excess fuel. (Cover the plug hole with a piece of woolen
cloth so that the fuel doesn't spill on you.) If forced to start without removing the excess
fuel, it may cause irreversible damage to the starting system, as well as the connecting
rod and crankshaft to strain and deformation
Timing belt adjustment
All TOYAN engines have been tested for timing belt position before they leave the factory.
After several hours of execution, the operating power loss or engine running instability is
found, the timing belt needs to be tested and adjusted to get the correct ignition information
for the engine. Please check against page 11 of "timing belt timing diagram"
When Turn off at low speed, do not keep it at too low speed a long time. Since the methanol
engine needs to maintain the temperature of the spark plug filament to achieve ignition,
when the engine is in a rich state for a long time at a low speed, the temperature of the
filament will gradually decrease, resulting shutdown. Therefore, it is necessary wait a while to
up the speed oil and clean the oil to keep the temperature of the filament
TOYAN
拓陽精密科技
56
170.90
FS-V8 00 WG Specification
·Displacement:3.5cc×8
·Bore:16.60mm
·Stroke:17.00mm
·Practicalrpm:1800-12500rpm
·Output:4.35ps(30%Nitro)
·Weight:2238g
137.53
127.50
Three views
TOYAN
拓陽精密科技
57
Multiple view
TOYAN
拓陽精密科技
58

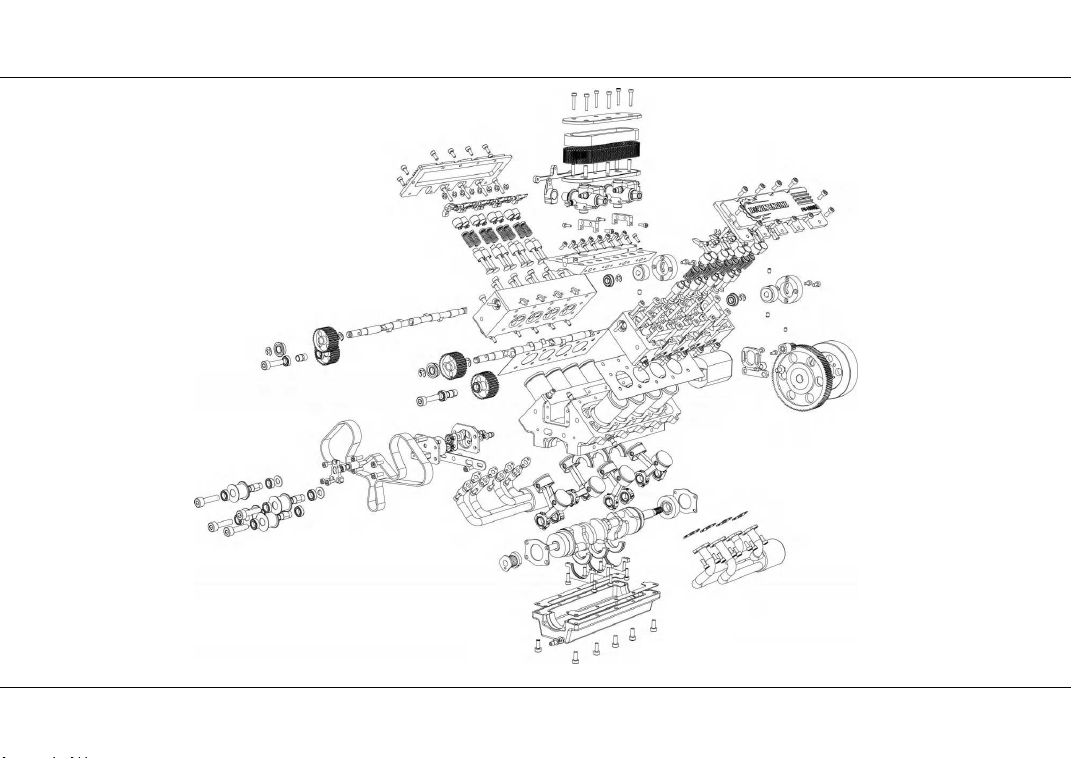

Explosion view
TOYAN
拓陽精密科技
Our Commitmen
59
t
Please contact a TOYAN dealer in your country or location. If you buy through the Internet,
you can also get various parts and complete services through the Internet. Detailed information
about each part can be obtained from the dealer
In the process of use, we have a professional team to answer your technical or usage
questions online for free.
If your distributor is unable to perform its technical services, we will provide you with direct
technical support
TOYAN
拓陽精密科技
BOM Lis
60
t
NO.
Name PC
NO.
Name PC
NO.
Name PC
01
5.1 aluminium set
1
16
Piston ring
8 31
Gear pump
1
02
Piston ring kit
1 17
Intake pipe support
2 32
Flywheel
1
03
8.1 aluminium set
1 18
Throttle synchro
1 33
Driving gear
1
04
Casing bot tom gasket
2
19
Brace
3
34
Motor bracket
1
05
Cylinder head cover(left)
1
20
Camshaft(right )
1
35
Synchronous belt
1
06
Cylinder head cover(right)
1
21
Camshaft(left)
1
36
Cylinder head(right)
1
07
Cylinder head gasket（rig ht）
1
22
Rocker arm frame
8
37
Cylinder head(left)
1
08
Cylinder head gasket(left)
1
23
Driven gear component
1
38
Bottom of casing
1
09
Camshaft flange bearing
4 24
Pressure p ulley
4
39
Components of the crankshaft
1
10
Rocker arm
16
25
Mini belt press wheel
2 40
Inlet pipe
1
11
Oil seal fixing plate
2
26
Ｔｉｍｉｎｇ ｐｕｌｌｅｙ
2
41
Air filter
1
12
Axis posit ioning block
1
27
Belt elastic parts
1
42
Start Motor
1
13
Copper collar
6
28
Flange b earing
1
43
Piston connecting rod component
8
14
Valve cap
16
29
Crankshaft oil seal
1
44
Pump carburetor
2
15
Camshaft oil seal
4
30
Pump cover
1 45
Exhaust pip e (right)
1
TOYAN
拓陽精密科技
61
NO.
Name PC
NO.
Name PC
NO.
Name PC
46
Exhaust pipe (left)
1
62
E typ e circlip φ 2.5
16
78
Screw M3* 8
10
47
Cylinder block
1
63
Small head M3 * 12
9
79
Nozzle
7
48
Ctype spring
1
64
Beryllium copper sleeve
1
80
14
49
Butterfly gasket
1
65
Water cooled gear 2
1
81
Screw M4 * 16
6
50
Cylindrical pin 2 * 12
3
66
Water cooled gear 1
1
82
Flat gasket φ 8
2
51
M6 Nut
1
67
Screw M2.5 * 8
20
83
Screw M2.5 * 5
8
52
Screw M2.5 * 6
42
68
Gear g asket
1
84
O ring 1.4*1.8
8
53
Screw M4 * 6
2
69
1
54
Screw M3*4
2
70
O ring
3
55
Screw M2 * 6
23
71
1
56
O ring 4.5*1.8
8
72
Bearing
1
57
Screw M5 * 4
2
73
Gear shaft
1
58
4
74
Cylindrical pin 2.5 * 7
1
59
22
75
E type circlip φ 3.5
9
60
M2 Nut
2
76
Screw M3* 18
23
61
Exhaust pipe gasket
8
77
Screw M3* 12
6
Ｓｃｒｅｗ Ｍ２．５ ＊ １２
Screw M 2 * 7
Gear cover gasket
Y type oil seal
Flat gasket φ 6
O ring 8*
85
1
1
86
８７
88
89
M agnet induction adapt er
2
4
2
4
Screw
Induction by magnet
2.5*6
Ｔｉｇｈｔｅｎ ｓｃｒｅｗｓ Ｍ３ ＊ ４
