TURBO HD
D0T Bullet & Turret & Dome
Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the model listed below.
Type
Model
Type I
DS-2CE16D0T-VFIR3E
Type II
DS-2CE56D0T-VFIR3E
Type III
DS-2CE56D0T-VPIR3E
Type IV
DS-2CE56D0T-VFIRE
This manual may contain several technically incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to the
new version of this manual. We will readily improve or
update the products or procedures described in the
manual.
0100001070811
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European standards
listed under the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of the
warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of the
nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power adapter
to avoid over-heating or a fire hazard caused by
overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty or
damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Keep the camera away from liquid while in use for non-
water-proof device.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
Introduction
1.1 Product Features
The camera is applicable for both indoor and outdoor
conditions, and the application scenarios include road,
warehouse, parking lot, office, campus, etc..
The main features are as follows:
High performance CMOS sensor
1080p resolution
Auto white balance
Auto electronic shutter
Auto gain control (AGC)
IR cut filter
PoC
3-axis adjustment
Note:
Type IV camera is applicable for indoor condition only.
1.2 Overview
1.2.1 Type I Camera Overview
Video Cable
(TVI)
Power Cord
(12 VDC)
Mounting
Bracket
Camera
Lens

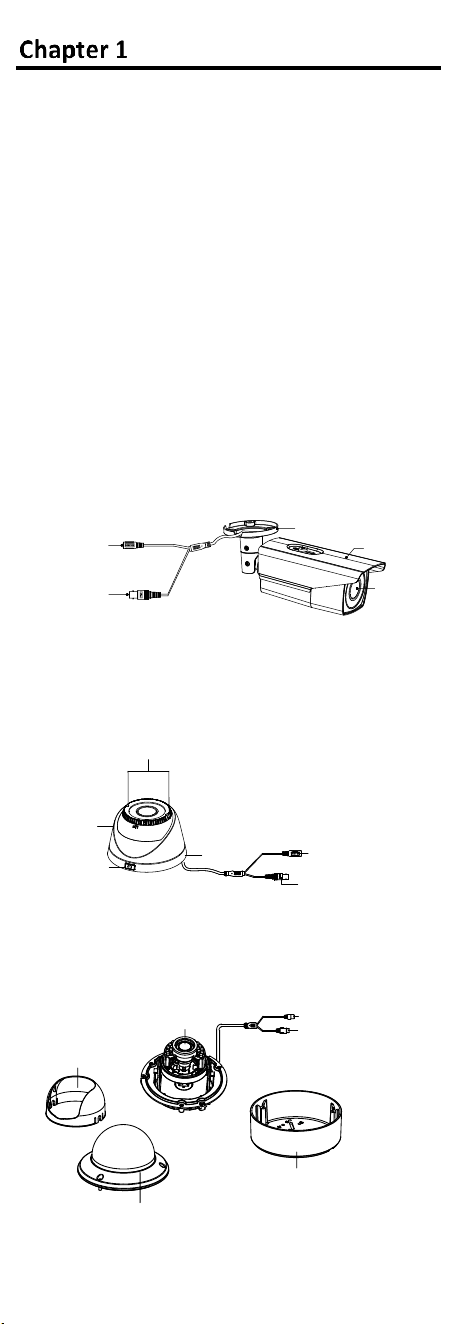

Figure 1. 1 Type I Camera Overview
1.2.2 Type II Camera Overview
Enclosure
Button
Mounting
Base
Video Cable (TVI)
Power Cord
(12 VDC)
Zoom & Focus
Lever
Figure 1. 2 Type II Camera Overview
1.2.3 Type III Camera Overview
Black Liner
Bubble
Lens
Back Box
Power Cord
(12 VDC)
Video Cable (TVI)
Figure 1. 3 Type III Camera Overview
1.2.4 Type IV Camera Overview
Bubble
Black Liner
Base Plate
Lens
Power Cord
(12 VDC)
Video Cable (TVI)
Switch Button
Figure 1. 4 Type IV Camera Overview
Installation
2.1 Installation Preparation
Before you start:
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with your
power output to avoid damage.
Make sure the wall is strong enough to withstand three
times the weight of the camera and the mounting
bracket.
If the wall is cement, insert expansion bolts before you
install the camera. If the wall is wooden, use self-
tapping screws to secure the camera.
If the product does not function properly, contact your
dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.2 Installation of Type I Camera
Before you start:
Both wall mounting and ceiling mounting are suitable for
the bullet camera. We take ceiling mounting as an
example in this section. You can take the steps of ceiling
mounting as a reference when adopting wall mounting.
Steps:
1. Paste the drill template (supplied) to the place where
you want to fix the camera.
2. Drill the screw holes and the cable hole in the ceiling
according to the drill template.
Cable
Hole
Screw
Hole
Figure 2. 1 Drill Template
Note:
Cable hole is required when adopting ceiling outlet to
route the cable.
3. Route the cables through the cable hole, or the side
opening.
4. Attach the mounting base to the ceiling and secure
the camera with supplied screws.

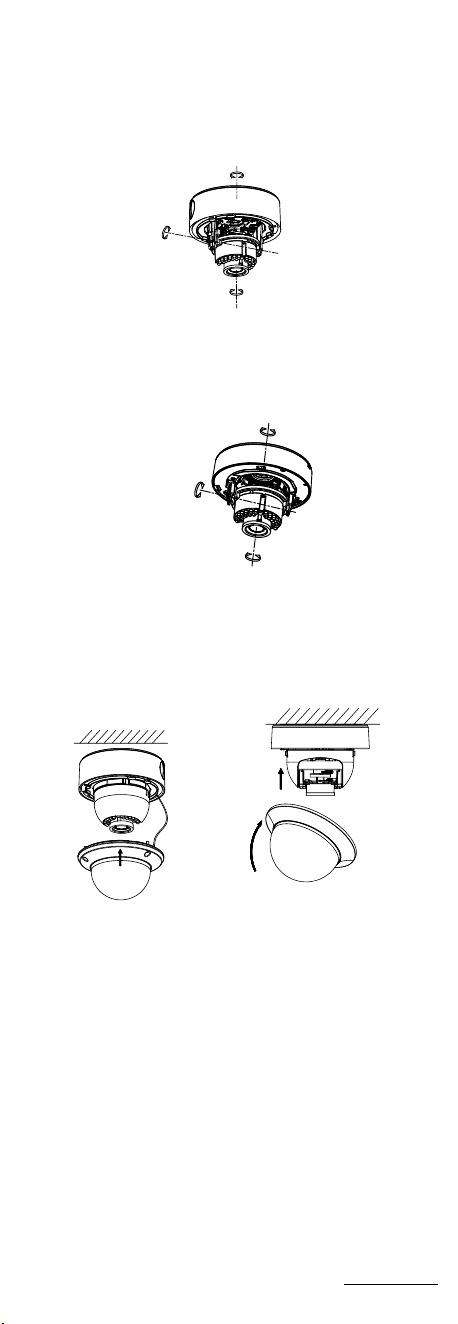

Figure 2. 2 Secure the Camera to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws are
required.
5. Connect the corresponding power cord and video
cable.
6. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to
get an optimum angle.
0° to 90°
0° to 360°
0° to 360°
1
2
3
Figure 2. 3 3-Axis Adjustment
1). Loosen the No.1 adjusting screw to adjust the pan
position [0° to 360°].
2). Tighten the No.1 adjusting screw.
3). Loosen the No.2 adjusting screw to adjust the
tilting position [0° to 90°].
4). Tighten the No. 2 adjusting screw.
5). Loosen the No.3 adjusting screw to adjust the
rotation position [0° to 360°].
6). Tighten the No.3 adjusting screw.
2.3 Installation of Type II camera
Before you start:
Both wall mounting and ceiling mounting are suitable for
the turret camera. We take ceiling mounting as an
example in this section. You can take the steps of ceiling
mounting as a reference when adopting wall mounting.
Steps:
1. Paste the drill template (supplied) to the place where
you want to fix the camera.
2. Drill the screw holes according to the drill template
and the cable hole (optional) in the ceiling.
Screw Hole
Cable Hole
Figure 2. 4 Drill Template
Note:
Cable hole is required when adopting ceiling outlet to
route the cable.
3. Press the button to take out the main body.
Press
Figure 2. 5 Disassemble the Camera
4. Fix the mounting base on the ceiling with supplied
screws.
Figure 2. 6 Fix the Mounting Base on the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws are
required.
5. Route the cables through the cable hole (optional), or
the side opening.
6. Install the main body back to the mounting base.
Figure 2. 7 Secure the Camera with Mounting Base
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to get
an optimum angle.
Pan Position:
0° to 360°
Tilt Position:
0° to 75°
Rotation Position:
0° to 360°

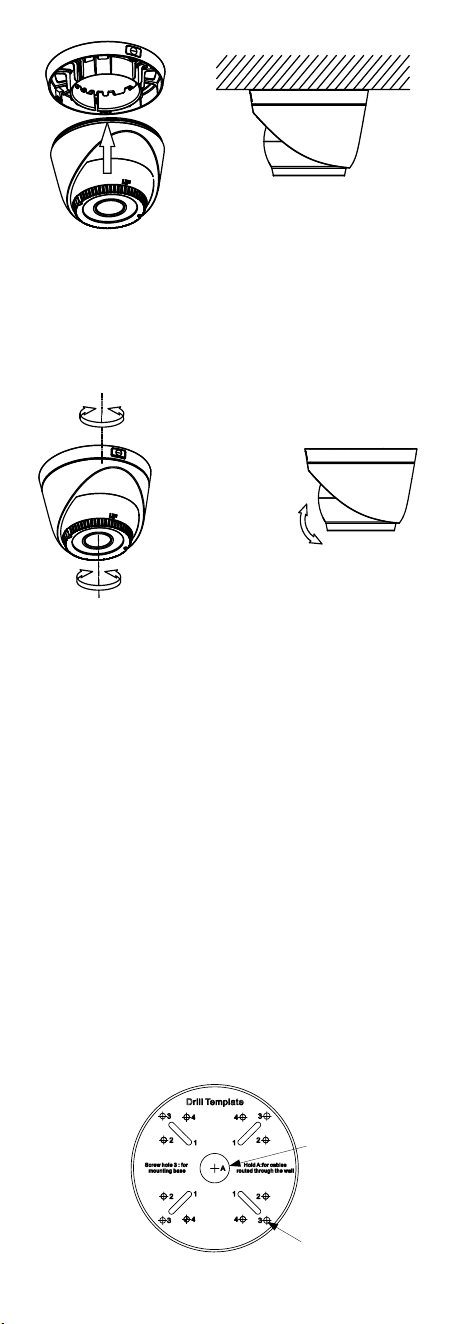

Figure 2. 8 3-axis Adjustment
1). Hold the camera body and rotate the enclosure to
adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust the
tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.4 Installation of Type III and Type IV Camera
Before you start:
Both wall mounting and ceiling mounting are suitable for
the dome camera. We take ceiling mounting as an
example in this section. You can take the steps of ceiling
mounting as a reference when adopting wall mounting.
Steps:
1. Paste the drill template to the celling.
2. Drill screw holes and the cable hole (optional) on the
ceiling according to the supplied drill template.
Type III Camera
Cable
Hole
Screw
Hole
Type IV Camera
Cable
Hole
Screw
Hole

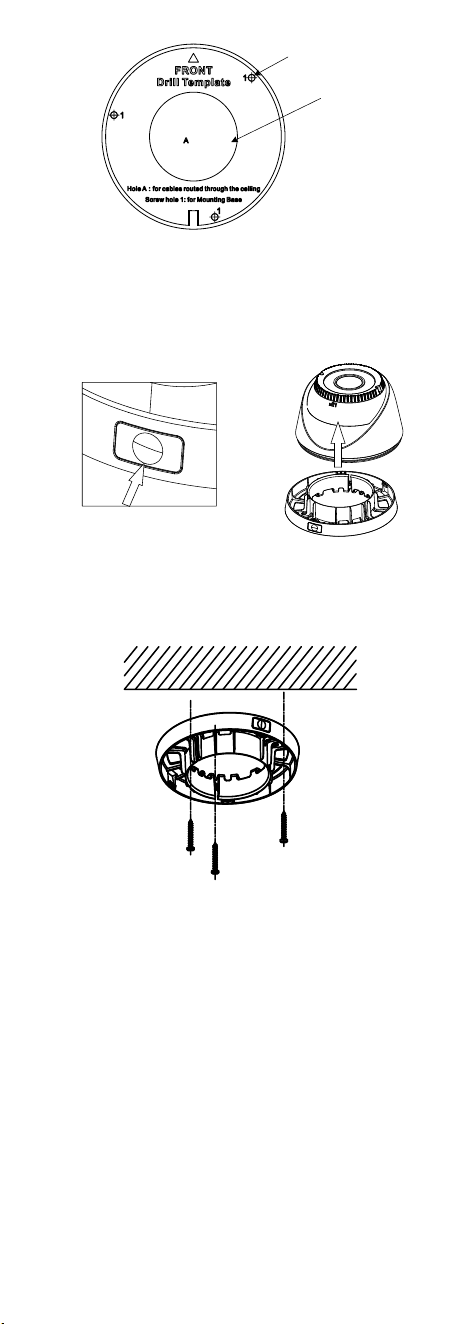

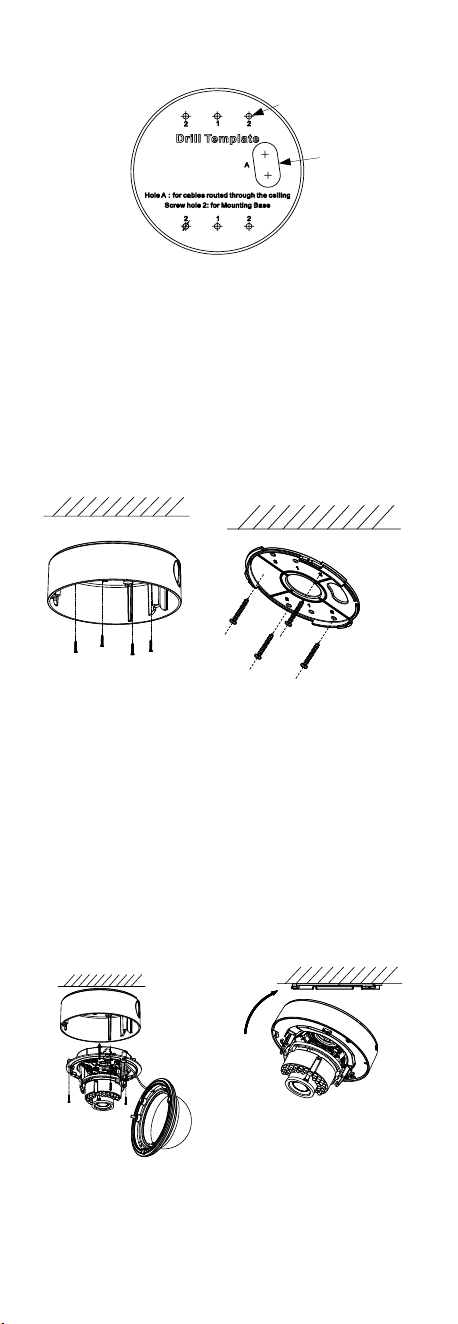

Figure 2. 9 The Drill Template
Note:
Cable hole is required when adopting ceiling outlet to
Route the cable.
3. Loosen the bubble of the dome camera to remove the
bubble and the black liner.
4. Attach the back box of type III camera/base plate of
type IV camera to the ceiling and secure them with
supplied screws.
Type III Camera
Type IV Camera
Figure 2. 10 Attach the Back Box/Base Plate
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws are
required.
5. Route the cables through the cable hole (optional), or
the side opening.
6. Align the camera with the back box/base plate, and
secure the camera with the back box/base plate.
Type III Camera
Type IV Camera
Rotate
Figure 2. 11 Fix the Camera to the Ceiling
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to get
an optimum angle.
Pan Position:
0° to 355°
Rotation Position:
0° to 355°
Tilt Position:
0° to 75°
Type III Camera
Pan Position:
0 ° to 355 °
Tilt Position:
0 ° to 75 °
Rotation Position:
0 ° to 355 °
Type IV Camera
Figure 2. 12 3-axis Adjustment
9. Fit the black liner back to the camera and tighten the
bubble of the dome camera to finish the installation.
Type III Camera
Type IV Camera
Figure 2. 13 Finish the Installation
UD05884B-A
