www.lg.com
OWNER’S MANUAL
AIR CONDITIONER
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
TYPE: PORTABLE AIR CONDITIONER
Rev.00
Read this owner’s manual thoroughly before operating the
appliance and keep it handy for reference at all times.
EN ENGLISH
ES ESPAÑOL
LP0524WFR
LP0624WFR
A2L
TABLE OF CONTENTS
16 OPERATION
16 Control Panel and Remote Control
3 SAFETY INSTRUCTIONS
3 IMPORTANT SAFETY INSTRUCTIONS
8 PRODUCT OVERVIEW
8 Key Parts and Components
9 INSTALLATION
9 Electrical Information
10 Before Installing the Air Conditioner
10 Wireless Remote Control
11 Preparing for Installation
12 Selection of Installation Location
12 Attaching the Flexible Vent Hose Set
13 Window Vent Panel and Extensions
14 Installing Vent Panels
19 MAINTENANCE
19 Emptying the Water Collection Tank
19 Cleaning the Case
19 Cleaning the Air Filter
20 TROUBLESHOOTING
20 Before Calling for Service
22 WARRANTY
24 ARBITRATION NOTICE
22 WARRANTY
TABLE OF CONTENTS
2
S
R
I
SAFETY INSTRUCTIONS
3
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or
CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce
the chance of injury, and tell you what may happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
injury to persons when using this product, follow basic precautions,
including the following:
INSTALLATION
Before use, the appliance must be properly installed as described in this manual.
Contact the authorized service technician for repair or maintenance of this unit.
SAFETY INSTRUCTIONS
4
When the power cord is to be replaced, replacement work shall be performed by authorized
personnel only using only genuine replacement parts.
.
Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
Always plug into a grounded outlet.
Do not under any circumstances, cut or remove the third (ground) prong from the power cord.
When installing or moving the appliance, be careful not to pinch, crush, or damage the power
cord.
Plug in the power plug properly.
Do not modify or extend the power cord.
Do not start/stop operation by plugging/unplugging the power cord.
Use a dedicated circuit.
Do not disassemble or modify the product.
Adhere to all industry recommended safety procedures including the use of long-sleeved gloves
and safety glasses.
Use care when unpacking and installing. The edges of the product may be sharp.
Disconnect the power cord or circuit breaker before installing or servicing the appliance.
Keep packaging materials out of the reach of children. These materials can pose a suffocation
risk to children.
Store and install the product where it will not be exposed to temperatures below freezing or
exposed to outdoor weather conditions.
other appliance.
OPERATION
Use this appliance only for its intended purpose.
Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled,
or has missing or broken parts, including a damaged cord or plug.
Repair or immediately replace all power cords that have become frayed or otherwise damaged.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
Do not run cord under carpets or mats where it could be stepped on and damaged.
Keep the cord out from under heavy objects like tables or chairs.
Do not place the power cord near a heat source.
Do not use an adaptor or plug the product into a shared outlet.
Do not tamper with controls.
If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance,
unplug it immediately, and contact an LG Electronics Customer Information Center.
straight out from the outlet.
Do not grasp the power cord or touch the appliance controls with wet hands.
The air conditioner is not intended for use by young children or invalids without supervision.
Young children should be supervised to ensure that they do not play with the air conditioner.
SAFETY INSTRUCTIONS
5
ENGLISH
If water enters the product, turn off the power at the main circuit, then unplug the product and call
for service.
If the product has been submerged, contact the LG Electronics Customer Information Center for
instructions before resuming use.
Unplug the product if it will not be used for long periods.
Unplug the product before cleaning.
In the event of a gas leak (propane gas, etc.) do not operate this or any other appliance. Open a
window or door to ventilate the area immediately.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a person responsible for
their safety.
Do not use solvent-based detergent on the product. Doing so can cause corrosion or damage,
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
GROUNDING INSTRUCTIONS
The power cord of this appliance is equipped with a three-prong (grounding) plug. Use this with
a standard three-slot (grounding) wall power outlet to minimize the hazard of electric shock.
receptacle is properly grounded. DO NOT CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER PLUG.
Have the wall receptacle and circuit checked by a qualified electrician to make sure the
- Situations when the appliance will be disconnected occasionally; Because of potential safety
hazards, we strongly discourage the use of an adapter plug. However, if you wish to use an
adapter, a TEMPORARY CONNECTION may be made. Use UL-listed adapter, available from
most local hardware stores.
The large slot in the adapter must be aligned with the large slot in the receptacle to assure a
proper polarity connection.
Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded
to make sure the receptacle is properly grounded.
Disconnect the power cord from the adapter, using one hand on each. Otherwise, the adapter
ground terminal might break. Do not use the appliance with a broken adapter plug.
- Situations when the appliance will be disconnected often; Do not use an adapter plug in these
situations. Unplugging the power cord frequently can lead to an eventual breakage of the
ground terminal. The wall power outlet should be replaced by a three-slot (grounding) outlet
instead.
SAFETY INSTRUCTIONS
6
CAUTION
To reduce the risk of minor or moderate injury to persons, malfunction, or
damage to the product or property when using this product, follow basic
precautions, including the following:
INSTALLATION
Take care when installing the product that exhaust or condensation does not damage nearby
property.
Follow installation instructions exactly to avoid excessive vibration or water leakage.
OPERATION
This appliance is not intended for use as a precision refrigeration system. Do not use it for special
purposes such as maintaining pets, food, precision machinery, or art objects.
When installing or moving the appliance, be careful not to pinch, crush, or damage the power
cord.
Make sure the air inlet and outlet are free from obstructions.
Use a soft cloth to clean the appliance. Do not use waxes, thinners, or harsh detergents.
Do not step on or place heavy objects on top of the appliance.
Do not drink water drained from the appliance.
are used simultaneously.
Remove the batteries if the remote control is not to be used for an extended period of time.
Never mix different types of batteries, or old and new batteries for the remote control.
consult a doctor.
Do not recharge or disassemble the batteries.
MAINTENANCE
Never spray the product with water or use strong cleaning agents or solvents when cleaning the
air conditioner. Use a soft cloth to avoid scratching the exterior.
Do not install the unit in potentially explosive atmospheres.
To clean the interior, contact the LG Electronics Customer Information Center or a dealer.
Using harsh detergents may cause corrosion or damage to the unit.
SAFETY INSTRUCTIONS
7
ENGLISH

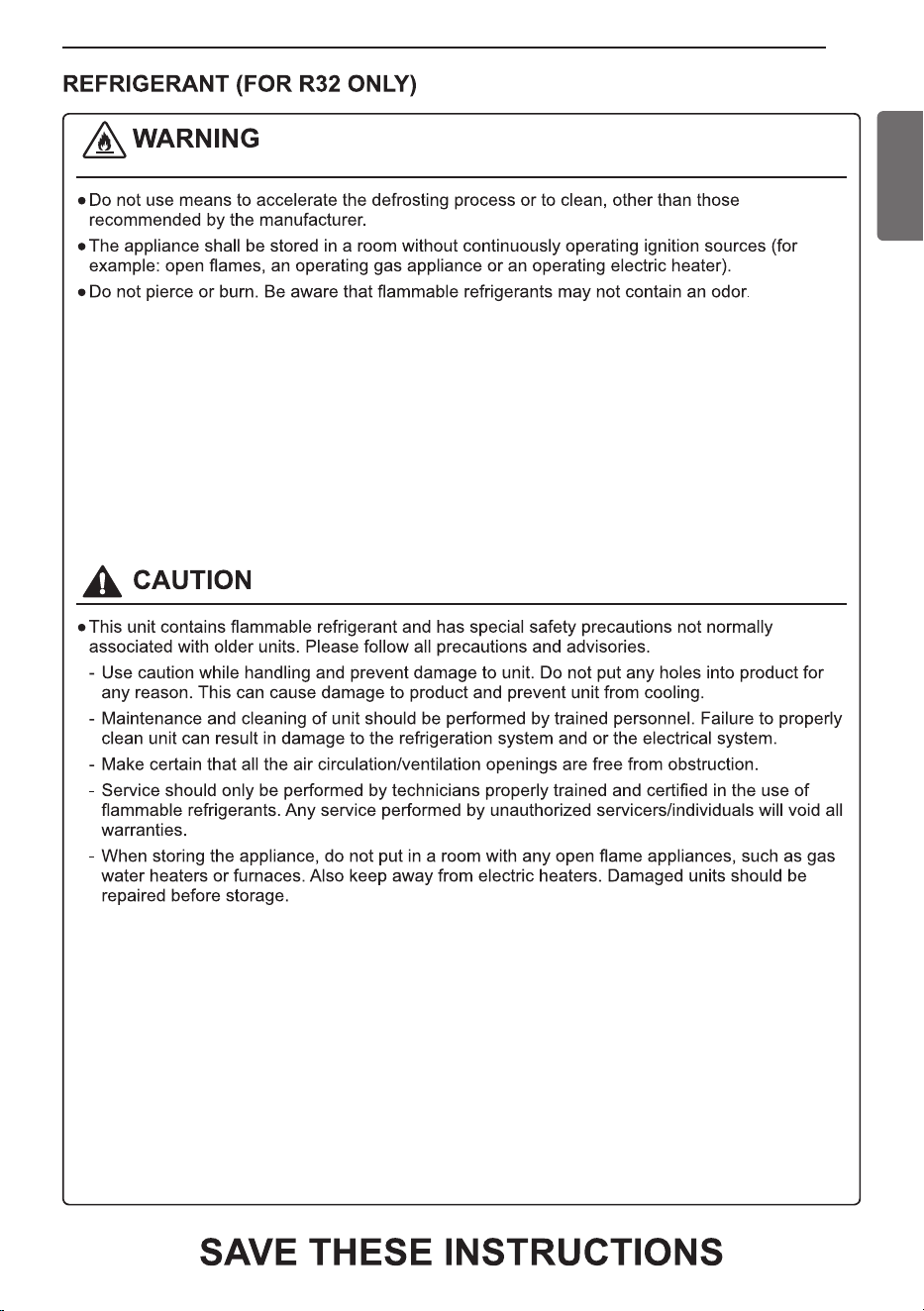

Caution, risk of fire
- The maximum refrigerant charge amount. (Refer to nameplate marking refrigerant amount.)
- The appliance shall be suitable stored to prevent mechanical damage from occurring.
- Information for handling, installation, cleaning, servicing and disposal of refrigerant.
- A notice that servicing shall be performed only as recommended by the manufacturer.
- A warning that the appliance shall be stored in a room without continuously operating open flames
(for example an operating gas appliance) and ignition sources (for example an operating electric heater).
- The manufacturer should specify other potential continuously operating sources known to cause ignition of
the refrigerant used. The appliance shall be stored so as to prevent mechanical damage from occurring.
- Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid
certificate from an industry-accredited assessment authority, which authorizes their competence to handle
refrigerants safely in accordance with an industry recognized assessment specification.
- Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and
repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the
person competent in the use of flammable refrigerants.
● The appliance shall be stored in a well-ventilated area where the room size corresponds to the
room area as specified for operation.
● The appliance shall be stored so as to prevent mechanical damage from occurring.
● Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorises their
competence to handle refrigerants safely in accordance with an industry recognised assessment
specification.
● Servicing shall only be performed as recommended by the equipment manufacturer.
● Maintenance and repair requiring the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of flammable refrigerants.
● Keep any required ventilation openings clear of obstruction.
E
P
d
o
a
d
e
f
PRODUCT OVERVIEW
temperature, and
using the bottom drain port.
WIRELESS REMOTE CONTROL
Key Parts and Components
The remote control allows you to adjust the temperature
and operate most functions of the air conditioner from
across the room.
NOTE
Features may change depending on model.
7
6
8
2
1
4
3
7
8
6
Fan Speed
PRODUCT OVERVIEW
8
INSTALLATION
Electrical Information
Power cord may include a current interrupter
device. TEST and RESET buttons are provided
on the plug case. The device should be tested on
TEST button
and then the RESET button. If the TEST button
does not trip or if the RESET button will not stay
engaged, discontinue use of the air conditioner
for 120 V
Use Wall Receptacle Power Supply
Use 15 A, time-
delay fuse or 15 A
circuit breaker.
Standard 120V , 3-wire
grounding receptacle rated
15A / 120 VAC / 60 Hz
RESET
TEST
WARNING
This appliance should be installed in
accordance with the National Electrical
Code.
Use of extension cords could cause serious
injury or death.
- Do not use an extension cord with this
portable air conditioner.
- Do not use surge protectors or multi-outlet
adapters with this portable air conditioner.
Never push the TEST button during
operation. Doing so can damage the plug.
- Do not remove, modify, or immerse this
plug. If this device trips, the cause should
be corrected before further use.
CAUTION
The conductors inside this cord are
surrounded by shields, which monitor
leakage current. These shields are not
grounded. Periodically examine the cord
for any damage. Do not use this product
in the event the shields become exposed.
Avoid shock hazard. This unit cannot be
user-serviced. Do not open the tamper-
resistant sealed portion. All warranties and
performance will be voided. This unit is not
intended to be used as an ON/OFF switch.
INSTALLATION
9
ENGLISH
P
B
I
Before Installing
the Air Conditioner
Doing so
are
they do
place the appliance near
Wireless Remote Control
Inserting Batteries
If the display screen of the remote control begins
to fade, replace the batteries. Insert AAA (1.5 V)
batteries before using the remote control.
1
Remove the cover on the back of the
remote control.
2
Insert the new batteries and make sure that
the + and - terminals of the batteries are
installed correctly.
NOTE
New batteries are supplied with the air
conditioner for use in the remote control.
Do not use a rechargeable battery. Make sure
that the battery is new.
In order to prevent discharge, remove the
battery from the remote control if the air
conditioner is not going to be used for an
extended period of time.
Keep the remote control away from extremely
hot or humid places.
To maintain optimal operation of the remote
control, the remote sensor should not be
exposed to direct sunlight.
The remote control will not work properly if the
unit is exposed to direct light or there is any
obstacle between the unit and the remote
controller.
OPERATING TEMPERATURE
Cooling : 70 °F (21 °C) ~ 95 °F (35 °C), 45%RH ~ 78%RH
INSTALLATION
10
Preparing for Installation
Basic Installation Materials Supplied
Installation Tools
1 Panel H (18")
Window vent pane
1 Panel I (9 11/16")
Extension panel
4 Screws
2 Long adhesive
foam seals
1 Non-adhesive
foam seal
2 Short adhesive
foam seals
2 Security bracket 4 Rivets
Phillips screwdriver Cutting knife Tape measure “No residue”
duct tape
Mounting
Bracket
Flexible Vent
Hose
Diffuser
1 Panel J (18")
Extension panel
1 Panel K (18")
Extension panel
INSTALLATION
11
ENGLISH
Attaching the Flexible Vent Hose Set
1. Preparing the exhaust hose assembly:
Press the mounting bracket and the diffuser into the flexible exhaust hose. Both mounting bracket and diffuser
have integral clips that snap onto the hose.
2. Insert the mounting bracket into the slot on the back of the air conditioner.
3. Slide down to lock the hose into place.
4. Confirm the hose is locked in place before operating.
20″
NOTE
The length of the flexible vent hose is specially designed according to the specification of this product.
Do not replace or extend it with a hose that is not specifically designed for use with this product as this
could cause malfunction.
Selection of Installation Location
Mounting
Bracket
Flexible Vent
Hose
Diffuser
Exhaust hose assembly
LOCK
UNLOCK
INSTALLATION
12
Window Vent Panel and Extensions
The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18″ to 50″ wide,
or horizontal-sliding windows from 18
″ to 50″ high.
Panel Length
HI
11
16
JK
Window Length
18″
18″ 18″ 18″
a
b
c
d
9″
Fig.
19″ 26″
34″
50″
27″
35″
1. Please check your window size and choose the fit
from the above table.
2. lf your window size requires more than 2 panels,
after adjusting the length, please secure the panels
with rivets, E.
For an 18" window opening, use the window
vent panel (Panel H) by itself.
For window openings from 19" to 26", use the
window vent panel (Panel H) and extension
Panel I.
For window openings from 27" to 34", use the
window vent panel (Panel H) and extension
Panel J.
Panel H
Panel H
Panel I
Panel I
Panel H
Panel I ( )
Panel H ( 18″)
Panel K ( 18″)
Panel J ( 18″)
Panel H
Rivet E
Fig. "a"
Fig. "b"
Fig. "c" Fig. "d"
18"
18"
Panel J
Panel K
Panel J
Panel H
Panel K
Panel J
Panel H
Panel J
Panel H
Panel H
27" - 34"
35" - 50"
35" - 50"
27" - 34"
11
16
9″
For window openings from 35" to 50", use the
window vent panel (Panel H) and extension
Panel J and Panel K.
.
s
INSTALLATION
13
ENGLISH
N
•
•
Installing Vent Panels
Attach the long adhesive foam weather
seals to the top and bottom sides of the
window vent panel assembly. Attach the
short foam weather seals to the right and left
sides of the panel assembly.
(Attaching the foam weather seals to the
panel assembly rather than the window sash
and frame makes for easier cleanup when
removing the panel assembly.)
Insert the panel assembly in the bottom sash
channel. Use care when installing the
assembly, which will now fit very tightly in
the opening. Close the sash tightly against
the top of the panel assembly.
Measure and cut the included non-adhesive
foam to fit the window opening. Stuff it
between the window sashes to prevent air
and insects from getting into the room.
Non-adhesive
foam seal
Long adhesive foam seal
↓
Short adhesive
foam seal
↓
Short adhesive
foam seal
↓
↑
Long adhesive foam seal
If needed, install the included security
bracket with screws.
Security Bracket
Screw
INSTALLATION
14
65
Align the tabs on the diffuser with slots in the
outer slide section. Insert the diffuser into the
opening in the vent panel.
NOTE
Best positioning Inverted U shape
• For a tighter seal, use "no residue" duct tape (not provided) to seal any gaps around the installed
panel assembly, around the diffuser, and between the sashes.
• For best results, keep the vent hose as short and straight as possible. However, shape the diffuser
end of the vent hose into an inverted U shape just inside the window to allow any rain or
condensation to drain out the window.
Slot
Insert
Insert the screw in the hole in the diffuser to
prevent the diffuser from sliding out of the
vent opening.
Screw
INSTALLATION
15
ENGLISH
OPERATION
Control Panel and Remote Control
NOTE
• Available functions may vary by model.
• The number and location of LEDs on the control panel may vary by model.
1
5
2
6
7
3
4
Fan Speed
1 2 8 3 4
OPERATION
16
3
Fan Speed
Press repeatedly to toggle the fan speed
between High and Low settings. An LED
illuminates to indicate the selected fan
speed. The fan speed can be changed in
the Cool, Fan modes. The fan speed is
preset in the Dry mode. After pressing the
button, there is a brief delay before the fan
motor changes speed.
4
Timer
Delay ON - When the air conditioner is off,
set it to automatically turn on from 1 to 24
hours later, at its previous mode and fan
settings.
Delay OFF - When the air conditioner is
on, set it to automatically turn off from 1 to
24 hours later.
NOTE
• When the Timer is selected, use the Ʒ.Ƹ
buttons to adjust time from 1 to 24 hours,
in one-hour increments.
• To cancel the Timer function, press the
Timer button on the remote control.
5
1
2
Power ( )
Turns the air conditioner on and off.
A chime sounds to confirm you have turned
it on or off.
Mode
Press this button repeatedly to toggle
through and select the operating mode.
Modes include Cool, Dry (dehumidify), Fan.
An LED illuminates to indicate the selected
mode. The default mode is Cool.
Cool
Compressor runs and cools the room. Use
the ∧/∨ and Fan Speed buttons to set the
desired temperature and fan speed.
Dry
Use the Dry mode to remove humidity from
the room without additional cooling. The fan
speed is preset and cannot be adjusted.
Fan
Fan circulates air but compressor does not
run. Use the Fan Speed button to set the
desired fan speed to either High, Low.
Temperature Control ∧/∨
In Cool, Dry mode, the ∧/∨ buttons adjust
the set temperature up to 86 °F (30 °C) or
down to 60 °F (16 °C), in one-degree
increments.
NOTE
• To switch the temperature units on the
display between Fahrenheit (°F) and
Celsius (°C), press and hold the ∧ and ∨
buttons on the control panel at the same
time for 5 seconds.
OPERATION
17
ENGLISH
E
C
W
t
c
•
•
•
•
C
W
w
•
•
Removing Condensation
Buildup
Condensation can build up inside the unit
when the Cool and Dry modes are used.
The fan can be set to run for a short period
after the product is turned off to help keep
the inside of the appliance dry. This option is
off by default.
Turning Condensation Fan On
1 Turn on the product, set it to Cool mode
and let it run for at least 10 seconds.
2 Press and hold the Mode and Fan Speed
buttons on control panel for 3 seconds
until On appears in the display.
3 The condensation fan is now turned on.
When the appliance is turned off, Co
appears in the display and the fan will
continue to run for 10 minutes. The
appliance will then shut down as normal.
Turning Condensation Fan Off
1 When the product is powered on, press
and hold the Mode and Fan Speed
buttons on control panel for 3 seconds
until OF appears in the display.
2 The condensation fan is now turned off.
The appliance will shut down
immediately when it is turned off.
NOTE
• Some functions cannot be used while this
option is turned on.
9
Auto Swing
This functions may not be supported,
depending on the model.
6
Light
Sets the display screen brightness:
On → Off
7
Clean Filter
The Clean Filter LED lights up to notify
you that the filter needs to be cleaned.
After cleaning the filter, press and hold the
Mode button on the control panel for 3
seconds to turn off the Clean Filter light.
NOTE
• The filter reset must be done using the
control panel, not the remote control.
• This feature is a reminder to clean the air
filter for more efficient operation. The
LED light turns on after 250 hours of
operation.
8
OPERATION
18
MAINTENANCE
WARNING
Emptying the Water
Collection Tank
When the internal water collection tank is full,
the LED display will show FL and the air
conditioner will turn off until the tank is emptied.
• Unplug the air conditioner, disconnect the
exhaust hose from the back, and move the air
conditioner to a suitable drain location or
outdoors. You may also place a pan under the
drain that will hold up to 2 pints of water.
• Remove the drain cap from the bottom drain outlet.
• Once the water collection tank is drained,
reinstall the drain cap, making sure it is on
securely.
• Place the air conditioner in the desired
location, reconnect the exhaust hose, and plug
in the air conditioner.
Cleaning the Case
Wipe the case with a slightly damp cloth, then
wipe dry with a dry cloth or towel.
• Never pour water onto or into the air condition-
er. It could damage internal components and
create a shock and fire hazard.
Cleaning the Air Filter
1. Pull out each air filter by the handle.
2. Use a vacuum cleaner to clean the filters.
If the filters are heavily soiled, they can be
washed in warm water using a mild
detergent.
• Do not use harsh cleaners or very hot
water.
• Do not wash in a dishwasher.
3. Dry the filters in the shade.
4. Reinsert the filters.
Before cleaning or performing maintenance,
unplug the product and wait until the fan
stops.
The air filters should be cleaned every two
weeks. Depending on indoor air quality, more
frequent cleaning may be needed. A dirty air
filter will decrease airflow and reduce
efficiency.
• To prevent damage to the finish, do not use
gasoline, benzene, thinners or any abrasive
cleansers to clean the air conditioner.
NOTE
• Turn off the product and clean the filter after
30 minutes.
• Be careful as hot parts may come into contact
with the filter when the filter is removed.
MAINTENANCE
19
ENGLISH
s
N
TROUBLESHOOTING
Before Calling for Service
The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems
at an early stage. If the appliance does not function properly or does not function at all, check the
following before you call for service.
Problem Possible Cause Solutions
Air conditioner
does not start.
The air conditioner is unplugged.
Make sure the air conditioner plug
is pushed completely into the outlet.
The fuse is blown/circuit breaker
is tripped.
Check the house fuse/circuit
breaker box and replace the fuse or
reset the breaker.
Power failure.
If power failure occurs, turn the
mode control to off. When power is
restored, wait 3 minutes to restart
the air conditioner to prevent
tripping of the compressor overload.
The current interrupter device is
tripped.
Press the RESET button located
on the power cord plug. If the
RESET button will not stay
engaged, discontinue use of the air
service technician.
Air conditioner
FL appears in the display.
does not cool as it
should.
The water collection tank is full.
Drain the tank and reset your
settings.
blinds, or furniture blocking the front
Make sure there are no curtains,
of the air conditioner.
The temp control may not be set
correctly.
Set the desired temperature to
a level lower than the current
temperature.
weeks. See the 'MAINTENANCE'
section.
The room may have been hot.
turned on, you need to allow time
for the room to cool down.
Cold air is escaping.
registers and cold air returns.
Cooling coils have iced up.
See 'Air conditioner freezing up'
below.
TROUBLESHOOTING
20
Problem Possible Cause Solutions
Water collects in
base pan.
Moisture removed from air and
drains into base pan.
This is normal for a short period in
areas with little humidity; normal for
a longer period in very humid areas.
Air conditioner
turns on and off
rapidly.
Outside temperature extremely
hot.
Refer to installation instructions or
check with installer.
Noise when unit is
cooling.
Air movement sound.
Remote sensing
deactivating
prematurely.
Remote control not located
within range.
Place remote control within 20 feet
& 120° radius of the front of the
unit.
Remote control signal
obstructed.
Remove obstruction.
Room too cold. Set temperature too low. Increase set temperature.
NOTE
This is normal. If too loud, adjust
the fan speed to low.
If you see "CH" in the display, please call 1-800-243-0000.
Air conditioner
freezing up.
The cooling coils are iced over.
obstruct the air conditioner from
properly cooling the room. Set the
mode control at High Fan or High
Cool.
s
TROUBLESHOOTING
21
ENGLISH
T
A
P
T
R
R
S
P
R
O
S
l
s
H
C
M
F
W
WARRANTY
WHAT THIS WARRANTY COVERS:
LG Electronics U.S.A., Inc. (“LG”) warrants your LG Portable Air Conditioner ("product") against defect in
materials or workmanship under normal household use, during the warranty period set forth below, LG
will, at its option, repair or replace the product. This limited warranty is valid only to the original retail
purchaser of the product, is not assignable or transferrable to any subsequent purchaser or user, and
applies only when the product is purchased through an LG authorized dealer or distributor and used
within the United States (“U.S.”) including U.S. Territories.
NOTE
Replacement products and repair parts may be new or factory-remanufactured and are warranted
for the remaining portion of the original unit’s warranty period or ninety (90) days, whichever is
longer. Please retain dated receipt or delivery ticket as evidence of the Date of Purchase for proof of
warranty (you may be required to submit a copy to LG or authorized representative).
WARRANTY PERIOD:
1 year from the Date of Purchase: Any internal/ functional Parts and Labor
HOW SERVICE IS HANDLED: In-Home Service
In-home service will be provided during the warranty period subject to availability within the United
States. In-home service may not be available in all areas. To receive in-home service, the product
must be unobstructed and accessible to service personnel. If during in-home service repair cannot
be completed, it may be necessary to remove, repair and return the product. If in-home service is
unavailable, LG may elect, at our option, to provide for transportation of our choice to and from an LG
authorized service center.
THIS LIMITED WARRANTY DOES NOT COVER:
Service trips to deliver, pick up, or install the product or for instruction on product use.
Replacing house fuses or resetting of circuit breakers, correction of house wiring or plumbing, or
correction of product installation.
Damage or failure caused by leaky / broken / frozen water pipes, restricted drain lines, inadequate or
interrupted water supply or inadequate supply of air.
Damage or failure resulting from misuse, abuse, improper installation, repair or maintenance.
Damage or failure caused by incorrect electrical current, voltage, or plumbing codes.
unless such damage results from defects in materials or workmanship and is reported to LG within
seven (7) calendar days from the date of delivery.
Damage or missing items to any display, open box, discounted, or refurbished product.
WARRANTY
22
Product where the original factory serial numbers have been removed, defaced or changed in any
way.
Repairs when product is used in other than normal and usual household use (e.g. rental, commercial
The removal and reinstallation of the Product if it is installed in an inaccessible location.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING
AND WITHOUT LIMITATION TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW,
THIS WARRANTY IS LIMITED IN DURATION TO THE TERM PERIOD EXPRESSED ABOVE.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY FOR THE CUSTOMER. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR
SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR
PUNITIVE DAMAGES OF ANY NATURE, INCLUDING AND WITHOUT LIMITATION TO, LOST
REVENUES OR PROFITS, OR ANY OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT,
OR OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply
state to state.
HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION:
Call 1-800-243-0000 or visit our website at www.lg.com.
Mail to: LG Customer Information Center (ATTN: CIC)
201 James Record Road, Huntsville, AL 35824
FOR YOUR RECORDS
Write the model and serial numbers here:
Model No.
Serial No.
Dealer's Name
Date Purchased
Staple your receipt to this page in the event you need it to prove date of purchase or for warranty
issues.
WARRANTY
23
ENGLISH
ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU
AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT
OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION
TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW.
PROCEDURE FOR RESOLVING DISPUTES:
ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY
OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF
GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A
JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.
Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of
their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or
“claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud,
misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or
this Limited Warranty.
Notice of Dispute.
In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of
initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Ave, Englewood Cliffs
07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name,
address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought.
If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.
Agreement to Binding Arbitration and Class Action Waiver.
Upon failure to resolve the dispute during the 30 day period after sending written
notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided
below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim.
More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or
representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not
be brought on a class or representative basis.
Arbitration Rules and Procedures.
To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will
be administered by the American Arbitration Association (“AAA”) and will be conducted before a single arbitrator under the AAA’s Consumer Arbitra-
tion Rules that are in effect at the time the arbitration is initiated (referred to as the “AAA Rules”) and under the procedures set forth in this section.
The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision,
to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn:
Legal Department- Arbitration 111 Sylvan Avenue Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and t he rules set forth in
this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be
entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the
scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the
terms of this provision.
Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that
such law is preempted by or inconsistent with applicable federal law.
Fees/Costs.
You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbi-
tration filing fees to the AAA unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the AAA
Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance
with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are
reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable
law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbi-
trator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the
standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a sit-
uation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as
otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.
Hearings and Location.
If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents
submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds
$25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judi-
cial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.
Opt Out.
You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration
proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the
product by either: (i) sending an e-mail to [email protected], with the subject line: “Arbitration Opt Out” or (ii) calling 1-800-980-2973. You must include
in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model
name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing
https://www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial Number”).
You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will
be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited
Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you
accept all terms and conditions of the arbitration provision described above.
WARRANTY
24
LG Customer Information Center
Centro de Información al Cliente de LG
1-800-243-0000
Register your product Online!
Centro de Información al Cliente de LG
www.lg.com
LG Electronics Inc.
111 Sylvan Ave., Englewood Cliffs, NJ 07632
