70L Under Counter Drinks/Beer & Wine Cooler Fridge, Retro
Style, Black
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DH222 Issue:3 25/10/23
www.dellonda.co.uk
Model: DH222
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical
connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse as
tted in the plug.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
• GENERAL SAFETY
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• DO NOT use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• DO NOT damage the refrigerant circuit.
• DO NOT use electrical appliances inside the food storage compartments of the appliance, unless they are of a type recommended by the
manufacturer.
• DO NOT store explosive substances such as aerosol cans with a ammable propellant in this appliance.
• WARNING: DO NOT locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, ofces and other working
environments, farm houses and by clients in hotels, motels and other residential type environments, bed and breakfast type environments,
catering and similar non-retail applications.
• To avoid contamination of foodstuffs, please respect the following instructions:
• - Opening the door for long periods can cause a signicant increase of the temperature in the compartment of the appliance.
• - Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• - If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the lid ajar to prevent mould developing within the
appliance.
WARNING: Risk of re or explosion. Flammable refrigerant used. To be repaired or serviced only by trained personnel.
• DO NOT puncture refrigerant tubing or container. If leaks suspected, thoroughly ventilate area and contact trained personnel.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• SPECIFICATION
Refer to
instructions
Indoor use
only
Warning:
ammable
material
Model: No. DH222
Capacity 70L
Energy Efciency Class E
Frequency 50Hz
Internal Dimensions (WxDxH) 355 x 385 x 595mm
Noise Level 39dB
Power Cable Length 1.5m
Product Dimensions (WxDxH) 440 x 475 x 680mm
Rated Current 0.5A
Temperature Range 0 - 10
o
C
Voltage 220 - 240v
• INSTALLATION
• The unit is designed to be free-standing. Ventilation Space - a minimum clear space of 100mm is required for the rear and both sides of the
fridge. This will maximise the efciency, performance and the life of the product and also ensure that there is sufcient space for the hinge to
operate effectively.
• Locate the unit away from direct sunlight or sources of heat i.e. radiator, stove etc. Extreme or cold ambient temperatures may also prevent the
unit working effectively.
• DO NOT locate the unit in a damp or moist location.
• Ensure that the oor surface is strong and stable enough to support the unit when it is fully loaded.
• Level the unit when in location by using the adjustable levelling feet in each corner.
• Once in position, allow the unit to rest for an hour before switching it on.
• Allow the unit 2-3 hours to reach set temperature after switching on before placing any items in the compartment.
• OPERATION
• The ON/OFF switch, temperature controller and internal light switch are positioned on the internal top surface of the unit (g.1).
• Turn on the refrigerator using the internal switch and set the temperature control to the desired cooling value (0 - 7).
• The settings, 0(OFF) - 7(MAX), regulate the interior temperature of the refrigerator.
• Setting 0(OFF) = not operating (Please press the knob and turn to get the "0" position).
Setting 1(MIN) = lowest setting (warmest internal temperature), Setting 7(MAX)= highest setting (coldest internal temperature).
• REVERSIBLE DOOR
• The door can be opened from left to right and vice versa. Should you wish to change the opening direction, please follow these instructions.
NOTE: All parts removed should be kept safely. You will require these for the re-installation of the door.
• Support the door from the bottom.
• Remove the six screws that afx the hinges and two spacers to the cabinet frame.
• Place the door at on a padded surface to prevent scratching
• Remove the six hinge screws that afx the hinges to the Retro door.
• Remove the blanking plugs from the opposite side and use to plug the holes exposed by the removal of the hinge.
• Screw the hinges onto the opposite side of the door.
• Pick the door up and carefully align with the cabinet holes.
• Screw the remaining six screws into both hinges and the two spacers into the cabinet to secure the door.
Temperature controller
Light switch
Internal light

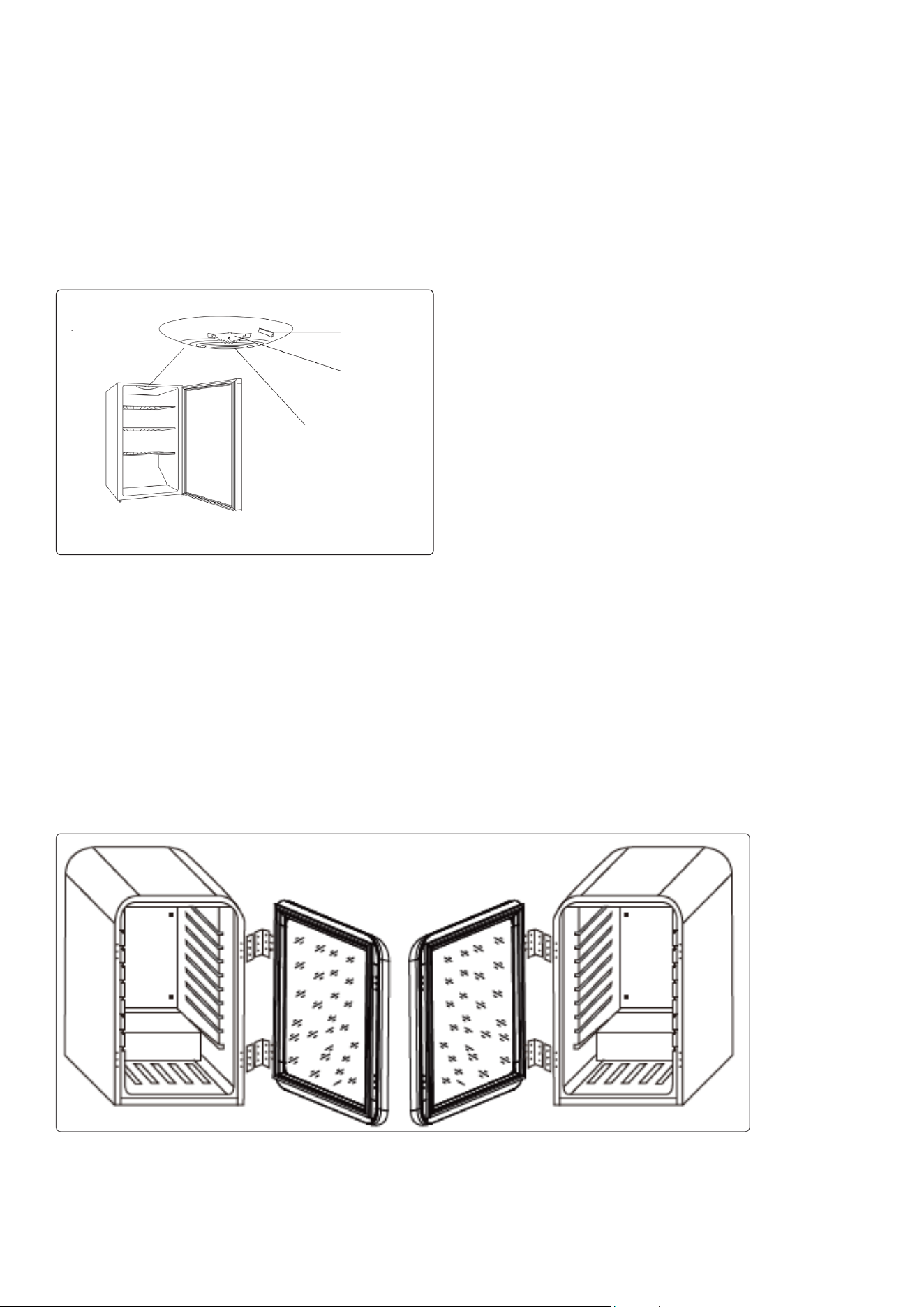

Position of components prior to
reversal of the door hinge.
Position of components after reversal
of the door hinge.
• DEFROSTING
• The surface of the evaporator ices up when the refrigerator is working. This is an entirely normal part of operation. If the frost layer is more than
3mm (1/4") thick, the refrigerator must be defrosted and cleaned to avoid unnecessary energy consumption and inefcient operation.
• Remove all items inside and unplug the refrigerator. After defrosting, clean the refrigerator and allow it to dry. Reconnect to the mains supply and
run the refrigerator.
• MAINTENANCE
• WARNING: Remove the power plug from the supply when performing cleaning or maintenance.
• DO NOT use abrasive or chemical cleaning materials on any surface of the unit.
• Wipe interior and exterior surfaces with a damp cloth and dry thoroughly with a clean dry cloth.
• For more soiled surfaces use a neutral detergent, wipe down with a clean damp cloth and dry thoroughly with a clean dry cloth.
• TROUBLESHOOTING
PROBLEM SOLUTION
The fridge doesn't work Check that the appliance is switched on.
Check that there has not been a power cut
Check that the plug is not faulty.
Check that the fuse has not blown.
Check that the voltage is correct for the appliance.
Are there any faults with the socket? For this purpose, try the plug
of your appliance by connecting it to a socket which you are sure is
working.
The temperature inside the appliance is not cold enough Check that there is not too much food in the appliance.
Check that the thermostat is set to a suitable temperature.
Check the appliance is not placed in direct sunlight, or too near to a
heating source.
Check the ambient temperature is within the operation limits of the
appliance.
Are the doors of the appliance opened frequently? Once the door is
opened, the humidity found in the air in the room enters the appliance,
especially if the humidity levels in the room are very high. The more
frequently the door is opened in humid conditions the more chance of
build up of moisture.
The door is not closed completely.
The door gasket does not seal properly.
The cooler does not have the correct clearances at the sides/back.
The temperature within the appliance is too cold Increase the working temperature by adjusting the thermostat to a
lower setting.
The highest setting should only be used as a rapid cool setting
and should only be set 2 hours before a large amount of food is
placed in the fridge. If this is not done the temperature in the fridge
compartment could fall below 0°C as the compressor will run
continuously.
Moisture forms on the inside or outside walls of the fridge Hot and humid weather increases the internal rate of frost build-up.
This is normal.
Open the door less often and make sure it is always properly closed.
The outer surfaces of the appliance are wet Condensation will form on the outside of the cooler if it operates in
moist areas, simply wipe it dry.
Smell/odour Check all the food and drink that is in the fridge is in date and
correctly packaged. If it isn't then it should be removed immediately
or repackaged.
Check for spillages on each shelf, rack and drawer. You may need
to remove the drawers to check that no spillages have settled
underneath them. Spillages that have not been cleaned and have been
left can cause smells and unwanted odours.
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 suppor[email protected] www.dellonda.co.uk
The door does not close properly Ensure there are no obstructions preventing door closure.
Check the door compartments and shelves are correctly in place.
Check the door seal is not warped or torn.
Check the appliance is level.
Unusual noises Check the spacings around the appliance and ensure it is not
touching other items.
Bubbling and gurgling sound: This noise is emitted as the coolant
uid ows through the pipes within the system. This is normal.
Water owing sound: This is the normal sound of water owing into
the drain trough during the defrosting process.
If the appliance is operating noisily (compressor noise): This is
normal. This noise indicates that the compressor is operating
normally. As the compressor is being energized, it might run a bit
more noisily for a short period of time.
Contraction and expansion of the inside walls may cause popping and
cracking noises. This is normal.
The fridge door will not open. If the door has just been opened, leave it for a few minutes to allow
the air pressure to equalise before trying again.
The compressor runs continuously. The temperature is set too cold: select a lower (warmer) setting.
The door is open, or something is obstructing proper door closure.
The door gaskets are worn, dirty or damaged.
Large quantities of food have been added to the fridge.
The room temperature is hotter than usual.
The external fridge surface is warm. The exterior walls can be warmer than room temperature. This is
normal while the compressor works to transfer heat from inside the
fridge cabinet.
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please
dispose of it in an environmentally friendly way. Drain any uids (if applicable) into approved containers, in accordance with local
waste regulations. Under the Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that
this product contains one or more batteries. It is our policy to continually improve products and we reserve the right to alter data,
specications and parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months from
purchase date, proof of which is required for any claim.
