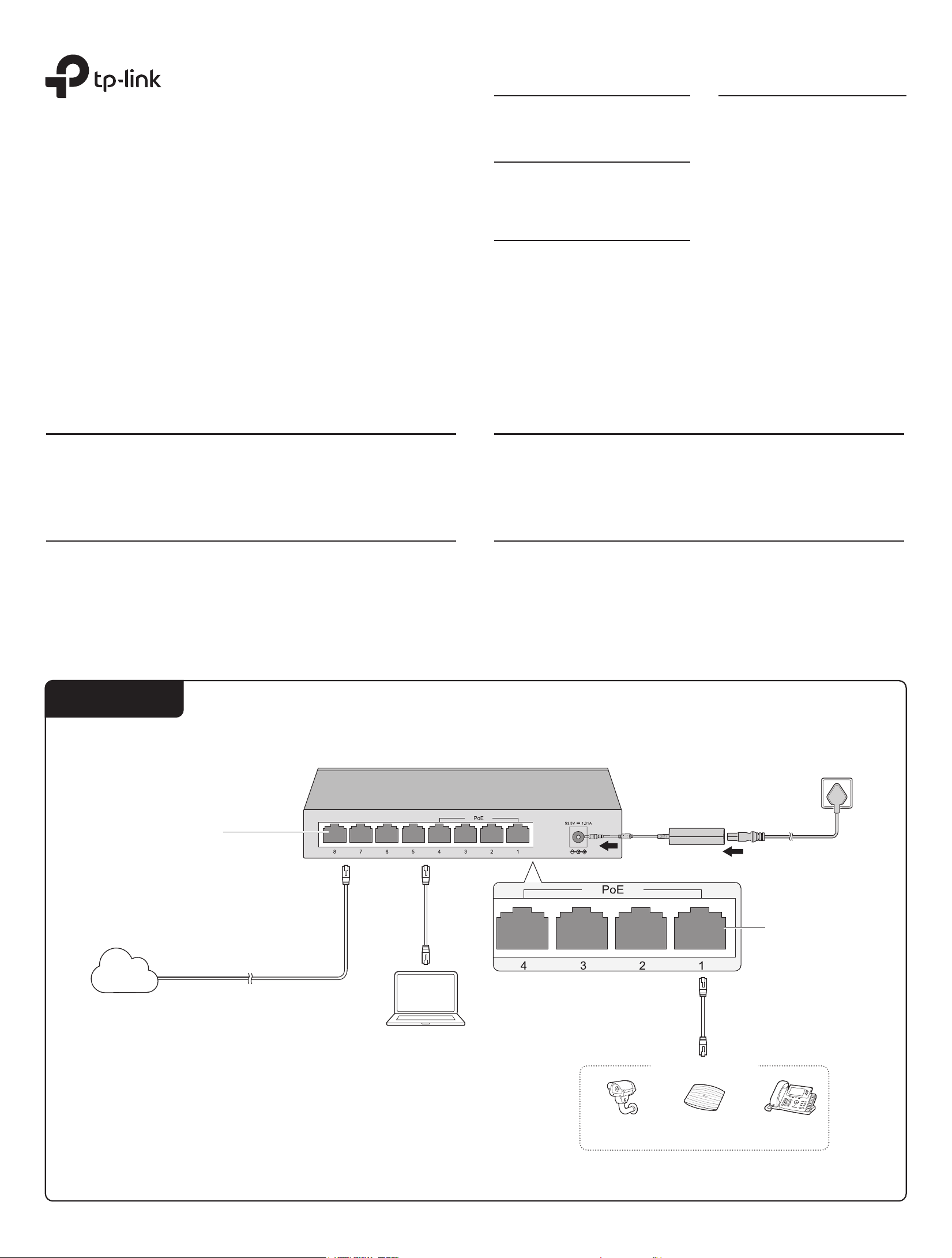

Installation Guide
Connection
Unmanaged Desktop PoE/PoE+ Switch
PC
Ethernet Ports (1-8)
PoE Ports (1-4)
1. PoE ports can also connect to non-PoE devices, but only transmit data.
Note:
2. TL-SL1311MP/TL-SL1311P has three uplink ports, which typically connect to uplink devices like routers.
Uplink 1 is an SFP slot and works with a 1000 Mbps SFP module. Uplink 2 and uplink 3 are RJ45 ports.
Internet
Link/Act
On: Link present but no activity
Flashing: Transmitting/receiving data
O: No link
PoE Status
On: PoE power provided
Flashing: Current-overload/ Short-circuit
O: No PoE power provided
Power
On: Power on
O: Power o
© 2023 TP-Link 7106510209 REV7.3.2
LED Explanation
DC Power Adapter
AC Power Cord
Switches Explanation
Note: For simplicity, we will take TL-SF1008P for example throughout the Guide.
O: Ports run at 10/100 Mbps and support PoE power supply up to 100 m away.
On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.
Extend (for TL-SF1008LP/TL-SF1008P/TL-SF1009P/TL-SL1311P/TL-SL1311MP)
PoE MAX
TL-SF1008LP
O: Total power supply < 34 W
On: 34 W ≤ Total power supply < 41 W
Flashing: Total power supply ≥ 41 W
TL-SF1008P
O: Total power supply < 59 W
On: 59 W ≤ Total power supply < 66 W
Flashing: Total power supply ≥ 66 W
TL-SF1009P/TL-SL1311P
O: Total power supply < 58 W
On: 58 W ≤ Total power supply < 65 W
Flashing: Total power supply ≥ 65 W
TL-SL1311MP
O: Total power supply < 117 W
On: 117 W ≤ Total power supply < 124 W
Flashing: Total power supply ≥ 124 W
O: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD). When
the switch nds that the PD works abnormally, the switch will reboot it.
Recovery (For TL-SF1008P/TL-SF1009P/TL-SL1311P/TL-SL1311MP)
O: Ports can transmit data with each other.
On: Specc ports cannot transmit data with other downlink ports. They can transmit data
only with the uplink ports.
Isolation (For TL-SF1009P/TL-SL1311P/TL-SL1311MP)
O: All the ports transmit data with the same priority.
On: The specic ports transmit data with a higher priority than other ports.
Priority (For TL-SF1008LP/TL-SF1008P/TL-SF1009P)
Note: The numbers in brackets indicate the ports where the feature takes eect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
