KÜHL
®
ROOM AIR CONDITIONERS
KÜHL
®
ROOM AIR CONDITIONERS
SMART ROOM AIR CONDITIONERS
3
1. Dense, sound-blocking insulation
2. Quiet rotary compressor mounted on
large rubber grommets
3. Steel inner walls
4. Totally-enclosed commercial grade
fan motor
5. Insulated air plenum prevents
outside air and noise intrusion
6. Two resilient rings on motor mount
prevent metal-to-metal contact,
which
eliminates extra vibration and
noise
7. Solid steel blower wheel housing for
maximum sound reduction
Unrivaled quality
Kühl
®
is built to perform in the extreme conditions of industrial and commercial applications, but it’s also
perfect for today’s home with the convenience and simple control today’s consumers demand.
KÜHL
®
IS UP TO 45% QUIETER* THAN COMPETITOR’S ROOM AIR CONDITIONERS
COMMERCIAL GRADE QUALITY FOR LONG LIFE IN DEMANDING APPLICATIONS
QuietMaster
®
technology
Building the quietest air conditioners begins
with the design process and continues through
the selection of superior components and
materials.
It is shaped by skilled manufacturing and
refined through on-going product testing in our
engineering lab.
The result is a noticeably quieter cooling and
heating experience, as much as 45% quieter than
competitor’s products.
LIMITED
WARRANTY
*Based on testing conducted at Friedrich’s Design and Development Center in comparison
to leading rotary compressor models.
PARTS
WARRANTY
Scan to Watch Video on
QUIETMASTER
®
TECHNOLOGY
Scan to Watch Video on
KÜHL
®
DURABILITY
KÜHL
®
ROOM AIR CONDITIONERS
SMART ROOM AIR CONDITIONERS
4
Built To Last
• Robust steel cabinet
• Solid-steel blower housing
• Commercial grade fan motor
• Corrosion-resistant aluminum fins
and end plates
• EntryGard
®
anti-intrusion protection
secures the chassis to the sleeve
• Insect barrier keeps out pests
• Durable aluminum rear grille
Earth Friendly
Save energy heating with Kühl®+ heat
pumps
Set high and low maximum
temperature limits
Recyclable product packaging
R-32 refrigerant with low Global
Warming Potential on select models
Installation
• Install in a window or thru-the-wall
• Slideout chassis
• Patented firm grip handles for easier
chassis installation and removal
• Heavy duty window installation
hardware (optional accessory on
Kühl
®
+ models sold separately)
Warranty and Support
• Industry-leading warranty features
2-year warranty on parts and 5-year
limited sealed system warranty.
• Nationwide service network and
U.S.-based Friedrich expert
technical team ensures you get fast,
knowledgeable service.
FEATURES
COOLING SIZING GUIDE
AREA TO BE
CONDITIONED
IN SQ. FT.
APPROXIMATE
COOLING BTU
REQUIRED
100 - 150 5000
150 - 250 6000
250 - 300 7000
300 - 350 8000
350 - 400 9000
400 - 450 10000
450 - 550 12000
550 - 700 14000
700 - 1000 18000
1000 - 1200 21000
1200 - 1400 23000
1400 - 1500 24000
1500 - 2000 30000
2000 - 2500 34000
Guide based on normal room
insulation, average number of sun
exposed windows and two person
occupancy.
1. If heavily shaded, reduce cooling
Btus required by 10%
2. If very sunny, increase cooling
Btus required by 10%
3. Add 500 Btus per person over
2 people
4. Add 4,000 Btus if the area is a
kitchen
Simple Control
• Control with FriedrichConnect® app
or by voice command
• Create customizable 7-day schedules
• Group and control multiple units
Comfort and Convenience
24-hour timer
• 3 fan speeds
• Auto fan
• Auto-changeover between cooling and
heating (Kühl
®
+ models except KEQ08)
• Auto restart saves settings
• 8-way air flow control
• Control panel lockout (ON/OFF)
QuietMaster® technology
• Up to 45% quieter than competitive
models
1
• Steel inner wall and extra dense
insulation blocks outdoor noise
• Vibration isolating design and
components reduce operating noise
• Powerful air flow and air dispersion at
low sound levels
Superior Air Filtration
• Fresh air intake/stale air exhaust vent
• Equipped with washable air filter and
check filter reminder
• Optional MERV 13 filter kit available
(see accessories)
• Optional Premium Carbon filter pack
available (see accessories)
1
Based on testing conducted at Friedrich’s Design and Development Center in comparison to leading rotary compressor models.
LIMITED
WARRANTY
PARTS
WARRANTY
KÜHL
®
SPECIFICATIONS
SMART ROOM AIR CONDITIONERS
5
Model
Cooling
Btu
Heating
Btu Volts
Cooling
Amps
Cooling
Watts
Heating
Amps
Heating
Watts EER CEER
Estimated
Yearly
Energy
Cost COP
Moisture
Removal-
Pints/HR Refrigerant CFM
Net/ship
Wt. lbs. Sleeve
KÜHL
®
(COOL ONLY)
KCQ06A10A 6000 — 115 4.8 492 — — 12.2 12.1 $48 — 1.5 R410A 190 78/85
QKCQ08A10A 8000 — 115 6.5 661 — — 12.1 12.0 $65 — 2.1 R410A 200 78/85
KCQ10A10B 9500 — 115 8.6 864 — — 11.0 10.9 $85 — 3.2 R410A 250 78/85
KCS08A10A 8000 — 115 6.5 661 — — 12.1 12.0 $65 — 1.9 R410A 255 115/121
S
KCS10A10A 10000 — 115 8.5 826 — — 12.1 12.0 $81 — 2.9 R410A 300 122/128
KCS12A10A 12000 — 115 9.5 1000 — — 12.0 12.0 $98 — 3.5 R410A 300 134/136
KCS12A30A 12000 — 230 4.8 992 — — 12.1 12.0 $97 — 3.5 R410A 300 134/136
KCS14A10A 13600 — 115 11.8 1236 — — 11.0 10.9 $121 — 4.3 R410A 275 138/138
KCS16A30A 15700 — 230 6.6 1454 — — 10.8 10.7 $142 — 5.0 R410A 330 137/138
KCM14A10A 13600 — 115 10.9 1140 — — 12.1 12.0 $112 — 3.0 R410A 360 149/138
MKCM18A30A 20000 — 230 9.6 1923 — — 10.4 10.3 $188 — 6.0 R410A 425 154/166
KCM21A30A 21500 — 230 9.6 2067 — — 10.4 10.3 $202 — 6.0 R410A 425 154/166
KCL24A30B 23000 — 230 11.1 2308 — — 10.4 10.3 $225 — 7.5 R410A 640 207/212
LKCL28A30A 28000 — 230 13.4 2800 — — 10.0 9.9 $273 — 9.3 R410A 640 214/218
KCL36A30A 35000 — 230 18.2 3846 — — 9.1 9.0 $376 — 11.0 R410A 725 217/248
KÜHL
®
+ (HEAT PUMP)
KHS10A10A¹ 10000 8800 115 8.8 917 9.1 978 10.9 10.8 $90 2.6 2.0 R410A 300 126/131
S
KHS12A33A* 12000 9800 230 5.0 1101 4.7 1257 10.9 10.8 $108 2.9 3.0 R410A 375 133/136
KHM18A34A* 17500 14900 230 7.4 1606 7.4 1568 10.9 10.8 $157 2.8 5.6 R410A 450 154/155 M
KHL24A35A* 24000 21000 230 11.1 2330 10.3 2211 10.3 10.2 $228 2.8 7.0 R410A 600 211/213 L
KÜHL
®
+ (ELECTRIC HEAT)
KEQ08A11A 7700 4000 115 6.4 694 11.2 1290 11.1 11.0 $68 — 2.1 R410A 200 82/85 Q
KES12A33A 12000 10700 230 4.9 1091 16.0 3500 11.0 10.9 $107 — 3.6 R410A 325 128/137
S
KES16A33A 15700 10700 230 6.6 1454 16.0 3500 10.8 10.7 $142 — 3.4 R410A 300 138/145
KEM18A34A 20000 13000 230 9.6 1923 19.5 4200 10.4 10.3 $188 — 6.0 R410A 425 150/154 M
KEL24A35B 23000 17300 230 11.1 2308 24.0 5500 10.4 10.3 $225 — 7.0 R410A 750 199/211
L
KEL36A35A 35000 17300 230 18.2 3846 24.0 5500 9.1 9.0 $376 — 11.0 R410A 725 241/246
¹ KHS10A10A and KHS10B10A heat pumps operates on 115 volt and are not equipped with supplemental heat. They will not provide heat at temperatures below 40˚F.
Friedrich room air conditioners are designed to operate in outdoor temperatures from 60˚F to 115˚F.
* Kühl
®
+ Heat Pump heating information indicates heat pump performance. Kühl
®
+ Electric Heat heating information indicates electric heat strip performance.
For Kühl
®
+ Heat Pump electric heating performance refer to corresponding Kühl
®
+ Electric Heat model.
Uses R-32 refrigerant with low Global Warming Potential
Your energy costs will depend on your utility rates and use. The estimated energy cost is based on an electricity cost of $.13 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology, specifications are subject to change without notice.
Model
Cooling
Btu
Heating
Btu Volts
Cooling
Amps
Cooling
Watts
Heating
Amps
Heating
Watts EER CEER
Estimated
Yearly
Energy
Cost COP
Moisture
Removal-
Pints/HR Refrigerant CFM
Net/ship
Wt. lbs. Sleeve
KÜHL
®
(COOL ONLY)
KCQ08B10A 8000 — 115 6.5 659 — — 12.1 12.0 $65 — 2.1 R-32 200 72/85 Q
KCS12B10A 12000 — 115 11.1 992 — — 12.1 12.0 $97 — 3.5 R-32 300 112/134 S
KCM24B30A 22300 — 230 13.8 2308 — — 10.4 10.3 $202 — 7.5 R-32 640 191/212 M
KCL28B30A 28000 — 230 16 2542 — — 10.7 10.7 $273 — 9.3 R-32 640 193/214
L
KCL36B30A 34800 — 230 18.6 3894 — — 9.3 9.3 $376 — 11.0 R-32 725 212/248
KÜHL
®
+ (HEAT PUMP)
KHS10B10A¹ 10000 8800 115 9.3 829 9.1 978 10.9 12.2 $90 2.6 2.0 R-32 300 109/131
S
KÜHL
®
SPECIFICATIONS
R-32 Refrigerant Models
SMART ROOM AIR CONDITIONERS
6
1
Minimum extensions when mounted in a window.
2
Minimum widths achieved using one side curtain assembly as opposed to both in a standard installation.
NOTE: S, M and L sleeves may be installed in window with no side kits if properly installed.
WINDOW INSTALLATION THRU-WALL INSTALLATION
Sleeve
Height
Inches
Width
Inches
Depth
with Front
Inches
Shell Depth
to Louvers
Inches
Minimum
Extension
Into Room
1
Inches
Minimum
Extension
Outside
1
Inches
Window Width
Inches
Thru-the-wall Installation
Finished Hole Inches
Carton Dimensions
Inches
Minimum
2
Maximum Height Width
Max. Depth
Height Width Depth
Q 14
1
/4" 19
3
/4" 21
3
/8" 8
1
/2" 5
1
/2" 10
3
/4" 22" 42" 14
1
/2" 20" 8
1
/2" 18
3
/4" 22" 25
1
/2"
S 15
15
/16" 25
15
/16" 29" 8
3
/4" 5
3
/4" 16
15
/16" 27
3
/8" 42" 16
3
/16" 26
3
/16" 7
3
/8" 19" 29" 34
1
/2"
M 17
15
/16" 25
15
/16" 29" 8
3
/4" 5
3
/4" 16
15
/16" 27
3
/8" 42" 18
3
/16" 26
3
/16" 7
3
/8" 21" 29" 34
1
/2"
L 20
3
/16" 28" 35
1
/2" 16
1
/2" 5
3
/8" 18
15
/16" 29
7
/8" 42" 20
3
/8" 28
1
/4" 15
1
/8" 24
1
/2" 31
5
/8" 38
7
/8"
FRONT
SIDE VIEW
SLEEVE DIMENSIONS DRAWING
CIRCUIT RATING/ BREAKER/ POWER CORD
Model
Circuit Rating
Breaker or
T-D Fuse
Plug Face
(NEMA#)
Power Cord
Length (ft.)
Wall Outlet
Appearance
All KCQ MODELS. KEQO8A11A. KCS08A10A,
KCS10A10A, KCS12A10A, KCS12B10A and
KCS14A10A. KHS10A10A, KHS10B10A and
KCM14A10A.
125V - 15A 5 - 15P 6
KCS12A30A and KCS16A30A. KCM18A30A
and KCM24B30A
250V - 15A 6 - 15P 6
KCM21A30A, KCL24A30B, KCL24B30A,
KCL28A30A and KCL28B30A. KES12A33A
and KES16A33A. KHS12A33A.
250V - 20A 6 - 20P 6
KCL36A30A, KCL36B30A, KEM18A34A and
KEL24A35B and KEL36A35A. KHM18A34A
and KHL24A35A.
250V - 30A 6 - 30P 6
WINDOW OR THRU-WALL INSTALLATION
KÜHL
®
INSTALLATION INFORMATION
KÜHL
®
ACCESSORIES
SMART ROOM AIR CONDITIONERS
7

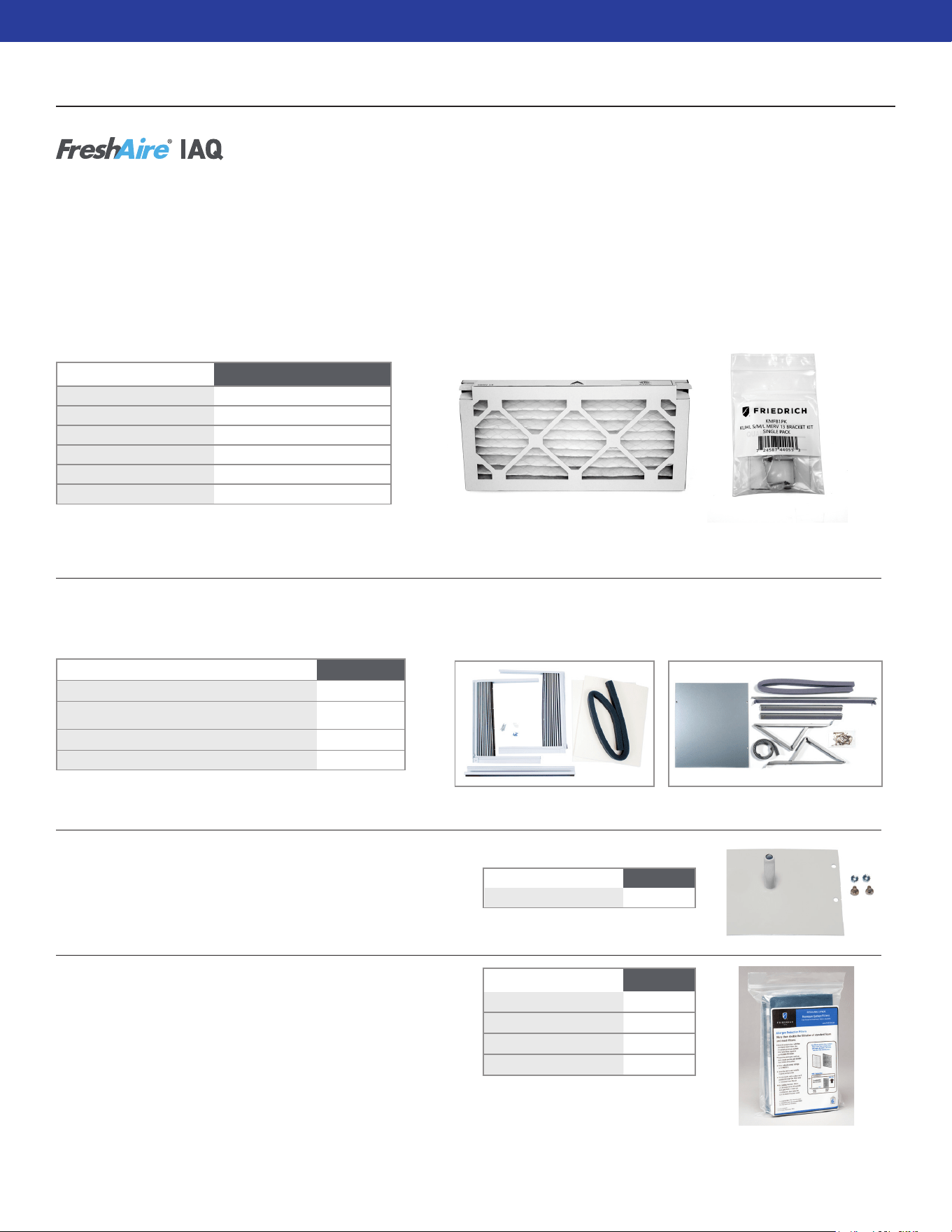

MERV 13 Filters /Filter Brackets
FreshAire
®
MERV 13 filtration is effective at capturing and removing microorganisms from the air, which according to ASHRAE*, the
leading authority on the science behind advanced indoor air quality, include harmful airborne viruses. Maintaining the best indoor air
quality possible requires that you prevent harmful pollutants from circulating throughout the space. One way to prevent this is to trap
the pollutants with mechancial filtration. Kühl
®
air conditioners can utilize an optional MERV 13 air filter, which is at least 85% efficient
at capturing particles between 1 and 3 microns in size and up to 50% efficient in filtering particles between 0.30 and 1 micron in size
such as bacteria and sneeze nuclei.
*Based on ASHRAE Guidance for Building Operations during the COVID-19 Pandemic
Model No. UPC Description
KMFB1PK 724587440553 Kühl MERV lter bracket 1 pack
KMFBQ1PK 724587440546 Kühl Q MERV lter bracket 1 pack
KMFQ3PK 724587440560 Kühl MERV lter - Q chassis 3 pack
KMFS3PK 724587440577 Kühl MERV lter - S chassis 3 pack
KMFM3PK 724587440584 Kühl MERV lter - M chassis 3 pack
KMFL3PK 724587440591 Kühl MERV lter - L chassis 3 pack
Filter bracket required for MERV 13 filter installation.
Minimum bracket order of 24.
Minimum filter order quantity of eight.
Window Mounting Kits*: Kühl
®
+
Window kits are included with cooling only models, but are an accessory item for Kühl
®
+
heat/cool models.
*Window kits are required for installation of Kühl
®
+
models in a window.
* KEQO8A11A window kit KWIKQA does not include window brackets.
KWIKQA KWIKSB, KWIKMB, KWIKLB
Heat/Cool Models Kit No.
KEQO8A11A* KWIKQA
KES12A33A, KES16A33A, KHS10A10A, KHS10B10A and
KHS12A33A.
KWIKSB
KEM18A34A and KHM18A34A. KWIKMB
KEL24A35B, KEL36A35A and KHL24A35A. KWIKLB
Premium Carbon Filters
Removes odors and VOCs (volatile organic compounds).
Achieve up to a MERV 6 rating when used with standard filter.
Sold as 3 pack.
Model Kit No.
KCQ and KEQ
KWCFQ
KCS, KES and KHS KWCFS
KCM, KEM and KHM KWCFM
KCL, KEL and KHL KWCFL
Model Kit No.
All Kühl
®
Series Models DC2
Drain Kit
Allows field installed drain tube to be installed to the bottom
of the sleeve to route the condensate from the unit.
KÜHL
®
ACCESSORIES
BR_KÜHL_REV 02-16-24
KCQ08B10A, KCS12B10A, KHS10B10A, KHS12A33B, KCM24B30A, KHM18A34B,
KCL36B30A, KHL24A35B
Friedrich Air Conditioning Co. l www.friedrich.com
