Overview

Junction Box View

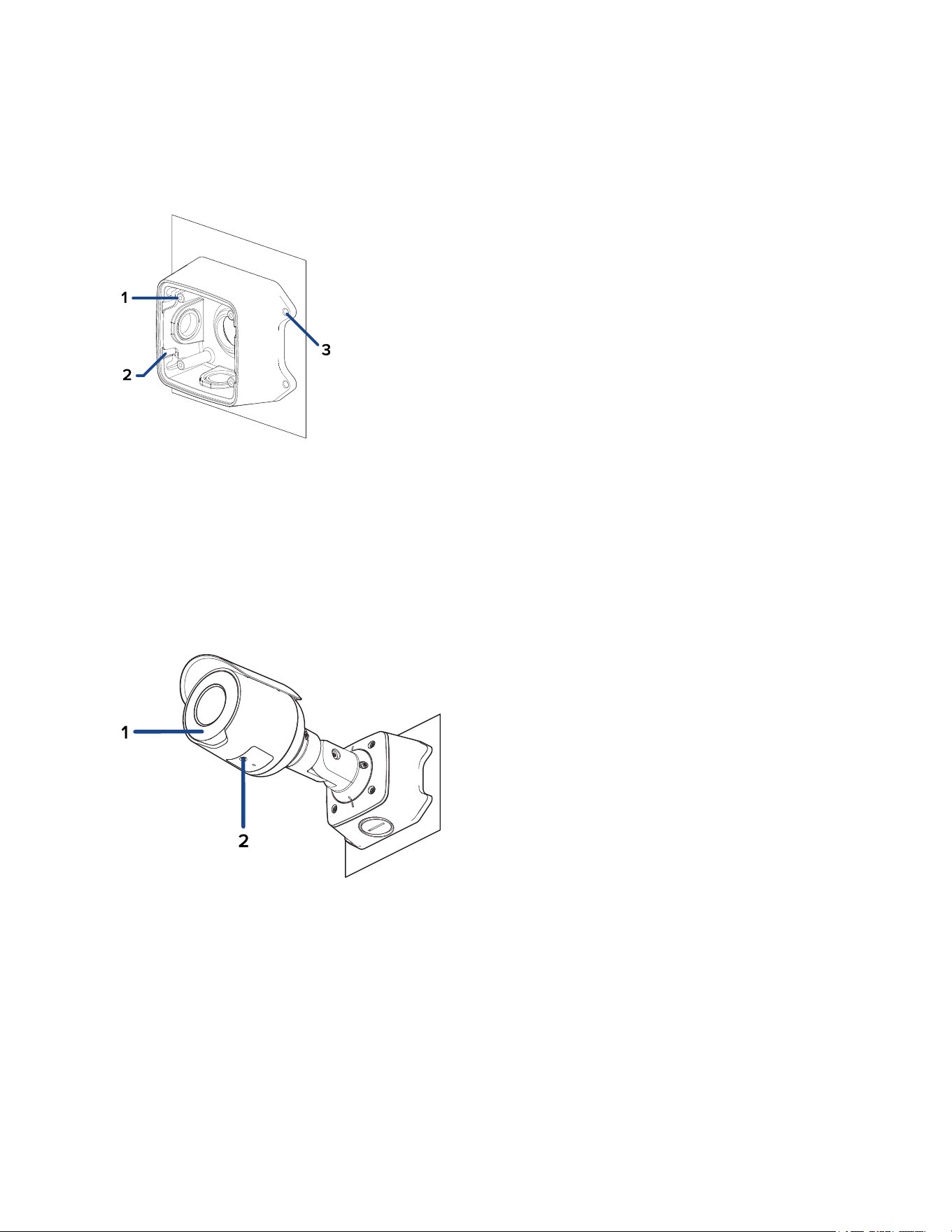

1. Camera mounts

Pointsforinstallingthecameratothejunctionbox.

2. Mounting hook slots

Pointstoholdthecameratothejunctionboxwhileconnectingtherequiredcables.

3. Mounting holes

Holesforsecuringthejunctionboxtothemountingsurface.

Front View

1. IR Illuminator

ProvidessceneilluminationintheIRspectrum.

2. Configuration panel cover

Coverstheconfigurationpanel.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Side View

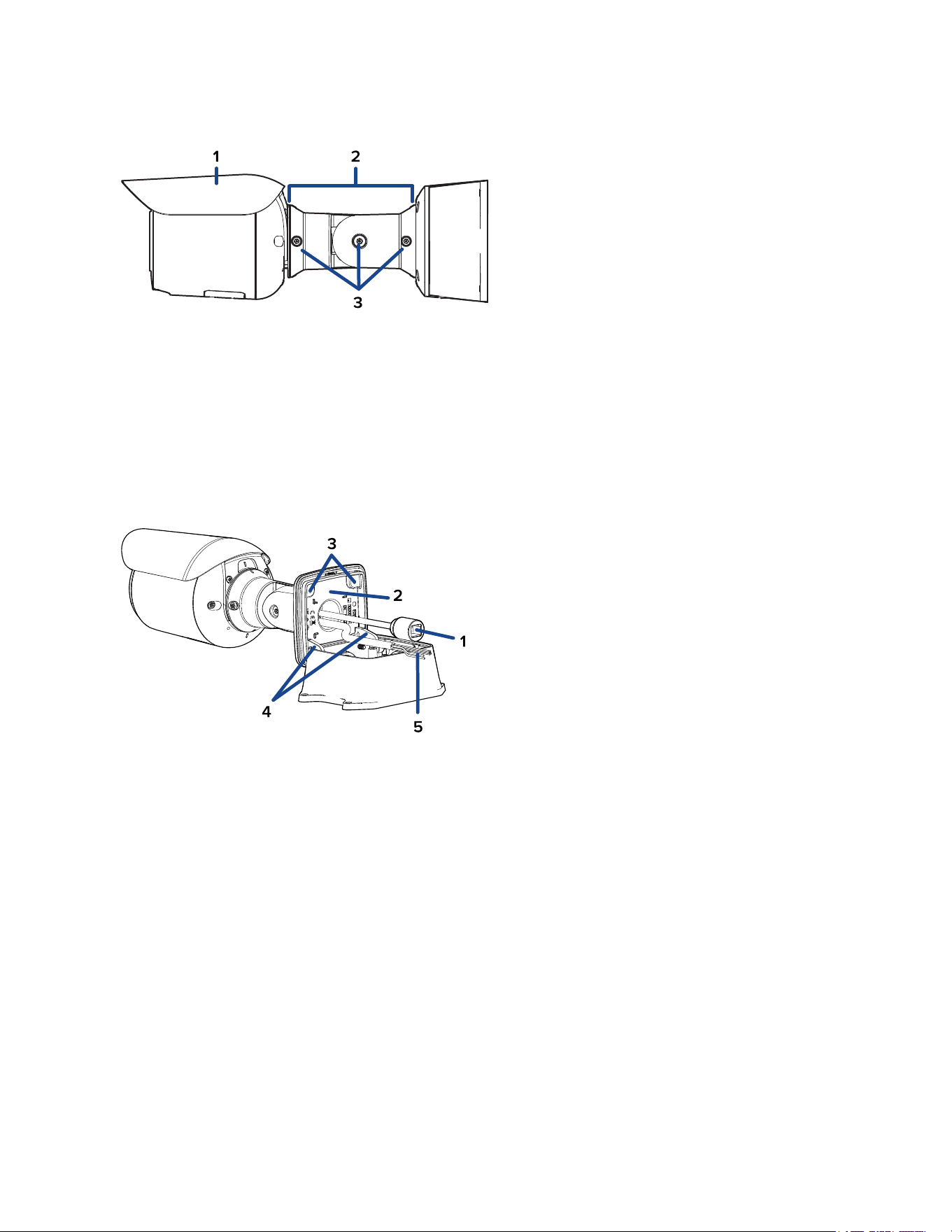

1. Sun shroud

Anadjustablecovertohelpprotectthelensagainstglarefromthesun.

2. Mount arm

Adjustablemountarmforpositioningthecamera.

3. Adjustment screws

Providesalockingmechanismforthemountarm.

Rear View

1. Ethernet port

AcceptspowerandEthernetconnectiontothenetwork.Servercommunicationandimagedata

transmissionalsooccuroverthisconnection.

ThecameracaneitherbepoweredbyPoweroverEthernet(PoE)or12VDCAux.

2. Serial number tag

Deviceinformation,productserialnumberandpartnumberlabel.

3. Camera mounting screws

Screwsformountingthecameratothejunctionbox.

4. Mounting hooks

Hookstoattachthecameratothejunctionboxwhileconnectingtherequiredcables.

5. Power and I/O cables

CablesforconnectingthecameratoauxiliarypowerandI/Odevices.Formoreinformation,see

Connecting to Power and External Devices.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Configuration Panel View

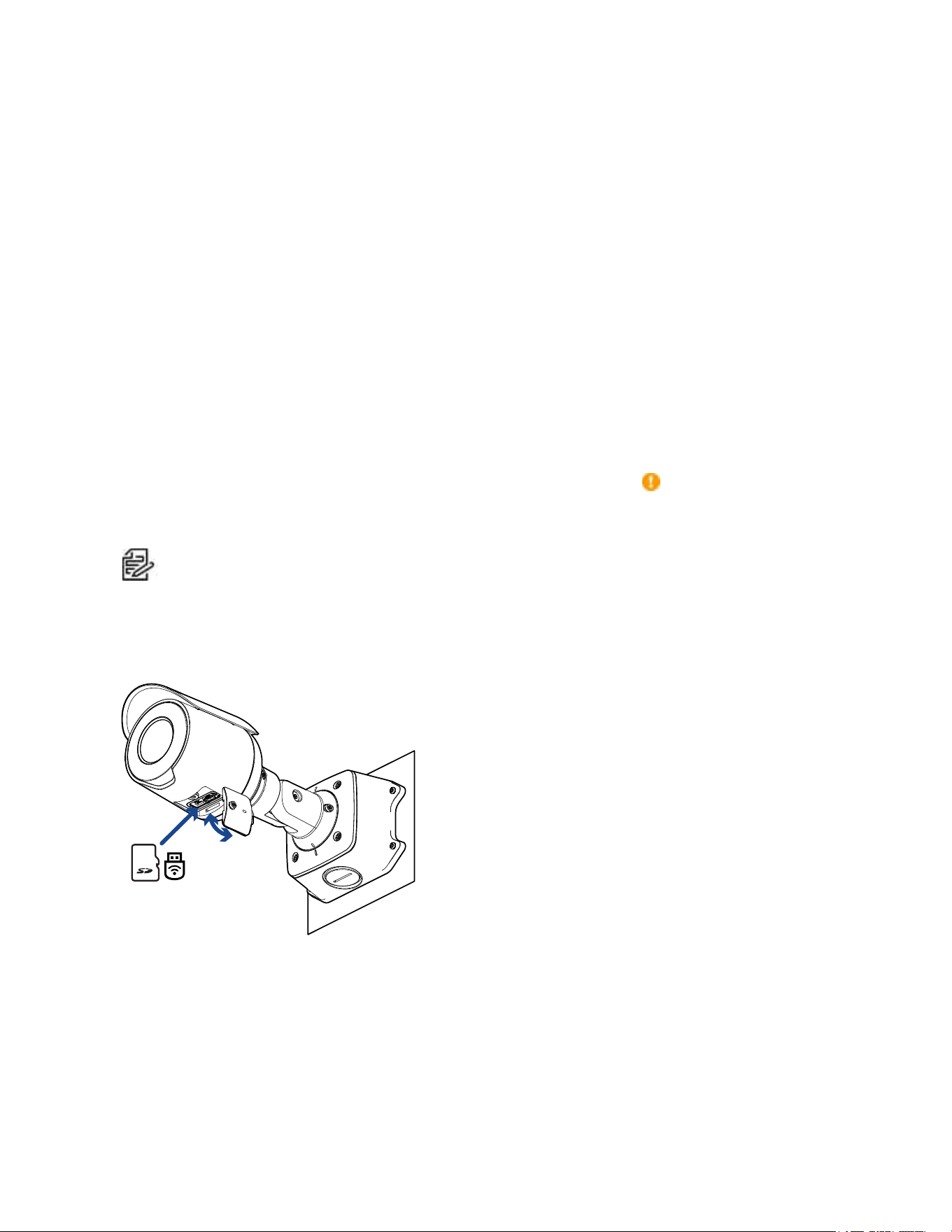

1. microSD card slot

AcceptsamicroSDcardforonboardstorage.Formoreinformation,see (Optional) Configuring

microSD Card Storage.

2. Micro USB port

AcceptsamicroUSBtoUSBadapter.OnlyrequiredwhenusingtheUSBWi-FiAdapter.

3. Link LED indicator

AmberLEDindicatesifthereisanactiveconnectionintheEthernetport.

4. Connection status LED indicator

GreenLEDprovidesinformationaboutdeviceoperation.Formoreinformation,seeConnection

Status LED Indicator.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Installation

Camera Package Contents

l

PelcoSarixProfessional4BulletCamera

l

Junctionbox

l

Mountingtemplatesticker

l

4screwsandanchorsforsolidwalls

l

4screwsforattachmenttoelectricalbox

l

ProtectiverubberbootforEthernetport

l

Teflontape

Installation Steps

Mounting the Bullet Camera

Ifthecablesforthecamerawillnotbeprovidedfrominsidethemountingsurface,installthejunctionbox

first.Afteryouinstallthejunctionbox,youcanskipdirectlytostep3ofthisprocedure.

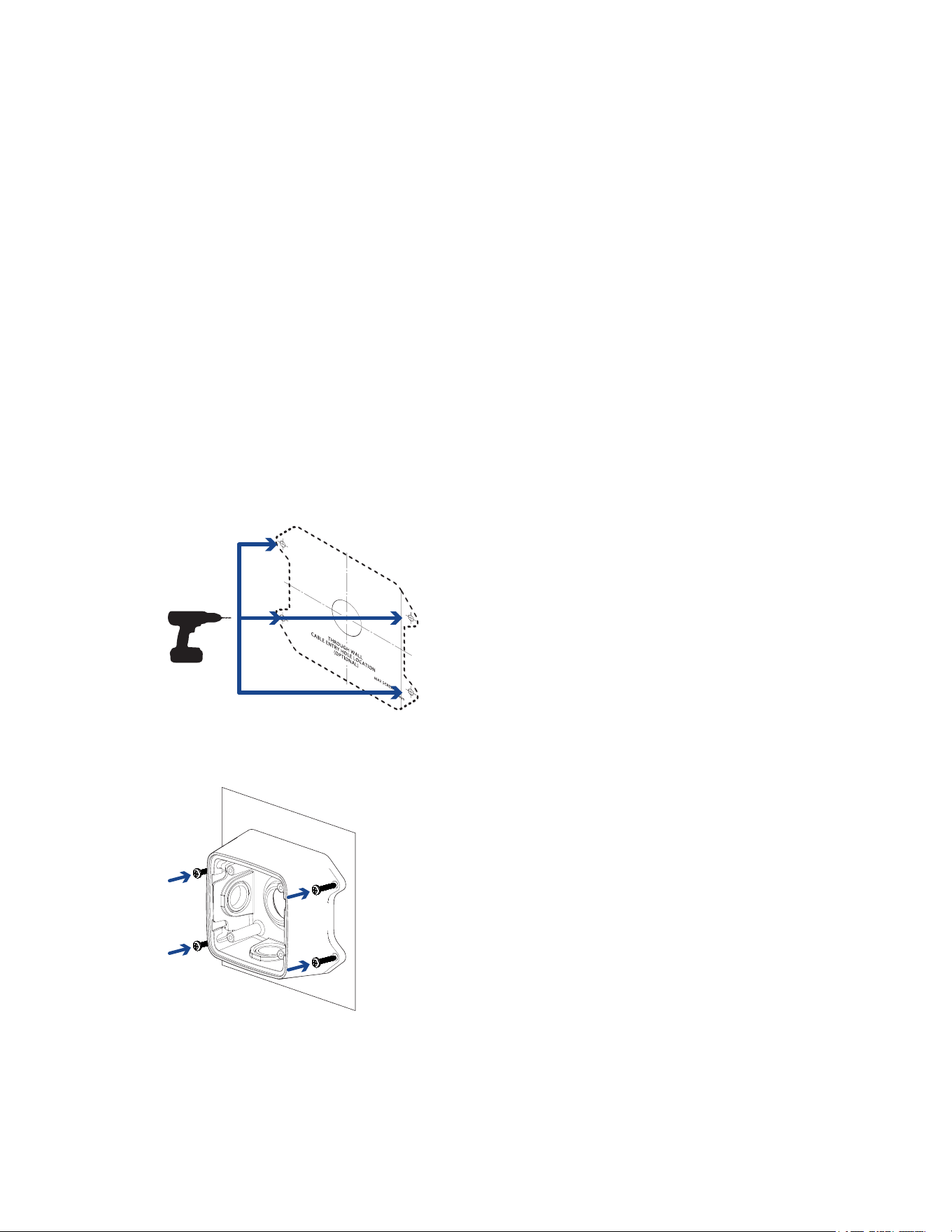

1. Usethemountingtemplatetodrillfourmountingholesintothemountingsurface.

2. DrillthecableentryholeintothemountingsurfacethenpulltherequiredEthernetcablethrough

thecableentryhole.

3. Fastenthejunctionboxtothemountingsurface.

Topreventmoisturefromenteringthejunctionbox,itisrecommendedtoapplyteflontapearound

thethreadedconduitpipeatthecableentrypointofthejunctionbox.Ensuretheothertwoconduit

plugsarefullytightened.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

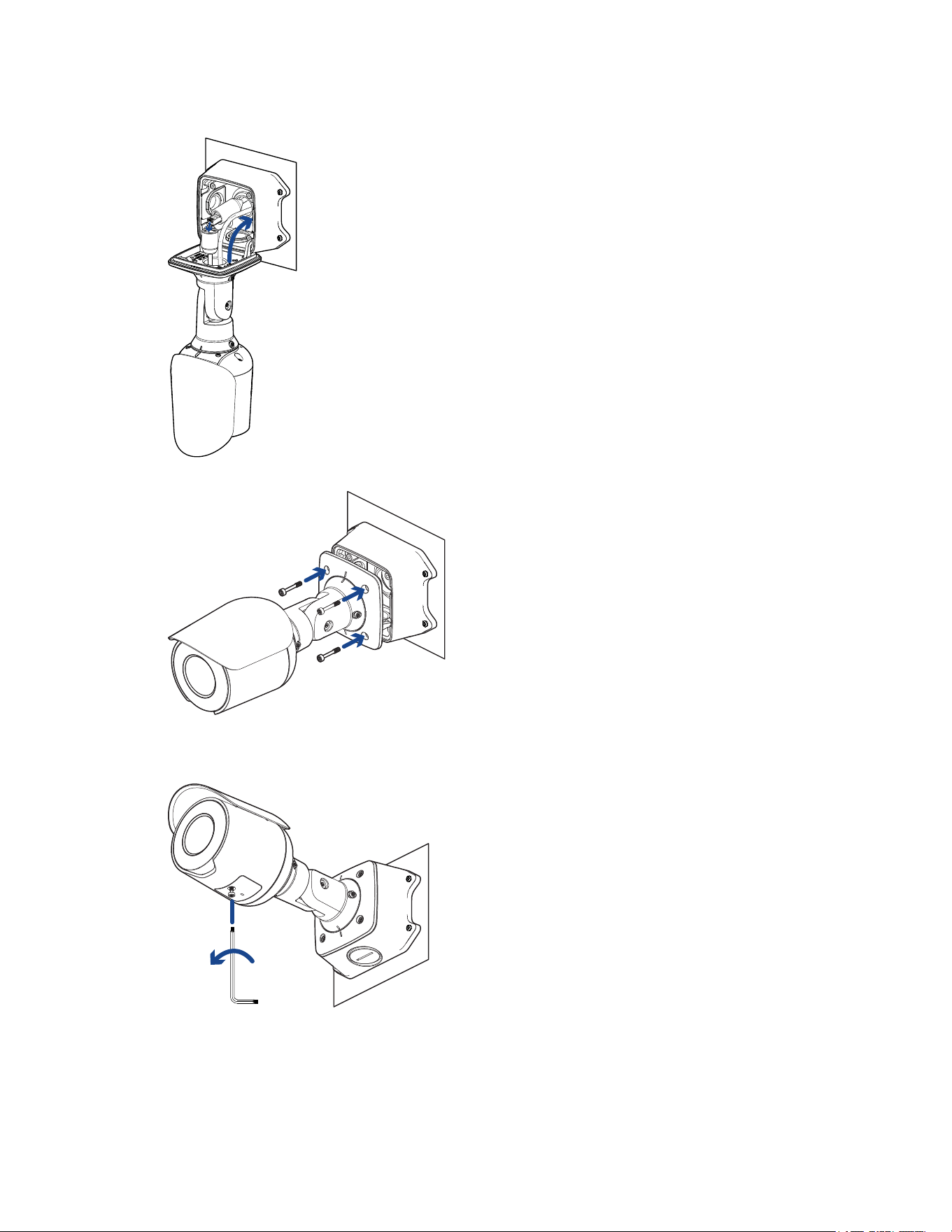

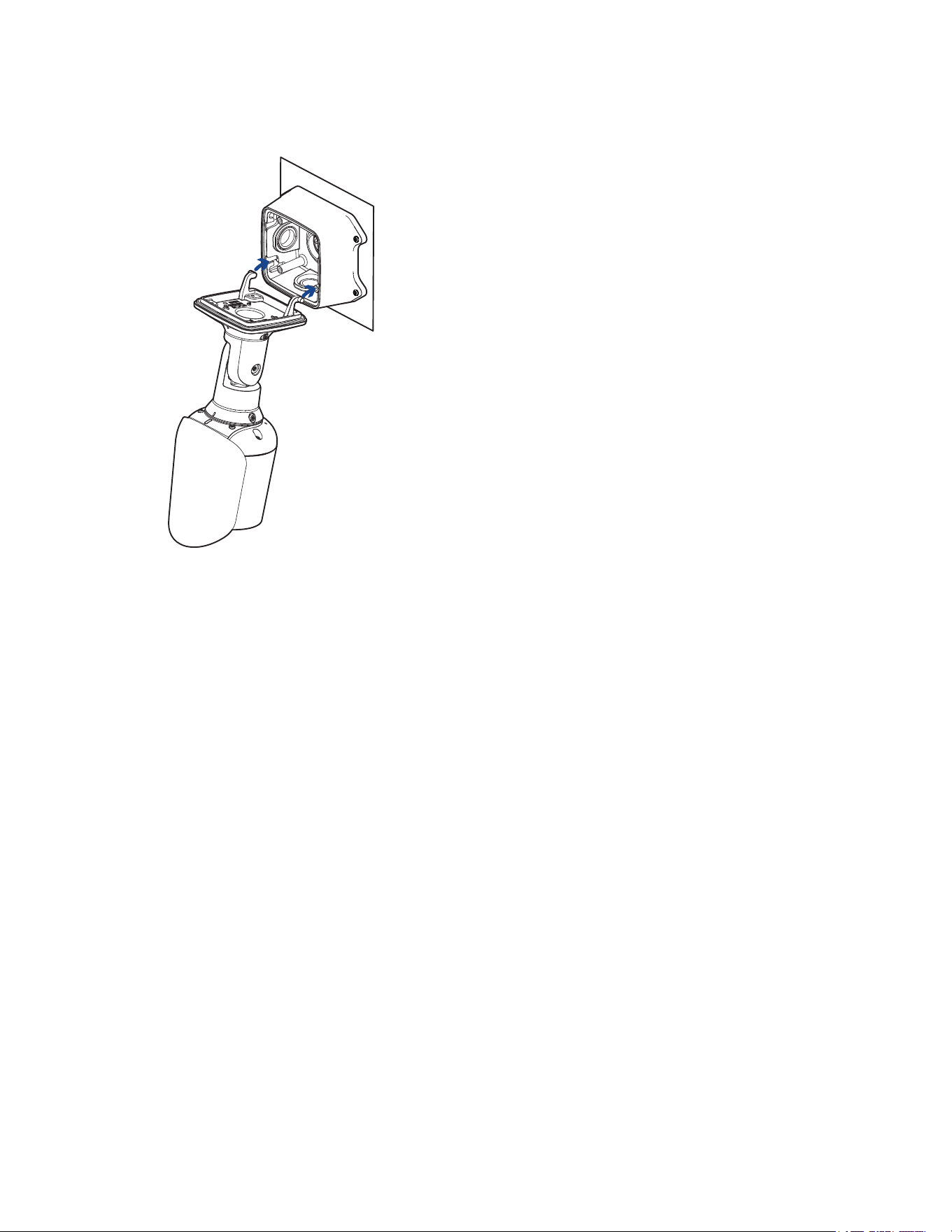

4. Insertthemountinghooksontherearofthecameraintothemountinghookslotsonthejunction

box,thenletthecamerahang.

Beforeconnectinganycables,ensurethatthecableconnectionsareproperlyprotectedfrom

moistureandcorrosion.MakesuretheprotectivecablebootisinstalledovertheEthernetportto

protecttheconnectionfromdustandmoisture.

IfPoEisnotavailable,thecameramaybepoweredthroughtheauxiliarypowercableusingeither

12VDC.Formoreinformation,seeConnecting to Power and External Devices.

5. Ifthereareexternalinputoroutputdevicesthatneedtobeconnectedtothecamera(forexample:

doorcontacts,relays,etc.),connectthedevicestothecamera'sdigitalI/Oconnectorcables.For

moreinformationseeConnecting to Power and External Devices.

ItisrecommendedthatsealtapebeappliedaroundtheexternalaudioandI/Oconnection,if

necessary,topreventmoisturefromentering.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

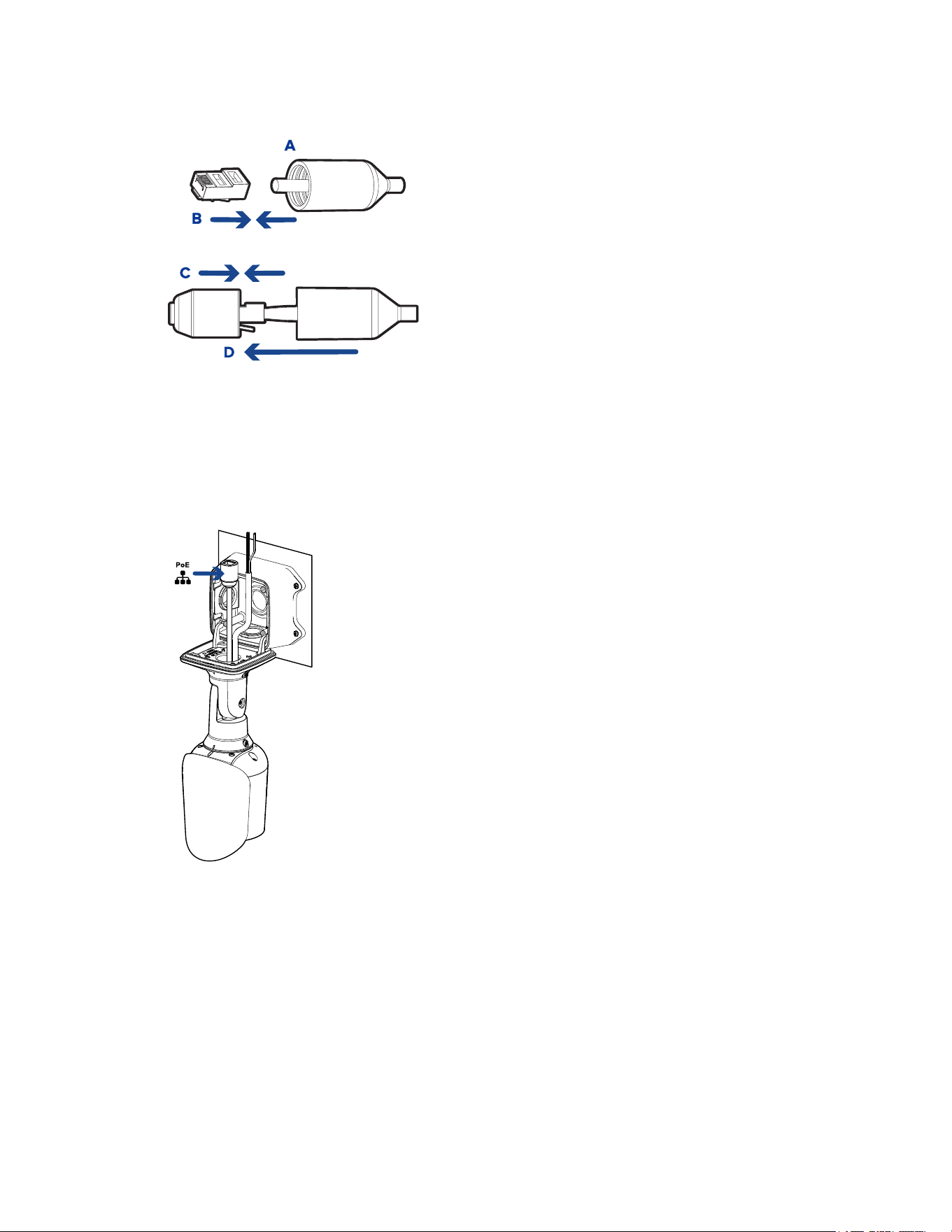

6. Installtheprotectivecableboot.

a. ThreadoneendoftheEthernetcablethroughtheprovidedprotectivecableboot.

Ensuretheorientationofthecableandbootmatchestheoneshownintheimage.

b. CrimptheEthernetcableontothecord.

c. PlugtheEthernetcableintothecamera'sEthernetport.

d. Afteryouconnectthecabletothecamera,slidethebootovertheEthernetport.

7. Connectthenetworkcabletothecamera'sEthernetport.

8. Tucktheextralengthsofcablesintothecableentryholeorwithinthejunctionboxcompartment.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

9. Raisethecamerauntilitcoversthejunctionbox.

10. Usethecameramountingscrewstofastenthecameratothejunctionbox.

Removing the Configuration Panel Cover

1. UseaT20Pin-Instar-shapeddrivertounscrewtheconfigurationpanelcover.

2. Removethecoverfromtheconfigurationpanel.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Initializing a Camera Username and Password

Youmustcreateauserwithadministratorprivilegesbeforethecameraisoperational.

Thenewusercanbecreatedusingthefollowingmethods:

l

Camera'swebinterface.Enterthecamera'sIPaddressinawebbrowsertoaccesstheweb

interface.Formoreinformation,seethePelcoSarixProfessional4BulletCameraOperations

Manual.Ifthecameraisinthefactorydefaultstate,youwillberedirectedtotheNewUserpageto

createanadministratoruser:

1. EnteranewUserNameorkeepthedefaultadministratorname.

2. EnteranewPasswordfortheuser.Itisrecommendedtouseasecureandcomplex

password.

3. Confirmthenewpassword.

4. Forthefirstuser,AdministratormustbeselectedintheSecurityGroupdrop-downmenu.

5. ClickApply.Aftercreatingtheuser,youwillbeaskedtologin.

l

CameraConfigurationTool:discoveredcamerasthatareidentifiedby willrequireafirstuserto

beset.SelecttheAdminUserstabtocreatethefirstuser.Formoreinformation,seetheCamera

Configuration Tool User Guide.

Note:Setupthefirstuserthroughthecamera'sWebInterfaceorCameraConfigurationTool

beforeyouconnectthecameratoaVMS.

(Optional) Using the USB Wi-Fi Adapter

IfyouhaveaUSBWi-FiAdapter(USB-AC56-**-MSI),attachittothecamera'smicroUSBporttoaccess

thecamera'smobilewebinterface.

AfteryouconnecttotheWi-Fisignalbroadcastbytheadapter,youcanaccessthemobilewebinterface

fromanymobiledeviceusingthefollowingaddress:

http://camera.lan

Formoreinformationaboutconfiguringthecamerafromthemobilewebinterfacesee USB Wi-Fi

Adapter System User Guide.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Thecamerawillreservethe10.11.22.32/28subnetforinternalusewhiletheUSBWi-FiAdapteris

pluggedin.

Assigning an IP Address

ThedeviceautomaticallyobtainsanIPaddresswhenitisconnectedtoanetwork.

IfthedevicecannotobtainanIPaddressfromaDHCPserver,itwilluseZeroConfigurationNetworking

(Zeroconf)tochooseanIPaddress.WhensetusingZeroconf,theIPaddressisinthe169.254.0.0/16

subnet.

TheIPaddresssettingscanbechangedusingoneofthefollowingmethods:

l

ThemobilewebinterfaceusingtheUSBWifiAdapter.Formoreinformation,see(Optional) Using

the USB Wi-Fi Adapter.

l

Device'swebbrowserinterface:http://<camera IP address>/.

l

NetworkVideoManagementsoftwareapplication.

l

ARP/Pingmethod.Formoreinformation,seeSetting the IP Address Using the ARP/Ping Method.

Setting the IP Address Using the ARP/Ping Method

CompletethefollowingstepstoconfigurethecameratouseaspecificIPaddress:

Note:TheARP/PingMethodwillnotworkiftheDisable setting static IP address through

ARP/Ping methodcheckboxisselectedinthecamera'swebbrowserinterface.Formore

information,seethePelcoSarixProfessional4BulletCameraOperationsManual.

1. LocateandmakenoteoftheMACAddress(MAC)listedontheSerialNumberTagforreference.

2. OpenaCommandPromptwindowandenterthefollowingcommands:

a. arp -s <New Camera IP Address> <Camera MAC Address>

Forexample:arp -s 192.168.1.10 00-18-85-12-45-78

b. ping -l 123 -t <New Camera IP Address>

Forexample:ping -l 123 -t 192.168.1.10

3. Rebootthecamera.

4. ClosetheCommandPromptwindowwhenyouseethefollowingmessage:

Reply from <New Camera IP Address>: ...

Accessing the Live Video Stream

Livevideostreamcanbeviewedusingoneofthefollowingmethods:

l

ThemobilewebinterfaceusingtheUSBWifiAdapter.Formoreinformation,see(Optional) Using

the USB Wi-Fi Adapter.

l

Webbrowserinterface:http://< camera IP address>/.

l

NetworkVideoManagementsoftwareapplication.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Aiming the Camera

Referencethecamera'slivestreamasyouaimthecamera.

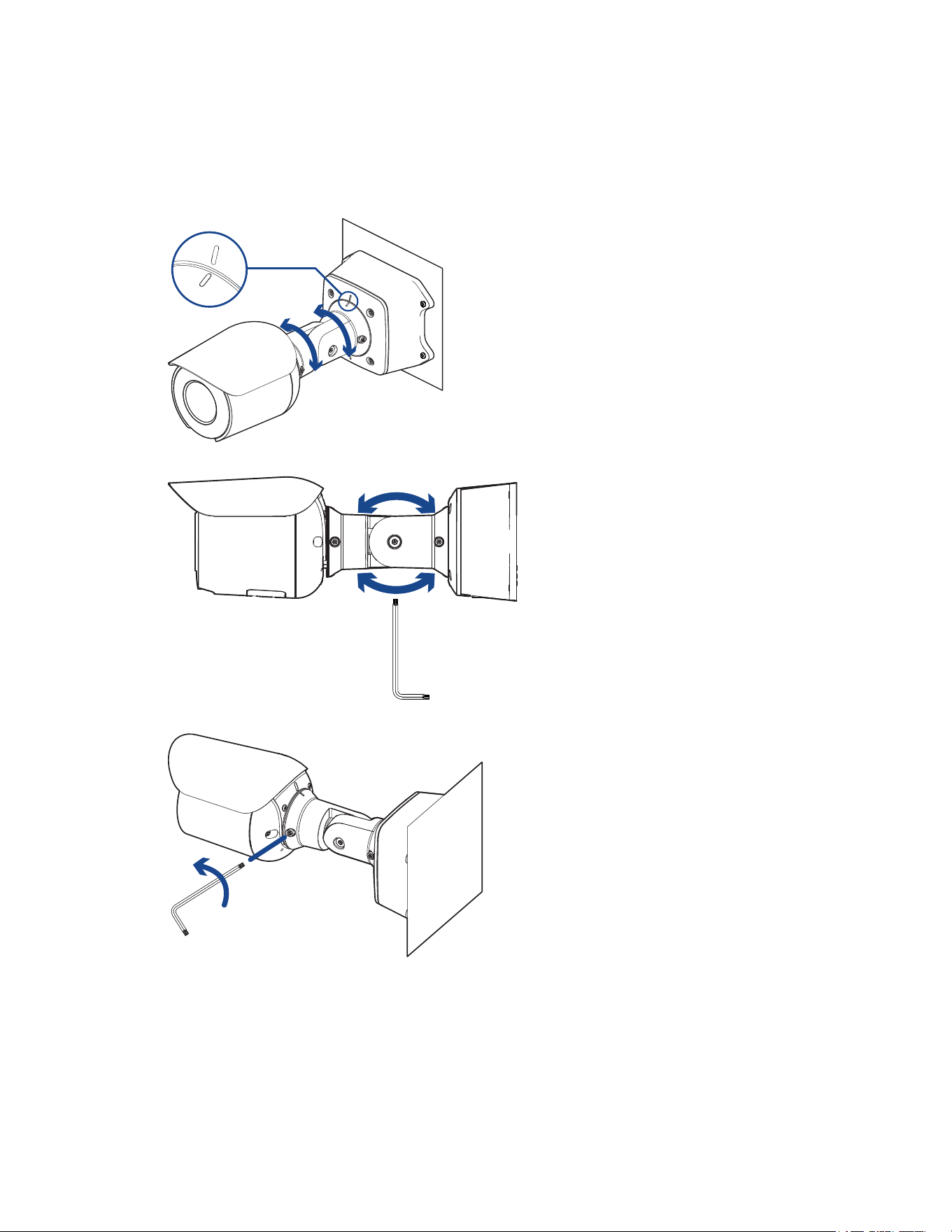

1. Loosentheadjustmentscrewclosesttothejunctionboxtorotatethecameraarm.

2. Loosenthecenteradjustmentscrewtotiltthecamera.

3. Loosentheadjustmentscrewonthecameratoturnthecamerabody.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

4. Ifthecameraisturnedsidewaystolookverticallyatascene,youcanremovethesunshroudthen

re-installittocoverthecamera'snewangleofview.

Zooming and Focusing the Camera

l

Inthecamerawebbrowserinterface,usethecamera’sImageandDisplaysettingstozoomand

focusthecamera.

a. Usethezoombuttonstozoomthecamerainorout.

b. ClickAuto Focustofocusthelens.

c. Usethefocusnearandfarbuttonstomanuallyadjustthefocus.

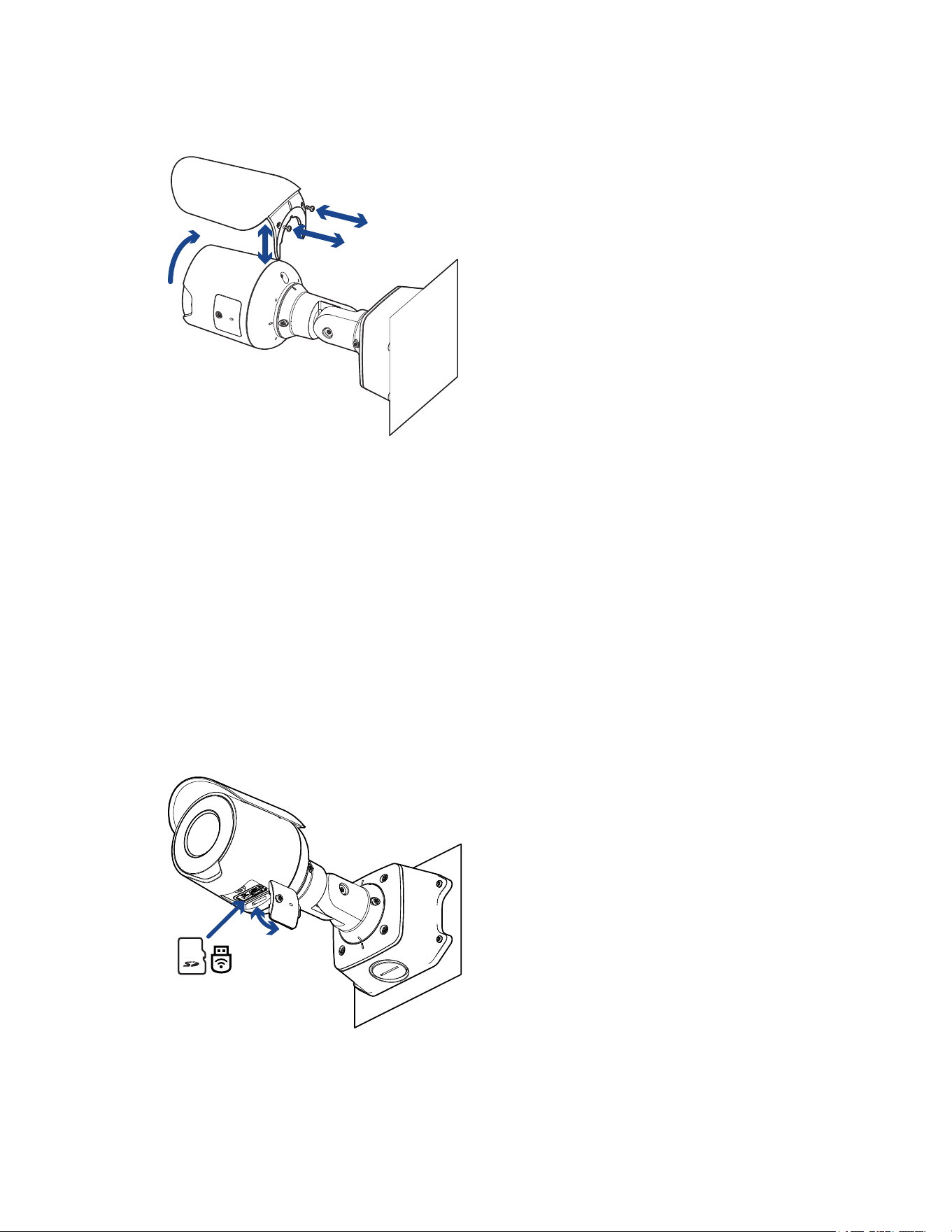

(Optional) Configuring microSD Card Storage

Tousethecamera'sSDcardstoragefeature,youmustinsertamicroSDcardintothecardslot.

ItisrecommendedthatthemicroSDcardhaveawritespeedofclass10orbetter.IfthemicroSDcard

doesnotmeettherecommendedwritespeed,therecordingperformancemaysufferandresultinthe

lossofframesorfootage.

1. InsertamicroSDcardintothecamera.DonotforcethemicroSDcardintothecameraoryoumay

damagethecardandthecamera.

2. Accessthecamera’swebinterfacetoenabletheonboardstoragefeature.Formoreinformation,

seethePelcoSarixProfessional4BulletCameraOperationsManual.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Configuring the Camera

Afterthecameraisinstalled,configureitusingtheinstructionsinthecurrentversionofthePelcoSarix

Professional4BulletCameraOperationsManual.

Connecting to Power and External Devices

IfPoEisnotavailable,thecameramaybepoweredthroughtheauxiliarypowercableusingeither

12VDC.Thepowerconsumptioninformationislistedintheproductspecifications.

Topowerthecamera,connectthetwopowerwirestotheauxiliarypowerwires.Theauxiliarypowerwire

isdistinguishedbyitsthickerwiregaugeandAUX PWRlabel.Theconnectioncanbemadewitheither

polarity.

ThisproductisintendedtobesuppliedbyaULListedPowerUnitmarked“Class2”or“LPS”or

“LimitedPowerSource”withoutputrated12VDC,13Wmin.orPoweroverEthernet(PoE),

rated48VDC,13Wmin.

Toavoiddamagingthecamera,doNOTconnectauxiliarypowertotheaudioorI/Oterminal

block,anddoNOTinstalltheMicrophoneaccessoryandanexternalaudioinputdevice

simultaneously.

PowersuppliesandexternaldevicesareconnectedtothecamerathroughthepowerandI/Owires.

ForthelocationsofthepowerandI/Oconnectorblocks,seeOverview.

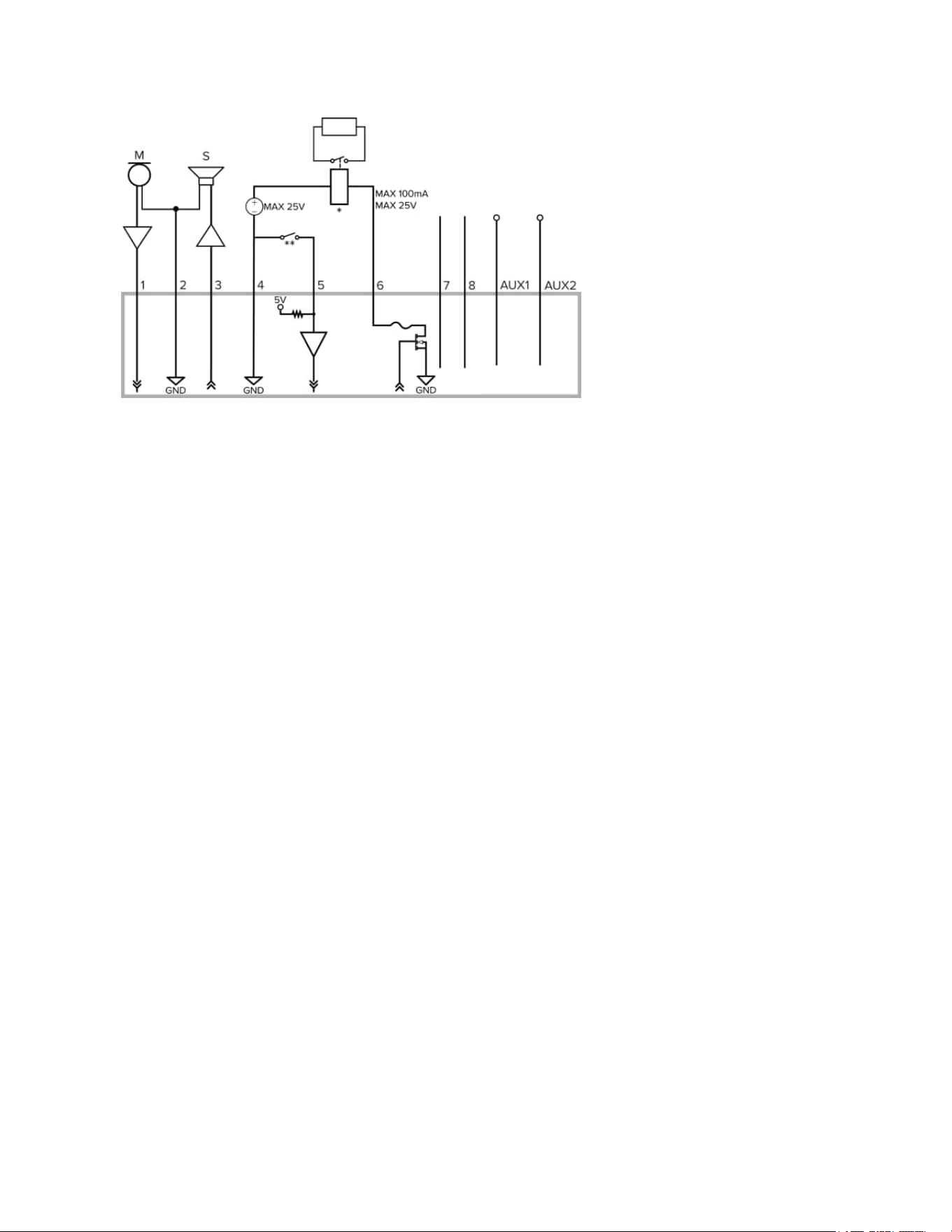

ThepinoutfortheI/Oandpowerwiresisshowninthediagramonthefollowingpage.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Exampleapplication.

1. Brown—AudioInput(linelevel)

Anexternalpoweramplifiershouldbeusedwhenconnectingspeakersandmicrophones,as

showninthediagram.

2. Yellow—AudioGround

3. Green—AudioOutput(linelevel)

4. Grey—Ground

5. Red—DigitalInput

6. Pink—DigitalOutput

7. Purple—ReservedWire,donotconnect.

8. White—ReservedWire,donotconnect.

l

*—Relay

l

**—Switch

l

M—Microphone

l

S—Speaker

l

AUX1—AuxiliaryPowerWire,labeledAUX PWR

l

AUX2—AuxiliaryPowerWire

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Connection Status LED Indicator

Onceconnectedtothenetwork,thegreenConnectionStatusLEDindicatorwilldisplaytheprogressin

connectingtotheNetworkVideoManagementsoftware.

ThefollowingtabledescribeswhattheLEDindicatorshows:

Connection State Connection

Status LED

Indicator

Description

Obtaining

IPAddress

Oneshortflash

everysecond

AttemptingtoobtainanIPaddress.

Discoverable Twoshortflashes

everysecond

ObtainedanIPaddressbutnotconnectedtothe

NetworkVideoManagementsoftware.

Upgrading

Firmware

Twoshortflashes

andonelongflash

everysecond

Updatingthefirmware.

Connected On ConnectedtotheNetworkVideoManagementsoftware.

ThedefaultconnectedsettingcanbechangedtoOffusing

thecamera'swebuserinterface.Formoreinformation,see

thePelcoSarixProfessional4BulletCameraOperations

Manual.

Troubleshooting Network Connections and LED Behavior

ForanyofthebelowLEDbehaviors,ensurethatthecameraisgettingpowerandisusingagood

networkcablebeforetryinganothersolution.

LED Behavior Suggested Solution

GreenLEDisoffandamberison Performafactoryresetofthecamerausingthephysical

firmwarerevertbutton.Resettingthroughthecamera'sweb

interfacewillnotproducethedesiredresult.

BothLEDsareoffandthecameraisnot

connectedorstreamingvideo

ChecktheGeneralsetuppageinthecamera'swebinterface

toensuretheLEDsarenotdisabled.

IftheLEDsarenotdisabled,performafactoryresetofthe

camerausingthephysicalfirmwarerevertbutton.Resetting

throughthecamera'swebinterfacewillnotproducethe

desiredresult.

BothLEDsareblinkingseveraltimesat

thesametime,thenpauseandrepeat

theblinking

Performafactoryresetofthecamerausingthephysical

firmwarerevertbutton.Resettingthroughthecamera'sweb

interfacewillnotproducethedesiredresult.

AdifferentLEDblinkingpatternthan

thosedescribedabove

Performafactoryresetofthecamerausingthephysical

firmwarerevertbutton.Resettingthroughthecamera'sweb

interfacewillnotproducethedesiredresult.

Sarix Professional 4 Bullet Camera Installation Manual

C6726M | 11/22

Resetting to Factory Default Settings

Ifthedevicenolongerfunctionsasexpected,youcanchoosetoresetthedevicetoitsfactorydefault

settings.

Usethefirmwarerevertbuttontoresetthedevice.Thefirmwarerevertbuttonisshowninthefollowing

diagram:

ThefirmwarerevertbuttonintheConfigurationPanel.

1. Ensurethedeviceispoweredon.

2. Usingastraightenedpapercliporsimilartool,gentlypressandholdthefirmwarerevertbutton.

3. Releasethebuttonafterthreeseconds.

Donotapplyexcessiveforce.Insertingthetooltoofarmaydamagethecamera.

For More Information

Additionalinformationaboutsettingupandusingthedeviceisavailableinthefollowingguides:

l

PelcoSarixProfessional4BulletCameraOperationsManualavailableonthePelcowebsite:

www.pelco.com.

l

Camera Configuration Tool User Guide

Pelco Troubleshooting Contact Information

Forfurtherassistance,contactPelcoProductSupportat1-800-289-9100(USAandCanada)or+1-559-

292-1981(international).

Donottrytorepairtheunityourself.Leavemaintenanceandrepairstoqualifiedtechnicalpersonnel

only.

Sarix Professional 4 Bullet Camera Installation Manual

Pelco, Inc.

625 W. Alluvial Ave., Fresno, California 93711 United States

(800) 289-9100 Tel

(800) 289-9150 Fax

+1 (559) 292-1981 International Tel

+1 (559) 348-1120 International Fax

www.pelco.com

Pelco, the Pelco logo, and other trademarks associated with Pelco products referred to in this publication are trademarks of Pelco,

Inc. or its affiliates. ONVIF and the ONVIF logo are trademarks of ONVIF Inc. All other product names and services are the property of

their respective companies. Product specifications and availability are subject to change without notice.



Pelco SRXP4-2V10-EBT-IR 2MP 3.4-10.5mm IR Bullet Camera

Product's Documents

Pelco Sarix Pro 4 Bullet Installation User Manual

Specifications

Pelco SRXP4-2V10-EBT-IR Questions and Answers
